Introduction
1. Introduction

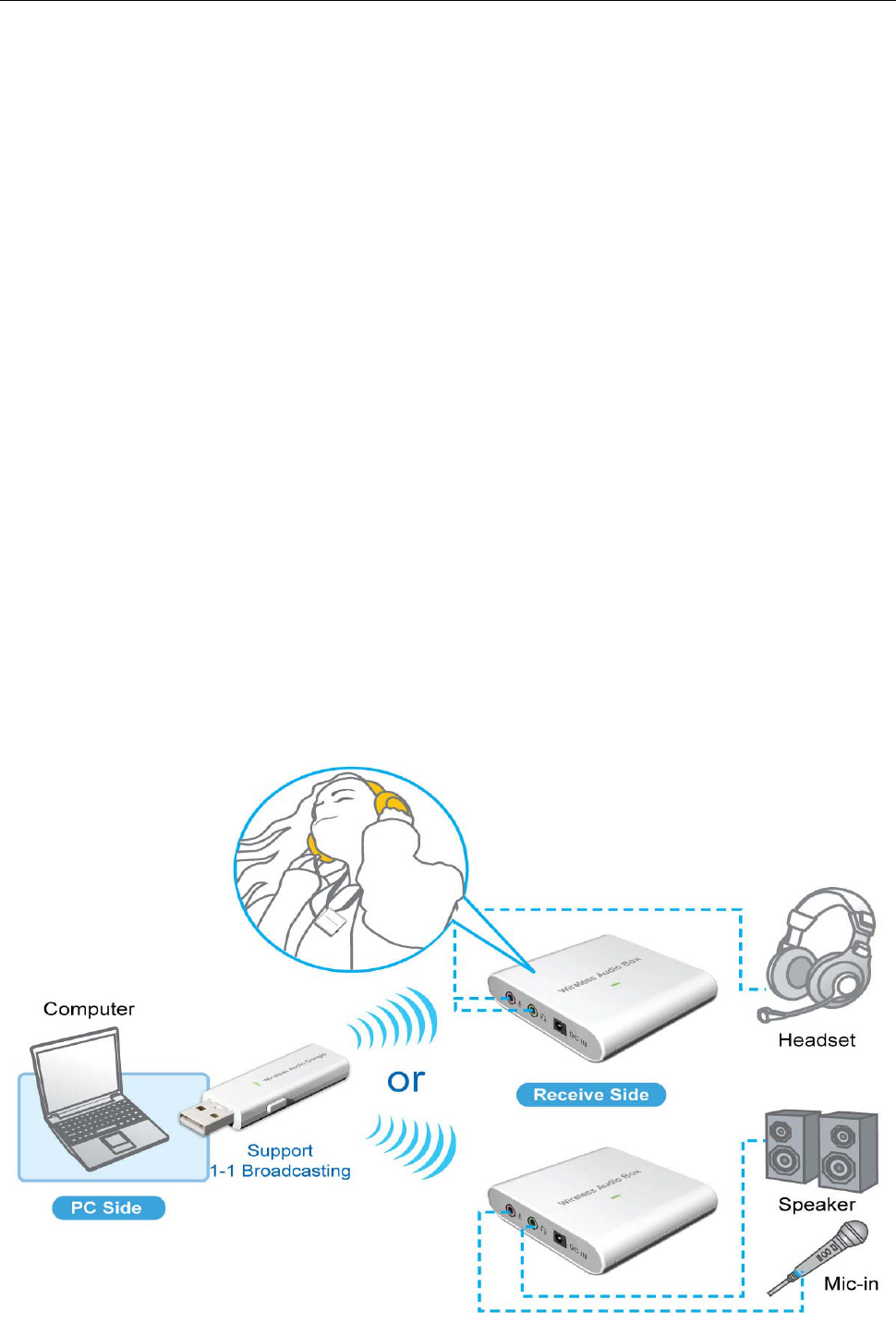

This Wireless Audio / Mic Adapter enables you to not only transmit audio from your
PC or Notebook one side to the other side wirelessly but also transmit your voice
back from the other side to PC or Notebook side in the same room. Without messy
wires, just connect USB audio dongle to your PC or Notebook and connect wireless
audio box to your stereo’s speaker or microphone speak, you will enjoy the good
quality of the sounds.
You can also use the mobile strap to hang up the wireless audio box. The audio box
can be taken as a MP3 player for personal enjoyment or as a VoIP soft-phone
application. It’s a more flexible for users since they don’t need to worry about the
distance limitation.
This Wireless Audio / Mic Adapter adopt the RF 2.4G wireless solutions and bundled
with USB transmitter dongle and receiver box. The transmitter distance can be
extended up to 10 meters. It is also compatible with Windows®2000, XP SP2, Vista™
32/64-bit, Windows® 7 and Mac OS X v10.x or later operation system.
1
Wireless Audio / Mic Adapter User’s Manual
Features
No more wires, and less cable clutter
Proprietary 2.4GHz Wireless solution
Easy system expansion with stereo sound support
Hands-free communication.
Plug and play, quick and convenient use, no driver / software installation.
Low power consumption / Low audio noise
Support 1-1 Broadcasting
Volume controlled through your computer or manually on the adapter
Package Contents
Wireless Audio Dongle x1
Wireless Audio Box x1
User’s Manual x1
AAA Battery x1
Mobile Strap x1
Power Adapter (Optional) x1
System Requirements
The minimum requirements for the PC are:
Intel Pentium III or AMD K6 500 CPU above
At least 128MB RAM
At least 50 MB hard disk space
PC or Mac with one USB port
With one of the following operating systems：
Windows 2000, XP , Vista and Windows 7,
Mac OS X v10.x or later
2
2. Using the Adapter
2. Using the Adapter

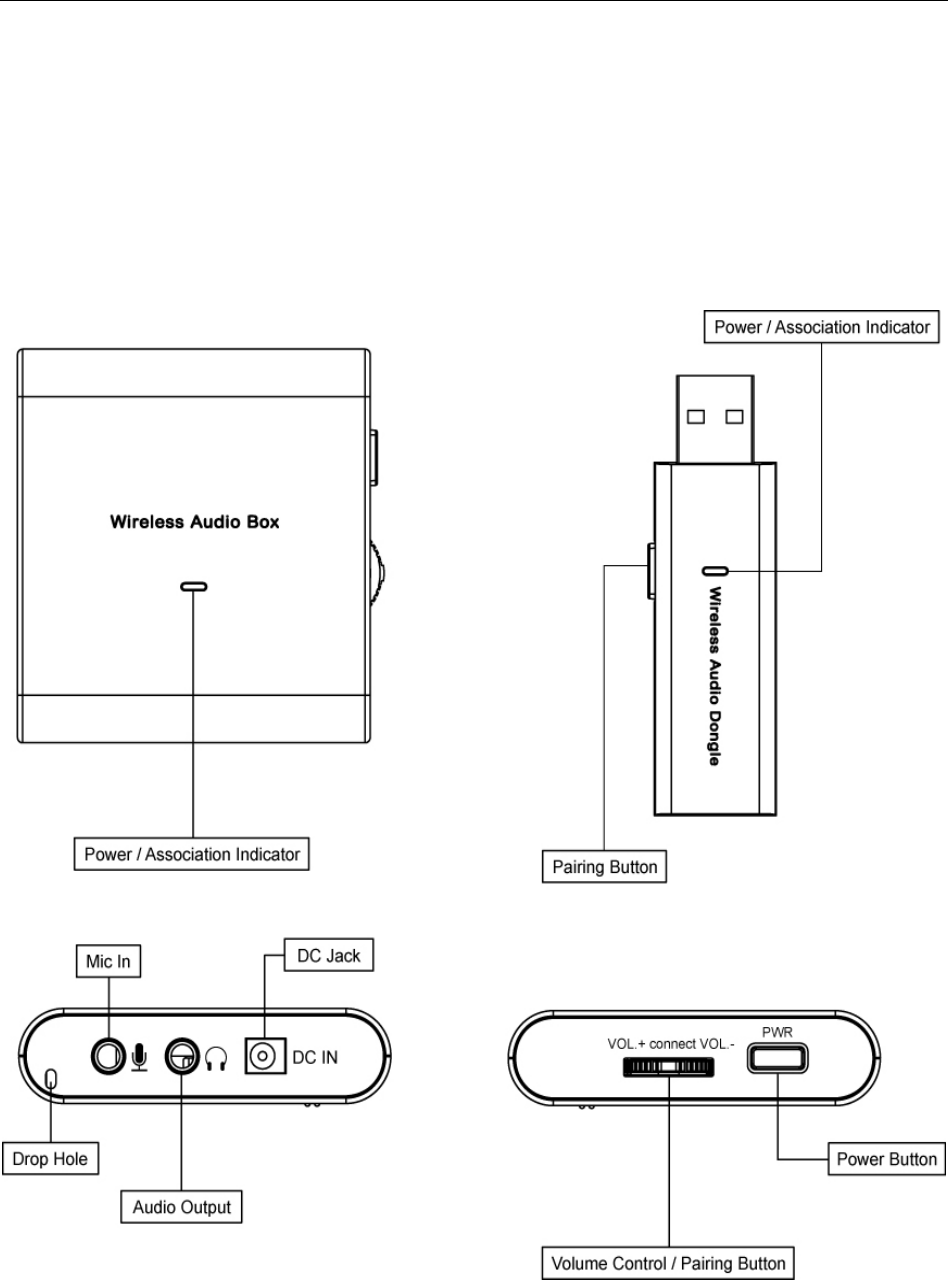

Hardware Connection
3
Wireless Audio / Mic Adapter User’s Manual
How to Use Your Wireless Audio / Mic Adapter
Caution: DO NOT powered on the wireless audio box alone with battery insert and power
adapter connected at the same time to avoid uncessery dangerous.
No external driver installed under OS support of Win 2000, XP, Vista, Win 7and Mac.
Please follow the steps as below and complete the association process between Wireless
Audio Dongle and Wireless Audio Box.
1. Plug the Wireless Audio Dongle into the USB port of PC or Mac, and you may find the
LED start blinking for powered on indicator.
2. Powered on the Wireless Audio Box with battery insert or power adapter connected
first, and then press the Wireless Audio Box PWR button over 3 seconds until the
Wireless Audio Box LED start blinking for powered on indicator.
3. Please plug headphone or speaker into audio output before pairing. Press the Wireless
Audio Dongle pairing bottom over 3 seconds first and then press the Wireless Audio
Box Volume bottom over 3 seconds until you heard the beep sound form headphone
or speaker to indictor the association successfully.
4. Now the association has been successfully, and you may start to use your Wireless
Audio/ Mic Adapter.
Note：
The Wireless Audio Box will be automatically entry the power saving mode when no audio
single receive after five minutes about, please re-push the PWR button for power on and
keep use the Wireless Audio / Mic Adapter.
4
3. Specifications
3. Specifications
Item Description
USB RF Dongle USB Type A Male
Audio Output 3.5mm Stereo Audio Jack Female
Audio Input 3.5mm Stereo Audio Jack Female
Interface
Power DC Power Jack
RF Band 2.4 GHz
RF data rate Up to 2 Mbps , GFSK modulation
Audio Output 2 channel Line Out
Microphone Input 1 channel Line In
Audio Sample rate 32KHz with 16-bit downstream; 16KHz with 16-bit upstream
USB 1.1 full speed specification as transfer rate to 1.5 / 12 Mbps
Audio Compliance Supports LPCM and Compressed format 16-bit 2-channels
Wireless Audio Dongle Bus-powered
Power Adapter Input：AC 100-240V ; Output : DC 5V /1A
Power Mode Wireless Audio Box
Battery AAA 1.5V battery x 1
Wireless Audio Dongle 40mA
Power Adapter 0.225 W
Power
consumption Wireless Audio Box Battery 0.15 W
Green LED Blinking when powered on, lights up when data transfer
between wireless audio dongle and wireless audio box.
LED Orange LED Lights up when Mic function is been used.
Operational
Range Up to 10 meters
Windows 2000, XP SP2 , Vista 32/64-bit and Windows 7
Operation System
Support Mac OS X v10.x or later
Operating Temperature 10~40 degrees (Celsius)
Storage Temperature 0~70 degrees (Celsius)
Working
Environment Humidity 0~80%
Wireless Audio Dongle 65 (L) x 20 (W) x 10 (H) (mm)
Dimension Wireless Audio Box 58 (L) x 55 (W) x 14.4 (H) (mm)
Housing Plastic ABS
* Specifications are subject to change without notice.
5
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
CAUTION: Change or modification not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the equipment.
RF exposure warning
This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter. End-users and
installers must be provide with antenna installation instructions and transmitter
operating conditions for satisfying RF exposure compliance."
