Goodman Manufacturing Company, L.P.

5151 San Felipe, Suite 500, Houston, TX 77056

www.goodmanmfg.com

CUS

ATUF/ARUF/ARPF/ADPF/ASPF

IO-355E

08/10

RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION.

ATTENTION INSTALLING PERSONNEL

Prior to installation, thoroughly familiarize yourself with this Installation Manual. Observe all safety warnings.

During installation or repair, caution is to be observed.

It is your responsibility to install the product safely and to educate the customer on its safe use.

AIR HANDLERS

INSTALLATION & OPERATING INSTRUCTIONS

NOTE: ATUF models are suitable for Upflow and Horizontal Installations only.

Do not use for Downflow Installations

Important Safety Instructions

The following symbols and labels are used throughout this

manual to indicate immediate or potential safety hazards. It

is the owner’s and installer’s responsibility to read and com-

ply with all safety information and instructions accompanying

these symbols. Failure to heed safety information increases

the risk of personal injury, property damage, and/or product

damage.

HIGH VOLTAGE!

Failure to do so may cause property damage,

personal injury or death.

Disconnect ALL power before servicing.

Multiple power sources may be present.

Installation and repair of this unit should be performed

by individuals meeting the requirements of an

“entry level technician” as specified by

the Air-Conditioning, Heating and Refrigeration Institute

(AHRI). Attempting to install or repair this unit without

such background may result in product damage,

personal injury or death.

ONLY , at a minimum,

This product is factory-shipped for use with

208/240/1/60 electrical power supply.

reconfigure this air handler to operate with any other

power supply.

DO NOT

CONTENTS

To avoid property damage, personal injury or death

due to electrical shock, this unit MUST have an

electrical ground. The

electrical ground circuit may consist of an

appropriately sized electrical wire connecting the

ground lug in the unit control box to the building

electrical service panel.

Other methods of grounding are permitted if performed

in accordance with the National Electric Code

(NEC)/American National Standards Institute

(ANSI)/National Fire Protection Association (NFPA) 70

and local/state codes. In Canada, electrical grounding

is to be in accordance with the Canadian Electric Code

(CSA) C22.1.

uninterrupted, unbroken

When installing or servicing this equipment, safety

clothing, including hand and eye protection, is

strongly recommended. If installing in an area that has

special safety requirements (hard hats, etc.), Observe

these requirements.

Do not connect to or use any device that is not design-

certified by Goodman for use with this unit. Serious

property damage, personal injury, reduced unit

performance and/or hazardous conditions may result

from the use of such non-approved devices.

Important Safety Instructions............................................. 2

Important Note to Owner Regarding Product Warranty ..... 3

Shipping Inspection ........................................................... 3

Codes & Regulations ........................................................ 3

Replacement Parts............................................................ 3

Pre-Installation Instructions ............................................... 3

Location............................................................................. 4

Ductwork ........................................................................... 4

Return Ductwork ............................................................... 4

Return Air Filters ............................................................... 4

Electric Heat ...................................................................... 4

HKR Installation................................................................. 4

Electrical Supply Wire and MOP ....................................... 4

Building Electrical Service Inspection ............................... 5

Wire Sizing ........................................................................ 5

Maximum Overcurrent Protection (MOP) .......................... 6

Electrical Connections – Supply Voltage........................... 6

Air Handler Only (Non-Heat Kit Models)....................... 6

Air Handler With Non-Circuit Breaker Heat Kits ........... 6

Air Handler With Heat Kits

Containing a Circuit Breaker......................................... 6

Low Voltage Connections ............................................. 6

Refrigerant Lines ............................................................... 6

Tubing Preparation ............................................................ 6

Post Brazing...................................................................... 6

Piping Size ........................................................................ 6

Special Instructions ........................................................... 6

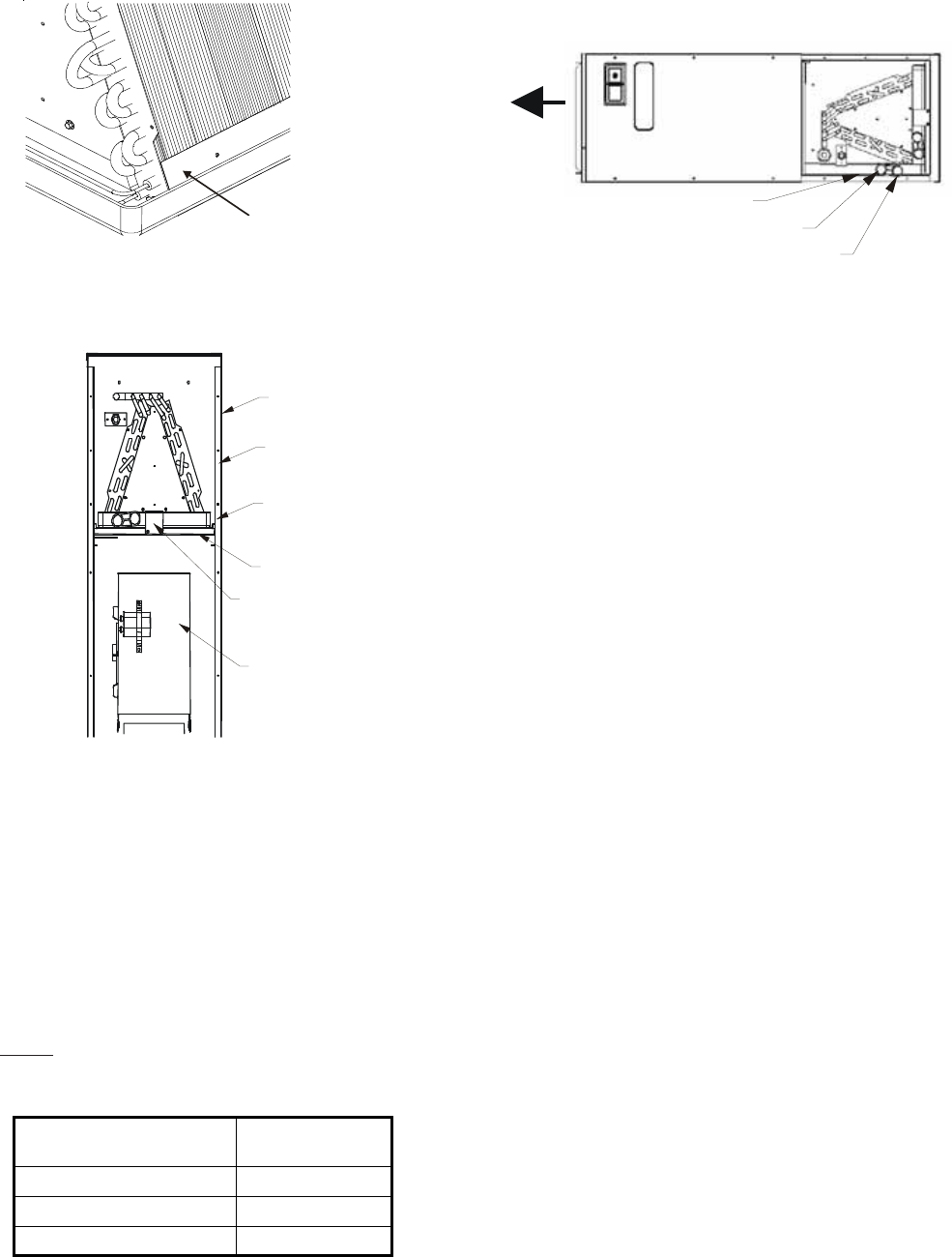

Downflow Conversion ....................................................... 7

Horizontal Conversion ....................................................... 8

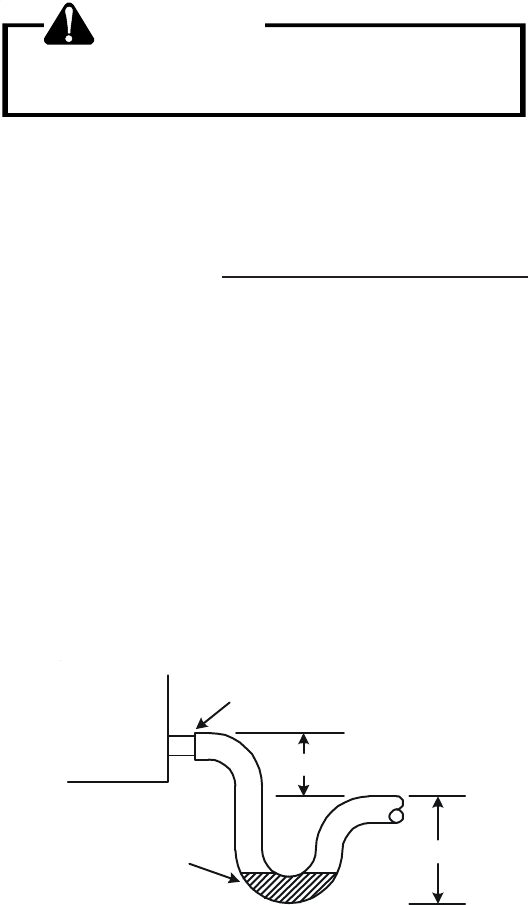

Condensate Removal........................................................ 8

ACHIEVING 2% LOW LEAKAGE RATE ........................... 9

ATUF/ARUF/ARPF/ADPF MOTOR ................................... 9

CFM Delivery .................................................................. 10

ASPF Motor ..................................................................... 10

CFM Delivery .................................................................. 10

Thermostats .................................................................... 10

Start-Up Procedure ..........................................................11

Regular Maintenance .......................................................11

THERMOSTAT WIRING .................................................. 12

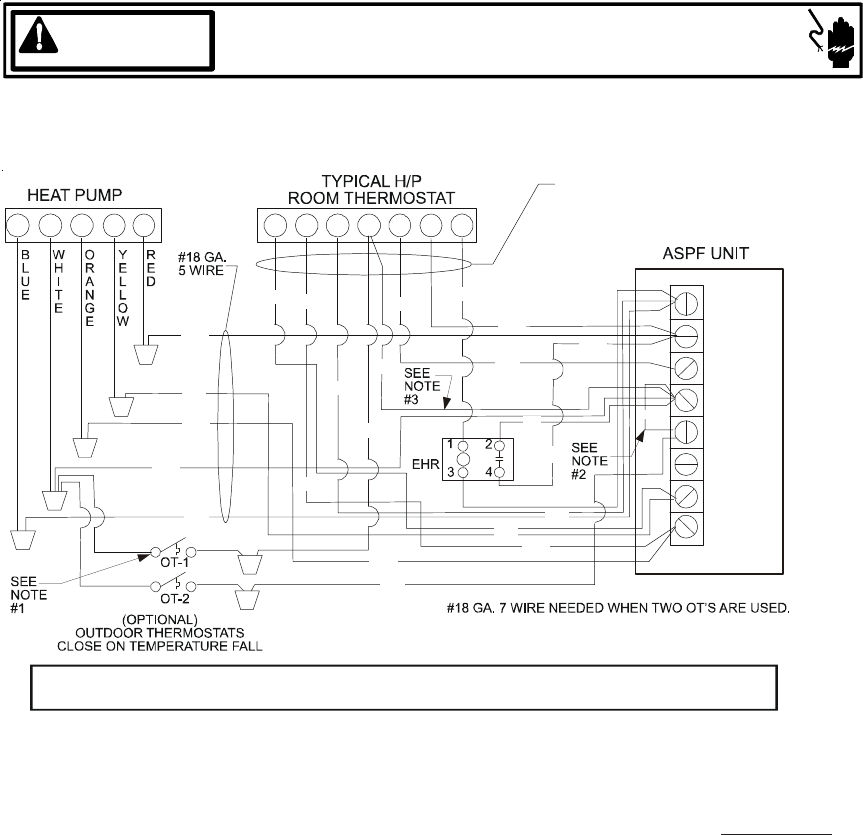

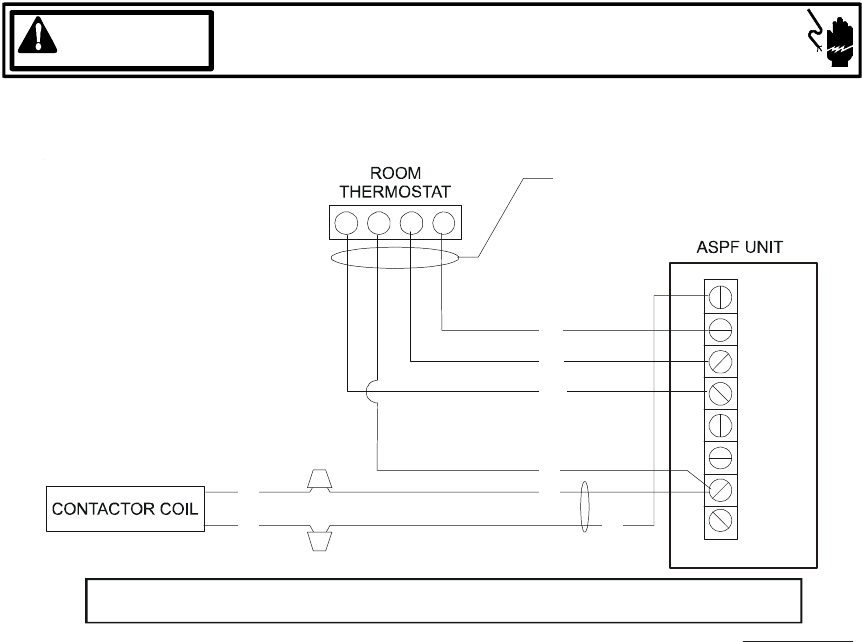

ASPF THERMOSTAT CONNECTIONS........................... 14

COOLING UNIT WITH OPTIONAL HEAT KITS

OF 10kW AND BELOW .............................................. 14

COOLING UNIT WITH OPTIONAL HEAT KITS

OF 15 kW AND ABOVE AND

ROOM THERMOSTAT

WITH TWO STAGES OF HEAT.................................. 15

HEAT PUMP UNIT WITH OPTIONAL

HEAT KITS OF 10kW AND BELOW ........................... 15

HEAT PUMP UNIT WITH OPTIONAL

HEAT KITS OF 15 kW AND ABOVE ........................... 16

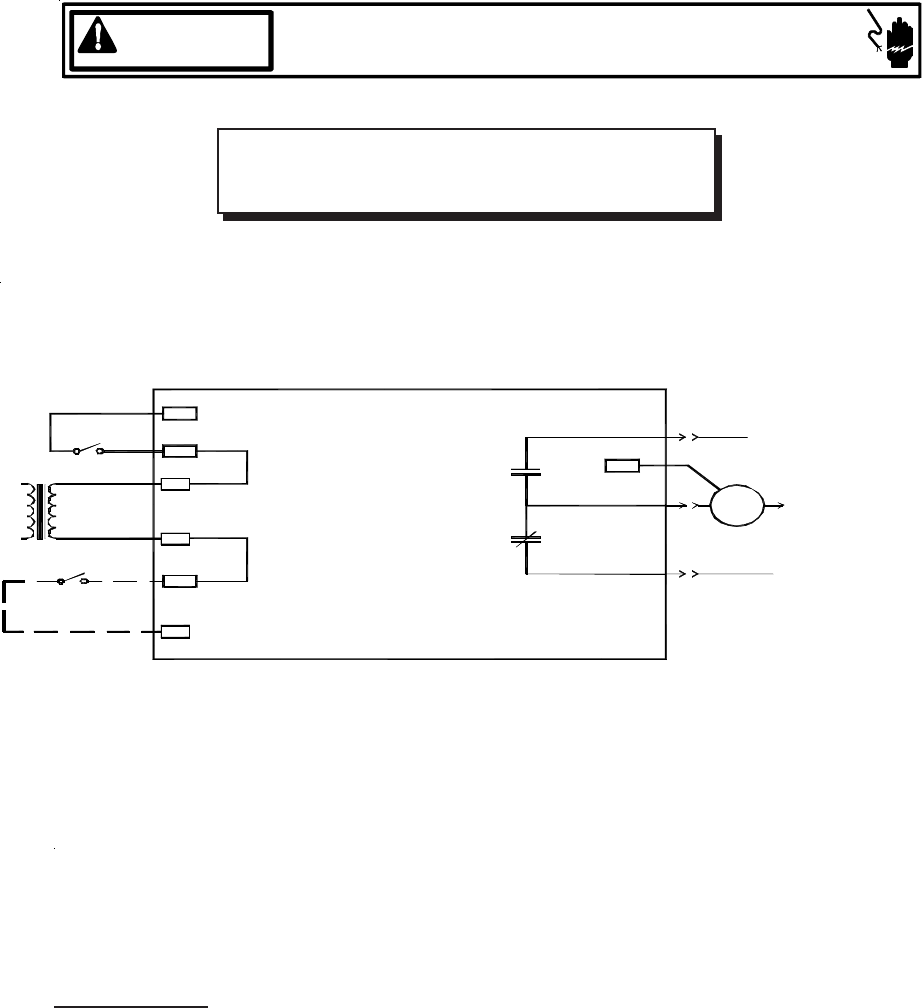

ELECTRONIC BLOWER TIME DELAY RELAY .............. 17

To prevent the risk of property damage, personal

injury, or death, do not store combustible materials or

use gasoline or other flammable liquids or vapors in

the vicinity of this unit.

CARBON MONOXIDE POISONING HAZARD

Special Warning for Installation of Furnace or Air Handling Units in

Enclosed Areas such as Garages, Utility Rooms or Parking Areas

Carbon monoxide producing devices (such as an automobile, space

heater, gas water heater, etc.) should not be operated in enclosed areas

such as unventilated garages, utility rooms or parking areas because of

the danger of carbon monoxide (CO) poisoning resulting from the exhaust

emissions. If a furnace or air handler is installed in an enclosed area such

as a garage, utility room or parking area and a carbon monoxide producing

device is operated therein, there must be adequate, direct outside

ventilation.

This ventilation is necessary to avoid the danger of CO poisoning which

can occur if a carbon monoxide producing device continues to operate in

the enclosed area. Carbon monoxide emissions can be (re)circulated

throughout the structure if the furnace or air handler is operating in any

mode.

CO can cause serious illness including permanent brain damage or death.

B10259-216

Important Note to the Owner regarding Product

Warranty

Your warranty certificate is supplied as a separate document

with the unit installed by your contractor. Read the limited

warranty certificate carefully to determine what is and is not

covered and keep the warranty certificate in a safe place. If

you are unable to locate the warranty certificate please con-

tact your installing contractor or contact customer service

(877-254-4729) to obtain a copy.

To receive the 10 Year Parts Limited Warranty, online regis-

tration must be completed within 60 days of installation.

Online registration is not required in California or Quebec.

To register your Goodman® brand unit, go to

www.goodmanmfg.com. Click on the word “Warranty” lo-

cated on the left side of the home page. Next, click on the

word “Product Registration” located on the left side of the

Warranty page and complete the forms in the manner indi-

cated on the Product Registration page.

To register your Amana® brand unit, go to www.amana-

hac.com. Click on the word “Warranty” located on the top

right of the home page. Next, click on the word “Product

Registration” located on the left side of the Warranty page

and complete the forms in the manner indicated on the Prod-

uct Registration page.

Product limited warranty certificates for models currently in

production can be viewed at www.goodmanmfg.com or

www.amana-hac.com. If your model is not currently in pro-

duction or does not appear on the website, please contact

your installing contractor or contact customer service (877-

254-4729) to obtain a copy of your warranty certificate.

Each product overview page contains a Product Warranty

link; by clicking on it you will be able to view the limited war-

ranty coverage for that specific product. To view warranty

registration information, click on the Product Warranty text

on the left navigation panel on the home page of each web-

site. The Online Product Registration pages are located in

this same section.

Keep this literature in a safe place for future reference.

Shipping Inspection

Always keep the unit upright; laying the unit on its side or top

may cause equipment damage. Shipping damage, and sub-

sequent investigation is the responsibility of the carrier. Verify

the model number, specifications, electrical characteristics,

and accessories are correct prior to installation. The distribu-

tor or manufacturer will not accept claims from dealers for

transportation damage or installation of incorrectly shipped

units.

Codes & Regulations

This product is designed and manufactured to comply with

national codes. Installation in accordance with such codes

and/or prevailing local codes/regulations is the responsibil-

ity of the installer. The manufacturer assumes no responsi-

bility for equipment installed in violation of any codes or regu-

lations.

The United States Environmental Protection Agency

(EPA) has issued various regulations regarding the in-

troduction and disposal of refrigerants. Failure to follow

these regulations may harm the environment and can

lead to the imposition of substantial fines. Should you

have any questions please contact the local office of the EPA.

Replacement Parts

When reporting shortages or damages, or ordering repair

parts, give the complete product model and serial numbers

as stamped on the product. Replacement parts for this prod-

uct are available through your contractor or local distributor.

For the location of your nearest distributor consult the white

business pages, the yellow page section of the local tele-

phone book or contact:

SERVICE PARTS DEPARTMENT

GOODMAN MANUFACTURING COMPANY, L.P.

5151 SAN FELIPE, SUITE 500

HOUSTON, TEXAS 77056

(713) 861 – 2500

If replacing an air handler, the system must be manufacturer

approved and Air-Conditioning, Heating, and Refrigeration

Institute (AHRI) matched. NOTE: Installation of unmatched

systems is strongly discouraged.

Pre-Installation Instructions

Carefully read all instructions for the installation prior to in-

stalling product. Make sure each step or procedure is under-

stood and any special considerations are taken into account

before starting installation. Assemble all tools, hardware

and supplies needed to complete the installation. Some items

may need to be purchased locally. Make sure everything

needed to install the product is on hand before starting.

Location

NOTE: Air handlers are designed for indoor installation

only.

Give special consideration to minimizing the length of refrig-

erant tubing when installing air handlers. Refer to Remote

Cooling/Heat Pump Service Manual, TP-106 Long Line Set

Application R-22 or TP-107 Long Line Set Application R-410A

for guidelines. The unit clearance from a combustible sur-

face may be 0". However, service clearance is to take prece-

dence. In addition allow a minimum of 24" in front of the unit

for service clearance.

Do not install the air handler in a location that violates the

instructions provided with the condenser.

If the unit is located in an area with high ambient temperature

and/or high humidity the air handler maybe subject to nui-

sance sweating of the casing. On these installations a wrap

of 2” fiberglass insulation with a vapor barrier is recom-

mended.

Consult all appropriate regulatory codes prior to determining

final clearances. When installing this unit in an area that may

become wet, elevate the unit with a sturdy, non-porous ma-

terial. In installations that may lead to physical damage (i.e. a

garage) it is advised to install a protective barrier to prevent

such damage.

Ductwork

This air handler is designed for a complete supply and return

ductwork system.

Do not operate this product without all the ductwork

attached.

To ensure correct system performance, the ductwork is to be

sized to accommodate 375-425 CFM per ton of cooling with

the static pressure not to exceed .5" WC. Inadequate duct

work that restricts airflow can result in improper performance

and compressor or heater failure. Ductwork is to be con-

structed in a manner that limits restrictions and maintains

suitable air velocity. Ductwork is to be sealed to the unit in a

manner that will prevent leakage.

Return Ductwork

DO NOT TERMINATE THE RETURN DUCTWORK IN AN

AREA THAT CAN INTRODUCE TOXIC, OR OBJECTION-

ABLE FUMES/ODORS INTO THE DUCTWORK. The return

ductwork is to be introduced into the air handler bottom (upflow

configuration).

Return Air Filters

Each installation must include a return air filter. This filtering

may be performed at the air handler or externally such as a

return air filter grille. Air handlers mounted in the downflow

orientation, including “B” series, require external filtering. A

washable filter is available as an accessory. To ensure opti-

mum performance frequent filter cleaning is advised. Refer

to Table 1 for the appropriate filter.

ATUF ARUF

ARPF ADPF ASPF Filter

Number Qty

Required

1729

1824

3030 3030

1931 1931

3636 3636

3642 3642 3042 3036

3743 3743 3137

4860 4860 4860 4260

FIL 48-61 1

3030 1830 FIL 36-42 1

1824 1824 N/A FIL 18-32

Table 1

Electric Heat

Refer to this manual in combination with the instructions pro-

vided with the heat kit for the correct installation procedure.

The air handlers listed in this manual do not have factory

installed electric heat. Electric heat is available as an acces-

sory. If installing this option, the ONLY heat kits that can be

used are the HKR series.

NOTE: The Amana® brand EHK, ECB, EDB, and EDK kits

are NOT approved for use with these air handlers.

The heating mode temperature rise is dependent upon the

system airflow, the supply voltage, and the heat kit size (kW)

selected. Use Tables 2, 3, and 4 to determine the tempera-

ture rise (ºF).

356810152021

600 18 28 35 41

800 13 21 26 31 42

1000 11 17 21 25 34 50

12009 14182128425662

14008 12151824364853

16007 10131521314246

1800 6 9 12 14 19 28 37 41

2000 5 8 11 12 17 25 34 37

HEAT KIT NOMINAL kW

CFM

Table 2

230/1/60 Supply Voltage - Temperature Rise Table °F

356810152021

600 17 27 34 39

800 13 20 25 30 40

1000 10 16 20 24 32 48

12008 13172027405359

14007 11141723344651

16006 10131520304044

1800 6 9 11 13 18 27 36 39

2000 5 8 10 12 16 24 32 35

CFM HEAT KIT NOMINAL kW

Table 3

220/1/60 Supply Voltage - Temperature Rise Table °F

356810152021

600 16 25 32 37

800 12 19 24 38 38

1000 10 15 19 22 30 46

12008 13161925385156

14007 11141622334348

1600 6 9 12 14 19 28 38 42

1800 5 8 11 12 17 25 34 37

2000 5 8 10 11 15 23 30 34

CFM HEAT KIT NOMINAL kW

Table 4

208/1/60 Supply Voltage - Temperature Rise Table °F

NOTE: For installations not indicated above the following

formula is to be used:

TR = (kW x 3412) x (Voltage Correction) x 1.08 / CFM

Where: TR = Temperature Rise

kW = Heater Kit Actual kW

3412 = Btu per kW

Voltage Correction =.96 (230 Supply Volts)

=.92 (220 Supply Volts)

=.87 (208 Supply Volts)

1.08 = Constant

CFM = Measured Airflow

NOTE: The Temperature Rise Tables can also be used to

determine the air handler airflow delivery. When using these

tables for this purpose set the room thermostat to maximum

heat and allow the system to reach steady state conditions.

Insert two thermometers, one in the return air and one in the

supply air. The temperature rise is the supply air temperature

minus the room air temperature.

Use HKR specification sheets to determine the HKR avail-

able for a given air handler.

HKR Installation

Follow instructions listed in Installation and Operating Instruc-

tions shipped with the heat kit.

Electrical Supply Wire and MOP

FIRE HAZARD!

To avoid the risk of property damage, personal injury

or fire, use only copper conductors.

HIGH VOLTAGE!

Failure to do so may cause property damage,

personal injury or death.

Disconnect ALL power before servicing.

Multiple power sources may be present.

HIGH VOLTAGE!

To avoid property damage, personal injury or death

due to electrical shock, this unit MUST have an

electrical ground. The

electrical ground circuit may consist of an

appropriately sized electrical wire connecting the

ground lug in the unit control box to the building

electrical service panel.

Other methods of grounding are permitted if performed

in accordance with the National Electric Code

(NEC)/American National Standards Institute

(ANSI)/National Fire Protection Association (NFPA) 70

and local/state codes. In Canada, electrical grounding

is to be in accordance with the Canadian Electric Code

(CSA) C22.1.

uninterrupted, unbroken

Building Electrical Service Inspection

This unit is designed for single-phase electrical supply. DO

NOT OPERATE ON A THREE-PHASE POWER SUPPLY.

Measure the power supply to the unit. The supply voltage

must be in agreement with the unit nameplate power require-

ments and within the range shown in Table 5.

Nominal Input Minimum Voltage Maximum Voltage

208/240 187 253

Table 5

Wire Sizing

Wire size is important to the operation of your equipment.

Use the following check list when selecting the appropriate

wire size for your unit.

•Wire size must carry the Minimum Circuit Ampac-

ity (MCA).

• Refer to the NEC (USA) or CSA (Canada) for wire siz-

ing. The unit MCA for the air handler and the optional

electric heat kit can be found on the unit Series and

Rating Plate.

•Wire size allows for no more than a 2% voltage drop

from the building breaker/fuse panel to the unit.

Refer to the latest edition of the National Electric Code

or in Canada the Canadian Electric Code when deter-

mining the correct wire size. The following table shows

the current carrying capabilities for copper conductors

rated at 75oC with a 2% voltage drop. Use Table 6 to

determine the voltage drop per foot of various conduc-

tors.

10 15 20 25 30 35 40 45

14 75 50 37 NR NR NR NR NR

12 118 79 59 47 NR NR NR NR

10 188 125 95 75 63 54 NR NR

8 301 201 150 120 100 86 75 68

6 471 314 235 188 157 134 118 110

*Based on NEC 1996

Maximum Allowable Length in Feet

to Limit Voltage Drop to 2%*

Minimum Circuit Ampacity (MCA)

Wire Size

(AWG)

Table 6

Maximum Overcurrent Protection (MOP)

Every installation must include an NEC (USA) or CEC

(Canada) approved overcurrent protection device. Also,

check with local or state codes for any special regional re-

quirements.

Protection can be in the form of fusing or HACR style circuit

breakers. The Series and Rating Plate can be used as a

guide for selecting the MAXIMUM overcurrent device.

NOTE: Fuses or circuit breakers are to be sized larger

than the equipment MCA but not to exceed the MOP.

Electrical Connections – Supply Voltage

USE COPPER CONDUCTORS ONLY.

A knockout is provided on the air handler top panel or side to

allow for the entry of the supply voltage conductors. If the

knockouts on the cabinet sides are used for electrical con-

duit, an adapter ring must be used in order to meet UL1995

safety requirements. An NEC or CEC approved strain relief

is to be used at this entry point. The wire is to be sized in

accordance with the “Electrical Wire and MOP” section of

this manual. Some areas require the supply wire to be en-

closed in conduit. Consult your local codes.

Air Handler Only (Non-Heat Kit Models)

The building supply connects to the stripped black and red

wires contained in the air handler electrical compartment cav-

ity. A ground screw is also contained in this area. Attach the

supply wires to the air handler conductors as shown in the

unit wiring diagram using appropriately sized solderless con-

nectors or other NEC or CEC approved means.

Air Handler With Non-Circuit Breaker Heat Kits

A terminal block is provided with the HKR kit to attach the

power supply and air handler connections. Follow the HKR

Installation Manual and wiring diagram for complete wiring

details.

Air Handler With Heat Kits Containing a Circuit Breaker

HKR models with a “C” suffix contain a circuit breaker(s).

The air handler has a plastic cover on the access panel that

will require either one or both sections to be removed to al-

low the heat kit circuit breaker(s) to be installed. See the

HKR Installation Instructions for further details. The air han-

dler wires and supply wires are installed directly onto the HKR

circuit breaker(s) as shown in the HKR Installation Manual

and wiring diagram.

Low Voltage Connections

Several combinations of low voltage schemes are available,

depending on the presence of a heat kit and whether the

heat kit is single-stage or multi-staging. The low voltage con-

nections are determined by whether the outdoor unit is a con-

denser or heat pump. The 24V-control voltage connects the

air handler to the room thermostat and condenser. Low volt-

age wiring is to be copper conductors. A minimum of 18AWG

must be used for installations up to 50’ and 16AWG for in-

stallations over 50’. Low voltage wiring can be connected

through the top of the cabinet or either side. See the “Ther-

mostat Wiring” section of this manual for typical low voltage

wiring connections.

Refrigerant Lines

This product is factory-shipped under pressure. Follow

these instructions to prevent injury.

A quenching cloth is strongly recommended to prevent

scorching or marring of the equipment finish when

welding close to the painted surfaces. Use brazing

alloy of 5% minimum silver content.

Tubing Preparation

All cut ends are to be round, burr free, and clean.

Failure to follow this practice increases the chances for

refrigerant leaks. The suction line is spun closed and

requires pipe cutters to remove the closed end.

Post Brazing

Quench all welded joints with water or a wet rag.

Piping Size

For the correct tubing size, follow the specification

for the condenser/heat pump.

Applying too much heat to any tube can melt the tube. Torch

heat required to braze tubes of various sizes must be

proportional to the size of the tube. Service personnel must

use the appropriate heat level for the size of the tube being

brazed.

CAUTION

Special Instructions

This coil comes equipped with a check style flowrator for re-

frigerant management. For most installations with matching

applications, no change to the flowrator piston is required.

However, in mix-matched applications, a flowrator piston

change may be required. See the Goodman® piston kit chart

or consult your local distributor for details regarding mix-

matched piston sizing. If the mix-match application requires

a different piston size, change the piston in the flowrator on

the indoor coil before installing the coil and follow the proce-

dure shown below.

IMPORTANT NOTE: Torch heat required to braze tubes of

various sizes is proportional to the size of the tube. Tubes of

smaller size require less heat to bring the tube to brazing

temperature before adding brazing alloy. Applying too much

heat to any tube can melt the tube. Service personnel must

use the appropriate heat level for the size of the tube being

brazed.

NOTE: The use of a heat shield when brazing is recommended

to avoid burning the serial plate or the finish on the unit. Heat

trap or wet rags should be used to protect heat sensitive

components such as service valves and TXV valves.

1. Loosen the 13/16 nut 1 TURN ONLY to allow high pres-

sure tracer gas to escape. No gas indicates a possible

leak.

2. After the gas has escaped, remove the nut and discard

the black or brass cap.

3. Remove the check piston to verify it is correct and then

replace the piston. See piston kit chart in instructions.

4. Use a tube cutter to remove the spin closure on the

suction line.

5. Remove the tailpiece clamped to the exterior and slide

the 13/16 nut into place.

6. Braze tailpiece to the line set liquid tube.

WHITE

TEFLON SEAL

PISTON

TAILPIECE

13/16” NUT

PLASTIC or BRASS CAP

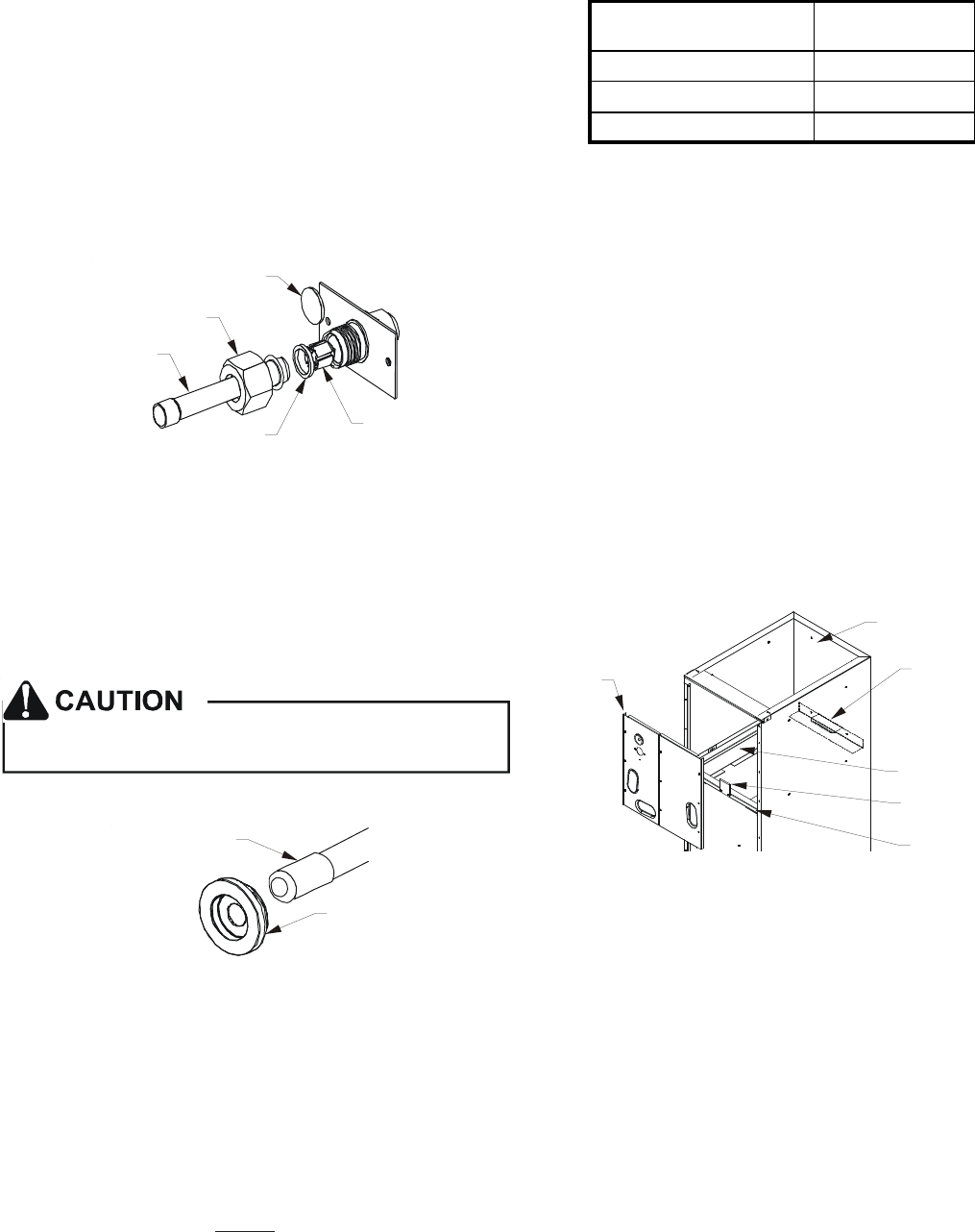

Figure 1

7. Insert the suction line into the connection, slide the in-

sulation and the rubber grommet at least 18" away from

the braze joint. Braze suction line.

8. AFTER THE TAILPIECE HAS COOLED, confirm posi-

tion of the white Teflon® seal and hand tighten the 13/

16 nut.

9. Torque the 13/16 nut to 10-25 ft-lbs. or tighten 1/6 turn.

Excessive torque can cause orifices to stick. Use the

proper torque settings when tightening orifices.

10. Replace suction line grommet and insulation.

RUBBER

GROMMET

SUCTION LINE

WITH SPIN CLOSURE

Figure 2

Downflow Conversion

NOTE: ATUF models should not be converted to

Downflow applications.

“D” nomenclature models are factory equipped for “Dedicated

Downflow” operation and no field conversion is required.

Conversion to downflow MUST be performed in an area that

allows access to all sides prior to placing the air handler in its

final location. To prevent the evaporator coil pan from “sweat-

ing” the DPI accessory insulation kit is to be used when per-

forming this conversion. NOTE: The DPI kit is not supplied

with this product and is to be purchased separately. See

Table 7 for the correct DPI kit.

ARUF, ATUF

or ARPF Model Insulation Kit

1729 / 1824 DPI18-30/20

3030 / 1931 / 3636 DPI36-42/20

3642 / 3743 / 4860 / 4961 DPI48-61/20

Table 7

Refer to Figures 3 through 5 for the location of the compo-

nents referenced in the following steps. Figure 3 illustrates

the new installation location for the removed components.

1. Before inverting the air handler, remove all access pan-

els, the coil rear channel bracket, and the filter close-off

panel.

2. Remove the evaporator coil and the horizontal drain pan.

Discard horizontal drain pan.

3. Install the provided plastic plug into the vacated access

panel.

4. Remove the two (2) zee coil support brackets and insu-

lation retaining brackets.

5. Remove the tie bracket.

6. Install the DPI Insulation Kit onto the bottom of the drain

pan.

NOTE: The filter provision is not applicable

in THIS downflow application.

ACCESS

PANEL

RETURN AIR SIDE

OF UNIT

REAR CHANNEL

BRACKET

ZEE COIL

SUPPORT BRACKET

COIL RETAINING

BRACKET

TIE BRACKET

Figure 3

7. Install the zee coil supports and the wrapper stiffeners.

8. Install the tie bracket.

9. Install the rear channel bracket.

10. To prevent possible condensate “blow off” the insula-

tion retainers are to be laid into the evaporator coil pan

as shown in Figure 4.

3” FLAT INSULATION

RETAINER

(BOTH SIDES)

Figure 4

To complete the conversion, slide the evaporator coil into

the chassis and attach the three (3) access panels. (Figure

5).

WRAPPER

INSULATION

JACKET

ZEE COIL

SUPPORT

WRAPPER

STIFFENER

DRAIN PAN

INSULATION KIT

BLOWER

SSEMBLY

Figure 5

NOTE: When converted to downflow position, the coil may

protrude above the cabinet on some models.

Horizontal Conversion

Dedicated Downflow models are not suitable for horizontal

application and must not be used for this type of installation.

The only field modification required for conversion to “Hori-

zontal Right-Hand” is the removal of the plastic knockouts in

the horizontal panel drain connections. To prevent the hori-

zontal drain pan from sweating in high humidity applications,

it is recommended that a DPIH insulation accessory kit be

used. NOTE: The DPIH insulation kit is not supplied with this

product and should be purchased separately. See Table 8

for the correct DPIH kit.

ARUF, ATUF

or ARPF Model Insulation Kit

1729 / 1824 DPIH18-32

3030 / 1931 / 3636 DPIH36-42

3642 / 3743 / 4860 / 4961 DPH48-61

Table 8

The following describes converting to “Horizontal Left-Hand”.

Conversion to downflow MUST be performed in an area that

allows access to all sides prior to placing the air handler in its

final location (See Figure 6).

PRIMARY

DRAIN

SECONDARY

DRAIN

DPIH KIT

Figure 6

1. Remove the (3) air handler access panels.

2. Remove the “J” shaped bracket that retains the evapo-

rator coil.

3. Remove the flowrator from the lower left side access

panel and slide out the evaporator coil and horizontal

drain pan.

4. Remove the gasket from the horizontal pan drain con-

nections.

5. Remove the oval shaped plastic plug from the left side

access panel. Remove the oval shaped rubber gasket

seal from the lower right side access panel.

6. The drain connections for the horizontal pan are sealed

with a thin coating of plastic. Carefully knock out this

plastic seal with a screwdriver and hammer. Note: The

upper drain will become the secondary drain which

is mandatory in many municipalities .

7. Install the plastic plug removed in step 5 to the right

side lower access panel and the oval shaped rubber

gasket to the lower left access panel.

8. Reinstall the evaporator coil with the horizontal panel

on the left side. Note: Push the assembly completely to

the rear to ensure the engagement of the upflow pan

with the rear channel bracket.

9. Install the “J” bracket (removed in step 2) to support the

upflow pan to the tie channel.

10. Attach all panels and the metering device.

Condensate Removal

The coil drain pan has a primary and an optional secondary

drain with 3/4" NPT female connections. The connectors re-

quired can be 3/4" NPT male either PVC, CPVC or metal

pipe and should be hand tightened to a torque of approxi-

mately 37 in-lbs. to prevent damage to the drain pan connec-

tion. An insertion depth between .355 to .485 inches (3-5

turns) should be expected at this torque. Use the female (3/4

fpt) threaded fitting that protrudes outside of the enclosure

for external connections.

1. Ensure drain pan hole is NOT obstructed.

2. To prevent potential sweating and dripping on to finished

space, it may be necessary to insulate the condensate

drain line located inside the building. Use Armaflex® or

similar material.

A Secondary Condensate Drain Connection has been pro-

vided for areas where the building codes require it. Pitch the

drain line 1/4" per foot to provide free drainage. Insulate drain

lines located inside the building to prevent sweating. Install a

condensate trap to ensure proper drainage. If the secondary

drain line is required, run the line separately from the primary

drain and end it where it can be easily seen.

NOTE: Water coming from this line means the coil primary

drain is plugged and needs clearing.

CAUTION

If secondary drain is not installed, the secondary

access must be plugged.

The installation must include a “P” style trap that is located

as close as is practical to the evaporator coil. See Figure 7

for details of a typical condensate line “P” trap.

NOTE: Trapped lines are required by many local codes. In

the absence of any prevailing local codes, please refer to the

requirements listed in the Uniform Mechanical Building Code.

A drain trap in a draw-through application prevents air from

being drawn back through the drain line during fan operation

thus preventing condensate from draining, and if connected

to a sewer line to prevent sewer gases from being drawn into

the airstream during blower operation.

Field experience has shown condensate drain traps with an

open vertical Tee between the air handler and the conden-

sate drain trap can improve condensate drainage in some

applications, but may cause excessive air discharge out of

the open Tee. Goodman® does not prohibit this type of drain

but we also do not recommend it due to the resulting air leak-

age. Regardless of the condensate drain design used, it is

the installer’s responsibility to ensure the condensate drain

system is of sufficient design to ensure proper condensate

removal from the coil drain pan.

Air Handler

3" MIN.

POSITIVE LIQUID

SEAL REQUIRED

AT TRAP

Drain

Connection

2" MIN.

Figure 7

Use of a condensate removal pump is permitted when nec-

essary. This condensate pump should have provisions for

shutting off the control voltage should a blocked drain occur.

A trap must be installed between the unit and the conden-

sate pump.

IMPORTANT NOTE: The evaporator coil is coated with oils

that may dissolve styrofoam and certain types of plastics.

Therefore, a removal pump or float switch must not contain

any of these materials.

Tip: Priming the “P” trap may avoid improper draining at the

initial installation and at the beginning of the cooling season.

When coils are installed above ceilings, or in other locations

where damage from condensate overflow may occur, it is

MANDATORY to install a field fabricated auxiliary drain pan

under the coil cabinet enclosure. Drain lines from the auxiliary

pan must be installed and terminated so that the homeowner

can see water discharges.

ACHIEVING 2% LOW LEAKAGE RATE

Ensure that the Neoprene gasket with PSA remains intact on

all surfaces that the access panels are secured to. These

surfaces are the entire length of the wrapper and areas be-

tween the upper tie plate, upper and lower access panels.

Be sure that upper access panel breaker insert gasket is in-

tact and also flowrator gasket is installed on the lower ac-

cess panel. An additional drain hole cover is required.

ATUF/ARUF/ARPF/ADPF MOTOR

(Motor Speed Adjustment)

The motors in all ATUF, ARUF, ARPF and ADPF motors are

multi-speed PSC motors. The color of the wire coming from

the motor to the “COM” terminal on the control board defines

in which speed the motor will operate. The black wire repre-

sents high speed, the red wire represents low speed, and

the blue wire (select models only) represents medium speed.

To change speeds, remove the wire attached to the “COM”

terminal on the control board, and swap it with the wire (on

terminal “M1” or “M2”) with the color that will give the desired

speed.

NOTE: In some models, not all speed taps are allowable for

certain electric heat applications. Refer to air handler Series

and Ratings plate for minimum speed.

0.1" 0.2" 0.3" 0.4" 0.5"

High 1155 1090 1025 950 895

ARUF172916 Med. 940 890 860 815 755

Low 695 665 650 610 550

High 1155 1090 1025 950 895

ARUF182416 Med. 940 890 860 815 755

Low 695 665 650 610 550

High 1135 1085 1025 965 915

ARUF193116 Med. 860 825 780 750 680

Low 600 570 545 500 465

High 1385 1315 1240 1155 1065

ARUF303016 Med. 1340 1290 1230 1140 1050

Low 1075 1030 980 910 840

High 1310 1240 1155 1090 1020

ARUF363616 Med. 1270 1210 1140 1075 980

Low 1045 1005 955 885 805

High 1700 1660 1625 1545 1505

ARUF364216 Med. 1500 1440 1400 1350 1345

Low 1330 1300 1250 1230 1220

High 2065 2000 1925 1860 1780

ARUF374316 Med. 1685 1635 1550 1470 1410

Low 1490 1425 1345 1280 1205

High 2150 2120 2070 2000 1940

ARUF486016 Med. 1940 1930 1905 1860 1790

Low 1610 1600 1590 1575 1550

High 2150 2105 2040 1970 1880

ARUF496116 Med. 1960 1935 1895 1825 1750

Low 1670 1625 1585 1525 1455

CFM deliverd against External Static Pressure

Model Speed

NOTE: Assumes dry coil with filter in place; SCFM correction for wet coil = 4% (208V/240V)

0.1" 0.2" 0.3" 0.4" 0.5"

High 1155 1090 1025 950 895

ARPF18241* Med. 940 890 860 815 755

Low 695 665 650 610 550

High 1135 1085 1025 965 915

ARPF19311* Med. 860 825 780 750 680

Low 600 570 545 500 465

High 1385 1315 1240 1155 1065

ARPF30301* Med. 1340 1290 1230 1140 1050

Low 1075 1030 980 910 840

High 1310 1240 1155 1090 1020

ARPF36361* Med. 1270 1210 1140 1075 980

Low 1045 1005 955 885 805

High 1700 1660 1625 1545 1505

ARPF36421* Med. 1500 1440 1400 1350 1345

Low 1330 1300 1250 1230 1220

High 2065 2000 1925 1860 1780

ARPF37431* Med. 1685 1635 1550 1470 1410

Low 1490 1425 1345 1280 1205

High 2150 2120 2070 2000 1940

ARPF48601* Med. 1940 1930 1905 1860 1790

Low 1610 1600 1590 1575 1550

High 2150 2105 2040 1970 1880

ARPF49611* Med. 1960 1935 1895 1825 1750

Low 1670 1625 1585 1525 1455

CFM deliverd against External Static Pressure

Model Speed

NOTE: Assumes dry coil with filter in place; SCFM correction for wet coil = 4% (208V/240V)

0.1" 0.2" 0.3" 0.4" 0.5"

High 1,155 1,090 1,025 950 895

ADPF18241/16 Med. 940 890 860 815 755

Low 695 665 650 610 550

High 1,700 1,660 1,625 1,545 1,505

ADPF30421/16 Med. 1,500 1,440 1,400 1,350 1,345

Low 1,370 1,300 1,250 1,230 1,220

High 2,150 2,120 2,070 2,000 1,940

ADPF48601/16 Med. 1,940 1,930 1,905 1,860 1,790

Low 1,610 1,600 1,590 1,575 1,550

CFM deliverd against External Static Pressure

Model Speed

NOTE: Assumes dry coil with filter in place; SCFM correction for wet coil = 4% (208V/240V)

0.1" 0.2" 0.3" 0.4" 0.5"

High 1155 1090 1025 950 895

ATUF182416 Med. 875 830 790 750 715

Low 640 610 570 535 490

High 1135 1085 1025 965 915

ATUF193116 Med. 860 825 780 750 680

Low 600 570 545 500 465

High 1455 1385 1330 1205 1090

ATUF303016 Med. 1340 1290 1230 1140 1050

Low 1075 1030 980 910 840

High 1345 1290 1230 1150 1070

ATUF363616 Med. 1270 1210 1140 1075 980

Low 1045 1005 955 885 805

High 1700 1680 1645 1610 1535

ATUF364216 Med. 1500 1480 1440 1380 1325

Low 135 1320 1275 1230 1195

High 2065 2000 1925 1860 1780

ARUF374316 Med. 1685 1635 1550 1470 1410

Low 1490 1425 1345 1280 1205

High 2135 2080 1985 1900 1805

ATUF486016 Med. 1975 1935 1875 1775 1675

Low 1715 1670 1650 1590 1530

CFM deliverd against External Static Pressure

Model Speed

NOTE: Assumes dry coil with filter in place; SCFM correction for wet coil = 4% (208V/240V)

ASPF Motor

The ASPF air handler features an energy efficient blower

motor. The motor is a constant torque motor with very low

power consumption. The motor is energized by 24 VAC. Ad-

just the CFM by changing the 24 VAC leads to the desired

speed on the terminal block.

The ASPF motor blower speed is programmed to deliver ad-

equate airflow at rated external static pressure and with 60

second off time delay. For details, refer to the specification

sheet applicable to your model.

CFM Delivery

Table 13 shows the CFM speed tap settings for the ASPF.

Thermostats

NOTE: Second Stage heat can be accomplished by multi-

stage heating thermostat or the addition of an outdoor

thermostat as shown in Figures 10 and 11.

Goodman® part number CHT18-60 is a single-stage cool and

single-stage heat thermostat.

Goodman® part number HPT18-60 is a single-stage cool,

two-stage heat pump thermostat. The first stage is heat pump

heating and the second stage is optional electric heat.

If additional features are desired, such as digital or program-

mable capabilities, these thermostats are commercially avail-

able. Follow the thermostat manufacturer’s instruction for in-

stallation.

Start-Up Procedure

• Prior to start-up, ensure that all electrical connections

are properly sized and tightened.

• All panels must be in place and secured. For Air Tight

application, neoprene gasket must be positioned at pre-

scribed locations to achieve 2% leakage.

• Tubing must be leak free.

• Unit should be elevated, trapped and pitched to allow

for drainage.

• Low voltage wiring is connected.

• Auxiliary drain is installed when necessary and pitched

to allow for drainage.

• Drain pan and drain tubing has been leak checked.

• Return and supply ducts are sealed.

• Unit is elevated when installed in a garage or where

flammable vapors may be present.

• Unit is protected from vehicular or other physical dam-

age.

• Return air is not obtained from any areas where there

may be objectionable odors, flammable vapors or prod-

ucts of combustion such as carbon monoxide (CO),

which may cause serious personal injury or death.

Regular Maintenance

HIGH VOLTAGE!

Disconnect ALL power before servicing or

installing this unit. Multiple power sources may

be present. Failure to do so may cause property

damage, personal injury or death.

The only item to be maintained on a regular basis by the user

is the circulating air filter(s). Filter should be cleaned or re-

placed regularly. A certified service technician must perform

all other services.

NOTE: DO NOT USE THESE DIAGRAMS FOR AEPF

MODELS. SEE INSTALLATION AND OPERATING

INSTRUCTIONS SPECIFICALLY FOR AEPF MODELS.

0.1" 0.2" 0.3" 0.4" 0.5"

1 700 670 650 595 510

2 820 785 765 745 705

ASPF183016 3 920 900 850 840 815

4 1075 1055 1015 975 960

5 11301115108510401000

1 1060 865 600 515 420

2 1105 910 795 745 690

ASPF303616 3 1165 1070 1020 960 915

4 12851240119511401100

5 14351395135013151265

1 1060 865 600 515 420

2 1105 910 795 745 690

ASPF313716 3 1165 1070 1020 960 915

4 12851240119511401100

5 14351395135013151265

1 1445 1275 1175 940 855

2 15451405132512601145

ASPF426016 3 1660 1610 1555 1490 1415

41905 1870 1810 1750 1695

5 21152070200019651915

CFM deliverd against External Static Pressure

Model Motor

Speed Tap

Table 13

Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING.

MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO

MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

WARNING

ROOM THERMOSTAT

WYGR

#18 GA. 4 WIRES WITH

COOLING 3 WIRES WITHOUT

TO CONDENSING

UNIT 24V. CONNECTIONS

#18 GA. 2 WIRES BLUE

WHITE

GREEN

RED

CONTACTOR

COIL

AT/AR UNIT

Figure 8 - Low Voltage Wiring Diagram for Cooling Unit with optional heat kit 10kW and below

GREEN

RED

WHITE

BLUE

BROWN

#18 GA. 4 WIRE WITH

COOLING 3 WIRE WITHOUT

CONDENSING

UNIT 24V. CONNECTIONS

#18 GA. 2 WIRES

CONTACTOR

COIL

AT/AR UNIT

Figure 9 - Low Voltage Wiring Diagram for Cooling Unit with optional heat kit 15kW and above

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING.

MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO

MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

WARNING

Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.

OYR YOC GRE

TYPICAL H/P

ROOM THERMOSTAT

HEAT PUMP

ATUF/ARUF/ARPF/ADPF

18-60

10 KW & BELOW

(OPTIONAL)

OUTDOOR THERMOSTAT

CLOSE ON TEMPERATURE FALL

RED

GREEN

WHITE

BLUE

AT/AR UNIT

#18 GA. 5 WIRE

#18 GA. 7 WIRE

NOTE

#18 GA. 6 WIRE NEEDED WHEN OT IS USED

#18 GA. 7 WIRE NEEDED WHEN TWO OT'S ARE USED

#18 GA. 5 WIRE

NOTE

BLUE

WHITE

GREEN

TYPICAL H/P

ROOM THERMOSTAT

ATUF/ARUF/ARPF/ADPF

18-60

ABOVE 10 KW

HEAT PUMP

YO R

Y CO

#18 GA. 7 WIRE

AT/AR UNIT

RED

BROWN

NOTE

(OPTIONAL)

OUTDOOR THERMOSTAT

CLOSE ON TEMPERATURE FALL

FIGURE 10

FIGURE 11

IMPORTANT: If outdoor thermostat is not used, tie white and brown wires from Air Handler together.

ASPF THERMOSTAT CONNECTIONS

The following composite wiring diagrams detail various configurations in which the ASPF air handlers can be used. Ex-

amples include single-stage cooling and heat pump with single or two-stage electric heating. All these configurations can be

applied with convenient connections to outdoor thermostat applications.

The following sections will be detailed:

• Single-Stage Cooling (GMC Thermostat Part #CHT18-60 or equivalent.)

• Heat Pump (GMC Thermostat Part #18-60 or equivalent)

Each diagram details the connections between room thermostat and ASPF air handlers, and the connections between the

ASPF air handlers and the Condensing Unit (or Heat Pump) with optional connections to Outdoor Thermostats. For each

configuration, refer to the explanation of the proper jumper(s) to remove for the corresponding blower speed that will result

in the programmed ECM™ motor.

IMPORTANT: WHEN MATCHING THE ASPF AIR HANDLERS TO A SINGLE SPEED COOL-

ING OR HEAT PUMP UNIT, REMEMBER TO CONNECT “Y” FROM THE THERMOSTAT TO

THE “Y2” ON THE LOW VOLTAGE TERMINAL BOARD.

An equivalent thermostat can be used in place of the Goodman thermostat part number. The GMC thermostats that listed

are mercury type thermostats.

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING.

MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO

MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

WARNING

COOLING UNIT WITH OPTIONAL HEAT KITS OF 10 kW AND BELOW

TO CONDENSING UNIT

24V CONNECTION BL

#18 GA. 4 WIRES WITH COOLING

3 WIRES WITHOUT

NOTES:

1) OUTDOOR THERMOSTAT (OT-1) SHOULD BE THE

FIRST TO CLOSE AND THE LAST TO OPEN.

2) JUMPER W1 AND W2 TOGETHER IF OT-2 IS NOT

USED.

3) REMOVE WIRE WHEN USING OUTDOOR THERMO-

STAT.

NOMENCLATURE:

OT - OUTDOOR THERMOSTAT (OPTIONAL)

EHR - EMERGENCY HEAT RELAY (OPTIONAL)

COLOR CODES

RD - RED

YL - YELLOW

BL - BLUE

BR - BROWN

OR - ORANGE

WH - WHITE

Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING.

MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO

MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

WARNING

Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.

YGW

COOLING UNIT WITH OPTIONAL HEAT KITS OF 15 kW AND ABOVE

AND ROOM THERMOSTAT WITH TWO STAGES OF HEAT

CONDENSING UNIT

24V CONNECTION BL

#18 GA. 5 WIRES WITH COOLING

4 WIRES WITHOUT

BR BR

BR YL

GC R

HEAT PUMP UNIT WITH OPTIONAL HEAT KITS OF 10 kW AND BELOW

#18 GA. 7 WIRE

OYC

R Y O

BL BL

NOTES:

1) OUTDOOR THERMOSTAT (OT-1) SHOULD BE THE

FIRST TO CLOSE AND THE LAST TO OPEN.

2) JUMPER W1 AND W2 TOGETHER IF OT-2 IS NOT

USED.

3) REMOVE WIRE WHEN USING OUTDOOR THERMO-

STAT.

NOMENCLATURE:

OT - OUTDOOR THERMOSTAT (OPTIONAL)

EHR - EMERGENCY HEAT RELAY (OPTIONAL)

COLOR CODES

RD - RED

YL - YELLOW

BL - BLUE

BR - BROWN

OR - ORANGE

WH - WHITE

Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING.

MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO

MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

WARNING

GC R

HEAT PUMP UNIT WITH OPTIONAL HEAT KITS OF 15 kW AND ABOVE

#18 GA. 7 WIRE

OYC

R Y O

WH RD

NOTES:

1) OUTDOOR THERMOSTAT (OT-1) SHOULD BE THE

FIRST TO CLOSE AND THE LAST TO OPEN.

2) JUMPER W1 AND W2 TOGETHER IF OT-2 IS NOT

USED.

3) REMOVE WIRE WHEN USING OUTDOOR THERMO-

STAT.

NOMENCLATURE:

OT - OUTDOOR THERMOSTAT (OPTIONAL)

EHR - EMERGENCY HEAT RELAY (OPTIONAL)

COLOR CODES

RD - RED

YL - YELLOW

BL - BLUE

BR - BROWN

OR - ORANGE

WH - WHITE

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING.

MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO

MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

WARNING

Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.

12 0/24 0VACTST AT

OPTIONAL

SPEEDUP

24 VAC

SYS TEM

TR AN SFOR MER

SPEEDUP

XFMR-C

XFMR-R

B13707-35

W IRING DIAGRAM

PARK TERMINAL

FOR USE WITH

NEUTRAL

HEAT KIT

MOTOR

The Electronic Blower Time Delay Relay provides power to the blower motor with a delay of 7

seconds after 24VAC is applied to “G”. After 24VAC is removed from “G”, the blower motor output

is de-energized after a delay of 65 seconds.

Normal Time Delays 60Hz 50Hz

Turn On Delay 7.0 SEC.±1% 8.4 SEC. .±1%

Turn Off Delay 65.0 SEC.±1% 78.0 SEC. .±1%

Field test mode: Shorting the “speedup” quick connect to “C” decrease times as follows:

Speedup Times 60Hz 50Hz

Turn On Delay 3.0 SEC.±1% 3.6 SEC. .±1%

Turn Off Delay 5.0 SEC.±1% 6.0 SEC. .±1%

Field test mode is cancelled when the “speedup” quick connect to “C” short is removed.

NOTE: This is not applicable to ASPF models.

ELECTRONIC BLOWER TIME DELAY RELAY

THIS PAGE LEFT INTENTIONALLY BLANK

Goodman Manufacturing Company, L.P.

5151 San Felipe, Suite 500, Houston, TX 77056

www.goodmanmfg.com

Goodman Mfg Aruf Users Manual

ATUF to the manual ad858e0a-576b-4392-94fd-9d4373bb7f97

Navigation menu

Versions of this User Manual:

Views

Navigation
