SS-GARUF www.goodmanmfg.com 2/12
Supersedes 2/11
Standard Features
• SuitableforusewiththerefrigerantsR-410AandR-22
• All-aluminumevaporatorcoil
• Checkowraterexpansiondeviceforcooling-only
andheatpumpapplications
• Direct-drive,multi-speedmotor
• Transformerandblowertime-delayonallunits
• AHRICertied;ETLListed
Cabinet Features
• Rust-resistant,fullyinsulatedsteelcabinet
• Galvanized,leathergrain-embossednish
• AttractiveArchitecturalGraypaintedfrontpanels
• Built-incoilhashorizontal,vertical,anddownow
drainpanswithsecondarydrainconnections
• Built-inlterrackfor1”lter(lternotincluded)
• Powersupplyentryattop;low-voltageentry
onleftsideandtop
Contents
Nomenclature...................................................................2
ProductSpecications......................................................3
Dimensions.......................................................................4
AirowData......................................................................5
HeatKitMatch-Ups...........................................................6
WiringDiagram.................................................................7
Accessories........................................................................8
ARUF
MUlti-Position, thRee-sPeed
AiR hAndleR
with GAlvAnized CAbinet
*Completewarrantydetailsavailablefromyourlocaldealeroratwww.goodmanmfg.com.To
receivethe10-YearPartsLimitedWarranty,onlineregistrationmustbecompletedwithin60
daysofinstallation.OnlineregistrationisnotrequiredinCaliforniaorQuébec.
1½ to 5 tons
PRodUCt sPeCiFiCAtions PRodUCt sPeCiFiCAtions
2 www.goodmanmfg.com SS-GARUF
noMenClAtURe
Brand Engineering *
A Single-piece Major/ Minor Revisions
Air Handler * Not used for inventory management
Unit Application Refrigerant Charge
C Ceiling Mount PSC Motor No Digit = R-22 only
D Downflow PSC Motor 6 = R-410A or R-22
E Multi-Position Variable-Speed Motor
R Multi-Position PSC Motor Electrical
S Multi-Position EEM Motor 1 208/240 V, 1 Phase, 60 Hz
W Wall Mount PSC Motor
Nominal Capacity Range @ 13 SEER
Cabinet Finish Multi-Position & Downflow Applications
U Unpainted 1729 1½ to 2½ Tons (for Export Systems)
P Painted 1830 1½-3½ Tons
N Uncased 3642 3-3½ Tons
Ceiling Mount & Wall Mount Applications
Expansion Device (Nominal Cooling Capacity/ Electric Heat kW)
F Flowrater 1805 1½ Tons Cooling/ 5 kW Electric Heat
T Expansion Valve 2405 2 Tons Cooling/ 5 kW Electric Heat
3608 3 Tons Cooling/ 8 kW Electric Heat
AA
11,12
U
3
3642
5,6,7,8
F
4
R
21
A
9
1
10
6
PRodUCt sPeCiFiCAtions PRodUCt sPeCiFiCAtions
SS-GARUF www.goodmanmfg.com 3
sPeCiFiCAtions
ARUF
172916*
ARUF
182416*
ARUF
193116*
ARUF
303016*
ARUF
363616*
Nominal Ratings
Cooling (Btu/h) 18,000 - 30,000 18,000 - 24,000 18,000 - 30,000 30,000 36,000
Airow Rate CFM (High/ Med/ Low)* 1,025/ 860/ 650 1,025/ 860/ 650 1,025/ 780/ 545 1,240/ 1,230/ 980 1,155/ 1,140/ 955
Blower
Diameter 9½" 9½" 9½" 9½" 9½"
Width 6" 6" 6" 8" 8"
Coil Drain Connect FPT ¾" ¾" ¾" ¾" ¾"
Refrigerant Line Connection Size
Liquid ⅜" ⅜" ⅜" ⅜" ⅜"
Sucon ¾" ¾" ¾" ¾" ¾"
Electrical Data
Voltage 208 - 230 208 - 230 208 - 230 208 - 230 208 - 230
Min Circuit Ampacity 2.4/ 2.4 2.4/ 2.4 1.9/ 1.9 3.3/ 3.3 3.3/ 3.3
Max. Overcurrent Device (amps) 15/ 15 15/ 15 15/ 15 15/ 15 15/ 15
Min. / Max VAC 197/ 253 197/ 253 197/ 253 197/ 253 197/ 253
Blower Motor FLA/ HP 1.9/ ⅓ 1.9/ ⅓ 1.48/ ¼ 2.64/ ⅓ 2.64/ ⅓
Ship Weight (lbs) 110 116 155 144 164
*CFM @.3 stac
ARUF
364216*
ARUF
374316*
ARUF
486016*
ARUF
496116*
Nominal Ratings
Cooling (Btu/h) 36,000 - 42,000 36,000 - 42,000 48,000 - 60,000 48,000 - 60,000
Airow Rate CFM (High/ Med/ Low)* 1,625 / 1,400/ 1,250 1,925/ 1,550/ 1,345 2,070/ 1,905/ 1,590 2,040/ 1,895/ 1,585
Blower
Diameter 10⅝" 11 15/16"10⅝" 10⅝"
Width 8" 10⅝" 10⅝" 10⅝"
Coil Drain Connect FPT ¾" ¾" ¾" ¾"
Refrigerant Line Connection Size
Liquid ⅜" ⅜" ⅜" ⅜"
Sucon ⅞" ⅞" ⅞" ⅞"
Electrical Data
Voltage 208 - 230 208 - 230 208 - 230 208 - 230
Min Circuit Ampacity 3.7 /3.9 4.2/ 4.2 5.1/ 5.1 5.1/ 5.1
Max. Overcurrent Device (amps) 15/ 15 15/ 15 15/ 15 15/ 15
Min. / Max VAC 197/ 253 197/ 253 197/ 253 197/ 253
Blower Motor FLA/ HP 3.12/ ½ 3.39/ ½ 4.06/ ¾ 4.06/ ¾
Ship Weight (lbs) 160 195 183 192
*CFM @.3 stac
PRodUCt sPeCiFiCAtions PRodUCt sPeCiFiCAtions
4 www.goodmanmfg.com SS-GARUF

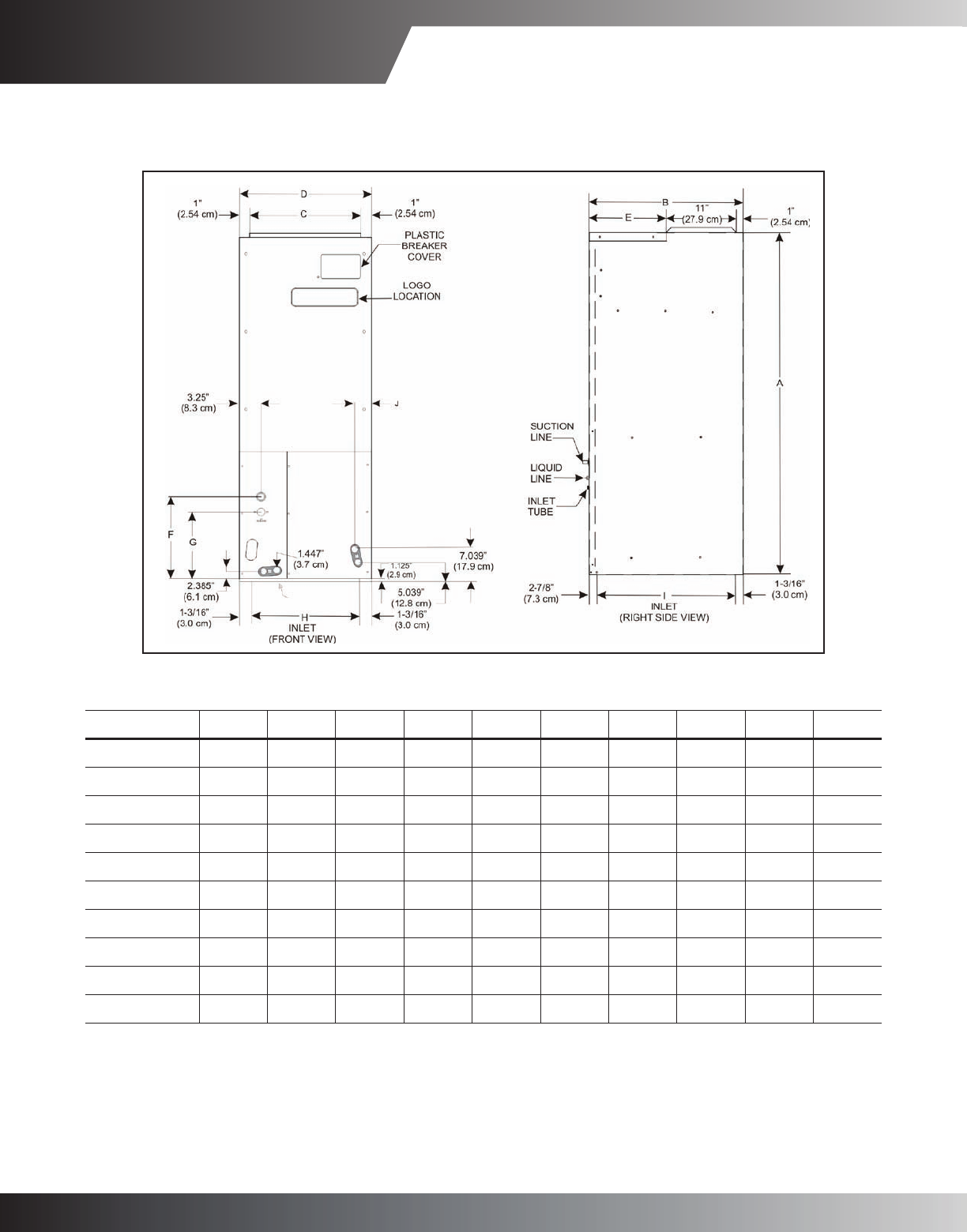

diMensions
Model A B C D E F G H I J
ARUF172916* 42⅛” 22” 13½” 15½” 10” 14½” 11¹⁵/₁₆” 13⅛” 17¹⁵/₁₆” 2”
ARUF182416* 42⅛” 22” 13½” 15½” 10” 14½” 11¹⁵/₁₆” 13⅛” 17¹⁵/₁₆” 2”
ARUF193116* 46¾” 22” 17½” 19½” 10” 14½” 11¹⁵/₁₆” 17⅛” 17¹⁵/₁₆” 2”
ARUF303016* 46¾” 22” 17½” 19½” 10” 14½” 11¹⁵/₁₆” 17⅛” 17¹⁵/₁₆” 2”
ARUF363616* 46¾” 22” 17½” 19½” 10” 14½” 11¹⁵/₁₆” 17⅛” 17¹⁵/₁₆” 14/5”
ARUF364216* 53¼” 24” 20” 22” 12” 14½” 11¹⁵/₁₆” 19⅝ 19¹⁵/₁₆” 14/5”
ARUF374316* 53¼” 24” 20” 22” 12” 14½” 11¹⁵/₁₆” 19⅝ 19¹⁵/₁₆” 14/5”
ARUF486016* 53¼” 24” 20” 22” 12” 14½” 11¹⁵/₁₆” 19⅝ 19¹⁵/₁₆” 14/5”
ARUF496116* 53¼” 24” 20” 22” 12” 14½” 11¹⁵/₁₆” 19⅝ 19¹⁵/₁₆” 14/5”
ARUF496116* 53¼” 24” 20” 22” 12” 14½” 11¹⁵/₁₆” 19⅝ 19¹⁵/₁₆” 14/5”
PRodUCt sPeCiFiCAtions PRodUCt sPeCiFiCAtions
SS-GARUF www.goodmanmfg.com 5
AiRlFow dAtA
Model Motor
Speed
CFM Delivered Against External Static Pressure
0.1” 0.2” 0.3” 0.4” 0.5”
ARUF172916*
High 1,155 1,090 1,025 950 895
Med 940 890 860 815 755
Low 695 665 650 610 550
ARUF182416*
High 1,155 1,090 1,025 950 895
Med 940 890 860 815 755
Low 695 665 650 610 550
ARUF193116*
High 1,135 1,085 1,025 965 915
Med 860 825 780 750 680
Low 600 570 545 500 465
ARUF303016*
High 1,385 1,315 1,240 1,155 1,065
Med 1,340 1,290 1,230 1,140 1,050
Low 1,075 1,030 980 910 840
ARUF363616*
High 1,310 1,240 1,155 1,090 1,020
Med 1,270 1,210 1,140 1,075 980
Low 1,045 1,005 955 885 805
ARUF364216*
High 1,700 1,660 1,625 1,545 1,505
Med 1,500 1,440 1,400 1,350 1,345
Low 1,300 1,300 1,250 1,230 1,220
ARUF374316*
High 2,065 2,000 1,925 1,860 1,780
Med 1,685 1,635 1,550 1,470 1,410
Low 1,490 1,425 1,345 1,280 1,205
ARUF486016*
High 2,150 2,120 2,070 2,000 1,940
Med 1,940 1,930 1,905 1,860 1,790
Low 1,610 1,600 1,590 1,575 1,550
ARUF496116*
High 2,150 2,105 2,040 1,970 1,880
Med 1,960 1,935 1,895 1,825 1,750
Low 1,670 1,625 1,585 1,525 1,455
Note: Assumes dry coil with lter in place; SCFM correcon for wet coil = 4% (208V / 240V
PRodUCt sPeCiFiCAtions PRodUCt sPeCiFiCAtions
6 www.goodmanmfg.com SS-GARUF
heAt Kit APPliCAtions
sinGle-Point Kit **
Model HKR-15C HKR-20C HKR-21C
SPW-01 X X X
** Must be installed along with any of the above compable
heat kits. This kit will t any ARUF air handler as long as a
compable heat kit is installed in the unit.
ARUF
172916*
ARUF
182416*
ARUF
193116*
ARUF
303016*
ARUF
363616*
ARUF
364216*
ARUF
374316*
ARUF
486016*
ARUF
496116*
HKR-03* XXXXXXXXX
HKR-05*, HKR-05C* XXXXXXXXX
HKR-06* XXXXXXXXX
HKR-08*, HKR-08C* X¹ X¹ X¹ X X X X X X
HKR-10*, HKR-10C* X¹ X¹ X¹ X¹ X X X X X
HKR-15C* X² X² X² X² X2X³ X³ X X
HKR-20C* X² X³ X³ X X
HKR-21C* X² X³ X³ X X
^ HKR3-15* X² X2X³ X³ X X
^ HKR3-20* X² X³ X³ X X
* Revision level that may or may not be designated
C Circuit breaker opon
^ Heat kit requires three-phase power supply
¹ Air handler must either be on medium or high speed
² Air handler must be on high speed
³ Air handler must be on medium or high speed
PRodUCt sPeCiFiCAtions PRodUCt sPeCiFiCAtions
SS-GARUF www.goodmanmfg.com 7
ARUF wiRinG diAGRAM
Wiringissubjecttochange.Always
refer to the wiring diagram or the
unitforthemostup-to-datewiring. ⚠ wARninG
High Voltage: Disconnect all power before servicing or installing this unit. Multiple power
sourcesmaybepresent.Failuretodosomaycausepropertydamage,personalinjury,ordeath. ⚡
PRodUCt sPeCiFiCAtions PRodUCt sPeCiFiCAtions
8 www.goodmanmfg.com SS-GARUF
Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specications or designs without
notice or without incurring obligations. © 2012 • Goodman Manufacturing Company, L.P. • Houston, Texas • Printed in the USA.
ACCessoRies
dRAin PAn insUlAtion Kit FoR downFlow APPliCAtions
Chassis Size Insulation Kit
Small (15½”) DPI18-30/20
Medium (19½”) DPI36-42/20
Large (22”) DPI48-60/20
Note: Each kit contains enough material to modify 20 coils
FilteRs
Model Filter # Qty Required
1729/ 1824 FIL 18-32 1
1931 FIL-36-42 1
3030/ 3636 FIL-36-42 1
3642/ 3743 FIL 48-61 1
4860/4961 FIL 48-61 1
exPAnsion vAlve Kits FoR AiR ConditioninG And heAt PUMP APPliCAtions
Kit
Number Description Application Refriger-
ant
Tonnage:
Outdoor Unit
XVB18-36C 20% Bleed Valve AC Only R-22 1½ - 3 Ton
XVB42-60C 20% Bleed Valve AC Only R-22 3½ - 5 Ton
XV18-36C Non-bleed Valve AC Only R-22 1½ - 3 Ton
XV42-60C Non-bleed Valve AC Only R-22 3½ - 5 Ton
TX2N2 Non-bleed Valve AC or HP R-22 1½ - 2 Ton
TX3N2 Non-bleed Valve AC or HP R-22 2½ - 3 Ton
TX5N2 Non-bleed Valve AC or HP R-22 3½ - 5 Ton
TX2N4A Non-bleed Valve AC or HP R-410A 1½ - 2 Ton
TX3N4 Non-bleed Valve AC or HP R-410A 2½ - 3 Ton
TX5N4 Non-bleed Valve AC or HP R-410A 3½ - 5 Ton
