Grandstream Networks GWN7600 Wireless Access Point User Manual

Grandstream Networks, Inc. Wireless Access Point

Contents

User Manual

info@grandstream.com www.grandstream.com
GWN7600
To ensure
easy installation and management, the GWN7600 uses a controller
-less distributed network management design in
which the controller is embedded within the product’s web user interface. This allows each access point to manage
a network of up to 30 GWN76xx series APs independently without needing separate controller hardware/software
and without a single point-of-failure. This wireless access point can be paired with any third party routers as well as
Grandstream GWN series routers. With support for advanced QoS, low-latency real-time applications, 450+ concurrent
client devices per AP and dual Gigabit network ports with PoE, the GWN7600 is an ideal WiFi access point for medium
wireless network deployments with medium-to-high user density.
1.17Gbps wireless
throughput and 2x
Gigabit wireline ports
Up to 165-meter
coverage range
Support 450+ concurrent
WiFi client devices
Support 802.3af
Power-over-Ethernet
(PoE)
Anti-hacking secure boot and
critical data/control lockdown
via digital signatures, unique
security certicate/random
default password per device
Advanced QoS to ensure
real-time performance
of low-latency applications
Embedded controller allows
GWN7600 to auto-discover,
auto-provision and manage
up to 30 GWN7600s in a
network
Wireless Access Point
www.grandstream.com
WiFi Standards IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas 2x 2.4 GHz, gain 3 dBi, internal antenna
2x 5 GHz, gain 3 dBi, internal antenna
WiFi Data Rates
IEEE 802.11ac: 6.5 Mbps to 877 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4GHz radio : 2.412 - 2.462 GHz
5GHz rado: 5.150 - 5.250 GHz, 5.725-5.850 GHz
Channel Bandwidth 2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz
WiFi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical
data/control lockdown via digital signatures, unique security certicate and random default
password per device
MIMO 2x2:2 2.4GHz (MIMO), 2x2:2 5GHz (MU-MIMO)
Coverage Range Up to 541 ft. (165 meters)
Maximum TX Power
5G: 802.11a:22.53dBm,802.11n-HT20:22.36dBm;802.11n-HT40:22.38dBm;802.11ac20:22.34dBm
2.4G: 802.11b:17.69dBm;802.11g:19.78dBm,802.11n-HT20:19.62dBm;802.11n-HT40:19.64dBm;
Receiver Sensitivity
2.4G
802.11b:-99dBm @1Mbps,-91dBm @11Mbps;802.11g:-93dBm @6Mbps,-75dBm @54Mbps;
80.11n 20MHz:-72dBm @MCS7;802.11n 40MHz:-69dBm @MCS7
5G
802.11a:-91dBm @6Mbps,-74dBm @54Mbps;802.11ac 20MHz:-67dBm @MCS8;802.11ac
HT40:-63dBm @MCS9;802.11ac 80MHz:-60dBm @MCS92
SSIDs 16 SSIDs per radio
Concurrent Clients 450+
Network Interfaces 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports 1x USB 2.0 port, 1x Reset Pinhole, 1x Kensington lock
Mounting Indoor wall mount or ceiling mount, kits included
LEDs 3 tri-color LEDs for device tracking and status indication
Network Protocols IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller in GWN7600 allows it to auto-discover, auto-provision and manage up to 30
GWN7600s in a network
Power and Green Energy Eciency
DC Input: 24VDC/1A
Power over Ethernet (802.3af) compliant
Maximum Power Consumption:13.8W
Environmental
Operation:-20°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical
Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 526g
Unit + Mounting Kits Dimension : 205.3 x 205.3 x 53.9mm; Unit + Mounting Kits Weight : 610g
Entire Package Dimension: 228.5 x 220 x 79mm; Entire Package Weight: 854g
Package Content GWN7600 Wave-2 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Compliance FCC, CE, RCM, ISEDC
Specications
802.11ac40:22.30dBm;802.11ac80:22.15dBm;
2.4G: 802.11b:20.14dBm;802.11g:22.40dBm,802.11n-HT20:22.14dBm;802.11n-HT40:22.0dBm;
OVERVIEW
To ensure easy installation and management, the GWN7600 uses a controller-less distrib-
uted network management design in which the controller is embedded within the product’s
web user interface. This allows each access point to manage a network of up to 30 GWN7600
series APs independently without needing separate controller hardware/software and with-
out a single point-of-failure. This wireless access point can be paired with any third party
routers as well as Grandstream GWN series routers. With support for advanced QoS,
low-latency real-time applications, 450+ concurrent client devices per AP and
dual Gigabit network ports with PoE, the GWN7600 is an ideal WiFi access point
for medium wireless network deployments with medium-to-high user density.
PRECAUTIONS
• Do not attempt to open, disassemble, or modify the device.
• Do not expose this device to temperatures outside range of -20°C to 40 °C.
• Do not expose the GWN7600 to environments outside of the following humidity range:
10-90% RH (non-condensing).
• Do not power cycle your GWN7600 during system boot up or rmware upgrade. You
may corrupt rmware images and cause the unit to malfunction.
PACKAGE CONTENTS
GWN7600 Access Point
1 x Quick Installation Guide
1 x GPL Statement Ceiling Mounting Bracket
3 x Screw (PM 3.0 x 50)
3 x M3 NUT
3 x Plastic Expansion Bolt
3 x Screw (PA 3.5 x 20 )

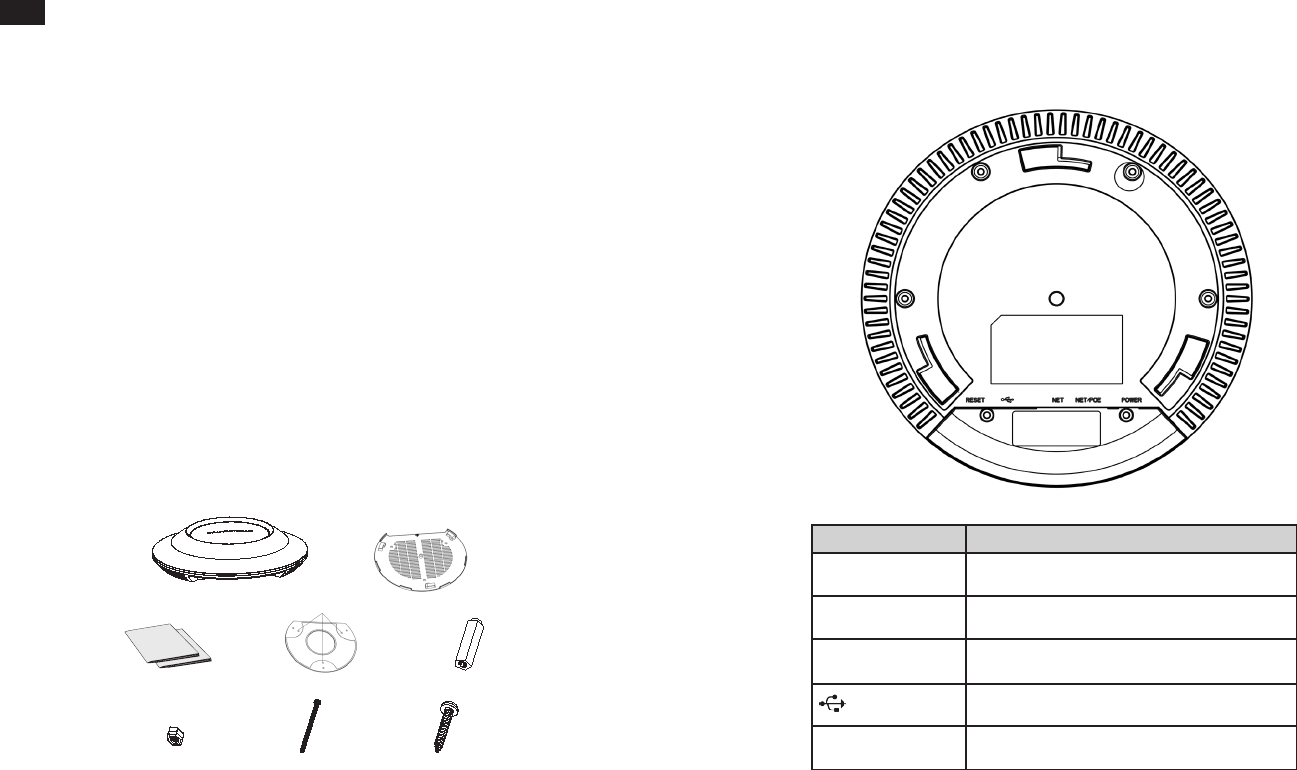

GWN7600 PORTS
Port Description
POWER Power adapter connector (DC24V, 1A)
Note: Power adapter is not provided.
NET/POE Ethernet RJ45 port (10/100/1000Mbps) supporting
PoE.
NET Ethernet RJ45 port (10/100/1000Mbps) to your
router or another GWN76xx.
USB 2.0 port (for future IOT & location based
applications)
RESET Factory reset button. Press for 7 seconds to reset
factory default settings.
EN
Mounting Bracket
HARDWARE INSTALLATION
GWN7600 can be mounted on the wall or ceiling, Please refer to the following steps for
the appropriate installation.

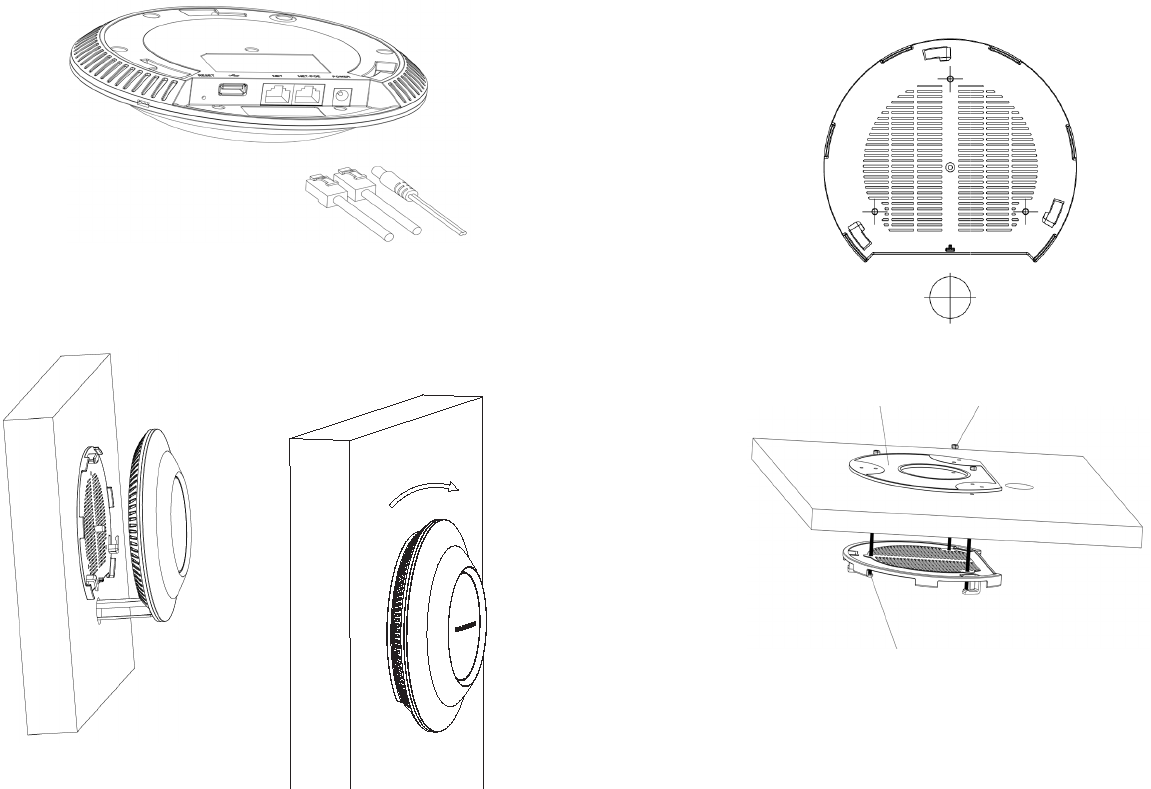

Wall Mount

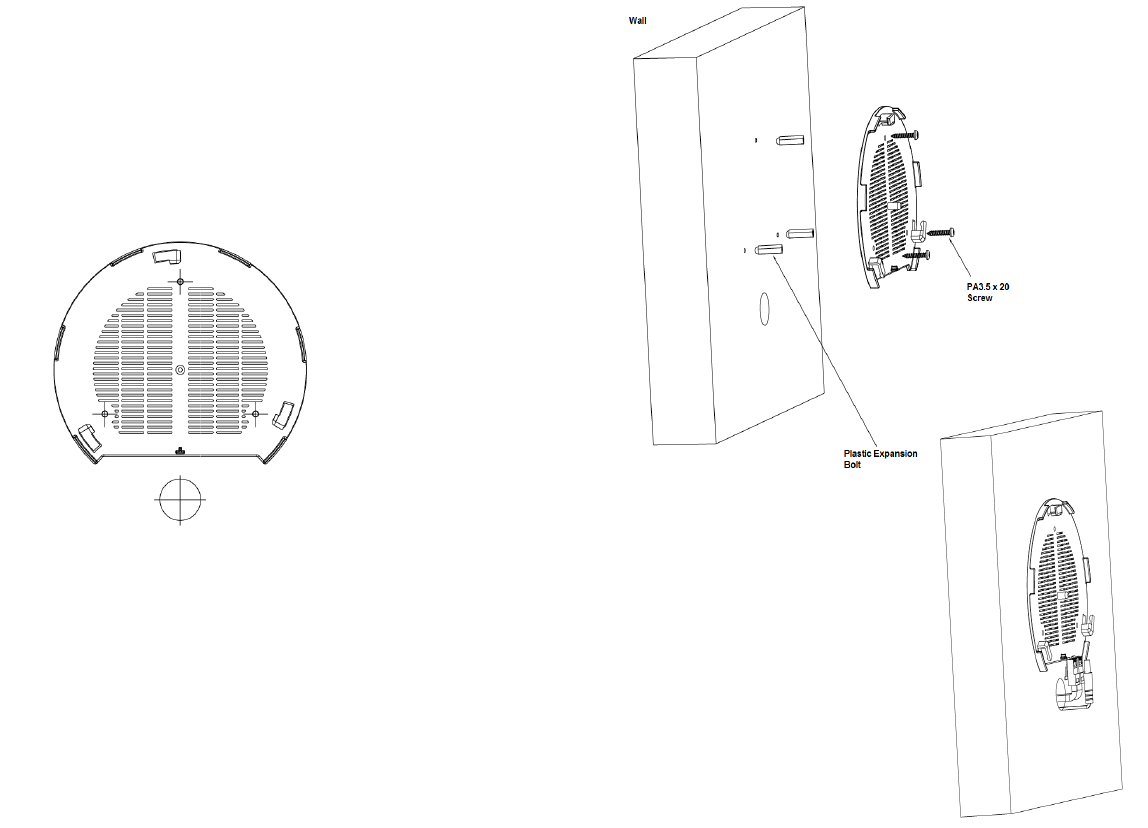

1. Position the mounting bracket at the desired location on the wall with the arrow pointing
up.
2. Use a pencil to mark the four mounting holes (screw holes DIA 5.5mm, reticle hole DIA
25mm).
3. Insert screw anchors into the 5.5 mm holes. Attach the mounting bracket to the wall by
inserting the screws into the anchors.
4. Connect the power cable and the ethernet cable (RJ45) to the correct ports of your
GWN7600.
5. Align the arrow on the GWN7600 with the arrow on the locking tab of the mounting
bracket and ensure that your GWN7600 is frmly seated on the mounting bracket.
6.Turn the GWN clockwise until it locks into place and ts the locking tab.

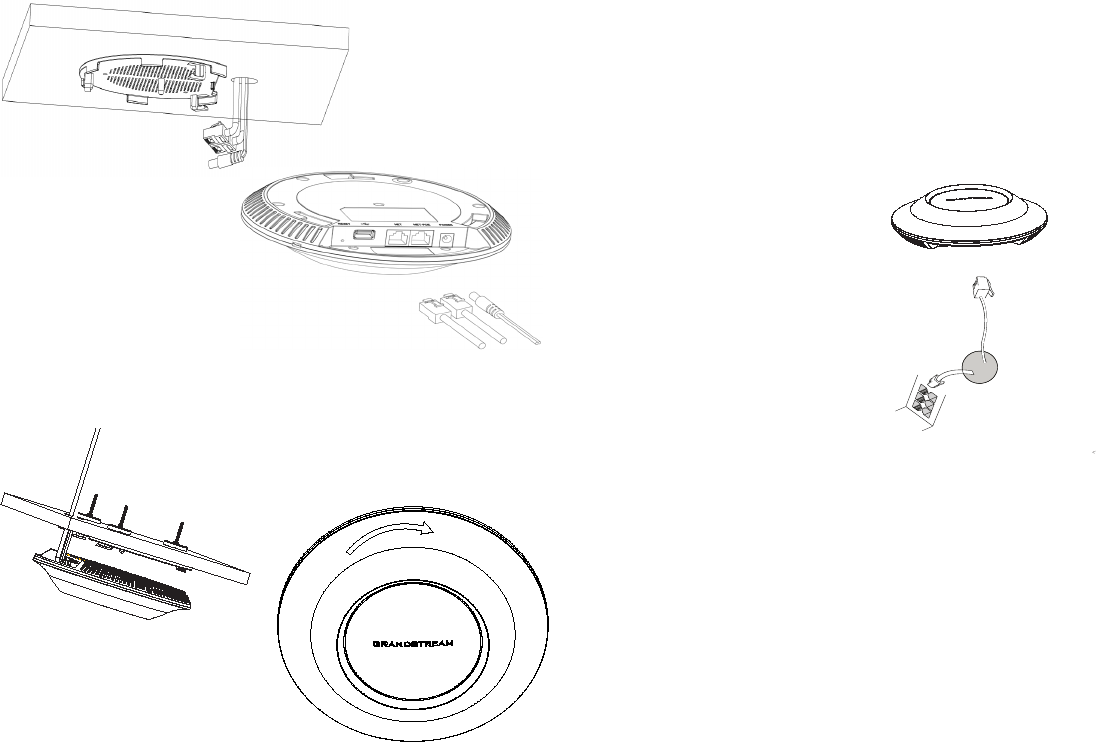

Ceiling Mount
1. Remove the ceiling tile.
2. Place the ceiling backing plate in the center of the ceiling tile and mark the mounting
screw holes (screw holes DIA 5.5mm, reticle hole DIA 25mm).
3. Insert the screws through the mounting bracket.
Ceiling Mounting Bracket M3 nut
M3.0x50 screw
4. Connect the power cable and the Ethernet cable (RJ45) to the correct ports of your
GWN7600.
5. Align the arrow on the GWN7600 with the arrow on the locking tab of the mounting
bracket and ensure that your GWN is rmly seated on the mounting bracket and connect
the network and power cables.
6.Turn the GWN clockwise until it locks into place and ts the locking tab.
RJ45 Ethernet Cable
to Power over Ethernet
(PoE) Switch
Network
Port
POWERING AND CONNECTING THE GWN7600
GWN7600 can be powered on using PoE switch using following steps:
Step 1: Plug a RJ45 Ethernet cable into the network port of the GWN7600
Step 2: Plug the other end into the uplink port of the power over Ethernet (PoE) switch.
Note: Ceiling mounting is recommended for optimal coverage performance.
bracket and ensure that your GWN7600 is rmly seated on the mounting bracket and connect

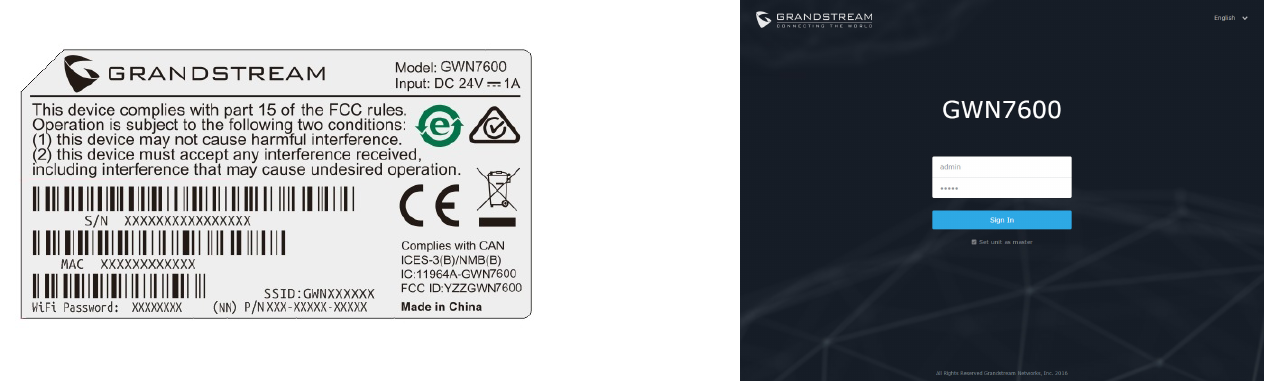

Using one of the above methods, the login screen will appear. Type in “admin” in both
Username and Password elds and click on Sign In.
Notes :
- Make sure that the GWN7600 is not already paired with another GWN7600/GWN7610
Access Point as slave, otherwise the conguration interface cannot be accessed.
- If the GWN7600 is already paired, make sure to unpair it rst, or do a factory reset.
- For more information, please download the GWN7600 User Manual from:
http://www.grandstream.com/support
CONNECT TO GWN7600 DEFAULT WIFI NETWORK
GWN7600 can be used as standalone access point out of box, or after factory reset with
Wi-Fi enabled by default.
After powering the GWN7600 and connecting it to the network, GWN7600 will broadcast
a default SSID based on its MAC address GWN[MAC’s last 6 digits] and a random
password.
Note: GWN7600’s default SSID and password information are printed on the MAC tag of
the unit.
ACCESSING THE CONFIGURATION INTERFACE
A computer connected to the GWN7600’s SSID, or to the same network as the GWN7600
can discover and access its conguration interface using one of the below methods:
Method 1: Discover GWN7600 using its MAC Address.
1. Locate the MAC address on the MAC tag of the unit, which is on the underside of the
device, or on the package.
2. From a computer connected to same network as the GWN7600, type in the following
address using the GWN7600’s MAC address on your browser https://gwn_<mac>.local
Example: if a GWN7600 has the MAC address 00:0B:82:8B:4E:28, this unit can be ac-
cessed by typing https://gwn_000b828b4e28.local on the browser.
Method 2: Discover GWN7600 using GWN DiscoveryTool.
1. Download and install GWN DiscoveryTool from the following link:
http://www.grandstream.com/support/tools
2. Open the GWN DiscoveryTool, and click on Scan.
3. The tool will discover all GWN7600 Access Points connected on the network showing
their MAC and IP addresses.
4. Click on Manage Device to be redirected directly to the GWN7600’s conguration inter-
face, or type in manually the displayed IP address on your browser.
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This
equipment should be installed and operated with minimum distance 20cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

ISEDC Warning
This device complies with Innovation, Science, and Economic Development Canada
licence-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation
of the device.
LeprésentappareilestconformeauxCNRd'Innovation,SciencesetDéveloppement
économiqueCanada applicablesauxappareilsradioexemptsde
licence.L'exploitationestautoriséeauxdeuxconditionssuivantes:
(1)l'appareilnedoitpasproduiredebrouillage,et
(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,même
silebrouillageestsusceptibled'encompromettrelefonctionnement.
Cet équipement est conforme aux ISED RF limites d'exposition aux radiations dans un
environnement non contrôlé. Cet émetteur ne doit pas être situé ou opérant en conjonction avec
une autre antenne ou émetteur.
ISEDC RF exposure statement :
Cet équipement est conforme aux ISEDC RF limites d'exposition aux radiations dans un
environnement non contrôlé. Cet émetteur ne doit pas être situé ou opérant en conjonction avec
une autre antenne ou émetteur.
This equipment complies with IS('& radiation exposure limits set forth for an uncontrolled environment .This
equipment should be installed and operated with minimum distance 20cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Navigation menu
