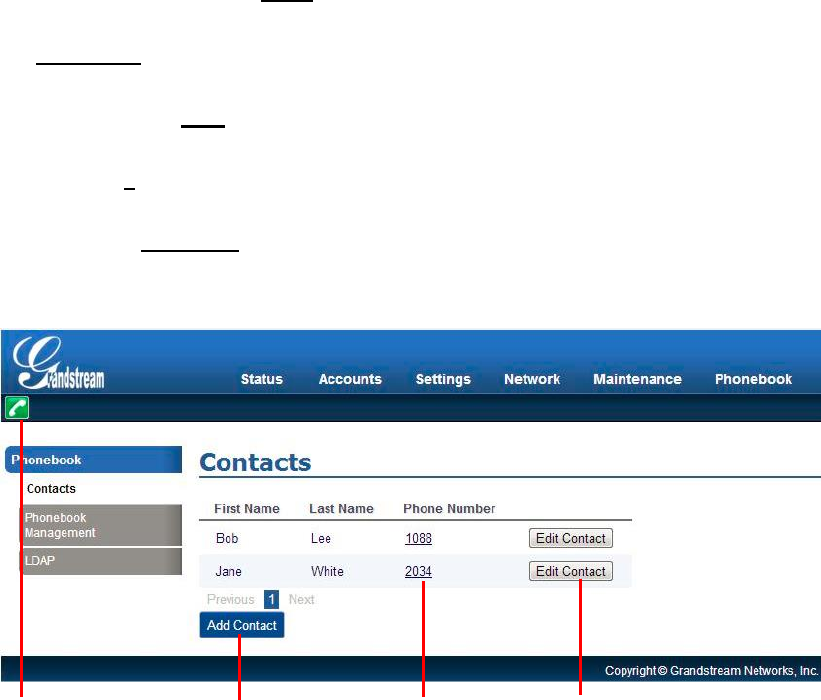

Figure 3: Web GUI- Phonebook->Contacts ................................................................................................ 41
Figure 4: Click-to-Dial .................................................................................................................................. 42
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 5 of 47
DOCUMENT PURPOSE
This document describes how to configure GXP1610/GXP1620/GXP1625/GXP1628 features via phone’s
LCD menu and Web GUI menu. The intended audiences of this document are phone administrators. To
learn the basic functions of GXP1610/GXP1620/GXP1625/GXP1628, please visit
http://www.grandstream.com/support to download the latest “GXP1610/GXP1620/GXP1625/GXP1628
User Guide”.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 6 of 47
GUI INTERFACE EXAMPLES
http://www.grandstream.com/products/gxp_series/general/documents/gxp1610_1620_1625_gui.zip
1. Screenshot of Login Page
2. Screenshots of Status Pages
3. Screenshots of Accounts Pages
4. Screenshots of Settings Pages
5. Screenshots of Network Pages
6. Screenshots of Maintenance Pages
7. Screenshots of Phonebook Pages
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 7 of 47
GNU GPL INFORMATION
GXP1610/GXP1620/GXP1625/GXP1628 firmware contains third-party software licensed under the GNU
General Public License (GPL). Grandstream uses software under the specific terms of the GPL. Please
see the GNU General Public License (GPL) for the exact terms and conditions of the license.
Grandstream GNU GPL related source code can be downloaded from Grandstream web site from:
http://www.grandstream.com/support/faq/gnu_gpl.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 8 of 47
CHANGE LOG
This section documents significant changes from previous versions of user manuals for
GXP1610/GXP1620/GXP1625/GXP1628. Only major new features or major document updates are listed
here.
FIRMWARE VERSION 1.0.1.4
This is the initial version.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 9 of 47
WELCOME

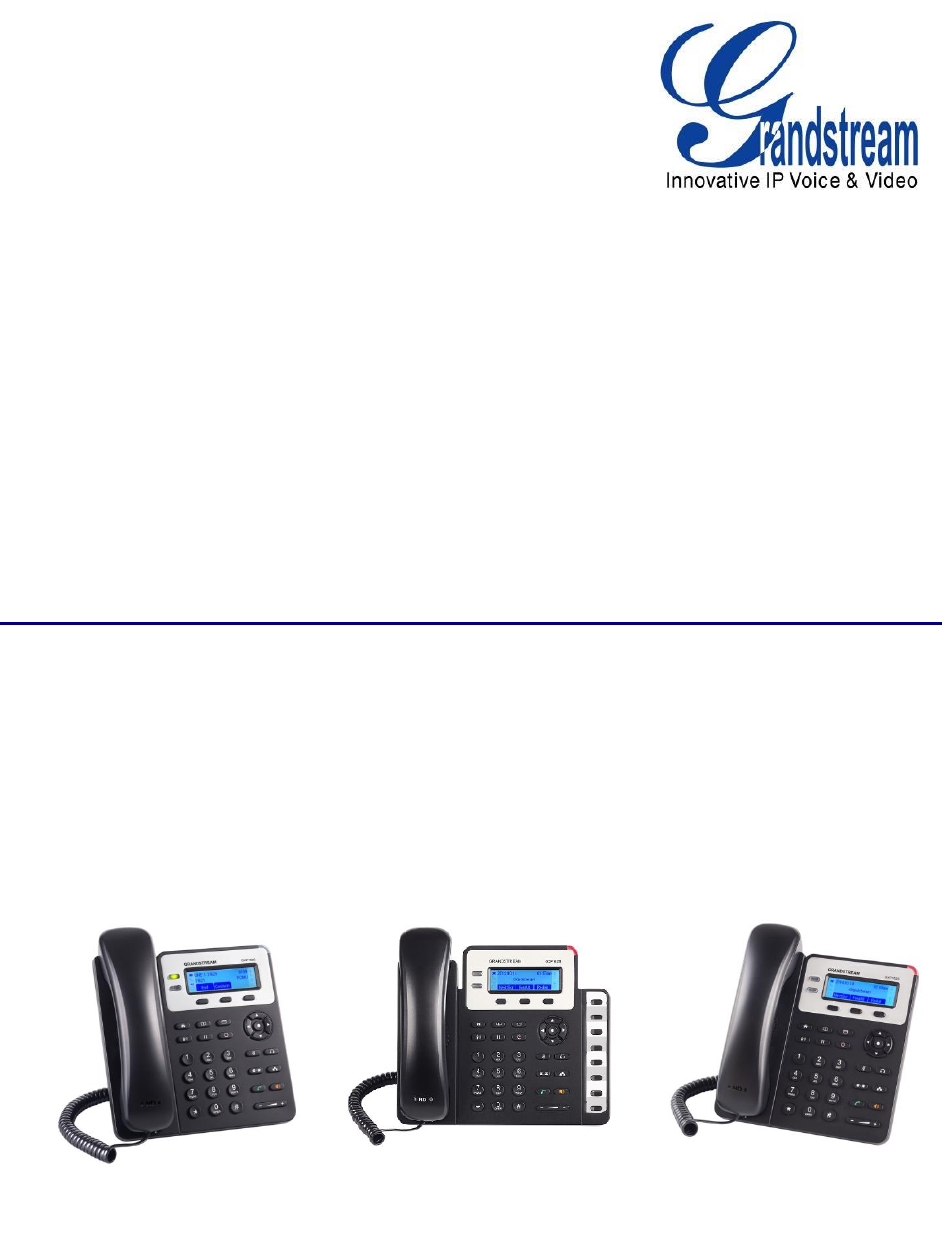

Thank you for purchasing Grandstream Small Business IP phoneGXP1610/GXP1620/GXP1625/
GXP1628.It is a next generation small-to-medium business IP phone: the GXP1620/GXP1625 features 2
lines with2 SIP accounts, superior HD wideband audio, 132 x 48backlit graphical LCD; the GXP1610
supports 2 lines with 1 SIP account, 132 x 48 graphical LCD. The
GXP1610/GXP1620/GXP1625/GXP1628 delivers rich features of 3 XML programmable context-sensitive
soft keys, dual network ports with PoE (GXP1625/GXP1628 only), EHS (Electronic Hook-Switch) with
Plantronics headsets, and 3-way conference, superb full-duplex hands-free speakerphone with advanced
acoustic echo cancellation, advanced security protection for privacy, and compatible with Grandstream
UCM Features. It is a perfect choice for small-to-medium businesses looking for a high quality, feature
rich IP phone with affordable cost.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 10 of 47
Caution:
Changes or modifications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this User Manual, could void your manufacturer warranty.
Warning:
Please do not use a different power adaptor with the GXP1610/GXP1620/GXP1625/GXP1628 as it may
cause damage to the products and void the manufacturer warranty.
This document is subject to change without notice. The latest electronic version of this user manual is
available for download here:
http://www.grandstream.com/support
Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for
any purpose without the express written permission of Grandstream Networks, Inc is not permitted.
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 11 of 47
PRODUCT OVERVIEW
FEATURE HIGHTLIGHTS
132*48 pixel backlit graphical LCD display (GXP1610 doesn’t support backlit)
2 dual-color line keys, 3 XML programmable context-sensitive soft keys, 3-way conference, 8 BLF
keys (GXP1628 only)
HD wideband audio(GXP1620/GXP1625/GXP1628 only), superb full-duplex hands-free
speakerphone with advanced acoustic echo cancellation and excellent double-talk performance
Large phonebook (up to 500 contacts) and call history (up to 200 records)
Automated personal information service (e.g., local weather, etc), personalized music ring
tone/ring back tone, flexible customizable screen content & format using XML, and advanced
Web and enterprise applications, local weather service.
2 dual switched 10/100 Mbps ports, integrated PoE (GXP1625/GXP1628 only)
Automated provisioning using TR-069 or encrypted XML configuration file, SRTP and TLS for
advanced security protection, 802.1x for media access control
Perfectly compatible with Grandstream UCM Features
Innovative UI design (easy and useable multi-language support )
Use with Grandstream’s UCM6100 series IP PBX appliance for Zero-Config provisioning, 1-touch
call recording and more
GXP1610/GXP1620/GXP1625/GXP1628 TECHNICAL SPECIFICATIONS
Table 1: GXP1610 Technical Specifications
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP,
ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP,
STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Dual switched auto-sensing 10/ 100 Mbps Ethernetports
132*48 LCD display
2 line keys with dual-color LED and 1 SIP account.3 XML programmable
context sensitive soft keys. 5 (navigation, menu) keys. 13 dedicated
function keys for PAGE/INTERCOM, PHONEBOOK, MESSAGE, HOME,
HOLD, RECORD, MUTE, HEADSET, TRANSFER,CONFERENCE, SEND
and REDIAL, SPEAKERPHONE, VOLUME
Support for G.711µ/a, G.722 (wide-band), G.723(pending),G.726-32,
G.729 A/B, iLBC(pending),Opus (pending) , in-band and out-of-band
DTMF (In audio, RFC2833, SIP INFO)
Hold, transfer, forward (unconditional/no-answer/busy), 3-way conference,
call park/pickup, downloadable phone book (XML, LDAP,up to 500 items),
call waiting, call history(up to 500 records), off-hook auto dial, auto
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 12 of 47
answer, click-to-dial, flexible dial plan, hot desking, personalized music
ringtones, server redundancy & fail-over
RJ9 headset jack (allowing EHS with Plantronics headsets)
Yes, allow 2 angle positions available, Wall Mountable
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
User and administrator level access control, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP,
HTTPS, 802.1x media access control
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, simplified and traditional Chinese, Korean, Japanese, and more
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using
TR-069 or AES encrypted XML configuration file
Power & Green Energy
Efficiency
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
Temperature and
Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10％ to 90% Non-condensing
Physical
Dimension:209mm（L）x 184.5mm（W）x 76.2mm（H） (with handset)
Unit Weight: 0.74kg Package Weight: 1.1kg
Package Content
GXP1610 phone, handset with cord, base stand, universal power supply,
network cable, Quick Installation Guide, brochure, GPL license
Compliance
FCC: Part 15 (CFR 47) Class B
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1
Table 2: GXP1620/GXP1625 Technical Specifications
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP,
ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP,
STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Dual switched 10/ 100 Mbps ports, integrated PoE (GXP1625 only)
132*48 pixel backlit graphical LCD display
2 line keys with dual-color LED and 2 SIP account. 3 XML programmable
context sensitive soft keys. 5 (navigation, menu) keys. 13 dedicated
function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND
and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE,
HOLD, PAGE/INTERCOM, RECORD, HOME
Support for G.711µ/a, G.722 (wide-band), G.723 (pending), G.726-32,
G.729 A/B, iLBC (pending), Opus (pending), in-band and out-of-band
DTMF (In audio, RFC2833, SIP INFO)
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup,
3-way conference, shared-call-appearance (SCA) / bridged-line-
appearance (BLA), downloadable phone book (XML, LDAP, up to 500
items), call waiting, call history (up to 500 records), off-hook auto dial,
auto answer, click-to-dial, flexible dial plan, hot desking, personalized
music ringtones, server redundancy & fail-over.
RJ9 headset jack (allowing EHS with Plantronics headsets)
Yes, HD handset and speakerphone with support for wideband audio
Yes, 2 angle positions available, Wall Mountable
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 13 of 47
User and administrator level access control, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP,
HTTPS, 802.1x media access control
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, simplified and traditional Chinese, Korean, Japanese, and more
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using
TR-069 or AES encrypted XML configuration file
Power & Green Energy
Efficiency
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
PoE IEEE802.3 af Class 2, 3.84W-6.49W(GXP1625 only)
Temperature and
Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10％ to 90% Non-condensing
Physical
Dimension: 209mm（L）x 184.5mm（W）x 76.2mm（H） (with handset)
Unit Weight: 0.73kg Package Weight: 1.1kg
Package Content
GXP1620/GXP1625 phone, handset with cord, base stand, universal
power supply, network cable, Quick Installation Guide, brochure, GPL
license
Compliance
FCC: Part 15 (CFR 47) Class B
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1
Table 3: GXP1628 Technical Specifications
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP,
ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP,
STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports,, integrated
PoE
132 x 48 backlit graphical LCD display
2 line keys with dual-color LED and 2 SIP account. 3 XML programmable
context sensitive soft keys. 5 (navigation, menu) keys. 8 BLF keys. 13
dedicated function keys for MUTE, HEADSET, TRANSFER,
CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME,
PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD,
HOME
Support for G.711µ/a, G.722 (wide-band), G.723 (pending), G.726-32,
G.729 A/B, iLBC (pending), Opus (pending), in-band and out-of-band
DTMF (In audio, RFC2833, SIP INFO)
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup,
3-way conference, shared-call-appearance (SCA) / bridged-line-
appearance (BLA), downloadable phone book (XML, LDAP, up to 500
items), call waiting, call history (up to 500 records), off-hook auto dial,
auto answer, click-to-dial, flexible dial plan, hot desking, personalized
music ringtones, server redundancy & fail-over.
RJ9 headset jack (allowing EHS with Plantronics headsets)
Yes, HD handset and speakerphone with support for wideband audio
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 14 of 47
Yes, 2 angle positions available, Wall Mountable
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
User and administrator level access control, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP,
HTTPS, 802.1x media access control
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, simplified and traditional Chinese, Korean, Japanese, and more
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using
TR-069 or AES encrypted XML configuration file
Power & Green Energy
Efficiency
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
PoE IEEE802.3 af Class 2, 3.84W-6.49W(GXP1625/GXP1628 only)
Temperature and
Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10％ to 90% Non-condensing
Physical
Dimension: 220.5mm (L) x 192.5mm (W) x 76.0mm (H) (with handset)
Unit weight: 0.8kg; Package weight: 1.2kg
Package Content
GXP1628 phone, handset with cord, base stand, universal power supply,
network cable, Quick Installation Guide, brochure, GPL license, BLF label
cards
Compliance
FCC: Part 15 (CFR 47) Class B
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 15 of 47
CONFIGURATION GUIDE
The GXP1610/GXP1620/GXP1625/GXP1628 can be configured via two ways:
LCD Configuration Menu using the phone's keypad;
Web GUI embedded on the phone using PC's web browser.
CONFIGURATION VIA KEYPAD
To configure the LCD menu using phone's keypad, follow the instructions below:
Enter MENU options. When the phone is in idle, press the round MENU button to enter the
configuration menu;
Navigate in the menu options. Press the UP/DOWN/LEFT/RIGHT arrow keys to navigate in the
menu options;
Enter/Confirm selection. Press the round MENU button to enter the selected option;
Exit. Press LEFT arrow key to exit to the previous menu;
The phone automatically exits MENU mode with an incoming call, when the phone is off hook or
the MENU mode if left idle for more than 60 seconds.
When the phone is in idle, pressing the navigation keys UP/DOWN/RIGHT can access the call
history entries:
UP - Missed Calls
DOWN - Dialed Calls
RIGHT - Answered Calls
The MENU options are listed in the following table.
Table 4: GXP1610/GXP1620/GXP1625/GXP1628 Menu Options
Call History
Displays answeredcalls, dialed calls, missed calls, transferred calls and
forwarded calls.
Status
Displays account status, network status, software version number and
Hardware
Network status.
Press to enter the sub menu for IP setting information (DHCP/Static
IP/PPPoE), IPv4 address, IPv6 address, Subnet Mask, Gateway，
DNS server and NTP server.
Account status.
Software and Hardware Version
Press to enter the sub menu for Boot, Core, Base, Prog and Locale
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 16 of 47
version, MAC address, Hardware version and P/N number.
Phonebook
Phonebook sub menu includes the following options:
Local Phonebook
Displays phonebook. Users could add, edit, search and delete
contacts, or download phonebook XML to the phone. When doing
phonebook search, user can only search ASCII characters.
Local Group
Displays phonebook group.
Note: Besides 3 embedded groups: Family, Friends and Work, user
can create, edit and delete your own new groups. GXP phone
allows at most 7 customized groups.
Broadsoft Phonebook
LDAP Directory
Configures LDAP directory options, displays LDAP directory by
searching. LDAP search does not support entering Non-ASCII
characters.
Instant Messages
Displays received instant messages.
Direct IP Call
Makes direct IP call.
Preference
Preference sub menu includes the following options:
Do Not Disturb
Enables/disables Do Not Disturb on the phone.
Forward Call
Defines the call forward type and destination number for account 1
or account 2.
Ring Tone
Configures different ring tones for incoming call.
Ring Volume
Adjusts ring volume by pressing left/right arrow key.
LCD Contrast
Adjusts LCD contrast by pressing left/right arrow key.
LCD Brightness(Not applicable to GXP1610)
Adjusts LCD brightness of idle state and active stateby pressing
left/right arrow key.
Download SRC XML
Triggers the phone to download the XML idle screen file
immediately. The XML idle screen server path and downloading
method need to be set up correctly from Web GUI first.
Erase Custom SCR
Erases custom XML idle screen previously loaded on the phone.
After erasing it, the phone will show default idle screen.
Display Language
Selects the language to be displayed on the phone's LCD. Users
could select Automatic for local language based on IP location if
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 17 of 47
available.
Date Time
Configures time zone and NTP server on the phone.
Star Key Lock
Turns on/off keypad lock feature and configures keypad lock
password.
Config
Config sub menu includes the following options:
SIP
Configures SIP Proxy, Outbound Proxy, SIP User ID, SIP Auth ID,
SIP Password, SIP Transport and Audio information to register SIP
account on the phone.
Upgrade
Configures firmware server and config server for upgrading and
provisioning the phone.
Factory Reset
Resets the phone to factory default settings.
Layer 2 QoS
Configures802.1Q/VLAN Tag and priority value.
Headset Type
Selects the headset type from normal and Plantronics EHS.
Factory Functions
Factory Functions sub menu includes the following options:
Audio Loopback
Speak to the phone using speaker/handset/headset. If you can hear
your voice, your audio is working fine. Press Menu button to exit
audio loopback mode.
Diagnostic Mode
All LEDs will light up. Press any key (except MENU key) on the
keypad to display the button name in the LCD. Lift and put back the
handset or press Menu button to exit diagnostic mode.
Keyboard Diagnostic
Press all the available keys on the phone. The LCD will display the
name for the keys to be pressed to finish the keyboard diagnostic
mode.
Network
Selects IP mode (DHCP/Static IP/PPPoE);ConfiguresPPPoE account
ID and password; Configures IP address, Netmask, Gateway, DNS
Server 1 and DNS Server 2; Configures 802.1X mode.
Call Features
Configures call forward features for Forward All, Forward Busy, Forward
No Answer and No Answer Timeout.
Voice Mails
Displays voicemail message information in the format below:
new messages/all messages (urgent messages/all urgent messages)
UCM Connection
UCM Server List
Displays connected UCM server List.
Input Server IP Manually
Specifies Protocol, IP and Port of the target UCM server
Reboot
Reboots the phone
The following picture shows the keypad MENU configuration flow.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 18 of 47
Figure 1: Keypad MENU Flow
Call History
Status
Phone Book
LDAP
Directory
Instant
Messages
Direct IP Call
Preference
Config
Factory
Functions
Network
Call Features
Voice Mails
UCM
Connection
Reboot
Exit
MENU
Answered Calls
Dialed Calls
Missed Calls
Transferred Calls
Forwarded Calls
Clear All
Broadsoft Call Log
Back
Local Phonebook
Local Group
Broadsoft Phonebook
None
New Entry
Search
Back
Search
LDAP Configuration
Back
Server Address
Port
Base
User Name
Password
...
Do Not Disturb
Forward Call
Ring Tone
Ring Volume
LCD Contrast
LCD Brightness
Download SCR XML
Erase Custom SCR
Display Language
Date Time
Star Key Lock
SIP
Upgrade
Factory Reset
Layer 2 QoS
Headset Type
Back
Audio Loopback
Diagnostic Mode
Keyboard Diagnostic
Back
Default Ring
Ring1
Ring2
…
Account
SIP Proxy
Outbound Proxy
SIP User ID
SIP Auth ID
…
Firmware Server
Config Server
Upgrade Via
Back
802.1Q/VLAN Tag
Priority value
Reset Vlan Config
Back
IP Setting
PPPoE Settings
IP
Netmask
Gateway
DNS Server 1
DNS Server 2
802.1X
Back
Account X
Forward All
Forward Busy
Forward No Answer
No Answer Timeout
Family
Friends
Work
New Group
Back
Enable DND
Disable DND
Back
NTP Server
DHCP override NTP
Time Zone
…
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 19 of 47
CONFIGURATION VIA WEB BROWSER
The GXP1610/GXP1620/GXP1625/GXP1628 embedded Web server responds to HTTP/HTTPS
GET/POST requests. Embedded HTML pages allow a user to configure the IP phone through a Web
browser such as Microsoft’s IE, Mozilla Firefox and Google Chrome.
To access the GXP1610/GXP1620/GXP1625/GXP1628 Web GUI:
1. Connect the computer to the same network as the phone;
2. Make sure the phone is turned on and shows its IP address. You may check the IP address on LCD;
3. Open a Web browser on your computer;
4. Enter the phone’s IP address in the address bar of the browser;
5. Enter the administrator’s login and password to access the Web Configuration Menu.
Note:
The computer has to be connected to the same sub-network as the phone. This can be easily done
by connecting the computer to the same hub or switch as the phone connected to. In absence of a
hub/switch (or free ports on the hub/switch), please connect the computer directly to the PC port on
the back of the phone.
If the phone is properly connected to a working Internet connection, the IP address of the phone will
display in MENU->Status->Network Status. This address has the format: xxx.xxx.xxx.xxx, where xxx
stands for a number from 0-255. Users will need this number to access the Web GUI. For example, if
the phone has IP address 192.168.40.154, please enter "http://192.168.40.154"in the address bar of
the browser.
There are two default passwords for the login page:
User Level
User
Password
Web Pages Allowed
End User Level
user
123
Only Status page, Basic Settings in
Advanced Settings page and some
settings in maintenance page.
Administrator Level
admin
admin
Browse all pages
The password is case sensitive with maximum length of 25 characters.
When changing any settings, always SUBMIT them by pressing the SAVE button on the bottom of the
page. After submitting the changes in all the Web GUI pages, reboot the phone to have the changes
take effect if necessary. All the options under Basic Setting and Account Setting,and most of the
options under Advanced Settings do not require reboot after submitting the changes. Under Advanced
Setting, the parameters on network configuration require reboot after update.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 20 of 47
DEFINITIONS
This section describesthe options in theGXP1610/GXP1620/GXP1625/GXP1628 Web GUI. As
mentioned,youcanlog in as an administrator or an end user.
Status: Displays the Account status,Network status,and System Info of the phone.
Account: To configure the SIP account.
Advanced Settings: To configure Call features,Time settings, Web services, Programmable keys
and etc.
Maintenance: To configure Network settings,Web/SSH Access,Upgrading and
provisioning,Language, Phonebook and etc.
STATUS PAGE DEFINATIONS
Status -> Account Status
Account x
Account index.
SIP User ID
Displays the configured SIP User ID.
SIP Server
Displays the configured SIP Server address.
SIP Registration
Displays SIP registration status YES/NO.
Status -> Network Status
MAC Address
Global unique ID of device, in HEX format. The MAC address will be used for
provisioning and can be found on the label coming with original box and on
the label located on the back of the device.
IP Setting
DHCP, Static IP or PPPoE.
IPv4 Address
The IPv4 address obtained on the phone.
IPv6 Address
The IPv6 address obtained on the phone.
Subnet Mask
The subnet mask obtained on the phone.
Gateway
The gateway address obtained on the phone.
DNS Server 1
The DNS server address 1.
DNS Server 2
The DNS server address 2.
PPPoE Link Up
PPPoE connection status.
NAT Type
NAT Type
NAT Traversal
Display the NAT traversal status of Account 1 and Account 2.
Status -> System Info
Product Model
Product model of the phone.
Part Number
Product part number.
Software Version
Boot Version;
Core Version;
Base Version;
Program Version. This is the main firmware release number, which is
always used for identifying the software system of the phone;
Locale Version. This is the version of localization language package;
Recovery Version.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 21 of 47
IP Geographic
Information
City. Displays the city name.
Language. Displays current language been used.
Timezone. Displays current time zone.
System Time
System up time. Displays system up time since the last reboot.
System time. Displays current system time on the phone system.
System Status
GUI and Phone service status.
Core Dump
Core dump file that could be downloaded for troubleshooting purpose.
ACCOUNT PAGE DEFINATIONS
The GXP1610/GXP1620/GXP1625/GXP1628 has two lines that can be configured to accommodate
independent SIP accounts. Every SIP account has an individual configuration page.
Account x -> General Settings
Account Active
This field indicates whether the account is active. The default setting is "Yes".
Account Name
The name associated with each account to be displayed on the LCD.
SIP Server
The URL or IP address, and port of the SIP server. This is provided by your
VoIP service provider (ITSP).
Secondary SIP Server
The URL or IP address, and port of the SIP server. This will be used when the
primary SIP server fails.
Outbound Proxy
IP address or Domain name of the Primary Outbound Proxy, Media Gateway,
or Session Border Controller. It's used by the phone for Firewall or NAT
penetration in different network environments. If a symmetric NAT is detected,
STUN will not work and ONLY an Outbound Proxy can provide a solution.
SIP User ID
User account information, provided by your VoIP service provider (ITSP). It's
usually in the form of digits similar to phone number or actually a phone
number.
SIP Authentication ID
SIP service subscriber's Authenticate ID used for authentication. It can be
identical to or different from the SIP User ID.
SIP Authentication
Password
The account password required for the phone to authenticate with the ITSP
(SIP) server before the account can be registered. After it is saved, this will
appear as hidden for security purpose.
Name
The SIP server subscriber's name (optional) that will be used for Caller ID
display.
Voice Mail UserID
This parameter allows you to access voice messages by pressing the
MESSAGE button on the phone. This ID is usually the VM portal access
number. For example, in Asterisk server, 8500 could be used.
Account x -> Network Settings
DNS Mode
This parameter controls how the Search Appliance looks up IP addresses for
hostnames. There are four modes: A Record, SRV, NATPTR/SRV, and Use
Configured IP. The default setting is "A Record". If the user wishes to locate
the server by DNS SRV, the user may select "SRV" or "NATPTR/SRV". If
"Use Configured IP" is selected, please fill in the three fields below:
Primary IP: The primary IP address where the phone sends DNS query
to;
Backup IP 1;
Backup IP 2.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 22 of 47
If SIP server is configured as domain name, phone will not send DNS query,
but use “Primary IP” or “Backup IP x” to send SIP message if at least one of
them are not empty. Phone will try to use “Primary IP” first. After 3 tries
without any response, it will switch to “Backup IP x”, and then it will switch
back to “Primary IP” after 3 re-tries.
If SIP server is already an IP address, phone will use it directly even “User
Configured IP” is selected.
NAT Traversal
This parameter configures whether the NAT traversal mechanism is activated.
Users could select the mechanism from No, STUN, Keep-Alive, UPnP, Auto
or VPN. If set to "STUN" and STUN server is configured, the phone will route
according to the STUN server. If NAT type is Full Cone, Restricted Cone or
Port-Restricted Cone, the phone will try to use public IP addresses and port
number in all the SIP&SDP messages. The phone will send empty SDP
packet to the SIP server periodically to keep the NAT port open if it is
configured to be "Keep-Alive". Configure this to be "No" if an outbound proxy
is used. "STUN" cannot be used if the detected NAT is symmetric NAT.
Proxy-Require
A SIP Extension to notify the SIP server that the phone is behind a
NAT/Firewall. Do not configure this parameter unless this feature is supported
on the SIP server.
Account x -> SIP Settings -> Basic Settings
TEL URI
If the phone has an assigned PSTN telephone number, this field should be
set to "User=Phone". Then a "User=Phone" parameter will be attached to the
Request-Line and "TO" header in the SIP request to indicate the E.164
number. If set to "Enable", "Tel:" will be used instead of "SIP:" in the SIP
request. The default setting is "Disable".
SIP Registration
Selects whether or not the phone will send SIP Register messages to the
proxy/server. The default setting is "Yes".
Unregister Before New
Registration
If set to "Yes", the SIP user's registration information will be cleared when the
phone reboots. The SIP Contact header will contain "*" to notify the server to
unbind the connection. The default setting is "No".
Register Expiration
Specifies the frequency (in minutes) in which the phone refreshes its
registration with the specified registrar. The default value is 60 minutes. The
maximum value is 64800 minutes (about 45 days).
Reregister Before
Expiration
Specifies the time frequency (in seconds) that the phone sends re-registration
request before the Register Expiration. The default value is 0.
Local SIP Port
Defines the local SIP port used to listen and transmit. The default value is
5060 for Account 1 and 5062 for Account 2.
SIP Registration Failure
Retry Wait Time
Specifies the interval to retry registration if the process is failed. The default
value is 20 seconds.
SIP T1 Timeout
SIP T1 Timeout. The default setting is 0.5 seconds.
SIP T2 Timeout
SIP T2 Timeout. The default setting is 4 seconds.
SIP Transport
Determines the network protocol used for the SIP transport. Users can
choose from TCP, UDP and TLS.
SIP URI Scheme when
using TLS
Specifies if "sip:" or "sips:" will be used when TLS/TCP is selected for SIP
Transport. The default setting is "sips:".
Use Actual Ephemeral
Port in Contact with
TCP/TLS
This option is used to control the port information in the Via header and
Contact header. If set to No, these port numbers will use the permanent
listening port on the phone. Otherwise, they will use the ephemeral port for
the particular connection.
Remove OBP from
Route
Configures to remove outbound proxy from route. This is used for the SIP
Extension to notify the SIP server that the device is behind a NAT/Firewall.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 23 of 47
Support SIP Instance
ID
Defines whether SIP Instance ID is supported or not. The default setting is
"Yes".
SUBSCRIBE for MWI
When set to "Yes", a SUBSCRIBE for Message Waiting Indication will be sent
periodically. The phone supports synchronized and non-synchronized MWI.
The default setting is "No".
SUBSCRIBE for
Registration
When set to "Yes", a SUBSCRIBE for Registration will be sent out
periodically. The default setting is "No".
Enable 100rel
The use of the PRACK (Provisional Acknowledgment) method enables
reliability to SIP provisional responses (1xx series). This is very important in
order to support PSTN internetworking. To invoke a reliable provisional
response, the 100rel tag is appended to the value of the required header of
the initial signaling messages.
Caller ID Display
When set to "Auto", the phone will look for the caller ID in the order of P-
Asserted Identity Header, Remote-Party-ID Header and From Header in the
incoming SIP INVITE. When set to "Disabled", all incoming calls are displayed
with "Unavailable". When set to "From Header", the phone will display the
caller ID based on the From Header in the incoming SIP INVITE. The default
setting is "Auto".
Use Privacy Header
Controls whether the Privacy Header will present in the SIP INVITE message
or not. The default setting is "default": the Privacy Header will show in INVITE
unless "Huawei IMS" special feature is on. If set to "Yes", the Privacy Header
will always show in INVITE. If set to "No", the Privacy Header will not show in
INVITE.
Use P-Preferred-
Identity Header
Controls whether the P-Preferred-Identity Header will present in the SIP
INVITE message or not. The default setting is "default": the P-Preferred-
Identity Header will show in INVITE unless "Huawei IMS" special feature is
on.
If set to "Yes", the P-Preferred-Identity Header will always show in INVITE.
If set to "No", the P-Preferred-Identity Header will not show in INVITE.
Account x -> SIP Settings -> Advanced Features
Conference URI
Configures the conference URI when using Broadsoft N-way calling feature.
Music On Hold URI
Music On Hold URI to call when a call is on hold if server supports it
Special Feature
Specifies the server type for special requirements.
Broadsoft Call Center
Default setting is "No". When set to "Yes", a soft key “BSCCenter” is displayed
on LCD. User can access different Broadsoft Call Center agent features via
this softkey. Please note that “Feature Key Synchronization” will be enabled
regardless of this setting.
Hoteling Event
Broadsoft Hoteling event feature. Default setting is "No". With “Hoteling Event”
enabled, user can access the Hoteling feature option by pressing the
“BSCCenter” softkey.
Call Center Status
When set to "Yes", the phone will send SUBSCRIBE to the server to obtain
call center status. The default setting is "No".
Feature Key
Synchronization
This feature is used for Broadsoft call feature synchronization. When it's
enabled, DND, Call Forward features and Call Center Agent status can be
synchronized between Broadsoft server and phone. The default setting is
"Disabled".
Publish to Call Center
When set to "Yes", users could select "Away", "Online" or "Busy" from LCD
menu and publish it to call center. The default setting is "No".
Account x -> SIP Settings -> Session Timer
Session Expiration
The SIP Session Timer extension that enables SIP sessions to be periodically
"refreshed" via a SIP request (UPDATE, or re-INVITE). If there is no refresh
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 24 of 47
via an UPDATE or re-INVITE message, the session will be terminated once
the session interval expires. Session Expiration is the time (in seconds) where
the session is considered timed out, provided no successful session refresh
transaction occurs beforehand. The default value is 180 seconds.
Min-SE
The minimum session expiration (in seconds). The default value is 90
seconds.
Caller Request Timer
If set to "Yes" and the remote party supports session timers, the phone will
use a session timer when it makes outbound calls.
Callee Request Timer
If set to "Yes" and the remote party supports session timers, the phone will
use a session timer when it receives inbound calls.
Force Timer
If Force Timer is set to "Yes", the phone will use the session timer even if the
remote party does not support this feature. If Force Timer is set to "No", the
phone will enable the session timer only when the remote party supports this
feature. To turn off the session timer, select "No".
UAC Specify Refresher
As a Caller, select UAC to use the phone as the refresher; or select UAS to
use the Callee or proxy server as the refresher.
UAS Specify Refresher
As a Callee, select UAC to use caller or proxy server as the refresher; or
select UAS to use the phone as the refresher.
Force INVITE
The Session Timer can be refreshed using the INVITE method or the
UPDATE method. Select "Yes" to use the INVITE method to refresh the
session timer.
Account x -> SIP Settings -> Security Settings
Check Domain
Certificates
Choose whether the domain certificates will be checked or not when TLS/TCP
is used for SIP Transport. The default setting is "No".
Validate Incoming
Messages
Choose whether the incoming messages will be validated or not. The default
setting is "No".
Check SIP User ID for
incoming INVITE
If set to "Yes", SIP User ID will be checked in the Request URI of the incoming
INVITE. If it doesn't match the phone's SIP User ID, the call will be rejected.
The default setting is "No".
Accept Incoming SIP
from Proxy Only
When set to "Yes", the SIP address of the Request URL in the incoming SIP
message will be checked. If it doesn't match the SIP server address of the
account, the call will be rejected. The default setting is "No".
Authenticate Incoming
INVITE
If set to "Yes", the phone will challenge the incoming INVITE for authentication
with SIP 401 Unauthorized response. The default setting is "No".
Account x ->Audio Settings
Send DTMF
Specifies the mechanism to transmit DTMF digits. There are 3 supported
modes: in audio which means DTMF is combined in the audio signal (not very
reliable with low-bit-rate codecs), via RTP (RFC2833), or via SIP INFO.
DTMF Payload Type
Configures the payload type for DTMF using RFC2833. The default value is
101.
Preferred Vocoder
6 different vocoder types are supported on the phone, including G.711 U-law
(PCMU), G.711 A-law (PCMA), G.723.1(pending), G.729A/B, G.722 (wide
band), and G726-32. Users can configure vocoders in a preference list that is
included with the same preference order in SDP message.
Use First Matching
Vocoder in 200OK SDP
When set to "Yes", the device will use the first matching vocoder in the
received 200OK SDP as the codec. The default setting is "No".
Disable Multiple m line
in SDP
If enabled, the phone always responses 1 m line in SDP regardless multiple
m lines are offered.
SRTP Mode
Enables the SRTP mode based on your selection. The default setting is
"Disabled".
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 25 of 47
Symmetric RTP
Defines whether symmetric RTP is supported or not. The default setting is
"No".
Silence Suppression
Controls the silence suppression/VAD feature of the audio codec except for
G.723 (pending) and G.729. If set to "Yes", when silence is detected, a small
quantity of VAD packets (instead of audio packets) will be sent during the
period of no talking. If set to "No", this feature is disabled. The default setting
is "No".
Voice Frames Per TX
Configures the number of voice frames transmitted per packet. When
configuring this, it should be noted that the "ptime" value for the SDP will
change with different configurations here. This value is related to the codec
used and the actual frames transmitted during the in payload call. For end
users, it is recommended to use the default setting, as incorrect settings may
influence the audio quality.
G.726-32 Packing
Mode
Selects “ITU” or “IETF” for G.726-32 packing mode. The default setting is
“IETF”.
Jitter Buffer Type
Selects either Fixed or Adaptive based on network conditions. The default
setting is "Adaptive".
Jitter Buffer Length
Defines jitter buffer length based on network conditions.
Account x -> Call Settings
Early Dial
Selects whether or not to enable early dial. If it's set to "Yes", the SIP proxy
must support 484 response. The default setting is "No".
Dial Plan Prefix
Sets the prefix added to each dialed number.
Dial Plan
A dial plan establishes the expected number and pattern of digits for a
telephone number. This parameter configures the allowed dial plan for the
phone.
Dial Plan Rules:
1. Accepted Digits: 1,2,3,4,5,6,7,8,9,0 , *, #, A,a,B,b,C,c,D,d;
2. Grammar: x - any digit from 0-9;
a) xx+ - at least 2 digit numbers
b) xx. - only 2 digit numbers
c) ^ - exclude
d) [3-5] - any digit of 3, 4, or 5
e) [147] - any digit of 1, 4, or 7
f) <2=011> - replace digit 2 with 011 when dialing
g) | - the OR operand
Example 1: {[369]11 | 1617xxxxxxx}
Allow 311, 611, and 911 or any 10 digit numbers with leading digits 1617;
Example 2: {^1900x+ | <=1617>xxxxxxx}
Block any number of leading digits 1900 or add prefix 1617 for any dialed 7
digitnumbers;
Example 3: {1xxx[2-9]xxxxxx | <2=011>x+}
Allows any number with leading digit 1 followed by a 3 digit number, followed
by any number between 2 and 9, followed by any 7 digit number OR Allows
any length of numbers with leading digit 2, replacing the 2 with 011 when
dialed.
Example of a simple dial plan used in a Home/Office in the US:
{ ^1900x. | <=1617>[2-9]xxxxxx | 1[2-9]xx[2-9]xxxxxx | 011[2-9]x. | [3469]11 }
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 26 of 47
Explanation of example rule (reading from left to right):
^1900x. - prevents dialing any number started with 1900;
<=1617>[2-9]xxxxxx - allows dialing to local area code (617) numbers by
dialing7 numbers and 1617 area code will be added automatically;
1[2-9]xx[2-9]xxxxxx |- allows dialing to any US/Canada Number with 11
digitslength;
011[2-9]x - allows international calls starting with 011;
[3469]11 - allows dialing special and emergency numbers 311, 411, 611
and 911.
Note:
In some cases where the user wishes to dial strings such as *123 to activate
voice mail or other applications provided by their service provider, the * should
be predefined inside the dial plan feature. An example dial plan will be: { *x+ }
which allows the user to dial * followed by any length of numbers.
Delayed Call Forward
Wait Time
Defines the timeout (in seconds) before the call is forwarded on no answer.
Valid range is 1 to 120.
Enable Call Features
The default setting is "Yes". When enabled, call features using star codes will
besupported locally. If set to "No", Call Features and DND options under LCD
menu are supported. And ForwardAll softkey will not be displayed in LCD for
Account 1.
Call Log
Configures Call Log setting on the phone. You can log all calls, only log
incoming/outgoing calls or disable call log. The default setting is "Log All
Calls".
Account Ring Tone
Configures ring tone for the account.
Match Incoming Caller
ID
Specifies matching rules with number, pattern or Alert Info text. When the
incoming caller ID or Alert Info matches the rule, the phone will ring with
selected distinctive ringtone. Matching rules:
Specific caller ID number. For example, 8321123;
A defined pattern with certain length using x and + to specify, where x
could be any digit from 0 to 9. Samples:
xx+ : at least 2-digit number;
xx : only 2-digit number;
[345]xx: 3-digit number with the leading digit of 3, 4 or 5;
[6-9]xx: 3-digit number with the leading digit from 6 to 9.
Alert Info text
Users could configure the matching rule as certain text (e.g., priority) and
select the custom ring tone mapped to it. The custom ring tone will be
used if the phone receives SIP INVITE with Alert-Info header in the
following format:
Alert-Info: <http://127.0.0.1>; info=priority
Selects the distinctive ring tone for thematching rule. When the incoming
caller ID or Alert Info matches the rule, the phone will ring with the selected
ring.
Ring Timeout
Defines the timeout (in seconds) for the rings on no answer. The default
setting is 60 seconds.
Send Anonymous
If set to "Yes", the "From" header in outgoing INVITE messages will be set to
anonymous, essentially blocking the Caller ID to be displayed.
Anonymous Call
Rejection
If set to "Yes", anonymous calls will be rejected. The default setting is "No".
Auto Answer
If set to "Yes", the phone will automatically turn on the speaker phone to
answer incoming calls after a short reminding beep.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 27 of 47
Allow Auto Answer by
Call-Info
If set to "Yes", the phone will automatically turn on the speaker phone to
answer incoming calls after a short reminding beep, based on the SIP info
header sent from the server/proxy. The default setting is "No".
Custom Call-Info for
Auto Answer
Used in addition to match the contents of the info parameter in the Call-Info
header for auto answer.
Refer-To Use Target
Contact
If set to "Yes", the "Refer-To" header uses the transferred target's Contact
header information for attended transfer. The default setting is "No".
Transfer on Conference
Hangup
Defines whether or not the call is transferred to the other party if the initiator of
the conference hangs up. The default setting is"No".
No Key Entry
Timeout(s)
Defines the timeout (in seconds) for no key entry. If no key is pressed after the
timeout, the digits will be sent out. The default value is 4 seconds.
Use # as Dial Key
Allows users to configure the "#" key as the "Send" key. If set to "Yes", the "#"
key will immediately dial out the input digits. In this case, this key is
essentially equivalent to the "Send" key. If set to "No", the "#" key is included
as part of the dialing string.
DND Call Feature On
Defines the feature code to turn on DND.
DND Call Feature Off
Defines the feature code to turn off DND.
SETTINGS PAGE DEFINATIONS
Settings -> General Settings
Local RTP Port
This parameter defines the local RTP port used to listen and transmit. It is the
base RTP port for channel 0. When configured, channel 0 will use this port
_value for RTP; channel 1 will use port_value+2 for RTP. Local RTP port
ranges from 1024 to 65400 and must be even. The default value is 5004.
Use Random Port
When set to "Yes", this parameter will force random generation of both the
local SIP and RTP ports. This is usually necessary when multiple phones are
behind the same full cone NAT. The default setting is "Yes" (This parameter
must be set to "No" for Direct IP Calling to work).
Keep-alive Interval
Specifies how often the phone sends a blank UDP packet to the SIP server in
order to keep the "ping hole" on the NAT router to open. The default setting is
20 seconds.
Use NAT IP
The NAT IP address used in SIP/SDP messages. This field is blank at the
default settings. It should ONLY be used if it's required by your ITSP.
STUN Server
The IP address or Domain name of the STUN server. STUN resolution results
are displayed in the STATUS page of the Web GUI. Only non-symmetric NAT
routers work with STUN.
Public Mode
Configures to turn on/off public mode for hot desking feature on the phone. If
set to "Yes", users would need fill in the SIP Server address for account 1 as
well. Then reboot the phone. When the phone boots up, users will require
entering SIP User ID and Password on the LCD to login and use the phone.
Note:
When the phone is in public mode login screen, press CONF button will have
the IP address of the phone displayed.
Settings -> Call Features
Off-hook Auto Dial
Configures a User ID/extension to dial automatically when the phone is
offhook. The phone will use the first account to dial out. The default setting is
"No".
Off-hook Timeout
If configured, when the phone is onhook, it will go offhook after the timeout (in
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 28 of 47
seconds). The default value is 30 seconds.
Intercom User ID
Configures the intercom extension number for account 1 to dial out. This User
ID is mapped to the INTERCOM button on the phone.
Disable Call Waiting
Disables the call waiting feature. The default setting is "No".
Disable Call Waiting
Tone
Disables the call waiting tone when call waiting is on. The default setting is
"No".
Disable Direct IP Call
Disables Direct IP Call. The default setting is "No".
Use Quick IP Call mode
When set to "Yes", users can dial an IP address under the same LAN/VPN
segment by entering the last octet in the IP address. To dial quick IP call,
offhook the phone and dial #XXX (X is 0-9 and XXX <=255), phone will make
direct IP call to aaa.bbb.ccc.XXX where aaa.bbb.ccc comes from the local IP
address REGARDLESS of subnet mask. #XX or #X are also valid so leading
0 is not required (but OK). No SIP server is required to make quick IP call.
The default setting is "No".
Disable Conference
Disables the Conference function. The default setting is "No".
Disable in-call DTMF
Display
When it's set to "Yes", the DTMF digits entered during the call will not display.
The default setting is "No".
Mute Key Functions
While Idle
When set to “DND”, the DND will be enabled for future incoming call if
pressing MUTE key in idle state; If this feature is set to “Idle Mute”, MUTE key
will take effect in idle state and future incoming call will be answered with
mute; Otherwise, MUTE key will not take effect in idle state.
Disable Transfer
Disables the Transfer function. The default setting is "No".
In-call dial number on
pressing transfer key
Configures the number for the phone to dial as DTMF during the call using
TRAN button.
Auto-Attended Transfer
If set to "Yes", the phone will use attended transfer by default. The default
setting is "No".
Do Not Escape #
as %23 in SIP URI
Specifies whether to replace # by %23or not for some special situations. The
default setting is "No".

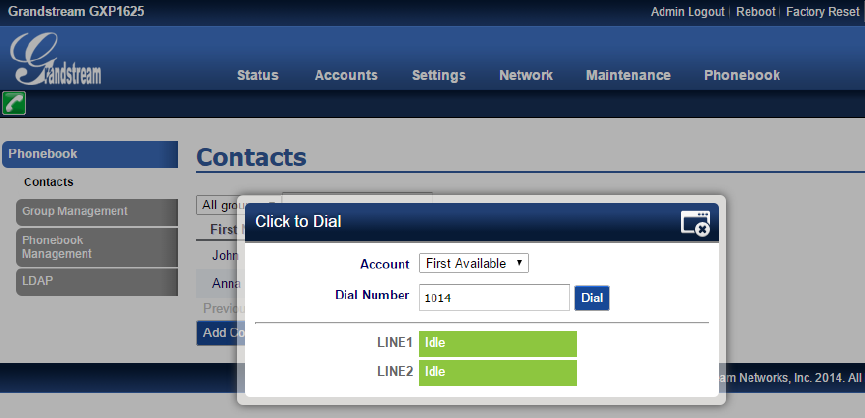

Click-To-Dial Feature
Enables Click-To-Dial feature. The default setting is "Disabled".
Call History Flash
Writing:
Write Timeout
Defines the interval (in seconds) to save the call history to phone's flash. The
default value is 300 seconds.
Call History Flash
Writing:
Max Unsaved Log
Defines the number of unsaved logs before written to phone's flash. The
default value is 200 entries.
Settings ->Multicast paging
Paging Barge
During active call if incoming multicast page is higher than this value the call
will be held and multicast page will be played.
Paging Priority Active
If enabled, during a multicast page if another rmulticast is received with higher
priority, that one will be played instead.
Multicast Paging Codec
The codec for sending multicast pages, there are 7 codecs could be used:
PCMU, PCMA, G.723.1, G.726-32, G.729A/B, G.722(wide band), iLBC. The
default setting is “PCMU”. (GXP1628 only)
Multicast Listening
Defines multicast listening addresses and labels. GXP16xx phone can listen
to at most 10 multicast address with different priorities.
Settings -> Ring Tone
Call Progresses Tones:
System Ring Tone
Dial Tone
Second Dial Tone
Configures ring or tone frequencies based on parameters from local telecom.
The default value is North American standard.Frequencies should be
configured with known values to avoid uncomfortable high pitch sounds.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 29 of 47
Message Waiting
Ring Back Tone
Call-Waiting Tone
Busy Tone
Reorder Tone
Syntax: f1=val,f2=val[,c=on1/off1[-on2/off2[-on3/off3]]];
(Frequencies are in Hz and cadence on and off are in 10ms)
ON is the period of ringing (“On time” in ‘ms’) while OFF is the period of
silence. In order to set a continuous ring, OFF should be zero. Otherwise it
will ring ON ms and a pause of OFF ms and then repeat the pattern. Up to
three cadences are supported.
Call Waiting Tone Gain
Configures the call waiting tone gain to adjust call waiting tone volume. The
default setting is "Low".
Settings -> Audio Control
Headset Key Mode
When headset is connected to the phone, users could use the HEADSET
button in "Default Mode" or "Toggle Headset/Speaker".
Default Mode:
When the phone is in idle, press HEADSET button to off hook the
phone and make calls by using headset. Headset icon will display on
the screen in dialing/talking status.
When there is an incoming call, press HEADSET button to pick up the
call using headset.
When there is an active call using headset, press HEADSET button to
hang up the call.
When Speaker/Handset is being used in dialing/talking status, press
HEADSET button to switch to headset. Press it again to hang up the
call. Or press speaker/Handset to switch back to the previous mode.
Toggle Headst/Speaker:
When the phone is in idle, press HEADSET button to switch to
Headset mode. The headset icon will display on the left side of the
screen. In this mode, if pressing Speaker button or Line key to off
hook the phone, headset will be used.
When there is an active call, press HEADSET button to toggle
between Headset and Speaker.
Headset Type
Selects whether the connected headset is normal RJ11 headset, Plantronics
EHS headset.
Always Ring Speaker
Configures to enable or disable the speaker to ring when headset is used on
"Toggle Headset/Speaker" mode. If set to "Yes", when the phone is in
Headset "Toggle Headset/Speaker" mode, both headset and speaker will ring
on incoming call. The default setting is "No".
Headset TX gain
Configures the transmission gain of the headset. The default value is 0dB.
Headset RX gain
Configures the receiving gain of the headset. The default value is 0dB.
Handset TX gain
Configures the transmission gain of the handset. The default value is 0dB.
Settings -> LCD Display
Backlight Brightness:
Active
Configures the LCD backlight brightness level (from 0 to 8) for phone's active
status. The default value is 6.
Note:
This options is not applicable to GXP1610.
Backlight Brightness:
Idle
Configures the LCD backlight brightness level (from 0 to 8) for phone's idle
status. The default value is 2.
Note:
This options is not applicable to GXP1610
LCD Contrast
Configures the LCD contrast level (from 0 to 20). The default value is 14.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 30 of 47
Disable Missed Call
Backlight
When it's set to "Yes", the LCD backlight will not be turned on when there is a
new missed call. The default setting is "No".
Note:
This option is not applicable to GXP1610.
Settings -> Date and Time
NTP Server
Defines the URL or IP address of the NTP server. The phone may obtain the
date and time from the server.
Allow DHCP Option 42
Override NTP Server
Defines whether DHCP Option 42 should override NTP server or not. When
enabled, DHCP Option 42 will override the NTP server if it's set up on the
LAN. The default setting is "Yes".
Time Zone
Configures the date/time used on the phone according to the specified time
zone.
Self-Defined Time Zone
This parameter allows the users to define their own time zone.
The syntax is: std offset dst [offset], start [/time], end [/time]
Default is set to: MTZ+6MDT+5,M4.1.0,M11.1.0
MTZ+6MDT+5
This indicates a time zone with 6 hours offset with 1 hour ahead which is U.S
central time. If it is positive (+) if the local time zone is west of the Prime
Meridian (A.K.A: International or Greenwich Meridian) and negative (-) if it is
east.
M4.1.0,M11.1.0
The 1st number indicates Month: 1,2,3.., 12 (for Jan, Feb, .., Dec)
The 2nd number indicates the nth iteration of the weekday: (1st Sunday,
3rdTuesday…)
The 3rd number indicates weekday: 0,1,2,..,6( for Sun, Mon, Tues,... ,Sat)
Therefore, this example is the DST which starts from the First Sunday of April
to the 1st Sunday of November.
Date Display Format
Configures the date display format on the LCD. The following formats are
supported:
yyyy-mm-dd: 2012-07-02
mm-dd-yyyy: 07-02-2012
dd-mm-yyyy: 02-07-2012
dddd, MMMM dd: Friday, October 12
MMMM dd, dddd: October 12, Friday
Time Display Format
Configures the time display in 12-hour or 24-hour format on the LCD. The
default setting is in 12-hour format.

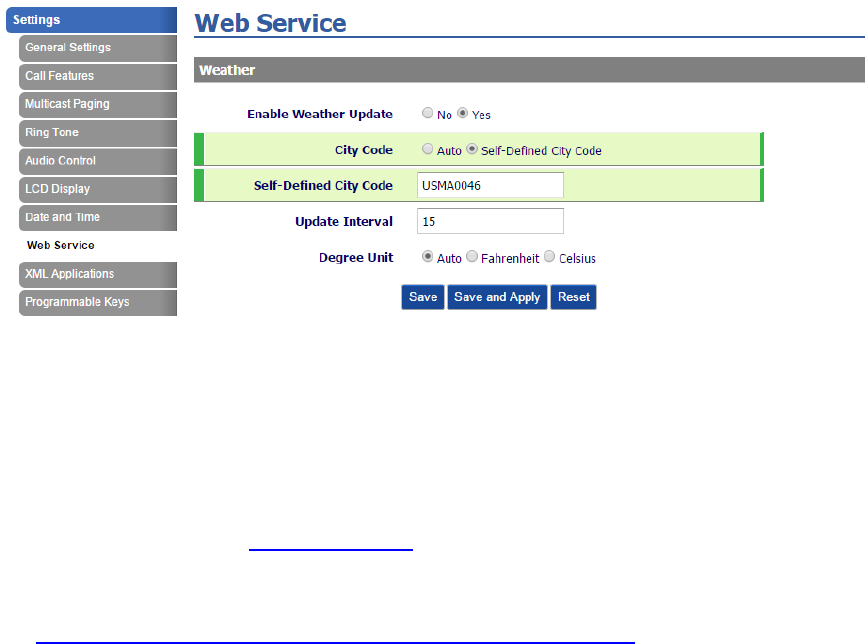

Settings -> Web Service
Enable Weather
Update
Configures to enable or disable weather update on the phone. The default
setting is "Yes". If set to "No", the weather information screen will not show.
City Code
Configures weather city code for the phone to look up the weather
information. The default setting is "Automatic" and the weather information will
be obtained based on the IP location of the phone if available. Otherwise,
specify the self-defined city code. For example, USCA0638 is the city code for
Los Angeles, CA, United States. It also accepts zip code to define the city.
For example, 910007 is the zip code for Los Angeles, CA.
Update Interval
Specifies the weather update interval (in minutes). The default value is 15
minutes.
Degree Unit
Specifies the degree unit for the weather information to display on the phone.
Settings -> XML Applications
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 31 of 47
Idle Screen XML
Download
Configures to enable idle screen XML download. Users could select
HTTP/HTTPS/TFTP to download the XML idle screen file. The default setting
is "No".
Download Screen XML
At Boot-up
If set to "Yes", the idle screen XML file will be downloaded when the phone
boots up. The default setting is "No".
User Custom Filename
Specifies the custom file for the idle screen XML file to be downloaded.
Idle Screen XML Server
Path
Configures the server path to download the idle screen XML file. This field
could be IP address or URL, with up to 256 characters.
Settings -> Programmable Keys
Line Key X
Assigns a function to the corresponding line key. The key mode options are:
Line
Regular line key to open up a line and switch line. The Value field can be
left blank.
Shared Line
Share line for Shared Line Appearance feature. Select the Account
registered as Shared line for the line key. The Value field can be left
blank.
Speed Dial
Select the Account to dial from. And enter the Speed Dial number in the
Value field to be dialed.
Speed Dial via active account
Similar to Speed Dial but it will dial based on the current active account.
For example, if the phone is offhook and account 2 is active, it will call the
configured Speed Dial number using account 2.
Busy Lamp Field(BLF)
Select the Account to monitor the BLF status. Enter the extension number
in the Value field to be monitored.
Eventlist BLF
This option is similar to the BLF option but in this case the PBX collects
the information from the phones and sends it out in one single notify
message. PBX server has to support this feature.
Presence Watcher
This option has to be supported by a presence server and it is tied to the
"Do Not Disturb" status of the phone's extension.
Dial DTMF
Enter a series of DTMF digits in the Value field to be dialed during the
call. "Enable MPK Sending DTMF"has to be set to "Yes" first.
Voice Mail
Select Account and enter the Voice Mail access number in the Value field.
Call Return
The last answered calls can be dialed out by using Call Return. The Value
field should be left blank. Also, this option is not binding to the account
and the call will be returned based on the account with the last answered
call.
Transfer
Select Account, and enter the number in the Value field to be transferred
(blind transfer) during the call.
Call Park
Select Account, and enter the call park extension in the Value field to
park/pick up the call.
Intercom
Select Account, and enter the extension number in the Value field to do
the intercom.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 32 of 47
LDAP Search
This option is to narrow the LDAP search scope. Enter the LDAP search
base in the Name field. It could be the same or different from the Base in
LDAP configuration under Advanced Settings. The Base in LDAP
configuration will be used if the Name field is left blank. Enter the LDAP
Name/Number filter in the Value field. LDAP search does not support
entering Non-ASCII characters
Multicast Paging
This option is for multicast sending. Enter Line key description in
Description filed and multicast sending address in Value field.
Multi-Purpose Keys
(This feature is for GXP1628 only.) Assigns a function to the corresponding
Multi-Purpose Key. The key mode options are:
Line
Regular line key to open up a line and switch line. The Value field can be
left blank.
Shared Line
Share line for Shared Line Appearance feature. Select the Account
registered as Shared line for the line key. The Value field can be left
blank.
Speed Dial
Select the Account to dial from. And enter the Speed Dial number in the
Value field to be dialed.
Speed Dial via active account
Similar to Speed Dial but it will dial based on the current active account.
For example, if the phone is offhook and account 2 is active, it will call the
configured Speed Dial number using account 2.
Busy Lamp Field(BLF)
Select the Account to monitor the BLF status. Enter the extension number
in the Value field to be monitored.
Eventlist BLF
This option is similar to the BLF option but in this case the PBX collects
the information from the phones and sends it out in one single notify
message. PBX server has to support this feature.
Presence Watcher
This option has to be supported by a presence server and it is tied to the
"Do Not Disturb" status of the phone's extension.
Dial DTMF
Enter a series of DTMF digits in the Value field to be dialed during the
call. "Enable MPK Sending DTMF" has to be set to "Yes" first.
Voice Mail
Select Account and enter the Voice Mail access number in the Value field.
Call Return
The last answered calls can be dialed out by using Call Return. The Value
field should be left blank. Also, this option is not binding to the account
and the call will be returned based on the account with the last answered
call.
Transfer
Select Account, and enter the number in the Value field to be transferred
(blind transfer) during the call.
Call Park
Select Account, and enter the call park extension in the Value field to
park/pick up the call.
Intercom
Select Account, and enter the extension number in the Value field to do
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 33 of 47
the intercom.
LDAP Search
This option is to narrow the LDAP search scope. Enter the LDAP search
base in the Name field. It could be the same or different from the Base in
LDAP configuration under Advanced Settings. The Base in LDAP
configuration will be used if the Name field is left blank. Enter the LDAP
Name/Number filter in the Value field. LDAP search does not support
entering Non-ASCII characters
Multicast Paging
This option is for multicast sending. Enter Line key description in
Description filed and multicast sending address in Value field.
NETWORK PAGE DEFINITIONS
Network -> Basic Settings
Internet Protocol
Selects Prefer IPv4 or Prefer IPv6.
IPv4 Address Type
Allows users to configure the appropriate network settings on the phone to
obtain IPv4 address. Users could select "DHCP", "Static IP" or "PPPoE". By
default, it is set to "DHCP".
Host name (Option 12)
Specifies the name of the client. This field is optional but may be required by
some Internet Service Providers.
Vendor Class ID
(Option 60)
Used by clients and servers to exchange vendor class ID.
PPPoE Account ID
Enter the PPPoE account ID.
PPPoE Password
Enter the PPPoE Password.
PPPoE Service Name
Enter the PPPoE Service Name.
IPv4 Address
Enter the IP address when static IP is used.
Subnet Mask
Enter the Subnet Mask when static IP is used for IPv4.
Gateway
Enter the Default Gateway when static IP is used for IPv4.
DNS Server 1
Enter the DNS Server 1 when static IP is used for IPv4.
DNS Server 2
Enter the DNS Server 2 when static IP is used for IPv4.
Preferred DNS Server
Enter the Preferred DNS Server for IPv4.
IPv6 Address Type
Allows users to configure the appropriate network settings on the phone to
obtain IPv6 address. Users could select "Auto-configured" or "Statically
configured" for the IPv6 address type.
Static IPv6 Address
Enter the static IPv6 address when Full Static is used in "Statically configured"
IPv6 address type.
IPv6 Prefix Length
Enter the IPv6 prefix length when Full Static is used in "Statically configured"
IPv6 address type.
IPv6 Prefix
Enter the IPv6 Prefix (64 bits) when Prefix Static is used in "Statically
configured" IPv6 address type.
DNS Server 1
Enter the DNS Server 1 for IPv6.
DNS Server 2
Enter the DNS Server 2 for IPv6.
Preferred DNS server
Enter the Preferred DNS Server for IPv6.
Network -> Advanced Settings
802.1X mode
Allows the user to enable/disable 802.1X mode on the phone. The default
value is disabled. It can be set to EAP-MD5, EAP-TLS or EAP-
PEAPv0/MSCHAPv2.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 34 of 47
802.1X Identity
Enter the Identity for the 802.1X mode.
MD5 Password
Enter the MD5 Password for the 802.1X mode.
802.1X CA Certificate
Upload 802.1X CA certificate to the phone; or delete existed 802.1X CA
certificate from the phone.
802.1X Client Certificate
Upload 802.1X Client certificate to the phone; or delete existed 802.1X Client
certificate from the phone.
HTTP Proxy
Specifies the HTTP proxy URL for the phone to send packets to. The proxy
server will act as an intermediary to route the packets to the destination.
HTTPS Proxy
Specifies the HTTPS proxy URL for the phone to send packets to. The proxy
server will act as an intermediary to route the packets to the destination.
Layer 3 QoS
Defines the Layer 3 QoS parameter. This value is used for IP Precedence,
Diff-Serv or MPLS. The default value is 12.
Layer 2 QoS
802.1Q/VLAN Tag
Assigns the VLAN Tag of the Layer 2 QoS packets. The default value is 0.
Layer 2 QoS 802.1p
Priority Value
Assigns the priority value of the Layer2 QoS packets. The default value is 0.
PC Port Mode
Configures the PC port mode. When set to "Mirrored", the traffic in the LAN
port will go through PC port as well and packets can be captured by
connecting a PC to the PC port. The default setting is "Enable".
PC Port VLAN Tag
Assigns the VLAN Tag of the PC port.
PC Port Priority Value
Assigns the priority value of the PC port.
Enable LLDP
Control the LLDP (Link Layer Discovery Protocol) service.
MAINTENANCE PAGE DEFINITIONS
Maintenance -> Web Access
End User Password
Allows the administrator to set the password for user-level web GUI access.
This field is case sensitive with a maximum length of 30 characters.
Confirm Password
Confirms the end user password field to be the same as above.
Admin Password
Allows users to change the admin password. The password field is purposely
hidden for security purpose. This field is case sensitive with a maximum
length of 30 characters.
Confirm Password
Confirms the admin password field to be the same as above.
Maintenance ->Upgrade and Provisioning
Firmware Upgrade and
Provisioning
Specifies how firmware upgrading and provisioning request to be sent:
Always Check for New Firmware, Check New Firmware only when F/W
pre/suffix changes, Always Skip the Firmware Check.
XML Config File
Password
The password for encrypting the XML configuration file using OpenSSL. This
is required for the phone to decrypt the encrypted XML configuration file.
HTTP/HTTPS User
Name
The user name for the HTTP/HTTPS server.
HTTP/HTTPS Password
The password for the HTTP/HTTPS server.
Always Authenticate
Before Challenge
Only applies to HTTP/HTTPS. If enabled, the phone will send credentials
before being challenged by the server.
Verify Host Certificate
Selects to verify host certificate or not for upgrading/provisioning.
Upgrade Via
Allows users to choose the firmware upgrade method: TFTP, HTTP or
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 35 of 47
HTTPS.
Firmware Server Path
Defines the server path for the firmware server. It could be different from the
configuration server for provisioning.
Config Server Path
Defines the server path for provisioning. It could be different from the firmware
server for upgrading.
Firmware File Prefix
This field enables user to store different versions of firmware files in one
single directory on the firmware server. If configured, only the firmware file
with the matching prefix will be downloaded.
Firmware File Postfix
This field enables user to store different versions of firmware files in one
single directory on the firmware server. If configured, only the firmware file
with the matching postfix will be downloaded.
Config File Prefix
This field enables user to store different configuration files in one single
directory on the configuration server. If configured, only the configuration file
with the matching prefix will be downloaded.
Config File Postfix
This field enables user to store different configuration files in one single
directory on the configuration server. If configured, only the configuration file
with the matching postfix will be downloaded.
Allow DHCP Option 43
and Option 66 Override
Server
Default setting is “Yes”. DHCP option 66 originally was only designed for
TFTP server. Later on it was extended to support an HTTP URL. GXPphones
support both TFTP and HTTP server via option 66. Users can alsouse DHCP
option 43 vendor specific option to do this. DHCP option 43 approach has
priorities.
Allow DHCP Option 120
to override SIP Server
Enables DHCP Option 120 from local server to override the SIP Server on the
phone. The default setting is "No".
3CX Auto Provision
Phone will multicast SUBSCRIBE for provision if this feature is enabled.
Automatic Upgrade
Enables automatic upgrade and provisioning. The default setting is "No".
Hour of the Day (0-23)
Defines the hour of the day to check the HTTP/TFTP server for firmware
upgrades or configuration files changes. The default value is 1.
Day of the Week (0-6)
Defines the day of the week to check HTTP/TFTP server for firmware
upgrades or configuration files changes. The default value is 1.
Disable SIP NOTIFY
Authentication
Device will not challenge NOTIFY with 401 when set to Yes.
Authenticate Conf File
Authenticates configuration file before acceptance. The default setting is "No".
Download Device
Configuration
User can press the “Download” button to export the device’s configuration file.
The configuration file is named as “config.txt”.
Maintenance ->Syslog
Syslog Server
The URL or IP address of the syslog server for the phone to send syslog to.
Syslog Level
Selects the level of logging for syslog. The default setting is "None".There are
4 levels:DEBUG, INFO, WARNING and ERROR.
Syslog messages are sent based on the following events:
product model/version on boot up (INFO level);
NAT related info (INFO level);
sent or received SIP message (DEBUG level);
SIP message summary (INFO level);
inbound and outbound calls (INFO level);
registration status change (INFO level);
negotiated codec (INFO level);
Ethernet link up (INFO level);
SLIC chip exception (WARNING and ERROR levels);
Memory exception (ERROR level).
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 36 of 47
Send SIP Log
Configures whether the SIP log will be included in the syslog messages or
not. The default setting is "No".
Maintenance ->Language
Display Language
Selects display language on the phone.
Language File Postfix
Specifies the language file postfix for downloaded language.
Maintenance ->TR-069
ACS URL
URL for TR-069 Auto Configuration Servers (ACS).
TR-069 Username
ACS username for TR-069.
TR-069 Password
ACS password for TR-069.
Periodic Inform Enable
Enables periodic inform. If set to "Yes", device will send inform packets to the
ACS. The default setting is "No".
Periodic Inform Interval
Sets up the periodic inform interval to send the inform packets to the ACS.
Connection Request
Username
The user name for the ACS to connect to the phone.
Connection Request
Password
The password for the ACS to connect to the phone.
Connection Request
Port
The port for the ACS to connect to the phone.
CPE SSL Certificate
The Cert File for the phone to connect to the ACS via SSL.
CPE SSL Private Key
The Cert Key for the phone to connect to the ACS via SSL.
Maintenance ->Security
Configuration via
Keypad Menu
Configures the access control for the users to configure from keypad Menu.
There are three different options:
Unrestricted. All the options can be accessed in keypad Menu.
Basic settings only. The CONFIG option will not be available in
LCDMenu.
Constraint Mode. CONFIG, FACTORY FUNCTIONS and
NETWORKoptions will not be available in LCD menu.
Enable STAR key
Keypad locking
If set to "Yes", the keypad can be locked by pressing and holding the STAR *
key for about 4 seconds. A lock icon will show indicating the keypad is locked.
The default setting is "Yes".
Note:
When the keypad is locked, users would need press and hold the STAR * key
for about 4 seconds and then enter the password to unlock it. If the Star Key
Lock is enabled without specifying password, user can press and hold the
STAR * key for 4 seconds and press OK to unlock the phone.
Password to lock/unlock
Configures the password to lock/unlock the keypad. The password field allows
number with up to 32 characters.
SIP TLS Certificate
SSL Certificate used for SIP TLS Transport.
SIPTLS Private Key
SSL Private key used for SIP TLS Transport.
SIPTLS Private Key
Password
SSL Private key password used for SIP TLS Transport.
Web Access Mode
Sets the protocol for web interface as HTTP or HTTPS. Default setting is
HTTP.
Disable SSH
Disable SSH access. SSH is enabled by default.
Web/Keypad/Restrict
mode Lockout Duration
Specifies the time in minutes that the web or LCD login interface will be
locked out to user after five login failures. This logout time is used for web
login, STAR keypad unlock and LCD restrict mode admin login. Range is 0-60
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 37 of 47
minutes.
PHONEBOOK PAGE DEFINITIONS
Phonebook -> Contacts
Add Contact
Specify Contact’s First Name, Last Name, Phone Number, Accounts and
Groups to add one new contact in phonebook.
Phonebook ->Group Management
Add Group
Adds new groups. User can also edit and delete existing groups on this page.
Phonebook -> Phonebook Management
Enable Phonebook XML
Download
Configures to enable phonebook XML download. Users could select
HTTP/HTTPS/TFTP to download the phonebook file. The default setting is
"Disabled".
Phonebook XML Server
Path
Configures the server path to download the phonebook XML. This field could
be IP address or URL, with up to 256 characters.
Phonebook Download
Interval
Configures the phonebook download interval (in minutes). If it's set to 0, the
automatic download will be disabled. The default value is 0. The valid range is
5 to 720 minutes.
Remove Manually-edited
Entries on Download
If set to "Yes", when XML phonebook is downloaded, the entries added
manually will be automatically removed. The default setting is "Yes".
Sort Phonebook by.
Sort the phonebook on the selection of first name or last name.
Download XML
Phonebook
Click on "Download" to download the XML phonebook file to local PC.
Upload XML Phonebook
Click on "Upload" to upload local XML phonebook file to the phone.
Phonebook Key
Function
Control the behavior of phonebook key. There are four options: Default, LDAP
Search, Local Phonebook, Local Group.
Phonebook -> LDAP
Server Address
Configures the IP address or DNS name of the LDAP server.
Port
Configures the LDAP server port.
Base
Configures the LDAP search base. This is the location in the directory where
the search is requested to begin.
Example:
dc=grandstream,dc=com
ou=Boston, dc=grandstream,dc=com
User Name
Configures the bind "Username" for querying LDAP servers. Some LDAP
servers allow anonymous binds in which case the setting can be left blank.
Password
Configures the bind "Password" for querying LDAP servers. The field can be
left blank if the LDAP server allows anonymous binds.
LDAP Number Filter
Configures the filter used for number lookups.
Examples:
(|(telephoneNumber=%)(Mobile=%) returns all records which has the
"telephoneNumber" or "Mobile" field starting with the entered prefix;
(&(telephoneNumber=%) (cn=*)) returns all the records with the
"telephoneNumber" field starting with the entered prefix and "cn" field set.
LDAP Name Filter
Configures the filter used for name lookups.
Examples:
(|(cn=%)(sn=%)) returns all records which has the "cn" or "sn" field starting
with the entered prefix;
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 38 of 47
(!(sn=%)) returns all the records which do not have the "sn" field starting with
the entered prefix;
(&(cn=%) (telephoneNumber=*)) returns all the records with the "cn" field
starting with the entered prefix and "telephoneNumber" field set.
LDAP Version
Selects the protocol version for the phone to send the bind requests. The
default setting is "Version 3".
LDAP Name Attributes
Specify the "name" attributes of each record which are returned in the LDAP
search result. This field allows the users to configure multiple space
separated name attributes.
Example:
gn
cn sn description
LDAP Number Attributes
Specifies the "number" attributes of each record which are returned in the
LDAP search result. This field allows the users to configure multiple space
separated number attributes.
Example:
telephoneNumber
telephoneNumber Mobile
LDAP Display Name
Configures the entry information to be shown on phone's LCD. Up to 3 fields
can be displayed.
Example:
%cn %sn %telephoneNumber
Max. Hits
Specifies the maximum number of results to be returned by the LDAP server.
If set to 0, server will return all search results. The default setting is 50.
Search Timeout
Specifies the interval (in seconds) for the server to process the request and
client waits for server to return. The default setting is 30 seconds.
Sort Results
Specifies whether the searching result is sorted or not. The default setting is
"No".
LDAP Lookup
Configures to enable LDAP number searching when dialing and receiving
calls.
Lookup Display Name
Configures the display name when LDAP looks up the name for incoming call
or outgoing call. This field must be a subset of the LDAP Name Attributes.
Example:
gn
cn sn description
NAT SETTINGS
If the devices are kept within a private network behind a firewall, we recommend using STUN Server. The
following settings are useful in the STUN Server scenario:
STUN Server
Under Settings->General Settings, enter a STUN Server IP (or FQDN) that you may have, or look
up a free public STUN Server on the internet and enter it on this field. If using Public IP, keep this
field blank.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 39 of 47
Use Random Ports
It is under Settings ->General Settings. This setting depends on your network settings. When set to
"Yes", it will force random generation of both the local SIP and RTP ports. This is usually necessary
when multiple GXPs are behind the same NAT. If using a Public IP address, set this parameter to
"No".
NAT Traversal
It is under Accounts X->Network Settings. Default setting is "No". Enable the device to use NAT
traversal when it is behind firewall on a private network. Select Keep-Alive, Auto, STUN (with STUN
server path configured too) or other option according to the network setting.
WEATHER UPDATE
To customize GXP1610/GXP1620/GXP1625/GXP1628 to display weather information for the preferred
city, users could go to Web GUI->Settings->Web Service page and enter the city code in the following
options:
Figure 2: Web Service
By default the City Code is set to "Auto", which allows the phone to obtain weather information based on
the IP location detected. To use "Self-Defined City Code" option, please follow the steps below to obtain
the correct city code:
In a web browser, go to www.weather.com;
Enter the city name in the search field. For example, Boston, MA. And click on "SEARCH";
The searching result will show in a new window with URL in the browser's address bar. For example,
http://www.weather.com/weather/right-now/Boston+MA+USMA0046
In the above link, USMA0046 is the city code to be filled in "Self-Defined City Code" option.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 40 of 47
Users could then further configure the "Update Interval" and "Degree Unit" for weather information
display.
PUBLIC MODE
The GXP1610/GXP1620/GXP1625/GXP1628 supports hot desking using public mode. Under public
mode, users could login the phone with the SIP account User ID and password. Please follow the steps
below to configure the phone forpublic mode:
Fill up the SIP server address for account 1 first;
Under Web GUI->Settings->General Settings, set "Public Mode" option to "Yes". Click "Save" and
reboot the phone;
When the phone boots up, SIP User ID and Password to register to the configured SIP server in
account 1 will be required. Enter the correct account information to log in to the phone. When entering
the account information, press softkey "123/abc" to toggle input method;
In login page, pressing CONF button on the phone will show phone's IP address;
After using the phone, go to LCD MENU->LogOut to log off the public mode.
EDITING CONTACTS AND CLICK-TO-DIAL
From GXP1610/GXP1620/GXP1625/GXP1628 Web GUI, users could view contacts, edit contacts, or dial
out with Click-to-Dial feature on the top of the Web GUI. In the following figure, the Contact page
shows all the added contacts (manually or downloaded via XML phonebook). Here users could add new
contact, edit selected contact, or dial the contact/number.
Before using the Click-To-Dial feature, make sure the option "Click-To-Dial Feature" under web GUI-
>Settings->Call Features is turned on. By default it's disabled and the dialing icon in web GUI is in grey
.
When clicking on the icon on the top menu of the Web GUI, a new dialing window will show for you to
enter the number. Once Dial is clicked, the phone will go off hook and dial out the number from selected
account. Please see Figure 4 and Figure 5 in the following pages for more details.
Additionally, users could directly send the command for the phone to dial out by specifying the following
URL in PC's web browser, or in the field as required in other call modules.
http://ip_address/cgi-bin/api-make_call?phonenumber=1234&account=0&password=admin/123
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 41 of 47
In the above link, replace the fields with
ip_address:
Phone's IP Address.
phonenumber=1234:
The number for the phone to dial out
account=0:
The account index for the phone to make call. The index is 0 for account 1 and 1 for account 2.
password=admin/123:
The admin login password or user login password of phone's Web GUI.
Figure 3: Web GUI- Phonebook->Contacts
Add contacts.
Edit contact.
Click to call this contact
from the phone.
Click to dial from
available lines.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 42 of 47
Figure 4: Click-to-Dial
SAVING THE CONFIGURATION CHANGES
After users makes changes to the configuration, press the "Save" button will save but not apply the
changes until the "Apply" button on the top of web GUI page is clicked. Or, users could directly press
"Save and Apply" button. We recommend rebooting or powering cycle the phone after applying all the
changes.
REBOOTING FROM REMOTE LOCATIONS
Press the "Reboot" button on the top right corner of the web GUI page to reboot the phone remotely. The
web browser will then display a reboot message. Wait for about 1 minute to log in again.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 43 of 47
UPGRADING AND PROVISIONING
The GXP1610/GXP1620/GXP1625/GXP1628 can be upgraded via TFTP/HTTP/HTTPS by configuring
the URL/IP Address for the TFTP/HTTP/HTTPS server and selecting a download method.Configure a
valid URL for TFTP or HTTP/HTTPS; the server name can be FQDN or IP address.
Examples of valid URLs:
firmware.grandstream.com
fw.ipvideotalk.com/gs
There are two ways to setup a software upgrade server: The LCD Keypad Menu or the Web
Configuration Interface.
UPGRAGE VIA KEYPAD MENU
Follow the steps below to configure the upgrade server path via phone's keypad menu:
Press MENU button and navigate using Up/Down arrow to select Config;
In the Config options, select Upgrade;
Enter the firmware server path and select upgrade method. The server path could be in IP address
format or FQDN format;
Press the "OK" softkey. A reboot message window will be prompt;
Reboot the phone to have the change take effect.
When upgrading starts, the screen will show upgrading progress. When done you will see the phone
restarts again. Please do not interrupt or power cycle the phone when the upgrading process is on.
UPGRAGE VIA WEB GUI
Open a web browser on PC and enter the IP address of the phone. Then, login with the administrator
username and password. Go to Maintenance->Upgrade and Provisioning page, enter the IP address or
the FQDN for the upgrade server in "Firmware Server Path" field and choose to upgrade via TFTP or
HTTP/HTTPS. Update the change by clicking the "Save and Apply" button. Then "Reboot" or power cycle
the phone to update the new firmware.
When upgrading starts, the screen will show upgrading progress. When done you will see the phone
restart again. Please do not interrupt or power cycle the phone when the upgrading process is on.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 44 of 47
Firmware upgrading takes around 60 seconds in a controlled LAN or 5-10 minutes over the Internet. We
recommend completing firmware upgrades in a controlled LAN environment whenever possible.
Note:
Please do not interrupt or power cycle the GXP1610/GXP1620/GXP1625/GXP1628 when the upgrading
process is on.
NO LOCAL TFTP/HTTP SERVERS
For users that would like to use remote upgrading without a local TFTP/HTTP server, Grandstream offers
a NAT-friendly HTTP server. This enables users to download the latest software upgrades for their phone
via this server. Please refer to the webpage:
http://www.grandstream.com/support/firmware.
Alternatively, users can download a free TFTP or HTTP server and conduct a local firmware upgrade. A
free windows version TFTP server is available for download from :
http://support.solarwinds.net/updates/New-customerFree.cfm .
http://tftpd32.jounin.net/.
Instructions for local firmware upgrade via TFTP:
1. Unzip the firmware files and put all of them in the root directory of the TFTP server;
2. Connect the PC running the TFTP server and the phone to the same LAN segment;
3. Launch the TFTP server and go to the File menu->Configure->Security to change the TFTP server's
default setting from "Receive Only" to "Transmit Only" for the firmware upgrade;
4. Start the TFTP server and configure the TFTP server in the phone’s web configuration interface;
5. Configure the Firmware Server Path to the IP address of the PC;
6. Update the changes and reboot the phone.
End users can also choose to download a free HTTP server from http://httpd.apache.org/ or use Microsoft
IIS web server.
CONFIGURATION FILE DOWNLOAD
Grandstream SIP Devices can be configured via the Web Interface as well as via a Configuration File
(binary or XML) through TFTP or HTTP/HTTPS. The "Config Server Path" is the TFTP or HTTP/HTTPS
server path for the configuration file. It needs to be set to a valid URL, either in FQDN or IP address
format. The "Config Server Path" can be the same or different from the "Firmware Server Path".
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 45 of 47
A configuration parameter is associated with each particular field in the web configuration page. A
parameter consists of a Capital letter P and 2 to 3 (Could be extended to 4 in the future) digit numeric
numbers. i.e., P2 is associated with the "Admin Password" in the Web GUI->Maintenance->Web/Telnet
Access page. For a detailed parameter list, please refer to the corresponding firmware release
configuration template.
WhenGXP1610/GXP1620/GXP1625/GXP1628 boots up, it will send TFTP or HTTP/HTTPS requests to
download configuration files, “cfg000b82xxxxxx” and“cfg000b82xxxxxx.xml”, where “000b82xxxxxx” is the
MAC address of the phone. If the download of “cfgxxxxxxxxxxxx.xml” is not successful, phone will issue
request for a generic configuration file “cfg.xml”. Configuration file name should be in lower case letters.
For more details on XML provisioning, please refer to:
http://www.grandstream.com/general/gs_provisioning_guide_public.pdf
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 46 of 47
RESTORE FACTORY DEFAULT SETTINGS
Warning:
Restoring the Factory Default Settings will delete all configuration information on the phone. Please
backup or print all the settings before you restore to the factory default settings. Grandstream is not
responsible for restoring lost parameters and cannot connect your device to your VoIP service provider.
Please follow the instructions below to reset the phone:
RESTORE TO FACTORY DEFAULT VIA THE LCD MENU
Press MENU button to bring up the keypad configuration menu;
Select "Config" and enter;
Select "Factory Reset";
A warning window will pop out to make sure a reset is requested and confirmed;
Press the "OK" softkey to confirm and the phone will reboot. To cancel the Reset, press "Cancel"
softkey instead.
RESTORE TO FACTORY DEFAULT VIA THE WEB GUI
Login GXP1610/GXP1620/GXP1625/GXP1628 Web GUI;
Direct At the top right corner of the web page, click “Factory Reset” button to reset the device.
GXP1610/GXP1620/GXP1625/GXP1628
Administration Guide
Page 47 of 47
EXPERIENCING THE GXP1610/GXP1620/GXP1625/GXP1628
Please visit our website: http://www.grandstream.com to receive the most up- to-date updates on
firmware releases, additional features, FAQs, documentation and news on new products.
We encourage you to browse our product related documentation, FAQs and User and Developer Forum
for answers to your general questions. If you have purchased our products through a Grandstream
Certified Partner or Reseller, please contact them directly for immediate support.
Our technical support staff is trained and ready to answer all of your questions. Contact a technical
support member or submit a trouble ticket online to receive in-depth support.
Thank you again for purchasing Grandstream IP phone, it will be sure to bring convenience and color to
both your business and personal life.

Navigation menu
