Grandstream Networks GXP2200 IP Phone User Manual ok
Grandstream Networks, Inc. IP Phone ok
Users Manual
Grandstream Networks, Inc.
www.grandstream.com
Grandstream Networks, Inc.
GXP2200 Enterprise Application Phone
User Manual
GXP2200 USER MANUAL Page 1 of 131
GXP2200 User Manual
Index
GNU GPL INFORMATION...........................................................................9
CHANGE LOG...........................................................................................10
FIRMWARE VERSION 1.0.1.9 ............................................................................................................10
WELCOME ................................................................................................11
PRODUCT OVERVIEW.............................................................................12
FEATURE HIGHTLIGHTS ...................................................................................................................12
GXP2200 TECHNICAL SPECIFICATIONS .........................................................................................13
INSTALLATION .........................................................................................15
EQUIPMENT PACKAGING .................................................................................................................15
CONNECTING YOUR PHONE............................................................................................................15
GXP2200 EXTENSION BOARD..........................................................................................................16
SAFETY COMPLIANCES....................................................................................................................18
WARRANTY.........................................................................................................................................18
GETTING TO KNOW GXP2200 ................................................................19
USING THE TOUCHSCREEN.............................................................................................................19
IDLE SCREEN.....................................................................................................................................20
SETTING UP HOME SCREEN ....................................................................................................20
ADDING IDLE SCREENS ............................................................................................................21
DELETING IDLE SCREENS ........................................................................................................21
IDLE SCREEN ICONS .................................................................................................................22
ONSCREEN KEYBOARD....................................................................................................................24
USING THE KEYPAD ..........................................................................................................................26
USING THE MESSAGE WAITING INDICATOR..................................................................................28
MANAGING STATUS BAR ..................................................................................................................28
MAKING PHONE CALLS..........................................................................31
REGISTERING SIP ACCOUNTS ........................................................................................................31
HANDSET, SPEAKER AND HEADSET MODE...................................................................................32
MAKING A CALL..................................................................................................................................32
DIRECT IP CALL .................................................................................................................................35
ANSWERING A CALL..........................................................................................................................36
GXP2200 USER MANUAL Page 2 of 131
CALL HOLD .........................................................................................................................................39
CALL WAITING....................................................................................................................................39

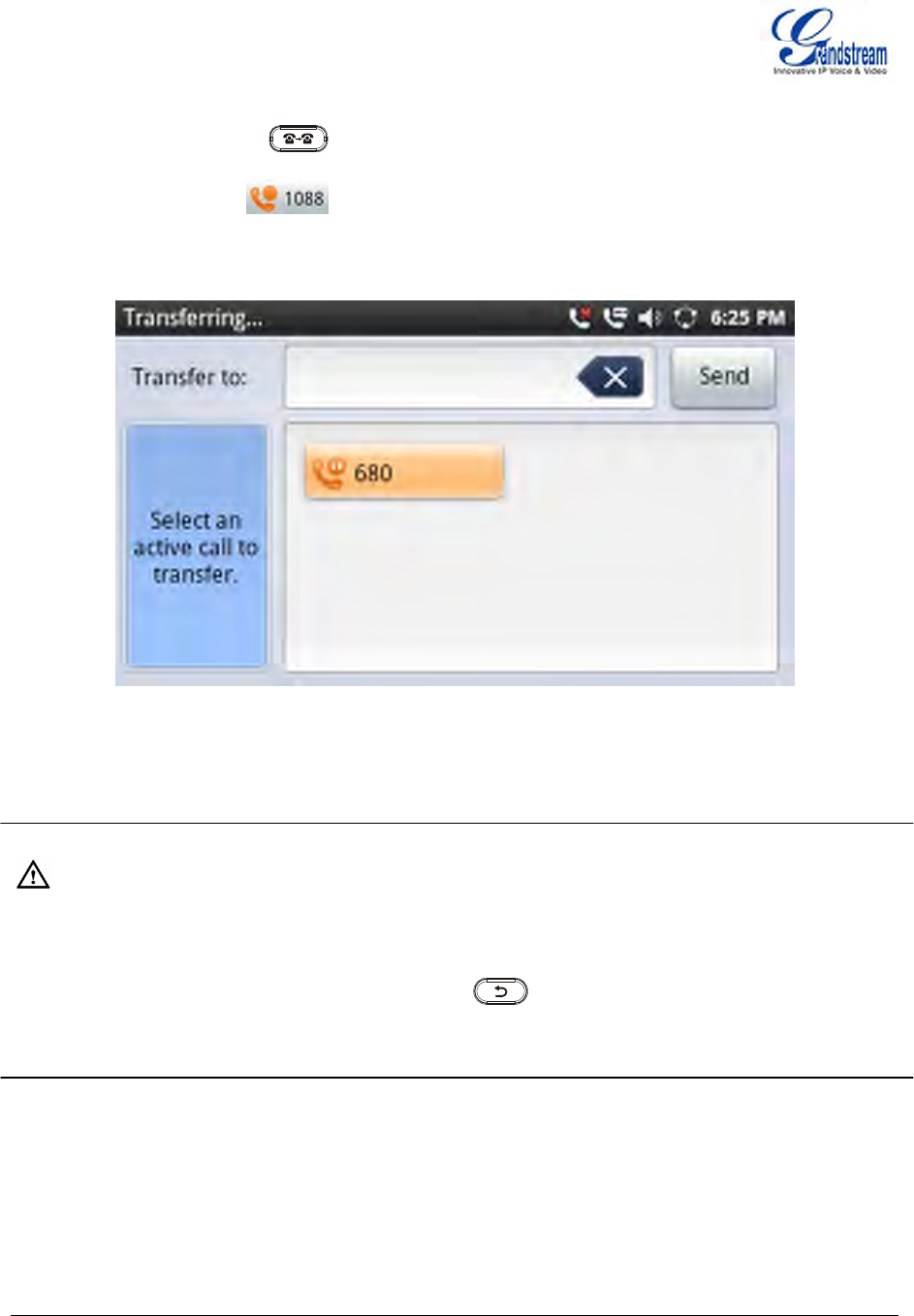

CALL TRANSFER................................................................................................................................40
5-WAY CONFERENCE........................................................................................................................41
VOICEMAIL（MESSAGE WAITING INDICATION）..........................................................................44
MUTE...................................................................................................................................................45
DND .....................................................................................................................................................45
CALL FORWARD.................................................................................................................................45
GXP2200 APPLICATIONS ........................................................................48
CUSTOMIZING IDLE SCREENS ........................................................................................................48
ADDING AN ITEM TO IDLE SCREEN .........................................................................................48
MOVING AN ITEM ON IDLE SCREEN........................................................................................49
REMOVING AN ITEM FROM IDLE SCREEN..............................................................................49
CHANGING IDLE SCREEN WALLPAPER ..................................................................................50
MANAGING APPS AND WIDGETS.....................................................................................................50
OPENING APPS...........................................................................................................................51
SWITCHING TO RECENTLY USED APP....................................................................................51
MANAGING APPS........................................................................................................................52
MANAGING DOWNLOADS .........................................................................................................54
PLAYING WITH APPS.........................................................................................................................54
BLACKLIST ..................................................................................................................................55
BROSWER ...................................................................................................................................59
CALENDAR ..................................................................................................................................61
CALCULATOR..............................................................................................................................62
CALL HISTORY............................................................................................................................63
CLOCK .........................................................................................................................................65
CONTACTS ..................................................................................................................................67
EMAIL...........................................................................................................................................70
FILE MANAGER...........................................................................................................................72
GALLERY .....................................................................................................................................74
GS MARKET.................................................................................................................................75
IP LOCATION ...............................................................................................................................77
MEDIA PLAYER............................................................................................................................78
MESSAGE....................................................................................................................................84
MUSIC ..........................................................................................................................................88
SEARCH.......................................................................................................................................89
CONNECTING TO NETWORK AND DEVICES ........................................92
ETHERNET..........................................................................................................................................92
TURNING ETHERNET ON OR OFF............................................................................................92
GXP2200 USER MANUAL Page 3 of 131
CONFIGURING DHCP OR STATIC IP.........................................................................................92
WIFI......................................................................................................................................................92
TURNING WIFI ON OR OFF........................................................................................................92
ADDING WIFI NETWORKS .........................................................................................................93
BLUETOOTH .......................................................................................................................................93
TURNING BLUETOOTH ON OR OFF .........................................................................................93
CHANGING BLUETOOTH DEVICE NAME .................................................................................94
PAIRING GXP2200 WITH A BLUETOOTH DEVICE....................................................................94
CONNECTING TO A BLUETOOTH DEVICE...............................................................................94
SENDING AND RECEIVING FILES VIA BLUETOOTH ...............................................................95
DISCONNECTING A BLUETOOTH DEVICE...............................................................................95
UNPAIRING A BLUETOOTH DEVICE .........................................................................................95
EHS HEADSET....................................................................................................................................95
USB......................................................................................................................................................96
SD CARD.............................................................................................................................................96
GXP2200 WEB GUI SETTINGS................................................................97
ACCESSING GXP2200 WEB GUI ......................................................................................................97
DEFINITIONS ......................................................................................................................................99
STATUS PAGE DEFINITIONS.............................................................................................................99
STATUS/ACCOUNT STATUS.......................................................................................................99
STATUS/NETWORK STATUS......................................................................................................99
STATUS/SYSTEM INFO...............................................................................................................99
ACCOUNT PAGE DEFINITIONS.........................................................................................................99
ACCOUNT/GENERAL SETTINGS...............................................................................................99
ACCOUNT/NETWORK SETTINGS .............................................................................................99
ACCOUNT/SIP SETTINGS ..........................................................................................................99
ACCOUNT/CODEC SETTINGS...................................................................................................99
ACCOUNT/CALL SETTINGS.......................................................................................................99
ADVANCED SETTINGS PAGE DEFINATIONS ..................................................................................99
ADVANCED SETTING/GENERAL SETTINGS............................................................................99
ADVANCED SETTING/CALL FEATURES ...................................................................................99
ADVANCED SETTING/TONE GENERATOR...............................................................................99
MAINTENANCE PAGE DEFINATION .................................................................................................99
MAINTENANCE/NETWORK SETTINGS.....................................................................................99
MAINTENANCE/TIME SETTINGS...............................................................................................99
MAINTENANCE/WEB/SSH ACCESS..........................................................................................99
MAINTENANCE/UPGRADE.........................................................................................................99
MAINTENANCE/SYSLOG............................................................................................................99
MAINTENANCE/LOGCAT............................................................................................................99
MAINTENANCE/DEBUG..............................................................................................................99
GXP2200 USER MANUAL Page 4 of 131
MAINTENANCE/LANGUAGE ......................................................................................................99
MAINTENANCE/TR-069 ..............................................................................................................99
MAINTENANCE/DEVICE MANAGER..........................................................................................99
GXP2200 LCD SETTINGS ........................................................................99
OPENING SETTINGS .........................................................................................................................99
ACCOUNT PREFERENCE..................................................................................................................99
NETWORKS ........................................................................................................................................99
SOUND ................................................................................................................................................99
DISPLAY ..............................................................................................................................................99
SECURITY SETTINGS........................................................................................................................99
APPLICATIONS ...................................................................................................................................99
LANGUAGE & KEYBOARD.................................................................................................................99
DATE & TIME.......................................................................................................................................99
ABOUT PHONE...................................................................................................................................99
ADVANCED SETTINGS ......................................................................................................................99
UPGRADING AND PROVISIONING .........................................................99
UPGRADE AND PROVISIOING CONFIGURATION...........................................................................99
CONFIRM UPGRAGE TO START.......................................................................................................99
UPLOAD FIRMWARE LOCALLY.........................................................................................................99
UPGRADE VIA SD CARD ...................................................................................................................99
NO LOCAL FIRMWARE SERVERS ....................................................................................................99
CONFIGURATION FILE DOWNLOAD................................................................................................99
FACTORY FUNCTIONS AND FACTORE RESET.....................................99
FACTORY FUNCTIONS ......................................................................................................................99
RESTORE TO FACTORY DEFAULT VIA LCD MENU ........................................................................99
RESTORE TO FACTORY DEFAULT VIA THE WEB GUI ...................................................................99
EXPERIENCING THE GXP2200 APPLICATION PHONE.........................99
GXP2200 USER MANUAL Page 5 of 131
Table of Tables
GXP2200 User Manual
Table 1: GXP2200 TECHNICAL SPECIFICATIONS...................................................................................13
Table 2: GXP2200 EQUIPMENT PACKAGING ..........................................................................................15
Table 3: GXP2200 CONNECTORS ............................................................................................................16
Table 4: GXP2200 EXTENSION BOARD PACKAGING.............................................................................16
Table 5: GXP2200 ONSCREEN ICONS.....................................................................................................22
Table 6: GXP2200 KEYPAD BUTTONS .....................................................................................................27
Table 7: GXP2200 MWI LED STATUS........................................................................................................28
Table of Figures
GXP2200 User manual
Figure 1: GXP2200 Front View ...................................................................................................................12
Figure 2: GXP2200 Back View....................................................................................................................15
Figure 3: GXP2200 Back View with GXP2200 Extension Board................................................................17
Figure 4: GXP2200 Default Main Screen....................................................................................................19
Figure 5: GXP2200 Onscreen Menu...........................................................................................................19
Figure 6: Set GXP2200 HOME Screen.......................................................................................................21
Figure 7: Delete GXP2200 Idle Screen.......................................................................................................22
Figure 8: GXP2200 Onscreen Keyboard - Chinese Input Method .............................................................25
Figure 9: GXP2200 Onscreen Keyboard - English Input Method...............................................................25
Figure 10: GXP2200 Onscreen Keyboard - Lowercase .............................................................................25
Figure 11: GXP2200 Onscreen Keyboard - Uppercase..............................................................................25
Figure 12: GXP2200 Onscreen Keyboard - Number and Symbols ............................................................26
Figure 13: GXP2200 Keyboard...................................................................................................................27
Figure 14: GXP2200 Status Bar..................................................................................................................29
Figure 15: GXP2200 Status Bar - Notification.............................................................................................29
Figure 16: GXP2200 Status Bar - Process .................................................................................................30
Figure 17: GXP2200 Status Bar - System Settings ....................................................................................30
Figure 18: GXP2200 Account Registration Status ......................................................................................31
Figure 19: GXP2200 Call Screen................................................................................................................32
Figure 20: GXP2200 Offhook Call Screen..................................................................................................33
Figure 21: GXP2200 Call History Screen - One Entry Selected.................................................................34
Figure 22: GXP2200 Contacts Screen........................................................................................................34
GXP2200 USER MANUAL Page 6 of 131
Figure 23: GXP2200 Messages Screen .....................................................................................................35
Figure 24: Single Incoming Call..................................................................................................................36
Figure 25: Multiple Incoming Calls..............................................................................................................37
Figure 26: Auto Answer Option in Web GUI................................................................................................38
Figure 27: Auto Answer Option in LCD .......................................................................................................38
Figure 28: Call On Hold...............................................................................................................................39
Figure 29: GXP2200 Multiple Calls Screen ................................................................................................39
Figure 30: Call Transfer - Blind Transfer.....................................................................................................40
Figure 31: Call Transfer - Attended Transfer...............................................................................................41
Figure 32: GXP2200 Conference Screen ...................................................................................................42
Figure 33: Invite Party to Conference .........................................................................................................42
Figure 34: 3-way Conference Call Established...........................................................................................43
Figure 35: New Voicemail Notification ........................................................................................................44
Figure 36: Press Message Button to Retrieve Voicemail............................................................................44
Figure 37: GXP2200 DND...........................................................................................................................45
Figure 38: Call Forwarding on GXP2200 LCD............................................................................................46
Figure 39: Call Forwarding on GXP2200 Web GUI ....................................................................................46
Figure 40: Call Forward - Unconditional .....................................................................................................47
Figure 41: Call Forward - Time Based ........................................................................................................47
Figure 42: Call Forward - Busy/No Answer.................................................................................................47
Figure 43: Add Item to Home Screen..........................................................................................................48
Figure 44: Set Wallpaper From Live Wallpapers ........................................................................................50
Figure 45: Move Clock App to Desktop.......................................................................................................51
Figure 46: Manage Application Screen.......................................................................................................52
Figure 47: Running Application Screen.......................................................................................................53
Figure 48: GXP2200 Downloads App .........................................................................................................54
Figure 49: GXP2200 Blacklist - Block History.............................................................................................55
Figure 50: GXP2200 Blacklist.....................................................................................................................56
Figure 51: Add Number to Blacklist.............................................................................................................56
Figure 52: Manually Add Number to Blacklist .............................................................................................57
Figure 53: Add Number From Contacts ......................................................................................................57
Figure 54: Add Number From Call Log .......................................................................................................58
Figure 55: Delete Entry From Blacklist .......................................................................................................58
Figure 56: Delete Entry From Blacklist .......................................................................................................59
Figure 57: GXP2200 Web Browser.............................................................................................................60
Figure 58: GXP2200 Web Browser-Bookmarks .........................................................................................60
Figure 59: View Calendar Events by Month................................................................................................61
Figure 60: View Calendar Events by Day ...................................................................................................61
Figure 61: GXP2200 Calendar Screen - Edit Event ...................................................................................62
Figure 62: GXP2200 Calculator - Basic Panel............................................................................................62
Figure 63: GXP2200 Calculator - Advanced Panel.....................................................................................63
GXP2200 USER MANUAL Page 7 of 131
Figure 64: GXP2200 Call History - All Calls................................................................................................64
Figure 65: GXP2200 Call History - Entry Details ........................................................................................64
Figure 66: GXP2200 Call History - Entry Operations .................................................................................65
Figure 67: GXP2200 Clock Screen.............................................................................................................66
Figure 68: GXP2200 Alarm Screen.............................................................................................................66
Figure 69: GXP2200 Contacts Screen........................................................................................................67
Figure 70: GXP2200 Contacts - New Contact ............................................................................................67
Figure 71: GXP2200 Contacts - Edit Contact .............................................................................................68
Figure 72: GXP2200 Contacts - Storage Status .........................................................................................69
Figure 73: GXP2200 Contacts - Import File................................................................................................69
Figure 74: GXP2200 Contacts - Export File................................................................................................70
Figure 75: GXP2200 Contacts - Download File..........................................................................................70
Figure 76: GXP2200 Email Setup Wizard 1................................................................................................71
Figure 77: GXP2200 Email Setup Wizard 2................................................................................................71
Figure 78: GXP2200 Email Setup Wizard 3................................................................................................72
Figure 79: GXP2200 Email .........................................................................................................................72
Figure 80: GXP2200 Gallery.......................................................................................................................74
Figure 81: GXP2200 GS Market - Game....................................................................................................75
Figure 82: GXP2200 GS Market - Search App ...........................................................................................76
Figure 83: GXP2200 GS Market - History...................................................................................................76
Figure 84: GXP2200 GS Market - Installed ................................................................................................77
Figure 85: GXP2200 GS Market - Confirm Uninstall ..................................................................................77
Figure 86: GXP2200 Location.....................................................................................................................78
Figure 87: GXP2200 Media Player .............................................................................................................79
Figure 88: GXP2200 Media Player - Scan..................................................................................................79
Figure 89: GXP2200 Media Player - Sort Music Files ................................................................................80
Figure 90: GXP2200 Media Player - Edit Music Files.................................................................................80
Figure 91: GXP2200 Media Player - Music File Options ............................................................................81
Figure 92: GXP2200 Media Player - Playing ..............................................................................................81
Figure 93: GXP2200 Media Player - Lyrics.................................................................................................82
Figure 94: GXP2200 Media Player - Folder................................................................................................82
Figure 95: GXP2200 Media Player - Folder................................................................................................83
Figure 96: GXP2200 Media Player - PlayList .............................................................................................83
Figure 97: GXP2200 Media Player - Create New Playlist ..........................................................................84
Figure 98: GXP2200 Media Player - Playlist Options .................................................................................84
Figure 99: GXP2200 Message....................................................................................................................85
Figure 100: View Dialog ..............................................................................................................................85
Figure 101: Message Options.....................................................................................................................86
Figure 102: GXP2200 Message - Send SMS .............................................................................................86
Figure 103: GXP2200 Message – SMS Draft List ......................................................................................87
Figure 104: GXP2200 Message - Storage Status.......................................................................................87
GXP2200 USER MANUAL Page 8 of 131
Figure 105: GXP2200 Music - Now Playing................................................................................................88
Figure 106: GXP2200 Music - Now Playing: MENU Options .....................................................................89
Figure 107: GXP2200 Search - Search on Web.........................................................................................90
Figure 108: GXP2200 Search - Search on GXP2200 ................................................................................90
Figure 109: GXP2200 Search - Dial Number..............................................................................................91
Figure 110: GXP2200 Web GUI - Login......................................................................................................97
Figure 111: GXP2200 Main Screen - IP Address........................................................................................98
Figure 112: GXP2200 Upgrade Configuration via LCD ..............................................................................99
Figure 113: Start GXP2200 Upgrade ..........................................................................................................99
Figure 114: Upload GXP2200 Firmware via Web GUI................................................................................99
Figure 115: GXP2200 Firmware Uploading ................................................................................................99
Figure 116: GXP2200 Firmware Upload Done ...........................................................................................99
Figure 117: GXP2200 LCD - Factory Reset................................................................................................99
Figure 118: GXP2200 LCD - Confirm Factory Reset..................................................................................99
Figure 119: GXP2200 Web GUI - Confirm Factory Reset ..........................................................................99
GXP2200 USER MANUAL Page 9 of 131
GNUGPLINFORMATION
GXP2200 firmware contains third-party software licensed under the GNU General Public License (GPL).
Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public
License (GPL) for the exact terms and conditions of the license.
Grandstream GNU GPL related source code can be downloaded from Grandstream web site from:
http://www.grandstream.com/support/faq/gnu_gpl.
GXP2200 USER MANUAL Page 10 of 131
CHANGELOG
This section documents significant changes from previous versions of GXP2200 user manuals. Only major
new features or major document updates are listed here. Minor updates for corrections or editing are not
documented here.
FIRMWAREVERSION1.0.1.9
• This is the initial version.
GXP2200 USER MANUAL Page 11 of 131
WELCOME
Thank you for purchasing Grandstream GXP2200 Enterprise Application Phone. GXP2200 represents the
future of enterprise business telephones in modern Internet age. Featuring Android 2.3 and its vast
number of 3rd party applications, a 480x272 capacitive touch screen TFT LCD, dual Gigabit network ports,
integrated PoE and Bluetooth. The GXP2200 delivers superior HD audio quality, leading edge telephony
features, integration of rich Web content with access to the rapidly growing Android applications base and
automated provisioning. Built with advanced security protection for privacy, this enterprise application
phone also features broad interoperability with most 3rd party SIP based devices, IP PBX and major IMS
platforms. The GXP2200 is an innovative smart desk phone loaded with tremendous value for
Web-integrated business communications as well as unprecedented power for advanced custom business
applications development and personalization. This unique product is distinguished in a special class of its
own.
This user manual is designed to help you understand how to configure and manage the GXP2200
Enterprise Application Phone. Besides demonstrating how to install this unit with ease, this manual will
explain how to fully utilize the phone’s voice calling features as well as explore all the built-in feature-rich
applications.
Caution:
Changes or modifications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this User Manual, could void your manufacturer warranty.
Warning:
Please do not use a different power adaptor with the GXP2200 as it may cause damage to the products
and void the manufacturer warranty.
This document is subject to change without notice. The latest electronic version of this user manual is
available for download here:
http://www.grandstream.com/support
Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for
any purpose without the express written permission of Grandstream Networks, Inc. is not permitted.
GXP2200 USER MANUAL Page 12 of 131
PRODUCTOVERVIEW
FEATUREHIGHTLIGHTS
• 480x272 pixel capacitive touch screen TFT LCD;
• HD wideband audio, superb full-duplex hands-free speakerphone with advanced acoustic echo
cancellation and excellent double-talk performance;
• 6 lines with up to 6 SIP accounts, up to 5-way conference, phonebook with up to 1000 contacts, call
history with up to 500 records;
• Support Android 2.3 and the vast number of 3rd party Android applications (including Skype, Google
Voice, Microsoft Lync Client, Youtube, Facebook, Twitter, Pandora, Angry Birds, and etc), advanced
SDK toolkit for custom business application development and deployment control;
• Dual switched auto-sensing 10/100/1000Mbps network ports, PoE, Bluetooth, USB, SD, EHS
(Electronic Hook-Switch) with Plantronics headsets, capability to connect/power up to 4 cascaded
extension modules with LCD display (GXP2200 EXT);
• Automated provisioning using TR-069 or AES encrypted XML configuration file, TLS/SRTP/HTTPS for
advanced security and privacy protection, LLDP, LDAP, IPv6.
Figure 1: GXP2200 Front View
GXP2200 USER MANUAL Page 13 of 131
GXP2200TECHNICALSPECIFICATIONS
Table 1: GXP2200 TECHNICAL SPECIFICATIONS
Protocols and
Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A
record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE,
LLDP, LDAP, TR-069, 802.1x, IPv6, TLS, SRTP
Network Interfaces Dual switched 10/100/1000Mbps ports with integrated PoE
Graphic Display 480x272 capacitive touch screen TFT LCD
Bluetooth Yes, integrated
Auxiliary Ports RJ9 headset jack (allowing EHS with Plantronics headsets), USB, SD, extension
module port
Feature Keys 10 function keys for MUTE, HOLD, PHONEBOOK, MESSAGE, HEADSET,
TRANSFER, CONFERENCE, VOLUME, SPEAKER, SEND/REDIAL, 4 Android
navigations control keys for HOME, MENU, SEARCH, BACK
Voice Codec Support for G.711u/a, G.722 (wide-band), G.729A/B
Audio Codec AAC, MP3, AMR, WAVE, MIDI, Vorbis
Video Decoder H.264 BP/MP/HP, H.263/H.263+, MPEG4, up to 1080p resolution
Telephony Features Hold, transfer (unconditional/no answer/busy), forward, call park/pickup, 5-way
conference, shared-call-appearance (SCA)/bridged-line-appearance (BLA), virtual
BLF/speed-dial extensions, downloadable phone book (XML, LDAP, up to 1000
items), call waiting, call log (up to 500 records), boss-secretary virtual button,
flexible dial plan, hot desking, personalized music ringtones, server redundancy
and fail-over
Sample
Applications
Skype, Google Voice, Microsoft LYNC, Web browser, Adobe Flash, Facebook,
Twitter, Youtube, news/weather/stock, Internet Radio, Pandora, Last.fm, Yahoo
Flickr, Photobucket, alarm clock, Google Calendar, PBX-in-phone, mobile phone
data import/export via Bluetooth, and etc. API/SDK available for advanced custom
application development
Applications
Deployment
Allow various Android 2.3 compliant applications to be developed, downloaded
and run in the embedded device with provisioning control
HD Audio Yes, HD handset and speakerphone with support for wideband audio
Base Stand Yes, integrated stand with 2 adjustable angles
QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security User and administrator level passwords, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS,
802.1x media access control
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian,
GXP2200 USER MANUAL Page 14 of 131
Chinese, Korean, Japanese and etc
Upgrade and
Provisioning
Firmware upgrade via TFTP/HTTP/HTTPS or local HTTP upload, mass
provisioning using TR-069 or AES encrypted XML configuration file
Power and Green
Energy Efficiency
Universal power adapter: Input: 100-240VAC 50-60Hz;
Output: 12VDC, 1.5A (supplying power for up to 4 cascaded GXP2200EXT)
Integrated Power-over-Ethernet (802.3af, class 0); Max power consumption 10W
(power adapter, no GXP2200EXT), 12W (PoE, no GXP2200EXT), or 18W (power
adapter only, with 4 cascaded GXP2200EXT)
Physical Unit dimension: 188mm (W) x 210mm (H) x 85mm (D) (handset onhook)
Unit weight: 0.86kg
Package weight: 1.42kg
Temperature and
Humidity
32-104 oF / 0-40 oC, 10-90% (non-condensing)
Package Content GXP2200 phone, handset with cord, universal power supply, network cable, quick
start guide
Compliance FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2,
EN61000-3-3, EN60950-1; AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS;
UL 60950 (power adapter)
GXP2200 USER MANUAL Page 15 of 131
INSTALLATION
EQUIPMENTPACKAGING
Table 2: GXP2200 EQUIPMENT PACKAGING
Main Case Yes (1)
Handset Yes (1)
Phone Cord Yes (1)
Power Adaptor Yes (1)
Ethernet Cable Yes (1)
Phone Stand Yes (1)
Quick Start Guide Yes (1)
CONNECTINGYOURPHONE
Figure 2: GXP2200 Back View
Handset Port
12V Power
USB Port
EXT Port
Phone Stand
EXT Connecting Slot
SD Card Slot
Headset Port PC Port LAN Port
GXP2200 USER MANUAL Page 16 of 131
Table 3: GXP2200 CONNECTORS
SD Card Slot SD Card Slot
USB Port USB devices can be connected via the USB port. For example, you can connect a
USB flash drive to save captured pictures or use a USB keyboard or mouse for the
web browser
Headset Port RJ9 headset connector port (supporting EHS with Plantronics headset)
Handset Port RJ9 handset connector port
PC Port 10/100Mbps RJ-45 port connecting to PC
LAN Port 10/100/1000Mbps RJ-45 port connecting to Ethernet
Power Jack 12V DC Power connector port
EXT Port RJ11 connector port to connect the GXP2200 Extension Board
To set up the GXP2200, follow the steps below:
1. Attach the phone stand to the back of the phone where there is a slot for the phone stand. Upper part
and bottom part are available for two angels;
2. Connect the handset and main phone case with the phone cord;
3. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a router (LAN side of the
router) using the Ethernet cable;
4. Connect the 12V DC output plug to the power jack on the phone; plug the power adapter into an
electrical outlet. If PoE switch is used in step 3, this step could be skipped;
5. The LCD will display the booting up screen. Before continuing, please wait for the main screen display
to show up.
GXP2200EXTENSIONBOARD
The GXP2200 extension module is an ideal solution for the busy enterprise environment looking to add the
ability to receive and dispatch calls efficiently. Each extension module has 20 programmable buttons, Left
and Right buttons, supporting 40 Multiple Purpose Keys to be configured. GXP2200 supports up to 4
extension modules, adding 160 fully programmable phone extensions to the phone.
Table 4: GXP2200 EXTENSION BOARD PACKAGING
Extension Board Yes (1)
Extension Board Stand Yes (1)
RJ11-RJ11 Cable Yes (1)
Connector Plate Yes (1)
Screws Yes (4)
GXP2200 USER MANUAL Page 17 of 131
Note:
The extension module is an additional accessory for the GXP2200 and is not included in the GXP2200
box.
To set up the GXP2200 Extension board with GXP2200, please follow the steps below:
1. On the back of GXP2200 and the extension board, there are slots for connector plate. Attach the
connector plate between the slots for GXP2200 and the extension board;
2. Apply the screws provided and securely tighten them in (See Figure 3);
3. Connect the extension board to GXP2200 via the EXT port using the RJ11-RJ11 cable provided;
4. Install the phone stand on GXP2200 and extension board;
5. Power up the GXP2200. The GXP2200 extension board will show the booting up screen with version
information and connecting status;
6. After successfully booting up, the extension board will stay in idle. Press and hold the Left button for 3
seconds to check the version information and status.
Figure 3: GXP2200 Back View with GXP2200 Extension Board
GXP2200 USER MANUAL Page 18 of 131
The GXP2200 Extension board can be configured via the web GUI of GXP2200 connected. Login the
GXP2200's web GUI and configure Multiple Purpose Keys for Extension board 1/2/3/4 following the tags.
After successfully configured, on the GXP2200 Extension board, press Left or Right button users could
browse all the MPK's status in different pages.
SAFETYCOMPLIANCES
The GXP2200 phone complies with FCC/CE and various safety standards. The GXP2200 power adapter
is compliant with the UL standard. Use the universal power adapter provided with the GXP2200 package
only. The manufacturer’s warranty does not cover damages to the phone caused by unsupported power
adapters.
WARRANTY
If the GXP2200 phone was purchased from a reseller, please contact the company where the phone was
purchased for replacement, repair or refund. If the phone was purchased directly from Grandstream,
contact the Grandstream Sales and Service Representative for a RMA (Return Materials Authorization)
number before the product is returned. Grandstream reserves the right to remedy warranty policy without
prior notification.
Warning:
Use the power adapter provided with the phone. Do not use a different power adapter as this may damage
the phone. This type of damage is not covered under warranty.
GXP2200 USER MANUAL Page 19 of 131
GETTINGTOKNOWGXP2200
USINGTHETOUCHSCREEN
When the phone boots up in HOME screen, the LCD will display as below. A registered account is shown
in Figure 4. Users might need register their own account to have the account status displayed.
Figure 4: GXP2200 Default Main Screen
Tap the onscreen MENU icon, the settings and applications menu will be brought up as Figure 5 shows.
Figure 5: GXP2200 Onscreen Menu
The Status Bar shows time,
connectivity, signal strength,
notification information and etc.
Account information displays in
this area. Up to 6 accounts can
be registered and displayed.
Onscreen MENU icon. Tap to
access settings and applications.
GXP2200 USER MANUAL Page 20 of 131
To fully manipulate the GXP2200 capacitive touch screen, use your fingers operate the following on the
GXP2200 icons, buttons, menu items, onscreen keyboard and etc.
• Tap
To select items on the screen (e.g., setting options, apps); to press onscreen buttons; to type letters
and symbols using the onscreen keyboard.
• Touch and Hold
Touch the item on the screen and hold it without lifting your finger from the screen till an action occurs.
For example, touch and hold on a picture to bring up operation options.
• Drag
Touch and hold an item for a few seconds first. Once the item has a red frame activated, or a move
option shows up, keep your finger on the screen and move it until the target position is reached. Then
lift your finger up to release.
• Slide
Move your finger fast across the screen to slide. To view different idle screens or menu pages, slide left
or right; to view the status bar on top of the screen, place your finger on the bar and slide it down. If
your finger stays on the screen for too long, the item may be selected and sliding won't occur.
• Pinch
Place two fingers on the screen, then pinch them together (zoom out) or spread them apart (zoom in).
This could be used in main screen, or apps like Browser and Gallery.
IDLESCREEN
SETTINGUPHOMESCREEN
By default, the HOME screen is the one with account registration status displayed. Users could change it
by specifying the HOME screen as preferred. Follow the steps below to set up the HOME screen.
• GXP2200 is up and running on idle screen;
• Press the MENU button and tap on "Edit" option. Or users could place two fingers on the
screen and them pinch together. Then it will zoom out all the screens as Figure 6 shows.
• The screen with selected in a red frame is the HOME screen. Others are shown with icon . Tap
GXP2200 USER MANUAL Page 21 of 131
on the icon to select the corresponding screen as the new HOME screen.
Figure 6: Set GXP2200 HOME Screen
ADDINGIDLESCREENS
By default, there are four idle screens. To add more screens, firstly pinch on the idle screen, or press the
MENU button and then touch "Edit" option to bring up the display in Figure 6. Then tap on the icon
so one more idle screen will be added. To adjust the sequence for the idle screens to display, in
Figure 6, drag the screen and move to insert it before or after other screens.
DELETINGIDLESCREENS
The idle screens could be deleted. To delete, firstly remove the widgets on that screen by dragging the icon
to Recycle Bin at the bottom. Then pinch on the idle screen, or press the MENU button and
then touch "Edit" option to bring up the display as Figure 7 shows. Now tap on the icon for the screen
you would like to delete.
GXP2200 USER MANUAL Page 22 of 131
Figure 7: Delete GXP2200 Idle Screen
IDLESCREENICONS
The following table describes the icons used on the GXP2200 idle screen and MENU screen.
Table 5: GXP2200 ONSCREEN ICONS
Onscreen MENU icon. Displayed on the bottom of each idle screen.
Tap on it to access settings and all the installed applications.
HOME icon. Displayed on the bottom of onscreen Menu screen.
Tap on it to go back to the HOME screen.
Screen indicator. Displayed on the bottom of each idle screen.
Grey: the indicated screen is not the current displayed screen.
Screen indicator. Displayed on the bottom of each idle screen.
Orange: the current displayed screen.
Account registered. Displayed on the default HOME screen.
Tap on it to make call via this account.
Account unregistered. Displayed on the default HOME screen.
GXP2200 USER MANUAL Page 23 of 131
Recycle Bin. Displayed when holding and dragging a widget on idle
screen.
Drag the widget to Recycle Bin to remove it from the idle screen.
Speaker. Displayed in status bar when speaker is being used.
Speaker silent. Displayed in status bar when speaker is turned off.
When it's on silent, the incoming call won't produce ring from phone's
speaker.
Headset. Displayed in status bar when headset is being used.
Handset. Displayed in status bar when handset is off hook.
1
Call forward (Account 1). Displayed in status bar when call forward
is set up for account 1.
2
Call forward (Account 2). Displayed in status bar when call forward
is set up for account 2.
3
Call forward (Account 3). Displayed in status bar when call forward
is set up for account 3.
4
Call forward (Account 4). Displayed in status bar when call forward
is set up for account 4.
5
Call forward (Account 5). Displayed in status bar when call forward
is set up for account 5.
6
Call forward (Account 6). Displayed in status bar when call forward
is set up for account 6.
Alarm. Displayed in status bar when there is alarm set up.
DND. Displayed in status bar when DND is on.
Missed call. Displayed in status bar when there is missed call.
Mute. Displayed in status bar when the ongoing call is muted.
GXP2200 USER MANUAL Page 24 of 131
Network disconnected. Displayed in status bar when network is not
connected.
Network connected. Displayed in status bar when network is
connected.
SD Card inserted. Displayed in status bar when SD card is inserted.
SD Card space full. Displayed in status bar when the inserted SD
card's space is full.
USB flash drive inserted. Displayed in status bar when USB flash
drive is inserted.
USB flash drive space full. Displayed in status bar when the
inserted USB flash drive's space is full.
Voicemail. Displayed in status bar when there is new voicemail.
Warning. Displayed in status bar for warning message.
Bluetooth. Displayed in status bar when Bluetooth is enabled.
Calendar event. Displayed in status bar when calendar has event
scheduled.
Playing. MediaPlayer is currently playing files.
Wi-Fi signal strength. Displayed in status bar when Wi-Fi is used.
ONSCREENKEYBOARD
The GXP2200 onscreen keyboard can be activated by tapping on an input field.
• English input method and Chinese input method
To switch input method to English when the current method is Chinese, tap on (Figure 8).
GXP2200 USER MANUAL Page 25 of 131
Figure 8: GXP2200 Onscreen Keyboard - Chinese Input Method
To switch input method to Chinese when the current method is English, tap on (Figure 9).
Figure 9: GXP2200 Onscreen Keyboard - English Input Method
• Lowercase and Uppercase
When using English input method, to switch between uppercase and lowercase input, tap on
(Figure 10) or (Figure 11).
Figure 10: GXP2200 Onscreen Keyboard - Lowercase
Figure 11: GXP2200 Onscreen Keyboard - Uppercase
GXP2200 USER MANUAL Page 26 of 131
• Number and symbols
To input number and symbols, on the following screens in Figure 12, tap on to switch the mode
and tap on to go to another page for more symbols.
Figure 12: GXP2200 Onscreen Keyboard - Number and Symbols
USINGTHEKEYPAD
The following figure shows the keypad on GXP2200.
GXP2200 USER MANUAL Page 27 of 131
Figure 13: GXP2200 Keyboard
Table 6: GXP2200 KEYPAD BUTTONS
Contacts. Press to view and edit contact information.
Search. Press to search.
Home. Press to go back to Home screen; or press and hold it for about 3
seconds, Running Applications option will show.
Menu. Press to view options for different screen or applications.
Back. Press to go back.
Hold. Press to put call on hold or resume the call.
Mute. Press to mute or unmute the call.
Headset. Press to switch to headset mode.
Message. Press to view voicemail messages.
GXP2200 USER MANUAL Page 28 of 131
Transfer. Press to transfer call.
Conference. Press to conference call.
Speaker.
Send.
Volume.
Note:
To capture a screenshot, press the MENU and SEARCH button at the same time. Then
the screenshot picture will be saved under FileManager->user_data->screenshot folder.
USINGTHEMESSAGEWAITINGINDICATOR
The GXP2200 message waiting indicator LED is on the top right corner of the device. It could notify the
users with different messages and status of the phone. Please refer to the status description below. The
priority for the LED indicator is from high to low in the following table.
Table 7: GXP2200 MWI LED STATUS
Color LED Status Description
Fast Flashing Incoming call
Solid Calling, Talking
Slow Flashing Call on hold
Flashing Missed call (s), New voicemail (s), New SIP Message (s)
Solid High memory usage, Maximum message number
OFF OFF Normal
MANAGINGSTATUSBAR
The GXP2200 status bar is located on the top of the screen. Touch the bar and slowly drag it down to
display the full status list.
GXP2200 USER MANUAL Page 29 of 131
Figure 14: GXP2200 Status Bar
Once the status bar is opened, users could view the notifications, process as well as system settings.
• Notification
Users could tap on the notification message to open it and view the details. To remove all the
notifications, tap on Clear button.
Figure 15: GXP2200 Status Bar - Notification
• Process
Tap on Process tab then users could view all the running processes on the GXP2200. Press on the
process to open it, or tap on to close the process.
GXP2200 USER MANUAL Page 30 of 131
Figure 16: GXP2200 Status Bar - Process
• System Settings
Users could access some of the frequently used features from system settings. For each option,
please see the description below.
Figure 17: GXP2200 Status Bar - System Settings
Turn on/off
LCD display.
Speaker on/off
on incoming
call.
Turn on/off DND. When DND is on,
all the calls to the registered
accounts will be blocked.
Turn on/off
BlueTooth.
Scroll left/right
to adjust LCD
brightness.
Select Media
Channel when
playing audio
or video.
GXP2200 USER MANUAL Page 31 of 131
MAKINGPHONECALLS
REGISTERINGSIPACCOUNTS
The GXP2200 supports up to 6 independent SIP accounts. Each account may have separate SIP servers,
usernames and NAT configurations.
For example, the user has configured 4 SIP accounts on GXP2200: Account 1, Account 2, Account 3 and
Account 4. The registration status for each account is displayed on the main screen. The icon next to the
account name will indicate the registration status ( Green: registered; Grey: unregistered). The
following figure shows Account 1 and Account 2 are registered, while Account 3 and Account 4 are
configured but not registered.
Figure 18: GXP2200 Account Registration Status
To register the account, users could directly configure from onscreen MENU icon->Settings->Advanced
Settings->Account. Or users could log in the GXP2200 web GUI->Account X to fill in the necessary
registration information, i.e., Account active, Account name, SIP Server, Outbound Proxy, SIP User ID,
Authenticate ID, Authenticate Password and etc. Once the correct information is entered and saved, the
account registration status will show on the main screen.
Note:
For web GUI login and configuration information, please refer to section GXP2200 Web GUI Settings.
GXP2200 USER MANUAL Page 32 of 131
HANDSET,SPEAKERANDHEADSETMODE
The GXP2200 allows users to switch among handset, speaker or headset when making calls. Press the
Hook Switch to switch to handset; press the Headset button to switch to headset; or press the
Speaker button to switch to speaker.
MAKINGACALL
Once the account is successfully registered, users could use the following ways to make a call.
1. Onhook dialing
• When the phone is in idle, press the digits to bring up the call screen and select the account on the
right panel. Or, users could tap on the registered account icon in idle screen to select the account;
• Enter the necessary digits. When there is digit matching call history, the dropdown list will show the
number or contacts. So if the user finds the call history record matches the number to be dialed, the
user could directly select one of them from the list, instead of entering all the digits (see Figure 19);
• To send the digits and call via Speaker, press button or Send button or tap on
(audio call). To use handset, lift the handset up from the hook switch. If headset is used, press
to call via headset.
Figure 19: GXP2200 Call Screen
GXP2200 USER MANUAL Page 33 of 131
2. Off hook and dial
• Take the handset off hook, or press the speaker button , or press the headset button
to bring up the call screen;
• Select the account by tapping on the account name in the right panel;
• Enter the number. When there is digit matching call history, the dropdown list will show the number or
contacts so that users could directly select from the list. Figure 20 shows the entered digits matches
call history 653 from Jane Ta;
• Tap on icon or to send.
Figure 20: GXP2200 Offhook Call Screen
3. Redial
• When the phone is idle or offhook, press SEND button to dial the last dialed-out number;
• For redialing, the phone will use the account that was used to call the last number. Therefore, if the last
number dialed uses the third SIP account, the phone will also use the third SIP account when
redialing.
4. Via Call History
• Access the Call History by tapping on the onscreen Menu icon->Call History icon ; or in the call
screen, tap on the CallHistory button as Figure 20 shows;
• The LCD will display all call history types: "All", "Outgoing", "Incoming" and "Missed" calls;
• Select the call history you would like to view by sliding up/down and tapping on the corresponding
number;
GXP2200 USER MANUAL Page 34 of 131
• Press on the dial icon or Send button to dial out.
Figure 21: GXP2200 Call History Screen - One Entry Selected
5. Via Contacts
• Access the contacts information by tapping on the onscreen Menu icon->Contacts icon ;
• The LCD screen will display the records in the contacts;
• Navigate to the contacts by sliding up/down on the screen;
• Tap on the dial key to dial the corresponding contact.
Figure 22: GXP2200 Contacts Screen
GXP2200 USER MANUAL Page 35 of 131
6. Via Messages
• Access the SMS by tapping on the onscreen Menu icon->Message ;
• The LCD screen will display the message information. Tap on the person you would like to call;
• Then the detailed information for the message will be displayed;
• Tap on to dial.
Figure 23: GXP2200 Messages Screen
DIRECTIPCALL
Direct IP Call allows two phones to talk to each other in an ad-hoc fashion without a SIP proxy. VoIP calls
can be made between two phones if:
• Both phones have public IP addresses; or
• Both phones are on the same LAN/VPN using private or public IP addresses; or
• Both phones can be connected through a router using public or private IP addresses (with necessary
port forwarding or DMZ).
To make a direct IP call, please follow the steps below:
• Off hook the phone or select account in the idle screen to bring up call screen on GXP2200;
• Under "Mode Select" button in the call screen, tap on it and select the mode as "IP Call";
GXP2200 USER MANUAL Page 36 of 131
• Input the 12-digit target IP address. For example, if the target IP address is 192.168.1.60 and the port
is 5062 (i.e., 192.168.1.60:5062), input the following:
192*168*1*60#5062
The * key represents the dot (.) and the # key represents the colon (:).
• Press "SEND" key or tap on button to dial.
Note:
• The # will represent colon ":" in direct IP call rather than SEND key as in normal phone call;
• If you have a SIP server configured, direct IP call still works. If you are using STUN, direct IP call will
also use STUN;
• Configure the "User Random Port" to "No" when completing direct IP calls.
ANSWERINGACALL
1. Single incoming call
When the phone rings, users could use the headset, handset or speaker to answer the call. The user may
also tap on the Answer key in the ringing screen to pick up the call via Speaker.
Figure 24: Single Incoming Call
GXP2200 USER MANUAL Page 37 of 131
2. Multiple Incoming Calls
• When there is another incoming call, users will hear a call waiting tone, with the LCD displaying the
caller name and ID (see Figure 25). In the right panel, the bar in green is the ringing line from "Bob
White"; the bar in blue is the current active call with "John Doe". "GXP2200" is the callee account
name;
• Also, the LCD will show Answer and Reject button for the new call. If the call is answered, the current
call will be placed on hold.
Figure 25: Multiple Incoming Calls
3. Missed Call
When there is missed call, a missed call icon will show up in the top status bar with the MWI flashing
in red. Slide down the status bar and check the missed call info under Notification tab.
4. Auto-Answer/Paging/Intercom
To enable auto-answer/paging/intercom feature, user could login GXP2200 Web GUI->Account x->Call
Settings to select the options for "Auto Answer" (see Figure 26).
Or, users could use LCD onscreen MENU->Settings->Account Preference->select Account Name to
enable auto-answer (see Figure 27).
New incoming call
from "Bob White" to
"GXP2200".
The current call
with John Doe.
GXP2200 USER MANUAL Page 38 of 131
Figure 26: Auto Answer Option in Web GUI
Figure 27: Auto Answer Option in LCD
Auto Answer options:
• No: Disable Auto-Answer feature. Users will need tap on Answer or Reject for incoming call;
• Yes: Enable Auto-Answer feature. The incoming call will be answered automatically via speaker;
• Enable Intercom/Paging: Only incoming Paging/Intercom Call will be automatically answered via
speaker. Other regular calls won't be auto-answered.
GXP2200 USER MANUAL Page 39 of 131
CALLHOLD
During the active call, press HOLD button to put the call on hold. The LCD screen will show pink
background and icon on the right panel indicates the call is on hold. To resume to call, press HOLD
button again and the LCD will go back to the talking screen in green background.
Figure 28: Call On Hold
CALLWAITING
When there is an active call, tap on the right panel to open up another line or accept the new incoming call.
This will automatically put the current call on hold. Touch the bars indicating different lines on the right
panel to toggle among multiple calls.
Figure 29: GXP2200 Multiple Calls Screen
GXP2200 USER MANUAL Page 40 of 131
CALLTRANSFER
1. Blind Transfer
• During the active call, press TRANSFER button to bring up the transfer screen;
• Enter the digits and then press SEND soft key on the right;
• The call will be transferred and GXP2200 will hang up the call.
Figure 30: Call Transfer - Blind Transfer
Note:
• If wrong digits are entered, tap on to delete the digit one by one;
• If users would like to cancel the transfer, press button to go back to the previous talking
screen.
2. Attended Transfer
• During the active call, tap on in the right panel to make the second call. This will place
the current call on hold;
GXP2200 USER MANUAL Page 41 of 131
• Dial the number for the second call and make sure the call is established;
• Press TRANSFER button to bring up transfer screen with the line on hold d (see Figure 31);
• Tap on the line on hold to transfer the call;
• The call will be transferred and GXP2200 will hang up the call.
Figure 31: Call Transfer - Attended Transfer
Note:
• To transfer calls across SIP domains, SIP service providers must support transfer across SIP
domains;
• If users would like to cancel the transfer, press button to go back to the previous talking
screen.
5WAYCONFERENCE
The GXP2200 supports up to 5-way conferencing.
GXP2200 USER MANUAL Page 42 of 131
1. Initiate conference
• When the phone is in idle, or during an active call, press CONFERENCE button to bring up
conference screen; users could also press CONF button in call screen right after off hook the phone;
• Tap on in Figure 32 to start adding party in conference;
Figure 32: GXP2200 Conference Screen
• As Figure 33 shows, users could manually select account, enter digits and then tap on the
icon, or select the call (on hold or active ) to add to the conference;
Figure 33: Invite Party to Conference
GXP2200 USER MANUAL Page 43 of 131
• Repeat the above step to add more parties in. The following figure shows a 3-way conference
established.
Figure 34: 3-way Conference Call Established
2. Remove party from conference
To remove a party from the conference, tap on the on the right top corner for the corresponding party.
Then it will be disconnected.
3. End conference
To end the conference, tap on to disconnect all the parties from the conference. GXP2200 will
hang up the call. If the remote party hangs up the call itself, it will be disconnected from the conference but
other parties on GXP2200 will stay in the existed conference.
4. Hold/Resume conference
During the conference, users could press the HOLD button to hold or resume the conference at
any time.
Note:
For 4-way conference and 5-way conference, PCMA and PCMU are the supported codec in current
firmware version.
GXP2200 USER MANUAL Page 44 of 131
VOICEMAIL（MESSAGEWAITINGINDICATION）
When there is new voicemail, the Message Waiting Indication (MWI) LED icon will blink in red on the upper
right corner of the GXP2200. Also in the status bar, Voice Mail icon will shows up as a notification. To
retrieve the voicemail, press the Message button and tap on the account to dial into the voicemail
box. Then follow the Interactive Voice Response (IVR) for the message retrieval process.
For each account, the Voicemail User ID can be set up under web GUI->Account X->General Settings:
"Voice Mail UserID". When dialing out, this Voicemail User ID will be used to access the voicemail
message.
Figure 35: New Voicemail Notification
Figure 36: Press Message Button to Retrieve Voicemail
Regular voicemail.
Urgent voicemail.
GXP2200 USER MANUAL Page 45 of 131
MUTE
During an active call, press the Mute button to mute the call. The mute icon will be displayed
in the status bar. Press the Mute button again to unmute the call.
DND
To turn on DND, tap on the status bar->System Settings on the GXP2200. Then touch the DND icon to turn
it on/off. When DND is on, the incoming calls to the GXP2200 will be blocked for all registered accounts
with a reminder ring produced. To disable the reminder ring, configure the option under GXP2200 web
GUI->Advanced Settings->Call Features: Disable DND Reminder Ring.
Figure 37: GXP2200 DND
CALLFORWARD
Call forward feature can be set up from GXP2200 LCD or web GUI.
• From LCD
Go to onscreen Menu->Settings->Account Preference->Select Account Name: Call Forwarding.
Tap on Call Forwarding to activate the feature. Then a list of options will show. Select the option to
configure the call forward type (None, Unconditional, Time Based, Others) and then enter necessary
number in the fields.
GXP2200 USER MANUAL Page 46 of 131
Figure 38: Call Forwarding on GXP2200 LCD
• From Web GUI
Login web GUI and go to page Account X->Call Settings. Call Forward option is displayed on the
bottom of the page. By default, Call Forward feature is set to None.
Figure 39: Call Forwarding on GXP2200 Web GUI
GXP2200 USER MANUAL Page 47 of 131
The Call Forward feature options are:
¾ Unconditional Forward: All the incoming calls will be forwarded to the number set up in "All
To" field.
Figure 40: Call Forward - Unconditional
¾ Time Based Forward: All the incoming calls will be forwarded to the number as schedule in
the time period. During the setup time, the call will be forwarded to the number in "In Time
Forward To:" field. Other period the call will be forwarded to the number in "Out Time Forward
To:" field.
Figure 41: Call Forward - Time Based
¾ Call Forward on Busy / Call Forward No Answer: The incoming call will be forwarded when
the GXP2200 is busy or no answer after certain interval "Delayed Call Forward Wait Time (s)".
Figure 42: Call Forward - Busy/No Answer
GXP2200 USER MANUAL Page 48 of 131
GXP2200APPLICATIONS
CUSTOMIZINGIDLESCREENS
On the GXP2200 idle screens, users could add app icons, shortcuts, widgets, and other items when there
is free space on the desktop.
ADDINGANITEMTOIDLESCREEN
1. Select and open up the screen where you would like to add the item;
2. Touch and hold the empty area on the screen, or press Menu button -> Add. A list of options
for Add to Home screen will show up;
Figure 43: Add Item to Home Screen
3. Tap on the category Shortcuts, Widgets, Folders or Wallpapers to select the item you would like to
add;
• Shortcuts for Bookmark, Contact and Settings;
• Widgets are tools and apps like Account, Analog clock, Calendar, Music, Picture frame, Process State,
RSS News, Search, System Setting, Weather Forecast, and etc. Slide up or down on the screen to
select the item and place on the screen for easy access;
• Folders for New folder, All contacts, Bluetooth received, Contacts with phone numbers and Starred
contacts. Select the folder so shortcut can be created and placed on the screen;
GXP2200 USER MANUAL Page 49 of 131
• Wallpapers are images from Gallery, Live wallpapers and system embedded wall paper files. Once
selected and set up, it will display as the background of the screen;
4. Once the item is selected, it will be placed on the first available spot on the screen.
Note:
Some items might require the users to select specific entry before added to the Home screen. For example,
pick up the Browser bookmark for Bookmarks, select the contact person for Contacts.
MOVINGANITEMONIDLESCREEN
1. Touch and hold the item you would like to move, for example, MediaPlayer. Do not lift your fingers until
the background grid is activated in grey;
2. Drag the item to a new location on the same idle screen, or all the way to left/right so another idle
screen will appear for you to place the item;
3. Lift your finger to release when the item is on the desired spot.
REMOVINGANITEMFROMIDLESCREEN
1. Touch and hold the item you would like to remove, for example, MediaPlayer. Do not lift your fingers
until the background grid is activated in grey with the Recycle Bin icon displayed on the bottom;
2. Drag the item to the Recycle Bin;
3. When the item gets close to the Recycle Bin, it will turn red. Now lift your finger to release.
Note:
When the item is removed from the idle screen, it still exists on GXP2200. Users could always add it back
to display on the idle screen.
GXP2200 USER MANUAL Page 50 of 131
CHANGINGIDLESCREENWALLPAP ER
1. Follow the steps in Add an item to idle screen and select Wallpapers;
2. Tap on Gallery, Live wallpapers, or Wallpapers for image source.
Gallery: to use a picture from local or external folders. Users could crop the picture before setting it as
wallpaper;
Live wallpapers: to open a list of animated wallpapers embedded in the GXP2200;
Wallpapers: to open a list of sample wallpapers embedded in the GXP2200. Slide to left/right to view
the samples;
3. Tap on Set wallpaper.
Figure 44: Set Wallpaper From Live Wallpapers
MANAGINGAPPSANDWIDGETS
All the GXP2200 apps (including any apps downloaded and installed from GS Market or other sources)
can be accessed by tapping on the onscreen MENU . Touch and hold the app's icon until the Move to
Desktop bar is displayed on the bottom. Then drag the app's icon there without lifting your finger up.
GXP2200 USER MANUAL Page 51 of 131
Figure 45: Move Clock App to Desktop
Note:
The widgets are miniature apps that can be placed on the idle screens. It could be an application itself or it
provide quick access and control for the related applications.
OPENINGAPPS
When the GXP2200 is in idle screen, tap on the onscreen MENU icon to access the list for all the apps.
Touch an app's icon to open it. Or touch an app's widget icon on the idle screen (if already added) to
quickly launch it.
SWITCHINGTORECENTLYUSEDAPP
1. In idle screen, tap on the top status bar and slowly drag it down;
2. Tap on Notification or Process tab to have a list of apps shown up;
3. Touch the name or thumbnail of the item in the list to open the corresponding app.
GXP2200 USER MANUAL Page 52 of 131
MANAGINGAPPS
1. Open Manage Applications
When the GXP2200 is in idle, press MENU button and select Settings. Tap on
Applications->Manage applications.
Figure 46: Manage Application Screen
The Manage applications screen has four tabs, with lists of apps and their components in each. At the
bottom of each tab is the memory usage information for the selected tab. The four tabs are:
¾ Downloaded: to view the apps you’ve downloaded from GS Market or other sources;
¾ All: to view all the apps installed on the GXP2200;
¾ Storage Space: to view the apps stored on SD card;
¾ Running: to view the running or cached apps.
2. View apps' details
In the Manage applications screen, touch an app, process or service to open it. The Application Info
screen for each app lists its name, version, size and etc. Depending on the app, it may also include options
for managing the app’s data, forcing the app to stop, and uninstalling the app. Usually the options are:
¾ Use the Force stop button to stop an app that is misbehaving;
¾ Use the Uninstall button to remove the app (along with all its data and settings) if the app is
installed via GS Market;
¾ Storage provides storage information that an app uses on the GXP2200;
¾ Delete an app’s settings and other data by touching the Clear data. For example, clear data for
app Account and Sync Settings;
GXP2200 USER MANUAL Page 53 of 131
¾ If the app stores data in a temporary space of the GXP2200's memory, Cache lists how much
information is stored. Tap on Clear cache to clear the cache;
¾ Launch by default. If the app is configured to launch certain file type by default, tap on Clear
defaults could reset this;
¾ Permissions lists information of the data that the app has access to. For example, the application
might access the location information, storage, phone calls and etc.
3. Stop a misbehaving app
The running applications could be monitored and stopped if necessary. Open the Manage applications
screen the touch the Running tab. It will show the apps, processes and services that are currently running
or cached. The bottom bar will show the total RAM in use and the free amount.
Tap on the misbehaving app, process or service in the list to open it. As Figure 47 shows, touch the Stop
button to stop it. Or touch the Report button (if available) to send the developer information for the
misbehaving app.
Figure 47: Running Application Screen
Note:
Stopping an app, operating system processes or services might disable one or more dependent functions
on GXP2200. Users may need restart the GXP2200 to restore full functionality.
GXP2200 USER MANUAL Page 54 of 131
4. Uninstall an app
Apps can be uninstalled from GS Market or other sources where they are downloaded/installed. Or users
could open the Manage applications screen, select the Downloaded tab and tap on the Uninstall button.
Touch OK in the screen when asked to confirm if you would like to uninstall the app.
MANAGINGDOWNLOADS
The files (such as PDF documents, pictures) downloaded from GXP2200 browser will be stored on
GXP2200's internal storage. Users could use the Downloads app under the onscreen
MENU->Downloads to view, open or delete the downloaded files.
• Tap on the file to open it;
• Check to select the file, and tap on Delete to delete it;
• Press button and tap on Sort by size or Sort by time to sort the downloaded files.
Figure 48: GXP2200 Downloads App
PLAYINGWITHAPPS
In this section, the apps that come with GXP2200 are described in details.
GXP2200 USER MANUAL Page 55 of 131
BLACKLIST
GXP2200 Blacklist app helps users to manage the blacklist and block settings. There are three options on
the left panel when you open the Blacklist app.
• : Block History
Block History shows the detailed information for the blocked calls: caller number, callee number, caller
name and calling time. To clear all the logs in Block History, tap on the Delete all button.
Figure 49: GXP2200 Blacklist - Block History
• : Blacklist
To display blacklist information, tap on the icon to enter the Blacklist screen. Each entry
contains the caller name and caller number of the blocked contact. The number of blocked calls for the
contact is displayed on the right hand side too.
GXP2200 USER MANUAL Page 56 of 131
Figure 50: GXP2200 Blacklist
To add number in Blacklist, Tap the Add button. Once Add is touched, there are three ways to add
number to GXP2200 Blacklist: Manually add, Add from contacts and Add from call log.
Figure 51: Add Number to Blacklist
Figure 52 shows Manually add number to blacklist. Once Manually add option is touched, a window
will be prompted for users to enter the phone number in the first field and name/other note information
in the second field (optional). Tap on Save to finish the adding operation .
GXP2200 USER MANUAL Page 57 of 131
Figure 52: Manually Add Number to Blacklist
Figure 53 shows Add from contacts to blacklist. Once Add from contacts option is touched, the
contacts information will show. Check/uncheck on the contacts entry to make selections. Then tap on
Select to add it/them into the blacklist. You can also CheckAll entries, UncheckAll entries and
InvertAll the selection by tapping on the corresponding buttons on the bottom.
Figure 53: Add Number From Contacts
Figure 54 shows Add from Call log to blacklist. Once Add from Call log option is touched, the Call
log information will show. Check/uncheck on the call log entry to make selections. Then tap on Select
to add it/them into the blacklist. You can also CheckAll entries, UncheckAll entries and InvertAll the
selection by tapping on the corresponding buttons on the bottom.
GXP2200 USER MANUAL Page 58 of 131
Figure 54: Add Number From Call Log
To delete blacklist entry, tap on Delete button in Figure 50. The following screen with all the blacklist
entries will show. Select the number you would like to remove from by tapping on the checkbox on the
right hand side. Then touch the Delete button on the bottom. You can also CheckAll entries,
UncheckAll entries and InvertAll the selection by tapping on the corresponding buttons on the
bottom.
Figure 55: Delete Entry From Blacklist
GXP2200 USER MANUAL Page 59 of 131
• : Blacklist Settings.
¾ DND Mode: Turn on/off DND mode;
¾ Block Mode: Turn on/off Block Mode. Once it's turned on, the Block Options will be activated;
¾ Block Options: Tap on it and the options will show. Users could select Block All, Block Blacklist
Only, Block Anonymous or Block Anonymous And Blacklist. Then tap on OK;
¾ Block Notification: Turn on/off Block Notification;
¾ Time Settings: Set up the block schedule. Select Block 24 Hours or Modify Time by specifying
the Starting Time and Ending Time.
Figure 56: Delete Entry From Blacklist
BROSWER
GXP2200 browser could be used in a similar way as a PC-based web browser, i.e., open web pages,
bookmarks, view history, select the most visited pages, search and etc. In the Browser app, press on the
MENU button , then users could open new windows, manage the windows, refresh the page,
forward, exit or select text from the web page.
GXP2200 USER MANUAL Page 60 of 131
Figure 57: GXP2200 Web Browser
To open Bookmarks, Most visited pages, History, tap the icon on the top right in Figure 57. To
zoom in/zoom out, place two fingers on the blank area of the web page, then pinch together or spread out.
Figure 58: GXP2200 Web Browser-Bookmarks
GXP2200 USER MANUAL Page 61 of 131
CALENDAR
In Calendar app, users could create, modify and view the events as well as configure the Calendar to
provide notification for the upcoming events.
• In Calendar app, press the MENU button . Users could add New event, view events by Month,
view events by Day, view events by Agenda, specify a particular date via GoToDay, and sync up with
Google Calendar by tapping on Settings;
Figure 59: View Calendar Events by Month
Figure 60: View Calendar Events by Day
GXP2200 USER MANUAL Page 62 of 131
• When viewing Calendar by Month or by Day, slide left/right to view different month or date.
• When viewing the Calendar, tap on the date (view by Month) or time (view by Day) could bring up
option to create event. Tap on New event and event details window will show (see Figure 61).
Figure 61: GXP2200 Calendar Screen - Edit Event
CALCULATOR
Calculator app could be used to solve simple arithmetic problems as well as more complex equations. Tap
on the MENU button then users could switch the operation between "Basic panel" and "Advanced panel".
Or users could simply slide to the left and right to switch between Basic panel and Advanced panel.
Figure 62: GXP2200 Calculator - Basic Panel
GXP2200 USER MANUAL Page 63 of 131
Figure 63: GXP2200 Calculator - Advanced Panel
CALLHISTORY
Call History App provides users access to phone's call records with different categories on the left panel.
• All calls
• Incoming calls, indicated by per call;
• Outgoing calls, indicated by per call;
• Missed calls, indicated by per call.
GXP2200 USER MANUAL Page 64 of 131
Figure 64: GXP2200 Call History - All Calls
In Call History app, the following operations could be done:
• To delete call log. Tap on Delete all to delete all call logs displayed on the current screen. Or Tap on
one entry and touch icon to delete a single log;
• To view more details. Tap on one entry displayed in the call history list to view the details;
Figure 65: GXP2200 Call History - Entry Details
GXP2200 USER MANUAL Page 65 of 131
• To add contact. Tap on one entry and touch Add contact;
• To dial out the number from Call History. Tap on one entry and touch to dial out;
• To edit number based on the selected entry in Call History. Tap on one entry and touch to bring
up call screen and edit the number;
• To send SMS to the number from Call History. Tap on one entry and touch to bring up the SMS
screen and create message there.
All of the above operations as well as Add to BlackList could also be done by touching and holding on
one entry. The operation list will show options View detailed call history, Edit number before calling,
View contact and Add to BlackList.
Figure 66: GXP2200 Call History - Entry Operations
CLOCK
• Use Clock to display the date and time on your screen;
GXP2200 USER MANUAL Page 66 of 131
Figure 67: GXP2200 Clock Screen
• Turn on night mode by tapping on on the top right in Figure 67;
• Set up alarm by tapping on the icon .
Figure 68: GXP2200 Alarm Screen
GXP2200 USER MANUAL Page 67 of 131
CONTACTS
GXP2200 supports up to 1000 entries in contacts.Users can manage their contacts by adding, deleting,
modifying, downloading from the TFTP/HTTP server, as well as saving the contact to the PC.
Figure 69: GXP2200 Contacts Screen
• Add contact. Tap on Add to bring up screen to edit New contact. Enter contact information (e.g.,
First name, Last name, Phone number, Email address and etc). When there are more than one Phone
number added for the contact, the first one will be used and displayed by default.
Figure 70: GXP2200 Contacts - New Contact
GXP2200 USER MANUAL Page 68 of 131
• Edit Contact. Touch the contact you would like to edit, and tap on Edit. Add or modify the contact
information. Tap on Done to save the change;
Figure 71: GXP2200 Contacts - Edit Contact
• Delete Contact. Tap the contact you would like to delete and tap on Delete;
• Make calls via Contacts. Tap on the contact you would like to call;
• Send SMS via Contacts. Tap on the contact you would like to send message to;
• Add to Favorite category. Tap on so the selected contact will be added to the Favorite
category;
• Edit contacts in Favorite category. Touching on the left panel, to view, add, delete or search
the contacts;
• Edit contacts in Group category. Touching on the left panel, to view, add or delete groups;
• Check Storage Status. In Figure 69, tap on Options->Storage status;
GXP2200 USER MANUAL Page 69 of 131
Figure 72: GXP2200 Contacts - Storage Status
• Import contacts. XML/Vcard/CSV format phonebook could be imported to GXP2200. In Figure 69,
tap on Options->Import. And you would see the screen in the following figure for you to import your
file;
Figure 73: GXP2200 Contacts - Import File
• Export contacts. Contacts information in GXP2200 could be converted to Vcard/XML/CSV files and
exported to external device such as PC. In Figure 69, tap Options->Export, select the format and
choose the directory you would like to save the file. Then tap on OK.
GXP2200 USER MANUAL Page 70 of 131
Figure 74: GXP2200 Contacts - Export File
• Download phonebook. The GXP2200 supports remote downloading phonebook from HTTP/TFTP
server. Tap Options->Download, and the following figure will show. Specify the Download Mode and
Download Server where the phonebook is located.
Figure 75: GXP2200 Contacts - Download File
EMAIL
The GXP2200 Email app provides users easy access to business or personal email account. When
opening it for the first time, a wizard will be provided for users to configure the email account on GXP2200.
GXP2200 USER MANUAL Page 71 of 131
Figure 76: GXP2200 Email Setup Wizard 1
Figure 77: GXP2200 Email Setup Wizard 2
GXP2200 USER MANUAL Page 72 of 131
Figure 78: GXP2200 Email Setup Wizard 3
Once the Email account is successfully set up, users could press MENU button and bring up the
Refresh, Compose, Folders, Accounts and Account settings options.
Figure 79: GXP2200 Email
FILEMANAGER
File manageris a tool that helps manage folders and files such as pictures, music, video and other files on
GXP2200.
GXP2200 USER MANUAL Page 73 of 131
• The root directory for FileManager app shows screensaver, user_data folders by default. If USB
flash drive or SD card is inserted into the GXP2200, the folder for USB or for SD card will
also be displayed here. Under root directory, users could sort the folders by Name, Last Modified,
Size or Type. Search option is also available by tapping on Search or pressing Search button
on GXP2200;
• Under each sub folder, users could access files, create new folder, search file/folder, sort the
files/folders, copy and paste to manage the files.
¾ Create New Folder. Tap on New Folder, input new folder's name and touch OK;
¾ Copy files/folders. Tap on Options and the files/folders will show check option on each icon.
Check on the files/folders you would like to copy. Then tap on Copy;
¾ Paste files/folders. After copying the files/folders, Paste option will show. Without pressing Back
button, tap on the folder to select the destination directory you would like to paste to. Then tap on
Paste;
¾ Move files/folders. Tap on Options and the files/folders will show check option on each icon.
Check on the files/folders you would like to move. Then tap on Move. Paste option will show.
Without pressing Back button, tap on the folder to select the destination directory you would like to
move to. Then tap on Paste. The files/folders will be moved;
¾ Send files/folders via Bluetooth. Tap on Options and the files/folders will show check option
on each icon. Check on the files/folders you would like to send. Then tap on Send;
¾ Delete files/folders. Tap on Options and the files/folders will show check option on each icon.
Check on the files/folders you would like to delete. Then tap on Delete.
• Users could also tap and hold a file/folder icon until Options list is activated. Then the following
operations could be done:
¾ Open. Tap on Open to open the file/folder;
¾ Copy. Tap on Copy to copy the file/folder. Paste option will show. Without pressing Back button,
tap on the folder to select the destination directory you would like to paste to. Then tap on Paste;
¾ Move. Tap on Move. Paste option will show. Without pressing Back button, tap on the folder to
select the destination directory you would like to move to. Then tap on Paste. The files/folders will
be moved;
¾ Rename. Tap on Rename and enter the new name. Once done, tap on OK;
GXP2200 USER MANUAL Page 74 of 131
¾ Delete. Tap on Delete to delete the file/folder;
¾ Properties. Tap on Properties to view the detailed information, i.e., size, last modified time,
permission, location and etc.
Note:
Under the FileManager root directory, screensaver is a system folder that users could not create or delete
files/folders there.
GALLERY
Gallery app could be used to view pictures and play videos from GXP2200 internal storage or USB/SD
card storage. Users could also perform basic editing tasks on pictures and set them as wallpaper or picture
for contacts. The pictures can be easily shared with friends in Gallery app by sending via Bluetooth, and
Email too.
Figure 80: GXP2200 Gallery
GXP2200 USER MANUAL Page 75 of 131
GSMARKET
GXP2200 provides direct access to apps via built-in GS Market app. Users could browse, search,
download and install the apps from there for tools and games.
• Browse apps. Select the tabs on the top menu to view apps in different categories: Hot, App, Game,
Tools. For example, selecting the Game category will have all the apps for game to show up in the
following figure.
Figure 81: GXP2200 GS Market - Game
• Search an app. To search an app in GS Market, tap on at the top right corner, or press the
Search button. Then touch the input field to activate the onscreen keyboard. Enter the
keyword of the app and touch Go in the onscreen keyboard. Or press again to start the
search.
GXP2200 USER MANUAL Page 76 of 131
Figure 82: GXP2200 GS Market - Search App
• Download an app. To download an app, tap the icon right next to the app. The downloading
process will be automatically started. In GS Market, tap on History option to view the downloaded
apps and downloading process. For example, in the following figure, YouTube app and FlashPlayer
have been downloaded and installed already, while AngryBirds app is still in downloading process.
Progress bar will show in downloading process and you could cancel the downloading by tapping on
the Cancel icon.
Figure 83: GXP2200 GS Market - History
GXP2200 USER MANUAL Page 77 of 131
• Uninstall an app. Tap on the Installed option in GS Market, a list of installed apps will show. Touch
Uninstall icon on the right hand side of the installed app, then confirm to uninstall.
Figure 84: GXP2200 GS Market - Installed
Figure 85: GXP2200 GS Market - Confirm Uninstall
IPLOCATION
The IP Location app provides users with a tool to resolve the IP address to the location. Users could
simply enter the IP address and then tap on Search to view the result. Based on the IP address provided,
the following information will be given: Country, Region, City, Latitude, Longitude, Time Zone and
GXP2200 USER MANUAL Page 78 of 131
Weather Code. This information is useful when configuring the phone to provide personalized settings
based on user's location.
Figure 86: GXP2200 Location
For example, in Figure 86, the IP address 67.110.250.152 is mapped to Yorba Linda in California, USA.
The time zone is UTC-07:00 and the weather code is USA1267.
MEDIAPLAYER
GXP2200 Media Player supports video format in MP4 and 3GP, audio format in AAC, MP3, AMR, WAVE,
MIDI and Vorbis to be displayed. Users could scan the media files by tapping on Scan and files detected
from internal storage and USB/SD card storage will be displayed.
GXP2200 USER MANUAL Page 79 of 131
Figure 87: GXP2200 Media Player
Tap on Scan then users could define the scan methods: Scan All Media Files, Scan The Specified File
and Scan The Specified Folder. Select the targeting folder if Scan The Specified File or Scan The
Specified Folder is selected.
Figure 88: GXP2200 Media Player - Scan
• Music. On Local Files tab, Select Music to bring up the screen for the detected audio files. User
could select to sort music files by Song, Artist, Album, File when tapping on Sort button.
GXP2200 USER MANUAL Page 80 of 131
Figure 89: GXP2200 Media Player - Sort Music Files
To edit music files, tap on Edit option. Then users could click on the checkbox for each file and
perform operations to Send the file, Add to List, and Delete. The members (number) indicates the
selected music files.
Figure 90: GXP2200 Media Player - Edit Music Files
Also, users could simply tap and hold onto the music file to bring up options list to edit the file. Besides
Add to List, Delete and Send, users could also set the music as local ringtone by selecting Set as
Ringtone.
GXP2200 USER MANUAL Page 81 of 131
Figure 91: GXP2200 Media Player - Music File Options
To play the music, simply touch the music file you would like to play.
Figure 92: GXP2200 Media Player - Playing
To view the lyrics, touch the frequency bar on the above figure. Local lyrics file is required to display
the lyrics.
Touch to switch to
lyrics display if there
is local lyrics file.
Previous Pause Next Stop Switch play mode
Progress bar. Drag to
adjust the time axis.
GXP2200 USER MANUAL Page 82 of 131
Figure 93: GXP2200 Media Player - Lyrics
• Video. On Local Files tab, Select Video to bring up the screen for the detected video files. User could
Sort or Edit the video files, similar to the operations for Music files as described above.
• Folder. On Local Files tab, Select Folder to display the folders where all the media files are located.
The directory path and number of media files in each folder will show in the list so users could easily
locate the files.
Figure 94: GXP2200 Media Player - Folder
Users could add the media files in a folder to PlayList here. Tap on Edit button and following screen
will show. Click on the checkbox on the right hand side of the folder to select. Then touch Add to List.
GXP2200 USER MANUAL Page 83 of 131
An option list will show for users to select a playlist to add the files to. The member (number) indicates
the number of selected folders in the list.
Figure 95: GXP2200 Media Player - Folder
• PlayList. Tap on the PlayList tab on the left panel to bring up playlist screen.
Figure 96: GXP2200 Media Player - PlayList
To create New Playlist, tap on the New Playlist button. Type the name of new playlist and Save it.
GXP2200 USER MANUAL Page 84 of 131
Figure 97: GXP2200 Media Player - Create New Playlist
To edit or play a playlist, touch and hold onto one of the playlist. Then options Play, Clear All, Delete,
Rename will show.
Figure 98: GXP2200 Media Player - Playlist Options
MESSAGE
GXP2200 has built-in Message app, which could be used with SIP server's support. If two parties (1 of
them is GXP2200, or both are GXP2200) are registered on the same SIP server, text messages can be
GXP2200 USER MANUAL Page 85 of 131
sent/received between them. Users can create, edit draft, delete and check the storage status of SMS. The
Message app supports up to 1000 messages.
Figure 99: GXP2200 Message
• View Dialog
Tap on the contact you have pervious chatted with to view the message dialog.
Figure 100: View Dialog
Touch and hold on to the message to bring up the operation options including Lock/Unlock, Forward,
Copy, Delete and Resend.
GXP2200 USER MANUAL Page 86 of 131
Figure 101: Message Options
• Send SMS
Tap on Create, select the contact, input the message, and then touch Send;
Figure 102: GXP2200 Message - Send SMS
• View Draft
Tapping on Draft in Figure 99 will show you the SMS Draft List, which saves the messages edited but
not sent yet. Tap to select the draft, then you could edit and send it.
GXP2200 USER MANUAL Page 87 of 131
Figure 103: GXP2200 Message – SMS Draft List
• Delete SMS
Tap on Delete in Figure 99. Select the message you would like to delete, then Tap on Delete again.
• Check Storage Status
In Figure 99, tap on Storage Status to display storage information. The maximum storage capacity for
GXP2200 message is 1000 messages.
Figure 104: GXP2200 Message - Storage Status
GXP2200 USER MANUAL Page 88 of 131
MUSIC
Use Music app on GXP2200 to listen to music and other audio files. When Music app is launched, it will
scan and detect the files in internal storage and USB/SD storage. The files could be displayed by Artist,
Albums, or per song. Tap on Playlists, users could check the recently added files. To play the file, touch
the file in the list.
Tap on Now playing, users could perform the following operations:
Figure 105: GXP2200 Music - Now Playing
• Pause. Tap on to pause. When paused, tap on to resume playing;
• Play previous. Tap on ;
• Play next. Tap on ;
• Go to playlist. Tap on ;
• Shuffle. Tap on ;
• Repeat the current music. Tap on ;
• More options. Press the MENU button , options such as Add to playlist, Use as ringtone,
Delete will show;
GXP2200 USER MANUAL Page 89 of 131
• Play music in background. When the music is playing, tap on HOME button to go back to main
screen. The music will still be played in the MUSIC app running in background.
Figure 106: GXP2200 Music - Now Playing: MENU Options
SEARCH
GXP2200 Search app could be used to search information in web or in GXP2200.
• Launch Search app. Return to HOME first and press the search button . Or directly
open the Search app from onscreen MENU.
• Type to Search.
¾ Search on Web. Type in the content you would like to search from the onscreen keyboard and
then press Go. A new web page will be opened listing the searching result.
GXP2200 USER MANUAL Page 90 of 131
Figure 107: GXP2200 Search - Search on Web
¾ Search in GXP2200. Type in the content you would like to search. If it's an app in GXP2200,
suggestions will display, tap on the suggestion to launch the app (see Figure 108). If it's number,
"Dial number" using the entered digits will display, tap on it the call will be made via the first
registered account (see Figure 109).
Figure 108: GXP2200 Search - Search on GXP2200
GXP2200 USER MANUAL Page 91 of 131
Figure 109: GXP2200 Search - Dial Number
• Turn on/off Web search suggestions. In Search app, tap on MENU button and touch
Search Settings. Under Web, tap on Google search. And then check or uncheck to enable/disable
Show web suggestions when typing in the content.
• Set searchable items in GXP2200. In Search app, tap on MENU button and touch Search
Settings. Under Phone, tap on Searchable items. And then check or uncheck to select the
searchable items on the phone.
• Manage search privacy. In Search app, tap on MENU button and touch Search Settings.
Under Phone, tap on Clear shortcuts. The suggestions that have been recently selected in Search
app will be cleared.
GXP2200 USER MANUAL Page 92 of 131
CONNECTINGTONETWORKANDDEVICES
The GXP2200 supports a variety of network connections (Ethernet, Wi-Fi) and device connections,
including EHS headset (Plantronics), USB, SD card and Bluetooth device. Users can connect the
GXP2200 to transfer files from/to the GXP2200 using a USB connection, SD card or Bluetooth.
ETHERNET
Ethernet connection is turned on as DHCP by default. To configure Ethernet settings, go to GXP2200's
Settings application->Networks.
TURNINGETHERNETONOROFF
1. Go to GXP2200's Settings;
2. Touch Networks;
3. Check or uncheck the option for Ethernet.
CONFIGURINGDHCPORSTATICIP
1. Go to GXP2200's Settings;
2. Touch Networks;
3. Touch Ethernet Settings;
4. Select Address Type. If Static IP is used, enter IP Address, Subnet Mask, Default Gateway, DNS
Server and Alternative DNS server for the GXP2200 to correctly connect to network.
WIFI
WIFI is supported on GXP2200 with WIFI adaptor plugged in. Insert the USB WIFI adaptor to the USB port
on the back of GXP2200 first and then go to GXP2200's Settings application->Networks.
TURNINGWIFIONOROFF
1. Go to GXP2200's Settings;
2. Touch Networks;
GXP2200 USER MANUAL Page 93 of 131
3. Check or uncheck the option for Wi-Fi.
ADDINGWIFINETWORKS
1. Once WiFi is turned on, GXP2200 will automatically start the scanning within the range;
2. Go to GXP2200's Settings;
3. Touch Networks;
4. Touch Wi-Fi Settings;
5. A list of Wi-Fi networks will be displayed as scanning result. Tap on the SSID and enter the correct
password information to connect to the selected Wi-Fi network;
6. The phone will start connecting to the Wi-Fi. The status bar will show WiFi signal strength;
7. Once it's added and the password is remembered, the GXP2200 will connect to it again when the SSID
is within the range.
BLUETOOTH
Bluetooth is a proprietary, open wireless technology standard for exchanging data over short distances
from fixed and mobile devices, creating personal area networks with high levels of security. On GXP2200,
users could use Bluetooth to transfer files, share contact information with other Bluetooth portable devices,
or use Bluetooth headset for making calls.
To connect to a Bluetooth device, turn on GXP2200’s Bluetooth radio first. The first time when using a new
Bluetooth device with the GXP2200, "pair" the device with GXP2200 so that both devices know how to
connect securely to each other. After that, users could simply connect to a paired device. Turn off
Bluetooth if it's not used.
Bluetooth related settings are under GXP2200's Settings application->Networks. Users could access it via
the following two ways:
• On Home screen, press button ->Settings->Networks;
or
• Press onscreen MENU icon and tap on Settings App->Networks.
TURNINGBLUETOOTHONOROFF
1. Go to GXP2200's Settings;
2. Touch Networks;
3. Check or uncheck the option for Bluetooth.
GXP2200 USER MANUAL Page 94 of 131
CHANGINGBLUETOOTHDEVICENAME
The GXP2200 uses "GXP2200" as Bluetooth device name by default. The device name will be visible to
other devices when connecting them. Follow the steps below to change the name:
1. Go to GXP2200's Settings;
2. Select Networks->Bluetooth settings;
3. Check Bluetooth to turn it on;
4. Tap on Device name and enter a name. Once done, tap on OK.
PAIRINGGXP2200WITHABLUETOOTHDEVICE
Before connecting GXP2200 with other Bluetooth device, users must pair them first. They will stay paired
afterwards unless they are unpaired.
1. Go to GXP2200's Settings;
2. Select Networks->Bluetooth settings;
3. Check Bluetooth to turn it on;
4. The GXP2200 scans and displays the IDs of all available Bluetooth devices in range. If the device you
would like to pair with does not show up in the list, ensure that the other device is turned on and set to
be discoverable;
5. If the GXP2200 stops scanning before the other device is ready, touch Scan for devices;
6. The discovered device will show in the scan result list with device ID. If it's unpaired, it will show "Pair
with this device" under the device ID. Make sure the Bluetooth device is active in pairing mode. Then
tap on the device ID on GXP2200 to pair them. Confirm the passkey in the prompted message (if any).
Or If passcode is required, please refer to the device's documentation or other procedures to obtain
the passcode.
CONNECTINGTOABLUETOOTHDEVICE
After successfully paired, the GXP2200 will show "Paired but not connected" under the Bluetooth device
ID in the scan list. Tap on it to connect. For example, after successfully connecting a Bluetooth headset,
the GXP2200 will show "Connected to phone and media audio".
Once it's connected, users could also press and hold on to the Bluetooth device ID, then options
Disconnect, Disconnect & unpair, and Options will show. Tap on Options, users could select different
profiles for the connected devices (e.g., for Bluetooth headset, users could check or uncheck connect to
GXP2200 USER MANUAL Page 95 of 131
phone audio, connect to media audio).
SENDINGANDRECEIVINGFILESVIABLUETOOTH
After pairing successful, users could use GXP2200 to share pictures, contact information and other data
between Bluetooth devices. When there is a file coming from other Bluetooth devices, GXP2200 will
display notification "Bluetooth share: Incoming file". Tap on the status bar and select this message to
confirm receiving the incoming file. The incoming files received via Bluetooth will be saved under
FileManager->user_data->bluetooth.
DISCONNECTINGABLUETOOTHDEVICE
1. In the Bluetooth settings, touch the Bluetooth device ID you want to disconnect;
2. In the prompted message "xxxx device will be disconnected", touch OK to confirm.
Users could also press and hold on to the Bluetooth device ID, then options Disconnect, Disconnect &
unpair, and Options will show.
UNPAIRINGABLUETOOTHDEVICE
1. In the Bluetooth settings, touch the Bluetooth device you want to unpair;
2. In the prompted message, touch Unpair.
Or, once the device is disconnected, users could press and hold on to the Bluetooth device ID, then
options connect, unpair will show.
EHSHEADSET
The GXP2200 supports normal RJ11 headset and Plantronics EHS headset. To use Plantronics EHS
headset, go to the GXP2200 web GUI->Advanced Setting->General Settings: EHS Headset. Select
"Plantronics EHS".
1. Connect EHS Headset (Plantronics) to GXP2200. Insert headset connector into the RJ11 headset port
on the back of GXP2200;
2. To use headset mode, press headset button on the GXP2200. A headset icon will show
on the GXP2200 status bar. There are two different headset mode for users to select from web
GXP2200 USER MANUAL Page 96 of 131
GUI->Advanced Setting->General Settings: Headset Key Mode. Please refer to section GXP2200
Web GUI Settings for the key mode details.
USB
The GXP2200 supports USB connection for mouse, keyboard and USB storage devices. To use USB
mouse or keyboard, simply plug it into the USB port on the back of the GXP2200 and it will be ready to
use.
To connect and access USB storage device:
1. Insert USB storage device into USB port at the back of the GXP2200;
2. It will take a few seconds for the GXP2200 to prepare the connection. Then the USB storage icon
will show on the status bar;
3. To access USB storage, go to GXP2200 MENU->FileManager->usb. Tap on it to access and manage
your data.
SDCARD
1. Insert your SD card into SD Card slot at the back of GXP2200. Please make sure the SD Card is
inserted with right direction on GXP2200;
2. It will take a few seconds for the GXP2200 to prepare the connection. Then the SD Card icon will
show on the status bar;
3. To access SD Card, go to GXP2200 MENU->FileManager->sdcard. Tap on it to access and manage
your data.
GXP2200 USER MANUAL Page 97 of 131
GXP2200WEBGUISETTINGS
The GXP2200 embedded Web server responds to HTTP/HTTPS GET/POST requests. Embedded HTML
pages allow users to configure the application phone through a Web browser such as Microsoft’s IE,
Mozilla Firefox, Google Chrome and etc.
Figure 110: GXP2200 Web GUI - Login
ACCESSINGGXP2200WEBGUI
The GXP2200 Web GUI URL is http://Phone-IP-Address,where the Phone-IP Address is the IP address
displayed on the GXP2200 desktop.
To access the GXP2200 Web GUI:
1. Connect the computer to the same network as the phone;
2. Make sure the phone is turned on and shows its IP address on the desktop;
GXP2200 USER MANUAL Page 98 of 131
3. Open a Web browser on your computer;
4. Enter the phone’s IP address in the address bar of the browser;
5. Enter the administrator’s login and password to access the Web Configuration Menu.
Figure 111: GXP2200 Main Screen - IP Address
Note:
• The computer has to be connected to the same sub-network as the phone. This can be easily done by
connecting the computer to the same hub or switch as the phone connected to. In absence of a
hub/switch (or free ports on the hub/switch), please connect the computer directly to the PC port on the
back of the phone;
• If the phone is properly connected to a working Internet connection, the phone will display its IP
address. This address has the format: xxx.xxx.xxx.xxx, where xxx stands for a number from 0-255.
Users will need this number to access the Web GUI. For example, if the phone shows 192.168.40.154,
please enter “http://192.168.40.154” in the address bar of the browser;
• The default login name for the administrator is "admin". The default administrator password is set to
"admin". The default login name for end-users is "user" while the default user password is set to "123";
• When changing any settings, always SUBMIT them by pressing the Save button on the bottom of the
page, and then clicking the Apply button on the top of the page to apply the configuration changes.
For those options with next to it in the Web page, users must reboot the phone for the changes to
take effect.
GXP2200 USER MANUAL Page 99 of 131
DEFINITIONS
This section describes the options in the GXP2200 Web GUI. As mentioned, you can log in as an
administrator or an end user.
• Status: Displays the Account Status, Network Status, and System Info of the phone;
• Account (1-6): To configure each of the SIP accounts;
• Advanced Settings: To configure General Settings, Call Features, and Tone Generator;
• Maintenance: To set Network Settings, Time Settings, Web/SSH Access, Upgrade, Syslog, Logcat,
Debug, Language, TR-069 and Device Manager.
STATUSPAGEDEFINITIONS
STATUS/ACCOUNTSTATUS
Account All the SIP accounts on the phone. Each account will show it's status in
this page.
Number SIP User ID for the account.
SIP Server URL or IP address, and port of the SIP server.
Status Registration status for the SIP account.
STATUS/NETWORKSTATUS
MAC Address Global unique ID of device, in HEX format. The MAC address will be
used for provisioning and can be found on the label coming with original
box and on the label located on the back of the device.
Address Type The configured address type: DHCP, Static IP or PPPoE.
IP Address IP address of the phone.
Subnet Mask Subnet mask of the phone.
Default Gateway Default gateway of the phone.
DNS Server 1 DNS Server 1 of the phone.
DNS Server 2 DNS Server 2 of the phone.
NAT Type The type of NAT connection used by the phone.
GXP2200 USER MANUAL Page 100 of 131
STATUS/SYSTEMINFO
Product Model Product model of the phone.
Hardware Revision Hardware version number.
Part Number Product part number.
System Version Firmware version. This is the main software release version.
Recovery Version Recovery image version.
Boot Version Booting code version.
Kernel Version Kernel version.
Android Version Android OS version.
System Up Time System up time since the last reboot.
ACCOUNTPAGEDEFINITIONS
The GXP2200 has six lines that can be configured to accommodate independent SIP accounts. Every SIP
account has an individual configuration page.
ACCOUNT/GENERALSETTINGS
Account Active This field indicates whether the account is active. The default value for
the primary account (Account 1) is "Yes" and the default value for the
other five accounts is "No".
Account Name The name associated with each account to be displayed on the LCD.
SIP Server The URL or IP address, and port of the SIP server. This is provided by
your VoIP service provider (ITSP).
SIP User ID User account information, provided by your VoIP service provider
(ITSP). It's usually in the form of digits similar to phone number or
actually a phone number.
SIP Authentication ID SIP service subscriber's Authenticate ID used for authentication. It can
be identical to or different from the SIP User ID.
SIP Authentication Password The account password required for the phone to authenticate with the
ITSP (SIP) server before the account can be registered. After it is saved,
this will appear as hidden for security purpose.
Voice Mail UserID This parameter allows you to access voice messages by pressing the
MESSAGE button on the phone. This ID is usually the VM portal access
number. For example, in Asterisk server, 8500 could be used.
Name The SIP server subscriber's name (optional) that will be used for Caller
ID display.
GXP2200 USER MANUAL Page 101 of 131
Tel URI If the phone has an assigned PSTN telephone number, this field should
be set to "User=Phone". Then a "User=Phone" parameter will be
attached to the Request-Line and "TO" header in the SIP request to
indicate the E.164 number. If set to "Enable", "Tel:" will be used instead
of "SIP:" in the SIP request. The default setting is "Disable".
ACCOUNT/NETWORKSETTINGS
Outbound Proxy IP address or Domain name of the Primary Outbound Proxy, Media
Gateway, or Session Border Controller. It's used by the phone for
Firewall or NAT penetration in different network environments. If a
symmetric NAT is detected, STUN will not work and ONLY an Outbound
Proxy can provide a solution.
Secondary Outbound Proxy IP address or Domain name of the Secondary Outbound Proxy, Media
Gateway, or Session Border Controller. Secondary outbound proxy will
be used when the primary outbound proxy fails.
DNS Mode This parameter controls how the Search Appliance looks up IP
addresses for hostnames. There are three modes: A Record, SRV,
NATPTR/SRV. The default setting is "A Record". If the user wishes to
locate the server by DNS SRV, the user may select "SRV" or
"NATPTR/SRV".
NAT Traversal This parameter configures whether the NAT traversal mechanism is
activated. Users could select the mechanism from NAT NO, STUN,
Keep-alive, UPnP, Auto or VPN. If set to "STUN" and STUN server is
configured, the phone will route according to the STUN server. If NAT
type is Full Cone, Restricted Cone or Port-Restricted Cone, the phone
will try to use public IP addresses and port number in all the SIP&SDP
messages. The phone will send empty SDP packet to the SIP server
periodically to keep the NAT port open if it is configured to be
"Keep-alive". Configure this to be "NAT NO" if an outbound proxy is
used. "STUN" cannot be used if the detected NAT is symmetric NAT.
Set this to "VPN" if OpenVPN is used.
Proxy-Require A SIP Extension to notify the SIP server that the phone is behind a
NAT/Firewall. Do not configure this parameter unless this feature is
supported on the SIP server.
GXP2200 USER MANUAL Page 102 of 131
ACCOUNT/SIPSETTINGS
SIP Registration Selects whether or not the phone will send SIP Register messages to
the proxy/server. The default setting is "Yes".
Unregister On Reboot If set to "Yes", the SIP user's registration information will be cleared
when the phone reboots. The SIP Contact header will contain "*" to
notify the server to unbind the connection. The default setting is "No".
Register Expiration (m) Specifies the frequency (in minutes) in which the phone refreshes its
registration with the specified registrar. The default valuel is 60 minutes.
The maximum value is 64800 minutes (about 45 days).
Wait Time Retry Registration
(s)
The amount of time in which the phone will retry the registration process
in the event that is failed. The default value is 20 seconds.
Local SIP Port Defines the local SIP port used to listen and transmit. The default value
is 5060 for Account 1, 5062 for Account 2, 5064 for Account 3, 5066 for
Account 4, 5068 for Account 5, and 5070 for Account 6.
SUBSCRIBE for MWI When set to "Yes", a SUBSCRIBE for Message Waiting Indication will
be sent periodically. The phone supports synchronized and
non-synchronized MWI. The default setting is "No".
Session Expiration (s) The SIP Session Timer extension that enables SIP sessions to be
periodically "refreshed" via a SIP request (UPDATE, or re-INVITE). If
there is no refresh via an UPDATE or re-INVITE message, the session
will be terminated once the session interval expires. Session Expiration
is the time (in seconds) where the session is considered timed out,
provided no successful session refresh transaction occurs beforehand.
The default value is 180 seconds.
Min-SE (s) The minimum session expiration (in seconds). The default value is 90
seconds.
UAC Specify Refresher As a Caller, select UAC to use the phone as the refresher; or select UAS
to use the Callee or proxy server as the refresher.
UAS Specify Refresher As a Callee, select UAC to use caller or proxy server as the refresher; or
select UAS to use the phone as the refresher.
Force INVITE The Session Timer can be refreshed using the INVITE method or the
UPDATE method. Select "Yes" to use the INVITE method to refresh the
session timer.
Caller Request Timer If set to "Yes" and the remote party supports session timers, the phone
will use a session timer when it makes outbound calls.
Callee Request Timer If set to "Yes" and the remote party supports session timers, the phone
will use a session timer when it receives inbound calls.
GXP2200 USER MANUAL Page 103 of 131
ACCOUNT/CODECSETTINGS
DTMF This parameter specifies the mechanism to transmit DTMF digits. There
are 3 supported modes: in audio which means DTMF is combined in the
audio signal (not very reliable with low-bit-rate codecs), via RTP
(RFC2833), or via SIP INFO.
DTMF Payload Type This parameter sets the payload type for DTMF using RFC2833. Default
is 101.
Preferred Vocoder 4 different vocoder types are supported on the phone, including G.711
A-law (PCMA), G.711 U-law (PCMU), G.722 and G.729A/B. Users can
configure vocoders in a preference list that is included with the same
preference order in SDP message. Arrange your preferred vocoder
orders using the Up and Down button.
SRTP Mode Enables the SRTP mode based on your selection from the drop-down
menu. The default setting is "Disable".
Force Timer If Force Timer is set to "Yes", the phone will use the session timer even if
the remote party does not support this feature. If Force Timer is set to
"No", the phone will enable the session timer only when the remote party
supports this feature. To turn off the session timer, select "No".
Enable 100rel The use of the PRACK (Provisional Acknowledgment) method enables
reliability to SIP provisional responses (1xx series). This is very
important in order to support PSTN internetworking. To invoke a reliable
provisional response, the 100rel tag is appended to the value of the
required header of the initial signaling messages.
SIP Transport Determines the network protocol used for the SIP transport. Users can
choose from TCP/UDP/TLS.
Symmetric RTP Defines whether symmetric RTP is supported or not. The default setting
is "No".
Support SIP Instance ID Defines whether SIP Instance ID is supported or not. The default setting
is "Yes".
Validate Incoming Messages Defines whether the incoming messages will be validated or not. The
default setting is "No".
SIP T1 Timeout SIP T1 Timeout. The default setting is 0.5 seconds.
SIP T2 interval SIP T2 Interval. The default setting is 4 seconds.
Remove OBP from route Configures to remove outbound proxy from route. This is used for the
SIP Extension to notify the SIP server that the device is behind a
NAT/Firewall.
GXP2200 USER MANUAL Page 104 of 131
Silence Suppression Controls the silence suppression/VAD feature of the audio codec G.723
and G.729. If set to "Yes", when silence is detected, a small quantity of
VAD packets (instead of audio packets) will be sent during the period of
no talking. If set to "No", this feature is disabled. The default setting is
"No".
Voice Frames Per TX Configures the number of voice frames transmitted per packet. When
configuring this, it should be noted that the "ptime" value for the SDP will
change with different configurations here. This value is related to the
codec used and the actual frames transmitted during the in payload call.
For end users, it is recommended to use the default setting, as incorrect
settings may influence the audio quality.
Jitter Buffer Type Selects either Fixed or Adaptive based on network conditions. The
default setting is "Adaptive".
Jitter Buffer Length Selects Low, Medium, or High based on network conditions. The default
setting is "Medium".
ACCOUNT/CALLSETTINGS
Dial Plan A dial plan establishes the expected number and pattern of digits for a
telephone number. This parameter configures the allowed dial-plan for
the phone.
Dial Plan Rules:
1. Accepted Digits: 1,2,3,4,5,6,7,8,9,0 , *, #, A,a,B,b,C,c,D,d;
2. Grammar: x - any digit from 0-9;
a) xx+ - at least 2 digit numbers
b) xx. - only 2 digit numbers
c) ^ - exclude
d) [3-5] - any digit of 3, 4, or 5
e) [147] - any digit of 1, 4, or 7
f) <2=011> - replace digit 2 with 011 when dialing
g) | - the OR operand
• Example 1: {[369]11 | 1617xxxxxxx}
Allow 311, 611, and 911 or any 10 digit numbers with leading digits 1617;
• Example 2: {^1900x+ | <=1617>xxxxxxx}
Block any number of leading digits 1900 or add prefix 1617 for any
dialed 7 digit numbers;
• Example 3: {1xxx[2-9]xxxxxx | <2=011>x+}
GXP2200 USER MANUAL Page 105 of 131
Allows any number with leading digit 1 followed by a 3 digit number,
followed by any number between 2 and 9, followed by any 7 digit
number OR Allows any length of numbers with leading digit 2, replacing
the 2 with 011 when dialed.
Example of a simple dial plan used in a Home/Office in the US:
{ ^1900x. | <=1617>[2-9]xxxxxx | 1[2-9]xx[2-9]xxxxxx | 011[2-9]x. |
[3469]11 }
Explanation of example rule (reading from left to right):
• ^1900x. - prevents dialing any number started with 1900;
• <=1617>[2-9]xxxxxx - allows dialing to local area code (617)
numbers by dialing 7 numbers and 1617 area code will be added
automatically;
• 1[2-9]xx[2-9]xxxxxx |- allows dialing to any US/Canada Number with
11 digits length;
• 011[2-9]x - allows international calls starting with 011;
• [3469]11 - allow dialing special and emergency numbers 311, 411,
611 and 911.
Note:
In some cases where the user wishes to dial strings such as *123 to
activate voice mail or other applications provided by their service
provider, the * should be predefined inside the dial plan feature. An
example dial plan will be: { *x+ } which allows the user to dial * followed
by any length of numbers.
Refer-To Use Target Contact If set to "Yes", the "Refer-To" header uses the transferred target's
Contact header information for attended transfer. The default setting is
"No".
Auto Answer If set to "Yes", the phone will automatically turn on the speaker phone to
answer incoming calls after a short reminding beep. If set to "Enable
Intercom/Paging", it will answer the call based on the SIP info header
sent from the server/proxy. The default setting is "No".
Send Anonymous If set to "Yes", the "From" header in outgoing INVITE messages will be
set to anonymous, essentially blocking the Caller ID to be displayed.
Anonymous Call Rejection If set to "Yes", anonymous calls will be rejected. The default setting is
"No".
Call Log Configures Call Log setting on the phone. You can log all calls, only log
incoming/outgoing calls or disable call log. The default setting is logging
all calls.
GXP2200 USER MANUAL Page 106 of 131
Special Feature Different soft switch vendors have special requirements. Therefore users
may need select special features to meet these requirements. Users can
choose from Standard, CBCOM, RNK, China Mobile, ZTE IMS, Mobotix,
ZTE NGN, or Huawei IMS depending on the server type. The default
setting is "Standard".
Feature Key Synchronization This feature is used for Broadsoft call feature synchronization. When it's
set to Broadsoft, DND and Call Forward features can be synchronized
with Broadsoft server.
No Key Entry Timeout (s) Defines the timeout (in seconds) for no key entry. If no key is pressed
after the timeout, the digits will be sent out. The default value is 4
seconds.
Ring Timeout (s) Defines the timeout (in seconds) for the rings on no answer. The default
setting is 60 seconds.
Use # as Dial Key Allows users to configure the "#" key as the "Send" key. If set to "Yes",
the "#" key will immediately dial out the input digits. In thise case, this
key is essentially equivalent to the "Send" key. If set to "No", the "#" key
is included as part of the dialing string.
Account Ring Tone Allows users to configure the ringtone for the account. Users can choose
from different ringtones from the dropdown menu.
Call Forward Type Specifies the Call Forward Type:
1. None: Disable Call Forward
2. Unconditional: Forward all calls to particular number
3. Time based: Set a time range. In the time range, calls are forwarded
to the number specified in In Time Forward To; out the time range,
calls are forwarded to the number specified in Out Time Forward
To.
4. Others: when phone is busy, calls are forwarded to the number
specified in Busy To; when incoming calls are not answered, those
calls are forwarded to the number specified in No Answer To; the
waiting time for answering calls is specified in Delayed Call
Forward Wait Time (s).
All To Specifies the number to be forwarded to when "Unconditional" Call
Forward Type is used.
Time Period Configures the period of time to forward the call when "Time based" Call
Forward Type is used.
In Time Forward To When "Time based" Call Forward Type is used, specifies the number to
be forwarded to within the configured Time Period above.
Out Time Forward To When "Time based" Call Forward Type is used, specifies the number to
GXP2200 USER MANUAL Page 107 of 131
be forwarded to when it's not within the configured Time Period.
Busy To Specifies the number to be forwarded to for Call Forward On Busy.
No Answer To Specifies the number to be forwarded to for Call Forward On No Answer.
No Answer Timeout (s) Defines the timeout (in seconds) before the call is forwarded on no
answer. The default value is 20 seconds.
ADVANCEDSETTINGSPAGEDEFINATIONS
ADVANCEDSETTING/GENERALSETTINGS
Headset Type Selects whether the connected headset is normal RJ11 headset or
Plantronics EHS headset.
Headset Key Mode When headset is connected to the phone, users could use the
HEADSET button in two different modes:
1. Default Mode
• When the phone is in idle, press HEADSET button to offhook
the phone and make calls by using headset. Headset icon will
display on the top of the call screen in dialing/talking status;
• When there is an incoming call, press HEADSET button to pick
the call by using headset;
• When there is an active call using headset, press HEADSET
button to hang up the call;
• When Speaker/Handset is used in dialing/talking status, press
HEADSET button to switch to headset. Press it again to hang up
the call, or press Speaker/Handset to switch back to previous
mode.
2. Toggle Headset/Speaker
• When the phone is in idle, press HEADSET button to switch to
Headset mode. The idle screen will display a Headset icon. In
this mode, if pressing Speaker button or entering digits, headset
will be used by default;
• When there is an incoming call, press Answer icon on the
screen or Speaker button, headset will be used;
• When there is an active call, press HEADSET button to toggle
between Headset and Speaker.
Local RTP Port Defines the local RTP-RTCP port pair used to listen and transmit. It is
the base RTP port for channel 0. When configured, for audio, channel 0
GXP2200 USER MANUAL Page 108 of 131
will use this port_value for RTP and the port_value+1 for its RTCP;
channel 1 will use port_value+4 for RTP and port_value+5 for its RTCP.
For video, channel 0 will use port_value+2 for RTP and port_value+3 for
its RTCP; channel 1 will use port_value+6 for RTP and port_value+7 for
RTCP. The default value is 5004.
Use Random Port When set to "Yes", this parameter will force random generation of both
the local SIP and RTP ports. This is usually necessary when multiple
phones are behind the same full cone NAT. The Default setting is "Yes"
(This parameter must be set to "No" for Direct IP Calling to work).
Disable in-call DTMF display When it's set to "Yes", the DTMF digits entered during the call will not
display. The default setting is "No".
Keep-alive Interval (s) Specifies how often the phone sends a blank UDP packet to the SIP
server in order to keep the "ping hole" on the NAT router to open. The
default setting is 20 seconds.
STUN Server The IP address or Domain name of the STUN server. STUN resolution
results are displayed in the STATUS page of the Web GUI. Only
non-symmetric NAT routers work with STUN.
Use NAT IP The NAT IP address used in SIP/SDP messages. This field is blank at
the default settings. It should ONLY be used if it's required by your ITSP.
SIP TLS Certificate Defines the SSL certificate used for SIP over TLS.
SIP TLS Private Key Defines the SSL Private key used for SIP over TLS.
SIP TLS Private Key Password Defines the SSL Private key password used for SIP over TLS.
ADVANCEDSETTING/CALLFEATURES
Disable Call-Waiting Disables the call waiting feature. The default setting is "No".
Disable Call-Waiting Tone Disables the call waiting tone when call waiting is on. The default setting
is "No".
Disable DND Reminder Ring Disables the DND remindar ring. If set to "Yes", the ring splash that
indicates an incoming call when DND is enabled will not be played. The
default setting is "No".
Disable Direct IP Call Disables Direct IP Call. The default setting is "No".
Use Quick IP-Call mode When set to "Yes", users can dial an IP address under the same
LAN/VPN segment by entering the last octet in the IP address. To dial
quick IP call, offhook the phone and dial #XXX (X is 0-9 and XXX
<=255), phone will make direct IP call to aaa.bbb.ccc.XXX where
aaa.bbb.ccc comes from the local IP address REGARDLESS of subnet
mask. #XX or #X are also valid so leading 0 is not required (but OK). No
GXP2200 USER MANUAL Page 109 of 131
SIP server is required to make quick IP call. The default setting is "No".
Disable Conference Disables the Conference function. The default setting is "No".
Disable Transfer Disables the Transfer function. The default setting is "No".
Escape # as %23 in SIP URI Replaces “#” by “%23” for some special situations. The default setting is
"Yes".
Offhook Auto Dial Configures a User ID/extension to dial automatically when the phone is
offhook. The phone will use the first account to dial out. The default
setting is "No".
ADVANCEDSETTING/TONEGENERATOR
Call Progress Tones:
Dial Tone
Ring Back Tone
Busy Tone
Reorder Tone
Confirmation Tone
Call-Waiting Tone
PSTN Disconnect Tone
Using these settings, users can configure ring or tone frequencies based
on parameters from the local telecom provider. By default, they are set
to the North American standard.
Frequencies should be configured with known values to avoid
uncomfortable high pitch sounds.
Syntax: f1=val,f2=val [,c=on1/off1[-on2/off2[-on3/off3]]];
(Frequencies are in Hz and cadence on and off are in 10ms)
ON is the period of ringing (“On time” in ‘ms’) while OFF is the period of
silence. In order to set a continuous ring, OFF should be zero. Otherwise
it will ring ON ms and a pause of OFF ms and then repeat the pattern.
Up to three cadences are supported.
Call-Waiting Tone Gain This adjusts the call waiting tone volume. The default setting is "Low".
Default Ring Cadence This defines the ring cadence for the phone. The default setting is:
c=2000/4000.
MAINTENANCEPAGEDEFINATION
MAINTENANCE/NETWORKSETTINGS
Address Type
Allows users to configure the appropriate network settings on the phone.
Users could select "DHCP", "Static IP" or "PPPoE". By default, it is set to
"DHCP".
DHCP Host name (Option 12) Specifies the name of the client. This field is optional but may be
required by some Internet Service Providers.
GXP2200 USER MANUAL Page 110 of 131
DHCP Vendor Class ID (Option
60) Used by clients and servers to exchange vendor class ID.
IP Address Enter the IP address when static IP is used.
Subnet Mask Enter the Subnet Mask when static IP is used.
Default Gateway Enter the Default Gateway when static IP is used.
DNS Server 1 Enter the DNS Server 1 when static IP is used.
DNS Server 2 Enter the DNS Server 2 when static IP is used.
Enable PPPoE Select "Yes" to enable PPPoE.
PPPoE Account ID Enter the PPPoE account ID.
PPPoE Password Enter the PPPoE Password.
PPPoE Service Name Enter the PPPoE Service Name.
Layer 3 QoS for SIP Defines the Layer 3 QoS parameter for SIP packets. This value is used
for IP Precedence, Diff-Serv or MPLS.
Layer 3 QoS for Audio Defines the Layer 3 QoS parameter for Audio packets. This value is
used for IP Precedence, Diff-Serv or MPLS.
Layer 3 QoS for Video Defines the Layer 3 QoS parameter for Video packets. This value is
used for IP Precedence, Diff-Serv or MPLS.
Layer 2 QoS 802.1Q/VLAN
Tag
Assigns the VLAN Tag of the Layer 2 QoS packets. The default value is
0.
Layer 2 QoS 802.1p Priority
Value
Assigns the priority value of the Layer2 QoS packets. The Default value
is 0.
802.1x mode Allows the user to enable/disable 802.1x mode on the phone. The
default setting is "Disable".
Identity Enter the Identity information for the 802.1x mode.
MD5 Password Enter the MD5 Password for the 802.1x mode.
CA Certificate Enter the CA Certificate for the 802.1x mode.
Client Certificate Enter the Client Certificate for the 802.1x mode.
MAINTENANCE/TIMESETTINGS
Automatic Enables automatic update for the time on the phone. The default setting
is "Yes".
Use Assigned NTP Server
Address
Configures to use the user configured Network Time Protocol (NTP)
Server or not. The default setting is "No".
Assign NTP Server Address Defines the URL or IP address of the NTP server. The phone may obtain
the date and time from the server.
GXP2200 USER MANUAL Page 111 of 131
DHCP Option 42 override NTP
server
Defines whether DHCP Option 42 should override NTP server or not.
When enabled, DHCP Option 42 will override the NTP server if it's set
up on the LAN. The default setting is "Yes".
DHCP Option 2 to override
Time Zone setting
Allows device to get provisioned for Time Zone from DHCP Option 2 in
the local server automatically. The default setting is "No".
Time Zone Controls the date/time display according to the specified time zone.
Time Display Format 12-hour or 24-hour time display format
Date Display Format Configures the date display format on the LCD. The following formats
are supported:
• Normal (M/DD/YYYY): 1/31/2012
• YYYY/MM/DD: 2012/01/31
• MM/DD/YYYY: 01/31/2012
• DD/MM/YYYY: 31/01/2012
The default setting is DD/MM/YYYY.
MAINTENANCE/WEB/SSHACCESS
Disable SSH If set to “Yes”, the phone will not allow any SSH access to the phone.
The default value is "No".
Access Method Allows users to select HTTP or HTTPS for Web Access.
Port By default, HTTP uses port 80 and HTTPS uses port 443. This field is for
customizing the web port.
Admin Password Allows users to change the admin password. The password field is
purposely hidden after clicking the Save button for security purpose.
This field is case sensitive with a maximum length of 32 characters.
Confirm Admin Password Type the new Admin Password again to confirm.
User Password Allows the administrator to set the password for user-level web GUI
access. This field is case sensitive with a maximum length of 32
characters.
Confirm User Password Type the new User Password again to confirm.
MAINTENANCE/UPGRADE
Lock Keypad for Update If set to "Yes", the configuration changes via keypad will not be allowed.
The default setting is "No".
Caution:
When it's set to "Yes", the phone could get LOCKED if the administrator
password is lost or forgotten.
GXP2200 USER MANUAL Page 112 of 131
XML Config File Password The password for encrypting the XML configuration file using OpenSSL.
This is required for the phone to decrypt the encrypted XML
configuration file.
HTTP/HTTPS User Name The user name for the HTTP/HTTPS server.
HTTP/HTTPS Password The password for the HTTP/HTTPS server.
Upgrade Via Allows users to choose the firmware upgrade method: TFTP, HTTP or
HTTPS.
Firmware Server Path Defines the server path for the firmware server. It could be different from
the configuration server for provisioning.
Config Server Path Defines the server path for provisioning. It could be different from the
firmware server for upgrading.
Firmware File Prefix Enables your ITSP to lock firmware updates. If configured, only the
firmware with the matching encrypted prefix will be downloaded and
flashed into the phone.
Firmware File Postfix Enables your ITSP to lock firmware updates. If configured, only the
firmware with the matching encrypted postfix will be downloaded and
flashed into the phone.
Config File Prefix Enables your ITSP to lock configuration updates. If configured, only the
configuration file with the matching encrypted prefix will be downloaded
and flashed into the phone.
Config File Postfix Enables your ITSP to lock configuration updates. If configured, only the
configuration file with the matching encrypted postfix will be downloaded
and flashed into the phone.
DHCP Option 66 Override
Server
If DHCP option 66 is enabled on the LAN side, the TFTP server can be
redirected. The default setting is "Yes".
DHCP Option 120 Override SIP
Server
Enables DHCP Option 120 from local server to override the SIP Server
on the phone. The default setting is "Yes".
3CX Auto Provision Enables automatic provision feature on the phone when 3CX is used as
the SIP server. The default setting is "Yes".
Automatic Upgrade Enables automatic upgrade and provisioning. The default setting is "No".
Period Time of Upgrade
Checking
Specifies the time period to check for firmware upgrade (in minutes).
The default setting is 10080 minutes (7 days).
Hour of the Day (0-23) Defines the hour of the day to check the HTTP/TFTP server for firmware
upgrades or configuration files changes.
Day of the Week (0-6) Defines the day of the week to check the HTTP/TFTP server for
firmware upgrades or configuration files changes.
Automatic Upgrade Rule Defines the rules for automatic upgrade: Always Check at bootup, when
GXP2200 USER MANUAL Page 113 of 131
F/W pre/suffix changes, Skip the Firmware Check.
Authenticate Conf File Authenticates configuration file before acceptance. The default setting is
"No".
Factory Reset Restore to factory default settings.
MAINTENANCE/SYSLOG
Syslog Server The URL/IP address for the syslog server.
Syslog Level Selects the level of logging for syslog. The default setting is None. There
are 4 levels: DEBUG, INFO, WARNING AND ERROR.
Syslog messages are sent based on the following events:
• product model/version on boot up (INFO level);
• NAT related info (INFO level);
• sent or received SIP message (DEBUG level);
• SIP message summary (INFO level);
• inbound and outbound calls (INFO level);
• registration status change (INFO level);
• negotiated codec (INFO level);
• ethernet link up (INFO level);
• SLIC chip exception (WARNING and ERROR levels);
• memory exception (ERROR level).
MAINTENANCE/LOGCAT
Clear Log Press the clear log button to clear log.
Log Tag Specifies the log tag to filter the log.
Log Priority Selects the log priority. The log priority options are: Verbose, Debug,
Info, Warn, Error, Fatal, Silent (suppress all output).
MAINTENANCE/DEBUG
Capture Trace Press START to start capturing a trace, and press STOP to stop the
capture process.
View Trace Press LIST to view the list of captured traces. It will show the time when
the trace was captured. Click on the name of the file to download and
view the trace.
GXP2200 USER MANUAL Page 114 of 131
MAINTENANCE/LANGUAGE
Language Select the language displayed on the phone.
MAINTENANCE/TR069
Enable TR-069 Enables TR-069. The default setting is "No".
ACS URL URL for TR-069 Auto Configuration Servers (ACS).
ACS Username ACS username for TR-069.
ACS Password ACS password for TR-069.
Periodic Inform Enable Enables periodic inform. If set to "Yes", device will send inform packets
to the ACS. The default setting is "No".
Periodic Inform Interval (s) Sets up the periodic inform interval to send the inform packets to the
ACS.
Connection Request
Username The user name for the ACS to connect to the phone.
Connection Request Password The password for the ACS to connect to the phone.
Connection Request Port The port for the ACS to connect to the phone.
CPE Cert File The Cert File for the phone to connect to the ACS via SSL.
CPE Cert Key The Cert Key for the phone to connect to the ACS via SSL.
MAINTENANCE/DEVICEMANAGER
Headset TX Gain (dB) The transmission gain of the headset. The default value is 0dB.
Headset RX Gain (dB) The receive gain of the headset. The default value is 0dB.
SAVINGTHECONFIGURATIONCHANGES
After users makes changes to the configuration, press the Save button on the bottom of the Web GUI page
and then apply the change by pressing the Apply bottom on the top of the page. If the option you have
changed has the icon next to it, please reboot the phone after pressing Save for the new settings to
take effect.
GXP2200 USER MANUAL Page 115 of 131
REBOOTINGFROMREMOTELOCATIONS
Press the Reboot button at the top right-hand corner of the Web GUI to reboot the phone remotely. The
web browser will then display a message window to confirm with the user if they wish to reboot the phone
or not. Click on Yes and the phone will reboot. Wait for approximately 1 minute to log in again.
GXP2200 USER MANUAL Page 116 of 131
GXP2200LCDSETTINGS
The GXP2200 LCD MENU provides easy access to the settings on the phone. Most of the settings from
Web GUI could be configured on the LCD settings as well.
OPENINGSETTINGS
• Go to LCD onscreen MENU and then tap on Settings;
Or
• On GXP2200 idle screen, press MENU button and then tap on Settings.
ACCOUNTPREFERENCE
In Account Preference menu, all the six accounts will show up with registration status on the right side. Tap
on one of the account to enter the settings.
• Ring Tone. Select ring tone for the incoming call;
• Auto Answer. If it's set to Yes, the phone will automatically turn on the speaker phone to answer
incoming calls after a short reminding beep. If it's set to Enable Intercom/Paging mode, it will answer
the call based on the SIP info header sent from the server/proxy;
• Call Forwarding.
¾ None. Call forwarding feature is disabled. This is the default setting;
¾ Unconditional. Forward all calls to particular number;
¾ Time based. Set a time range. In the time range, calls are forwarded to the number specified in In
Time Forward To; out the time range, calls are forwarded to the number specified in Out Time
Forward To;
¾ Others. When phone is busy, calls are forwarded to the number specified in Busy To; when
incoming calls are not answered, those calls are forwarded to the number specified in No Answer
To; the waiting time for answering calls is specified in Delayed Call Forward Wait Time (s).
GXP2200 USER MANUAL Page 117 of 131
NETWORKS
Users can configure Ethernet, Wi-Fi Bluetooth, VPN, PPPoE and other advanced settings under Networks.
• Ethernet. Check/uncheck to turn on/off Ethernet so that users can connect to LAN networks;
• Ethernet Settings. Configure Ethernet Devices, Address Type (DHCP or Static IP). If Static IP is used,
enter the information for IP Address, Subnet Mask, Default Gateway, DNS Server and Alternative DNS
server;
• Wi-Fi. Check/uncheck to turn on/off Wi-Fi so that users can connect to Wi-Fi networks;
• Wi-Fi Settings. Check/uncheck to turn on/off Wi-Fi, Network notification. Select the scanned SSID in
the detected list or Add Wi-Fi network. Then enter the correct password to connect using Wi-Fi;
• Bluetooth. Check/uncheck to turn on/off Bluetooth so that you can connect with other Bluetooth
devices;
• Bluetooth settings. Check/uncheck to turn on/off BlueTooth. Set up Device name, Discoverable,
Discoverable timeout, Scan for devices;
• VPN settings. Add VPN using different protocols (PPTP, L2TP, L2TP/IPSec PSK, L2TP/IPSec CRT).
Once selected, set up the VPN name, VPN server, Encryption information and DNS search domains;
• PPPoE. Check/uncheck to turn on/off PPPoE. Enter PPPoE Account ID and PPPoE Password to
connect;
• Additional Networks Settings.
¾ Layer 3 QoS. This field defines the layer 3 QoS parameter. It is the value used for IP Precedence,
Diff-Serv or MPLS. The Default value is 0;
¾ Layer 2 QoS 802.1Q/VLAN Tag. This field contains the value used for layer 2 VLAN tagging. The
Default value is 0;
¾ Layer 2 QoS 802.1P/Priority Value. This assigns the priority value of the Layer2 QoS packets.
The Default value is 0;
¾ 802.1x mode. This option allows the user to enable/disable 802.1x mode on the phone. The
default setting is disabled. To enable 802.1x mode, this field should be set to EAP-MD5. Once
enabled, the user would be required to enter the Identity and MD5 Password to be authenticated
on the network.
SOUND
Use the Sound settings to configure how the GXP2200 rings, plays music or other media with audio,
notification ringtones and alarms.
• Silent mode. Check/uncheck to turn on/off the ring from speaker when there is incoming call;
• Volume. Tap on Volume and scroll left/right to adjust the volume for Ringtone and Media;
• Phone ringtone. Select phone's ringtone for incoming call;
• Notification ringtone. Select notification ringtone;
GXP2200 USER MANUAL Page 118 of 131
DISPLAY
• Brightness. Tap on Brightness and scroll left/right to adjust the brightness on the GXP2200 LCD;
• Screen timeout. Tap to open the dialog where you can set the screen timeout interval before the LCD
turns dark;
• Screen Saver Setting;
¾ Apply Internet Pictures. The picture will be downloaded from Internet if the option is checked;
¾ Internet Pictures. If Apply Internet Pictures is checked, set the download URL for the pictures
from Internet;
¾ Local Pictures. If Apply Internet Pictures is unchecked, set the path of local pictures to be
displayed;
¾ Preview. Tap to preview the setup screen saver;
¾ Screen Saver Timeout. Tap and select the screen saver timeout;
¾ Interval. Tap to set display interval between every two pictures.
SECURITYSETTINGS
• Set up screen lock. Set up pattern or password for screen lock. Wizard will be provided to set up the
pattern;
• Visible passwords. Check/uncheck to show/hide password as you type;
• Select device administrators. Add or remove device administrators;
• Use secure credentials. Check/uncheck to allow/disallow applications to access secure certificates
and other credentials;
• Install from SD card. Install encrypted certificates from SD card;
• Set password. Set or Change the credential storage password;
• Clear storage. Clear credential storage of all contents and reset its password.
APPLICATIONS
Use the Applications settings to view details about the applications installed on the GXP2200, to manage
their data, to force them to stop if they misbehave, and to set permission for the installations.
• Unknown sources. Check/uncheck to enable/disable permission to install applications that you obtain
from web sites, email, or other locations other than GS Market;
GXP2200 USER MANUAL Page 119 of 131
Warning:
To protect the GXP2200 and personal data, it is recommended to download applications only from GS
Market.
• Manage applications. Tap to open a list of all the applications and other software installed on the
GXP2200, along with their sizes and tools to manage them;
• Running services. Tap to open a list of applications, processes, and services that are currently
running or cached;
• Storage use. Tap to open a list of all applications on the GXP2200 with information about the storage
they use.
LANGUAGE&KEYBOARD
• Select language. Tap to open the a list of language options for GXP2200 to display with;
• System input method. Tap and users could turn on/off the Audible Touch Tone.
DATE&TIME
• Automatic. Check/uncheck to set the date and time on the GXP2200 automatically from
network/manually.
• Use Assigned NTP Server Address. Check/uncheck to enable/disable using the Assigned NTP
Server Address.
• Assign NTP Server Address. Assign the URL or IP Address of NTP Server.
• Set date. If Automatic date & time is unchecked, set the date on GXP2200 here.
• Select time zone. If Automatic time zone is unchecked, set the time zone on GXP2200 here.
• Set time. If Automatic is unchecked, set the time on GXP2200 here.
• Use 24-hour format. Check/uncheck to display the time using 24-hour time format or not. For
example, in 24-hour format, 13:00 will be displayed instead of 1:00 pm.
• Select date format. Select the format of year, month and day for the date to be displayed.
ABOUTPHONE
About Phone lists the GXP2200's account information, network status and system information.
GXP2200 USER MANUAL Page 120 of 131
• Account Status. Displays the account name and registration status on the GXP2200.
• Network Status. MAC Address, Address Type, IP Address, Subnet Mask, Default Gateway, DNS
Server, Alternative DNS server, NAT Type information will be displayed.
• System Information. Displays the system version of the GXP2200.
ADVANCEDSETTINGS
Users could open Advanced Settings to set up advanced features for Account, configure Upgrade settings,
Syslog and perform Factory Reset.
• Account. Tap on one account and fill in the necessary information to register the account, which
includes Account Active, Account Name, SIP Server, Secondary SIP Server, SIP User ID, SIP Auth
Password, Voice Mail User ID and Display Name.
• Upgrade.
¾ Upgrade Mode.
This field allows the user to choose the firmware upgrade method: TFTP, HTTP or HTTPS.
¾ Firmware Upgrade and Provisioning.
Defines the rules for automatic upgrade: Always Check at bootup, when F/W pre/suffix changes,
Skip the Firmware Check.
¾ HTTP/HTTPS User Name. The user name for the HTTP/HTTPS server.
¾ HTTP/HTTS Password. The passwrod for the HTTP/HTTPS server.
¾ Firmware Server Path. This defines the server path for the firmware server. It can be different from
the configuration server for provisioning.
¾ Config Server Path. This defines the server path for provisioning. It can be different from the
firmware server for upgrading.
• Syslog.
¾ Syslog Level. Select the level of logging for syslog. The default setting is None. There are 4 levels:
DEBUG, INFO, WARNING AND ERROR.
¾ Syslog Server. The URL/IP address for the syslog server.
• Factory Reset. Open and tap on Factory Reset to restore the GXP2200 to factory default settings.
GXP2200 USER MANUAL Page 121 of 131
UPGRADINGANDPROVISIONING
The GXP2200 can be upgraded via TFTP/HTTP/HTTPS by configuring the URL/IP Address for the
TFTP/HTTP/HTTPS server and selecting a download method. Configure a valid URL for TFTP, HTTP or
HTTPS; the server name can be FQDN or IP address.
Examples of valid URLs:
firmware.grandstream.com
fw.ipvideotalk.com/gs
UPGRADEANDPROVISIOINGCONFIGURATION
There are two ways to setup upgrade and provisioning on GXP2200. They are Keypad Menu and Web
GUI.
• Configure via keypad Menu
In GXP2200 Settings, select Advanced Settings->Upgrade. Users may then select the upgrade
mode and enter the IP address or FQDN for the Firmware server and the Config server. After making
the changes, tap Save button to save the change. Then reboot the phone.
Figure 112: GXP2200 Upgrade Configuration via LCD
GXP2200 USER MANUAL Page 122 of 131
• Configure via Web GUI
Open a web browser on PC and enter the IP address for the GXP2200. Then login with the
administrator username and password. Go to Maintenance section, select Upgrade tab. In the
Upgrade web page, enter the IP address or the FQDN for the upgrade server and choose to upgrade
via TFTP, HTTP or HTTPS. Save and apply the changes, then reboot the phone.
CONFIRMUPGRAGETOSTART
After configuring correct upgrading and provisioning information on the GXP2200, reboot the phone. The
phone will boot up and start downloading the new files. This might take 1-5 minutes depending on the
network environment. Once downloading is done, an upgrading message will show on the LCD (see
Figure 113). Confirm the message by tapping on "Yes" to start the upgrading process.
Figure 113: Start GXP2200 Upgrade
Note:
Please do not interrupt or power cycle the GXP2200 when the upgrading process is on.
GXP2200 USER MANUAL Page 123 of 131
UPLOADFIRMWARELOCALLY
If there is no HTTP/TFTP server, users could also upload the firmware to the GXP2200 directly via Web
GUI. Please follow the steps below to upload firmware to GXP2200 locally.
• Download the latest GXP2200 firmware file from the following link and save it in your PC;
http://www.grandstream.com/support/firmware
• Log in the Web GUI as administrator in the PC;
• Go to Web GUI->Maintenance->Upgrade, configure Upgrade Via as "Manually Upload";
• Press the "Upload" button, a window will be prompted to select firmware file to upload;
• Select the firmware file from your PC. Then uploading progress will show at the button where it was
"Upload" in the above step;
• When uploading is done, a message will show in the Web GUI;
• Check the GXP2200 LCD and select "Yes" to the confirm message. Upgrading process will start.
Figure 114: Upload GXP2200 Firmware via Web GUI
GXP2200 USER MANUAL Page 124 of 131
Figure 115: GXP2200 Firmware Uploading
Figure 116: GXP2200 Firmware Upload Done
UPGRADEVIASDCARD
For users that could not use remote upgrade or could not access the phone's Web GUI to upload firmware,
upgrading via SD card is an alternative. Follow the steps below to upgrade GXP2200 via SD card.
• Download the firmware file to PC and save it in SD card;
• Insert the SD card to GXP2200;
• Power cycle the GXP2200;
• When the phone starts booting up, press and hold both * and # keys at the same time for about 5
seconds;
• The GXP2200 will display the upgrading process in the screen;
• Wait until the upgrading is done;
• The GXP2200 will reboot itself;
• Check the firmware status and remove the SD card.
GXP2200 USER MANUAL Page 125 of 131
NOLOCALFIRMWARESERVERS
For users that would like to use remote upgrading without a local TFTP server, Grandstream offers a
NAT-friendly HTTP server. This enables users to download the latest software upgrades for their phone via
this server. Please refer to the webpage:
http://www.grandstream.com/support/firmware.
Alternatively, users can download a free TFTP or HTTP server and conduct a local firmware upgrade. A
free windows version TFTP server is available for download from :
http://support.solarwinds.net/updates/New-customerFree.cfm
http://tftpd32.jounin.net/.
Instructions for local firmware upgrade via TFTP:
1. Unzip the firmware files and put all of them in the root directory of the TFTP server;
2. Connect the PC running the TFTP server and the GXP2200 device to the same LAN segment;
3. Launch the TFTP server and go to the File menu->Configure->Security to change the TFTP server's
default setting from "Receive Only" to "Transmit Only" for the firmware upgrade;
4. Start the TFTP server and configure the TFTP server in the phone’s web configuration interface;
5. Configure the Firmware Server Path to the IP address of the PC;
6. Update the changes and reboot the GXP2200.
End users can also choose to download a free HTTP server from http://httpd.apache.org/ or use
Microsoft IIS web server.
Note:
When the GXP2200 boots up, it will send a TFTP or HTTP request to download the configuration file
cfgxxxxxxxxxxxx and cfgxxxxxxxxxxxx.xml ("xxxxxxxxxxxx" is the MAC address of the phone). If it is a
normal TFTP or HTTP upgrade, the following messages “TFTP Error from [IP ADRESS] requesting
cfg000b82023dd4 : File does not exist. Configuration File Download” can be ignored if it shows in the
TFTP/HTTP server log.
CONFIGURATIONFILEDOWNLOAD
Grandstream SIP Devices can be configured via the Web Interface as well as via a Configuration File
(binary or XML) through TFTP or HTTP/HTTPS. The “Config Server Path” is the TFTP, HTTP or HTTPS
GXP2200 USER MANUAL Page 126 of 131
server path for the configuration file. It needs to be set to a valid URL, either in FQDN or IP address format.
The "Config Server Path" can be the same or different from the "Firmware Server Path".
A configuration parameter is associated with each particular field in the web configuration page. A
parameter consists of a Capital letter P and 2 to 3 (Could be extended to 4 in the future) digit numeric
numbers. i.e., P2 is associated with the “Admin Password” in the Web GUI->Maintenance->Web/SSH
Access page. For a detailed parameter list, please refer to the corresponding firmware release
configuration template.
When a Grandstream Devices boots up or reboots, it will issue a request for a configuration XML file
named "cfgxxxxxxxxxxxx.xml" followed by a file named "cfgxxxxxxxxxxxx", where "xxxxxxxxxxxx" is the
MAC address of the device, i.e., "cfg000b820102ab". The configuration file name should be in lower case
letters.
For more details on XML provisioning, please refer to:
http://www.grandstream.com/general/gs_provisioning_guide_public.pdf
GXP2200 USER MANUAL Page 127 of 131
FACTORYFUNCTIONSANDFACTORERESET
FACTORYFUNCTIONS
To check the functions of GXP2200 LED, LCD, Keyboard and Audio, open the GXP2200 onscreen
MENU->Factory Functions to perform the diagnosis when troubleshooting the device. Tap on the option
and follow the instructions on each to perform:
• LCD Diagnosis
• Turn Off LCD
• Keypad Diagnosis
• Touch Screen Diagnosis
• LED Diagnosis
• Audio Loopback
RESTORETOFACTORYDEFAULTVIALCDMENU
Warning:
Restoring the Factory Default Settings will delete all configuration information on the phone. Please
backup or print all the settings before you restore to the factory default settings. Grandstream is not
responsible for restoring lost parameters and cannot connect your device to your VoIP service provider.
There are two methods to restore the GXP2200 to the factory default settings.
1. On GXP2200 idle screen, press MENU button and tap on Settings. Or go to onscreen
MENU->Settings;
2. Tap on Advanced Settings->Factory Reset, the following figure will show;
GXP2200 USER MANUAL Page 128 of 131
Figure 117: GXP2200 LCD - Factory Reset
3. Tap on Factory Reset in Figure 117, a confirmation message will show (See Figure 118). Tap on OK
to confirm.
Figure 118: GXP2200 LCD - Confirm Factory Reset
RESTORETOFACTORYDEFAULTVIATHEWEBGUI
1. Login GXP2200 Web GUI and go to Maintenance->Upgrade page;
2. At the bottom of the page, click on the Reset button for Factory reset. A dialog box will pop up;
GXP2200 USER MANUAL Page 129 of 131
3. Click OK to restore the phone to factory settings.
Figure 119: GXP2200 Web GUI - Confirm Factory Reset
GXP2200 USER MANUAL Page 130 of 131
EXPERIENCINGTHEGXP2200APPLICATIONPHONE
Please visit our website: http://www.grandstream.com to receive the most up- to-date updates on firmware
releases, additional features, FAQs, documentation and news on new products.
We encourage you to browse our product related documentation, FAQs and User and Developer Forum
for answers to your general questions. If you have purchased our products through a Grandstream
Certified Partner or Reseller, please contact them directly for immediate support.
Our technical support staff is trained and ready to answer all of your questions. Contact a technical support
member or submit a trouble ticket online to receive in-depth support.
Thank you again for purchasing Grandstream Enterprise Application phone, it will be sure to bring
convenience and color to both your business and personal life.
