Grandstream Networks GXV3140H IP Multimedia Phone User Manual GXV3140H usermanual
Grandstream Networks, Inc. IP Multimedia Phone GXV3140H usermanual
Users manual
Grandstream Networks, Inc. GXV3140H USER MANUAL
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Grandstream Networks, Inc.
GXV3140H
IP Multimedia Phone
Grandstream Networks, Inc. GXV3140H USER MANUAL
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
GXV3140H User Manual
Index
WELCOME ..................................................................................................6
GXV3140H OVERVIEW.................................................................................................................6
PRODUCT OVERVIEW...............................................................................8
INSTALLATION .........................................................................................11
EQUIPMENT PACKAGING ................................................................................................................. 11
SAFETY COMPLIANCES.............................................................................................................11
WARRANTY ................................................................................................................................. 11

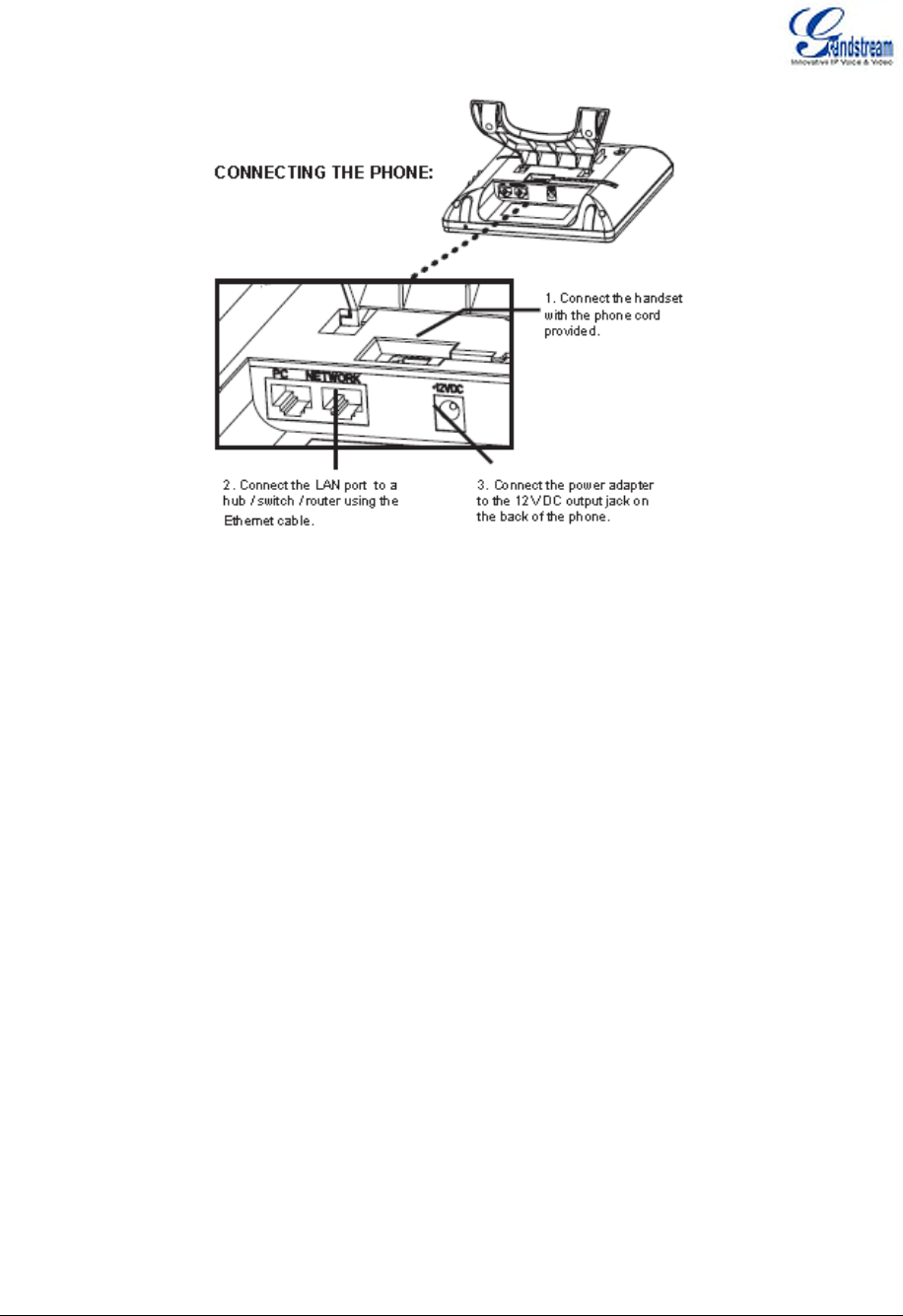

CONNECTING THE GXV3140H IP MULTIMEDIA PHONE ................................................................ 11

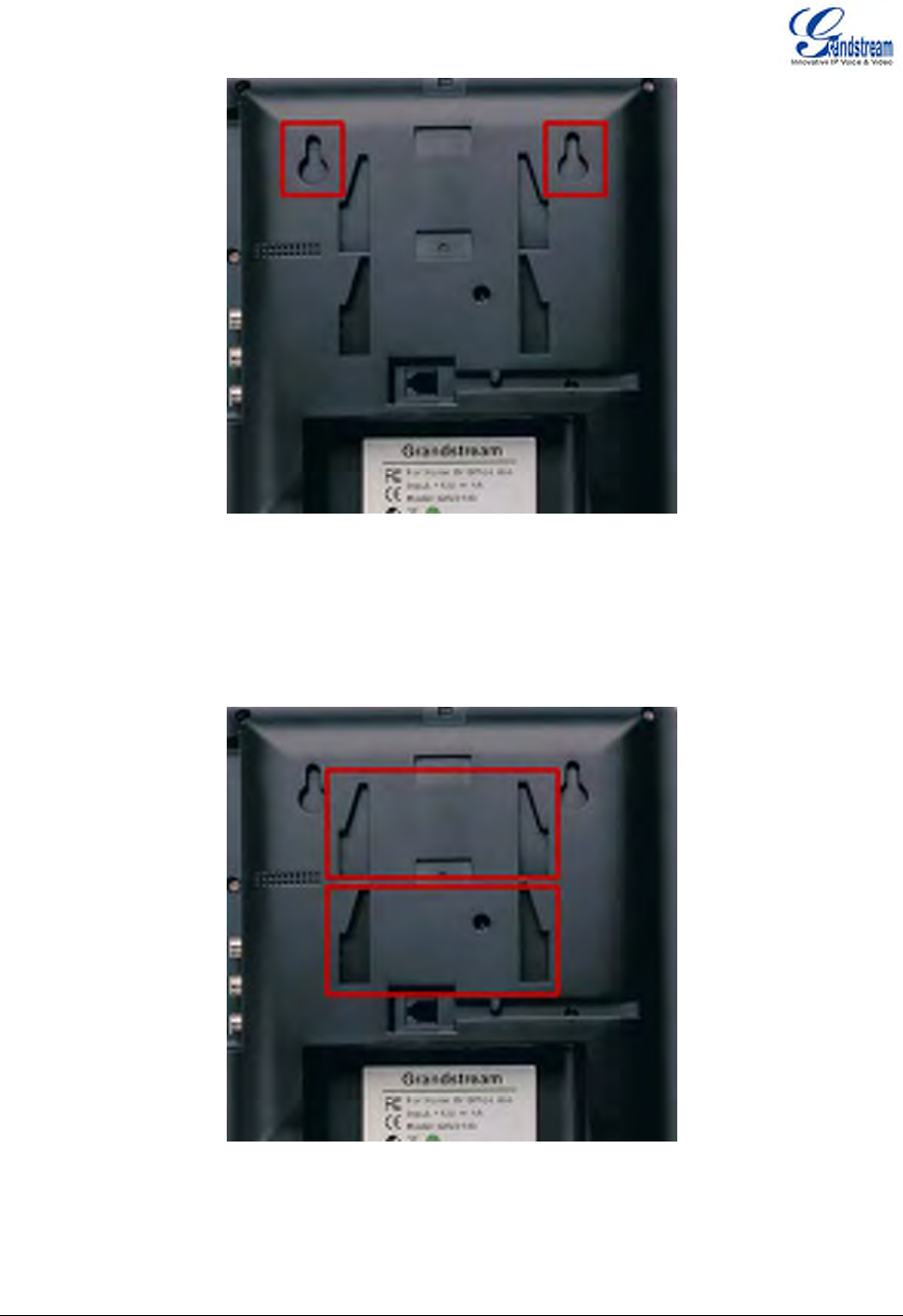

WALL MOUNT..............................................................................................................................12
PHONE STAND............................................................................................................................13
CONNECTING THE GXV3140H IP MULTIMEDIA PHONE.........................................................13
MAKING THE FIRST CALL WITH IPVIDEOTALK SERVICE.....................................................14
USING THE GXV3140H IP MULTIMEDIA PHONE ...................................15
LCD......................................................................................................................................................16
MULTIPLE SIP ACCOUNTS AND LINES............................................................................................22
HANDSET, SPEAKER AND HEADSET MODE...................................................................................22
MAKING A CALL..................................................................................................................................22
DURING CALLS ..................................................................................................................................26
ANSWERING CALLS...................................................................................................................26

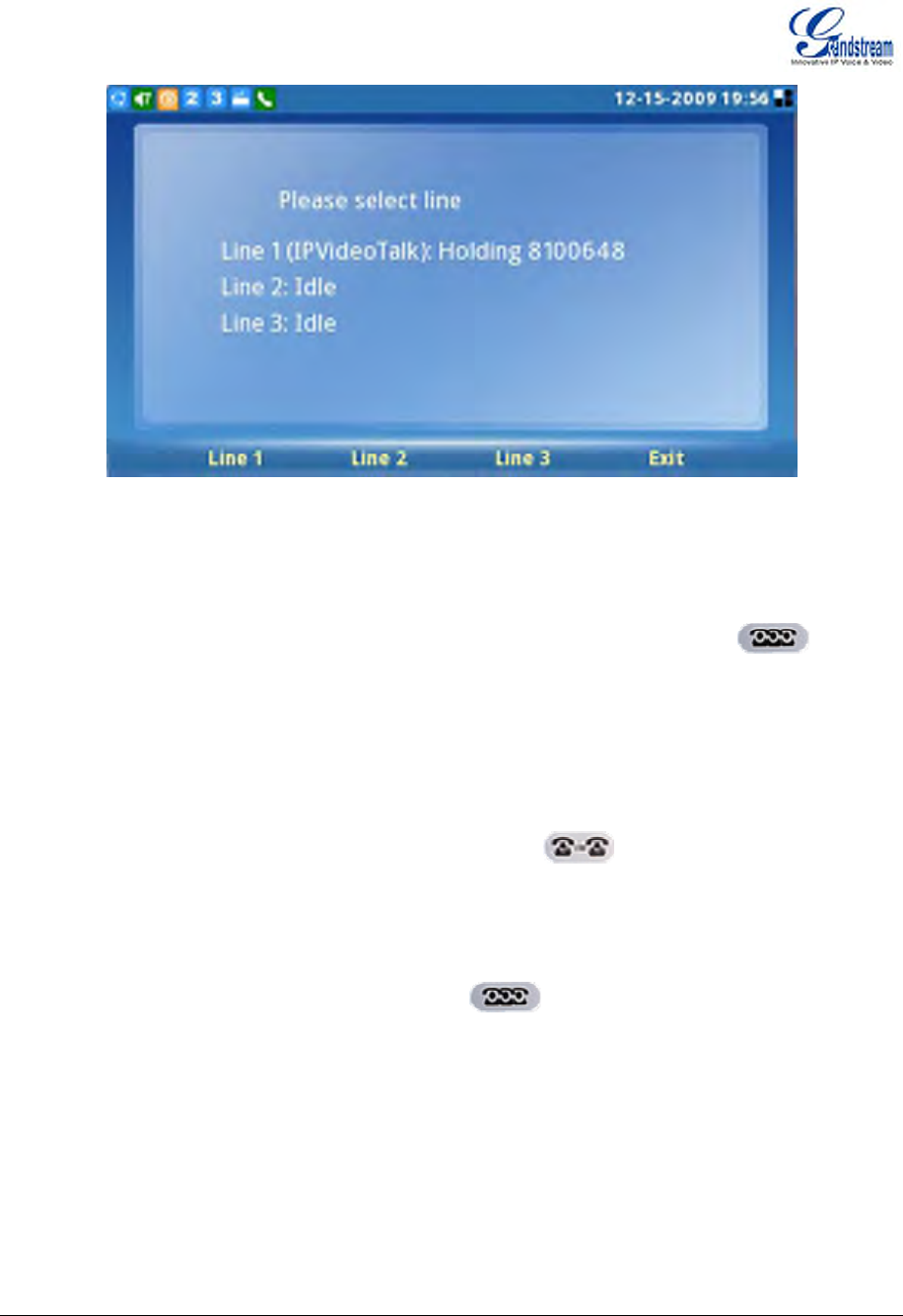

CALL HOLD/WAITING .................................................................................................................26
CALL TRANSFER ........................................................................................................................27
3-WAY CONFERENCE ................................................................................................................28
VOICEMAIL
（
MESSAGE WAITING INDICATION
）
...................................................................29
MUTE............................................................................................................................................29
CALL FEATURES .....................................................................................30
GXV3140H WEB CONFIGURATION INTERFACE ...................................32

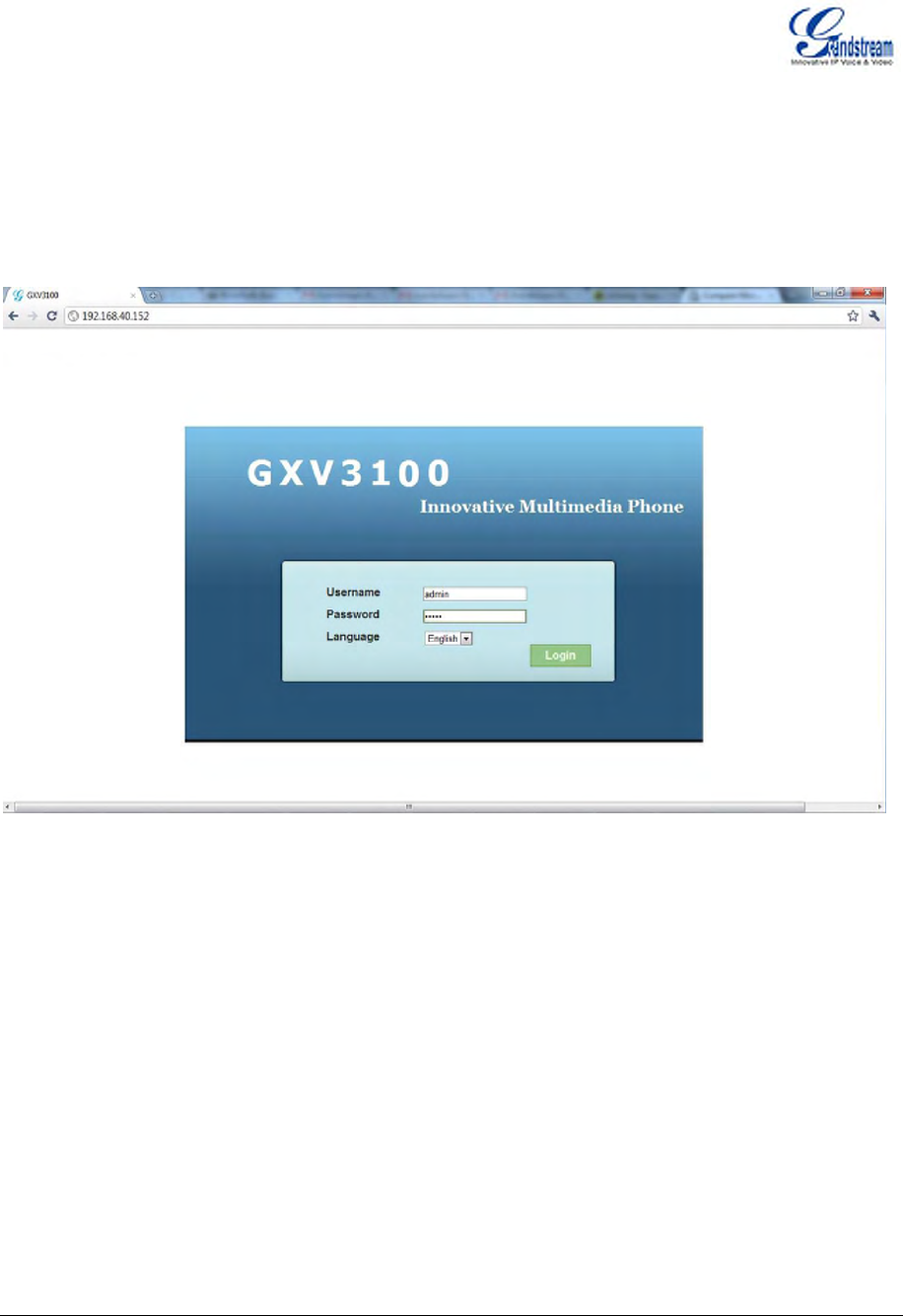

ACCESSING THE WEB CONFIGURATION PAGES..........................................................................32
DEFINITIONS ......................................................................................................................................33
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 3 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
STATUS PAGE DEFINTIONS ......................................................................................................33
ADVANCED SETTINGS PAGE DEFINITIONS............................................................................34
MAINTENANCE PAGE DEFINITIONS.........................................................................................37
SIP ACCOUNT CONFIGURATION PAGE DEFINITIONS............................................................43
APPLICATION SETTINGS PAGE DEFINITIONS ........................................................................49
SAVING THE CONFIGURATION CHANGES.....................................................................................55
REBOOTING FROM REMOTE LOCATIONS .....................................................................................55
CONFIGURATION THROUGH A CENTRAL SERVER ......................................................................55
LCD MENU AND FEATURES ...................................................................56

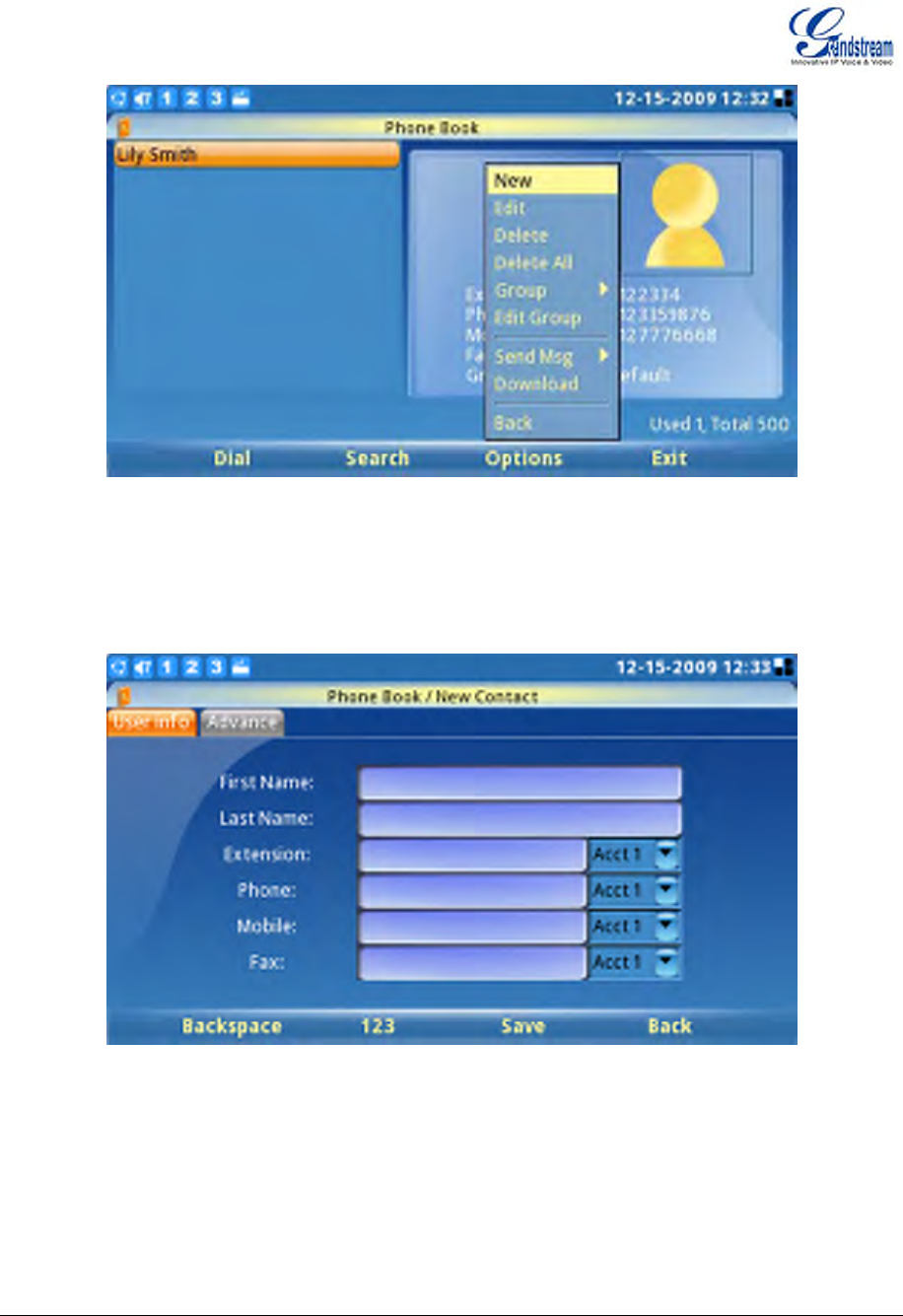

PHONE BOOK.....................................................................................................................................57

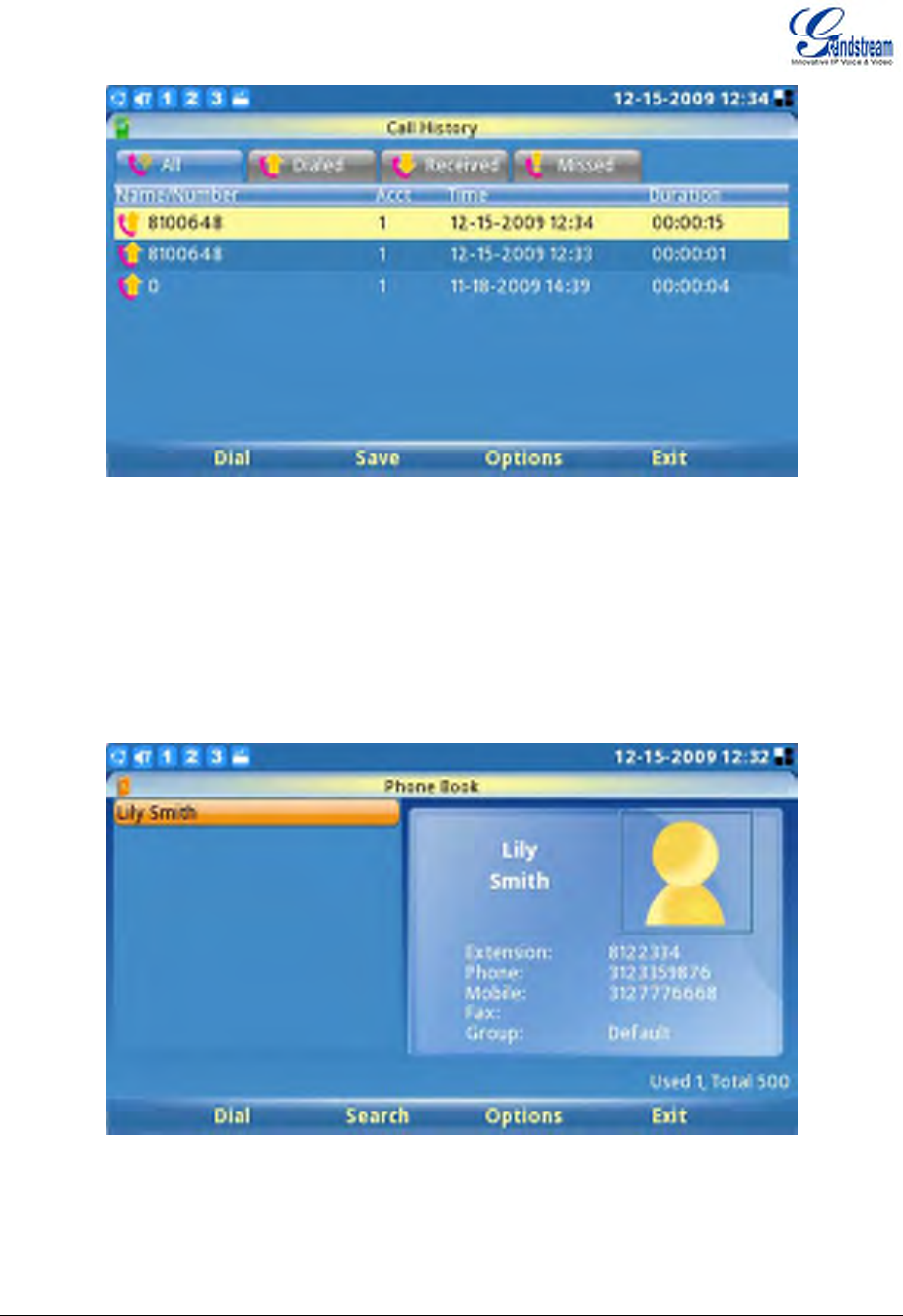

CALL HISTORY ...................................................................................................................................61

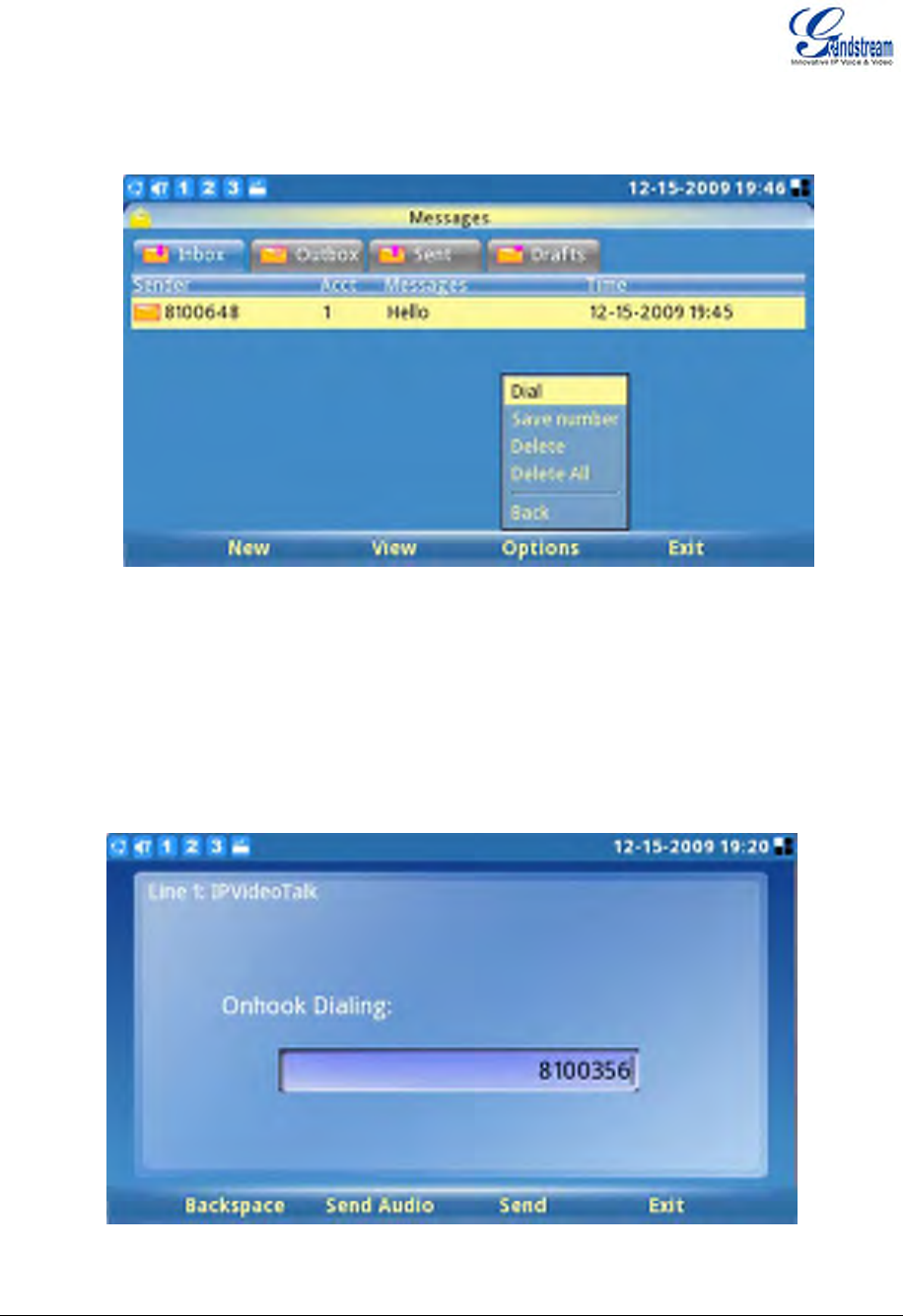

MESSAGES.........................................................................................................................................62
SOCIAL NETWORKS ..........................................................................................................................64
•

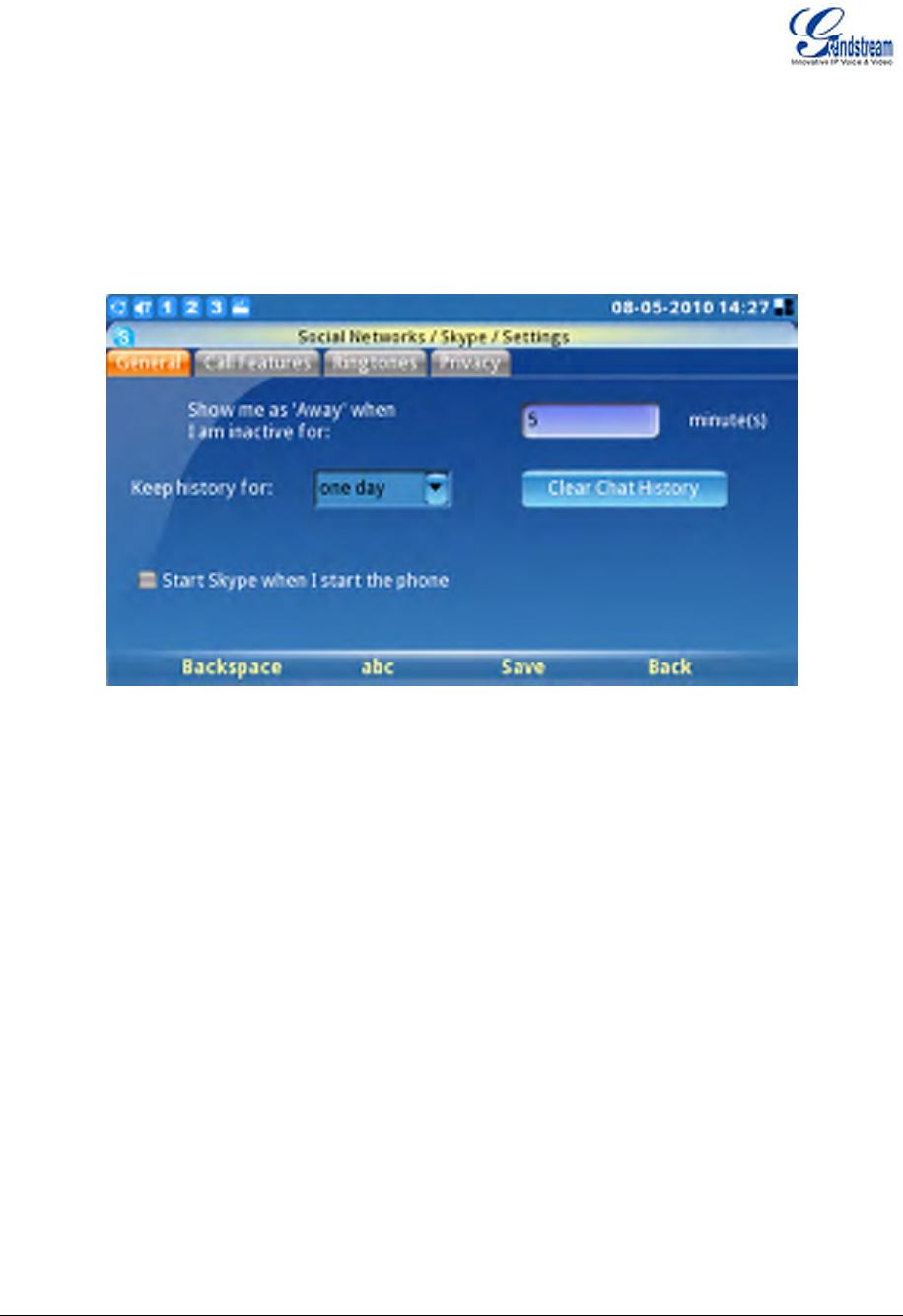

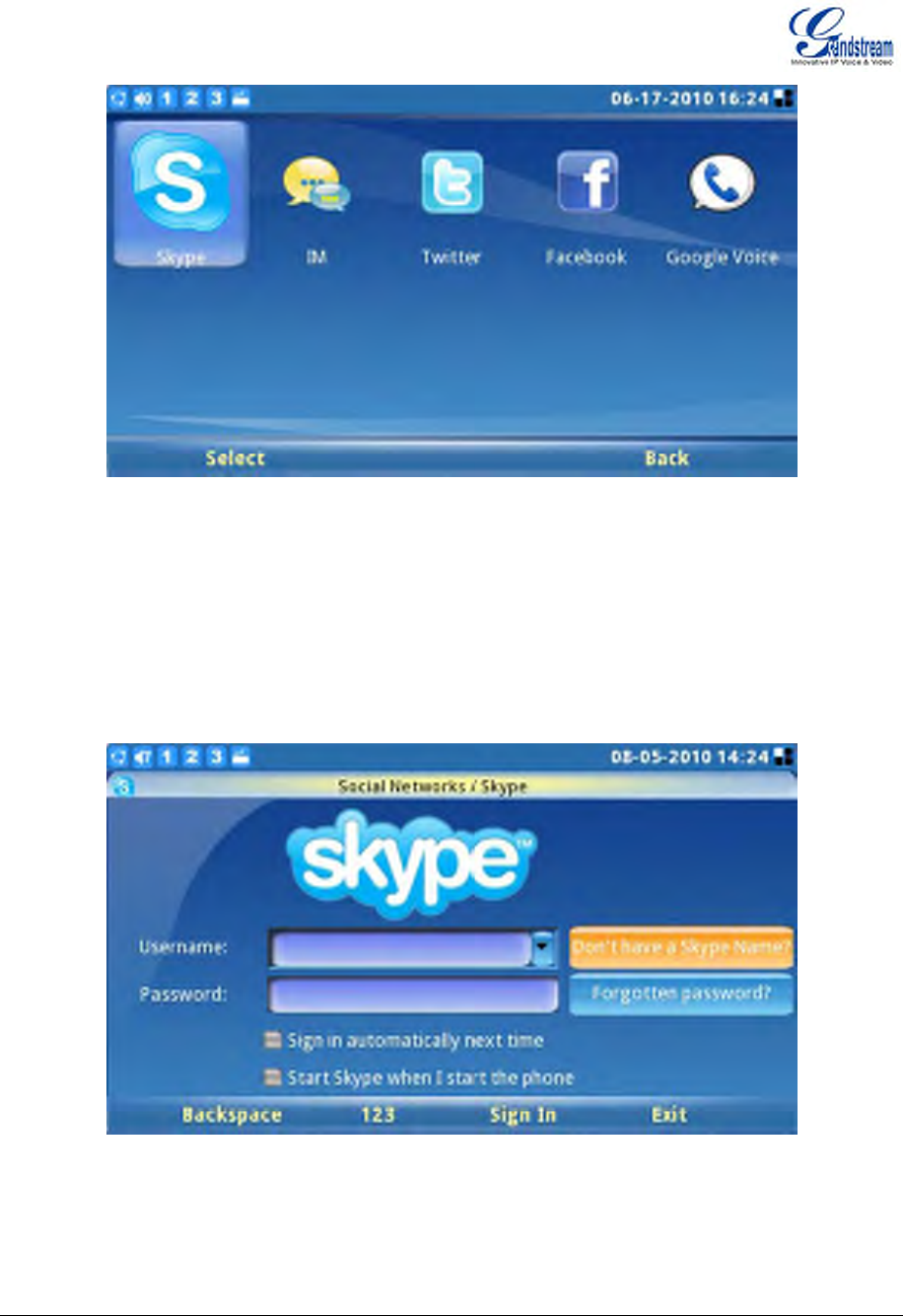

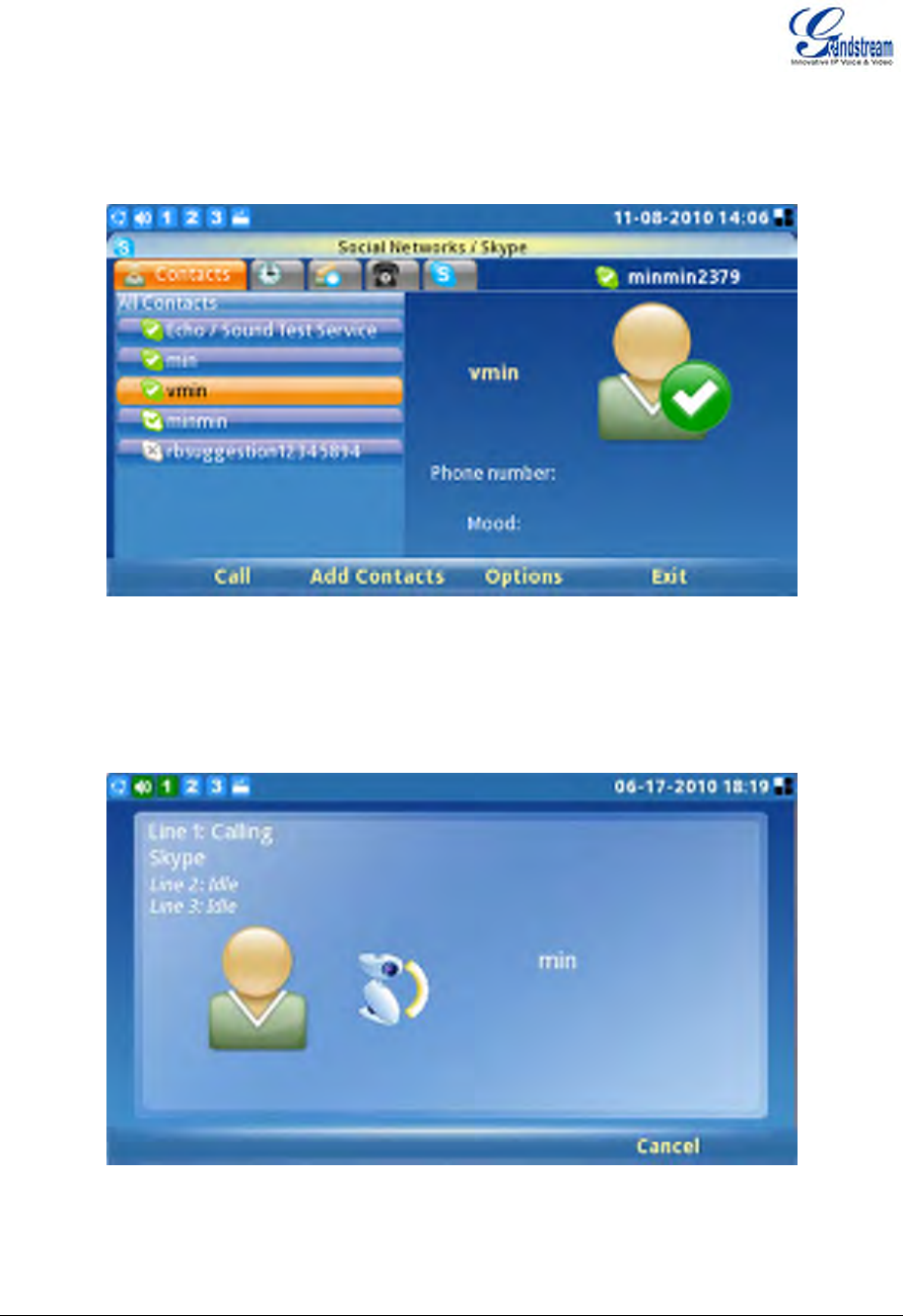

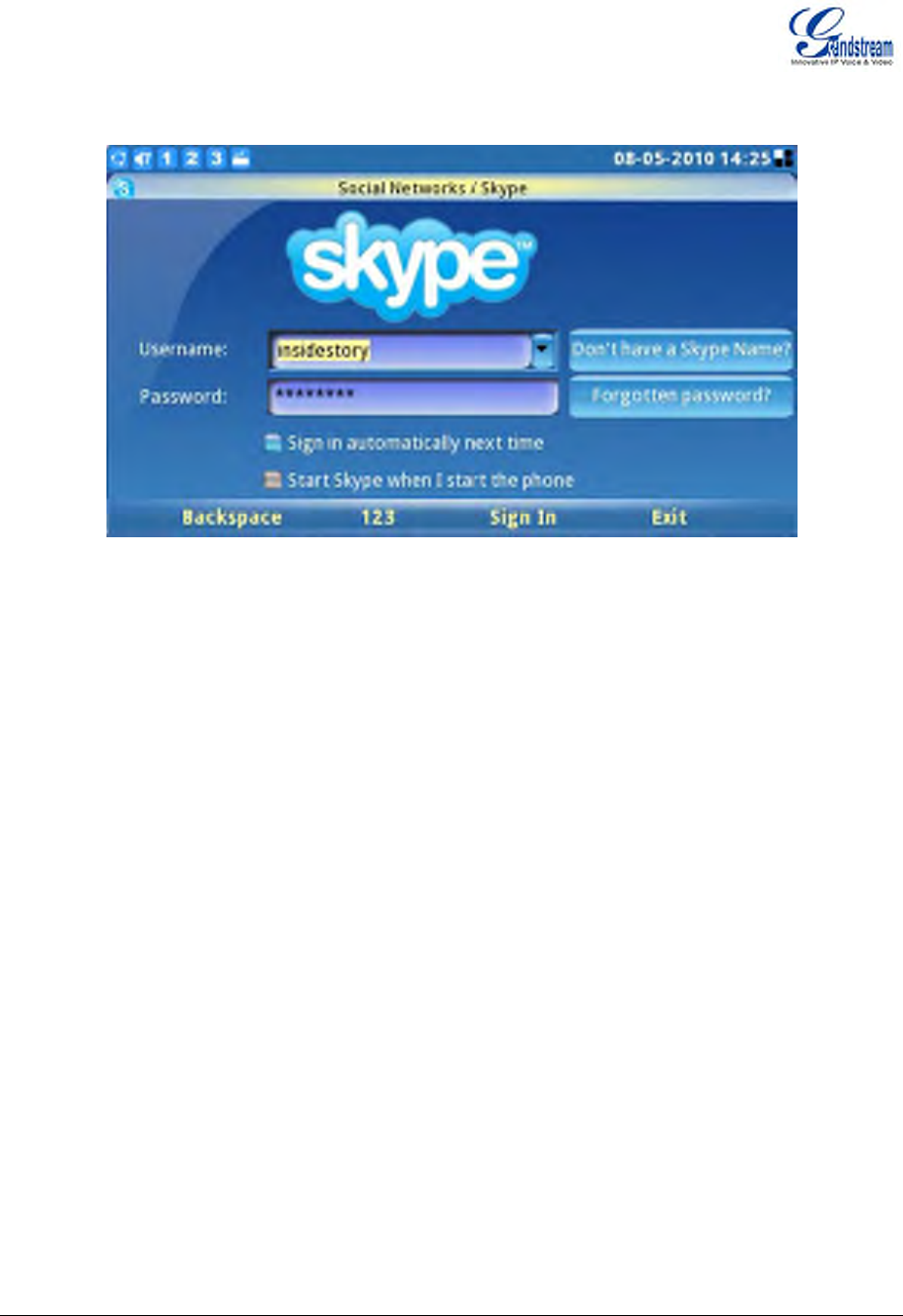

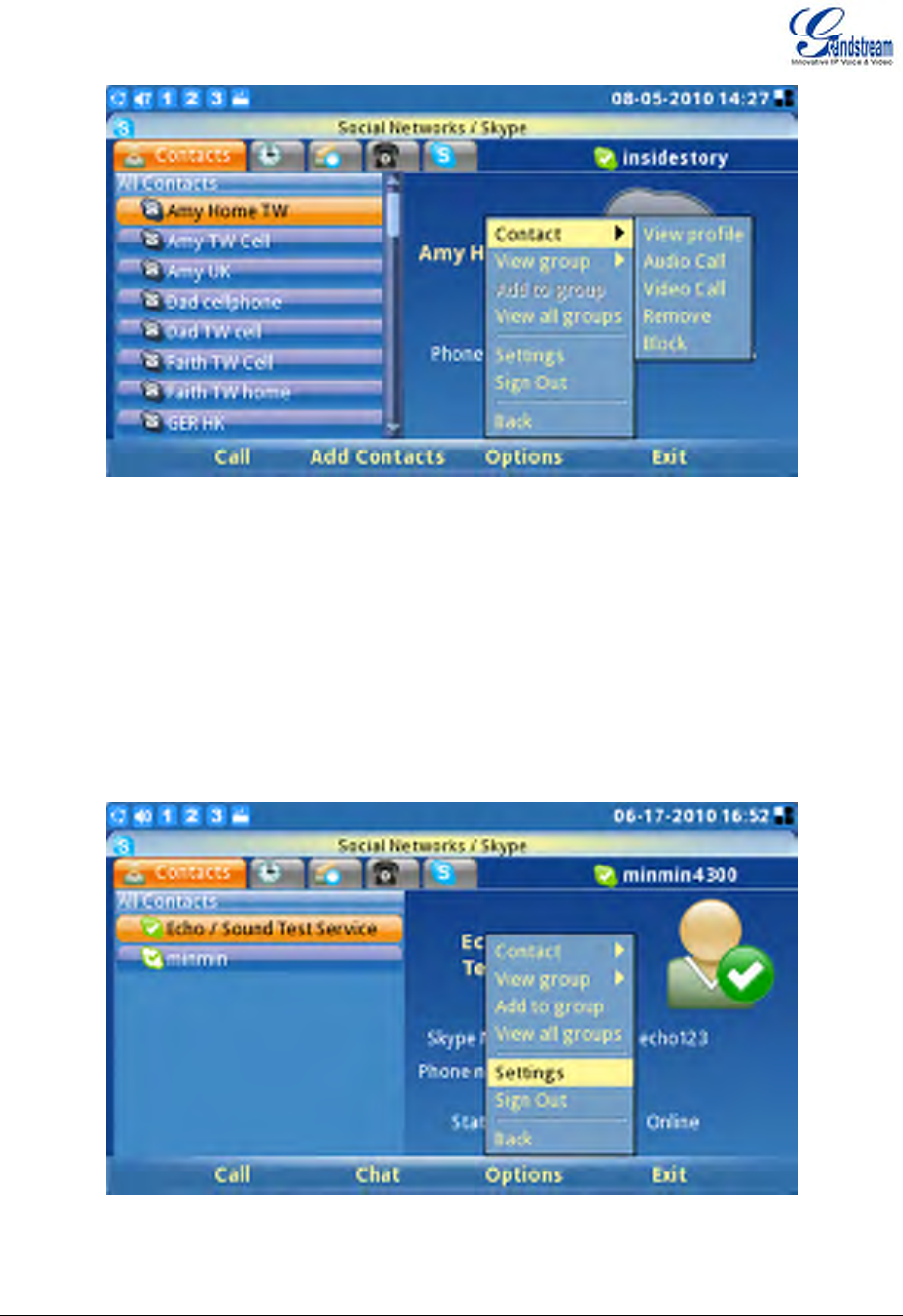

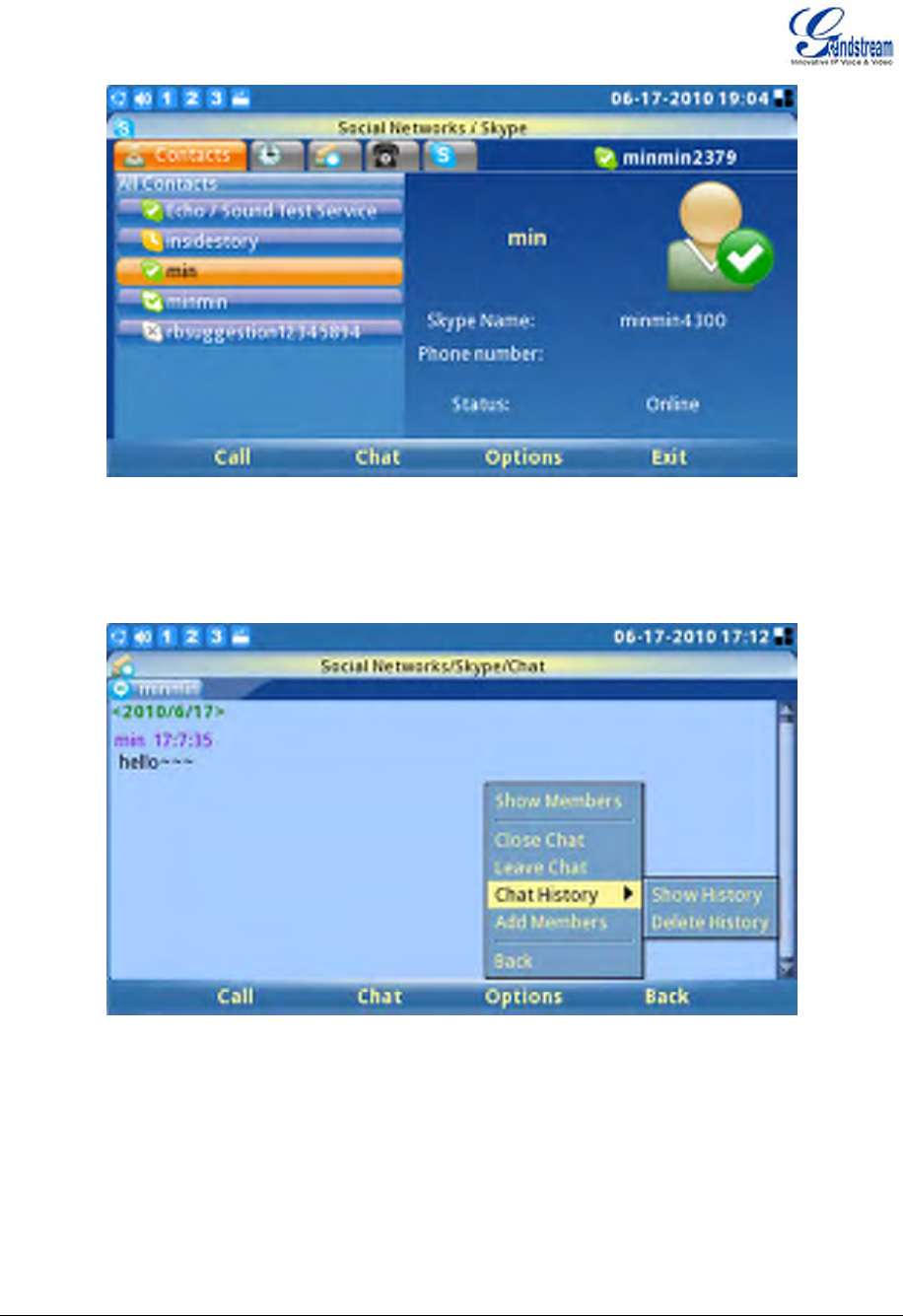

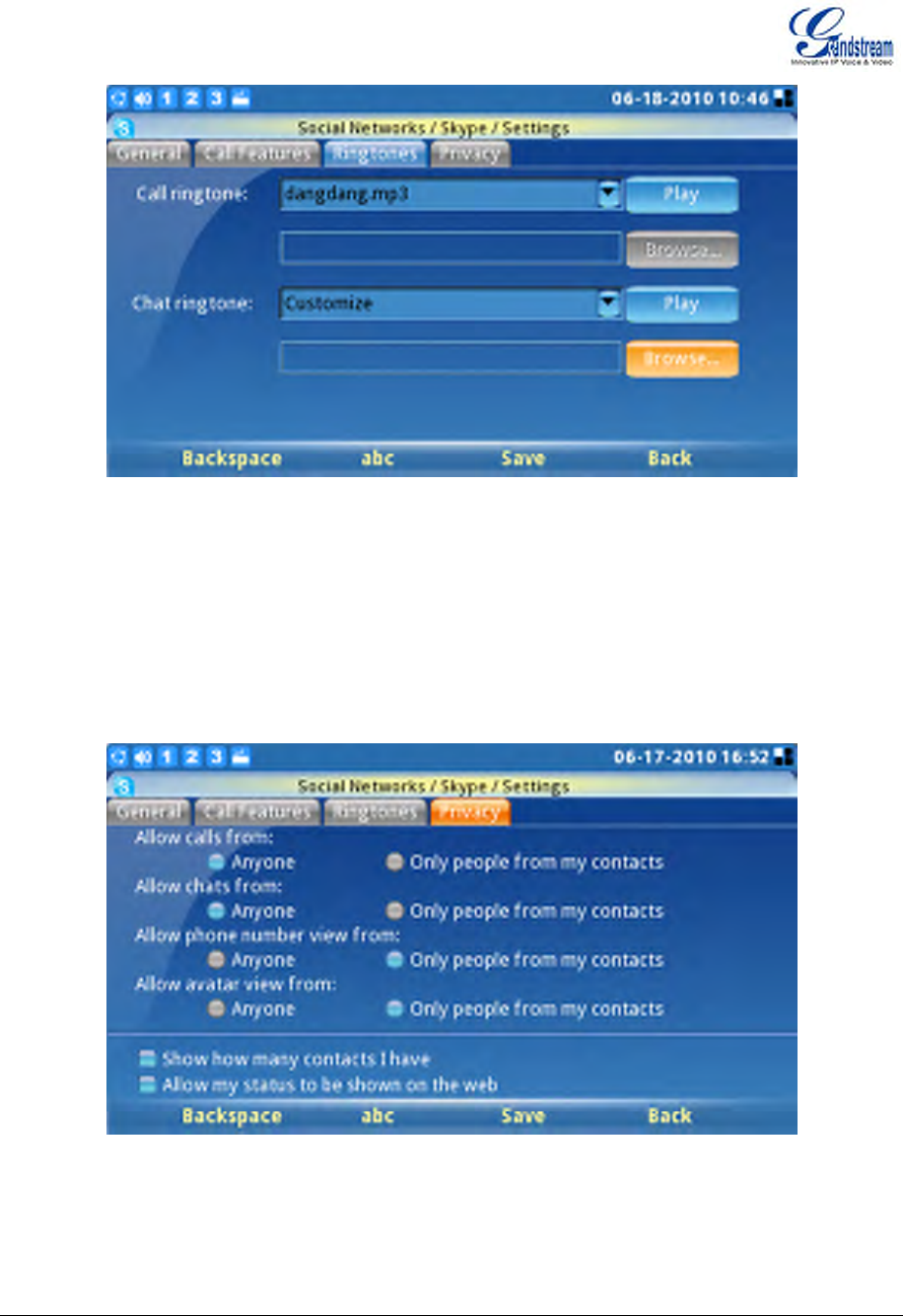

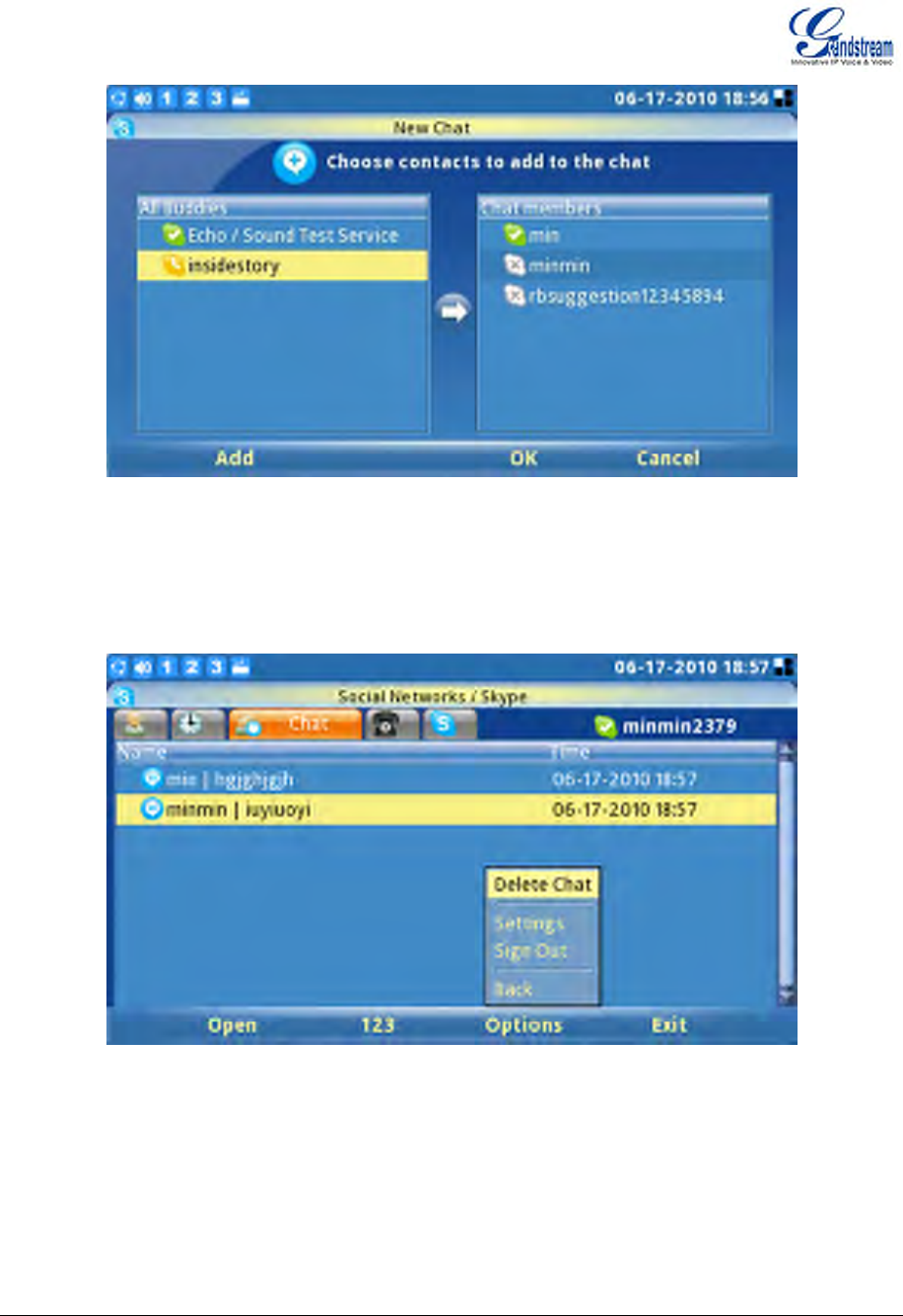

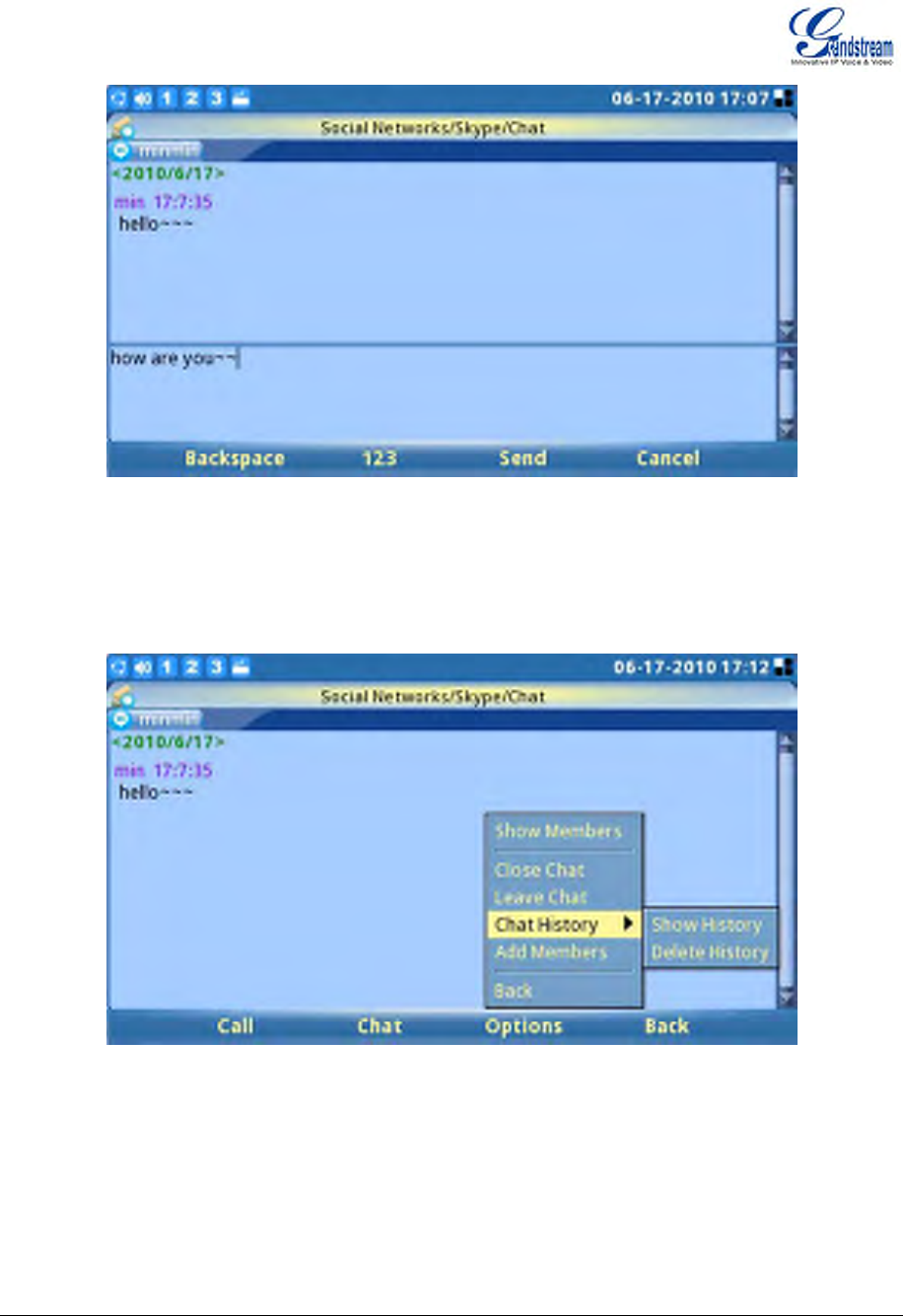

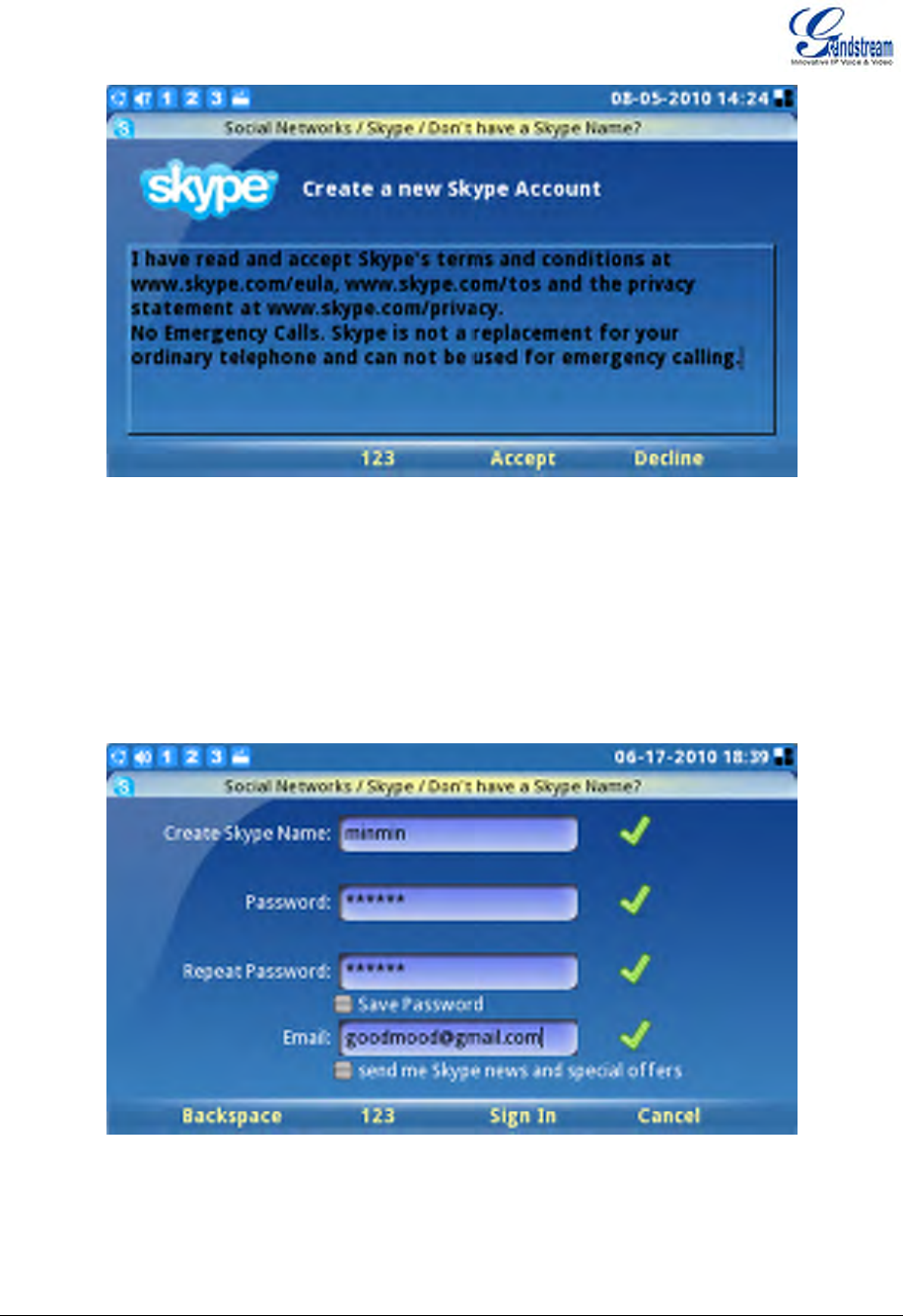

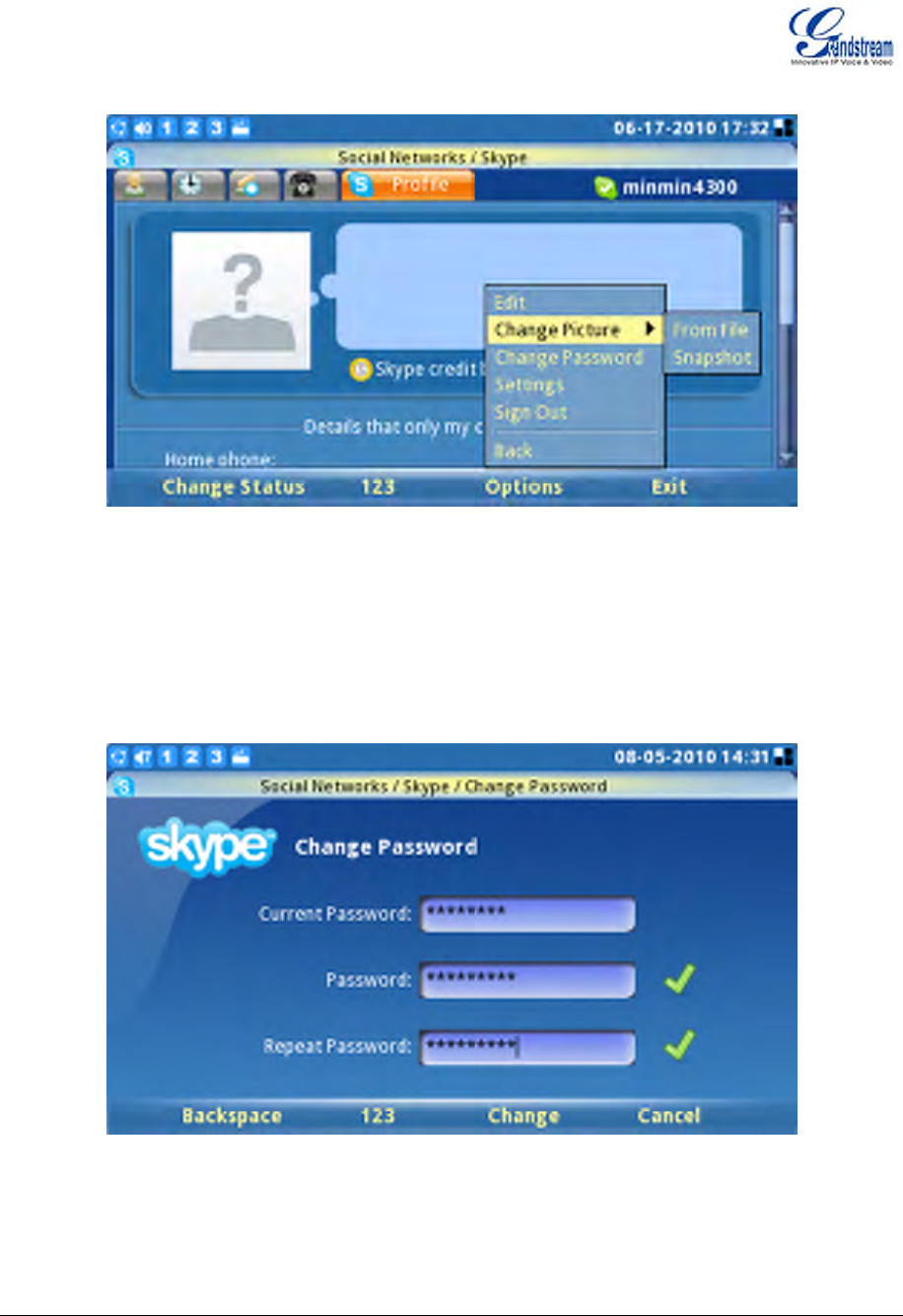

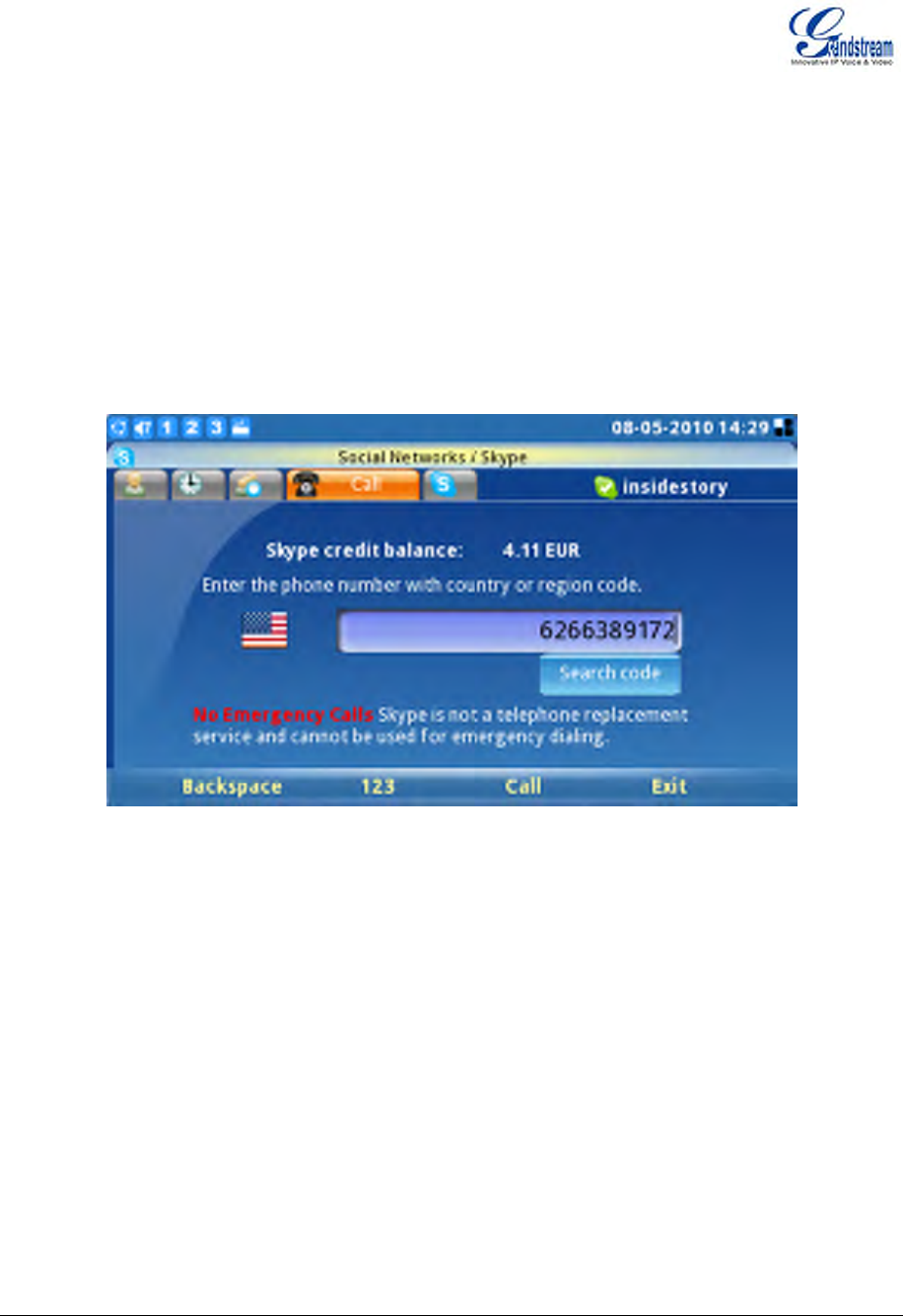

SKYPE..................................................................................................................................64
•

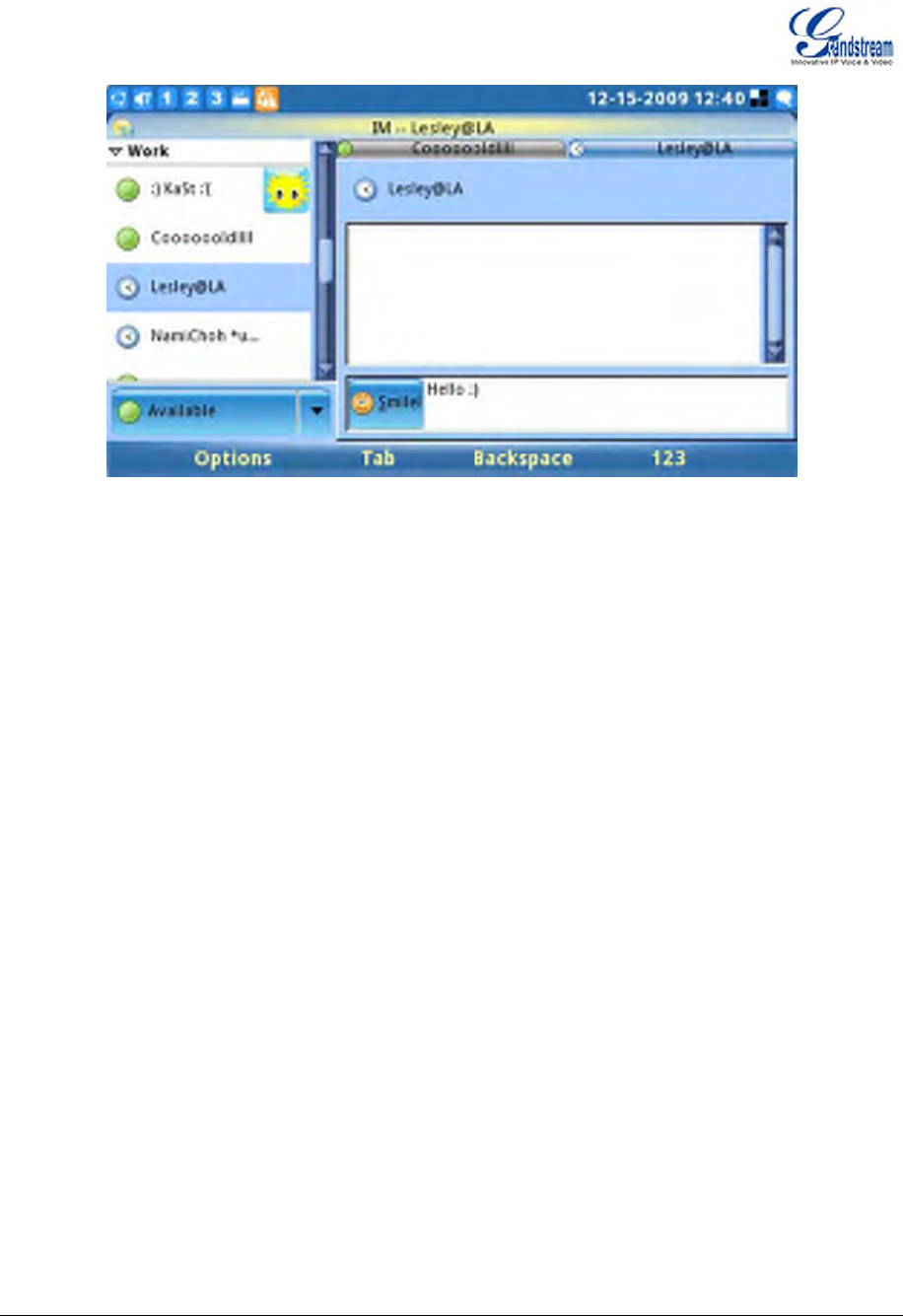

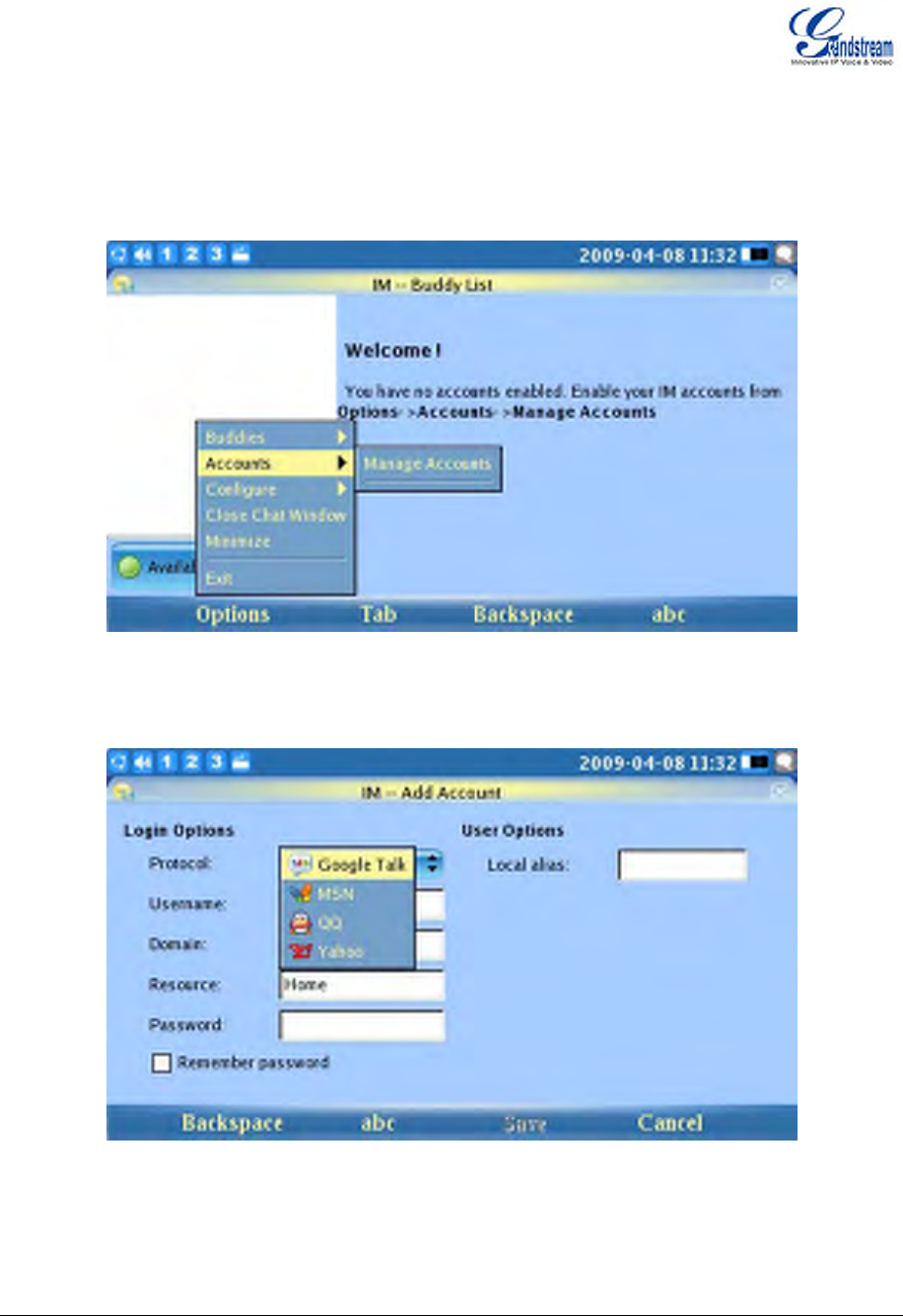

INSTANT MESSENGER (IM)...............................................................................................82
•

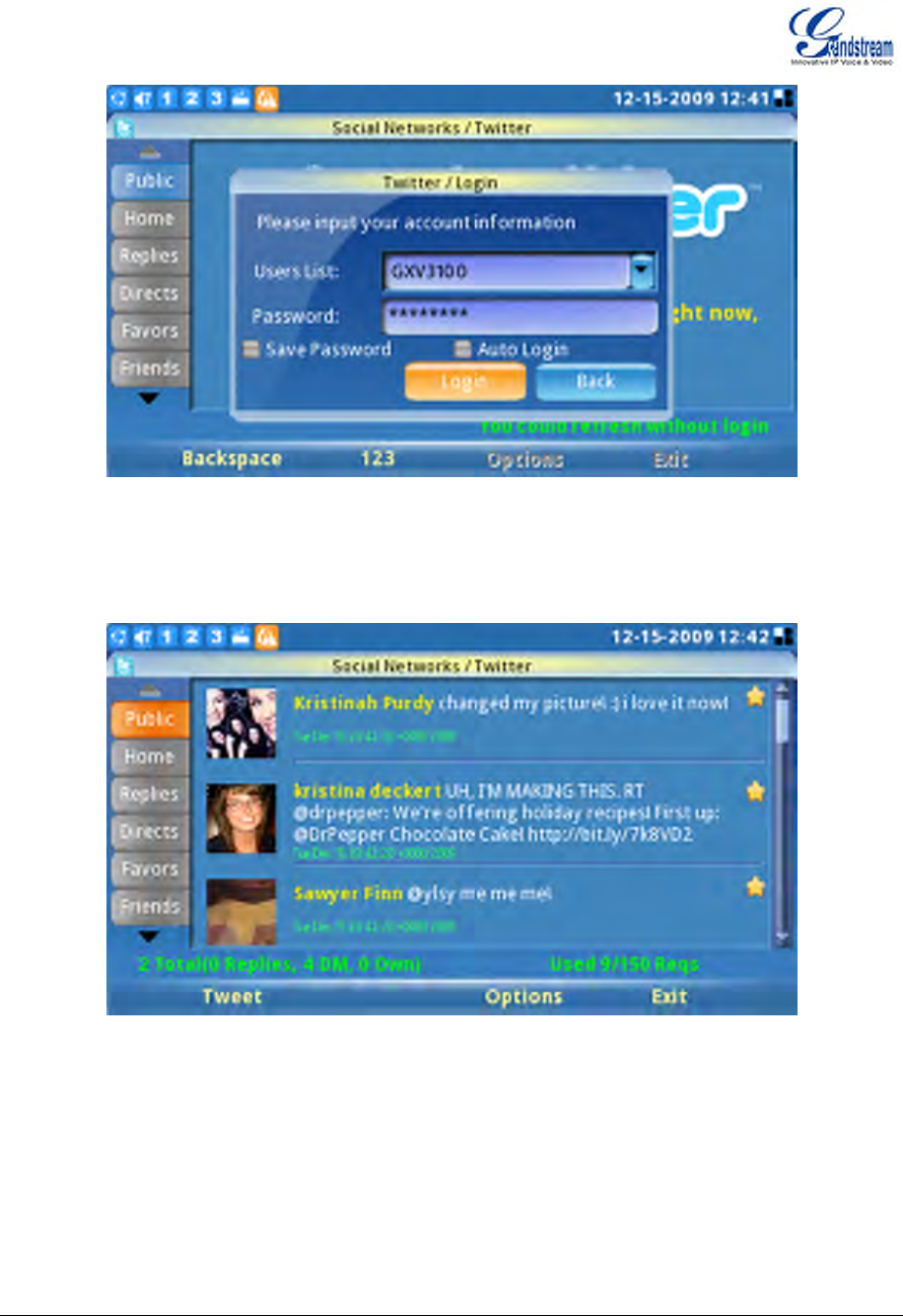

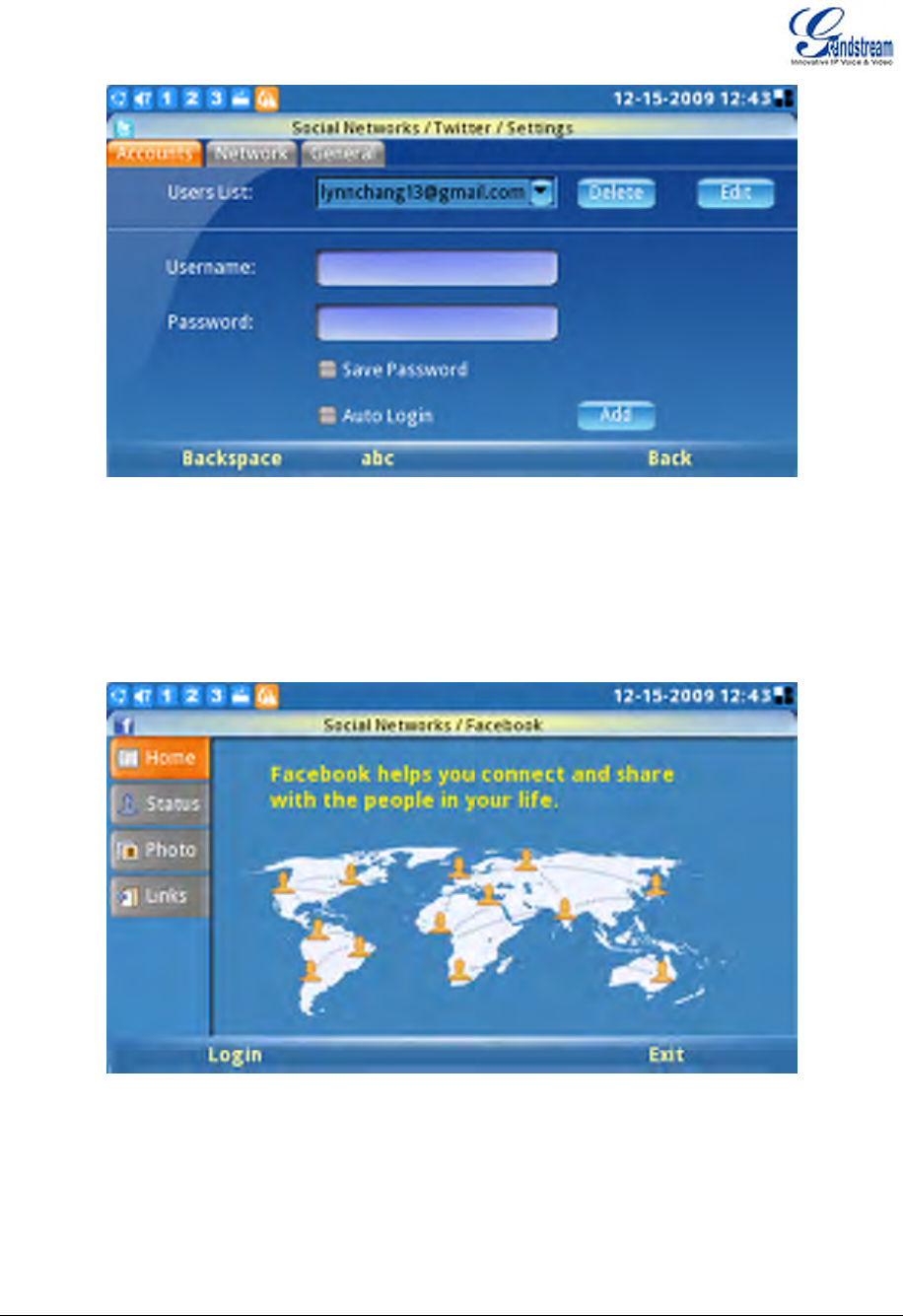

TWITTER .............................................................................................................................83
•

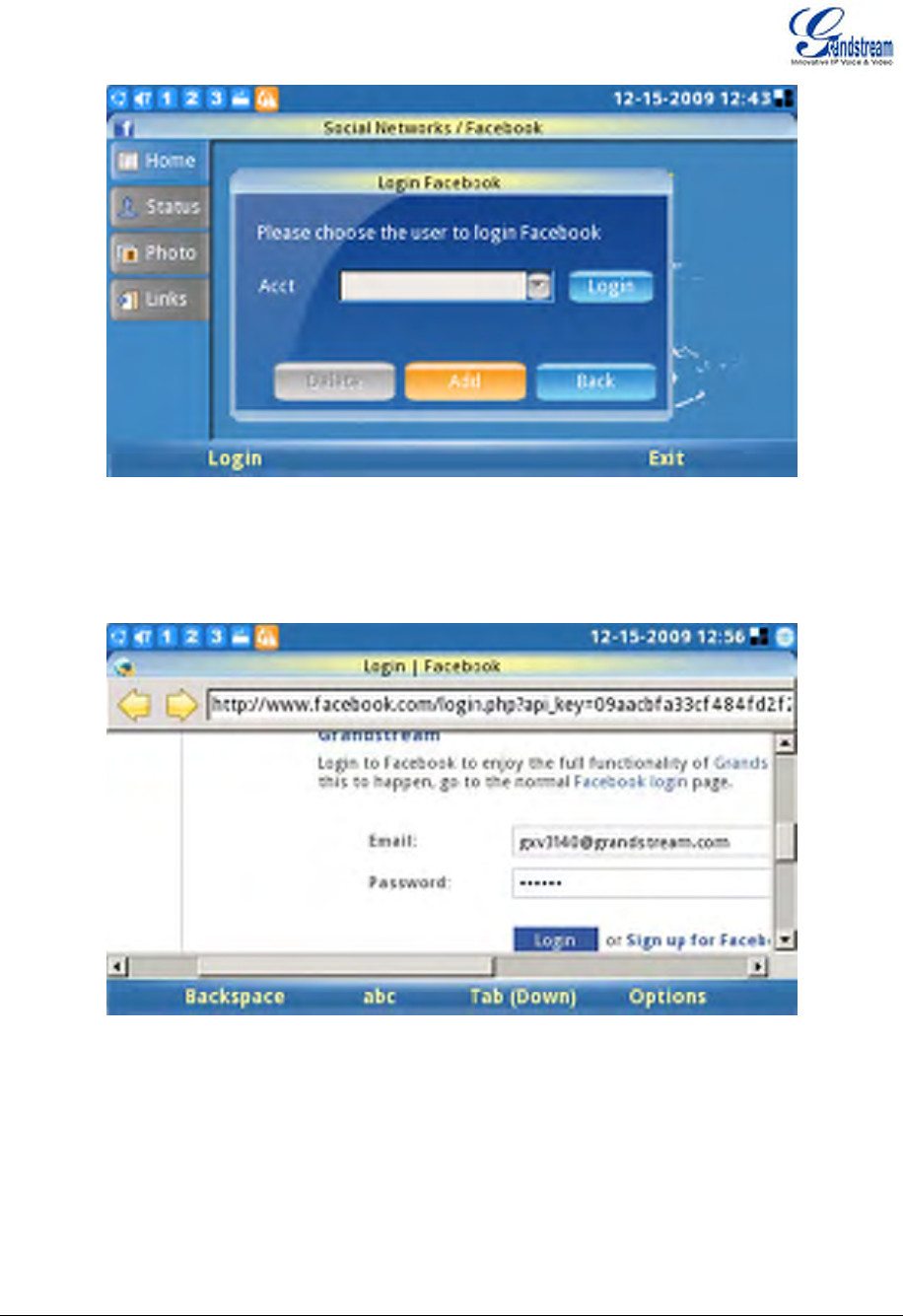

FACEBOOK..........................................................................................................................85
•

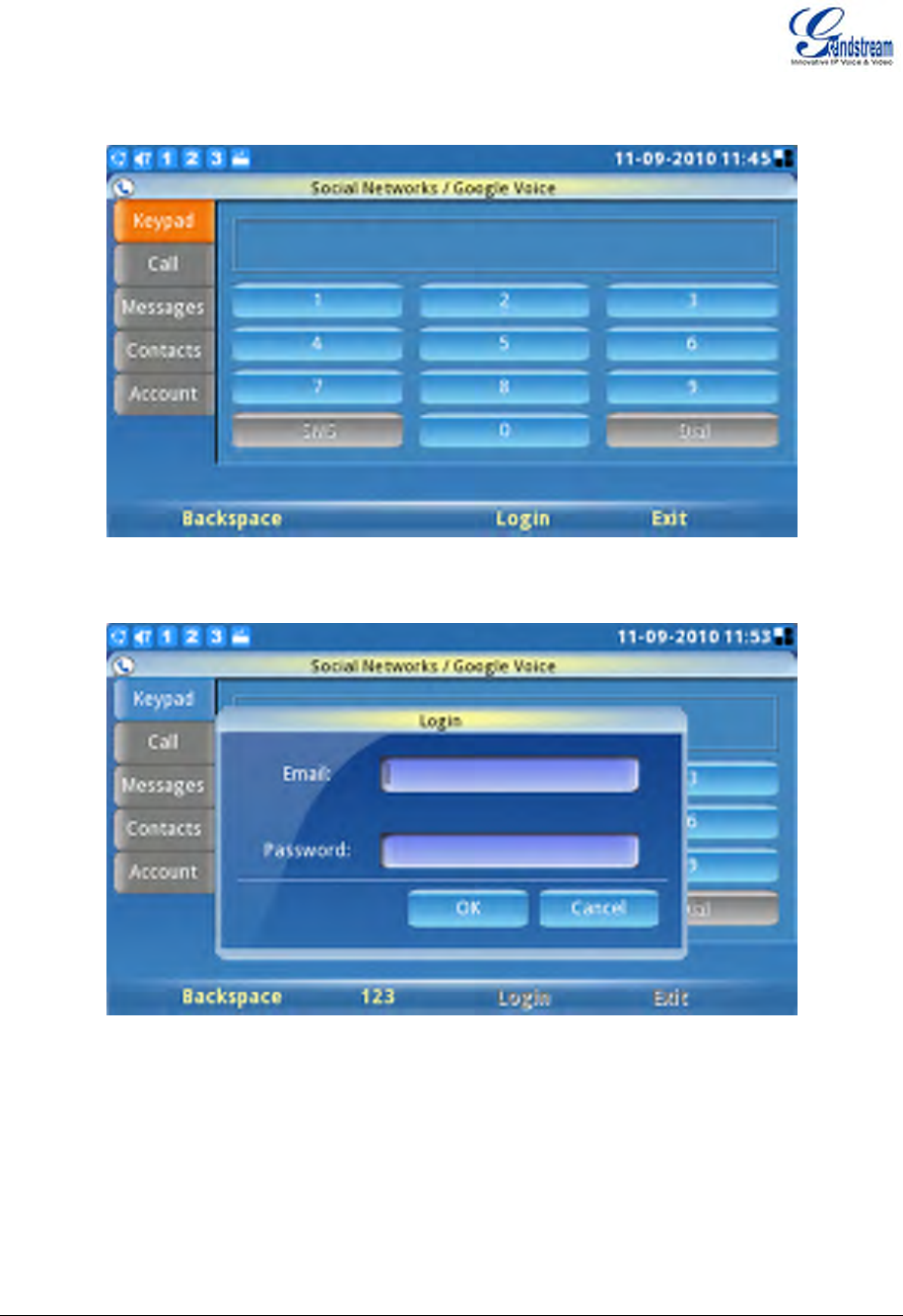

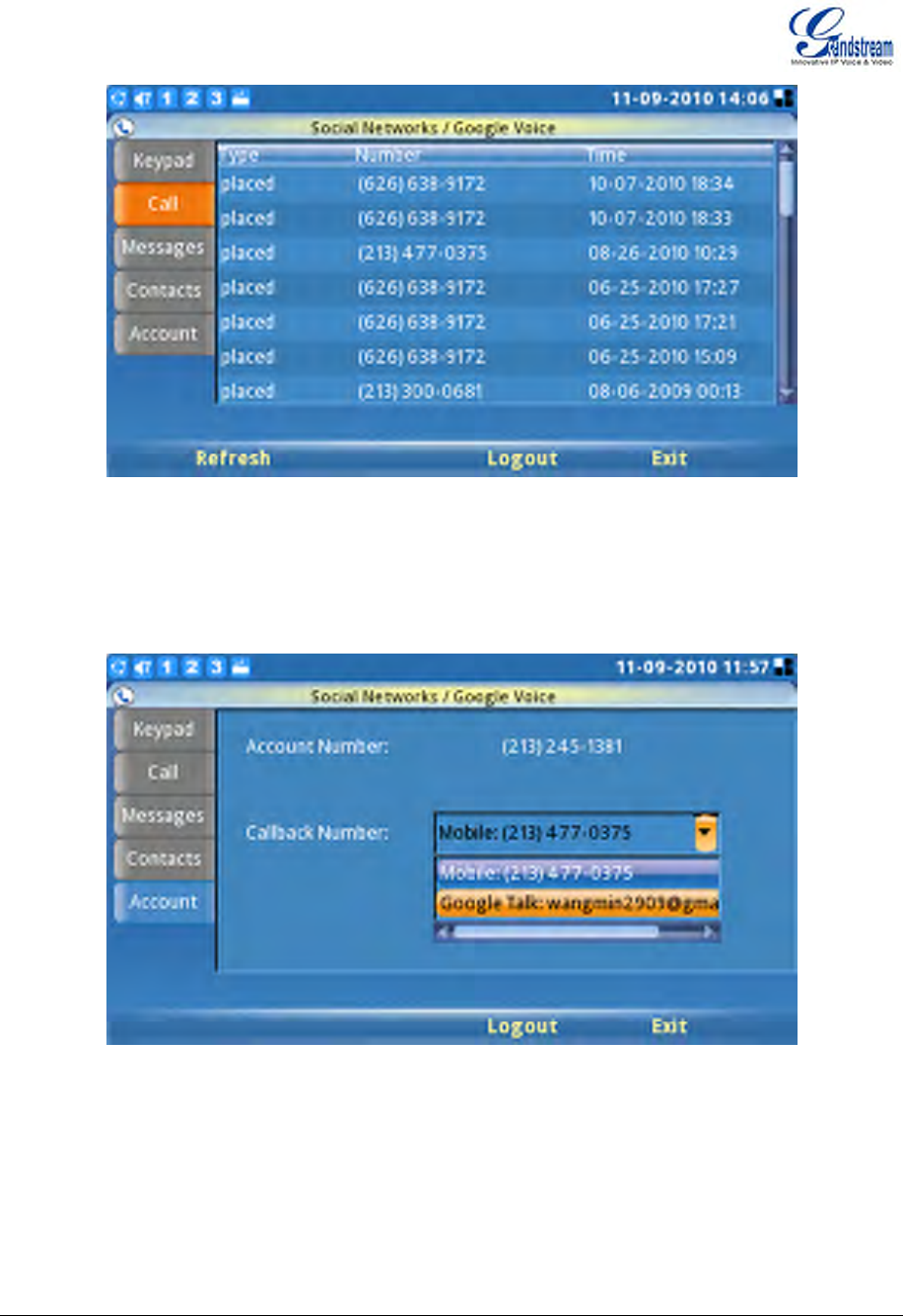

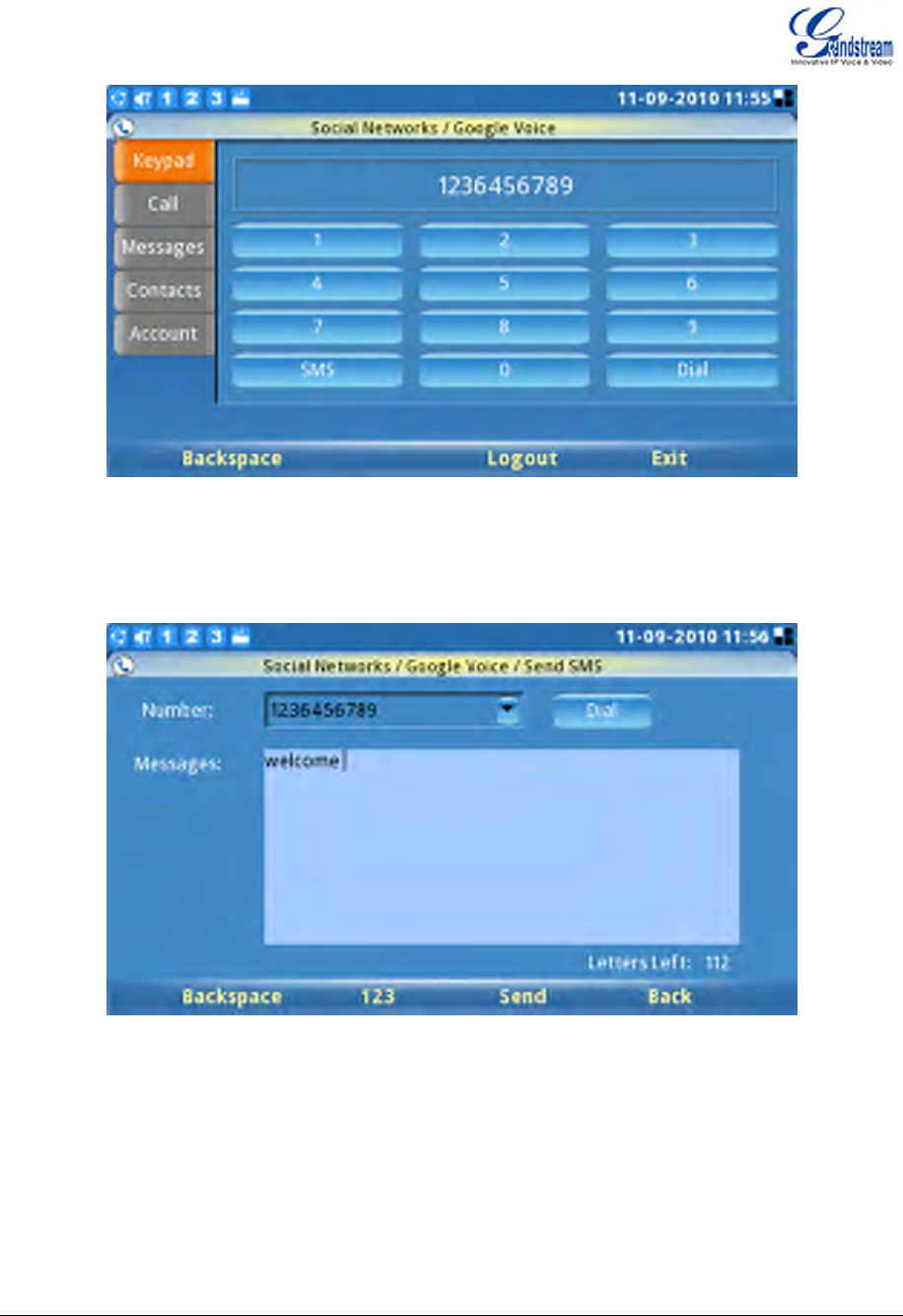

GOOGLE VOICE..................................................................................................................86
WEB BROWSER .................................................................................................................................89
MULTIMEDIA .......................................................................................................................................91
•

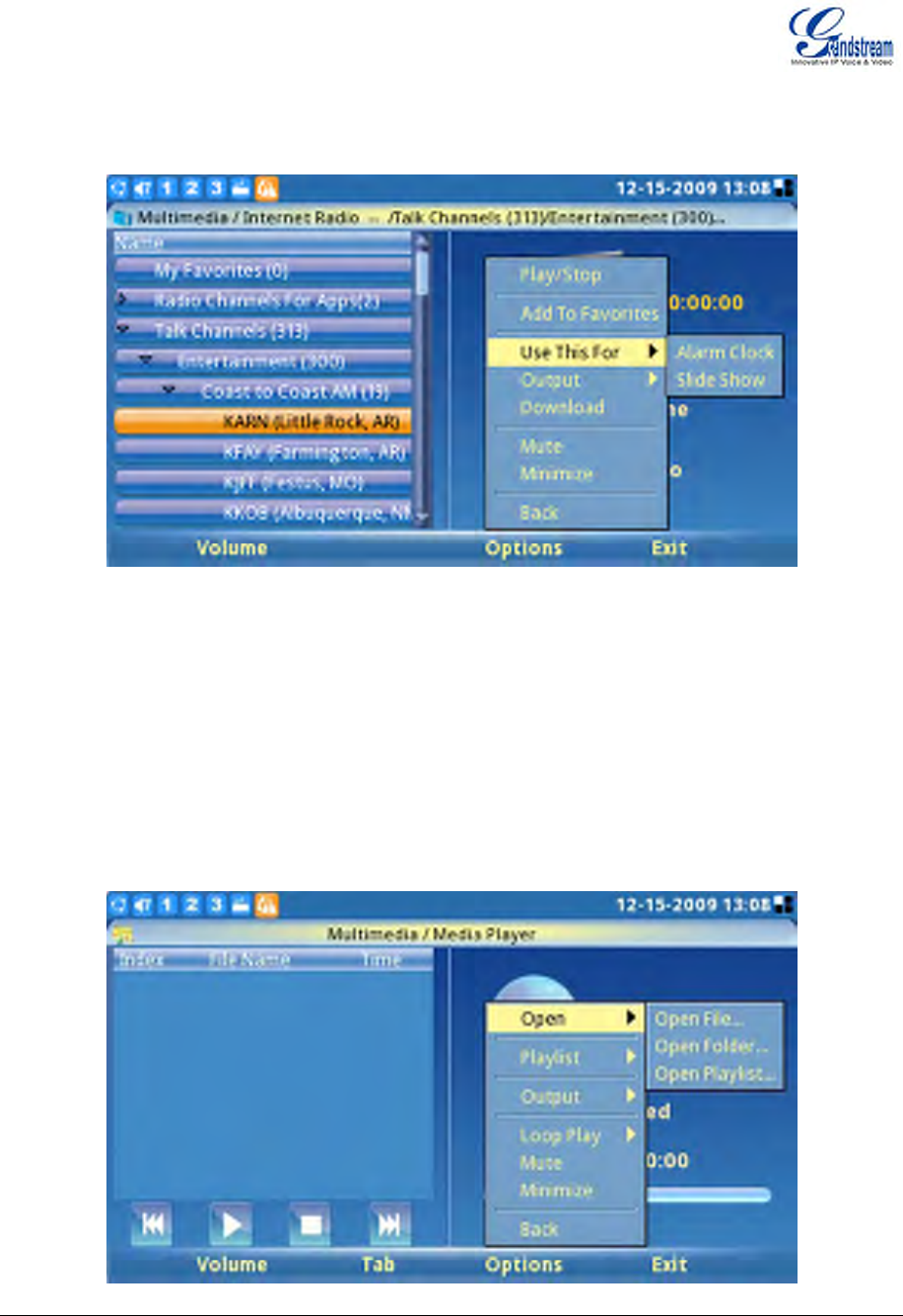

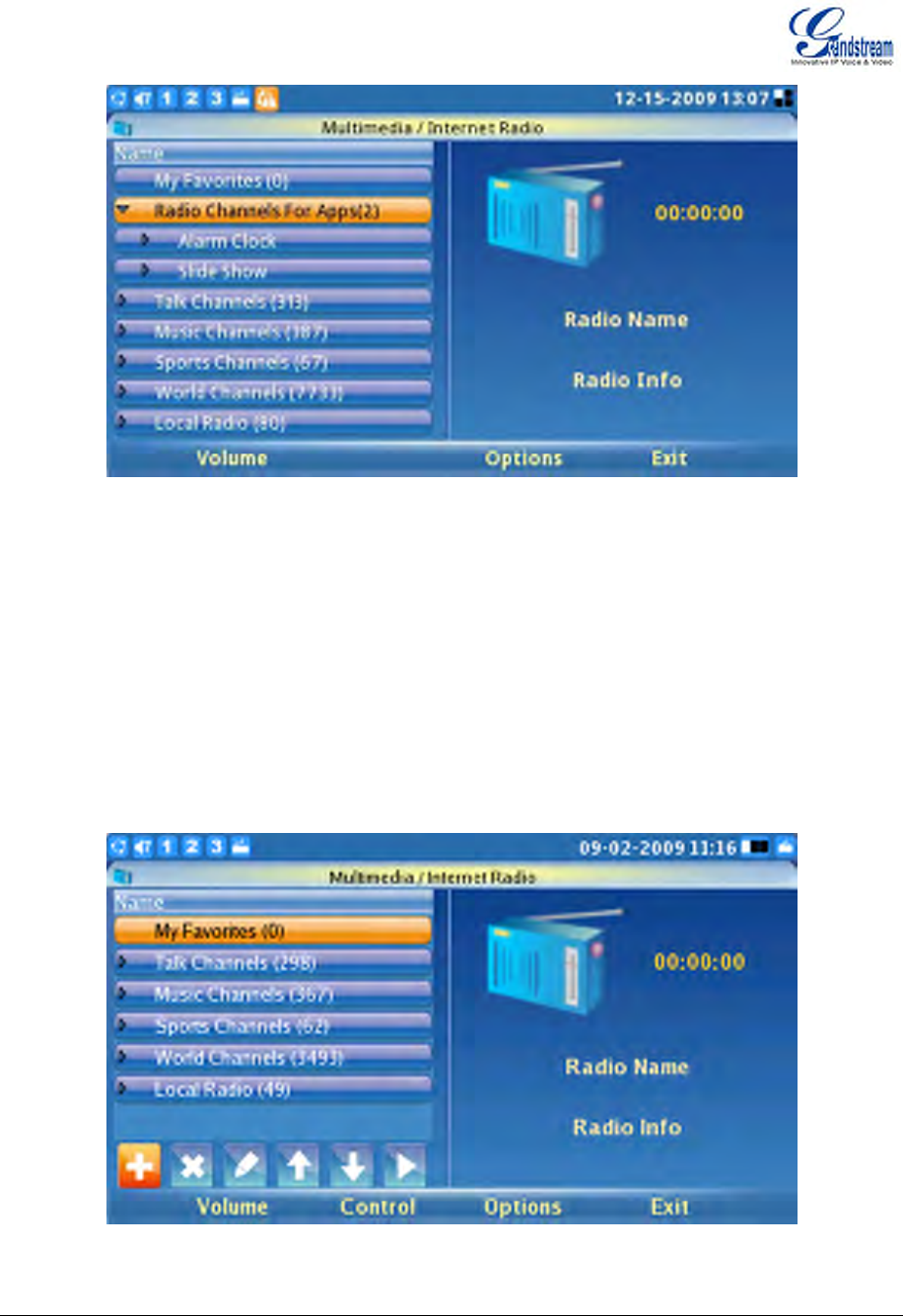

INTERNET RADIO...............................................................................................................91
•
MEDIA PLAYER ...................................................................................................................93
•

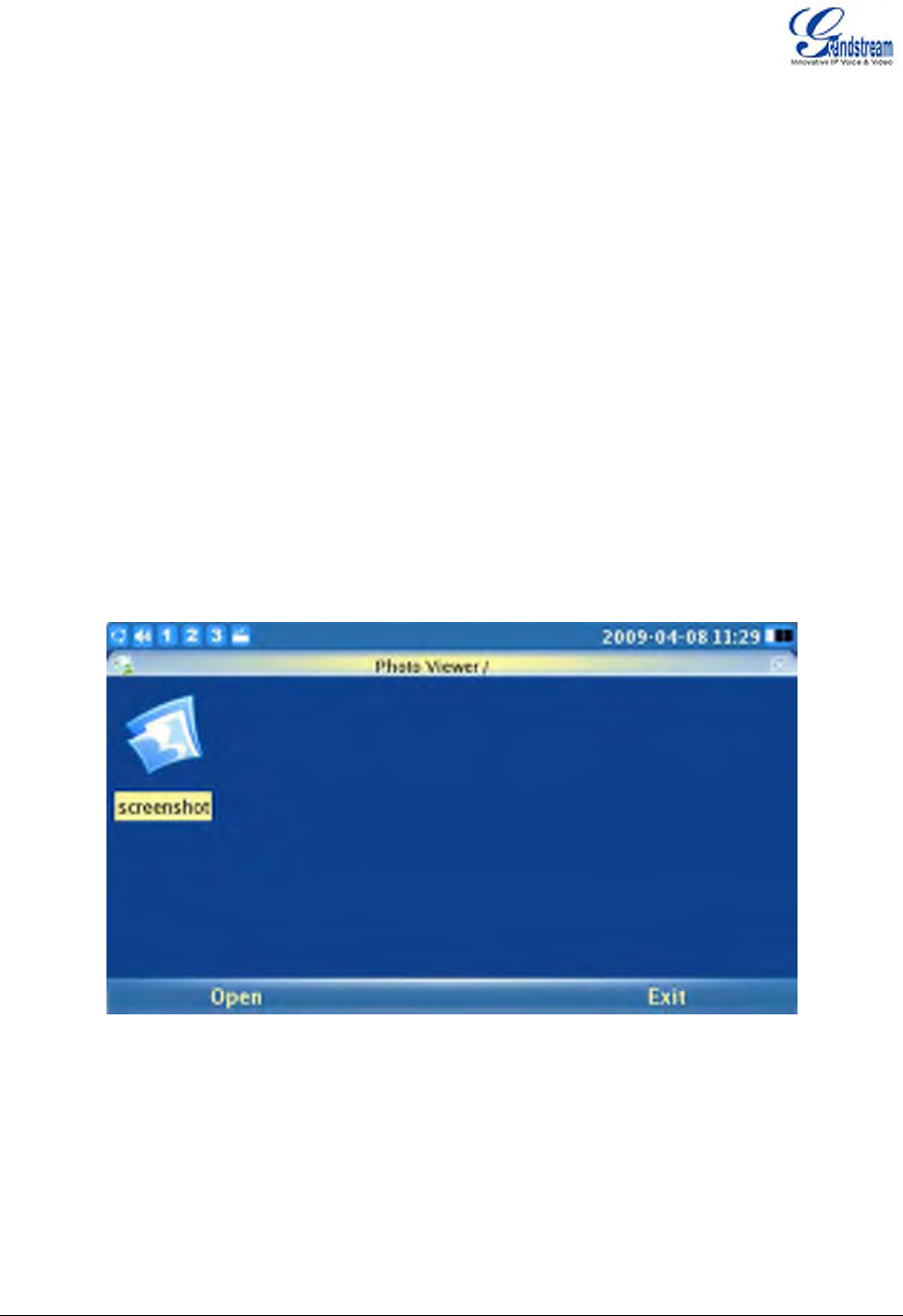

PHOTO VIEWER .................................................................................................................94
•

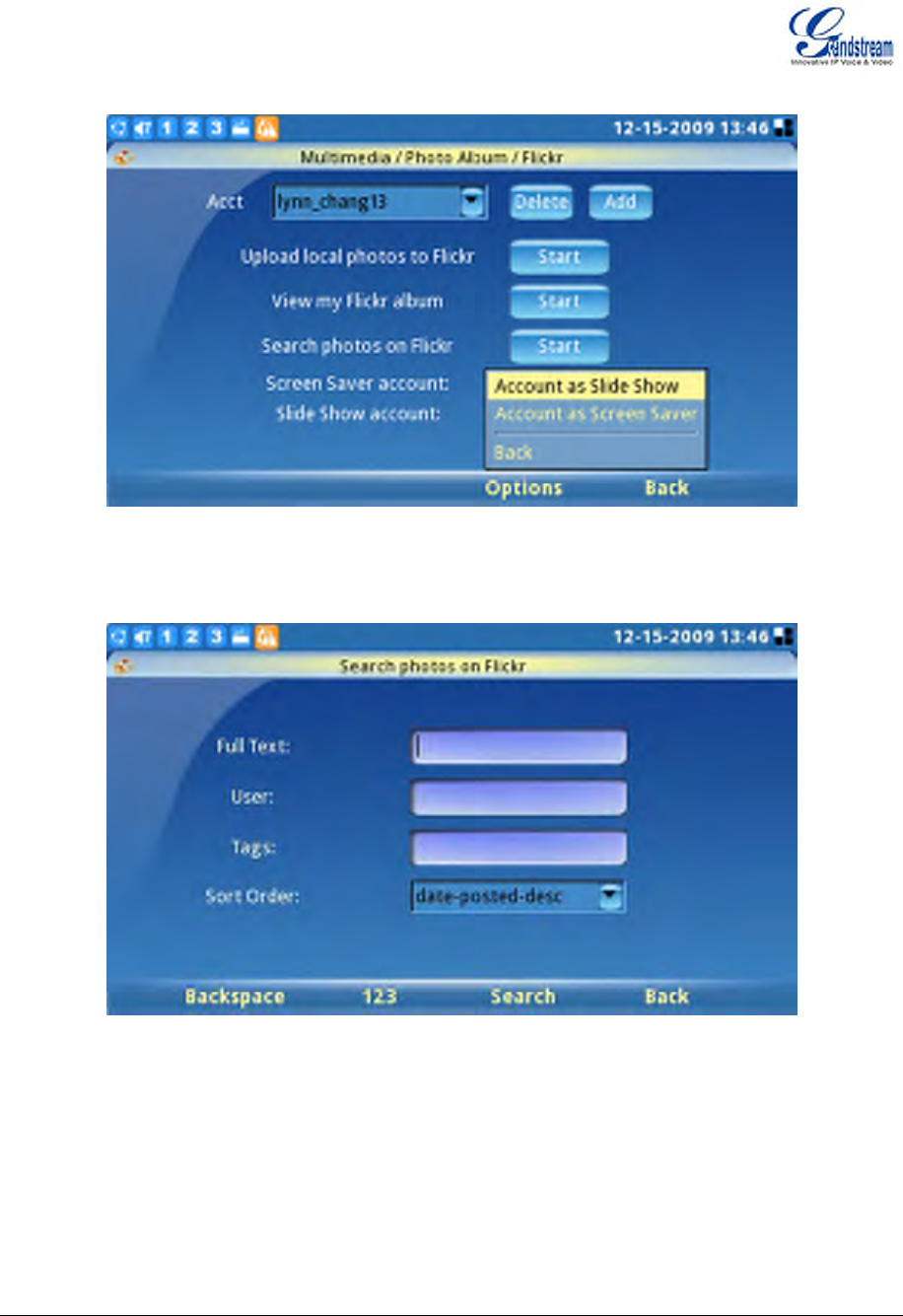

PHOTO ALBUM ...................................................................................................................95
•

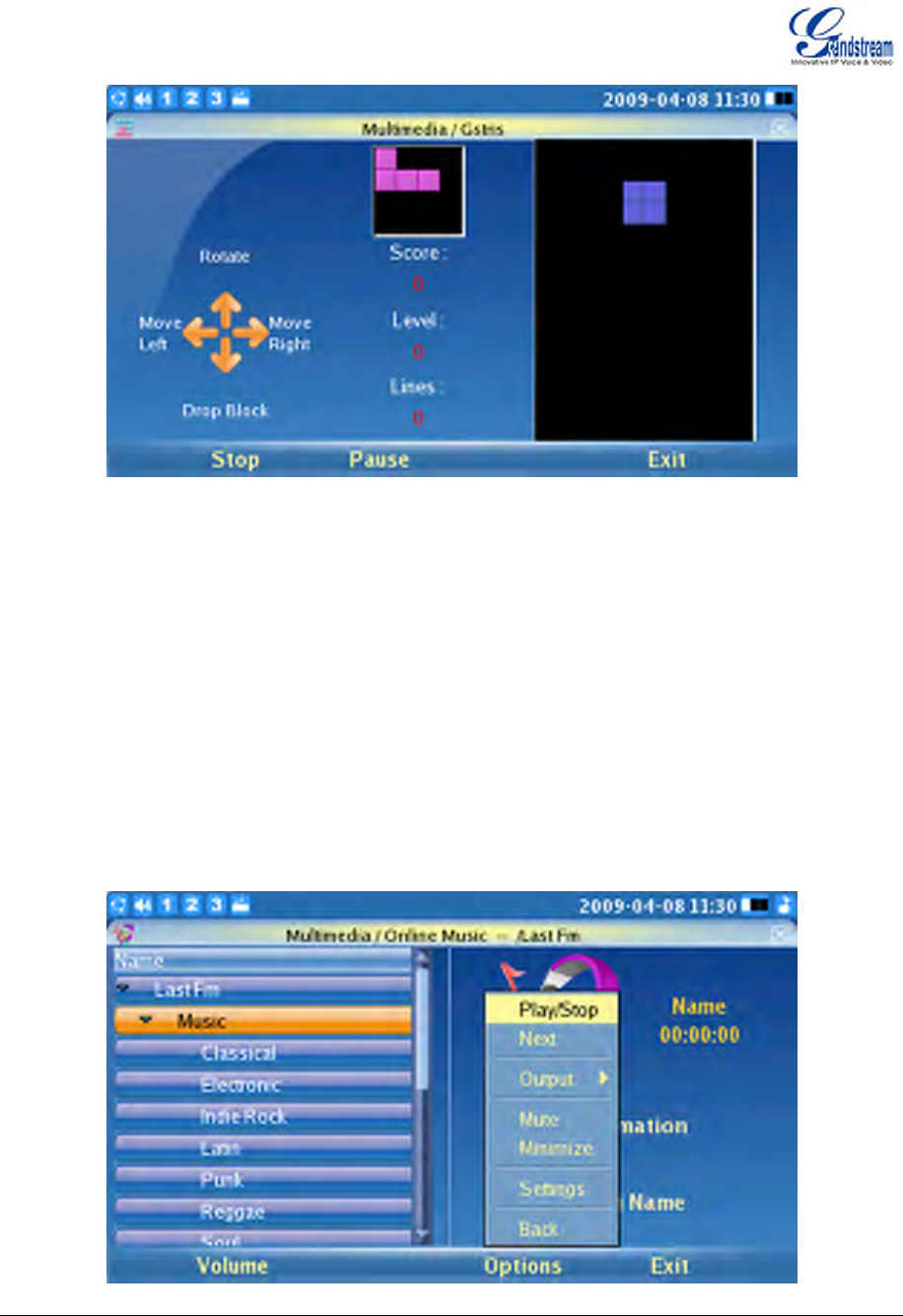

GSTRIS ................................................................................................................................97
•
ONLINE MUSIC ...................................................................................................................98
•

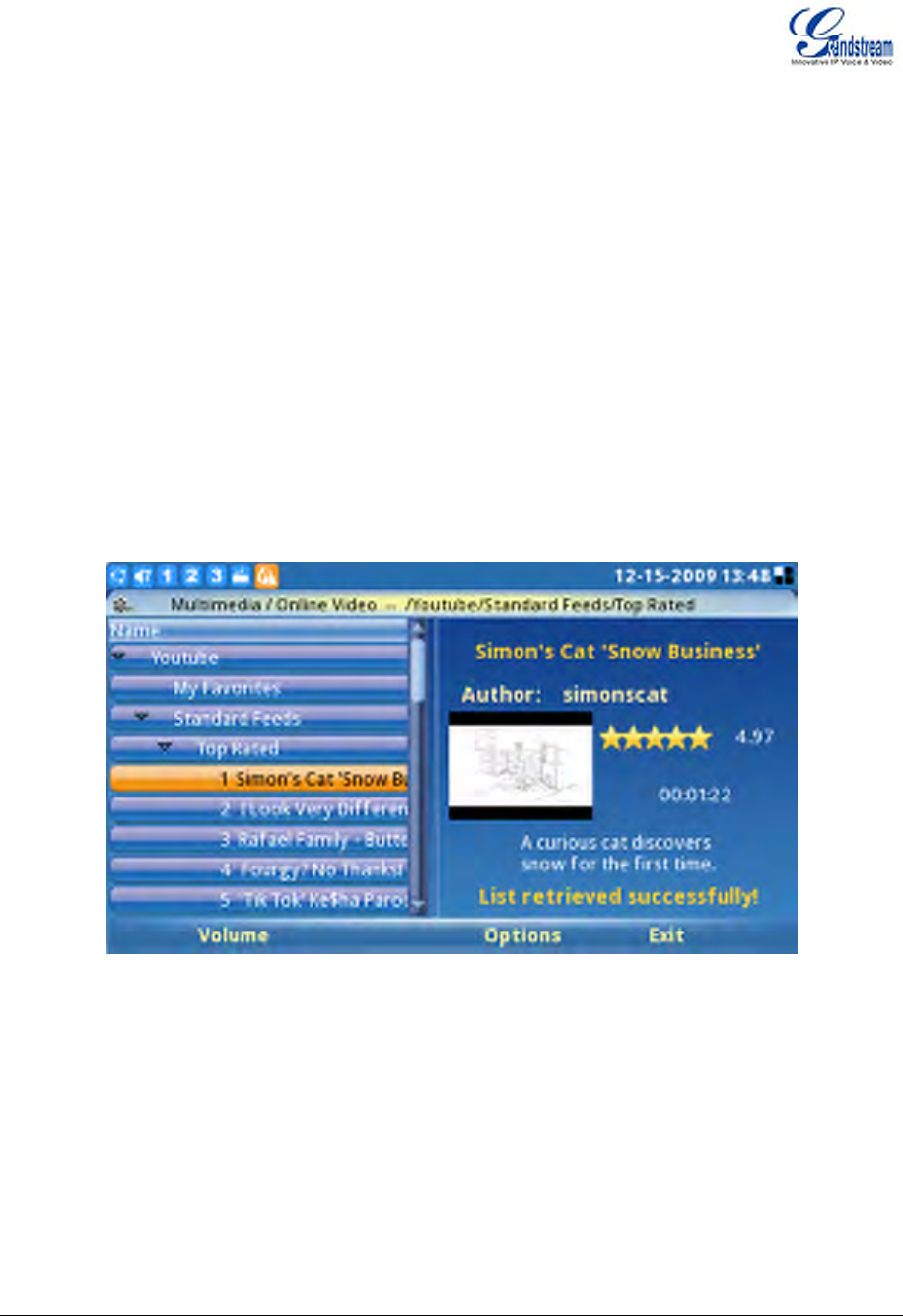

ONLINE VIDEO....................................................................................................................99
•

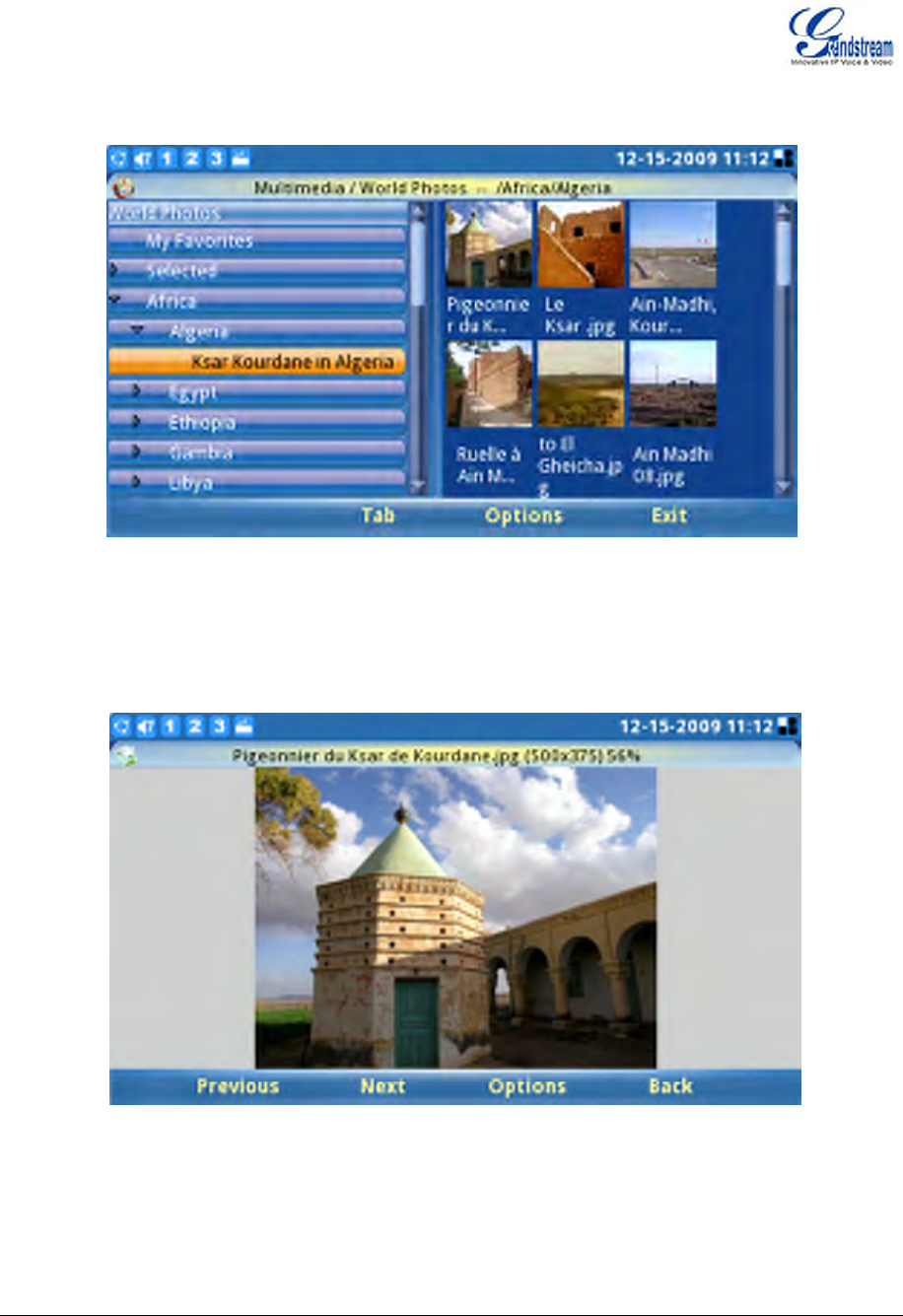

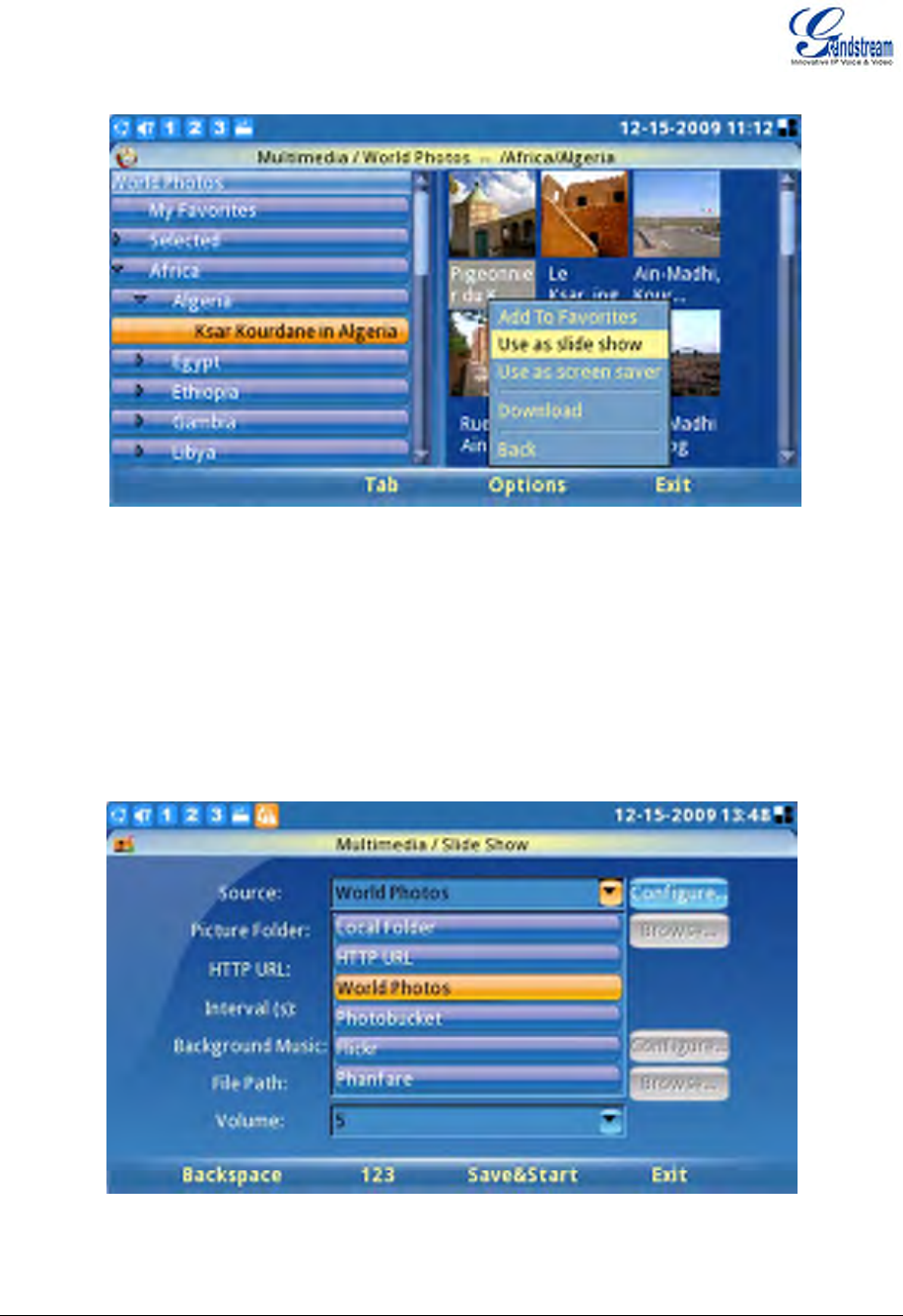

WORLD PHOTOS..............................................................................................................100
•
SLIDE SHOW.....................................................................................................................102
•

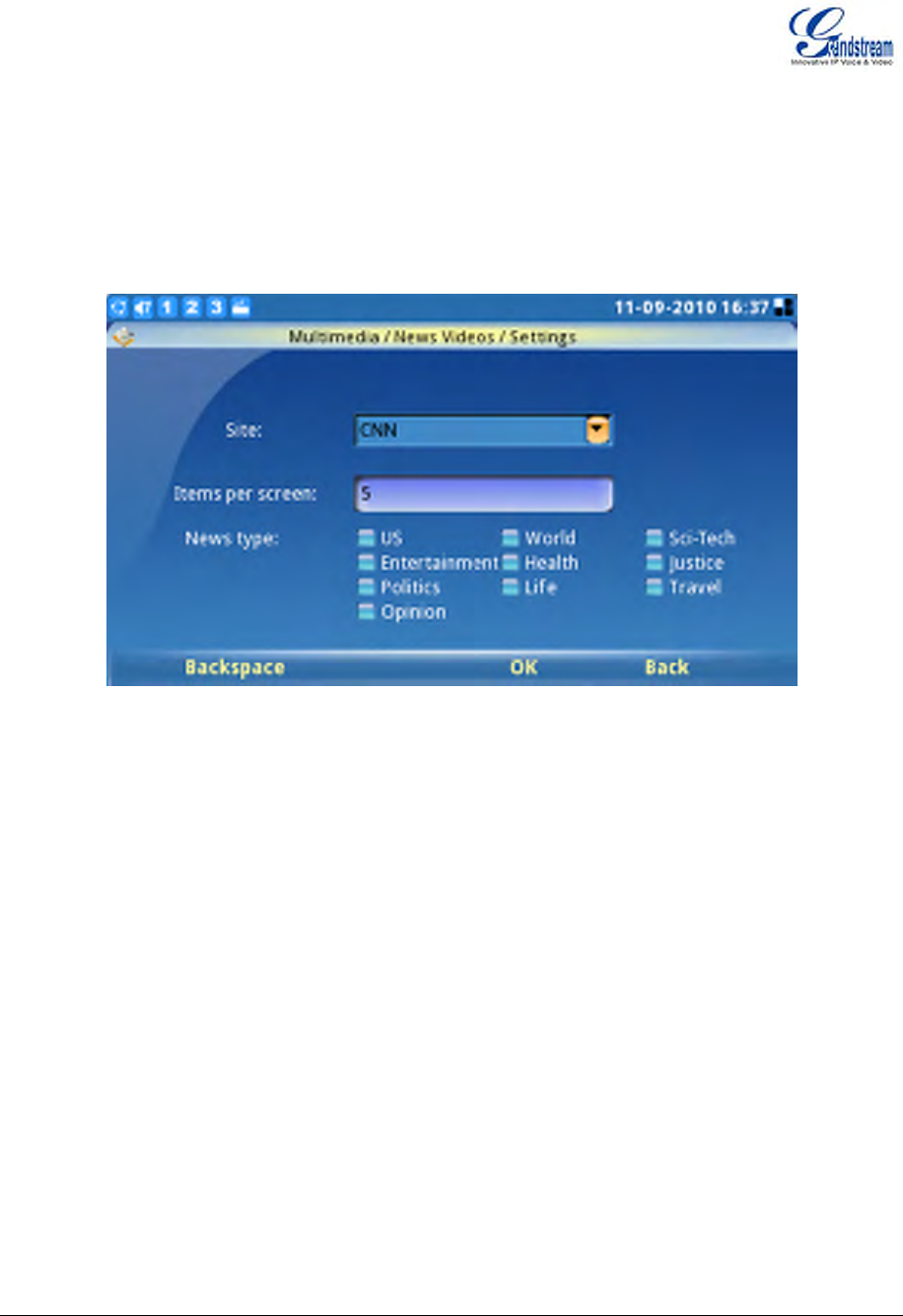

NEWS VIDEOS..................................................................................................................103
APPLICATIONS .................................................................................................................................104
•

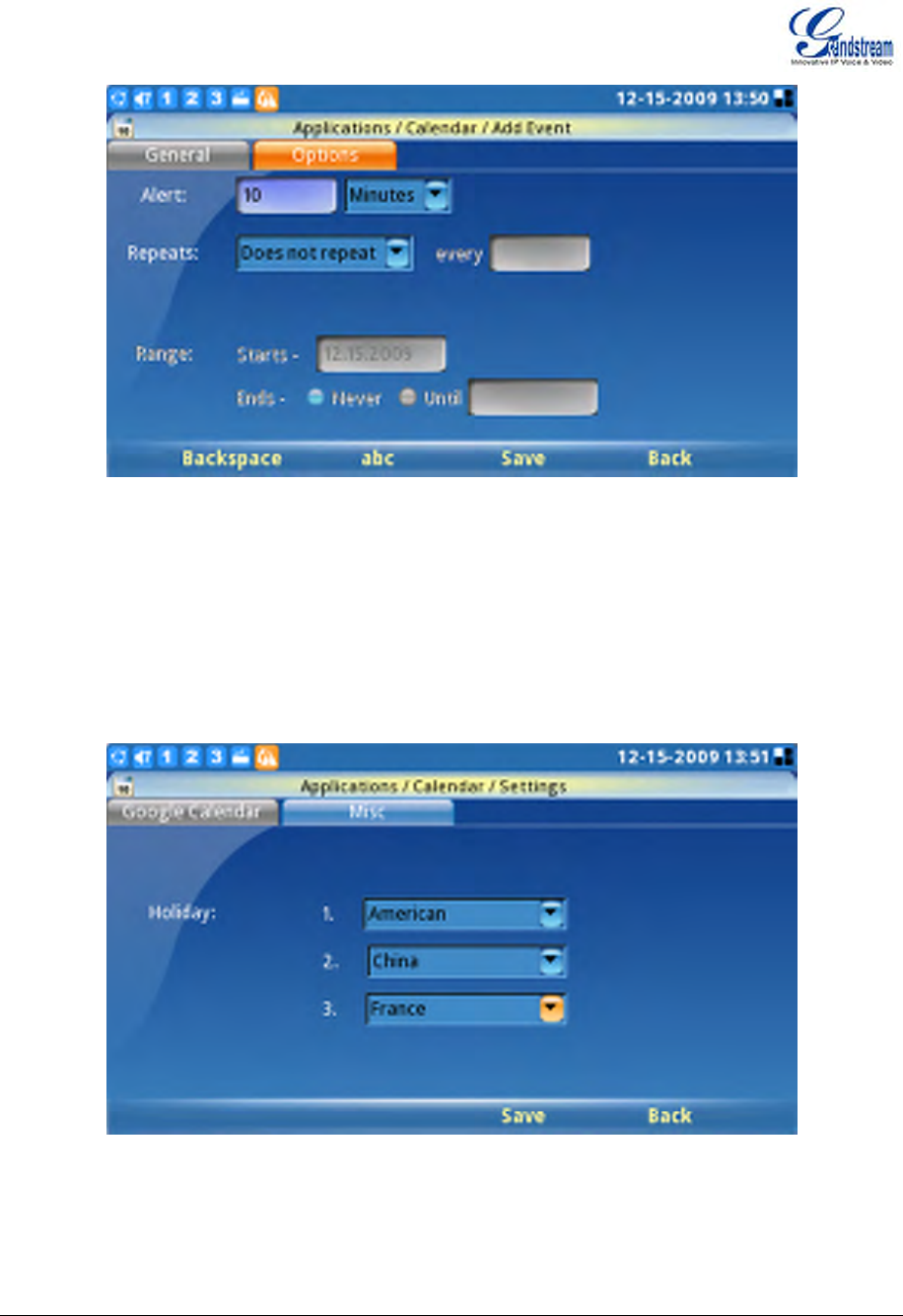

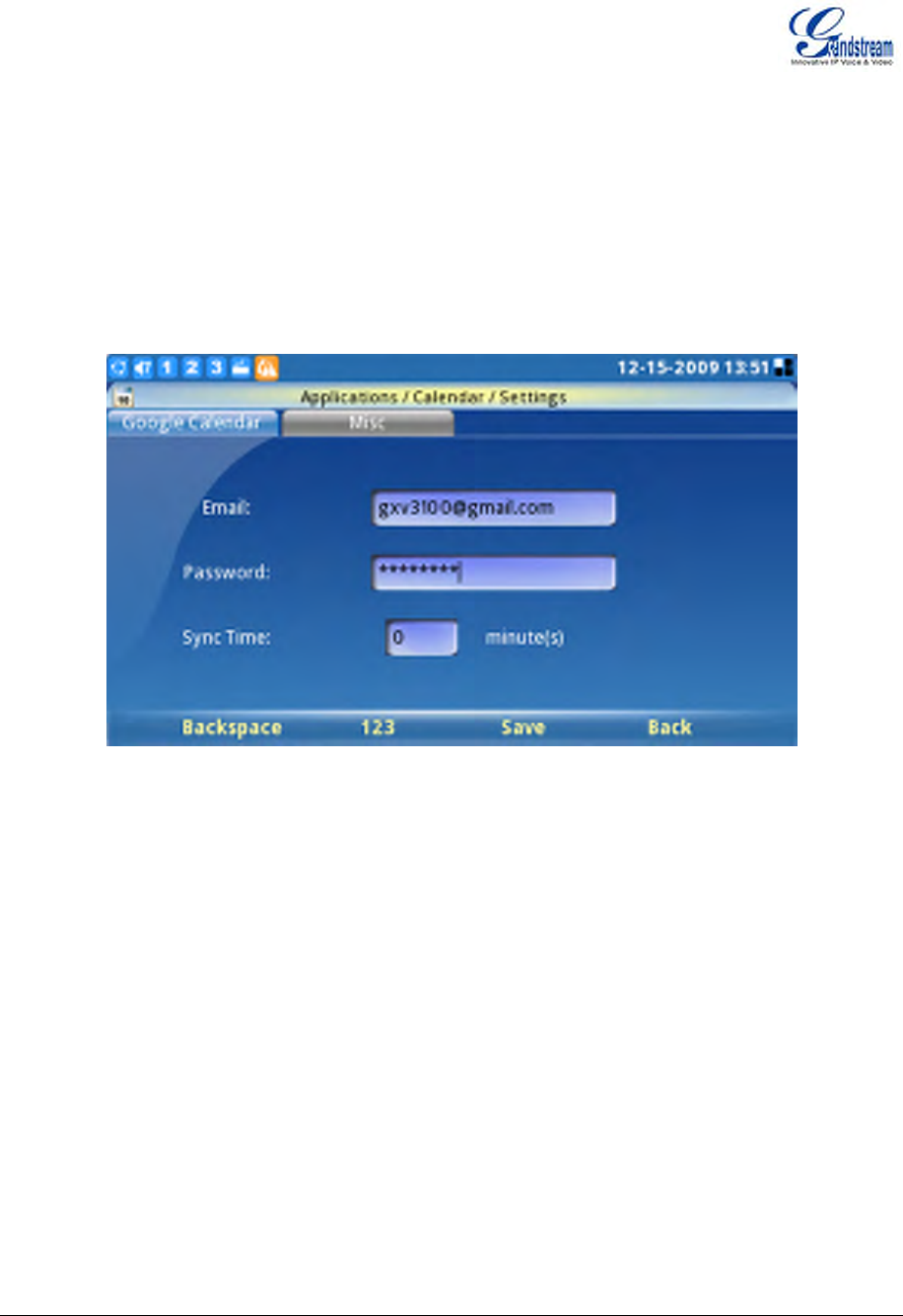

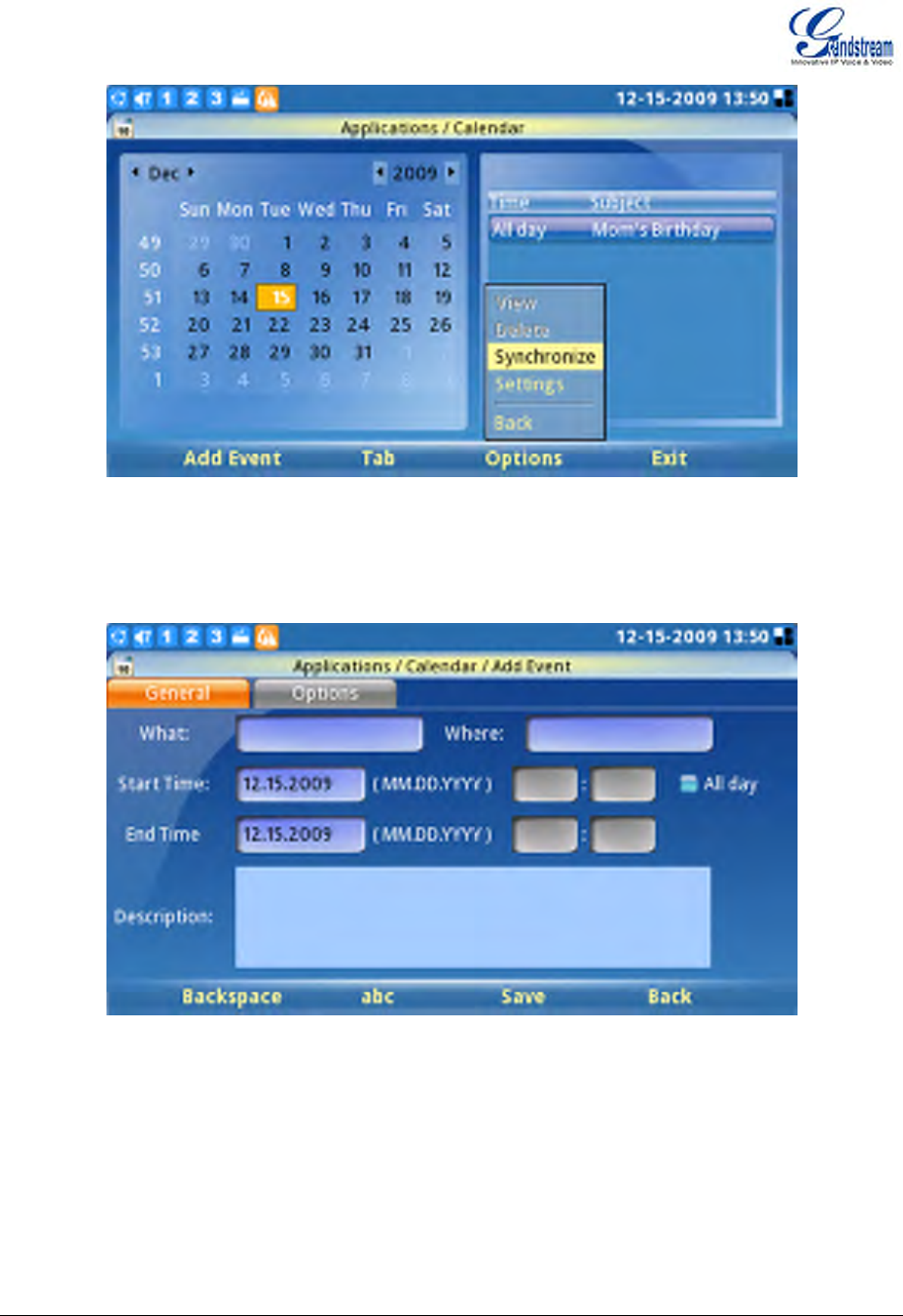

CALENDAR........................................................................................................................104
•

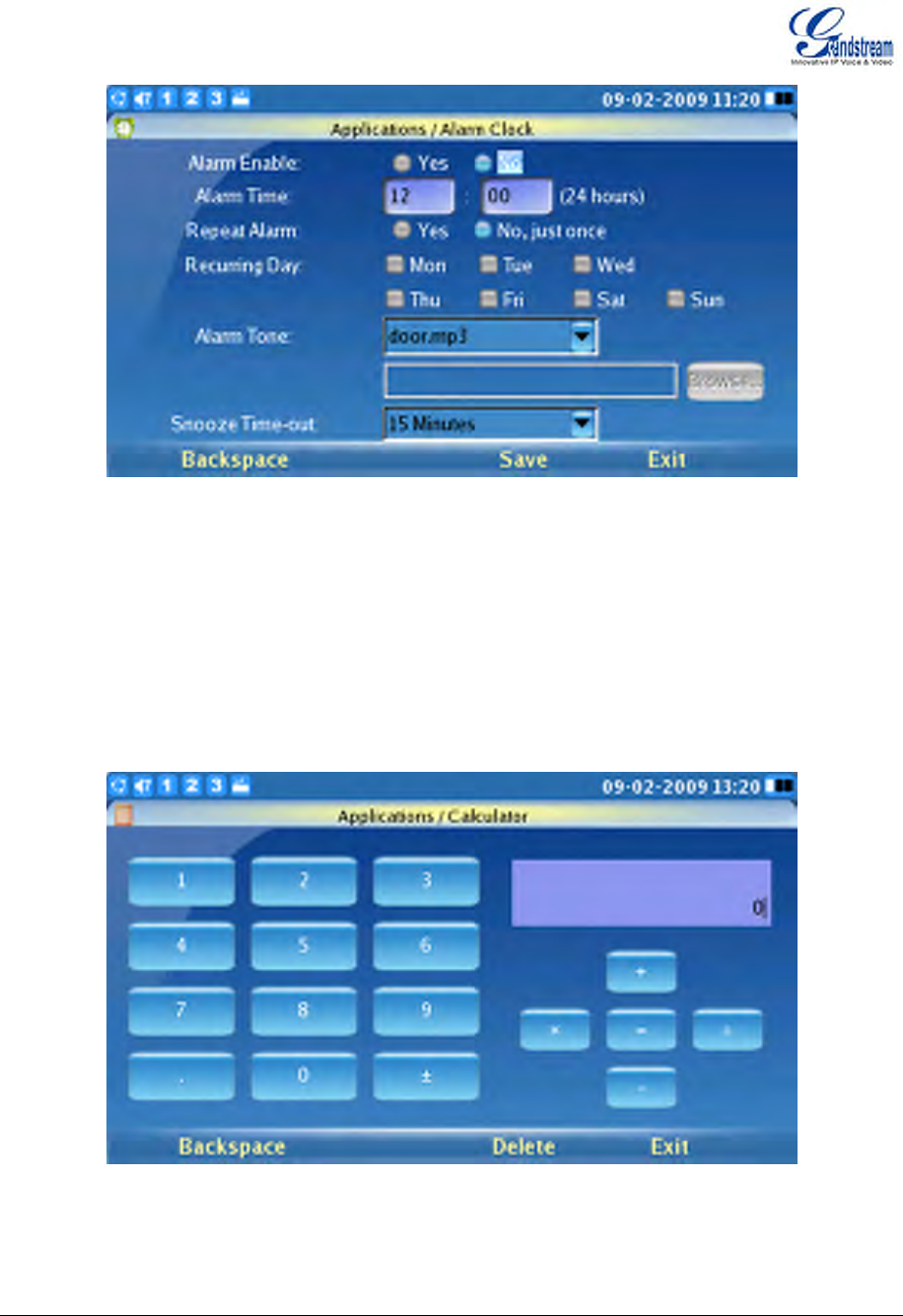

ALARM CLOCK..................................................................................................................107
•
CALCULATOR....................................................................................................................108
•

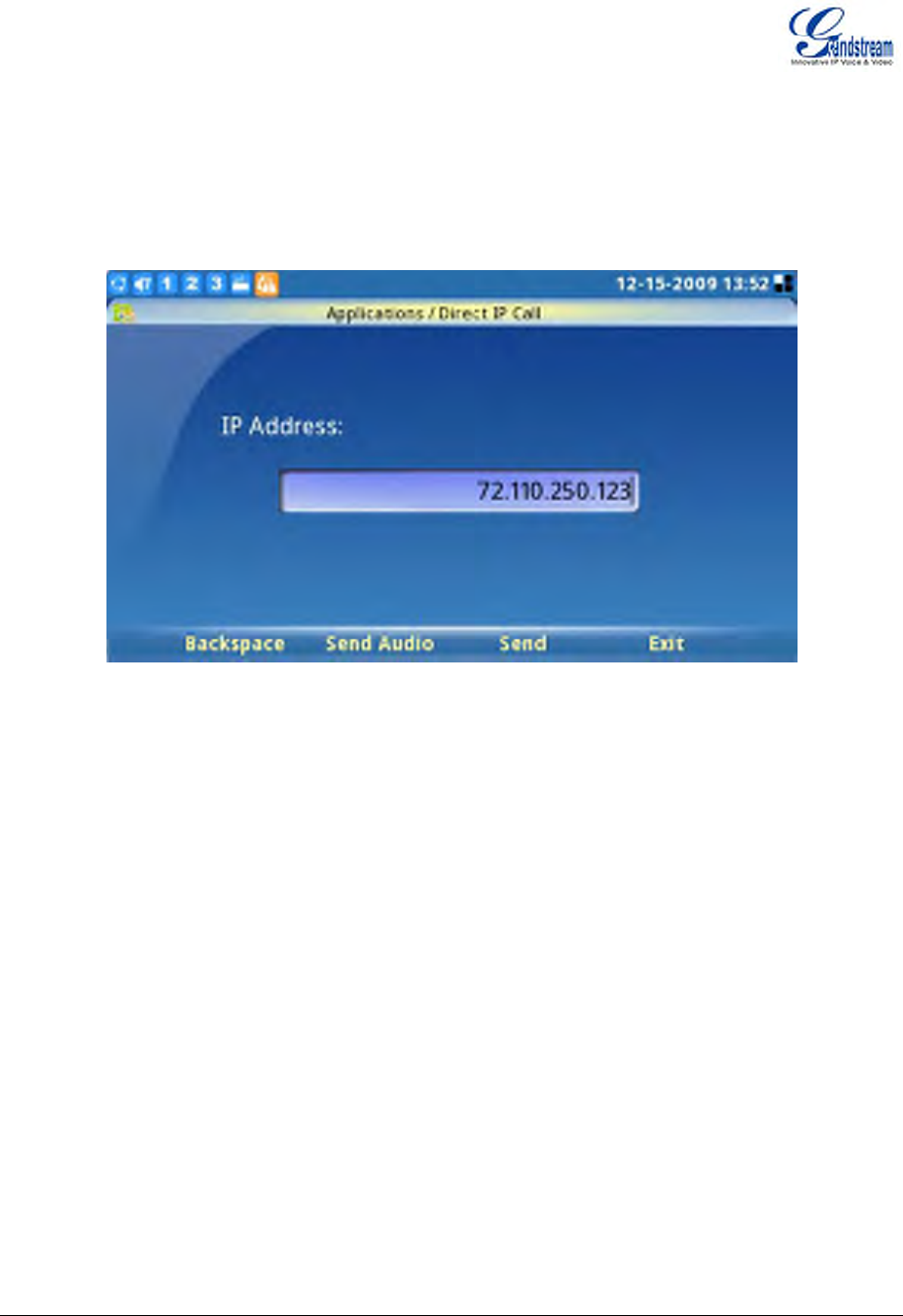

DIRECT IP CALL................................................................................................................109
•

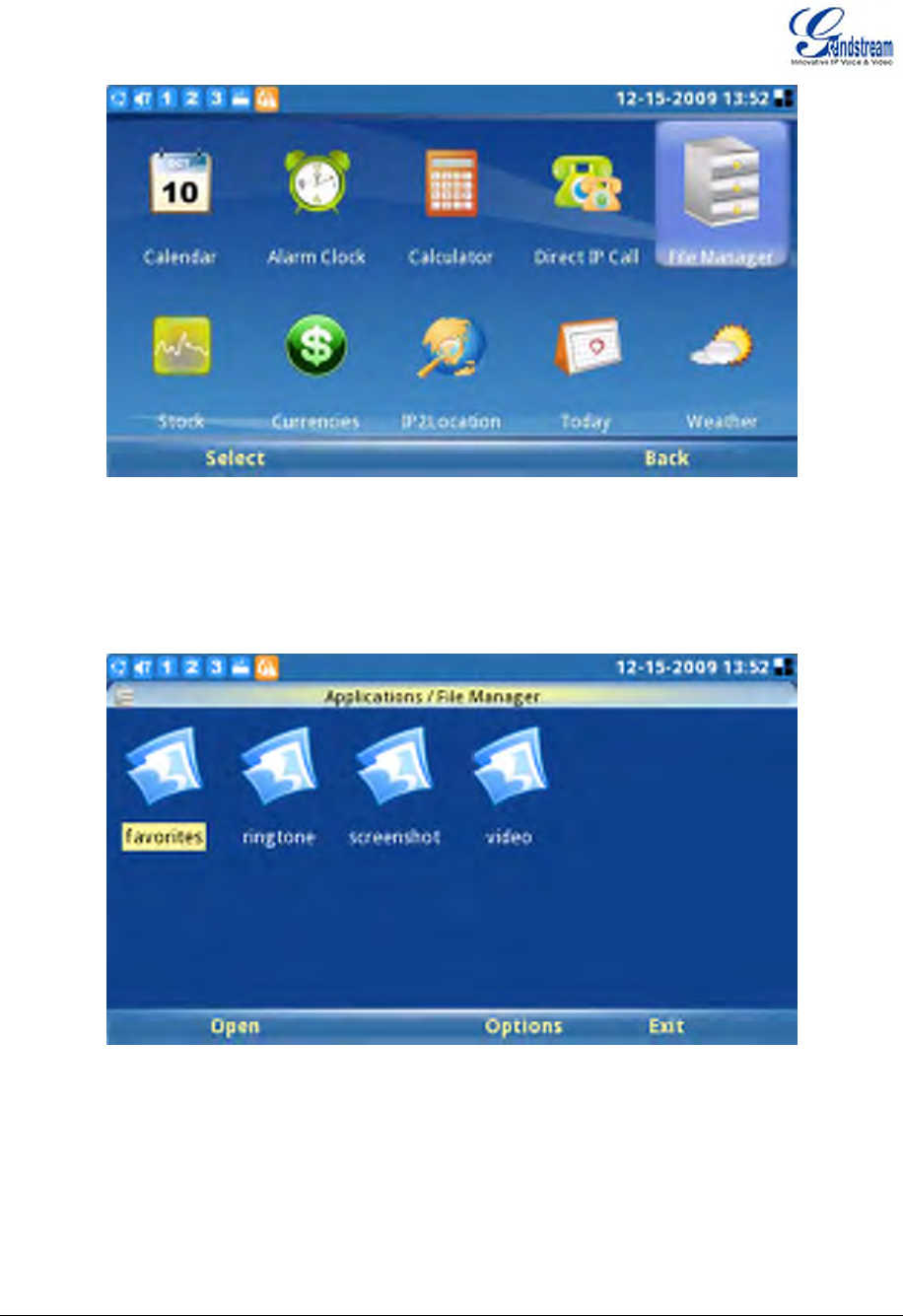

FILE MANAGER.................................................................................................................109
•
STOCK ............................................................................................................................... 111
•
CURRENCIES.................................................................................................................... 112
•

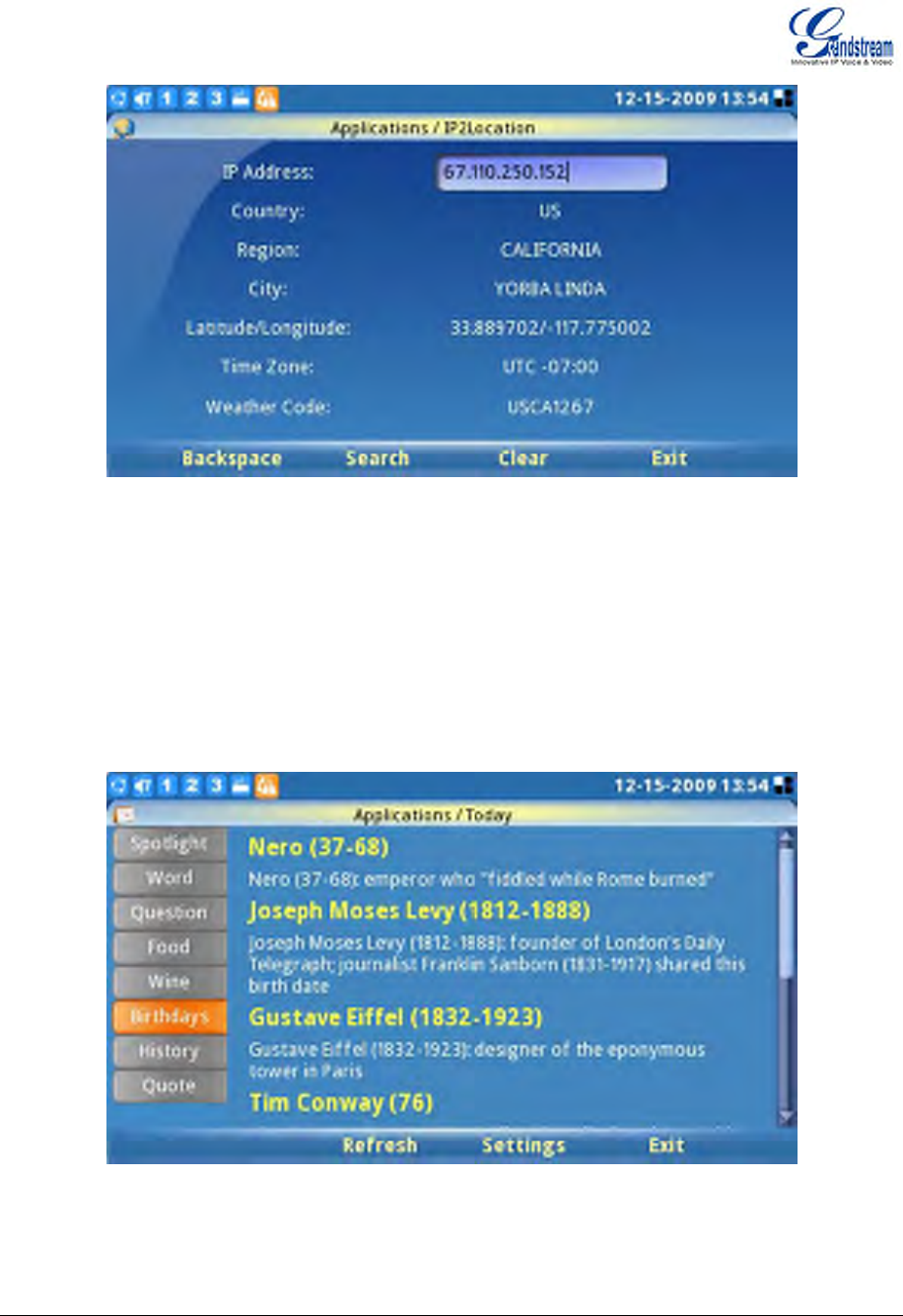

IP2LOCATION....................................................................................................................112
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 4 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
•
TODAY ............................................................................................................................... 113
•
WEATHER.......................................................................................................................... 114
SETTINGS ......................................................................................................................................... 116
•
ACCOUNT SETTINGS....................................................................................................... 116
•

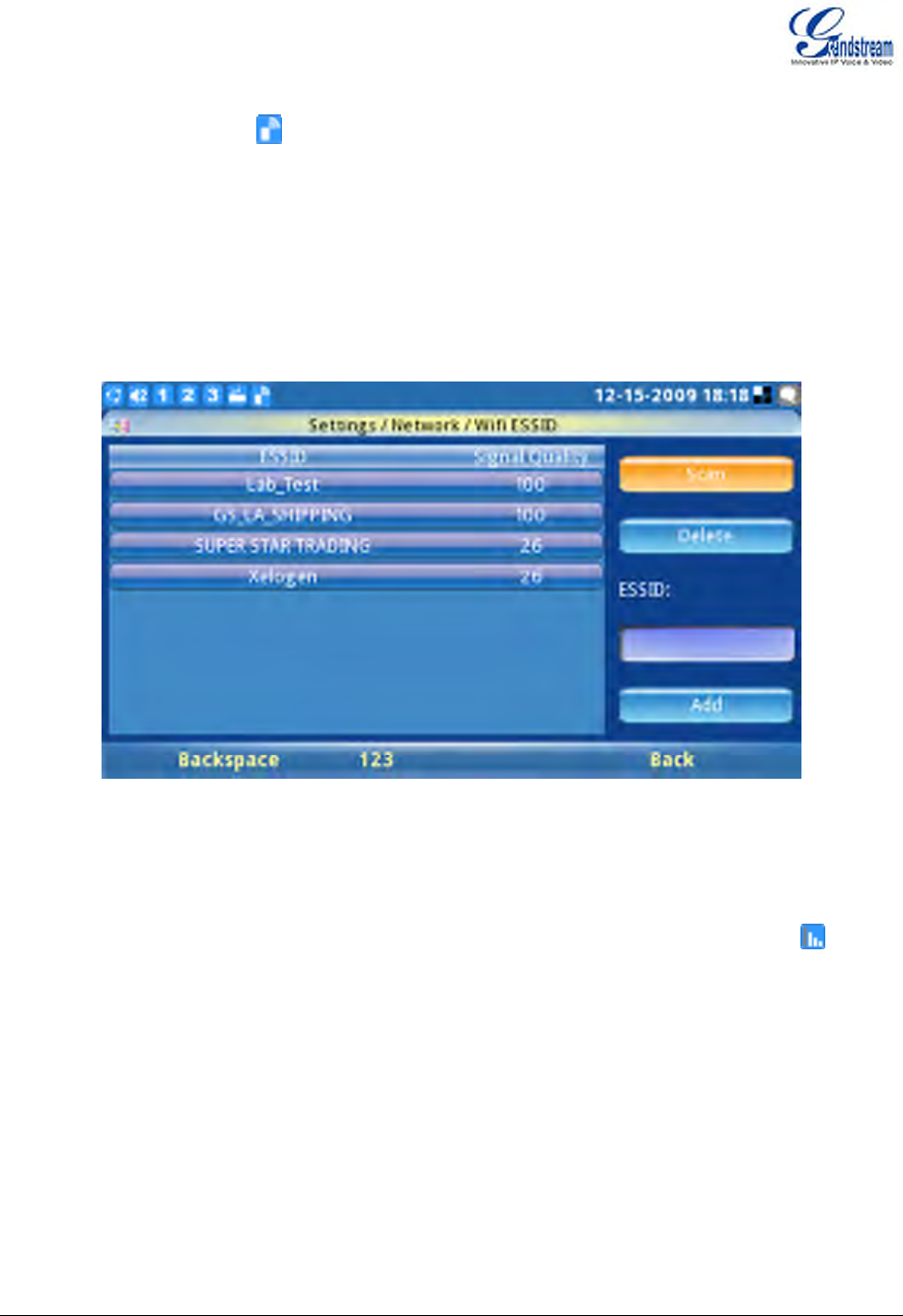

NETWORK SETTINGS...................................................................................................... 117
•
TIME SETTINGS................................................................................................................121
•
DISPLAY SETTINGS..........................................................................................................121
•

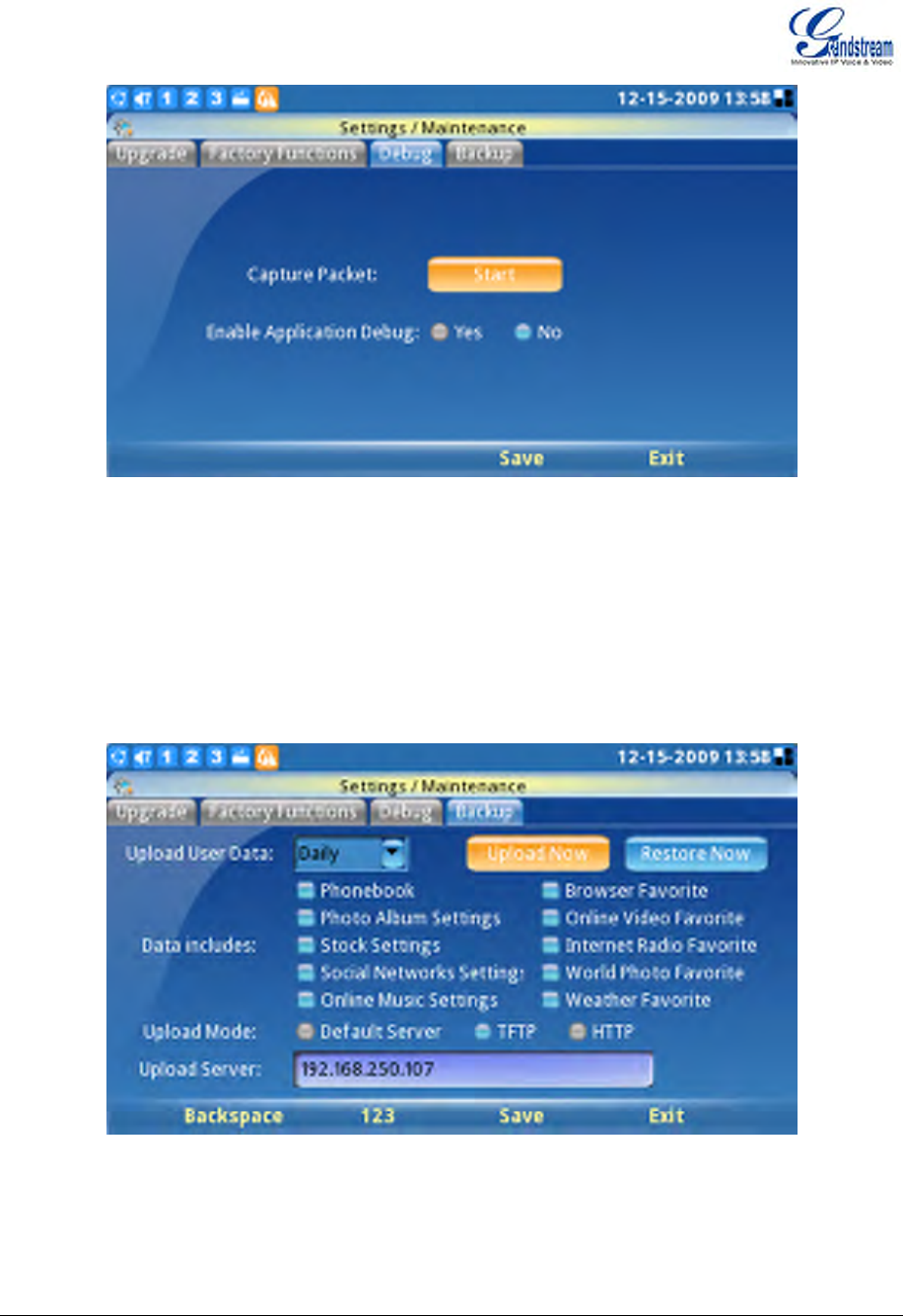

MAINTENANCE .................................................................................................................122
•
CAMERA ............................................................................................................................125
•

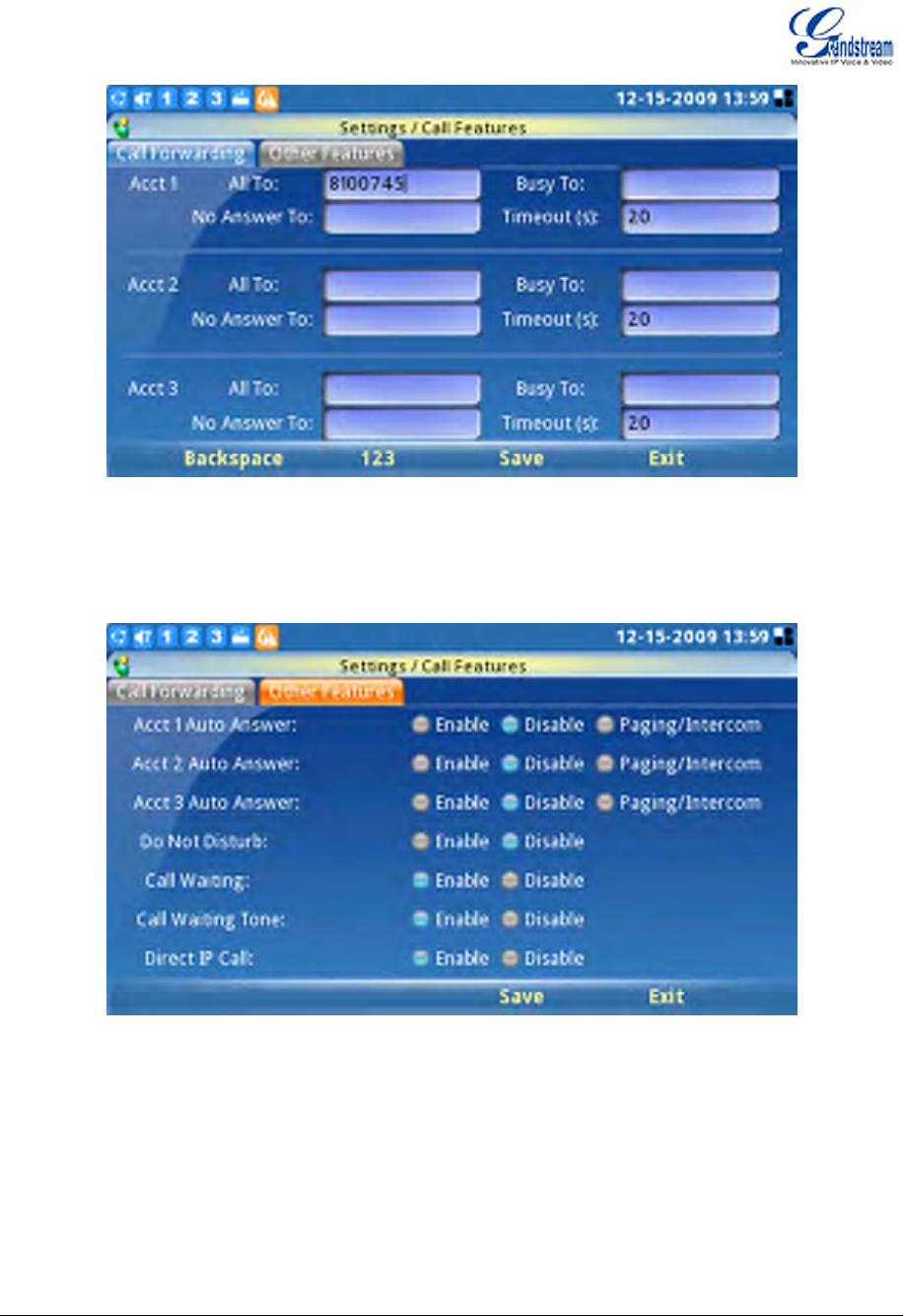

CALL FEATURES...............................................................................................................125
•

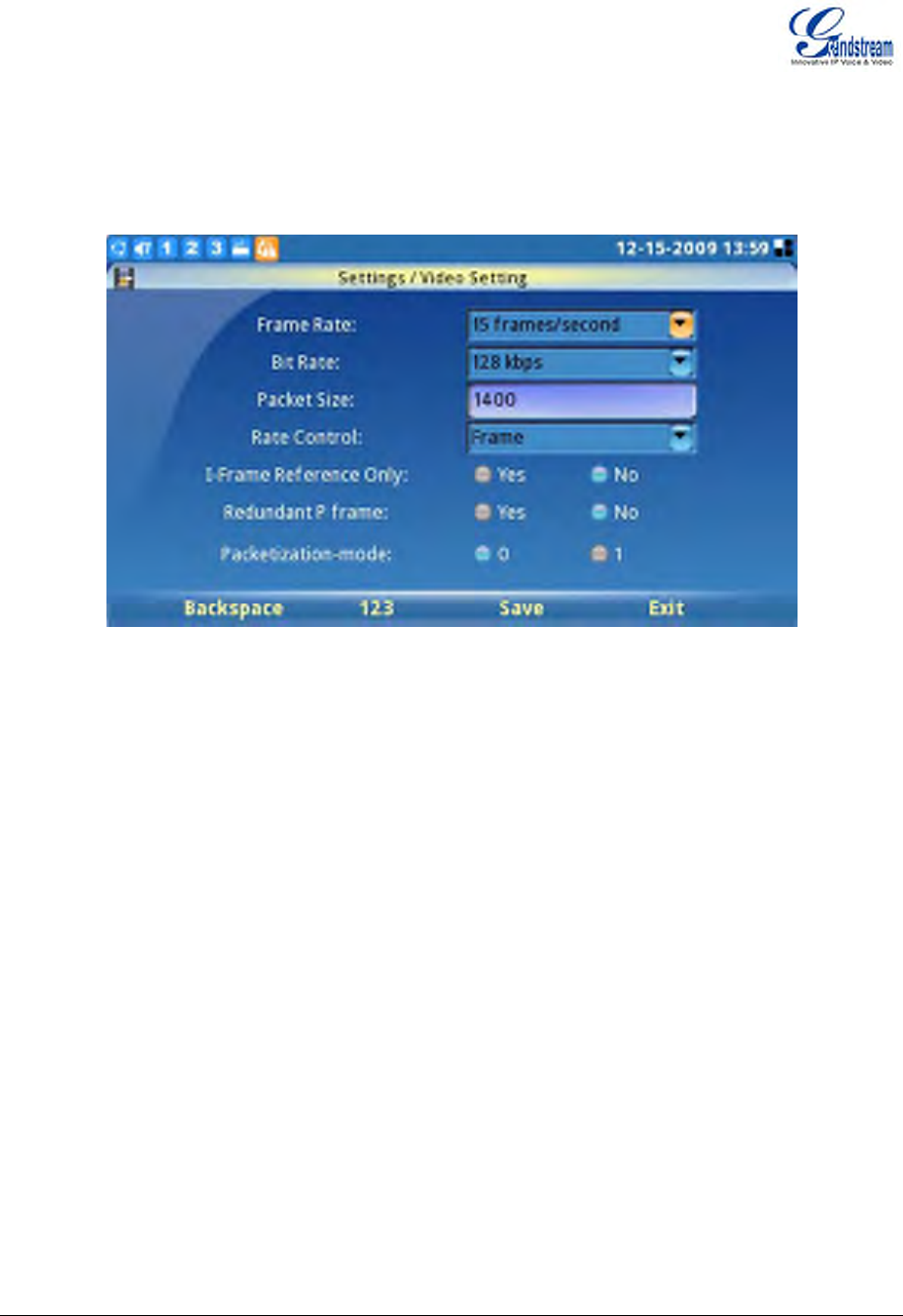

VIDEO SETTINGS .............................................................................................................126
PERSONALIZE..................................................................................................................................127
•

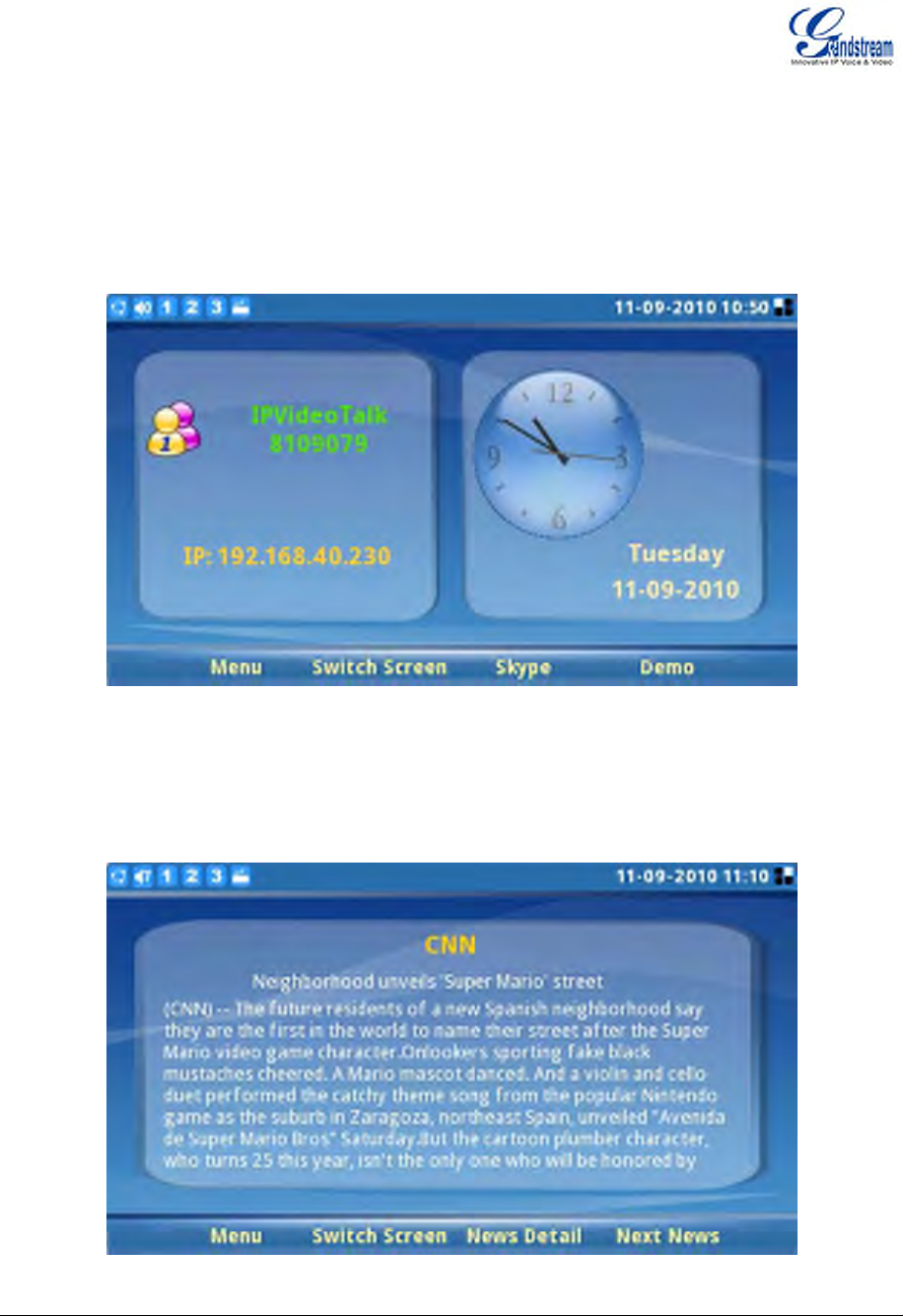

SCREEN LAYOUT .............................................................................................................127
•

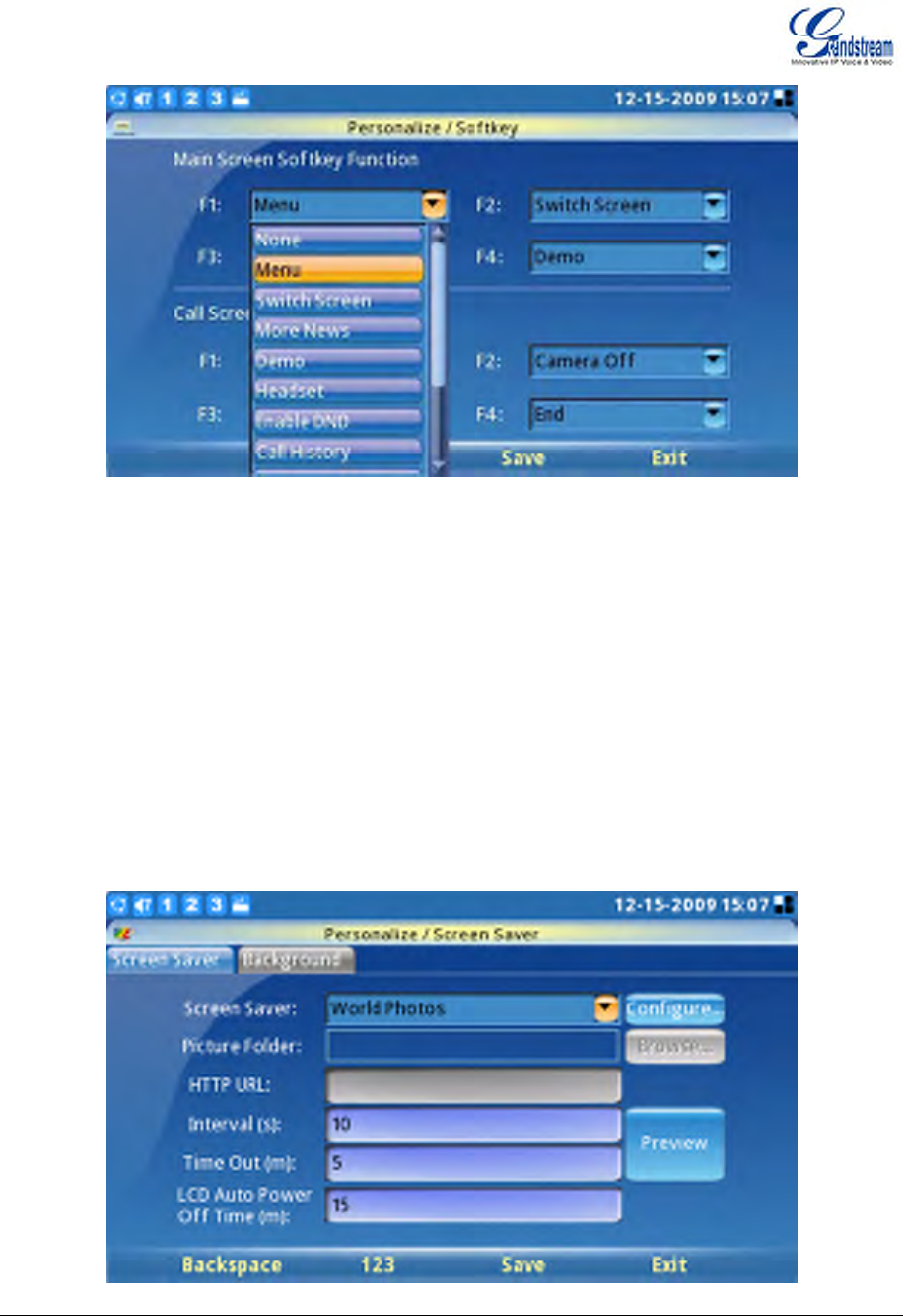

SOFTKEY...........................................................................................................................129
•
SCREENSAVER ................................................................................................................130
•

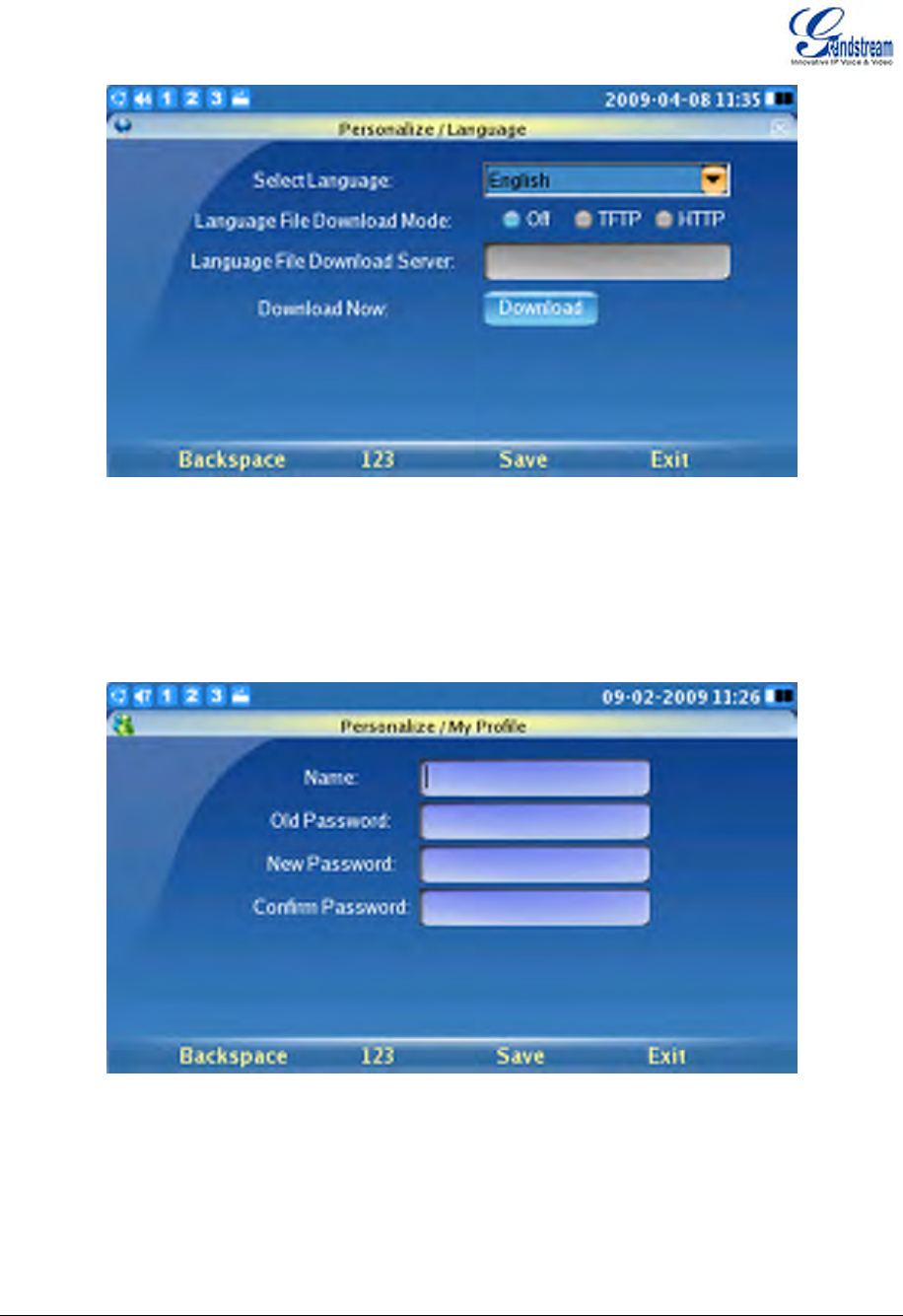

LANGUAGE .......................................................................................................................131
•

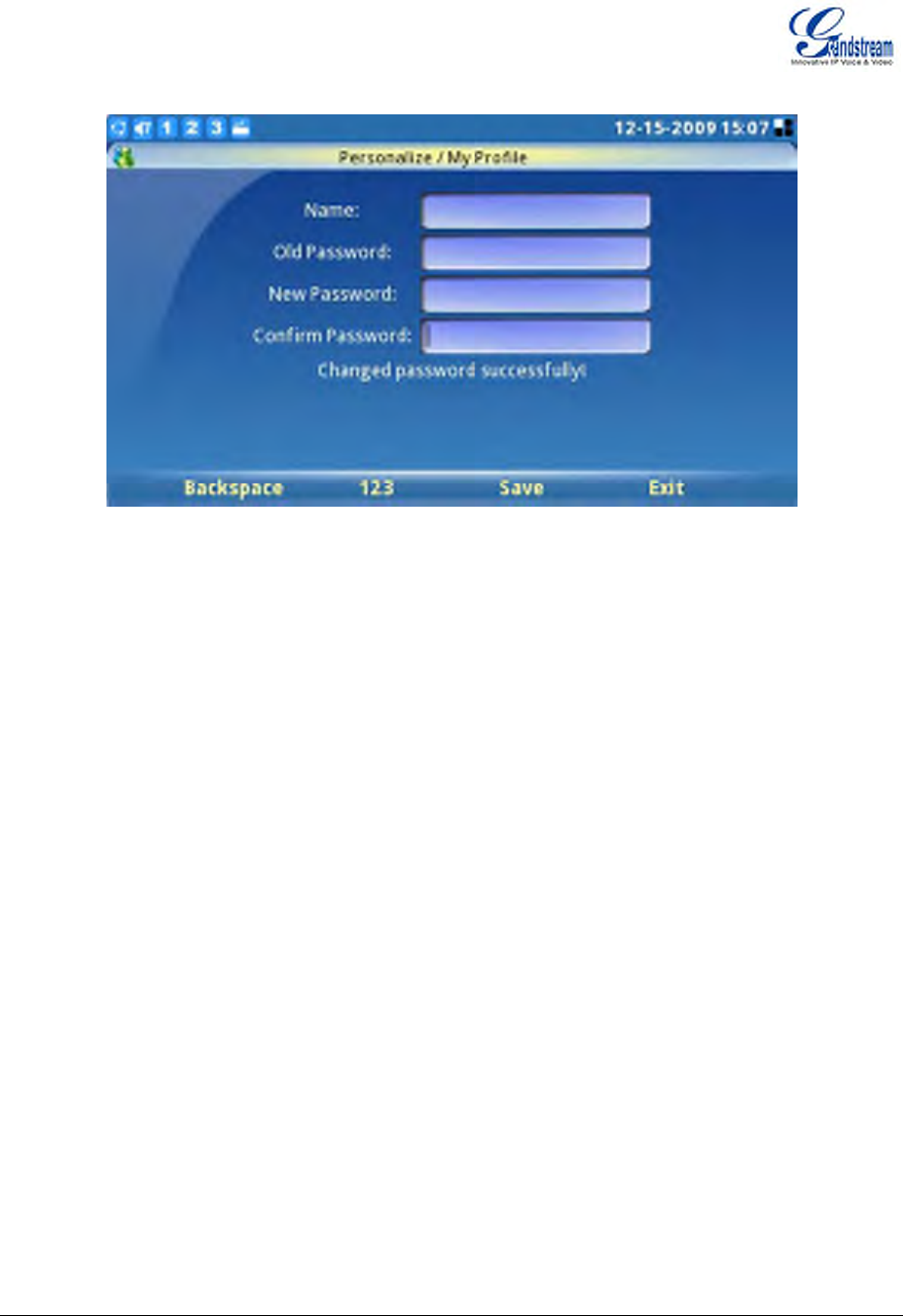

MY PROFILE......................................................................................................................132
•

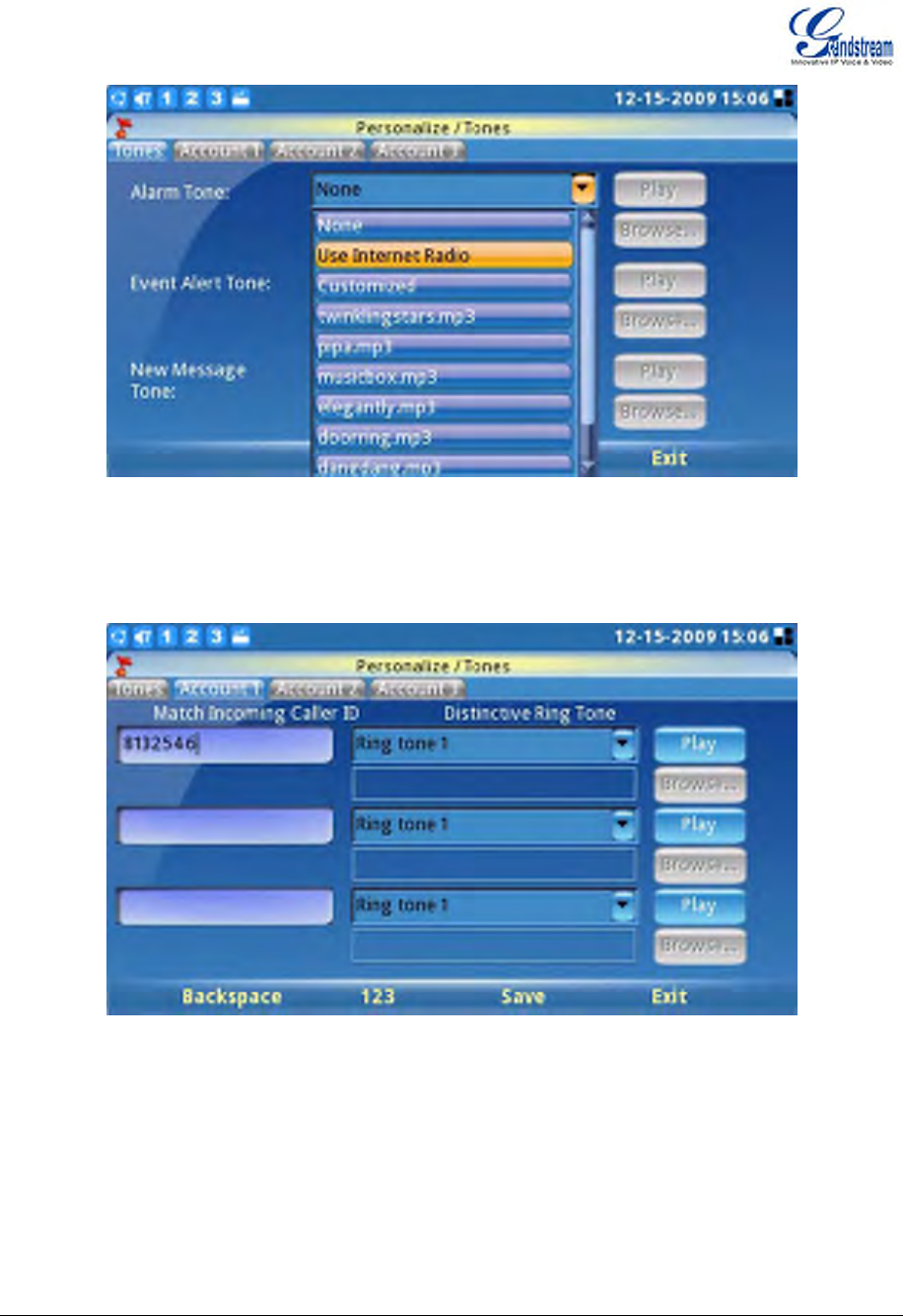

TONES ...............................................................................................................................133

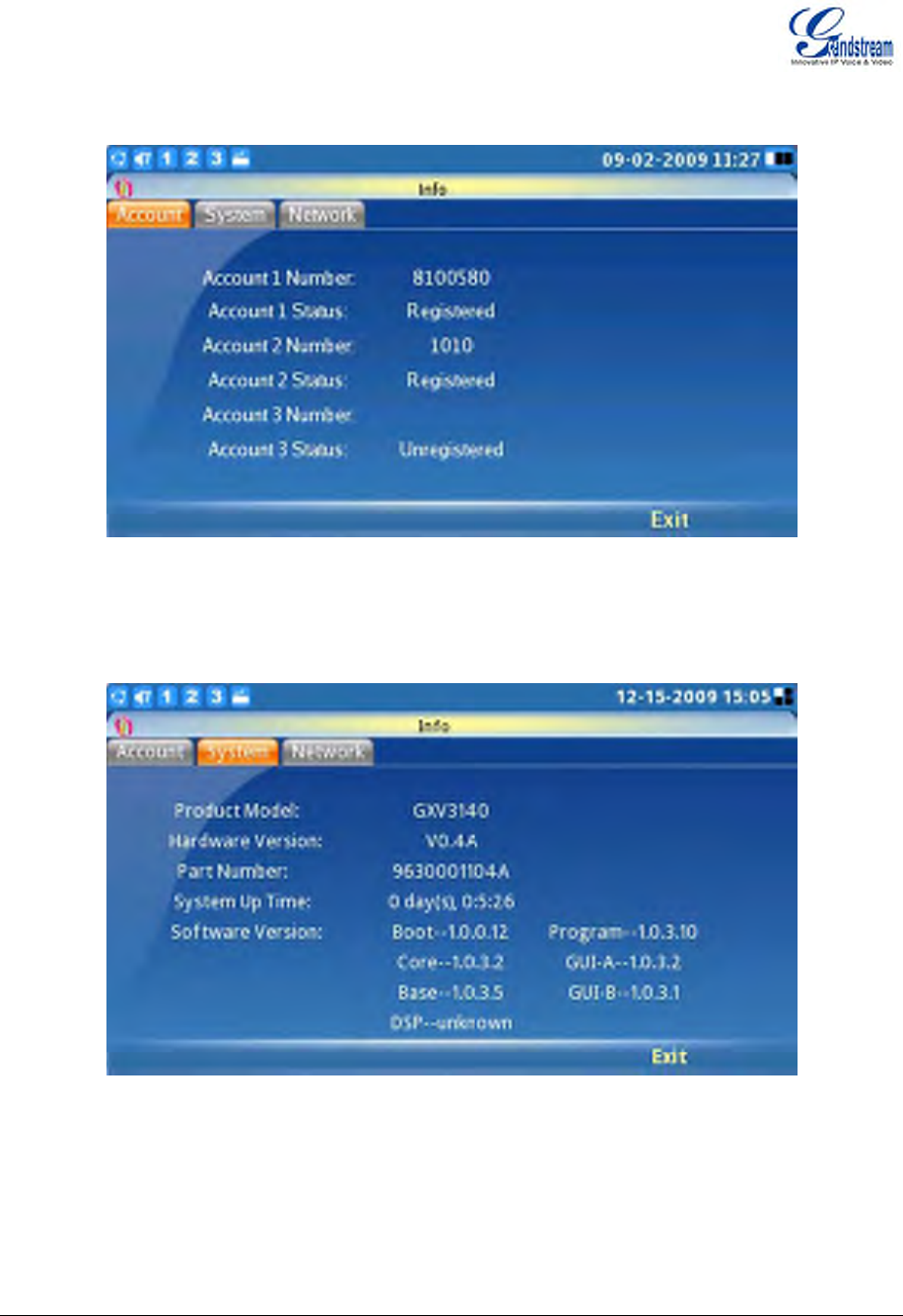

INFO...................................................................................................................................................134
ADDITIONAL TIPS FOR THE GXV3140H IP MULTIMEDIA PHONE ...............................................136
•
RETRIEVING MINIMIZED APPLICATIONS.......................................................................136
•

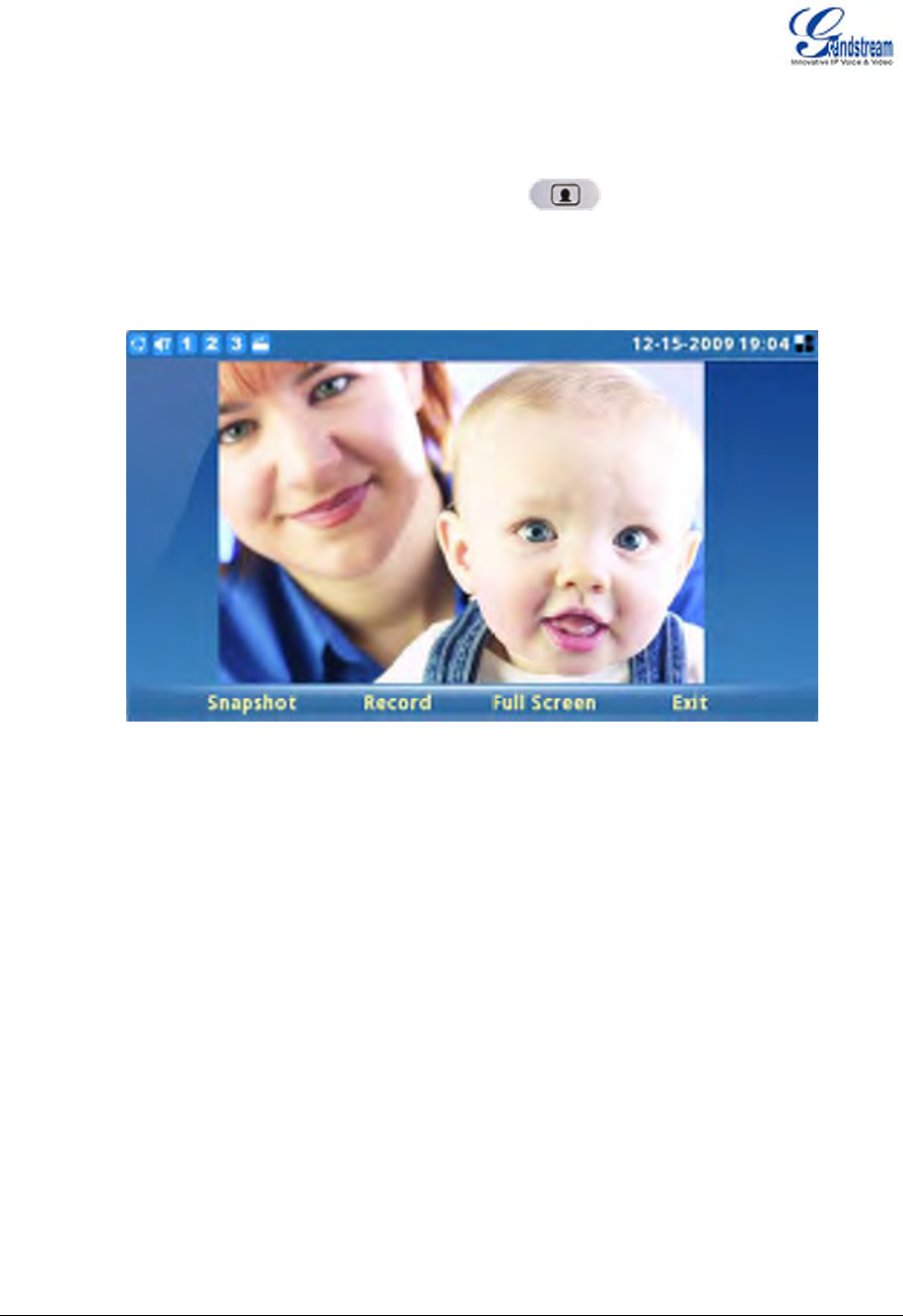

SNAPSHOT/VIDEO RECORDING IN LOOPBACK MODE...............................................137
•

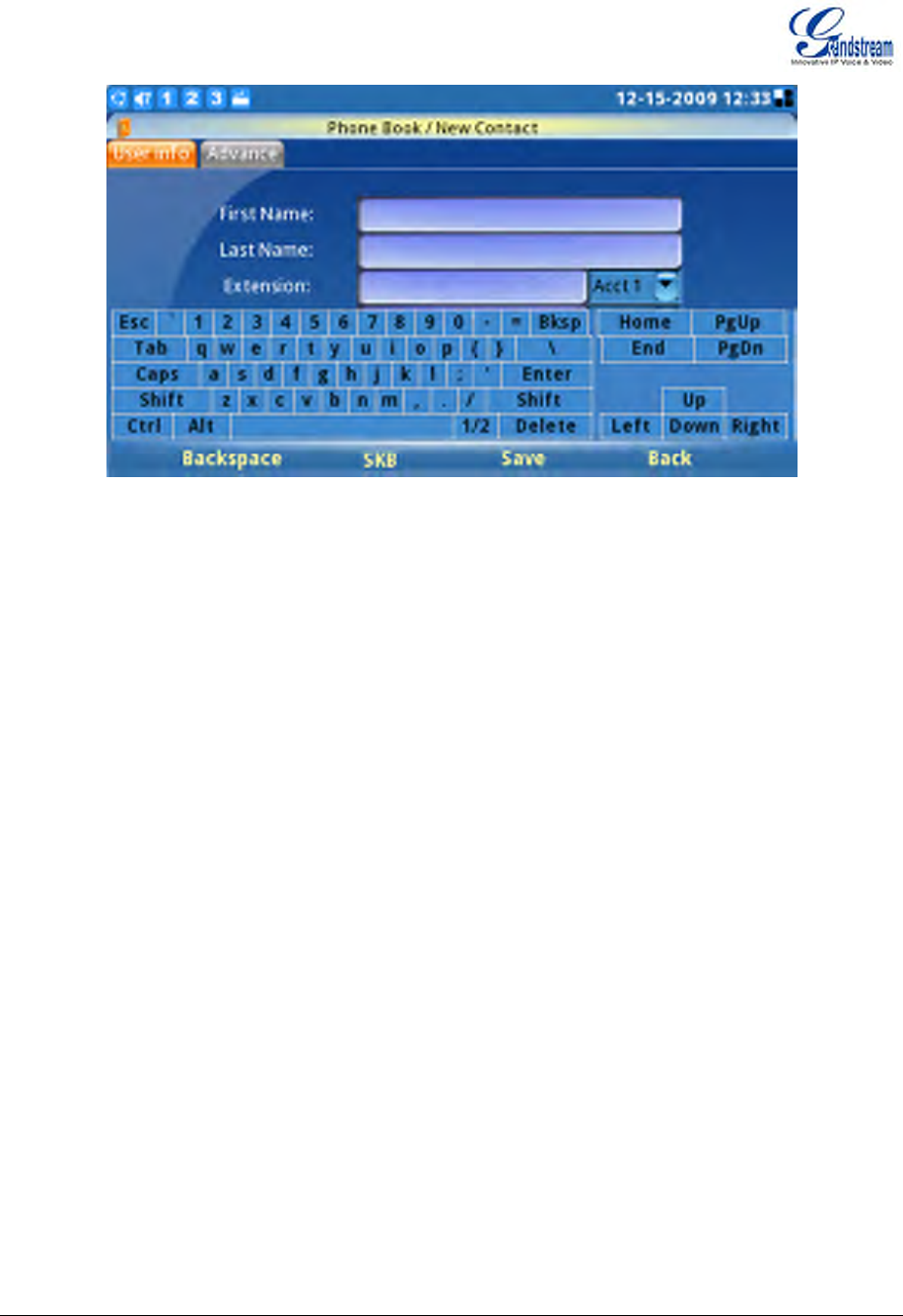

INPUT USING SOFT KEYBOARD.....................................................................................137
CUSTOMIZING THE GXV3140H IP MULTIMEDIA PHONE ...................138
SOFTWARE UPGRADE..........................................................................139
UPGRADE VIA KEYPAD MENU .......................................................................................................140
UPGRADE VIA WEB BROWSER CONFIGURATION PAGE............................................................140
NO LOCAL TFTP SERVERS.............................................................................................................140
CONFIGURATION FILE DOWNLOAD..............................................................................................141
RESTORE FACTORY DEFAULT SETTINGS..........................................141
RESTORE TO FACTORY DEFAULT SETTINGS VIA LCD MENU ...................................................142
RESTORE TO FACTORY DEFAULT SETTINGS VIA THE WEB INTERFACE ................................143
EXPERIENCING THE GXV3140H MULTIMEDIA PHONE......................144
Note：.....................................................................................................146
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 5 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
TABLE OF TABLES
GXV3140H USER MANUAL
Table 1 :Key features at a glance..................................................................................................................8
Table 2: GXV3140H Hardware Specification ................................................................................................9
Table 3: GXV3140H Technical Specifications ...............................................................................................9
Table 4: GXV3140H Connectors.................................................................................................................12

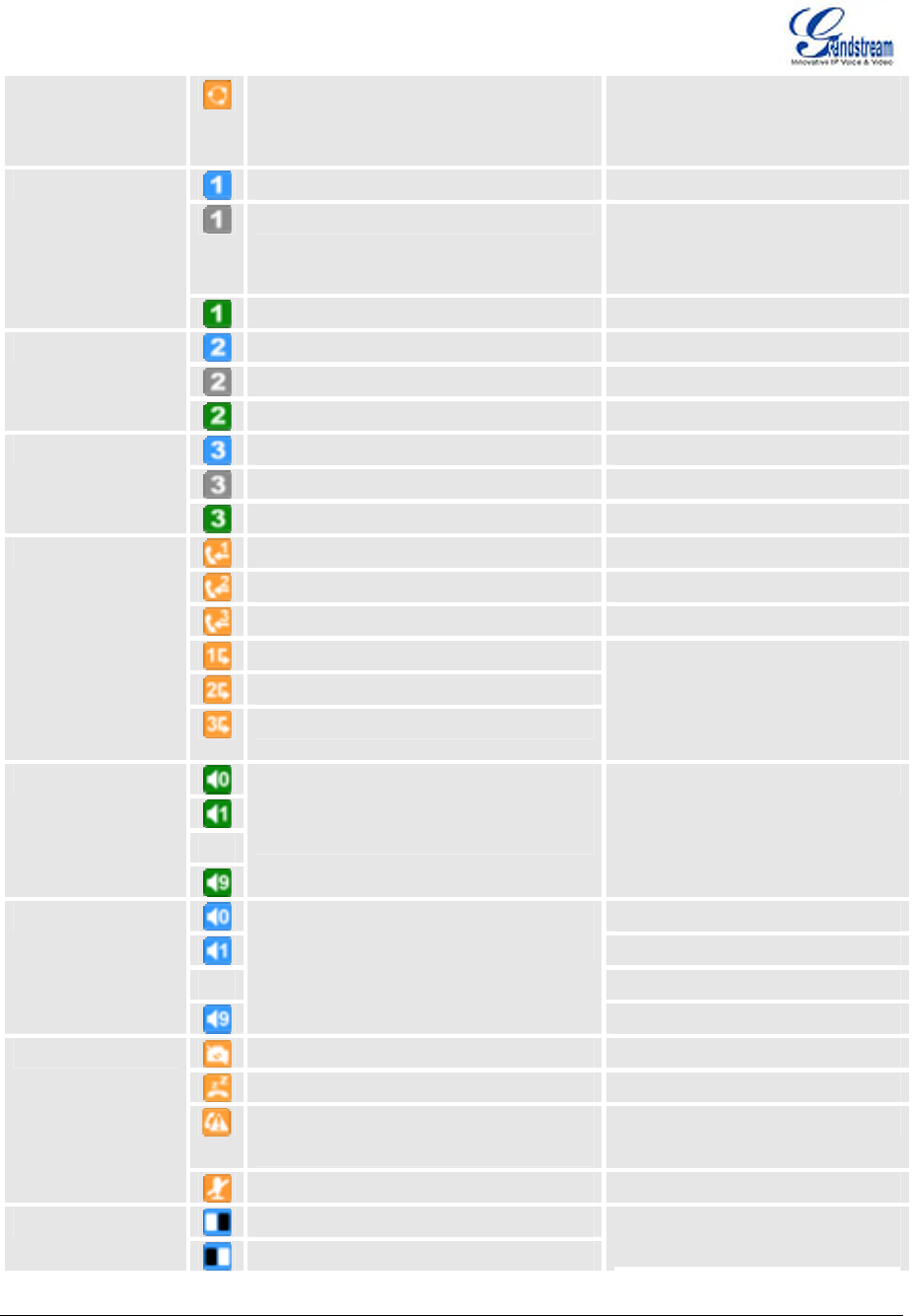

Table 5: LCD Icon Definition........................................................................................................................17

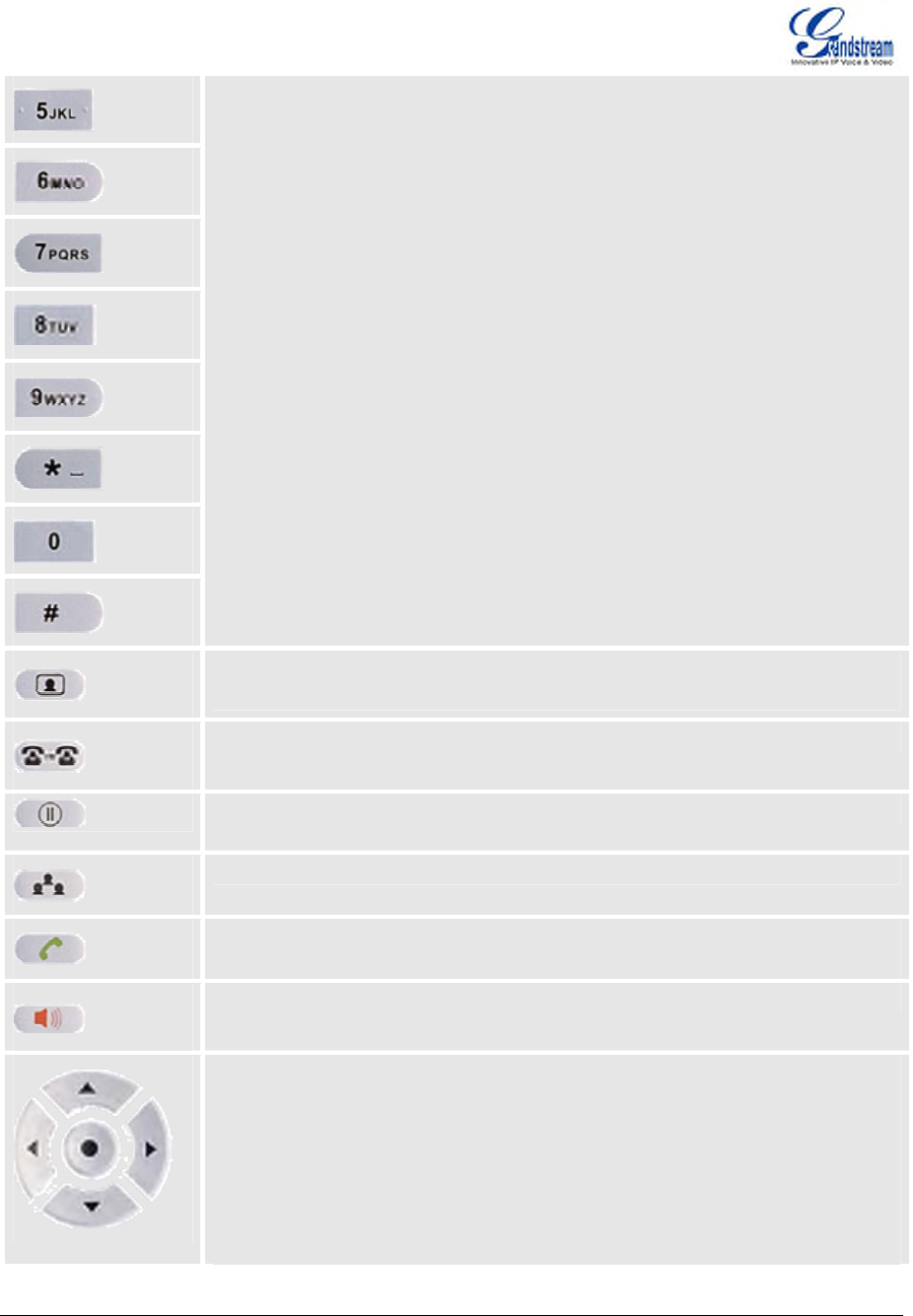

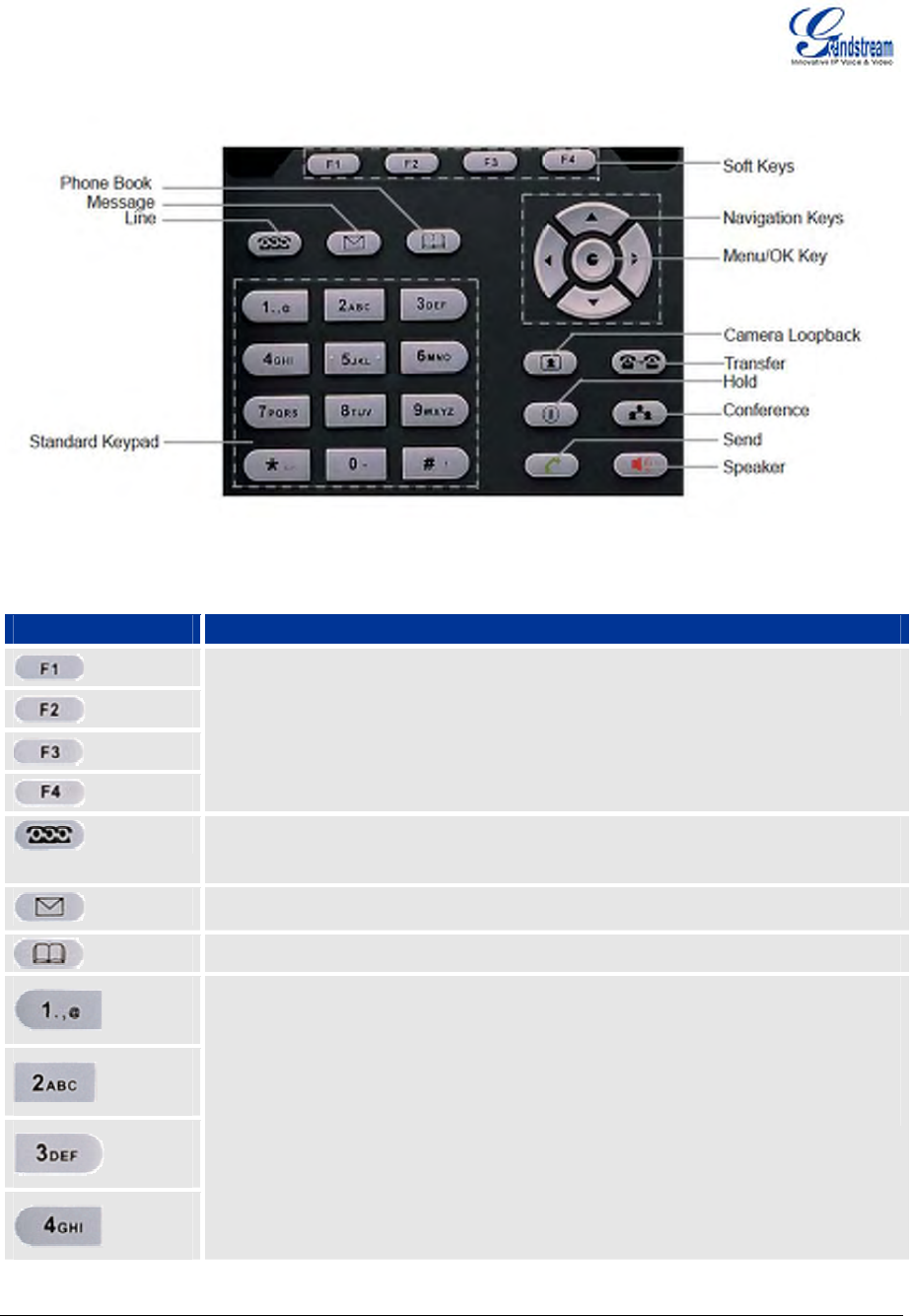

Table 6: GXV3140H Keypad definition........................................................................................................20
Table 7: Call Features .................................................................................................................................30
Table 8: GXV3140H Audio/Video Codec Feature Code .............................................................................30
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 6 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
WELCOME
Thank you for purchasing Grandstream GXV3140H IP Multimedia Phone. The GXV3140H gives you plug
and play access to free real-time video/voice calling with always-on Internet web entertainment and social
networking applications. With video calling - part of the revolution called Visual Communicating – get ready
to enhance personal and business relationships by hearing and seeing the person with whom you are
communicating.
This user manual is designed to help you understand how to configure and manage the GXV3140H IP
Multimedia Phone. Beside demonstrating how to install this unit with ease, this manual will explain how to
fully utilize all the phone’s voice and video calling features like conference calling, direct IP calling as well
as explore all the built-in feature-rich multimedia applications such as Skype, YouTube, Facebook, Twitter
and more.
GXV3140H OVERVIEW
The GXV3140H is a next generation SIP-based IP Multimedia Phone that supports a high quality selection
of audio codecs and is compatible with the H.264/H.263/H.263+ video codec. The advanced telephony
and video features, interoperability with 3rd party SIP products and ease of use make it an ideal IP
multimedia device for both enterprise and consumer users.
Once the GXV3140H is plugged into the broadband Internet connection, you can begin to make video calls
using the 4.3”digital color LCD display and enjoy other features of the multimedia phone including:
• Integrated web browser for one-touch access to personalized RSS feeds of real-time online
information services (news updates, stock updates, weather forecasts, recipes, directory searches,
etc.)
• Access to thousands of Internet radio stations and popular online music networks such as Last.fm,
Yahoo Flickr web photo album
• Access to social networking sites like Facebook and Twitter
• Access to streaming Internet entertainments sites like YouTube
• IM with Yahoo/MSN/Google
• Digital Photo Frame
• Full duplex speakerphone
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 7 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
• Supports 9 different languages
• Ability to project video onto TV for larger picture
CAUTION: Changes or modifications to this product not expressly approved by Grandstream, or operation of
this product in any way other than as detailed by this User Manual, could void your manufacturer warranty.
• This document is subject to change without notice. The latest electronic version of this user manual is
available for download here:
http://www.grandstream.com/support/gxv_series_phone/GXV3140H/documents/GXV3140H_usermanual_
english.pdf
• Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for any
purpose without the express written permission of Grandstream Networks, Inc. is not permitted.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 8 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
PRODUCT OVERVIEW

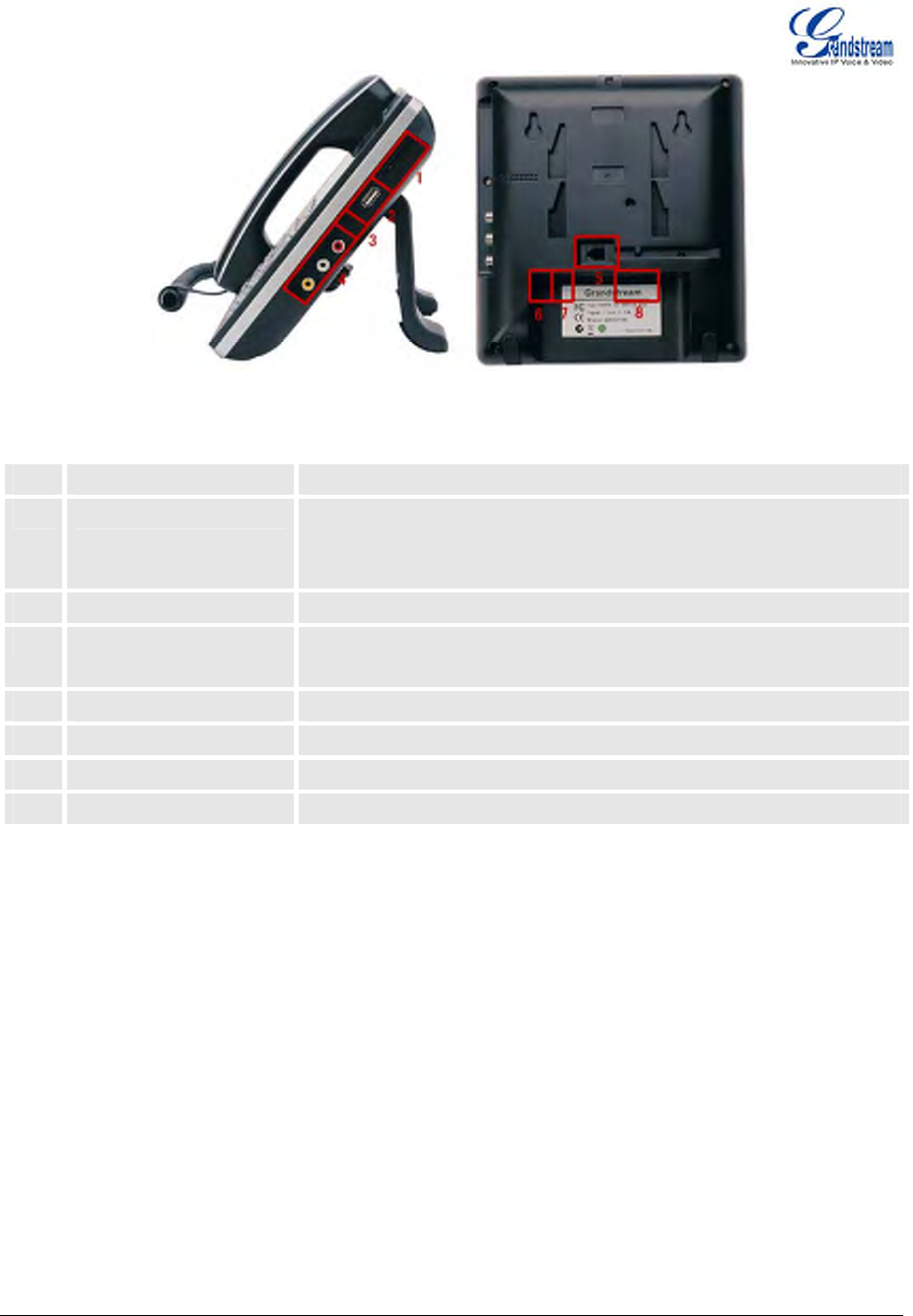

Figure 1: GXV3140H Front, Side and Back View
Table 1: Key features at a glance
Open Compatible Standards
SIP 2.0, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS
(A record and SRV), DHCP, PPPoE, TFTP, NTP.
Interfaces Two 10/100Mbps Ethernet Ports，1 USB（2.0）port，3.5mm stereo headset
port.
Extraordinary Audio Quality Advanced DSP for audio, Silence Suppression, VAD,CNG,AEC,AGC
Extraordinary Video Quality Supports real-time video H.263/H.263+ and H.264 codec even when
operating under low bandwidth (32kbps-1Mbps).
Advanced Video Features
4.3” digital TFT color LCD with 480x272 resolution, 45 degree rotating lens
(perpendicular), Advanced VGA lens, auto focus, auto exposure, zoom (2x
optical 2x digital), Camera Block, PIP(Picture-in-Picture) and still picture
capture/store.
Feature Rich Traditional audio features: Caller ID, Call Waiting, Call Holding, Call
Transfer, Do-Not-Disturb, Mute, Automatic dial.
Built-in web browser, RSS news, Stock market update, Weather forecast,
Internet Radio, Media Player, Picture browser, Games, Calculator, Alarm
clock, IM chat, File Manager, Youtube, Facebook, Twitter etc.
Advanced Functionality Support for multiple lines, conferencing, headset, Intercom, AES
encryption.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 9 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Table 2: GXV3140H Hardware Specification
Ethernet Port Dual switched 10M/100M auto-sensing Ethernet ports
LCD 4.3” digital TFT color LCD
Camera Tilt Capable 0.3M pixel CMOS camera with privacy shutter
Auxiliary Ports RCA Type Stereo & Media output port, 3.5mm stereo headset port, 1 USB
port, 1 SD card reader
Exterior Black ABS plastic, 30 buttons
Universal Power Supply Input: 100-240V AC
Output: 12V DC, 1.2A
US/Euro/UK/Australian style plug available.
Dimension 7.87x7.32x1.57in/200x286x40mm
Weight 1.87lb /0.85Kg
Operating Temperature 32-104° F/0°–40°C
Humidity 10-90% Non-Condensing
Compliance FCC/CE/C-Tick
Table 3: GXV3140H Technical Specifications
Lines Up to three individual SIP accounts
Protocol Support SIP 2.0, UDP/IP, PPPoE, RTP/RTCP, SRTP by SDES, HTTP, ARP/RARP,
ICMP, DNS, DHCP, NTP/SNTP, TFTP.
Display 4.3” digital TFT color LCD with 480x272 resolution.
Function Keys - 4 programmable soft keys: F1, F2, F3, F4;
- Line, mailbox, phonebook, mirror, call transfer, hold, conference,
dial/send, speakerphone and five navigation keys.
Network Interfaces Dual switched 10M/100M auto-sensing Ethernet ports, USB 2.0 port, 1
audio/video output port (to synchronously output video to TV), and stereo
headset jack.
Device Management
Layer 2 QoS (IEEE 802.1p/Q tagging-VLAN and Layer 3 QoS (DiffServ),
Web interface or via secure (AES encrypted) central configuration file for
mass deployment, keypad & adjustable 4.3 inch digital TFT Color LCD,
Auto/manual provisioning system, GUI interface, phone book, remote
software (TFTP/HTTP/HTTPS) upgrade for deployed devices including
those behind a NAT/firewall.
Provisioning - Support for automatic NAT/firewall traversal and remote automatic
software upgrade and security, providing end-users with “zero
configuration” and true “plug-and-play” functionality;
- Support for remote configuration monitoring and syslog;
- Configuration through LCD, web browser or an external configuration file;
- Support for IETF STUN NAT traversal and symmetric RTP, Static IP or
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 10 of
146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
DHCP.
Audio Features - Full duplex speaker, advanced DSP;
- Supports G.723.1, G.729A/B,G.711μ/A (PCMU/PCMA), G.726-32,G.722,
GSM-FR, L15-256 DTMF (In-audio, RFC2833, SIP Info); Silence
suppression, VAD, CNG, AGC, masking for packet loss/delay; AEC, AGC
for Speaker; jitter buffer protocol.
Video Features - Support for Jitter Buffer delay and packet loss concealment to enhance
audio and video quality;
- Support for H.263/H.263+ and H.264 real-time video codecs (CIF or
QVG)up to 30frames/sec, which ensures high quality video transmission
even under low bandwidth conditions (32kbps-1Mbps);
- 4.3” digital TFT color LCD with 480x272 resolution, 45 degree rotating
lens (perpendicular), advanced VGA CMOS camera and sensor;
- Anti-flickering of images, auto focus, auto exposure, zoom (2x optical 2x
digital ), PIP(Picture-in-Picture) , audio mute, camera block, call log, video
phone book; screensaver, still picture capture/store (VGA), visual voice
message indicator.
Call Handling Features
Caller ID, call waiting ID, call waiting/flash, call transfer, call holding, call
forwarding, Do-Not-Disturb, three-way conference, redial, automatic
dialing on off-hook, automatic answering, call records, volume control,
voice message waiting indicator, downloadable custom ring tone.
Caller ID（Privacy） Private header support for anonymous calls.
Firmware Upgrade - Configuration file authentication (before accepting changes);
- TFTP/HTTP upgrade support, allows users to specify different URLs for
the server to download from.
Advanced Server Features DNS SRV support, SIP server failure transfer, message waiting indicator
and custom screensaver.
Security - MD5 and MD5-sess DIGEST encoding and authentication;
- Security protection: SIP over TLS and SRTP;
- Support for OpenVPN for increased security and control.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 11 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
INSTALLATION
EQUIPMENT PACKAGING
This GXV3140H package contains:
1. One (1) GXV3140H Phone Main Case (Black)
2. One (1) Handset
3. One (1) Phone Cord
4. One (1) Universal Power Supply
5. One (1) Ethernet Cable
6. One (1) Phone Stand
7. One (1) Headset Dongle
8. One (1) Quick Start Guide
SAFETY COMPLIANCES
The GXV3140H phone complies with FCC/CE and various safety standards. The GXV power adapter is
compliant with the UL standard. Use the universal power adapter provided with the GXV package only.
The manufacturer’s warranty does not cover damages to the phone caused by unsupported power
adapters.
WARRANTY
If the GXV3140H phone was purchased from a reseller, please contact the company the phone was
purchased for replacement, repair or refund. If the phone was purchased directly from Grandstream,
contact the Grandstream Sales and Service Representative for a RMA (Return Materials Authorization)
number before the product is returned. Grandstream reserves the right to remedy warranty policy without
prior notification.
WARNING: Use the power adapter provided with the phone. Do not use a different power adapter as this
may damage the phone. This type of damage is not covered under warranty.
CONNECTING THE GXV3140H IP MULTIMEDIA PHONE
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 12 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 2: GXV3140H Connector Diagram
Table 4: GXV3140H Connectors
1 SD Card Slot SD Card Slot.
2 USB Port USB devices may be connected via the USB port. For example, you
can connect a USB flash drive to save captured pictures or use a USB
keyboard or mouse for the built-in web browser.
3 Headset Jack 3.5mm stereo headset connector port.
4 RCA Video/Audio Jacks Audio/video output port which can be connected to external
peripherals (e.g. TV).
5 RJ11 Jack Phone handset connector port.
6 PC Ethernet Port 10/100Mbps RJ-45 port connecting to PC.
7 Network Ethernet Port 10/100Mbps RJ-45 port connecting to Ethernet.
8 Power Jack 12V DC Power connector port.
WALL MOUNT
The GXV3140H has two (2) slots on the back of the phone for wall mounting convenience. (See figure 3)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 13 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 3: Wall Mount for GXV3140H
PHONE STAND
The GXV3140H can also be placed on the table surface or desk via the phone stand. (See figure 4) There
are two (2) positions for the stand on the back of the phone; each position supports a different angle.
Figure 4: Phone Stand for GXV3140H
CONNECTING THE GXV3140H IP MULTIMEDIA PHONE
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 14 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 5: Connecting the GXV3140H
MAKING THE FIRST CALL WITH IPVIDEOTALK SERVICE
The GXV3140H offers users the ability to send and receive free lifetime video calling to other GXV3140H’s
on the IPVideoTalk network. Once the GXV3140H is connected, video calls are made using Grandstream’s
configuration peer-to-peer SIP technology and IPVideoTalk service. To place the first video calling,
complete these three (3) simple steps:
1) Connect the handset to the phone using the handset cable provided. Connect the NETWORK
cable and the power cable to the GXV3140H using the methods described above. After the phone
boots up and obtains an IP address through DHCP, it will attempt to register to the IPVideoTalk
network. When the user boots the phone for the first time, Account 1 will be registered to the
IPVideoTalk server with a provisioned extension of 810xxxx.
2) If the registration is successful, the IPVideoTalk text on the LCD will turn green and an assigned
IPVideoTalk number (810xxxx) specific to this phone will be displayed. At this point, the phone is
ready for making and receiving video calls over the IPVideoTalk network.
3) Take the phone off hook and dial the number of any other phone registered to the IPVideoTalk
network. If the user has purchased two or more GXV3140H IP Multimedia phones, these phones
are able to establish video calls between each other and the user will immediately experience the
plug and play nature of the GXV3140H. If a user has only one GXV3140H, the user can choose to
experience the multimedia features by dialing 0 to establish a video call with the preset extension
on the server.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 15 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 6: GXV3140H Phone Screen
As shown in figure 6, area A shows the remote video and area B shows the local video. When the system
boots up for the first time, the phone will establish a video call with the server preset extension 0. Users
can experience a playback of video on the phone when the call is established.
To see a short video on all the functionalities of the GXV3140H, press the “Demo” softkey on the phone on
the desktop. This would open the media player and play the video. The Demo key will show when the
phone finishes downloading the clip from the server.
USING THE GXV3140H IP MULTIMEDIA PHONE
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 16 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
LCD
When the phone is idle, the LCD screen will look similar to figure 7. (The account and IP address may be
different from case to case, depending on the network environment and the settings.)
Figure 7: GXV3140H LCD Idle Screen
Users could press F1 (Menu) to access the full menu, press F2 (Switch Screen) to switch to another
display screen (See figure 8), press F3 (Skype) for Skype application and press F4 (Demo) for GXV3140H
demo video.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 17 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 8: LCD IDLE screen displaying News Videos
Press F2 again to switch to screen that displays stock and weather forecast. (See figure 9)
Figure 9: LCD IDLE screen displaying Stock and Weather Forecast
Press F2 again to switch to screen that displays the feeds from Horoscope and Today application.
Figure 10: LCD IDLE screen displaying feeds from Horoscope and Today application
Table 5: LCD Icon Definition
Type Icon Definition Note
Network Connected to the network
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 18 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Failed to connect to the network, the
icon will flicker between yellow and
gray.
Account 1 is registered
Account 1 is not registered The Account and line status are
separate. Line status will only
show busy or idle.
Line 1 Status
Line 1 is busy If Line 1 is in a call.
Account 2 is registered
Account 2 is not registered
Line 2 Status
Line 2 is busy If Line 2 is in a call.
Account 3 is registered
Account 3 is not registered
Line 3 Status
Line 3 is busy If Line 3 is in a call.
Account 1 Auto Answer
Account 2 Auto Answer
Account 3 Auto Answer
Account 1 Call Forward
Account 2 Call Forward
Call related
Account 3 Call Forward
If configured to forward calls:
unconditional forward, forward
when busy or forward on no
answer.
…
Call Volume
Volume setting, ranges from 0-9. The
nine icons represent different volume
levels.
….
Ring Volume
Ring volume, ranges from 0-9
Camera disabled.
Do-Not-Disturb (DND)
Missed Call. If there is a new missed
call, the icon will flicker.
Phone Status
Mute
First Desktop (Small Layout) Screen Layout Icon
Second Desktop(Small Layout)
The Small/Big layout can be
selected in Personalize->Screen
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 19 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
First Desktop (Big Layout)
Second Desktop (Big Layout)
Third Desktop (Big Layout)
Fourth Desktop (Big Layout)
Layout menu.
The headset is in use and is off hook.
The headset is plugged in.
The phone is on speaker.
Audio Output
The handset is off hook.
IM is not logged in
IM is logging in; the icon will flicker
between blue and gray.
IM
There is a new message on IM. The
icon will flicker between blue and
yellow.
The icon is displayed at the right
hand-side of the status bar.
Applications Text message. The icon will flicker if
there is a new unread text message.
Alarm clock
Media（music/video）Player The icon is displayed at the right
hand-side of the status bar.
Internet radio The icon is displayed at the right
hand-side of the status bar.
Web browser The icon is displayed at the right
hand-side of the status bar.
Skype
Facebook Application
Twitter Application
External devices SD card
USB flash drive.
USB keyboard
USB mouse
USB wireless adapter detected
Wireless signal strength. Range from
0-4. The current signal strength is 3.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 20 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 11 shows the keypad layout for GXV3140H.
Figure 11: GXV3140H Keypad
Table 6: GXV3140H Keypad definition
Key Definition
4 function/soft keys that correspond to the functions displayed on the LCD.
Line/Account selection. Three independent SIP accounts may be configured, and
the Line button can be used to choose the line/account to be used.
Retrieve video/voicemail message or other messages.
Phonebook.
Standard telephone keypad. The # key can act as a send key.
In the input mode, if an English alphabet needs to be entered, press the
corresponding numerical key multiple times.
For example, if the user wishes to enter B, press 2 three times; if the user wishes
to enter Y, press 9 four times.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 21 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Camera Loopback button. This button Enables or Disables the camera display on
the local LCD.
Call Transfer: Allows the user to transfer a call to another extension or number.
Place the call on hold.
Conference button - connects the caller/callee to the conference.
Sends a new number or redials the last number dialed.
Turns the Speaker ON or OFF.
Navigation Buttons: These arrows keys serve as up/down/left/right button when
used in the GXV3140H’s menus. The middle button is used as the submit/select
button.
When the phone is idle, the up and down arrow can be used to increase/decrease
the volume.
When the phone is in loopback mode or during a video call, use the up/down
arrow to adjust exposure settings and use the left/right arrow to zoom in and out.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 22 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
MULTIPLE SIP ACCOUNTS AND LINES
The GXV3140H supports up to 3 independent SIP accounts. Each account may have separate SIP servers,
usernames and NAT configurations. Press the LINE button to view the status of the 3 lines and press the
corresponding FUNCTION button to select the account to use for dialing out. When the phone is off-hook,
press the LINE button to switch between different SIP accounts.
For example, let’s say that the user has configures 3 SIP accounts: Account1, Account2, and Account3.
The registration status for each account is displayed on the desktop. If the account is registered, the icon
next to the account will be yellow and purple. If the account is not registered, the icon next to the account
will be gray with a red cross on it. When all the accounts are registered, users can press the Line button
when the phone is on-hook and select the line used to dial out by pressing the corresponding line button.
When the phone is off-hook, users can toggle between the different lines by pressing the Line button.
Incoming calls through the three accounts will try to use the corresponding line. If this line is busy, the icon
for the line (top-left hand corner) will be green. When a call comes in and the line is busy, the next idle line
will be used while the icon for that line will flicker between blue and green.
HANDSET, SPEAKER AND HEADSET MODE
The GXV3140H allows users to switch from the handset to speaker or headset by pressing the Hook Flash,
the Headset FUNCTION button or the SPEAKER Button.
MAKING A CALL
There are several ways to make a call.
1. Enter the number
• Take the handset off hook or use the speaker/headset. A dial tone is given; adjust account if
necessary by pressing the LINE button to select the desired account/line. (See figure 12)
The status of each Line will be displayed on the top, and the first one is the account being
used to dial out.
• Enter the number
• Press the SEND softkey.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 23 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 12: GXV3140H Call Screen
2. Redial
When redialing, the phone will use the account that was used to call the last number dialed.
• When the phone is idle, press the # or the SEND button ( ).
• When using the speaker/headset/handset, press the REDIAL button (See figure 12)
3. By Call History
Access the Phone Menu by pressing F1 button, and then select “Call history”. The LCD monitor
will display all call history types: “Dialed calls”, “Received calls”, and “Missed calls”. Select the call
history that you wish to view by using the up and down arrow keys and then select the
corresponding FUNCTION button to “Dial” to the number or delete the record. (See figure 13)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 24 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 13: Dialing by Call History
4. By Phone Book
Enter the Menu by pressing F1, and then select “Phone Book”. The LCD screen will display the
saved records in the phone book. Navigate to the phone book record with the arrow buttons, and
call the number by selecting the F1 FUNCTION button for “Dial”. At the same time, users may
browse through or delete the phone book records. (See figure 14)
Figure 14: Dialing by Phonebook
5. By Messages
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 25 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Enter the Menu by pressing F1, and then select “Messages”. The LCD screen will display the
Message Inbox/Outbox, Sent messages and Draft messages. Select the message and press F3
for “Options”, and then select “Dial” to dial out to the number. (See figure 15)
Figure 15: Message Screen
6. On-hook Dialing
Without lifting the handset off the hook, simply dial the number and press F3 to SEND. This phone
will dial the number and the audio will be output via speakerphone. The phone will use the primary
account to dial out. To user other accounts to dial out, press the LINE key to select the account.
Next, dial the number. (See figure 16)
Figure 16: Onhook Dialing
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 26 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
DURING CALLS
ANSWERING CALLS
1. Single Incoming call: When the phone rings, you can use the headset, handset or speaker to
answer the call. The user may also press the SPEAKER button ( ) or the corresponding
FUNCTION button for “Accept” on the LCD screen. (See figure 17)

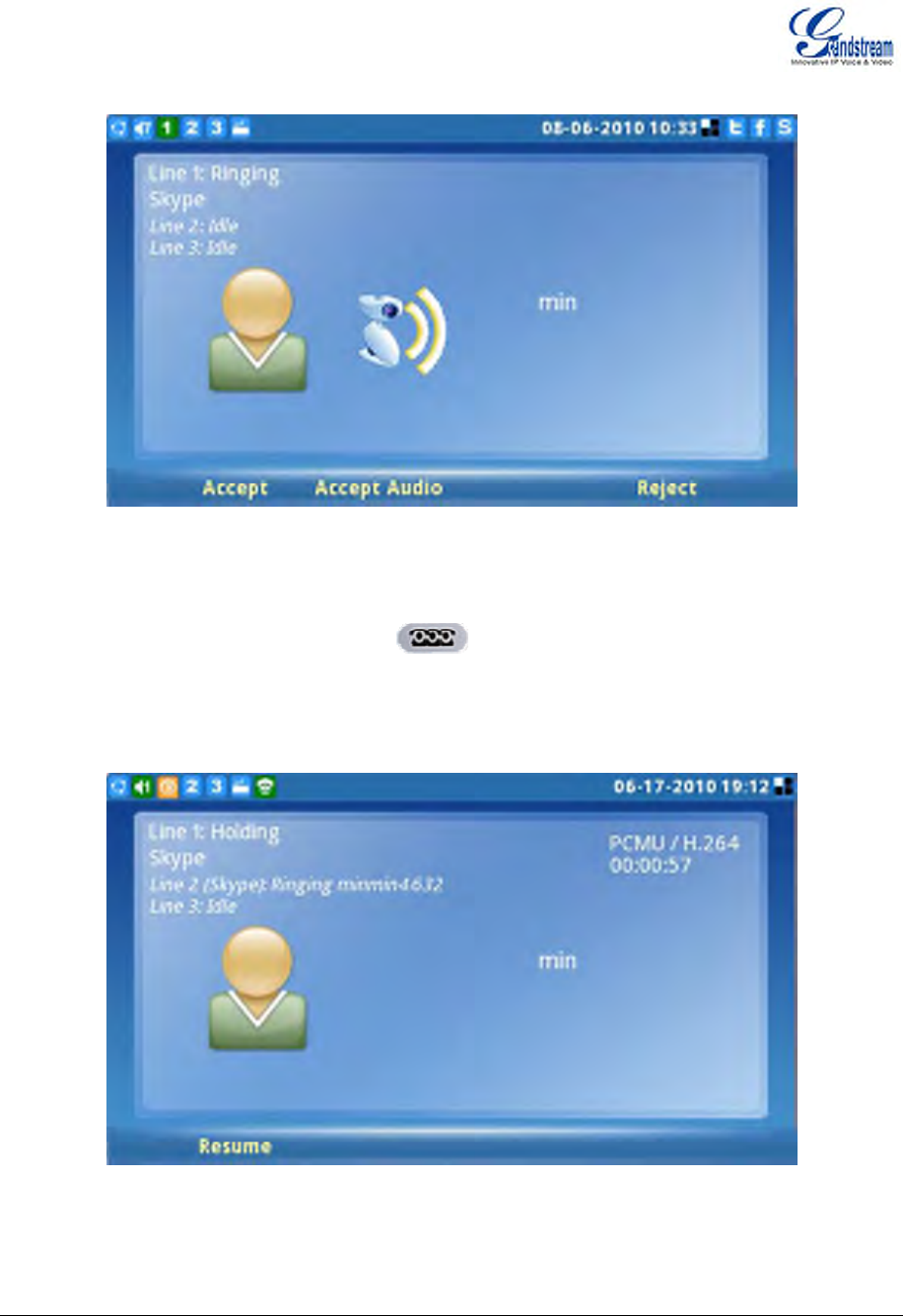

Figure 17: Incoming call screen
2. Multiple Incoming Calls: Users will hear a call waiting tone and the LCD will display the number
of the caller when another call is incoming. At this moment, press the corresponding FUNCTION
button for “Accept” to establish a connection with the new call/caller. The current call will be placed
on hold. Users may press LINE button ( ) to see the status of each line and to switch
between the lines.
3. Auto-Answer/Paging/Intercom: After the phone makes a “beep” sound, the call is automatically
established through the speaker. (The phone should be configured to enable “Auto Answer” or
“Paging/Intercom”. Support from PBX / IP-PBX is also required)
CALL HOLD/WAITING
1. Call Hold：Press the HOLD button ( ) to place the call on hold. The following will be
displayed on the screen. (See figure 18)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 27 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 18: Line Selection Screen
2. Call Recover: Press the HOLD button again or press the “Resume” FUNCTION button to return to
the call. Users can also select the line placed on hold to resume the call.
3. Multiple Calls: To place the current call on hold, press the LINE button ( ) to select
another line or accept another call. When the line is busy, the user hears a call waiting tone
notifying the user that a call is waiting. Users may toggle between the multiple calls by pressing
the Line button and selecting the line they wish to answer.
CALL TRANSFER
1. Blind Transfer: Press the “CALL TRANSFER” button ( ) to place the other party on hold.
The phone will display the following message: “Dial Number (Blind) OR Select Line (Attended)”.
(See Figure 19). Dial the extension number and press F3 for “SEND”. This will transfer the call to
the other party immediately.
2. Attended Transfer: Press the “LINE” button ( ) to select an idle line to use for attended
transfer; this will place the other party on hold immediately. Dial the number that you wish to
transfer to and after confirmation from the party, press the “CALL TRANSFER” button. The phone
will display the following message: “Dial Number (Blind) OR Select Line (Attended)”. (See figure
19). Press the “LINE” button and select the line on hold.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 28 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 19: Call Transfer Screen
NOTE:
• To transfer calls across SIP domains, SIP service providers must support transfer across SIP
domains.
• If users enter a wrong number and wish to cancel the transfer, just press the “CALL TRANSFER”
button again or the “Cancel” softkey to cancel the transfer or press the “HOLD” key to hold the line
and retry again.
3-WAY CONFERENCE
The GXV-3140 supports 3-way video conferencing.
1. Initiate a Conference Call: Place the first call on hold by pressing the “LINE” button ( ) to
call the second party. Once the user has established the second call, press the “CONFERENCE”
button ( ) then select the line on hold by pressing the “Line” button ( ) again and
selecting the line by pressing the corresponding line softkey. This would bring the three parties
together in a 3 way conference.
2. Cancel the Conference: If after pressing the “CONFERENCE” button ( ), a user decides
not to conference anyone; press the corresponding FUNCTION key for “Cancel” to cancel the
conference.
3. End the Conference: There are two ways to end a conference: The first way is to press “HOLD”
(). This breaks the conference and places both parties on hold. The user can now speak
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 29 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
to an individual party by selecting the corresponding LINE. The second way to end a conference is
to simply hang up and terminate the call.
NOTE:
• During the conference, users can press the camera loopback button ( ) to change the
layout of the video display for the three parties.
• During the three way conference, if the initiator of the conference hangs up, the conference will
end. If users wish to allow the remaining two parties to stay in conversation after the initiator hangs
up, the conference initiator should set “Transfer on Conference Hangup” to “Yes” in the web
configuration interface. This would allow the transfer of call to the remaining party after the initiator
exits the conference.
VOICEMAIL（MESSAGE WAITING INDICATION）
If the blue Message Waiting Indication (MWI) LED icon is flickering on the upper right hand corner, a new
message has been received and is waiting to be retrieved. Press the MSG button ( ) to retrieve the
message (the button needs to be configured). By default, pressing the MSG button will transfer to the
voicemail box of Account 1; if the user wishes to enter the voicemail box of Account 2 or Account 3, the
corresponding Line should be selected prior to pressing the MSG button. The Interactive Voice Response
(IVR) prompts the user through the message retrieval process.
NOTE: Each of the 3 accounts has its own voicemail. The Voicemail access number may be set up in the
“Voicemail ID” configuration under “Accounts” in the web configuration interface
MUTE
1． During a call, the LCD screen will display “Mute”. Press the corresponding FUNCTION button to
mute the call.
2． After the “Mute” button is pressed, the LCD screen will display “Unmute”. When this button is
pressed, the mute feature is cancelled.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 30 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
CALL FEATURES
These are the feature codes for call features. To use the code, select the line you wish to use by pressing
the LINE button and enter the feature code.
Table 7: Call Features
Code Feature
*01 Select the preferred video/audio codec used for the call. Dial *01 + codec feature code +
Phone/Ext. Number (See Table 8 for codec feature code)
*02 Force the video/audio codec used for the call. Dial *02 + codec feature code + Phone/Ext.
Number (See Table 8 for codec feature code)
*30 Block Caller ID (for all subsequent calls)
*31 Send Caller ID (for all subsequent calls)
*50 Disable Call waiting (for all subsequent calls)
*51 Enable Call Waiting (for all subsequent calls)
*67 Block Caller ID (per call): Dial *67 + Phone/Ext. Number (no dial-tone in between).
*82 Send Caller ID (per call): Dial *82 + Phone/Ext. Number (no dial-tone in between).
*83 Send audio only: Dial *83 + Phone/Ext. Number (no dial-tone in between)
*84 Send audio and video: Dial *84 + Phone/Ext. Number (no dial-tone in between)
*70 Disable Call Waiting (per call): Dial *70 + Phone/Ext. Number (no dial-tone in between).
*71 Enable Call Waiting (per call): Dial *71 + Phone/Ext. Number (no dial-tone in between).
*72 Unconditional Call Forward: Dial *72 + Phone/Ext. Number followed by the # key. Wait for a
dial-tone and then hang up (dial-tone means input is successful).
*73 Cancel Unconditional Call Forward: Dial *73 and wait for a dial-tone before hanging up.
*90 Busy Call Forward: Dial *90 + Phone/Ext. Number followed by the # key. Wait for a dial- tone
and then hang up.
*91 Cancel Busy Call Forward: dial *91 and wait for a dial-tone before hanging up.
*92 Delayed Call Forward: Dial *92 + Phone/Ext. Number followed by the # key. Wait for a
dial-tone and then hang up.
*93 Cancel Delayed Call Forward: Dial *93 and wait for a dial-tone before hanging up.
Table 8: GXV3140H Audio/Video Codec Feature Code
Codec Feature Code
PCMU 7110
PCMA 7111
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 31 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
G723 723
G726-32 72632
G729 729
G722 722
GSM 7200
L16-256 7202
H.264 264
H.263 263
H.263+ 2631998
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 32 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
GXV3140H WEB CONFIGURATION INTERFACE
The GXV-3140’s embedded Web server responds to HTTP/HTTPS GET/POST requests. Embedded
HTML pages allows users to configure the IP Multimedia Phone through a Web browser such as
Microsoft’s IE or Mozilla Firefox (Java Script must be enabled).
Figure 20: Web Browser Interface for GXV3140H
ACCESSING THE WEB CONFIGURATION PAGES
The GXV3140H Web Configuration Interface URL is http://Phone-IP-Address, where the Phone-IP
Address is the IP address displayed on the phone’s LCD screen.
To access the phone’s Web Configuration Menu:
• Connect the computer to the same network as the phone.
• Make sure the phone is turned on and shows its IP-address on the LCD display.
• Open a Web-browser on your computer.
• Enter the phone’s IP-address in the address bar of the browser.
• Enter the administrator’s login and password to access the Web Configuration Menu.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 33 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
1. The computer has to be connected to the same sub-network as the phone. This is easily done by
connecting the computer to the same hub or switch as the phone it is connected to. In absence of
a hub/switch (or free ports on the hub/switch), please connect the computer directly to the phone
using the PC-port on the phone.
2. If the phone is properly connected to a working Internet connection, the phone will display its IP
address. This address has the format: xxx.xxx.xxx.xxx, where xxx stands for a number from 0-255.
Users will need this number to access the Web Configuration Menu. For example, if the phone
shows 192.168.0.60, please enter “http://192.168.0.60” in the address bar of the browser.
3. The default login name for the administrator is “admin”. The default administrator password is set
to “admin”. The default login name for end-users is “user” while the default user password is set to
“123”.
NOTE: When changing any settings, always SUBMIT them by pressing the SAVE button on the bottom of
the page. For those settings that are shown in the web user interface (UI) with a dot next to it, users must
reboot the phone for the changes to take effect.
DEFINITIONS
This section describes the options in the Web configuration user interface. As mentioned, you can log in as
an administrator or an end-user.
• Status: Displays the Account status, Network status, and System info of the phone.
• Account (1~3): To configure each of the SIP accounts.
• Advanced Settings: To set General settings, Call Features, Video Settings, and Ring Tones.
• Maintenance: To set Network Settings, Wifi Settings, Time Settings, Web/Telnet Access, Upgrade
and Provisioning, Syslog, Debug, Language, Device Manager and OpenVPN Settings.
• Application Settings: To configure settings for the applications: Phonebook, IM, Twitter,
Facebook, Browser settings, Internet Radio, Photo Album, Last FM, Youtube, World Photo,
Weather, RSS News and Ringtone Manager.
STATUS PAGE DEFINTIONS
Status/Account Status
Account Shows the status of the 3 accounts.
Number Shows the extension number of the SIP account.
SIP Server Shows the URL/IP address and port of the SIP server.
Status Shows the status of the account.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 34 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Status/Network Status
MAC Address The device ID, in HEX format. This is a very important ID for ISP
troubleshooting.
Address Type This field shows the type of address configured: DHCP, Static IP or PPPoE.
IP Address This field shows the IP address of the GXV-3140.
Subnet Mask This field shows the subnet mask of the GXV-3140.
Gateway This field shows the Gateway of the GXV-3140.
DNS Server This field shows the DNS Server of the GXV-3140.
NAT Type This field shows the type of NAT configured.
Status/System Info
Product Model Defines the product model: GXV3140H.
Hardware Revision Hardware version number: Main Board, Interface Board.
PN Code (Part Number) This field contains the product part number.
Software Version • Program: This is the main firmware release number, which is always used
for identifying the software (or firmware) system of the phone.
• Boot: Booting code version number.
• DSP: DSP code version number.
• Base: Base code version number.
• Core: Core code version number.
• GUI-A, GUI-B: GUI interface version number.
System Up Time This field shows system up time since the last reboot.
ADVANCED SETTINGS PAGE DEFINITIONS
Advanced Settings/General Settings
Local RTP Port This parameter defines the local RTP-RTCP port pair used to listen and
transmit. It is the base RTP port for channel 0. When configured, for audio,
channel 0 will use this port _value for RTP and the port_value+1 for its
RTCP; channel 1 will use port_value+4 for RTP and port_value+5 for its
RTCP. For video, channel 0 will use port_value+2 for RTP and port_value+3
for its RTCP; channel 1 will use port_value+6 for RTP and port_value+7 for
RTCP. The default value is 5004.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 35 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Use Random Port When set to YES, this parameter will force random generation of both the
local SIP and RTP ports. This is usually necessary when multiple
GXV-3140s are behind the same full cone NAT. The Default setting is YES.
(This parameter must be set to NO before Direct IP Calling will work)
Keep-alive Intervals (s) This parameter specifies how often the GXV-3140 sends a blank UDP
packet to the SIP server in order to keep the “ping hole” on the NAT router to
open. The default setting is 20 seconds.
STUN Server The IP address or Domain name of the STUN server. STUN resolution
results are displayed in the STATUS page of the Web UI. Only
non-symmetric NAT routers work with STUN.
Default STUN server: stun.ipvideotalk.com
Use NAT IP The NAT IP address used in SIP/SDP messages. This field is blank at the
default settings. This should ONLY be used if your ITSP requires it.
SSL Certificate This defines the SSL certificate needed to access certain websites.
SSL Private Key This defines the SSL Private key.
SSL Private key Password This defines the SSL private key password.
Advanced Settings/Call Features
Disable Call-Waiting The default setting is No. If set to Yes, the call waiting feature will be
disabled.
Disable Call-Waiting Tone The default setting is No. If set to Yes, the call waiting tone will be disabled.
Disable Direct IP Call The default setting is No. If set to Yes, Direct IP calling will be disabled.
Offhook Auto Dial Configure a User ID/extension to dial automatically when the phone is
taken offhook. By default, the phone will use the first account to dial out.
Advanced Settings/Video Settings
Enable Motion Detection The phone will exit idle/screensaver mode if motion is detected. The
default setting is Yes.
Video frame rate The Default value is 15 frames/second. The video frame rate is adjustable
based on network conditions.
Increasing the frame rate will increase the amount of transferred data
significantly therefore consuming more bandwidth. Lack of bandwidth will
impair the video due to packet loss.
Video bit rate The Default value is 128 kbps. The video bit rate is adjustable based on
network conditions.
Increasing video bit rate may improve video quality if the bandwidth
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 36 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
permits.
Otherwise the video quality will be impaired due to packet loss
Video Packet Size The Default value is 1400, range from 100 to 1400.
It is recommended to use 600~800 if you have an Outbound Proxy or
Media Gateway.
Video Rate Control Frame, TMN8 or GOP. The Default setting is Frame.
TMN8 is good for bandwidths larger than 384kbps
Video Frame Skipping Skips bad video frames as they are received
The Default setting is No.
I-Frame Reference Only When enabled, all P frames will only have reference to previous I frames.
This method may improve video quality when the network has heavy
packet loss. It will have modest increase in bandwidth usage. The Default
setting is No.
Packetization-Mode The packetization mode (0 or 1) for the H.264 video packets. The default
setting is 0.
Redundant P-frame This setting allows the phone to send redundant P-frames of I frames.
When an I frame is delayed or has packet loss, the redundant P-frames will
be used instead. It may make video phone call less prone to errors and
thus make the video stream more robust towards error propagation, but
may increase bandwidth usage. The default setting is set to No.
Adaptive MB Intra Refresh This parameter specifies whether Adaptive MB Intra Refresh is used or not.
It may protect most important MBs (macro blocks) subjected to packet loss
and to avoid error propagation. The intra-refresh rate is adapted according
to the video packet loss rate. It may increase bandwidth usage. The default
setting is set to No.
Video Packet Loss Rate Specifies the video packet loss rate for the Adaptive MB Intra Refresh.
Users can choose from: Less than 5%, Less than 10%, Less than 15%,
Less than 20%, Less than 25%. The default setting is set to Less than
10%.
Advanced Settings/Ring Tone
Call Progress Tones Using these settings, users can configure ring or tone frequencies based on
parameters from the local telecom provider. By default, they are set to the
North American standard.
Frequencies should be configured with known values to avoid
uncomfortable high pitch sounds.
Syntax: f1=val,f2=val[,c=on1/off1[-on2/off2[-on3/off3]]];
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 37 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
(Frequencies are in Hz and cadence on and off are in 10ms)
ON is the period of ringing (“On time” in ‘ms’) while OFF is the period of
silence. In order to set a continuous ring, OFF should be zero. Otherwise it
will ring ON ms and a pause of OFF ms and then repeat the pattern. Up to
three cadences are supported.
Default Ring Cadence This defines the ring cadence for the phone. The default setting is:
c=2000/4000;
MAINTENANCE PAGE DEFINITIONS
Maintenance/Network Settings
Address Type This selects the type of IP address assigned: DHCP, PPPoE or Static IP.
PPPoE When PPPoE is selected, the user needs to enter the following: PPPoE
Account ID, PPPoE Password, PPPoE Service Name.
Static IP When Static IP is selected, the user needs to enter IP address, Subnet
Mask, Default Gateway, Preferred DNS Server and Alternate DNS Server.
Alternate DNS Server This field sets the preferred DNS server for the user.
Layer 3 Qos This field defines the layer 3 QoS parameter. It is the value used for IP
Precedence, Diff-Serv or MPLS. The Default value is 0.
Layer 2 QoS
802.1Q/VLAN Tag
This field contains the value used for layer 2 VLAN tagging. The Default
value is 0.
Layer 2 QoS
802.1p Priority Value
This assigns the priority value of the Layer2 QoS packets. The Default
value is 0.
802.1x Mode This field sets 802.1x Mode. The default value is disabled. If EAD-MD5 is
selected, users will be required to enter Identity and MD5 Password.
Maintenance/Wifi Settings
Wifi Functions This parameter enables/disables the Wifi function. The default setting is set
to “No”.
Wireless Mode This parameter defines the wireless mode used. The GXV3140H supports
802.11b/g/n
Network Type This parameter defines the network type of the wireless network: Ad-hoc or
AP/Managed. By default, it is set to “AP or Managed”.
Channel This parameter defines the channel (1-10) for the wireless network. The
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 38 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
default setting is set to “Auto”.
ESSID This parameter sets the ESSID for the Wireless network. Press “Scan” to
scan for the available wireless network and add it. Users can also press
“Add” to add the ESSID directly.
Security Mode This parameter defines the security mode used for the wireless network.
The following are supported: WEP/Shared, WEP/OPEN, WPA PSK TKIP,
WPA PSK AES, WPA2 PSK TKIP, WPA2 PSK AES. The default setting is
set to “Disabled”.
Users will need to enter the corresponding authentication password for the
security mode.
Maintenance/Time Settings
NTP Server This parameter defines the URL or IP address of the NTP (Network Time
Protocol) server. The GXV3140H phone may obtain the date and time from
the server.
The default setting is ntp.ipvideotalk.com.
DHCP Option 42 override
NTP server
Select Yes for the user to allow DHCP Option 2 to override the NTP server
if there is one on the LAN. The default setting is NO.
Time Zone This parameter controls the date/time display according to the specified
time zone.
Self-Defined Time Zone This parameter allows the users to define their own time zone.
Syntax: std offset dst [offset], start [/time], end [/time]
Default is set to: MTZ+6MDT+5,M3.2.0,M11.1.0, MTZ+6MDT+5
This indicates a time zone with 6 hours offset with 1 hour ahead which is
U.S central time. If it is positive (+) if the local time zone is west of the
Prime Meridian (A.K.A: International or Greenwich Meridian) and negative
(-) if it is east.
M3.2.0,M11.1.0
The 1st number indicates Month: 1,2,3.., 12 (for Jan, Feb, .., Dec)
The 2nd number indicates the nth iteration of the weekday: (1st Sunday,
3rd Tuesday…)
The 3rd number indicates weekday: 0,1,2,..,6( for Sun, Mon, Tues,..,Sat)
Therefore, this example is the DST which starts from the second Sunday of
March to the 1st Sunday of November.
Maintenance/Web & Telnet Access
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 39 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Disable Telnet The default value is No. If set to YES, the GXV3140H will not allow any
telnet access to the phone.
Access Method This defines the access method for web access: HTTP or secure HTTPS
protocol.
Port This defines the port for web access. By default, HTTP uses port 80 and
HTTPS uses port 443. This field is for customizable web ports.
Admin Password This defines the administrator password for web interface access. Only the
administrator can configure the “Advanced Settings” and “Account x”
pages. The password is case sensitive and the maximum password length
is 25 characters.
User Password This defines the user password for web interface access.
Maintenance/Upgrade and Provisioning
Lock Keypad for Update The default value is NO. If set to YES, the keypad will be disabled from
making any updates.
XML Config File Password The password used for encrypting the XML configuration file using
OpenSSL. This is required for the phone to decrypt the encrypted XML
configuration file.
HTTP/HTTPS User Name The user name for the HTTP server.
HTTP/HTTPS Password The password for the HTTP server.
Upgrade Via This field allows the user to choose the firmware upgrade method: TFTP,
HTTP or HTTPS.
Firmware Server Path Defines the server path for the firmware server. It can be different from the
Configuration server which is used for provisioning.
Config Server Path This is the server path for provisioning; it can be different from the firmware
server.
Firmware File Prefix This field enables your ITSP to lock firmware updates. If configured, only
the firmware with the matching encrypted prefix will be downloaded and
flashed into the phone.
Firmware File Postfix This field enables your ITSP to lock firmware updates. If configured, only
the firmware with the matching encrypted postfix will be downloaded and
flashed into the phone.
Config File Prefix This field enables your ITSP to lock configuration updates. If configured,
only the configuration file with the matching encrypted prefix will be
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 40 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
downloaded and flashed into the phone.
Config File Postfix This field enables your ITSP to lock configuration updates. If configured,
only the configuration file with the matching encrypted postfix will be
downloaded and flashed into the phone.
DHCP Option 66 override
Server
The Default setting is YES. If DHCP option 66 is enabled on the LAN side,
the TFTP server can be redirected. Please be very careful when
configuring this as the redirection could break the phone if this happens
during the firmware upgrade.
Automatic Upgrade The default value is NO. Choose “YES” to enable automatic HTTP upgrade
and provisioning.
Period time of upgrade
checking
Specifies the time period to check for firmware upgrade. The default setting
is 10080 minutes ( 7 days)
Hour of the day (0-23)
Defines the hour of the day to check the HTTP/TFTP server for firmware
upgrades or configuration files changes.
Day of the week (0-6) Defines the day of the week to check the HTTP/TFTP server for firmware
upgrades or configuration files changes.
Automatic Upgrade Rule Defines the rules for automatic upgrade: Always Check, when F/W
suffix/prefix changes, Skip the Firmware Check.
Authenticate Conf File Authenticate configuration file before acceptance. The Default setting is
NO.
Factory Reset Restore to factory default settings. Users can choose from: Full Reset,
VoIP Data Reset, and User Data Reset. After the selection is made, press
the “Reset” button to factory reset the phone.
NOTE: Users can use the backup/restore functionality of the phone prior to
the factory reset.
Maintenance/Syslog
Syslog Server The URL/IP address for the syslog server.
Syslog Level Select the level of logging for syslog. The default setting is NONE.
There are 4 levels: INFO, DEBUG, ERROR and WARNING.
Syslog messages are sent based on the following events:
Product model/version on boot up (INFO level)
NAT related info (INFO level)
Sent or received SIP message (DEBUG level)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 41 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
SIP message summary (INFO level)
Inbound and outbound calls (INFO level)
Registration status change (INFO level)
Negotiated codec (INFO level)
Ethernet link up (INFO level)
SLIC chip exception (WARNING and ERROR levels)
Memory exception (ERROR level).
Maintenance/Debug
Capture Trace Press START to start capturing a trace, and press STOP to abort the
capture process.
View Trace Press LIST to view the list of captured traces. It will show the time the trace
was captured. Click on the name of the file to download and view the trace.
Enable Application Debug When set to YES, the trace captured will contain debug messages.
The default setting is NO.
Maintenance/Language
Language Selects the language setting for the phone.
Maintenance/Device Manager (LCD)
Screen Saver Timeout
(m)
This sets the lapsed idle time needed for the screen saver to appear. The
default setting is 5 minutes.
Screen Saver Interval
(s)
The screen saver is a picture slide show. This defines the frequency to
change the picture on the screen for the screen saver.
The default setting is 10 seconds.
LCD Auto Power Off Time
(m)
This defines the lapsed idle time needed for the LCD to power off
automatically in order to save power. The default setting is 15 minutes.
Maintenance/Device Manager (Headset)
Headset TX Gain (dB) Transmission gain. It’s a headset setting to control the voice intensity. The
default setting is 0dB.
Headset RX Gain (dB) Receive gain. It’s a headset setting to control the voice intensity. The
default setting is 0dB.
Maintenance/Device Manager (Camera)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 42 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Zoom mode Select the desired camera zoom mode (Tele, optical, digital). Can adjust
local video zoom either in mirror mode or during the call (on the fly) by
pressing the Left or Right Arrow Key.
Exposure Setting Select the desired Camera Exposure mode based on the surroundings.
The default setting is set to Auto.
Color Mode Select the desired Camera Color Mode (Color or Monochromatic). The
default setting is set to Color.
White Balance Select the desired Camera White Balance to be automatic or Fixed. The
default setting is set to Auto.
Lens Correction Correct Camera Lens noise. The default setting is set to YES.
It is recommended to set this parameter to YES to reduce camera lens
noise and improve video quality.
Flicker Control Reduces flicker of image shot with a video camera caused by luminance
fluctuation of an illuminating light source. Users can select 50Hz/60Hz
depending on the frequency of the commercial electrical power.
The default setting is set to Auto.
Maintenance/Device Manager (TV Port)
TV Output Select the desired TV Output type (PAL or NTSC).
Maintenance/OpenVPN Settings
Enable OpenVPN This enables/disables OpenVPN functionality. The default setting is No. To
use OpenVPN functionality, it requires user to have access to an OpenVPN
server.
OpenVPN Server address The URL/IP address for the OpenVPN server.
OpenVPN server port The network port for the OpenVPN server. By default, it is set to 1194.
OpenVPN CA OpenVPN CA file (ca.crt) required by the OpenVPN server for
authentication purposes. Press “Upload” to upload the corresponding file
to the phone.
OpenVPN Client Certificate OpenVPN Client certificate file (*.crt) required by the OpenVPN server for
authentication purposes. Press “Upload” to upload the corresponding file
to the phone.
OpenVPN Client Key The OpenVPN Client key (*.key) required by the OpenVPN server for
authentication purposes. Press “Upload” to upload the corresponding file
to the phone.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 43 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
NOTE: To use OpenVPN functionalities, users must enable OpenVPN and configure all of the settings
related to OpenVPN, including server address, port, OpenVPN CA, certificate and key. Additionally, the
user must also set the SIP account to use “VPN” for the “Nat Traversal” (under Account-> Network
Settings). Reboot the phone after these settings are saved for the changes to take effect. Once the phone
connects to the OpenVPN server and the authentication is correct, the phone will show the VPN IP
address under the Status-> Network Status, but it will still display the LAN IP on the LCD of the phone.
SIP ACCOUNT CONFIGURATION PAGE DEFINITIONS
The GXV3140H has three lines that can be configured to accommodate independent SIP accounts. Every
SIP account has an individual configuration page.
Account/General Settings
Account Active Select YES to enable and use the Line.
Account Name The account name for the user that is displayed on the LCD screen.
SIP Server The IP address of the SIP server or the given domain name of the VoIP
service provider.
SIP User ID User account information provided by the VoIP service provider; normally
similar to a telephone number or an actual telephone number.
Authenticate ID The authenticate ID for the SIP user. It can differ or be the same as the SIP
user ID.
Authenticate password The password that the GXV uses to authenticate with the ITSP (SIP)
server. After it is saved, this will appear as blank for security reasons. The
maximum length is 25 characters.
Voice Mail User ID When this is configured, the user can dial to the voicemail server using the
MESSAGE button. This ID is normally the feature code for Voice Mail.
Name The Caller ID that will be displayed for the account.
User ID is phone number: If the Video phone has an assigned PSTN number, this field should be set
to “YES”. Otherwise, set it to “NO”. If “YES” is set, a “user=phone”
parameter will be attached to the “From header” in the SIP request to
indicate the E.164 number.
Account/Network Settings
Outbound Proxy
IP address or Domain name of the Outbound Proxy, or Media Gateway, or
Session Border Controller. Used by the GXV3140H for firewall or NAT
penetration in different network environments. If a symmetric NAT is
detected, STUN will not work and ONLY an Outbound Proxy will work.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 44 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
DNS Mode The default is set to A Record. If the user wishes to locate the server by DNS
SRV, the user may select SRV or NATPTR/SRV.
NAT Traversal This setting decides whether the NAT traversal mechanism is activated. If it
is set to “Yes” and STUN server is configured, the GXV3140H will route
according the STUN server.
In this mode, the STUN client embedded in the phone will communicate with
the appointed STUN server to examine which type of Firewall/NAT setting is
employed. If the type of NAT detected is Full Cone, Restricted Cone or
Port-Restricted cone, the phone will try to use public IP addresses and port in
all the SIP and SDP messages.
If the “NAT Traversal(STUN)” is configured to be “No, but keep-alive”, the
phone will send an empty SDP packet (without payload data) to the SIP
server once in 20 seconds to keep the NAT port open. If an outbound proxy
server is used, please configure this to be “NO”.
Proxy Require Notifies the SIP server that the unit is behind a NAT/Firewall.
Account/SIP Settings
SIP Registration Selects whether or not the GXV3140H will send a SIP Register message to
the proxy; The default setting is YES.
Unregister On Reboot If set to YES, the SIP user registration messages will be cleared on reboot.
The default setting is YES.
Register Expiration (m)
This defines the expiration time of the registration in minutes. The default
value is 50 minutes; the maximum value is 65535 minutes (approximately
45 days) and the minimum value is 5 minutes.
Wait Time Retry
Registration (s)
The wait time for registration retry if registration fails. The default is set to
20 Seconds.
Local SIP Port The local SIP port for sending and receiving data. The default settings for
Account 1/2/3 are 5060/5062/5064.
Subscribe for MWI Default is set to No. When selected, a SUBSCRIBE for Message Waiting
Indication will be sent out periodically.
Session Expiration (s) Session Expiration is the time (in seconds) at which the session is
considered timed out if no successful session refresh transaction occurs
beforehand. The default value is 180 seconds.
MIN-SE (s) The minimum session expiration (in seconds). The default value is 90
seconds.
UAC Specify Refresher As a Caller, select UAC to use the phone as the refresher, or select UAS to
use the Callee or proxy server as the refresher.
UAS Specify Refresher As a Callee, select UAC to use the caller or proxy server as the refresher,
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 45 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
or select UAS to use the phone as the refresher.
Force INVITE The Session Timer can be refreshed using the INVITE or UPDATE
methods. Select “Yes” to use the INVITE method to refresh the session
timer
Caller Request Timer The default setting is Yes. If Yes is selected, the phone will use the session
timer when it makes outbound calls if remote party supports session timer.
Callee Request Timer If Yes is selected, the phone will use the session timer when it receives
inbound calls with session timer request.
Force Timer If Yes is selected, the timer will be activated even if the other party does not
support session timers. If No is selected, the timer will be activated only if
the other party supports the timer. To disable the timer, Caller Request
timer, Callee request timer and Force Timer should all be set to No.
Enable 100rel The use of the PRACK (Provisional Acknowledgment) method enables
reliability to SIP provisional responses (1xx series). This is very important in
order to support PSTN internetworking. To invoke a reliable provisional
response, the 100rel tag is appended to the value of the required header of
the initial signaling messages. The default setting is No.
SIP Transport Selects the SIP transport method. There are three types: TCP, UDP and
TLS.
Symmetric RTP Selects whether or not symmetric RTP is supported.
Support SIP Instance ID Selects whether or not SIP Instance ID is supported.
Validate Incoming
Messages
This configuration selects whether or not the incoming messages should be
validated.
SIP T1 Timeout This configures the timeout period for SIP T1. The default setting is 0.5
Seconds.
SIP T2 Interval This configures the time interval for SIP T2. The default setting is 4
seconds.
Remove OBP from route The SIP Extension notifies the SIP server that it is behind a NAT/firewall.
Account/Codec Settings
Enable Video --YES: Accepts all incoming video, this is the default setting;
--NO: video is disabled.
--Enable/Disable during dialing: Dialing time choice to enable/disable video
DTMF Assigns the mechanism to send DTMF. There are three supported modes:
in audio (with DTMF as audio signals), through RTP and through SIP INFO.
DTMF Payload Type Sends DTMF using RFC2833. The default is 101.
Preferred Vocoder This products supports up to 8 different Vocoders: including
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 46 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
G.711(a/μ)(PCMU/PCMA),GSM,G726-32,G.723.1,G.729A/B, G.722 and
L16-256.
When this has been configured, the system will select the preferred
vocoder from the list and the same order is sent with the SDP messages.
The user can change the preferred vocoder priority order by toggling with
the up and down buttons. It is recommended to use the default setting
“PCMU”; if other vocoders are chosen, there could be an audio
transmission error.
Preferred Video Codec Selects the preferred video codec from the available list. It is recommended
to use H.264.
H.264Payload type Selects the dynamic H.264 codec payload type (ranges from 96-127). The
default setting is 99.
H.263+ Payload type Selects the H.263+ codec payload type (ranges from 96-127). The default
setting is 103.
L16-256 Payload type Selects the L16-256 codec payload type (ranges from 96-127). The default
setting is 103.
H.263 Encoder Resolution Selects the resolution (CIF/QCIF) used for H.263 codec. The default
resolution is CIF.
Silence Suppression This controls the G723/G729 silence suppression/VAD. If set to YES, when
no audio is detected, the phone will send a small number of VAD packets
(instead of audio packets). If Set to NO, this feature is disabled. The default
setting is NO.
Voice Frame per TX This configures the number of voice frames transmitted per packet. (It is
recommended to set this based on the Ethernet IS packet limitation – 1500
Byte or 120kb/s).
When configuring this, it should be noted that the “ptime” value for the SDP
will change with different configurations here. This value is related to the
codec used and the actual frames transmitted during the in payload call.
For example: if the codec is configured to be G.723 and “Voice Frames per
TX” is set to 2. Then in the INVITE request, the “ptime” value for SDP will
be 60 ms. This is because the G723 voice frame is 30 ms. Similarly, if the
setting is 2 and the codec is G729 or G711 or G726, the “ptime” value for
SDP in the INVITE request will be 20 ms.
If the voice frames per TX configuration exceeds the maximum value
allowed, the phone will choose the preferred codec and use the maximum
value allowed.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 47 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
The maximum value is 64 frames.
Adjusting these values will also change the jitter buffer. The phone has an
algorithm for setting the jitter buffer and the jitter buffer rate is around
20-200ms.
For end-users, it is recommended to use the default setting, as incorrect
settings may influence the quality of audio.
G723 Rate This defines the encoding rate for G723 vocoder, and can be 6.3Kb/s or
5.3Kb/s. Please confirm with your service provider.
Jitter Buffer Type Users can select either Fixed or Adaptive based on network conditions. The
default is Adaptive.
Jitter Buffer Length User can select Low, Medium, or High based on network conditions. The
default is Medium.
Account/Call Settings
Dial Plan Prefix Sets the prefix added to each dialed number.
Dial Plan Dial Plan Rules:
1. Accepted Digits: 1,2,3,4,5,6,7,8,9,0 , *, #, A,a,B,b,C,c,D,d
2. Grammar: x - any digit from 0-9;
a) xx+ - at least 2 digit numbers
b) xx. - only 2 digit numbers
c) ^ - exclude
d) [3-5] - any digit of 3, 4, or 5
e) [147] - any digit of 1, 4, or 7
f) <2=011> - replace digit 2 with 011 when dialing
g) | - the OR operand
• Example 1: {[369]11 | 1617xxxxxxx}
Allow 311, 611, and 911 or any 10 digit numbers with leading digits 1617
• Example 2: {^1900x+ | <=1617>xxxxxxx}
Block any number of leading digits 1900 or add prefix 1617 for any dialed 7
digit
numbers
• Example 3: {1xxx[2-9]xxxxxx | <2=011>x+}
Allows any number with leading digit 1 followed by a 3 digit number,
followed by any number between 2 and 9, followed by any 7 digit number
OR Allows any length of numbers with leading digit 2, replacing the 2 with
011 when dialed.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 48 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
3. Default: Outgoing – {x+}
Allow any length of numbers.
Example of a simple dial plan used in a Home/Office in the US:
{ ^1900x. | <=1617>[2-9]xxxxxx | 1[2-9]xx[2-9]xxxxxx | 011[2-9]x. |
[3469]11 }
Explanation of example rule (reading from left to right):
• ^1900x. - prevents dialing any number started with 1900
• <=1617>[2-9]xxxxxx - allows dialing to local area code (617) numbers by
dialing
7 numbers and 1617 area code will be added automatically
• 1[2-9]xx[2-9]xxxxxx |- allows dialing to any US/Canada Number with 11
digits
length
• 011[2-9]x. - allows international calls starting with 011
• [3469]11 - allow dialing special and emergency numbers 311, 411, 611
and 911
NOTE: In some cases where the user wishes to dial strings such as *123 to
activate voice mail or other applications provided by their service provider,
the * should be predefined inside the dial plan feature. An example dial
plan will be: { *x+ } which allows the user to dial * followed by any length of
numbers.
Early Dial The default setting is NO. Use only if the proxy supports 484 response.
Refer to Use Target
Contact
The default is NO. If set to YES, then for Attended Transfer, the “Refer-To”
header uses the transferred target’s contact header information.
Auto Answer The default setting is NO. If it is set to YES, the GXV3140H will play a
“beep” sound and answer the phone automatically on the speaker.
Send Anonymous If set to YES, the “From” header in the outgoing SIP messages will be set
to anonymous to block the caller ID from displaying. The default setting is
NO.
Anonymous Call Rejection The default setting is NO；If set to YES，any anonymous call will be rejected
（with 486 Busy message）
Special Feature Different soft switch vendors have special requirements; therefore users
may need to select special features to meet these requirements. Users can
choose from Standard, CBCOM, RNK, China Mobile, ZTE IMS and Mobotix
depending on their need.
The default setting is Standard.
Enable Call Features The default is set to YES. If it is set to NO, call features are disabled.
Call Forward Unconditional Sets the number to forward to unconditionally.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 49 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Call Forward When Busy Sets the number to forward to when busy.
Call Forward When No
Answer
Sets the number to forward to when no answer.
Delayed Call Forward Wait
Time (s)
The wait time before transferring the call to another extension or to
voicemail; the default setting is 20 seconds.
No Key Entry Timeout (s) Defines the time out duration on no key entry.
Default setting is 4 seconds.
Ring Timeout (s) Defines the time out duration on no answer.
Default setting is 60 second.
Transfer on Conference
Hangup
Defines whether or not the call is transferred to the other party if the initiator
of the conference hangs up.
Default setting is set to No.
Use # as Dial Key Selects whether or not # is used as Send.
Account Ringtone This allows the user to configure the general ringtone used for this account.
Users can choose from different ringtones from the dropdown menu. They
can also upload mp3 files in Ringtone manager for their own ringtone.
Ring Tone Users can select up to 3 distinctive ringtones to match incoming caller ID.
Users can choose from different ringtones from the dropdown menu. They
can also upload mp3 files in Ringtone manager for their own ringtone.
APPLICATION SETTINGS PAGE DEFINITIONS
Application Settings /Phonebook
Save Phonebook to PC Allows the user to save the phonebook list to the PC. Users can click on the
“Save” button and save the xml file to the PC.
File Source Configures the file source of the file to be downloaded. Users can choose
to download from “Internet” or from “Local File”. The default setting is set to
download file from Internet.
Clear The Old List If set to “Yes”, the phone will clear the old phonebook list before
downloading the new file. The default setting is set to “No”.
Replace Duplicate Items If set to “Yes”, the phone will replace any duplicate items in the phone with
the item in the new file. The default setting is set to “No”.
Phonebook
Download Mode
Selects the file download mode for the download server. Users can choose
from TFTP/HTTP/Off.
Phonebook
Download Server
The URL/IP address of the phonebook download server.
Download Interval (Min) The interval at which the phonebook will be downloaded from the download
server (in Minutes). The default setting is 0.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 50 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Download Now This allows the user to download the data file from the download server to
the phone. Press the “Download” button to trigger the file download.
Local File If the user has selected “Local File” for File Source, press “Browse” to bring
up a file selection menu to select the local file to upload to the phone.
Application Settings /IM
Google Talk /
MSN/
QQ/
Yahoo
This allows users to configure their account login for Google Talk/
MSN/QQ/Yahoo Messenger.
Click on “ADD” and the user will be prompted to enter the username,
password for authorization. The user can choose to delete the account later
if he/she desires.
Application Settings /Twitter
Auto Refresh Time Set the auto refresh time.
Retweet Format This parameter sets the retweet format.
View Name This sets the view name, user can choose from “User Name” or “Screen
Name”. The default setting is “User Name”
Page Limit Configure the number of tweets displayed on a page.
Users can select from 20/40/60/80 per page.
Account This allows users to configure their account login for Twitter.
Click on “ADD” and the user will be prompted to enter the username,
password for authorization. The user can choose to delete the account later
if he/she desires.
Server This allows user to select the server they wish to receive update from. By
default, it is set to http://twitter.com.
Users can also add their own server by clicking on the “Add” button, they
can also delete the server later if desired.
Application Settings /Facebook
Facebook Account This allows users to configure their account login for Facebook.
Click on “ADD” and a pop up window for authentication purposes will
appear. In the new window, the user will be prompted to log into Facebook
by entering the username, password for authorization. After the user has
logged in successfully, their Facebook account will be added.
The user can choose to delete the account later if he/she desires.
Application Settings /Browser Settings
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 51 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Start Browser On Boot Start the embedded mini browser in LCD once the phone boot up.
The default setting is No.
Browser Home Page The mini browser home page. The Default is file://html/index.html
Save bookmarks to PC Allows the user to save the bookmarks list to the PC. Users can click on the
“Save” button and save the xml file to the PC.
File Source Configures the file source of the file to be downloaded. Users can choose
to download from Internet or from local file. The default setting is set to
download file from Internet.
Clear The Old List If set to “Yes”, the phone will clear the old bookmarks list before
downloading the new file. The default setting is set to “No”.
Replace Duplicate Items If set to “Yes”, the phone will replace any duplicate items in the phone with
the item in the new file. The default setting is set to “No”.
Download Mode Selects the file download mode for the download server. Users can choose
from TFTP/HTTP/Off.
Download Server The URL/IP address of the file download server.
Download Now This allows the user to download the data file from the download server to
the phone. Press the “Download” button to trigger the file download.
Local File If the user has selected “Local File” for File Source, press “Browse” to bring
up a file selection menu to select the local file to upload to the phone.
Application Settings /Internet Radio
Save Favorites to PC Allows the user to save the “Favorites’ list to the PC. Users can click on the
“Save” button and save the xml file to the PC.
File Source Configures the file source of the file to be downloaded. Users can choose
to download from “Internet” or from “Local File”. The default setting is set to
download file from Internet.
Clear The Old List If set to “Yes”, the phone will clear the old favorites list before downloading
the new file. The default setting is set to “No”.
Replace Duplicate Items If set to “Yes”, the phone will replace any duplicate items in the phone with
the item in the new file. The default setting is set to “No”.
Download Mode Selects the file download mode for the download server. Users can choose
from TFTP/HTTP/Off.
Download Server The URL/IP address of the file download server.
Download Now This allows the user to download the data file from the download server to
the phone. Press the “Download” button to trigger the file download.
Local File If the user has selected “Local File” for File Source, press “Browse” to bring
up a file selection menu to select the local file to upload to the phone.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 52 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Application Settings /Photo Album
Photobucket Account/
Flickr Account/
Phanfare Account
This allows users to configure their account login for
Photobucket/Flickr/Phanfare, the online photo album service.
Click on “ADD” and the user will be prompted to enter the username,
password for authorization. The user can choose to delete the account later
if he/she desires.
Application Settings /Last FM
User Name The user must register for a Last FM account or have an existing Last FM
account. This setting allows users to configure their account login for Last
FM.
Enter the username for Last FM account.
Password Enter the password for Last FM account.
Application Settings /Youtube
Save Favorites to PC Allows the user to save the “Favorites’ list to the PC. Users can click on the
“Save” button and save the xml file to the PC.
File Source Configures the file source of the file to be downloaded. Users can choose
to download from “Internet” or from “Local File”. The default setting is set to
download file from Internet.
Clear The Old List If set to “Yes”, the phone will clear the old favorites list before downloading
the new file. The default setting is set to “No”.
Replace Duplicate Items If set to “Yes”, the phone will replace any duplicate items in the phone with
the item in the new file. The default setting is set to “No”.
Download Mode Selects the file download mode for the download server. Users can choose
from TFTP/HTTP/Off.
Download Server The URL/IP address of the file download server.
Download Now This allows the user to download the data file from the download server to
the phone. Press the “Download” button to trigger the file download.
Local File If the user has selected “Local File” for File Source, press “Browse” to bring
up a file selection menu to select the local file to upload to the phone.
Application Settings /World Photo
Save Favorites to PC Allows the user to save the “Favorites’ list to the PC. Users can click on the
“Save” button and save the xml file to the PC.
File Source Configures the file source of the file to be downloaded. Users can choose
to download from “Internet” or from “Local File”. The default setting is set to
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 53 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
download file from Internet.
Clear The Old List If set to “Yes”, the phone will clear the old favorites list before downloading
the new file. The default setting is set to “No”.
Replace Duplicate Items If set to “Yes”, the phone will replace any duplicate items in the phone with
the item in the new file. The default setting is set to “No”.
Download Mode Selects the file download mode for the download server. Users can choose
from TFTP/HTTP/Off.
Download Server The URL/IP address of the file download server.
Download Now This allows the user to download the data file from the download server to
the phone. Press the “Download” button to trigger the file download.
Local File If the user has selected “Local File” for File Source, press “Browse” to bring
up a file selection menu to select the local file to upload to the phone.
Application Settings /Weather
Local City (City Code) Enter the zip code of the city the user wishes to receive weather updates.
Refresh Interval (s) The interval (in seconds) for information refreshing. The default setting is
40 seconds.
Update Interval (m) The interval (in minutes) for information updating. The default setting is 40
minutes.
Degree Units Allows the user to specify the degree unit for the temperature to be
displayed. ( Fahrenheit or Celsius) The default unit is set to “Fahrenheit”
Save Favorites to PC Allows the user to save the “Favorites’ list to the PC. Users can click on the
“Save” button and save the xml file to the PC.
File Source Configures the file source of the file to be downloaded. Users can choose
to download from “Internet” or from “Local File”. The default setting is set to
download file from Internet.
Clear The Old List If set to “Yes”, the phone will clear the old list before downloading the new
file. The default setting is set to “No”.
Replace Duplicate Items If set to “Yes”, the phone will replace any duplicate items in the phone with
the item in the new file. The default setting is set to “No”.
Download Mode Selects the file download mode for the download server. Users can choose
from TFTP/HTTP/Off.
Download Server The URL/IP address of the file download server.
Download Now This allows the user to download the data file from the download server to
the phone. Press the “Download” button to trigger the file download.
Local File If the user has selected “Local File” for File Source, press “Browse” to bring
up a file selection menu to select the local file to upload to the phone.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 54 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
NOTE: Users are able to locate the corresponding international city code on Yahoo Weather
(http://weather.yahoo.com). Search for the city where you are located, and use the 8-digit city code
(located in the web browser address bar as part of the web URL) to configure the phone.
Application Settings /RSS News
Refresh Interval (s) The interval (in seconds) for information refreshing. The default setting is
15 seconds.
Update Interval (m) The interval (in minutes) for information updating. The default setting is 10
minutes.
Subscribe Provides a list of RSS feed category for users to subscribe to. These
categories includes: World, Domestic, Business, Sci/Tech, Popular, Sports
and Entertainment.
RSS Feed 1/2/3 Enter the URL/IP address of the websites that the user wish to subscribe
to.
Application Settings /Skype
Account This allows users to configure their account login for Skype.
Click on “ADD” and a pop up window for authentication purposes will
appear. In the new window, enter the Account/Password for the particular
user account.
The user can choose to delete the account later if he/she desires and can
choose to sign in automatically next time by checking the checkbox in the
new window.
NOTE: This configures the pre-existing Skype user account. If the user
does not have an existing Skype account, please register for a Skype
account on the Skype website first
(https://login.skype.com/account/signup-form).
Start Skype
When I Start the Phone
If set to “Yes”, the Skype application will be launched automatically when
the user boots up the phone.
Skype Maximum
Video Bitrate
Defines the maximum video bitrate for Skype. The default value is 256.
Application Settings /Ringtone Manager
Ringtone File Manager The manager allows users to centrally manage their ringtone files. It shows
all the currently available ringtones. Users can upload their own mp3
ringtone files by selecting the “Upload” button. Users can also delete
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 55 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
unwanted ringtone files by selecting the “Delete” button.
SAVING THE CONFIGURATION CHANGES
After users makes changes to the configuration, press the “Save” button in the Configuration Menu. The
web browser will then display a message window to confirm the saved changes. Reboot the phone for the
new settings to take effect if the settings that you have changed have a dot next to it.
REBOOTING FROM REMOTE LOCATIONS
Press the “Reboot” button at the top right-hand corner of the configuration menu to reboot the phone
remotely. The web browser will then display a message window to confirm with the user if they wish to
reboot the phone or not. Click on “Yes” and the phone will reboot. Wait approximately 2 minutes to log in
again.
CONFIGURATION THROUGH A CENTRAL SERVER
The Grandstream GXV3140H can be automatically configured from a central provisioning system. When
the GXV3140H boots up, it will send TFTP or HTTP request to download the configuration file,
“000b82xxxxxx.xml” and “cfg000b82xxxxxx”, where “000b82xxxxxx” is the MAC address of the
GXV3140H.
The configuration data can be downloaded from the central server via TFTP or HTTP/HTTPS. A service
provider or an enterprise with larger deployments of Grandstream devices can easily manage the
configuration and service provisioning of individual devices remotely from a central server.
Grandstream has a central provisioning system called GAPS (Grandstream Automated Provisioning
System). GAPS supports automatic configuration of Grandstream devices. GAPS use enhanced (NAT
friendly) TFTP or HTTP (thus no NAT issues) and other communication protocols to communicate with
each individual Grandstream device.
Grandstream provides GAPS service to VoIP service providers. GAPS can be used for either simple
redirection or with certain special provisioning settings. At boot-up, Grandstream devices by default point
to the Grandstream provisioning server (GAPS). Based on the unique MAC address of each device, GAPS
will provision the devices with redirection settings so that they will be redirected to customer’s TFTP or
HTTP server for further provisioning. Grandstream also provides the GAPSLITE software package which
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 56 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
contains our NAT friendly TFTP server and a configuration tool to facilitate the task of generating device
configuration files.
The GAPSLITE configuration tool is now free to end users. The tool and configuration templates are
available for download from http://www.grandstream.com/configurationtool.html
LCD MENU AND FEATURES
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 57 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010

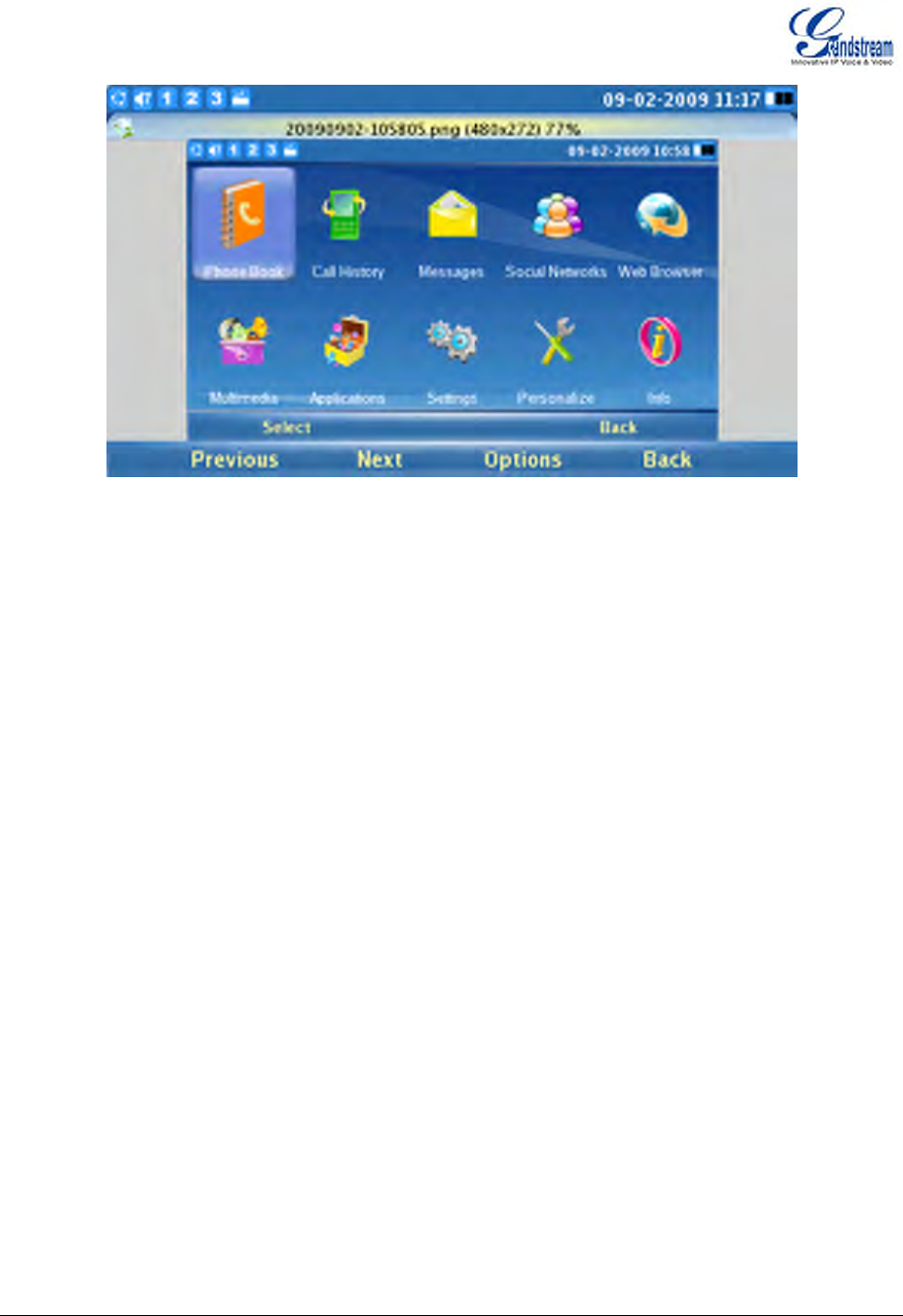

The GXV3140H’s user-friendly LCD MENU provides easy access to a host of features and convenient
tools to help simplify a user’s business and personal life. Essentially, the GXV3140H can act like a
personal assistant in many ways. In this section, we’ll explore the LCD MENU and Features and explain
how users can take full advantage of the GXV3140H’s capabilities.
PHONE BOOK
Users can manage their contacts through the phone book. The phone book supports features such as
add/delete/modify contacts, downloadable phone book from the TFTP/HTTP server as well as the ability to
save the phonebook to the PC. To access the phonebook, select MENU-> Phonebook. Users may also
access the phone book with the Phone book button on the phone.
Select the Phone book to display the figure below:
Figure 21: Phonebook Screen
As shown in figure 21, every contact contains an Extension number, Phone number, Mobile number, Fax
number and the group it belongs to. On the lower right hand corner, it shows that the total capacity of the
phone book is 500 contacts, as well as the number of used contacts. The user may dial the contact by
pressing F1, and can search for a contact by pressing F2. When searching, the user needs to enter the
user name to search and press OK to confirm. Press F3 to access “Options”, shown in figure 22:
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 58 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 22: Phonebook options
As shown in figure 22, select “New” to add a new contact; Select “Edit” to modify an existing entry. Users
can add the entry to the phonebook and associate a picture taken by the screenshot feature as a
thumbnail image for the contact. (See figure 23)
Figure 23: Adding a new contact
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 59 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 24: Advanced Settings for new contact
In “Options”, select “Delete” to delete contact, select “Delete All” to delete all the contacts in phone book.
In addition to manually adding each phonebook entry, the GXV3140H enables users to share and maintain
the phonebook (by means of a XML phonebook) through the web easily. The XML phonebook must be
stored on a HTTP/TFTP server. There are also applications where organizations will want to have a
centralized directory server and have all phones in the organization synchronize with the server
periodically.
To access this feature, select Options-> Download. Then the screen will display as figure 25.
Figure 25: Downloading Phonebook
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 60 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Please follow the Example Phonebook in the next section to compile the phonebook XML file. Also, note
that the phonebook file name is fixed to gs_phonebook.xml, so users can’t alter the phonebook file name
based on user preference. After compiling the phonebook XML file, place the file under the web server root
directory and start the web server.
Make sure to specify the “Phonebook Download Mode” and the “Phonebook Download Server path” in the
phone configuration. When the XML file is downloaded, the phone will parse and extract the entries from it.
If the “Replace Duplicate Items” is set to “Off”, the device will not replace duplicated items in the
phonebook. After the necessary configuration settings are set, navigate to the “Download” button next to
“Download Now” and press the round OK button on the phone.
The GXV3140H will start downloading the XML Phonebook and display the download status message on
the phone’s LCD screen. If the download is successful, the message “Download successful!” will be
displayed. This means that all of the phonebook entries in the XML file are now stored in the GXV3140H
phonebook. If the user encounters
• Example Phonebook File
<?xml version="1.0"?>
<AddressBook>
<version>1</version>
<pbgroup>
<id>3</id>
<name>mygroup</name>
<ringtones>../</ringtones>
</pbgroup>
<Contact>
<FirstName>John</FirstName>
<LastName>Doe</LastName>
<Phone>
<phonenumber>8765432</phonenumber>
<accountindex>0</accountindex>
</Phone>
<Group>0</Group>
<PhotoUrl></PhotoUrl>
</Contact>
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 61 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
<Contact>
<FirstName>Lily</FirstName>
<LastName>Lee</LastName>
<Phone>
<phonenumber>8100000</phonenumber>
<accountindex>0</accountindex>
</Phone>
<Phone>
<phonenumber>123</phonenumber>
<accountindex>1</accountindex>
</Phone>
<Group>0</Group>
<PhotoUrl></PhotoUrl>
</Contact>
<Contact>
<FirstName>Alan</FirstName>
<LastName>Smith</LastName>
<Phone>
<phonenumber>8100001</phonenumber>
<accountindex>0</accountindex>
</Phone>
<Group>0</Group>
<PhotoUrl></PhotoUrl>
</Contact>
</AddressBook>
NOTE: If the user is downloading from a local server, please ensure that the TFTP/HTTP settings are
correct.
CALL HISTORY
Users may access the phone’s call records through the Call History. Call History allows users to view and
manage all calls (Dialed, Received, and Missed) and is accessible by selecting “MENU”-> “Call History”.
Press F1 to Select Call History. (See Figure 26)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 62 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 26: Call History Screen
As shown in figure 26, each user can choose to Dial, Save or Delete a Call Record. The Dial option will
allow you redial or dial out to the number. The Save option will save the number to the phone book.
MESSAGES
Messages is a text message feature (currently only English is supported). If two GXV3140Hs are
registered on the same SIP server, text messages can be sent/received between two parties. Similarly, if
other IP products support this feature, the text message feature can also be used to send/receive
messages between the device and the GXV3140H. This application is accessible by selecting “MENU”->
“Messages”.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 63 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 27: Message Inbox
As shown in figure 27, users can create, view and manage their messages. When the user presses F3 to
select “Options”, the user can dial the number of the sender, save the number of the sender, or delete the
message(s).
When the user receives a message, the following notification will show up on the LCD screen:
Figure 28: New message alert
Press F3 to Select OK. This will open the message for the user to view.
Figure 29: Composing a message
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 64 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 29 shows how users can choose to “Reply”, “Forward” or “Delete” the message.
NOTE:
• Messages can be sent to more than 1 receiver. To send to multiple receivers, separate the
numbers with a semicolon (;). For example, send to three recipients (1331;1332;1333)
• Currently, the maximum content length of the message is 128 characters.
SOCIAL NETWORKS
The GXV3140H IP Multimedia Phone supports popular online social networking including Skype, Instant
Messaging services (Google Talk, MSN, QQ and Yahoo), Twitter, Facebook and Google Voice.
Figure 30: Social Networks
• SKYPE
Skype is an IP telephony software application that enables millions of users to communicate by
initiating and receiving free voice and video calls to other Skype users on computers, mobile devices
and other GXV3140H phones. To access Skype on the GXV3140H, users could press F3 button
underneath “Skype” in IDLE screen or select “MENU”-> “Social Networks”->”Skype”. (See figure 31)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 65 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 31: Skype Application
Creating a Skype Account
A Skype account is required in order to use Skype for free voice and video calling. If the user does not
have a pre-existing Skype account, a new account can be created using the Skype application login
page on the GXV3140H. Select the “Don’t have Skype Name?” button to be navigated through the
registration process. (See figure 32)
Figure 32: Skype Login Screen
Next, check “Accept” to accept Skype’s agreement terms. (See figure 33) Users will be required to
provide valid information to create a new Skype account.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 66 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 33: Skype Disclaimer
During account registration, a warning message will be displayed if the username, password or email
address entered is invalid. A green checkmark displayed to the right of each item indicates whether the
information was successfully entered. If you wish to save your login information or receive Skype news
and special offers, simply mark the appropriate checkboxes. After all the requested items are
completed, the “Sign In” button will be activated. Press the “Sign In” softkey to complete the account
registration process. (See figure 34)
Figure 34: Creating a new Skype account
Pre-existing Account Sign-In
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 67 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Users with a pre-existing Skype account can login to Skype by simply entering the correct username
and password. Complete sign-in by pressing the “Sign-In” button to login to Skype. (See figure 35)
Figure 35: Skype Login Screen
If the user forgets the password, click on “Forgotten password?” button to obtain password reset
instructions. Options such as “Sign in automatically next time” and “Start Skype when I start the phone”
are available to help users to login automatically without having to enter user information again next
time.
NOTE: Alternatively, users can also log into the web GUI on the GXV3140H. Select “Application
settings”-> “Skype”. Click on the “Add” button and fill in the account username/password to add the
Skype account to the GXV3140H.
Managing Contacts
After sign in, the user’s contact list will be displayed, showing the status information and profile of the
contacts on the right-hand window. Additionally, users can add contacts by selecting “Options”->
“Contact”->”Add”. To view detailed contact information, select “View profile”. The ability to remove and
block a contact is also available by selecting the appropriate button in the “Contact” window. (See
figure 36)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 68 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 36: Skype Options Menu
For efficient contact management, users can place contacts into different groups. Select “View group”
to choose one of the current groups. To place a contact into a specific group, select “Add to group”.
Select “View all groups” to review and see all group information within all groups.
Settings
Users can select “Options”->”Settings” to access four (4) personal setting tabs (General, Call Features,
Ringtones, and Privacy). (See figure 37)
Figure 37: Skype Settings
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 69 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
The General Settings tab (See figure 38) allows users to configure general Skype settings including
setting the period of time (in minutes) before showing the user as “Away” when the user is inactive.
The time duration for keeping call history information can also be set by selecting a length of period
from the “Keep history for:” menu. To clear call history, users simply need to select the button titled
“Clear History”. For automatic user login after powering on the GXV3140H, the “Start Skype when I
start the phone” checkbox should be selected. To properly save all these settings successfully, users
must press the “Save” soft key button.
Figure 38: Skype General Settings
The Call Features tab (See figure 39) allows users to configure call features for the Skype application.
Call can be programmed to be automatically answered when there is an incoming call by Selecting
“Enable” for “Answer Calls Automatically”. Calls can also be automatically forwarded to another Skype
user in the event the user is not on Skype. To enable the call forwarding function, select “Forward calls
when I’m not on Skype” and input the forwarding Skype name and period of time (seconds) the call will
ring unanswered before the call is forwarded. To properly save all these settings successfully, users
must press the “Save” soft key button.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 70 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 39: Skype Call Features Settings
The Ringtones tab (See figure 40) allows users to change and customize ringtones for both the call
and chat function. To hear the current ringtone, press “Play” next to drop down menu.
Figure 40: Skype Ringtones Setting
To customize or select a different ringtone, users need to select “Customize” from the drop down menu.
Then the “Browse…” button will be activated. Press “Browse…” and “Open” to access the ringtone file
from the File Manager. Press “Save” to successfully set the desired ringtone. (See figure 41)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 71 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 41: Skype Ringtones Setting
The Privacy tab (See figure 42) is very important as it controls incoming calls, chats and personal
information exposed to other Skype users. Select “Anyone” or “Only people from my contacts” to set
the privileges for incoming calls, chats, phone number view and avatar view. To let others see the
contact list, select the “Show how many contacts I have” option. To allow other Skype users to see the
status of a call, users should check “Allow my status to be shown on the web”. To properly save all
these settings successfully, users must press the “Save” soft key button.
Figure 42: Skype Privacy Setting
Calls
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 72 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
To place a Skype call to a contact on the contacts list (See figure 43), go to the tab “Contacts” and
select the desired contact person. When selected, the contact’s information and status will be
displayed to the right on the screen. To initiate or make a call, users need to press the soft key “Call”
on the desired contact’s screen.
Figure 43: Skype Contacts List
To place an audio only call, select the contact and then select “Options”->”Contact”->”Audio Call”.
Figure 44 depicts the screen when a call is being dialed out. To cancel the call before the connection is
established; simply press the “Cancel” soft key button.
Figure 44: Placing a call with Skype
When the user receives an incoming call, the window depicted below (See figure 45) will be displayed.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 73 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
The users must select “Accept” or “Accept Audio" or “Reject” before the conversation is established.
Figure 45: Incoming Skype Call Screen
The GXV3140H supports call hold/resume when using Skype. While on an initial call another call
request comes in, press the line button ( ) on the GXV3140H and select the line where the
corresponding conversation should be established (See figure 46). To resume the initial call placed on
hold, the user should select the line by pressing the line key and selecting the line to switch between
the calls.
Figure 46: Skype Call Hold
NOTE: The GXV3140H does not support Skype conference calls at this time.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 74 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
To place a call to a party outside or not on the user’s current contact list, simply enter the phone
number or Skype username by navigating the “Call” tab (See figure 47). For Skype Out call or calls to
an external landline or number, users need to check their credit balance in the account before
attempting a call. The available Skype Credit Balance is displayed for user convenience.
To initiate a conversation, enter the number or the Skype username to call and then press the “Call”
soft key. To search for the country code for the corresponding country, simply select the “Search code”
button.
WARNING: No emergency calls are allowed as Skype is not a replacement for a standard telephone.
Figure 47: Skype Out Call Screen
Chats
To chat with a Skype contact, go to the tab “Contact” and select the contact person. (See figure 48)
Press “Chat” to initiate the chatting window.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 75 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 48: Skype Contact List
Once the chat window is opened, the user will see figure 49 below. Press “Chat” to initiate the
conversation. Press the “Options” soft key for additional chat settings.
Figure 49: Skype Chat Options
To chat, enter the message in the window and press “Send”. The message, name and timestamp will
be displayed in the window. To exit the chat, press “Cancel”. (See figure 50)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 76 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 50: Skype Chat
In the chat window, users can select different options with the “Options” soft key. Select “Show
Members” to view chat contacts. Scroll down to “Close Chat” and “Leave Chat” to exit the chat window.
Users are also able to view or delete chat history by selecting “Chat History”. (See figure 51)
Figure 51: Skype Chat History
To add members to a chat, select “Options”-> “Add members” and add a buddy from the contact list.
(See figure 52) Select the contact and press “Add”-> “OK”. Once the contact joins, everyone in this
group chat room is able to chat with each other.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 77 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 52: Adding contacts to Skype chat
For more chat options, navigate to the “Chat” tab. (See figure 53) Chat history is displayed as well as
the ability to initiate a new chat by pressing “Open” on one of the items from the list. Using the
“Options” soft key, users can also delete the selected chat history.
Figure 53: Delete Skype Chat
History
To view the history of all call events, users can scroll to the “History” tab. By pressing the “Options” soft
key, users can delete selected items or clear all history. The ability to remove or block contacts is also
available by choosing “Contacts” on one of the selected items in the history list. To view history
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 78 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
information in different categories, users can select “View” and press “All”, “Outgoing”, “Incoming”,
“Missed” or Voicemail. (See figure 54)
Figure 54: View Skype Call History
While on this screen, users can also initiate a call or chat with the contacts in the history list by
pressing the soft key “Call” or “Chat” after selecting the item.
Profile
To set user personal information, select the “Profile” tab. (See figure 55) Press F1 to change the status
from “Online”, “Away”, “Do not Disturb”, “Invisible” or “Offline”.
Figure 55: Set User Status
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 79 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
If the profile status is set to “Do not Disturb”, all the incoming calls will be displayed as missed calls in
the “Missed Call” menu. The profile status can be changed any time by selecting the appropriate status
in the menu.
To edit the user profile displayed in others’ contact list, press “Option”-> “Edit” (See figure 56) then
enter the detailed information for items like home phone, office phone, etc. (See figure 57) Press
“Save” to save any edits.
Figure 56: Skype Options (Edit Skype Profile Information)
Figure 57: Edit Skype Profile Information Screen
To change the display avatar picture, users can select photos from an existing file or from a snapshot.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 80 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
(See figure 58)
Figure 58: Select Skype profile photo
To change an existing user password, press “Change Password”->”Input”. (See figure 59) Then type in
the current old password. Type in the new password and repeat the new password. A green check
displayed on the right side of the screen means the password is valid. The “Change” soft key button
will be activated once the correct information is filled in. Press “Cancel” to leave the window without
changing the password.
Figure 59: Change password for Skype
Exit Skype
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 81 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
To exit Skype application, press the “Exit” soft key. (See figure 60) Selecting “Minimize” keeps the
Skype application open and navigates the user to the main menu with a small Skype icon ( ) shown
in the right corner of the screen. Keeping the application live or minimized eliminates the need to sign
into Skype again for making or receiving calls later. If “Quit Skype” is selected, automatic sign in is
available (if configured) next time the user starts Skype.
Figure 60: Quit Skype
To disable the automatic signing in when exiting Skype, press “Options”->“Sign out” to close Skype
completely. (See figure 61)
Figure 61: Sign out from Skype
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 82 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
• INSTANT MESSENGER (IM)
The IM (instant messenger) is accessible through MENU-> Social Networks->IM. In order to start
using the IM features, users must have a pre-existing account. Users may manage their accounts by
going to Options->Accounts->Manage Accounts (Shown in figure 62).
Figure 62: Manage IM Accounts
Prompts will then appear for login information for Instant Messaging service of choice. (See figure 63)
Figure 63: Select IM application
After log in, users can begin to use the IM chat with their contacts online. (See figure 64) For fast and
efficient operation, connect an external keyboard/mouse to the phone through the USB port.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 83 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 64: Chat to contacts via IM
• TWITTER
Twitter is a free social networking and micro-blogging service that enables users to send and read
messages known as ‘tweets’. The GXV3140H’s built-in Twitter application offers users increased
flexibility and ease, as they can share and discover what’s happening right now, anywhere in the world.
The Twitter application is accessible through “MENU”-> “Social Networks” -> “Twitter”.
Once the Twitter application is accessed, press the “Login” softkey to configure the login information
for Twitter. (See figure 65) For greater ease, it is advised to use the web configuration interface to
configure user account login. The GXV3140H will remember login information for the accounts so
users will only need to setup login credentials once.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 84 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 65: Twitter Login Screen
Once account information has been configured and login is successful, users can start to tweet and
receive twitter messages from other users. (See figure 66)
Figure 66: Twitter feeds
Users can configure various settings on the Twitter application by selecting “Options” ->”Settings” in
the Twitter application. In the Twitter settings page, users can add/delete/edit account information,
configure the service URL and list, specify the retweet format, display limit and refresh interval for
Twitter. (See figure 67)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 85 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 67: Twitter Settings
• FACEBOOK
The built-in Facebook application helps the users to connect and share with people in their lives.
Figure 68: Facebook Main Screen
Facebook is accessible through “MENU”-> “Social Networks”-> “Facebook”. Once in Facebook, press
the “Login” softkey to configure the login information for Facebook. (See figure 69) For greater ease, it
is advised to use the web configuration interface to configure user account login. The GXV3140H will
remember login information for the accounts so users only need to setup the login credentials once.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 86 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 69: Facebook Login Screen
After the user has configured the account information and logged in successfully, they can start to
receive updates and explore all the functionalities of the Facebook with this application.
Figure 70: Facebook Authentication Screen
• GOOGLE VOICE
Google Voice application enables the users to make calls, send messages, manage contacts and
account after logging in Google Voice account.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 87 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
As can be seen in Figure 71 and Figure 72, press Login then enter the Email and Password. Click Ok
to login Google Voice Account.
Figure 71: Google Voice Application Screen
Figure 72: Google Voice Authentication Screen
After logging in, select option “keypad”. Dial the number and press “*” for SMS and “#” for Dial. (See
Figure 73)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 88 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 73: Google Voice Keypad
The following picture shows the SMS screen. Edit the message and press softkey “Send”. Users are
also allowed to dial the number here.
Figure 74: Google Voice Send Messages
Scroll down to option “Call”. On the screen, there will be a list of call history shown as Figure 75 below.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 89 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 75: Google Voice Call History
Option “Messages” will show the users messages history. Option “Contacts” contains the Google Voice
contact list and users could also select the contact to send message or dial out there. In “Account”,
users could set up callback number. (See Figure 76)
Figure 76: Google Voice Account Settings
WEB BROWSER
The GXV3140H has a full HTML Web Browser for Internet browsing. The web browser is accessible by
selecting “MENU”-> “Web Browser”. After selecting OK, it may take several seconds to load the web
browser.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 90 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
When the web browser has finished loading, a default page displaying “Hello, Welcome to GXV3140H”
shows up on the screen. (See figure 77)
Figure 77: GXV3140H Web Browser
Users can then press F4, corresponding to the “Options”, to move “Forward” and “Backward” on web
pages. By selecting “URL” under “Options”, users can enter the URL of a website. To toggle the curser,
press the F3 button which corresponds to the Tab option. Similarly, users can choose “Zoom“ under
“Options” to zoom in and zoom out of a webpage. Select “Exit” to exit the web browser. Figure 78 shows
the screen of the web browser while visiting a website.
Figure 78: Using the GXV3140H Web Browser
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 91 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
While browsing the web, users can select “Bookmarks” or “Save URL” for future reference. (See figure 79)
Figure 79: Web Browser Bookmarks
MULTIMEDIA
The GXV3140H provides access to a host of multimedia applications such as Internet Radio, Media Player,
Photo Viewer, Photo Album, Gstris, Online Music, Online Video, World Photos and Slide Show. These
applications, which provide user entertainment and interactivity, help to position the GXV3140H as the
industry’s leading IP multimedia phone.
• INTERNET RADIO
The GXV3140H has a built-in Internet Radio application with thousands of radio channels from all over
the world. The channels are divided into these categories: My Favorites, Talk Channels, Music
Channels, Sports Channels, Ethnic Channels and Local Radio. Users can select channels according
to their preferences. The Internet Radio application is accessed by selecting “MENU”-> “Multimedia”->
“Internet Radio”.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 92 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 80: Internet Radio
As shown in figure 80, users can toggle through the channel list using the up/down/left/right navigation
buttons on the phone. To adjust volume, simply press the F1 button and use the up/down arrows to
adjust. From the “Options” button (F3), users can "Open an URL" or "Open URL list" for other Internet
Radio stations. Users may also Play/Stop, Mute and Minimize the Internet radio. To Exit the Internet
Radio application, press F4.
User can also configure “My Favorites” by pressing F2 button for “Control”. This will display a toolbar
where users can add/delete/modify the favorites list and navigate through the “My Favorites” playlist.
(See figure 81)
Figure 81: Add Radio Stations to My Favorites
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 93 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
The Internet radio station can also be used for alarm clock or slide show purposes. To activate, select
the radio to be added and select “Options”-> “Use this for Alarm Clock/Slide Show”. (See figure 82)
Figure 82: Select station for Alarm Clock/Slideshow use
• MEDIA PLAYER
The GXV3140H’s Media Player allows users to play music files. File formats supported are: MP3, ogg,
wav, wma, avi, flv (h263/h264/vp6), mp4 and 3gp.
To access the Media Player, select MENU->Multimedia-> Media Player. Press the OK button or F1 to
select the Media Player.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 94 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 83: Media Player
As shown in figure 83, press F1 to adjust the volume of the media player (Navigate by using Up and
Down buttons). Press F2 to enable the “Tab” option, this allows the user to move the cursor between
the four buttons: “Previous”, “Play”, “Stop” and “Next”. Press F3 for “Options”. Users can perform the
following operations on the playlist: Add, Remove, Up, Down, Delete and Save. Users can also select
the channel for output: Headset, Speaker and Stereo. Configurations such as Loop Play, Full Screen,
Mute and Minimize can also be found here. Press F4 to exit.
• PHOTO VIEWER
The GXV3140H features a Photo Viewer which allows users to conveniently view their photos.
Supported file formats are: png, jpeg, and gif.
The application is accessible through Menu->Multimedia->Photo Viewer. After the application loads,
the user may select to view pictures from different folders, including the files from external USB flash
drive. (See figure 84)
Figure 84: Browse Folder in Photo Viewer
The screen will look similar to the figure 85 when the user loads any picture from a folder. For
example, open the first picture from the “screenshot” folder.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 95 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 85: Viewing an image in Photo Viewer
Choose F1 or F2 to select the “Previous” or the “Next” picture. Press F3 for “Options”. Users can also
Zoom, Rotate (Clockwise, Counter Clockwise), Flip (Vertical Flip, Horizontal Flip) the picture as well as
display the pictures in a slideshow. If a picture slideshow is selected, the photos will be shown in a
picture slideshow with the time frame (10/15/20 seconds) configured.
• PHOTO ALBUM
Users can upload, view, or search for photos from online photo albums. This provides convenience as
users are able to upload and share photos with relatives/friends worldwide. The photo album is
accessed by selecting “MENU”->”Multimedia”->”Photo Album”. After the Photo Album is loaded, a
screen similar to figure 86 will appear. Users can then choose which online photo album to use and
press the OK button to begin activation.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 96 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 86: Select Online Photo Album
Users must have an existing account with the online photo album or must register for an account with
the photo album service providers (i.e. Photobucket, Flickr, Phanfare). Press the button for each
photo album to start configuring the accounts for the Photo Album and follow the instructions for
account setup. For example, when Flickr is selected, users need to “Add” an Account before they can
upload local photos, view online photos and search for photos on Flickr. (See figure 87)
Figure 87: Flickr Settings
After the account is added and the user can log in successfully, users can upload and view the
photos on their online photo album with ease. Additionally, they are able to configure the phone to use
the pictures from the online photo album as screensaver/photo slideshow by selecting it as the
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 97 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
“Screen Saver Account” or “Slide Show Account”. (See figure 88)
Figure 88: Use photos from Flickr for Slideshow
Users can also search for photos on Flickr. (See figure 89)
Figure 89: Search Photos on Flickr
• GSTRIS
To access games for entertainment, select “Menu”->”Multimedia”->“Gstris”. Once the application is
opened, users can press F1 and F2 to start/stop or pause the game. (See figure 90)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 98 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 90: Gstris
• ONLINE MUSIC
To utilize the GXV3140H’s Online Music streaming application, users must have a pre-existing account
with Last.fm before listening to online music. Users can select preferred music genre and listen to it
online. To access the Online Music, select “MENU”->”Multimedia”-> “Online Music”.
After the application loads, users must first set up an account by accessing “Options”-> “Settings”. The
username and password for Last.fm will be prompted. Users can then select the musical style
preferred from the list of available musical styles.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 99 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 91: Online Music
Press F1 to adjust the volume (see the figure 91) and press F3 for “Options”. In “Options”, there are
several settings: the Play/Stop option will control the music, the Next option will skip the current song
and play the next one, the Output option allows users to choose the output channel (Headset, Speaker,
Stereo), Mute and Minimize.
• ONLINE VIDEO
Online video streaming is available on the GXV3140H via integration with YouTube. The Online
Video application is accessible through “MENU”-> “Multimedia” -> “Online Video”.
All YouTube videos are viewable. There are some default video feeds for users to browse, which
includes Standard Feeds (Top Rated, Most Popular and etc), Category (Music, Sports, Entertainment,
News and etc), Shows, Movies and etc. (See figure 92)
Figure 92: Online Video Screen
Users can also upload their own videos to YouTube so it can be viewed by users all over the world. To
upload a video to You Tube, the user has to have an existing YouTube account or register for a
YouTube account first. To upload the video, select “Options”-> “Upload” in the Online Video
application. After login is successful, press the “Start” button next to “Upload” and follow the
instructions to upload video files. (See figure 93)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 100 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 93: Upload Videos to User Youtube Account
Besides viewing videos from the built-in video feed, users can also search for videos according to
keyword and preferences. This is done by toggling to the “Search” option at the bottom of the
YouTube menu and entering the search keyword for the video. (See figure 94)
Figure 94: Search Online Videos
• WORLD PHOTOS
The World Photos application gives users the ability to view thousands of beautiful photos from
countries all over the world. To access this application, select “MENU”-> “Multimedia”-> “World
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 101 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Photos”. Photos are divided into categories by geographical locations, making it easy for users to
locate and navigate. (See figure 95)
Figure 95: World Photos
Once a country of interest is selected, press F2 for “Tab” to toggle to the picture thumbnail. If the OK
button is pressed while selecting a picture, the picture will be viewed with Photo viewer and users can
then zoom/rotate/flip the picture. (See Figure 96)
Figure 96: View Photos from World Photos
Users can configure well-liked country photos to a folder as the Slide Show or Screen Saver. To do
this, select the photo album and press F3 for “Options”. Next, select either “Use as slide show” or
“Use as Screen Saver” depending on preference. Users can then select “Add to Favorites” to add the
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 102 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
photo album to favorites for easy access and future reference. (See figure 97)
Figure 97: Use World Photos as slideshow
• SLIDE SHOW
The Slide Show application allows the user to select a set of photos and display these photos in a
picture slideshow. Access this application by selecting “MENU”-> “Multimedia”-> “Slide Show”. The
source folder for the photos includes: Local folder, an URL, World Photos, Online Photo Album. (See
figure 98)
Figure 98: Slide Show Settings
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 103 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
While the picture slideshow is playing, users can simultaneously play music from a music file or the
Internet radio for background music. This Slide Show application provides the user with a
sophisticated photo slideshow.
• NEWS VIDEOS
In News Videos, the users are provided selections from US, World, Sci-Tech, Entertainment, Health
and etc in different sites for the latest news and videos. In figure 99, press Up/Down arrow to the
news/videos then select it for the complete content.
Figure 99: News Videos
In figure 100, by pressing “Option” softkey, users could configure the settings.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 104 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 100: News Videos Options
Figure 101 shows News Videos settings. In “Site” field, several sites are available such as CNN,
FoxNews, Netease, Sina, BBC and IndiaTimes. Users could also choose the number of items
displayed in the screen by entering a number in “Items per screen”. For “News type”, users could
select the preferred news types by checking/unchecking the box. Press OK to save the settings.
Figure 101: News Videos Settings
APPLICATIONS
The GXV3140H provides a collection of useful applications that are accessible via MENU including
Calendar, Alarm Clock, Calculator, Direct IP Call, File Manager, Stock, Currencies, IP2Locations, Weather
and Today.
• CALENDAR
The Calendar application is accessed by selecting “MENU”-> “Applications”-> “Calendar”. Users can
view the calendar and add events to the calendar. To add an Event, press the F1 button corresponding
to the “Add an event” option on the LCD. (See figure 102)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 105 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 102: Calendar Application
As can be seen in the figure 102, users can press F1 to “Add New Event”, where events such as
birthdays may be added to the calendar.
Figure 103: Add Event in Calendar
After an event is added, the date will be displayed in red to show that there is an event for that date,
and display the event details on the right window. Users can also define alarm alert for these events
for reminder purposes.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 106 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 104: Options for Calendar Add Event
To move from year/month/date on the calendar, press F2 for “Tab” so that the date can be adjusted
accordingly. Press F3 for “Options”, to view/delete events, synchronize the calendar with Google
Calendar or configure additional settings. Press F4 to exit the calendar.
Additionally, the calendar application includes holiday reminders from different countries. To enable
this feature, select “Options”-> “Settings”. (See figure 105)
Figure 105: Configure the Holiday Calendar according to country preferences
The GXV3140H gives users the ability to display holidays for up to three different countries. The
country selected on the top, however, has higher priority than the ones below. If two countries have a
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 107 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
holiday on the same day, only the holiday from the top country will be displayed on the desktop phone.
Holiday reminders are displayed in green letters.
The GXV3140H can synchronize events with Google Calendar, and send out alerts for those events
marked on Google Calendar. To setup Google Calendar synchronization, select “Options”->”Settings”
in the Calendar application and enter the Email and password associated with the Google Calendar.
(See Figure 106) Users can also specify the Sync Time interval or select “Synchronize” under
“Options” for the GXV3140H Calendar application to be synchronized with the Google Calendar
events.
Figure 106: Synchronize with Google Calendar
• ALARM CLOCK
The GXV3140H provides a flexible alarm clock application that lets users configure a custom alarm
tone and alarm time in detail to suit their needs. (See figure 107)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 108 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 107: Alarm Clock Application
• CALCULATOR
The GXV3140H also includes a Calculator application. The calculator application is accessible by
selecting MENU->Applications-> Calculator. To operate the calculator, press the corresponding
number on the keypad. The arithmetic operations (e.g. add, subtract, multiply, divide) are defined by
the corresponding arrow buttons.
Figure 108: Calculator Application
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 109 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
• DIRECT IP CALL
Another key feature supported on the GXV3140H is Direct IP Calling. The Direct IP Call application is
accessible by selecting MENU->Applications-> Direct IP Call. In the IP address field, enter the IP
address of the other party and press the F3 key which corresponds to the “SEND” option on the LCD
as shown in figure 109.
Figure 109: Direct IP Call
• FILE MANAGER
File manager is a tool that helps to manage files such as music, pictures and documents. (See figure
110) Users can manage these documents efficiently through the File Manager by selecting “MENU”->
“Applications”->”File Manager”.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 110 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 110: File Manager
In Figure 111 shown below, users can access different folders to manage their files. Ringtones and
screenshots are stored in separate folders. If a USB device is connected, its contents will also be
displayed in the File Manager.
Figure 111: Folders and Files in File Manager Application
Users can copy files by pressing ”Options”-> “Copy”. After copying, users can paste the files to the
desired directory by selecting “Options”-> “Paste”.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 111 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
• STOCK
The GXV3140H includes a Stock Market monitoring application that conveniently retrieves current
information regarding the stock market. This application is accessible through MENU-> Applications->
Stock.
Figure 112: Stock Application
As shown in figure 112, the users can use the “Add Stock” option by pressing F1. This adds a new
stock to the list after you enter the stock symbol.
Figure 113: Add Stock in Stock Application
Users can refresh the contents by pressing F2 for ‘Refresh” and press F3 for “Options” to delete or
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 112 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
delete all stocks. Also, in Options->Settings, users can define the refresh interval, update interval,
color option and enable/disable images.
• CURRENCIES
To perform currency conversions, access the application by selecting “MENU”->“Applications”->
“Currencies”. Users need to enter the currency to convert from as well as the currency to convert to.
Pressing F3 selects “OK” which then displays the conversion result. (See figure 114)
Figure 114: Currency Convertor
• IP2LOCATION
The IP2Location Application provides users with a tool to resolve the IP address to the location. It is
accessible through “MENU”-> “Applications”-> “IP2Location”. To begin, enter the IP address and press
F4 to “Search”. Based on the IP address provided, the following information is given: Country, Region,
City, Latitude/Longitude, Time Zone and Weather Code. This information is useful when configuring
the phone to provide personalized settings based on user location.
For example: The IP address 67.110.250.152 is mapped to Yorba Linda in California, USA. The time
zone is UTC-07:00 and the weather code is USA1267. (See figure 115)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 113 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 115: IP2Location Application
• TODAY
The GXV3140H has a convenient “Today” application that gives interesting facts, offers information on
what has happened in history today and displays a daily quote. To access the application, select
“MENU”-> “Applications”-> “Today”. Next, select any of the subjects listed to view topics including
Spotlight, Word, Question, Food, Wine, Birthdays, History and Quote. (See figure 116)
Figure 116: Today Application
To configure the “Today” application, select “Settings”. Users can then customize their items of
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 114 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
interest, show the items on the desktop and set the refresh/update interval. (See figure 117)
Figure 117: Settings for Today Application
• WEATHER
A weather application is available that provides up-to-date weather forecast information. The weather
application is accessible by selecting “MENU”-> “Applications”-> “Weather”. (See figure 118) A list of
weather updates from major cities (sorted by their geographical location) is provided. Users can also
configure the phone to display these updates on the desktop by toggling to the city and select
“Options”->”Add to desktop”.
Figure 71: Weather Application
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 115 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
If a particular city is not found on the city list, the weather application provides a tool that searches for
and adds the city. Press F1 to “Add City”. (See figure 119) Cities can be searched by using the city
code or the city name. After the city shows up in the search result, it will be added to the list once the
user has confirmed it.
Figure 119: Add City for Weather Application
However, if the user wishes to display the weather update from this city on the desktop, it must be
added to the “Desktop Cities” list.
Figure 120: Add City to Desktop for Weather Application
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 116 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
NOTE: Users are able to locate the corresponding international city code on Yahoo Weather
(http://weather.yahoo.com/). Search for the city where you are located, and use the 8 digit city code
(located in the web browser address bar as part of the web URL) to configure the phone.
SETTINGS
The System Settings allows users to configure settings for Accounts, Network, Time, Display, Maintenance,
Camera, Call Features and Video Settings. To access the system settings, press F1 to open the MENU
and select Settings.
• ACCOUNT SETTINGS
Account Settings allows users configure the three SIP accounts; the same configurations may be
completed by accessing the web configuration interface. For more information on this, please refer to
the previous section on “GXV3140H and Web configuration Interface”.
Account Settings is accessible by selecting MENU-> Settings-> Accounts, and the LCD account
setting page is shown in figure 121:
Figure 121: Account Settings
The GXV3140H supports switching of account order. Under Accounts-> Account 1, press the up/down
arrow until the right arrow on the page is selected, and press the OK button. At this point, the original
account 1 will be switched to account 2. After the changes are made, press “Save” to save the
settings for the changes to take place. Similar procedures apply for all the other accounts.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 117 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 122: Toggle Account Order
• NETWORK SETTINGS
Users can configure the various network connection settings as well as the VLAN and WiFi settings.
Network settings are accessible by selecting “MENU”->”Settings”->”Network”. Users can choose to
use DHCP, PPPoE or Static IP. (See figure 123)
Figure 123: Network Settings
In the “Other” page, users may choose to set the Preferred DNS server, Layer 3 QoS, Layer 2 QoS
802.1Q/VLAN tag and Layer 2 QoS 802.1 priority value. (See figure 124)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 118 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 124: Network Settings (Other)
The GXV3140H supports three wireless modes: 802.11b/g/n and it requires an external Grandstream
USB Wireless Adapter. By default, the Wifi function on the phone is disabled. Users can configure the
wireless settings on the phone through the phone keypad or through the web configuration interface.
The Wifi settings can be accessed through MENU-> Settings-> Network, and use the right arrow key
to toggle to the “Wifi” tab. (See figure 125)
Figure 72: Network Settings (Wifi)
To setup the wireless adapter, users would need to connect the USB wireless adapter to the phone
through the USB port. Enable the Wifi function by selecting “Yes” for “Enable Wifi” functions, press F3
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 119 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
to save the settings and reboot the phone. After the phone has finished rebooting, if the Wireless
Adapter is detected, the icon will be displayed on the left upper hand side of the Phone LCD.
After the wireless adapter is detected by the phone, return to the Wifi settings page on the phone to
configure the Wifi Network settings. Press “Configure” to configure the ESSID (See figure 126), this
would bring up a Wifi ESSID configuration page and users can press “Scan” to scan for the available
ESSID. The available ESSID will be shown in the table on the left, and users can select their wireless
network from this list and press the OK button to submit. If the ESSID is not shown in the table below,
the users could add the ESSID manually using the “Add” function on the right.
Figure 73: Scan or Configure Wifi ESSID
After the user selects the ESSID, return to the Wifi menu to configure the wireless network security
mode and key. After the user saves the settings, the phone should be able to connect to the Wifi
network if the authentication credentials are correct. The Wifi network strength icon ( ) will be
displayed on the LCD. The users can access the network settings on the phone to view the current IP
address and various other network settings.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 120 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 127: Network Settings for Wifi
NOTE: If the user has the connection to the Internet through both the wired network and the WIFI
Network, the phone will use the wired network as it is have a higher priority.
The GXV3140H also supports HTTP/HTTPS/FTP proxy for the applications. Users can specify the
proxy server for the phone will send the packets to and proxy server will act as an intermediary to
route the packets to the destination. (See figure 128) The HTTP/HTTPS/FTP proxy field defines the
URL of the proxy server and the protocol to be used. The field “No proxy” defines the destination IP
address where no proxy server is needed. The phone will not use a proxy server when sending
packets to the destination IP address specified.
Figure 74: Network Settings (Proxy)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 121 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
• TIME SETTINGS
The GXV3140H allows the time to be updated automatically through an NTP Server. Users must
define the Time Zone or use a Self-defined Time Zone. The display format for the time and date can
also be specified by accessing the application and selecting “MENU”->”Settings”->”Time”.
Figure 75: Time Settings
• DISPLAY SETTINGS
Users can adjust the LCD Backlight brightness, LCD Contrast, and LCD Saturation. In addition, users
can configure the TV OUT mode (NTSC or PAL). (See figure 130)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 122 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 76: Display Settings
NOTE: After setting TV out to an external source, the phone LCD screen will black out. Please make
sure to plug in the external output source before selecting this option. To return the display to the LCD
menu, log into the web browser interface and disable TV Out in “Device Manager” -> “TV Output”.
Otherwise, the phone will need to reboot to enable the LCD screen.
• MAINTENANCE
There are four tabs on the Maintenance setting screen under MENU->Settings->Maintenance:
Upgrade, Factory Functions, Debug and Backup. Users can configure the upgrade mode and firmware
server IP address/URL on the upgrade tab. Once this is saved, users can choose to reboot the phone
to upgrade the firmware. Similarly, a factory reset can be performed on the Factory Functions tab. A
more detailed step-by-step guide will be given in the “Restore to Factory Default Settings” section that
follows.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 123 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 131: Maintenance Settings
The Factory Functions page provides some testing diagnostics for the LCD, camera and audio on the
GXV3140H. (See figure 132)
Figure 77: Factory Functions
The Debug page (as shown in the figure 133) contains the built-in debug tools for the GXV3140H. The
debug tools make it more convenient to obtain corresponding information and traces when the system
encounters problems. To start capturing traces, users need to Enable Application Debug and press
the Start button next to the Capture Packets option. The captured traces are available for download
through the web configuration interface and can be sent to Grandstream Support for troubleshooting.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 124 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 78: Debug page
The Backup functionality provides users with Backup/Restore functionality, making it easy to backup
any current configuration settings on a regular interval (daily/weekly/monthly) and restore these
settings on the phone if needed.
Users can choose to upload the data to a default server or a user-defined TFTP/HTTP upload server.
The file uploaded will be a file associated with the MAC address of the phone.
Figure 134: Backup Phone Settings
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 125 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
• CAMERA
This camera setting under MENU->Settings->Camera allows the user to modify the camera settings
for the GXV3140H. Settings such as Color Mode, White Balance, Flicker Control and Lens Correction
can be configured. (See figure 135)
Figure 135: Camera Settings
• CALL FEATURES
The Call Features menu allows the user to configure Call Forwarding methods (Forward
unconditionally, Forward when busy, Forward on no answer) and other features such as Auto-Answer,
Call Waiting and DND. Users can configure the three accounts to different call forwarding schemes.
Press F1 to Select Call Features and the following screen will be displayed.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 126 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 136: Call Forwarding Settings
Other features include configuration for Auto Answer, Do Not Disturb, Call Waiting, Call Waiting Tone,
and Direct IP Call (as shown in figure 137).
Figure 137: Other Call Features
After the settings are configured, select “Save” to save and activate the settings.
• VIDEO SETTINGS
Video Settings allows users to configure parameter settings related to the video during call, these
includes Frame Rate, Bit Rate, Packet Size, Rate Control, I-Frame reference Only, Redundant
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 127 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
P-frame and Packetization Mode. Video Settings can be accessed by selecting MENU-> Settings->
Video Settings.
Normally, users do not need to change the default settings. However, if the network bandwidth allows it,
users can increase the frame rate and bit rate for better quality video.
Figure 138: Video Settings
PERSONALIZE
Users can personalize the phone by selecting their preferred screen layout, soft key function, screen saver,
language, password, ringtones and RSS feeds (News and Horoscopes). To access Personalize, press F1
for MENU, toggle to Personalize and press the OK button to select it.
• SCREEN LAYOUT
Users can choose between Big Layout and Custom Layout (by uploading an XML file) by toggling
between the Left and Right buttons.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 128 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 139: Screen Layout Settings
By default, the GXV3140H uses the Big Layout. The Big Layout consists of 4 desktops: Desktop
1/2/3/4 and each desktop is divided into two windows- left and right. Users can configure 11 types of
different displays for each window: Skype, RSS news, Weather, Calendar, Analog Clock, Digital Clock,
Information, Stock, Horoscope, Today and Demo. If “None” is selected, nothing will be displayed for
that window.
Some applications will occupy the whole left/right section. For example, if the user configures the RSS
news in the Top Left section, the Bottom Left section will be grayed out. After the configuration are
completed and saved, navigate back to the desktop and the desktop will display the layout configured.
(See figure 140)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 129 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 140: Desktop for Small Layout
Users can configure the phone to use customized layout by downloading a XML file with the screen
layout. (See figure 141)
Figure 79: Download Custom Layout
• SOFTKEY
Users can define the soft/function key functions of the Main Screen and Call Screen; this is accessible
by selecting MENU-> Personalize-> Softkey. (See figure 142)
There are several soft key functions that the user can select for the 4 function keys. In the Main Screen,
users can select the following 15 options: Menu, Switch Screen, More News, Demo, Headset, Enable
DND, Call History, Phonebook, Volume Up, Volume Down and Video Off. In the Call Screen, users can
select the following 15 options: Mute, Camera Off, Hold, End, Transfer, Conference, Enable DND,
Reject, Volume Up, Volume Down, Start Video, Headset and Snapshot.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 130 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 80: Softkey Configuration
NOTE: If the user selects the “Snapshot” option for one of the softkey functions for the Call Screen
they can capture a snapshot of the remote party during the call. This picture will be saved in the
“screenshot” folder and can be used as a picture icon for the contact in the Phone Book.
• SCREENSAVER
Users can personalize the phone by selecting the phone screensaver and the desktop background;
this is accessible by selecting MENU-> Personalize-> Screen Saver. The interval and the timeout
period can also be specified here. (See figure 143)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 131 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 81: Screensaver Settings
For the screensaver, users can configure the phone to use photos from these various sources: default
folder, customized folder, HTTP URL, World Photos, Photobucket, Flickr and Phanfare. The Interval,
Time Out period and the LCD Auto Power Off time can also be configured here.
For the background, users can select from 3 different patterns or select a customized background
from a file folder. Users can configure the image position to: stretch, whole tile or scale tile. (See figure
144)
Figure 82: Background Image Settings
• LANGUAGE
Users can select the preferred language on this screen. (See figure 145) The corresponding Language
File from the TFTP/HTTP server can also be downloaded to expand to the language selection menu.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 132 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 83: Language Settigns
• MY PROFILE
This screen allows users to configure the login username and password for the phone.
Figure 84: Profile Settings
NOTE: When a new password is configured for the first time, there is no need to enter the
corresponding old password. Enter the new password and the confirm password (the two must be
identical). Press F3 to Save the settings. After the password has been changed to the new password,
users will see a prompt at the bottom of the page to indicate that the password change was successful.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 133 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
(See figure 147)
Figure 85: Configure Password for Profile
After the password has been changed, the user will be prompted for the old password if they wish to
change the password next time.
NOTE 1: If the password is forgotten, users can factory reset the phone and restore it to factory
defaults. However, all the user data will be lost in this case.
NOTE 2: If the administrative password has been changed, the phone will prompt for the password
each time users try to access the phone after idle mode.
• TONES
The Tones Manager configures the alarm tone, event alert tone, new message tone and different
ringtones for the 3 SIP accounts. The Tones menu is accessible by selecting “MENU”->
“Personalize”-> “Tones”. (See Figure 148)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 134 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 86: Tone Settings
For the Tones, users can use the built-in ringtone files, customized tones or Internet Radio for the
notification of events. (See figure 149)
Figure 87: Match ringtone to specific users
For the incoming ringtone configuration, users can configure up to three distinctive ringtones for the
matching incoming caller ID.
INFO
The Info screen displays Account, System, and Network information. It is accessible by selecting “MENU”
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 135 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
-> “Info”. (See figure 150) The number and the status of three SIP accounts can be viewed in the Account
tab.
Figure 150 Account INFO
System information such as Product Model, Hardware Version, Part Number, System Up Time and
Software Version are displayed in the System tab. (See figure 151)
Figure 151: System Info
Users can view the Network Information (MAC address, Address Type, IP address, Subnet Mask, Gateway,
DNS Server and NAT Type) in the Network tab. (See figure 152)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 136 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 152: Network Info
ADDITIONAL TIPS FOR THE GXV3140H IP MULTIMEDIA PHONE
• RETRIEVING MINIMIZED APPLICATIONS
To retrieve the minimized application with ease, return to the desktop and press the OK button for 3
seconds. A shortcut will appear displaying the minimized applications, use the left/right navigation keys
and the OK button to toggle, select and maximize to the application.
Figure 153: Shortcut for retrieving minimized applications
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 137 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
• SNAPSHOT/VIDEO RECORDING IN LOOPBACK MODE
Users are able to take photo snapshots and record video in the local loopback mode. Enter the
loopback mode by pressing the camera loopback button ( ). The user can press F1 for taking
Snapshot or F2 to start/stop video recording. The snapshot will be available under the screenshot
folder and the video will be available under the video folder in File Manager. Users can use these
photos and videos for various purposes and can copy them out with an external USB drive.
1.
Figure 154: GXV3140H Snapshot
• INPUT USING SOFT KEYBOARD
With the USB mouse connected to the phone, users can make use of the soft keyboard. Press F2 to
toggle between the input method until it displays SKB. (See figure 155)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 138 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 155: Input using soft keyboard
CUSTOMIZING THE GXV3140H IP MULTIMEDIA PHONE
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 139 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
The GXV3140H IP Multimedia Phone allows users to customize the GUI desktop layout as well as GUI
configurations on the phone, offering users with flexibility and control. This includes display/hide certain
applications, configure parameters on the phone with specific configuration files, control the display
appearance and enable/disable some applications and much more.
For more details on the XML Based GUI Configuration on the GXV3140H, please refer to:
http://www.grandstream.com/support/gxv_series_phone/GXV3140H/documents/GXV3140H_xml_gui_configuration.p
df
SOFTWARE UPGRADE
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 140 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
The GXV3140H can be upgraded via TFTP/HTTP/HTTPS by configuring the URL/IP Address for the
TFTP/HTTP/HTTPS server and selecting a download method. To configure a valid URL for TFTP or HTTP,
the server name can be the FQDN or IP address format. Examples of valid URLs：
1. fw.ipvideotalk.com/gs
2. 72.172.83.110
There are two ways to setup a software upgrade server: The Keypad Menu or the Web Configuration
Interface.
UPGRADE VIA KEYPAD MENU
In “Menu”->“Settings”->“Maintenance”, users could configure the software upgrade server through the
keypad menu. In the “Upgrade” subpage, users may then select the upgrade mode and enter the IP
address or FQDN of the Firmware server and the System Config server. After making the changes, use the
F3 softkey to save the new settings.
UPGRADE VIA WEB BROWSER CONFIGURATION PAGE
Open a web browser and enter the IP address for the GXV3140H. Next, log in with the administrator
username and password. Under Maintenance, select “Upgrade and provisioning”, enter the IP address
or the FQDN (URL) of the upgrade server and choose to upgrade via TFTP or HTTP/HTTPS. Save the
changes and reboot the unit.
At this moment, the LCD will display the progress of the software download/upgrade. Please do not disrupt
or power down the unit.
NOTE: The software upgrade will last up to 5 minutes (through the LAN side) and may take longer when
upgrading through the Internet (limited by the network bandwidth). Grandstream recommends
downloading and upgrading the software in a controlled LAN environment.
NO LOCAL TFTP SERVERS
For users without a local TFTP server, Grandstream offers a NAT-friendly TFTP server. This enables users
to download the latest software upgrades for their phone via this server. Please refer to the webpage:
http://www.grandstream.com/firmware.html.
Alternatively, users can download a free TFTP or HTTP server and conduct a local firmware upgrade. A
free windows version TFTP server is available for download from
http://support.solarwinds.net/updates/New-customerFree.cfm or http://tftpd32.jounin.net/.
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 141 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Instructions for local firmware upgrade:
1. Unzip the firmware files and put all of them in the root directory of the TFTP server.
2. Connect the PC running the TFTP server and the GXV3140H device to the same LAN segment.
3. Launch the TFTP server and go to the File menu -> Configure -> Security to change the TFTP server's
default setting from "Receive Only" to "Transmit Only" for the firmware upgrade.
4. Start the TFTP server and configure the TFTP server in the phone’s web configuration interface.
5. Configure the Firmware Server Path to the IP address of the PC.
6. Update the changes and reboot the GXV3140H.
End users can also choose to download a free HTTP server from http://httpd.apache.org/ or use
Microsoft IIS web server.
NOTE: When the GXV3140H boots up, it will send a TFTP or HTTP request to download the configuration
file cfgxxxxxxxxxxxx” (“xxxxxxxxxxxx” is the MAC address of the phone). If it is a normal TFTP or HTTP
upgrade, the following messages “TFTP Error from [IP ADRESS] requesting cfg000b82023dd4: File does
not exist. Configuration File Download” can be ignored in the TFTP/HTTP server log.
CONFIGURATION FILE DOWNLOAD
Grandstream SIP Devices can be configured via the Web Interface as well as via a Configuration File
(binary or XML) through TFTP or HTTP/HTTPS. The “Config Server Path” is the TFTP or HTTP/HTTPS
server path for the configuration file. It needs to be set to a valid URL, either in FQDN or IP address format.
The “Config Server Path” can be the same or different from the “Firmware Server Path”.
A configuration parameter is associated with each particular field in the web configuration page. A
parameter consists of a Capital letter P and 2 to 3 (Could be extended to 4 in the future) digit numeric
numbers. i.e., P2 is associated with the “Admin Password” in the ADVANCED SETTINGS page. For a
detailed parameter list, please refer to the corresponding firmware release configuration template.
When Grandstream Device boots up or reboots, it will issue a request for a configuration XML file named
“xxxxxxxxxxxx.xml” followed by a file named “cfgxxxxxxxxxxxx”, where “xxxxxxxxxxxx” is the MAC address
of the device, i.e., “cfg000b820102ab”. The configuration file name should be in lower case letters.
For more details on XML provisioning, please refer to:
http://www.grandstream.com/support/gxv_series_phone/GXV3140H/documents/GXV3140H_xml_provisioning.pdf
RESTORE FACTORY DEFAULT SETTINGS
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 142 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
WARNING: Restoring the Factory Default Settings will delete all configuration information on the phone.
Please backup or print all the settings before you restore to the factory default settings. Grandstream is not
responsible for restoring lost parameters and cannot connect your device to your VoIP service provider.
There are two methods to restore the GXV3140H to the factory default settings.
RESTORE TO FACTORY DEFAULT SETTINGS VIA LCD MENU
The steps to restore the phone to factory default settings through the LCD menu are as follows:
Step 1: Select “MENU” (F1 or the OK button) to access the phone menu and select Settings.
Step 2: Press “Select” (F1 or the OK button) to access the phone Settings menu and select Maintenance.
Step 3: Press “Select” (F1 or the OK button) to access the Maintenance page. In the Upgrade tab, press
the Down arrow twice to select the Factory Reset option. (Shown in figure 156)
Figure 156: Factory reset the phone using the keypad
Step 4: Press the OK button, the phone will display a warning message. (See figure 157)
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 143 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Figure 157: Warning message for factory reset the phone
Step 5: Press the OK button again to select “OK”. The phone will reboot and perform a factory reset.
RESTORE TO FACTORY DEFAULT SETTINGS VIA THE WEB INTERFACE
Step 1: Login to the system configuration page through a web browser and select “Maintenance”. From
the menu on the left, select “Upgrade and Provisioning”. This will bring up the upgrade and provisioning
page. (See figure 158)
Figure 158: Factory reset the phone using web UI
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 144 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Step 2: At the bottom of the page, click on the “Reset” button for Factory reset after selecting the degree of
factory reset (Full Reset/User Data Reset/VoIP Data Reset). A dialog box will pop up (as shown in figure
159)
Figure 159: Warning message for factory reset the phone
Click on OK to restore the phone to factory settings.
EXPERIENCING THE GXV3140H MULTIMEDIA PHONE
Grandstream Networks, Inc. GXV3140H USER MANUAL Page 145 of 146
FIRMWARE VERSION 1.0.7.2 Updated : 11/2010
Please visit our website: http://www.grandstream.com to receive the most up- to-date updates on firmware
releases, additional features, FAQs, documentation and news on new products.
We encourage you to browse our product related documentation, FAQs and User and Developer Forum
for answers to your general questions. If you have purchased our products through a Grandstream
Certified Partner or Reseller, please contact them directly for immediate support.
Our technical support staff is trained and ready to answer all of your questions. Contact a technical
support member or submit a trouble ticket online to receive in-depth support.
Thank you again for purchasing Grandstream IP Multimedia phone, it is sure to bring convenience and
color to both your business and personal life.
