Grandstream Networks GXV3240V3 IP Multimedia Phone User Manual
Grandstream Networks, Inc. IP Multimedia Phone Users Manual
Users Manual
Grandstream Networks, Inc.
GXV3240 IP Multimedia Phone for AndroidTM
User Guide
P a g e | 1
GXV3240 User Guide
COPYRIGHT
©2017 Grandstream Networks, Inc. http://www.grandstream.com
All rights reserved. Information in this document is subject to change without notice. Reproduction or
transmittal of the entire or any part, in any form or by any means, electronic or print, for any purpose without
the express written permission of Grandstream Networks, Inc. is not permitted.
The latest electronic version of this guide is available for download here:
http://www.grandstream.com/support
Grandstream is a registered trademark and Grandstream logo is trademark of Grandstream Networks, Inc.
in the United States, Europe and other countries.
CAUTION
Changes or modifications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this guide, could void your manufacturer warranty.
WARNING
Please do not use a different power adaptor with devices as it may cause damage to the products and void
the manufacturer warranty.
P a g e | 2
GXV3240 User Guide
FCC Caution
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Hereby，Grandstream declares that this device is in compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth foran uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment should be installed and operated with minimum distance 20cm between the radiator& your
body.
P a g e | 3
GXV3240 User Guide
GNU GPL INFORMATION
GXV3240 firmware contains third-party software licensed under the GNU General Public License (GPL).
Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public
License (GPL) for the exact terms and conditions of the license.
Grandstream GNU GPL related source code can be downloaded from Grandstream web site from:
http://www.grandstream.com/sites/default/files/Resources/gxv32xx_gpl.zip
Hereby，Grandstream declares that this device is in compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU.
Hereby，Grandstream declares that this device is in compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU.
P a g e | 4
GXV3240 User Guide
Table of Content
DOCUMENT PURPOSE ............................................................................................... 16
CHANGE LOG .............................................................................................................. 17
Firmware Version 1.0.3.180 ................................................................................................................. 17
Firmware Version 1.0.3.177 ................................................................................................................. 17
Firmware Version 1.0.3.171 ................................................................................................................. 17
Firmware Version 1.0.3.162 ................................................................................................................. 17
Firmware Version 1.0.3.158 ................................................................................................................. 17
Firmware Version 1.0.3.144 ................................................................................................................. 17
Firmware Version 1.0.3.131 ................................................................................................................. 18
Firmware Version 1.0.3.92 ................................................................................................................... 18
Firmware Version 1.0.3.75 ................................................................................................................... 18
Firmware Version 1.0.3.62 ................................................................................................................... 18
Firmware Version 1.0.3.55 ................................................................................................................... 18
Firmware Version 1.0.3.46 ................................................................................................................... 18
Firmware Version 1.0.3.37 ................................................................................................................... 18
Firmware Version 1.0.3.30 ................................................................................................................... 18
Firmware Version 1.0.3.22 ................................................................................................................... 19
Firmware Version 1.0.3.6 ..................................................................................................................... 19
Firmware Version 1.0.1.54 ................................................................................................................... 19
Firmware Version 1.0.1.39 ................................................................................................................... 19
Firmware Version 1.0.1.29 ................................................................................................................... 19
WELCOME ................................................................................................................... 20
PRODUCT OVERVIEW ................................................................................................ 21
Feature Highlights ................................................................................................................................ 21
GXV3240 Technical Specifications ...................................................................................................... 21
GETTING STARTED ..................................................................................................... 24
Equipment Packaging .......................................................................................................................... 24
GXV3240 Phone Setup........................................................................................................................ 25
Using the Phone Stand ................................................................................................................. 25
Using the Slots for Wall Mounting ................................................................................................ 25

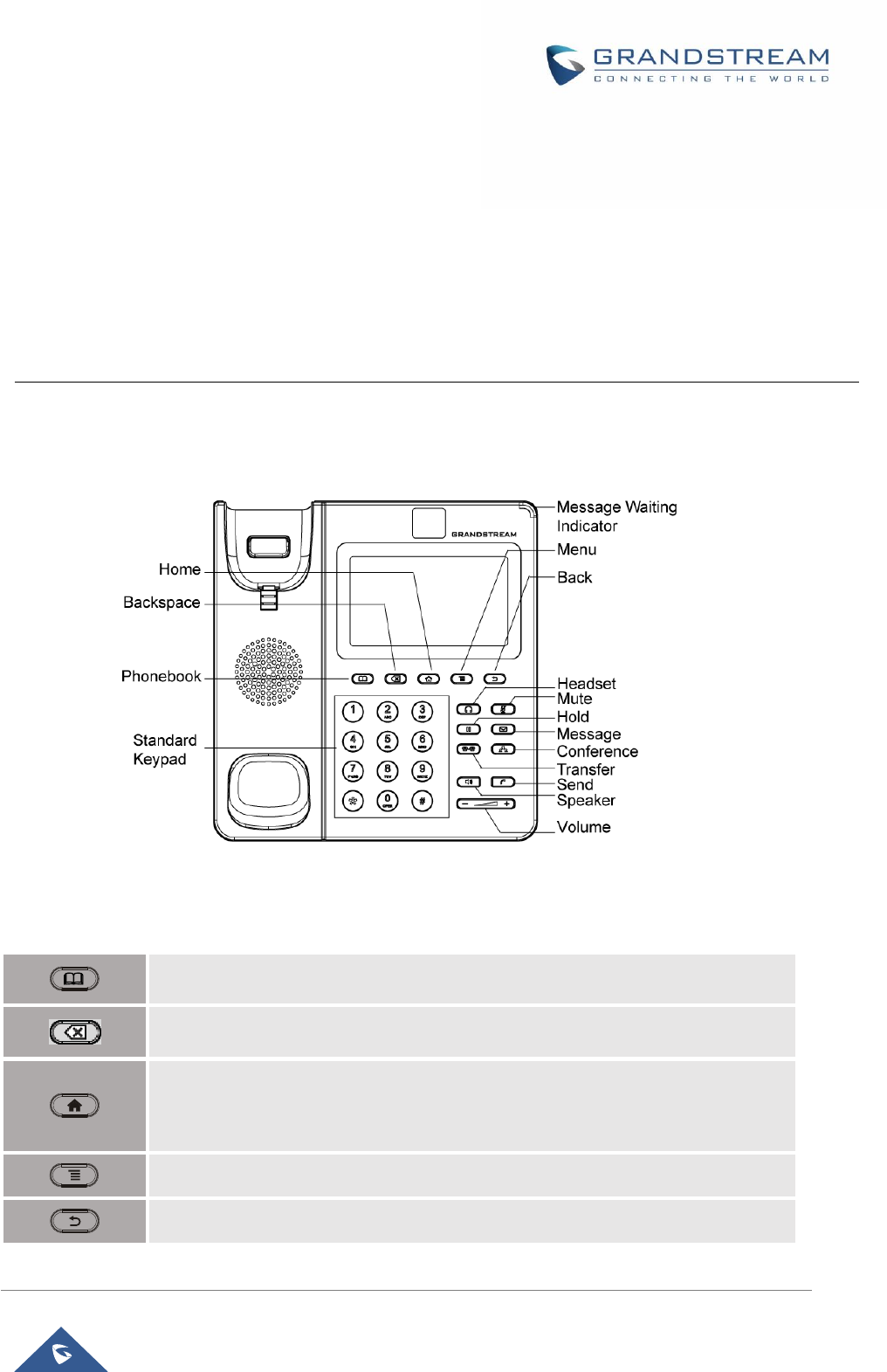

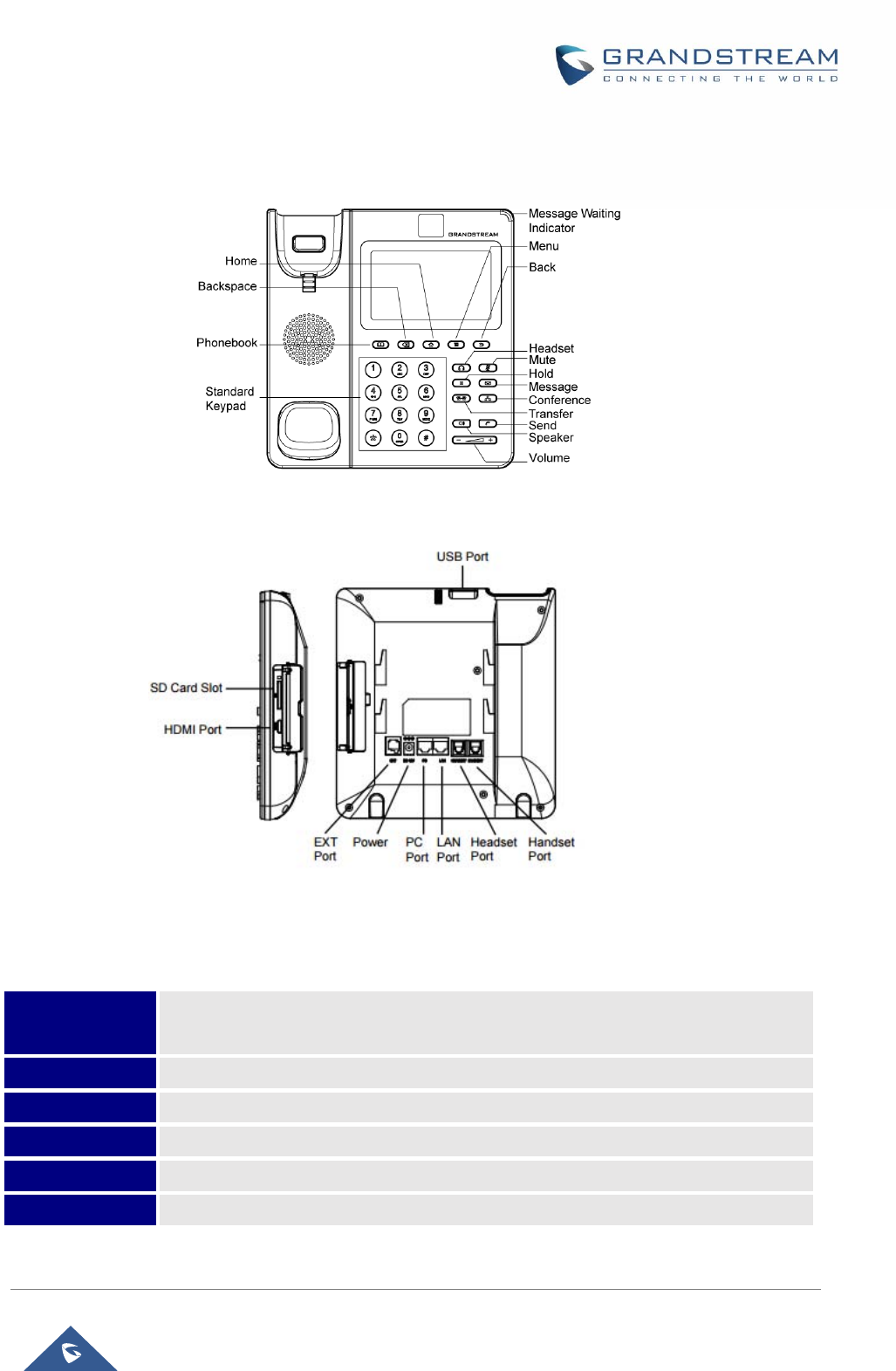

Description of the GXV3240 ................................................................................................................ 26
Connecting the GXV3240 .................................................................................................................... 27
GXV3240 Extension Module (GXP2200EXT) ..................................................................................... 27
GETTING TO KNOW GXV3240.................................................................................... 29
Use the Touchscreen ........................................................................................................................... 29
P a g e | 5
GXV3240 User Guide
Use the Desktop .................................................................................................................................. 31

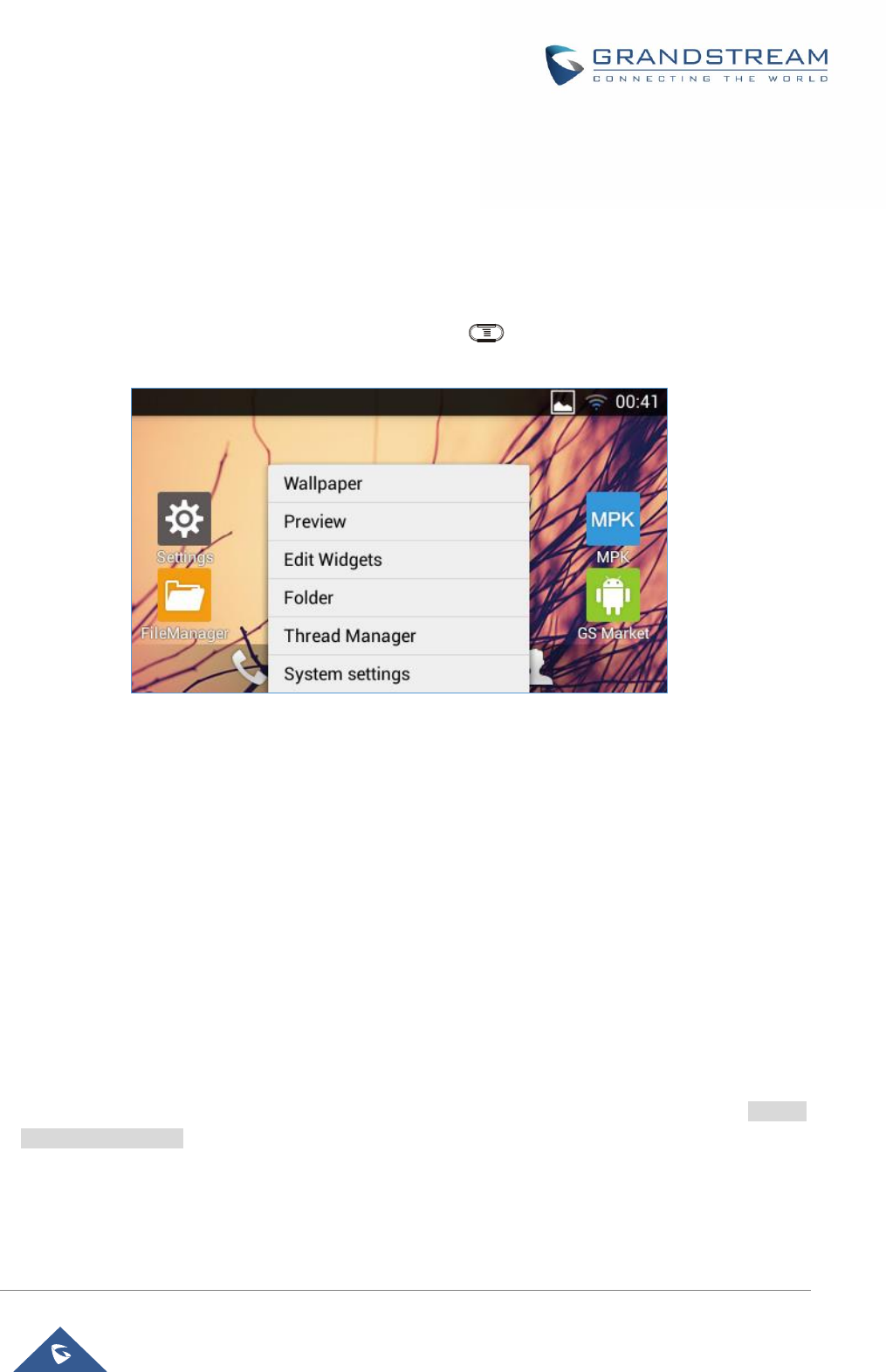

Desktop Menu ............................................................................................................................... 31
Add Application Shortcut to Desktop ............................................................................................ 32

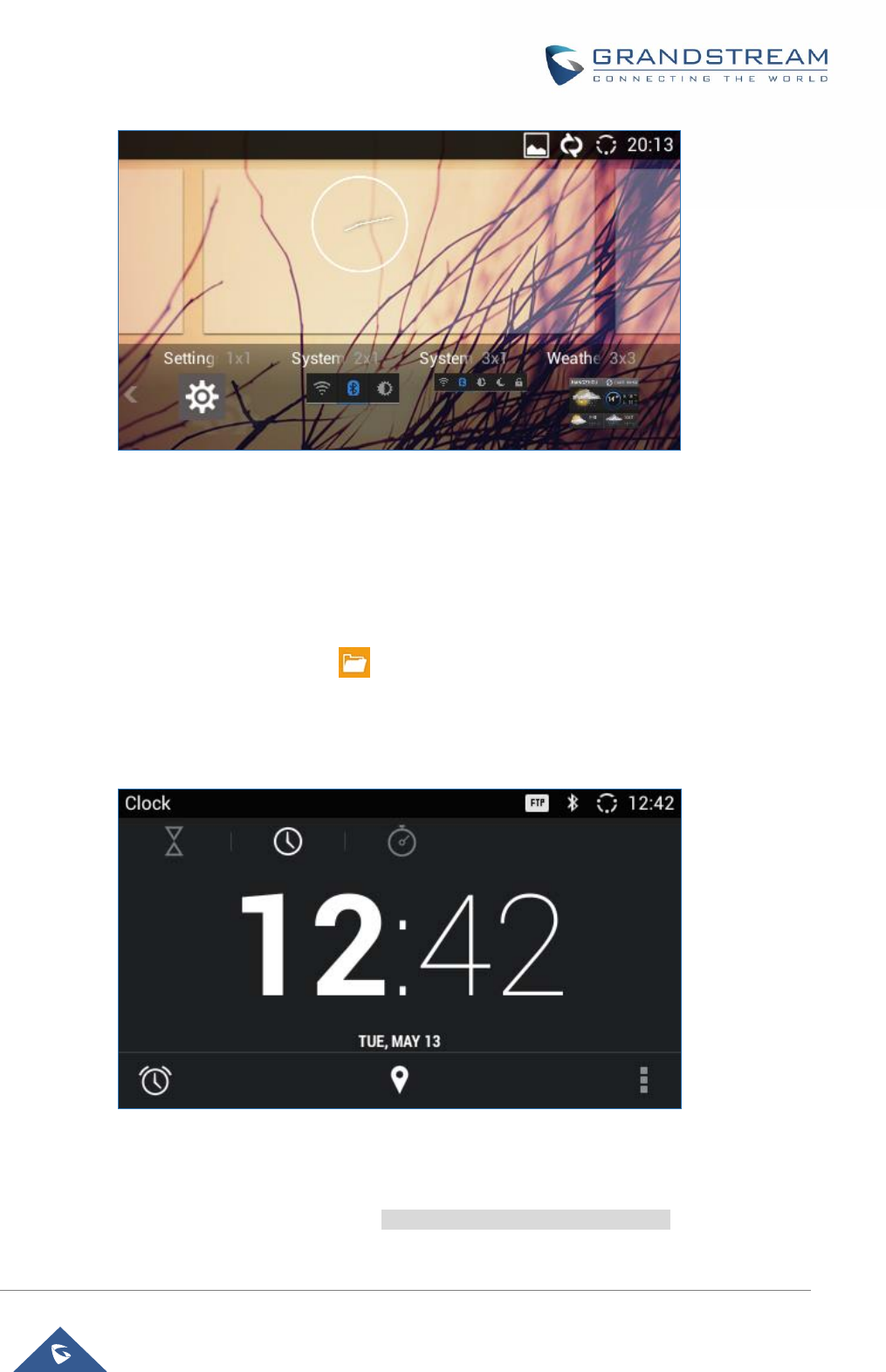

Add Widget to Desktop ................................................................................................................. 32
Manage Desktop Items ................................................................................................................. 33
Set Wallpapers ............................................................................................................................. 35
Manage Running Applications ...................................................................................................... 36
Idle Screen ........................................................................................................................................... 37
Switch Idle Screens ...................................................................................................................... 37
Set Up Idle Screen........................................................................................................................ 37
Use the Status Bar ............................................................................................................................... 38
Notifications in Status Bar .................................................................................................................... 39

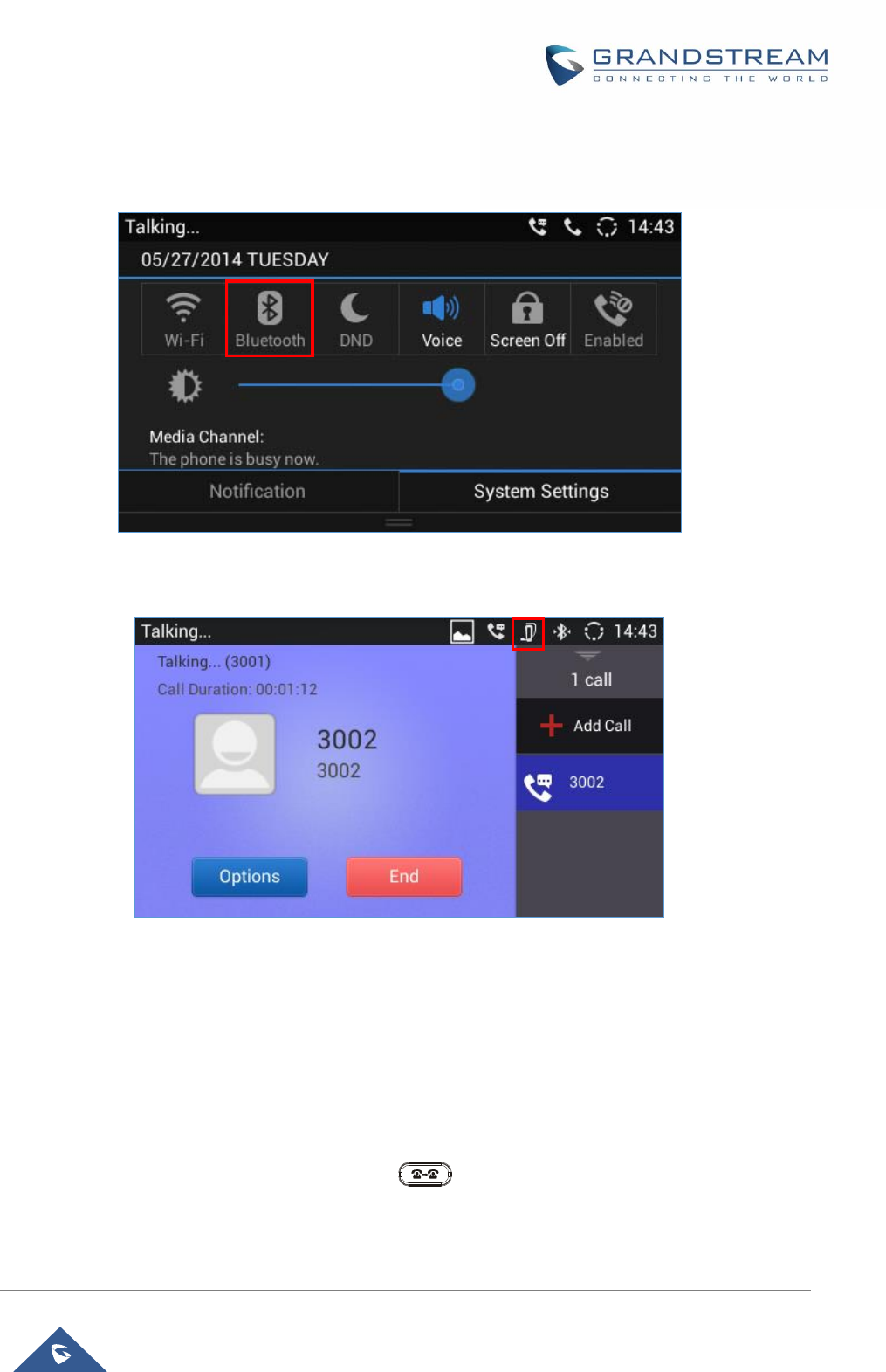

System Settings in Status Bar ...................................................................................................... 42
Use the GXV3240 Keypad ................................................................................................................... 43
Keypad Shortcut Functions .......................................................................................................... 44

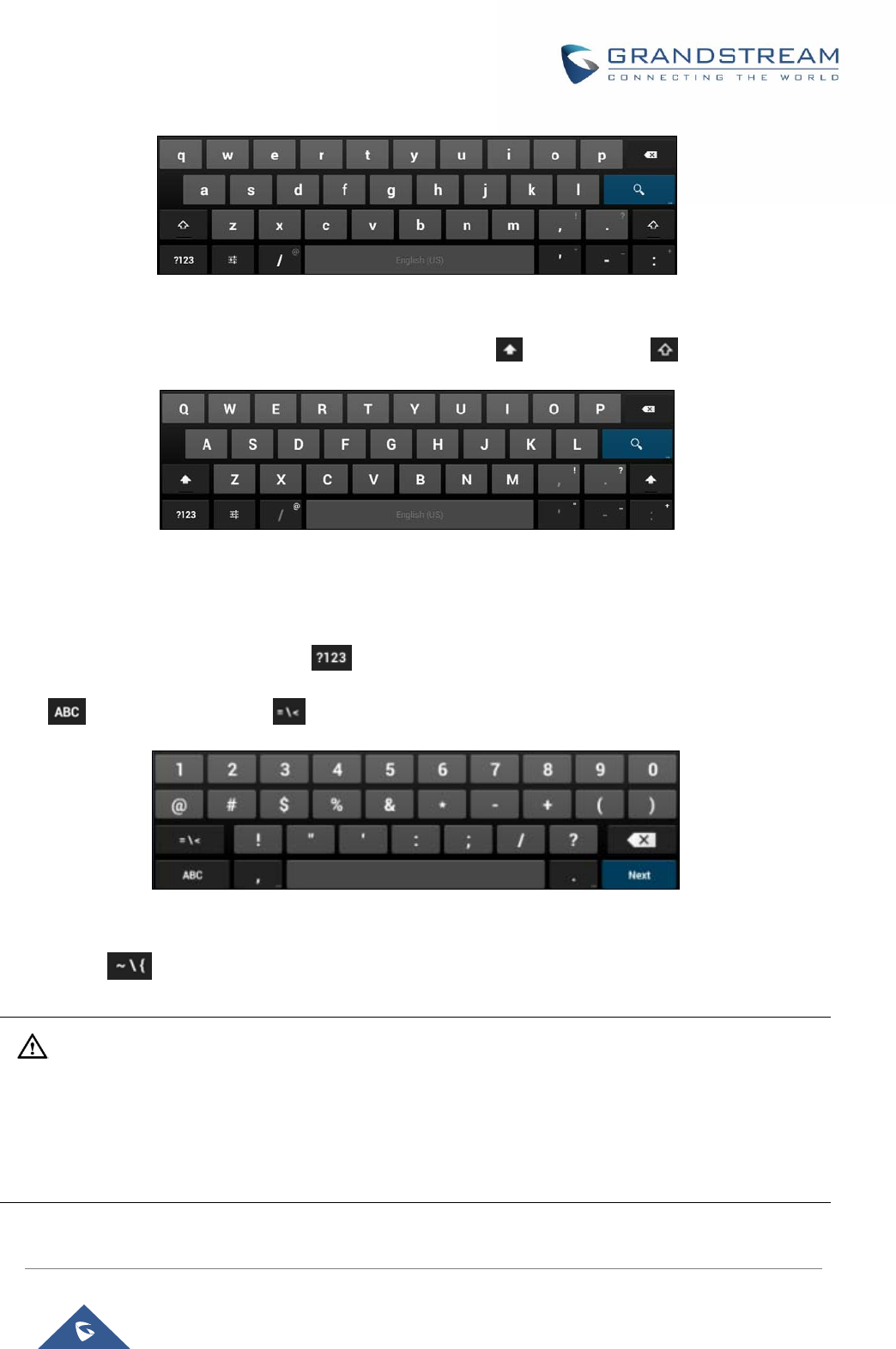

Use the Onscreen Keyboard ............................................................................................................... 44
Use the Message Waiting Indicator ..................................................................................................... 46
MAKE PHONE CALLS ................................................................................................. 47
Register SIP Accounts ......................................................................................................................... 47
Account Status .............................................................................................................................. 47
Configure SIP Account .................................................................................................................. 47
Set Programmable Keys on Unregistered Account ...................................................................... 49
Dial a Number Directly ......................................................................................................................... 49
Redial ................................................................................................................................................... 50
Dial a Number via Contacts ................................................................................................................. 50
Dial a Number via Call History ............................................................................................................. 51
Direct IP Call ........................................................................................................................................ 51
Answer a Call ....................................................................................................................................... 53
Single Incoming Call ..................................................................................................................... 53
Multiple Calls/Call Waiting ............................................................................................................ 57
Call Progress Status ..................................................................................................................... 57
Call Hold .............................................................................................................................................. 58

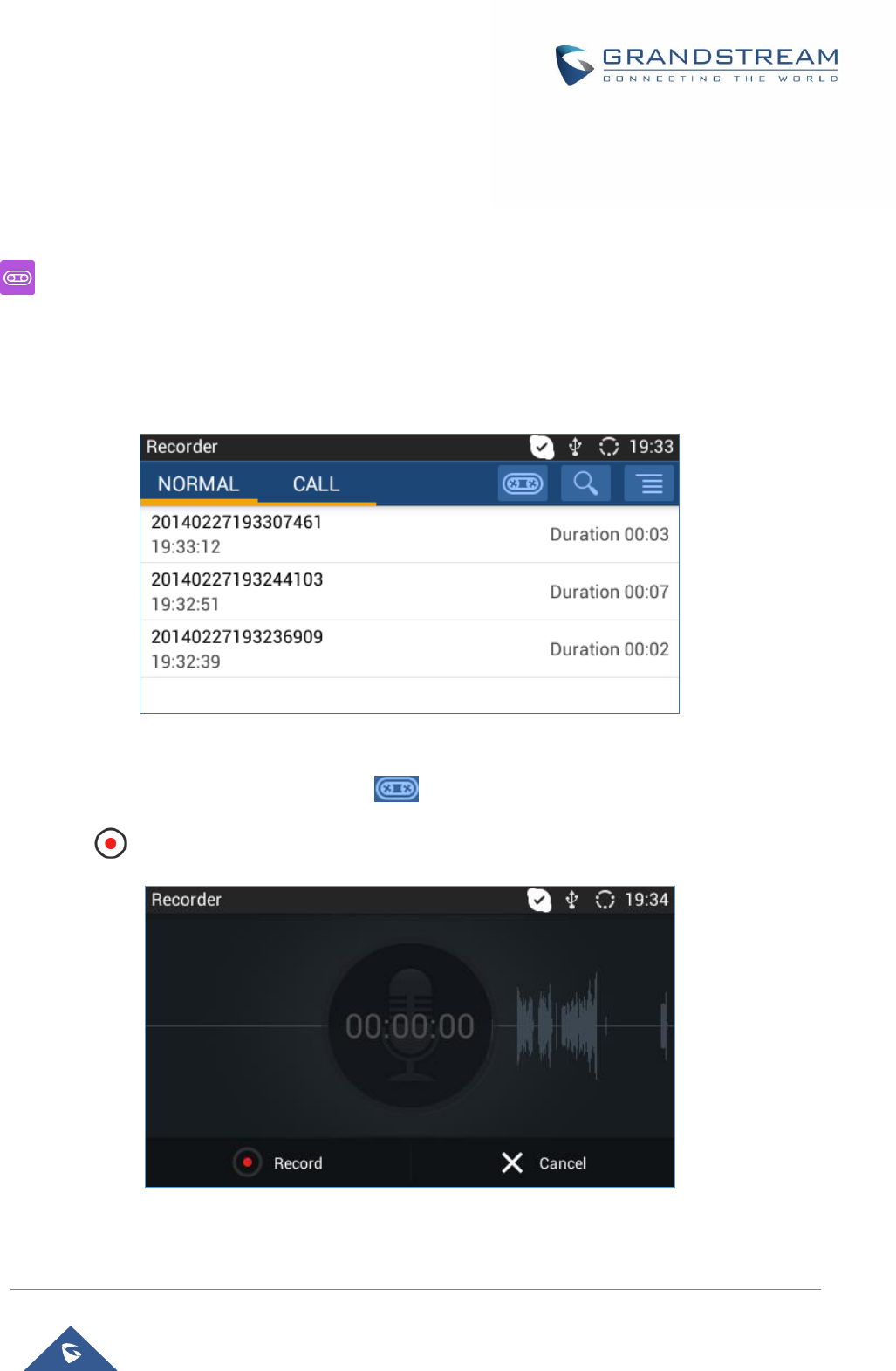

Call Recording ..................................................................................................................................... 58

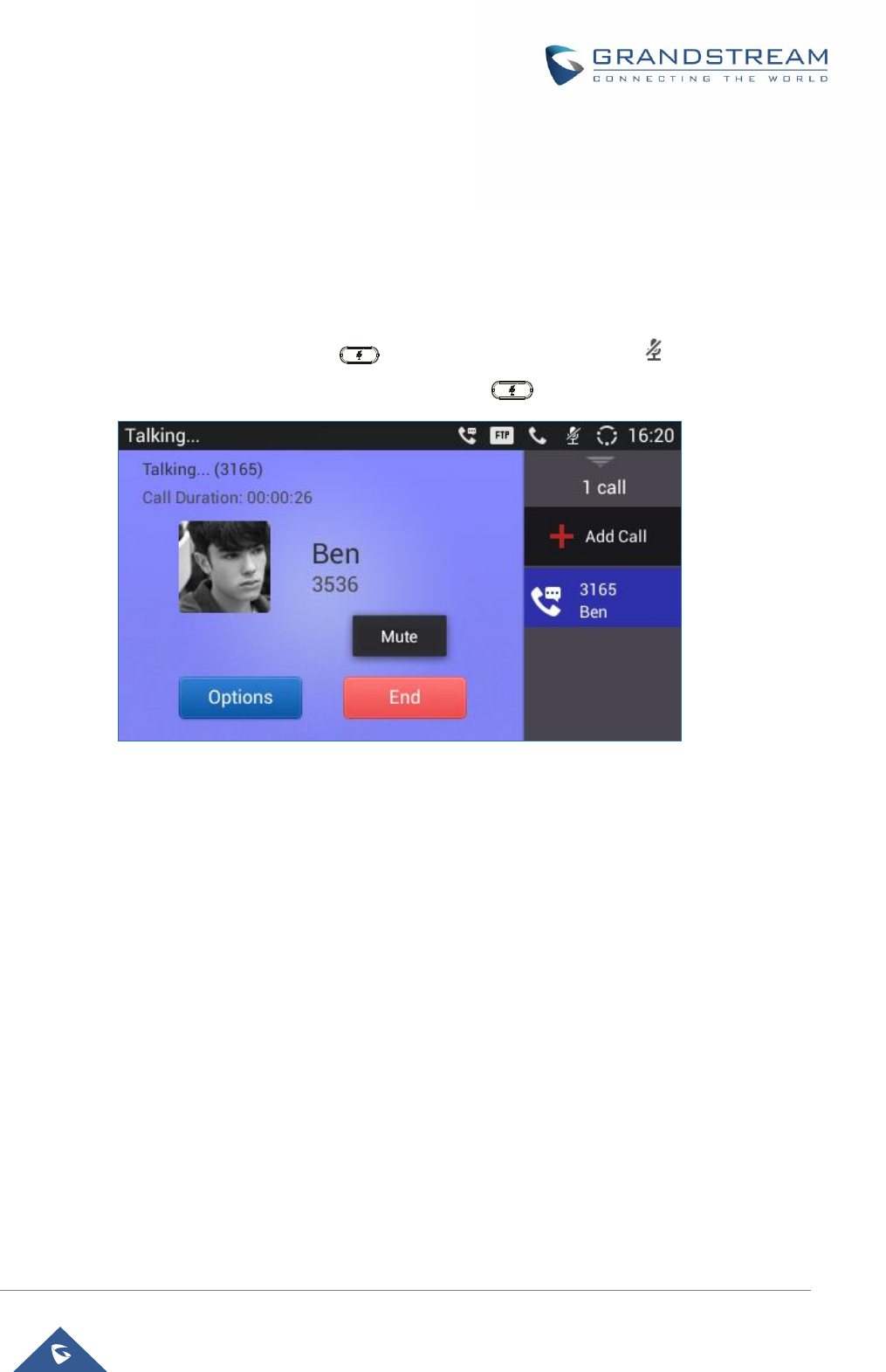

Mute ..................................................................................................................................................... 59
Turn on Video during Audio Call .......................................................................................................... 59
Call Details during Call......................................................................................................................... 60
Switch Audio Channel during Call ........................................................................................................ 61

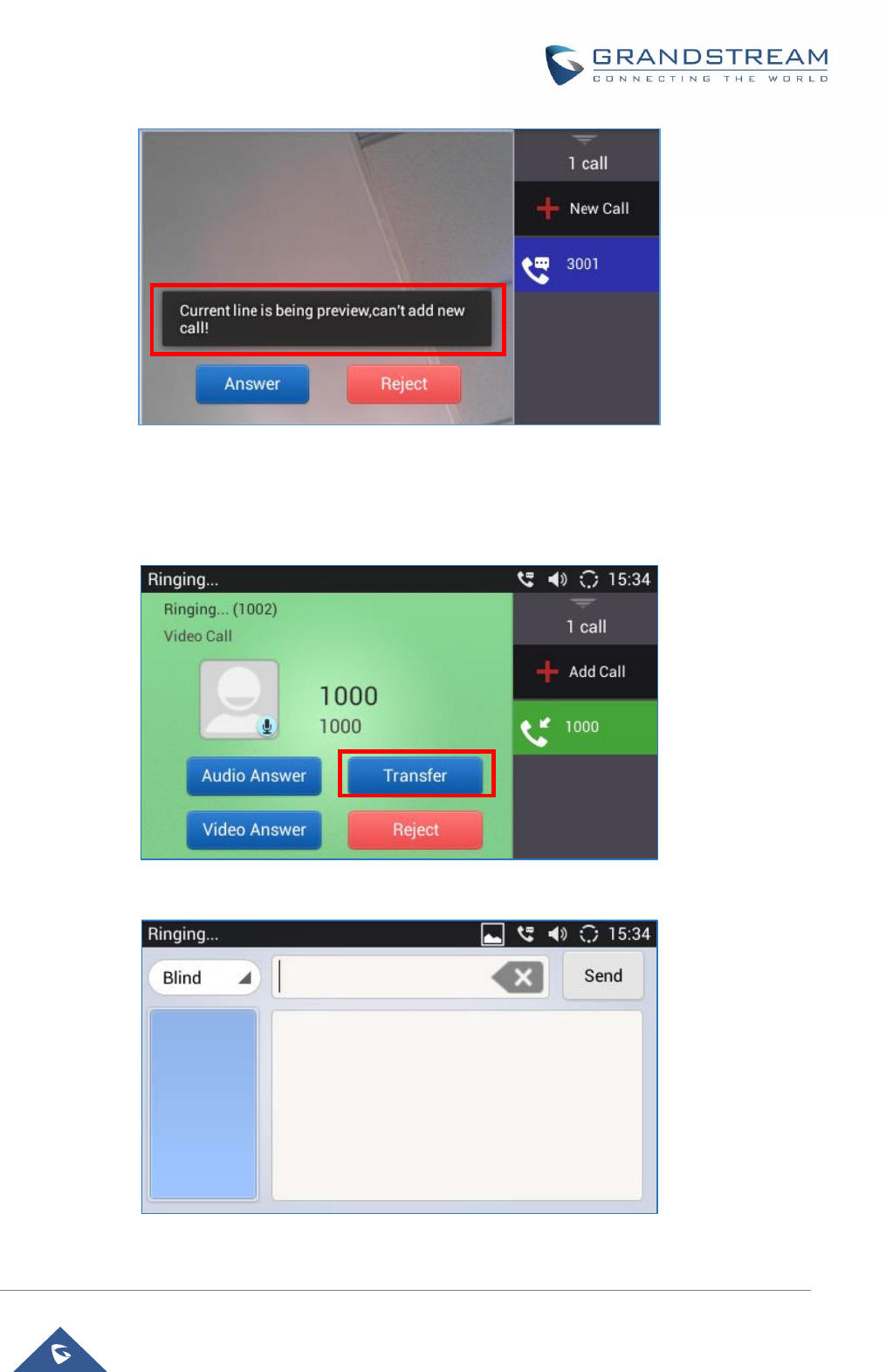

Call Transfer ......................................................................................................................................... 62

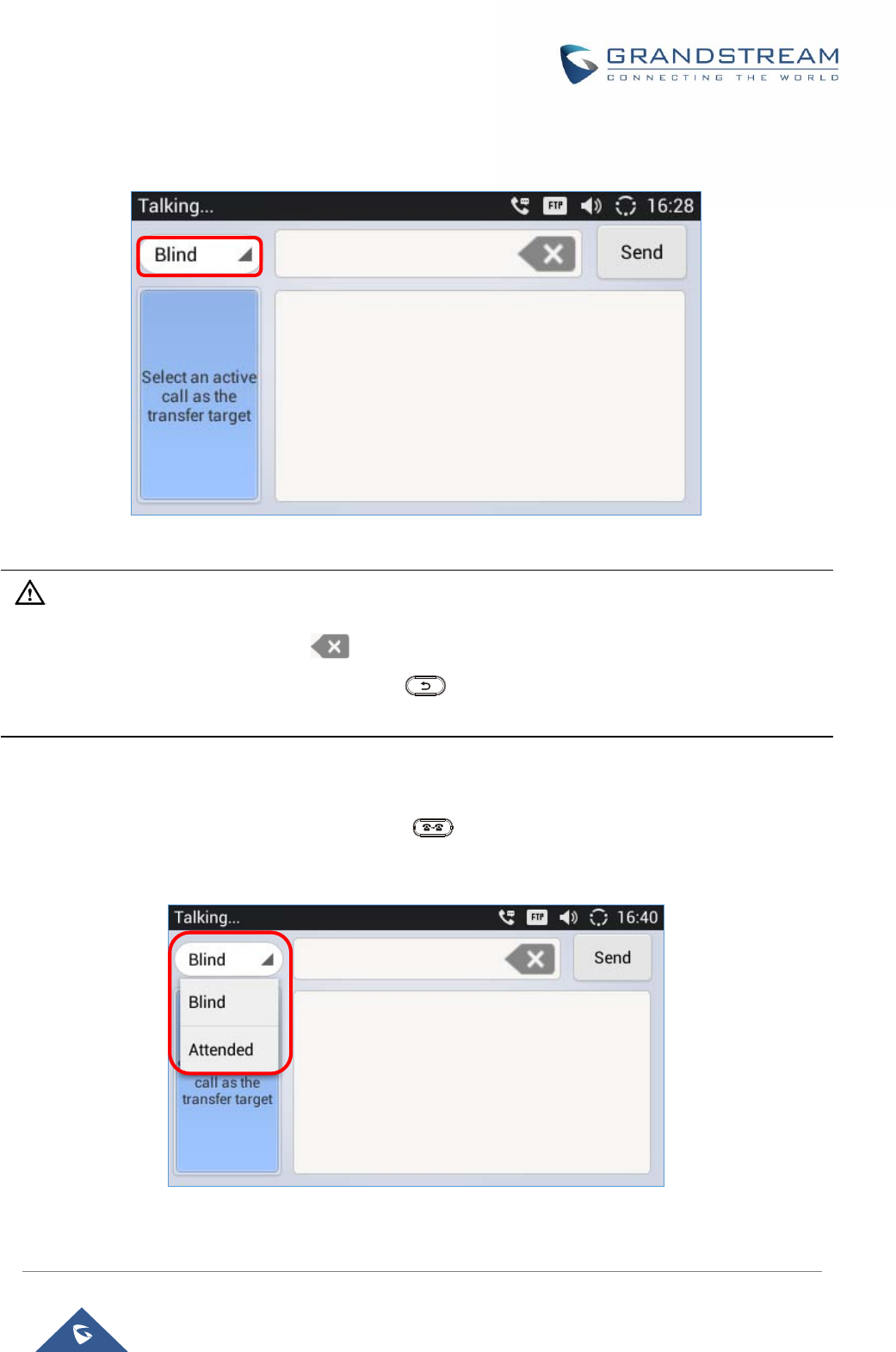

Blind Transfer ................................................................................................................................ 62
Attended Transfer ......................................................................................................................... 63
P a g e | 6
GXV3240 User Guide
6-Way Conference ............................................................................................................................... 65
Initiate Conference........................................................................................................................ 65
Remove Party from Conference ................................................................................................... 67
End Conference ............................................................................................................................ 68
Hold and Resume Conference ..................................................................................................... 68
Auto Conference Mode ................................................................................................................. 68

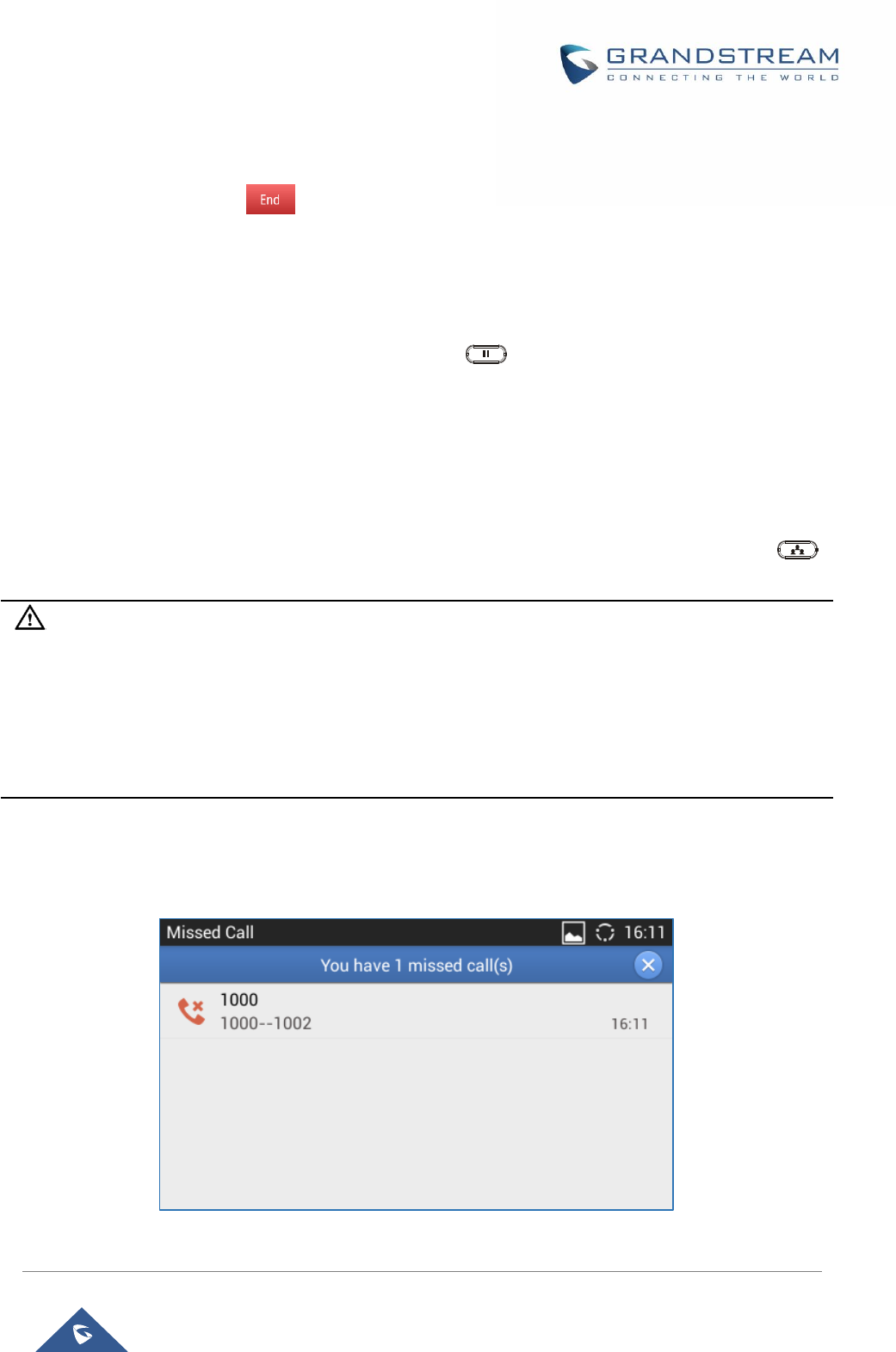

Missed Call .......................................................................................................................................... 68
DND (Do Not Disturb) .......................................................................................................................... 69
Voicemail/Message Waiting Indication ................................................................................................ 69

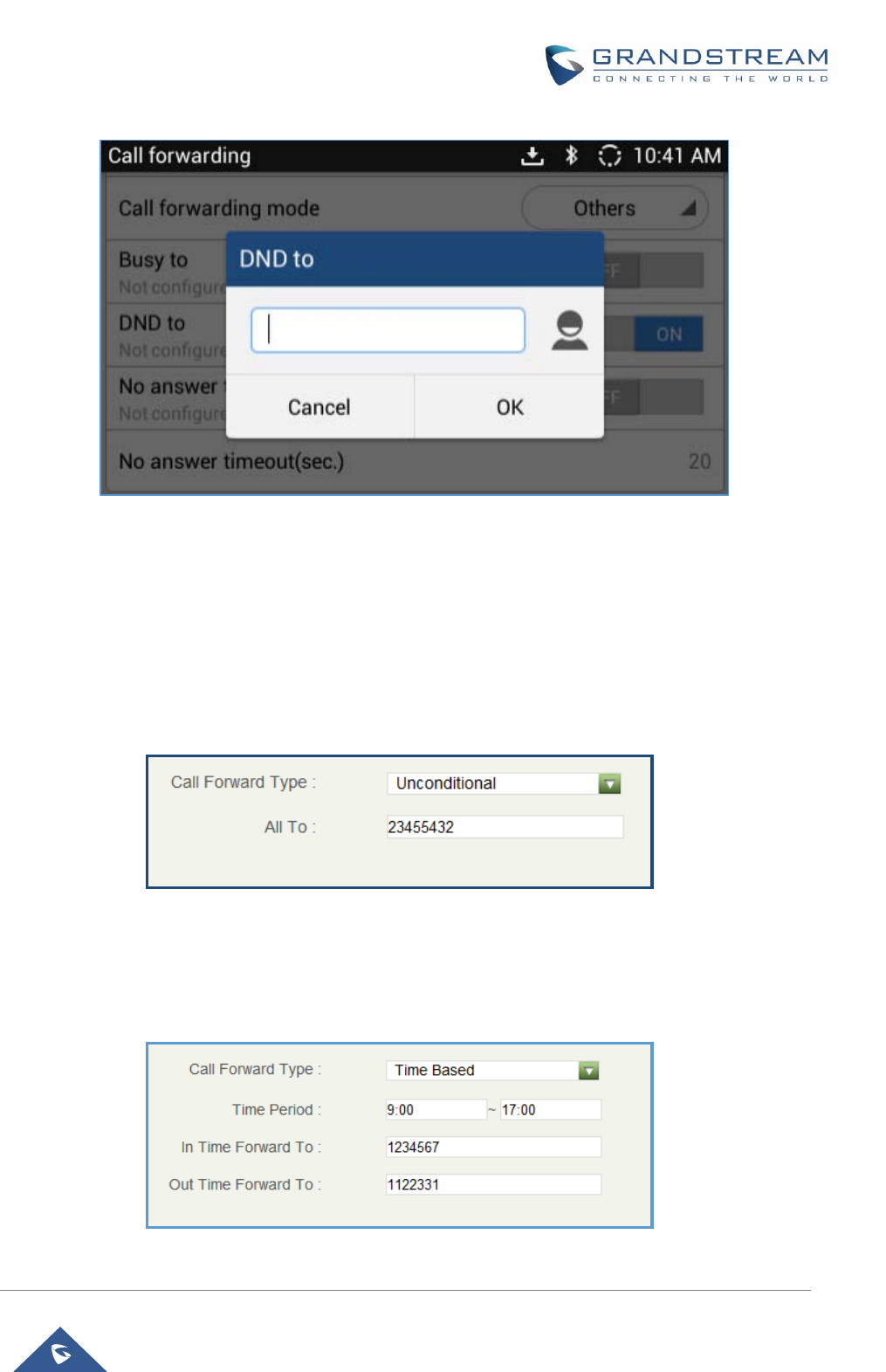

Call Forward ......................................................................................................................................... 70
Multi-Purpose Keys .............................................................................................................................. 72

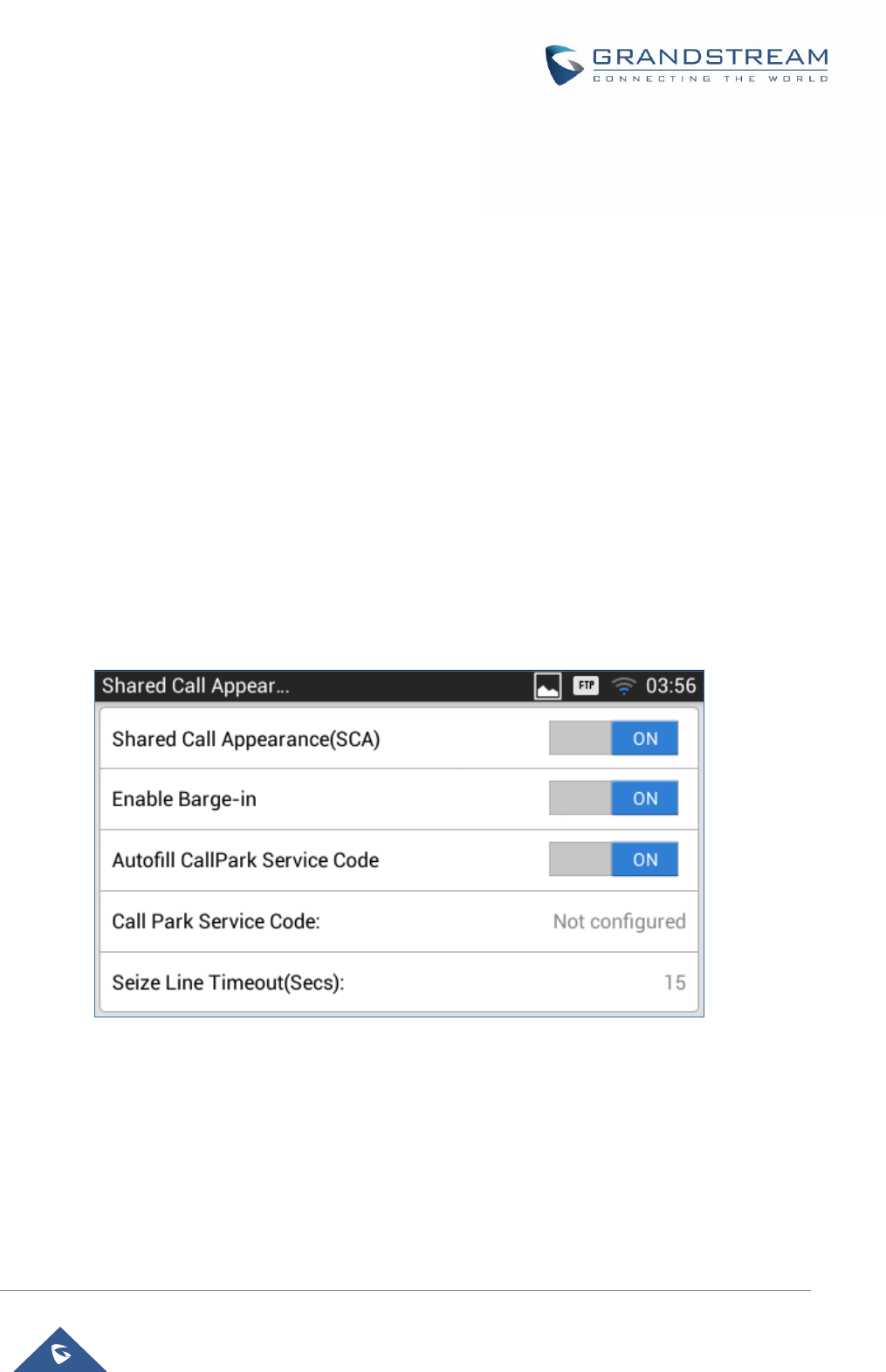

Shared Call Appearance (SCA) ........................................................................................................... 74
Call Features ........................................................................................................................................ 75
CONTACTS................................................................................................................... 78
Local Contacts ..................................................................................................................................... 78
Add Single Contacts ............................................................................................................................ 79
Import/Export Contacts ........................................................................................................................ 80
Download Contacts .............................................................................................................................. 81
Search Contacts .................................................................................................................................. 82
Use Contacts ....................................................................................................................................... 82
Make a Call to Contacts ............................................................................................................... 82

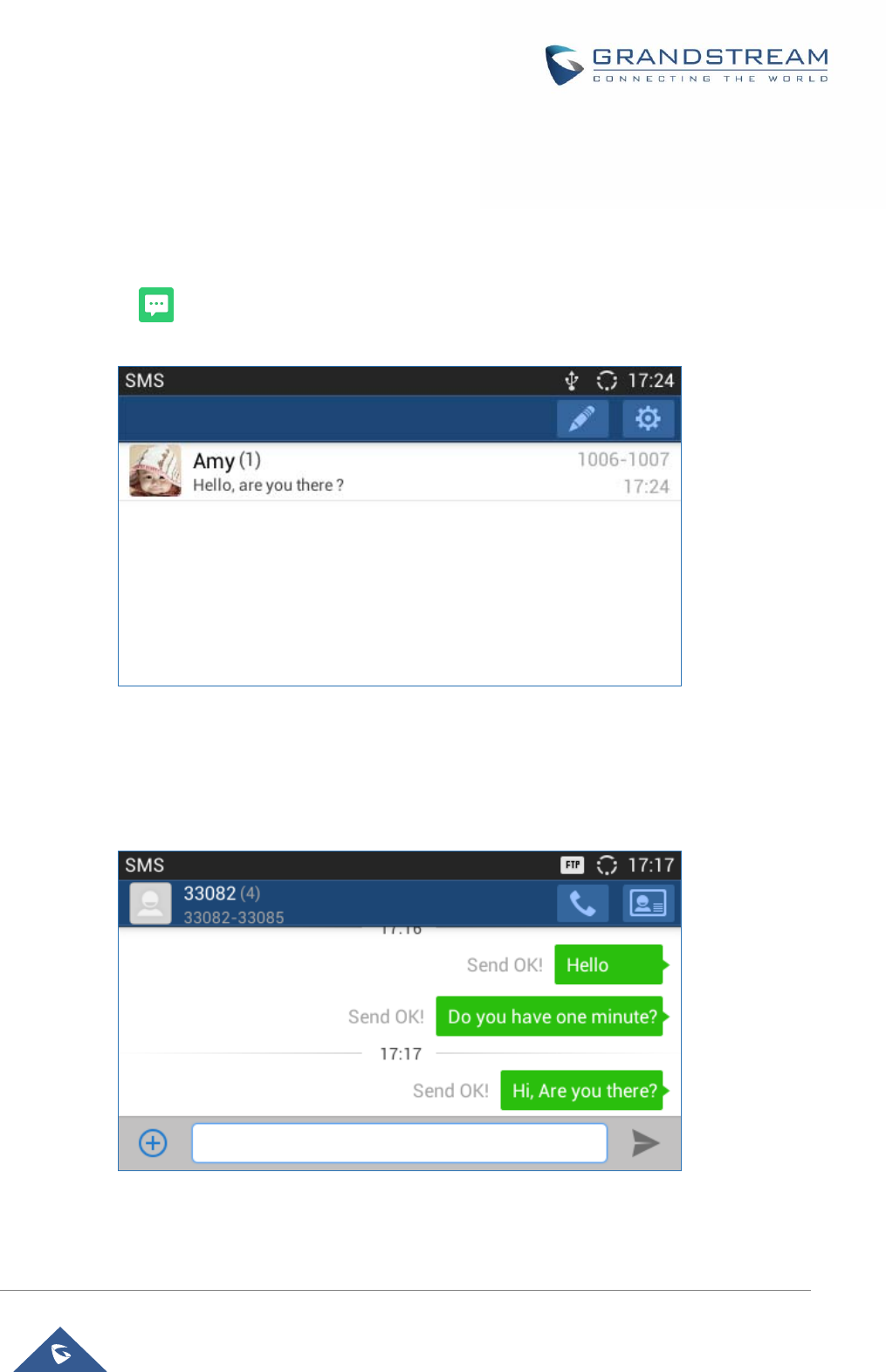

Send SMS Message to Contacts .................................................................................................. 82
Select Contacts ............................................................................................................................. 82

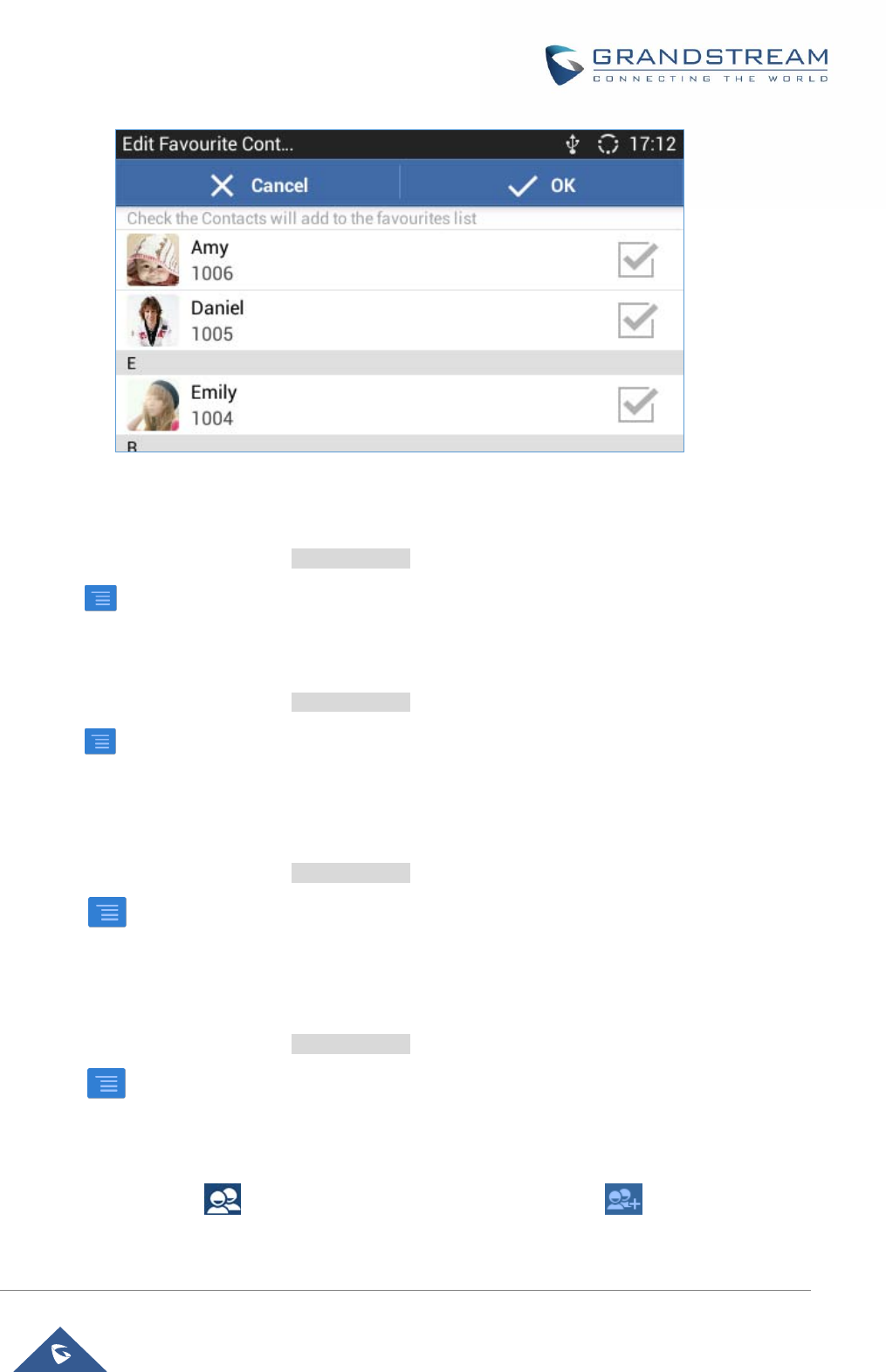

Add Contacts to Favorites ............................................................................................................ 83
Edit Contacts ................................................................................................................................ 84
Send Contacts to Desktop Shortcut ............................................................................................. 84
Share Contacts via Bluetooth ....................................................................................................... 84
Add Contacts to Blacklist .............................................................................................................. 84
Add Group .................................................................................................................................... 84

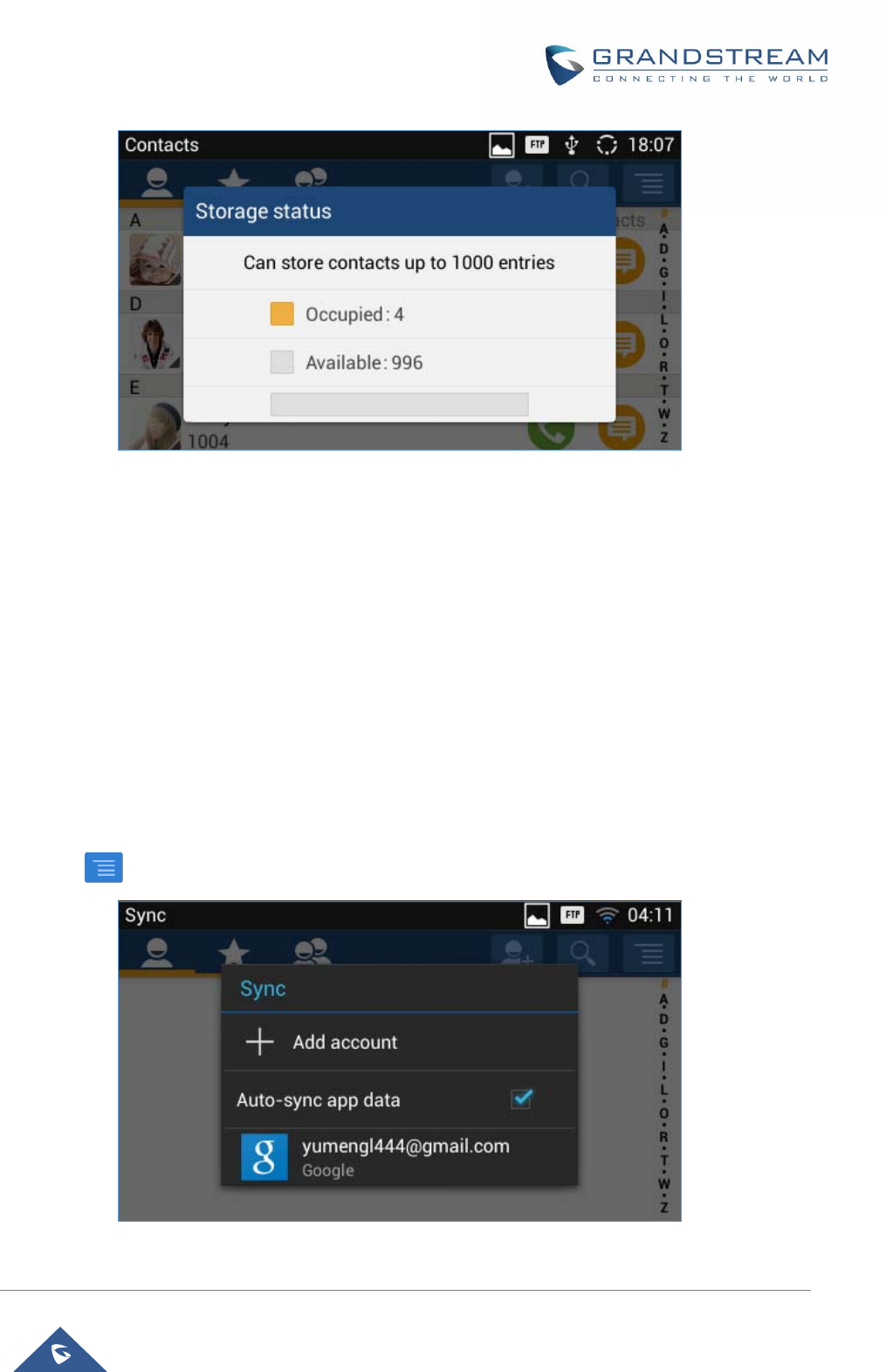

Contacts Storage Status ............................................................................................................... 85

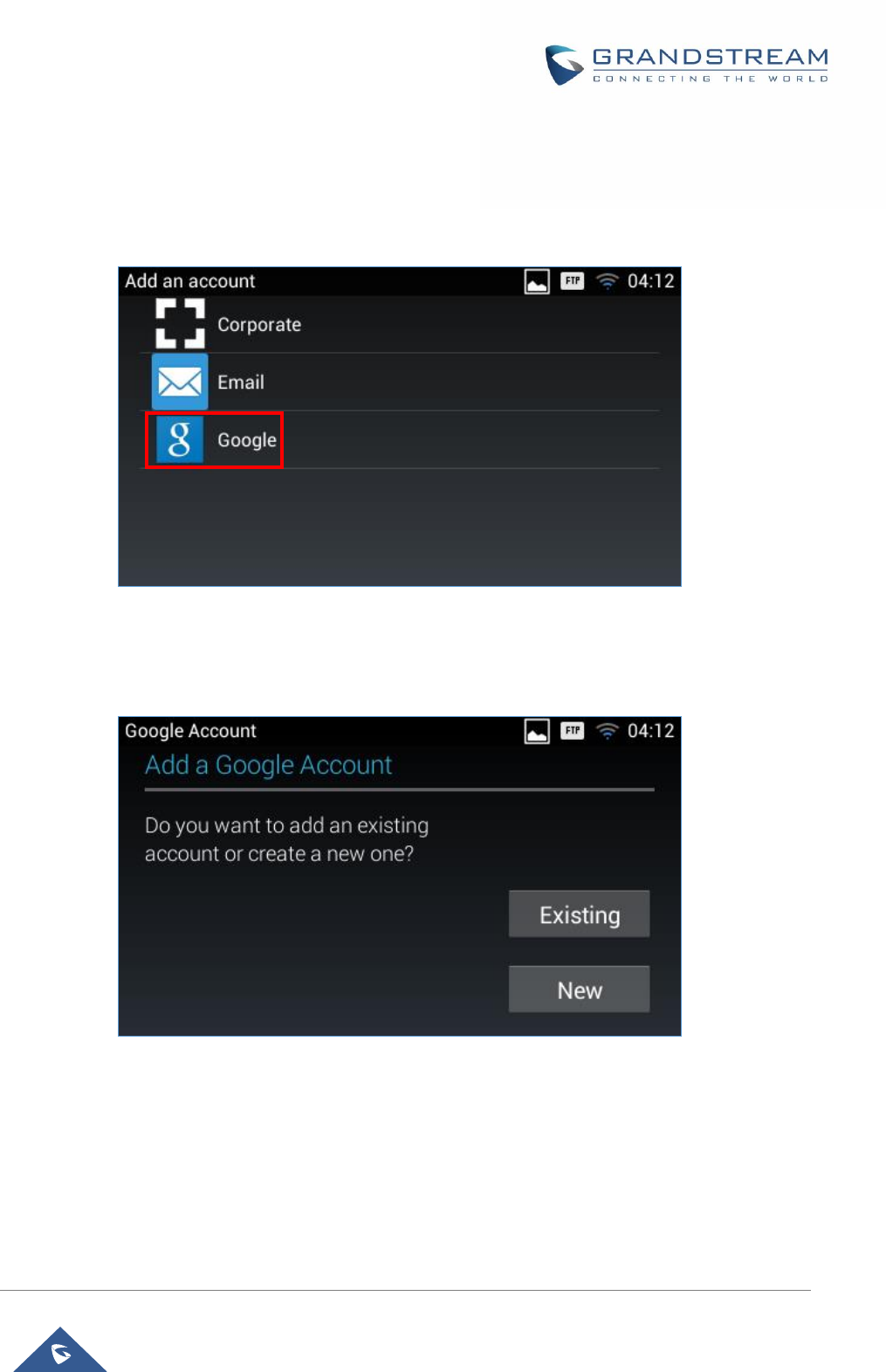

Add Account to Sync Up Contacts ....................................................................................................... 86
LDAP PHONEBOOK .................................................................................................... 89
BROADWORKS XSI CONTACTS ................................................................................ 90
BLACKLIST .................................................................................................................. 91
Block History ........................................................................................................................................ 91
Restore Blocked Number ............................................................................................................. 91
Delete Block History ..................................................................................................................... 92
Edit Blacklist ......................................................................................................................................... 92

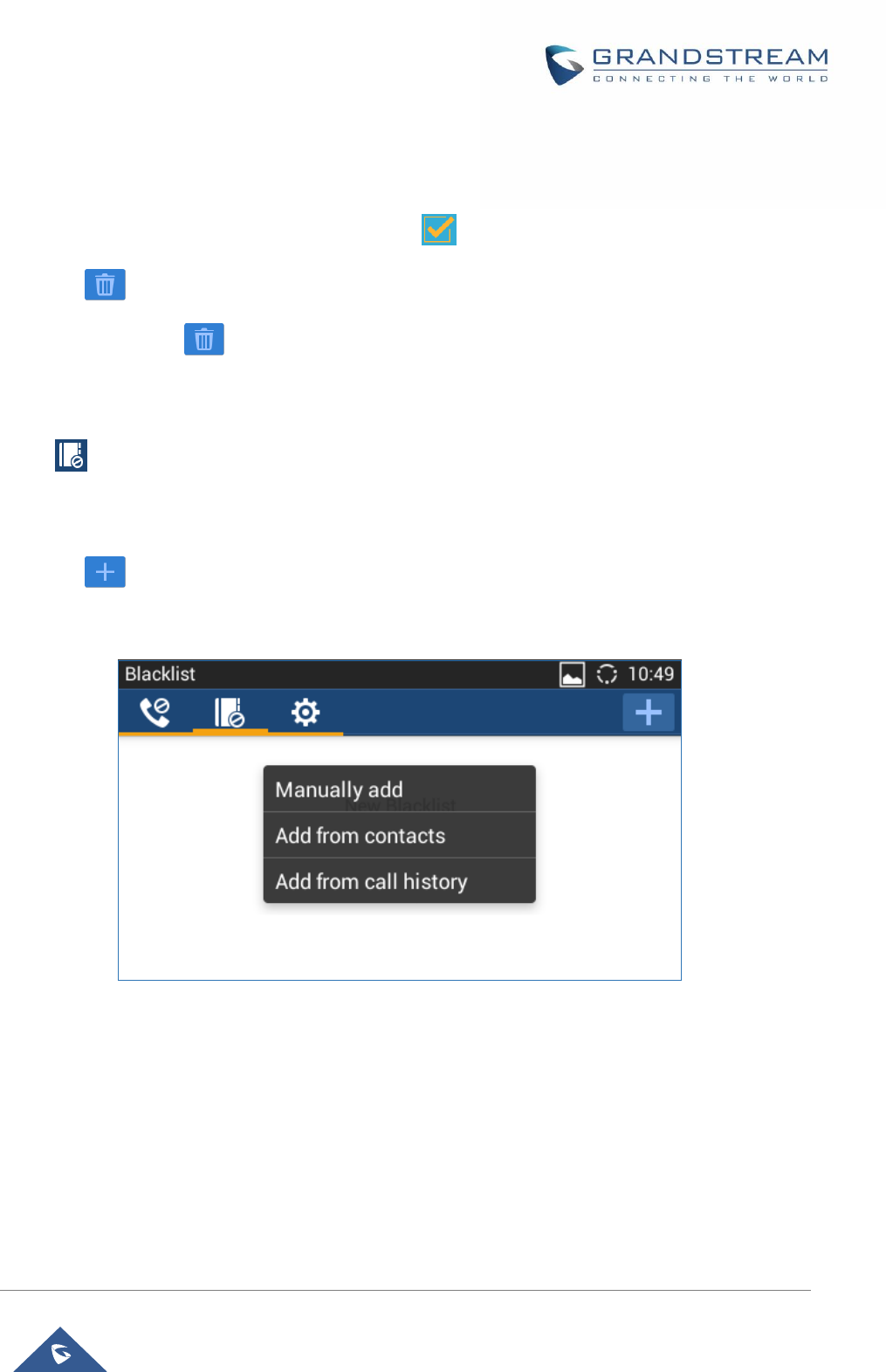

Add Blacklist ................................................................................................................................. 92
P a g e | 7
GXV3240 User Guide

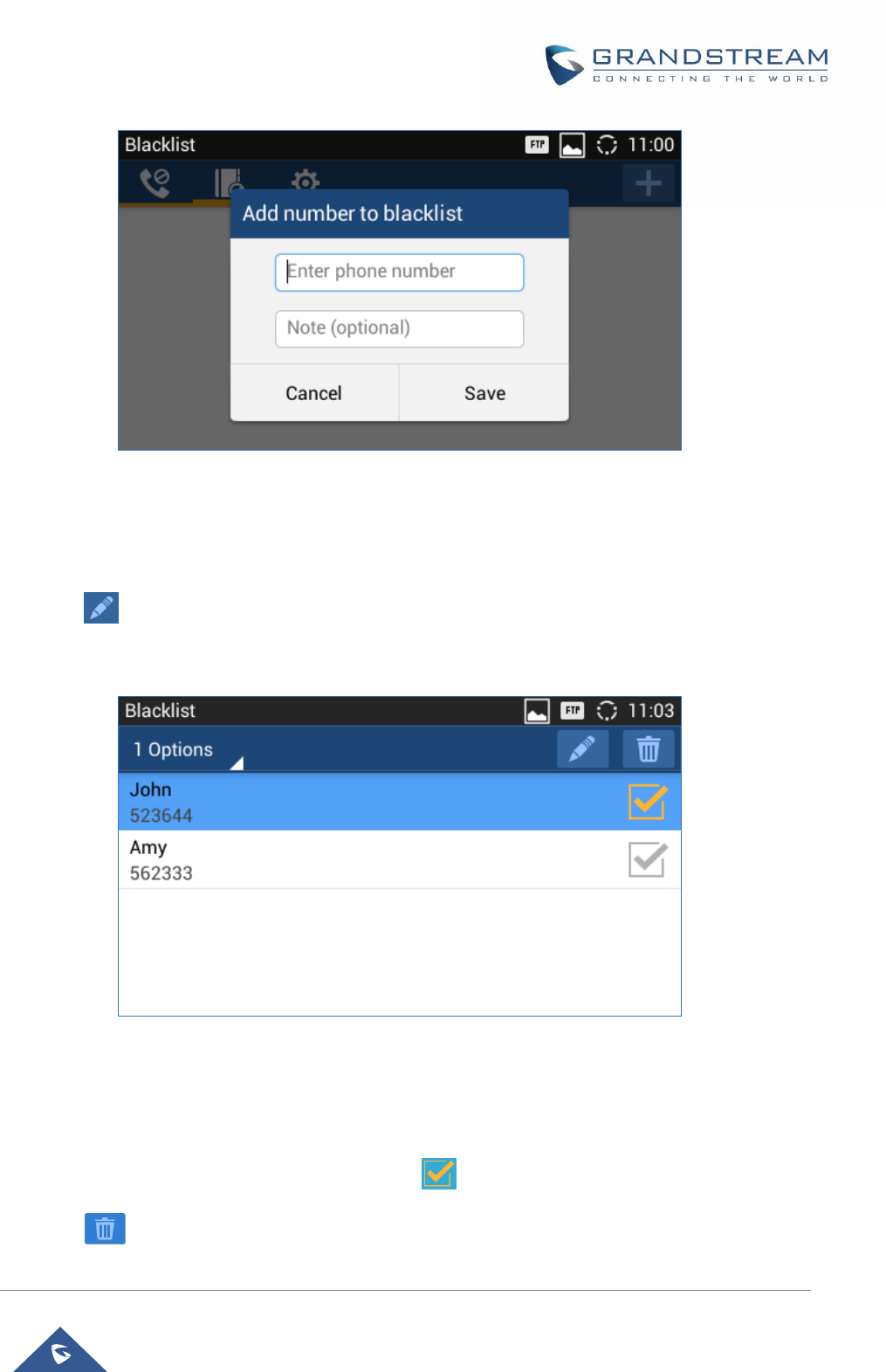

Edit Blacklist ................................................................................................................................. 93
Delete Blacklist ............................................................................................................................. 93
Blacklist Settings .................................................................................................................................. 94

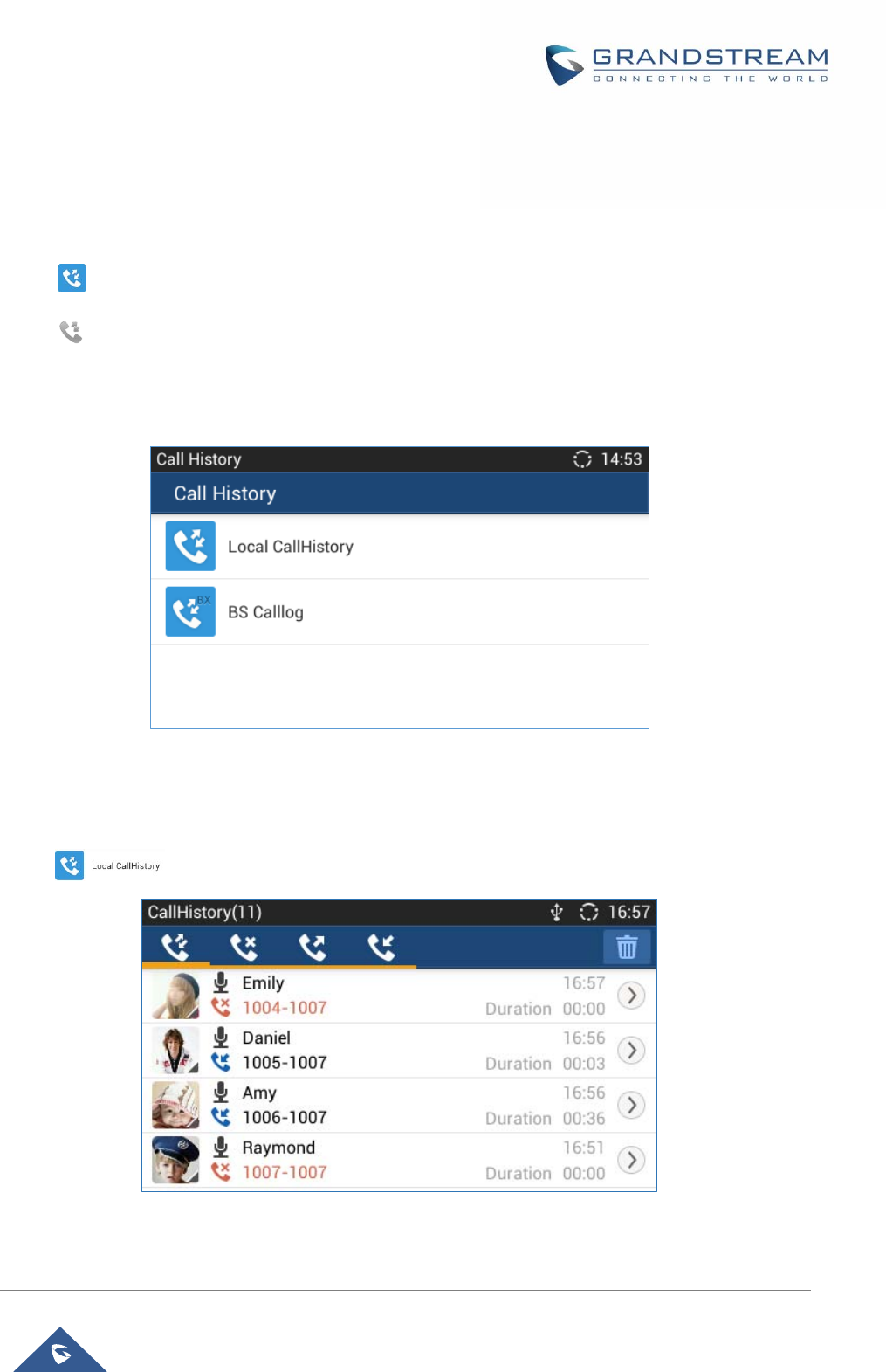

CALL HISTORY ............................................................................................................ 95
Local Call History ................................................................................................................................. 95
Dial Out from Call History ............................................................................................................. 96
Call History Options ...................................................................................................................... 96
Delete Call History ........................................................................................................................ 96
Call History Details ....................................................................................................................... 97
Broadworks XSI Call History ................................................................................................................ 97
SMS .............................................................................................................................. 98
View SMS............................................................................................................................................. 98

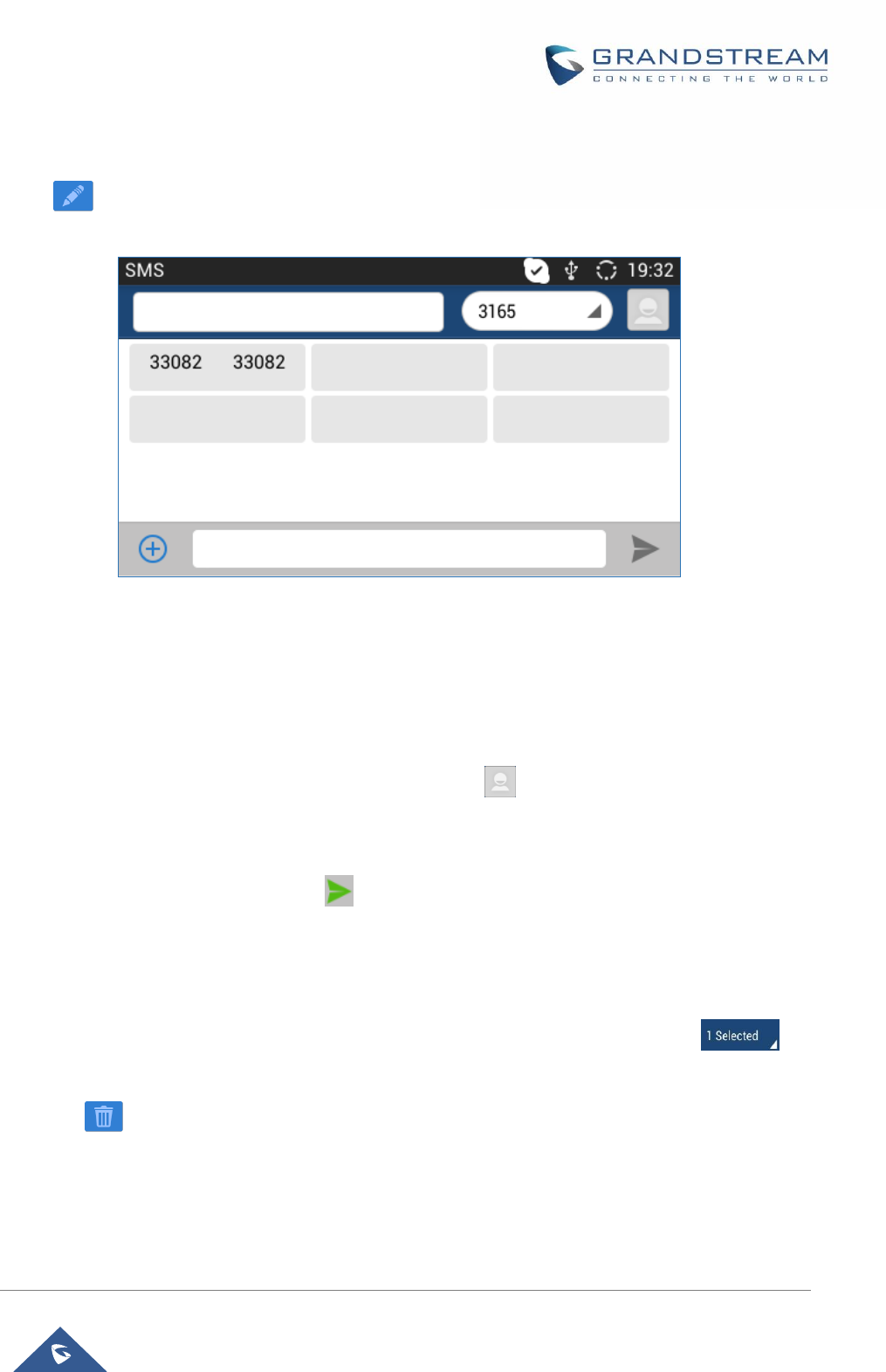

Create New SMS ................................................................................................................................. 99
Delete SMS .......................................................................................................................................... 99

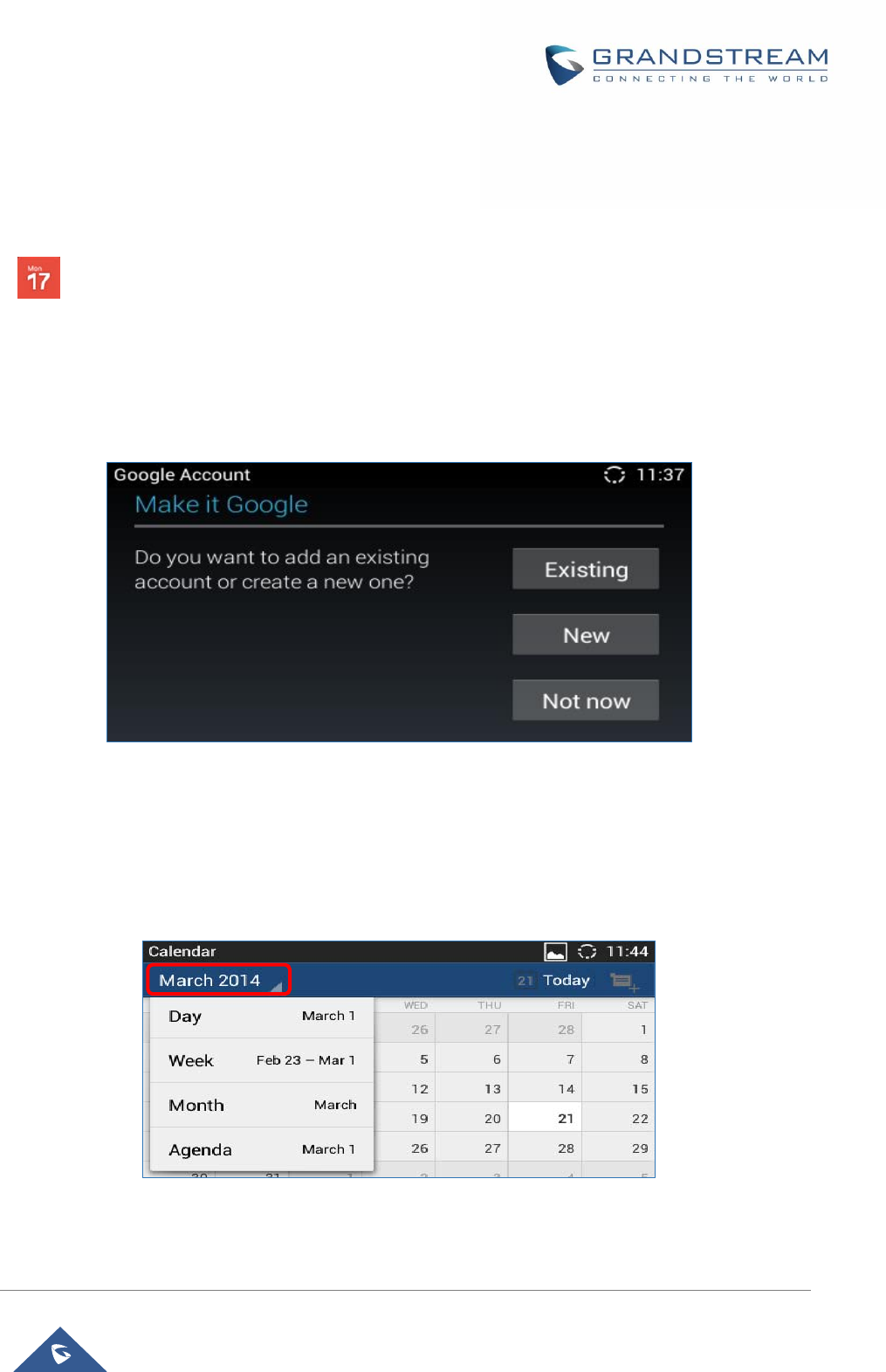

CALENDAR ................................................................................................................ 100
Sign in Calendar ................................................................................................................................ 100

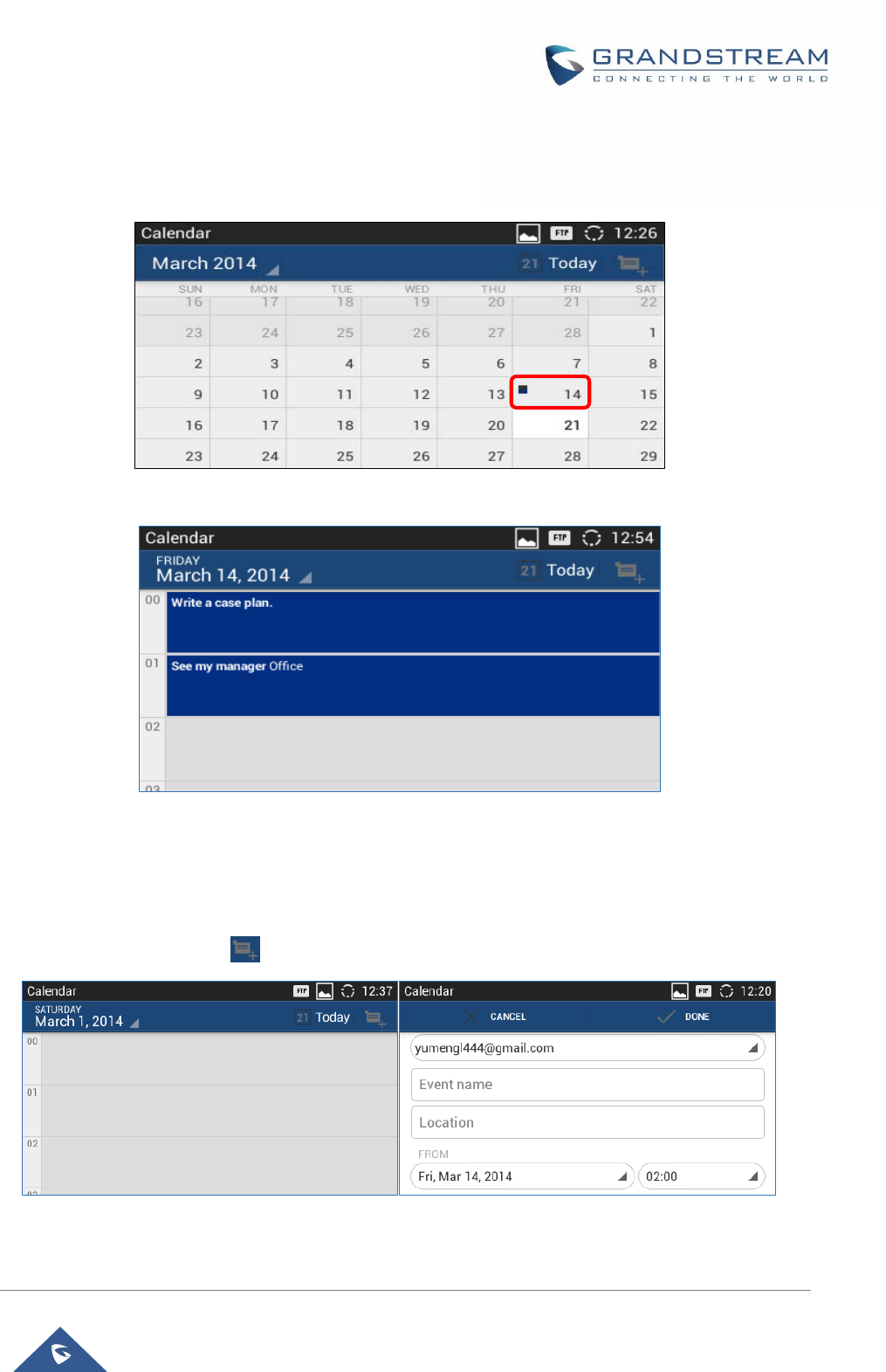

View Calendar .................................................................................................................................... 100
Create Event ...................................................................................................................................... 101
Calendar Options ............................................................................................................................... 102
EMAIL ......................................................................................................................... 103

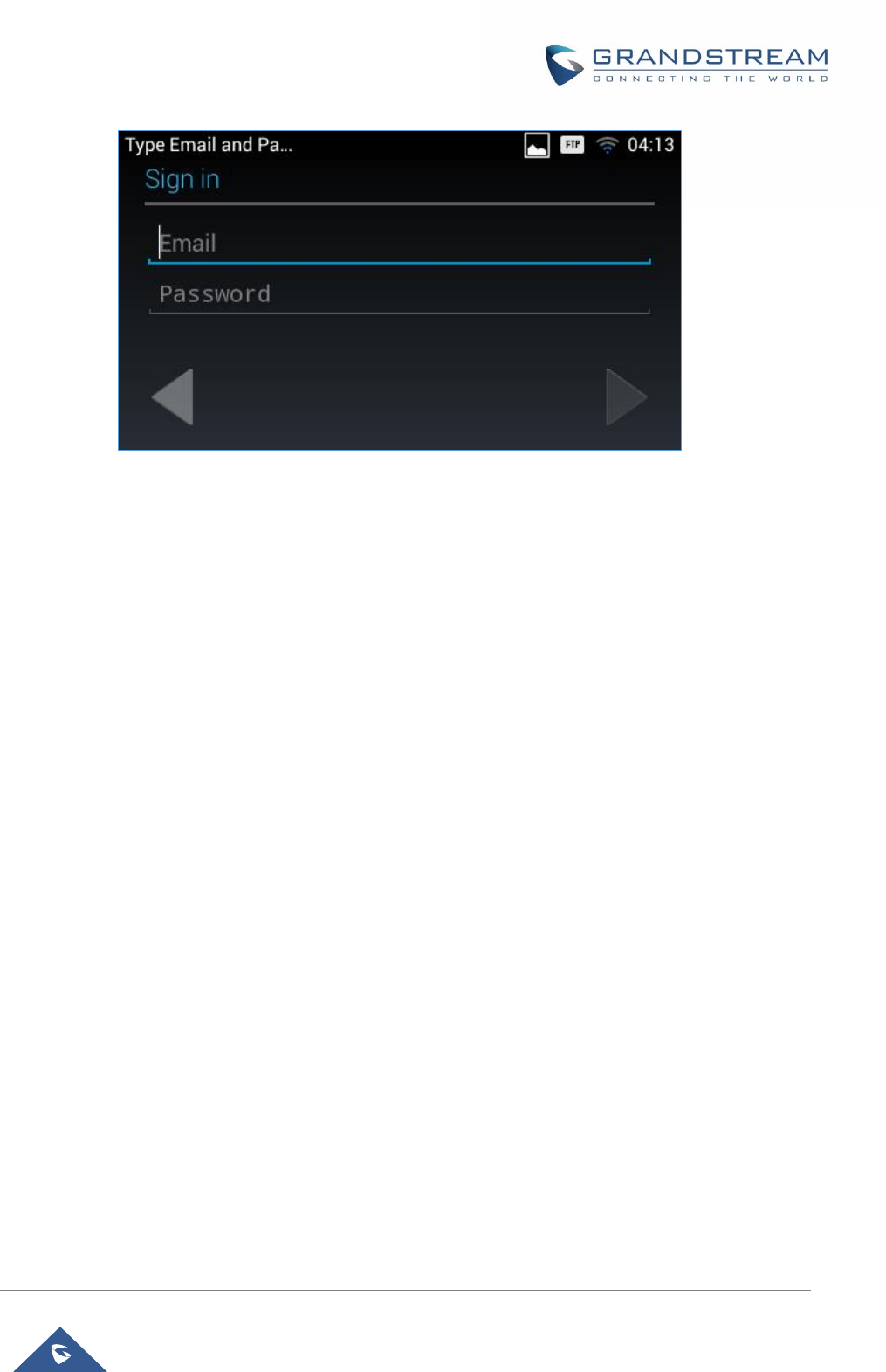

Sign in Email ...................................................................................................................................... 103
Email Options ..................................................................................................................................... 105
Send Email ................................................................................................................................. 105

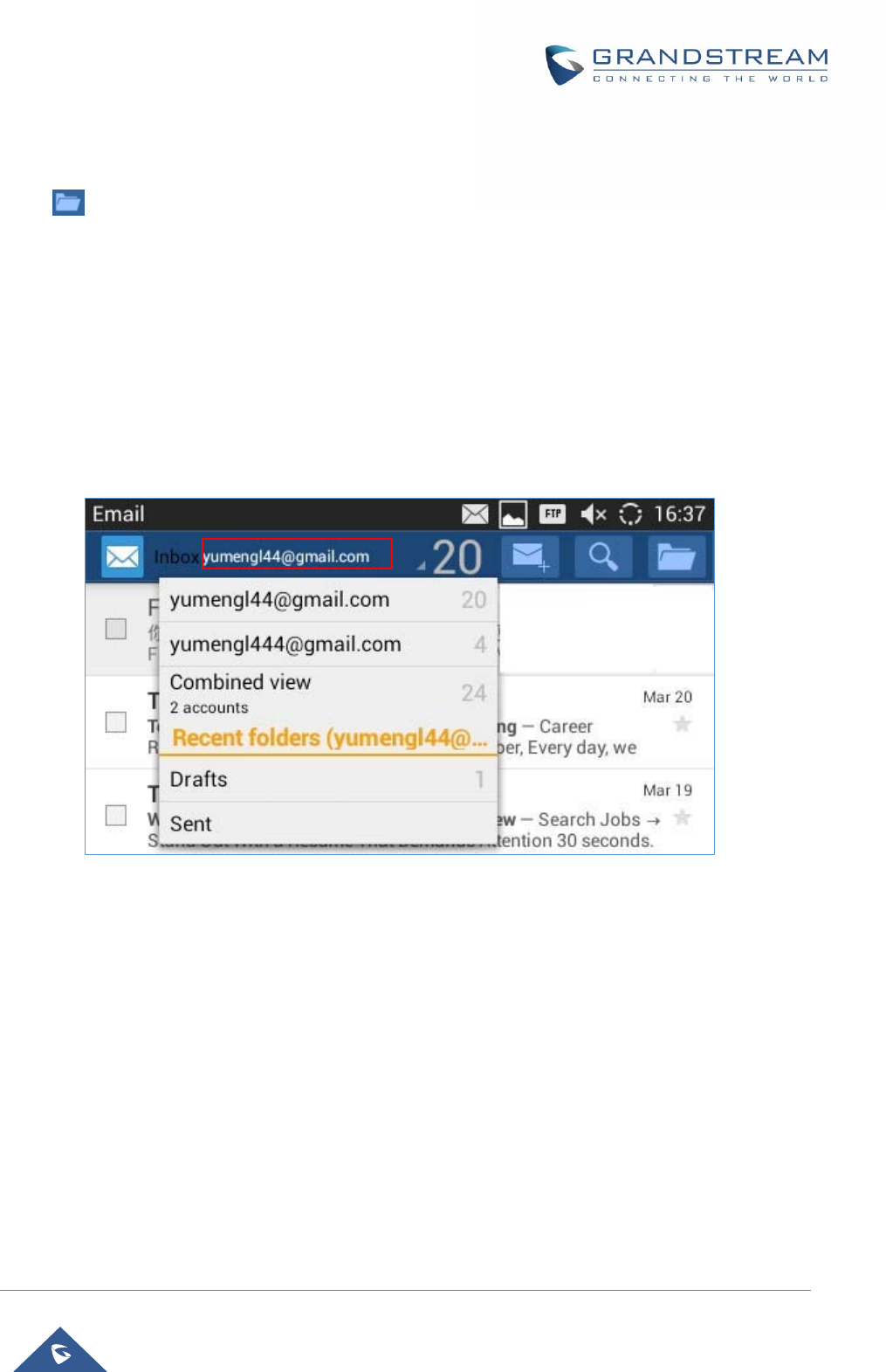

Email Folders .............................................................................................................................. 106
Multiple Email Accounts .............................................................................................................. 106

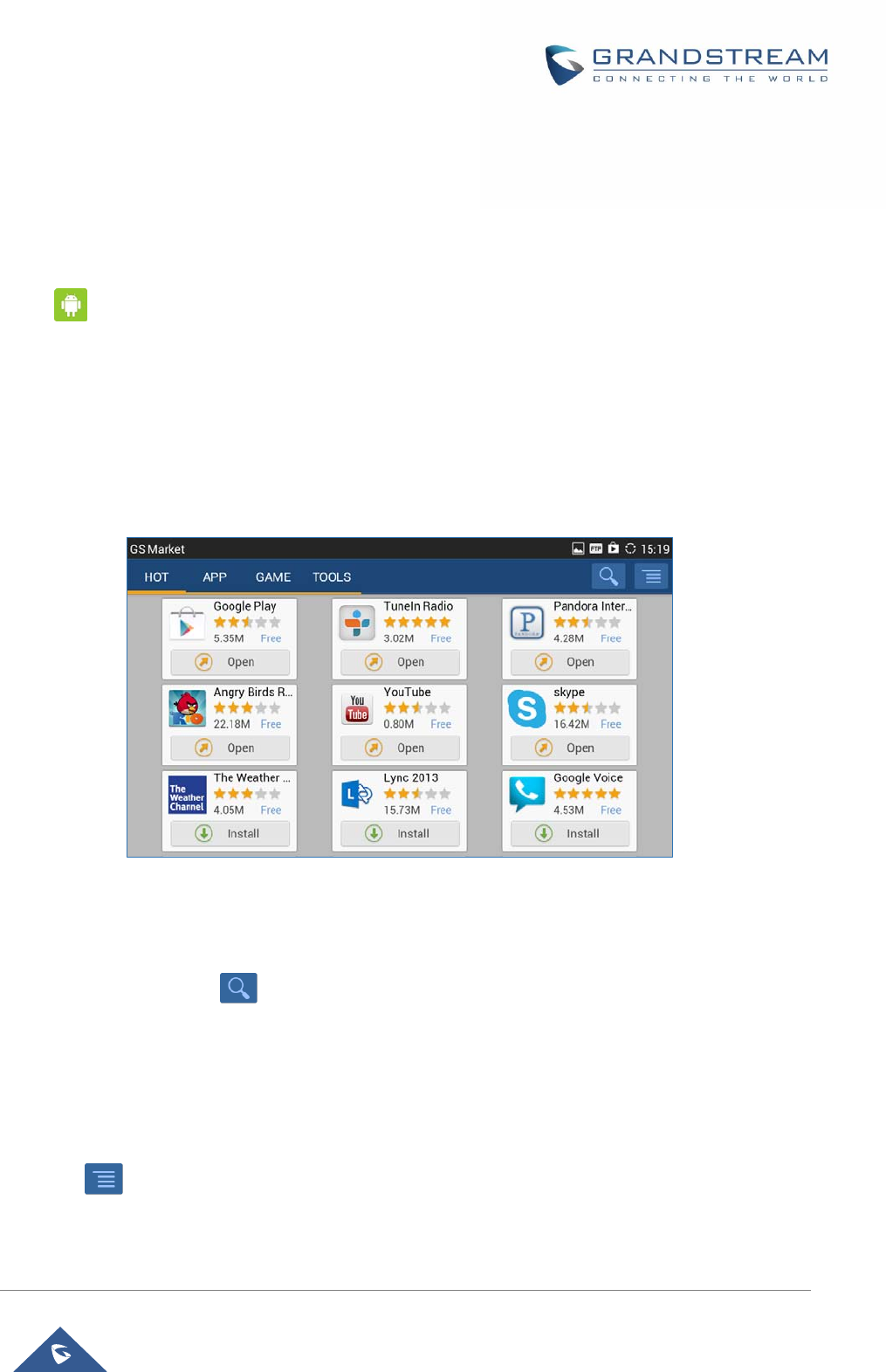

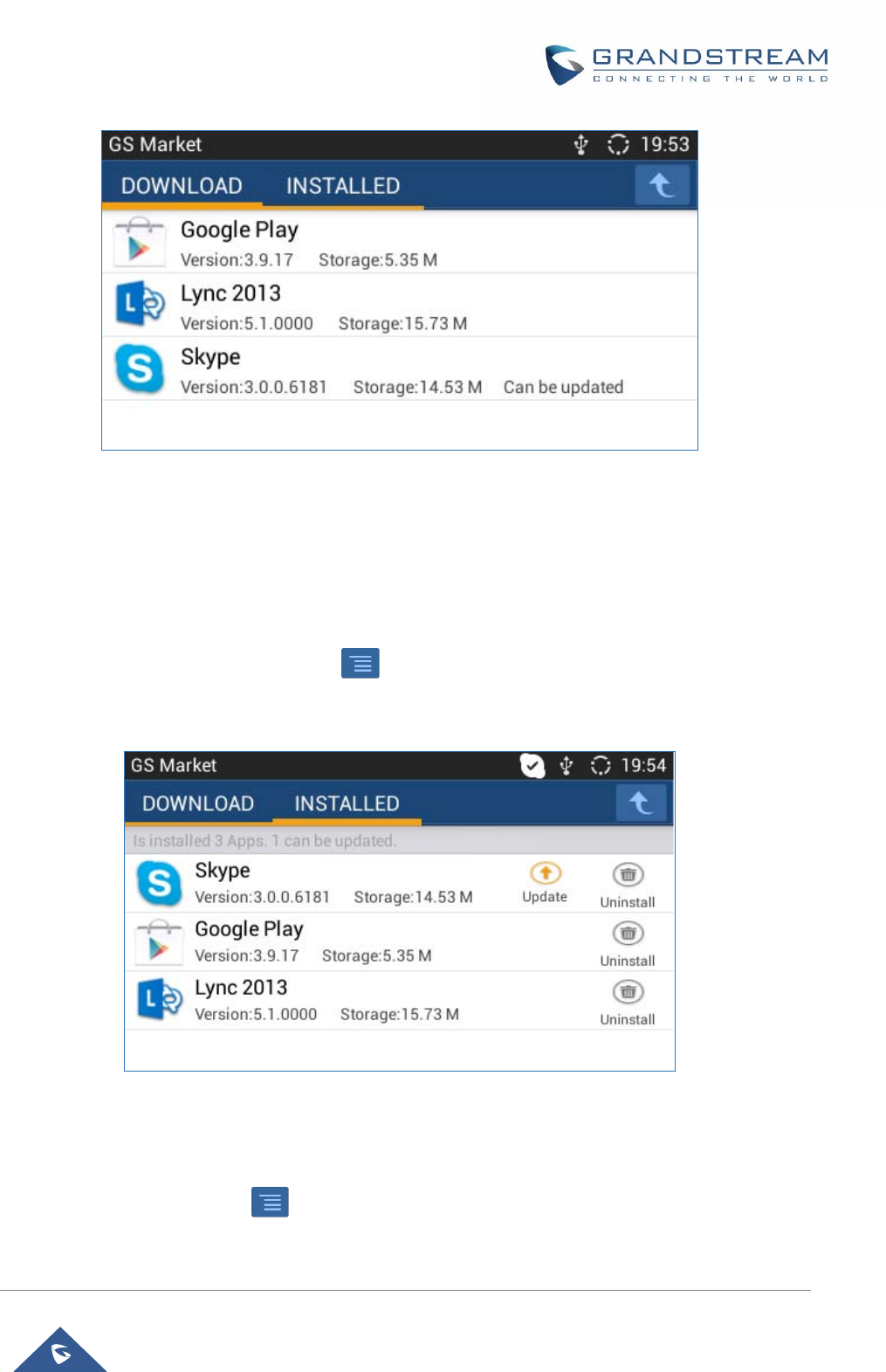

GS MARKET ............................................................................................................... 107
View APPS ......................................................................................................................................... 107
Search APPS ..................................................................................................................................... 107
Update APPS ..................................................................................................................................... 108

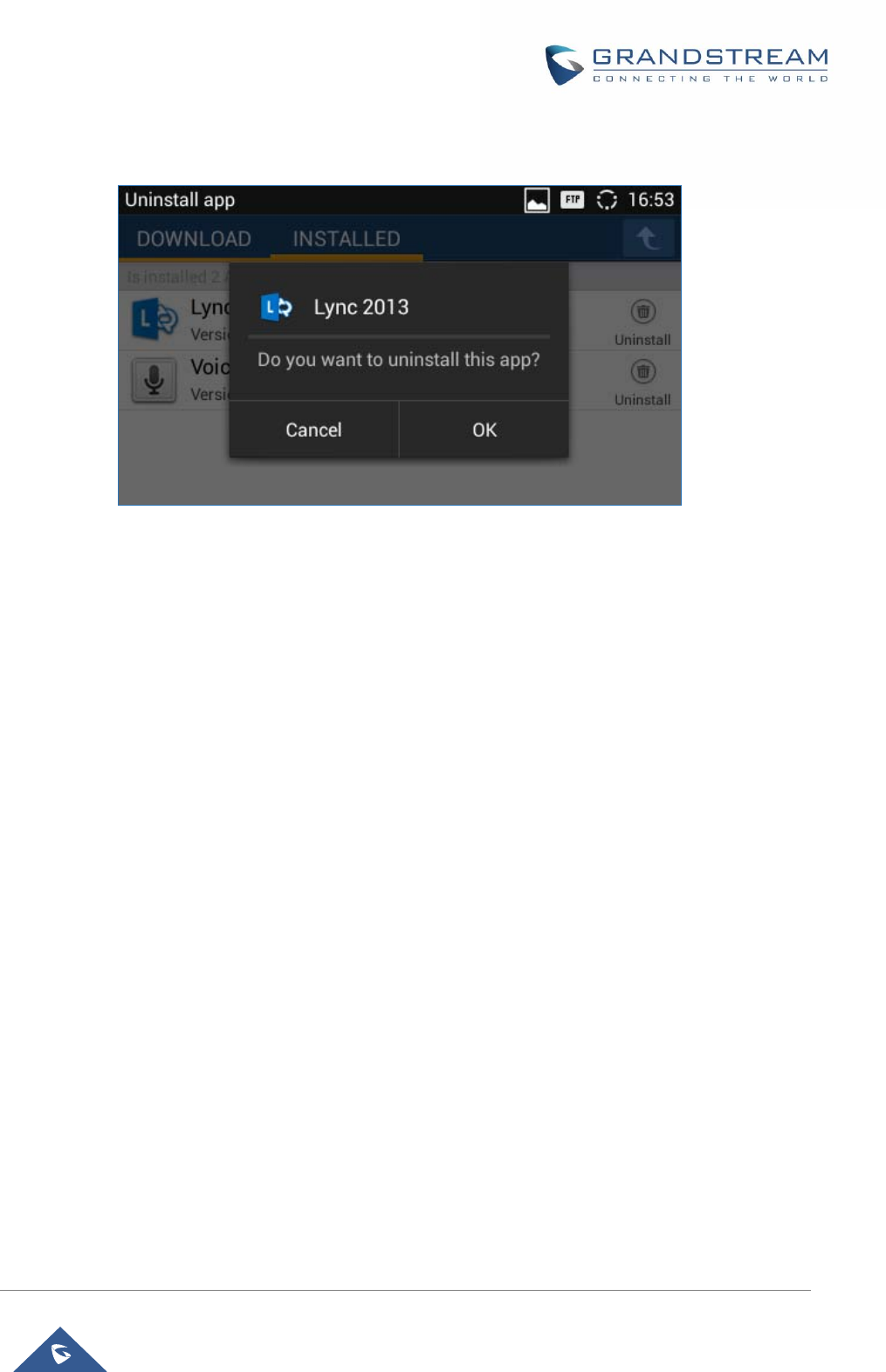

Uninstall APPS ................................................................................................................................... 108
TOOLS ........................................................................................................................ 110

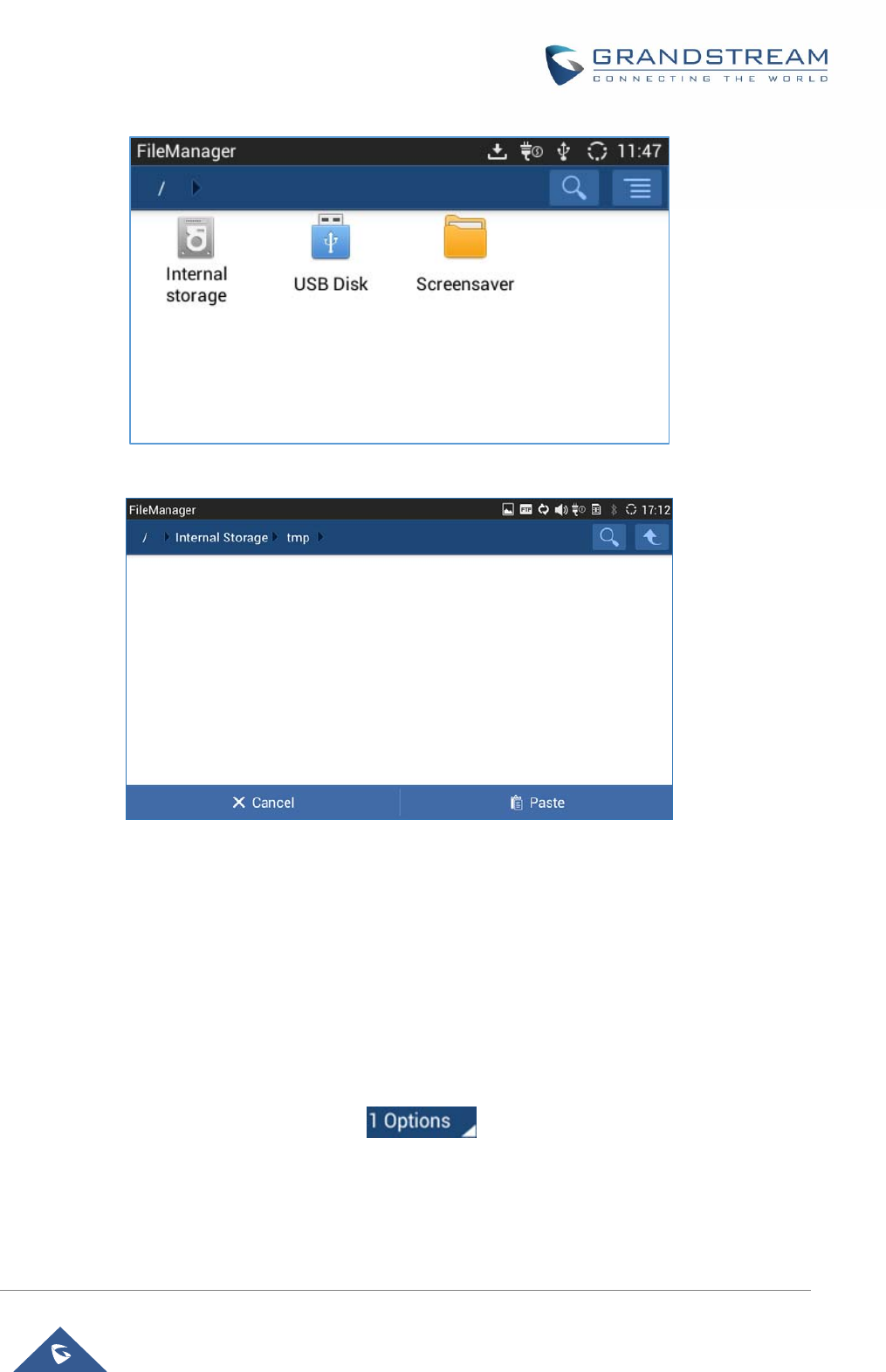

File Manager ...................................................................................................................................... 110
Copy and Paste Files.................................................................................................................. 110
Move Files ...................................................................................................................................111
Send Files ................................................................................................................................... 112
Delete Files ................................................................................................................................. 113

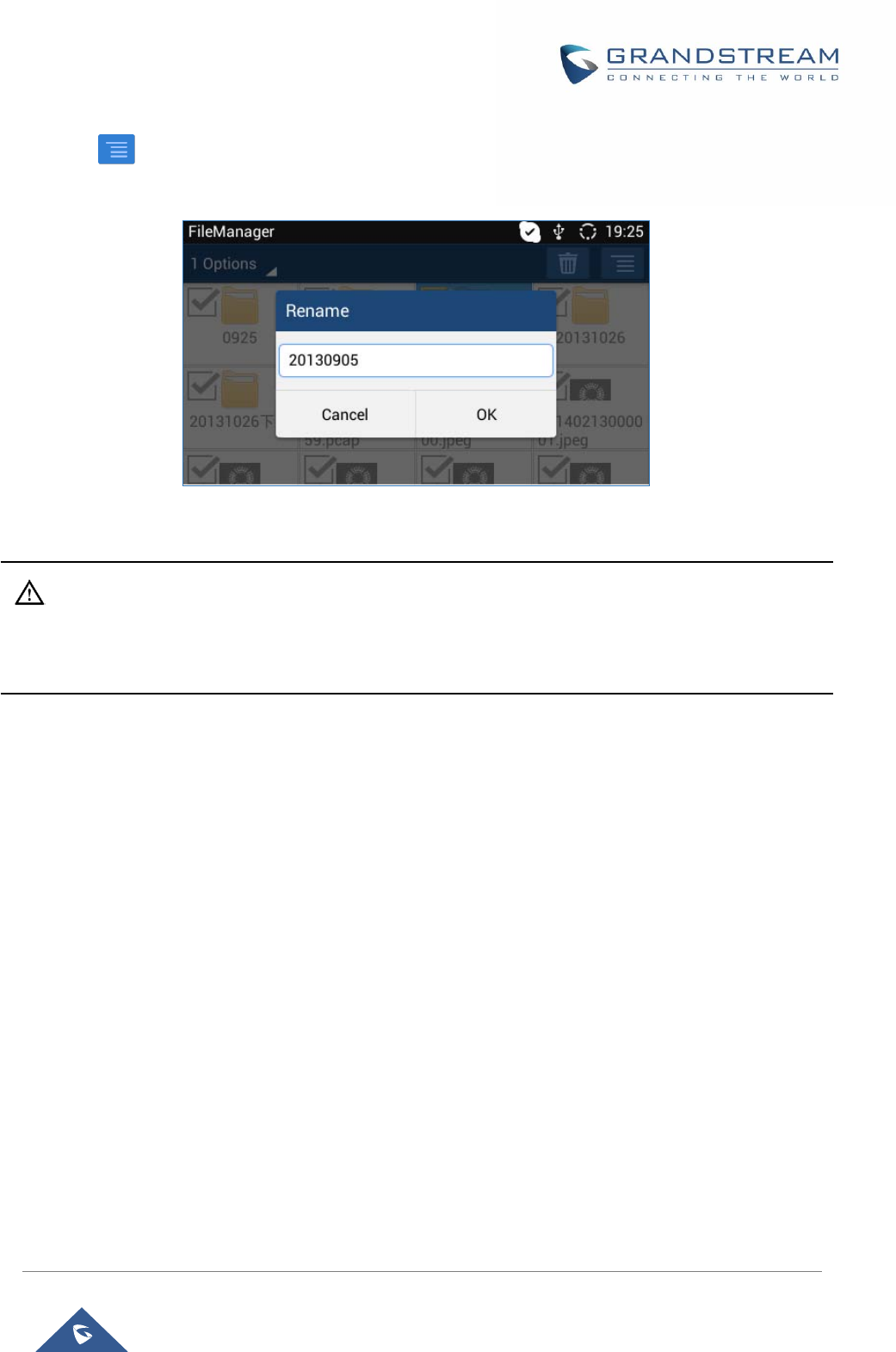

Rename a File ............................................................................................................................ 113
P a g e | 8
GXV3240 User Guide

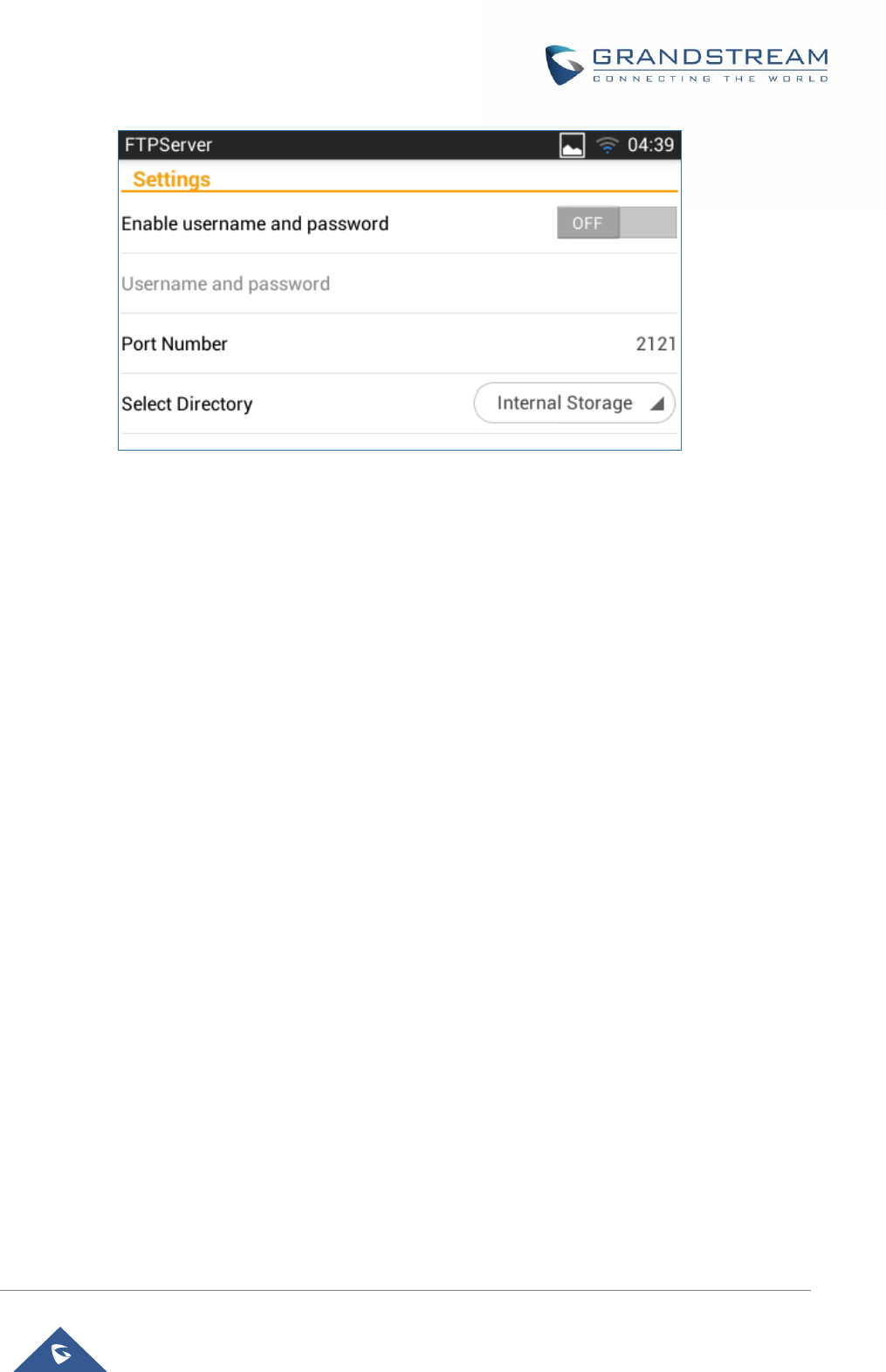

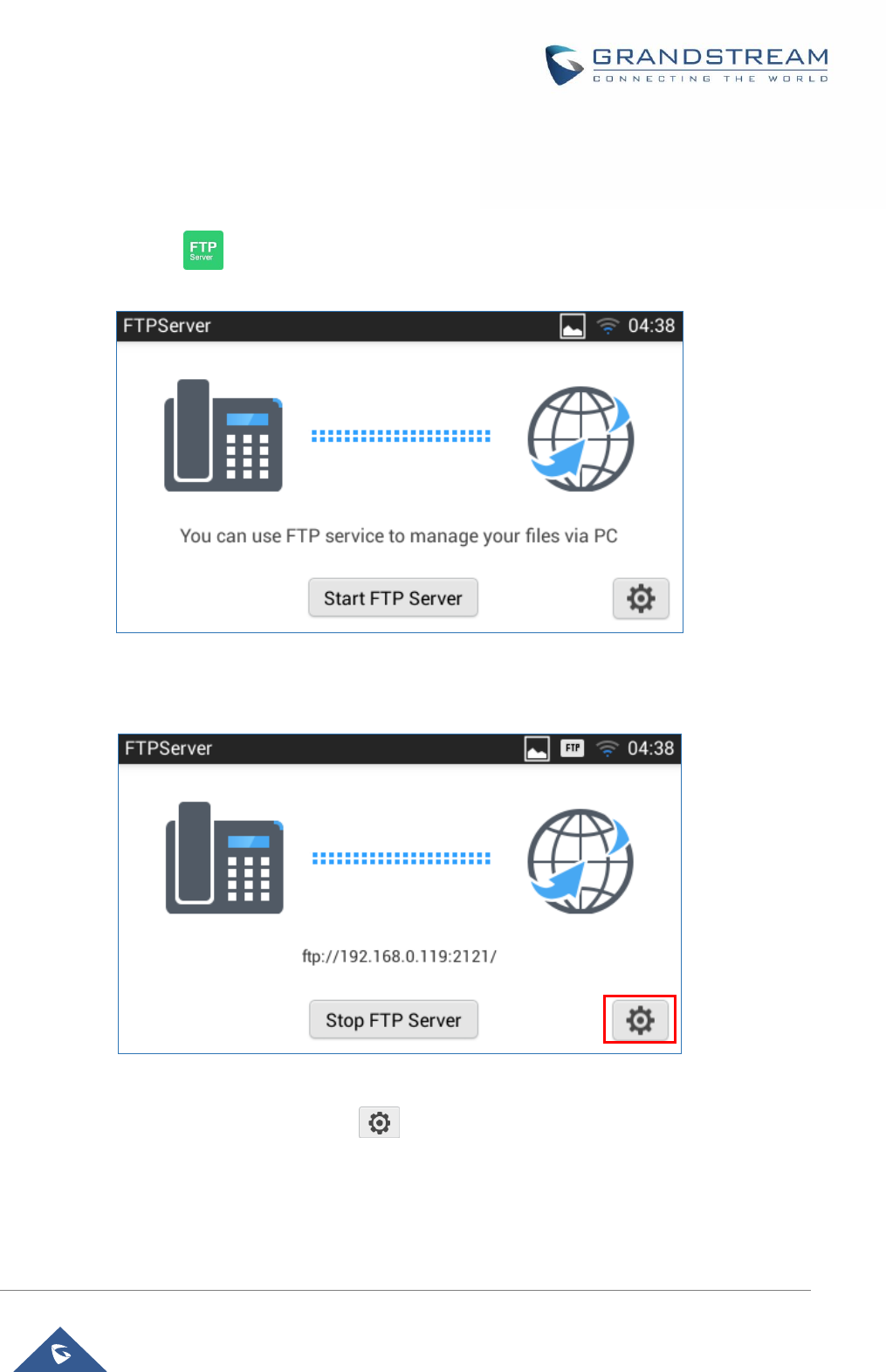

FTP SERVER .............................................................................................................. 115
RECORDER ................................................................................................................ 117

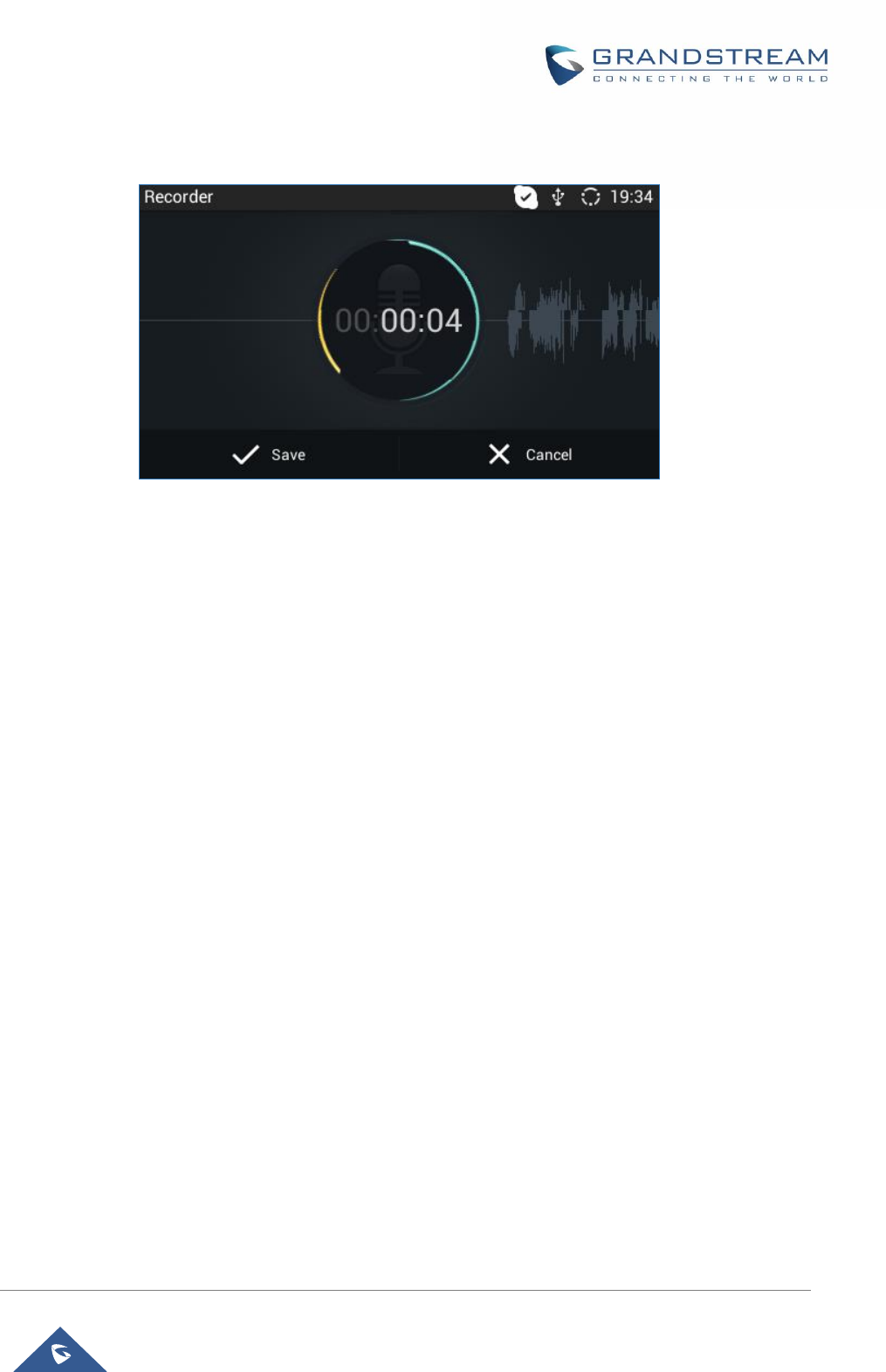

Normal Recorder ................................................................................................................................ 117
Files operations .................................................................................................................................. 118
Call Recorder ..................................................................................................................................... 118

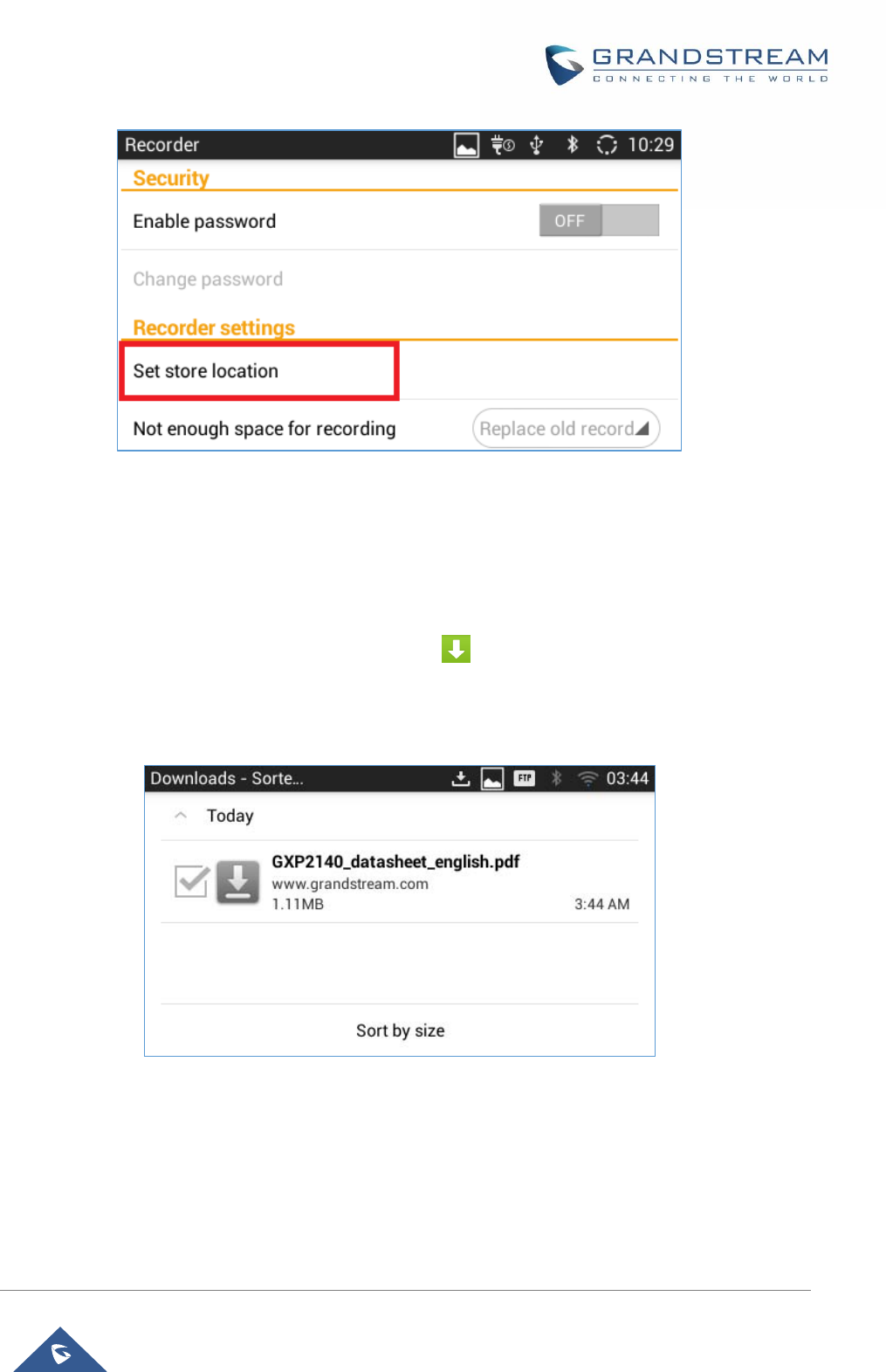

Recorded Files Settings ..................................................................................................................... 119
Downloads ......................................................................................................................................... 120
IP Location ......................................................................................................................................... 121
Diagnosis ........................................................................................................................................... 121

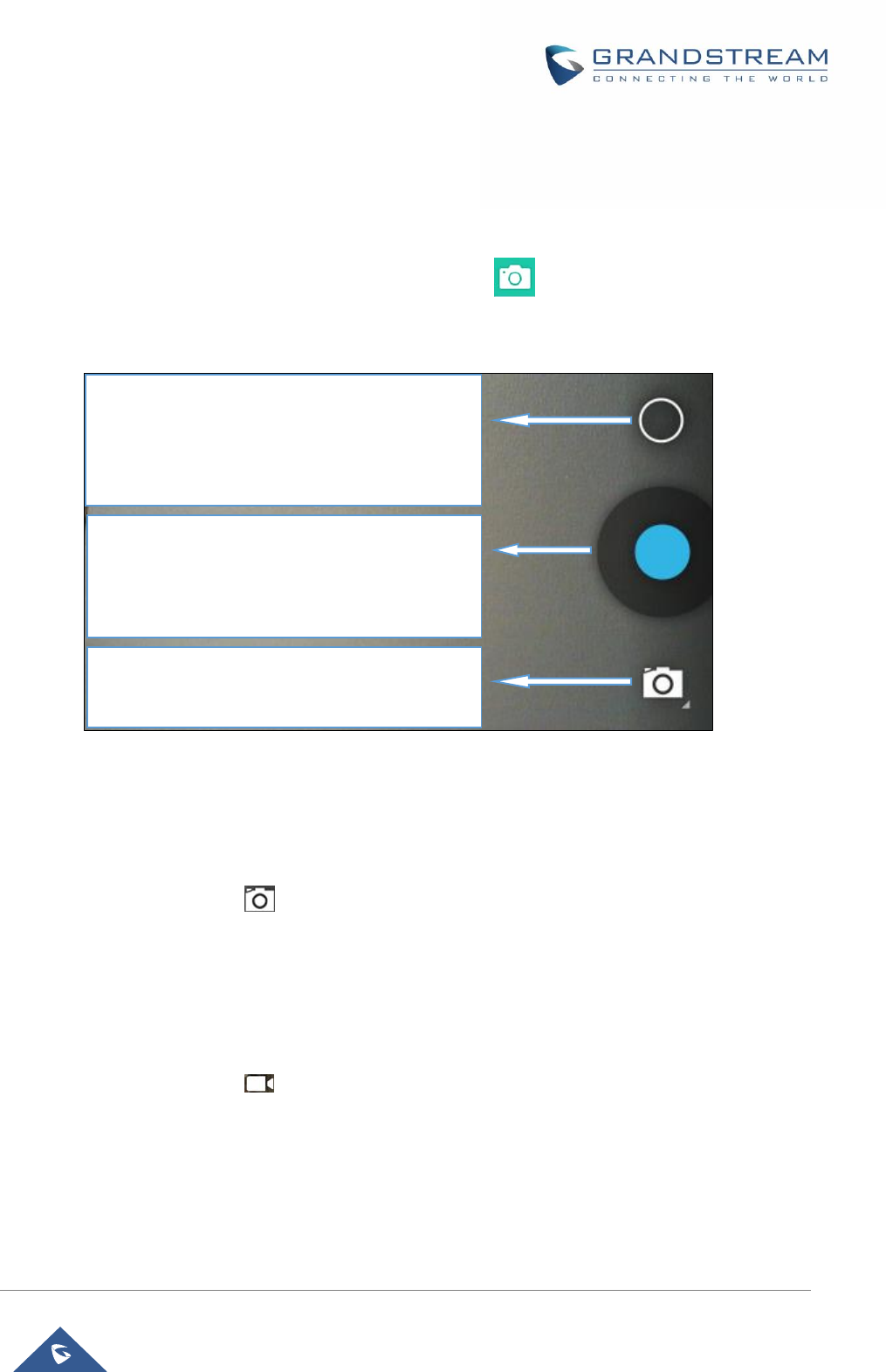

CAMERA .................................................................................................................... 123
Take Picture ....................................................................................................................................... 123
Record Video ..................................................................................................................................... 123
Camera Settings ................................................................................................................................ 124
Angle Adjustment ............................................................................................................................... 124
CONNECTING GXV3240 TO GDS3710 DOOR SYSTEM .......................................... 125
MULTIMEDIA .............................................................................................................. 126

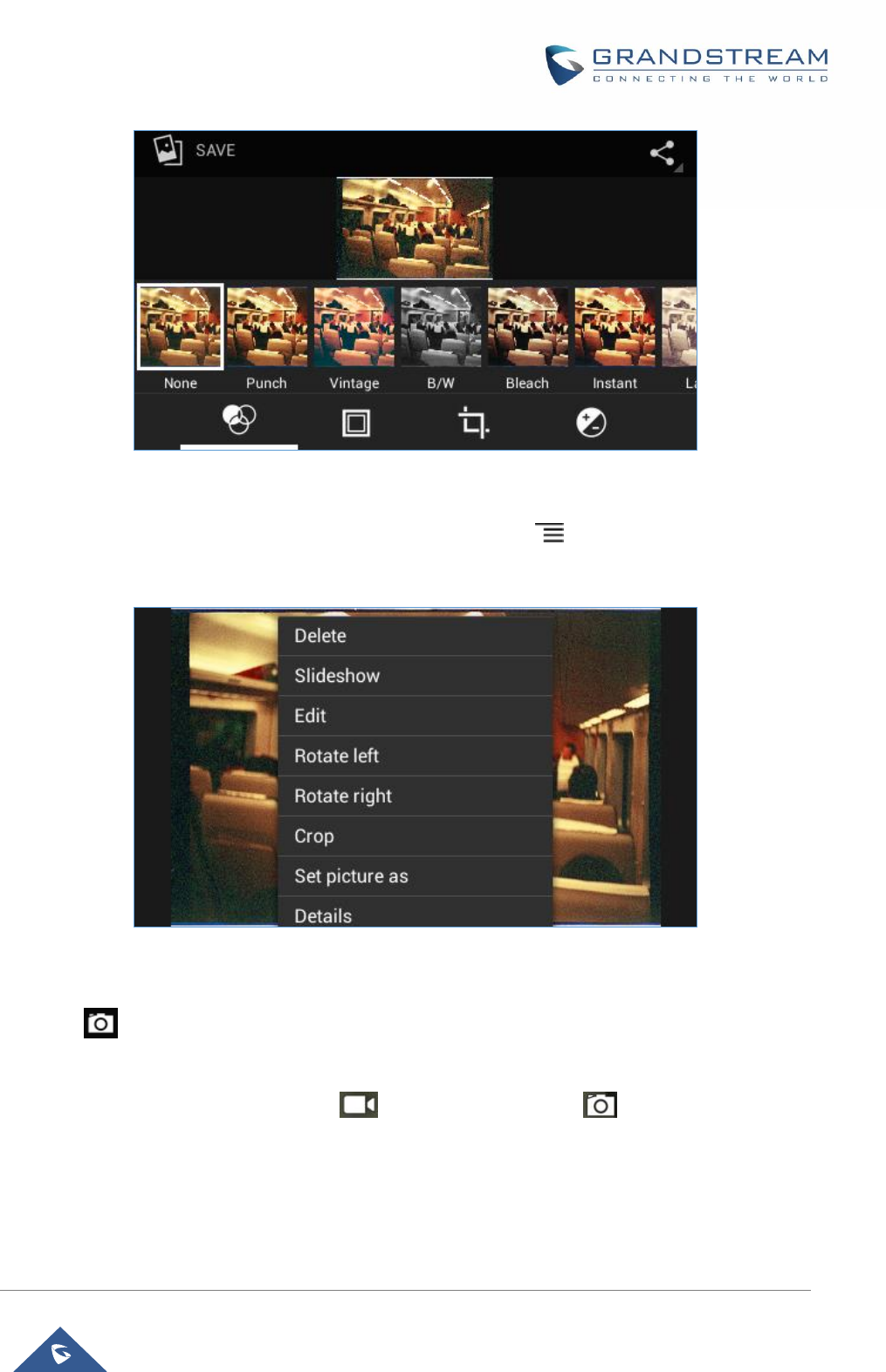

Gallery ................................................................................................................................................ 126

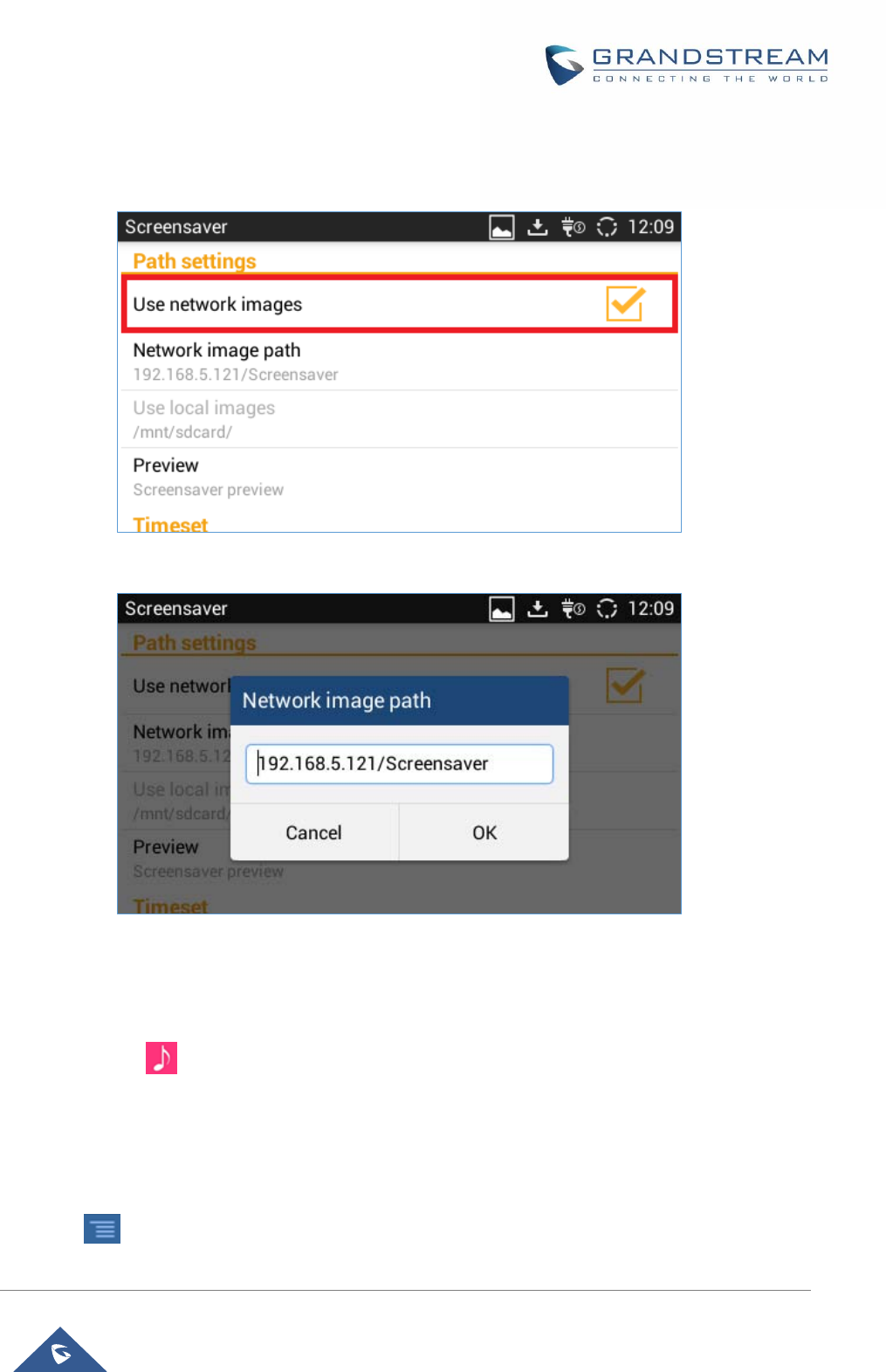

Screensaver ....................................................................................................................................... 128

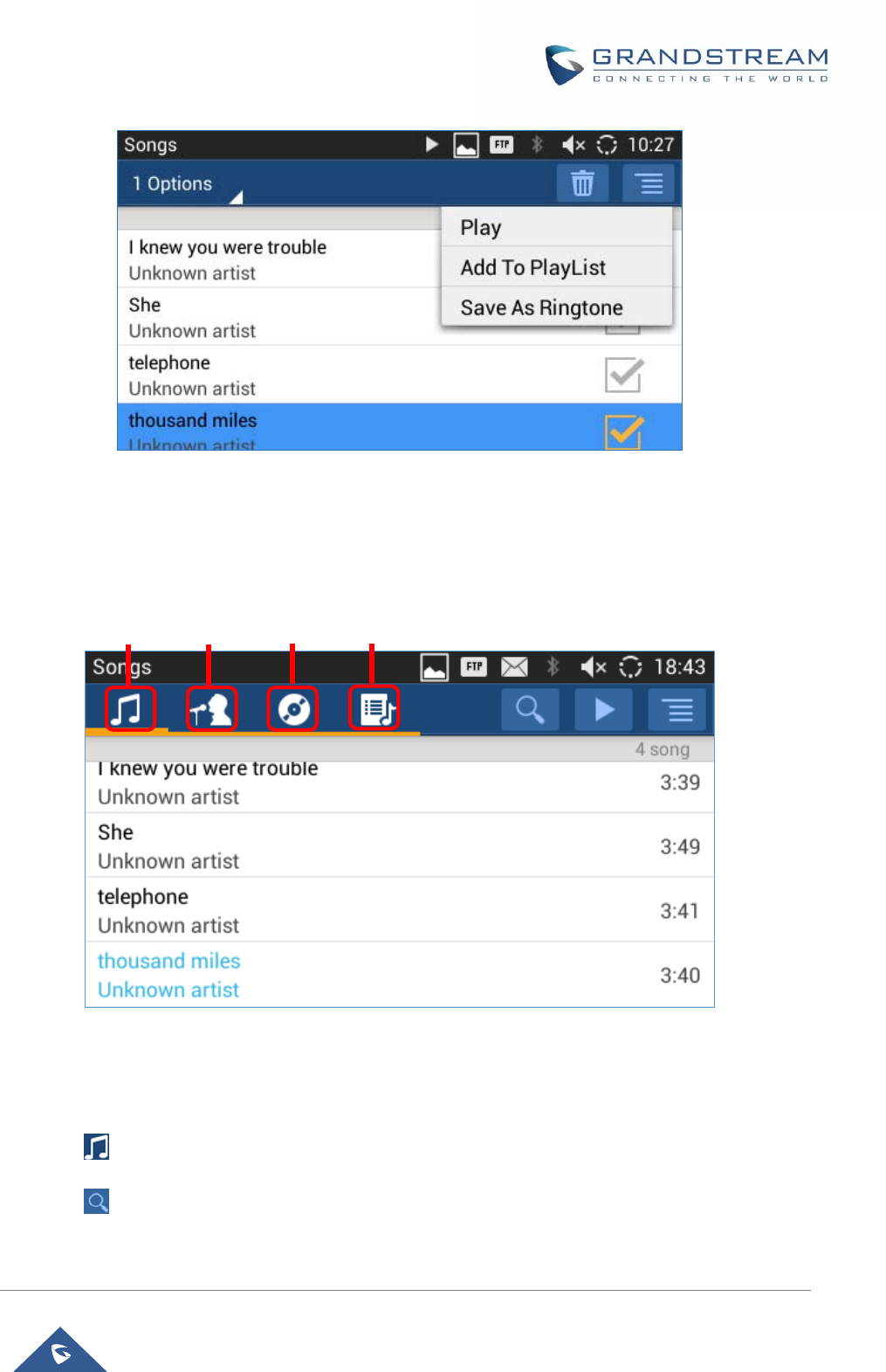

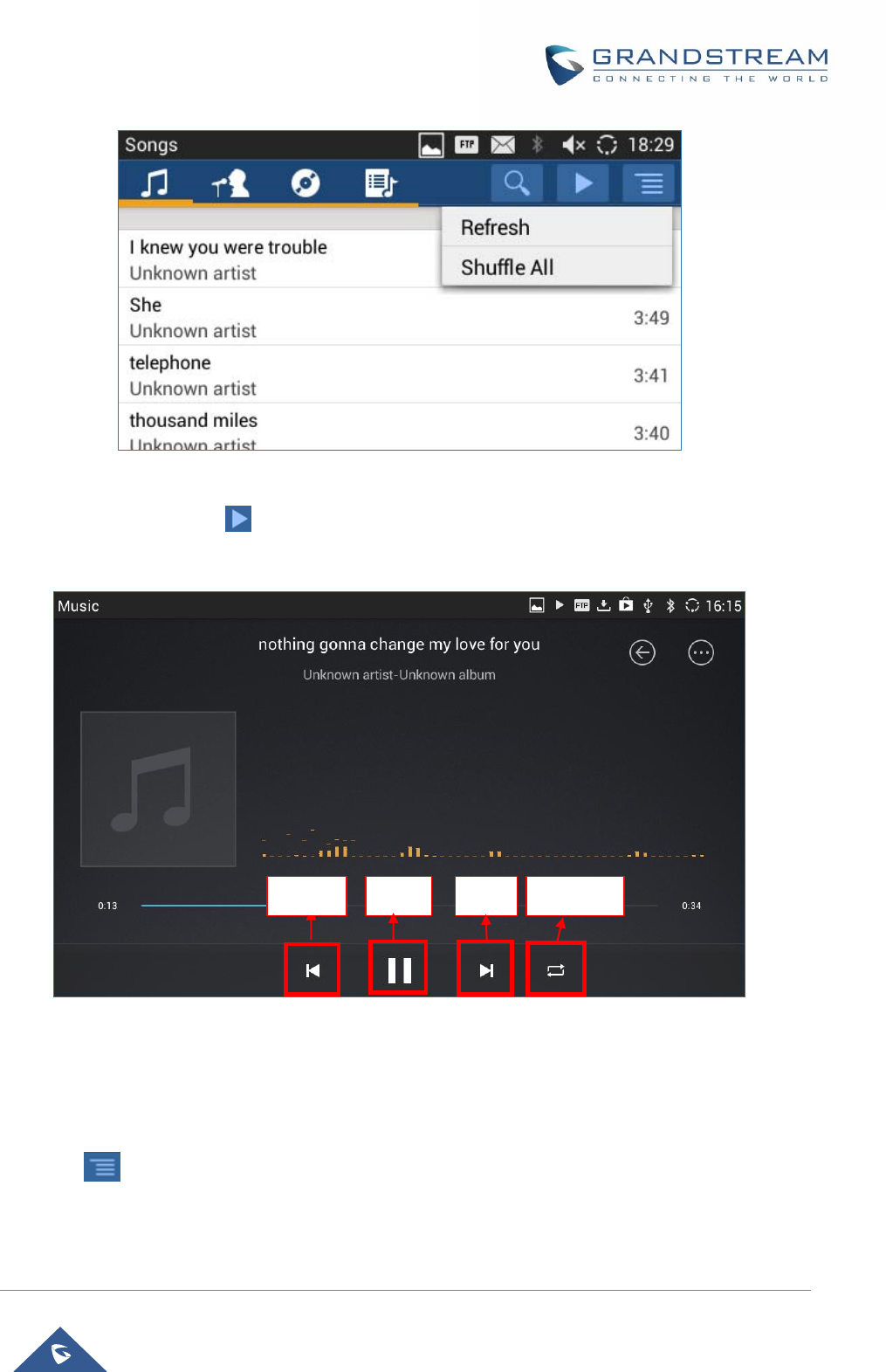

Music .................................................................................................................................................. 129
Play Music .................................................................................................................................. 129
Edit Music ................................................................................................................................... 130
Sort Music ................................................................................................................................... 131
Search Music .............................................................................................................................. 131

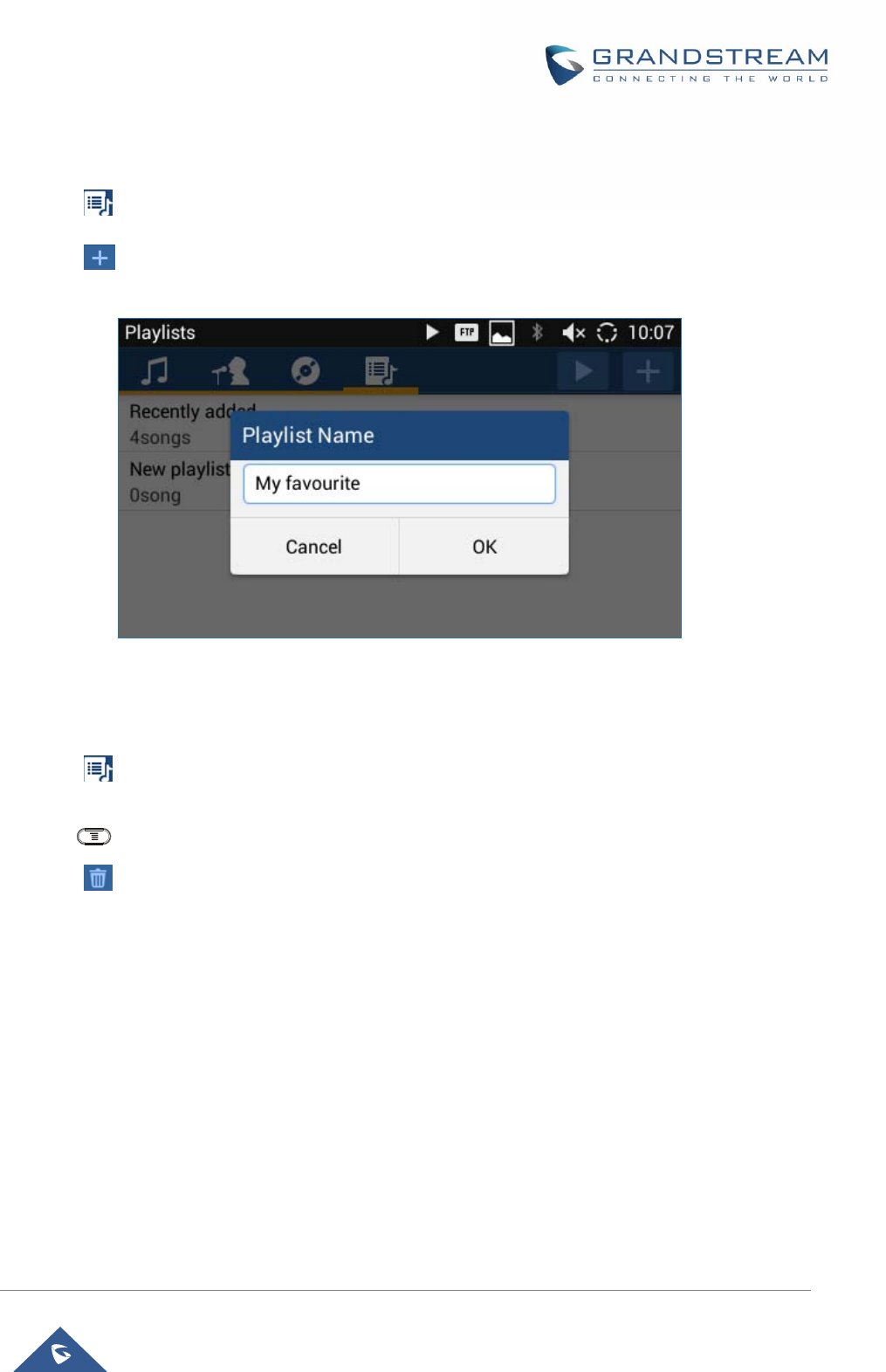

Create Playlist ............................................................................................................................. 132
Edit Playlist ................................................................................................................................. 132

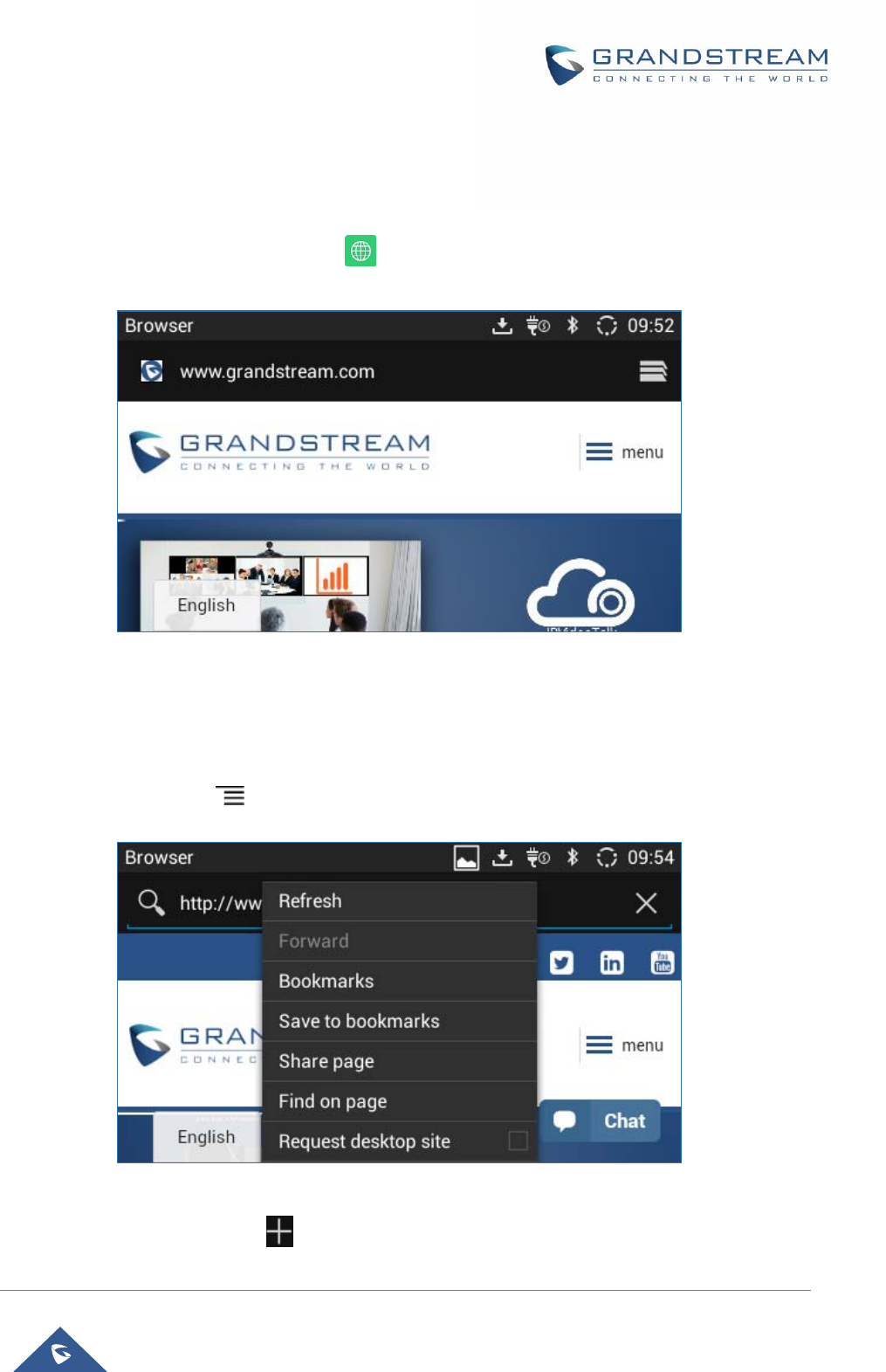

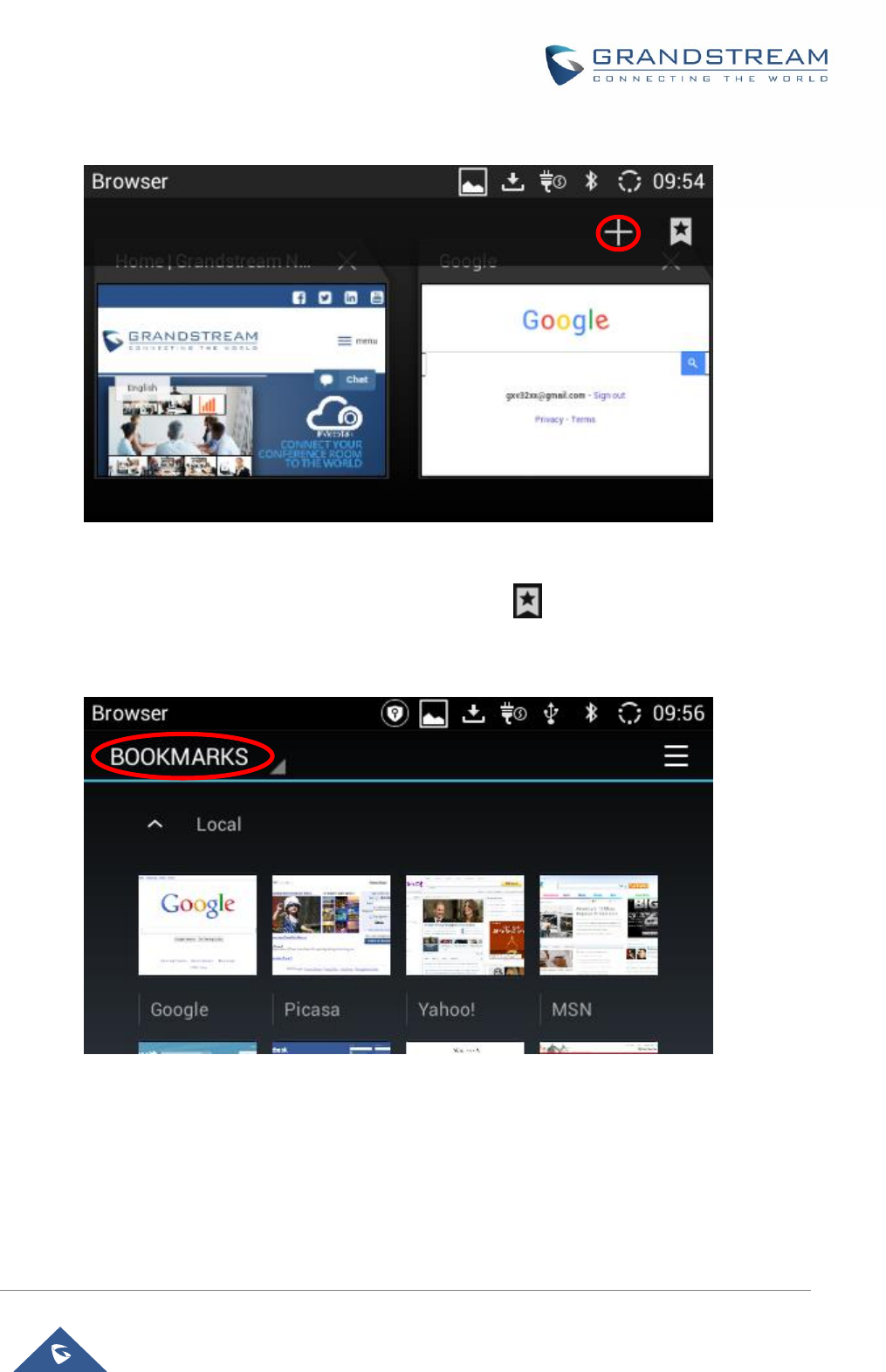

BROSWER ................................................................................................................. 133

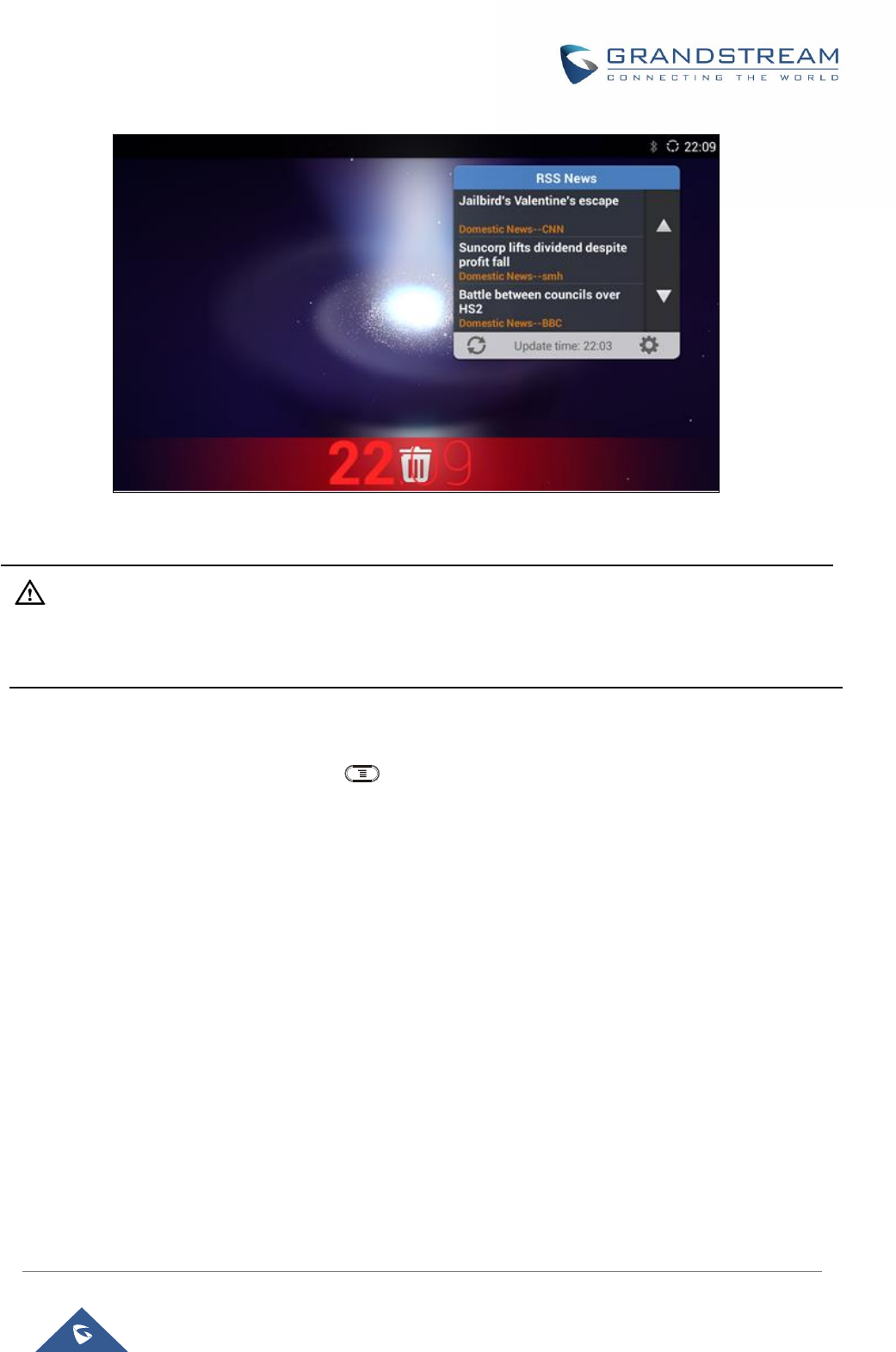

RSS NEWS ................................................................................................................. 135

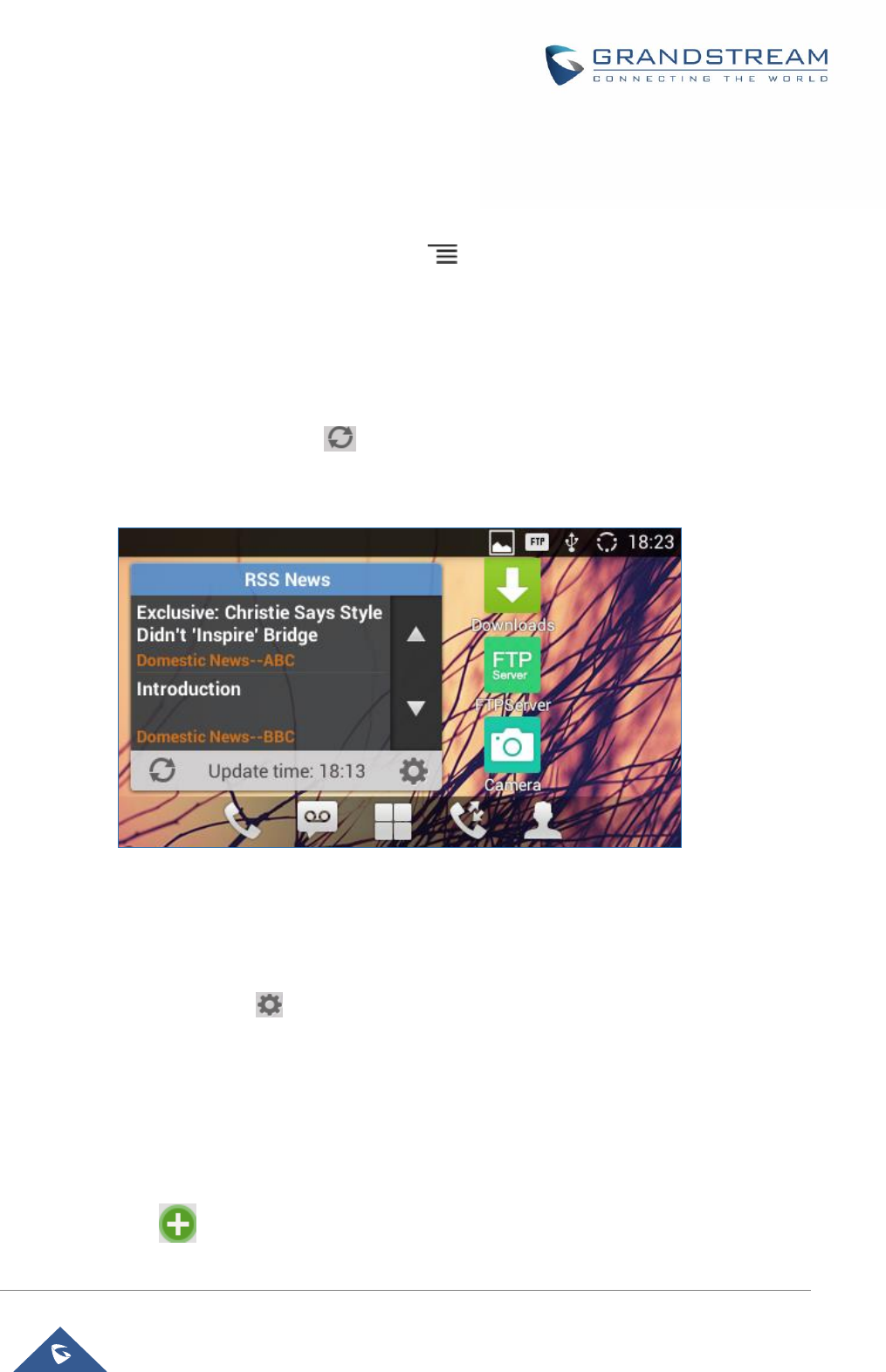

Add RSS Widget ................................................................................................................................ 135
Use RSS Widget ................................................................................................................................ 135

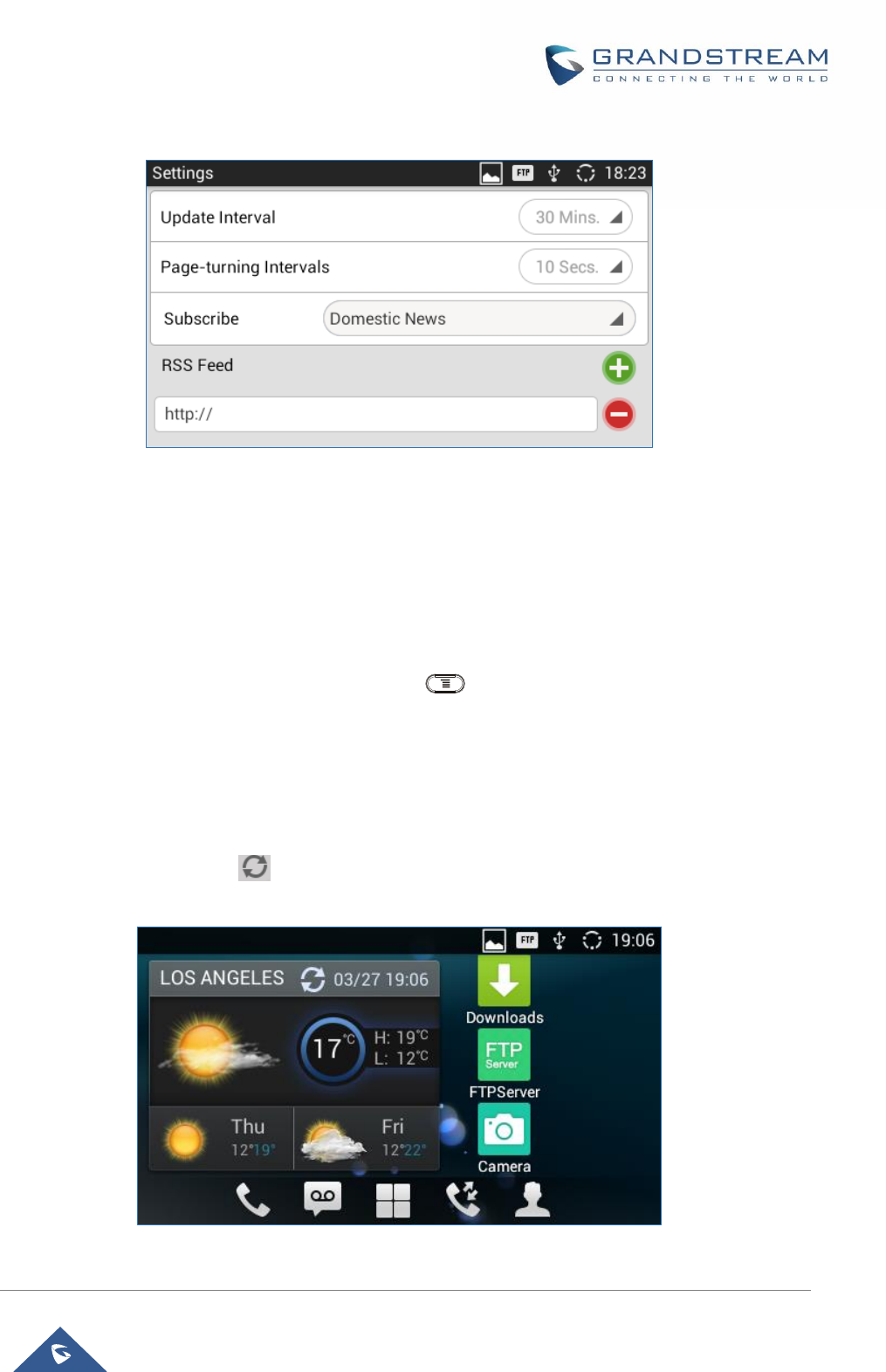

RSS Widget Settings .................................................................................................................. 135
Weather .............................................................................................................................................. 136
Add Weather Widget ................................................................................................................... 136
Use Weather Widget ................................................................................................................... 136
Weather Settings ........................................................................................................................ 137
BS-IM&P ..................................................................................................................... 138
ACTIONURL ............................................................................................................... 139
P a g e | 9
GXV3240 User Guide
PNP ............................................................................................................................. 140

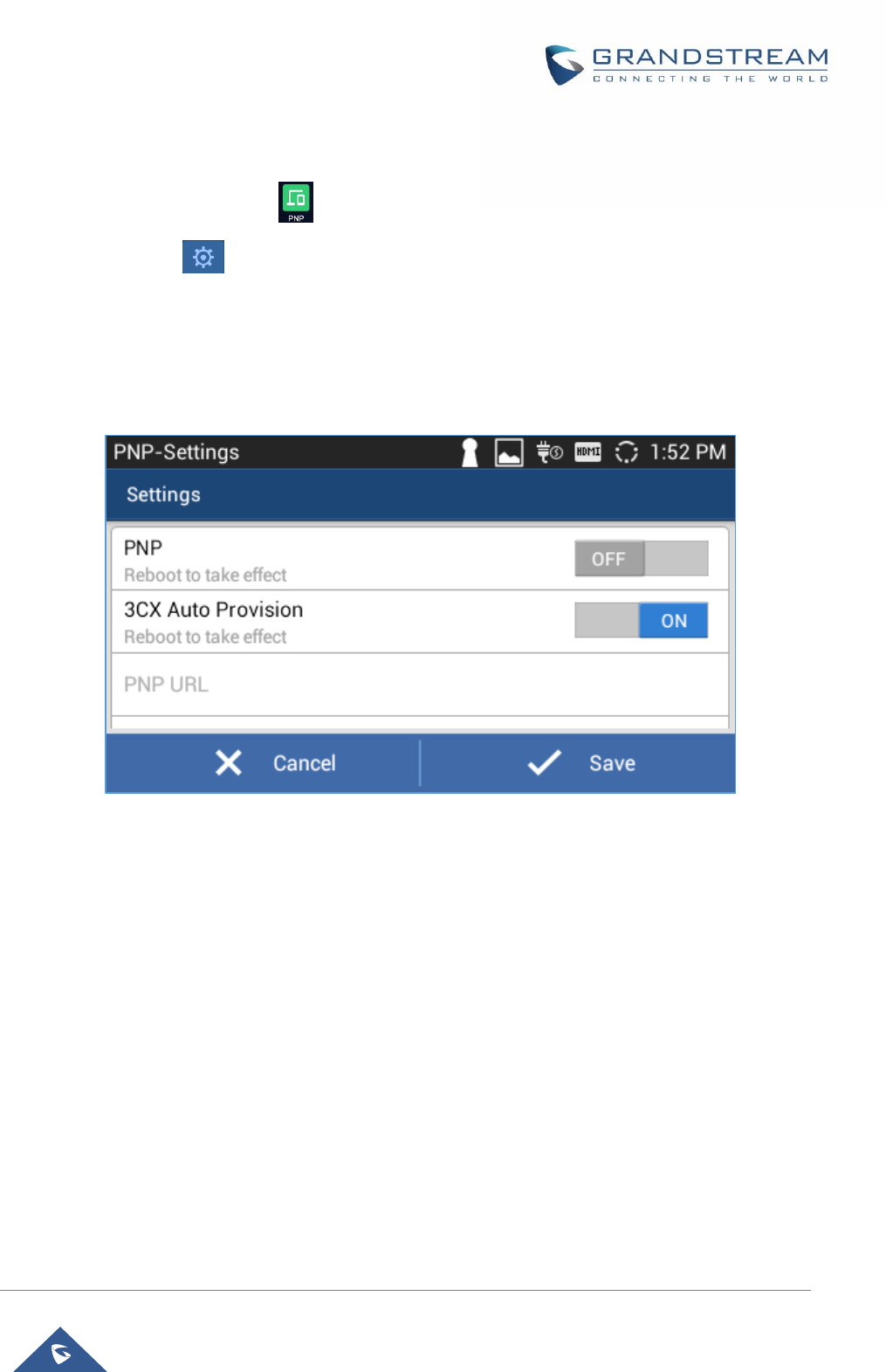

Set Up PNP Application ..................................................................................................................... 140
Enable PNP Feature .......................................................................................................................... 140
Enable from Web Page ............................................................................................................... 140
Enable from LCD ........................................................................................................................ 141
Use PNP Feature ............................................................................................................................... 141
CONNECT TO NETWORK AND DEVICES ................................................................ 142
Ethernet ............................................................................................................................................. 142
Wi-Fi ................................................................................................................................................... 142
Turn On/Off Wi-Fi ........................................................................................................................ 142

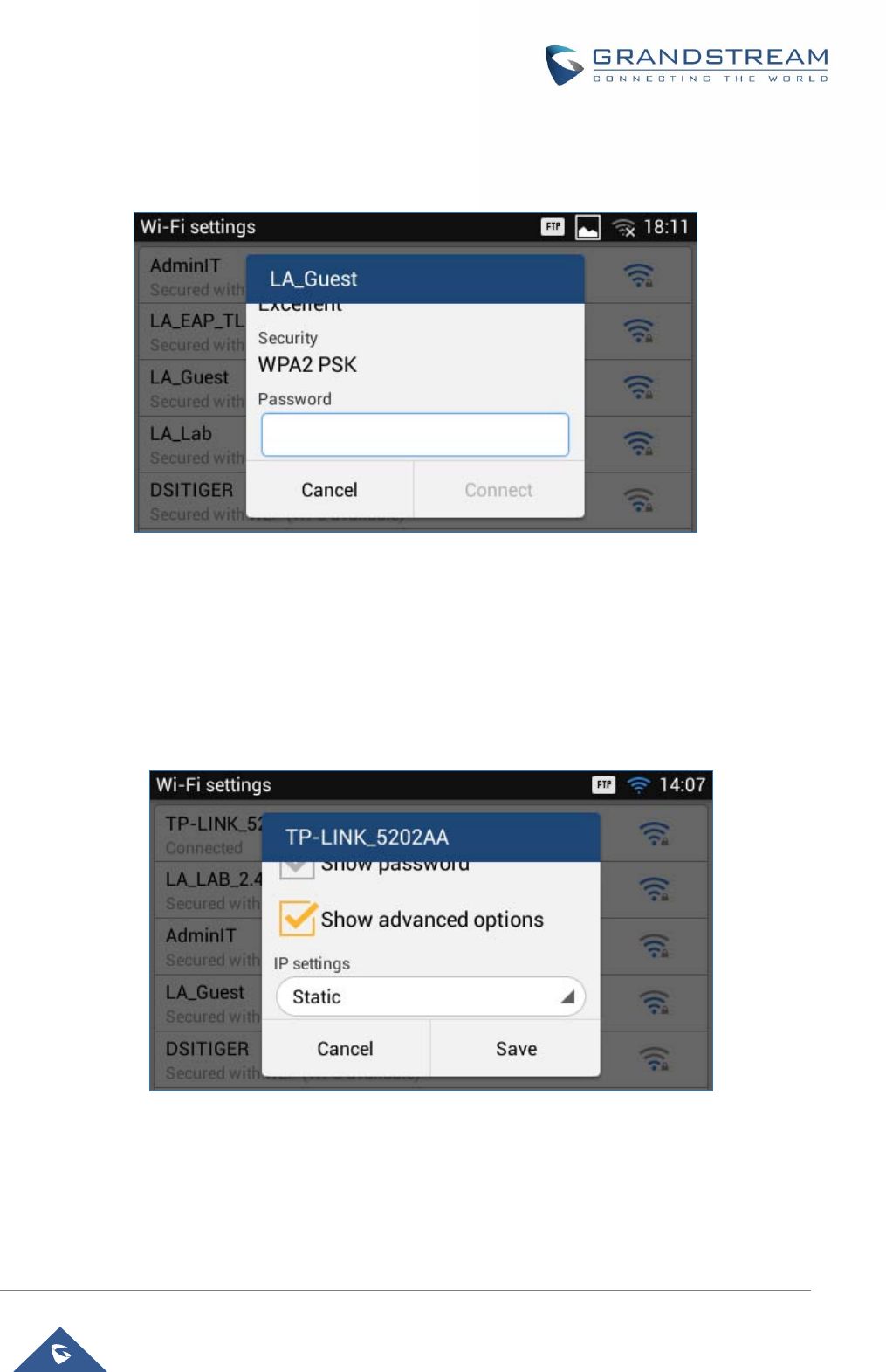

Add Wi-Fi Networks .................................................................................................................... 142
Wi-Fi Settings Shortcut ............................................................................................................... 144
Bluetooth ............................................................................................................................................ 144
Turn On/Off Bluetooth ................................................................................................................. 144
Change Bluetooth Device Name ................................................................................................ 145

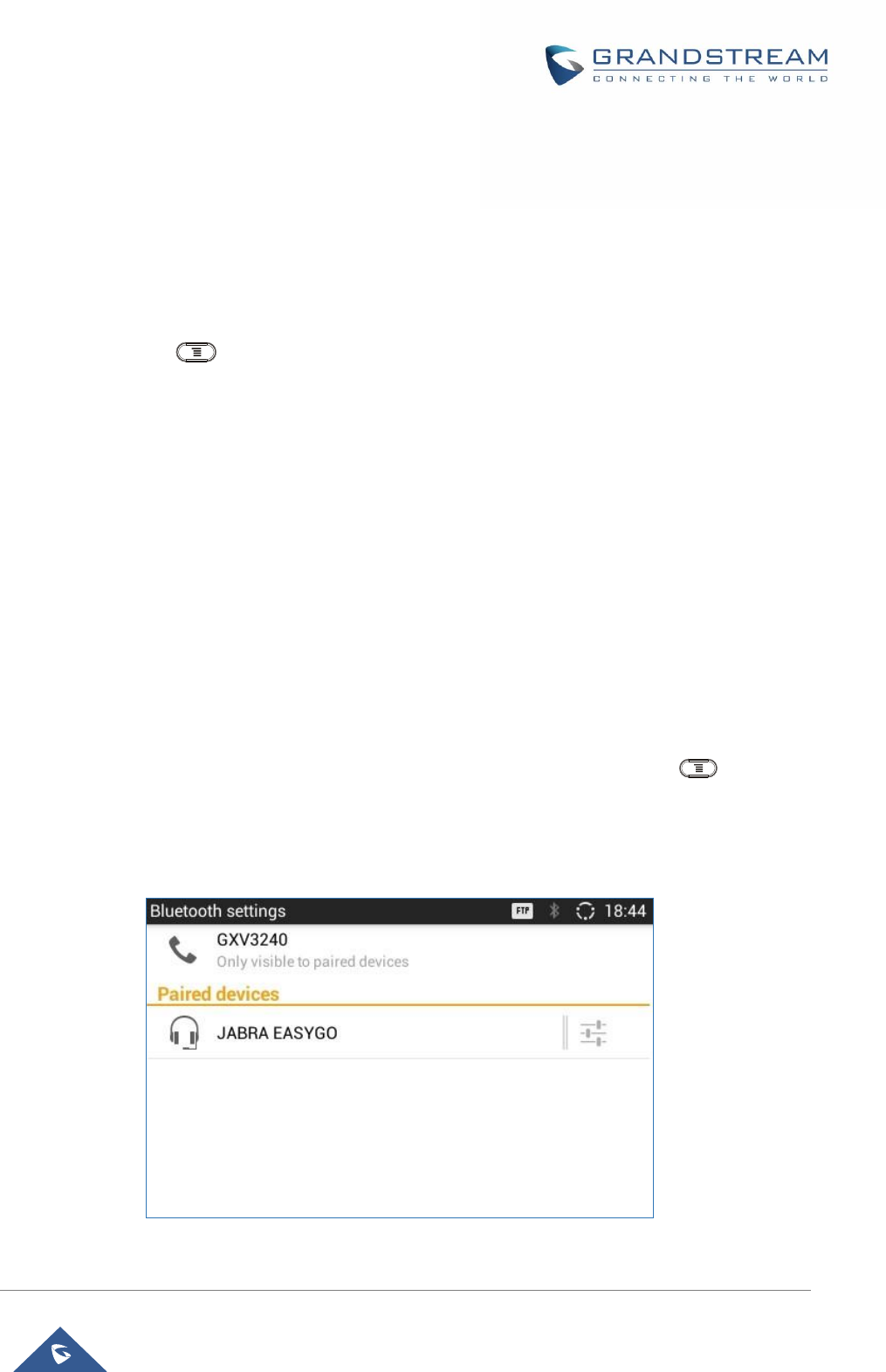

Pair GXV3240 with a Bluetooth Device ...................................................................................... 145
Unpair a Bluetooth Device .......................................................................................................... 146
Bluetooth Settings Shortcut ........................................................................................................ 146

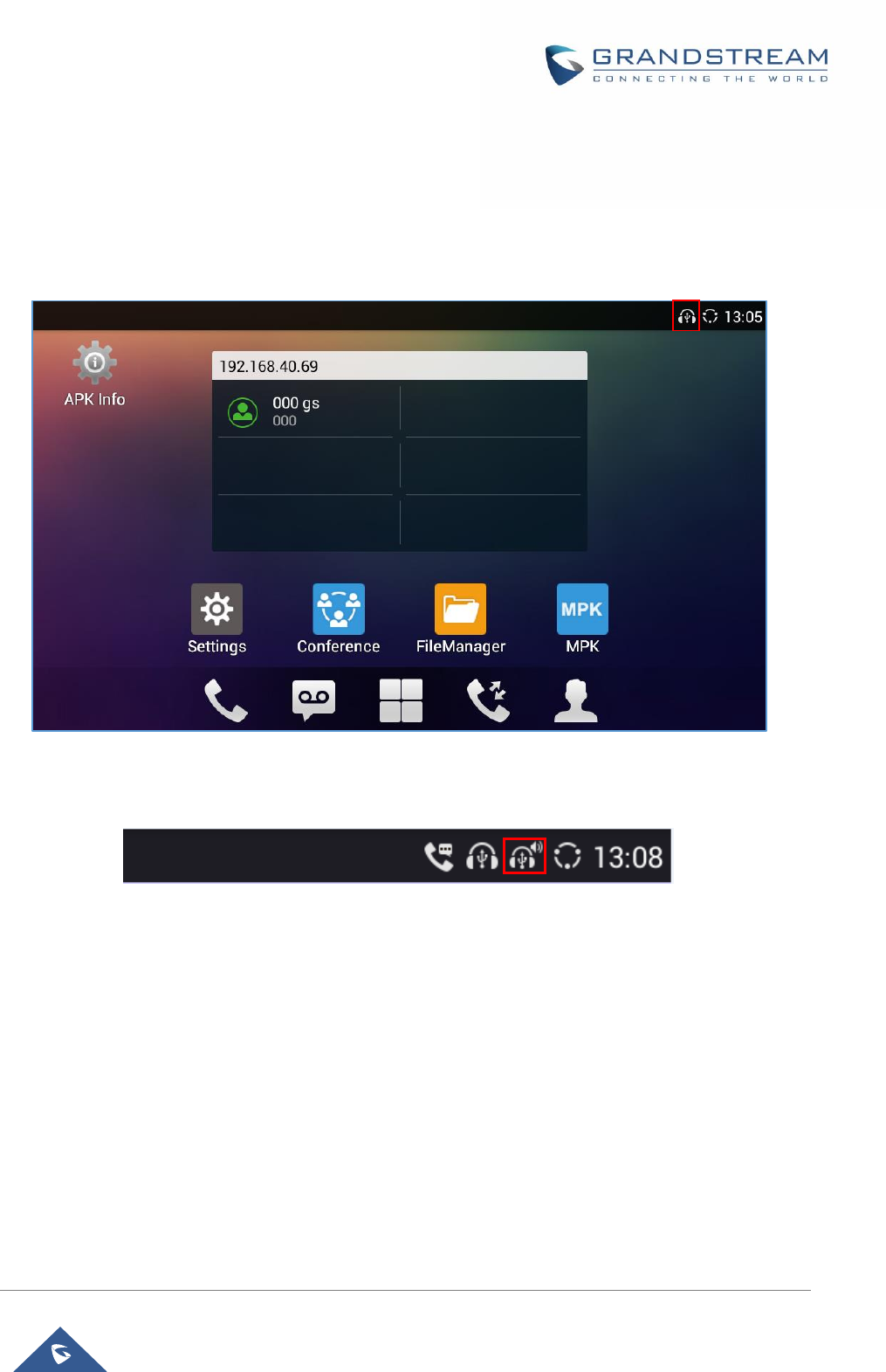

EHS Headset ..................................................................................................................................... 146
USB Headset ..................................................................................................................................... 147
USB .................................................................................................................................................... 147
SD Card ............................................................................................................................................. 148

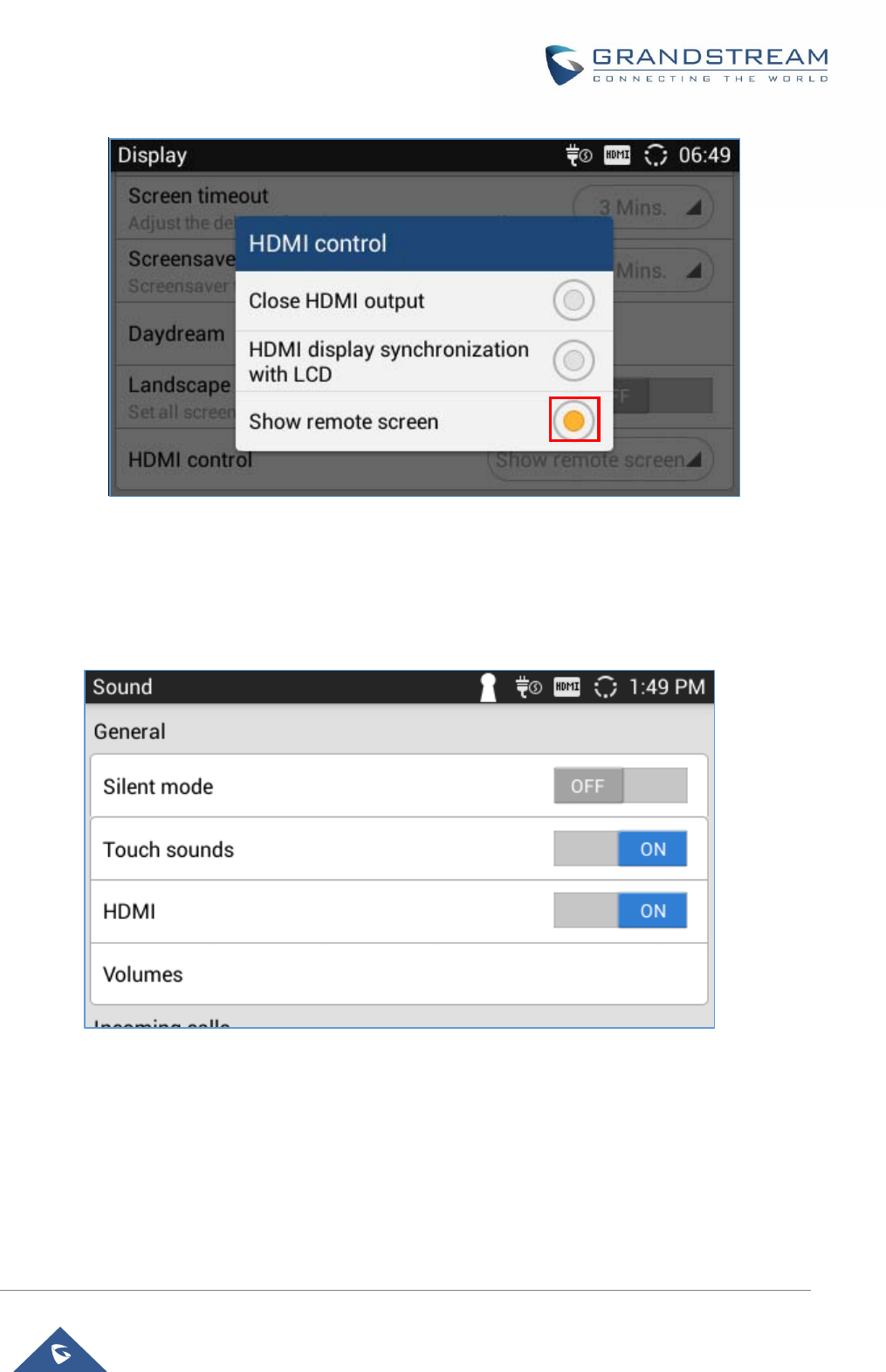

HDMI Device ...................................................................................................................................... 148
EXPERIENCING THE GXV3240 APPLICATION PHONE .......................................... 150
P a g e | 10
GXV3240 User Guide
Table of Tables
Table 1: GXV3240 Features in a Glance .................................................................................................... 21
Table 2: GXV3240 Technical Specifications ................................................................................................ 22
Table 3: Equipment Packaging ................................................................................................................... 24
Table 4: GXV3240 Connectors ................................................................................................................... 26
Table 5: GXP2200EXT Packaging .............................................................................................................. 27

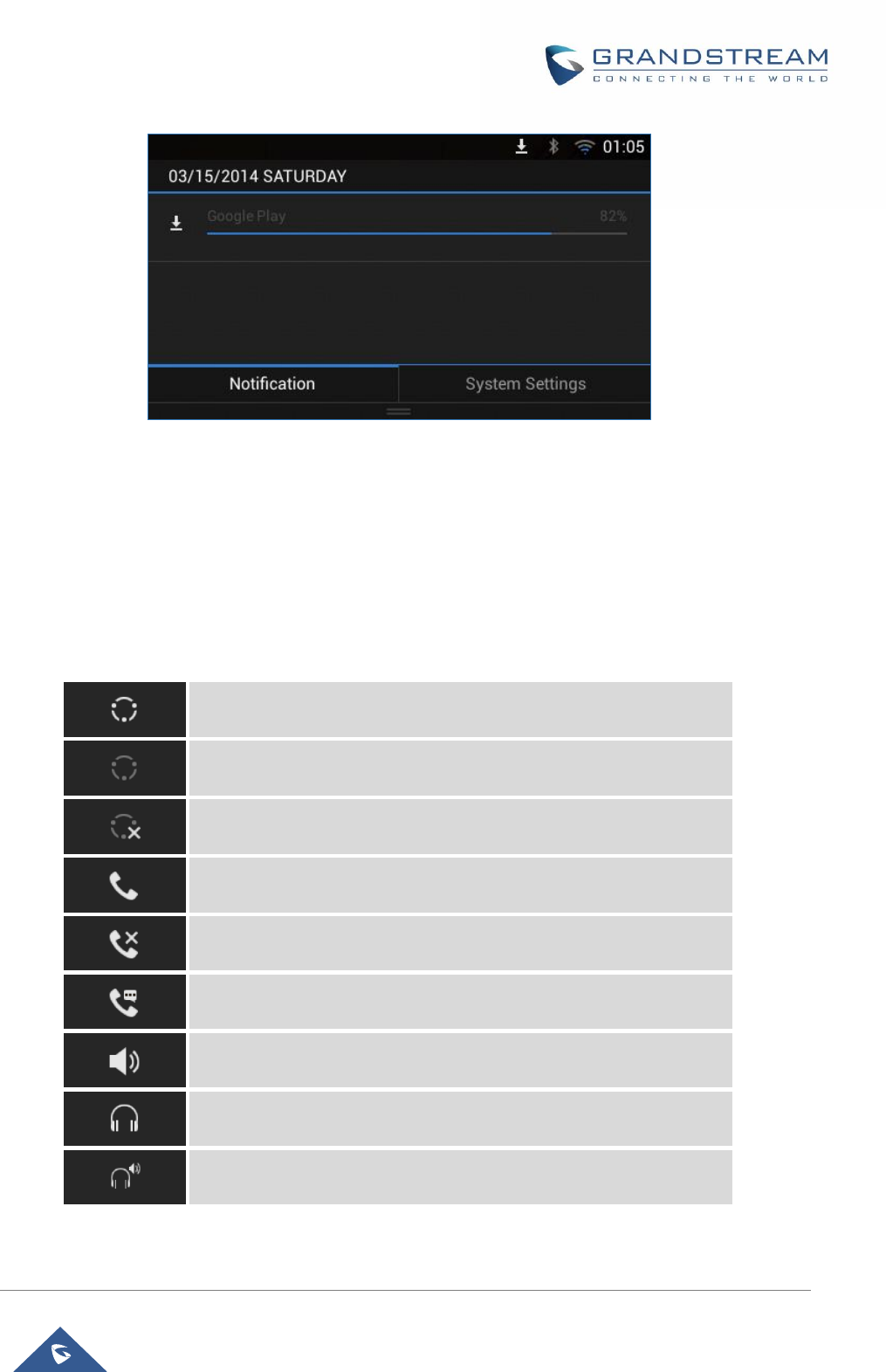

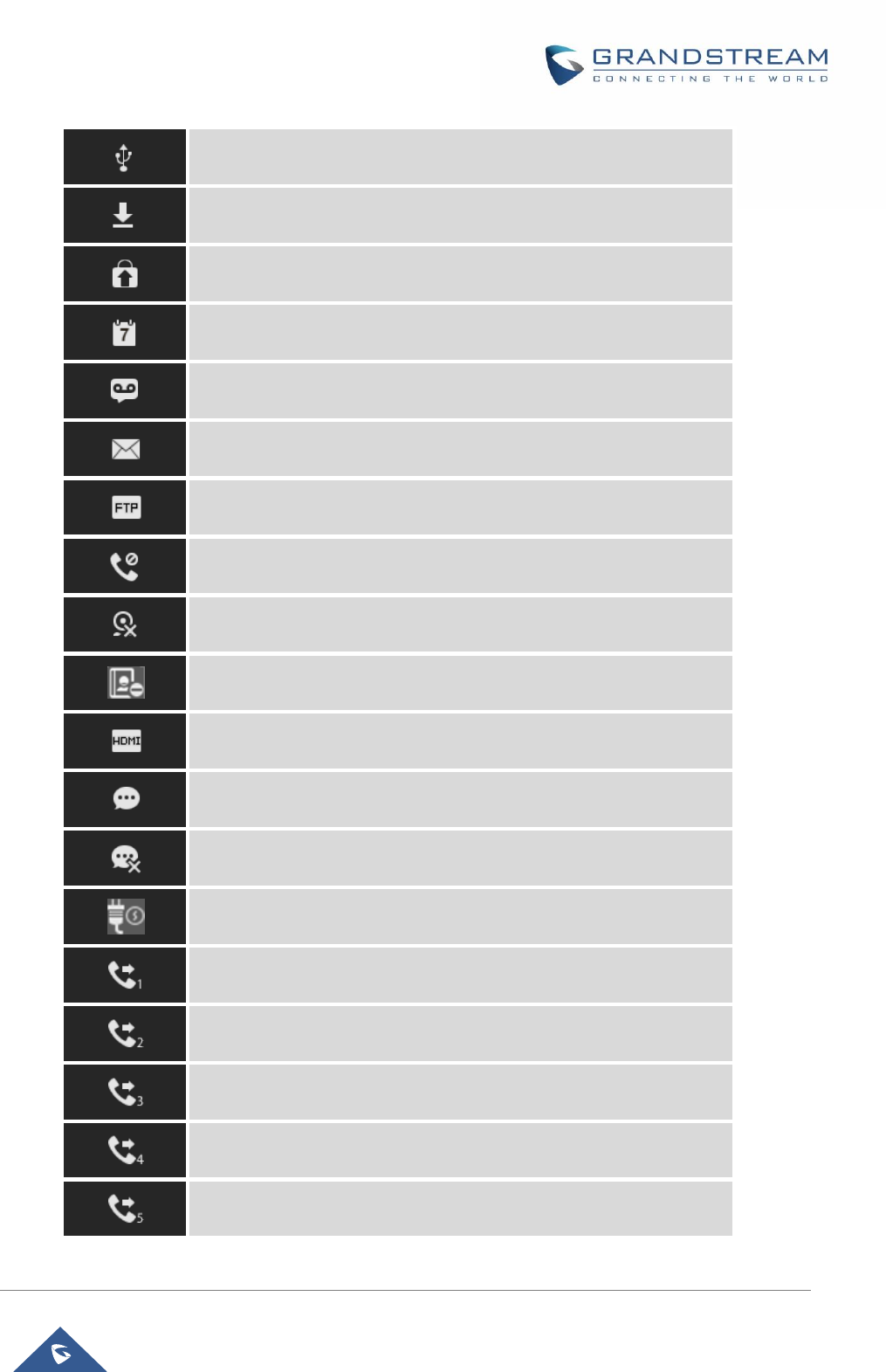

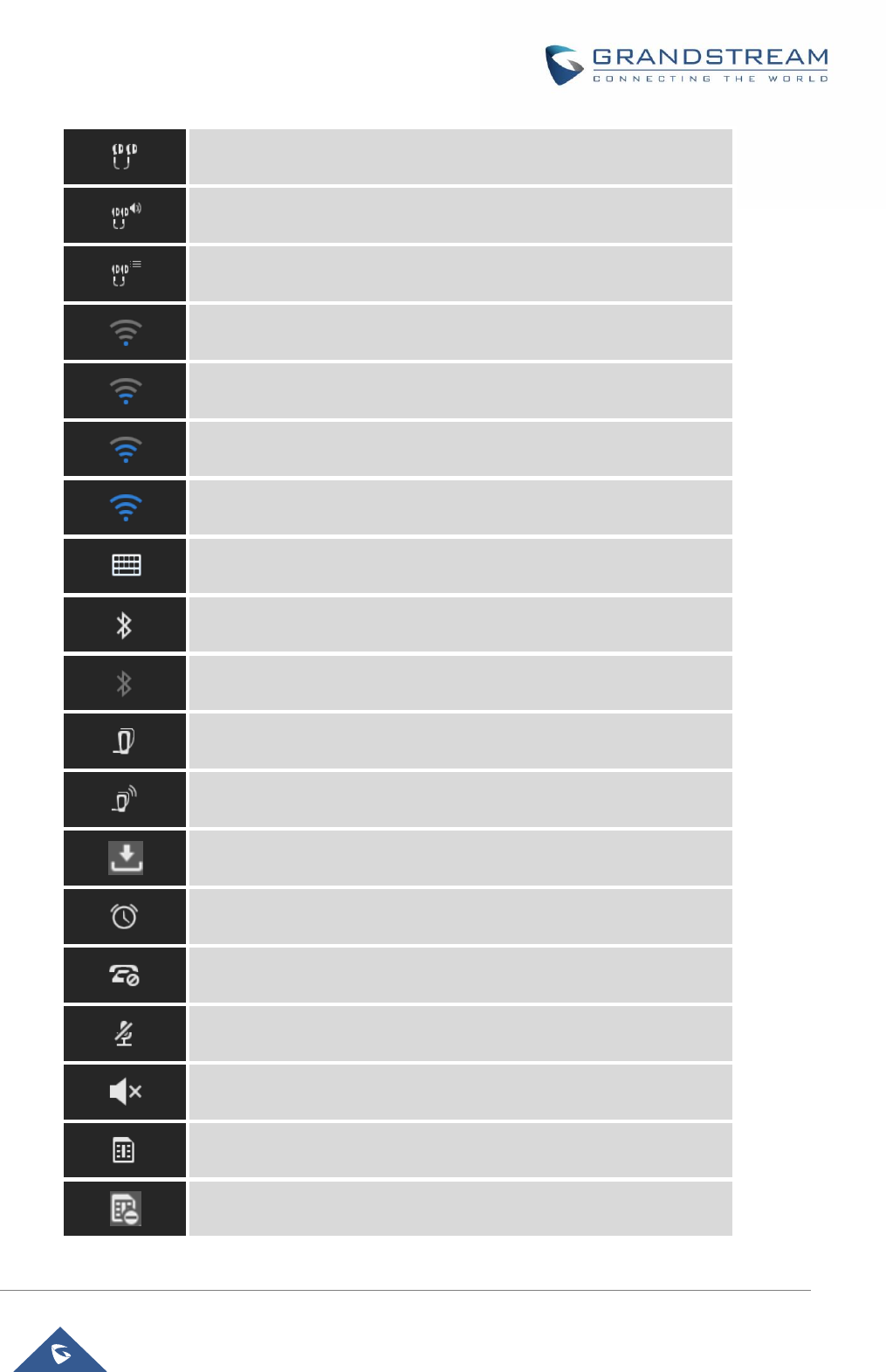

Table 6: GXV3240 Status Bar Notification Icons ........................................................................................ 39
Table 7: GXV3240 Keys .............................................................................................................................. 43
Table 8: GXV3240 MWI LED Status ........................................................................................................... 46
Table 9: GXV3240 Feature Code ................................................................................................................ 75
P a g e | 11
GXV3240 User Guide
Table of Figures
Figure 1: GXV3240 Package Content ......................................................................................................... 24

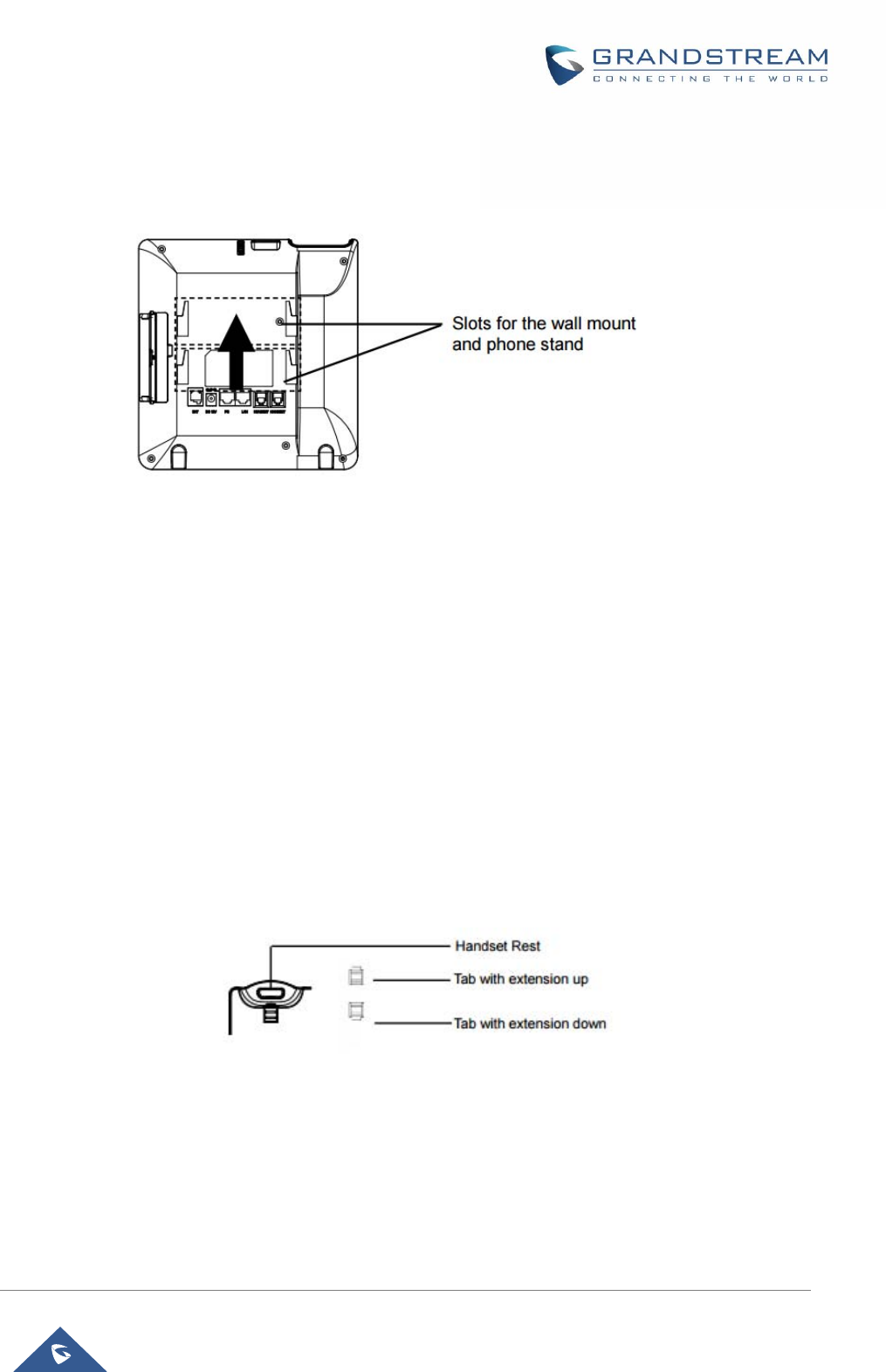

Figure 2: Slots For The Wall Mount And Phone Stand On The GXV3240.................................................. 25
Figure 3: Tab On The Handset Cradle. ....................................................................................................... 25
Figure 4: GXV3240 Front View ................................................................................................................... 26
Figure 5: GXV3240 Back View.................................................................................................................... 26
Figure 6: GXV3240 Back View with GXP2200EXT .................................................................................... 28
Figure 7: GXV3240 Default Home Screen .................................................................................................. 29
Figure 8: GXV3240 Onscreen Menu ........................................................................................................... 29
Figure 9: GXV3240 Finger Gestures on the Touch Screen ........................................................................ 30
Figure 10: GXV3240 Desktop Menu ........................................................................................................... 31

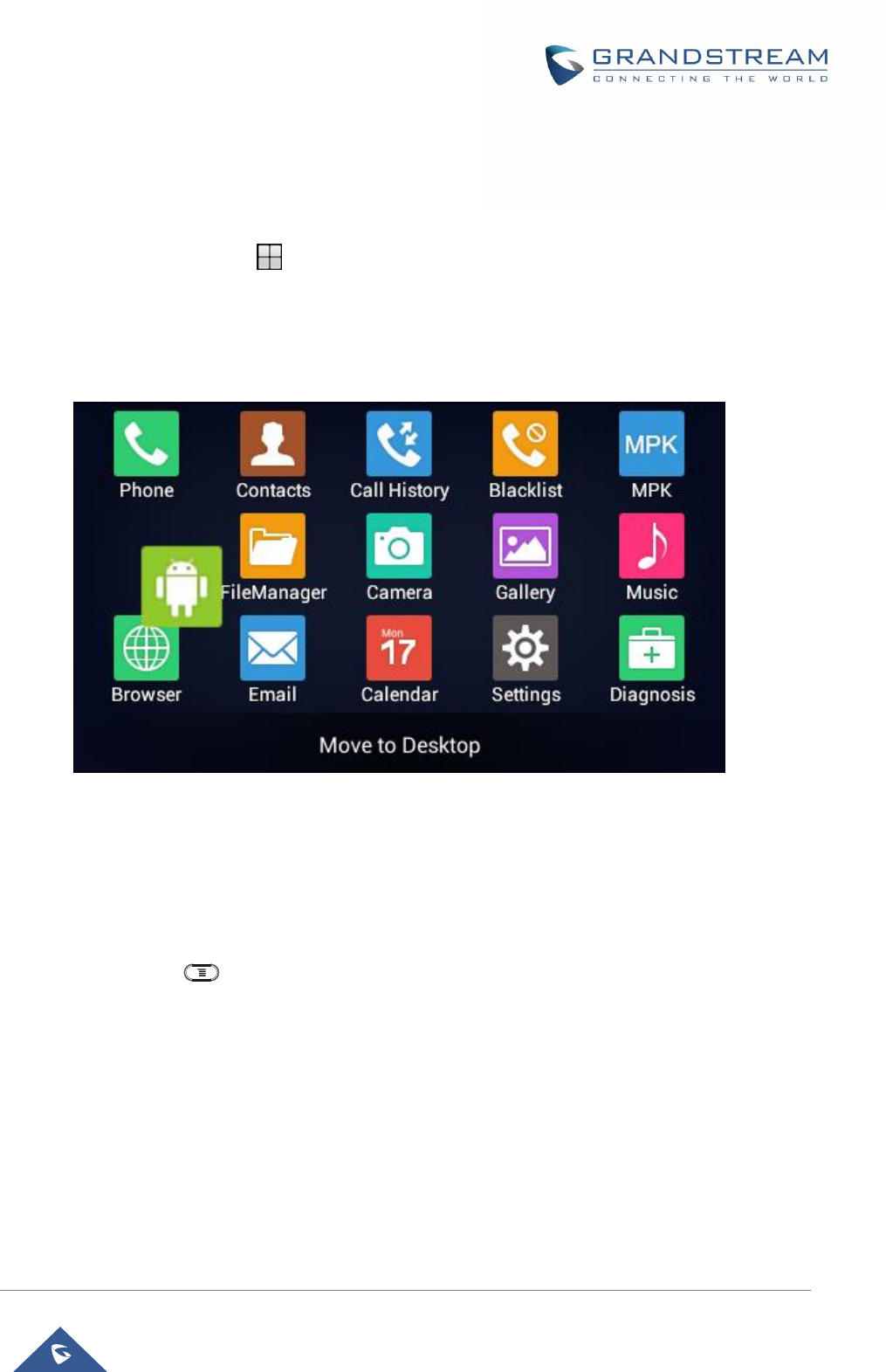

Figure 11: Add Application Shortcut to the Desktop .................................................................................... 32
Figure 12: Add Widget to the Desktop ........................................................................................................ 33
Figure 13: Open Clock Widget .................................................................................................................... 33

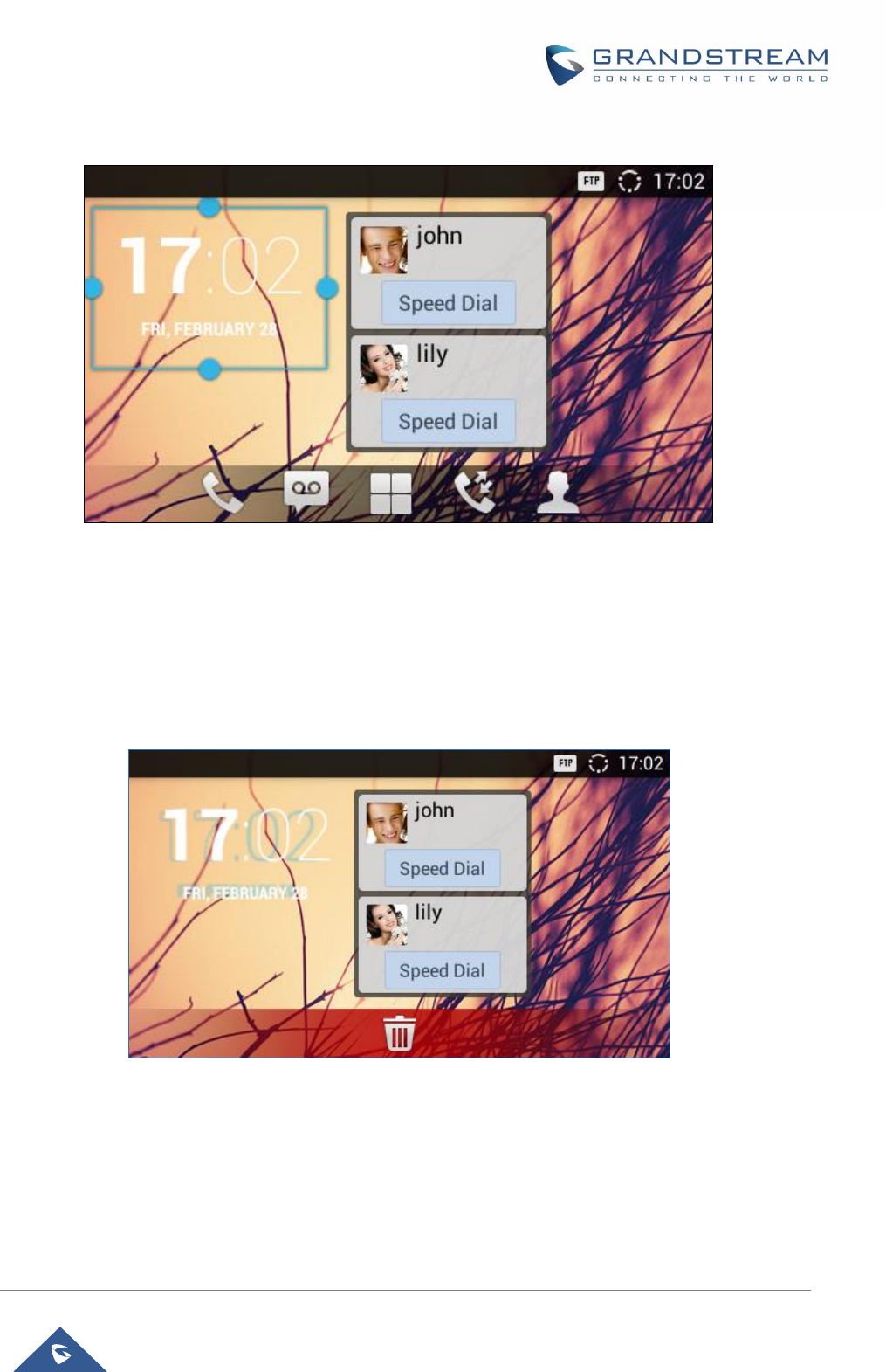

Figure 14: Resize Digital Clock Widget ....................................................................................................... 34
Figure 15: Move Clock Widget .................................................................................................................... 34
Figure 16: Remove Clock Widget ............................................................................................................... 35
Figure 17: GXV3240 Choose Wallpaper ..................................................................................................... 36
Figure 18: GXV3240 Recent Applications ................................................................................................... 36
Figure 19: Set up Home Idle Screen ........................................................................................................... 37
Figure 20: Delete Idle Screen ..................................................................................................................... 38
Figure 21: GXV3240 Top Status Bar ........................................................................................................... 38

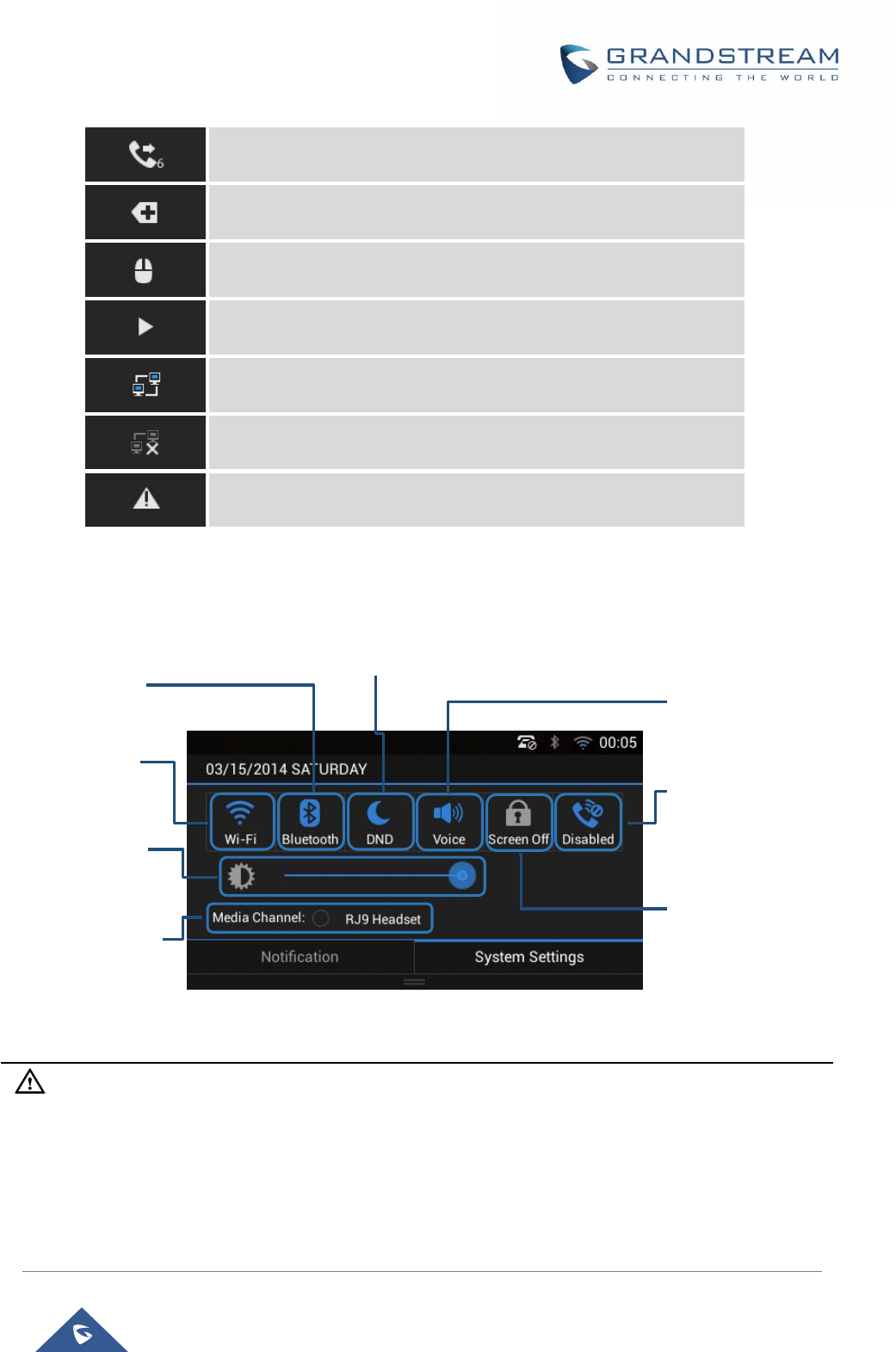

Figure 22: GXV3240 Top Status Bar – Notification ..................................................................................... 39

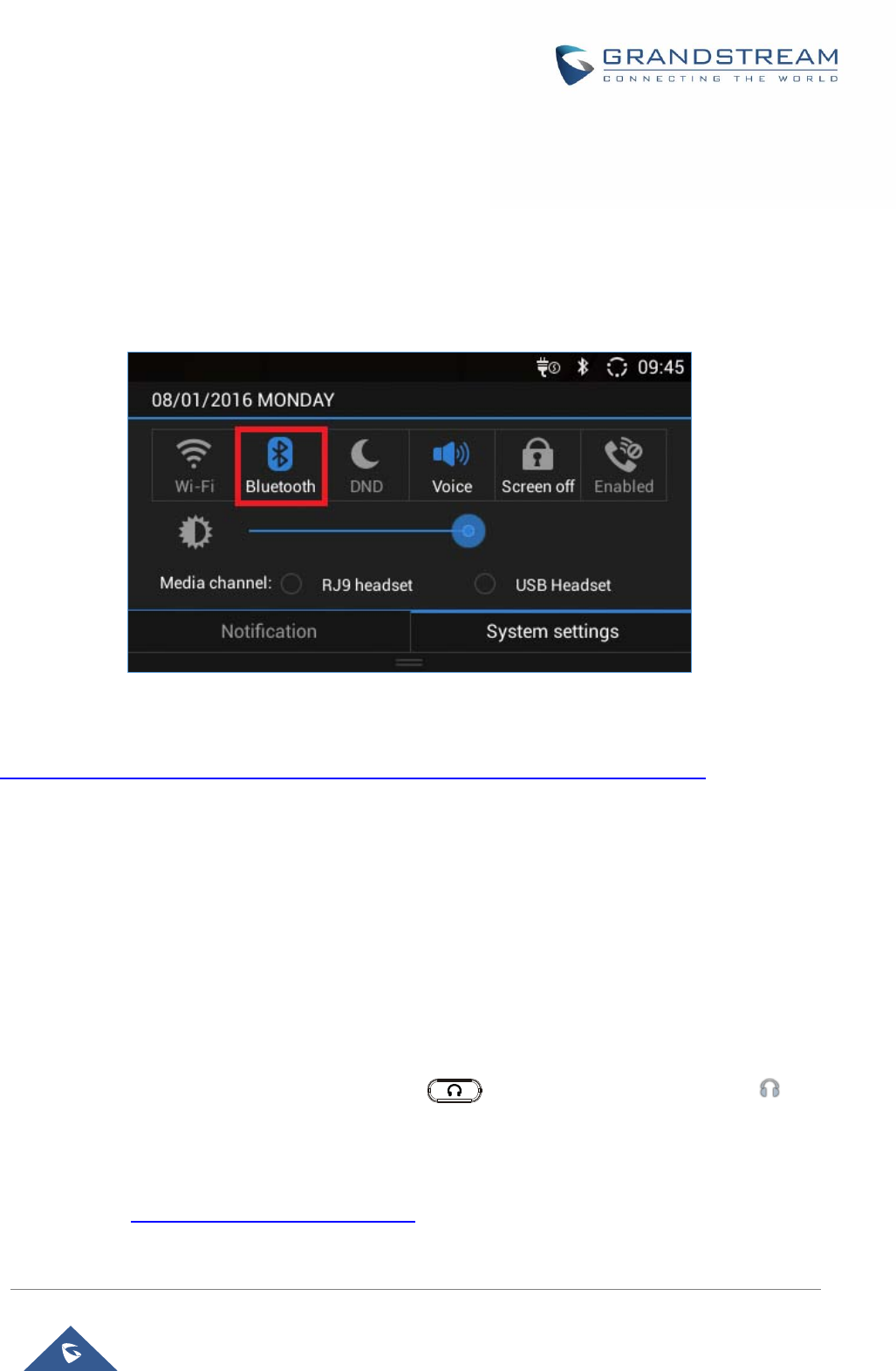

Figure 23: System Settings in Status Bar ................................................................................................... 42
Figure 24: GXV3240 Keyboard ................................................................................................................... 43
Figure 25: GXV3240 Onscreen Keyboard - English Keyboard ................................................................... 45
Figure 26: GXV3240 Onscreen Keyboard - Lowercase and Uppercase .................................................... 45
Figure 27: English Keyboard - Number and Symbols ................................................................................. 45
Figure 28: GXV3240 Account Widget ......................................................................................................... 47

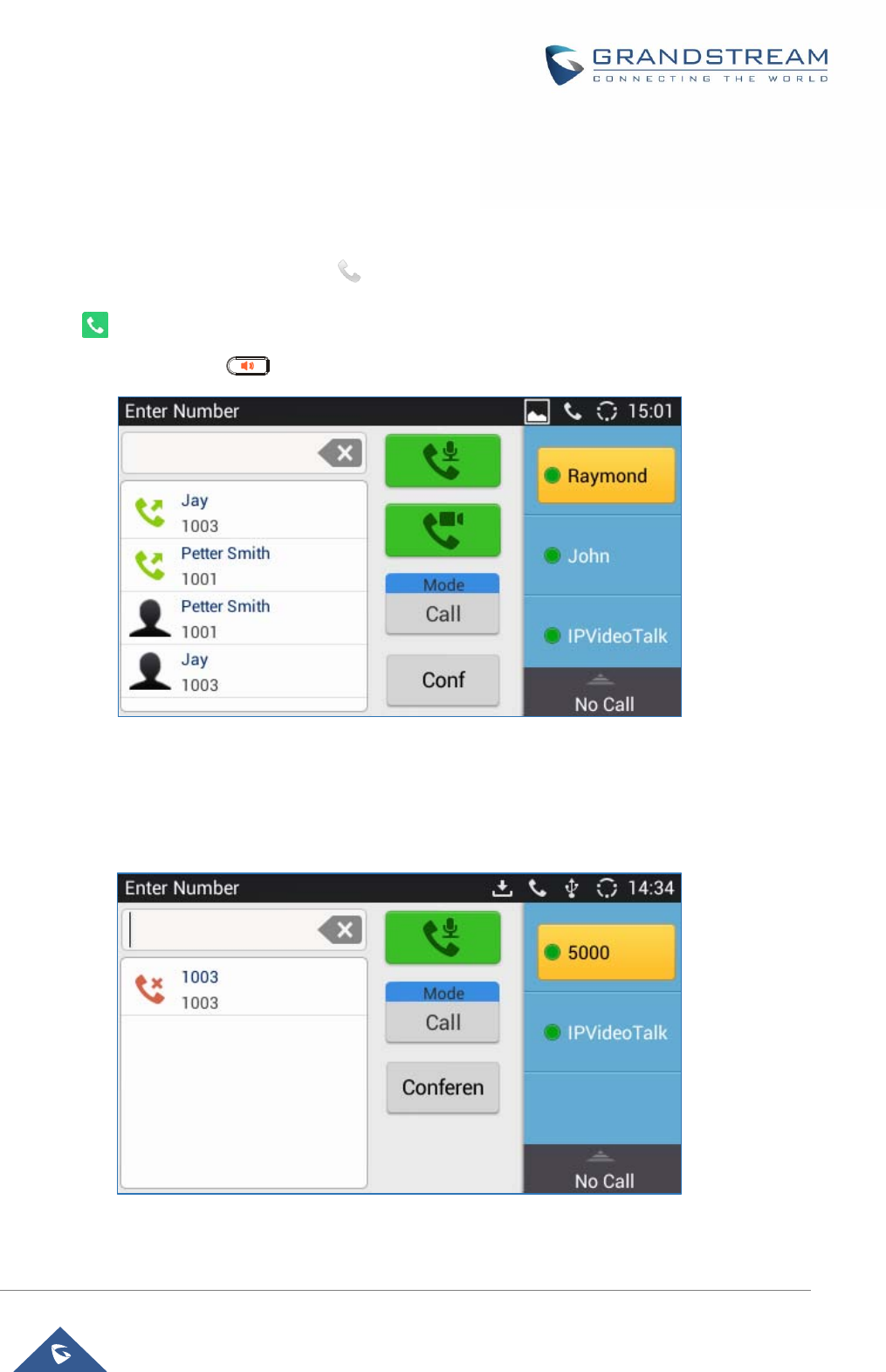

Figure 29: GXV3240 Dial Screen ................................................................................................................ 48
Figure 30: Disable Video Call Feature on Dial Screen ............................................................................... 48
Figure 31: GXV3240 Programmable Keys .................................................................................................. 49

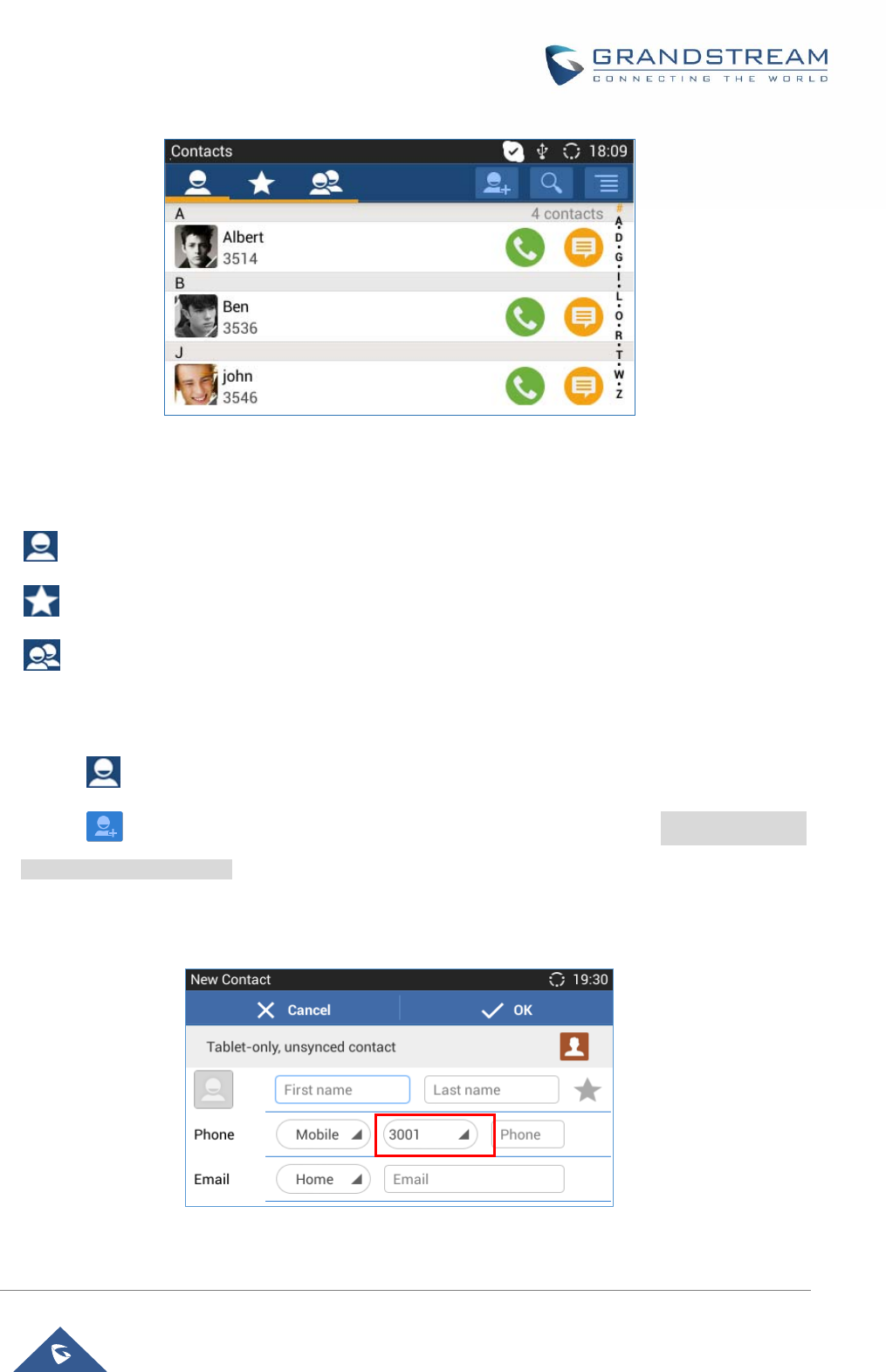

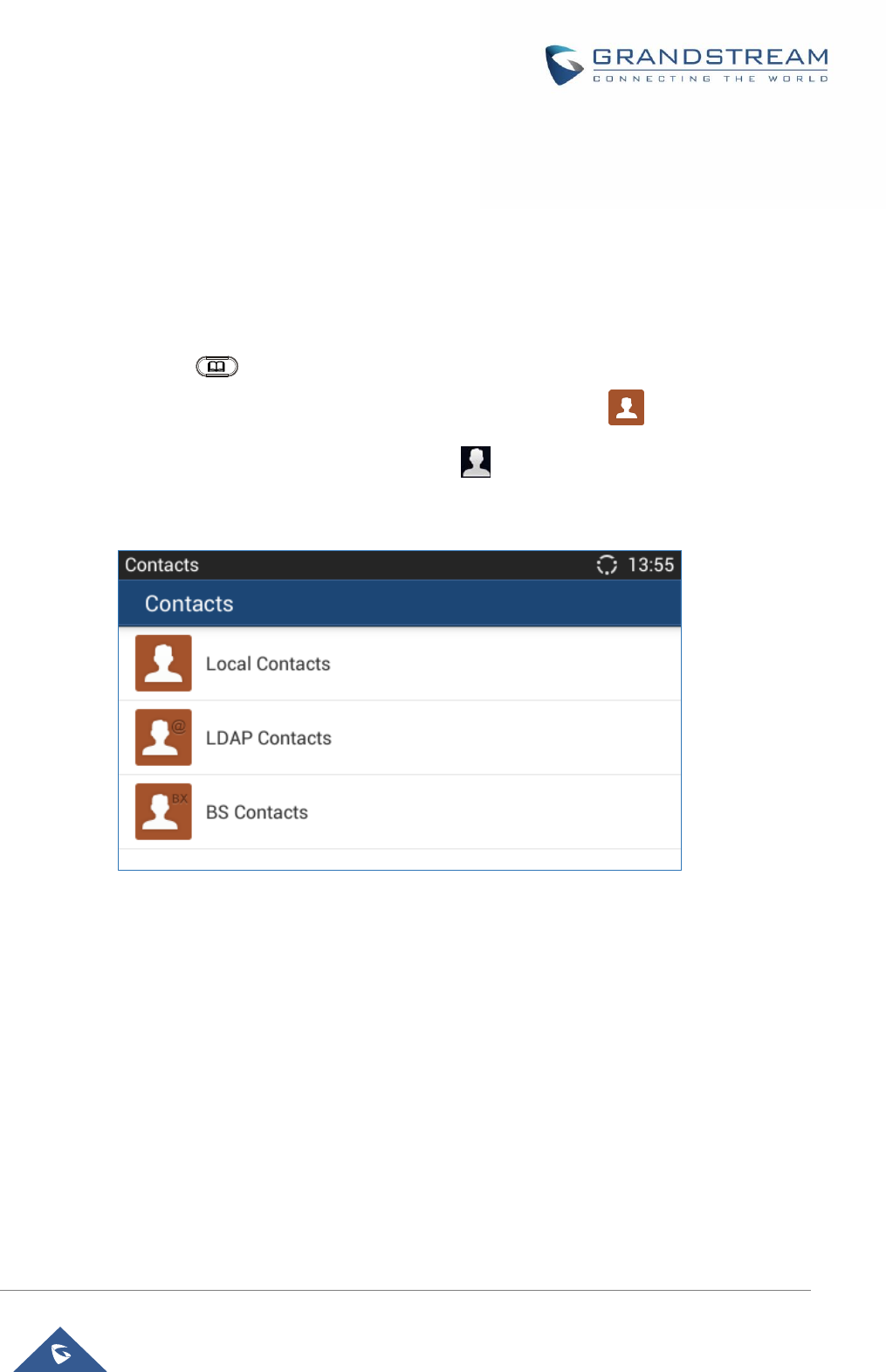

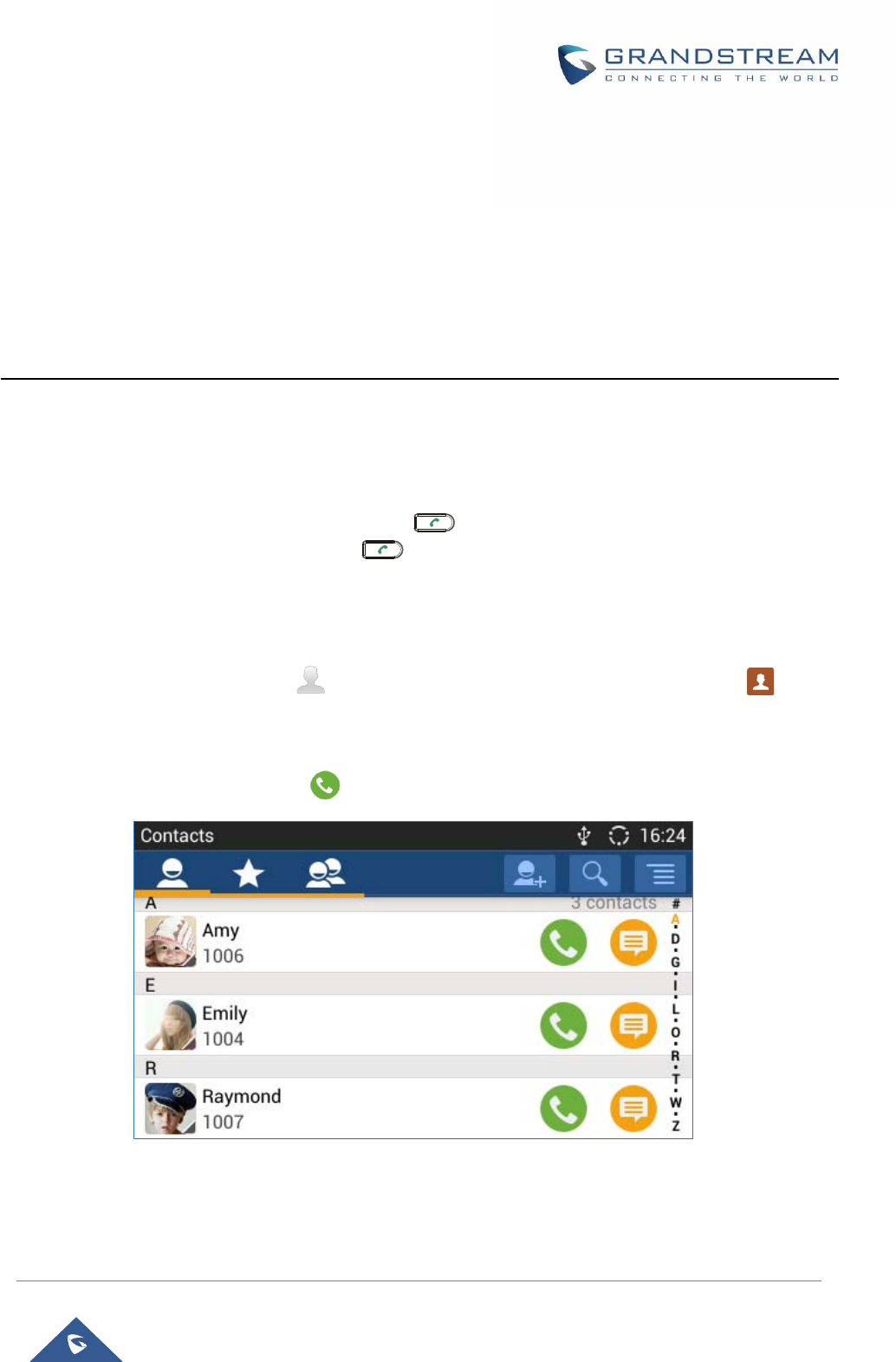

Figure 32: GXV3240 View Contacts ........................................................................................................... 50
Figure 33: GXV3240 Call History ................................................................................................................ 51
Figure 34: Direct IP Call .............................................................................................................................. 52
Figure 35: Direct IP Call via IPv6 ................................................................................................................ 53

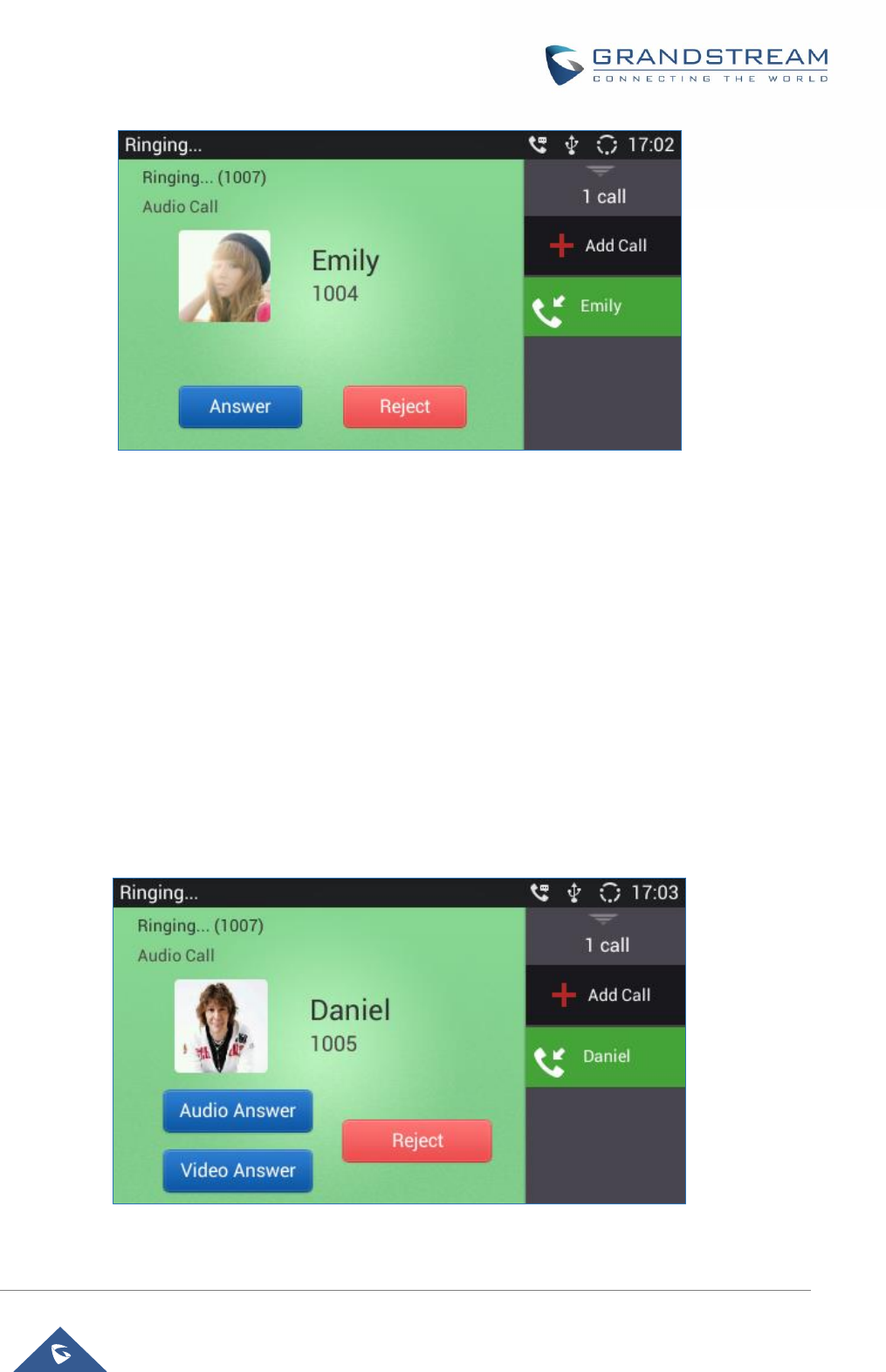

Figure 36: Single Incoming Call - Audio ...................................................................................................... 54
Figure 37: Single Incoming Call - Video ...................................................................................................... 54

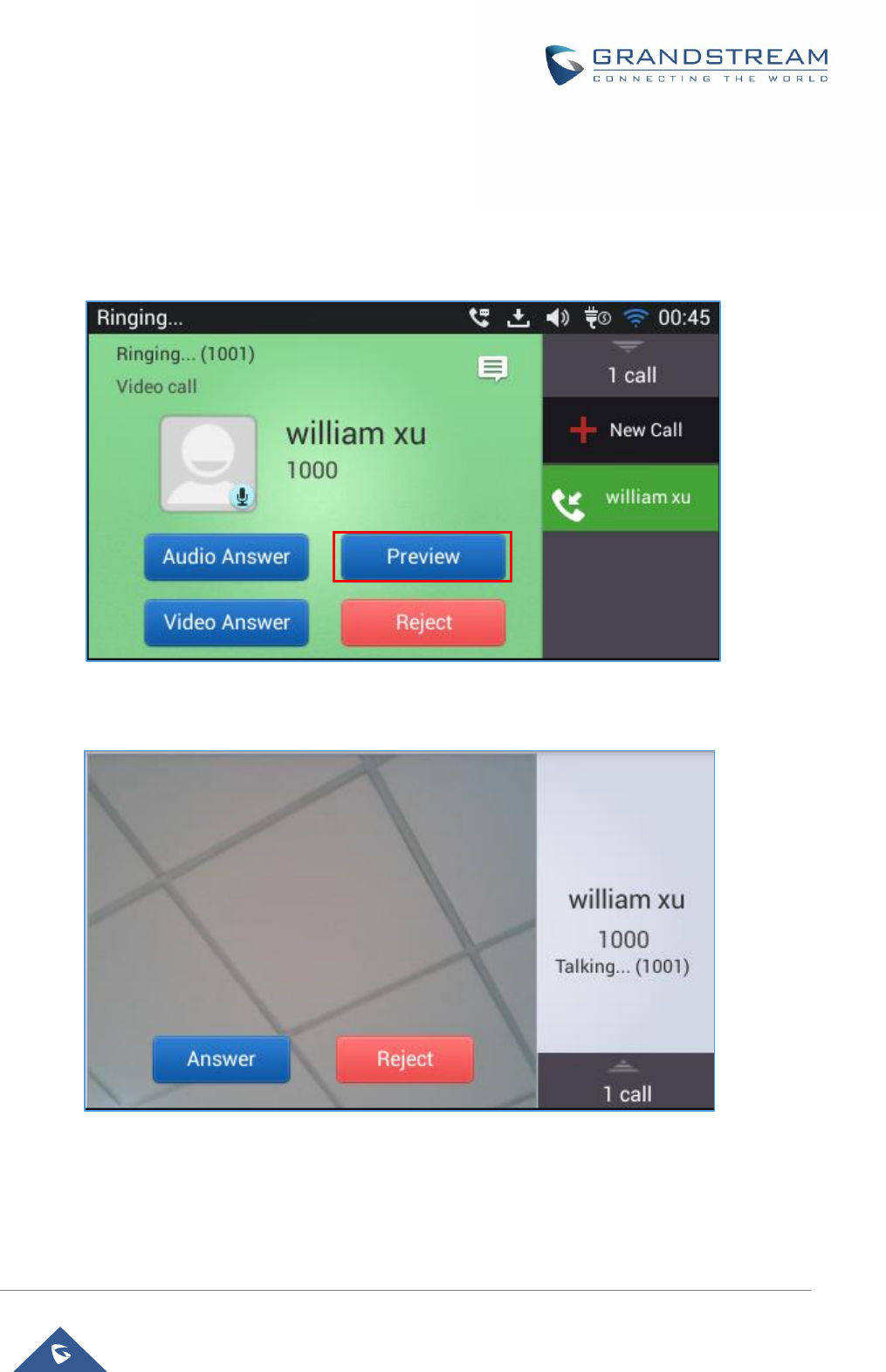

Figure 38: Single Incoming Call – Preview-1 .............................................................................................. 55
P a g e | 12
GXV3240 User Guide
Figure 39: Single Incoming Call – Preview-2 .............................................................................................. 55
Figure 40: Prompt displayed when pressing new call during preview ........................................................ 56
Figure 41: Single Incoming Call - Call Forward-1 ....................................................................................... 56
Figure 42: Single Incoming Call - Call Forward-2 ....................................................................................... 56

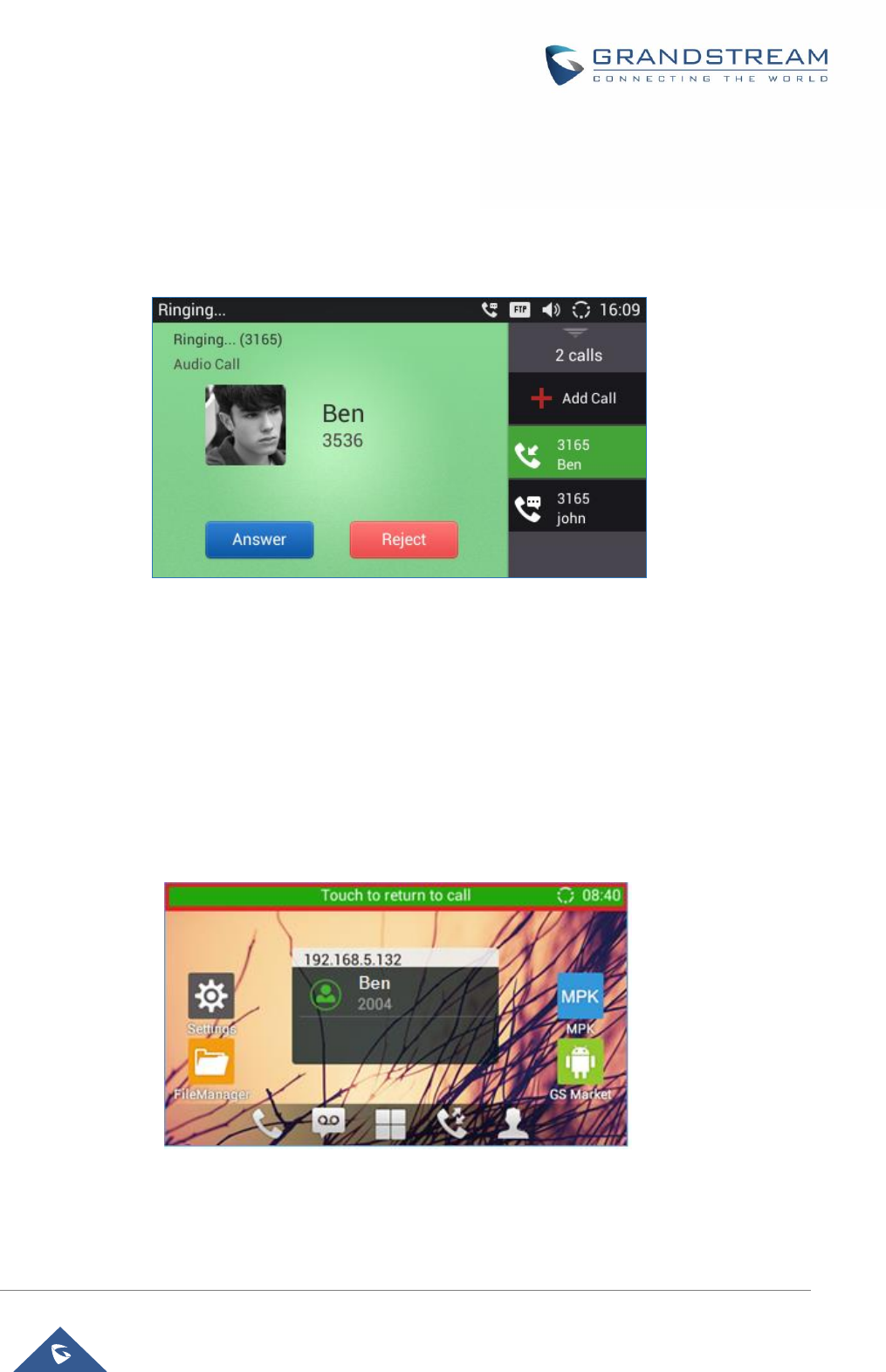

Figure 43: Call Waiting ................................................................................................................................ 57
Figure 44: Call Progress Status Bar ........................................................................................................... 57

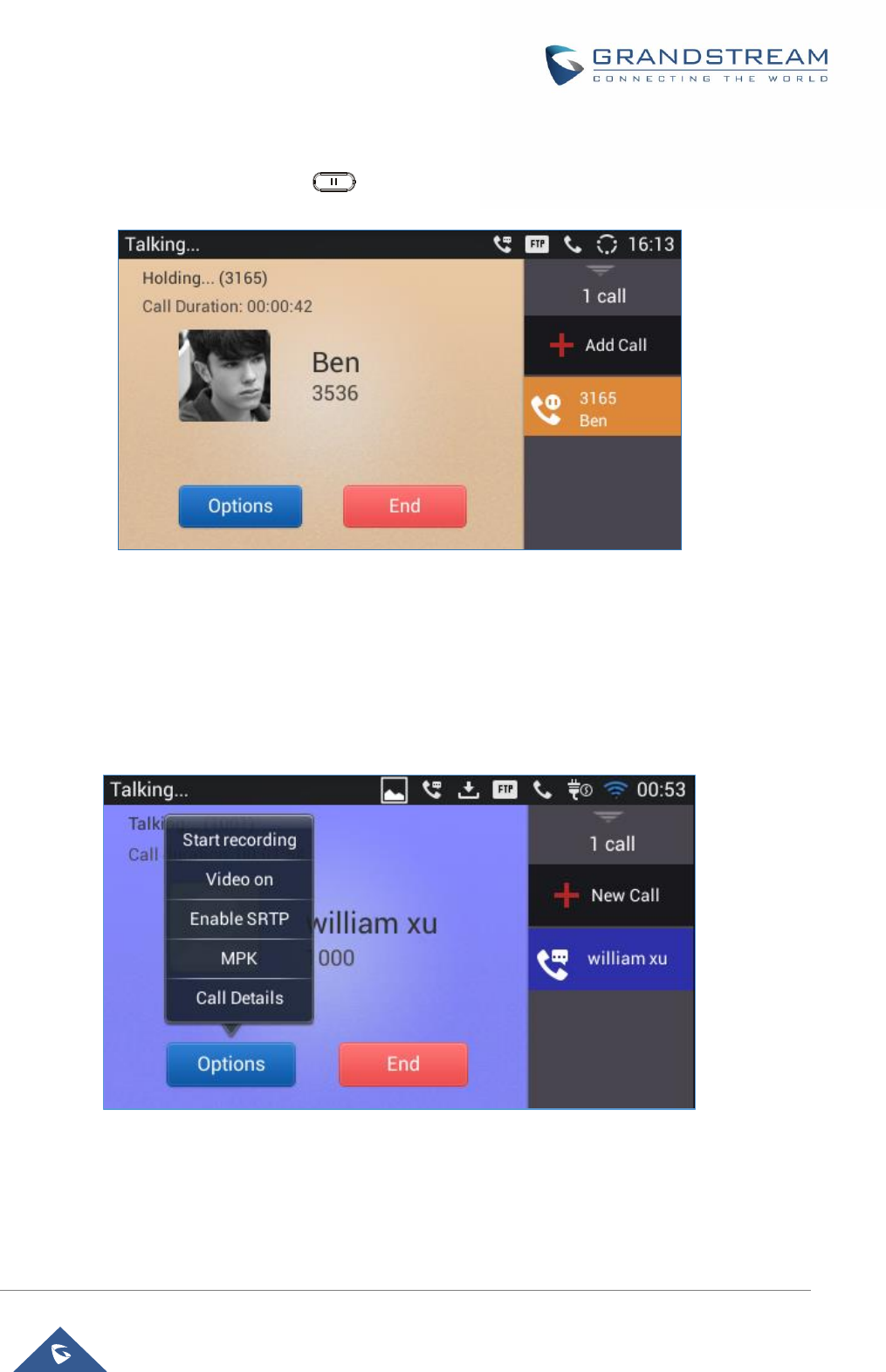

Figure 45: Call On Hold ............................................................................................................................... 58

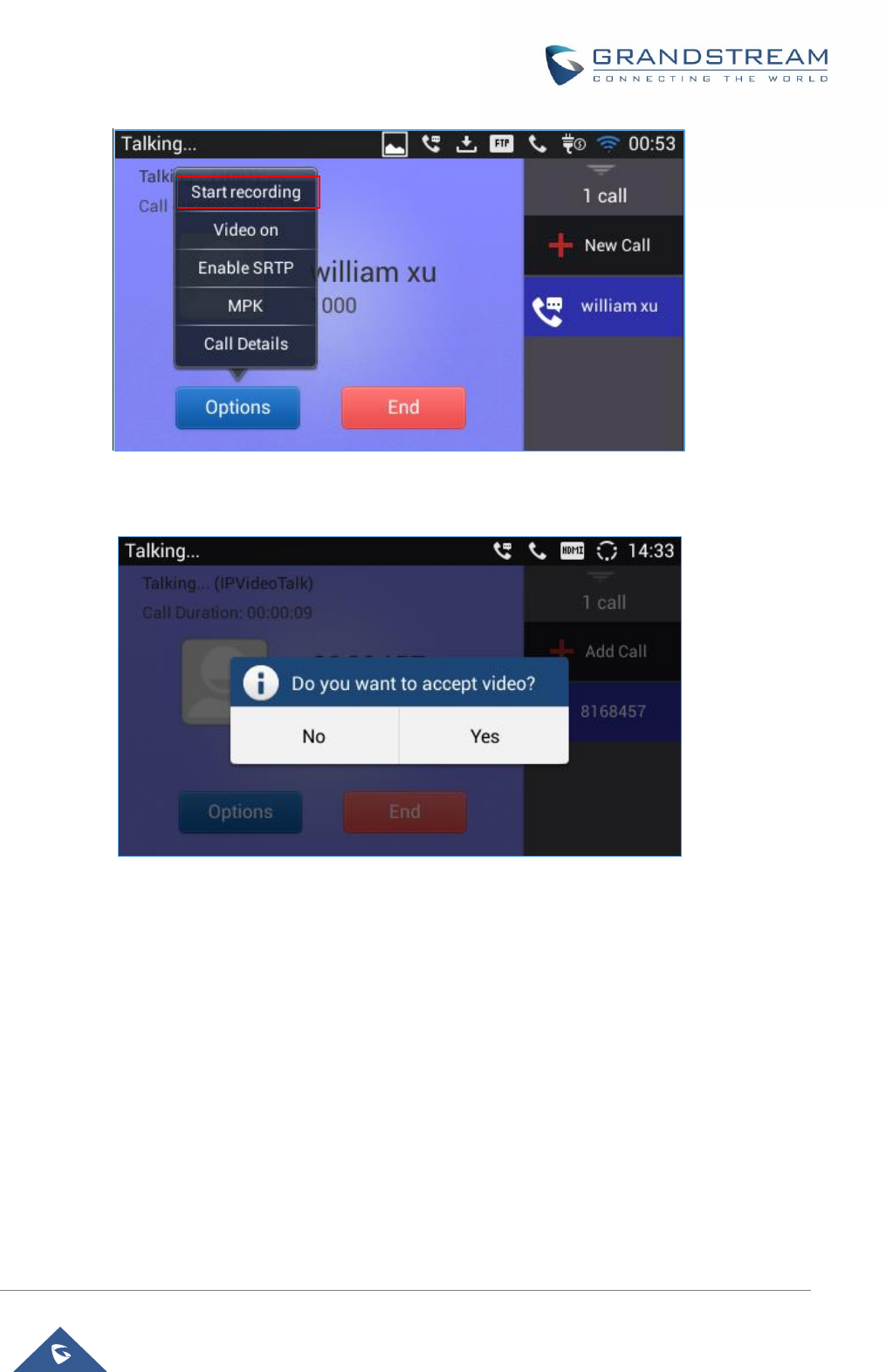

Figure 46: GXV3240 Call Recording ........................................................................................................... 58
Figure 47: GXV3240 Call Mute ................................................................................................................... 59
Figure 48: Turn on Video during Audio Call ................................................................................................ 60
Figure 49: Accept Video during Audio Call .................................................................................................. 60
Figure 50: Select Call Details During Video Call ......................................................................................... 61
Figure 51: Call Details ................................................................................................................................. 61
Figure 52: Switch Audio Channel during Call 1........................................................................................... 62
Figure 53: Switch Audio Channel during Call 2........................................................................................... 62
Figure 54: Blind Transfer ............................................................................................................................. 63
Figure 55: Attended Transfer....................................................................................................................... 63

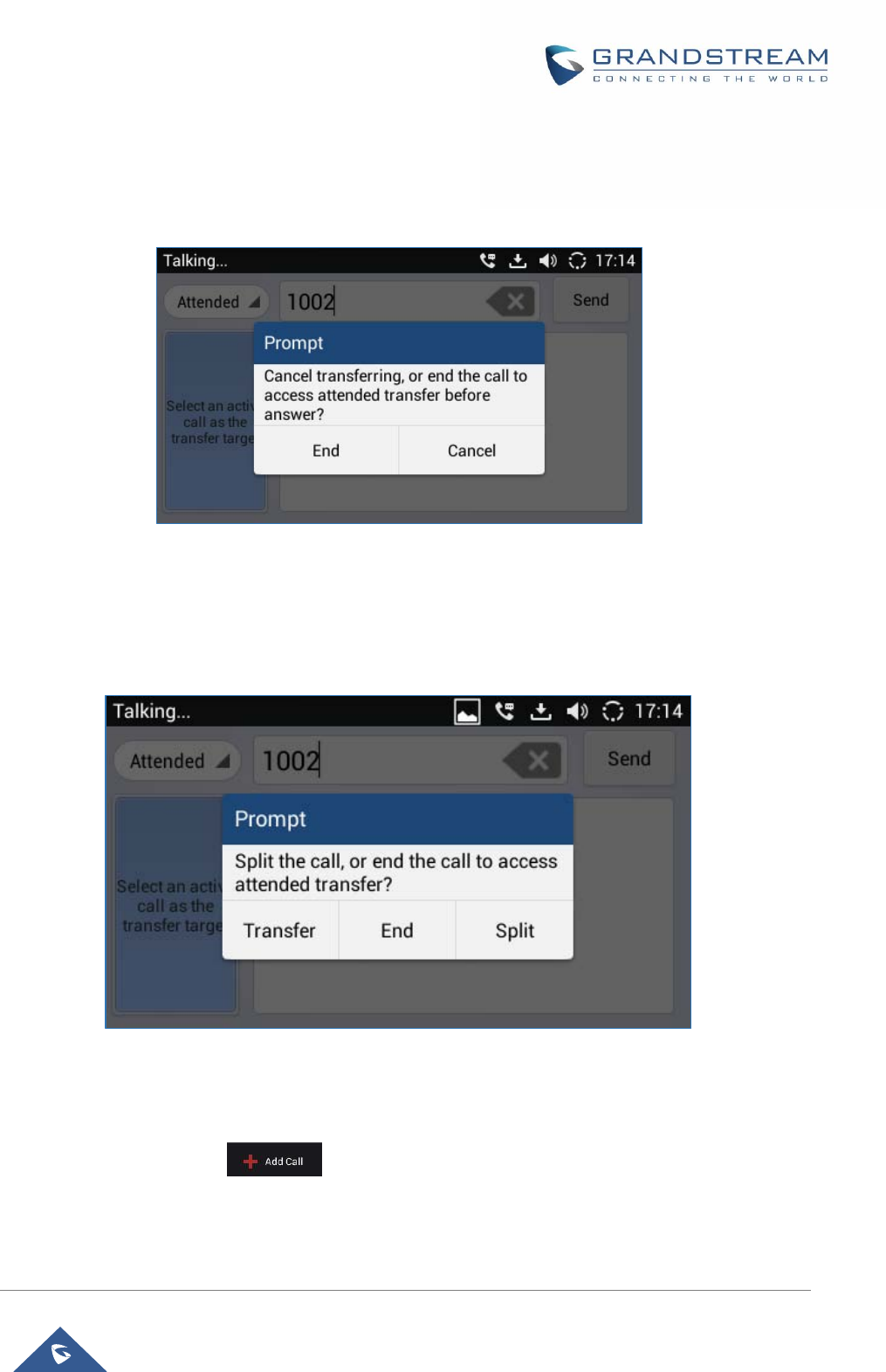

Figure 56: Attended Transfer - Transferring ................................................................................................ 64
Figure 57: Attended Transfer - Split ............................................................................................................ 64
Figure 58: Transfer list screen .................................................................................................................... 65

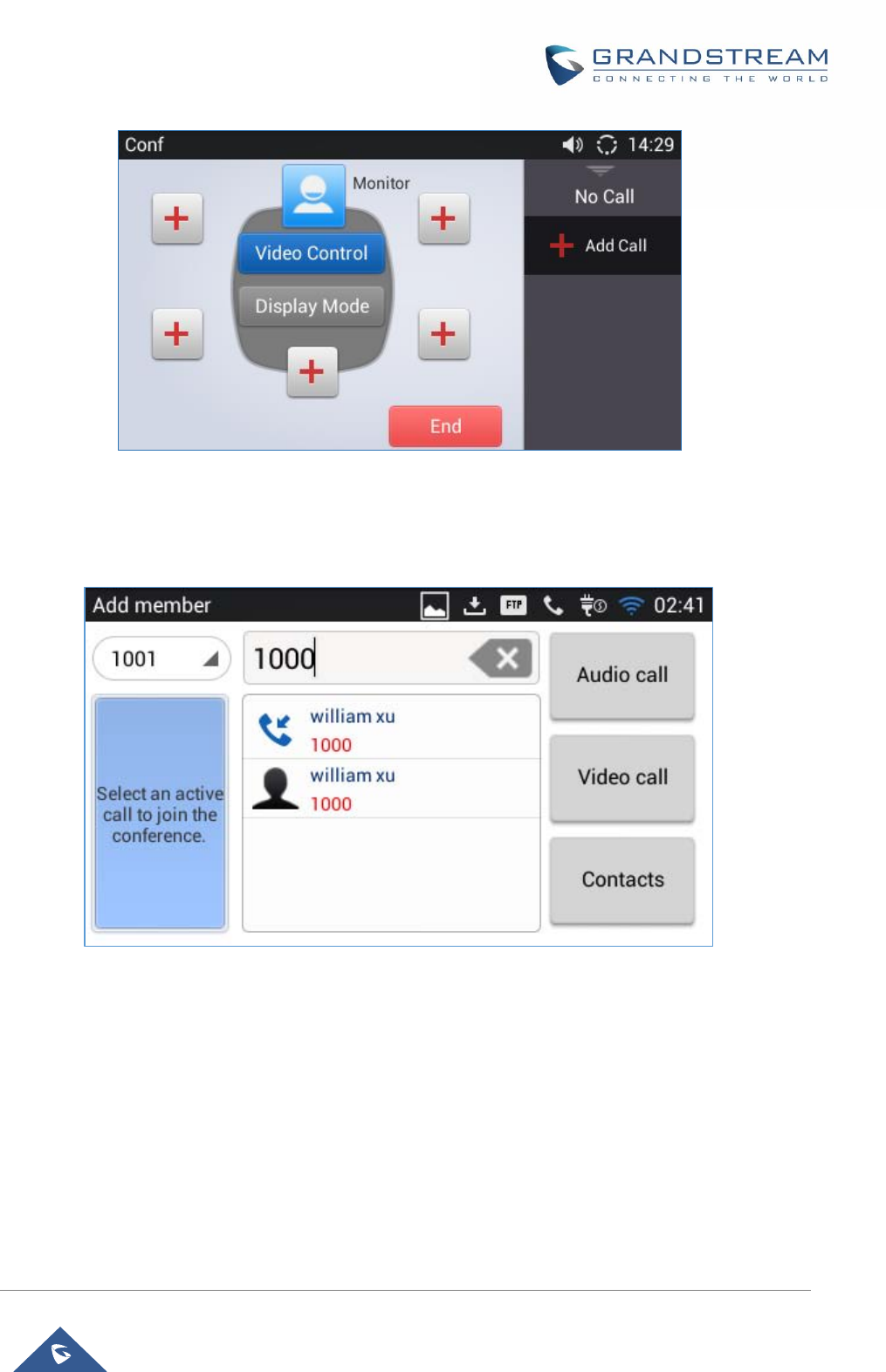

Figure 59: GXV3240 Conference Screen ................................................................................................... 66
Figure 60: GXV3240 Conference - Add New Call to the Conference ......................................................... 66
Figure 61: GXV3240 Conference - Add Existing Call to Conference ......................................................... 67

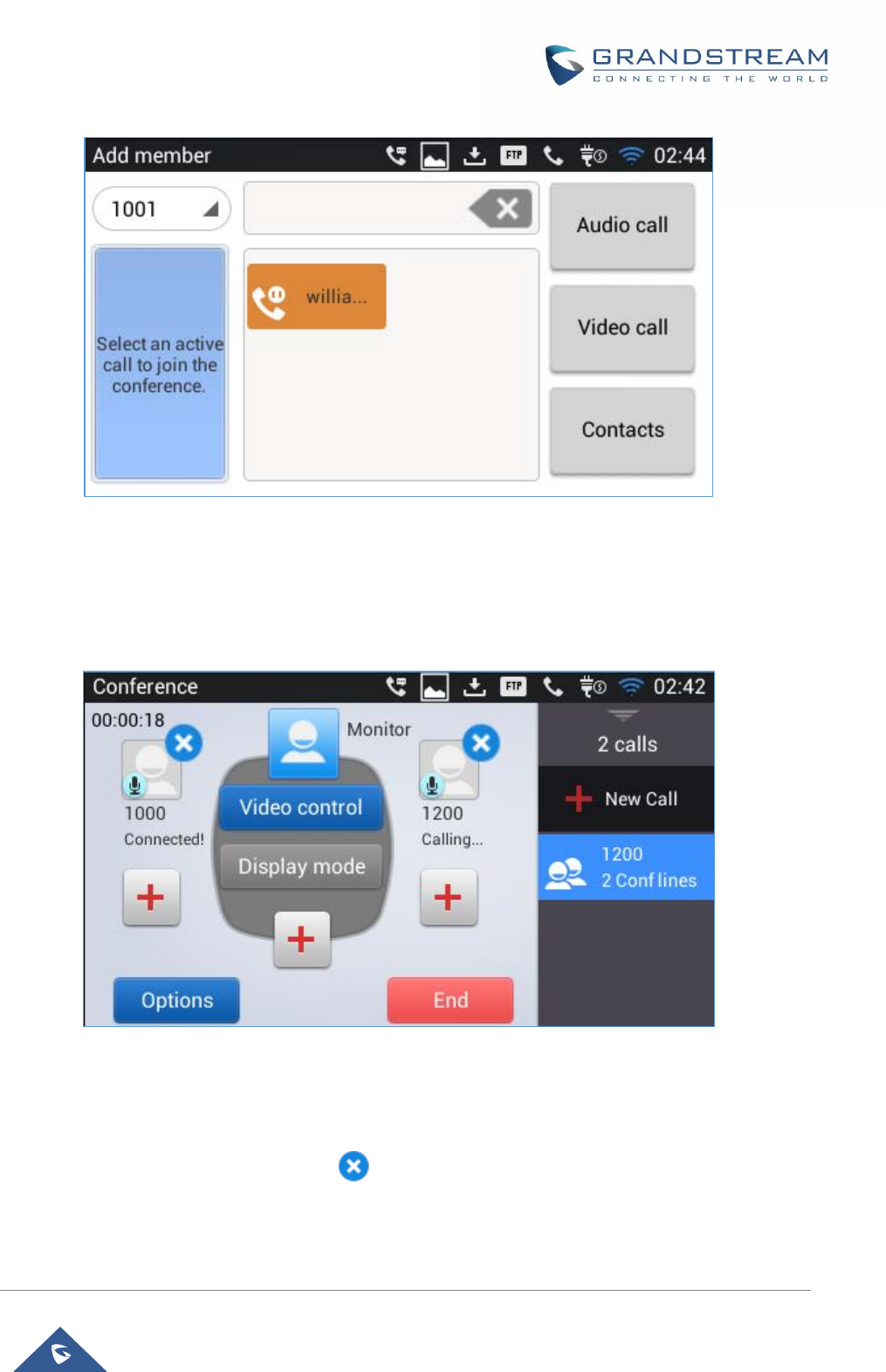

Figure 62: 4-way Conference Call Established ........................................................................................... 67
Figure 63: Missed Call Screen .................................................................................................................... 68

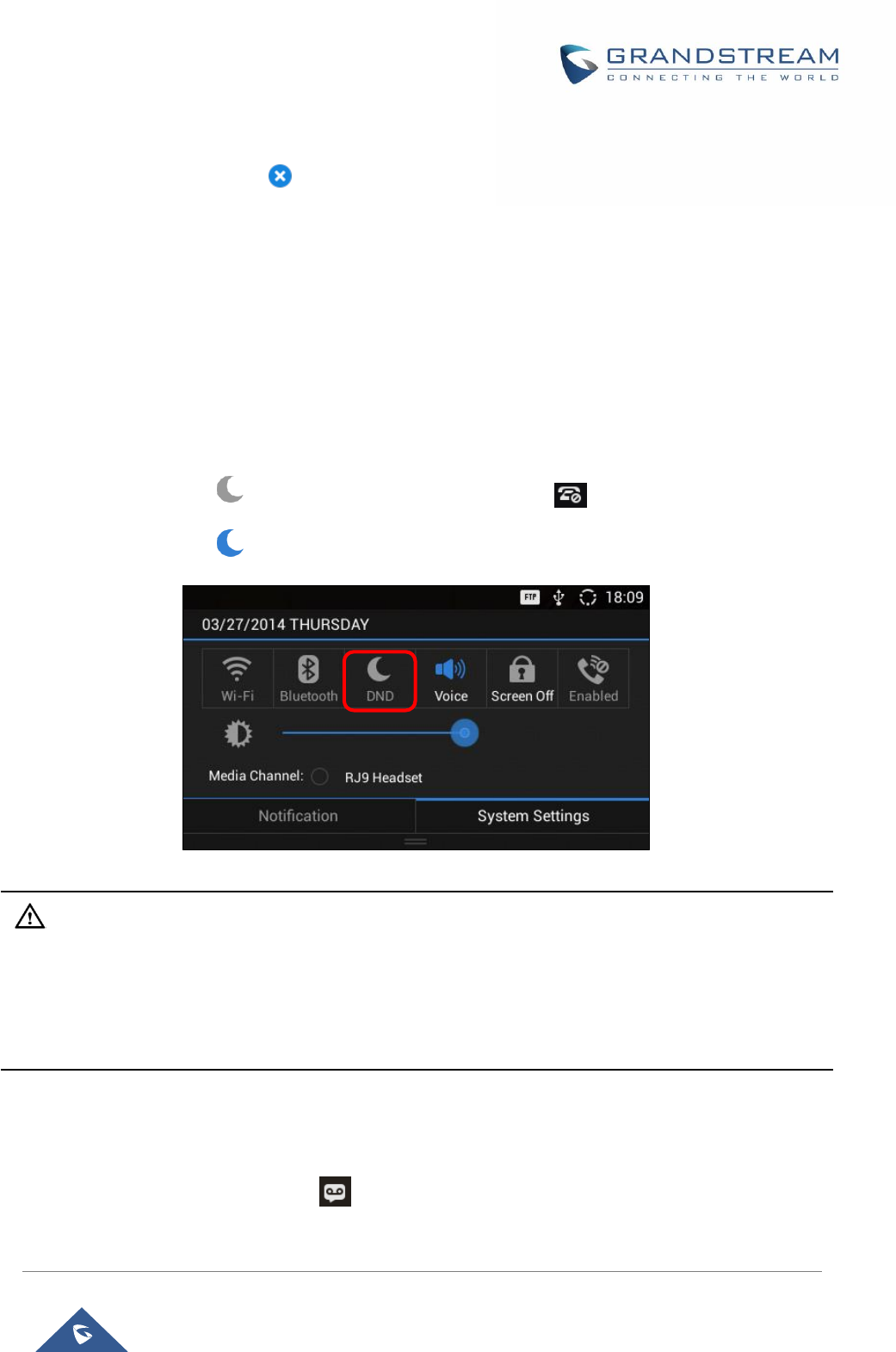

Figure 64: Enable/Disable DND .................................................................................................................. 69

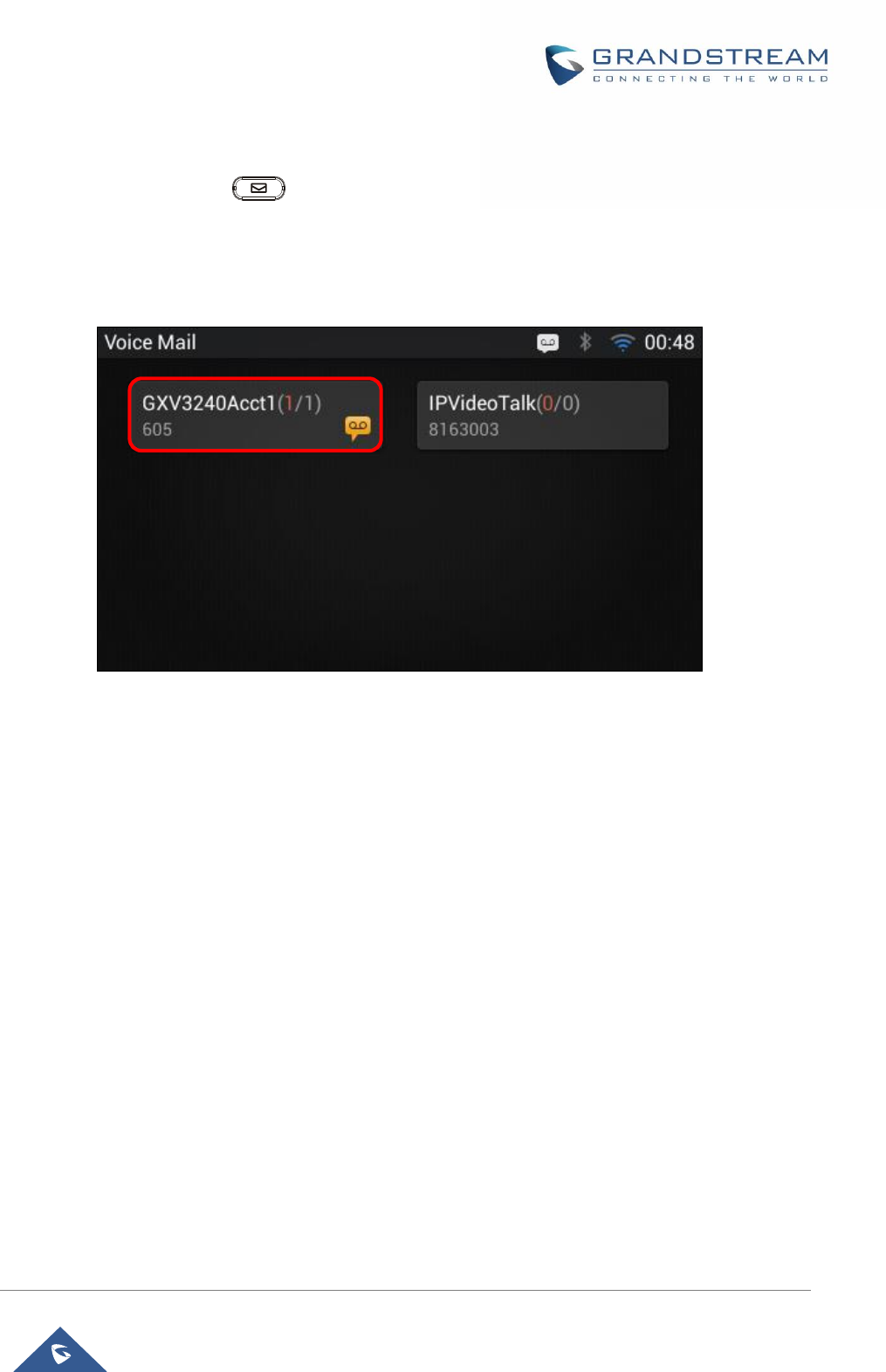

Figure 65: Retrieve Voicemail ..................................................................................................................... 70
Figure 66: Call Forward when DND ............................................................................................................ 71
Figure 67: Call Forward - Unconditional ..................................................................................................... 71
Figure 68: Call Forward - Time Based ........................................................................................................ 71
Figure 69: Call Forward - Busy/No Answer/DND ........................................................................................ 72
Figure 70: GXV3240 MPK APP - Add Number ........................................................................................... 73
Figure 71: GXV3240 MPK APP - Add Number from Contacts .................................................................... 73
Figure 72: GXV3240 MPK APP - Number List ............................................................................................ 73
Figure 73: GXV3240 SCA Settings on LCD ................................................................................................ 74
Figure 74: GXV3240 SCA Settings on Web UI ........................................................................................... 75
Figure 75: GXV3240 Contacts .................................................................................................................... 78
Figure 76: GXV3240 Local Contacts .......................................................................................................... 79
Figure 77: GXV3240 Contacts - Add New Contact ..................................................................................... 79
Figure 78: Add contacts from DialPad ........................................................................................................ 80
Figure 79: GXV3240 Contacts - Import Contacts ....................................................................................... 80
P a g e | 13
GXV3240 User Guide
Figure 80: GXV3240 Contacts - Export Contacts ....................................................................................... 81

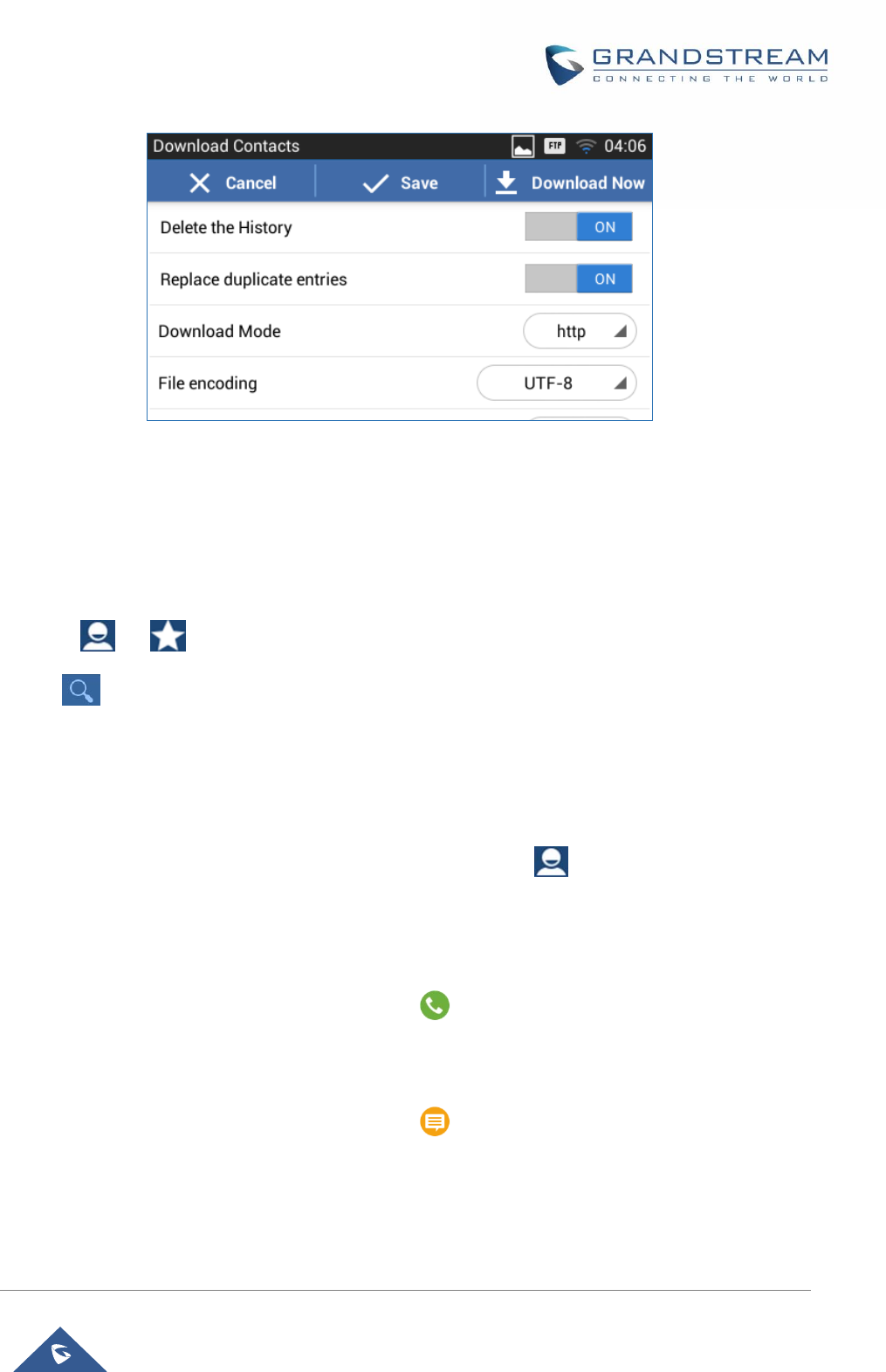

Figure 81: GXV3240 Contacts - Download Contacts ................................................................................. 82

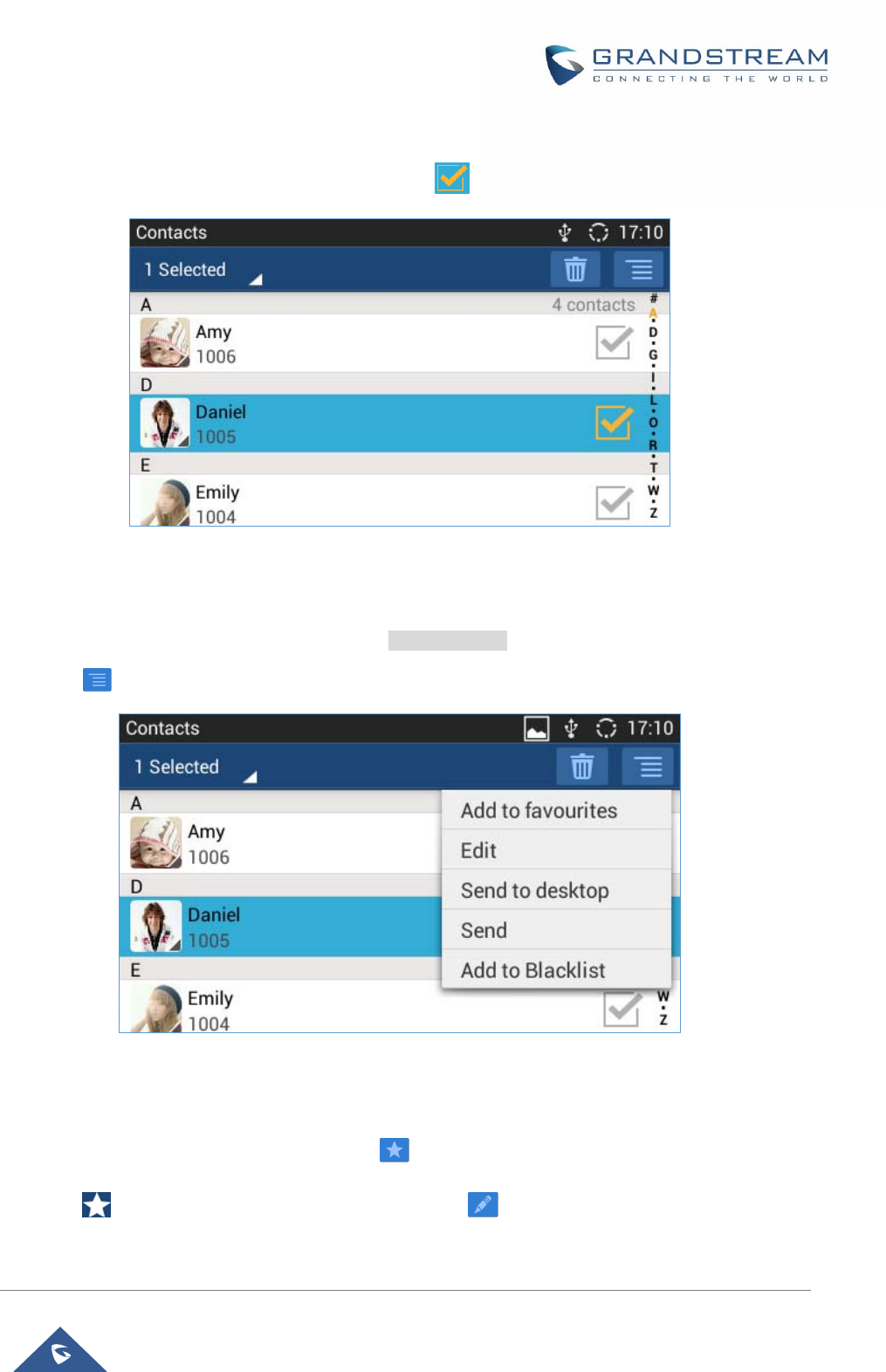

Figure 82: GXV3240 Contacts - Select Contacts........................................................................................ 83
Figure 83: GXV3240 Contacts - Contacts Options ..................................................................................... 83
Figure 84: Add Contacts to Favorites .......................................................................................................... 84
Figure 85: GXV3240 Contacts - Add New Group ....................................................................................... 85
Figure 86: GXV3240 Contacts – Contact Options ...................................................................................... 85
Figure 87: GXV3240 Contacts - Storage Status ......................................................................................... 86
Figure 88: GXV3240 Contacts Options- Account........................................................................................ 86
Figure 89: Add Account to Sync up in Contacts .......................................................................................... 87
Figure 90: Add Google Account to Sync up in Contacts ............................................................................. 87
Figure 91: Sign in Google Account ............................................................................................................. 88
Figure 92: Restore Blocked Number ........................................................................................................... 91
Figure 93: GXV3240 Blacklist - Add Blacklist ............................................................................................. 92
Figure 94: Manually Add Number to Blacklist ............................................................................................. 93
Figure 95: Edit Entry from Blacklist ............................................................................................................. 93

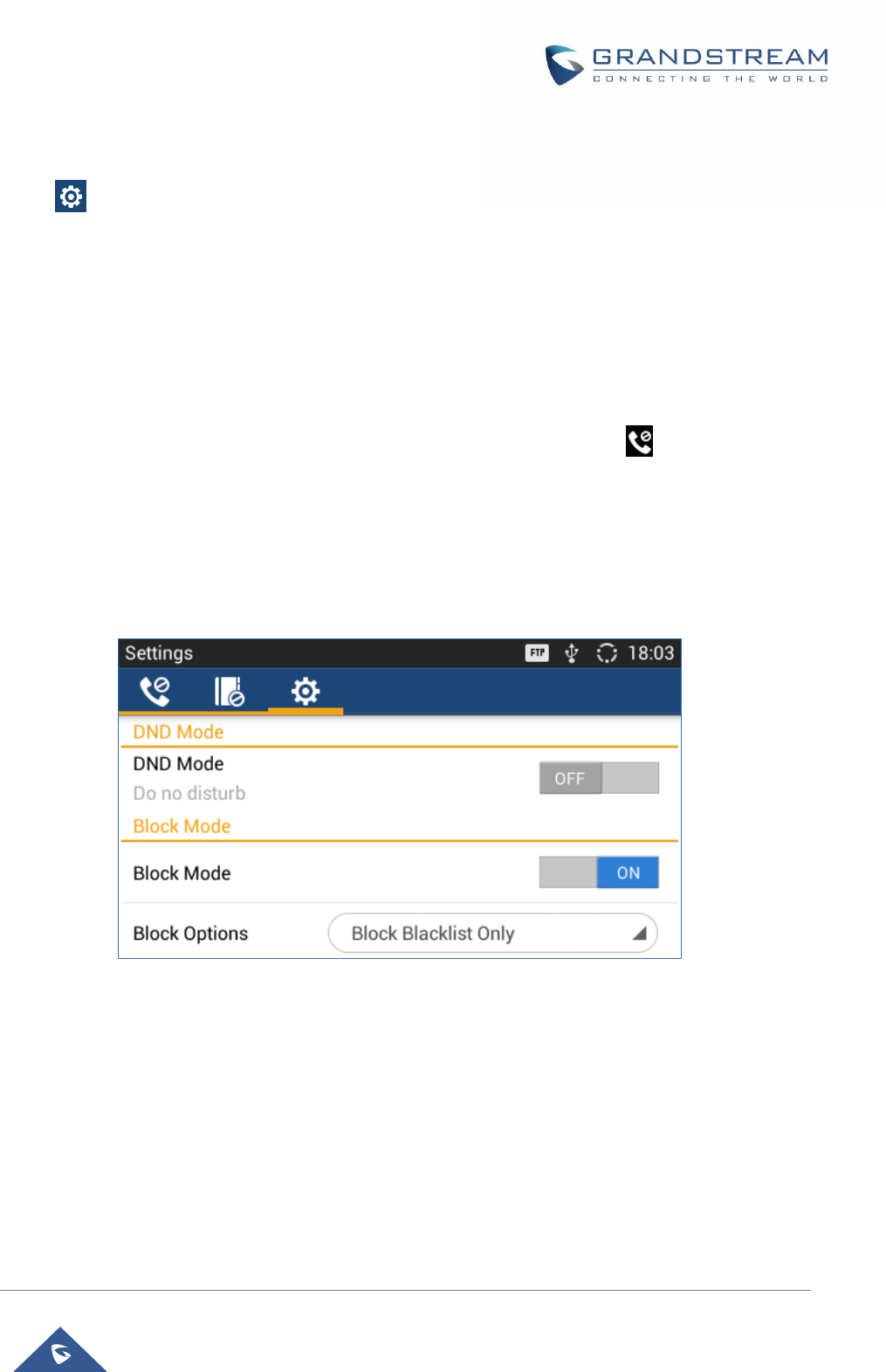

Figure 96: Blacklist Settings ........................................................................................................................ 94
Figure 97: GXV3240 Call History ................................................................................................................ 95
Figure 98: GXV3240 Call History ................................................................................................................ 95
Figure 99: GXV3240 Call History – Options ............................................................................................... 96
Figure 100: GXV3240 Call History - Details ................................................................................................ 97
Figure 101: GXV3240 SMS Message ......................................................................................................... 98
Figure 102: View SMS Dialog ..................................................................................................................... 98
Figure 103: Create New Message .............................................................................................................. 99
Figure 104: Sign In Calendar with Google Account .................................................................................. 100
Figure 105: View Calendar ........................................................................................................................ 100
Figure 106: View Calendar by Month ........................................................................................................ 101
Figure 107: View Calendar by Day ........................................................................................................... 101
Figure 108: Create Event .......................................................................................................................... 101

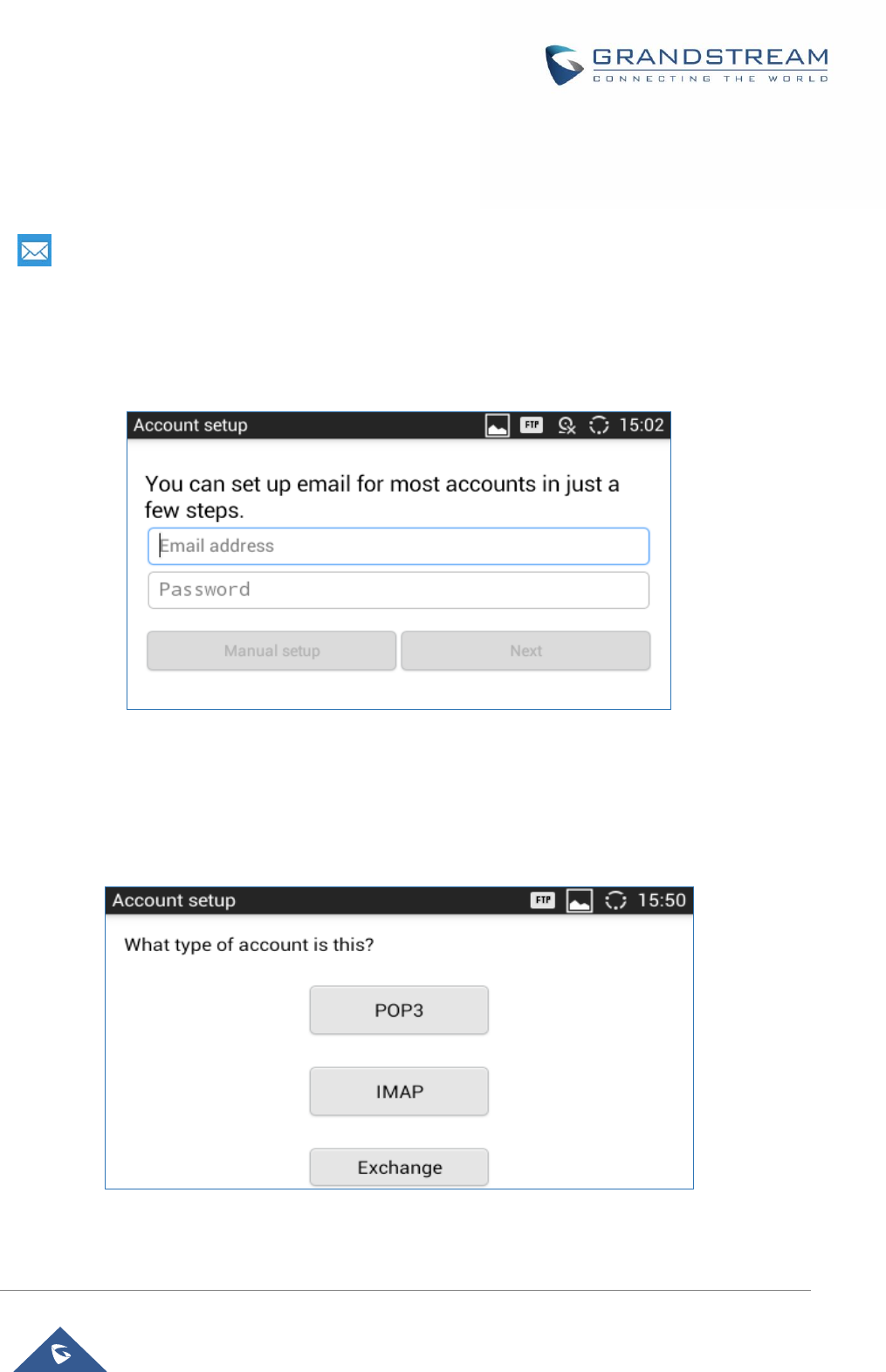

Figure 109: Sign in Email .......................................................................................................................... 103
Figure 110: Select Email Account Type..................................................................................................... 103

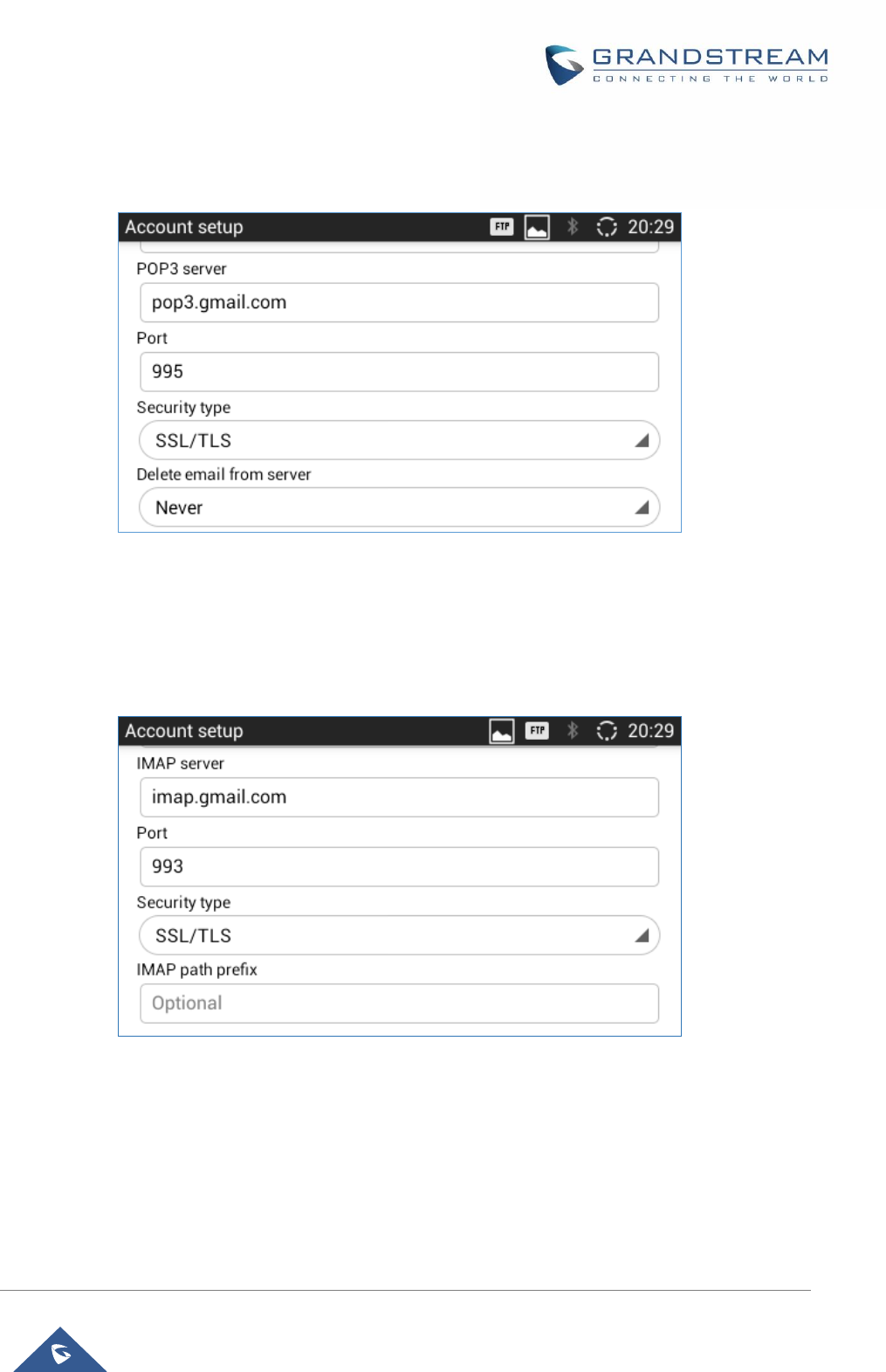

Figure 111: Email Account Type - POP3 ................................................................................................... 104
Figure 112: Email Account Type - IMAP .................................................................................................... 104
Figure 113: Email Account Type - EXCHANGE ........................................................................................ 105
Figure 114: Email Account Settings .......................................................................................................... 105
Figure 115: Multiple Email Accounts ......................................................................................................... 106
Figure 116: GXV3240 GS Market ............................................................................................................. 107
Figure 117: GXV3240 GS Market - Downloaded Applications .................................................................. 108
Figure 118: GXV3240 GS Market - Installed Applications ........................................................................ 108
Figure 119: GXV3240 GS Market - Uninstall Applications ........................................................................ 109
Figure 120: GXV3240 File Manager - Select File ..................................................................................... 110
P a g e | 14
GXV3240 User Guide
Figure 121: File Manager Root Directory .................................................................................................. 110
Figure 122: Paste File ................................................................................................................................111
Figure 123: GXV3240 File Manager - Select File ......................................................................................111
Figure 124: File Manager Root Directory .................................................................................................. 112
Figure 125: Paste File ............................................................................................................................... 112
Figure 126: GXV3240 File Manager - Options.......................................................................................... 113
Figure 127: Delete File(s) via File Manager .............................................................................................. 113
Figure 128: Rename File ........................................................................................................................... 114
Figure 129: FTP Server - Start .................................................................................................................. 115
Figure 130: FTP Server - Stop .................................................................................................................. 115
Figure 131: FTP Server – Settings............................................................................................................ 116
Figure 132: Normal Recorder.................................................................................................................... 117
Figure 133: Normal Recorder - Start Recording ....................................................................................... 117
Figure 134: Normal Recorder - End Recording ........................................................................................ 118
Figure 135: Call Recorder ......................................................................................................................... 119
Figure 136: Recorder Settings .................................................................................................................. 119
Figure 137: Recorder Storage .................................................................................................................. 120
Figure 138: Downloads ............................................................................................................................. 120
Figure 139: GXV3240 Location ................................................................................................................. 121
Figure 140: GXV3240 Diagnosis .............................................................................................................. 122

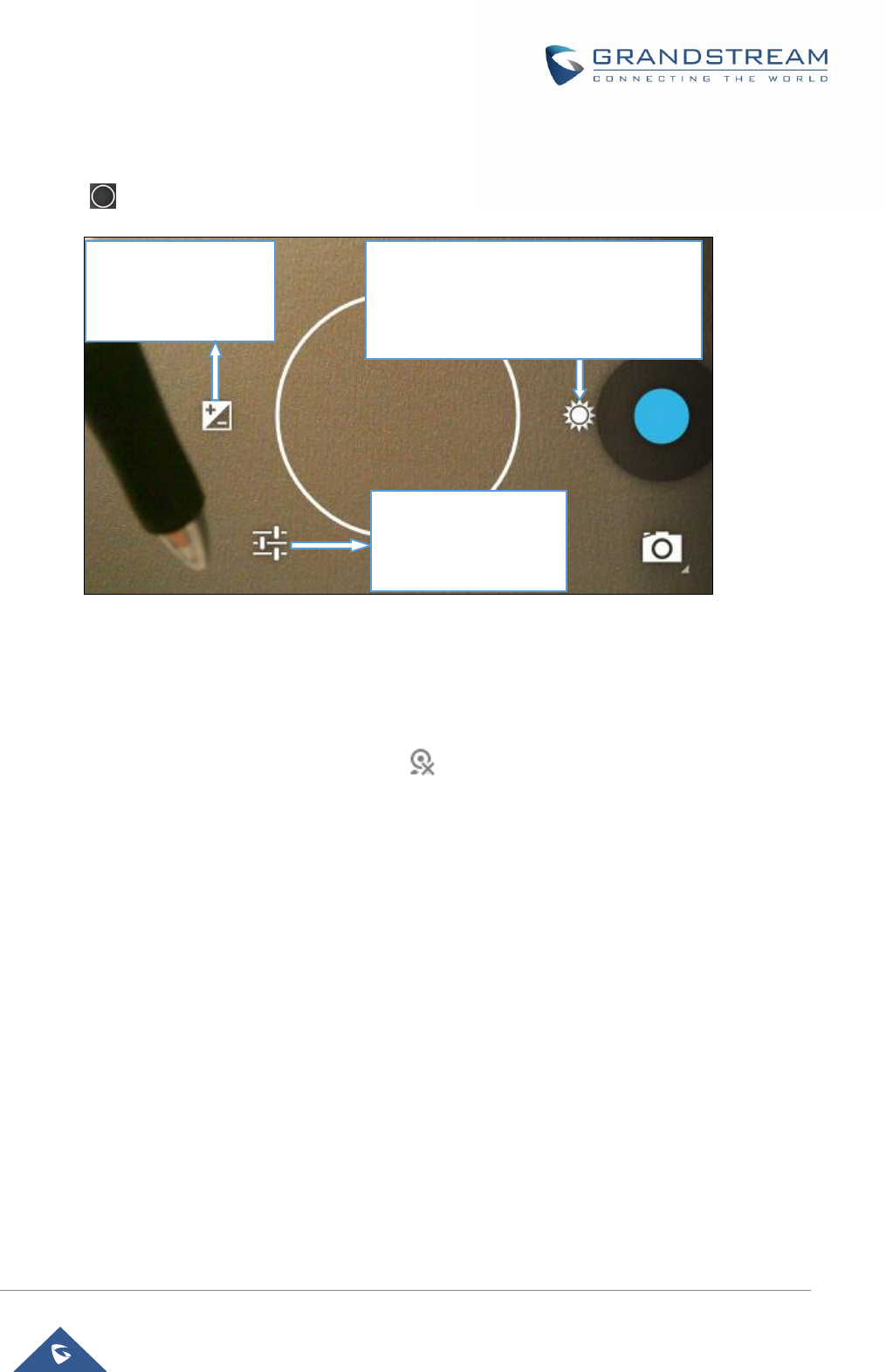

Figure 141: GXV3240 Camera.................................................................................................................. 123
Figure 142: GXV3240 Camera Settings ................................................................................................... 124
Figure 143: GXV3240 Gallery ................................................................................................................... 126
Figure 144: GXV3240 Gallery - Edit Picture ............................................................................................. 127
Figure 145: GXV3240 Gallery - Picture Options ....................................................................................... 127

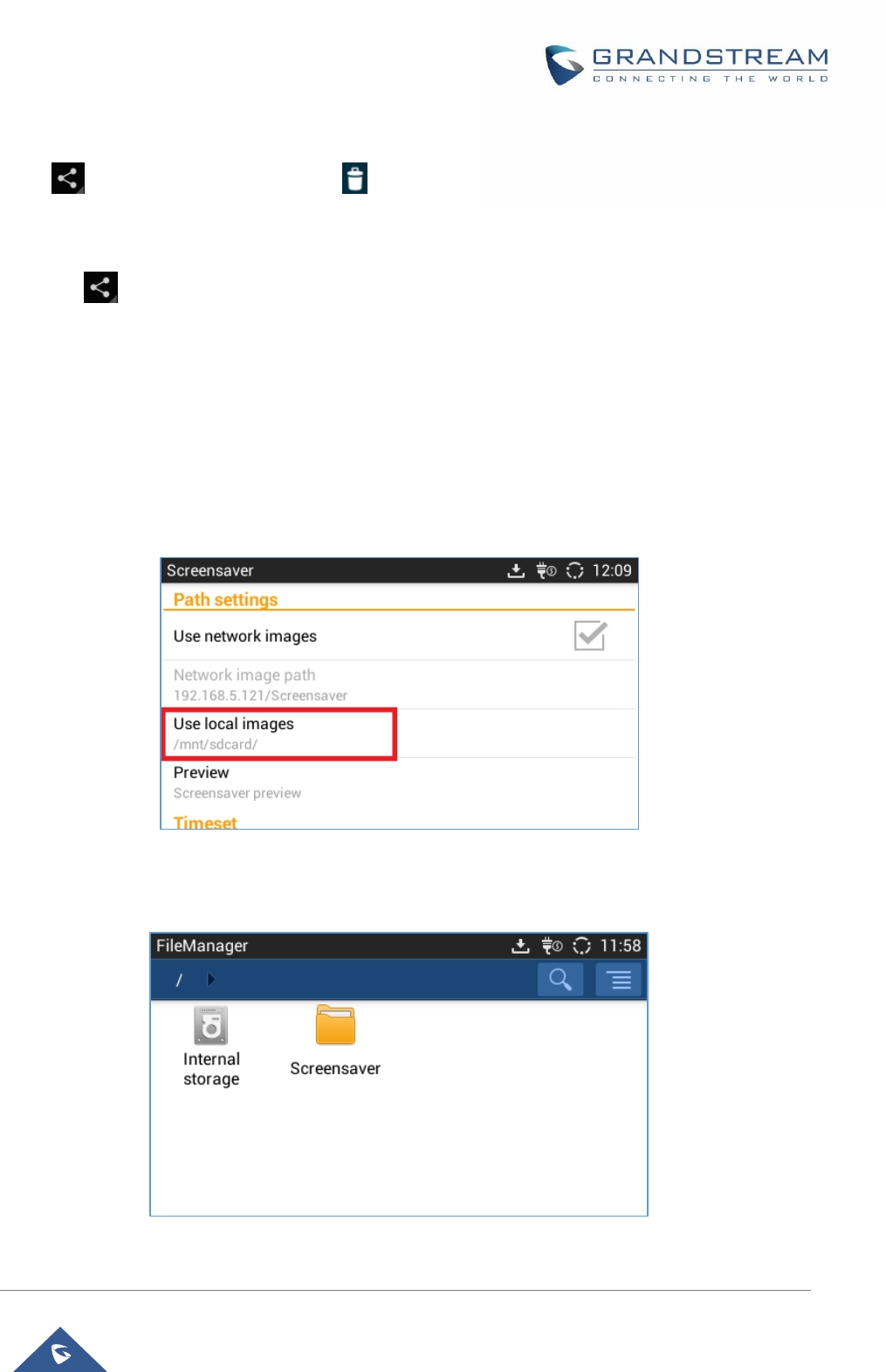

Figure 146: Use Local Images .................................................................................................................. 128
Figure 147: Local Images .......................................................................................................................... 128
Figure 148: Use Network images .............................................................................................................. 129
Figure 149: Network Image Path .............................................................................................................. 129
Figure 150: GXV3240 Music - Refresh Music List .................................................................................... 130
Figure 151: GXV3240 Music - Play a Song .............................................................................................. 130
Figure 152: GXV3240 Music - Options ..................................................................................................... 131
Figure 153: GXV3240 Music - Sort Songs ................................................................................................ 131
Figure 154: GXV3240 Music - Create Playlist .......................................................................................... 132
Figure 155: GXV3240 Web Browser ......................................................................................................... 133
Figure 156: GXV3240 Browser Menu Options.......................................................................................... 133
Figure 157: Open New Window in Browser .............................................................................................. 134
Figure 158: GXV3240 Web Browser-Bookmarks ..................................................................................... 134
Figure 159: GXV3240 RSS News ............................................................................................................. 135
Figure 160: GXV3240 RSS News Settings ............................................................................................... 136
Figure 161: GXV3240 Weather ................................................................................................................. 136
P a g e | 15
GXV3240 User Guide
Figure 162: GXV3240 Weather Settings ................................................................................................... 137
Figure 163: GXV3240 Weather Update Settings ...................................................................................... 137
Figure 164: GXV3240 PNP Settings ......................................................................................................... 141
Figure 165: GXV3240 Connect to Wi-Fi ................................................................................................... 143
Figure 166: GXV3240 Connect to Wi-Fi-Show Advanced Options ........................................................... 143

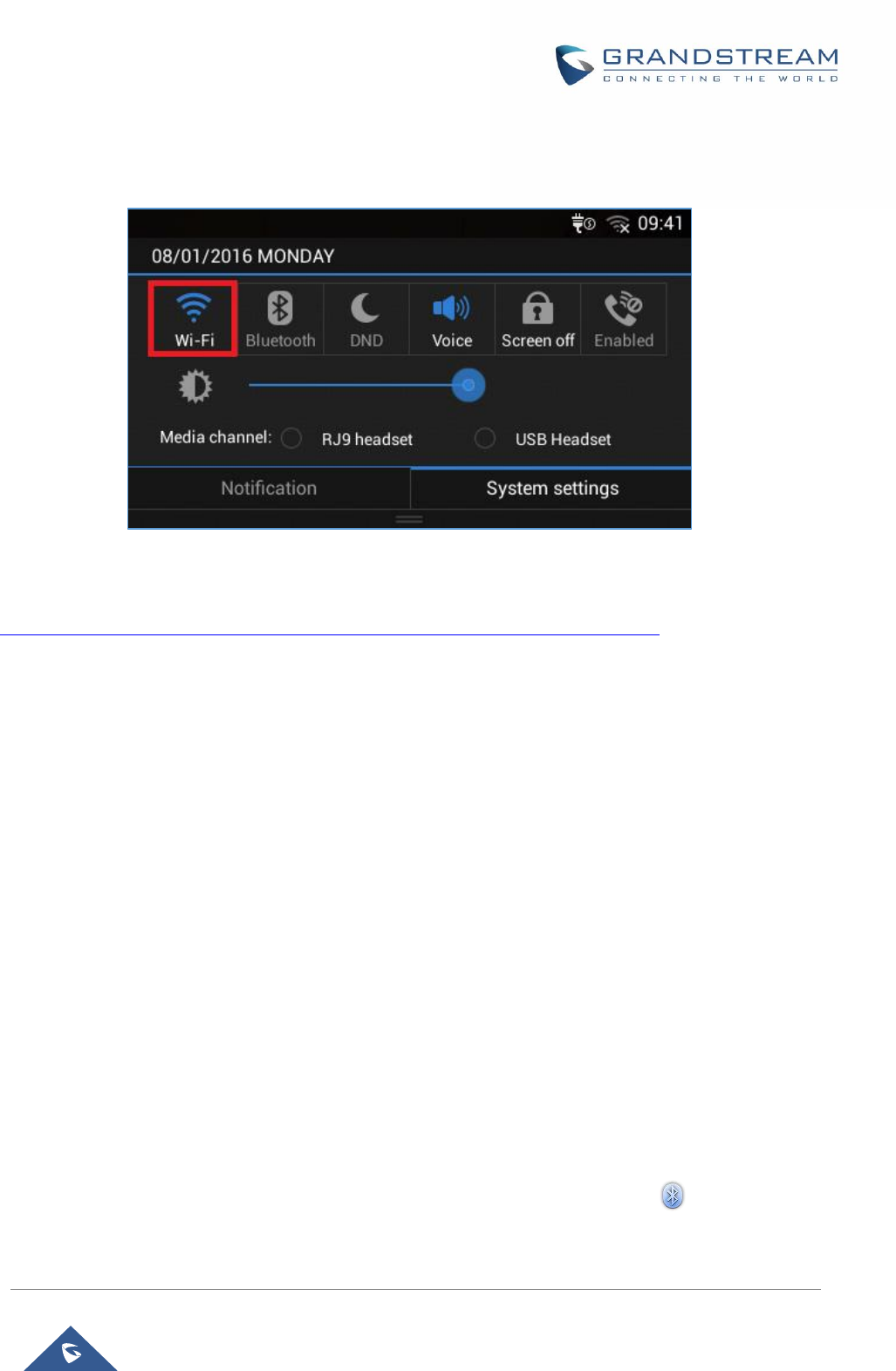

Figure 167: Wi-Fi Settings Shortcut .......................................................................................................... 144
Figure 168: GXV3240 Bluetooth - Paired Device ..................................................................................... 145
Figure 169: Bluetooth Settings Shortcut ................................................................................................... 146
Figure 170: USB Headset ......................................................................................................................... 147
Figure 171: USB Headset Used for Speaking .......................................................................................... 147
Figure 172: SettingsDisplayHDMI ...................................................................................................... 148
Figure 173: SettingsDisplayHDMI Control ......................................................................................... 149
Figure 174: SettingsDisplayHDMI Audio Channel Switch.................................................................. 149
P a g e | 16
GXV3240 User Guide
DOCUMENT PURPOSE
This document describes how to configure the GXV3240 via phone's LCD menu and web UI menu to fully
manipulate the phone's features. To learn the advanced functions of GXV3240, please visit
http://www.grandstream.com/support to download the latest “GXV3240 Administration Guide”.
This guide covers following topics:
Product Overview
Getting started
Getting to know GXV3240
Make phone calls
Contacts
Blacklist
Call history
SMS
Calendar
Email
GS market
Tools
Recorder
Camera
Multimedia
Browser
RSS News
BS IM&P
Action URL
PNP
Connect to network and devices
Experiencing the GXV3240 applications
P a g e | 17
GXV3240 User Guide
CHANGE LOG
This section documents significant changes from previous versions of user guide for GXV3240. Only major
new features or major document updates are listed here. Minor updates for corrections or editing are not
documented here.
Firmware Version 1.0.3.180
Updated that attended transfer would put the account on hold in the transfer list.
Updated DUT will prompt for adding new calls or new incoming calls during preview.
Firmware Version 1.0.3.177
Added Support to set call forward when phone is on DND state [Call Forward - Busy/No Answer/DND]
Supported that DUT would not show unregistered accounts on SMS app. [Create New SMS]
Added Success notification for setting a recording as ring tone. [Set as ringtone]
Removed the Setup Wizard which was introduced in 1.0.3.171 after upgrading or factory reset.
Added timestamp in the exported call recording file name. [Export]
Added account selection for LDAP calls instead of automatically selecting the first active account when
the option is “Default”. [LDAP PHONEBOOK]
Firmware Version 1.0.3.171
Removed “Click to Return Call” animation on status bar. [Call Progress Status]
Updated dialing interface button “End” to “Cancel”.
Added sending SIP INFO message with “record” header when record key is pressed. [Call Recording]
Added “Record Mode” to specify the location for saving call recording. [Call Recording]
Firmware Version 1.0.3.162
Added “Disable RJ9 Headset Auto Detect”. [EHS Headset]
Firmware Version 1.0.3.158
Updated phone to automatically answer paging call after a short reminding tone rather than a long
one.
Added “Add to contacts” button in dial pad if input number does not match any in Contact. [Add to
contacts]
Updated preview function before answering the call would keep playing ringback on caller side.
Firmware Version 1.0.3.144
Changed FileManager Internal storage icon. [File Manager]
Supported new feature code "*2016" to start factory function apk. [Diagnosis]
Optimized dialer UI response.
P a g e | 18
GXV3240 User Guide
Broadsoft contacts result can automatically match input letter when searching contact. [Broadworks
XSI Contacts]
Firmware Version 1.0.3.131
Supported “Call Detail” for RTCP info report. [Call Details during Call]
Added prefix MPK Support. [Multi-Purpose Keys]
Added support headsets via USB port on GXV32xx. [USB Headset]
Added ability to show the call-in-progress status on GXV32xx panel. [Call Progress Status]
Added ability to access to the Bluetooth and Wi-Fi Settings menu through quick buttons on taskbar.
[Bluetooth Settings Shortcut ] / [Wi-Fi Settings Shortcut]
Removed Lync Setup Application.
Added ability to launch 3rd party application upon handset off-hook and dialer app.
Added storage settings for phone recording. [Recorded Files Settings]
Supported adding new participants via Audio/Video call in conference room. [Initiate Conference]
Added ability to configure the screensaver network images path as a folder path. [Screensaver]
Added support for Direct IP calls via IPv6. [Direct IP Call]
Firmware Version 1.0.3.92
Update document layout.
Firmware Version 1.0.3.75
Add video display mode explanations for video answer feature. [Make Phone Calls]
Add phonebook key function explanations for Phonebook option. [Contacts]
Firmware Version 1.0.3.62
Add disable video call feature option explanations and screenshots for making phone calls. [Make
Phone Calls]
Firmware Version 1.0.3.55
Add authentication type for BroadSoft Directories. [Broadworks XSI Contacts]
Firmware Version 1.0.3.46
Add “End” key to complete attended transfer during attended transferring. [Attended Transfer]
Firmware Version 1.0.3.37
Add to consult the third party before attended transferring the call. [Attended Transfer]
Firmware Version 1.0.3.30
Add call forward option on incoming call page. [Single Incoming Call]
P a g e | 19
GXV3240 User Guide
Add option to dismiss the prompt missed call log on LCD. [Missed Call]

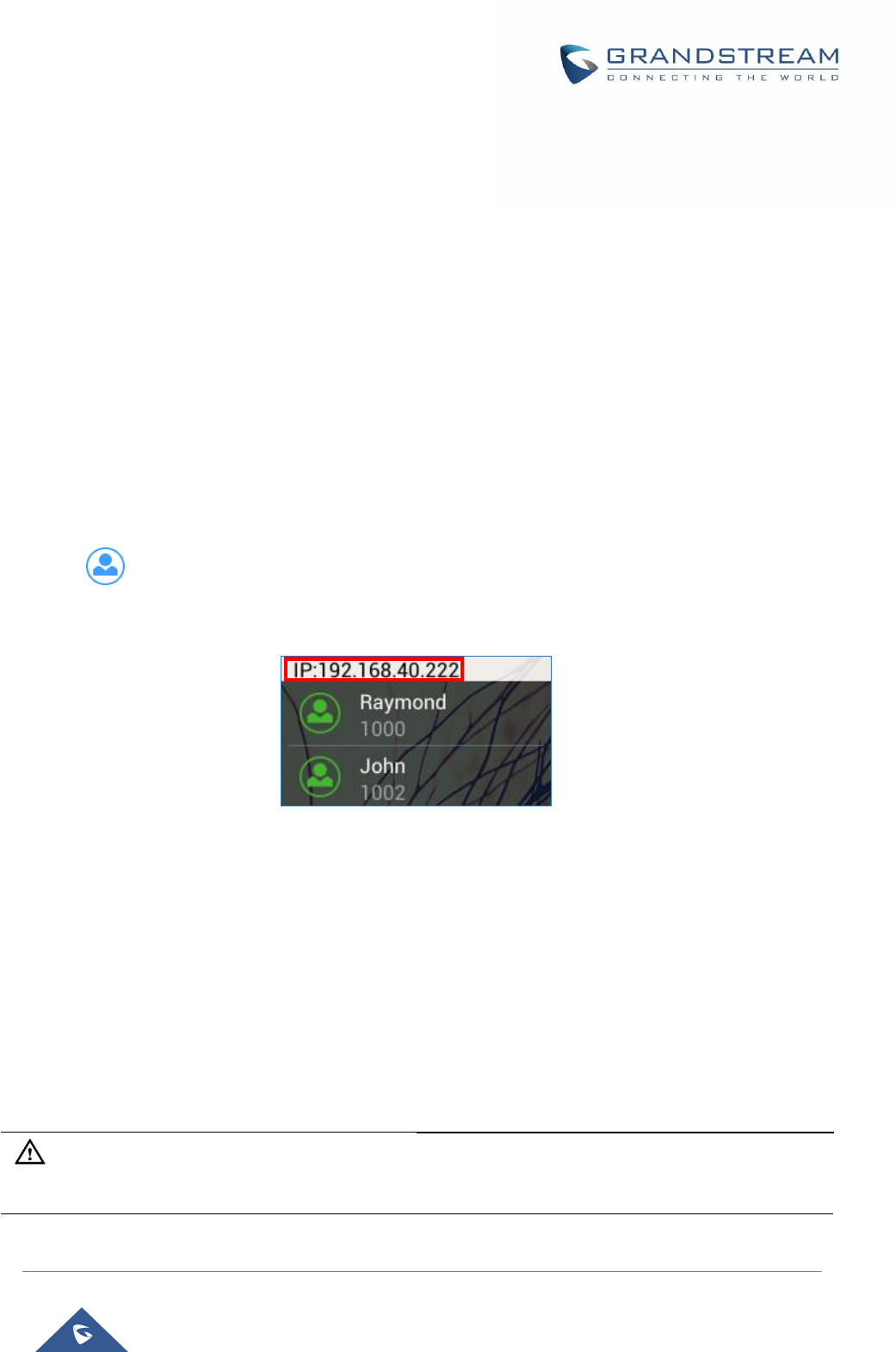

Add option to hide IP address on Account Widget. [Account Status]
Add event notify feature. [Action URL]
Add mute key features While Idle. [Mute]
Firmware Version 1.0.3.22
Add BS-IM&P. [BS-IM&P]
Add PNP. [PNP]
Update HDMI Device. [HDMI Device]
Firmware Version 1.0.3.6
Add WiFi Static IP and PPPoE Setting. [Add Wi-Fi Networks]
Add Set Programmable Keys on Unregistered Account. [Set Programmable Keys On Unregistered
Account]
Firmware Version 1.0.1.54
Add BroadWorks Xsi Contacts. [Broadworks XSI Contacts]
Add BroadWorks Xsi Call History. [Broadworks XSI Call History]
Add Preview for video calls Contacts. [Single Incoming Call]
Firmware Version 1.0.1.39
Update screenshots.
Firmware Version 1.0.1.29
This is the initial version.
P a g e | 20
GXV3240 User Guide
WELCOME
Thank you for purchasing Grandstream GXV3240 Enterprise Multimedia Phone for AndroidTM. The
GXV3240 combines a 6-line IP video phone with the power of a multi-platform video conferencing solution
and the convenience of an Android smartphone to offer an all-in-one voice, video, data, and mobility solution.
The GXV3240 is a 6-line IP multimedia phone with a 4.3" capacitive touch screen that runs the Android
Operating System and therefore offers full access to the hundreds of thousands of Android apps in the
Google Play Store - including business productivity apps such as Skype™, Microsoft Lync™, Salesforce1™,
and GoToMeeting™. The phone features Gigabit ports, HD audio and HD video, a built-in web browser,
integrated Wi-Fi for network flexibility, PoE, and a tiltable CMOS camera. The GXV3240 is compatible with
the GXP2200 Extension Module, allowing for quick and easy access to up to 160 contacts at the touch of
a finger. The GXV3240’s integrated Bluetooth allows users to sync the calendar and contact books on their
mobile phones with the GXV3240, to use Bluetooth headsets, and to transfer calls to and from the phone
to their mobile phones. By combining a state-of-the-art IP phone, an advanced video conferencing solution,
and the Android operating system, businesses throughout the world can now use one IP Phone for all
communication and productivity needs.
P a g e | 21
GXV3240 User Guide
PRODUCT OVERVIEW
Feature Highlights
The following table contains the major features of the GXV3240:
Table 1: GXV3240 Features in a Glance
GXV3240 Technical Specifications
The following table resumes all the technical specifications including the protocols / standards supported,
voice codecs, telephony features, languages and upgrade/provisioning settings for the GXV3240 phone.
GXV3240
6 lines with up to 6 SIP accounts including FREE IPVideoTalk
account with video mail, up to 6-way audio conference and 3-way
video conference, phonebook with up to 1000 contacts, call history
with up to 1000 records
Dual switched auto-sensing 10/100/1000Mbps network ports, Wi-
Fi (802.11b/g/n20), PoE+, Bluetooth, USB, SD, HDMI, EHS with
Plantronics headsets support
4.3" (1024x600) capacitive (5 points) touch screen TFT LCD, mega
pixel CMOS sensor camera with privacy shutter
HD wideband audio, full-duplex hands-free speakerphone with
advanced acoustic echo cancellation
Runs the Android™ Operating System 4.2 and offers full access to
the Google Play Store - which includes thousands of business
productivity apps such as Skype, Microsoft Lync, SalesForce1,
GoToMeeting
Integrates with Grandstream's GXV series of IP video surveillance
cameras to view live camera feeds and to receive alerts/alarms
from IP cameras installed on the same network
Offers a multi-platform video conferencing solution (Grandstream's
Free IPVideoTalk, Skype, Microsoft Lync, and more)
Create Android applications for any business need to run on
GXV3240 using Google's API and Grandstream's SDK toolkit
P a g e | 22
GXV3240 User Guide
Table 2: GXV3240 Technical Specifications
Protocols/Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A
record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-
MED, LDAP, TR-069, 802.1x, TLS, SRTP, RFC3605
Network Interfaces Dual switched 10/100/1000 Mbps ports with integrated PoE
Graphic Display 4.3"(480*272) capacitive (5 points) touch screen TFT LCD
Camera Tiltable mega pixel CMOS camera privacy shutter
Bluetooth Yes, integrated. Bluetooth 2.1 + EDR
Wi-Fi Yes, integrated. 802.11b/g/n
Auxiliary Ports RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo
headset with microphone, dual USB ports, SD, mini HDMI
Feature Keys 11 function keys for PHONEBOOK, BACKSPACE, HEADSET, MUTE, HOLD,
MESSAGE, TRANSFER, CONFERENCE, SPEAKERPHONE, SEND/REDIAL,
VOLUME. 3 dedicated Android keys for HOME, MENU, and BACK
Voice Codec Support for G.711µ/a, G.722 (wide-band), G.726-32, G.729, iLBC, OPUS, in-
band and out-of-band DTMF (In audio, RFC2833, SIP INFO)
Video Codec and
Capabilities
H.264 BP/MP/HP, H263, video resolution up to 720p HD, frame rate up to 30 fps,
bit rate up to 2Mbps, 3-way video conference, anti-flickering, auto focus and auto
exposure, PIP (Picture-in-Picture), on-screen-display, camera block, still picture
capture/store, video recording, visual voice message indicator
Telephony Features Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 6-way
audio conference, shared-call-appearance (SCA) / bridged-line-appearance
(BLA), virtual MPK, downloadable phone book (XML, LDAP), call waiting, call
history, boss-secretary virtual button, flexible dial plan, hot desking, personalized
music ringtones, server redundancy & fail-over
Sample Applications Skype, Google Hangouts, Microsoft Lync, Web browser, GoToMeeting,
Facebook, Twitter, YouTube, news, weather, stock, Internet Radio, Pandora,
Last.fm, Yahoo Flickr, Photo bucket, alarm clock, Google calendar, mobile phone
data import/export via Bluetooth, etc. API/SDK available for advanced custom
application development
Applications
Deployment Allow various Android operating system 4.2 compliant applications to be
developed, downloaded and run in the embedded device with provisioning control
HD Audio Yes, both handset and speakerphone support HD (wide-band) audio
Base Stand Yes, integrated stand with multiple adjustable angles. Wall mountable
QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
20
P a g e | 23
GXV3240 User Guide
Security User and administrator level access control, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS,
802.1x media access control
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian,
Chinese, Korean, Japanese, and more
Upgrade/ Provisioning Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass
provisioning using TR-069 or AES encrypted XML configuration file
Power and Green
Energy Efficiency
Universal power adapter included: Input: 100-240VAC 50-60Hz; Output: 12VDC,
1.5A (18W);
Integrated PoE+ (Power-over-Ethernet) 802.3at, Class 4
Physical Dimension: 196.5mm (W) x 206.2mm (L) x 85.2mm (H)
Unit weight: 0.92kg
Package weight: 1.45kg
Temperature and
Humidity
Operating: 0oC to 40oC
Storage: -10oC to 60oC
Humidity: 10% to 90% Non-condensing
Package Content GXV3240 phone, handset with cord, base stand, universal power supply, network
cable, lens cleaning cloth, quick installation guide, brochure, GPL license
Compliance FCC: Part 15 (CFR47) Class B, Part15C, MPE, UL 60950 (Power Adapter)
CE: EN55022 Class B, EN55024 Class B, EN61000-3-2, EN61000-3-3,
EN60950-1, EN300-328, EN301-489, EN62311, EN62479, RoHS
RCM: AS/ACIF S004, AS/NZS CISPR22/24 Class B, AS/NZS 60950, AS/NZS
4268, AS/NZS 4771
P a g e | 24
GXV3240 User Guide
GETTING STARTED
This chapter provides basic installation instructions including the list of the packaging contents and also
information for obtaining the best performance with the GXV3240.
Equipment Packaging
Table 3: Equipment Packaging
Note: Check the package before installation. If you find anything missing, contact your system administrator.
GXV3240
1 x GXV3240 Main Case.
1 x Handset.
1 x Phone Card.
1 x Ethernet Cable.
1 x 12V Power Adapter.
1 x Wall Mount.
1 x Phone Stand.
1 x Screen Cleaning Cloth
1 x Quick Installation Guide.
1 x GPL License.
Figure 1: GXV3240 Package Content
P a g e | 25
GXV3240 User Guide
GXV3240 Phone Setup
The GXV3240 can be installed on the desktop using the built-in stand or attached on the wall using the
slots for wall mounting.
Figure 2: Slots For The Wall Mount And Phone Stand On The GXV3240.
Using the Phone Stand
The GXV3240 has a built-in phone stand. To set up the GXV3240 as your desk phone, follow the steps
below:
1. Attach the phone stand to the back of the phone where there is a slot for the phone stand. Upper part
and bottom part are available for two angles;
2. Connect the handset and main phone case with the phone cord;
Using the Slots for Wall Mounting
1. Attach the wall mount to the slots on the back of the phone;
2. Attach the phone to the wall via the wall mount hole;
3. Pull out the tab from the handset cradle (see figure below);
4. Rotate the tab and plug it back into the slot with the extension up to hold the handset while the
phone is mounted on the wall.
Figure 3: Tab On The Handset Cradle.
P a g e | 26
GXV3240 User Guide
Description of the GXV3240
Figure 4: GXV3240 Front View
Figure 5: GXV3240 Back View
Table 4: GXV3240 Connectors
USB Port USB devices can be connected via the USB port. For example, connect a USB flash
drive to save captured pictures.
SD Card Slot Connect SD storage device to the SD Card Slot.
HDMI Port Connect display device to the HDMI port via HDMI cable.
Headset Port RJ9 headset connector port.
Handset Port RJ9 handset connector port.
PC Port 10/100/1000Mbps RJ-45 port connecting to PC.
P a g e | 27
GXV3240 User Guide
LAN Port 10/100/1000Mbps RJ-45 port connecting to Ethernet.
Power Jack 12V DC Power connector port.
EXT Port RJ11 connector port to connect the extension board GXP2200EXT.
Connecting the GXV3240
To setup your GXV3240, please follow the steps below:
1. Connect the handset and main phone case with the phone cord;
2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a router (LAN side of the
router) using the Ethernet cable;
3. Connect the 12V DC output plug to the power jack on the phone; plug the power adapter into an
electrical outlet. If PoE switch is used in step 2, this step could be skipped;
4. The LCD will display booting up or firmware upgrading information. Before continuing, please wait
for the main screen display to show up;
5. Using the web configuration interface or from the menu of the touch screen, you can further
configure network connection using static IP, DHCP and etc.
GXV3240 Extension Module (GXP2200EXT)
The GXV3240 uses GXP2200EXT as the extension module. The extension module is an ideal solution for
the busy enterprise environment looking to add the ability to receive and dispatch calls efficiently. Each
GXP2200EXT extension module has 20 programmable buttons, LEFT and RIGHT buttons, supporting 40
Multiple Purpose Keys to be configured. GXV3240 supports up to 4 extension modules, adding 160 fully
programmable phone extensions to the phone.
Table 5: GXP2200EXT Packaging
GXP2200EXT Board 1
GXP2200EXT Stand 1
RJ11-RJ11 Cable 1
Connector Plate 1
Screws 4
Quick Installation Guide 1
Note:
The GXP2200EXT is an additional accessory for the GXV3240. Therefore, the GXP2200EXT (including
extension module accessories for installation) is not included in the GXV3240 box.
P a g e | 28
GXV3240 User Guide
To set up the GXP2200EXT with the GXV3240, please follow the steps below:
1. On the back of the GXV3240 and the GXP2200EXT, there are slots for connector plate. Attach the
connector plate between the slots for GXV3240 and the GXP2200EXT;
2. Apply the screws provided and securely tighten them in (See Figure 6: GXV3240 Back View with
GXP2200EXT).
3. Connect the GXP2200EXT to the GXV3240 via the EXT port using the RJ11-RJ11 cable provided with
the GXP2200EXT;
4. Install the phone stand on the GXV3240 and the GXP2200EXT;
5. Power up the GXV3240. The GXP2200EXT will show the booting up screen with version information
and connecting status;
6. After successfully booting up, the GXP2200EXT will stay in idle. Press and hold the LEFT button for
about 3 seconds to check the version information and status.
Figure 6: GXV3240 Back View with GXP2200EXT
The GXP2200EXT can be configured via the web GUI of the GXV3240 connected. After successfully
configured, press LEFT or RIGHT button on the GXP2200EXT and users could browse all the MPK's status
in different pages.
For more information on installing, connecting and configuring the GXP2200EXT with GXV3240, please
refer to the GXP2200EXT user manual in http://www.grandstream.com/support.
P a g e | 29
GXV3240 User Guide
GETTING TO KNOW GXV3240
Use the Touchscreen
When the phone boots up in HOME screen, the LCD will display as below. A registered account is shown
in the following figure and users might need register their own account to have the account status displayed.
Figure 7: GXV3240 Default Home Screen
Tap on the onscreen Menu icon , the settings and applications menu will be brought up as shown below.
Figure 8: GXV3240 Onscreen Menu
To fully manipulate the GXV3240 capacitive touch screen, use your fingers to operate the following on the
The Status Bar shows time, network
connectivity, signal strength, notification
information and etc.
Account information displays in the
account widget. Up to 6 accounts can be
registered and displayed. If Bluetooth
hands-free profile is used or Microsoft
Lync account is logged in, the Bluetooth
account or Lync account information will
display here as well.
Shortcut: Contacts
Shortcut: Call History
Shortcut: Menu
Shortcut: Voicemail
Shortcut: Phone Dialer
P a g e | 30
GXV3240 User Guide
GXV3240 icons, buttons, menu items, onscreen keyboard and etc.
Figure 9: GXV3240 Finger Gestures on the Touch Screen
Tap
Slightly touch the screen with fingertip to initiate menu, options or applications. For example, to select
items on the screen (e.g., setting options, apps and etc.); to press onscreen buttons (e.g., "End" or
"Options" softkey during the call); to type letters and symbols using the onscreen keyboard.
Long Press
Touch the screen with fingertip and press for about 2 seconds without lifting your finger from the screen
till an action occurs. For example, long press on a picture to bring up selection option.
Flick and Slide
Touch the screen with fingertip and slide over the screen. For example, user could slide up to scroll up
the page, slide down to open dropdown menu, slide left or slide right to delete an item from the list. If
your finger stays on the screen for too long, the item may be selected and sliding won't occur.
Press and Drag
Touch and press the item, then move it by dragging it up, down, left or right, without lifting your finger
from the screen.
Zoom in/Zoom Out
Place two fingers on the screen, then pinch them together (zoom out) or spread them apart (zoom in).
P a g e | 31
GXV3240 User Guide
Double Tap
Quickly touch the screen twice with fingertip to switch between default display and zoomed-in display.
This is usually used when viewing photos or web pages.
Use the Desktop
Desktop Menu
When the GXV3240 is on idle screen, press the MENU key to bring up phone's menu. Users can
access the following in the desktop menu:
Figure 10: GXV3240 Desktop Menu
Wallpaper
Select wallpaper from Gallery, Wallpapers or Live Wallpapers.
Preview
Add, delete or edit desktop.
Edit Widget
Add widgets to the desktop by dragging the widget from the bottom menu to the desktop.
Folder
Add folder on the desktop and users can place desktop shortcuts into the folder.
Thread Manager
Manage running applications on the GXV3240. For more details, please refer to section [Manage
Running Applications].
System settings
Access phone's settings such as "Personalized Account", "Wireless & Network", "Sound", "Display",
"Storage", "Application" and etc.
P a g e | 32
GXV3240 User Guide
Add Application Shortcut to Desktop
The shortcut of the applications installed on the GXV3240 can be added to the desktop for users' easy
access. To add shortcut:
1. Tap the on-screen Menu icon to access the applications first.
2. Select and press the application icon for about 2 seconds. The screen will show "Move to Desktop" on
the bottom.
3. Drag the icon to the bottom of the screen. Phone's idle screen will immediately show up for you to place
the shortcut.
Figure 11: Add Application Shortcut to the Desktop
Add Widget to Desktop
The GXV3240 provides widgets like account bar (with different number of accounts supported), clock,
calendar, contacts, Email, MPK, system setting shortcut, weather and etc. Users could conveniently add
those widgets to the desktop as preferred. To add a widget:
1. Press the Menu key and select "Edit Widgets".
2. Different widgets will be displayed on the bottom of the screen.
3. Select and drag the widget to the desired spot to be placed on the desktop. Please make sure there is
enough space on the desktop. Otherwise, the widget won't be added.
P a g e | 33
GXV3240 User Guide
Figure 12: Add Widget to the Desktop
Manage Desktop Items
On the GXV3240 desktop, users could tap on the desktop items to manage shortcuts and widgets. The
following operations can be done:
Tap on the shortcut icon to open the application.
For example, tap on "FileManager" icon to access file manager application.
Tap on the widget to open and edit it.
For example, tap on the digital clock on the desktop. The clock settings will be brought up for users to
set up timer, stop watch or alarm.
Figure 13: Open Clock Widget
Certain widgets such as Calendar, Clock and Bookmark can be resized on the desktop.
To resize a widget, touch and press the widget for about 2 seconds. Then lift your finger from the screen.
This will bring up the blue frame as shown in [Figure 14: Resize Digital Clock Widget]. Touch and drag
the border of the frame to adjust the size.
P a g e | 34
GXV3240 User Guide
Figure 14: Resize Digital Clock Widget
Move the shortcut/widget
To move a shortcut/widget to a different spot on the desktop or to a different idle screen, touch and
press the item for about 2 seconds until a recycle bin icon shows up on the bottom of the screen. Drag
the item up/down/left/right to the destination spot on the screen. Lift your finger once done.
Figure 15: Move Clock Widget
Remove the shortcut/widget
To remove an item from the desktop, touch and press the item for about 2 seconds. A recycle bin icon
will show up on the bottom of the screen. Drag the item to the recycle bin to remove it.
P a g e | 35
GXV3240 User Guide
Figure 16: Remove Clock Widget
Note:
Removing operation only removes the shortcut of the application on the screen. The application itself will
not be uninstalled.
Set Wallpapers
On the GXV3240 desktop, touch and press on an empty spot for about 3 seconds to bring up wallpaper
settings. Or users could press menu key and select "Wallpaper" to set up the wallpaper for the
desktop. Users could select wallpaper from different categories:
Gallery
Open Gallery application and tap on the picture to preview. Touch and drag the blue frame border to
select the area of the picture. Then tap on "OK" to set the selected area of the picture as wallpaper.
Live Wallpapers
Open a list of sample animated wallpapers built-in with the GXV3240. Select the live wallpaper to
preview and then tap on "Set wallpaper".
Wallpapers
Open a list of sample wallpapers built-in with the GXV3240. Select the picture to preview and then tap
on "Set wallpaper".
P a g e | 36
GXV3240 User Guide
Figure 17: GXV3240 Choose Wallpaper
Manage Running Applications
On the GXV3240 desktop, press the Home button for about 2 seconds or select "Thread Manager"
after pressing Menu button .
Figure 18: GXV3240 Recent Applications
Users could use the thread manager to do the following:
Slide the running thread to the left or right to stop the application.
Tap on icon to delete all running threads.
Tap on "Application" softkey to access application menu for advanced management options.
P a g e | 37
GXV3240 User Guide
Idle Screen
Switch Idle Screens
The GXV3240 supports multiple idle screens by sliding the screen horizontally. On the GXV3240 screen,
slightly touch an empty area and slide to the left or right using your finger to switch between different idle
screens.
Set Up Idle Screen
Set home screen
Follow the steps below to set up the HOME screen.
1. GXV3240 is up and running on idle screen.
2. Press the MENU button and tap on "Preview" option. This will zoom out all the screens as
shown in [Figure 19: Set up Home Idle Screen].
3. The screen with displayed is the HOME screen. Others are shown with icon . Tap on the
icon to select the corresponding screen as the new HOME screen.

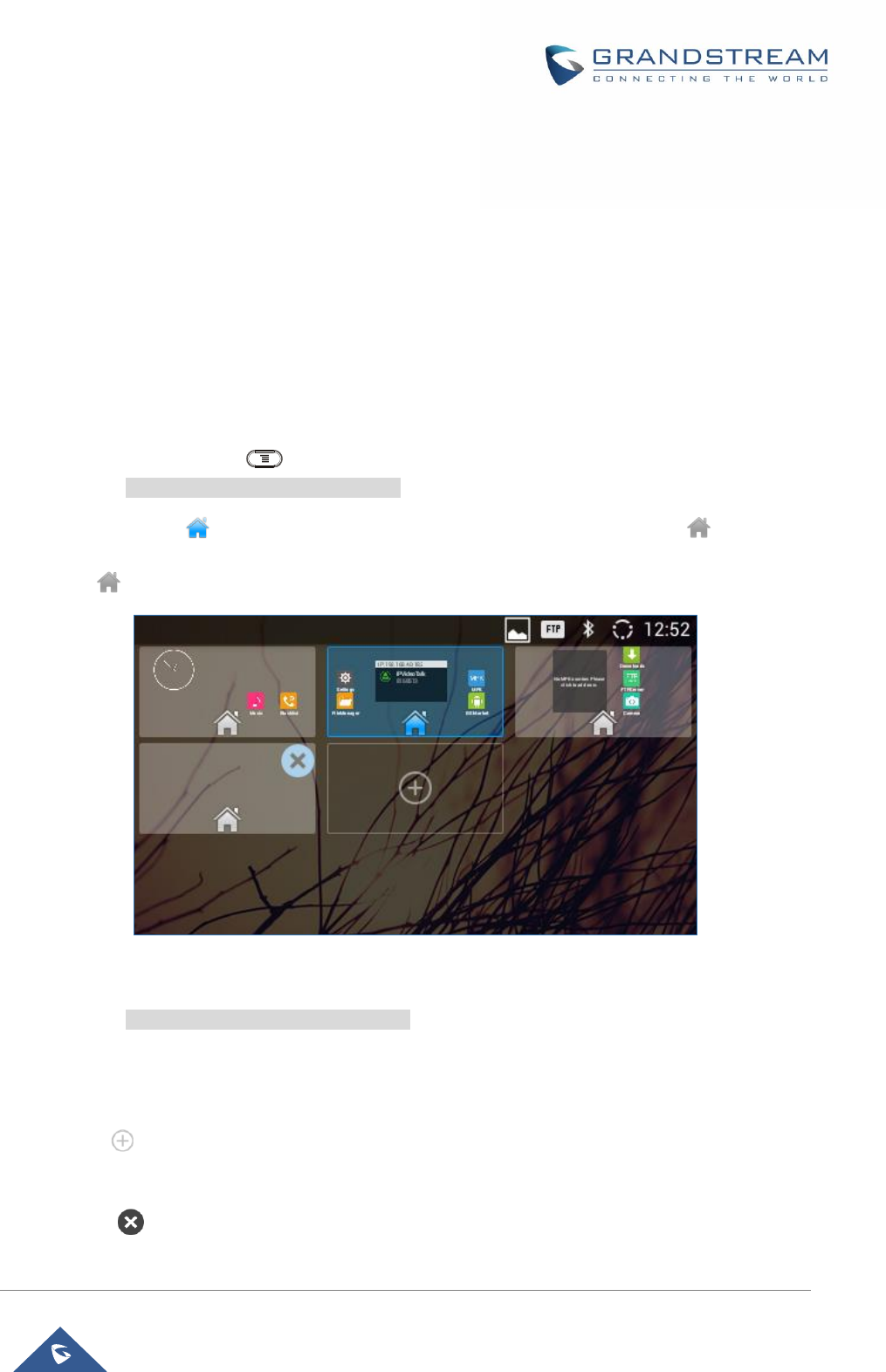

Figure 19: Set up Home Idle Screen
Add/Delete idle screen
As shown in [Figure 19: Set up Home Idle Screen], the screen with the blue frame highlighted is the
current idle screen on the LCD. Users could add or delete idle screen.
Add idle screen.
Tap on to add a new idle screen. Users could add up to 9 idle screens.
Delete idle screen.
Tap on on the top right of the idle screen to delete the idle screen.
P a g e | 38
GXV3240 User Guide
Please make sure the apps, shortcuts or widgets on the idle screen are removed first. Otherwise,
the icon won't show for the idle screen.

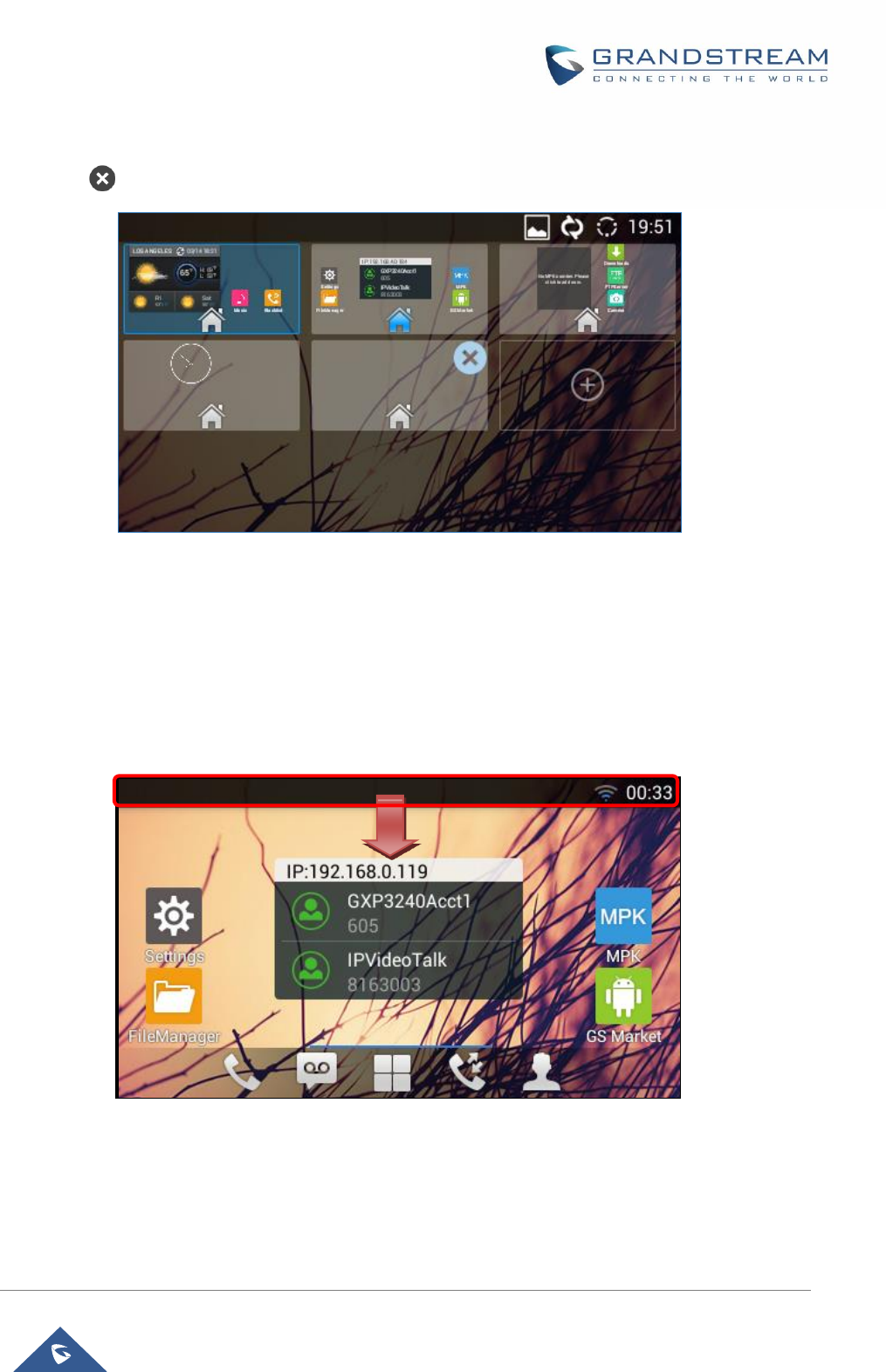

Figure 20: Delete Idle Screen
Use the Status Bar
The status bar on the top of the GXV3240 screen provides visual notifications for the system settings and
status, as well as quick access for important system settings. To access it, on the GXV3240 idle screen,
slowly slide down from the top to the bottom of the screen as the following figure shows.
Figure 21: GXV3240 Top Status Bar
The running process will show up in the list. For example, the following figures indicate the Google Play
app is being downloaded at the moment.
P a g e | 39
GXV3240 User Guide
Figure 22: GXV3240 Top Status Bar – Notification
Tap on the notification message to view the details.
Slide the notification message to left side to remove it.
Notifications in Status Bar
The following table describes the icons used on the status bar for notification purpose.
Table 6: GXV3240 Status Bar Notification Icons
Network connected via Ethernet cable.
Trying to connect to the network via Ethernet cable.
Network disconnected via Ethernet cable.
Handset is off-hook.
Missed call.
One line is active.
Speaker is being used.
RJ9 headset is being used.
RJ9 headset mode is on. All the calls will be using RJ9 headset by
default.
P a g e | 40
GXV3240 User Guide
3.5mm earphone is connected.
3.5mm earphone is being used for calls.
The system has detected the 3.5mm earphone line order.
Wi-Fi is enabled and connected. Signal level: 1.
Wi-Fi is enabled and connected. Signal level: 2.
Wi-Fi is enabled and connected. Signal level: 3.
Wi-Fi is enabled and connected. Signal level: 4.
Onscreen keyboard is activated.
Bluetooth is enabled and connected.
Bluetooth is enabled but not connected.
Bluetooth headset is connected.
Bluetooth headset is being used for calls.
Downloading files via Bluetooth.
Alarm is set up and enabled.
DND is enabled.
Mute is enabled.
Silent mode is enabled. When it's on, the incoming call/message
won't produce ring tone/notification tone from phone's speaker.
SD Card is inserted.
SD Card space full.
P a g e | 41
GXV3240 User Guide
USB flash drive is inserted.
Downloading files via Internet connection.
Updating applications.
Calendar has event scheduled.
Unread voicemail to be retrieved.
Unread Email to be retrieved.
FTP server is running.
Incoming call from blacklist contact.
Camera is disabled.
Contact storage is full.
HDMI cable is connected to display device.
New SMS message to be retrieved.
SMS Message sent failure.
The phone is powered up using PoE.
Call forward is set up for SIP account 1.
Call forward is set up for SIP account 2.
Call forward is set up for SIP account 3.
Call forward is set up for SIP account 4.
Call forward is set up for SIP account 5.
P a g e | 42
GXV3240 User Guide
Call forward is set up for SIP account 6.
More notifications on the status bar.
USB mouse is connected.
Music is playing using music app.
PPPoE is connected.
PPPoE is not connected.
Warning message.
System Settings in Status Bar
Slide down the top status bar and select System Settings. Users will see the following settings.
Figure 23: System Settings in Status Bar
Note:
Handset Mode is for audio path and GXV3240 dialer control when running 3rd party app that uses media path.
Currently there are three options supported:
Enabled: Default mode. When handset is lifted, audio will come through handset and the GXV3240 default
dial screen will show.
Turn on/off LCD display.
Tone on/off on incoming
call/message.
Turn on/off DND. When DND is on, all the calls
to the registered accounts will be blocked.
Turn on/off
Bluetooth.
Scroll left/right to
adjust LCD
brightness.
Select Media
Channel when
playing audio or
video.
Turn on/off
Wi-Fi.
Handset mode. When
set to disabled, handset
offhook in 3rd party app
will not activate dial tone
and phone dialer.
P a g e | 43
GXV3240 User Guide
Disabled: In this mode, when running the 3rd party app, if handset is lifted, the audio path will switch to
handset but GXV3240 default dial screen won't show (users won't hear dial tone either). Onhook the handset,
the audio path will be switched to speaker. Under this mode, even the GXV3240 is not using the 3rd party
application, picking up the handset will not activate the GXV3240 dialer. (Users can still use Speaker button
to activate GXV3240 dialer under this mode.)
Auto: In this mode, the GXV3240 will automatically detect if the audio path is used by 3rd party app first. If
so, it will use the handset mode "Disabled". Otherwise, keep it in "Enabled" mode. Please note that running
the 3rd party app doesn't necessarily mean the audio path is used by the 3rd party app. If the audio path is
not occupied by the 3rd party app, the GXV3240 will still use the handset mode "Enabled".
Use the GXV3240 Keypad
Figure 24: GXV3240 Keyboard
Table 7: GXV3240 Keys
Contacts. Press to view and edit contact information.
Backspace. Press for backspace when entering characters and numbers.
Home. Press to go back to Home screen; or press and hold it for about 2 seconds,
the current running applications and Manage Applications button will show.
Menu. Press to view options for different screen or applications.
Back. Press to go back.
P a g e | 44
GXV3240 User Guide
Headset. Press to switch to headset mode.
Mute. Press to mute or unmute the call.
Hold. Press to put call on hold or resume the call.
Message. Press to view voicemail messages.
Transfer. Press to transfer call.
Conference. Press to conference call.
Speaker.
Send/Redial.
Volume.
Keypad Shortcut Functions
The GXV3240 supports keys shortcuts for certain special system functions.
Screenshot
Press and hold the Menu button for about 3 seconds to capture screenshot. The screenshot can
be accessed via FileManagerInternal StoragePicturesScreenshots. The screenshot picture
size is 480x272 pixels.
Firmware upgrade via SD card
Insert the SD card to the GXV3240. The SD card should have the valid firmware bin file in it. Power
cycle the phone and the MWI LED will light up. Wait until the MWI LED lights off. Then immediately
press both “*” and “3” keys at the same time for about 8 seconds. Release the keys once the MWI LED
lights up again. The phone will start the upgrading process.
Use the Onscreen Keyboard
The GXV3240 onscreen keyboard can be activated by tapping on an input field.
English Keyboard
This is the default keyboard on GXV3240. Touch and press the key on the keyboard for about 2
seconds and it will switch to , which can be used to access input options to switch input methods.
P a g e | 45
GXV3240 User Guide
Figure 25: GXV3240 Onscreen Keyboard - English Keyboard
To switch input between lowercase and uppercase, tap on (lowercase) or (uppercase).
Figure 26: GXV3240 Onscreen Keyboard - Lowercase and Uppercase
Number and symbols
To input number and symbols, tap on the default keyboard to switch to number/symbols. Tap on
to switch back. Tap on to access more symbols.
Figure 27: English Keyboard - Number and Symbols
Tap on to access more symbols.
Note:
To configure keyboard and input options, users could go to SettingsLanguage & Keyboard
Keyboard & Input Methods.
Users could touch and press the key on the keyboard for about 2 seconds to input the alternative
character. For example, touch and press the "+" key for about 2 seconds can get the selection "±".
P a g e | 46
GXV3240 User Guide
Use the Message Waiting Indicator
The GXV3240 message waiting indicator LED is on the upper right corner of the device. It could notify the
users with different messages and status of the phone. Please refer to the status description below. The
priority for the LED indicator is from high to low in the following table.
Table 8: GXV3240 MWI LED Status
Color LED Status Description
Fast Flashing Incoming call
Solid Calling, Talking, Conferencing, Screensaver on when the
LCD is off
Slow Flashing A call is on hold
Flashing Missed call (s), New voicemail (s), New SIP Message (s)
Solid High memory usage, Maximum contact storage
Fast Flashing Upgrading
OFF OFF Normal
P a g e | 47
GXV3240 User Guide
MAKE PHONE CALLS
Register SIP Accounts
The GXV3240 supports up to 6 independent SIP accounts, including a pre-configured IPVideoTalk account
registered on account 6. Users can make video calls and send messages to other IPVideoTalk accounts
registered on another GXV32xx/GXV31xx. Each account can have separate SIP servers, usernames and
NAT configurations.
Account Status
On the idle screen, the account widget shows account name, number and registration status.
The following figure shows the accounts are successfully registered (account icon is green).
If the account icon is grey, it's still trying to register or unable to register.
If the users have enabled Shared Call Appearance on the registered account, the account icon will be
blue .
Microsoft Lync account and Bluetooth handsfree profile account will be displayed here too (if any).
Figure 28: GXV3240 Account Widget
Note: Users may go to web UIMaintenanceNetwork Settings, uncheck “Show IP Address On
Account Widget” to hide the IP address of the phone.
Configure SIP Account
To register SIP account, users could directly configure from phone's LCD menuSettingsAdvanced
SettingsAccount. Or users could log in the GXV3240 web GUIAccount page to fill in the necessary
registration information, i.e., Account active, Account name, SIP Server, SIP User ID, SIP Authentication
ID, SIP Authentication Password, etc.
Once the correct information is entered and saved, the account registration status will show on the main
screen.
Note:
For web GUI login and configuration information, please refer to GXV3240 Administration Guide.
P a g e | 48
GXV3240 User Guide
Once the account is successfully registered, users could use one of the following ways to bring up dial
screen to start making calls.
Take the handset off hook.
Select an account from the account widget in the idle screen.
On the bottom of the idle screen, tap on icon to open dial screen.
Tap on to open "Phone" application which will bring up dial screen.
Press the Speaker button to bring up dial screen and the audio channel will be speaker.
Figure 29: GXV3240 Dial Screen
If Disable Video Call Feature option is enabled, the Video Call option on GXV3240 dial screen will be
hidden.
Figure 30: Disable Video Call Feature on Dial Screen
P a g e | 49
GXV3240 User Guide
Set Programmable Keys on Unregistered Account
GXV3240 allows end users to setup shortcut keys on the phone app. The shortcut keys only allow to take
place the unregistered accounts. From example, if the phone enables the Account 1 and registers it with a
SIP server, end users have to place the shortcut keys on Account 2 to 6.
From Web UI, users can set the shortcut keys under the setting of Account XCall
SettingsProgrammable keys. After setting, the programmable keys can be showed on the account bar in
the phone app. The following screenshot is a speed dial key which takes place the Account 2 position. End
user can tap the key to user Account 1 to dial the number 1001.
Figure 31: GXV3240 Programmable Keys
Dial a Number Directly
1. Use the methods mentioned above to open dial screen [Figure 29: GXV3240 Dial Screen].
2. Select the account to dial out on the left panel of the dial screen. The selected account will be
highlighted in grey background.
3. Enter the digits to be dialed out using the keypad. If the digit matches call history, a dropdown list of
numbers will be displayed for users to select.
4. Tap on (audio call only) or (video call), or (audio call only) to send the
number. If no key is pressed, the call will be automatically dialed out after 4 seconds timeout.
Note:
By default, the "No Key Entry Timeout" is 4 seconds, meaning if no key is pressed after starting entering
number, the call will be automatically sent out after the timeout. The timeout interval can be configured
under web GUIAccountCall Settings.
P a g e | 50
GXV3240 User Guide
GXV3240 allows users to press # key as SEND key. This behavior can be disabled via option "Use #
as Dial Key" under web GUIAccountCall Settings, when this option is disabled, the pound “#” key
can be included as part of the dialed number or it will be used as redial key when the input area has no
number (please make sure the dial plan is properly configured to allow dialing # out).
When the user enters the digit on the dial screen, if there is digit matching call history, or contacts
name/number, the drop-down list will show the numbers. For example, if "John" is saved in the contacts,
entering 5 (JKL) 6 (MNO) 4 (GHI) 6 (MNO) will show call log with 5646 as the first four digits, as well
as John's number. Users could then directly select one of them from the list, instead of entering all the
digits.
Redial
Users can dial out the last dialed number if there is dialed call log, using the same SIP account making the
call last time. There are two ways to redial the last dialed number.
When the phone is idle or off hook, press SEND button to redial.
When the phone is on hook, press SEND button or # button (# key is used as dial key).
Dial a Number via Contacts
Follow the steps below to dial a number via Contacts.
1. Access Contacts by tapping on icon on the bottom of the idle screen, or selecting from
phone's menu.
2. Navigate in the contacts entries by sliding up/down on the screen.
3. Tap on the dial icon for the contact .
Figure 32: GXV3240 View Contacts
P a g e | 51
GXV3240 User Guide
Dial a Number via Call History
1. Access Call History by tapping on icon on the bottom of the idle screen, or selecting from
the phone Menu.
2. The LCD will display all call history types: "All", "Missed", "Outgoing" and "Incoming" calls.
3. Navigate in the call history list by selecting the call history category and sliding up/down on the screen.
4. Tap on the entry to dial out.
Figure 33: GXV3240 Call History
Direct IP Call
Direct IP Call allows two phones to talk to each other in an ad-hoc fashion without a SIP proxy. VoIP calls
can be made between phones if:
Both phones have public IP addresses, Or
Both phones are on the same LAN/VPN using private or public IP addresses, Or
Both phones can be connected through a router using public or private IP addresses (with necessary
port forwarding or DMZ).
The GXV3240 support both IPv4 and IPv6, below description on how to make IP calls via both IPv4 and
IPv6.
IP call via IPv4:
To make a direct IP call, please follow the steps below:
1. Off hook the phone or select account in the idle screen to bring up dial screen on GXV3240.
2. Under "Mode" button in the call screen, tap on it and select the mode as "IP Call".
P a g e | 52
GXV3240 User Guide
3. Input the target IP address. For example, if the target IP address is 192.168.0.116 and the port is 5062
(i.e., 192.168.0.116:5062), input the following:
192*168*0*116#5062. The * key represents the dot (.) and the # key represents the colon (:).
4. Press "SEND" key or tap on (audio call only) / (video call) button to dial
out.
Figure 34: Direct IP Call
IP call via IPv6:
To make a direct IP call via IPv6, please follow the steps below:
1. On the phone web GUI under “Advanced Settings > Call Features” set Display Soft Keyboard to Yes.
Once activated, users could click on the dialing box the soft keyboard will appear to enter the IPv6.
2. Off hook the phone or select account in the idle screen to bring up dial screen on GXV3240.
3. Tap on “Mode” in the call screen, and set it to “IP Call”.
4. Input the target IPv6 address. For example, if the target IPv6 address is fd2f:2f94:8a::1 and the port is
5062, input the following: [fd2f:2f94:8a::1]:5062
5. Press "SEND" key or tap on (audio call only) / (video call) button to dial
out.
P a g e | 53
GXV3240 User Guide
Figure 35: Direct IP Call via IPv6
Note:
The # will represent colon ":" in direct IPv4 call rather than SEND key as in normal phone call.
Port number is not mandatory when making direct IP call.
Users need to activate the first account on the GXV3240 to complete direct IP call.
If you have a SIP server configured, direct IP call still works. If the devices are behind NAT, users might
need configure NAT Traversal before using direct IP call. If you are using STUN, direct IP call will also
use STUN.
The phone needs to configure option "Use Random Ports" to "No" to accept direct IP calls.
In GXV3240 Contacts or MPK, if the phone number or MPK is an IP (both IPv4 and IPv6) address,
direct IP call can be made by dialing this contact or pressing the MPK button.
Answer a Call
Single Incoming Call
When the phone is in idle and there is an incoming audio call, the phone will show the call screen as
below. Tap on "Answer" softkey to answer the call via speaker, or pick up the handset to answer the
call.
P a g e | 54
GXV3240 User Guide
Figure 36: Single Incoming Call - Audio
When the phone is in idle and there is an incoming video call, the phone will show the call screen as
below. To answer the call with audio only, tap on "Audio Answer" to answer the call via speaker, or pick
up the handset. To answer the call with both audio and video, tap on "Video Answer". During video call,
the audio will switch to handset if picking up the handset.
Note: Users could select the Video Display Mode on phone’s Web UIAdvanced SettingsVideo
Settings. Set the video display mode to "Original proportion", "Equal proportional cutting" or
"Proportional add black edge". If set to "Original proportion", the phone displays video in its original
proportion. If the video display proportion is different from the one of the phone, the phone will stretch
or compress video to display it. If set to "Equal proportional cutting", the phone will cut video to meet
its own display proportion. If set to "Proportional add black edge", the phone will display video in its
original proportion, if still exists spare space, the phone will add black edge on it.
Figure 37: Single Incoming Call - Video
P a g e | 55
GXV3240 User Guide
If the phone set the “Preview” feature for the incoming call from Web UI, the phone will display one
more key “Preview” when there is an incoming video call. End users will preview the remote end without
answering the video call. After previewing, end user can tap “Audio Answer” key to answer the audio
call, “Video Answer” key to answer the video call, or “Reject” key to reject it. This feature should be
supported by the SIP server. Please contact service provider for more information.
Figure 38: Single Incoming Call – Preview-1
Figure 39: Single Incoming Call – Preview-2
Note:
Adding new calls during the preview of incoming Video call is not possible. When pressing the “new call”
button, a message will be prompted telling the user that it is inaccessible. See the following screenshot:
P a g e | 56
GXV3240 User Guide
Figure 40: Prompt displayed when pressing new call during preview
If the phone set to “Call Forward”, the phone system will pop up the “Transfer” key on the LCD screen
when there is an incoming call, and users could tap on it to show up the transferring page without
answering the incoming call, then, users could transfer this incoming call to others.
Figure 41: Single Incoming Call - Call Forward-1
Figure 42: Single Incoming Call - Call Forward-2
P a g e | 57
GXV3240 User Guide
Multiple Calls/Call Waiting
1. When there is another incoming call during active call, users will hear a call waiting tone, with the LCD
displaying the caller name and ID for the incoming call in the right panel, the account bar in green is
the ringing line from "Ben"; the account bar in black is the current active call with "John". "3165" is the
callee account name.
Figure 43: Call Waiting
2. Similar to single incoming call, if the incoming call is video call, users can choose "Audio Answer" or
"Video Answer" to answer the call.
3. Once the new call is answered, the current active call will be placed on hold. If the new call is rejected
by tapping on "Reject" softkey, the current active call will not be interrupted.
Call Progress Status
During an active call, if Home Button is pressed, the phone will go back to the home screen and the call-in-
progress status will be shown in the GXV3240 status bar, once clicking the bar it will go back to call screen.
Figure 44: Call Progress Status Bar
P a g e | 58
GXV3240 User Guide
Call Hold
During the active call, press HOLD button to put the call on hold. The LCD screen will show as below.
To resume the call, press HOLD button again.
Figure 45: Call On Hold
Call Recording
1. During the call, users could record the conversation to the phone by tapping on "Options""Start
Recording" on the call screen.
2. Once done, tap on "Options""Stop Recording" or hang up the call.
3. The recording files can be retrieved from the GXV3240 application "Recorder"Call" category.
Figure 46: GXV3240 Call Recording
Note: Users can configure the recording mode via the Web GUIAdvanced SettingsCall
featuresRecord Mode. Three modes are available:
P a g e | 59
GXV3240 User Guide
Record Locally: The phone will use the local tape recorder for call recording, and the audio file will
be saved in accordance with the tape recorder setup.
Record on PortaOne: The phone will send SIP INFO message with “record” header to the server.
Record on UCM: The phone will send the recording feature code to the UCM server to request for
recording and the recording function will be executed by the UCM.
Mute
During an active call, press the Mute button to mute the call. The mute icon will be displayed
in the status bar on the top of the screen. Press the Mute button again to unmute the call.
Figure 47: GXV3240 Call Mute
Note: Mute key could be set to “DND”, “Idle Mute”, and “Permanent Mute” mode while the phone is at idle
state.
Turn on Video during Audio Call
Users could establish audio call first and then turn on video or accept video request during the call if the
other party supports video call as well.
Turn on video during audio call
During an active audio call, on the call screen, tap on "Options" and select "Video On", a video request
will be sent to the other party.
P a g e | 60
GXV3240 User Guide
Figure 48: Turn on Video during Audio Call
Accept video request
Figure 49: Accept Video during Audio Call
If the GXV3240 receives video request during the audio call, a message "Do you want to accept video?"
will be prompted. Select "Yes" to establish video during the call. If the Disable Video Call Feature is
enabled on GXV3240, the “Video On” option on GXV3240 will be hidden during the audio call. However,
if the GXV3240 receives video request during the audio call, users could tap to accept the video request.
Call Details during Call
During an active audio/video call, on the call screen, tap on "Options" and select "Call Details".
P a g e | 61
GXV3240 User Guide
Figure 50: Select Call Details During Video Call
The call details for RTCP info report will be displayed as shown below.
Figure 51: Call Details
Switch Audio Channel during Call
The GXV3240 allows users to switch among handset, speaker or headset (RJ9 headset, Plantronics
EHS headset and Bluetooth headset) when making calls. Press the Hook Switch to switch to handset;
press the Headset button to switch to headset; press the Speaker button to switch to
speaker; or slide down the “System Settings” menu on talk screen, and press icon to switch to
Bluetooth headset.
If Bluetooth headset is connected, the audio will be automatically switched to Bluetooth headset once
the call is established.
P a g e | 62
GXV3240 User Guide
The status bar on the top or the screen shows the current audio channel being used during the call. If
pressing the corresponding key for the currently used audio channel, the call will be hang up.
Figure 52: Switch Audio Channel during Call 1
Figure 53: Switch Audio Channel during Call 2
Call Transfer
A call can be transferred to another party during the call. The GXV3240 supports blind transfer and attended
transfer.
Blind Transfer
1. During the active call, press TRANSFER button to bring up the transfer screen;
2. Select transfer mode as "Blind" by tapping on the highlight button in the figure below. The default
transfer mode is "Blind";
P a g e | 63
GXV3240 User Guide
3. Enter the transfer target number and then press the "Send" soft key on the right;
4. The call will be transferred and GXV3240 will hang up the call.
Figure 54: Blind Transfer
Note:
If wrong digits are entered, tap on to delete the digit one by one;
If users would like to cancel the transfer, press button to go back to the previous talking
screen.
Attended Transfer
GXV3240 supports attended transfer:
1. During the active call, press TRANSFER button to bring up the transfer screen;
2. Select transfer mode as "Attended" by tapping on the mode selection bar (see figure below);
Figure 55: Attended Transfer
P a g e | 64
GXV3240 User Guide
3. Enter the transfer target number, and then press the "Send" soft key on the right.
4. Before transfer target answers the call, GXV3240 hears the ringback tone, and the touch screen
prompts shown as below. Users could tap on "Cancel" to cancel the transfer, tap on “End” or simply
hang up the call to complete call transfer.
Figure 56: Attended Transfer - Transferring
5. After transfer target answers the call, the following screen will be shown up. If the user simply hangs
up, taps on “End” or taps on the "Transfer" soft key, the call wil be transferred, and GXV3240 will hang
up the call. If the user taps on "Split" soft key to separate the calls, the user will talk to the second
established call while the first call is on hold.
Figure 57: Attended Transfer - Split
6. Besides attended transfers above, users could also consult the third party first before transferring the
call.
7. During the active call, tap on the right panel to make the second call. This will place the
current call on hold;
8. The second call establishes after the call is answered;
P a g e | 65
GXV3240 User Guide
9. Press TRANSFER button to bring up transfer screen. The other call on hold will be displayed
such as ;
10. Select transfer mode as "Attended" in the transfer screen and tap on button such as to
transfer the call;
11. The call will be transferred, and GXV3240 will hang up the call.
Figure 58: Transfer list screen
Note:
To transfer calls across SIP domains, SIP service providers must support transfer across SIP domains;
If users would like to cancel the transfer, press button to go back to the previous talking screen.
6-Way Conference
The GXV3240 supports up to 6-way audio conferencing.
Initiate Conference
1. When the phone is in idle, call screen, or during an active call, press CONFERENCE button to
bring up conference screen; users could also press CONF button in call screen right after off hook the
phone;
2. Tap on to start adding party in conference;
P a g e | 66
GXV3240 User Guide
Figure 59: GXV3240 Conference Screen
3. Enter the number of the party and tap on "Audio Call" / “Video Call” to add it to the conference, or click
on “Contacts” to select a number from the local phonebook contacts.
Figure 60: GXV3240 Conference - Add New Call to the Conference
If there are calls on hold, they will show up when adding member to the conference. Users could then
tap on the call to add it to the conference directly.
P a g e | 67
GXV3240 User Guide
Figure 61: GXV3240 Conference - Add Existing Call to Conference
4. Repeat the above steps to add more parties into the conference. The following figure shows a 4-way
conference established.
Figure 62: 4-way Conference Call Established
Remove Party from Conference
To remove a party from the conference, tap on the right top corner for the corresponding party. This
party will be disconnected from the conference.
P a g e | 68
GXV3240 User Guide
End Conference
To end the conference, tap on to disconnect all the parties from the conference. GXV3240 will hang
up the call. If the remote party hangs up the call itself, it will be disconnected from the conference but other
parties on GXV3240 will stay in the existed conference.
Hold and Resume Conference
During the conference, users could press the HOLD button to hold or resume the conference at any
time.
Auto Conference Mode
The GXV3240 also supports "Auto Conference" which allows users to establish conference call in a quick
and easy way, instead of adding the other parties one by one. To enable Auto Conference feature, go to
web GUIAdvanced SettingsCall Features and set "Auto Conference" to "Yes". To esablish call with
auto conference when there are 1 or more calls on the GXV3240, simply press the conference button
and all the calls on GXV3240 will be brought into the conference.
Note:
During the conference, if the initiator of the conference hangs up, the conference will end. If users wish
to allow the remaining parties to stay in conversation after the initiator hangs up, the conference initiator
should set "Transfer on 3-way Conference Hang up" to "Yes" in web GUIAccount pageCall
Settings. This would allow the remaining parties to stay in the conference after the initiator exists the
conference.
Missed Call
When there is a missed call, the LCD will show missed call dialog on the idle screen.
Figure 63: Missed Call Screen
P a g e | 69
GXV3240 User Guide
Users can tap on the one of missed call entry to access the missed call log. To close the missed call screen
and return to the idle screen, tap on the upper right.
Note: Users may also disable the prompt for missed calls on web UI. Users may go to web UI
AccountCall SettingsCall Log, users need to choose “Don’t Prompt Missed Call” to disable the
prompt for missed call logs.
DND (Do Not Disturb)
When DND is on, the incoming calls to the GXV3240 will be blocked for all registered accounts with a
reminder ring produced.
To turn on/off DND:
1. Touch and drag the status bar down on the GXV3240 idle screen. Then tap on "System Settings".
2. Tap on the DND icon to turn it on. The status bar shows icon indicating DND is on.
3. Tap on the DND icon to turn if off.
Figure 64: Enable/Disable DND
Note:
When the phone is in an active call, turning on/off DND won't affect the current active call. It will take
effect starting from the next incoming call.
When the DND is on, all the incoming call logs will be saved in Blacklist. They won't be saved in Call
History.
Voicemail/Message Waiting Indication
When there is a new voicemail, the Message Waiting Indication (MWI) LED icon will blink in red on the
upper right corner of the GXV3240 and will show up in the status bar.
P a g e | 70
GXV3240 User Guide
To retrieve the voicemail:
1. Press the Message button and voicemail screen will show up, with all the registered accounts
and the number of voicemails displayed.
2. Tap on the account to dial into the voicemail box. Then follow the Interactive Voice Response (IVR) for
the message retrieval process.
Figure 65: Retrieve Voicemail
For each account, the Voicemail User ID can be set up under web GUIAccount XGeneral Settings:
"Voice Mail UserID". This is the number that will be dialed out to access voicemail message when tapping
on the account in Voice Mail screen.
Call Forward
Call forward feature can be set up from GXV3240 LCD or web GUI.
From LCD
Go to onscreen MenuSettingsPersonalized AccountSelect account name and tap on Call
Forwarding to activate the feature. Then a list of options will show. Select the option to configure the
call forward type (None, Unconditional, Time Based, Others) and then enter necessary number in the
fields.
P a g e | 71
GXV3240 User Guide
Figure 66: Call Forward when DND
From Web GUI
Log in GXV3240 web GUI and go to Account pageCall Settings. By default, Call Forward feature
is set to "None". The Call Forward feature options are:
Unconditional Forward: All the incoming calls will be forwarded to the number set up in "All To"
field.
Figure 67: Call Forward - Unconditional
Time Based Forward: All the incoming calls will be forwarded to the number as schedule in the
time period. During the setup time, the call will be forwarded to the number in "In Time Forward To:"
field. Other period the call will be forwarded to the number in "Out Time Forward To:" field.
Figure 68: Call Forward - Time Based
P a g e | 72
GXV3240 User Guide
Call Forward on Busy / Call Forward No Answer /Call forward when DND: The incoming call
will be forwarded when the GXV3240 is busy or no answer after certain interval "Delayed Call
Forward Wait Time (s)" or if the phone is set to DND mode.
Figure 69: Call Forward - Busy/No Answer/DND
Multi-Purpose Keys
The GXV3240 supports multi-purpose keys (MPK) without extension board (GXP2200EXT) by downloading
MPK app from GS Market. After downloading the MPK app, users could configure the MPK from MPK
settings via LCD MenuMPK app , or via web GUIAdvanced SettingsMPK LCD Settings.
To configure MPK via MPK app on the GXV3240:
1. Download MPK app from GS Market and install it to the GXV3240.
2. Open the MPK app. Tap on the upper right of the app and then tap on to start adding MPK
numbers.
3. Select desired mode from Key mode dropdown list (Speed dial, Call transfer, Intercom, Dial prefix,
etc …)
P a g e | 73
GXV3240 User Guide
Figure 70: GXV3240 MPK APP - Add Number
4. For the number list, users could manually enter it or select number from Contacts to add it.
Figure 71: GXV3240 MPK APP - Add Number from Contacts
5. The added number will show in the list as the figure shows below.
Figure 72: GXV3240 MPK APP - Number List
P a g e | 74
GXV3240 User Guide
Shared Call Appearance (SCA)
The GXV3240 supports shared call appearance by Broadsoft standard. This feature allows members of the
SCA group to share SIP lines and provides status monitoring (idle, active, progressing, hold) of the shared
lines. When there is an incoming call designated for the SCA group, all of the members of the group will be
notified of an incoming call and will be able to answer the call from the phone with the SCA extension
registered.
All the users that belong to the same SCA group will be notified by visual indicator when a user seizes the
line and places an outgoing call, and all the users of this group will not be able to seize the line until the line
goes back to an idle state or when the call is placed on hold (with the exception of when multiple call
appearances are enabled on the server side). In the middle of the conversation, there are two types of hold:
Public Hold and Private Hold. When a member of the group places the call on public hold, the other users
of the SCA group will be notified of this by the yellow-flashing button and they will be able to resume the
call from their phone by pressing the line button. However, if this call is placed on private-hold, no other
member of the SCA group will be able to resume that call. To enable shared call appearance, the user
would need to register the shared line account on the phone. In addition, they would need to enable SCA
and configure SCA options via LCD or web GUI.
To configure SCA via LCD, go to SettingsPersonalized Account and select one account first. Then tap
on "Shared Call Appearance (SCA)" to turn it on.
Figure 73: GXV3240 SCA Settings on LCD
To configure SCA via web GUI, go to Account pageSIP Settings to fill out the options in the following
figure.
P a g e | 75
GXV3240 User Guide
Figure 74: GXV3240 SCA Settings on Web UI
For more information about SCA configuration and function, please refer to the link below:
http://www.grandstream.com/sites/default/files/Resources/GXV32xx_broadworks_SCA_Guide_0.pdf
Call Features
The GXV3240 supports traditional and advanced telephony features including caller ID, caller ID with caller
Name, call waiting, call forward and etc. Before using the following feature code, please make sure "Enable
Call Features" option is set to "Yes" under web GUIAccount pageCall Settings.
Table 9: GXV3240 Feature Code
*01
Use Preferred Codec (per call)
Dial *01 followed by the preferred codec code and the phone number.
The phone will try to use this codec during the call.
Codec code:
PCMU: 7110
PCMA: 7111
G726-32: 72632
G722: 722
G729: 729
iLBC: 7201
For example, if the user would like to use PCMA as the preferred codec to call
phone number 334455, enter *017111334455.
P a g e | 76
GXV3240 User Guide
*02
Force Codec (per call)
Dial *02 followed by the preferred codec code and the phone number.
The phone will be forced to use this codec during the call.
Codec code:
PCMU: 7110
PCMA: 7111
G726-32: 72632
G722: 722
G729: 729
iLBC: 7201
For example, if the user would like to use PCMA to call phone number 334455,
enter *017111334455.
*30
Block Caller ID (for all subsequent calls)
Dial *30.
*31
Send Caller ID (for all subsequent calls)
Dial *31.
*50 Disable Call Waiting
Dial *50.
*51 Enable Call Waiting
Dial *51.
*67
Block Caller ID (per call)
Dial *67 followed by the phone number.
*82
Send Caller ID (per call)
Dial *82 followed by the phone number.
*70 Disable Call Waiting (per Call)
Dial *70 followed by the phone number.
*71 Enable Call Waiting (per Call)
Dial *71 followed by the phone number.
*72 Unconditional Call Forward. To set up unconditional call forward:
Dial *72 followed by the phone number to forward the call.
P a g e | 77
GXV3240 User Guide
*73 Cancel Unconditional Call Forward. To cancel the unconditional call forward:
Dial *73.
*74
Paging Call
Dial *74 followed by the phone number to send the paging call.
*83
Force Audio Calling (per call)
Dial *83 followed by the phone number to send the audio call.
*84 Force Video Calling (per call)
Dial *84 followed by the phone number to send the video call.
*90 Busy Call Forward. To set up busy call forward:
Dial *90 followed by the phone number to forward the call.
*91
Cancel Busy Call Forward. To cancel the busy call forward:
Dial *91.
*92
Delayed Call Forward. To set up delayed call forward:
Dial *92 followed by the number to forward the call. The default timeout
before the call is forwarded is 20 seconds.
*93 Cancel Delayed Call Forward. To cancel the delayed call forward:
Dial *93.
P a g e | 78
GXV3240 User Guide
CONTACTS
Users can manage contacts by adding, deleting and modifying single contacts, downloading contacts from
HTTP/HTTPS/TFTP server, importing contacts from external storage and exporting contacts to external
storage.
There are three ways to access GXV3240 contacts:
On the keypad, press button.
On the phone's idle screen or menu, open Contacts app by tapping on icon .
On the phone’s idle screen or menu screen, tap on icon on the bottom of the screen.
The following figure shows main page of Contacts on the GXV3240.
Figure 75: GXV3240 Contacts
Tap the icon to access the main page of Contacts. The LDAP Contacts includes the contacts in specific
LDAP server, and BS Contacts includes the BroadWorks Xsi Contacts. They need to be configured with
the remote LDAP server or BroadWorks server to enable these features.
Note: Users could set the “Phonebook Key Function” on phone’s Web UIMaintenanceContacts.
Users could set the phonebook key to “Default”, “LDAP Search”, “Local Phonebook”, “Local Group”,
and “BroadSoft Phonebook”.
Local Contacts
Users can manage contacts by adding, deleting and modifying single contacts, downloading contacts from
HTTP/HTTPS/TFTP server, importing contacts from external storage and exporting contacts to external
storage.
P a g e | 79
GXV3240 User Guide
Figure 76: GXV3240 Local Contacts
On the upper left of the Contacts screen, users can tap on the icon to access three different categories in
the contacts:
All contacts.
Favorite Contacts
Groups
Add Single Contacts
1. Tap on to access all contacts.
2. Tap on to bring up "New Contact" dialog to manually add a new contact. See [Figure 77: GXV3240
Contacts - Add New Contact].
3. Enter First name, Last name, Phone number and other information for the new contact. Please make
sure the account number field is selected so the GXV3240 will use this account to dial out the new
contact. The account number field is located on the left of the "Phone" filed as highlighted below.
Figure 77: GXV3240 Contacts - Add New Contact
P a g e | 80
GXV3240 User Guide
Note: When typing a number using dial pad, “Add to contacts” button will appear as displayed on following
picture, to add a new entry to your contacts list if the input number does not match any entry in your contacts.
Figure 78: Add contacts from DialPad
Import/Export Contacts
If the users have the GXV3240 phonebook file saved in local storage or external storage device that has
been plugged into the GXV3240, the phonebook file can be directly imported to the Contacts. There are
three different formats supported for the phonebook file: "csv", "vcard", and "xml". Users could manually
create contacts first and export the phonebook file in csv, vcard or xml format to take a look on the
phonebook file.
To import contacts:
1. Open Contacts.
2. Tap on the upper right of the Contacts screen.
3. Select "Import" to bring up "Import Contacts" dialog.
Figure 79: GXV3240 Contacts - Import Contacts
P a g e | 81
GXV3240 User Guide
4. Fill in the import options and scroll down to the bottom of the screen.
5. Tap on "Select the file" to import phonebook file from the directory in internal or external storage device.
To export contacts:
1. Open Contacts.
2. Tap on on the upper right of the Contacts screen.
3. Select "Export" to bring up "Export Contacts" dialog.
Figure 80: GXV3240 Contacts - Export Contacts
4. Select the file encoding and file type for the exported phonebook file. By default, the GXV3240 is using
"UTF-8" as the encoding method.
5. Tap on "Choose Directory" and select the directory where the phonebook file will be exported to.
Download Contacts
The GXV3240 supports downloading XML phonebook from a remote HTTP/HTTPS/TFTP server to local
Contacts. When downloading the phonebook, the GXV3240 sends request to the HTTP/HTTPS/TFTP
server looking for file phonebook.xml. For more details about GXV3240 phonebook, please refer to the
following link:
http://www.grandstream.com/sites/default/files/Resources/gxv3240_xml_phonebook_guide_1.pdf
To download phonebook:
1. Make sure the GXV3240 can connect to the HTTP/HTTPS/TFTP server and the phonebook.xml file in
correct format is downloadable from the HTTP/HTTPS/TFTP server.
2. Open Contacts.
3. Tap on the upper right of the Contacts screen.
4. Select "Download" to bring up the "Download Contacts" dialog.
P a g e | 82
GXV3240 User Guide
Figure 81: GXV3240 Contacts - Download Contacts
5. Fill in the necessary options and then tap on "Download Now". The GXV3240 will send out request to
the configured HTTP/TFTP server.
Search Contacts
1. Open Contacts.
2. Select or to open the contact list where you would like to search.
3. Tap on the upper right to bring up search dialog.
4. Enter contact's name or number to search. The search result will be automatically updated and
displayed when entering the key words.
Use Contacts
Once the contacts are added, users could navigate in the contacts list to make a call, send message
and manage the contacts furthermore.
Make a Call to Contacts
Scroll up/down to find the contact in the list and tap on to call this contact.
Send SMS Message to Contacts
Scroll up/down to find the contact in the list and tap on to call this contact.
Select Contacts
1. Scroll up/down to find the contact in the list.
P a g e | 83
GXV3240 User Guide
2. Touching and pressing on the contact for about 2 seconds until the checkbox shows up.
3. Tap on the checkbox for the contacts to be selected. indicates the contact is selected.
Figure 82: GXV3240 Contacts - Select Contacts
Add Contacts to Favorites
1. Select the contact to be added as described in [Select Contacts].
2. Tap on and select "Add to favourites".
Figure 83: GXV3240 Contacts - Contacts Options
There are another 2 methods to add contacts to favorites.
When adding or editing single contact, tap on to add the contact to favorite, or
Tap on to navigate to favorite category. Then tap on to select the contacts to be added to
favorites.
P a g e | 84
GXV3240 User Guide
Figure 84: Add Contacts to Favorites
Edit Contacts
1. Select the contact as described in [Select Contacts].
2. Tap on to edit the contacts.
Send Contacts to Desktop Shortcut
1. Select the contact as described in [Select Contacts].
2. Tap on and select "Send to desktop". A shortcut for this contact will be created on the idle screen
for the users to access.
Share Contacts via Bluetooth
1. Select the contact as described in [Select Contacts].
2. Tap on and select "Send". Users will be able to send this contact to the connected Bluetooth
device with the GXV3240.
Add Contacts to Blacklist
1. Select the contact as described in [Select Contacts].
2. Tap on and select "Add to Blacklist".
Add Group
Open Contacts and tap on to access group. To add a new group, tap on and select the
existing contacts to the group.
P a g e | 85
GXV3240 User Guide
Figure 85: GXV3240 Contacts - Add New Group
Note:
Users could also select group for the contact when adding or editing the contact.
Ringtone can be assigned in group as well as single contact. If the group has ringtone set to "Custom
Ringtone", this ringtone has the highest priority when there is an incoming call to the contact.
Contacts Storage Status
The GXV3240 default maximum contacts storage is up to 1000. To check contact storage status, tap on
to bring up contacts options and select "Storage Status".
Figure 86: GXV3240 Contacts – Contact Options
P a g e | 86
GXV3240 User Guide
Figure 87: GXV3240 Contacts - Storage Status
Note: Users could increase the number of maximum contacts storage to more than 1000 contacts on GXV3240.
Users may access the phone through telnet, and change the P value P1688 to another number (<=10000) to
increase the default contacts storage. In this case, if users increase this default P value, the phone resource will
be cost, and the phone performance will be slower.
Add Account to Sync Up Contacts
On the GXV3240, users could add 3rd party application account (e.g., Gmail, Microsoft Lync, Skype, and
etc.) so that the contacts there could be added to the GXV3240.
To add 3rd party application account:
1. Make sure the 3rd party application is installed successfully. For example, install Skype from GS market
if you would like to add Skype account's contacts to the GXV3240.
2. Open contacts.
3. Tap on to bring up contacts options and select "Account".
Figure 88: GXV3240 Contacts Options- Account
P a g e | 87
GXV3240 User Guide
4. An installation wizard will guide the user to set up the account to sync the contacts step by step. Tap
on "Add account" if there is no logged-in account set up on the GXV3240 yet.
5. The following figures describe adding a Google account for sync-up purpose. Tap on "Google" to add
a Google account.
Figure 89: Add Account to Sync up in Contacts
6. Follow the wizard and select "Existing" or "New" for the Google account.
Figure 90: Add Google Account to Sync up in Contacts
If users select "Existing", sign in with the Email address and password to complete the setup.
P a g e | 88
GXV3240 User Guide
Figure 91: Sign in Google Account
P a g e | 89
GXV3240 User Guide
LDAP PHONEBOOK
In addition to local contacts, the GXV3240 also supports LDAP and LDAPS phonebook if LDAP or LDAPS
server is available within the network. Please refer to the following link for more details about how to use
LDAP phonebook on the GXV3275, same configuration should be done on GXV3240:
http://www.grandstream.com/sites/default/files/Resources/gxv3275_ldap_book_guide.pdf
P a g e | 90
GXV3240 User Guide
BROADWORKS XSI CONTACTS
Besides the Local and LDAP phonebook, the GXV3240 also supports BroadWorks Xsi contacts if
BroadWorks XSP server is available within the network. Please refer to the following link for more details
about how to use BroadWorks Xsi Contacts on the GXV3240:
http://www.grandstream.com/sites/default/files/Resources/GXV_XSI_Guide.pdf
P a g e | 91
GXV3240 User Guide
BLACKLIST
The GXV3240 has blacklist support for users to manage incoming calls. To access blacklist, tap on icon
in the phone's menu.
Block History
Open blacklist and tap on to view the block history. It shows the detailed information for the blocked
calls: caller number, caller name and calling time.
Restore Blocked Number
The blocked number in the block history can be restored to call history and the number will be removed
from blacklist. To do this:
1. In the block history, touch and press the entry for about 2 seconds until checkbox displays.
2. Tap on the checkbox for the entries to be selected. indicates the entry is selected.
3. Tap on and select "Restore to Call History".
Figure 92: Restore Blocked Number
4. A dialog will pop up for users to confirm. Tap on OK to restore this number to call history and the number
will be removed from blacklist.
P a g e | 92
GXV3240 User Guide
Delete Block History
1. In the block history, touch and press the entry for about 2 seconds until checkbox displays.
2. Tap on the checkbox for the entries to be selected. indicates the entry is selected.
3. Tap on to delete the selected entries.
Users could also tap on directly to clear all block history logs.
Edit Blacklist
Tap on and users will see all the blacklist numbers.
Add Blacklist
1. Tap on to start adding new entry to the blacklist. The blacklist can be added manually, add from
contacts, or added from call history.
Figure 93: GXV3240 Blacklist - Add Blacklist
2. The following figure shows manually adding number to blacklist. Once Manually add option is selected,
a window will be prompted for users to enter the phone number in the first field and name/other note
information in the second field (optional). Tap on Save to finish the adding operation.
P a g e | 93
GXV3240 User Guide
Figure 94: Manually Add Number to Blacklist
Edit Blacklist
1. In the blacklist, touch and press the entry for about 2 seconds until checkbox displays.
2. Tap on to edit the blacklist.
3. Tap on OK once done.
Figure 95: Edit Entry from Blacklist
Delete Blacklist
1. In the blacklist, touch and press the entry for about 2 seconds until checkbox displays.
2. Tap on the checkbox for the entries to be selected. indicates the entry is selected.
3. Tap on to delete the selected entries.
P a g e | 94
GXV3240 User Guide
Blacklist Settings
Tap on to access blacklist settings.
DND Mode: Turn on/off DND mode. If turned on, all incoming calls will be rejected.
Block Mode: Turn on/off Block Mode. If turned on, the Block Options will be activated so that the
specific incoming calls will be blocked as defined in Block Options.
Block Options: Select Block All, Block Blacklist Only, Block Anonymous or Block Anonymous
And Blacklist. The option is valid only when Block Mode is on;
Block Notification: Turn on/off Block Notification. If turned on, the block icon will be displayed in
the status bar after the phone blocks incoming calls. Users could touch and drag the status bar and tap
on the block notification to view details.
Time Settings: Set up the block schedule. Select Block 24 Hours or Modify Time by specifying the
Starting Time and Ending Time.
Figure 96: Blacklist Settings
P a g e | 95
GXV3240 User Guide
CALL HISTORY
GXV3240 Call history provides users access to phone's call logs in different categories. Call history can be
accessed in the following two ways:
Tap on phone's menu or idle screen if call history shortcut is created on the desktop, or
Tap on the bottom of the idle screen or menu screen.
GXV3240 supports local and BroadWorks Xsi call history.
The following figure shows main page of Call History on the GXV3240.
Figure 97: GXV3240 Call History
Local Call History
Tap the icon to enter the local call history.
Figure 98: GXV3240 Call History
P a g e | 96
GXV3240 User Guide
There are four different categories in the call history. Users could tap on the icon on the top menu to access
the corresponding call logs:
All calls
Answered calls
Dialed calls
Missed calls
Dial Out from Call History
Tap on one of the call history entry to call this number directly. The phone will use the same account as the
call log when dialing out.
Call History Options
Touch and press the call history entry for about 2 seconds until the checkbox displays.
Then tap on to bring up the options. Users can edit this number before calling, add this number
to contacts, add this number to balcklist and send text message to this number.
Figure 99: GXV3240 Call History – Options
Delete Call History
Touch and press the call history entry for about 2 seconds until the checkbox displays.
Tap on the checkbox to select the call history entries. The icon turned to indicates the entry is
selected.
P a g e | 97
GXV3240 User Guide
Tap on to delete the entries.
Call History Details
For each call history entry, users could tap on on the right side of the entry to access the details.
Figure 100: GXV3240 Call History - Details
The following operations could be done:
Dial out this number directly.
Bring up dial screen with the call history number. Users could edit the number before
dialing out.
Delete the entry.
Options "Clear all", "Add to Contacts", "Add to Blacklist", or "Send Text Message" for
the number in this entry.
Broadworks XSI Call History
Besides the Local Call History, the GXV3240 also supports BroadWorks Xsi call history if BroadWorks XSP
server is available within the network. Please refer to the following link for more details about how to use
BroadWorks Xsi Call History on the GXV3240:
http://www.grandstream.com/sites/default/files/Resources/GXV_XSI_Guide.pdf
P a g e | 98
GXV3240 User Guide
SMS
The GXV3240 has built-in SMS application to send/receive message, if the SIP server supports SMS
message.
Users can create, edit draft, delete and check the storage status of SMS. The SMS app supports up to 1000
messages. Tap on on the phone's menu or desktop to launch SMS application.
Figure 101: GXV3240 SMS Message
View SMS
On the SMS list screen, tap on one of the message to view the SMS details.
Figure 102: View SMS Dialog
P a g e | 99
GXV3240 User Guide
Create New SMS
Tap on in SMS application to start composing a new message.
Figure 103: Create New Message
1. Select account to send the message from. (Note: Only registered accounts will be shown on the
selection drop-down list, if you cannot find your account then make sure it’s registered).
2. Select the account to send the SMS message in the drop-down box on the right side of the top menu.
3. Add number to send the message to.
4. Enter the number of the contact to send the message to on the left side of the top menu. Users could
also select contact from GXV3240 Contacts by tapping on Select the account to send the SMS
message in the drop-down box on the right side of the top menu.
5. Input content: Enter the message content on the bottom field of the screen. Tap on "Done" once finished.
6. Send message: Tap on the arrow icon when you are ready to send the message out.
Delete SMS
1. Touch and press one SMS message for about 2 seconds until the checkbox shows.
2. Select the checkbox for the messages to be deleted. Users could also tap on to
select/unselect all message.
3. Tap on to delete the selected messages.
P a g e | 100
GXV3240 User Guide
CALENDAR
In Calendar application, users could synchronize events from Google account as well as create, modify and
view the events. The GXV3240 also provides notification for the upcoming events from the Calendar. Tap
on to launch Calendar application.
Sign in Calendar
While launching the Calendar application for the first time, the users will be required to sign in with a Google
account.
Figure 104: Sign In Calendar with Google Account
View Calendar
Once signed in, tap on the upper left softkey in the Calendar application to select different format to view
the calendar. Users can select "Day" "Week" "Month" or "Agenda" from there.
Figure 105: View Calendar
P a g e | 101
GXV3240 User Guide
When viewing the calendar by month, the blue mark on the date indicates there is event scheduled on that
day. Tapping on it can view the scheduled event.
Figure 106: View Calendar by Month
Figure 107: View Calendar by Day
Create Event
1. Tap on a date in the Calendar application to bring up the event list for that day.
2. On the upper right, tap on to create a new event.
Figure 108: Create Event
P a g e | 102
GXV3240 User Guide
Calendar Options
In the Calendar application, press MENU button to bring up calendar options. Users could refresh
calendar, search events and synchronize calendar with Google account by tapping on "Settings".
P a g e | 103
GXV3240 User Guide
EMAIL
GXV3240 provides built-in Email application for users to access personal or business Email account. Tap
on to launch Email application.
Sign in Email
When launching the Email application for the first time, a wizard will be provided for users to set up the
Email account step by step.
Figure 109: Sign in Email
1. Enter the Email address and Password.
2. Tap on "Next" for quick setup, or tap on "Manual setup" to manually configure more options.
3. If "Manual setup" is selected in step 2, users will need to choose the account type "POP3" "IMAP" or
"EXCHANGE" depending on the type of your Email account.
Figure 110: Select Email Account Type
P a g e | 104
GXV3240 User Guide
POP3 setup. When using POP3, the sent Emails are stored locally instead of the server side.
Please check with your network administrators for the correct Email account settings for POP3.
Figure 111: Email Account Type - POP3
IMAP setup. When using IMAP, the Emails stay on the server side and users can see them from
other devices as well. Please check with your network administrators for the correct Email account
settings for IMAP.
Figure 112: Email Account Type - IMAP
EXCHANGE setup. When using EXCHANGE, all Emails are stored in the central Exchange mail
server and can be checked using capable mail client such as Microsoft Outlook. Please check with
your network administrators for the correct Email account settings for EXCHANGE.
P a g e | 105
GXV3240 User Guide
Figure 113: Email Account Type - EXCHANGE
4. If "Next" is selected in step 2, users will see the following default account settings. Tap on "Next" again.
Figure 114: Email Account Settings
5. Set up "Your name" to be displayed on the outgoing messages and tap on "Next" again. Users should
be able to start using the Email account now.
Email Options
Send Email
Tap on to compose and send an Email.
Search Email
Tap on to search Email.
P a g e | 106
GXV3240 User Guide
Email Folders
Tap on to open up folders.
Multiple Email Accounts
Users could also add more than one Email account on the GXV3240. To do this, go to phone's
Settings—>Accounts, tap on "Add account" and select "Email". A new Email account setup wizard will
show up for users to add the Email account.
Once another Email account is successfully added, users could tap on the account Email address on the
upper left to switch between the Email accounts.
Figure 115: Multiple Email Accounts
P a g e | 107
GXV3240 User Guide
GS MARKET
The GXV3240 supports extensive amount of 3rd party Android applications. Users could install those
applications from the built-in GS Market. If Google Play application is installed from GS market, users could
log in and download all kinds of applications there as well.
Tap on at the phone's menu or desktop to launch the GS Market. Users could browse, search,
download and install the apps from there for tools, games and other applications.
View APPS
Open GS market and there are four different categories "HOT", "APP", "GAME" and "TOOLS". In the
displayed applications, tap on one of the application and users will be able to see the details such as
descriptions, publish date, version, rate, comments and etc.
Figure 116: GXV3240 GS Market
Search APPS
Open GS market and tap on to input the key words for the app you are looking for.
Download and Install APPS
1. Open GS market and find the app you would like to install.
2. Tap on "Install" softkey for the app. It will start downloading.
3. Once downloaded, the installation process will start automatically.
4. Tap on to view the downloaded apps and installed apps from GS market.
P a g e | 108
GXV3240 User Guide
Figure 117: GXV3240 GS Market - Downloaded Applications
Update APPS
The GXV3240 will automatically detect if there is a new version available for the installed apps to upgrade
when the network connection is available and stable. Users can also view update status and manually
update the apps in GS Market.
To update apps, open GS Market and tap on to access the installed apps. Users will see the Update
option for the app that has new version available.
Figure 118: GXV3240 GS Market - Installed Applications
Uninstall APPS
1. Open GS Market and tap on to access the installed apps.
2. User will see "Uninstall" option for each app. Tap on "Unstall" for the app you would like to unstall.
P a g e | 109
GXV3240 User Guide
3. A confirmation dialog will pop out. Tap on "OK" to start uninstallation.
Figure 119: GXV3240 GS Market - Uninstall Applications
P a g e | 110
GXV3240 User Guide
TOOLS
File Manager
File Manager is a tool that allows users to delete, move, copy/paste, send and rename files. It helps users
to access and manage files in local storage as well as external storage devices (e.g, SD card/USB flash
drive). Tap on the phone's menu or desktop to launch File Manager application.
Copy and Paste Files
Follow the steps below to copy and paste a file on the GXV3240.
1. Open file manager and navigate to the directory of the file to be copied. Touch and press on the file for
about 2 seconds until the checkbox shows up.
Figure 120: GXV3240 File Manager - Select File
2. Select the files or folders to be copied. Tap on to select all files or unselect all files.
3. Tap on and select "Copy". The file will be copied.
4. Tap on the root directory to go back to the root directory. Navigate to the destination folder where
you would like to paste the file to.
Figure 121: File Manager Root Directory
P a g e | 111
GXV3240 User Guide
Figure 122: Paste File
Move Files
The steps to move a file is similar to copy/paste a file. The difference is once the file is moved, the file will
not be kept in the source folder. Follow the steps below to move a file on the GXV3240.
1. Open file manager and navigate to the directory of the file to be copied. Touch and press on the file for
about 2 seconds until the checkbox shows up.
Figure 123: GXV3240 File Manager - Select File
2. Select the files or folders to be moved. Tap on to select all files or unselect all files.
3. Tap on and select "Move". The file will be copied.
4. Tap on the root directory to go back to the root directory. Navigate to the destination folder where
you would like to move the file to.
P a g e | 112
GXV3240 User Guide
Figure 124: File Manager Root Directory
Figure 125: Paste File
Send Files
The users can send a file via Bluetooth or other applications from file manager. Please make sure Bluetooth
is turned on and connected to the Bluetooth devices, or the applications are set up properly already.
Otherwise, users will be directed to set it up before the file can be sent out.
To send a file:
1. Open file manager and navigate to the directory of the file to be sent over. Touch and press on the file
for about 2 seconds until the checkbox shows up.
2. Select the files or folders to be sent. Tap on to select all files or unselect all files.
P a g e | 113
GXV3240 User Guide
Figure 126: GXV3240 File Manager - Options
3. Tap on and select "Send". A new dialog window will pop up for users to send the file via Bluetooth
or other applications.
Delete Files
1. Open file manager and navigate to the directory of the file to be sent over. Touch and press on the file
for about 2 seconds until the checkbox shows up.
2. Select the files or folders to be sent. Tap on to select all files or unselect all files.
3. Tap on . A confirmation dialog will pop up.
4. Tap on OK to delete the file(s).
Figure 127: Delete File(s) via File Manager
Rename a File
1. Open file manager and navigate to the directory of the file to be sent over. Touch and press on the file
for about 2 seconds until the checkbox shows up.
P a g e | 114
GXV3240 User Guide
2. Tap on and select "Rename". A new dialog window will pop up for users to enter the new name.
3. Tap on OK.
Figure 128: Rename File
Note:
Under the File Manager root directory, screensaver is a system folder that users could not create or delete
files/folders there.
P a g e | 115
GXV3240 User Guide
FTP SERVER
The GXV3240 supports file transfer via FTP server. Once installed, users could access the GXV3240 file
system from PC. Tap on in the phone's menu or desktop to open FTP Server application.
Figure 129: FTP Server - Start
Tap on "Start FTP Server" to turn the server on. The FTP server address URL will be provided on the screen.
Figure 130: FTP Server - Stop
For security purpose, users could also tap on in the above figure to set up username, password,
port number and directory for remote access. By default, when the users access the ftp server from a PC,
a prompt will show asking for user name and password. The default user name and password are "admin".
P a g e | 116
GXV3240 User Guide
Figure 131: FTP Server – Settings
P a g e | 117
GXV3240 User Guide
RECORDER
GXV3240 Recorder application allows users to record audio and access recording files from call recording.
There is no time limit on the recorder as long as there is enough space to save the recording file. Tap on
on the phone's menu or desktop to launch the Recorder application.
Normal Recorder
Normal recorder shows the recording files recorded using the Recorder application.
Figure 132: Normal Recorder
To use the recorder app to record audio, tap on open the recorder.
1. Tap on to start recording.
Figure 133: Normal Recorder - Start Recording
P a g e | 118
GXV3240 User Guide
2. Tap on "Save" to end recording.
Figure 134: Normal Recorder - End Recording
3. The file will be saved and accessible under Recorder application "Normal" category. Tap on the
recording file to play the recording.
Files operations
Users could long press on each file to select it then perform the following operations on the select file.
Export: Choose this option to export the file to other storage destinations (SD card as example).
Note: files under “Call Category” that are recorded during calls, will be renamed (prefixed) with a
timestamp once exported. For example, if the file name is 4005 then it will be exported as “4005-
20170717133519”.
Lock/Unlock: Users could lock and unlock the file.
Send: Make sure to enable Bluetooth on the phone in order to send the file to other devices.
Rename: Click on this option in order to rename the file.
Set as ringtone: Choose this option to set the recorded file as ringtone (a setup success message
notification will popup once this is done).
Call Recorder
During an active call, users have the option to record the conversation. The recorded conversation can be
retrieved here.
P a g e | 119
GXV3240 User Guide
Figure 135: Call Recorder
Recorded Files Settings
User can specify whether to store the recorded file locally, or using a USB/SD Card by following these steps:
1. From the phone Menu click on to open the recorder.
Figure 136: Recorder Settings
2. Click on Settings on the top right as shown above.
P a g e | 120
GXV3240 User Guide
Figure 137: Recorder Storage
3. Click on Set store location and choose the USB/SD Card where to store the recorded files.
Note: The option Set store location will be shown only when a USB/SD Card is plugged.
Downloads
The Downloads application can be opened by tapping on on the phone's menu or desktop. The files
(such as PDF documents, pictures) downloaded from the browser will be stored in the internal storage and
can be access from Downloads application.
Figure 138: Downloads
Tap on the file to open it.
Tap on the checkbox to select the file. Then users could delete or share the file.
Tap on "Sort by size" or "Sort by date" to sort the downloaded files.
P a g e | 121
GXV3240 User Guide
IP Location
The IP Location application provides users with a tool to resolve the public IP address to the location. Tap
on to on the phone's menu or desktop to launch the IP Location application.
In the IP Location application, users could simply enter the public IP address and then tap on Search to
view the result. Based on the IP address provided, the following information will be given: Country, Region,
City, Latitude, Longitude, Time Zone and Weather Code. This information is useful when configuring the
phone to provide personalized settings based on user's location.
Figure 139: GXV3240 Location
For example, in the above figure, the public IP address 8.8.8.8 is mapped to Mountain View in California,
USA. The time zone is UTC-07:00 and the weather code is USA0746.
Diagnosis
The GXV3240 provides a built-in diagnosis application for users to troubleshoot hardware issues related to
LCD, keypad, and touch screen, LED as well as extension board connection. Tap on the phone's menu
or desktop to launch Diagnosis application. The following figure shows the diagnosis menu. After selecting
the option, users could follow the diagnosis instruction to troubleshoot the device.
P a g e | 122
GXV3240 User Guide
Figure 140: GXV3240 Diagnosis
Note: Users can start factory function app by dialing ***3424*, then tap on each item to perform the
corresponding diagnosis. (Under web UIAccountCall Settings, users need to set “Enable Call Features”
to Yes, before dialing the diagnosis code).
P a g e | 123
GXV3240 User Guide
CAMERA
The GXV3240 has built-in Camera to support taking pictures and recording videos. Users can also use the
camera during SIP video calls as well as video calls via 3rd party applications such as Microsoft Lync. To
access Camera to take pictures and videos, tap on Camera icon on the desktop or phone's menu.
Figure 141: GXV3240 Camera
Take Picture
1. Select the camera mode as to take picture.
2. Tap on the Blue button to take a picture.
3. The captured picture can be accessed under FileManagerInternal StorageDCIMCamera.
Record Video
1. Select the camera mode as to record video.
2. Tap on the Red button to start/stop recording.
3. The recorded video can be accessed under FileManagerInternal StorageDCIMCamera.
Camera Settings:
- Brightness settings
- White balance
- Store location on/off
Take Picture/Video:
If camera mode is "Taking Picture", tap on the Blue
button to take a picture.
If camera mode is "Taking Video", it will show Red
button. Tap on it to start/stop taking video.
Camera Mode:
Tap on the camera icon here to switch mode between
taking video or picture.
P a g e | 124
GXV3240 User Guide
Camera Settings
Tap on icon to bring up camera settings.
Figure 142: GXV3240 Camera Settings
Angle Adjustment
On the back of the GXV3240 camera, users could scroll the wheel up/down to adjust the camera angle. If
users scroll the camera all the way up until the icon shows up on the status bar of the screen, the
camera is turned off.
Brightness Settings:
Tap on it to adjust
brightness. There are 7
levels from -3 to +3.
Store Location:
Enable/Disable location
information stored for
the picture.
White Balance:
Tap on it to select lighting type for the picture.
There are 5 different options. Usually
"Automatic" (the one with A/W icon) should
work for most of the scenarios.
P a g e | 125
GXV3240 User Guide
CONNECTING GXV3240 TO GDS3710 DOOR SYSTEM
The GXV3240 offers a powerful integration with GDS3710 Door System and allows users to open the door,
initiates call to the GDS3710 and gets real time audio/video stream.
The GXV3240 can be connected with the GDS3710 in two different ways, either using peering mode
(without a SIP server) or through a SIP server. For more details, please refer to following guide:
http://www.grandstream.com/sites/default/files/Resources/Connecting_the_GDS3710_with_GXV32XX_C
onfiguration_Guide.pdf
P a g e | 126
GXV3240 User Guide
MULTIMEDIA
Gallery
The GXV3240 has built-in Gallery application for users to take pictures/videos, view pictures and play
videos from GXV3240 internal storage or USB/SD card storage. Users could also perform basic editing
tasks on pictures and set them as wallpaper or picture for contacts. The pictures can be easily shared with
friends in Gallery app by sending via Bluetooth and Email.
Tap on the phone's menu or desktop to launch the gallery application on the GXV3240.
Figure 143: GXV3240 Gallery
Gallery albums
The image related folders in the GXV3240 will be present in Gallery as thumbnails. Users can tap on
the thumbnail to access the folder.
View pictures
After accessing the album, slide left/right to view all the pictures. Users could select "Grid" or
"Filmstrip" view mode to display the pictures. Tap on a specific picture to view the picture in full
screen.
Edit picture
When the picture is displayed in full screen, tap on the screen again. On the lower left corner, users
will see icon . Tap on it and users can crop/rotate/add effect to the picture.
P a g e | 127
GXV3240 User Guide
Figure 144: GXV3240 Gallery - Edit Picture
Picture Options
When the picture is displayed in full screen, press the Menu button . A list of options will be
available for users to select, including "Delete", "Edit", "Rotate", "Crop" or "Set Picture as”, etc.
Figure 145: GXV3240 Gallery - Picture Options
Take picture/video
Tap on on the upper right of the Gallery to start taking pictures or videos using the GXV3240
built-in camera.
In the camera mode, users could tap on to take video and tap on to take picture on the
bottom right.
Select multiple pictures
Touch and press on one of the pictures for about 2 seconds until the picture is highlighted.
P a g e | 128
GXV3240 User Guide
Tap on other pictures to select multiple pictures. On the upper right of the Gallery app, users can tap
on to share the pictures, or tap on to delete the selected pictures
Share pictures
Tap on on the upper right of the picture to send the picture via Bluetooth or 3rd party
applications.
Screensaver
User can set Screensaver from the local images, the default directory (Screensavers), or from Internal
storage by navigating on the phone LCD menu under MenuSystem
SettingsDisplayDaydreamScreensaver.
Figure 146: Use Local Images
Click on Use local images and select Internal Storage or Screensaver.
Figure 147: Local Images
P a g e | 129
GXV3240 User Guide
Or the user can set a folder in a remote HTTP server to display images contained on it as screensaver.
Figure 148: Use Network images
Click on Use network images and set the path of the remote screensaver folder.
Figure 149: Network Image Path
Music
The GXV3240 has built-in music player to support audio files in AAC, MP3, AMR, WAVE, MIDI and Vorbis
format. Tap on icon on the phone's menu or desktop to launch Music application.
Play Music
1. Download music to have the music files ready in USB flash drive/SD card plugged into the GXV3240.
2. Open Music application.
3. Tap on and select "Refresh". The music files will be displayed in the list.
P a g e | 130
GXV3240 User Guide
Figure 150: GXV3240 Music - Refresh Music List
4. Select a song and tap on to play the song.
Figure 151: GXV3240 Music - Play a Song
Edit Music
1. In the music list, touch and press on one of the music file until the checkbox displays.
2. Tap on and users will be able to "Play" the music, "Add To PlayList" and "Save As Ringtone".
Pervious Pause Next Switch Mode
P a g e | 131
GXV3240 User Guide
Figure 152: GXV3240 Music - Options
Sort Music
On the top menu of the Music application, users can sort music by "Song", "Artist", "Album" and "Playlist".
Songs Artists Albums Playlists
Figure 153: GXV3240 Music - Sort Songs
Search Music
1. Tap on to access the lists of songs.
2. Tap on and enter the name of the song to search.
P a g e | 132
GXV3240 User Guide
Create Playlist
1. Tap on to access Playlists.
2. Tap on to create a new playlist.
Figure 154: GXV3240 Music - Create Playlist
Edit Playlist
1. Tap on to access Playlists.
2. Touch and press one of the playlist for about 3 seconds to select it.
3. Press to bring up options to play the playlist or rename the playlist.
4. Tap on to delete the selected playlist.
Once the playlist is created, users can touch and press it for about 3 seconds.
P a g e | 133
GXV3240 User Guide
BROSWER
GXV3240 browser could be used in a similar way as a PC-based web browser, i.e., open web pages,
bookmarks, view history, search and etc. Tap on the phone's menu or desktop to launch the Browser
application.
Figure 155: GXV3240 Web Browser
Touch the screen and scroll up/down/left/right to view the web page.
Double tap on the screen to zoom in/zoom out. Or use two fingers on the screen to pinch in or spreading
out the page.
Press the MENU button to access more options including bookmarks, share the page and etc.
Figure 156: GXV3240 Browser Menu Options
To open a new window, tap on icon on the right side of the tab.
P a g e | 134
GXV3240 User Guide
Figure 157: Open New Window in Browser
To open Bookmarks, History and Saved Pages, tap the icon on the upper right of the Browser
and choose which pages you want to display from the drop menu.
Figure 158: GXV3240 Web Browser-Bookmarks
P a g e | 135
GXV3240 User Guide
RSS NEWS
Add RSS Widget
1. On the GXV3240 idle screen, press Settings button and select "Edit Widgets".
2. A list of widgets will show on the bottom of the screen. Swipe left/right to find the "RSS News" widget.
3. Touch and drag it to the idle screen. Please make sure there is enough space on the idle screen to
place the widget.
Use RSS Widget
On the RSS widget, users can tap on icon to refresh the page, scroll up/down to view the abstract of
the news, and tap on the news to access the detailed content.
Figure 159: GXV3240 RSS News
RSS Widget Settings
On the RSS News widget, tap on to access RSS News settings.
Update Interval: Configure the interval to refresh the news. The valid range is from 10 minutes to 24
hours.
Page-turning Intervals: Configure the page-turning speed on the widget when it displays different
pages of news.
Subscribe: Select the categories of the news you would like to display on the RSS News.
RSS Feed: Tap on the URL field on the bottom of the screen and enter the link of a new RSS feed.
Then tap on icon to add it to the category of the RSS feed.
P a g e | 136
GXV3240 User Guide
Figure 160: GXV3240 RSS News Settings
Weather
GXV3240 has a built-in Weather widget that provides weather information includes humidity, wind direction,
wind speed (mph) and temperature in unit as configured by the users.
Add Weather Widget
1. On the GXV3240 idle screen, press Settings button and select "Edit Widgets".
2. A list of widgets will show on the bottom of the screen. Swipe left/right to find the "Weather" widget.
3. Touch and drag it to the idle screen. Please make sure there is enough space on the idle screen to
place the widget.
Use Weather Widget
On the Weather widget, tap on to refresh the weather information. Users can also tap on the widget
to access the settings.
Figure 161: GXV3240 Weather
P a g e | 137
GXV3240 User Guide
Weather Settings
Tap on the weather widget to access settings. Users will see four softkeys on the bottom of the screen.
Figure 162: GXV3240 Weather Settings
"Update": Tap to refresh the weather information.
"Share": Tap to share the weather information with other users.
"Add City": Tap to add city for the location you would like to check the weather.
"Settings": Tap on configure temperature unit and update interval time.
Figure 163: GXV3240 Weather Update Settings
P a g e | 138
GXV3240 User Guide
BS-IM&P
GXV3240 supports BroadWorks Instant Message and Presence (IM&P) feature. This service is a multi-
tenant Instant Message & Presence service based on the Extensible Messaging and Presence Protocol
(XMPP) and works with any XMPP compatible client. Please refer to the following link for more details about
how to use BroadWorks IM&P on the GXV3240:
http://www.grandstream.com/sites/default/files/Resources/GXV_IM%26P_Guide.pdf
P a g e | 139
GXV3240 User Guide
ACTIONURL
GXV3240 supports ActionURL module, and it is used to set the URL for various kinds of phone events on
phone web GUI, and when the corresponding event occurs on the phone, phone will send the configured
URL to SIP server. To use ActionURL module, users need to know the supported events in this module, and
also added the dynamic variables of the supported events on phone web GUI. The dynamic variables of
the supported event will be replaced by actual values of the phone, in order to notify the event to SIP server.
Please refer to GXV3240 Administration Guide and ActionURL User Guide for the configuration details.
http://www.grandstream.com/sites/default/files/Resources/ActionURL_Guide.pdf
P a g e | 140
GXV3240 User Guide
PNP
The GXV3240 has built in PNP (Plug and Play) application to mass provision for other Grandstream phone
clients. The PNP feature is for other phones to be able to find the configuration path and download their
configuration settings with little or no configurations from GXV3240. It gives the GXV3240 phone
accessibility to many phones’ settings and features that can be configured, making it unnecessary to
configure these settings on other phones themselves.
Set Up PNP Application
It needs to configure the Account 1’s setting properly before implementing the PNP feature on GXV3240.
1. Check the Account Active box for Account 1.
2. In Account 1’s SIP setting page, disable the Validate Incoming SIP Messages feature.
3. In Account 1’s SIP setting page, set the SIP transport protocol to UDP.
4. In the Account 1’s SIP setting page, do not use 5060 as the Local SIP Port. This setting will be
overridden to 0 automatically when the PNP feature is enabled. The port number with 0 refers the port
number will be random.
Enable PNP Feature
After the settings above, end users can enable the PNP feature for GXV3240. It can be enabled from the
web page or from the LCD screen.
Enable from Web Page
1. Log in the GXV3240 web page, browse to Maintenance Upgrade.
2. Check the Enable PNP Feature box.
3. In the PNP URL box, type the URL path for the saved configuration file with protocol identifier. For
example, http://192.168.1.200/config. The protocol identifier can be selected from tftp, http, and https.
4. GXV3240 supports the built-in httpd server feature. End users can save the config file in the GXV3240
device and it can be set as a file server transport the files to another phone client. If end user needs
this feature, the config file should be saved in the directory /Internal Storage/pnp. And the PNP URL
should be point to the pnp directory. For instance, if a user wants to set his GXV3240 as a HTTP file
server, whose IP address is 192.168.1.100, and the config file is saved in the directory /Local
Storage/pnp, it needs to enter http://192.168.1.100/pnp. If it needs to transport the file via HTTPS, it
needs to set the Access Method to HTTPS under the page of MaintenanceWeb/SSH Access.
5. Then save the setting and reboot the unit. If the Account 1’s Local SIP port does not be set to 0, the
phone system will pop up a prompt window and it writes “The local SIP port is 5060 in your account,
save the operation will change the port to the random one, sure to change?” Click OK to change to port
from 5060 to 0 by force.
P a g e | 141
GXV3240 User Guide
Enable from LCD
1. On the LCD screen, tap the icon to enter the PNP application.
2. Tap the Setting icon at the upper right corner of the screen to enter the PNP-Settings page.
3. In the Settings page, switch the PNP feature on and switch the 3CX Auto Provision off. Type the URL
to the Configuration file path in the correct format. And if the GXV3240 needs to be set as a file server,
it needs to load the configuration file to the directory /Local Storage/pnp via the Import local
configuration file.
4. Save the setting and reboot the device.
Figure 164: GXV3240 PNP Settings
Note: When PNP feature is enabled, a notification icon will be shown on LCD top status bar.
Use PNP Feature
After setting up the PNP feature on GXV3240, the other client phone units will multicast the SIP
SUBSCRIBE message while booting up if their 3CX Auto Provision feature has been enabled. Then the
client phone units configure server path and transportation protocol will be provisioned by the SIP NOTIFY
message from the GXV3240 device. After then the client phone units will download the config file from the
provisioned URI.
P a g e | 142
GXV3240 User Guide
CONNECT TO NETWORK AND DEVICES
The GXV3240 supports a variety of network connections (Ethernet, Wi-Fi) and device connections,
including EHS headset (Plantronics), USB, SD card and Bluetooth device. Users can connect the GXV3240
to transfer files from/to the GXV3240 using a USB connection, SD card or Bluetooth.
Ethernet
Ethernet connection is turned on as DHCP by default. If you would like to use Ethernet connection for
network access, please make sure the Ethernet cable is plugged in to the LAN port on the back of the
GXV3240. To configure Ethernet settings on GXV3240 LCD:
1. Go to GXV3240's Settings applicationWireless & NetworkEthernet Settings.
2. Touch IPv4 settings.
3. Tap on "Address Type" to select DHCP, Static IP or PPPoE as the address type.
For DHCP, save the setting and the GXV3240 should be able to get IP address from the DHCP
server in the network.
For static IP, enter IP Address, Subnet Mask, Default Gateway, DNS Server and Alternative DNS
server for the GXV3240 to correctly connect to network.
For PPPoE, enter PPPoE account ID and password so the GXV3240 can get IP address from the
PPPoE server.
Wi-Fi
WI-FI is supported and built-in on the GXV3240. GXV3240 can be connected to network if Wi-Fi is available
within the area.
Turn On/Off Wi-Fi
1. Go to GXV3240's Settings.
2. Tap on Wireless & Network.
3. Check or uncheck the option for Wi-Fi.
4. Or, users could open the top status barSystem Settings and tap on WI-FI icon to turn it on/off.
Add Wi-Fi Networks
1. Once Wi-Fi is turned on, GXV3240 will automatically start the scanning within the range.
2. Go to GXV3240's Settings.
3. Tap on Wireless & Network.
4. Tap on Wi-Fi Settings.
5. A list of Wi-Fi networks will be displayed as scanning result. Tap on the SSID and enter the correct
password information to connect to the selected Wi-Fi network.
6. The phone will start connecting to the Wi-Fi. The status bar will show Wi-Fi signal strength.
P a g e | 143
GXV3240 User Guide
7. Once it's added and the password is remembered, the GXV3240 will connect to it again when the SSID
is within the range.
Figure 165: GXV3240 Connect to Wi-Fi
8. The previous steps allow the GXV3240 to connect the WiFi network with DHCP setting by default. If it
needs to be connected the WiFi with static IP or PPPoE setting, please scroll down the setting window
and tap to check the “Show advanced options”. Then the window will show up the IP settings at the
bottom. If Static IP is selected, the system will require end user to input IP address, Gateway, Network
prefix length and DNS 1 and DNS 2 addresses. If PPPoE is selected, the system will require end user
to input PPPoE account ID and password.
Figure 166: GXV3240 Connect to Wi-Fi-Show Advanced Options
9. If there is need to modify the saved Wi-Fi network setting, the end user should tap and long press the
SSID bar in the Wi-Fi setting page. The system will pop up a prompt and then user needs to tap the
“Modify Network”. Then the phone system will pop up a new window to allow user to check the Wi-Fi
parameters and change the setting by checking the “Show advanced options” at the bottom.
P a g e | 144
GXV3240 User Guide
Wi-Fi Settings Shortcut
User can enter the Wi-Fi settings by sliding the Status Bar, then long Press on the Wi-Fi icon.
Figure 167: Wi-Fi Settings Shortcut
For more information about how to use Wi-Fi on the GXV3240, please refer to the link below:
http://www.grandstream.com/sites/default/files/Resources/GXV3240_wifi_guide_0.pdf
Bluetooth
Bluetooth is a proprietary, open wireless technology standard for exchanging data over short distances
from fixed and mobile devices, creating personal area networks with high levels of security. The GXV3240
supports Bluetooth Class 2, version 2.1 + EDR. Users could use Bluetooth to transfer files, share contact
information with other Bluetooth portable devices, use Bluetooth headset for making calls, switch calls to
the GXV3240 from mobile devices using Bluetooth hands-free profile, and listen to media (music or other
audio output) from the GXV3240.
To connect to a Bluetooth device, turn on GXV3240’s Bluetooth radio first. The first time when using a new
Bluetooth device with the GXV3240, "pair" the device with GXV3240 so that both devices know how to
connect securely to each other. After that, users could simply connect to a paired device. Turn off Bluetooth
if it's not used.
Bluetooth related settings are under GXV3240's SettingsWireless & Network.
Turn On/Off Bluetooth
1. Go to GXV3240's Settings.
2. Tap on Wireless & Network.
3. Check or uncheck the option for Bluetooth.
Or, users could open the top status barSystem Settings and tap on Bluetooth icon to turn it on/off.
P a g e | 145
GXV3240 User Guide
Change Bluetooth Device Name
The GXV3240 uses "GXV3240" as Bluetooth device name by default. The device name will be visible to
other devices when connecting them. Follow the steps below to change the name:
1. Go to GXV3240's Settings.
2. Turn on Bluetooth.
3. Select Wireless & NetworkBluetooth settings.
4. Press Menu button and tap on "Rename phone".
5. Enter a name and tap on "Done".
Pair GXV3240 with a Bluetooth Device
Before connecting GXV3240 with other Bluetooth device, users must pair them first. They will stay paired
afterwards unless they are unpaired.
1. Go to GXV3240's Settings.
2. Select Wireless & Network and turn on Bluetooth.
3. Tap on Bluetooth settings.
4. Tap on the Bluetooth device to make it visible to all nearly Bluetooth devices.
5. The GXV3240 scans and displays the IDs of all available Bluetooth devices in range. If the device you
would like to pair with does not show up in the list, ensure that the other device is turned on and set to
be discoverable.
6. If the GXV3240 stops scanning before the other device is ready, press Menu button and select
"Search for devices".
7. Once the Bluetooth device shows up in the result, tap on it to start pairing. Confirm the passkey in the
prompted message (if any). Or if passcode is required, please refer to the device's documentation or
other procedures to obtain the passcode.
Figure 168: GXV3240 Bluetooth - Paired Device
P a g e | 146
GXV3240 User Guide
Unpair a Bluetooth Device
1. In the Bluetooth settings, tap on the Bluetooth device.
2. Tap on Unpair.
Bluetooth Settings Shortcut
User can enter the Bluetooth settings by sliding the Status Bar, then long Press on the Bluetooth icon.
Figure 169: Bluetooth Settings Shortcut
For more information about Bluetooth feature on the GXV3240, please refer to the link below:
http://www.grandstream.com/sites/default/files/Resources/GXV3240_bluetooth_guide_1.pdf
EHS Headset
The GXV3240 supports normal RJ9 headset and EHS headset (Plantronics EHS headsets only). To use
EHS headset:
1. Go to the GXV3240 web GUIMaintenanceDevice Manager: Headset Type. Select "Plantronics
EHS" and reboot the phone to take effect.
2. Connect EHS Headset to GXV3240. Insert headset connector into the RJ9 headset port on the back of
GXV3240.
3. To switch to headset mode, press headset button on the GXV3240. A headset icon will
show on the GXV3240 status bar. There are two different headset mode for users to select from web
GUIMaintenanceDevice Manager: Headset Key Mode. After selecting the desired mode, save
the change and reboot the phone to take effect.
Please go to http://www.grandstream.com/support and refer to "GXV3240 Administration Guide" for the
key mode details.
P a g e | 147
GXV3240 User Guide
If “Disable RJ9 Headset Auto Detect” is enabled, RJ9 headset will not be detected and the icon will not
appear on the LCD, users need to click the handset icon during the call to switch to RJ9 headset.
USB Headset
The GXV3240 supports USB Headset, once the headset plugged, it will be detected automatically, and the
following icon will be shown on the top right of the status bar, this means a USB headset is connected.
Figure 170: USB Headset
When user enters the dialing screen, media channel will switch automatically to USB headset, and a second
icon will be displayed on the top right of the status bar meaning that the USB headset is used for speaking.
Figure 171: USB Headset Used for Speaking
USB
The GXV3240 supports USB connection with USB storage devices. To connect and access USB storage
device:
1. Insert an USB storage device into USB port at the back of the GXV3240.
2. It will take a few seconds for the GXV3240 to prepare the connection. Then the USB storage icon will
show on the status bar.
3. To access USB storage, go to GXV3240 MENUFile ManagerUSB Disk. Tap on it to access and
manage your data.
P a g e | 148
GXV3240 User Guide
SD Card
1. Insert your SD card into SD Card slot at the back of GXV3240. Please make sure the SD Card is
inserted with right direction on the GXV3240 as indicated on the SD card slot.
2. It will take a few seconds for the GXV3240 to prepare the connection. Then the SD Card icon will
show on the status bar.
3. To access SD Card, go to GXV3240 MENUFile Managersdcard. Tap on it to manage your data.
HDMI Device
1. Plug one end of the mini HDMI cable into the mini HDMI port on the GXV3240.
2. Plug the other end of the mini HDMI cable into the HDMI port on the LCD display or TV. User needs to
adjust the resolution on the LCD display or TV for proper display.
3. On the GXV3240, go to SettingsDisplay. Make sure the HDMI is turned on. A HDMI icon will show
on the top status bar .
Figure 172: SettingsDisplayHDMI
4. In LCD SettingsDisplay, tap on “HDMI control”, a window with selections will be shown on the screen.
It allows end users to set the HDMI output mode from “Close HDMI output”, “HDMI display synchronization
with LCD”, “and Show remote screen”. If “Close HDMI output” is selected, the HDMI output feature will be
turned off. If “HDMI display synchronization with LCD” is selected, the pictures displayed on the remote
HDMI device will always be same as the GXV3240’s LCD display. If “Show remote screen” is selected, the
remote HDMI device will display the same picture with the phone’s LCD screen unless displaying the remote
side’s video in full size mode during a video call.
P a g e | 149
GXV3240 User Guide
Figure 173: SettingsDisplayHDMI Control
5. The end user can select the audio channel while the HDMI device is connected. In LCD
SettingsSound, there is an audio channel setting “HDMI”. If it switched on, the audio channel will be
use the HDMI device. Otherwise, the audio channel will be used locally.
Figure 174: SettingsDisplayHDMI Audio Channel Switch
P a g e | 150
GXV3240 User Guide
EXPERIENCING THE GXV3240 APPLICATION PHONE
Please visit our website: http://www.grandstream.com to receive the most up- to-date updates on firmware
releases, additional features, FAQs, documentation and news on new products.
We encourage you to browse our product related documentation, FAQs and User and Developer Forum
for answers to your general questions. If you have purchased our products through a Grandstream
Certified Partner or Reseller, please contact them directly for immediate support.
Our technical support staff is trained and ready to answer all of your questions. Contact a technical support
member or submit a trouble ticket online to receive in-depth support.
Thank you again for purchasing Grandstream Enterprise Application phone, it will be sure to bring
convenience and color to both your business and personal life.
