WELCOME
Thank you for purchasing Grandstream’s HT701, the affordable, feature rich Analog Telephone Adapter.
Grandstream HandyTone701 is a new addition to the popular HandyTone ATA product family. It features
the rich audio quality, a broad range of voice codecs, and functionality of the HT701, including 1 FXS ports.
This manual will help you learn how to operate and manage your HandyTone701 Analog Telephone
Adaptor and make the best use of its many upgraded features including simple and quick installation, 3-way
conferencing, and direct IP-IP Calling. This HT701 is very easy to manage and configure, and is
specifically designed to be an easy to use and affordable VoIP solution for both the residential user and the
teleworker.
Safety Compliances
The HT701 phone complies with FCC/CE and various safety standards. The HT701 power adaptor is
compliant with UL standard. Only use the universal power adapter provided with the HT701 package.
The manufacturer’s warranty does not cover damages to the phone caused by unsupported power
adaptors.
Warranty
If you purchased your HT701 from a reseller, please contact the company where you purchased your device
for replacement, repair or refund. If you purchased the product directly from Grandstream, contact your
Grandstream Sales and Service Representative for a RMA (Return Materials Authorization) number before
you return the product. Grandstream reserves the right to remedy warranty policy without prior notification.
Caution: Changes or modifications to this product not expressly approved by Grandstream, or operation
of this product in any way other than as detailed by this User Manual, could void your manufacturer warranty.
Please do not use a different power adaptor with the HT701 as it may cause damage to the products and
void the manufacturer warranty.
• This document contains links to HT701 GUI Interfaces. Please download these examples from
http://www.grandstream.com/products/ht_series/HT701/documents/HT701_gui.zip for your reference.
• This document is subject to change without notice. The latest electronic version of this user manual is
available for download at:
http://www.grandstream.com/products/ht_series/HT701/documents/HT701_usermanual_english.pdf
Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for any
purpose is not permitted without the express written permission of Grandstream Networks, Inc.
Grandstream Networks, Inc. HT701 User Manual Page 6 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
CONNECT YOUR HT701
Equipment Packaging
The HT701 ATA package contains:
• One HT701 Main Case
• One Universal Power Adaptor
• One Ethernet Cable
• One HT701 Vertical Stand
Connecting the HT701
The HT701 is designed for easy configuration and easy installation. Configure the HT701 following the
directions in the Configuration section of this manual.
1. Connect a standard touch-tone analog telephone to the PHONE port.
2. Insert a standard RJ11 telephone cable into the Phone port and connect the other end of the
telephone cable to the analog telephone.
3. Insert the Ethernet cable into the WAN port of HT701 and connect the other end of the Ethernet
cable to an uplink port (a router or a modem, etc.)
4. Insert the power adapter into the HT701 and connect it to a wall outlet.
The HT701 Analog Telephone Adaptor is an all-in-one VoIP integrated device designed to be a total
solution for networks providing VoIP services. The HT701 VoIP features and functions are available using
a regular analog telephone.
Grandstream Networks, Inc. HT701 User Manual Page 7 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
Figure 1: Connecting the HT701
Grandstream Networks, Inc. HT701 User Manual Page 8 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011

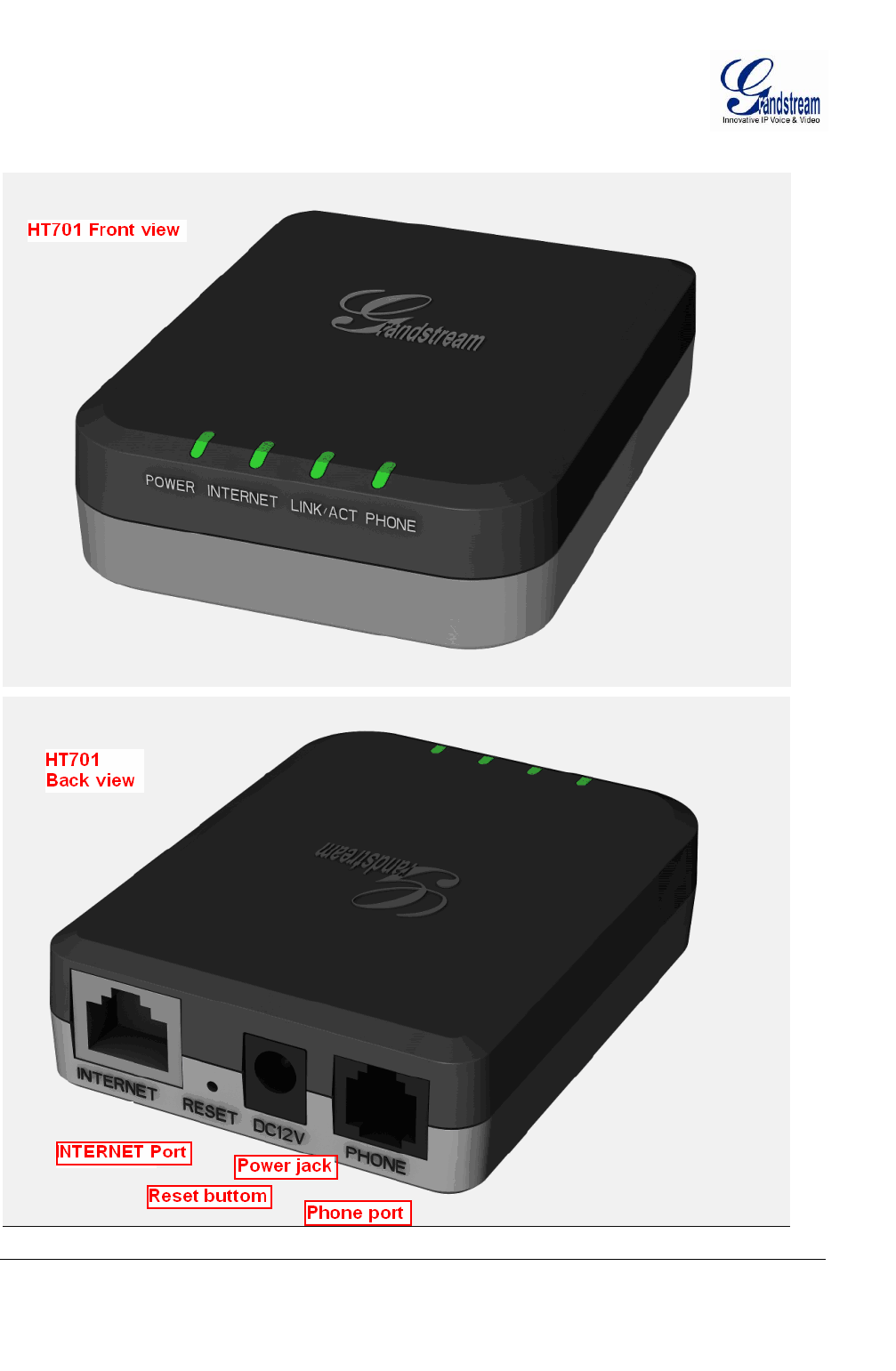

TABLE 1: DEFINITIONS OF THE HT701 CONNECTORS
Power Cable Power adapter connection
INTERNET Port
(RJ-45) Connect to the internal LAN network or router.
RESET Factory Reset button. Press for 7 seconds to reset factory default settings.
PHONE (RJ-11) FXS port to be connected to analog phones / fax machines.
There are four (4) LED buttons that help you manage the status of your HandyTone.
TABLE 2: DEFINITIONS OF THE HT701 LEDS
LEDs
POWER LED Indicates Power. Remains ON when power is connected
INTERNET LED Indicates device got IP address
LINK/ACT LED Indicates INTERNET port activity
PHONE LED Indicate status of the respective FXS Ports-PHONE
NOTE: All LEDs display green when ON. Slow blinking of WAN and LAN LED together indicate the
product in firmware upgrading or provision state.
Figure 2: HT701 Connection Diagram
z
Internet
ADSL/Cable
Modem Ethernet
WAN
LAN
FXS
Fax
Cordless
Phone
Analog Phone
FXS
Fax
Cordless
Phone
Analog Phone
Grandstream Networks, Inc. HT701 User Manual Page 9 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
PRODUCT OVERVIEW
The HT701 is a full feature voice and fax-over IP device that offers a high-level of integration including one
10M/100Mbps network ports with integrated router, NAT, DHCP server, 1 port FXS telephone gateway,
market-leading sound quality, rich functionalities, and a compact and lightweight design. The VoIP network
signaling protocol supported is SIP. The HT701 fully compatible with SIP industry standard and can
interoperate with many other SIP compliant devices and software on the market. Moreover, it supports
comprehensive voice codecs including G.711 (a/µ-law), G.723.1, G.726 (16/24/32/40 bit rates), AAL2 (all
G.726), G.729A/B/E and iLBC.
Software Features Overview
• 1 FXS ports
• 1 RJ-45 ports (switched or routed)
• 1 SIP accounts & profiles
• Supports Voice Codecs:
G711(a/µ, Annex I & II), G723.1A, G726 (ADPCM with 16/24/32/40 bit rates), G729 A/B/E, iLBC
• T.38 Fax
• Comprehensive Dial Plan support for Outgoing calls.
• G.168 Echo Cancellation
• Voice Activation Detection (VAD), Comfort Noise Generation (CNG), and Packet Loss Concealment
(PLC)
• Supports PSTN/PBX analog telephone sets or analog trunks
TABLE 3: HT701 TECHNICAL SPECIFICATIONS
Telephone Interfaces 1 FXS ports, 1 SIP accounts
Network Interface 1 RJ45 for INTERNET, 10/100 Base-TX, Full Duplex
LED Indicators Power, INTERNET, LINK/ACT, PHONE
Reset Button Factory Reset button
Voice over Packet
Capabilities Voice Activity Detection (VAD) with CNG (comfort noise generation) and PLC (packet
loss concealment), Dynamic Jitter Buffer, Modem detection & auto-switch to G.711,
Packetized Voice Protocol Unit (supports RTP/RTCP and AAL2 protocol), G.168
compliant Echo Cancellation, LEC (line echo cancellation) with NLP, Asymmetric RTP
stream
Voice Compression G.711 + Annex I (PLC), Annex II (VAD/CNG format) encoder and decoder, G.723.1A,
G.726(ADPCM), G.729A/B/E, iLBC, G.726 provides proprietary VAD, CNG, and signal
power estimation, Voice Play Out unit (reordering, fixed and adaptive jitter buffer, clock
synchronization), AGC (automatic gain control), Status output, Decoder controlling via
voice packet header
DHCP Server/Client Yes, NAT Router or Switched Mode
Telnet Server Yes
Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax
Pass-through, Fax Datapump V.17, V.19, V.27ter, V.29 for T.38 fax relay
QoS Diffserve, TOS, 802.1 P/Q VLAN tagging
IP Transport RTP/RTCP
DTMF Method Flexible DTMF transmission method, user interface of In-audio, RFC2833, and/or SIP
Info
Grandstream Networks, Inc. HT701 User Manual Page 10 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
IP Signaling SIP (RFC 3261)
Provisioning TFTP, HTTP, HTTPS
Control TLS/SIPS , SIP over TCP/TLS
Device Management Web interface or via secure encrypted AES or non-encrypted central configuration file for
mass deployment, Auto/manual provisioning system or via built-in IVR.
NAT-friendly remote software upgrade (via TFTP/HTTP/HTTPS) for deployed devices
including behind firewall/NAT. Syslog support
Dial Plan Yes
UPnP Yes
Universal Switching
Power Adaptor Input: 100–240 VAC/50-60 Hz 0.3A Max
Output: 12VDC, 0.5A, UL certified
Environmental Operational: 32o–104oF or 0o–40oC
Storage: 10o–130o F / Humidity: 10–90% Non-condensing
Dimensions
(H x W x D) 86mm (L) x 65mm (W) x 25mm (H)
Short Haul Loop 5REN, Up to 1Km on 24 AWG wire
Call Handling Features Caller ID display or block, Call waiting caller ID, Call waiting/flash, Call transfer, hold,
forward, mute, 3-way conferencing, message waiting, Do-Not-Disturb (DND), call-return
service
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Polarity Reversal / Wink Yes
EMC EN55022/EN55024 and FCC part15 Class B
Safety UL
Hardware Specification
The table below lists the hardware specification of HT701.
TABLE 4: HT701 HARDWARE SPECIFICATION
LAN Interface 1 x RJ45 10/100Mbps (integrated router)
LED 4 LEDs (GREEN)
Universal Switching
Power Adaptor
Input: 100-240V AC, 50/60Hz, 0.5A Max
Output: 12V DC, 1.25A
UL certified
Dimension 86mm (L) x 65mm (W) x 25mm (H)
Weight 310 g
Temperature 32~104°F / 0~40°C
Humidity 10% - 90% (non-condensing)
Compliance
Grandstream Networks, Inc. HT701 User Manual Page 11 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
BASIC OPERATIONS
Understanding HT701 Voice Prompt
HT701 has a built-in voice prompt menu for simple device configuration. The IVR menu and the LED button
work with any of the FXS port. Pick up the handset and dial “***” to use the IVR menu.
TABLE 5: HT701 IVR MENU DEFINITIONS
Menu Voice Prompt Options
Main Menu “Enter a Menu Option” Press “*” for the next menu option
Press “#” to return to the main menu
Enter 01-05, 07,10, 12-17,47 or 99 menu options
01 “DHCP Mode”,
“Static IP Mode”
Press “9” to toggle the selection
If using “Static IP Mode”, configure the IP address information using
menus 02 to 05.
If using “Dynamic IP Mode”, all IP address information comes from the
DHCP server automatically after reboot.
02 “IP Address “ + IP address The current WAN IP address is announced
If using “Static IP Mode”, enter 12 digit new IP address. You need to
reset the HT to take affect the new IP address.
03 “Subnet “ + IP address Same as menu 02
04 “Gateway “ + IP address Same as menu 02
05 “DNS Server “ + IP address Same as menu 02
07 Preferred Vocoder Press “9” to move to the next selection in the list:
• PCM U / PCM A
• iLBC
• G-726
• G-723
• G-729
10 “MAC Address” Announces the Mac address of the unit.
12 WAN Port Web Access Press “9” to toggle between enable / disable
13 Firmware Server IP
Address Announces current Firmware Server IP address. Enter 12 digit new
IP address.
14 Configuration Server IP
Address Announces current Config Server Path IP address. Enter 12 digit
new IP address.
15 Upgrade Protocol Upgrade protocol for firmware and configuration update. Press “9” to
toggle between TFTP / HTTP / HTTPS
16 Firmware Version Firmware version information.
17 Firmware Upgrade Firmware upgrade mode. Press “9” to toggle among the following
three options:
- always check
- check when pre/suffix changes
- never upgrade
47 “Direct IP Calling” Enter the target IP address to make a direct IP call, after dial tone.
(See “Make a Direct IP Call”.)
70 Phone calls between FXS 1
and FXS 2 port User can make internal calls between two FXS ports on the same
HT701 even without being registered to SIP server. By dialing *** and
70 user can reach the other FXS port
86 Voice Mail Number of Voice Mails
99 “RESET” Press “9” to reboot the device
Grandstream Networks, Inc. HT701 User Manual Page 12 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
Enter MAC address to restore factory default setting
(See Restore Factory Default Setting section)
“Invalid Entry” Automatically returns to main menu
“Device not registered” This prompt will be played immediately after off hook If the device is
not register and the option “Outgoing Call without Registration” is in
NO
Five Success Tips when using the Voice Prompt
1. “*” shifts down to the next menu option
2. “#” returns to the main menu
3. “9” functions as the ENTER key in many cases to confirm an option
4. All entered digit sequences have known lengths - 2 digits for menu option and 12 digits for IP
address. For IP address, add 0 before the digits if the digits are less than 3 (i.e. - 192.168.0.26
should be key in like 192168000026. No decimal is needed).
5. Key entry can not be deleted but the phone may prompt error once it is detected
Placing a Phone Call
PHONE OR EXTENSION NUMBERS
1. Dial the number directly and wait for 4 seconds (Default “No Key Entry Timeout”); or
2. Dial the number directly and press # (Use # as dial key” must be configured in web configuration).
Examples:
1. Dial an extension directly on the same proxy, (e.g. 1008), and then press the # or wait for 4 seconds.
2. Dial an outside number (e.g. (626) 666-7890), first enter the prefix number (usually 1+ or international
code) followed by the phone number. Press # or wait for 4 seconds. Check with your VoIP service
provider for further details on prefix numbers.
DIRECT IP CALLS
Direct IP calling allows two parties, that is, a FXS Port with an analog phone and another VoIP Device, to
talk to each other in an ad hoc fashion without a SIP proxy.
Elements necessary to completing a Direct IP Call:
1. Both HT701 and other VoIP Device, have public IP addresses, or
2. Both HT701 and other VoIP Device are on the same LAN using private IP addresses, or
3. Both HT701 and other VoIP Device can be connected through a router using public or private IP
addresses (with necessary port forwarding or DMZ).
HT701 supports two ways to make Direct IP Calling:
Using IVR
1. Pick up the analog phone then access the voice menu prompt by dial “***”
2. Dial “47” to access the direct IP call menu
3. Enter the IP address after the dial tone and voice prompt “Direct IP Calling”
Using Star Code
1. Pick up the analog phone then dial “*47”
Grandstream Networks, Inc. HT701 User Manual Page 13 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
2. Enter the target IP address.
Note: NO dial tone will be played between step 1 and 2.
Destination ports can be specified using “*” (encoding for “:”) followed by the port number.
Examples of Direct IP Calls:
a) If the target IP address is 192.168.0.160, the dialing convention is
*47 or Voice Prompt with option 47, then 192*168*0*160.
followed by pressing the “#” key if it is configured as a send key or wait 4 seconds. In this case, the
default destination port 5060 is used if no port is specified.
b) If the target IP address/port is 192.168.1.20:5062, then the dialing convention would be:
*47 or Voice Prompt with option 47, then 192*168*0*160*5062 followed by pressing the “#” key if
it is configured as a send key or wait for 4 seconds.
NOTE: When completing direct IP call, the “Use Random Port” should set to “NO”. You cannot make
direct IP calls between FXS1 to FXS2 since they are using same IP.
Call Hold
Place a call on hold by pressing the “flash” button on the analog phone (if the phone has that button). Press
the “flash” button again to release the previously held Caller and resume conversation. If no “flash” button
is available, use “hook flash” (toggle on-off hook quickly). You may drop a call using hook flash.
Call Waiting
Call waiting tone (3 short beeps) indicates an incoming call, if the call waiting feature is enabled. Toggle
between incoming call and current call by pressing the “flash” button. First call is placed on hold. Press
the “flash” button to toggle between two active calls.
Call Transfer
Blind Transfer
Assume that call Caller A and B are in conversation. A wants to Blind Transfer B to C:
3. Caller A presses FLASH on the analog phone to hear the dial tone.
4. Caller A dials *87 then dials caller C’s number, and then # (or wait for 4 seconds)
5. Caller A will hear the confirm tone. Then, A can hang up.
NOTE: “Enable Call Feature” must be set to “Yes” in web configuration page.
Caller A can place a call on hold and wait for one of three situations:
1. A quick confirmation tone (similar to call waiting tone) followed by a dial-tone. This indicates the
transfer is successful (transferee has received a 200 OK from transfer target). At this point, Caller
A can either hang up or make another call.
2. A quick busy tone followed by a restored call (on supported platforms only). This means the
transferee has received a 4xx response for the INVITE and we will try to recover the call. The busy
tone is just to indicate to the transferor that the transfer has failed.
3. Continuous busy tone. The phone has timed out.
Note: continuous busy tone does not indicate the transfer has been successful, nor does it indicate
the transfer has failed. It often means there was a failure to receive second NOTIFY – check firmware
for most recent release.
Grandstream Networks, Inc. HT701 User Manual Page 14 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
Attended Transfer
Assume that Caller A and B are in conversation. Caller A wants to Attend Transfer B to C:
1. Caller A presses FLASH on the analog phone for dial tone.
2. Caller A then dials Caller C’s number followed by # (or wait for 4 seconds).
3. If Caller C answers the call, Caller A and Caller C are in conversation. Then A can hang up to
complete transfer.
4. If Caller C does not answer the call, Caller A can press “flash” to resume call with Caller B.
NOTE: When Attended Transfer fails and A hangs up, the HT701 will ring back user A to remind A that B
is still on the call. A can pick up the phone to resume conversation with B.
3-Way Conferencing
The HT701 supports Bellcore style 3-way Conference.
Instructions for 3-way conference:
Assume that call party A and B are in conversation. Caller A(HT701) wants to bring third Caller C into
conference:
1. A presses FLASH (on the analog phone, or Hook Flash for old model phones) to get a dial tone.
2. A dials C’s number then # (or wait for 4 seconds).
3. If C answers the call, then A presses FLASH to bring B, C in the conference.
4. If C does not answer the call, A can press FLASH back to talk to B.
5. If A presses FLASH during conference, C will be dropped out.
6. If A hangs up, the conference will be terminated for all three parties when configuration “Transfer
on Conference Hangup” is set to “No”. If the configuration is set to “Yes”, A will transfer B to C so
that B and C can continue the conversation.
Fax Support
HT701 supports FAX in two modes: 1) T.38 (Fax over IP) and 2) fax pass through. T.38 is the preferred
method because it is more reliable and works well in most network conditions. If the service provider
supports T.38, please use this method by selecting Fax mode to be T.38 (default). If the service provider
does not support T.38, pass-through mode can be used.
CALL FEATURES
The HT701 supports all the traditional and advanced telephony features.
Grandstream Networks, Inc. HT701 User Manual Page 15 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
TABLE 6: HT701 CALL FEATURES
Key Call Features
*02 Forcing a Codec (per call) *027110 (PCMU), *027111 (PCMA), *02723 (G723), *02729 (G729),
*0272616 (G726-r16), *0272624 (G724-r24), *0272632 (G726-r32), *0272640 (G726-r40), *027201
(iLBC)
*03 Disable LEC (pe call) Dial “*03” + ” number ”. No dial tone is played in the middle.
*16 Enable SRTP
*17 Disable SRTP
*30 Block Caller ID (for all subsequent calls)
*31 Send Caller ID (for all subsequent calls)
*47 Direct IP Calling. Dial “*47” + “IP address”. No dial tone is played in the middle. Detail see Direct
IP Calling section on page 12.
*50 Disable Call Waiting (for all subsequent calls)
*51 Enable Call Waiting (for all subsequent calls)
*67 Block Caller ID (per call). Dial “*67” + ” number ”. No dial tone is played in the middle.
*82 Send Caller ID (per call). Dial “*82” + ” number ”. No dial tone is played in the middle.
*69 Call Return Service: Dial *69 and the phone will dial the last incoming phone number received.
*70 Disable Call Waiting (per call). Dial “*70” + ” number ”. No dial tone is played in the middle.
*71 Enable Call Waiting (per call). Dial “*71” + ” number ”. No dial tone is played in the middle.
*72 Unconditional Call Forward: Dial “*72” and then the forwarding number followed by “#”. Wait
for dial tone and hang up. (dial tone indicates successful forward)
*73 Cancel Unconditional Call Forward. To cancel “Unconditional Call Forward”, dial “*73”, wait for
dial tone, then hang up.
*74 Enable Paging Call: Dial “*74” and then the destination phone number you want to page.
*78 Enable Do Not Disturb (DND): When enabled all incoming calls are rejected.
*79 Disable Do Not Disturb (DND): When disabled, incoming calls are accepted.
*87 Blind Transfer
*90 Busy Call Forward: Dial “*90” and then the forwarding number followed by “#”. Wait for dial
tone then hang up.
*91 Cancel Busy Call Forward. To cancel “Busy Call Forward”, dial “*91”, wait for dial tone, then hang
up.
*92 Delayed Call Forward. Dial “*92” and then the forwarding number followed by “#”. Wait for dial
tone then hang up.
*93 Cancel Delayed Call Forward. To cancel Delayed Call Forward, dial “*93”, wait for dial tone,
then hang up.
Flash/Hook Toggles between active call and incoming call (call waiting tone). If not in conversation, flash/hook
will switch to a new channel for a new call.
# Pressing pound sign will serve as Re-Dial key.
Grandstream Networks, Inc. HT701 User Manual Page 16 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
CONFIGURATION GUIDE
Configuring the HT701 through Voice Prompts
DHCP MODE
Select voice menu option 01 to enable HT701 to use DHCP.
STATIC IP MODE
Select voice menu option 01 to enable HT701 to use STATIC IP mode, then use option 02, 03, 04, 05 to set
up IP address, Subnet Mask, Gateway and DNS server respectively.
FIRMWARE SERVER IP ADDRESS
Select voice menu option 13 to configure the IP address of the firmware server.
CONFIGURATION SERVER IP ADDRESS
Select voice menu option 14 to configure the IP address of the configuration server.
UPGRADE PROTOCOL
Select voice menu option 15 to choose firmware and configuration upgrade protocol. User can choose
between TFTP and HTTP.
FIRMWARE UPGRADE MODE
Select voice menu option 17 to choose firmware upgrade mode among the following three options:
1) always check, 2) check when pre/suffix changes, and 3) never upgrade
WAN PORT WEB ACCESS
Select voice menu option 12 to enable WAN Port Wed Access of the device configuration pages.
Grandstream Networks, Inc. HT701 User Manual Page 17 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
Configuring the HT701 Via Web Browser
HT701 has an embedded Web server that will respond to HTTP GET/POST requests. It also has embedded
HTML pages that allow users to configure the HT701 through a web browser such as Microsoft’s IE, AOL’s
Netscape or Mozilla Firefox installed on Windows or Unix OS. (Macintosh OS is not included).
ACCESS THE WEB CONFIGURATION MENU
The HT701 HTML configuration page can be accessed via LAN or WAN ports.
• FROM THE LAN PORT:
1. Directly connect a computer to the LAN port
2. Open a command window on the computer
3. Type in “ipconfig /release”, the IP address etc becomes 0
4. Type in “ipconfig /renew”, the computer gets an IP address in 192.168.2.x segment by default
5. Open a web browser, type in the default IP address of the LAN port. http://192.168.2.1. You will
see the log in page of the device.
• FROM THE WAN PORT:
1. Follow table 4 to find the WAN side IP address.
2. Open a web browser, type in the WAN side IP address – for example:
http://HT701-WAN-IP-Address
Note:
• WAN side HTTP access is disabled by default for security reason. You can enable HTTP access on
the configuration page by setting “WAN side HTTP access” to be YES.
• Initial access to the configuration pages is always from the LAN port. The instructions are listed
above.
• The IVR announces 12 digits IP address, you need to strip out the leading “0” in the IP address. For
ex. IP address: 192.168.001.014, you need to type in http://192.168.1.14 in the web browser.
Once the HTTP request is entered and sent from a web browser, the user will see a log-in screen. There
are two default passwords for the login page:
User Level: Password: Web pages allowed:
End User Level 123 Only Status and Basic Settings
Administrator Level admin Browse all pages
The password is case sensitive with maximum length of 25 characters. The factory default password for
End User and administrator is “123” and “admin” respectively. Only an administrator can access the
“ADVANCED SETTING”, “FXS PORTs” configuration pages. Please reference the GUI pages using the
following link: http://www.grandstream.com/products/ht_series/HT701/documents/HT701_gui.zip .
NOTE: If you can not log into the configuration page by using the default password, please check with the
VoIP service provider. It is most likely the VoIP service provider has provisioned the device and configured
for you therefore the password has already been changed.
Grandstream Networks, Inc. HT701 User Manual Page 18 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
Important Settings
The end-user must configure the following settings according to the local environment. NOTE: Most
settings on the web configuration pages are set to the default values.
NAT SETTINGS
If you plan to keep the gateway within a private network behind a firewall, we recommend using STUN
Server. The following three (3) settings are useful in the STUN Server scenario:
1. STUN Server (under Advanced Settings webpage)
Enter a STUN Server IP (or FQDN) that you may have, or look up a free public STUN Server on the
internet and enter it on this field. If using Public IP, keep this field blank.
2. Use Random Ports (under Advanced Settings webpage)
This setting depends on your network settings. Generally if you have multiple IP devices under the
same network, it should be set to Yes. If using a Public IP address, set this parameter to No.
3. NAT Traversal (under the Profile web pages)
Set this to Yes when gateway is behind firewall on a private network.
DTMF METHODS
DTMF Settings are in FXS portX pages.
• DTMF in-audio
• DTMF via RTP (RFC2833)
• DTMF via SIP INFO
Set priority of DTMF methods according to your preference. This setting should be based on your server
DTMF setting.
PREFERRED VOCODER (CODEC)
The HT701 supports a broad range of voice codecs. Under Profile web pages, choose your preferred
order of different codecs:
• PCMU/A (or G711µ/a)
• G729 A/B/E
• G723
• G726 (16/24/32/40)
• iLBC
• AAL2 (all G.726)
TABLE 7: BASIC SETTINGS
End User Password Password to access the Web Configuration Menu. This field is case sensitive with a
maximum length of 25 characters.
Grandstream Networks, Inc. HT701 User Manual Page 19 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
Web Port By default, HTTP uses port 80. This field is for customizable web port.
Telnet Server Default is set to YES.
IP Address There are two modes to operate the HT701:
DHCP mode: all the field values for the Static IP mode are not used (even though they are
still saved in the Flash memory.) The HT701 acquires its IP address from the first DHCP
server it discovers from the LAN it is connected. Using the PPPoE feature: set the
PPPoE account settings. The HT701 will establish a PPPoE session if any of the PPPoE
fields is set.
Static IP mode: configure the IP address, Subnet Mask, Default Router IP address,
DNS Server 1 (primary), DNS Server 2 (secondary) fields. These fields are set to zero by
default.
DHCP hostname Default is blank. This option specifies the name of the client. This field is optional but may
be required by some Internet Service Providers.
DHCP domain Default is blank. This option specifies the domain name that client should use when
resolving hostnames via the Domain Name System.
DHCP vendor class ID Used by clients and servers to exchange vendor-specific information..
PPPoE account ID PPPoE username. Necessary if ISP requires you to use a PPPoE (Point to Point Protocol
over Ethernet) connection.
PPPoE password PPPoE account password.
PPPoE Service Name Default is blank. This field is optional. If your ISP uses a service name for the PPPoE
connection, enter the service name here.
Time Zone Controls how the date/time is displayed according to the specified time zone.
Self Defined Time Zone The syntax is std offset dst [offset],start[/time],end[/time]
Default is set to : MTZ+6MDT+5,M3.2.0,M11.1.0
MTZ+6MDT+5,
Time zone with 6 hours offset with 1 hour ahead which is the US central time. It is positive
(+) if the local time zone is west of the Prime Meridian and negative (-) if it is east.
Prime Meridian (a.k.a: International or Greenwich Meridian)
M3.2.0,M11.1.0
The 1st number indicates Month: 1,2,3,..,12 (for Jan, Feb, .., Dec)
The 2nd number indicates the nth iteration of the weekday: (1st Sunday, 3rd Tuesday etc)
The 3rd number indicates Weekday: 0,1, 2, ..,6(for Sun, Mon, Tue, .., Sat)
Therefore, this example is the DST which starts from the second Sunday of March to the
1st Sunday of November.
Language Languages supported with voice prompt and web interface, except Spanish that it is only
in IVR.
Device Mode This parameter controls whether the device is working in NAT router mode or Bridge
mode. Save the setting and reboot prior to configuring HT701.
NAT Maximum Ports The number of ports that can be managed while in NAT router mode.
Range: 0 – 4096, default is 1024. Typically one port per connection.
NAT TCP Timeout NAT TCP idle timeout in seconds. Connection will be closed after preconfigured, timeout
if not refreshed. Range: 0 - 3600
Grandstream Networks, Inc. HT701 User Manual Page 20 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
NAT UDP Timeout NAT TCP idle timeout in seconds. Connection will be closed after preconfigured, timeout
if not refreshed. Range: 0 – 3600, default is 300
Uplink Bandwidth The maximum uplink bandwidth permitted by the device. This function is disabled by
default. The total bandwidth can be set as: 128K, 256K, 512K, 1M, 2M, 3M, 4M, 5M, 10M
or 15M. The primary function of this setting is to limit the uplink bandwidth for the device
internal system, signaling and NATed traffic. Example: When 512k is configured, there
will be at least 512kbps limited for internal system, signaling and NATed traffic. Voice or
RTP stream will never be limited. See figure 3.
Downlink Bandwidth The maximum downlink bandwidth permitted by the device. This function is disabled by
default. The total bandwidth can be set as: 128K, 256K, 512K, 1M, 2M, 3M, 4M, 5M, 10M
or 15M. The primary function of this setting is to limit the download bandwidth for the
device internal system, signaling and NATed traffic. Example: if 128 is configured, there
will be at least 128kbps limited for internal system, signaling and NATed traffic. Voice or
RTP stream will never be limited. See figure 3.
Enable UPnP When set to “Yes”, the HT701 acts as an UPnP gateway for your UPnP enabled
applications. UPnP = “Universal Plug and Play”
Reply to ICMP on WAN
Port Default is No. When set to “Yes”, the HT701 responds to the PING command from other
computers, but is also made vulnerable to DOS attacks.
WAN Side HTTP/Telnet
Access Default is No. When set to “Yes”, the user can access the web configuration pages
through the WAN port, instead of through the PC port. Warning: this configuration is less
secure than the default option.
Cloned WAN MAC
Address: This allows the user to change/set a specific MAC address on the WAN interface.
Note: Set in Hex format
Enable LAN DHCP When set to “Yes”, device will function as a simple router and LAN port will provide IP
addresses to internal network. Connect the WAN port to ADSL/Cable modem or any other
equipment that provides access to public Internet.
LAN DHCP Base IP Base IP Address for a LAN port. Default factory setting is 192.168.2.1.
Note: When the device detects WAN IP is conflicting with LAN IP, the LAN base IP
address will be changed based on the network mask -- the effective subnet will be
increased by 1. For example; 192.168.2.1 will be changed to 192.168.3.1 if net mask is
255.255.255.0. Then the device will reboot
LAN DHCP Start IP Default value is 100. The last segment of IP address assigned to the HT50x in the LAN
Network. Default configuration assigns IP address (to local network devices) starting from
192.168.2.100.
LAN DHCP End IP Default value is 199. This parameter allows a user to limit the number of local network
devices connected to the internal router. Default configuration assigns IP address (to
devices connected to the LAN port) in a range from 192.168.2.100 up to 192.168.2.199.
LAN Subnet Mask Sets the LAN subnet mask. Default value is 255.255.255.0
LAN DHCP Base IP:
Base IP address for the LAN port, which functions as default gateway for its LAN. Default
value is 192.168.2.1
DHCP IP Lease Time Default value is 120 hrs (5 days). The length of time the IP address is assigned to the LAN
clients. Value is set in units of hours.
DMZ IP:
This function forwards all WAN IP traffic to a specific IP address if no matching port is
used by HT701 or in the defined port forwarding.
Port Forwarding Forwards a matching (TCP/UDP) port to a specific LAN IP address with a specific
(TCP/UDP) port.
Grandstream Networks, Inc. HT701 User Manual Page 21 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011

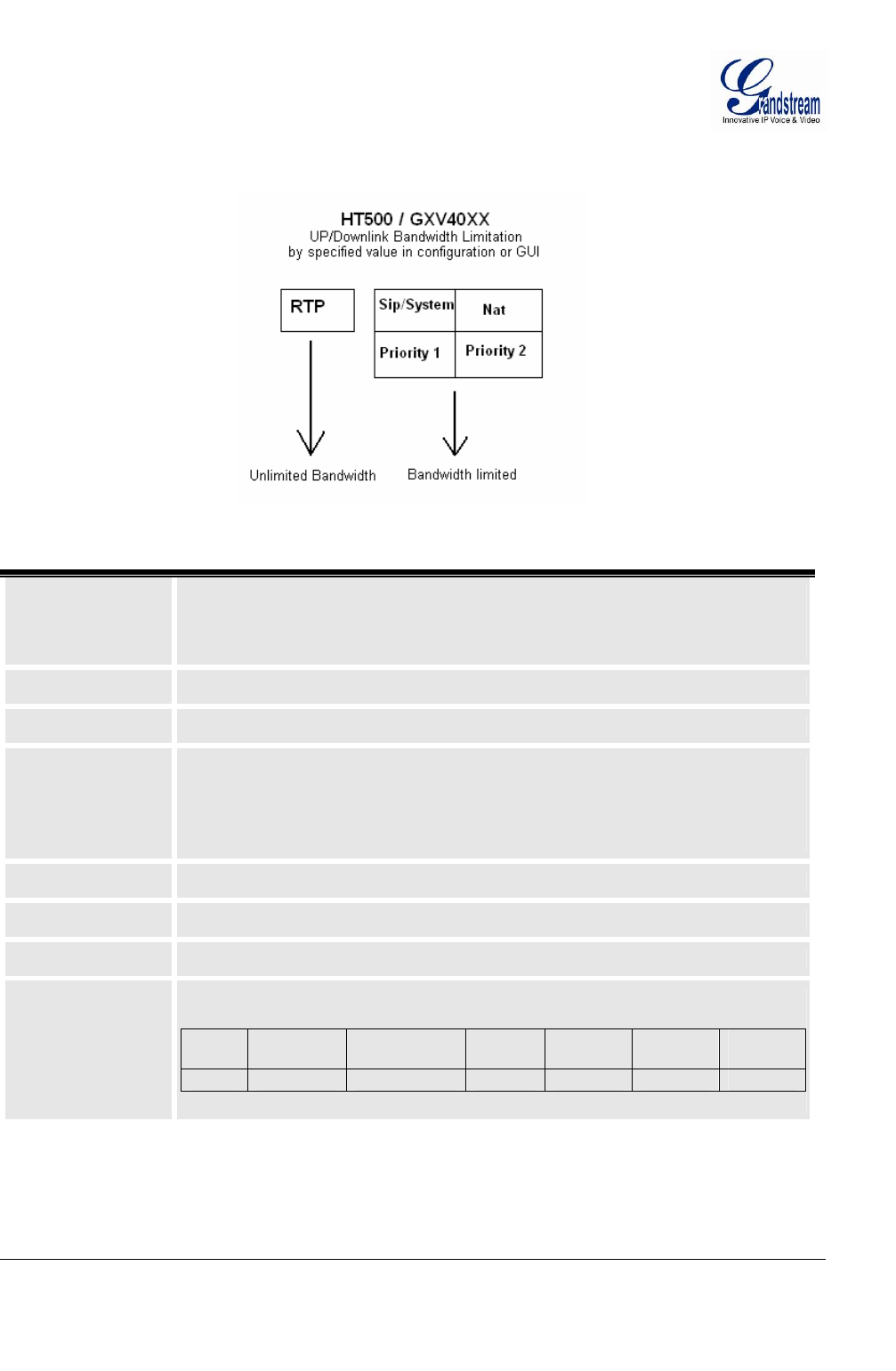

FIGURE 3: UPLINK/DOWNLINK BANDWIDTH LIMITATION
In addition to the Basic Settings configuration page, end users also have access to the Device Status page.
TABLE 8: STATUS PAGE
MAC Address The device ID, in HEX format. This is very important ID for ISP troubleshooting. LAN and
WAN Mac addresses will appear in this place. The LAN MAC address will be used for
provisioning and can be found on the label coming with original box and on the label
located on the bottom panel of the device.
WAN IP Address This field shows WAN IP address of HT701.
Product Model This field contains the product model info.
Software Version Program: This is the main software release. This number is always used for firmware
upgrade. Current release is 1.0.1.63 Boot and Loader are seldom changed.
Bootloader: current version is 1.0.0.9.
Core: current version 1.0.0.54
Base: current version is 1.0.1.1
System Up Time Shows system up time since the last reboot.
PPPoE Link Up Indicates whether the PPPoE connection is up if the HT701 is connected to DSL modem.
NAT This filed indicates the type of NAT connection used by the HT701 via its WAN port.
Port Status Displays relevant information regarding the each FXS port.
Port Hook Registration DND Forward Busy
Forward Delayed
Forward
FXS On Hook Registered Yes 613
Advanced User Configuration
Log in to the advanced user configuration page the same way as for the basic configuration page. The
password is case sensitive and the factory default password for Advanced User is “admin”.
Grandstream Networks, Inc. HT701 User Manual Page 22 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
Advanced User configuration includes the end user configuration and the advanced configurations including:
a) SIP configuration, b) Codec selection, c) NAT Traversal Setting and d) other miscellaneous configuration.
HT701 each FXS SIP account has its own configuration page. Their configurations are identical.
TABLE 9: ADVANCED SETTINGS
Admin Password This contains the password to access the Advanced Web Configuration page. This field is
case sensitive. Only the administrator can configure the “Advanced Settings” page.
Password field is purposely left blank for security reasons after clicking update and saved.
The maximum password length is 25 characters.
Layer 3 QoS This field defines the layer 3 QoS parameter which can be the value used for IP
Precedence or Diff-Serv or MPLS. Default value is 12.
Layer 2 QoS Value used for layer 2 VLAN tag. Default setting is blank.
STUN Server IP address or Domain name of the STUN server.
Keep-alive interval This parameter specifies how often the HT701 sends a blank UDP packet to the SIP server
in order to keep the “hole” on the NAT open. Default is 20 seconds. Minimum value is 20
seconds.
Use STUN to detect
network connectivity Use STUN keep-alive to detect WAN side network problems. If keep-alive request does
not yield any response for configured number of times, the device will restart the TCP/IP
stack. If the STUN server does not respond when the device boots up, the feature is
disabled.
Firmware Upgrade and
Provisioning Enables HT701 to download firmware or configuration file through either the TFTP, HTTP
or HTTPS server.
Via TFTP Server This is the IP address of the configured TFTP server. If selected and it is non-zero or not
blank, the HT701 retrieves the new configuration file or new code image from the specified
TFTP server at boot time. After 5 attempts, the system will timeout and will start the boot
process using the existing code image in the Flash memory. If a TFTP server is
configured and a new code image is retrieved, the new downloaded image is saved into
the Flash memory.
Note: Please do NOT interrupt the TFTP upgrade process (especially the power supply) as
this will damage the device. Depending on the local network, this process can take up to
15 or 20 minutes.
Via HTTP / HTTPS
Server The URL for the HTTP/HTTPS server used for firmware upgrade and configuration via
HTTP.
For example, http://provisioning.mycompany.com:6688/Grandstream/1.0.0.67“:6688” is
the specific TCP port where the HTTP or HTTPS server is listening; it can be omitted if
using default port 80.
Note: If Auto Upgrade is set to No, HT701 will only do HTTP/HTTPS download once at
boot up.
Firmware Server Path IP address or domain name of firmware server.
Config Server Path IP address or domain name of configuration server.
XML Config File
Password The password used for encrypting the XML configuration file using OpenSSL.
This is required for the phone to decrypt the encrypted XML configuration file.
HTTP/HTTPS User
Name The user name for the HTTP/HTTPS server.
Grandstream Networks, Inc. HT701 User Manual Page 23 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
HTTP/HTTPS
Password The password for the HTTP/HTTPS server.
Firmware File Prefix Default is blank. If configured, HT701 will request firmware file with the prefix. This
setting is useful for ITSPs. End user should keep it blank.
Firmware File Postfix Default is blank. End user should keep it blank.
Config File Prefix Default is blank. End user should keep it blank.
Config File Postfix Default is blank. End user should keep it blank.
Allow DHCP Option 66
to override server If set to “Yes”, configuration and upgrade server information can be obtained using DHCP
option 66 from DHCP server located in customer’s environment.
Automatic Upgrade Choose “Yes” to enable automatic upgrade and provisioning. If select “Check every
minutes” input the amount of minutes you want it to check for update. If select “Yes, daily at
hour” make sure to input the hour of the day you want it to check for update, e.g. for 11 pm
type 23. If select “Yes, weekly on day” make sure you input the day of the week (in format
0-6, 0 is Sunday) you want it to check for update. When set to No, HT701 will only do the
following option you select; “Always check for New Firmware at Boot up” will check for new
firmware every time the device reboots. “Check New Firmware only when F/W pre/suffix
changes” will check for updates only when the pre/suffix has been changed.
Firmware Key Used for firmware encryption. Should be 32 digit in hexadecimal representation. End
user should keep it blank.
Authenticate Conf File If set to Yes, config file is authenticated before acceptance. This protects the
configuration from an unauthorized change.
Firmware Key Used for firmware encryption. Should be 32 digit in hexadecimal representation. End
user should keep it blank.
SSL Certificate The user specify SSL certificate used for SIP over TLS in X.509 format.
SSL Private Key The user specify SSL private key used for SIP over TLS in X.509 format.
SSL Private Key
Password User specify password to protect the private key above.
ACS URL User specify the Auto Configuration Server’s URL (TR-069 protocol)
ACS Username User specify the ACS Username
ACS Password User specify the ACS password
Periodic Inform
Enable Default is No. If set to YES, device will send inform packets to the ACS
Periodic Inform
Interval Frequency that the inform packets will be sent out to the ACS
Connection Request
Username Set a user name for the ACS to connect to this device
Connection Request
Password Set a password for the ACS to connect to this device
System Ring Cadence Configuration option is set ring cadence on all FXS ports for all incoming calls. (Syntax:
c=on1/off1-on2/off2-on3/off3; [...]) Default is set to c=2000/4000; (US standards)
Grandstream Networks, Inc. HT701 User Manual Page 24 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
Call Progress Tones
Using these settings, users can configure tone frequencies and cadence according to their
preference. By default they are set to North American frequencies. Configure these
settings with known values to avoid uncomfortable high pitch sounds. ON is the period of
ringing (“On time” in ‘ms’) while OFF is the period of silence. In order to set a continuous
tone, OFF should be zero. Otherwise it will ring ON ms and a pause of OFF ms and then
repeat the pattern.
Example configuration for N.A. Dialtone:
f1=350@-13,f2=440@-13,c=0/0;
Syntax: f1=freq@vol, f2=freq@vol, c=on1/off1-on2/off2-on3/off3; [...]
(Note: freq: 0 - 4000Hz; vol: -30 - 0dBm)
Lock Keypad Update If set to “Yes”, the configuration update via keypad is disabled.
Disable Voice Prompt Default is No. Disables the voice prompt configuration.
Disable Direct IP Call Default is No. Disables the Direct IP Call function.
NTP server URI or IP address of the NTP (Network Time Protocol) server. This parameter
synchronizes the date and time.
Syslog Server The IP address or URL of System log server. This feature is especially useful for the ITSP
(Internet Telephone Service Provider)
Syslog Level Select the HT701 to report the log level. Default is NONE. The level is one of DEBUG,
INFO, WARNING or ERROR. Syslog messages are sent based on the following events:
1. product model/version on boot up (INFO level)
2. NAT related info (INFO level)
3. sent or received SIP message (DEBUG level)
4. SIP message summary (INFO level)
5. inbound and outbound calls (INFO level)
6. registration status change (INFO level)
7. negotiated codec (INFO level)
8. Ethernet link up (INFO level)
9. SLIC chip exception (WARNING and ERROR levels)
10. memory exception (ERROR level)
The Syslog uses USER facility. In addition to standard Syslog payload, it contains the
following components:
GS_LOG: [device MAC address][error code] error message
Example: May 19 02:40:38 192.168.1.14 GS_LOG: [00:0b:82:00:a1:be][000] Ethernet link
is up
Download Device
Configuration Allows user to download and save a text file containing all the P values of each setting as
configured at that point on the unit.
TABLE 10: ACCOUNT SETTINGS
Profile Active When set to Yes the FXS port is activated.
Primary SIP Server SIP Server’s IP address or Domain name provided by VoIP service provider.
Failover SIP Server Failover SIP Server’s IP address or Domain name in case primary server does not
respond.
Prefer Primary SIP
Server Default is no. If set to yes it will register to Primary Server if registration with Failover
server expires
Grandstream Networks, Inc. HT701 User Manual Page 25 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
Outbound Proxy IP address or Domain name of Outbound Proxy, or Media Gateway, or Session Border
Controller. Used by HT701 for firewall or NAT penetration in different network
environments. If symmetric NAT is detected, STUN will not work and ONLY outbound
proxy can correct the problem.
SIP transport User can select UDP or TCP or TLS.
NAT Traversal (STUN) This parameter defines whether or not the HT701 NAT traversal mechanism is
activated. If activated (by choosing “Yes”) and a STUN server is also specified, then the
HT701 performs according to the STUN client specification. Using this mode, the
embedded STUN client will detect if and what type of firewall/NAT. If the detected NAT
is a Full Cone, Restricted Cone, or a Port-Restricted Cone, the HT701 will use its
mapped public IP address and port in all of its SIP and SDP messages.
If the NAT Traversal field is set to “Yes” with no specified STUN server, the HT701 will
periodically (every 20 seconds or so) send a blank UDP packet (with no payload data) to
the SIP server to keep the “hole” on the NAT open.
SIP User ID User account information, provided by VoIP service provider (ITSP). Usually in the form
of digit similar to phone number or actually a phone number.
Authenticate ID SIP service subscriber’s Authenticate ID used for authentication. Can be identical to or
different from SIP User ID.
Authenticate Password SIP service subscriber’s account password.
Name SIP service subscriber’s name for Caller ID display.
DNS Mode One from the 3 modes are available for “DNS Mode” configuration:
-A Record (for resolving IP Address of target according to domain name)
-SRV (DNS SRV resource records indicates how to find services for various protocols)
-NAPTR/SRV (Naming Authority Pointer according to RFC 2915)
One mode can be chosen for the client to look up server.
The default value is “A Record”
User ID is Phone
Number If the HT701 has an assigned PSTN telephone number, this field should be set to “Yes”.
Otherwise, set to “No”. If set to “Yes”, a “user=phone” parameter will be appended to
the “From” header in SIP request.
SIP Registration Controls whether the HT701 needs to send REGISTER messages to the proxy server.
The default setting is Yes.
Unregister on Reboot Default is No. If set to Yes, the SIP user’s registration information will be cleared on
reboot.
Outgoing Call without
Registration Default is No. If set to “Yes,” user can place outgoing calls even when not registered (if
allowed by Internet Telephone Service Provider) but is unable to receive incoming calls.
Register Expiration This parameter allows the user to specify the time frequency (in minutes) the HT701
refreshes its registration with the specified registrar. The default interval is 60 minutes
(or 1 hour). The maximum interval is 65535 minutes (about 45 days).
Registration Retry Wait
Time Retry registration if the process failed. Default is 30 seconds.
Local SIP port Defines the local SIP port the HT701 will listen and transmit. The default value for FXS
port 1 is 5060. The default value for FXS port 2 is 5062.
Local RTP port Defines the local RTP-RTCP port pair the HT701 will listen and transmit. It is the base
RTP port for channel 0. When configured,
channel 0 uses this port _value for RTP and the port_value+1 for its RTCP; channel 1
uses port_value+2 for RTP and port_value+3 for its RTCP.
The default value for FXS port 1 is 5004. The default value for FXS port 2 is 5012.
Use Random Port This parameter forces the random generation of both the local SIP and RTP ports when
set to Yes. This is usually necessary when multiple HT701 are behind the same NAT.
Refer to Use Target Default is NO. If set to YES, then for Attended Transfer, the “Refer-To” header uses the
Grandstream Networks, Inc. HT701 User Manual Page 26 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
Contact transferred target’s Contact header information.
Transfer on Conference
Hang up Default is No. In which case if the conference originator hangs up the conference will be
terminated. When option YES is chosen, originator will transfer other parties to
each other so that B and C can choose either to continue the conversation or
hang up.
Enable Ring-Transfer Default is No, this will create a Semi-Attendant Transfer. When set to Yes, device can
transfer the call upon receiving ring back tone.
Disable Bellcore Style
3-Way Conference Default is No. you can make a Conference by pressing ‘Flash’ key. If set to Yes, you
need to dial *23 + second callee number.
Remove OBP from
Route Header Default is No. When option YES is chosen, the Out Bound Proxy will be removed from
Route header.
Support SIP Instance ID Default is Yes. If set to Yes, the contact header in REGISTER request will contain SIP
Instance ID as defined in IETF SIP Outbound draft.
Validate incoming SIP
message Default is No. If set to yes all incoming SIP messages will be strictly validated according
to RFC rules. If message will not pass validation process, call will be rejected.
Check SIP User ID for
incoming INVITE Default is No. Check the incoming SIP User ID in Request URI. If they don’t match, the
call will be rejected. If this option is enabled, the device will not be able to make direct IP
calls.
SIP T1 Timeout T1 is an estimate of the round-trip time between the client and server transactions.
If the network latency is high, select larger value for more reliable usage.
SIP T2 Interval Maximum retransmission interval for non-INVITE requests and INVITE responses.
DTMF Payload Type Sets the payload type for DTMF using RFC2833.
Preferred DTMF method The HT701 supports up to 3 different DTMF methods including in-audio, via RTP
(RFC2833) and via Sip Info. The user can configure DTMF method in a priority list.
Disable DTMF
Negotiation Default is No. If set to yes, use above DTMF order without negotiation
DTMF via RFC2833 Send DTMF via RTP (According to RFC 2833).
DTMF via SIP INFO Send DTMF via SIP INFO message.
Send Flash Event Default is No. If set to yes, flash will be sent as DTMF event.
Enable Call Features Default is Yes. (If Yes, call features using star codes will be supported locally)
Offhook Auto-Dial This parameter allows users to configure a User ID or extension number that is
automatically dialed when off-hook. Only the user part of a SIP address needs is
entered here. The HT701 will automatically append the “@” and the host portion of the
corresponding SIP address.
Proxy-Require SIP Extension to notify SIP server that the unit is behind the NAT/Firewall.
Use NAT IP NAT IP address used in SIP/SDP message. Default is blank.
Distinctive Ring Tone Custom Ring Tone 1 to 3 with associate Caller ID: when selected, if Caller ID is
configured, then the device will ONLY uses this ring tone when the incoming call is from
the Caller ID. System Ring Tone is used for all other calls. When selected but no
Caller ID is configured, the selected ring tone will be used for all incoming calls.
Distinctive ring tones can be configured not only for matching a whole number, but also
for matching prefixes. In this case symbol * (star) will be used.
For example:
if configured as *617, Ring Tone 1 will be used in case of call arrived from the area
code 617. Any other incoming call will ring using cadence defined in parameter System
Ring Cadence located under Advanced Settings Configuration page.
Note: If server supports Alert-Info header and standard ring tone set (Bellcore) or
distinctive ring tone 1-10 is specified, then the ring tone in the Alert-Info header from
server will be used. Bellcore rings and tones are independent from custom ring tones.
The custom ring tones can also be specified by alert-info header, for example
Alert-Info: <http://127.0.0.1>;info=ring5
Grandstream Networks, Inc. HT701 User Manual Page 27 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
Disable Call Waiting Default is No. If set to YES Call Waiting indication information will not be provided to
analog phone connected to this FXS port.
Disable Call-Waiting
Caller ID Default is No. If set to YES Call Waiting caller ID will not be provided to analog phone
connected to this FXS port.
Disable Call Waiting
Tone Default is No. This is to disable the stutter Call Waiting Tone when a Call Waiting
information arrives. The CWCID information will still be displayed.
Disable Reminder Ring
for On-Hold Call Default is No. Do not play the reminder ring when this is set to Yes.
Disable Visual MWI If set to “Yes”, the MWI information will not be transferred to the analog phone
connected to the FXS port.
Ring Timeout Incoming call will stop ringing when not picked up given a specific period of time.
Delayed Call Forward
Wait Time Default value is 20 seconds. In case this feature activated using * codes (*92 code), the
call will be forwarded after this preconfigured amount of time.
No Key Entry Timeout Default is 4 seconds. Dialing process is completed and outgoing call is initiated if no
key entry occurs during this preconfigured interval.
Early Dial Default is No. Use only if proxy supports 484 response. This parameter controls
whether the phone will send an early INVITE each time a key is pressed when a user
dials a number. If set to “Yes”, an INVITE is sent using the dial-number collected thus
far; Otherwise, no INVITE is sent until the “(Re-)Dial” button is pressed or after about 5
seconds have elapsed if the user forgets to press the “Re-Dial” button.
The “Yes” option should be used ONLY if there is a SIP proxy configured and the proxy
server supports 484 Incomplete Address response. Otherwise, the call will likely be
rejected by the proxy (with a 404 Not Found error).
This feature does NOT work with and should NOT be enabled for direct IP-to-IP calling.
Dial Plan Prefix Sets the prefix added to each dialed number.
Use # as Dial Key Allows users to configure the “#” key as the “Send” (or “Dial”) key. If set to “Yes”, “#”
will send the number. In this case, this key is essentially equivalent to the “Dial” key.
If set to “No”, this “#” key can be included as part of number.
Dial Plan Dial Plan Rules:
1. Accept Digits: 1,2,3,4,5,6,7,8,9,0 , *, #, A,a,B,b,C,c,D,d
2. Grammar: x - any digit from 0-9;
• xx+ - at least 2 digits number;
• xx. – at least 1 digit number.
• ^ - exclude;
• [3-5] - any digit of 3, 4, or 5;
• [147] - any digit 1, 4, or 7;
• <2=011> - replace digit 2 with 011 when dialing
• < =1> - add a leading 1 to all numbers dialed, vice versa will
remove a 1 from the number dialed
• | - or
• Example 1: {[369]11 | 1617xxxxxxx} – Allow 311, 611, 911, and any 11 digit
numbers with leading digits 1617
Example 2: {^1900x+ | <=1617>xxxxxxx} – Block any number of leading digits
1900 and add prefix 1617 for any dialed 7 digit numbers
• Example 3: {1xxx[2-9]xxxxxx | <2=011>x+} –Allow any combinations of numbers
with 11 digits which has a leading digit 1, but 5th digit cannot be 0 or 1. Or any length
of numbers with a minimum of 2 digits beginning with 2, with the leading digit replaced
with 011.
3. Default: Outgoing - {x+}
Example of a simple dial plan used in a Home/Office in the US:
Grandstream Networks, Inc. HT701 User Manual Page 28 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
{ ^1900x. | <=1617>[2-9]xxxxxx | 1[2-9]xx[2-9]xxxxxx | 011[2-9]x. | [3469]11 }
Explanation of example rule (reading from left to right):
• ^1900x. - prevents dialing any number started with 1900
• <=1617>[2-9]xxxxxx - allows dialing to local area code (617) numbers by dialing
7 numbers and 1617 area code will be added automatically
• 1[2-9]xx[2-9]xxxxxx |- allows dialing to any US/Canada Number with 11 digits
length
• 011[2-9]x. - allows international calls starting with 011
• [3469]11 - allow dialing special and emergency numbers 311, 411, 611 and 911
Note: In some cases user wishes to dial strings such as *123 to activate voice mail or
other application provided by service provider. In this case * should be predefined
inside dial plan feature and the Dial Plan should be: { *x+ }.
Subscribe for MWI Default is No. When set to “Yes” a SUBSCRIBE for Message Waiting Indication will be
sent periodically.
Send Anonymous If this parameter is set to “Yes”, the “From” header along with Privacy and P_
Asserted_Identity headers in outgoing INVITE message will be set to anonymous,
blocking Caller ID.
Anonymous Call
Rejection Default is No. If set to Yes, incoming calls with anonymous Caller ID will be rejected with
486 Busy message.
Special Feature Default is Standard. Choose the selection to meet some special requirements from
Softswitch vendors.
Session Expiration Grandstream implemented SIP Session Timer. The session timer extension enables
SIP sessions to be periodically “refreshed” via a SIP request (UPDATE, or re-INVITE.
Once the session interval expires, if there is no refresh via a UPDATE or re-INVITE
message, the session will be terminated. Session Expiration is the time (in seconds) at
which the session is considered timed out, if no successful session refresh transaction
occurs beforehand. The default value is 180 seconds.
Min-SE The minimum session expiration (in seconds). The default value is 90 seconds.
Caller Request Timer If selecting “Yes” the phone will use session timer when it makes outbound calls if
remote party supports session timer.
Callee Request Timer If selecting “Yes” the phone will use session timer when it receives inbound calls with
session timer request.
Force Timer If selecting “Yes” the phone will use session timer even if the remote party does not
support this feature. Selecting “No” will allow the phone to enable session timer only
when the remote party support this feature.
To turn off Session Timer, select “No” for Caller Request Timer, Callee Request Timer,
and Force Timer.
UAC Specify Refresher As a Caller, select UAC to use the phone as the refresher, or UAS to use the Callee or
proxy server as the refresher.
UAS Specify Refresher As a Callee, select UAC to use caller or proxy server as the refresher, or UAS to use the
phone as the refresher.
Force INVITE Session Timer can be refreshed using INVITE method or UPDATE method. Select
“Yes” to use INVITE method to refresh the session timer.
Send Re-INVITE After
Fax Default is No, If set to “Yes”, device will send an INVITE with audio vocoders upon
completion of Fax to continue session in audio only.
Use First Matching
Vocoder in 200OK SDP Default is No. If set to “Yes”, device will include only the first match vocoder in its 200OK
response, otherwise it will include all match vocoders in same order received in INVITE.
Preferred Vocoder The HT701 supports up to 5 different Vocoder types including G.711 A-/U-law, G.726
(Supports bit rates 16, 24, 32 and 40), G.723.1, G.729A/B/E, iLBC and AAL2. The
user can configure Vocoders in a preference list that will be included with the same
preference order in SDP message. The first Vocoder is entered by choosing the
appropriate option in “Choice 1”. The last Vocoder is entered by choosing the
appropriate option in “Choice 8”.
Vocoder types can also be changed per call basis by using a star code. Please see the
Grandstream Networks, Inc. HT701 User Manual Page 29 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
“Call features” section.
G723 Rate Default is 6.3kbps. Defines the encoding rate for G.723 vocoder.
iLBC Frame Size Sets the iLBC frame size in 20ms or 30ms
iLBC Payload type Defines payload type for iLBC. Default value is 97. The valid range is between 96 and
127.
AAL2-G726-16 Payload
type Default value is 100. Range is from 96 to 127.
AAL2-G726 - 24
Payload type Default value is 99. Range is from 96 to 127.
AAL2-G726 - 32
Payload type Default value is 104. Range is from 96 to 127.
AAL2-G726 - 40
Payload type Default value is 103. Range is from 96 to 127.
G729E payload type Default value is 102. Range is from 96 to 127.
VAD Default is No. VAD allows detecting the absence of audio and conserve bandwidth by
preventing the transmission of "silent packets" over the network.
Symmetric RTP Default is No. When set to Yes the device will change the destination to send RTP
packets to the source IP address and port of the inbound RTP packet last received by
the device.
Fax Mode T.38 (Auto Detect) FoIP by default, or Pass-Through (must use codec PCMU/PCMA)
Fax Tone Detection
Mode Default is Callee. This decides whether Caller, Callee or both sends out the re-INVITE
for T.38 or Fax Pass Through.
Jitter Buffer Type Select either Fixed or Adaptive based on network conditions.
Jitter Buffer Length Select Low, Medium or High based on network conditions.
• High (initial 200ms, min 40ms, max 600ms) Note: not all vocoders can meet
the high requirement
• Medium (initial 100ms, min 20ms, max 200ms)
• Low (initial 50ms, min 10ms, max 100ms)
SRTP Mode This option defines different implementation of support SRTP (squired RTP)
transmission mode.
SLIC Setting Dependent on standard phone type (and location)
Caller ID Scheme Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, & NTT Japan
Polarity Reversal Default is No. If set to “Yes”, polarity will be reversed upon call establishment and
termination.
Loop Current
Disconnect Default is No. Set it to Yes if the traditional PBX you are using with HT701 uses this
method for signaling call termination. Method initiates short voltage drop on the line
when remote (VoIP) side disconnects an active call.
Loop Current
Disconnect Duration Here can be configured duration of such voltage drop described in topic above.
Hook Flash Timing Time period when the cradle is pressed (Hook Flash) to simulate FLASH. To prevent
unwanted activation of the Flash/Hold and automatic phone ring-back, adjust this time
value.
On Hook Timing On-hook timing is the minimum time for an on-hook event to be validated.
Gain Voice path volume adjustment.
• Rx is a gain level for signals transmitted by FXS
• Tx is a gain level for signals received by FXS.
Default = 0dB for both parameters. Loudest volume: +6dB Lowest volume: -6dB.
Grandstream Networks, Inc. HT701 User Manual Page 30 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
User can adjust volume of call on either end using the Rx Gain Level parameter and the
Tx Gain Level parameter located on the FXS Port Configuration page.
If call volume is too low when using the FXS port (ie. the ATA is at user site), adjust
volume using the Rx Gain Level parameter under the FXS Port Configuration page.
If voice volume is too low at the other end, user may increase the far end volume using
the Tx Gain Level parameter under the FXS Port Configuration page.
Disable Line Echo
Canceller (LEC) Default is No. If set to “Yes” LEC will be disabled per call base. Recommended for
FAX/Data calls.
Ring Tones This function lets you configure ring tone cadence preferences. User has 10 choices.
The configuration, completed in Distinctive Ring Tones block in the same page, applies
to ring tones cadences configured here.
Saving the Configuration Changes
Click the “Update” button in the Configuration page to save the changes to the HT701 configuration. The
following screen confirms that the changes are saved. Reboot or power cycle the HT701 to make the
changes take effect.
Rebooting the HT701 from Remote
Press the “Reboot” button at the bottom of the configuration menu to reboot the ATA remotely. The web
browser will then display a message window to confirm that reboot is underway. Wait 30 seconds to log in
again.
Configuration through a Central Server
Grandstream HT701 can be automatically configured from a central provisioning system.
When HT701 boot up, it will send TFTP or HTTP/HTTPS request to download configuration file,
“cfg000b82xxxxxx” or “cfg00082xxxxxx.xml”, where “000b82xxxxxx” is the LAN MAC address of the HT701.
It will first request “cfg000b82xxxxxx” then “cfg000b82xxxxxx.xml”
The configuration file can be downloaded via TFTP or HTTP/HTTPS from the central server. A service
provider or an enterprise with large deployment of HT701 can easily manage the configuration and service
provisioning of individual devices remotely from a central server.
Grandstream has a provisioning system called GAPS (Grandstream Automated Provisioning System) that
is used to support automated configuration of Grandstream devices. GAPS uses enhanced (NAT friendly)
TFTP or HTTP (thus no NAT issues) and other communication protocols to communicate with each
individual Grandstream device for firmware upgrade, remote reboot, etc.
Grandstream provides GAPS service to VoIP service providers. Use GAPS for either simple redirection or
with certain special provisioning settings. At boot-up, Grandstream devices by default point to
Grandstream provisioning server GAPS, based on the unique MAC address of each device, GAPS
provision the devices with redirection settings so that they will be redirected to customer’s TFTP or
HTTP/HTTPS server for further provisioning. Grandstream also provide GAPSLITE software package
which contains our NAT friendly TFTP server and a configuration tool to facilitate the task of generating
device configuration files.
The GAPSLITE configuration tool is now free to end users. The tool and configuration template are
available for download from http://www.grandstream.com/support/tools .
Grandstream Networks, Inc. HT701 User Manual Page 31 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
SOFTWARE UPGRADE
Software upgrade can be done via either TFTP or HTTP. The corresponding configuration settings are in
the ADVANCED SETTINGS configuration page.
Firmware Upgrade through TFTP/HTTP/HTTPS
To upgrade via TFTP or HTTP/HTTPS, the “Firmware Upgrade and Provisioning upgrade via” field needs to
be set to TFTP HTTP or HTTPS, respectively. “Firmware Server Path” needs to be set to a valid URL of a
TFTP or HTTP server, server name can be in either FQDN or IP address format. Here are examples of
some valid URL.
e.g. firmware.mycompany.com:6688/Grandstream/1.0.4.2
e.g. 72.172.83.110
NOTES:
y Firmware upgrade server in IP address format can be configured via IVR. Please refer to the
CONFIGURATION GUIDE section for instructions. If the server is in FQDN format, it must be set via
the web configuration interface.
y Grandstream recommends end-user use the Grandstream HTTP server. Its address can be found
at http://www.grandstream.com/support/firmware . Currently the HTTP firmware server IP address
is 72.172.83.110. For large companies, we recommend to maintain their own TFTP/
HTTP/HTTPS server for upgrade and provisioning procedures.
y Once a “Firmware Server Path” is set, user needs to update the settings and reboot the device. If
the configured firmware server is found and a new code image is available, the HT701 will attempt
to retrieve the new image files by downloading them into the GXW400x ’s SRAM. During this stage,
the HT701’s LEDs will blink until the checking/downloading process is completed. Upon verification
of checksum, the new code image will then be saved into the Flash. If TFTP/HTTP/HTTPS fails for
any reason (e.g. TFTP/HTTP/HTTPS server is not responding, there are no code image files
available for upgrade, or checksum test fails, etc), the HT701 will stop the TFTP/HTTP/HTTPS
process and simply boot using the existing code image in the flash.
y Firmware upgrade may take as long as 15 to 30 minutes over Internet, or just 5 minutes if it is
performed on a LAN. It is recommended to conduct firmware upgrade in a controlled LAN
environment if possible. For users who do not have a local firmware upgrade server, Grandstream
provides a NAT-friendly TFTP server on the public Internet for firmware upgrade.
y Grandstream’s latest firmware is available at http://www.grandstream.com/support/firmware .
Oversea users are strongly recommended to download the binary files and upgrade firmware locally
in a controlled LAN environment.
Grandstream Networks, Inc. HT701 User Manual Page 32 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
y Alternatively, user can download a free TFTP or HTTP server and conduct local firmware upgrade.
A free windows version TFTP server is available for download from
http://support.solarwinds.net/updates/New-customerFree.cfm. Our latest official release can be
downloaded from http://www.grandstream.com/y-firmware.htm.
Instructions for local firmware upgrade:
1. Unzip the file and put all of them under the root directory of the TFTP server.
2. Put the PC running the TFTP server and the HT701 device in the same LAN segment.
3. Please go to File -> Configure -> Security to change the TFTP server's default setting from "Receive
Only" to "Transmit Only" for the firmware upgrade.
4. Start the TFTP server, in the phone’s web configuration page
5. Configure the Firmware Server Path with the IP address of the PC
6. Update the change and reboot the unit
End users can also choose to download the free HTTP server from http://httpd.apache.org/ or use Microsoft
IIS web server.
Configuration File Download
Grandstream SIP Device can be configured via Web Interface as well as via Configuration File through
TFTP or HTTP/HTTPS. “Config Server Path” is the TFTP or HTTP/HTTPS server path for configuration file.
It needs to be set to a valid URL, either in FQDN or IP address format. The “Config Server Path” can be
same or different from the “Firmware Server Path”.
A configuration parameter is associated with each particular field in the web configuration page. A
parameter consists of a Capital letter P and 2 to 3 (Could be extended to 4 in the future) digit numeric
numbers. i.e., P2 is associated with “Admin Password” in the ADVANCED SETTINGS page. For a
detailed parameter list, please refer to the corresponding firmware release configuration template.
When Grandstream Device boots up or reboots, it will issue request for configuration file named
“cfgxxxxxxxxxxxx”, where “xxxxxxxxxxxx” is the LAN MAC address of the device, i.e., “cfg000b820102ab”.
The configuration file name should be in lower cases.
Firmware and Configuration File Prefix and Postfix
Firmware Prefix and Postfix allows device to download the firmware name with the matching Prefix and
Postfix. This makes it the possible to store ALL of the firmware with different version in one single directory.
Similarly, Config File Prefix and Postfix allows device to download the configuration file with the matching
Prefix and Postfix. Thus multiple configuration files for the same device can be stored in one directory.
In addition, when the field “Check New Firmware only when F/W pre/suffix changes” is set to “Yes”, the
device will only issue firmware upgrade request if there are changes in the firmware Prefix or Postfix.
Managing Firmware and Configuration File Download
When “Automatic Upgrade” is set “Yes, every” the auto check will be done in the minute specified in this
field. If set to “daily at hour (0-23)”, Service Provider can use P193 (Auto Check Interval) to have the
devices do a daily check at the hour set in this field with either Firmware Server or Config Server. If set to
“weekly on day (0-6)” the auto check will be done in the day specified in this field. This allows the device
periodically check if there are any new changes need to be taken on a scheduled time. By defining different
intervals in P193 for different devices, Server Provider can spread the Firmware or Configuration File
download in minutes to reduce the Firmware or Provisioning Server load at any given time.
Grandstream Networks, Inc. HT701 User Manual Page 33 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
Automatic Upgrade:
No Yes, every 10080 minutes(60-5256000).
Yes, daily at hour 1(0-23). Yes, weekly on day 1(0-6).
RESTORE FACTORY DEFAULT SETTING
WARNING! Restoring the Factory Default Setting will DELETE all configuration information of the phone.
Please BACKUP or PRINT out all the settings before you approach to following steps. Grandstream will not
take any responsibility if you lose all the parameters of setting and cannot connect to your VoIP service
provider.
FACTORY RESET
There are two (2) methods for resetting your unit:
Reset Button
Reset default factory settings following these four (4) steps:
1. Unplug the Ethernet cable.
2. Locate a needle-sized hole on the back panel of the gateway unit next to the power connection.
3. Insert a pin in this hole, and press for about 7 seconds.
4. Take out the pin. All unit settings are restored to factory settings.
IVR Command
Reset default factory settings using the IVR Prompt (Table 5):
1. Dial “***” for voice prompt.
2. Enter “99” and wait for “reset” voice prompt.
3. Enter the encoded MAC address (Look below on how to encode MAC address).
4. Wait 15 seconds and device will automatically reboot and restore factory settings.
Encode the MAC Address
1. Locate the MAC address of the device. It is the 12 digit HEX number on the bottom of the unit.
2. Key in the MAC address. Use the following mapping:
0-9: 0-9
A: 22 (press the “2” key twice, “A” will show on the LCD)
B: 222
C: 2222
D: 33 (press the “3” key twice, “D” will show on the LCD)
E: 333
F: 3333
For example: if the MAC address is 000b8200e395, it should be keyed in as “0002228200333395”.
Grandstream Networks, Inc. HT701 User Manual Page 34 of 34
Firmware Version 1.0.4.2 Last Updated: 06/2011
NOTE:
1. Factory Reset will be disabled if the “Lock keypad update” is set to “Yes”.
2. Please be aware by default the HT701 WAN side HTTP access is disabled. After a factory
reset, the device’s web configuration page can be accessed only from its LAN port.
3. If the HT701 was previously locked by your local service provider, pressing the RESET
button will only restart the unit. The device will not return to factory default settings.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
FCC 15.105 Class B
(b) For a Class B digital device or peripheral, the instructions furnished the user shall include the
following or similar statement, placed in a prominent location in the text of the manual:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
