Gree Electric Appliances of Zhuhai CS532U Air Conditioner User Manual user manul
Gree Electric Appliances, Inc. of Zhuhai Air Conditioner user manul
141121032GZU_12478A-CS532U_user manual
Matching instructions
Specialties note
Matching of remote controller
Please do the following operation within 2m from the unit. Matching is not
needed anymore once it is done.
During matching, please keep the remote controller and air conditioner under
standby status.
When the signal of remote controller can’t be received, please match the remote
controller with the unit again.
This model adopts RF remote control. The remote controller
shall be matched with the air conditioner before operation,
otherwise the remote control will be invalid.
Before operation, please read the instructions in this page
carefully and then do the corresponding matching operation.
Note
When the unit is under standby status, please get close to the air conditioner within 2m
and then hold on pressing button for 3s. The remote controller and air
conditioner will enter matching automatically. If matching is done, the unit will give out
three sounds; if matching is failed, please get closer to the unit and arrange matching
again.
Humidify/Health
Explanation of Symbols
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
1
Precautions
WARNING
Do not connect air conditioner to multi-purpose socket.
This appliance is not intended for use by persons (incl-
Operation and Maintenance
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Do not spray water on indoor unit. It may cause electric
shock or malfunction.
Otherwise, it may cause fire hazard.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
uding children) with reduced physical, sensory or men-
tal capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person respon-
sible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
Do not wash the air conditioner with water to avoid
electric shock.
After removing the filter, do not touch fins to avoid injury.
Do not use fire or hair dryer to dry the filter to avoid
deformation or fire hazard.
Do disconnect power supply when cleaning air
conditioner. Otherwise, it may cause electric shock.
Do not block air outlet or air inlet. It may cause
malfunction.
remote controller may be broken.
● Power cord is overheating or damaged.
● There’s abnormal sound during operation.
● Circuit break trips off frequently.
● Air conditioner gives off burning smell.
● Indoor unit is leaking.
contact the dealer or qualified professionals for service.

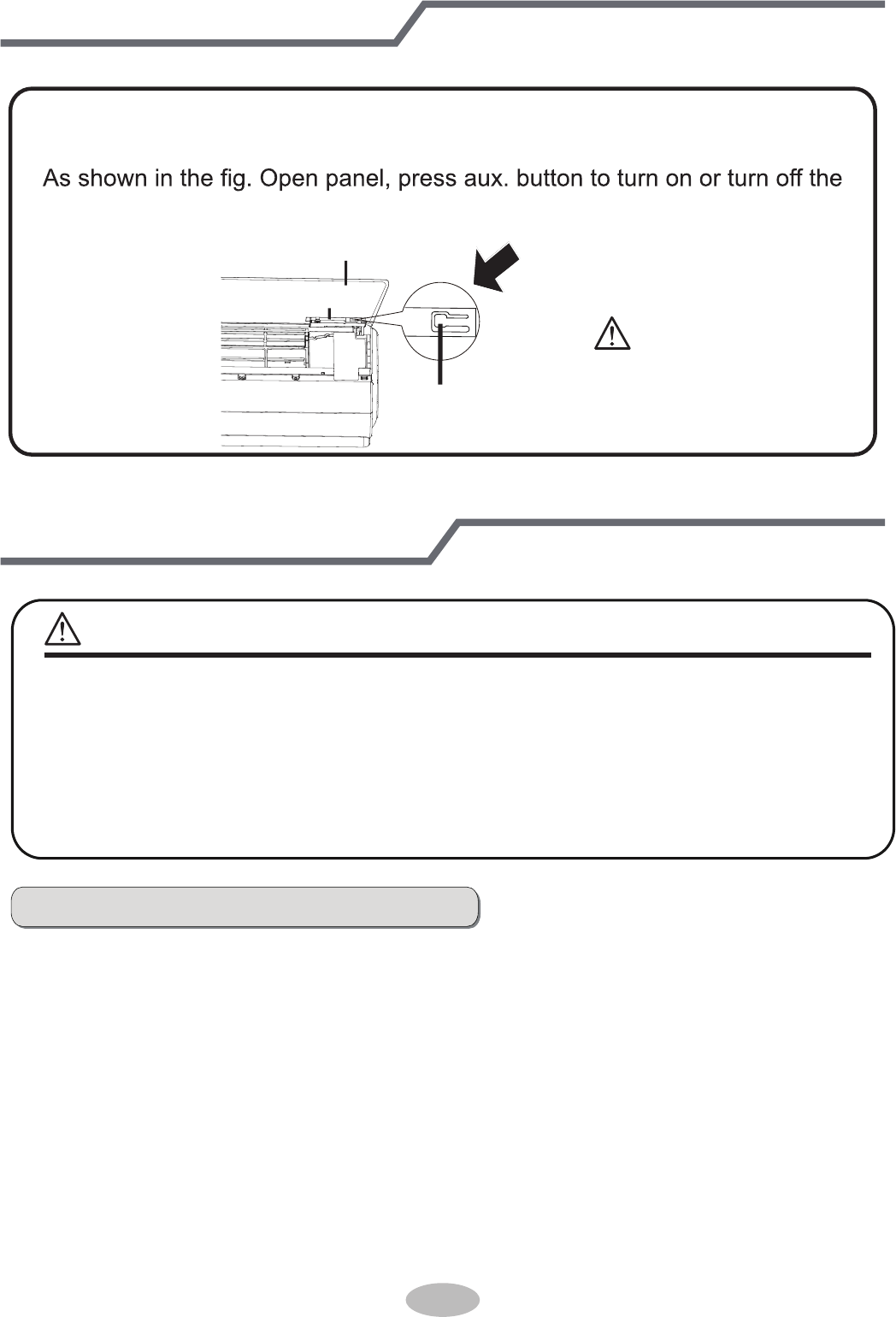

When turning on or turning off the unit by emergency
operation switch, please press this switch with an insulating
object other than metal.
outlet. It may cause personal injury or damage.
Precautions
WARNING
conditioner and disconnect power immediately, and then
If the air conditioner operates under abnormal conditions,
it may cause malfunction, electric shock or fire hazard.
Do not spill water on the remote controller, otherwise the
electric shock or damage. Please contact dealer when
you need to repair air conditioner.
Do not repair air conditioner by yourself. It may cause
objects. It may cause damage or personal injury.
Do not step on top panel of outdoor unit, or put heavy
When below phenomenon occurs, please turn off air
Do not extend fingers or objects into air inlet or air
Maintenance must be performed by qualified
professionals. Otherwise, it may cause personal injury
or damage.
2
Do install the circuit break. If not, it may cause malfunction.
of at least 3mm in all poles should be connected in fixed
wiring.
magnet buckle
and heating buckle function, it can protect
the circuit-short and
overload.
power supply circuit and circuit break.
Precautions
WARNING
note
the following table.Air switch should be included
Make sure the power supply matches with the
requirement of air conditioner.Unstable power supply or
incorrect wiring or malfunction. Please install proper power
supply cables before using the air conditioner.
An all-pole disconnection switch having a contact separation
Must follow the electric safety regulations when installing
the unit.
grounding wire of power socket.
Properly connect the live wire, neutral wire and
any work related to electricity and safety.
Be sure to cut off the power supply before proceeding
Including an circuit break with suitable capacity, please
Air Conditioner should be properly grounded. Incorrect
Don't use unqualified power cord.
grounding may cause electric shock.
According to the local safety regulations, use qualified
Installation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.
Attachment
3
Installation must be performed in accordance with the
persons in order to avoid a hazard.
must be properly grounding with specialized grounding
device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.
The appliance must be positioned so that the plug is
accessible.
If the length of power connection wire is insufficient, please
contact the supplier for a new one. Avoid extending the
wire by yourself.
All wires of indoor unit and outdoor unit should be
connected by a professional.
national wiring regulations.
requirement of NEC and CEC by authorized personnel
only.
Precautions
WARNING
wire, which can't be used for other purposes.
The grounding resistance should comply with national
electric safety regulations.
The air conditioner is the first class electric appliance. It
keep the interconnection cable away from the copper
tube.
The temperature of refrigerant circuit will be high, please
the manufacturer, its service agent or similarly qualified
If the supply cord is damaged, it must be replaced by
The yellow-green wire in air conditioner is grounding
The appliance shall be installed in accordance with
Do not put through the power before finishing installation.
4
The indoor unit should be installed close to the wall.
reachable after finishing installation.
far away from animals or plants.If it is unavoidable,
please add the fence for safety purpose.
Precautions
WARNING
FCC WARNING
place, only the qualified person can perform the work.
Otherwise, it may cause personal injury or damage.
If you need to relocate the air conditioner to another
must be installed in the line.
For the air conditioner without plug, an circuit break
Select a location which is out of reach for children and
For the air conditioner with plug, the plug should be
5
Instructions for installation and use of this product are
provided by the manufacturer.
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
WARNING: Changes or modifications to this unit not
FCC STATEMENT
Operation is subject to the following two conditions :
This device complies with Part 15 of the FCC Rules.
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
equipment generates, uses and can radiate radio
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and
receiver.
● Connect the equipment into an outlet on a circuit
● Consult the dealer or an experienced radio/TV
different from that to which the receiver is connected.
technician for help.
interference to radio communications.
comply with the limits for a Class B digital device,
Precautions
FCC STATEMENT
accordance with the instructions,may cause harmful
harmful interference in a residential installation. This
undesired operation.
frequency energy and, if not installed and used in
However, there is no guarantee that interference will
does cause harmful interference to radio or television
correct the interference by one or more of the following
measures:
equipment off and on, the user is encouraged to try to
not occur in a particular installation. If this equipment
reception, which can be determined by turning the
NOTE: This equipment has been tested and found to
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received,including interference that may cause
6
Precautions
Le présent appareil est conforme aux CNR d'Industrie
licence. L'exploitation est autorisée aux deux conditions
tout brouillage radioélectrique subi, même si le
undesired operation of the device.
IC STATEMENT
brouillage, et (2) l'utilisateur de l'appareil doit accepter
Canada applicables aux appareils radio exempts de
interference, and (2) this device must accept any
suivantes : (1) l'appareil ne doit pas produire de
brouillage est susceptible d'en compromettre le
fonctionnement.
interference, including interference that may cause
This device complies with Industry Canada licence-
This equipment complies with FCC’s and IC’s RF
radiation exposure limits set forth for an uncontrolled
environment. The antenna(s) used for this transmitter
must be installed and operated to provide a separation
distance of at least 20 cm from all persons and must
exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause
not be collocated or operating in conjunction with any
other antenna or transmitter. Installers must ensure that
20cm separation distance will be maintained between
the device (excluding its handset) and users.
Cet appareil est conforme aux limites d’exposition au
rayonnement RF stipulées par la FCC et l’IC pour une
utilisation dans un environnement non contrôlé. Les
7
Precautions
Working temperature range
Indoor side DB/WB(ć) Outdoor side DB/WB(ć)
Maximum cooling 26.7/19.4 46.1/23.9
Maximum heating 26.7/- 23.9/18.3
● The operating temperature range (outdoor temperature) for cooling only unit is
-18 ć~54ć; for heat pump unit is -30 ć~ 54ć.
NOTICE:
IC STATEMENT
près d’autres antennes ou émetteurs ou fonctionner
antennes utilisées pour cet émetteur doivent être
installées et doivent fonctionner à au moins 20
cm de
distance des utilisateurs et ne doivent pas être placées
distance de 20 cm sépare l’appareil (à l’exception du
combiné) des utilisateurs.
avec ceux-ci. Les installateurs doivent s’assurer qu’une
8
10

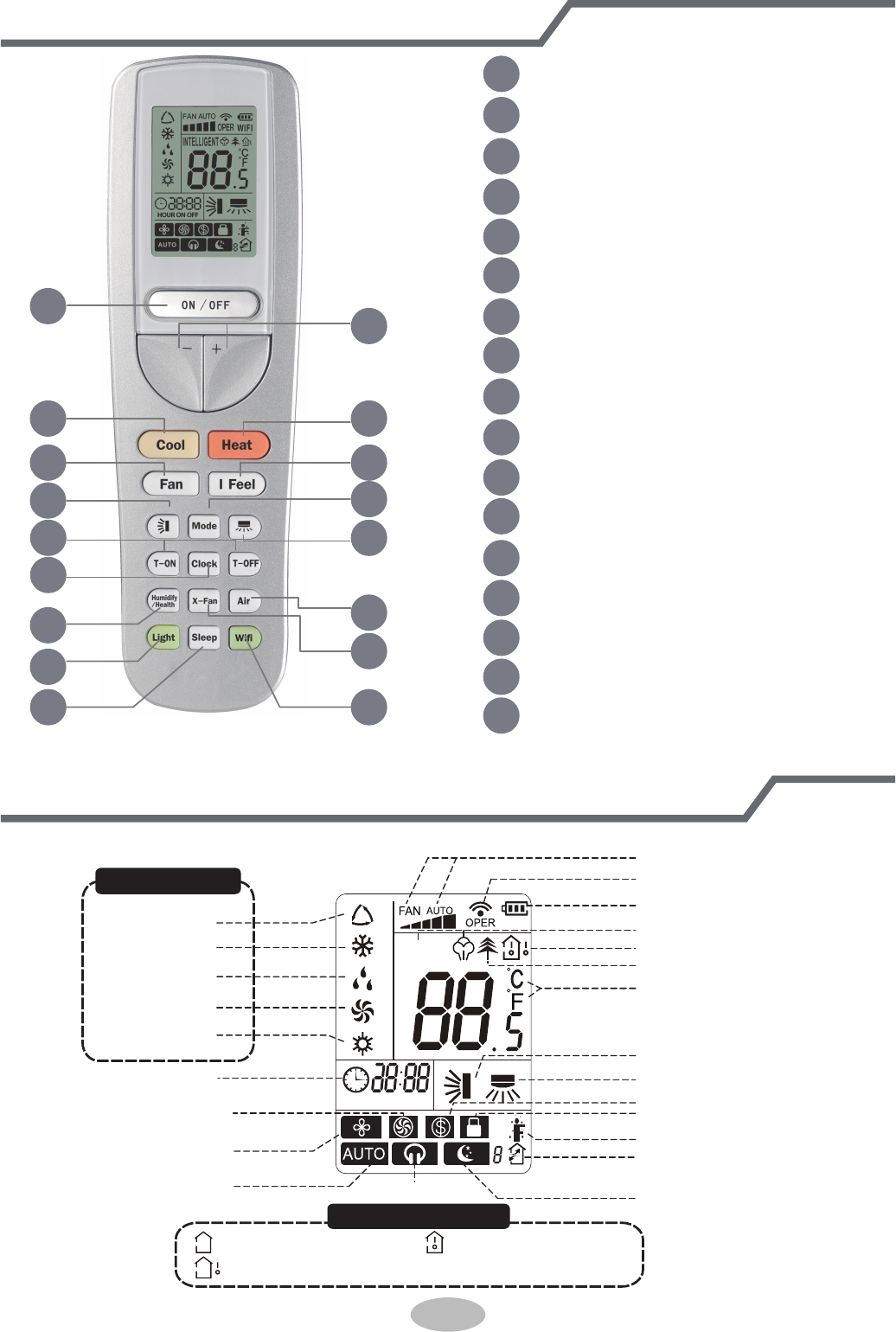

Buttons on remote controller
Introduction for icons on display screen
3
2
5 6
10
11
12
15
9
17
14
13
16
8
7
4
1
1ON/OFF button
2+/- button
3Cool button
4Heat button
6I FEEL button
7up down swing button
9Left right swing button
14 X-fan button
15
Sleep button
Light button
16
17 WIFI button
11 Clock button
12
13
Humidity button/Health button
Air button
10 T-ON/T-OFF button
8Mode button
5Fan button
battery power
Send signal
8ć heating function
I feel function
Set fan speed
Temp. display type
:Set temp.
:Outdoor ambient temp.
:Indoor ambient temp.
Heat mode
Fan mode
Dry mode
Cool mode
Auto mode
Operation mode
humidity functions
Temp.display type
Healthy mode
Set temperature
INTELLIGENT
HOUR ON OFF
WIFI
Up & down swing
Left & right swing
child lock
Replacing air
Quiet mode
Auto quiet mode
X-FAN function
Turbo fan speed
Sleep mode
Set time

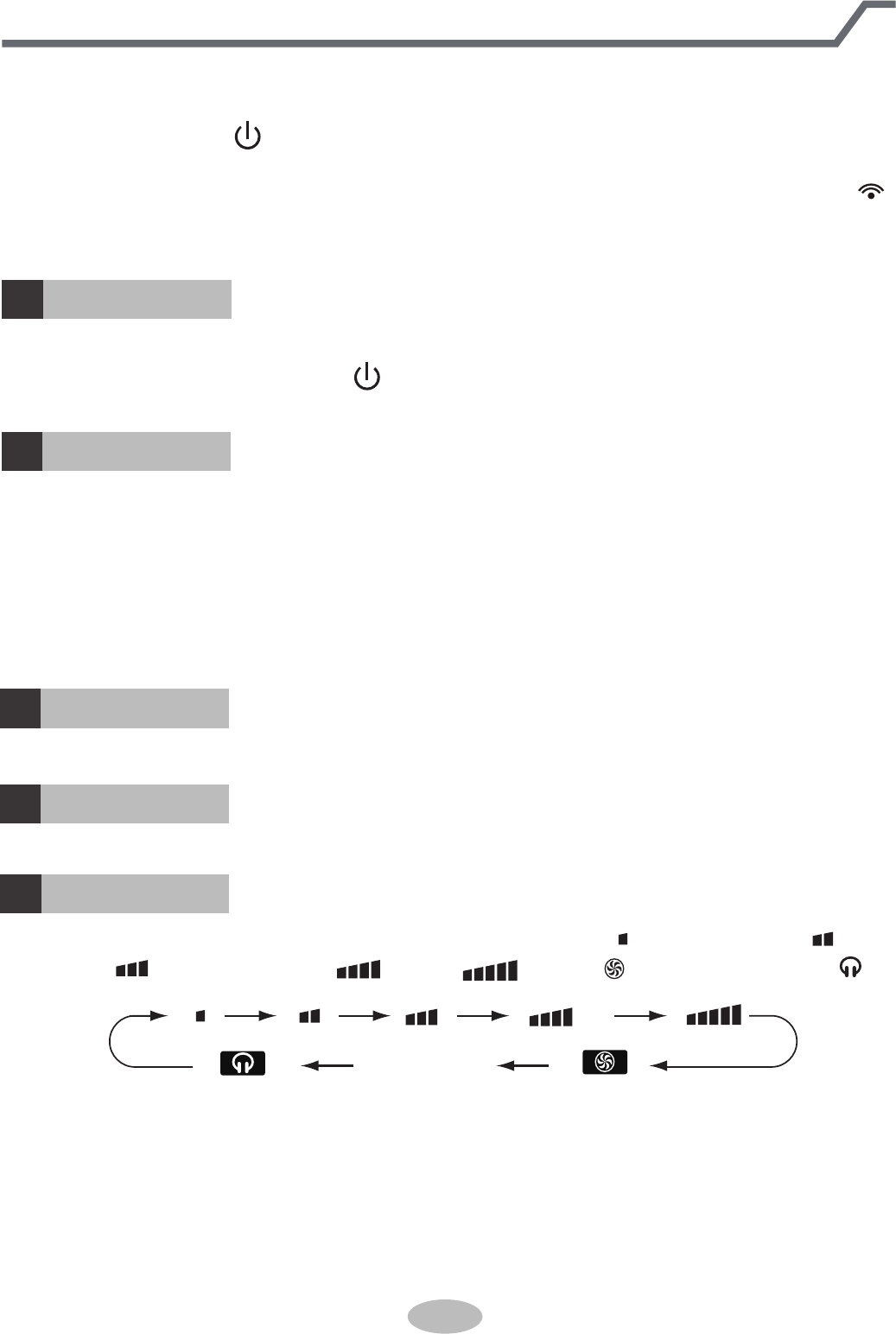

Pressing this button can set fan speed circularly as: low(
low med
ium( ),) ,
medium ( ),medium high( ),high( ),super( ),auto(AUTO),quiet( ).
Auto
Note:
● Under AUTO speed, air conditioner will select proper fan speed automatically
according to ambient temperature.
● Automatically operate slient speed when starting sleep fuction.
● Turbo function is not available under dry and auto mode.
●
The unit operates at low speed under dry and auto dry mode. The speed can't
be adjusted.
FAN button
5
● When setting TIMER , press "+" or " - " button to adjust time.
+/- button
2
● Press "+" or " - " button once increase or decrease set temperature 0.5 ć
Holding "+" or " - " button, 2s later, set temperature on remote controller will
change quickly.On releasing button after setting is finished, temperature indica-
tor on indoor unit will change accordingly. (Temperature can’t be adjusted under
auto mode)
Introduction for buttons on remote controller
Note:
● After putting through the power, the air conditioner will give out a sound.
Operation indictor " " is ON (red indicator). After that, you can operate the air
conditioner by using remote controller.
●
Under on status, pressing the button on the remote controller, the signal icon " "
on the display of remote controller will blink once and the air conditioner will give
out a “de” sound, which means the signal has been sent to the air conditioner.
ON/OFF button
1
Press this button can turn on or turn off the air conditioner. After turning on the air
conditioner, operation indicator " "on indoor unit’s display is ON (green indicator.
The colour is different for different models), and indoor unit will give out a sound.
Cool button
3
● Press this button, unit will operate in cool mode.
● Press this button, unit will operate in heat mode.
Heat button
4
11
Introduction for buttons on remote controller

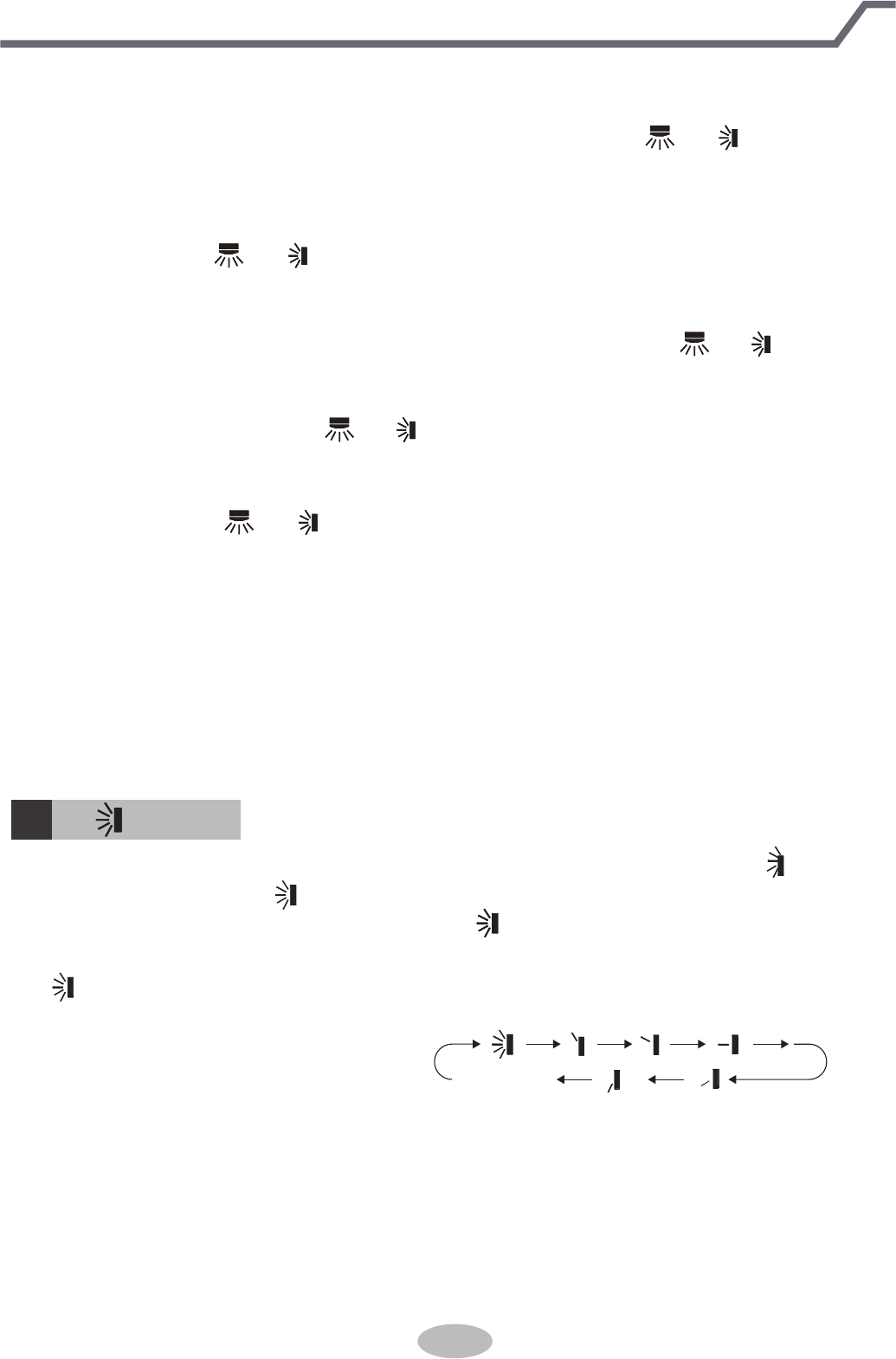

7 button
no display
(stops at current position)
between simple swing mode and fixed swing mode. During switching time,
“ ” icon on remote controller will flash twice.
● Under simple swing mode, press this button can turn on (display " " icon ) or
turn off ( not display " " icon) left&right swing function.
● Under fixed-angle swing mode, press this button and the left and right swing status
● Under OFF status, press "+" button and " " button simultaneously can switch
will change in the sequence as below:

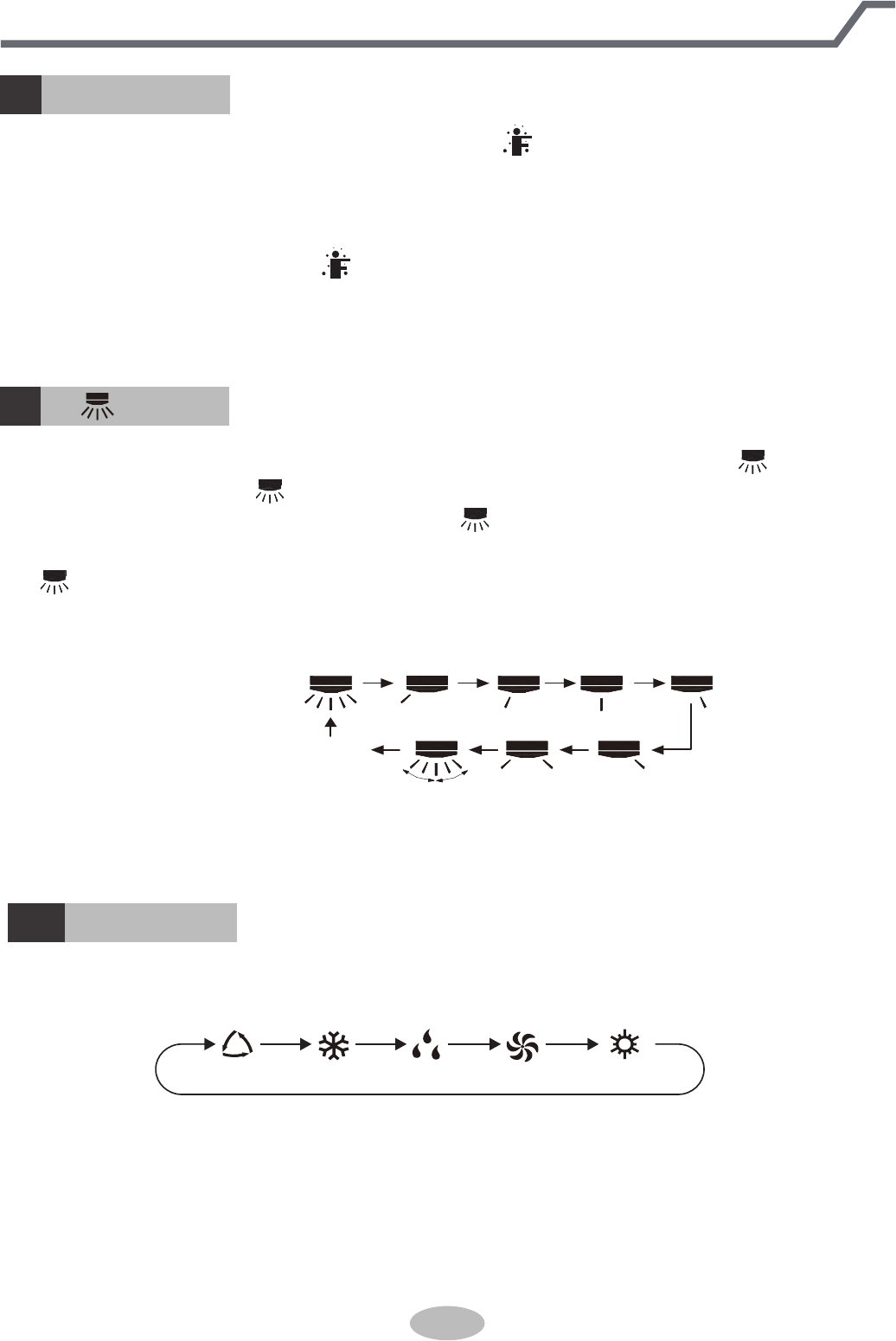

I FEEL button
6
Press this button to start I FEEL function and " " will be displayed on the remote
controller.After this function is set, the remote controller will send the detected
ambient temperature to the controller and the unit will automatically adjust the
indoor temperature according to the detected temperature. Press this button again
to close I FEEL function and " " will disappear.
● Please put the remote controller near user when this function is set. Do not put
the remote controller near the object of high temperature or low temperature in
order to avoid detecting inaccurate ambient temperature.
12
MODE button
8
Press this button to select your required operation mode.
AUTO COOL FANDRY HEAT
13
Introduction for buttons on remote controller
● When selecting auto mode, air conditioner will operate automatically according
to ambient temperature. Set temperature can’t be adjusted and will not be displayed
as well. Press "FAN" button can adjust fan speed. Press " " / " " button can
adjust fan blowing angle.
● After selecting cool mode, air conditioner will operate under cool mode.
Press "+" or "-" button to adjust set temperature. Press "FAN" button to adjust
fan speed.Press " " / " " button to adjust
fan blowing angle.
● When selecting dry mode, the air conditioner operates at low speed under dry
mode. Under dry mode, fan speed can’t be adjusted. Press " " / " " button to
adjust fan blowing angle.
● When selecting fan mode, the air conditioner will only blow fan,Press "FAN" button
to adjust fan speed. Press " " / " " button to adjust fan blowing angle.
● When selecting heating mode, the air conditioner operates under heat mode.
Press "+" or "- " button to adjust set temperature. Press "FAN" button to adjust
fan speed. Press " " / " " button to adjust fan blowing angle. (Cooling only
unit won’t receive heating mode signal. If setting heat mode with remote controller,
press ON/OFF button can’t start up the unit).
Note:
● For preventing cold air, after starting up heating mode, indoor unit will delay 1~5
minutes to blow air (actual delay time is depend on indoor ambient temperature).
● Set temperature range from remote controller: 16~30ć(61-86°F);
no display
9
(horizontal louvers stops
at current position)
button
● Under simple swing mode, press this button can turn on ( display " " icon) or
turn off ( not display " " icon) up&down swing function.
● Under OFF status, press "+" button and " " button simultan
● Under fixed swing mode, press this button and up and down swing status will
eously can switch
change in the sequence as below:
between simple swing mode and fixed swing mode. During switching time,
“ ” icon on remote controller will flash twice.
● T-ON button
“T-ON” button can set the time for timer on. After pressing this button, " " icon
disappears and the word “ON" on remote controller blinks. Press “+” or “-”button
to adjust T-ON setting. After each pressing “+” or “-”button, T-ON setting will
increase or decrease 1min. Hold “+” or “-”button, 2s later, the time will change
will stop blinking. " " icon resumes displaying.Cancel TIMER ON: Under the
quickly until reaching your required time. Press“T-ON”to confirm it. The word “ON”
until reaching your required time. Press“T-OFF”to confirm it. The word “ON”will
condition that T-ON is started up, press “T-ON” button to cancel it.
● T-OFF button
“T-OFF” button can set the time for timer off. After pressing this button, " " icon
disappears and the word "OFF" on remote controller blinks. Press "+" or "-" button
to adjust T-OFF setting. After each pressing "+" or "-" button, T-OFF setting
will increase or decrease 1min. Hold "+" or "-" button, 2s later, the time will change
"OFF" will stop blinking. " " icon resumes displaying. Cancel T-OFF.Under the
condition that T-OFF is started up, press “T-OFF” button to cancel it.
Note:
● Under on and off status, you can set T-OFF or T-ON simultaneously.
● Before setting T-ON or T-OFF, please adjust the clock time.
● After starting up T-ON or T-OFF, set the constant circulating valid. After that,
air conditioner will be turned on or turned off according to setting time. ON/OFF
button has no effect on setting. If you don’t need this function, please use remote
controller to cancel it.
10 T-ON/T-OFF button
14
Introduction for buttons on remote controller
Press this button to set clock time. " " icon on remote controller will blink.
Press "+" or "-" button within 5s to set clock time. Each pressing of "+" or "-"
button, clock time will increase or decrease 1 minute. Hold "+" or "-" button, 2s
later, time will change quickly. Release this button when reaching your required
time. Press “CLOCK”button to confirm the time. " " icon stops blinking.
Note:
● Clock time adopts 24-hour mode.
● The interval between two operations can’t exceeds 5s. Otherwise, remote
controller will quit setting status. Operation for TIMER ON/TIMER OFF is
the same.
11 CLOCK button
SLEEP button
16
ƽPressing this button can select Sleep 1, Sleep 2,Sleep 3, Sleep 4 or cancel Sleep
circularly as below:
cancel
15
Introduction for buttons on remote controller
12

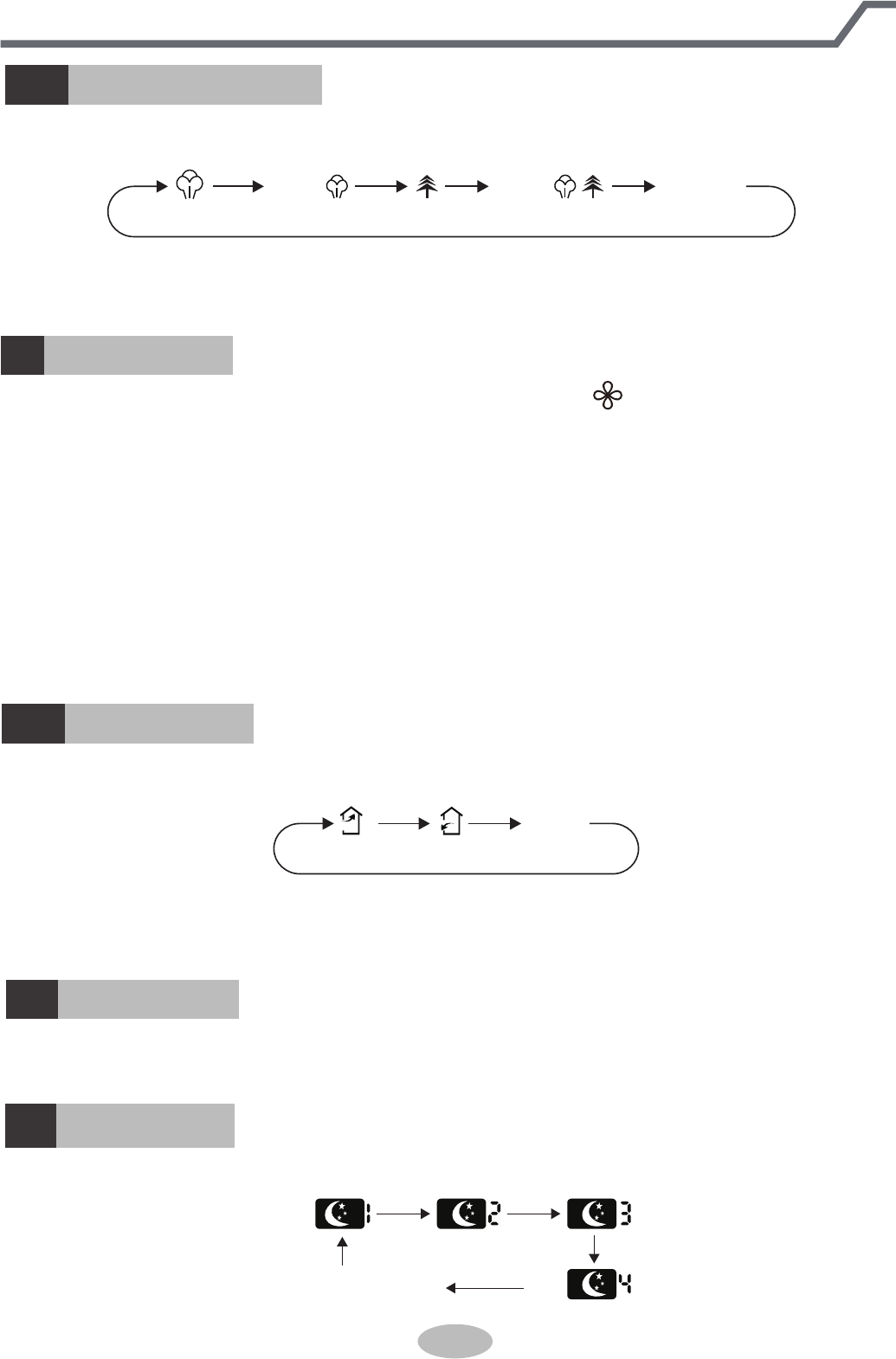

Humdity/health button
Press this button to select your required operation mode.
Note:there is no this function for this unit. If press this button,the main unit will click,
but it also runs under original status.
INTELLIGENT INTELLIGENT
Press this button to select your required operation mode.
Note:there is no this function for this unit. If press this button,the main unit will click,
but it also runs under original status.
cancel
cancel
X-FAN button
13
Pressing this button in COOL or DRY mode, the icon " " is displayed and the
indoor fan will continue operation for 2 minutes in order to dry the indoor unit even
though you have turned off the unit. After energization, X-FAN OFF is defaulted.
X-FAN is not available in AUTO, FAN or HEAT mode.
This function indicates that moisture on evaporator of indoor unit will be blowed
after the unit is stopped to avoid mould.
● Having set X-FAN function on: After turning off the unit by pressing ON/OFF
button indoor fan will continue running for about 2 min. at low speed. In this
period, press X-FAN button to stop indoor fan directly.
● Having set X-FAN function off: After turning off the unit by pressing ON/OFF
button, the complete unit will be off directly.
14Air button
LIGHT button
15
Pressing this button to turn off display light on indoor unit. Press this button again
to turn on display light.
ƽ
temperature curves.
In Sleep 1 and Sleep 2, the air conditioner will run according to a group of presetting
ƽSleep 3 - the sleep curve setting under DIY Sleep mode:
(1) Under Sleep 3 mode, long press "AIR" button, the remote controller will enter
the setting of personalized sleep. In this case, the timer zone of remote controller
will display "1 hr" and the set temperature zone "88" will display the corresponding
temperature of the last set sleep curve and blink (The first entering will display
according to the initial curve setting value of manufacturer);
ƽSleep 3 - the sleep curve inquiry under DIY Sleep mode:
User can inquire the set sleep curve according to the setting method of sleep curve.
Enter the setting of personalized sleep but do not change the temperature. Then
ƽSleep 4 is Siesta mode. The set temperature will change automatically according to
ƽSleep function will be disabled if the air condition is restarted after power failure;
ƽSleep function can not be set in AUTO mode.
when sleep function is turned on, quite fan speed will be also turned on.
the features of siesta.
press "AIR" button to confirm the setting.
Note: In the above setting or inquiry procedure, if there is no button pressing within
10s, remote controller will automatically exit the sleep curve setting and resume the
original display. If ON/OFF, MODE, TIMER, HUMIDIFY, SLEEP, COOLING or
HEATING button is pressed during the setting or inquiry procedure, remote controller
will also exit the sleep curve setting.
ƽ(2) Press "+" and "-" button to adjust the corresponding temperature. After adjusting,
press "AIR" button to confirm it;
ƽ(3) At this time, the timer time on the remote controller will increase automatically by
1hr (that is "2 hr" or "3 hr" … or "8 hr"). The set temperature zone "88" will display the
corresponding temperature of the last set sleep curve and blink;
ƽ(4)Repeat step(2) and step (3) until 8-hour temperature setting is finished, then the
sleep curve is set successfully. After that, remote controller will resume displaying the
original timer time and temperature zone will resume displaying the original set
temperature.
16
Introduction for buttons on remote controller
Wifi button
17
●
Press this button 3s can set wifi function on or OFF.
●At OFF status,press mode button and wifi button,can reset wifi mode parameter.
and open wifi function.
Function introduction for combination buttons
About X-FAN function
This function indicates that moisture on evaporator of indoor unit will be blowed after
the unit is stopped to avoid mould.
indoor fan will continue running for about 2 min. at low speed. In this period, press
X-FAN button to stop indoor fan directly.
1. Having set X-FAN function on: After turning off the unit by pressing ON/OFF button
the complete unit will be off directly.
2. Having set X-FAN function off: After turning off the unit by pressing ON/OFF button,
About AUTO RUN
When AUTO RUN mode is selected, the setting temperature will not be displayed on
the LCD, the unit will be in accordance with the room temp. automatically to select the
suitable running method and to make ambient comfortable.
About lock
Press + and - buttons simultaneously to lock or unlock the keyboard. If the remote co-
ntroller is locked, the icon will be displayed on it, in which case, press any button,
the mark will flicker for three times. If the keyboard is unlocked, the mark will disappear.
About switch between Fahrenheit and Centigrade
Under status of unit off, press MODE and - buttons simultaneously to switch Ƈ and Ɖ.
17
1. After putting through the power, press "ON/OFF" button on remote controller to
turn on the air conditioner.
2.
HEAT.
3. Press "+" or " - " button to set your required temperature. (Temperature can’t
be adjusted under auto mode).
4. Press "FAN" button to set your required fan speed: auto, low, medium and high
speed.
Press "MODE" button to select your required mode: AUTO, COOL, DRY, FAN,
5. Press "SWING" button to select fan blowing angle.
Operation guide

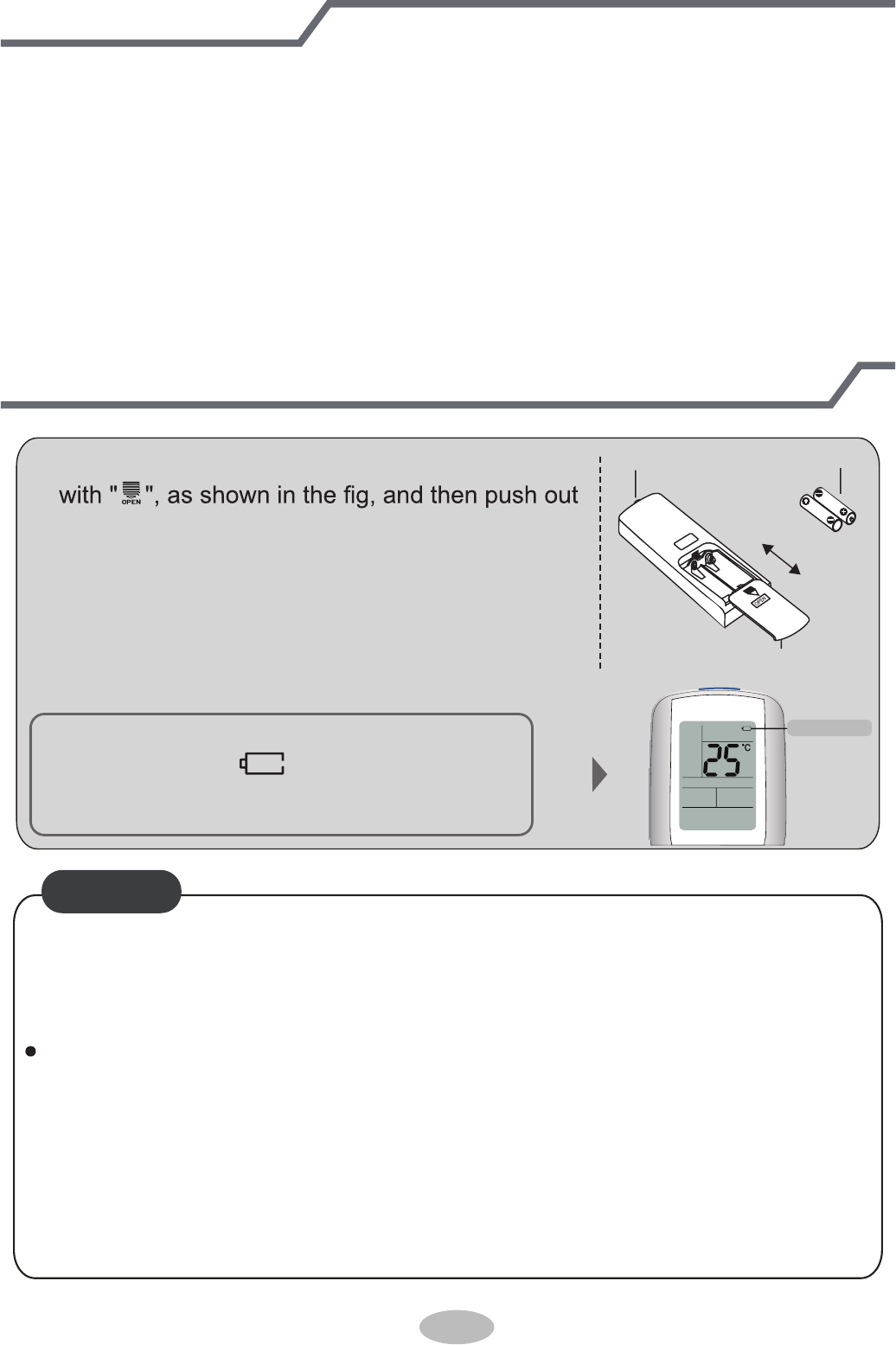

Replacement of batteries in remote controller
1. Press the back side of remote controller marked
the cover of battery box along the arrow direction.
2. Replace two 7# (AAA 1.5V) dry batteries, and
make sure the position of "+" polar and "-" polar
are correct.
3. Reinstall the cover of battery box.
signal sender battery
Cover of battery box
remove
reinstall
NOTICE
● During operation, point the remote control signal sender at the receiving
window on indoor unit.
● The distance between signal sender and receiving window should be no
more than 8m, and there should be no obstacles between them.
Signal may be interfered easily in the room where there is fluorescent lamp
or wireless telephone; remote controller should be close to indoor unit during
operation.
● Replace new batteries of the same model when replacement is required.
● When you don’t use remote controller for a long time, please take out the
batteries.
● If the display on remote controller is fuzzy or there’s no display, please
replace batteries.
Battery level will be displayed on the remote
replace the batteries, otherwise, remote
controller can’t operate normally.
controller.When " " is flickering, please
battery level
18
Operation of Smart Control (Smart Phone, Tablet PC)
How to operate AC or auxiliary device with smart phone or tablet PC after matching:
First of all: before using smart connection function, please make sure your smart
phone or tablet computer uses the standard Android or iOS operating system.
Please refer to the application program for the specific version. This air conditioner
can connect 4 smart phones or tablet computers in maximum.

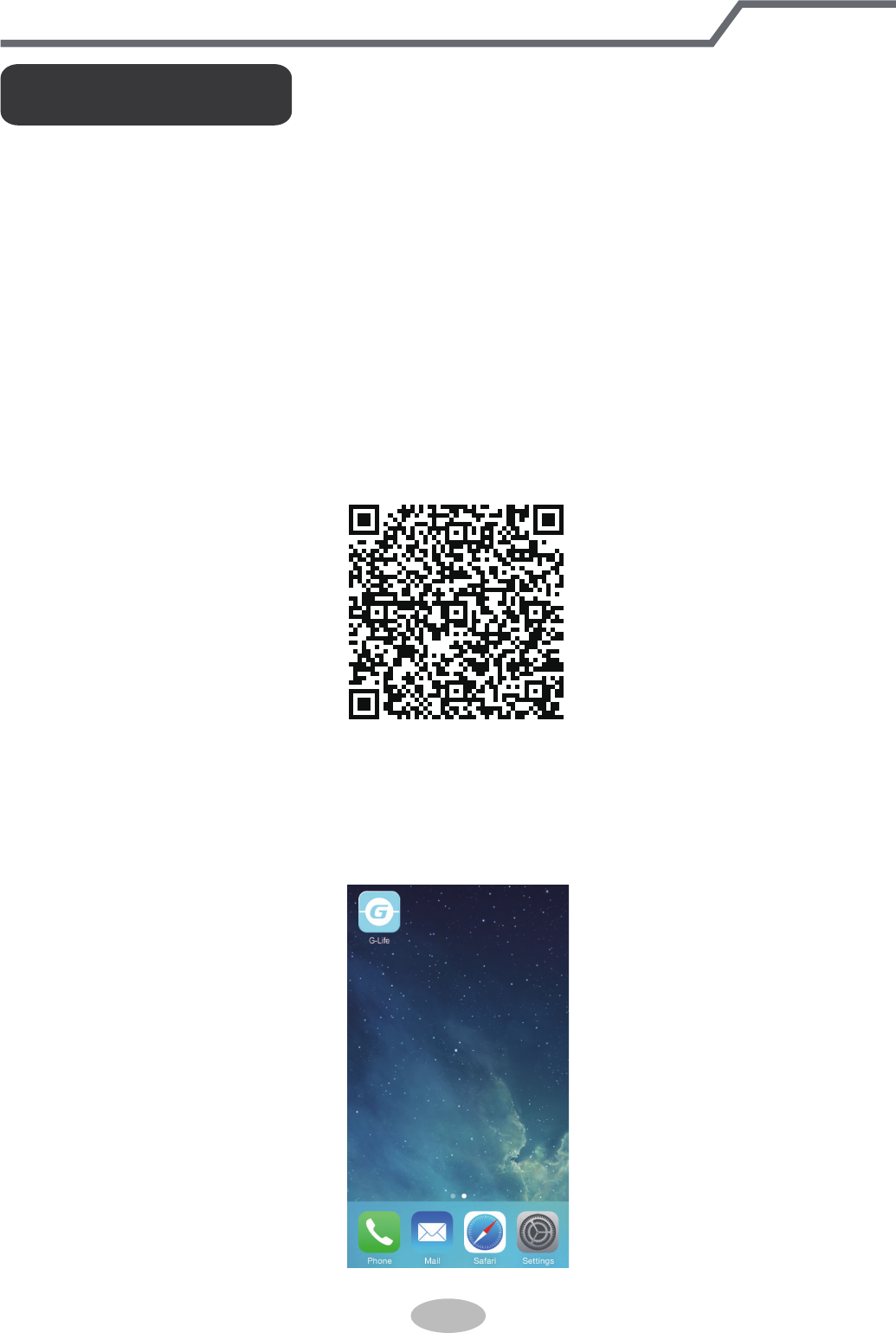

1. Install G-Life on your smart phone/ tablet PC
Method 1: Enter Gree official website to download http://www.gree.com/english/
Method 2: Scan the QR code and download the application directly (If your device
is not compatible, please download the application in other ways.)
Method 3: Users of iOS system can search the application “G-Life” through
Apple’s App Store. After it is successfully installed, you will see the picture below.
Following is the example using iphone 6. (The interface of the application may vary
as it is upgraded or used in different operating systems. Please refer to actual application.)
downloadcenter/ihome_jsp_catid_2840.shtml
Special Function
19
Operation of Smart Control (Smart Phone, Tablet PC)

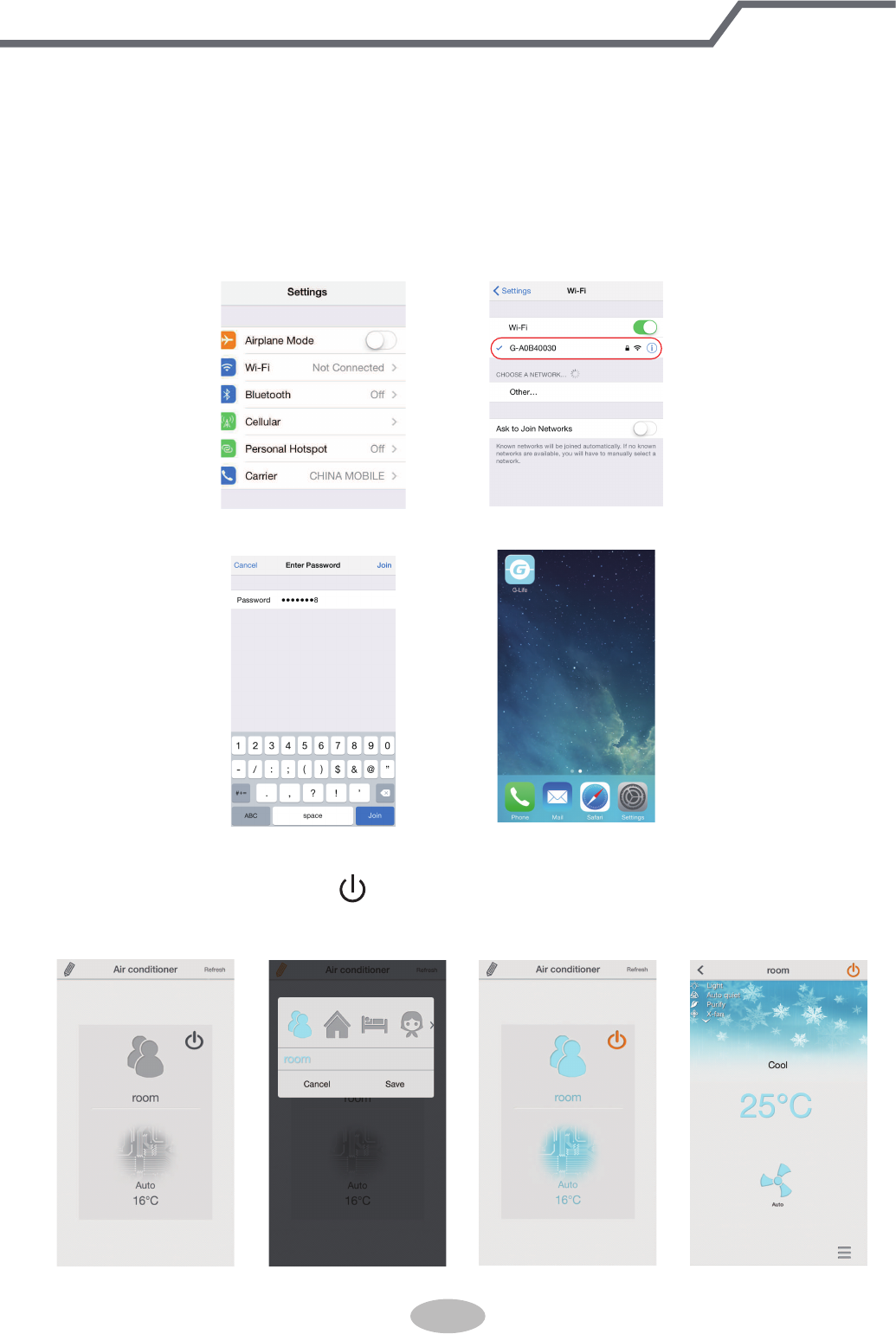

2. Turn on the AC WiFi:
Turn the AC on. First, make sure the remote controller is matched. Then, long-press
“WiFi” button on the remote controller for at least 3 seconds. If WiFi icon is shown,
it means the WiFi function is turned on.
3. Enter the WiFi setting of your phone and search for the wireless network named
G-xxxxxxxx. Take G-A0B40030 as an example. Connect the network.
4. Input the original password 12345 or 12345678 to connect the network.
5. Open the application software and click
“
Refresh
”
, and then system will link with the air
conditioner automatically. Click
“
”
to turn on the control function, and then clock any
position on the interface and then software will switch to the remote control interface.
20
Operation of Smart Control (Smart Phone, Tablet PC)
Attention: please change the name and key of the network during
the first setting!
8. Exit the application and enter your phone’s WiFi Setting. Then you will see the
network you just named “G-myhome". Click it and input the password set in step
6 to join the network.
7. After modifying name and password, click it to return and there will be a prompt box,
and then clock “OK” to finish the modification. Meanwhile, the software will turn back to
interface of “Air-Conditioner” and the AC list will be gone.
21

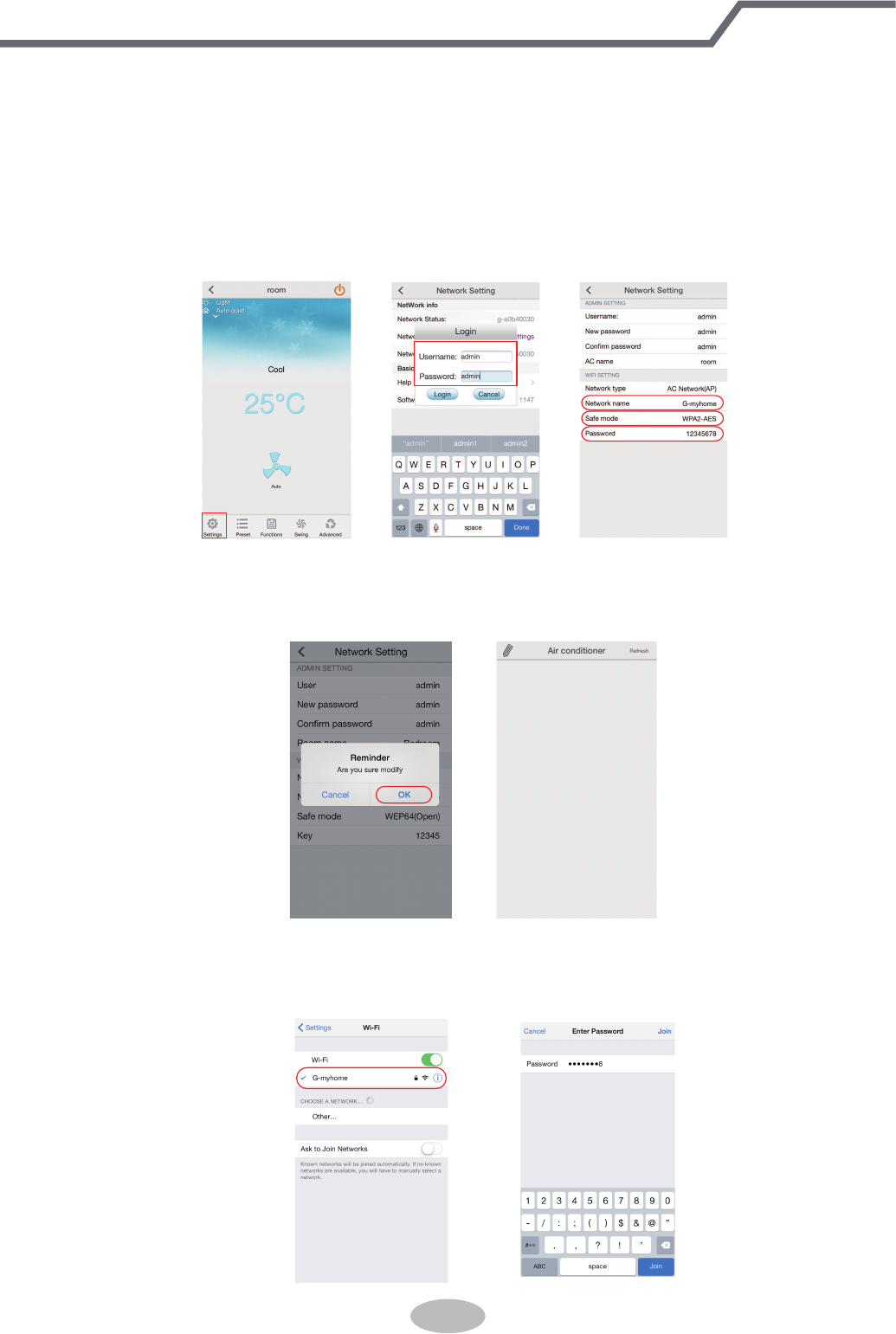

6. Left-slide the bottom function bar to “Settings” and click it to enter into internet
setting interface. Click “Network Setting”, and input user name and password (the
defaulted user name and password is admin) in the “Login” dialog box to enter into
“Network Setting” to modify network name (e.g. G-myhome) and password (refer
to the attachment: safe mode and password instruction).
Operation of Smart Control (Smart Phone, Tablet PC)
9. Enter into the software interface again. Meanwhile, the short-distance remote
control setting for your air conditioner is finished.
22
How to reset the AC WiFi module:
Kindly remind:
1. The air conditioner WiFi function needs about 1 minute to start up.
2. The air conditioner has memory function.
3. Those models have no long-distance control.
Turn unit off with the remote controller and disconnect the power of AC. Then
re-connect the power. 1 minute later, press “WiFi” and “Mode” buttons simultaneously.
If the AC gives out a beep sound, it means the WiFi module is successfully reset.
Attention: Operation of the buttons is only effective in 2 minutes.
Analysis on Common Network Setting Failure:
1. If short-distance control fails, please check the following items one by one!
·Make sure AC is power connected;
·Make sure AC’s WiFi function is turned on as normal;
·Make sure your phone’s WiFi selects the corresponding AC;
·Reset with the remote controller and then start setting again from step 3.
23
Operation of Smart Control (Smart Phone, Tablet PC)

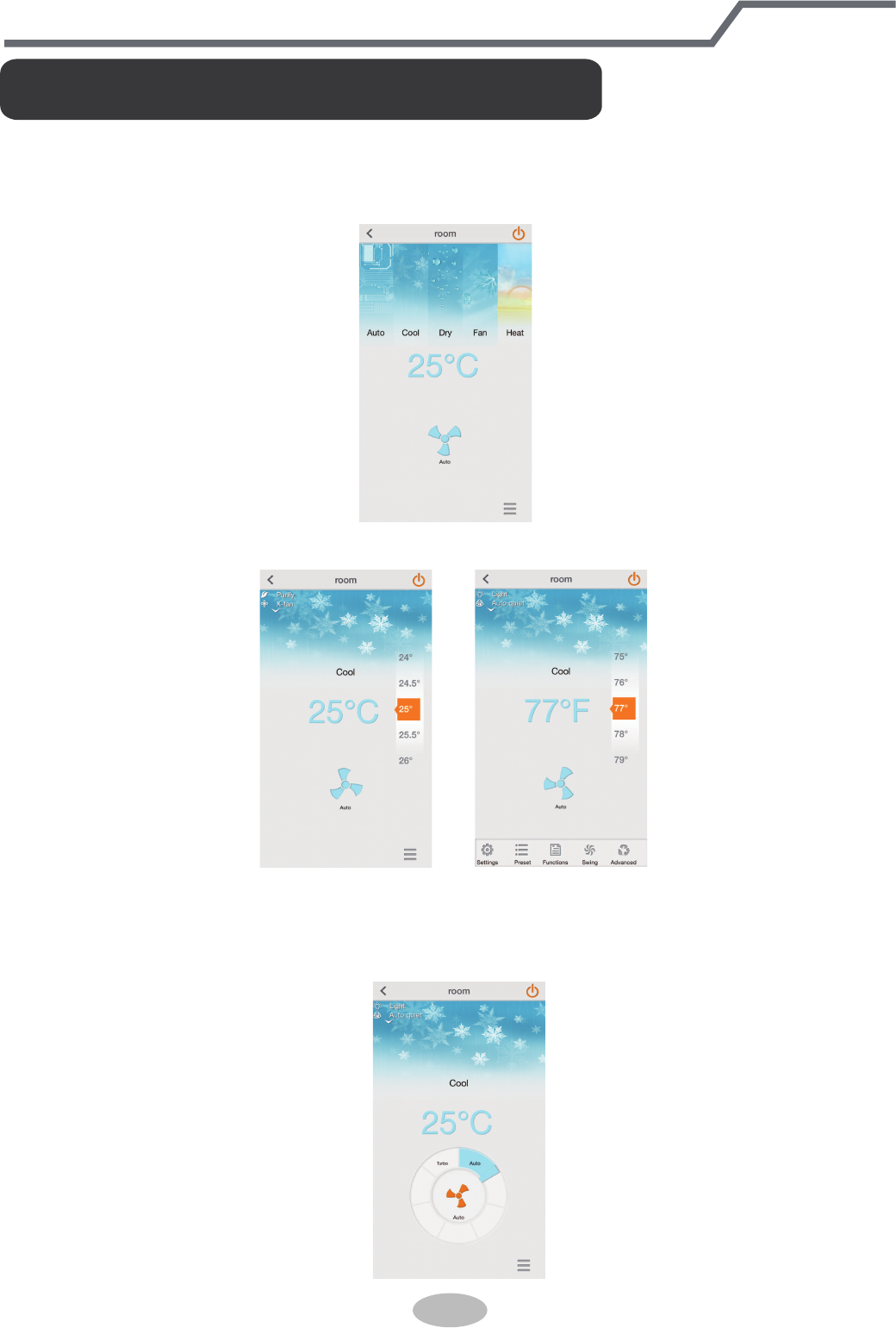

1. Mode: It used for setting operation mode for air conditioner. You can select “Auto”,
“Cooling”, “Drying”, “Fan” or “Heating” according to your requirement. Please refer to
the part of remote controller for the detailed operation.
3.
Fan Speed: It used for setting fan speed. Under cooling or heating mode, if the
noise-customized function is turned on, adjust the fan speed and then the noise-
-customized function will be turned off automatically. Please refer to the part of remote
controller for detailed operation.
2. Temperature: It used for setting temperature. Set the indoor temperature according to
your requirement.

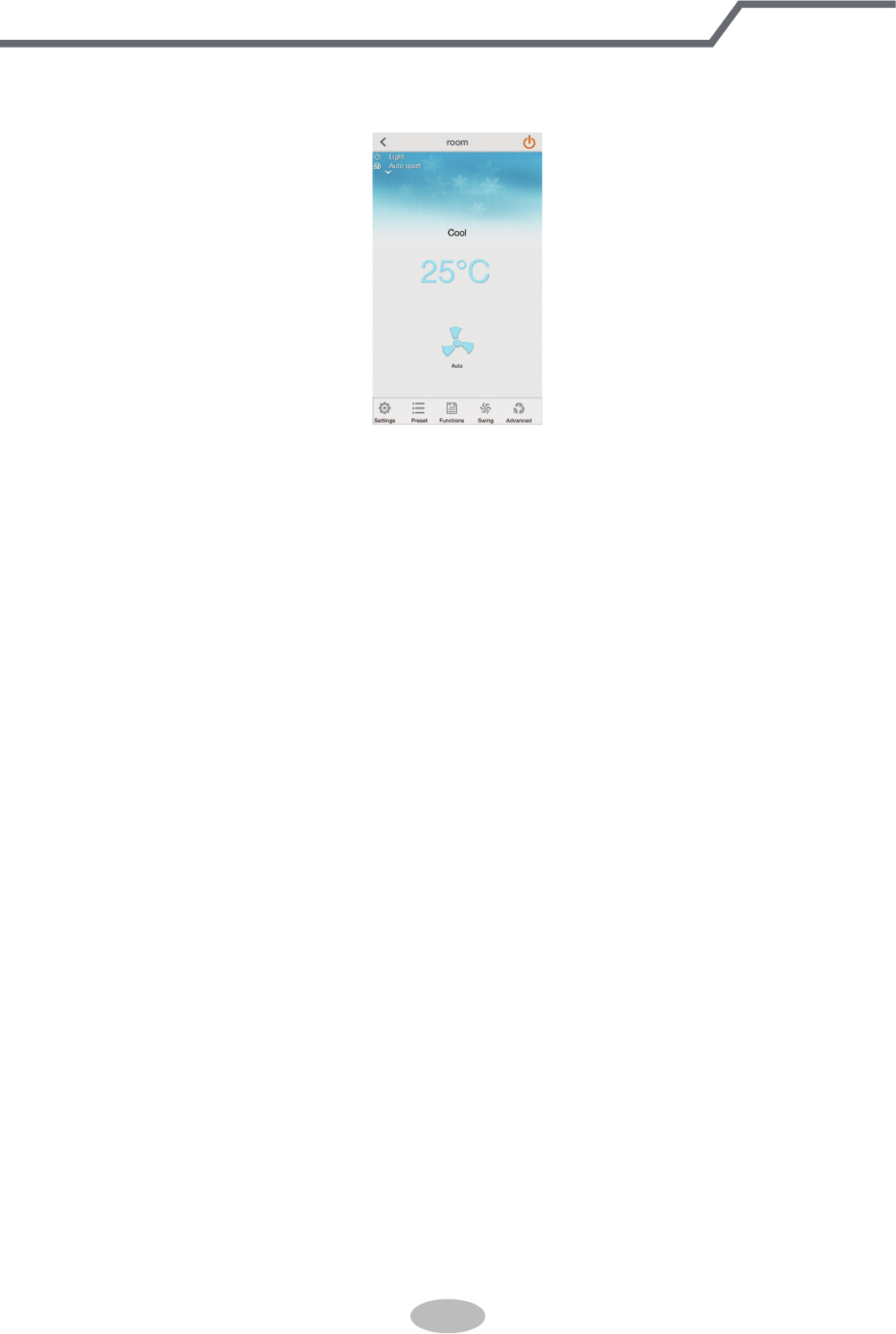

Function Introduction on Main Interface
24
Operation of Smart Control (Smart Phone, Tablet PC)

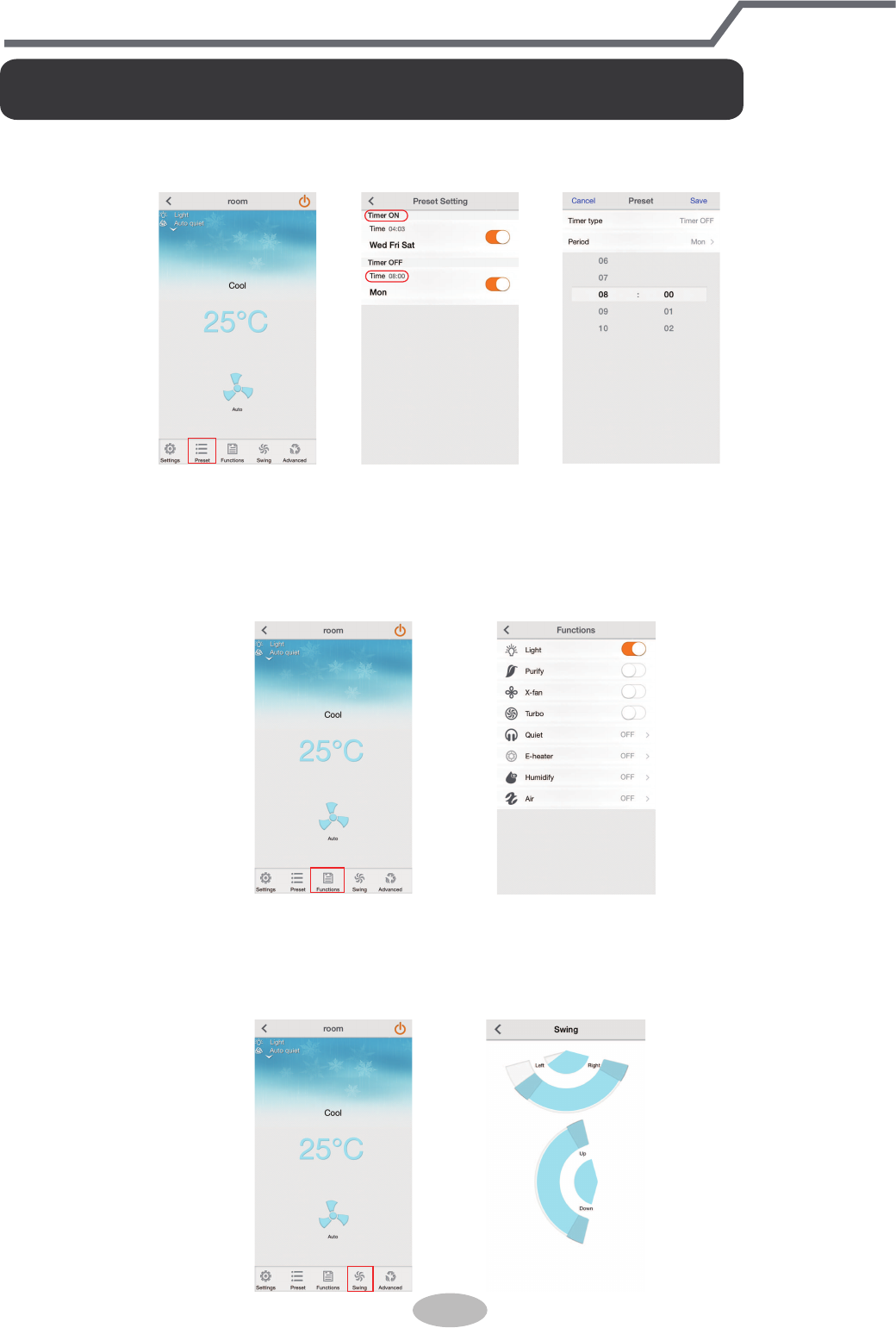

1. Preset: It’s with Timer On and Timer Off function. User can set Timer On and Timer
Off according to actual individual requirement.
2.
Functions: After entering setting interface, you can turn on or turn off Light, Purify,
X-fan and Turbo functions and set Silent, Humidify, Air exchange and other modes.
Please refer to the part of remote controller for the function instruction. Among that,
Purify, Humidify, Air exchange functions can be set through equipping with special
air purifier, humidifier. E-heater is not available for this unit.
Key Functions Instruction of Application Software
3.
Swing: During up&down swing and left&right swing, it’s the fixed angle swing
when those two sliding blocks are combined together and full swing when they are
separated. When setting up&down swing, the program will turn off regional swing
function. However, no influence for regional swing when setting left&right swing.
25
Operation of Smart Control (Smart Phone, Tablet PC)

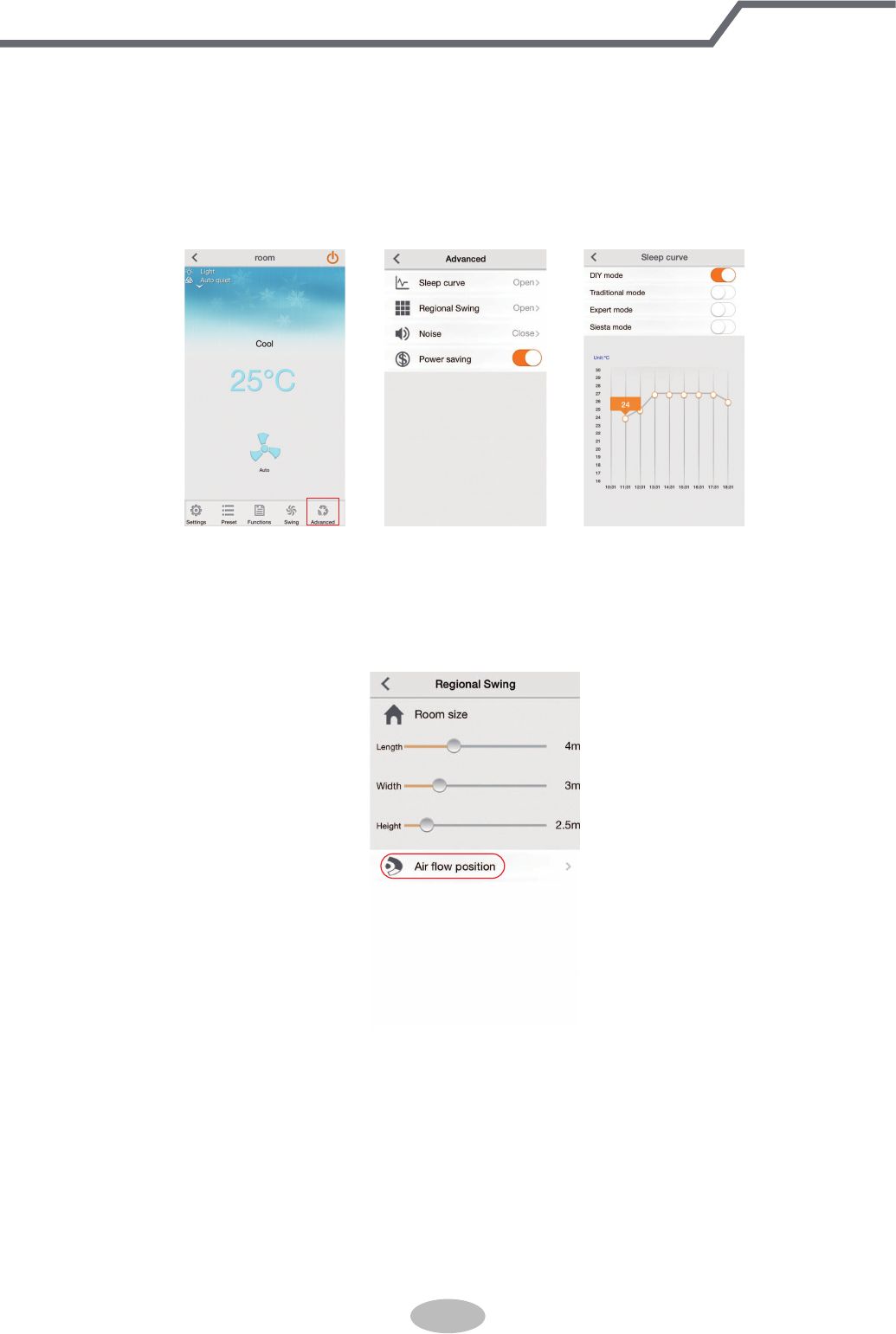

4. Advanced: After entering advanced interface, you can set Sleep curve, Regional
Swing, Noise and Power saving.
Ɣ
Regional Swing: After entering Regional Swing, user can set it according to the
room size. Press “Air flow position” button and the user can adjust the fan-blowing
area through moving the icon of air conditioner left and right according to the
actual installation position of the unit.

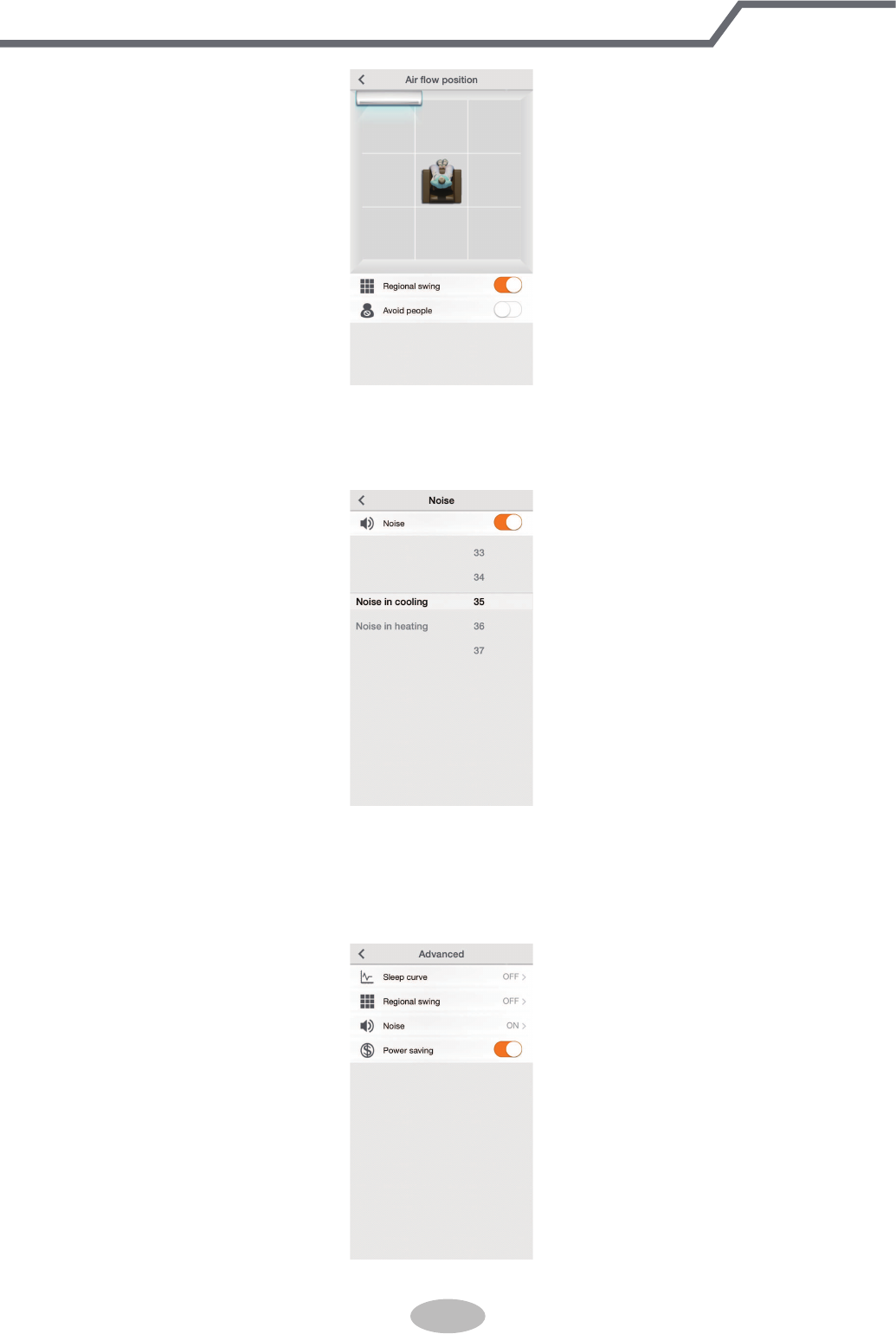

User can move the person icon among nine pane areas according to requirement
to adjust the fan-blow area. The Regional Swing function can be turned off through
up&down swing. The up&down swing in the Regional Swing is only valid under
cooling and heating modes. The left&right swing area has relationship with the
position of air conditioner set by mobile phone. The left&right swing position may
be asymmetry, which is the normal phenomenon.
“Avoid people” function can be turned on or turned off according to user’s
personal experience. There may be deviation because of the installation position
of air conditioner and the setting of parameters, which is the normal phenomenon.
Ɣ6OHHSFXUYH6OHHSFXUYHLQFOXGHV',<PRGH7UDGLWLRQDOPRGH([SHUWPRGHDQG
6LHVWDPRGH8QGHU',<PRGH\RXFDQVHWWHPSHUDWXUHDQGWLme. Under auto
mode and fan mode, sleep curve function can’t be turned on. Only Traditional
mode can be selected under dry mode.
26
Operation of Smart Control (Smart Phone, Tablet PC)
Ɣ
3RZHUVDYLQJ$IWHUHQHUJ\VDYLQJQDYLJDWLRQPRGHLVWXUQHGRQWKHDLU
FRQGLWLRQHUZLOOGHWHFWLQGRRUWHPSHUDWXrHDQGRXWGRRUWHPSHUDWXUHDXWRPDWLFDOO\
0HDQZKLOHWKHDLUFRQGLWLRQHUZLOODGMXVWIUHTXHQF\IDQVSHHGDQGVHWWHPSHUD
WXUHDXWRPDWLFDOO\DFFRUGLQJWRWKHORDGVWDWXVIRUVDYLQJHQHUJ\
Ɣ
1RLVH7KHQRLVHFXVWRPL]HGIXQFWLRQIRULQGRRUXQLWFDQEHDGMXVWHGDFFRUGLQJWRWKH
DFWXDOLQGLYLGXDOUHTXLUHPHQW7KHGHWDLOHGDGMXVWPHQWUDQJHLVGLIIHUHQWIRUGLIIHUHQW
PRGHOVZKLFKLVGHFLGHGE\LQGRRUXQLW
27
Emergency operation
If remote controller is lost or damaged, please use auxiliary button to turn
on or turn off the air conditioner. The operation in details are as below:
air conditioner. When the air conditioner is turned on, it will operate under
auto mode.
aux. button
panel
Display panel
Clean and maintenance
■ Turn off the air conditioner and disconnect the power before cleaning the air
conditioner to avoid electric shock.
■ Do not wash the air conditioner with water to avoid electric shock.
■ Do not use volatile liquid to clean the air conditioner.
Clean surface of indoor unit
When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth
or wet cloth to wipe it.
NOTICE:
● Do not remove the panel when cleaning it.
WARNING
WARNING:
Use insulated object to
press the auto button
Clean and maintenance
Notice for recovery
1. Many packing materials are recyclable materials.
Please dispose them in appropriate recycling unit.
2. If you want to dispose the air conditioner, please contact local dealer or
consultant service center for the correct disposal method.
29
NOTICE: Checking after use-season
1. Check whether air inlets and air outlets are blocked.
2. Check whether circuit break, plug and socket are in good condition.
4. Check whether drainage pipe is damaged.
1. Disconnect power supply.
NOTICE: Checking before use-season
Malfunction analysis
General phenomenon analysis
Please check below items before asking for maintenance. If the malfunction still
can’t be eliminated, please contact local dealer or qualified professionals.
Phenomenon Check items Solution
Indoor unit
can’t receive
remote
controller’s
signal or
remote
controller
has no
action.
● Whether it's interfered severely
(such as static electricity,stable
voltage)?
● Whether remote controller is
within the signal receiving
range?
● Whether there are obstacles?
● Whether remote controller is
pointing at the receiving
window?
● Is sensitivity of remote contro-
ller low; fuzzy display and no
display?
● No display when operating
remote controller?
● Fluorescent lamp in room?
● Pull out the plug. Reinsert
the plug after about 3min, and
then turn on the unit again.
● Signal receiving range is 8m.
● Remove obstacles.
●
Select proper angle and point
the remote controller at the re-
ceiving window on indoor unit.
● Check the batteries. If the
power of batteries is too low,
please replace them.
● Take the remote controller
close to indoor unit.
● Turn off the fluoresent lamp
and then try it again.
● Check whether remote cont-
roller appears to be damaged.
If yes, replace it.
No air
emitted
from
indoor
unit
● Air inlet or air outlet of indoor
unit is blocked?
● Eliminate obstacles.
● Under heating mode, indoor
temperature is reached to set
temperature?
● After reaching to set temper-
ature, indoor unit will stop bl-
owing out air.
● Heating mode is turned on just
now?
● In order to prevent blowing
out cold air, indoor unit will be
started after delaying for sev-
eral minutes, which is a nor-
mal phenomenon.
30
Malfunction analysis
● Power failure?
● Is plug loose?
● Air switch trips off or fuse is
burnt out?
● Wiring has malfunction?
● Unit has restarted immediately
after stopping operation?
● Whether the function setting
for remote controller is
correct?
● Reset the function.
● Wait for 3min, and then turn
on the unit again.
● Ask professional to replace it.
● Ask professional to replace
air switch or fuse.
● Reinsert the plug.
● Wait until power recovery.
Air condit-
ioner can’t
operate
Mist is em-
itted from
indoor unit’s
air outlet
● Indoor temperature and hum-
idity is high?
● Because indoor air is cooled
rapidly. After a while, indoor
temperature and humidity will
be decrease and mist will
disappear.
Phenomenon Check items Solution
Set temper-
ature can’t
be adjusted
● Unit is operating under auto
mode?
● Temperature can’t be adju-
sted under auto mode.
Please switch the operation
mode if you need to adjust
temperature.
● Your required temperature
exceeds the set temperature
range?
● Set temperature range:
16ć~30ć.
Cooling
(heating)
effect is
not good.
● Voltage is too low? ● Wait until the voltage
resumes normal.
● Filter is dirty? ● Clean the filter.
● Set temperature is in proper
range?
● Adjust temperature to proper
range.
● Door and window are open? ● Close door and window.
31
Phenomenon Check items Solution
Odours are
emitted
● Whether there’s odour source,
such as furniture and cigarette,
etc.
● Eliminate the odour source.
● Clean the filter.
Air conditioner
operates nor-
mally suddenly
● Whether there’s interference,
such as thunder, wireless
devices, etc.
● Disconnect power, put back
power, and then turn on the
unit again.
Outdoor
unit has
vapor
● Heating mode is turned on?
● During defrosting under he-
ating mode, it may generate
vapor, which is a normal
phenomenon.
“Water
flowing”
noise
● Air conditioner is turned on or
turned off just now?
● The noise is the sound of
refrigerant flowing inside
the unit, which is a normal
phenomenon.
Cracking
noise
● Air conditioner is turned on or
turned off just now?
● This is the sound of friction
caused by expansion and/or
contraction of panel or other
parts due to the change of
temperature.
Malfunction analysis
32
Note: If there're other error codes, please contact qualified professionals for
service.
WARNING
Error code
E5
E8
E6
U8
H6
C5
F1
F2
Troubleshooting
It can be eliminated after restarting the unit. If not , please
It can be eliminated after restarting the unit. If not , please
It can be eliminated after restarting the unit. If not,please
It can be eliminated after restarting the unit. If not,please
It can be eliminated after restarting the unit. If not,please
■ When below phenomenon occurs, please turn off air conditioner and discon-
for service.
● Power cord is overheating or damaged.
● There’s abnormal sound during operation.
● Air switch trips off frequently.
● Air conditioner gives off burning smell.
● Indoor unit is leaking.
■ If the air conditioner operates under abnormal conditions, it may cause
Error Code
● When air conditioner status is abnormal, temperature indictor on indoor unit will
ation of error code.
Malfunction analysis
33
