Gree Electric Appliances of Zhuhai CS532Y WiFi Module User Manual 66162390
Gree Electric Appliances, Inc. of Zhuhai WiFi Module 66162390
User Manual
Special note: matching instructions
Matching of remote controller
Please done the following operation within 2m from the unit. Matching is
not needed anymore once it is done.
During matching, please keep the remote controller and air conditioner
under standby status.
When the signal of remote controller can’t be received, please match the
remote controller with the unit again.
This model adopts RF remote control. The remote
controller shall be matched with the air conditioner
before operation, otherwise the remote control will
be invalid.
Before operation, please read the instructions in this
page carefully and then do the corresponding match-
ing operation.
Note
When the unit is under standby status, please get close to the air conditioner
within 2m and then hold on pressing button for 3s. The remote
controller and air conditioner will enter matching automatically. If matching is
done, the unit will give out three sounds; if matching is failed, please get closer
to the unit and arrange matching again.
66162390
/
Wifi Smart
Thank you for choosing our product.
If you have lost the Owner’s Manual, please contact the local agent or visit
www.gree.com or sent email to global@gree.com.cn for electronic version.
For proper operation, please read and keep this manual carefully.
Content
Download and install App.........................................................................
Configuration..................................................................................................
User registration.................................................................................................... 3
3
1
1
Personal setting.................................................................................................... 4
Control functions................................................................................................... 6
15Menu functions........................................
The software is subject to be updated without prior notice.
............................................................
Functions introduction...............................................................................
Operation of Smart Control (Smart Phone, Tablet PC)
Scan the following QR code (also indicated on package box) with your smart phone
and download Wifi Smart.
Download and install App
Configuration
phone homepage will show this icon
Before operation, please finish the following configuration in order to realize Wifi
control and the connection between air conditioner and intelligent device.
1.Short-distance control setting for air conditioner using wifi hotspot

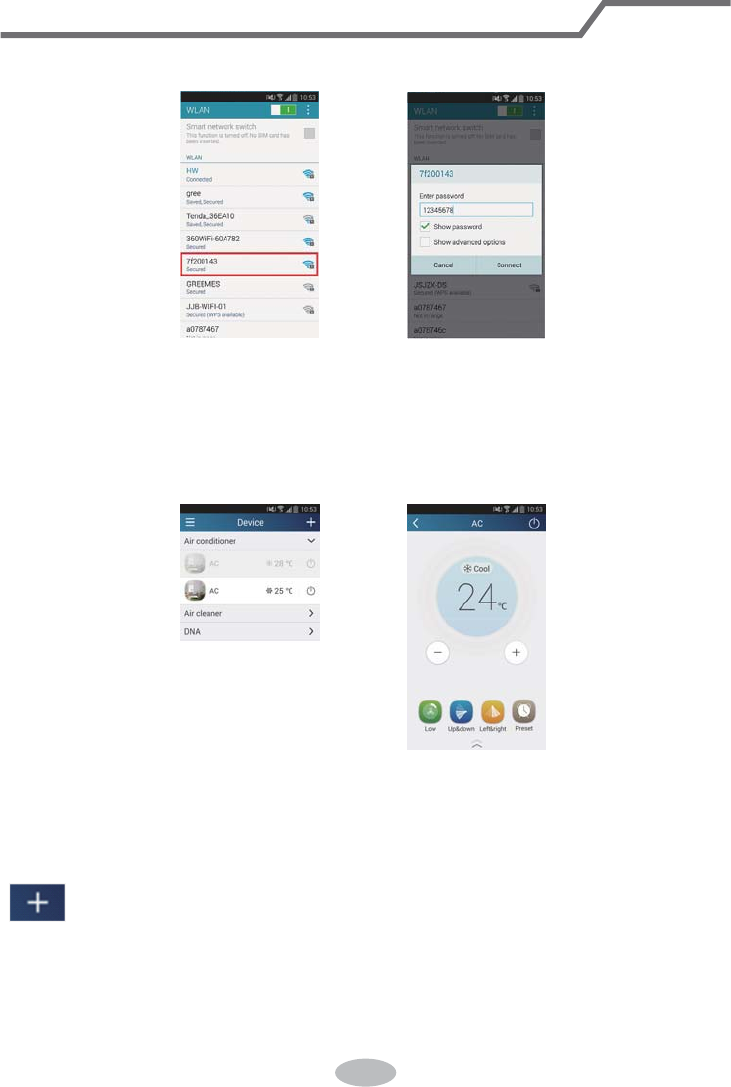

Step 1: Air conditioner wifi is set to AP mode in factory. You can search the air
conditioner wifi hotspot through your smart phone. The name of wifi hotspot is the last
8 numbers of the air conditioner mac address. Password is 12345678.
Install the App according to its guidance. When successfully installed, your smart
Operation Instructions
1
Operation of Smart Control (Smart Phone, Tablet PC)
2
Step 2: Open App and the screen will show the air conditioner that you just
connected. Click this air conditioner to enter and realize short-distance control, as
shown below. Please refer to "Functions introduction" for specific control methods.
2.Short-distance and long-distance control setting for air conditioner connecting
router

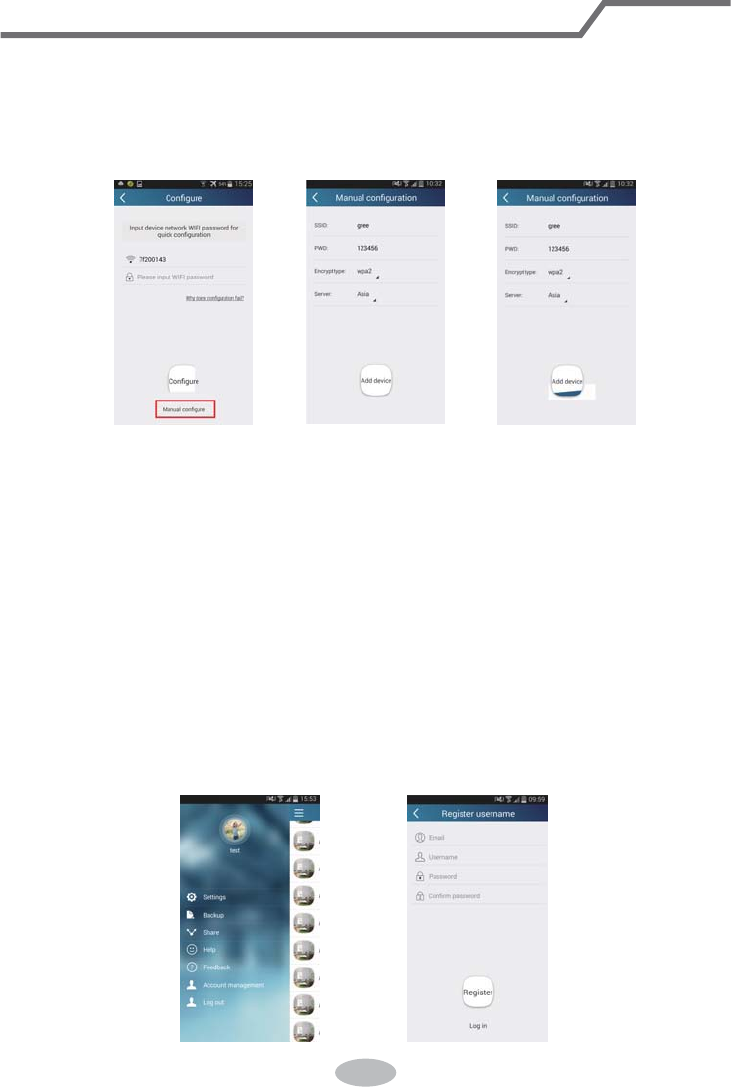

Step 1: Under short-distance control, return to the homepage "Device". Tap
at the top right corner of the homepage "Device". Select "Add device" and
enter the page of "Add device". Tap "Manual configuration" and enter the page
"Manual configuration".
"wpa2" and select the server,then tap the button "Add device" for configuration. If
Step 2: Enter the correct network name and password, select the encrypt mode
Operation of Smart Control (Smart Phone, Tablet PC)
3
1.User registration
Purpose: To realize long-distance control
Operation instruction: For the first time login, you have to register a new username. If
you already have a username, skip the registration step and enter email address and
password on the "Login Page" to log in. If password is forgotton, you can reset the
password.
Operation steps:

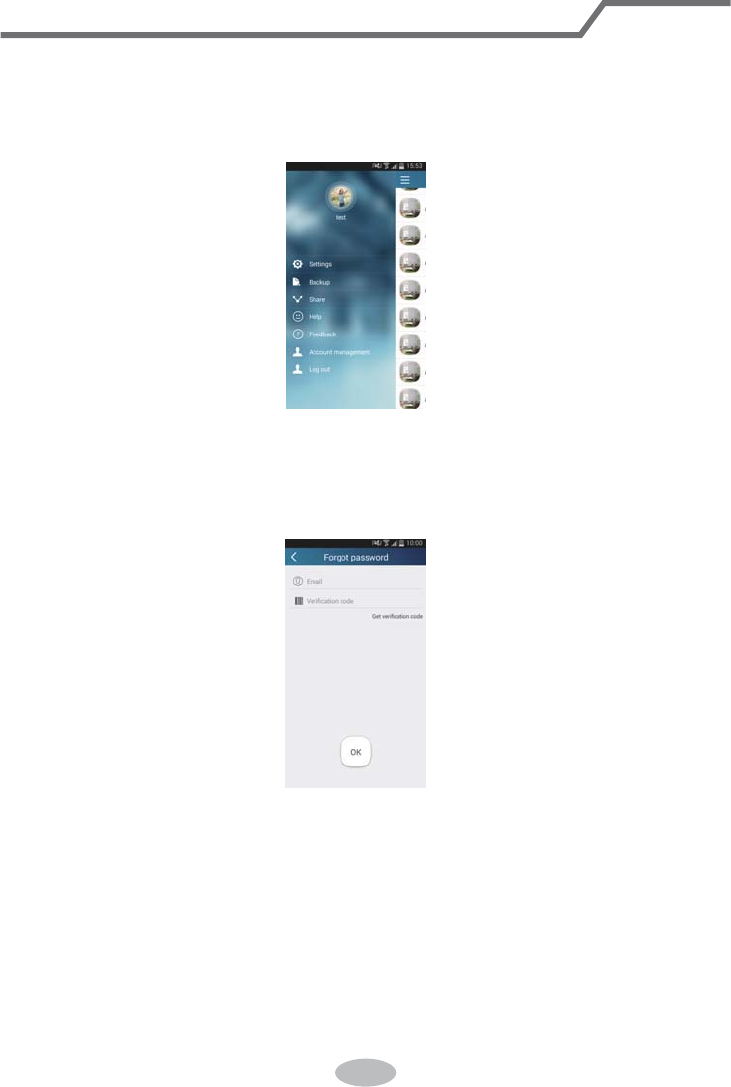

(1) Account login: Slide the page "Device". and enter the page "Menu" on the
left. Tap "Login" to enter the page "Register username". New user must first register
a username. Tap "Register”.
Functions introduction
NOTICE:
Please select the encrypt mode "empty" if your wifi has been set without password.
configuration succeeds, App will notify user that configuration is successful and return
to homepage.
Operation of Smart Control (Smart Phone, Tablet PC)
4
(3) If password is forgotten, you can reset the password with your email address.
(2) Enter your email address and tap "Get verification code". Wait until you receive the
verification code. Enter the code and then tap "OK" to log in. Username will appear. As
shown here, the username is "test".
Tap "Forgot password" and enter the page "Forgot password". Tap "Verification code"
to get a email verification code. Enter a new password and tap "OK" to log in.
2.Personal settings
Purpose: Set name (device name, preset name, etc.) and images (device image) in
order to identify a user easily.

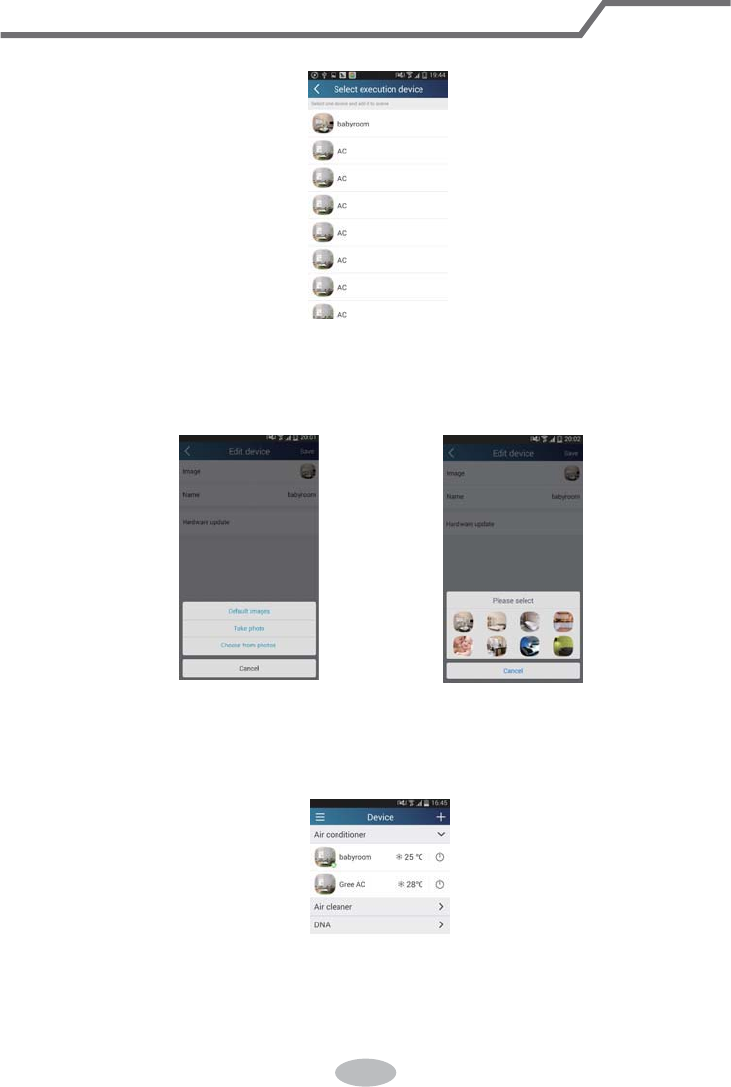

(1) Set device name
After quick configuration, a list of controllable smart devices will be generated. Default
name for air conditioner is "AC".
Operation of Smart Control (Smart Phone, Tablet PC)
5
Step 2: Tap "Name" to change device name,enable button ''Lock device'' to lock the
Step 1: Tap and hold "babyroom" to enter the page "Edit device". Tap "Image" to
select the source of image. Select from "Default images" or "Take photo" or "Choose
from photos" and save an image.
device. Save it and the new device name will be shown.
Operation of Smart Control (Smart Phone, Tablet PC)
6
Step 2: Choose the time. Tap "Name". As shown in the picture, its name is "baby

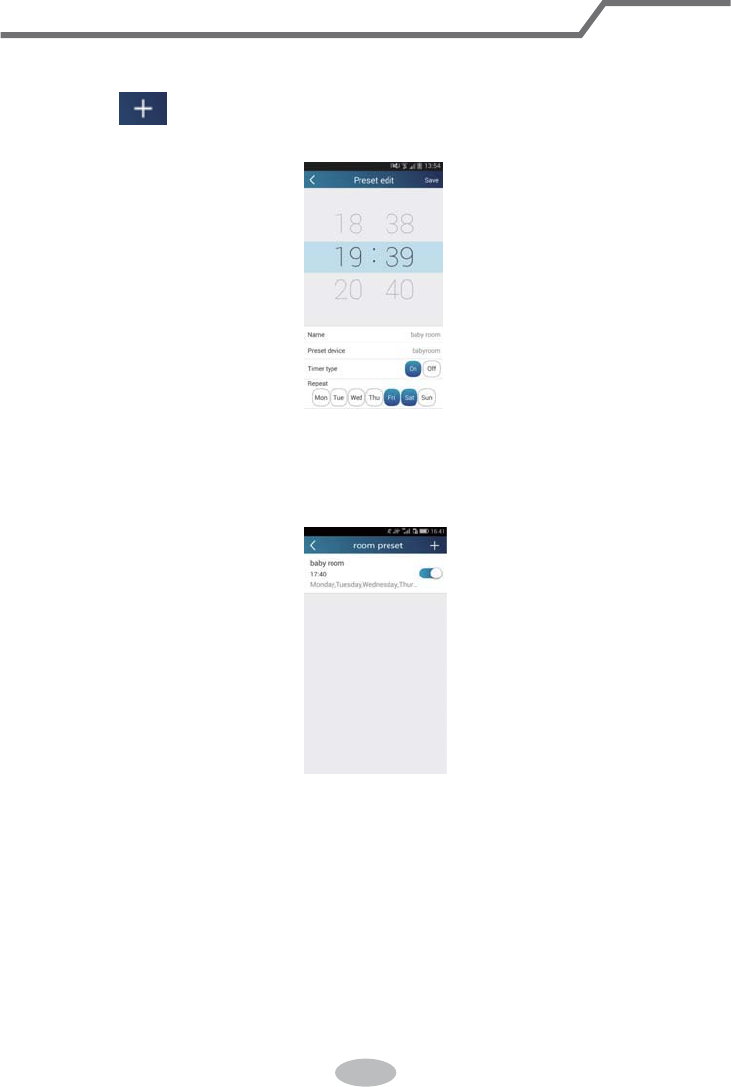

(2) Set preset name
Step 1: Tap at the top right corner of the homepage "Device". Select "Add
preset" and enter the page "Preset edit".
room". For timer type, select "On". Then select the repeating days. Save the setting
of preset name.
(3) Set device image
Please refer to step 1 in 2(1)
3.Control functions
(1) Common control functions: General control on the operation of smart devices
(On/Off, temperature, fan speed, mode, etc.) and the setting of advanced functions
(air exchange, dry, health, light, sleep, energy saving upper limit).

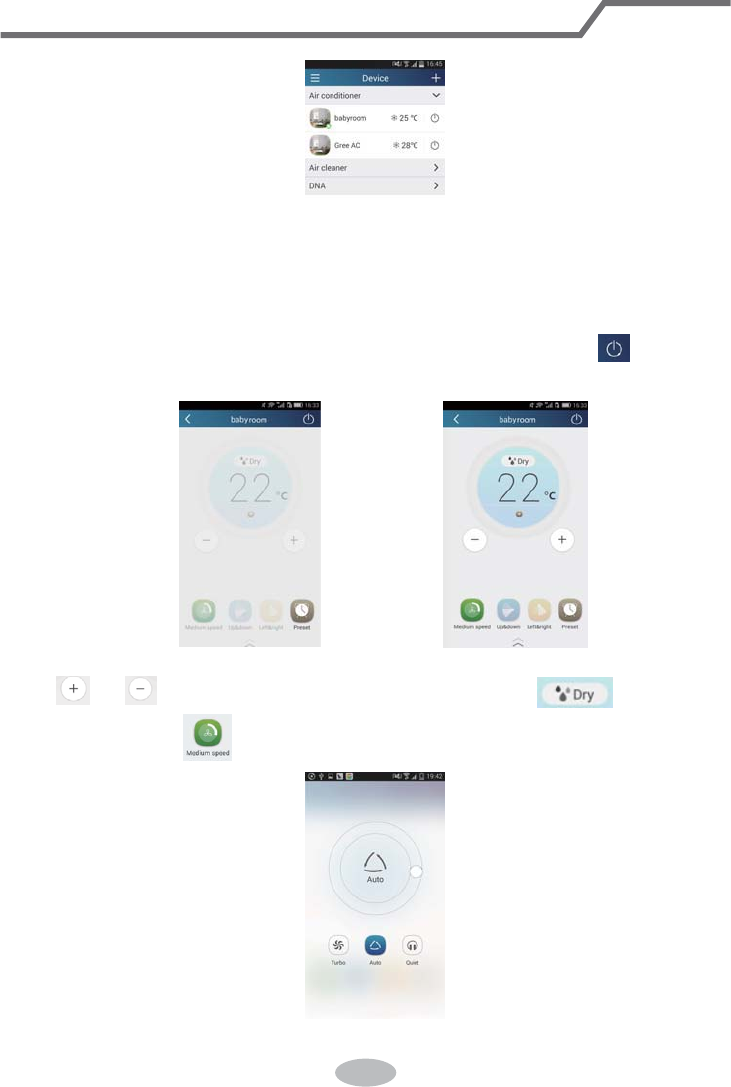

Step 1: General control Enter the homepage "Device" first. Take "baby home"
as an example.
Operation of Smart Control (Smart Phone, Tablet PC)
7
Tap "babyroom" and enter the page of air conditioner control. Tap to turn
on the control switch.
Tap or to increase or decrease temperature. Tap to change
working mode. Tap to enter the page of fan speed adjustment.
Operation of Smart Control (Smart Phone, Tablet PC)
8

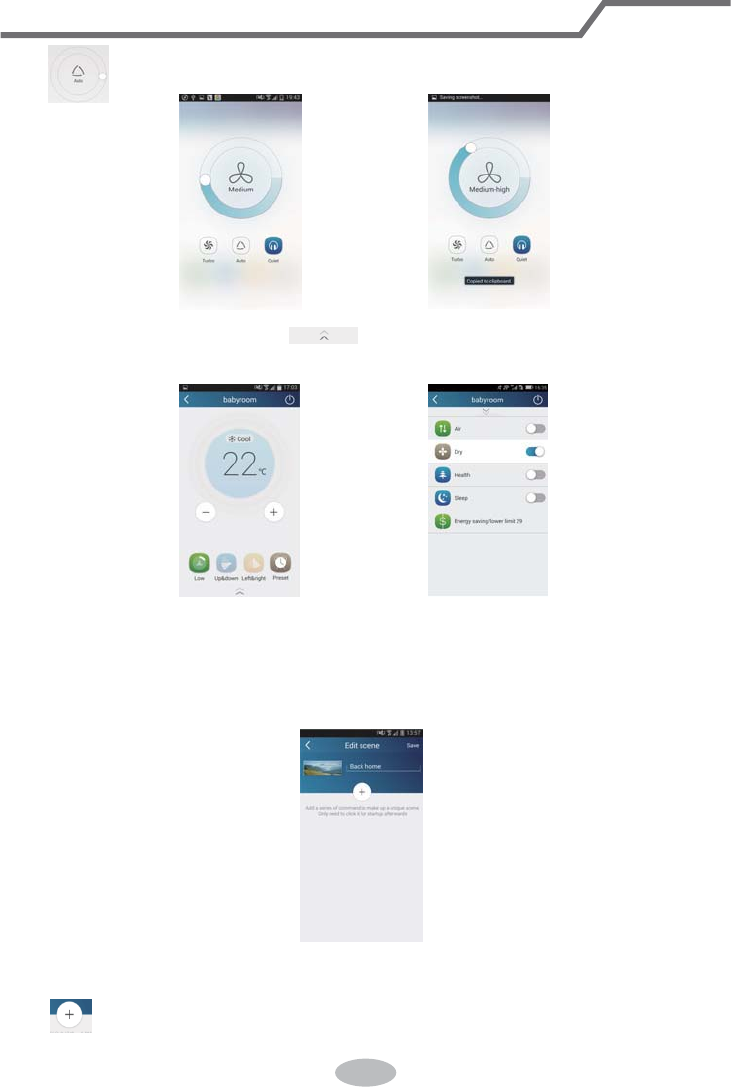

Tap and go around the circle to adjust fan speed.
Step 2: Advanced settings Tap to enter advanced settings. You may
select "Air", "Dry", "Health", "Light", "Sleep" or "Energy saving".
(2) Advanced control functions: Set scene; Preset; Link: Infrared control (only
applicable to smart phone with infrared emitter)
Set scene: Preset the operation of several smart devices by one tap.
On the page "Device", tap the image of "Device" to enter the page "Edit scene".
Tap "Add scene" and edit the scene name, for example, "Back home". Add execution
devices.

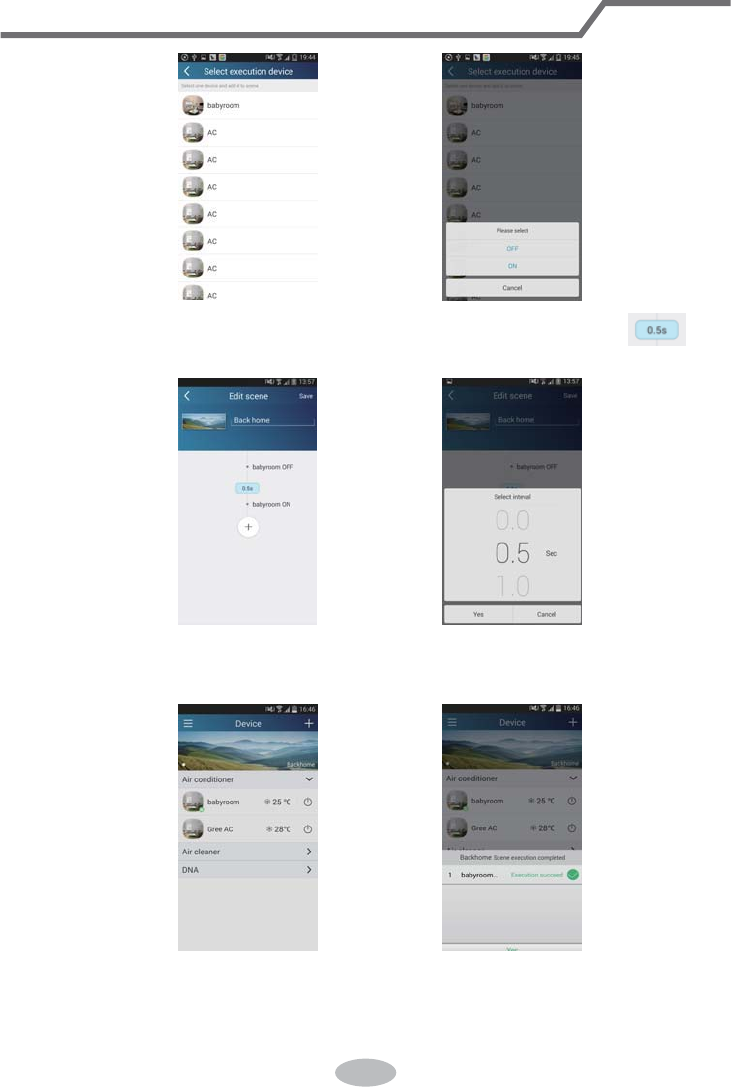

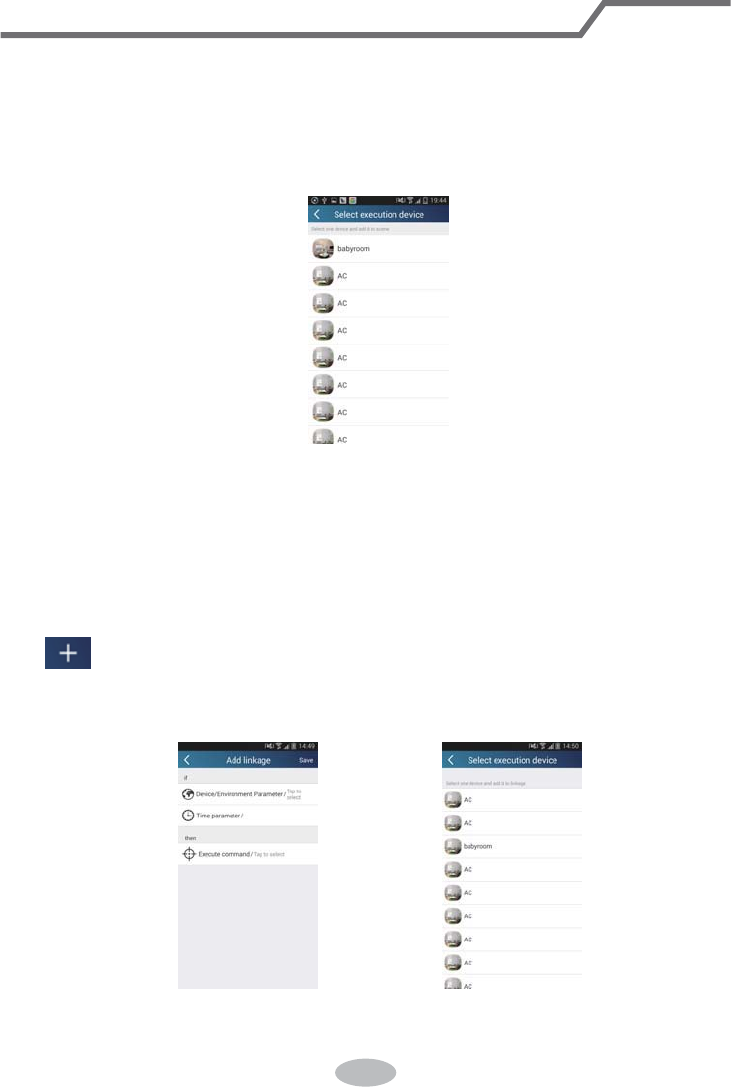

Tap to add commands. On the page "Select execution device", select the air
conditioner named "babyroom". Then select "ON" or "OFF".
Operation of Smart Control (Smart Phone, Tablet PC)
9
Continue to select the next execution device as instructed above. Tap
to set the interval.
Tap "Save". Then the scene "Back home" will be in execution. You may view the
execution condition of the scene.
(3) Preset includes single-device preset and multi-device preset
Single-device preset: This can preset a certain device to be On/Off at a specific
time.
Operation of Smart Control (Smart Phone, Tablet PC)
10
On the homepage "Device", take air conditioner "babyroom" as an example.
Tap at the bottom of the page "babyroom". Then you will enter the page
Slide up and down to set the time. If you want to synchronize the time, tap
" synchronize".
"Preset edit".
Tap "Name" to customize the preset name.
Preset device can’t be selected and it will default to "babyroom". Select "On" for
the timer type. Select repeating days to complete the preset.
Operation of Smart Control (Smart Phone, Tablet PC)
11
Multi-device preset: This can preset multiple devices to execute a command at a
specific time.
Please refer to the instructions as how to set preset time, name, timer type and
repeating days for a single device.
Tap "Preset device" to select one or more devices. Then return to the page "Device".
(4) Link(This function is applicable to partial of models)
set in the master device, slave devices will execute commands to realize devices
Select a master device. When the environment has satisfied the parameters as
linkage.
Step 1: Set the parameters of master device (Select master device, select
environment parameters, select master device status).
Tap at the top right corner of the homepage "Device". Select "Link" and
enter the page "Add linkage". Tap "Device parameter" to enter the page "Select
device". Take "baby room" as an example. Tap "babyroom".
Enter the page "Select environment parameters".
Operation of Smart Control (Smart Phone, Tablet PC)
12
Tap "Temperature" to enter the page "Select temperature parameter". Slide up or
down to adjust temperature. Tap "Upper limit" or "Lower limit".
Tap "Mode" and "On/Off" to select the status of master device. Then tap "Save".

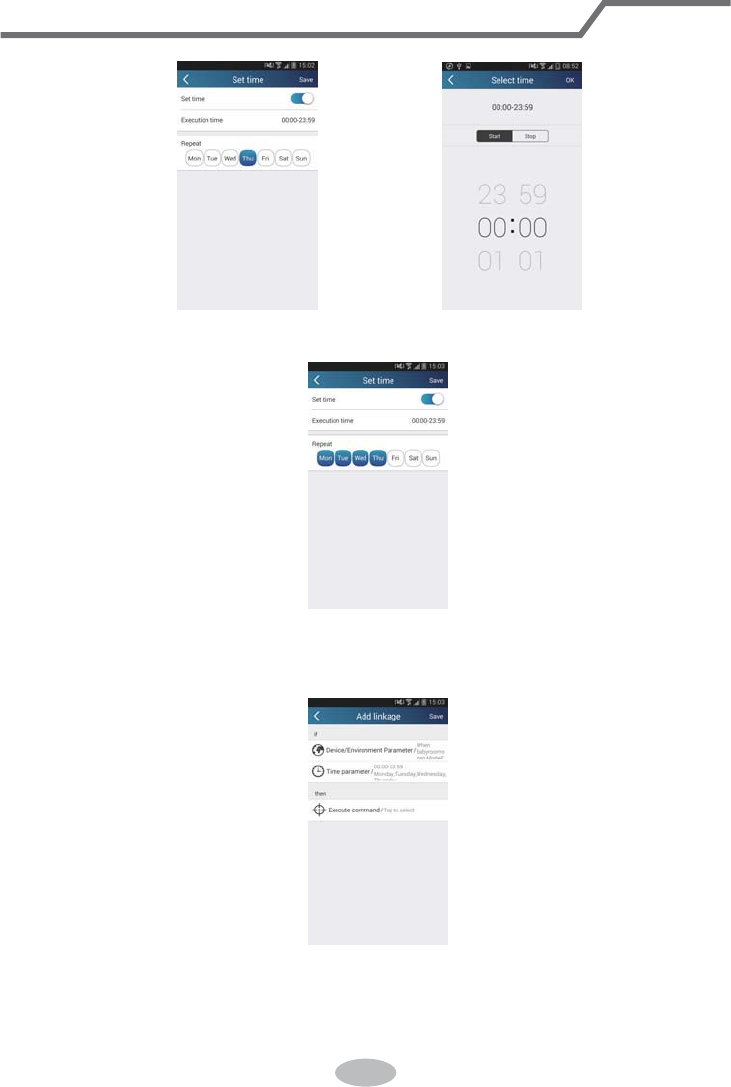

Step 2: Set time parameter for linkage. Tap "Time parameter" to enter the page "Set
time". Slide rightwards to turn on the setting time.
Tap "Execution time"; Then tap "Start" and "Stop" to set start time and stop time
respectively. Tap "OK" at the top right corner to save the setting.
Operation of Smart Control (Smart Phone, Tablet PC)
13
Tap the days below "Repeat" to select the repeating days. Then tap "Save".
Step 3: Select "Execute command"

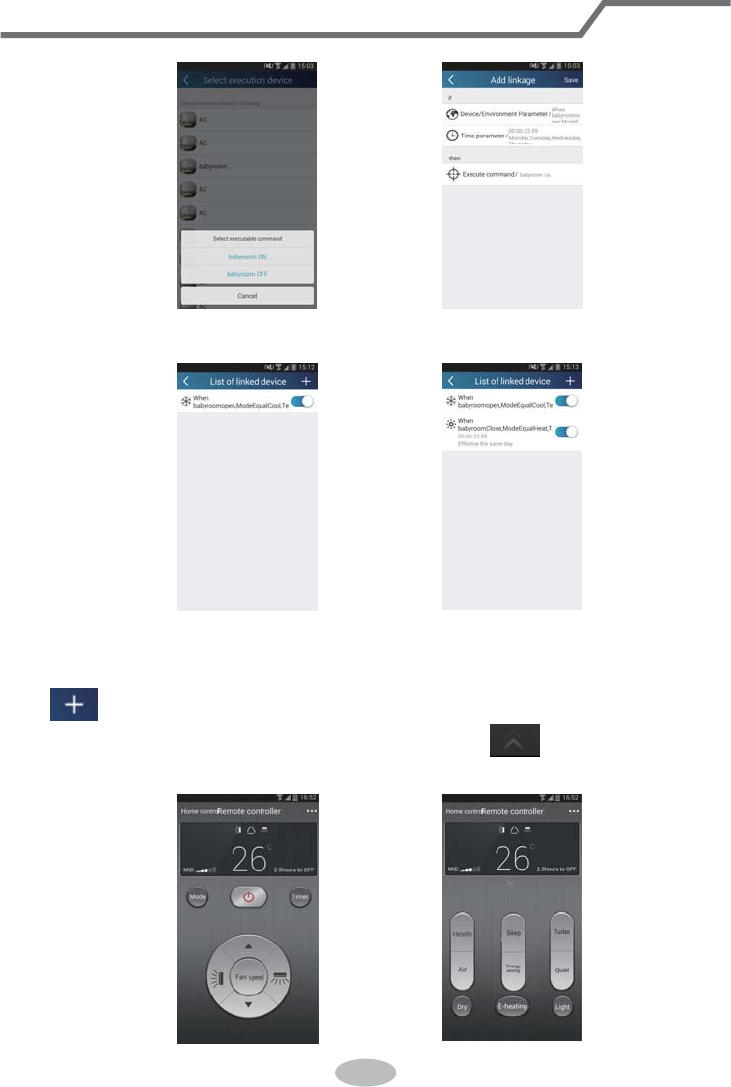

Tap "Execute command" and enter the page "Select device".
Tap the name of device that you want to control. Tap "ON" or "OFF" and then tap
"Save" to complete the linkage.
Operation of Smart Control (Smart Phone, Tablet PC)
14
Tap "Save" and then repeat the above steps to set linkage of several scenes.
(5) Infrared control (only applicable to smart phone with infrared emitter).
Function: Smart phone can be used as a remote controller.
Tap at the top right corner of the homepage "Device". Select
"Infrared" and enter the page "Remote controller". Tap and slide up to
enter the page of advanced functions.
Operation of Smart Control (Smart Phone, Tablet PC)
15

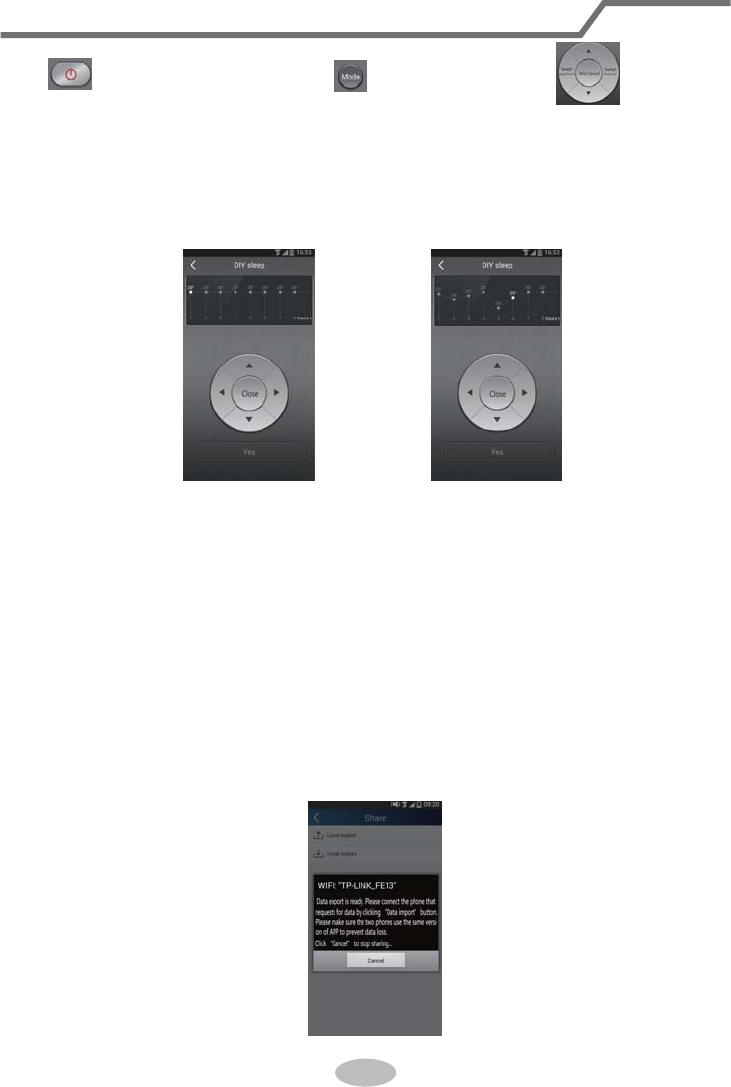

Tap to turn on the device. Tap to select mode. Tap to adjust
fan speed . Tap "Health", "Energy saving", "Sleep" etc. to set advanced functions.
Tap "Sleep" to enter the page "Sleep". You can select "Traditional sleep", "Expert
sleep" or "DIY sleep". Tap "DIY sleep" and then tap the left and right arrows to set
sleep time. Tap up and down arrows to adjust temperature at a specific sleep time.
Menu functions (Share, Set, History, Feedback)

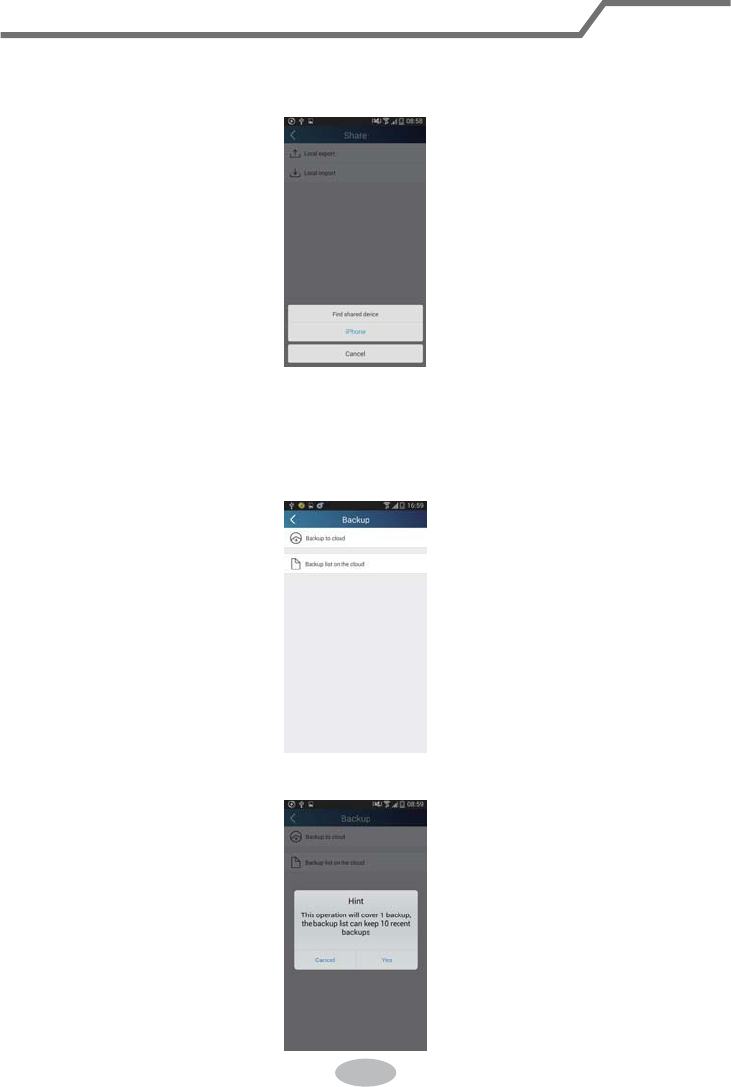

(1) Share: To share quick configuration information and unit’s information, including
local export and local import.
For local import, you just need to tap "Local import" and wait for the data download.
Local export
Step 1: Export local data to another smart phone.
Enter "Menu" on the left side and tap "Share" to enter the page "Share". Then tap
"Local export".
4.Menu functions
Operation of Smart Control (Smart Phone, Tablet PC)
16
Step 2: Another smart phone to be imported.
Tap the model name and wait for the download.
(2) Backup: To keep backup of the quick configuration information and unit’s
information, including backup to cloud and backup list on the cloud.
Backup to cloud
Enter the "Menu" on the left and tap "Backup".
Tap "Backup to cloud" and then tap "Yes". Then wait for the data download.
Operation of Smart Control (Smart Phone, Tablet PC)
17

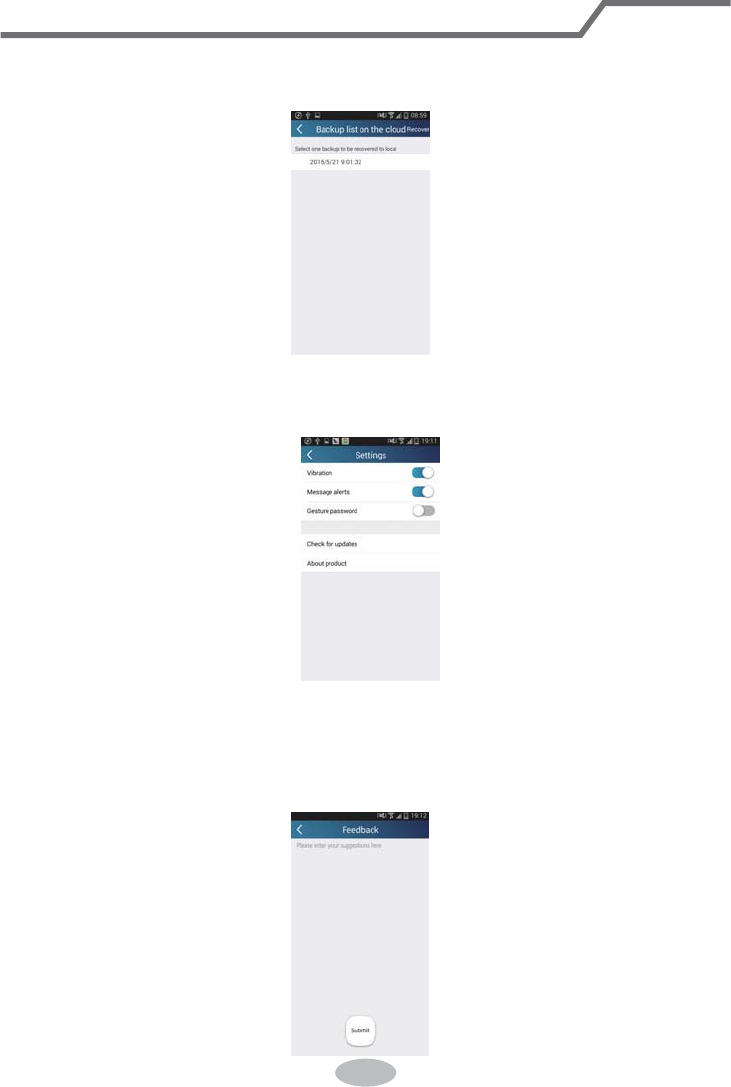

Select "Backup list on the cloud". Then backup records will appear. Tap "Record"
to download data and recover data to local unit.
(3) Settings
User can set vibration, message alerts, gesture password (usable only after
registration), etc.
User can feedback suggestions to back-stage management for maintenance and
development.
Tap "Feedback". Enter your suggestions and then submit it.
(4) Feedback
Explanation of Symbols
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
The indoor unit should be installed close to the wall.
reachable after finishing installation.
far away from animals or plants.If it is unavoidable,
please add the fence for safety purpose.
Precautions
WARNING
FCC WARNING
place, only the qualified person can perform the work.
Otherwise, it may cause personal injury or damage.
If you need to relocate the air conditioner to another
must be installed in the line.
For the air conditioner without plug, an circuit break
Select a location which is out of reach for children and
For the air conditioner with plug, the plug should be
5
Instructions for installation and use of this product are
provided by the manufacturer.
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
WARNING: Changes or modifications to this unit not
FCC STATEMENT
Operation is subject to the following two conditions :
This device complies with Part 15 of the FCC Rules.
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
equipment generates, uses and can radiate radio
Ɣ Reorient or relocate the receiving antenna.
Ɣ Increase the separation between the equipment and
receiver.
Ɣ Connect the equipment into an outlet on a circuit
Ɣ Consult the dealer or an experienced radio/TV
different from that to which the receiver is connected.
technician for help.
interference to radio communications.
comply with the limits for a Class B digital device,
Precautions
FCC STATEMENT
accordance with the instructions,may cause harmful
harmful interference in a residential installation. This
undesired operation.
frequency energy and, if not installed and used in
However, there is no guarantee that interference will
does cause harmful interference to radio or television
correct the interference by one or more of the following
measures:
equipment off and on, the user is encouraged to try to
not occur in a particular installation. If this equipment
reception, which can be determined by turning the
NOTE: This equipment has been tested and found to
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received,including interference that may cause
6
Precautions
Le présent appareil est conforme aux CNR d'Industrie
licence. L'exploitation est autorisée aux deux conditions
tout brouillage radioélectrique subi, même si le
undesired operation of the device.
IC STATEMENT
brouillage, et (2) l'utilisateur de l'appareil doit accepter
Canada applicables aux appareils radio exempts de
interference, and (2) this device must accept any
suivantes : (1) l'appareil ne doit pas produire de
brouillage est susceptible d'en compromettre le
fonctionnement.
interference, including interference that may cause
This device complies with Industry Canada licence-
This equipment complies with FCC’s and IC’s RF
radiation exposure limits set forth for an uncontrolled
environment. The antenna(s) used for this transmitter
must be installed and operated to provide a separation
distance of at least 20 cm from all persons and must
exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause
not be collocated or operating in conjunction with any
other antenna or transmitter. Installers must ensure that
20cm separation distance will be maintained between
the device (excluding its handset) and users.
Cet appareil est conforme aux limites d’exposition au
rayonnement RF stipulées par la FCC et l’IC pour une
utilisation dans un environnement non contrôlé. Les
7
Precautions
Working temperature range
Indoor side DB/WB(ć) Outdoor side DB/WB(ć)
Maximum cooling 26.7/19.4 46.1/23.9
Maximum heating 26.7/- 23.9/18.3
ƔThe operating temperature range (outdoor temperature) for cooling only unit is
-18 ć~54ć; for heat pump unit is -30 ć~ 54ć.
NOTICE:
IC STATEMENT
près d’autres antennes ou émetteurs ou fonctionner
antennes utilisées pour cet émetteur doivent être
installées et doivent fonctionner à au moins 20
cm de
distance des utilisateurs et ne doivent pas être placées
distance de 20 cm sépare l’appareil (à l’exception du
combiné) des utilisateurs.
avec ceux-ci. Les installateurs doivent s’assurer qu’une
8
Add: West Jinji Rd, Qianshan, Zhuhai, Guangdong, China, 519070
Tel: (+86-756) 8522218 Fax: (+86-756) 8669426
E-mail: gree@gree.com.cn www.gree.com
GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI
66160000321
