Green Point Jabil Design Services Branch TGPBA0010290 ZigBee Interface Module User Manual Atmel Module Product Manual Update by BVADT v2
Taiwan Green Point Enterprises Co., Ltd. Jabil Des ZigBee Interface Module Atmel Module Product Manual Update by BVADT v2
User Manual
Product Manual
JABIL Technology Services Design Services
Low Power ZigBee Module
(Atmel)
TABLE OF AUTHORISATION
Name Role Organisation Signature
Thomas Chang PM PMO Thomas
Frank Liu Desing Manager R&D Frank
DOCUMENT HISTORY
Date Version
Status Author Change
5/11/10
1.0 Draft Yao-Ling
Cheng Initial Release
TABLE OF CONTENTS
1
INTRODUCTION..........................................................................................................................................3
1.1
P
URPOSE
..............................................................................................................................................3
1.2
S
COPE
...................................................................................................................................................3
1.3
I
NTENDED
A
UDIENCE
............................................................................................................................3
1.4
D
EFINITIONS AND ABBREVIATIONS
........................................................................................................3
2
OVERVIEW..................................................................................................................................................4
3
CONSTRAINTS, ASSUMPTIONS, AND DEPENDENCIES..................................................................5
4
FEATURES...................................................................................................................................................6
5
BLOCK DIAGRAM AND PORT FUNCTION ..........................................................................................7
5.1
UART
P
ORT
.........................................................................................................................................7
5.2
P
ROGRAMMING AND
D
EBUG
P
ORT
.......................................................................................................7
5.3
GPIO
P
ORT
..........................................................................................................................................7
6
DETAIL SPECIFICATIONS......................................................................................................................8
6.1
P
IN
A
SSIGNMENT
...................................................................................................................................8
6.1.1
LPZigBee Module ..........................................................................................................................8
6.2
T
HE
PCB
OUTLINE FOR
LPZ
IG
B
EE MODULE
..........................................................................................9
6.3
E
LECTRICAL
S
PECIFICATION
................................................................................................................10
6.3.1
DC power supply range ..............................................................................................................10
6.3.2
System dBm max & min (maximum and minimum TX output at PCB antenna) and
System current & power drawn................................................................................................................10
6.3.3
System current & power drawn of TX@20dBm and RX........................................................10
6.3.4
System Current and Power consumption during idle and hibernate mode ....................................10
6.3.5
System RX Sensitivity (dBm)...........................................................................................................11
1 INTRODUCTION
1.1 P
URPOSE
The purpose of this document is to provide the product manual and Design
Specifications for low power ZigBee
(LPZigBee)
module.
1.2 S
COPE
The scope of this document is to produce the detail design of LPZigBee module.
1.3 I
NTENDED
A
UDIENCE
This document is intended primarily for the EE Hardware Design.
1.4 D
EFINITIONS AND ABBREVIATIONS
Term Meaning
ADC Analog to Digital Converter
GPIO General Purpose Input/Output
I
2
C Inter Integrated Circuit
JTAG Joint Test Action Group
FEM Front-end module
SPI Serial Peripheral Interface
UART Universal Asynchronous Receiver Transmitter
NF Noise figure
LPZigBee Low power Zigbee Module
2 OVERVIEW
LPZigBee module mainly consists of three sections: the microcontroller
ATXmega256D3 and periphery, the radio transceiver AT86RF231 and the RF front-
end with power amplifier and low-pass filtering.
The ATXmega256D3 controls the AT86RF231 radio transceiver and serves as an
SPI master. The radio transceiver handles all actions concerning RF
modulation/demodulation, signal processing, frame reception and transmission. MAC
hardware acceleration functions are implemented in the radio transceiver, too.
Further information about the radio transceiver and the microcontroller are available
in the appropriate datasheets, refer to 1.5 references.
The RF front-end incorporates signal amplification and filtering of the transmit signal.
The degree of filtering depends on operating conditions as well as regional aspects.
Switching between reception and transmission is directly controlled by the radio
transceiver.
3 CONSTRAINTS, ASSUMPTIONS, AND DEPENDENCIES
(1) Unless otherwise specified, all resistors, capacitors, inductors, & ferrite beads are
0402 size
(2) C202, C400, L200, and L300 are 0603 size
(3) The operating temperature range for all electrical components of LPZigBee
module is -40°C to +85°C.
(4) With FEM function: remove R200 & R203 & R208 and install R201 & R205 &
R207
(5) Bypass FEM function for MMCX: remove U201 & R201 & R205, R207 & R202
& R204 & C200 & C201 & C202 &C203 and install R200 & R203 & R208
(6) Bypass FEM function for PCB Antenna: remove U201 & R207 & R201 & R202
& R204 & R208 & C200 & C201 & C202 &C203 and install R200 & R203 & R205
(7) The impedances of Nets (RF_1, RF_2, RF_FEM, RF_BYPASS, ANT_1, ANT_2,
ANT_F, and MMCX) are 50 ohm in PCB layout.
(8) The following clocks of Nets (SPI_CLK, I2C_SCL, SCLK, MEM_SCK, CLKM and
CLK_OUT) should follow the 3W rule for layout.
4 FEATURES
Ultra compact size
High RX sensitivity (-103 dBm)
Outperforming link budget (123 dB)
Up to +20 dBm output power
Very low power consumption:
<6 µA in Sleep mode,
18 mA in RX mode,
132 mA in TX mode@Pout is +20 dBm
Ample memory resources (256 bytes of flash memory, 16K bytes RAM, 4K bytes
EEPROM)
Wide range of interfaces (both analog and digital):
8 spare GPIO,
2 ADC lines
UART
I2C
SPI
JTAG
Capability to use MAC address written into EEPROM
IEEE 802.15.4 compliance
2.4 GHz ISM band
BitCloud embedded software, including UART bootloader and AT command set
5 BLOCK DIAGRAM AND PORT FUNCTION
5.1 UART
P
ORT
LPZigBee Module provides four signals (RX, TX) of standard RS-232 protocol to
support user applications. The UART port is set the DCE port and connected with
other devices by D-Sub-9 Female connector. But the RX, TX connection between
RS-232 Transceiver and D-Sub-9 Female connector can be reversed by Jumpers,
allowing use of connecting straight-though or cross-wires cable.
5.2 P
ROGRAMMING AND
D
EBUG
P
ORT
The LPZigBee module can be programmed and debugged by JTAG port. It is a 20
pins header and connects with Atmel’s debugging tool.
5.3 GPIO
P
ORT
The GPIO connectors provide the SPI, I2C, UART and GPIO interface for external
system testing. The recommended operation voltage is +3.3Vdc.
6 DETAIL SPECIFICATIONS
6.1 P
IN
A
SSIGNMENT
6.1.1 LPZigBee Module
Pin Signal Connection for 2-chip solution
(ATxmega256D3)
1 SPI_MISO PD6/MISO
2 SPI_MOSI PD5/MOSI
3 SPI_SCK PD7/SCK
4 SPI_SS_L PD4/SSN
5 UART_RXD PE2/RXD0
6 UART_TXD PE3/TXD0
7 I2C_SCL PE1/SCL
8 I2C_SDA PE0/SDA
9 JTAG_TCK nc
10 JTAG_TMS nc
11 JTAG_TDO nc
12 JTAG_TDI/PDI PDI
13 RESET_L RESET
14 CLK_OUT PR0/xtal1
15 ADC1 PB0/ACD8
16 ADC2 PB1/ACD9
17 PWM1_DC1 PF0/OC0A
18 PWM1_DC2 PF1/OC0B
19 PWM2_DC1 PE4/OC1A
20 PWM2_DC2 PE5/OC1B
21 GPIO1 PF2/INT/OC0C
22 GPIO2 PF3/INT/OC0D
23 GPIO3 PF4/INT
24 GPIO4 PF5/INT
25 GPIO5 PF6/INT
26 GPIO6 PF7/INT
27 GPIO7 PB2/INT/ADC10
28 GPIO8 PB3/INT/ADC11
29 VCC Power Plane
30 VCC Power Plane
31 VCC Power Plane
32 VCC Power Plane
33 GND Ground Plane
34 GND Ground Plane
35 GND Ground Plane
36 GND Ground Plane
37 GND Ground Plane
38 GND Ground Plane
39 SPARE1
40 SPARE2

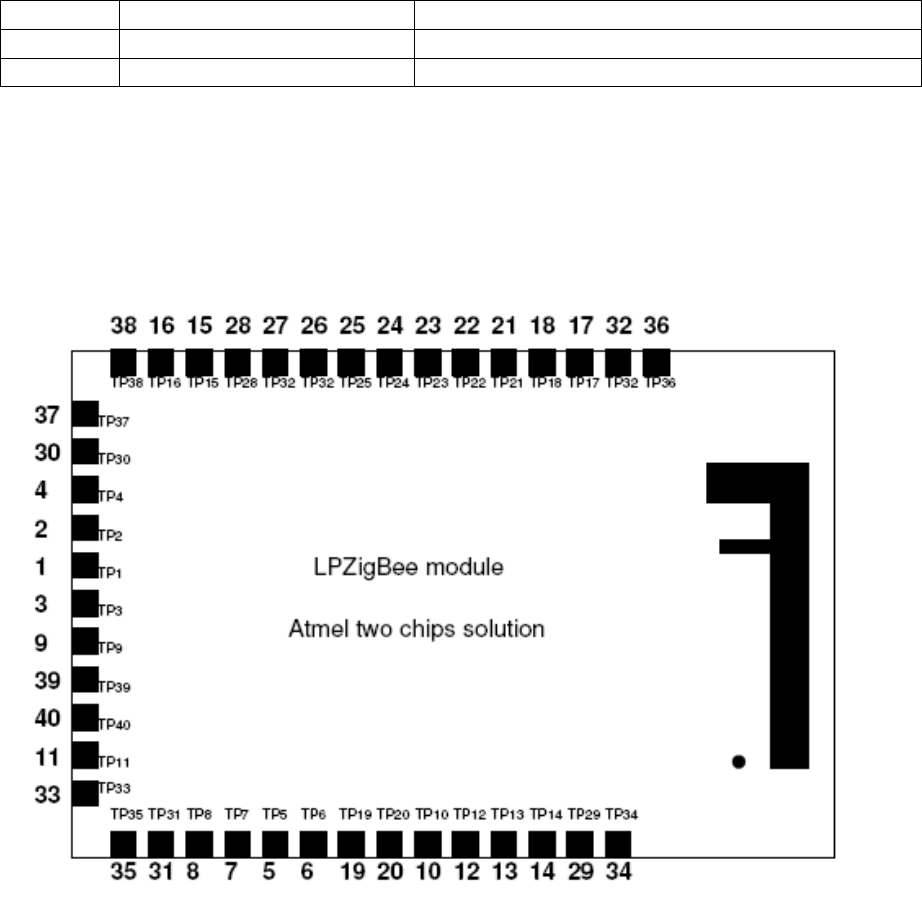

6.2 T
HE
PCB
OUTLINE FOR
LPZ
IG
B
EE MODULE
6.3 E
LECTRICAL
S
PECIFICATION
6.3.1 DC power supply range
System module power supply range
Ateml solution w/o FEM 1.8~3.6V
Ateml solution with SE2431L@
NF of LNA=2 dB
Gain of LNA=12.5 dB 1.8~3.6V (Transceiver)
2.0~3.6V (FEM)
6.3.2 System dBm max & min (maximum and minimum TX output at
PCB antenna) and System current & power drawn.
System module maximum TX output
minimum TX output
Ateml solution w/o FEM 2.1dBm@I=14mA (-17.9)dBm@I=7.4mA
Ateml solution with SE2431L@
NF of LNA=2 dB
Gain of LNA=12.5 dB 21dBm@Icc=134.13mA
5.6dBm@>37.4mA
6.3.3 System current & power drawn of TX@20dBm and RX
System module TX@20dBm
RX
Ateml solution w/o FEM NA I=12.3 mA
Ateml solution with SE2431L@
NF of LNA=2 dB
Gain of LNA=12.5 dB I=130.83 mA
I=17.3 mA
6.3.4 System Current and Power consumption during idle and hibernate
mode
System module Idle mode
Hibernate
mode
Ateml solution w/o FEM
7mA @
32MHz 100nA
Ateml solution with SE2431L@
NF of LNA=2 dB
Gain of LNA=12.5 dB
7mA @
32MHz 100nA
6.3.5 System RX Sensitivity (dBm)
System module
Sensitivity
(dBm)
Ateml solution w/o FEM (-99.6)
Ateml solution with SE2431L@
NF of LNA=2 dB
Gain of LNA=12.5 dB (-103.63)
Federal Communication Commission Interference Statement
This module has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the
antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or
antenna,
As long as 2 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed (for example,
digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is
no longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following: “Contains FCC ID: ZAR-
TGPBA0010290”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the end
product which integrates this module.
The end user manual shall include all required regulatory information/warning as
show in this manual.
