High Performance Axial Fans

Model AX

Performance Supplement

Greenheck certifies that the

Model AX fan shown herein

are licensed to bear the AMCA

seal. The ratings shown are

based on tests and procedures

performed in accordance with

AMCA publication 211 and

comply with the requirements

of the AMCA Certified Ratings

Program.

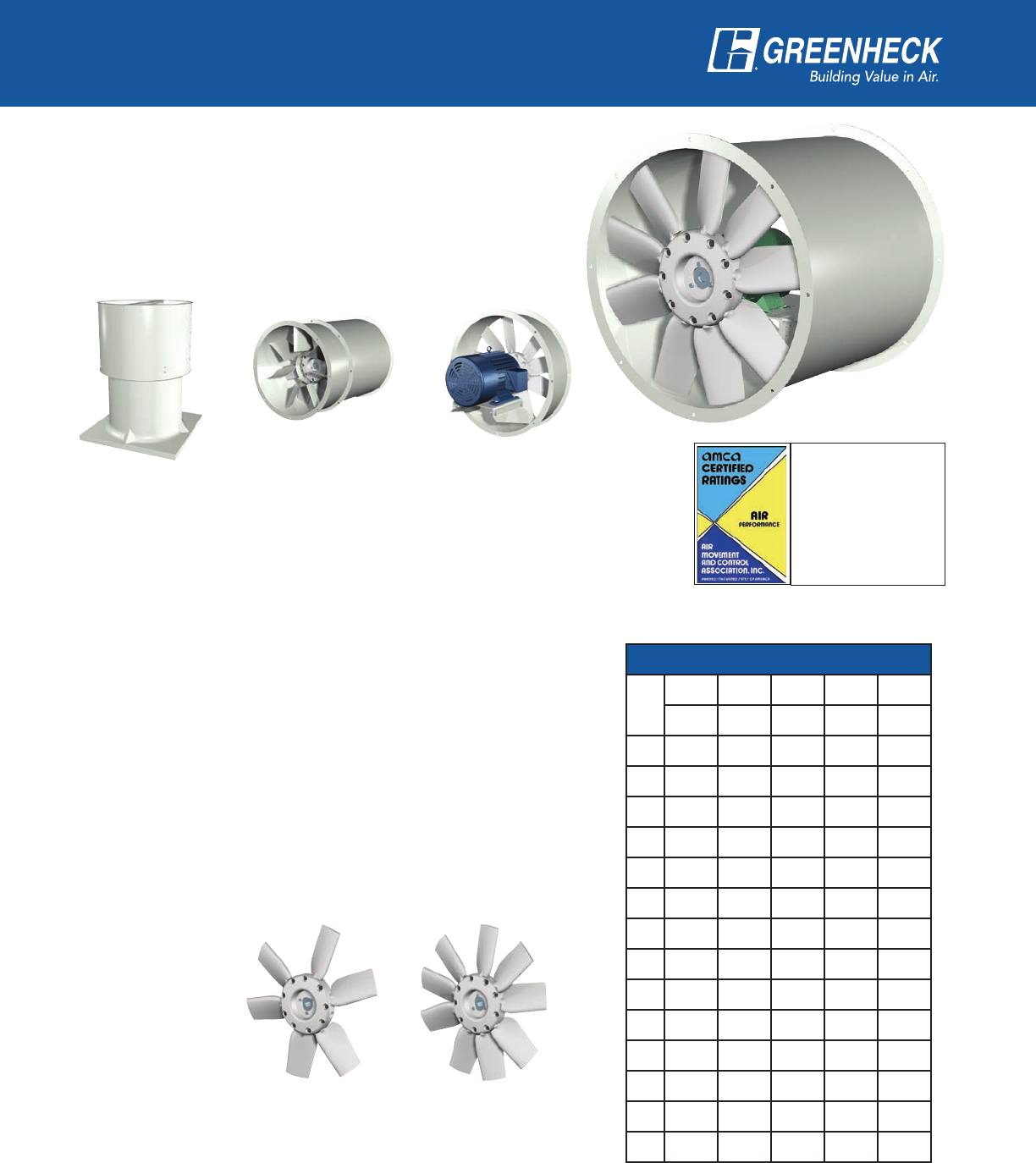

Performance information is for the model AX standard

configuration. Optional configurations include; upblast

design with butterfly dampers and curb cap, detachable air

straightening vane section, and shortened case. These options

can effect performance. For estimated pressure drops on these

accessories, consult your local Greenheck representative.

AX Short CasingAX Vane SectionAX Upblast

Hubs and Blades

The AX blade shape and hub are designed to move high

volumes of air with less power to save on long-term energy

costs.

The choice of five different hub diameters, along with variations

in blade quantities, ensures that the most economical air

performance can be achieved. In addition, during the design

process, close attention was paid to the “hub to tip” ratios.

This is a comparison of the hub diameter to the “tip to tip”

dimension of the blades. Different choices of hub to tip ratios

further optimize fan performance and provide a cost effective

solution by not over sizing a hub to produce required volumes

and pressures.

The hubs are

constructed from

cast aluminum and

use a taper lock

bushing to secure

the hub to the

motor shaft.

Available Hub Sizes (mm) / Number of Blades

Size

160 190 275 400 533

(4 or 6 ) (4 or 6) (6 or 9) (6 or 9) (8 or 12)

31 X

36 X

41 X X

47 X X

54 X X X

63 X X X

72 X X

80 X X X

90 X X

103 X X

113 X X X

123 X X

140 X X

160 X X

Page Header

2

High Performance Axial Fans

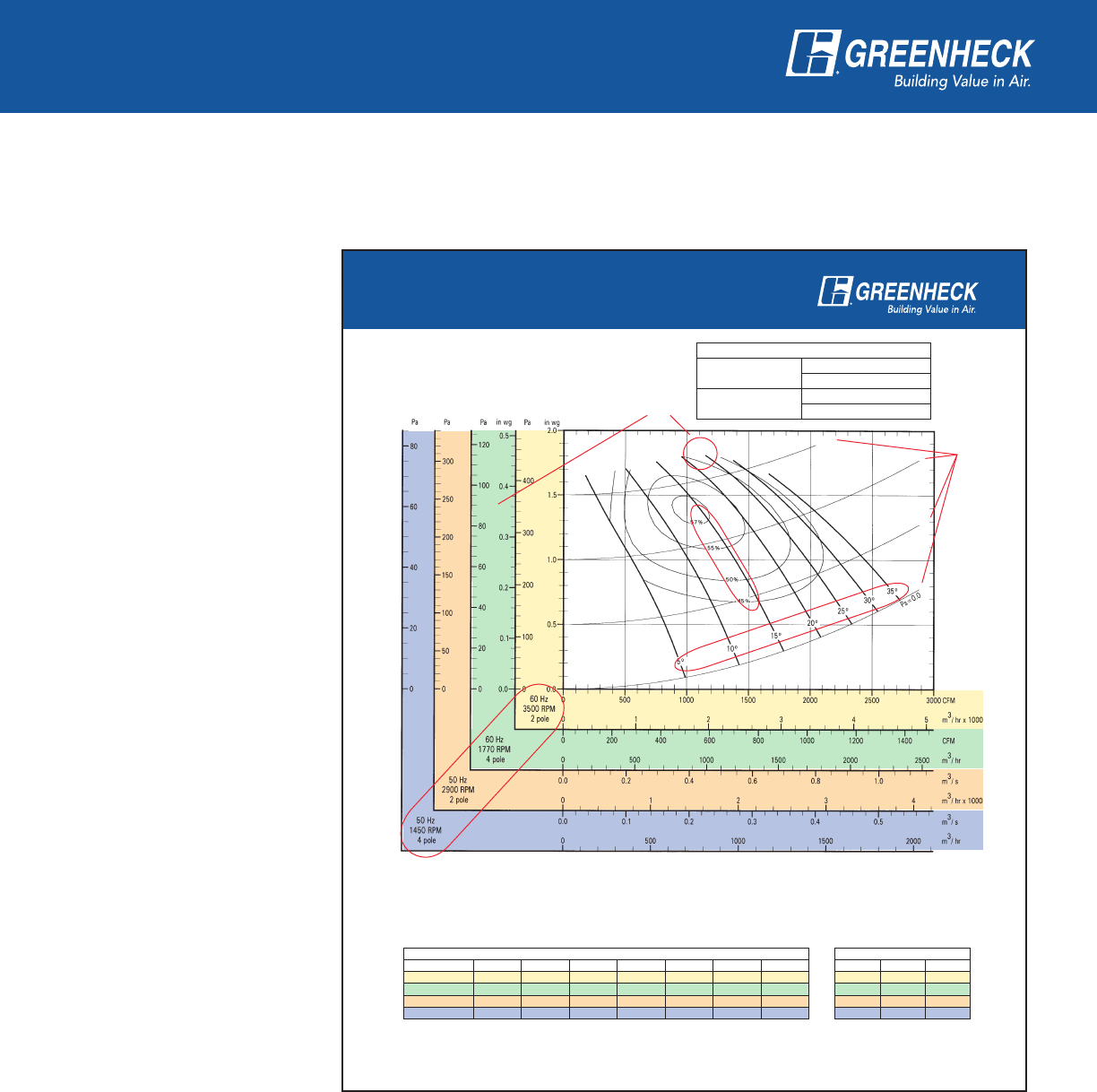

The performance pages contains information in metric and english units. These are color coded with motor

power frequency and motor speed for easy and quick reference in finding air performance, power requirements,

and sound information. See back cover for selection example.

Model size and hub

diameter

Total Pressure Axis

in Pascals (Pa) and

Inches Water Gauge

(in. wg)

Static Pressure

- Lines of constant

static pressure

Color coded power

frequency and motor

speed (rpm)/poles

Volume - Axis

displays two different

units of measure

for each power

frequency and motor

speed.

Blade pitch -

Shown in 5 degree

increments, integral

pitches are available

between the

displayed limits.

Sound power (LwA)

- Color coded sound

power level levels

are displayed as

a percentage of

peak power; 100%,

50% and 0%. Use

corrections in the

sound power table to

find corresponding

LwA and dBA levels

for a specific power

frequency and motor speed.

Total Efficiency curves - Curves show total efficiency levels at different performance points. Those curves

do not reflect static efficiency levels.

Peak Absorbed Power table - Table displays the maximum power required by pitch angle and motor rpm.

Values provided are in brake horse power and kilowatts.

Sound Power and Sound Pressure table - Table displays the corrections required by motor rpm.

Outlet Velocity and Tip Speed formulas - For deriving outlet velocity, use either cfm or m³/s in the

appropriate Outlet Velocity equation. Tip speed equation is only dependent on motor rpm.

68

68

68

67

67

67

66

65

69

rebmuNegaPdraobpilC

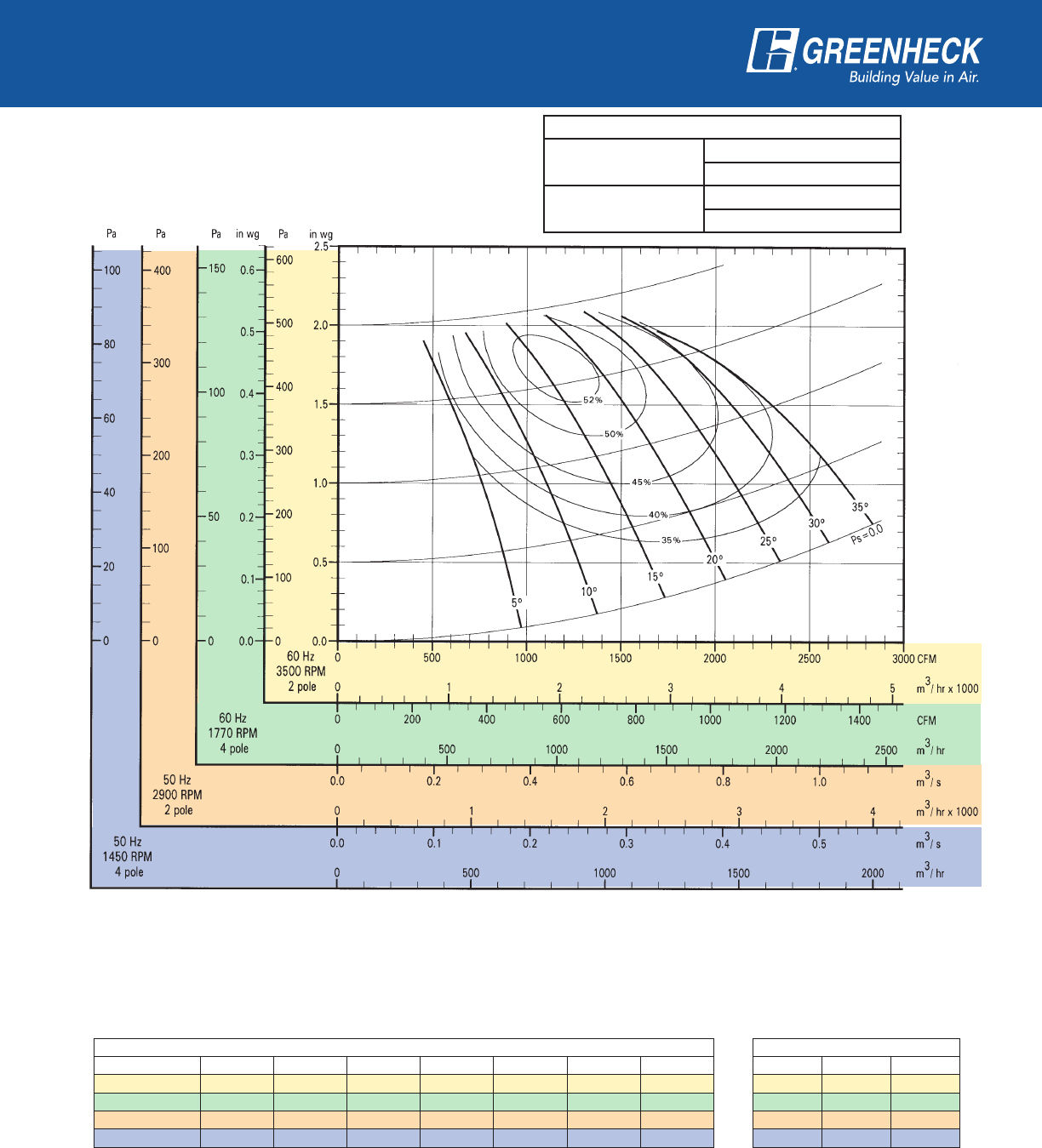

AX 31-160 4 Blades

rellepmI Diameter = 12.25 in. 311 mm

Outlet Velocity ft/min = cfm / 0.82

m/s = m³/s / 0.08

Tip Speed ft/min = rpm X 3.20

m/s = rpm X 0.98

Performance shown is for installation type B; free inlet, ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The

AMCA Certified Ratings Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power

levels for 100%, 50% and 0% of peak pressure in Installation Type B: free inlet, ducted outlet. dBA sound pressure values are weighted with 11.5 dB

Air density = 1.2 kg/m3

Air density = 0.075 lbs/ft3

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 0.19/0.14 0.30/0.22 0.43/0.32 0.56/0.42 0.71/0.53 0.88/0.66 1.07/0.80

1770 (Bhp/kW) 0.03/0.02 0.04/0.03 0.06/0.04 0.07/0.05 0.09/0.07 0.11/0.09 0.14/0.10

2900 (kW) 0.08 0.13 0.18 0.24 0.30 0.37 0.45

1450 (kW) 0.01 0.02 0.02 0.03 0.04 0.05 0.06

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

3500 +20 +8.5

1770 - -11.5

2900 +13 +1.5

1450 -5 -16.5

Volume

Total

Pressure

68

68

68

67

67

67

66

65

69

rebmuNegaPdraobpilC

AX 31-160 4 Blades

Air density = 1.2 kg/m3

Air density = 0.075 lbs/ft3

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 0.19/0.14 0.30/0.22 0.43/0.32 0.56/0.42 0.71/0.53 0.88/0.66 1.07/0.80

1770 (Bhp/kW) 0.03/0.02 0.04/0.03 0.06/0.04 0.07/0.05 0.09/0.07 0.11/0.09 0.14/0.10

2900 (kW) 0.08 0.13 0.18 0.24 0.30 0.37 0.45

1450 (kW) 0.01 0.02 0.02 0.03 0.04 0.05 0.06

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

3500 +20 +8.5

1770 - -11.5

2900 +13 +1.5

1450 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 12.25 inches (311 mm)

Outlet Velocity ft/min = cfm / 0.82

m/s = m³/s / 0.08

Tip Speed ft/min = rpm X 3.20

m/s = rpm X 0.98

Performance shown is for installation type B; free inlet, ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: free inlet, ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 0.19/0.14 0.30/0.22 0.43/0.32 0.56/0.42 0.71/0.53 0.88/0.66 1.07/0.80

1770 (Bhp/kW) 0.03/0.02 0.04/0.03 0.06/0.04 0.07/0.05 0.09/0.07 0.11/0.09 0.14/0.10

2900 (kW) 0.08 0.13 0.18 0.24 0.30 0.37 0.45

1450 (kW) 0.01 0.02 0.02 0.03 0.04 0.05 0.06

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

3500 +20 +8.5

1770 - -11.5

2900 +13 +1.5

1450 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 12.25 inches (311 mm)

Outlet Velocity ft/min = cfm / 0.82

m/s = m³/s / 0.08

Tip Speed ft/min = rpm X 3.20

m/s = rpm X 0.98

68

68

68

67

67

67

66

65

69

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 31-160 4 Blades

7

10

2

6

8

9

1

11

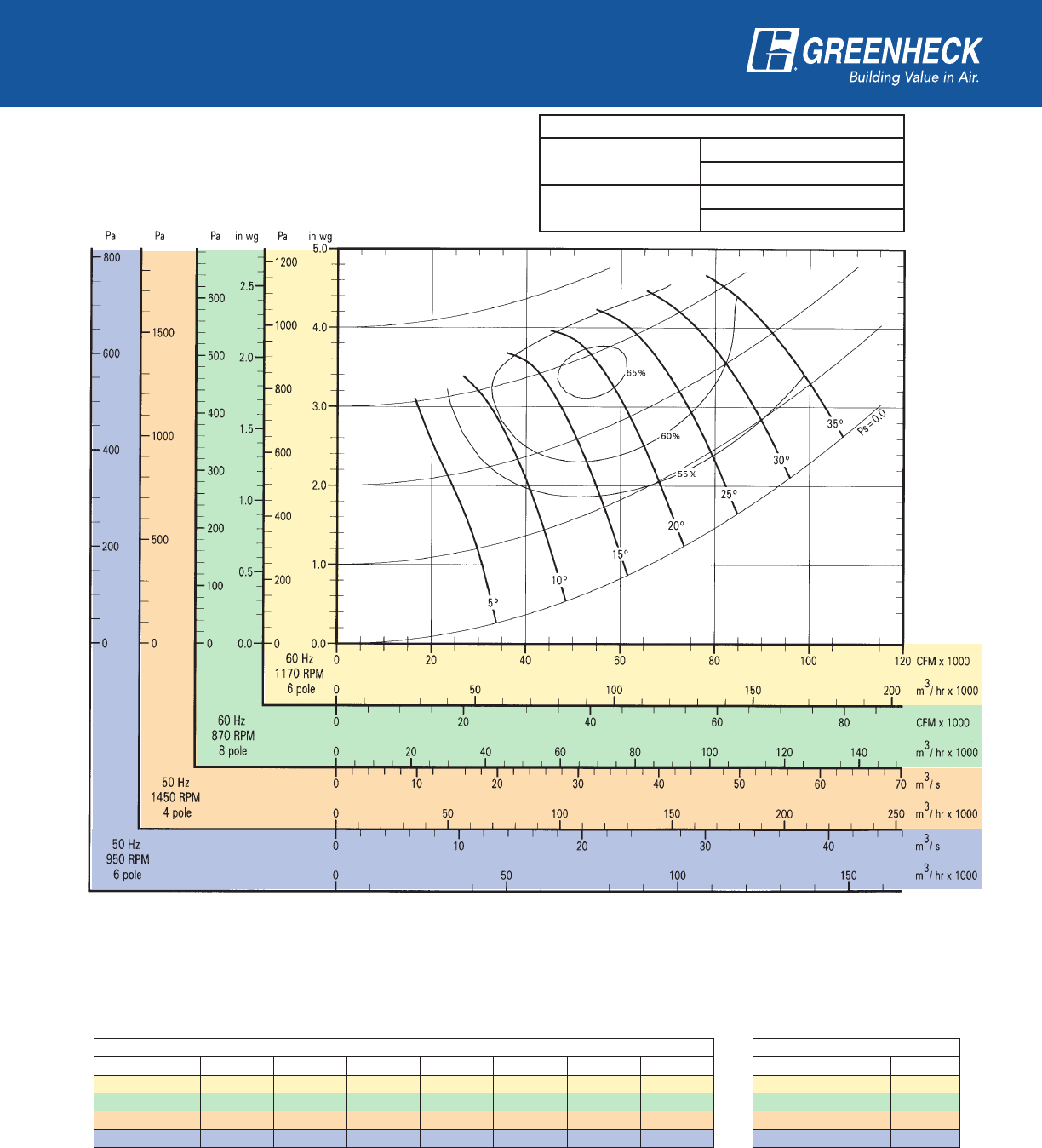

How to use this performance manual

3

5

4

7

10

2

6

9

1

11

3

5

4

8

Page Header

Performance Manual Guide

3

Page Header

4

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 0.19/0.14 0.30/0.22 0.43/0.32 0.56/0.42 0.71/0.53 0.88/0.66 1.07/0.80

1770 (Bhp/kW) 0.03/0.02 0.04/0.03 0.06/0.04 0.07/0.05 0.09/0.07 0.11/0.09 0.14/0.10

2900 (kW) 0.08 0.13 0.18 0.24 0.30 0.37 0.45

1450 (kW) 0.01 0.02 0.02 0.03 0.04 0.05 0.06

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

3500 +20 +8.5

1770 - -11.5

2900 +13 +1.5

1450 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 12.25 inches (311 mm)

Outlet Velocity ft/min = cfm / 0.82

m/s = m³/s / 0.08

Tip Speed ft/min = rpm X 3.20

m/s = rpm X 0.98

68

68

68

67

67

67

66

65

69

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

4

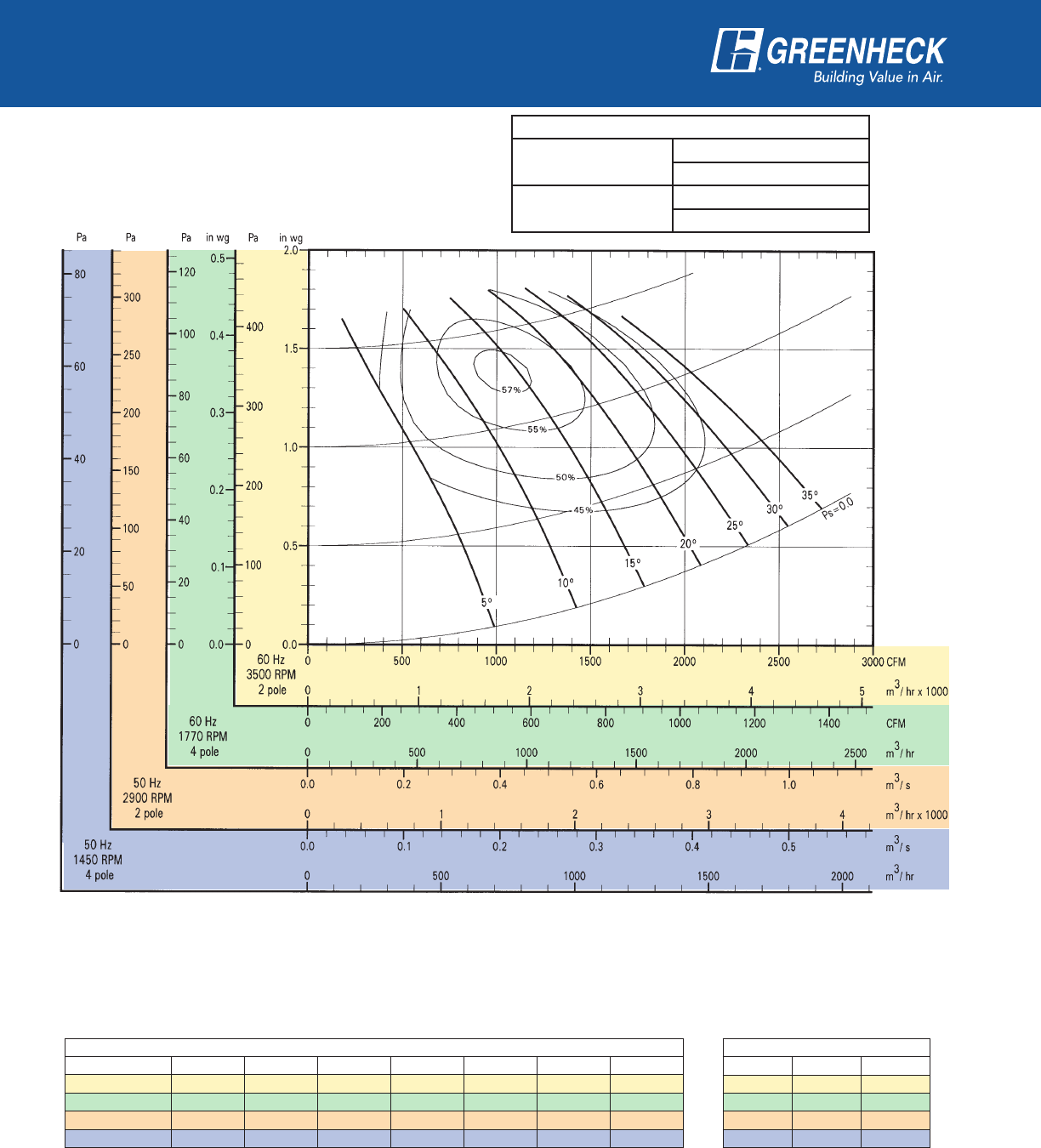

AX 31-160 4 Blades

Page Header

5

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 0.38/0.28 0.43/0.32 0.56/0.42 0.73/0.54 0.93/0.69 1.16/0.87 1.41/1.06

1770 (Bhp/kW) 0.05/0.04 0.06/0.04 0.07/0.05 0.09/0.07 0.12/0.09 0.15/0.11 0.18/0.11

2900 (kW) 0.16 0.18 0.24 0.31 0.39 0.49 0.60

1450 (kW) 0.02 0.02 0.03 0.04 0.05 0.06 0.08

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

3500 +20 +8.5

1770 - -11.5

2900 +14 +2.5

1450 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 12.25 inches (311 mm)

Outlet Velocity ft/min = cfm / 0.82

m/s = m³/s / 0.08

Tip Speed ft/min = rpm X 3.20

m/s = rpm X 0.98

70

69

70

68

68

69

67

66

71

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

5

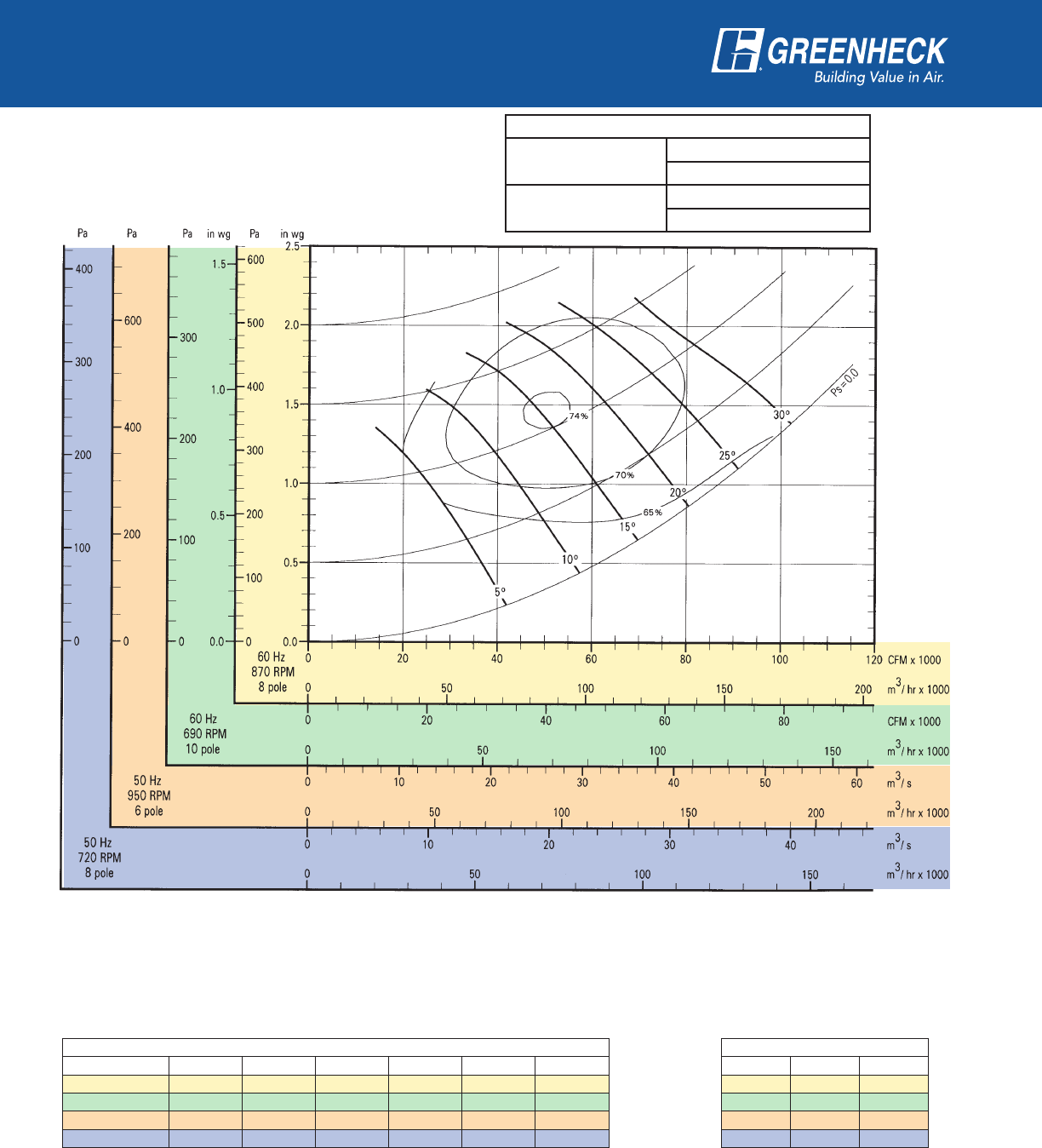

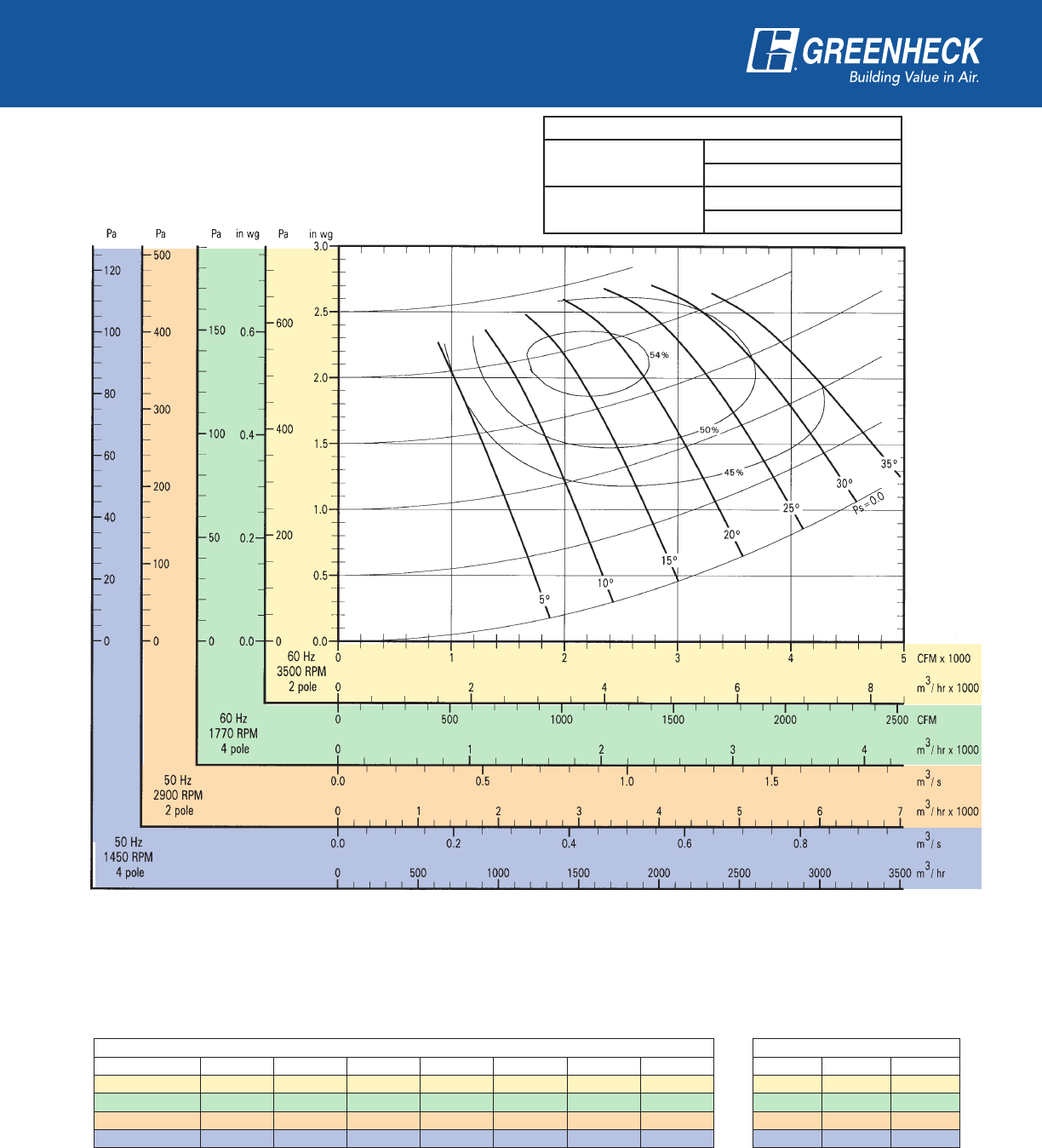

AX 31-160 6 Blades

Page Header

6

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 0.42/0.31 0.61/0.46 0.87/0.65 1.18/0.88 1.52/1.13 1.89/1.41 2.31/1.72

1770 (Bhp/kW) 0.05/0.04 0.08/0.06 0.11/0.08 0.15/0.11 0.20/0.15 0.24/0.18 0.30/0.22

2900 (kW) 0.18 0.26 0.37 0.50 0.64 0.80 0.98

1450 (kW) 0.02 0.03 0.05 0.06 0.08 0.10 0.12

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

3500 +19 +7.5

1770 - -11.5

2900 +13 +1.5

1450 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 14.25 inches (362 mm)

Outlet Velocity ft/min = cfm / 1.11

m/s = m³/s / 0.10

Tip Speed ft/min = rpm X 3.73

m/s = rpm X 1.14

73

73

73

72

71

71

70

69

73

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

6

AX 36-160 4 Blades

Page Header

7

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 0.72/0.54 0.94/0.70 1.25/0.93 1.64/1.22 2.07/1.55 2.54/1.89 3.00/2.24

1770 (Bhp/kW) 0.09/0.07 0.12/0.09 0.16/0.12 0.21/0.16 0.27/0.20 0.33/0.24 0.39/0.29

2900 (kW) 0.31 0.40 0.53 0.70 0.88 1.08 1.27

1450 (kW) 0.04 0.05 0.07 0.09 0.11 0.13 0.16

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

3500 +19 +7.5

1770 - -11.5

2900 +13 +1.5

1450 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 14.25 inches (362 mm)

Outlet Velocity ft/min = cfm / 1.11

m/s = m³/s / 0.10

Tip Speed ft/min = rpm X 3.73

m/s = rpm X 1.14

AX 41-160 6 Blades

74

73

74

73

72

73

71

70

75

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

7

AX 36-160 6 Blades

Page Header

8

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

76

77

77

76

75

75

74

72

76

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 0.78/0.58 1.21/0.90 1.76/1.31 2.36/1.76 3.02/2.25 3.73/2.78 4.52/3.37

1770 (Bhp/kW) 0.10/0.08 0.16/0.12 0.23/0.17 0.31/0.23 0.39/0.29 0.48/0.36 0.58/0.44

2900 (kW) 0.33 0.51 0.74 1.00 1.28 1.58 1.92

1450 (kW) 0.04 0.06 0.09 0.13 0.16 0.20 0.24

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

3500 +18 +6.5

1770 - -11.5

2900 +12 +0.5

1450 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 16.25 inches (413 mm)

Outlet Velocity ft/min = cfm / 1.44

m/s = m³/s / 0.13

Tip Speed ft/min = rpm X 4.25

m/s = rpm X 1.30

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

8

AX 41-160 4 Blades

Page Header

9

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 41-160 6 Blades

77

77

78

77

76

77

75

73

78

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 1.11/0.82 1.76/1.32 2.44/1.82 3.15/2.35 3.90/2.91 4.76/3.55 5.76/4.30

1770 (Bhp/kW) 0.14/0.11 0.23/0.17 0.32/0.24 0.41/0.30 0.51/0.38 0.62/0.46 0.75/0.56

2900 (kW) 0.47 0.75 1.04 1.34 1.66 2.02 2.44

1450 (kW) 0.06 0.09 0.13 0.17 0.21 0.25 0.31

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

3500 +16 +4.5

1770 - -11.5

2900 +12 +0.5

1450 -7 -18.5

Volume

Total

Pressure

Impeller Diameter = 16.25 inches (413 mm)

Outlet Velocity ft/min = cfm / 1.44

m/s = m³/s / 0.13

Tip Speed ft/min = rpm X 4.25

m/s = rpm X 1.30

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

9

AX 41-160 6 Blades

Page Header

10

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

77

77

78

77

76

75

74

73

78

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 0.80/0.60 1.24/0.92 1.79/1.34 2.43/1.81 3.11/2.32 3.81/2.84 4.55/3.40

1770 (Bhp/kW) 0.10/0.08 0.16/0.12 0.23/0.17 0.31/0.23 0.40/0.30 0.49/0.37 0.59/0.44

2900 (kW) 0.34 0.52 0.76 1.03 1.32 1.62 1.93

1450 (kW) 0.04 0.07 0.10 0.13 0.16 0.20 0.24

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

3500 +19 +7.5

1770 - -11.5

2900 +13 +1.5

1450 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 16.25 inches (413 mm)

Outlet Velocity ft/min = cfm / 1.44

m/s = m³/s / 0.13

Tip Speed ft/min = rpm X 4.25

m/s = rpm X 1.30

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

10

AX 41-190 4 Blades

Page Header

11

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 41-190 6 Blades

76

74

79

78

76

76

74

72

78

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 1.09/0.81 1.59/1.18 2.23/1.67 3.00/2.24 3.84/2.87 4.71/3.51 5.58/4.16

1770 (Bhp/kW) 0.14/0.11 0.21/0.15 0.29/0.22 0.39/0.29 0.50/0.37 0.61/0.45 0.72/0.54

2900 (kW) 0.46 0.67 0.95 1.27 1.63 2.00 2.37

1450 (kW) 0.06 0.08 0.12 0.16 0.20 0.25 0.30

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

3500 +18 +6.5

1770 - -11.5

2900 +13 +1.5

1450 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 16.25 inches (413 mm)

Outlet Velocity ft/min = cfm / 1.44

m/s = m³/s / 0.13

Tip Speed ft/min = rpm X 4.25

m/s = rpm X 1.30

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

11

AX 41-190 6 Blades

Page Header

12

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

69

71 70

69

69

68

66

65

69

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 0.17/0.12 0.26/0.20 0.37/0.28 0.49/0.36 0.62/0.47 0.79/0.59 1.01/0.75

1170 (Bhp/kW) 0.05/0.04 0.08/0.06 0.11/0.08 0.14/0.11 0.18/0.13 0.23/0.17 0.29/0.22

1450 (kW) 0.07 0.11 0.15 0.20 0.26 0.33 0.41

950 (kW) 0.02 0.03 0.04 0.06 0.07 0.09 0.12

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +6 -5.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 18.38 inches (467 mm)

Outlet Velocity ft/min = cfm / 1.84

m/s = m³/s / 0.17

Tip Speed ft/min = rpm X 4.81

m/s = rpm X 1.47

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

12

AX 47-160 4 Blades

Page Header

13

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 47-160 6 Blades

70

70 72

71

70

70

68

66

71

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 0.21/0.16 0.37/0.27 0.51/0.38 0.65/0.49 0.82/0.61 1.03/0.77 1.31/0.98

1170 (Bhp/kW) 0.06/0.05 0.11/0.08 0.15/0.11 0.19/0.14 0.24/0.18 0.30/0.22 0.38/0.28

1450 (kW) 0.09 0.15 0.21 0.27 0.34 0.42 0.54

950 (kW) 0.02 0.04 0.06 0.08 0.09 0.12 0.15

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +9 -2.5

1170 - -11.5

1450 +5 -6.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 18.38 inches (467 mm)

Outlet Velocity ft/min = cfm / 1.84

m/s = m³/s / 0.17

Tip Speed ft/min = rpm X 4.81

m/s = rpm X 1.47

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

13

AX 47-160 6 Blades

Page Header

14

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

80

80

82

81

80

79

77

76

81

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 1.57/1.17 2.32/1.73 3.26/2.43 4.36/3.25 5.61/4.19 7.01/5.23 8.54/6.37

1770 (Bhp/kW) 0.20/0.15 0.30/0.22 0.42/0.31 0.56/0.42 0.73/0.54 0.91/0.68 1.10/0.82

2900 (kW) 0.67 0.98 1.38 1.85 2.38 2.97 3.62

1450 (kW) 0.08 0.12 0.17 0.23 0.30 0.37 0.45

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

3500 +19 +7.5

1770 - -11.5

2900 +13 +1.5

1450 -7 -18.5

Volume

Total

Pressure

Impeller Diameter = 18.38 inches (467 mm)

Outlet Velocity ft/min = cfm / 1.84

m/s = m³/s / 0.17

Tip Speed ft/min = rpm X 4.81

m/s = rpm X 1.47

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

14

AX 47-190 4 Blades

Page Header

15

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 47-190 6 Blades

79

77

83

81

80

80

77

75

82

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 2.04/1.52 2.94/2.19 4.11/3.06 5.48/4.09 7.04/5.25 8.71/6.49 10.4/7.78

1770 (Bhp/kW) 0.26/0.20 0.38/0.28 0.53/0.40 0.71/0.53 0.91/0.68 1.13/0.84 1.35/1.01

2900 (kW) 0.87 1.25 1.74 2.33 2.99 369 4.43

1450 (kW) 0.11 0.16 0.22 0.29 0.37 0.46 0.55

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

3500 +19 +7.5

1770 - -11.5

2900 +13 +1.5

1450 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 18.38 inches (467 mm)

Outlet Velocity ft/min = cfm / 1.84

m/s = m³/s / 0.17

Tip Speed ft/min = rpm X 4.81

m/s = rpm X 1.47

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

15

AX 47-190 6 Blades

Page Header

16

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

74

76

75

74

74

72

70

69

73

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 0.29/0.22 0.48/0.36 0.69/0.52 0.93/0.69 1.20/0.90 1.52/1.13 1.92/1.43

1170 (Bhp/kW) 0.08/0.06 0.14/0.10 0.20/0.15 0.27/0.20 0.35/0.26 0.44/0.33 0.55/0.41

1450 (kW) 0.12 0.20 0.28 0.38 0.49 0.62 0.79

950 (kW) 0.03 0.06 0.08 0.11 0.14 0.18 0.22

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +12 +0.5

1170 - -11.5

1450 +6 -5.5

950 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 21.38 inches (543 mm)

Outlet Velocity ft/min = cfm / 2.49

m/s = m³/s / 0.23

Tip Speed ft/min = rpm X 5.60

m/s = rpm X 1.71

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

16

AX 54-160 4 Blades

Page Header

17

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 54-160 6 Blades

75

75 77

76

75

74

72

70

76

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 0.40/0.30 0.64/0.48 0.93/0.69 1.25/0.94 1.62/1.21 2.04/1.52 2.52/1.88

1770 (Bhp/kW) 0.11/0.09 0.19/0.14 0.27/0.20 0.36/0.27 0.47/0.35 0.59/0.44 0.73/0.54

2900 (kW) 0.16 0.26 0.38 0.51 0.67 0.84 1.03

1450 (kW) 0.05 0.07 0.11 0.14 0.19 0.24 0.29

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

3500 +12 +0.5

1770 - -11.5

2900 +7 -4.5

1450 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 21.38 inches (543 mm)

Outlet Velocity ft/min = cfm / 2.49

m/s = m³/s / 0.23

Tip Speed ft/min = rpm X 5.60

m/s = rpm X 1.71

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

17

AX 54-160 6 Blades

Page Header

18

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

84

85

87

86

85

83

82

80

84

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 2.57/1.91 4.08/3.05 6.01/4.48 8.23/6.14 10.7/7.99 13.5/10.1 16.5/12.3

1770 (Bhp/kW) 0.33/0.25 0.53/0.39 0.78/0.58 1.06/0.79 1.39/1.03 1.74/1.30 2.14/1.59

2900 (kW) 1.09 1.73 2.55 3.49 4.55 5.72 7.01

1450 (kW) 0.14 0.22 0.32 0.44 0.57 0.72 0.88

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

3500 +18 +6.5

1770 - -11.5

2900 +13 +1.5

1450 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 21.38 inches (543 mm)

Outlet Velocity ft/min = cfm / 2.49

m/s = m³/s / 0.23

Tip Speed ft/min = rpm X 5.60

m/s = rpm X 1.71

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

18

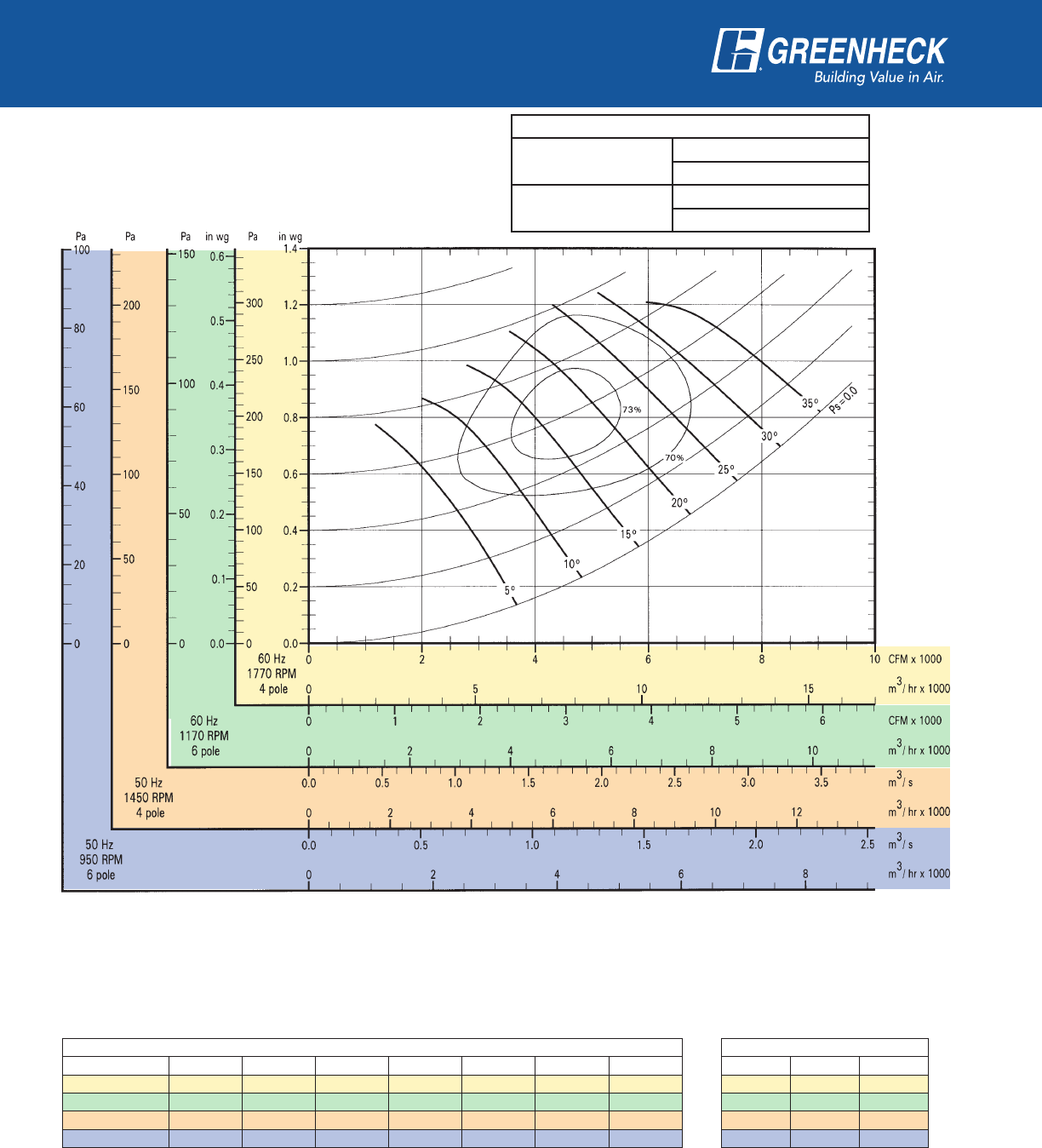

AX 54-190 4 Blades

Page Header

19

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 54-190 6 Blades

84

82

88

86

85

84

82

80

86

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 3.38/2.52 5.66/4.22 8.03/5.99 10.6/7.93 13.6/10.1 17.0/12.7 21.1/15.7

1770 (Bhp/kW) 0.44/0.33 0.73/0.55 1.04/0.78 1.37/1.03 1.75/1.31 2.20/1.64 2.73/2.03

2900 (kW) 1.43 2.40 3.41 4.51 5.75 7.20 8.94

1450 (kW) 0.18 0.30 0.43 0.56 0.72 0.90 1.12

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

3500 +18 +6.5

1770 - -11.5

2900 +13 +1.5

1450 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 21.38 inches (543 mm)

Outlet Velocity ft/min = cfm / 2.49

m/s = m³/s / 0.23

Tip Speed ft/min = rpm X 5.60

m/s = rpm X 1.71

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

19

AX 54-190 6 Blades

Page Header

20

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

88

88

88

86

85

85

82

81

88

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 3.02/2.26 5.30/3.96 7.73/5.77 10.4/7.75 13.4/10.0 16.9/12.6 21.0/15.7

1770 (Bhp/kW) 0.39/0.29 0.69/0.51 1.00/0.75 1.34/1.00 1.74/1.29 2.19/1.63 2.72/2.03

2900 (kW) 1.28 2.25 3.28 4.41 5.69 7.18 8.92

1450 (kW) 0.16 0.28 0.41 0.55 0.71 0.90 1.12

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

3500 +18 +6.5

1770 - -11.5

2900 +13 +1.5

1450 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 21.38 inches (543 mm)

Outlet Velocity ft/min = cfm / 2.49

m/s = m³/s / 0.23

Tip Speed ft/min = rpm X 5.60

m/s = rpm X 1.71

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

20

AX 54-275 6 Blades

Page Header

21

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 54-275 9 Blades

87

86

89

88

87

86

85

85

88

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 4.41/3.29 6.82/5.09 9.78/7.30 13.1/9.81 16.8/12.5 20.7/15.5 24.8/18.5

1770 (Bhp/kW) 0.57/0.43 0.88/0.66 1.27/0.94 1.70/1.27 2.17/1.62 2.68/2.00 3.21/2.39

2900 (kW) 1.87 2.89 4.15 5.58 7.13 8.80 10.5

1450 (kW) 0.23 0.36 0.52 0.70 0.89 1.10 1.32

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

3500 +17 +5.5

1770 - -11.5

2900 +12 +0.5

1450 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 21.38 inches (543 mm)

Outlet Velocity ft/min = cfm / 2.49

m/s = m³/s / 0.23

Tip Speed ft/min = rpm X 5.60

m/s = rpm X 1.71

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

21

AX 54-275 9 Blades

Page Header

22

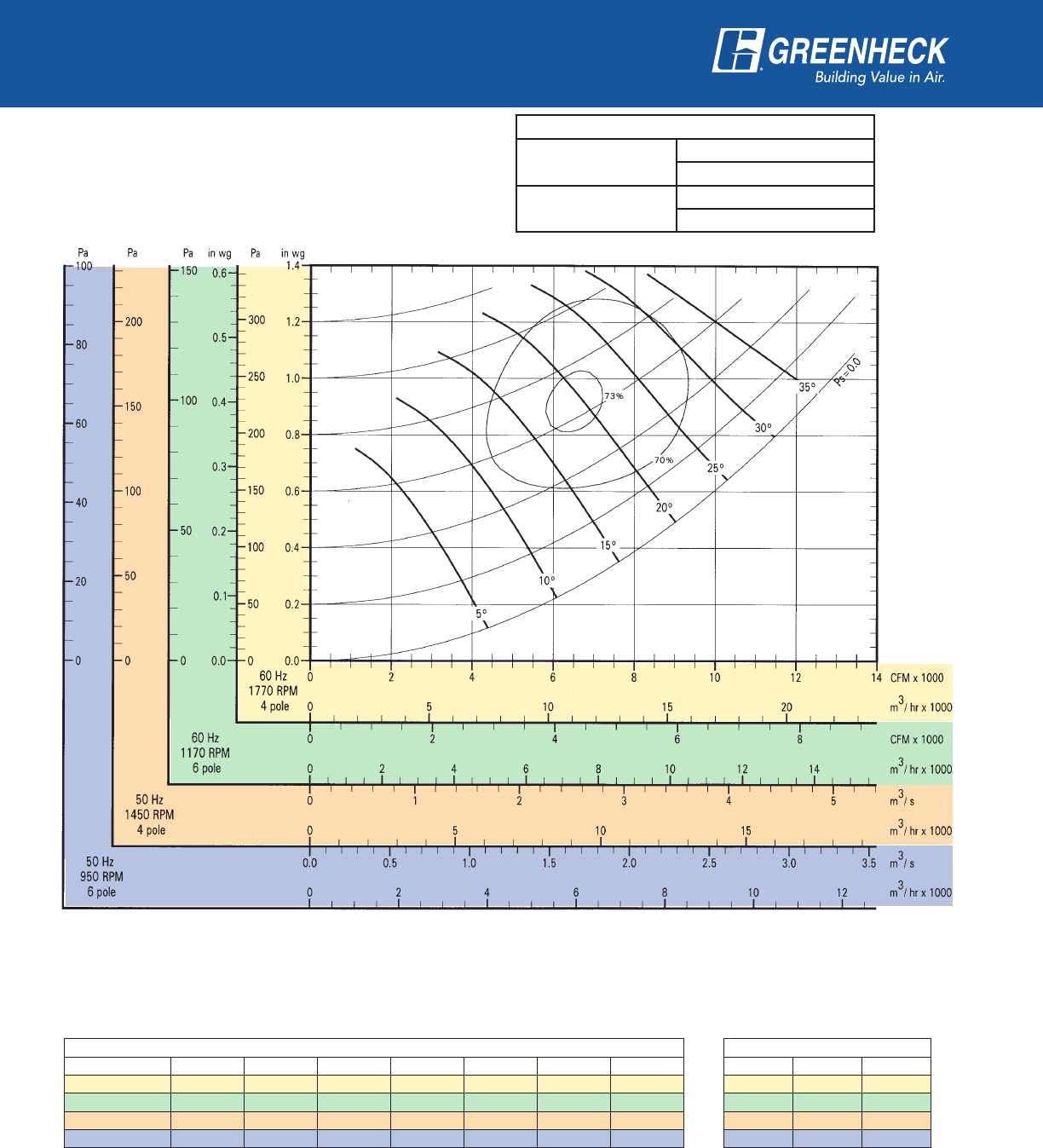

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

79

82

79

79

78

76

74

73

76

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 0.38/0.28 0.64/0.48 0.97/0.72 1.35/1.01 1.79/1.34 2.28/1.70 2.86/2.14

1170 (Bhp/kW) 0.11/0.08 0.19/0.14 0.28/0.21 0.39/0.29 0.52/0.39 0.66/0.49 0.83/0.62

1450 (kW) 0.16 0.26 0.40 0.55 0.74 0.94 1.17

950 (kW) 0.04 0.07 0.11 0.16 0.21 0.26 0.33

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +12 +0.5

1170 - -11.5

1450 +5 -5.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 24.38 inches (619 mm)

Outlet Velocity ft/min = cfm / 3.24

m/s = m³/s / 0.30

Tip Speed ft/min = rpm X 6.38

m/s = rpm X 1.95

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

22

AX 63-160 4 Blades

Page Header

23

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

79

79

81

80

80

77

76

74

79

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 0.51/0.38 0.86/0.65 1.31/0.98 1.82/1.36 2.41/1.80 3.09/2.31 3.88/2.89

1170 (Bhp/kW) 0.15/0.11 0.25/0.19 0.38/0.28 0.53/0.39 0.70/0.52 0.89/0.67 1.12/0.84

1450 (kW) 0.21 0.35 0.54 0.75 0.99 1.27 1.59

950 (kW) 0.06 0.10 0.15 0.21 0.28 0.36 0.45

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +10 -1.5

1170 - -11.5

1450 +5 -6.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 24.38 inches (619 mm)

Outlet Velocity ft/min = cfm / 3.24

m/s = m³/s / 0.30

Tip Speed ft/min = rpm X 6.38

m/s = rpm X 1.95

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

23

AX 63-160 6 Blades

Page Header

24

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

78

79 80

79

79

77

75

73

77

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 0.50/0.37 0.90/0.67 1.32/0.99 1.79/1.34 2.33/1.74 2.98/2.22 3.77/2.81

1170 (Bhp/kW) 0.14/0.11 0.26/0.19 0.38/0.29 0.52/0.39 0.67/0.50 0.86/0.64 1.09/0.81

1450 (kW) 0.20 0.37 0.54 0.73 0.96 1.22 1.55

950 (kW) 0.06 0.10 0.15 0.21 0.27 0.34 0.44

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +5 -6.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 24.38 inches (619 mm)

Outlet Velocity ft/min = cfm / 3.24

m/s = m³/s / 0.30

Tip Speed ft/min = rpm X 6.38

m/s = rpm X 1.95

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

24

AX 63-190 4 Blades

Page Header

25

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 63-190 6 Blades

78

77

81

80

79

78

76

74

79

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 0.74/0.56 1.28/0.96 1.84/1.37 2.42/1.81 3.10/2.31 3.93/2.93 4.97/3.71

1170 (Bhp/kW) 0.22/0.16 0.37/0.28 0.53/0.40 0.70/0.52 0.90/0.67 1.14/0.85 1.43/1.07

1450 (kW) 0.31 0.53 0.75 0.99 1.27 1.61 2.04

950 (kW) 0.09 0.15 0.21 0.28 0.36 0.45 0.57

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +5 -6.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 24.38 inches (619 mm)

Outlet Velocity ft/min = cfm / 3.24

m/s = m³/s / 0.30

Tip Speed ft/min = rpm X 6.38

m/s = rpm X 1.95

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

25

AX 63-190 6 Blades

Page Header

26

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

80

81

81

80

78

78

76

73

81

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 0.75/0.56 1.30/0.97 1.89/1.41 2.53/1.89 3.26/2.43 4.10/3.06 5.08/3.79

1170 (Bhp/kW) 0.22/0.16 0.38/0.28 0.55/0.41 0.73/0.55 0.94/0.70 1.18/0.88 1.47/1.10

2900 (kW) 2.45 4.27 6.20 8.31 10.7 13.5 16.7

1450 (kW) 0.31 0.53 0.77 1.04 1.34 1.68 2.09

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +10 -1.5

1170 - -11.5

2900 +23 +11.5

1450 +5 -6.5

Volume

Total

Pressure

Impeller Diameter = 24.38 inches (619 mm)

Outlet Velocity ft/min = cfm / 3.24

m/s = m³/s / 0.30

Tip Speed ft/min = rpm X 6.38

m/s = rpm X 1.95

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

26

AX 63-275 6 Blades

Page Header

27

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 63-275 9 Blades

80

79

81

80

78

79

78

77

81

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 1.08/0.81 1.71/1.27 2.38/1.78 3.12/2.33 3.97/2.97 4.97/3.71 6.15/4.59

1170 (Bhp/kW) 0.31/0.23 0.49/0.37 0.69/0.51 0.90/0.67 1.15/0.86 1.44/1.07 1.78/1.33

2900 (kW) 3.56 5.60 7.81 10.3 13.0 16.3 20.2

1450 (kW) 0.44 0.70 0.98 1.28 1.63 2.04 2.52

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

2900 +23 +11.5

1450 +6 -5.5

Volume

Total

Pressure

Impeller Diameter = 24.38 inches (619 mm)

Outlet Velocity ft/min = cfm / 3.24

m/s = m³/s / 0.30

Tip Speed ft/min = rpm X 6.38

m/s = rpm X 1.95

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

27

AX 63-275 9 Blades

Page Header

28

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

82

84 84

84

83

80

79

77

81

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 0.93/0.69 1.69/1.26 2.53/1.89 3.44/2.57 4.51/3.36 5.82/4.34 7.45/5.56

1170 (Bhp/kW) 0.27/0.20 0.49/0.36 0.73/0.54 0.99/0.74 1.30/0.97 1.68/1.25 2.15/1.61

1450 (kW) 0.38 0.69 1.04 1.41 1.85 2.39 3.06

950 (kW) 0.11 0.20 0.29 0.40 0.52 0.67 0.86

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +6 -5.5

950 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 28.38 inches (721 mm)

Outlet Velocity ft/min = cfm / 4.39

m/s = m³/s / 0.41

Tip Speed ft/min = rpm X 7.43

m/s = rpm X 2.26

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

28

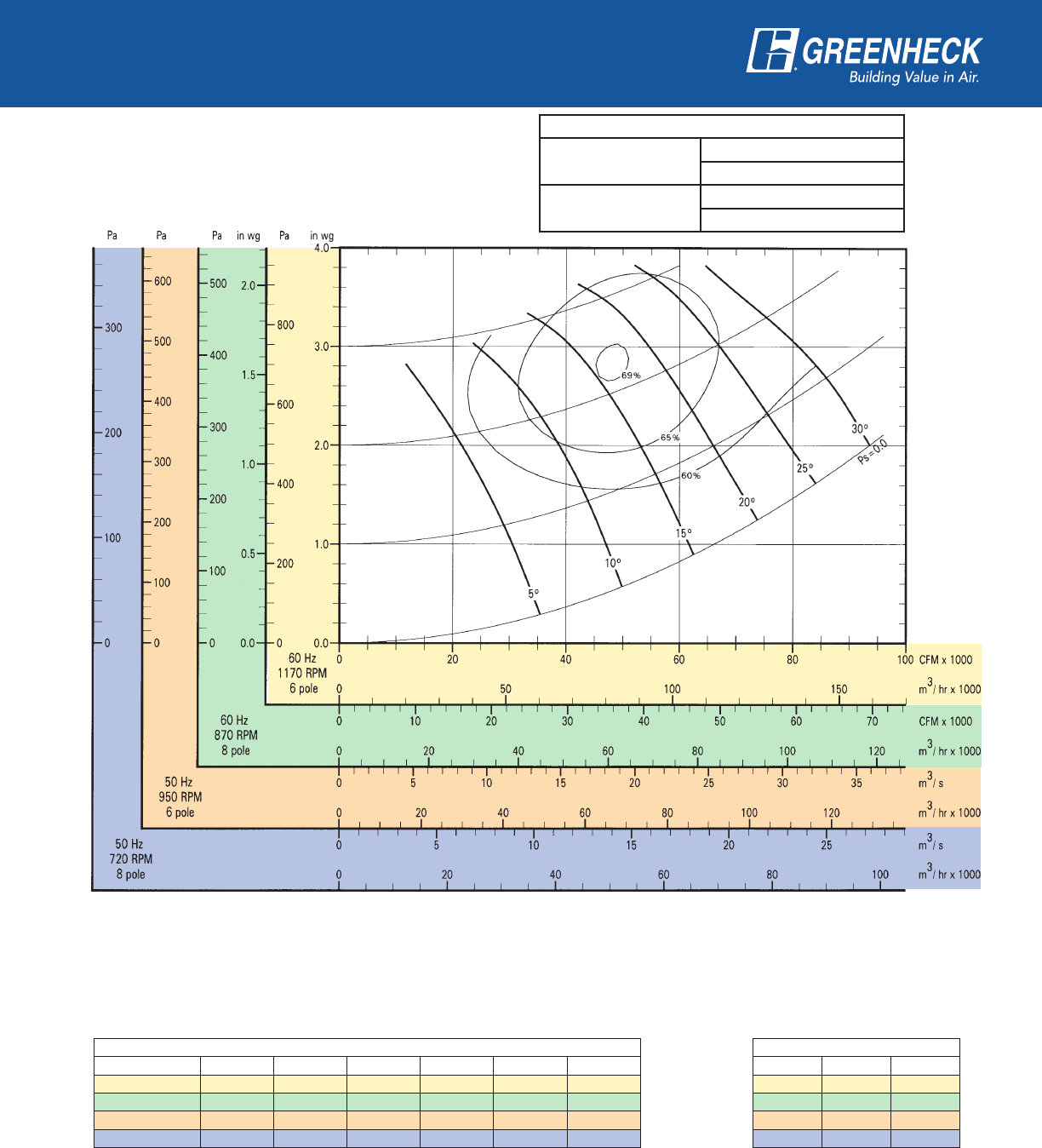

AX 72-190 4 Blades

Page Header

29

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

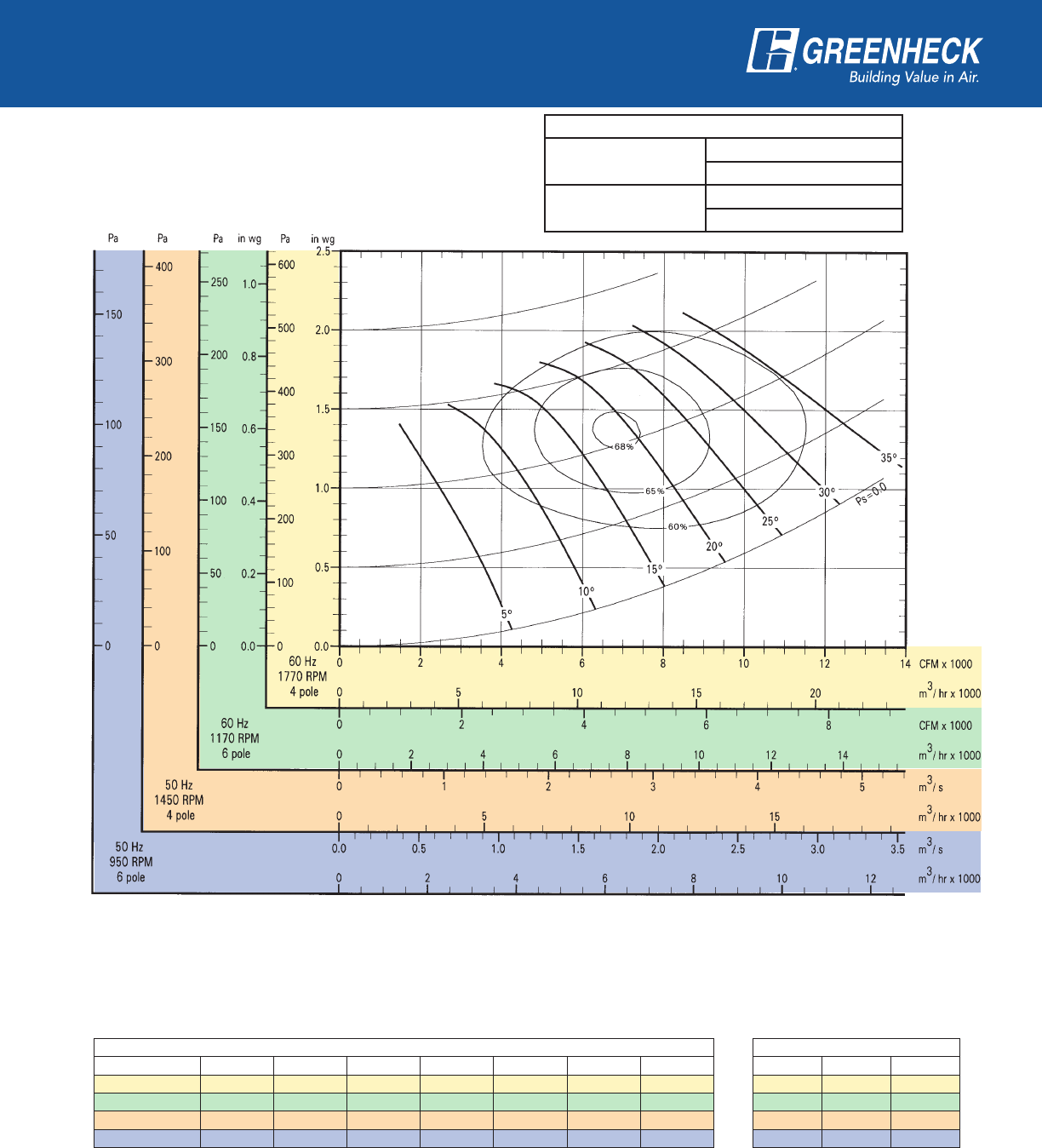

AX 72-190 6 Blades

83

83 86

85

84

82

81

79

83

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 1.43/1.07 2.33/1.74 3.44/2.56 4.73/3.53 6.22/4.64 7.91/5.90 9.85/7.35

1170 (Bhp/kW) 0.41/0.31 0.67/0.50 0.99/0.74 1.37/1.02 1.80/1.34 2.28/1.70 2.84/2.12

1450 (kW) 0.59 0.96 1.41 1.94 2.55 3.24 4.04

950 (kW) 0.17 0.27 1.40 0.55 0.72 0.91 1.14

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +6 -5.5

950 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 28.38 inches (721 mm)

Outlet Velocity ft/min = cfm / 4.39

m/s = m³/s / 0.41

Tip Speed ft/min = rpm X 7.43

m/s = rpm X 2.26

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

29

AX 72-190 6 Blades

Page Header

30

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

85

85

86

85

84

82

80

78

85

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 1.29/0.97 2.23/1.67 3.33/2.49 4.60/3.44 6.08/4.53 7.77/5.79 9.81/7.32

1170 (Bhp/kW) 0.37/0.28 0.65/0.48 0.96/0.72 1.33/0.99 1.75/1.31 2.24/1.67 2.83/2.11

2900 (kW) 4.25 7.33 10.9 15.1 19.9 25.5 32.2

1450 (kW) 0.53 0.92 1.37 1.89 2.49 3.19 4.02

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

2900 +24 +12.5

1450 +6 -5.5

Volume

Total

Pressure

Impeller Diameter = 28.38 inches (721 mm)

Outlet Velocity ft/min = cfm / 4.39

m/s = m³/s / 0.41

Tip Speed ft/min = rpm X 7.43

m/s = rpm X 2.26

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

30

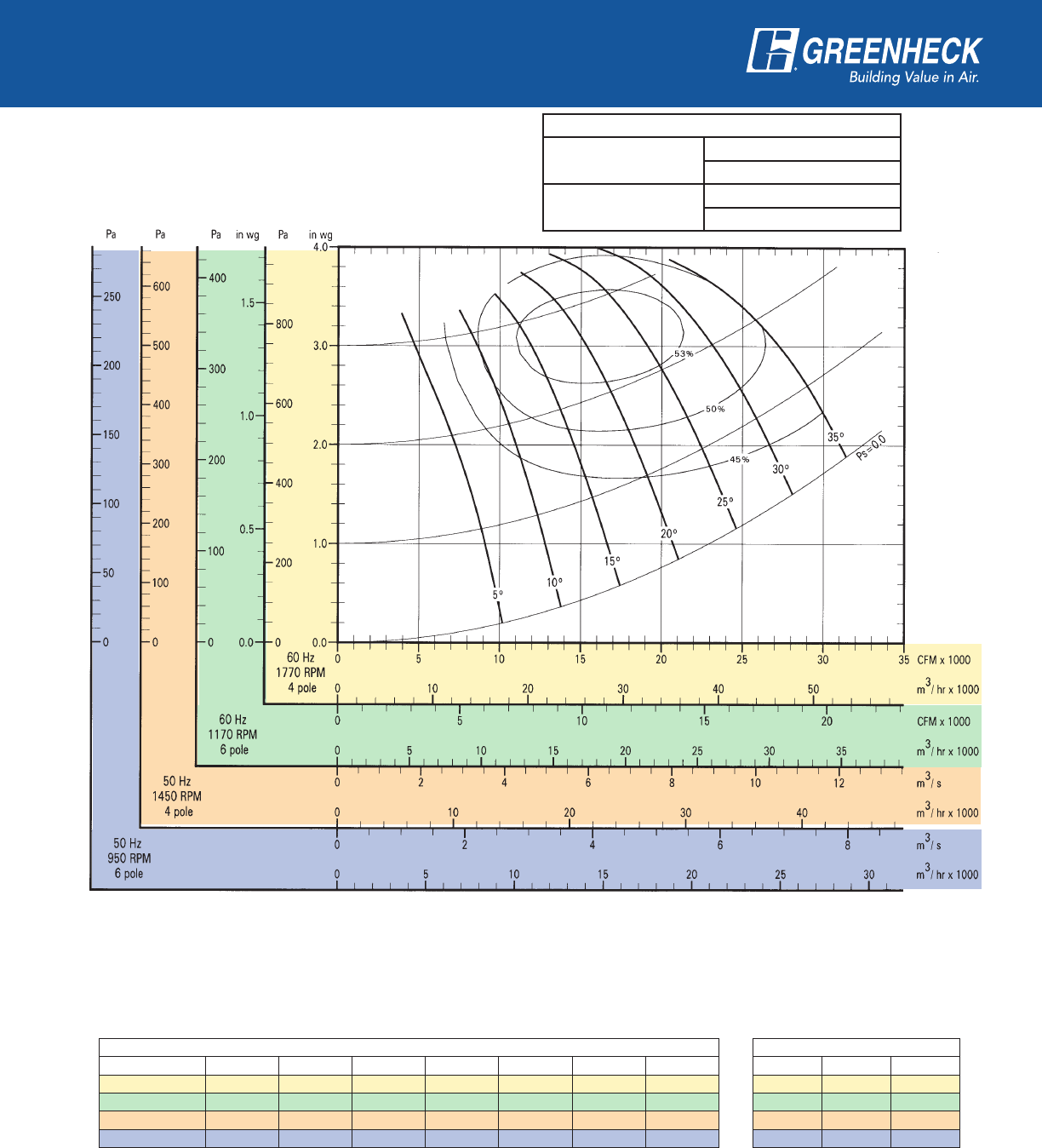

AX 72-275 6 Blades

Page Header

31

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 72-275 9 Blades

85

85 86

86

86

84

83

82

86

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 1.70/1.27 2.93/2.19 4.27/3.18 5.78/4.31 7.52/5.61 9.61/7.17 12.1/9.06

1170 (Bhp/kW) 0.49/0.37 0.85/0.63 1.23/0.92 1.67/1.24 2.17/1.62 2.78/2.07 3.51/2.62

2900 (kW) 5.59 9.62 14.0 19.0 24.7 31.5 39.9

1450 (kW) 0.70 1.20 1.75 2.37 3.09 3.94 4.98

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +10 -1.5

1170 - -11.5

2900 +23 +11.5

1450 +5 -6.5

Volume

Total

Pressure

Impeller Diameter = 28.38 inches (721 mm)

Outlet Velocity ft/min = cfm / 4.39

m/s = m³/s / 0.41

Tip Speed ft/min = rpm X 7.43

m/s = rpm X 2.26

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

31

AX 72-275 9 Blades

Page Header

32

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

87

89

89

88

88

84

83

82

84

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 1.56/1.16 2.80/2.09 4.16/3.10 5.73/4.28 7.63/5.69 9.95/7.43 12.8/9.55

1170 (Bhp/kW) 0.45/0.34 0.81/0.60 1.20/0.90 1.66/1.24 2.20/1.64 2.88/2.14 3.70/2.76

1450 (kW) 0.64 1.15 1.71 2.35 3.13 4.08 5.25

950 (kW) 0.18 0.32 0.48 0.66 0.88 1.15 1.48

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +6 -5.5

950 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 32.38 inches (822 mm)

Outlet Velocity ft/min = cfm / 5.72

m/s = m³/s / 0.53

Tip Speed ft/min = rpm X 8.48

m/s = rpm X 2.58

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

32

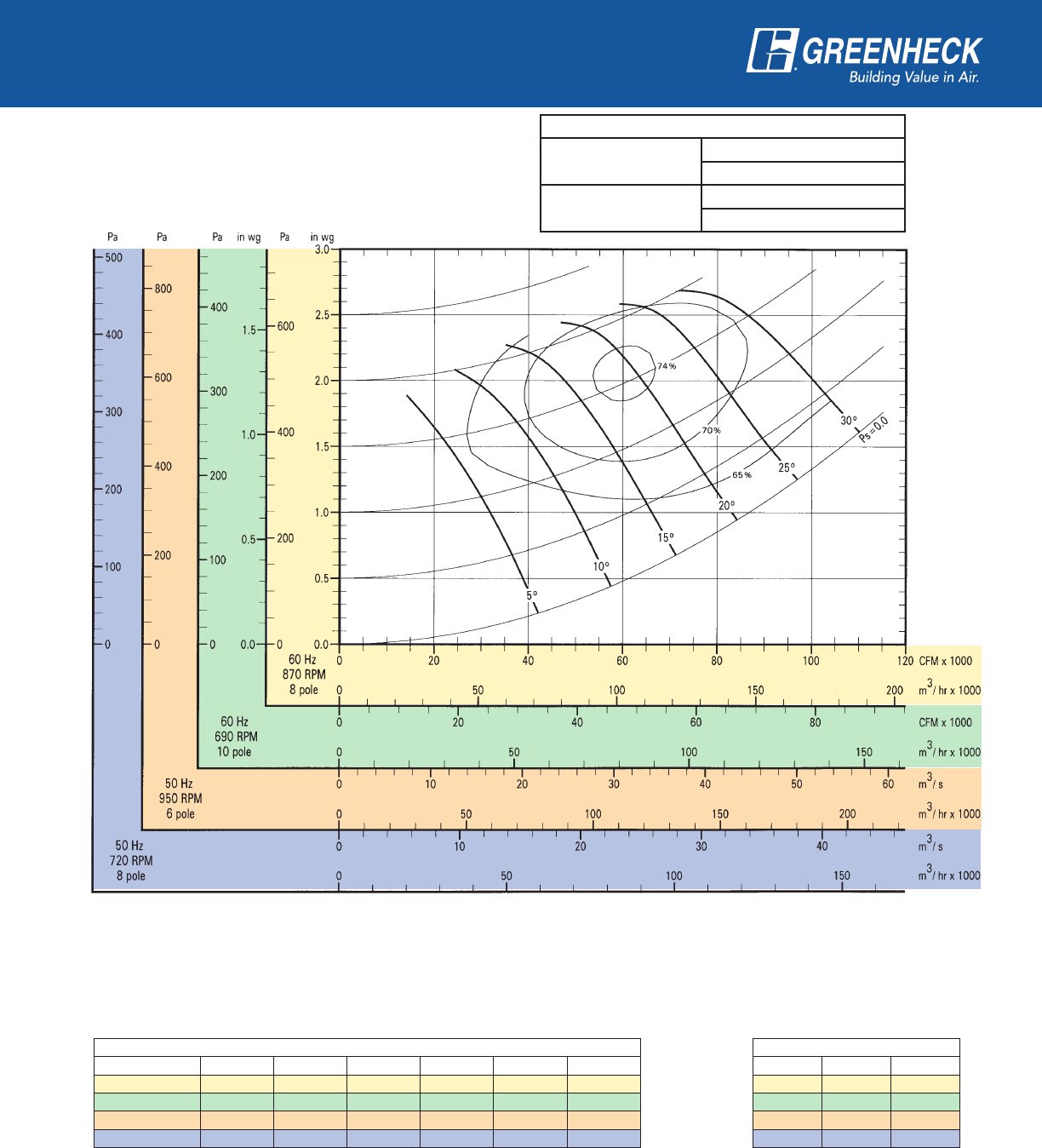

AX 80-190 4 Blades

Page Header

33

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 80-190 6 Blades

88

89

90

89

89

87

85

84

87

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 2.20/1.64 3.88/2.89 5.87/4.38 8.12/6.06 10.7/7.97 13.7/10.2 17.3/12.9

1170 (Bhp/kW) 0.64/0.47 1.12/0.84 1.70/1.26 2.35/1.75 3.09/2.30 3.94/2.94 4.99/3.72

1450 (kW) 0.90 1.59 2.41 3.33 4.38 5.60 7.09

950 (kW) 0.25 0.45 0.69 0.94 1.23 1.57 1.99

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +6 -5.5

950 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 32.38 inches (822 mm)

Outlet Velocity ft/min = cfm / 5.72

m/s = m³/s / 0.53

Tip Speed ft/min = rpm X 8.48

m/s = rpm X 2.58

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

33

AX 80-190 6 Blades

Page Header

34

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

88

89

89

89

88

86

84

83

88

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 2.43/1.81 4.45/3.32 6.44/4.80 8.55/6.38 11.0/8.21 14.0/10.4 17.9/13.4

1170 (Bhp/kW) 0.70/0.52 1.29/0.96 1.86/1.39 2.47/1.84 3.18/2.37 4.04/3.02 5.18/3.87

1450 (kW) 1.00 1.83 2.64 3.51 4.51 5.74 7.36

950 (kW) 0.28 0.51 0.74 0.99 1.27 1.61 2.07

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +6 -5.5

950 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 32.38 inches (822 mm)

Outlet Velocity ft/min = cfm / 5.72

m/s = m³/s / 0.53

Tip Speed ft/min = rpm X 8.48

m/s = rpm X 2.58

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

34

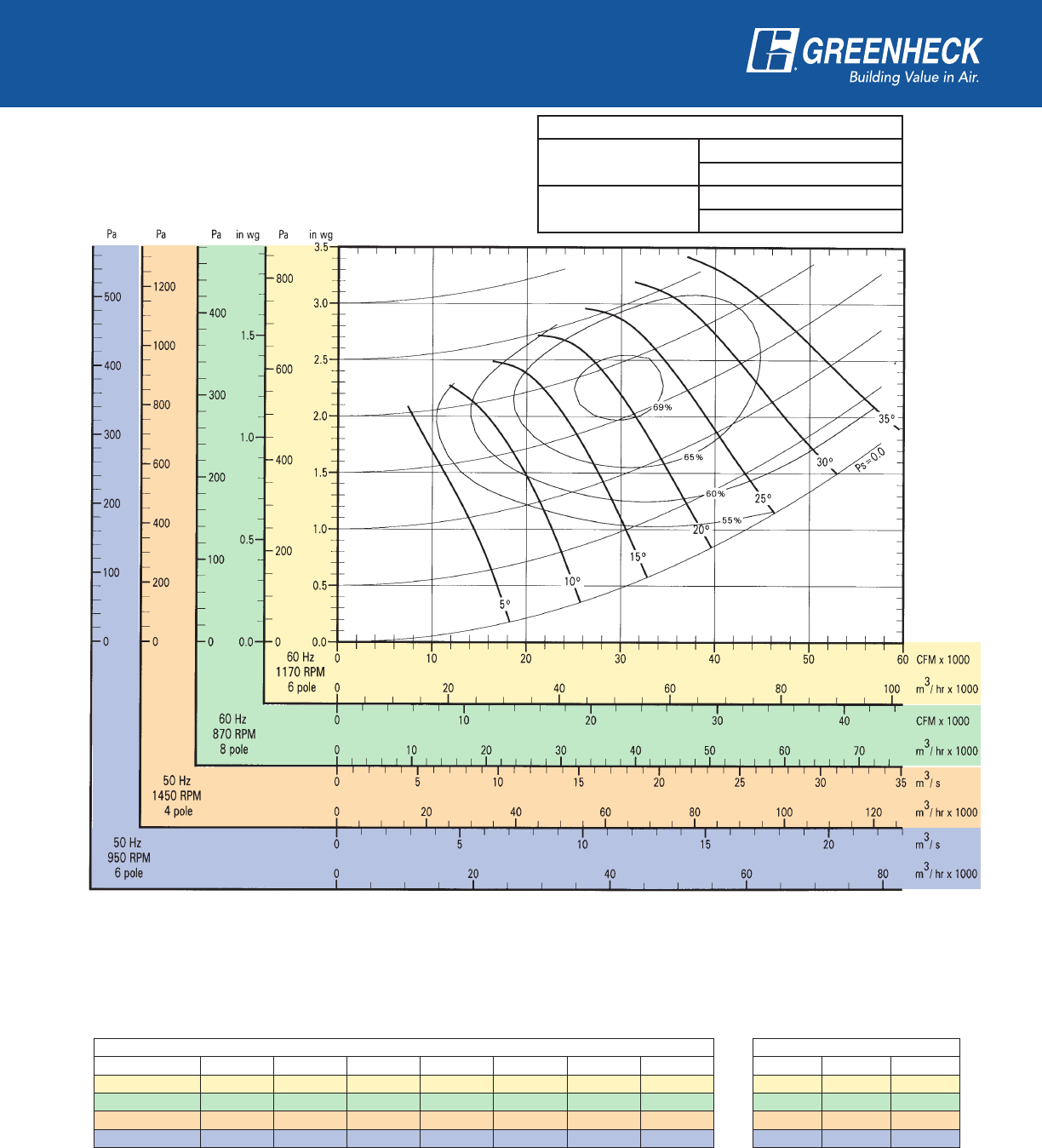

AX 80-275 6 Blades

Page Header

35

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 80-275 9 Blades

89

89 90

90

90

87

87

86

89

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 3.54/2.64 5.62/4.20 8.29/6.18 11.4/8.49 14.8/11.1 18.7/14.0 23.1/17.2

1170 (Bhp/kW) 1.02/0.76 1.62/1.21 2.39/1.79 3.29/2.45 4.28/3.20 5.40/4.03 6.66/4.97

1450 (kW) 1.45 2.31 3.40 4.67 6.08 7.67 9.46

950 (kW) 0.41 0.65 0.96 1.31 1.71 2.16 2.66

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +10 -1.5

1170 - -11.5

1450 +5 -6.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 32.38 inches (822 mm)

Outlet Velocity ft/min = cfm / 5.72

m/s = m³/s / 0.53

Tip Speed ft/min = rpm X 8.48

m/s = rpm X 2.58

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

35

AX 80-275 9 Blades

Page Header

36

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

88

87

90

88

86

88

85

83

90

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 4.98/3.72 6.43/4.80 8.55/6.38 11.2/8.36 14.4/10.7 17.9/13.4 21.9/16.3

1170 (Bhp/kW) 1.44/1.07 1.86/1.39 2.47/1.84 3.24/2.42 4.14/3.09 5.18/3.86 6.32/4.71

1450 (kW) 2.04 2.64 3.51 4.60 5.88 7.35 8.97

950 (kW) 0.57 0.74 0.99 1.29 1.65 2.07 2.52

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +6 -5.5

950 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 32.38 inches (822 mm)

Outlet Velocity ft/min = cfm / 5.72

m/s = m³/s / 0.53

Tip Speed ft/min = rpm X 8.48

m/s = rpm X 2.58

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

36

AX 80-400 6 Blades

Page Header

37

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 80-400 9 Blades

90

90

91

89

87

90

87

84

90

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 6.14/4.58 8.36/6.24 10.7/8.01 13.7/10.3 17.4/13.0 21.7/16.2 26.5/19.8

1170 (Bhp/kW) 1.77/1.32 2.42/1.80 3.10/2.31 3.97/2.96 5.02/3.74 6.26/4.67 7.66/5.72

1450 (kW) 2.54 3.43 4.40 5.64 7.13 8.89 10.9

950 (kW) 0.71 0.96 1.24 1.58 2.00 2.50 3.06

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

1770 +10 -1.5

1170 - -11.5

1450 +5 -6.5

950 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 32.38 inches (822 mm)

Outlet Velocity ft/min = cfm / 5.72

m/s = m³/s / 0.53

Tip Speed ft/min = rpm X 8.48

m/s = rpm X 2.58

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

37

AX 80-400 9 Blades

Page Header

38

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

92

93

93

93

93

89

88

87

92

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 3.76/2.81 6.26/4.67 9.39/7.00 13.1/9.78 17.5/13.0 22.6/16.9 28.7/21.4

1170 (Bhp/kW) 1.09/0.81 1.81/1.35 2.71/2.02 3.78/2.82 5.04/3.76 6.53/4.87 8.28/6.18

1450 (kW) 1.54 2.57 3.85 5.37 7.16 9.27 11.8

950 (kW) 0.43 0.72 1.08 1.51 2.01 2.61 3.31

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +5 -6.5

950 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 36.38 inches (924 mm)

Outlet Velocity ft/min = cfm / 7.22

m/s = m³/s / 0.67

Tip Speed ft/min = rpm X 9.52

m/s = rpm X 2.90

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

38

AX 90-275 6 Blades

Page Header

39

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 90-275 9 Blades

93

93

94

94

95

91

90

90

93

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 5.03/3.75 8.89/6.63 13.0/9.66 17.4/13.0 22.6/16.9 29.1/21.7 37.2/27.8

1170 (Bhp/kW) 1.45/1.08 2.57/1.92 3.74/2.79 5.02/3.75 6.53/4.87 8.41/6.27 10.8/8.02

1450 (kW) 2.06 3.65 5.31 7.13 9.28 11.9 15.3

950 (kW) 0.58 1.03 1.49 2.01 2.61 3.36 4.29

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +5 -6.5

950 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 36.38 inches (924 mm)

Outlet Velocity ft/min = cfm / 7.22

m/s = m³/s / 0.67

Tip Speed ft/min = rpm X 9.52

m/s = rpm X 2.90

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

39

AX 90-275 9 Blades

Page Header

40

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

93

92

94

93

91

91

89

88

93

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 6.36/4.75 10.4/7.72 14.4/10.8 18.9/14.1 24.2/18.1 30.9/23.1 39.7/29.6

1170 (Bhp/kW) 1.84/1.37 2.99/2.23 4.17/3.11 5.46/4.07 6.99/5.22 8.93/6.66 11.5/8.55

1450 (kW) 2.61 4.25 5.92 7.75 9.93 12.7 16.3

950 (kW) 0.73 1.19 1.66 2.18 2.79 3.57 4.58

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +5 -6.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 36.38 inches (924 mm)

Outlet Velocity ft/min = cfm / 7.22

m/s = m³/s / 0.67

Tip Speed ft/min = rpm X 9.52

m/s = rpm X 2.90

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

40

AX 90-400 6 Blades

Page Header

41

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 90-400 9 Blades

94

94

95

93

92

93

91

89

94

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 8.31/6.20 13.5/10.0 18.6/13.8 23.9/17.9 30.0/22.3 36.9/27.6 45.3/33.8

1170 (Bhp/kW) 2.40/1.79 3.89/2.90 5.36/4.00 6.91/5.16 8.65/6.45 10.7/7.96 13.1/9.75

1450 (kW) 3.41 5.52 7.61 9.82 12.3 15.2 18.6

950 (kW) 0.96 1.55 2.14 2.76 3.45 4.26 5.22

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

1770 +10 -1.5

1170 - -11.5

1450 +5 -6.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 36.38 inches (924 mm)

Outlet Velocity ft/min = cfm / 7.22

m/s = m³/s / 0.67

Tip Speed ft/min = rpm X 9.52

m/s = rpm X 2.90

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

41

AX 90-400 9 Blades

Page Header

42

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

95

96

96

96

97

92

91

91

94

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 5.61/4.18 9.93/7.40 14.9/11.1 20.6/15.3 27.2/20.3 35.2/26.2 45.2/33.8

1170 (Bhp/kW) 1.62/1.21 2.87/2.14 4.30/3.21 5.94/4.43 7.84/5.85 10.2/7.58 13.1/9.75

1450 (kW) 2.30 4.07 6.11 8.43 11.1 14.4 18.6

950 (kW) 0.65 1.14 1.72 2.37 3.13 4.06 5.22

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +5 -6.5

950 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 40.38 inches (1026 mm)

Outlet Velocity ft/min = cfm / 8.89

m/s = m³/s / 0.83

Tip Speed ft/min = rpm X 10.6

m/s = rpm X 3.22

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

42

AX 103-275 6 Blades

Page Header

43

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 103-275 9 Blades

96

97

97

98

99

93

94

94

96

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 8.58/6.40 13.8/10.3 20.0/14.9 27.3/20.3 36.1/26.9 46.8/34.9 59.8/44.6

1170 (Bhp/kW) 2.48/1.85 3.99/2.98 5.77/4.30 7.87/5.87 10.4/7.77 13.5/10.1 17.3/12.9

1450 (kW) 3.52 5.67 8.19 11.2 14.8 19.2 24.5

950 (kW) 0.99 1.59 2.30 3.14 4.16 5.40 6.90

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +10 -1.5

1170 - -11.5

1450 +4 -7.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 40.38 inches (1026 mm)

Outlet Velocity ft/min = cfm / 8.89

m/s = m³/s / 0.83

Tip Speed ft/min = rpm X 10.6

m/s = rpm X 3.22

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

43

AX 103-275 9 Blades

Page Header

44

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

97

97

96

96

96

93

93

92

97

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 9.66/7.20 15.6/11.7 22.2/16.6 29.7/22.1 38.7/28.9 50.4/37.6 66.6/49.7

1170 (Bhp/kW) 2.79/2.08 4.51/3.37 6.41/4.78 8.57/6.39 11.2/8.34 14.6/10.9 19.2/14.3

1450 (kW) 3.96 6.41 9.10 12.2 15.9 20.7 27.3

950 (kW) 1.11 1.80 2.56 3.42 4.46 5.81 7.68

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +10 -1.5

1170 - -11.5

1450 +5 -6.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 40.38 inches (1026 mm)

Outlet Velocity ft/min = cfm / 8.89

m/s = m³/s / 0.83

Tip Speed ft/min = rpm X 10.6

m/s = rpm X 3.22

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

44

AX 103-400 6 Blades

Page Header

45

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 103-400 9 Blades

97

98 98

97

96

96

94

93

98

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 12.8/9.51 21.9/16.3 29.7/22.2 37.8/28.2 47.6/35.5 60.8/45.3 82.1/61.2

1170 (Bhp/kW) 3.68/2.75 6.32/4.71 8.58/6.40 10.9/8.13 13.7/10.3 17.6/13.1 23.7/17.7

1450 (kW) 5.23 8.97 12.2 15.5 19.5 24.9 33.7

950 (kW) 1.47 2.52 3.43 4.35 5.49 7.01 9.47

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +5 -6.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 40.38 inches (1026 mm)

Outlet Velocity ft/min = cfm / 8.89

m/s = m³/s / 0.83

Tip Speed ft/min = rpm X 10.6

m/s = rpm X 3.22

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

45

AX 103-400 9 Blades

Page Header

46

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

90

91

91

92

93

86

87

87

89

Pitch Angle º

rpm 5 10 15 20 25 30 35

1170 (Bhp/kW) 2.28/1.70 3.56/2.65 5.50/4.11 7.99/5.96 11.0/8.17 14.3/10.7 18.2/13.6

870 (Bhp/kW) 0.94/0.70 1.46/1.09 2.26/1.69 3.28/2.45 4.50/3.36 5.90/4.40 7.49/5.59

1450 (kW) 3.24 5.05 7.81 11.3 15.6 20.4 25.9

950 (kW) 0.91 1.42 2.20 3.19 4.37 5.73 7.28

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +7 -4.5

870 - -11.5

1450 +13 +1.5

950 +2 -9.5

Volume

Total

Pressure

Impeller Diameter = 44.5 inches (1130 mm)

Outlet Velocity ft/min = cfm / 10.80

m/s = m³/s / 1.0

Tip Speed ft/min = rpm X 11.7

m/s = rpm X 3.55

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

46

AX 113-275 6 Blades

Page Header

47

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 113-275 9 Blades

92

93

92

93

94

88

89

89

92

Pitch Angle º

rpm 5 10 15 20 25 30 35

1170 (Bhp/kW) 3.29/2.46 5.09/3.80 7.67/5.72 10.8/8.09 14.6/10.9 19.0/14.2 25.2/18.8

870 (Bhp/kW) 1.35/1.01 2.09/1.56 3.15/2.35 4.46/3.33 6.01/4.48 7.81/5.83 10.3/7.71

1450 (kW) 4.68 7.22 10.9 15.4 20.8 27.0 35.7

950 (kW) 1.32 2.03 3.06 4.33 5.84 7.59 10.0

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +7 -4.5

870 - -11.5

1450 +13 +1.5

950 +2 -9.5

Volume

Total

Pressure

Impeller Diameter = 44.5 inches (1130 mm)

Outlet Velocity ft/min = cfm / 10.80

m/s = m³/s / 1.0

Tip Speed ft/min = rpm X 11.7

m/s = rpm X 3.55

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

47

AX 113-275 9 Blades

Page Header

48

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

92

93 90

91

92

88

88

88

92

Pitch Angle º

rpm 5 10 15 20 25 30 35

1170 (Bhp/kW) 3.78/2.82 6.23/4.65 9.00/6.72 12.2/9.11 16.0/12.0 20.7/15.4 26.6/19.8

870 (Bhp/kW) 1.55/1.16 2.56/1.91 3.70/2.76 5.02/3.74 6.60/4.92 8.51/6.35 10.9/8.15

1450 (kW) 5.37 8.84 12.8 17.3 22.8 29.4 37.8

950 (kW) 1.51 2.49 3.60 4.88 6.41 8.27 10.6

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +6 -5.5

870 - -11.5

1450 +13 +1.5

950 +2 -9.5

Volume

Total

Pressure

Impeller Diameter = 44.5 inches (1130 mm)

Outlet Velocity ft/min = cfm / 10.80

m/s = m³/s / 1.0

Tip Speed ft/min = rpm X 11.7

m/s = rpm X 3.55

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

48

AX 113-400 6 Blades

Page Header

49

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 113-400 9 Blades

92

92 93

92

92

90

89

89

93

Pitch Angle º

rpm 5 10 15 20 25 30 35

1170 (Bhp/kW) 5.02/3.74 8.01/5.97 11.5/8.54 15.6/11.6 20.5/15.3 26.3/19.6 33.3/24.8

870 (Bhp/kW) 2.06/1.54 3.29/2.46 4.71/3.51 6.40/4.77 8.42/6.28 10.8/8.07 13.7/10.2

1450 (kW) 7.12 11.4 16.3 21.1 29.1 37.4 47.3

950 (kW) 2.00 3.20 4.57 6.22 8.17 10.5 13.3

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +9 -2.5

870 - -11.5

1450 +13 +1.5

950 +2 -9.5

Volume

Total

Pressure

Impeller Diameter = 44.5 inches (1130 mm)

Outlet Velocity ft/min = cfm / 10.80

m/s = m³/s / 1.0

Tip Speed ft/min = rpm X 11.7

m/s = rpm X 3.55

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

49

AX 113-400 9 Blades

Page Header

50

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

101

102

101

100

100

98

96

94

101

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 16.6/12.4 26.3/19.6 37.4/27.9 49.9/37.2 64.5/48.1 81.7/60.9 103/76.7

1170 (Bhp/kW) 4.80/3.58 7.60/5.67 10.8/8.05 14.4/10.8 18.6/13.9 23.6/17.6 29.7/22.2

1450 (kW) 6.81 10.8 15.3 20.5 26.4 33.5 42.2

950 (kW) 1.92 3.03 4.31 5.75 7.43 9.42 11.9

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +5 -6.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 44.5 inches (1130 mm)

Outlet Velocity ft/min = cfm / 10.80

m/s = m³/s / 1.0

Tip Speed ft/min = rpm X 11.7

m/s = rpm X 3.55

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

50

AX 113-533 8 Blades

Page Header

51

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 113-533 12 Blades

100

99

101

101

101

100

98

97

102

Pitch Angle º

rpm 5 10 15 20 25 30 35

1770 (Bhp/kW) 23.8/17.7 36.8/27.5 51.2/38.2 67.3/50.2 85.4/63.7 106/78.9 129/96.2

1170 (Bhp/kW) 6.86/5.12 10.6/7.93 14.8/11.0 19.4/14.5 24.7/18.4 30.5/22.8 37.3/27.8

1450 (kW) 9.74 15.1 21.0 27.6 35.0 43.4 52.9

950 (kW) 2.74 4.24 5.91 7.76 9.85 12.2 14.9

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1770 +11 -0.5

1170 - -11.5

1450 +5 -6.5

950 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 44.5 inches (1130 mm)

Outlet Velocity ft/min = cfm / 10.80

m/s = m³/s / 1.0

Tip Speed ft/min = rpm X 11.7

m/s = rpm X 3.55

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

51

AX 113-533 12 Blades

Page Header

52

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

95

95

93

94

94

90

90

90

94

Pitch Angle º

rpm 5 10 15 20 25 30 35

1170 (Bhp/kW) 5.66/4.22 8.89/6.63 13.0/9.70 18.0/13.4 23.8/17.7 30.4/22.7 38.2/28.5

870 (Bhp/kW) 2.33/1.74 3.66/2.73 5.34/3.99 7.39/5.51 9.78/7.29 12.5/9.33 15.7/11.7

1450 (kW) 8.04 12.6 18.5 25.5 33.8 43.2 54.2

950 (kW) 2.26 3.55 5.19 7.17 9.50 12.2 15.2

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +8 -3.5

870 - -11.5

1450 +14 +2.5

950 +3 -8.5

Volume

Total

Pressure

Impeller Diameter = 48.5 inches (1230 mm)

Outlet Velocity ft/min = cfm / 12.80

m/s = m³/s / 1.19

Tip Speed ft/min = rpm X 12.7

m/s = rpm X 3.87

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

52

AX 123-400 6 Blades

Page Header

53

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 113-533 12 Blades

95

94 95

95

95

93

92

91

96

Pitch Angle º

rpm 5 10 15 20 25 30 35

1170 (Bhp/kW) 7.85/5.86 13.0/9.72 18.1/13.5 23.8/17.8 30.8/23.0 39.3/29.4 50.5/37.7

870 (Bhp/kW) 3.23/2.41 5.36/4.00 7.45/5.56 9.79/7.30 12.7/9.44 16.2/12.1 20.8/15.5

1450 (kW) 11.2 18.5 25.7 33.8 43.7 55.9 71.7

950 (kW) 3.13 5.21 7.24 9.51 12.3 15.7 20.2

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +7 -4.5

870 - -11.5

1450 +14 +2.5

950 +3 -8.5

Volume

Total

Pressure

Impeller Diameter = 48.5 inches (1230 mm)

Outlet Velocity ft/min = cfm / 12.80

m/s = m³/s / 1.19

Tip Speed ft/min = rpm X 12.7

m/s = rpm X 3.87

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

53

AX 123-400 9 Blades

Page Header

54

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

96

96 95

95

94

93

91

88

96

Pitch Angle º

rpm 5 10 15 20 25 30 35

1170 (Bhp/kW) 7.64/5.70 12.2/9.09 17.3/12.9 23.0/17.2 29.4/21.9 36.5/27.2 45.3/33.8

870 (Bhp/kW) 3.14/2.34 5.01/3.74 7.11/5.31 9.45/7.05 12.1/9.00 15.0/11.2 18.6/13.9

1450 (kW) 10.9 17.3 24.6 32.7 41.7 51.8 64.4

950 (kW) 3.05 4.87 6.91 9.18 11.7 14.6 18.1

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +7 -4.5

870 - -11.5

1450 +13 +1.5

950 +2 -9.5

Volume

Total

Pressure

Impeller Diameter = 48.5 inches (1230 mm)

Outlet Velocity ft/min = cfm / 12.80

m/s = m³/s / 1.19

Tip Speed ft/min = rpm X 12.7

m/s = rpm X 3.87

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

54

AX 123-533 8 Blades

Page Header

55

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 123-400 9 Blades

95

93 95

95

96

95

93

91

97

Pitch Angle º

rpm 5 10 15 20 25 30 35

1170 (Bhp/kW) 10.4/7.74 15.9/11.8 22.2/16.6 29.4/22.0 37.5/28.0 46.6/34.8 56.7/42.3

870 (Bhp/kW) 4.27/3.18 6.52/4.87 9.13/6.81 12.1/9.03 15.4/11.5 19.2/14.3 23.3/17.4

1450 (kW) 14.7 22.5 31.6 41.8 53.3 66.2 80.6

950 (kW) 4.14 6.34 8.87 11.8 15.0 18.6 22.7

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +7 -4.5

870 - -11.5

1450 +13 +1.5

950 +3 -8.5

Volume

Total

Pressure

Impeller Diameter = 48.5 inches (1230 mm)

Outlet Velocity ft/min = cfm / 12.80

m/s = m³/s / 1.19

Tip Speed ft/min = rpm X 12.7

m/s = rpm X 3.87

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

55

AX 123-533 12 Blades

Page Header

56

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

98

99 96

96

96

94

94

94

98

Pitch Angle º

rpm 5 10 15 20 25 30

1170 (Bhp/kW) 8.72/6.51 13.7/10.2 20.1/15.0 27.9/20.8 37.7/28.2 50.1/37.4

870 (Bhp/kW) 3.59/2.68 5.62/4.20 8.24/6.15 11.5/8.55 15.5/11.6 20.6/15.4

950 (kW) 3.48 5.46 8.01 11.1 15.1 20.0

720 (kW) 1.52 2.38 3.49 4.85 6.56 8.72

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +8 -3.5

870 - -11.5

950 +2 -9.5

720 -6 -17.5

Volume

Total

Pressure

Impeller Diameter = 55.0 inches (1400 mm)

Outlet Velocity ft/min = cfm / 16.50

m/s = m³/s / 1.53

Tip Speed ft/min = rpm X 14.4

m/s = rpm X 4.39

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

56

AX 140-400 6 Blades

Page Header

57

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 123-533 12 Blades

99

98

98

97

97

97

96

95

100

Pitch Angle º

rpm 5 10 15 20 25 30

1170 (Bhp/kW) 11.9/8.86 19.8/14.8 28.5/21.3 38.3/28.5 49.7/37.1 63.5/47.4

870 (Bhp/kW) 4.88/3.64 8.13/6.06 11.7/8.74 15.7/11.7 20.4/15.2 26.1/19.5

950 (kW) 4.74 7.89 11.4 15.3 19.8 25.4

720 (kW) 2.06 3.44 4.95 6.65 8.63 11.0

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +9 -2.5

870 - -11.5

950 +2 -9.5

720 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 55.0 inches (1400 mm)

Outlet Velocity ft/min = cfm / 16.50

m/s = m³/s / 1.53

Tip Speed ft/min = rpm X 14.4

m/s = rpm X 4.39

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

57

AX 140-400 9 Blades

Page Header

58

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

100

100 99

99

98

97

94

92

100

Pitch Angle º

rpm 5 10 15 20 25 30 35

1170 (Bhp/kW) 11.4/8.53 18.0/13.4 26.2/19.5 35.9/26.8 47.3/35.3 60.2/44.9 74.6/55.7

870 (Bhp/kW) 4.70/3.51 7.40/5.52 10.8/8.02 14.8/11.0 19.4/14.5 24.7/18.5 30.7/22.9

1450 (kW) 16.2 25.6 37.2 51.0 67.1 85.5 106

950 (kW) 4.57 7.19 10.5 14.4 18.9 24.0 29.8

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +8 -3.5

870 - -11.5

1450 +14 +2.5

950 +3 -8.5

Volume

Total

Pressure

Impeller Diameter = 55.0 inches (1400 mm)

Outlet Velocity ft/min = cfm / 16.50

m/s = m³/s / 1.53

Tip Speed ft/min = rpm X 14.4

m/s = rpm X 4.39

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

58

AX 140-533 8 Blades

Page Header

59

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 140-400 9 Blades

99

97 99

99

99

98

97

95

101

Pitch Angle º

rpm 5 10 15 20 25 30 35

1170 (Bhp/kW) 16.3/12.1 25.6/19.1 36.1/26.9 48.1/35.9 62.0/46.2 77.2/57.6 98.5/73.5

870 (Bhp/kW) 6.69/4.99 10.5/7.85 14.8/11.1 19.8/14.8 25.5/19.0 31.7/23.7 40.5/30.2

1450 (kW) 23.1 36.3 51.2 68.3 88.0 110 140

950 (kW) 6.49 10.2 14.4 19.2 24.8 30.8 39.3

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +8 -3.5

870 - -11.5

1450 +16 +4.5

950 +2 -9.5

Volume

Total

Pressure

Impeller Diameter = 55.0 inches (1400 mm)

Outlet Velocity ft/min = cfm / 16.50

m/s = m³/s / 1.53

Tip Speed ft/min = rpm X 14.4

m/s = rpm X 4.39

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

59

AX 140-533 12 Blades

Page Header

60

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

97

97

97

94

95

92

92

93

96

Pitch Angle º

rpm 5 10 15 20 25 30

870 (Bhp/kW) 6.01/4.48 10.3/7.70 15.2/11.3 20.8/15.5 27.3/20.4 35.5/26.5

690 (Bhp/kW) 3.00/2.24 5.15/3.84 7.56/5.64 10.4/7.72 13.6/10.2 17.7/13.2

950 (kW) 5.84 10.0 14.7 20.2 26.5 34.5

720 (kW) 2.54 4.36 6.41 8.77 11.6 15.0

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

870 +6 -5.5

690 - -11.5

950 +9 -2.5

720 +1 -10.5

Volume

Total

Pressure

Impeller Diameter = 63.0 inches (1600 mm)

Outlet Velocity ft/min = cfm / 21.70

m/s = m³/s / 2.01

Tip Speed ft/min = rpm X 16.5

m/s = rpm X 5.03

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

60

AX 160-400 6 Blades

Page Header

61

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 160-400 9 Blades

97

96

96

96

95

95

94

93

98

Pitch Angle º

rpm 5 10 15 20 25 30

870 (Bhp/kW) 8.55/6.38 14.4/10.8 20.6/15.4 28.0/20.9 37.2/27.7 49.2/36.7

690 (Bhp/kW) 4.27/3.18 7.20/5.37 10.3/7.67 14.0/10.4 18.5/13.8 24.5/18.3

950 (kW) 8.31 14.0 20.0 27.2 36.1 47.7

720 (kW) 3.62 6.11 8.71 11.8 15.7 20.8

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

870 +6 -5.5

690 - -11.5

950 +8 -3.5

720 +1 -10.5

Volume

Total

Pressure

Impeller Diameter = 63.0 inches (1600 mm)

Outlet Velocity ft/min = cfm / 21.70

m/s = m³/s / 2.01

Tip Speed ft/min = rpm X 16.5

m/s = rpm X 5.03

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

61

AX 160-400 9 Blades

Page Header

62

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

104

104

103

103

102

101

98

96

104

Pitch Angle º

rpm 5 10 15 20 25 30 35

1170 (Bhp/kW) 19.2/14.3 32.5/24.3 47.5/35.5 64.6/48.2 83.9/62.6 106/79.3 134/100

870 (Bhp/kW) 7.90/5.90 13.4/9.98 19.5/14.6 26.5/19.8 34.5/25.7 43.7/32.6 55.3/41.2

950 (kW) 7.68 13.0 19.0 25.8 33.5 42.4 53.7

720 (kW) 3.34 5.65 8.26 11.2 14.6 18.5 23.4

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +9 -2.5

870 - -11.5

950 +3 -8.5

720 -4 -15.5

Volume

Total

Pressure

Impeller Diameter = 63.0 inches (1600 mm)

Outlet Velocity ft/min = cfm / 21.70

m/s = m³/s / 2.01

Tip Speed ft/min = rpm X 16.5

m/s = rpm X 5.03

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

62

AX 160-533 8 Blades

Page Header

63

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 160-533 12 Blades

103

101

103

103

103

103

101

99

105

Pitch Angle º

rpm 5 10 15 20 25 30 35

1170 (Bhp/kW) 27.6/20.6 43.1/32.1 62.0/46.3 84.1/62.7 110/82.2 141/105 177/132

870 (Bhp/kW) 11.4/8.48 17.7/13.2 25.5/19.0 34.6/25.8 45.3/33.8 58.0/43.3 72.7/54.3

950 (kW) 11.0 17.2 24.8 33.6 44.0 56.3 70.6

720 (kW) 4.81 7.49 10.8 14.6 19.2 24.5 30.8

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Inlet Sound

rpm LwA dBA

1170 +8 -3.5

870 - -11.5

950 +2 -9.5

720 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 63.0 inches (1600 mm)

Outlet Velocity ft/min = cfm / 21.70

m/s = m³/s / 2.01

Tip Speed ft/min = rpm X 16.5

m/s = rpm X 5.03

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

63

AX 160-533 12 Blades

64

Greenheck warrants this equipment to be free from defects in material and workmanship for a period

of one year from the purchase date. Any units or parts which prove defective during the warranty

period will be replaced at our option when returned to our factory, transportation prepaid. Motors are

warranted by the motor manufacturer for a period of one year. Should motors furnished by Greenheck

prove defective during this period, they should be returned to the nearest authorized motor service

station. Greenheck will not be responsible for any removal or installation costs.

As a result of our commitment to continuous improvement, Greenheck reserves the right to change

specifications without notice.

P.O. Box 410 • Schofield, WI 54476-0410 • Phone (715) 359-6171 • greenheck.com

Building Value in Air

Our Warranty

Prepared to Support

Green Building Efforts

Greenheck delivers value

to mechanical engineers by

helping them solve virtually

any air quality challenges

their clients face with a

comprehensive selection of

top quality, innovative air-

related equipment. We offer

extra value to contractors

by providing easy-to-install,

competitively priced, reliable

products that arrive on time.

And building owners and

occupants value the energy

efficiency, low maintenance

and quiet dependable operation

they experience long after the

construction project ends.

68

68

68

67

67

67

66

65

69

rebmuNegaPdraobpilC

AX 31-160 4 Blades

rellepmI Diameter = 12.25 in. 311 mm

Outlet Velocity ft/min = cfm / 0.82

m/s = m³/s / 0.08

Tip Speed ft/min = rpm X 3.20

m/s = rpm X 0.98

Performance shown is for installation type B; free inlet, ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The

AMCA Certified Ratings Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power

levels for 100%, 50% and 0% of peak pressure in Installation Type B: free inlet, ducted outlet. dBA sound pressure values are weighted with 11.5 dB

Air density = 1.2 kg/m

3

Air density = 0.075 lbs/ft

3

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 0.19/0.14 0.30/0.22 0.43/0.32 0.56/0.42 0.71/0.53 0.88/0.66 1.07/0.80

1770 (Bhp/kW) 0.03/0.02 0.04/0.03 0.06/0.04 0.07/0.05 0.09/0.07 0.11/0.09 0.14/0.10

2900 (kW) 0.08 0.13 0.18 0.24 0.30 0.37 0.45

1450 (kW) 0.01 0.02 0.02 0.03 0.04 0.05 0.06

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

3500 +20 +8.5

1770 - -11.5

2900 +13 +1.5

1450 -5 -16.5

Volume

Total

Pressure

68

68

68

67

67

67

66

65

69

rebmuNegaPdraobpilC

AX 31-160 4 Blades

Air density = 1.2 kg/m

3

Air density = 0.075 lbs/ft

3

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 0.19/0.14 0.30/0.22 0.43/0.32 0.56/0.42 0.71/0.53 0.88/0.66 1.07/0.80

1770 (Bhp/kW) 0.03/0.02 0.04/0.03 0.06/0.04 0.07/0.05 0.09/0.07 0.11/0.09 0.14/0.10

2900 (kW) 0.08 0.13 0.18 0.24 0.30 0.37 0.45

1450 (kW) 0.01 0.02 0.02 0.03 0.04 0.05 0.06

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

3500 +20 +8.5

1770 - -11.5

2900 +13 +1.5

1450 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 12.25 inches (311 mm)

Outlet Velocity ft/min = cfm / 0.82

m/s = m³/s / 0.08

Tip Speed ft/min = rpm X 3.20

m/s = rpm X 0.98

Performance shown is for installation type B; free inlet, ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: free inlet, ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

Air density = 1.2 kg/m³

Air density = 0.075 lbs/ft³

Pitch Angle º

rpm 5 10 15 20 25 30 35

3500 (Bhp/kW) 0.19/0.14 0.30/0.22 0.43/0.32 0.56/0.42 0.71/0.53 0.88/0.66 1.07/0.80

1770 (Bhp/kW) 0.03/0.02 0.04/0.03 0.06/0.04 0.07/0.05 0.09/0.07 0.11/0.09 0.14/0.10

2900 (kW) 0.08 0.13 0.18 0.24 0.30 0.37 0.45

1450 (kW) 0.01 0.02 0.02 0.03 0.04 0.05 0.06

Peak Absorbed Power [Bhp/kW (60 Hz), kW (50 Hz)]

Sound Power A-Weighted [LwA]

Sound Pressure [dBA]

Inlet Sound

rpm LwA dBA

3500 +20 +8.5

1770 - -11.5

2900 +13 +1.5

1450 -5 -16.5

Volume

Total

Pressure

Impeller Diameter = 12.25 inches (311 mm)

Outlet Velocity ft/min = cfm / 0.82

m/s = m³/s / 0.08

Tip Speed ft/min = rpm X 3.20

m/s = rpm X 0.98

68

68

68

67

67

67

66

65

69

Performance shown is for installation Type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances in the airstream. The AMCA Certified Ratings

Seal applies to air performance ratings only.

Sound power level ratings are shown in decibels, referred to 10-12 watts calculated per AMCA Standard 301. Values shown are for inlet LwA sound power levels for 100%, 50% and

0% of peak pressure in Installation Type B: Free inlet, Ducted outlet. dBA sound pressure values are weighted with 11.5 dB attenuation for each octave band at 5 feet.

AX 31-160 4 Blades

Performance:

Volume - 0.5 m³/s

Pressure - 170 Pa Static Pressure

Power Frequency - 50 Hz

Results:

Following the constant static

pressure line a size 31 with 160 hub

and 4 blades needs:

• 15 degree blade pitch setting

• 2900 rpm motor

From the chart

• The operating efficiency is

between 55 and 57%

Using 2900 Motor rpm and Peak

Absorbed Power Table

• 0.18 kW peak absorbed power

Sound power falls between 68 and

66 LwA for the color matched 1770

rpm. Using the Inlet Sound table and

estimating 67 LwA with 2900 rpm,

the calculated sound power and

pressure are:

• Sound Power of 80 LwA

• Sound Pressure of 68.5 dBA

Supplement AX July 2004 R

Copyright © 2004 Greenheck Fan Corp.

Selection Example and Warranty
