Group Sense Mobile-Tech Limited Wireless Portable Media Player Users Manual
Users Manual
Copyright
• Copyright © 2007 Group Sense Mobile-Tech Limited. All rights reserved.
• Product specifications and features are for reference only and are subject to change
without prior notice.
Declaration
• This Quick Start Guide is published by Group Sense Mobile-Tech Limited without any
warranty. Improvement and changes to this Quick Start Guide necessitated by
typographical errors, inaccuracies of current information, or improvements to programs
and/or equipment, may be made by Group Sense Mobile-Tech Limited any time and
without notice. Such changes will, however, be incorporated into new editions of this Quick
Start Guide.
FCC Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
FCC Radiation Exposure Statement
The antennas used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter.
Declaration of Conformity
We, Group Sense Mobile-Tech Limited, declares that this product i280 is in
compliance with the essential requirements of CONFORMITY WITH
EUROPEAN.
Important safety information
PLEASE READ THIS CAREFULLY BEFORE USING i280!
• Always treat your product with care and keep it in a clean and dust-free place.
• Do not expose i280 to moisture or humidity.
• Do not expose i280 to extreme high or low temperatures.
• Do not attempt to disassemble your product.
• Use only the chargers approved by Group Sense Mobile-Tech Limited. The use of any
other type may invalidate any approval and warranty. No reverse charging with other
chargers, they may have inverse polarity.
• Never use the charger if the plug is damaged.
• Never touch the charger if your hands/feet are wet.
• Do not expose the charger to water, it may cause electrical fires.
• Do not repair the charger yourself for your safety.
• To reduce the risk of fire or burns, do not disassemble, crush or puncture the battery.
• For i280 model, only approved chargers that are designed for the model can be used with i280 unit.
Content
Getting to know i280 3
i280 overview ....................................................................................................................3
Battery ...............................................................................................................................3
Inserting/removing extension card ...................................................................................4
Getting started 4
Turning on/off i280 ............................................................................................................4
Menu overview ..................................................................................................................4
Wi-Fi connection settings .................................................................................................5
i280 settings ......................................................................................................................6
Getting to know i280
i280 overview
Name Description
1
Navigation track ball/LED light Roll leftwards/rightwards to select application;
roll upwards/downwards to select item; press
to enter. Show the status for Wi-Fi and battery
2 SD card slot Support Micro SDHC
3 Power key Press and hold to turn on/off; press to
suspend
4 Volume key Press to adjust volume
5 Return key In application, return to last page; in submenu,
close the submenu
6 Mic
7 USB port Charging battery/connect USB to PC for data
synchronization
8 Earphone
9/12 Speaker
10 Hold key All keys cannot be used except the reset hole
if it is on (push upwards)
11 Strap hole
13 Reset hole Reset i280 when it does not work
Getting to know i280
Battery
The i280 is using irreplaceable battery. We recommendthat you fully charge battery before
you use i280 for the first time.
To charge the battery
1. Connect your charger to USB port.
2. Plug the charger to main electrical outlet.
Note: You can use i280 normally during charging battery with AC adaptor; on the
contrary, i280 cannot be used if charging with USB.
Inserting/removing extension card
You can copy photos and songs to the extension card.
To insert extension card
1. Open the extension card slot on the top of i280. Insert the card into card slot.
2. Close the extension card slot.
To remove extension card
1. Open the extension card slot.
2. Press the inserted card to release and then remove
card.
Inserting/removing extension card
Getting started
Turning on/off i280
To turn on i280
1. Press and hold the Power key on the top of i280.
2. The boot up animation is shown. It will boot to main menu in 20 seconds.
To turn off i280
1. Press and hold the Power key on the top of i280 to turn it off.
To suspend i280
1. If i280 is on, press the Power key to suspend, so as to save power.
Turning on/off i280
Getting started

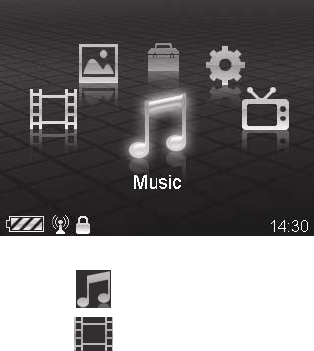

Menu overview
In main menu, roll the Navigation track ball leftwards/rightwards to select an application you
need, and press it to enter.
1. Music
2. Video
3. Photo Viewer
4. Utilities
• Wi-Fi Connection Manager ·Voice Recording
• Internet Radio ·Sleep Timer
5. Setting
• Power Save Setting ·Backlight Setting
• Date & Time Setting ·System Setting
6. Net TV
Description for icons on status bar
Icon Description
WLAN connected
WLAN connecting
WLAN disconnected
Hold key is on
Battery low
Battery full
Battery charging

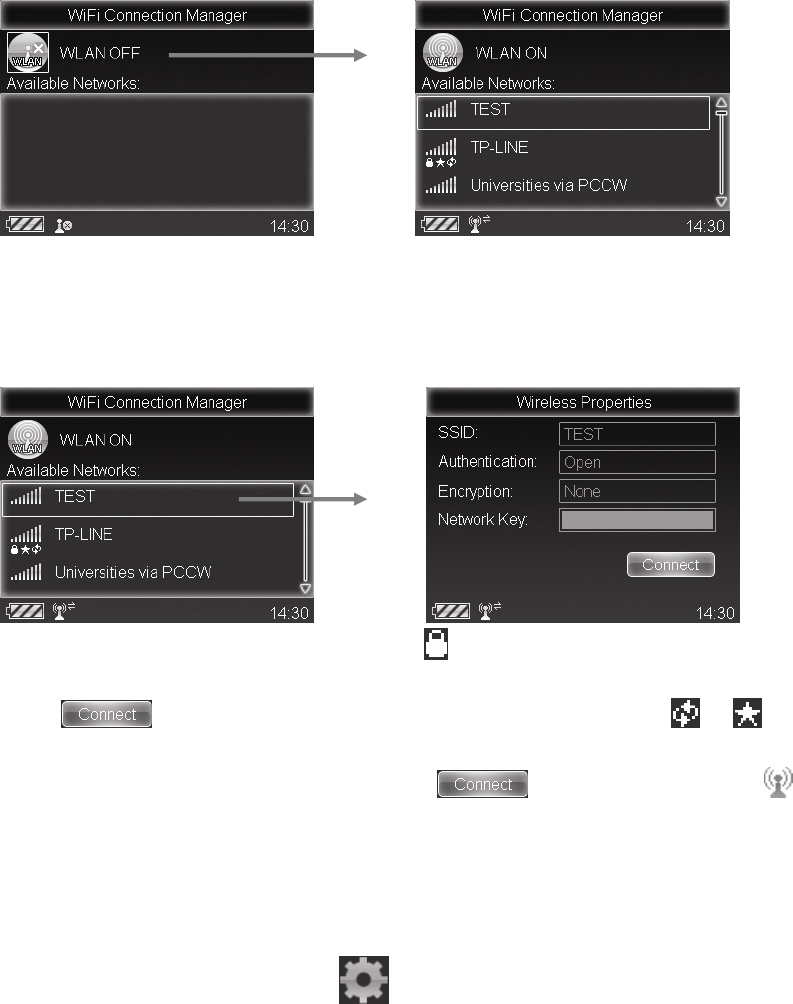

Wi-Fi connection settings
1. In main menu, roll the Navigation track ball leftwards/ rightwards to select “Utilities” and
press it to enter.
2. Select “Wi-Fi Connection Manager“ and press the Navigation track ball to enter. The
WLAN is off by default.
3. Press the Navigation track ball to enable WLAN, i280 will search for available Wi-Fi
network automatically.
4. Roll the Navigation track ball upwards/downwards to select a Wi-Fi network record and
press it to connect.
5. It will access to “Wireless Properties” if there is no profile, user needs to create one. (If
there is profile for the selected Wi-Fi network, it will access to connecting screen directly)
6. Enter encryption key when needed. (The icon will be displayed for the Encrypted Wi-Fi
network)
7. Select and press the Navigation track ball to connect. The icon and will be
displayed if connection succeeds.
8. Select the Wi-Fi network with profile and press to connect Wi-Fi, the icon will
be displayed on the status bar if connection succeeds.
Getting started
i280 settings
To change i280 settings, select Setting in main menu, see the following description for
more information.

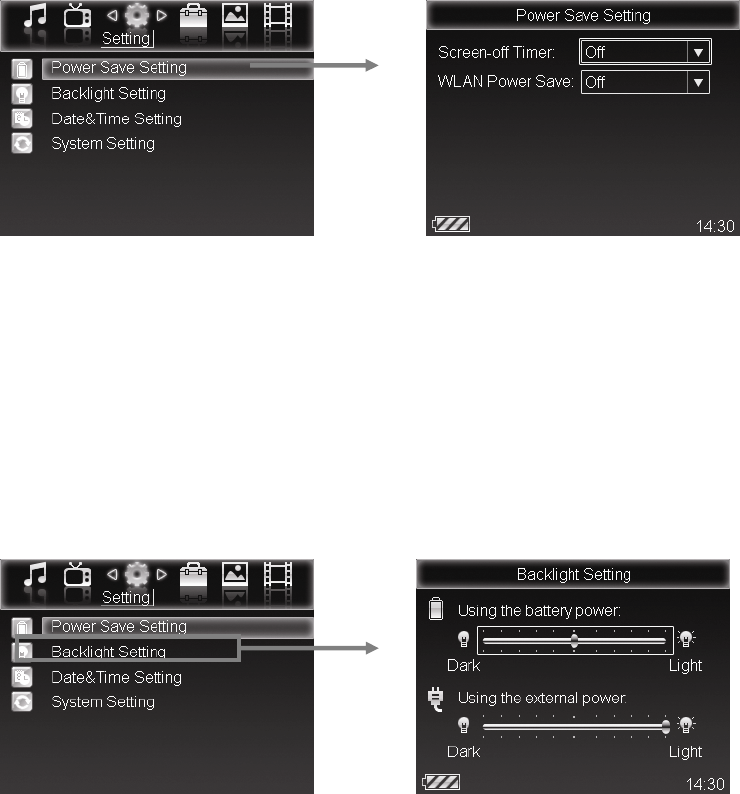

Power save setting
To make configuration in Power save setting to save battery power.
1. Select Power Save Setting in Setting screen.
2. Press the Navigation track ball to select Screen-Off Timer, roll the Navigation track ball
downwards to select screen-off time, press it to confirm.
3. Roll the Navigation track ball downwards to select WLAN Power Save, and press it to
select On/Off.
4. Press the Return key and back to Setting screen.
Note: Press the Power key to activate i280 when it is in suspend mode; press any key
to activate the suspended i280 when you are playing songs in background playing
mode.
Backlight setting
To set the i280 backlight brightness in Backlight setting. Two modes for you to select.
1. Select Backlight Setting in Setting screen.
2. You can select Using the battery power or Using the external power. Roll the Navigation
track ball leftwards/ rightwards to set the backlight brightness.
3. Press the Return key and back to Setting screen.

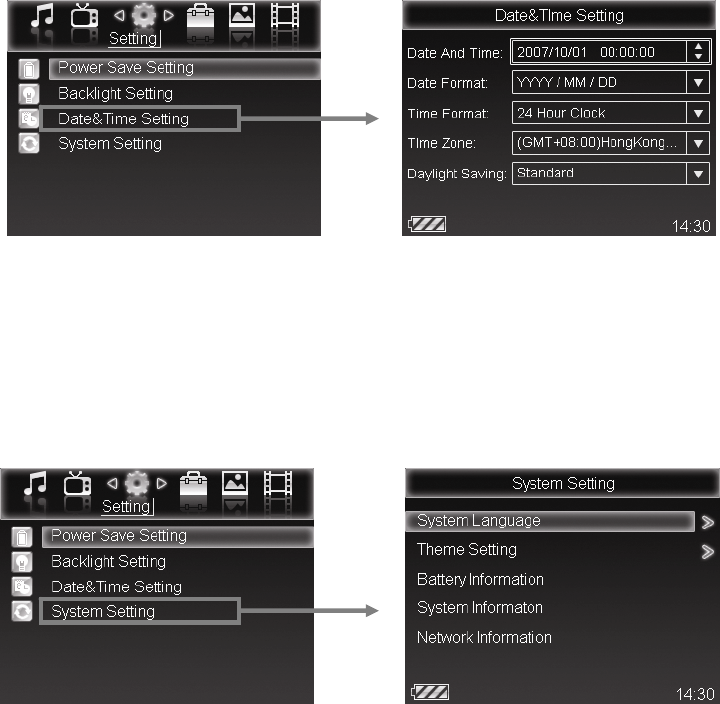

Date & Time setting
To set the date, time, date & time format and time zone in Date & Time setting.
1. Select Date & Time Setting in Setting screen.
2. To set date and time: press the Navigation track ball to select year, and roll the track ball
upwards/downwards to set the year; roll the track ball leftwards/ rightwards to select month,
day and others. Press the Navigation track ball when finish setting.
3. Roll the Navigation track ball downwards and press it to select the date format you like.
4. Set time format, time zone and daylight saving as point3.
5. Press the Return key and back to Setting screen.
Ge tting
System setting
To set the system language, theme, and view the information of battery, system and network
in System setting.
System language setting
1. Select System Setting in Setting screen.
2. Then select System Language.
3. Press the Navigation track ball to select a language you need. Press the track ball again to
confirm your selection.
Theme setting
1. Select Theme Setting in System setting.
2. Press the Navigation track ball and roll it downwards to select the theme you like.
3. Press the Navigation track ball to confirm your selection.
View infomation
1. Select Battery information, System information or Network information in System setting.
2. Press the Navigation track ball to view the details.
3. Press the Return key and back to System setting.
i280 Quick Start Guide EN
