Introduction
© 2017 Cine Gears INC. All Rights Reserved. 2

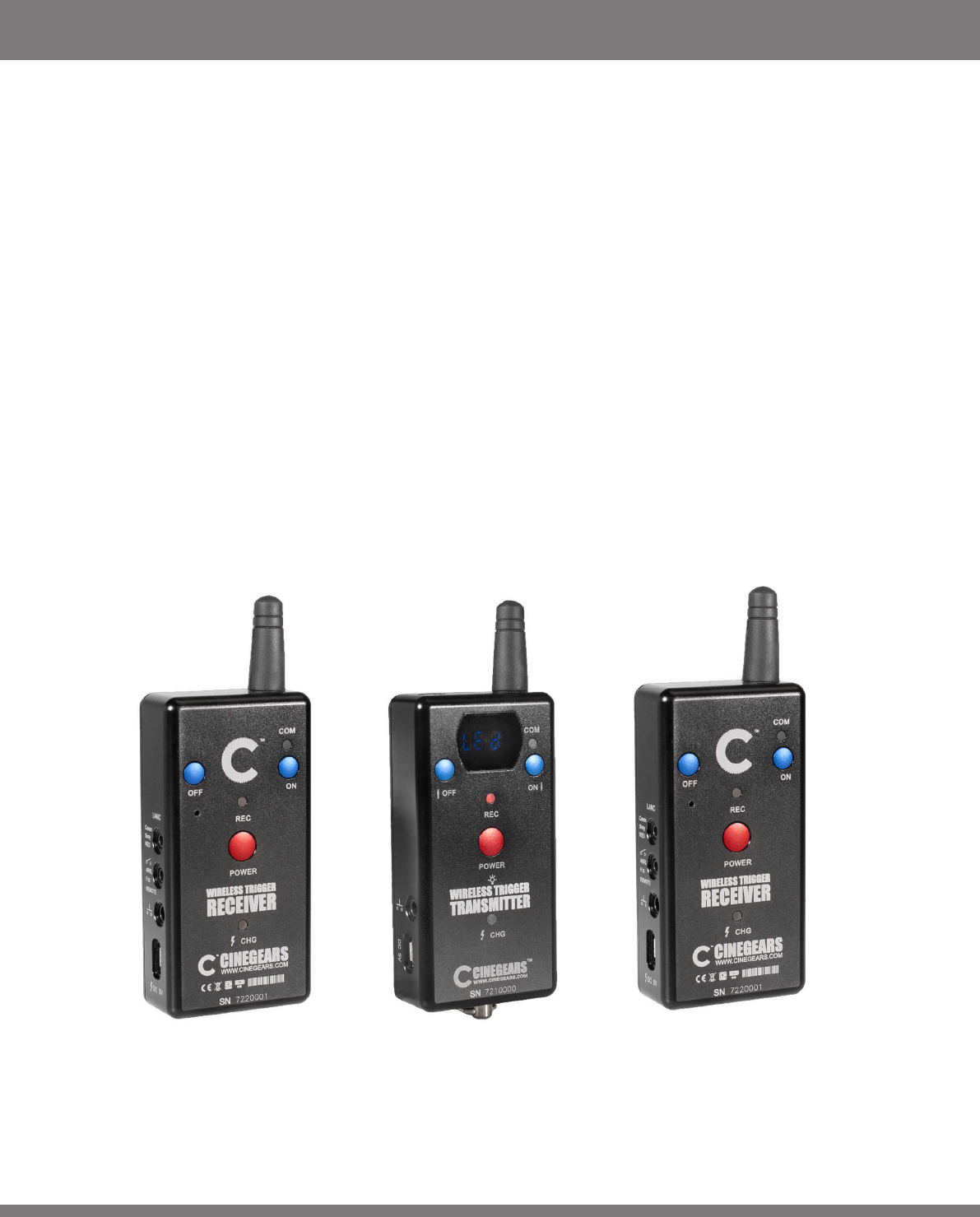

The Cinegears Wireless Trigger Kit is a completely customizable, zero-latency solution
for start/stop triggering. The Wireless Trigger Kit not only triggers cameras, but can be
used to set off stage lighting, fireworks, and even explosive devices for mining. The
kit operates up to 300m away (line of sight), or connect another transmitter on a
separate channel to the receiver via LANC cable for triggering from afar. The Wireless
Trigger Kit has a charge time of 5 hours, and a fully charged unit will run for up to 60
hours. One wireless transmitter can control an unlimited number of receivers, as long
as they are all on the same channel. The Trigger Kit has 16 built-in channels (CH), and
every channel contains 16 groups or (CP). To avoid interference from other devices,
including wireless audio systems, the trigger system uses 900MHz frequency. Different
cameras will require different cables - Cinegears offers trigger cables sold separately or
as a bundle.
If you require technical drawings and specifications to integrate this system into your
applications, please contact Cinegears.
User Manual
© 2017 Cine Gears INC. All Rights Reserved. 3
Turning the Unit On/Off
Press REC 3 times in quick succession on the transmitter or receiver to turn the
unit on or off.
Transmitter LED Light
On the transmitter, press REC twice in quick succession to turn the LED light on
or off.
Synchronization
To sync the transmitter and receiver, press REC on the receiver 5 times in quick
succession until the CHG light turns on. Press ON+OFF on the transmitter and
enter desired settings, and press REC to confirm options. When LED screen says
"SAVE," press ON+OFF again to confirm settings. All trigger kits are set to the
manufacture default of CH08, GP08, BP ON and DT 01.
Channels and Groups
If you have multiple groups of cameras, you can customize the receivers’ channels
(CH) and groups (GP). Press REC five times on the receivers, then press ON+OFF
on the transmitter to enter settings. Set receivers to desired GP, then enter desired
settings for sound notification (BP) and Detach Time (DT). Press REC on the
transmitter to confirm options until screen reads “SAVE,” then press ON+OFF to
confirm settings.
Sound Notification
When triggered, the receiver will make two beeping sounds as it begins recording.
You can set up a secondary sound notification (BP) to start after recording begins for
synchronizing purposes in post production. To turn the sound notification on or off,
press REC five times on the receiver, then press ON+OFF on the transmitter to enter
settings. Press REC until the BP menu shows up, and press either ON or OFF to
turn the sound notification on or off. Press REC on the transmitter to confirm options
until screen reads “SAVE,” then press ON+OFF to confirm settings.
Detach Time
Set up Detach Time (DT) to set a record delay when you press the REC button. To
set DT, press REC five times on the receiver, then press ON+OFF on the transmitter.
Press REC until the DT menu shows up, then press ON or OFF to select DT time.
The recommended DT time is 1 second. Press REC on the transmitter to confirm
options until screen reads “SAVE,” then press ON+OFF to confirm settings.
User Manual
© 2017 Cine Gears INC. All Rights Reserved. 4
Using the Receiver Independently
The receiver can be used as a separate unit. When COM light is on, the receiver is
controlled by the transmitter. To use the receiver as an independent trigger, press
ON+OFF+REC, the COM light will turn off and CHG will flash.
LANC
When using LANC, you can use the trigger system to turn the camera on or off.
Press ON+REC to turn on the camera. Press OFF+REC to turn off the camera.
