Guangzhou Chiyuan Electronic 300L 3CH Radio Control User Manual

Guangzhou Chiyuan Electronic Co.,Ltd 3CH Radio Control Users Manual

User Manual

Thank you for purchasing our R/C system.Before using, read this manual carefully. 3-Ch 2.4G Radio Control System Introduction Manual DIGITAL PROPORTIONAL RC SYSTEM 2.4G FHSS TECHNOLOGYDIGITAL PROPORTIONAL R/C SYSTEM Y310/CY3S/CY320/N-4Q/8181C

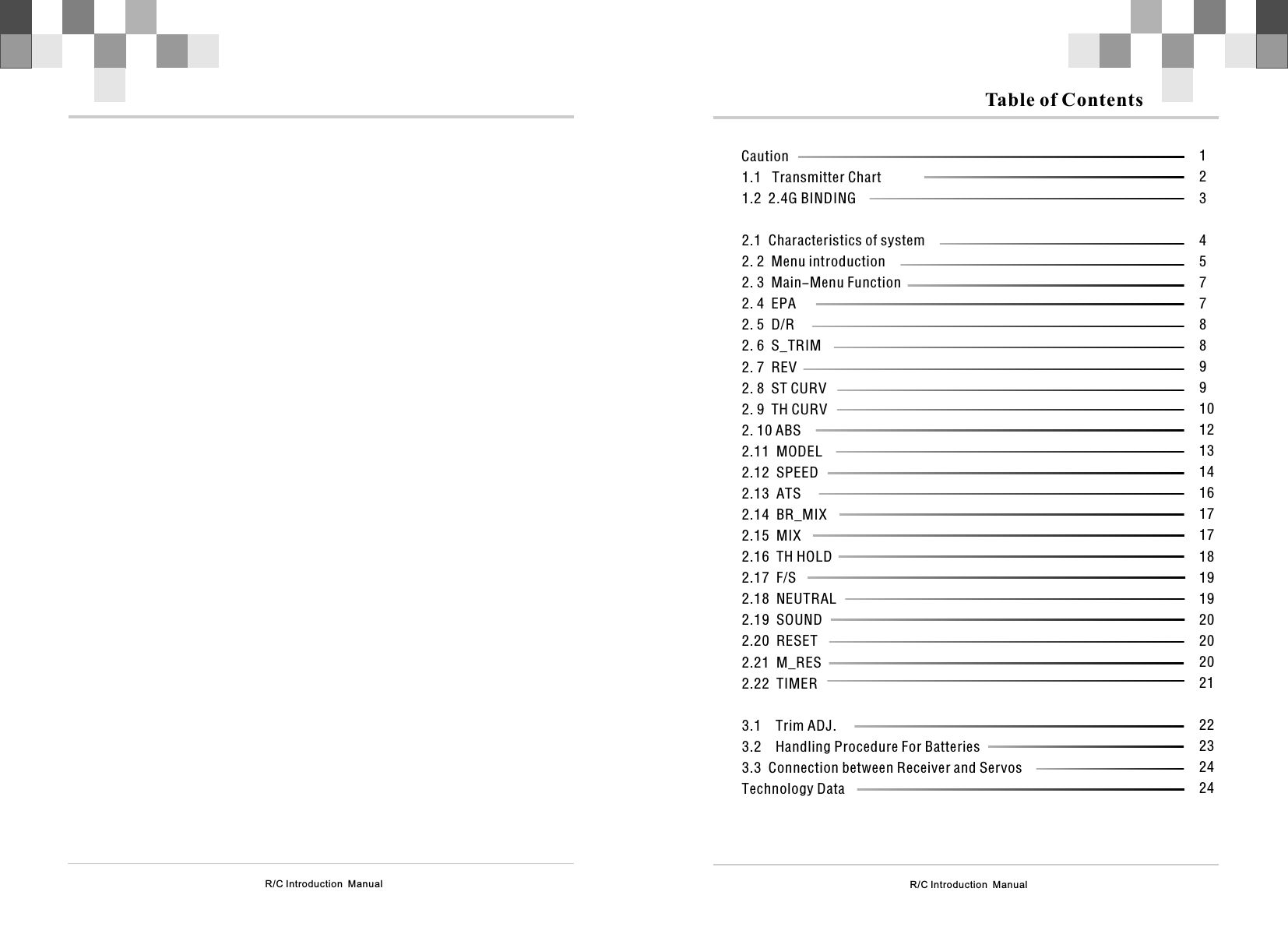

R/C Introduction Manual Table of Contents Caution1.1 Transmitter Chart1.2 2.1 enu introduction6 2 72 8 ST CURV2 9 TH CURV2 10 ABS2 11 MODEL2 12 SPEED2 132 142 15 MIX2 16 TH HOLD2 17 F/S2 18 NEUTRAL2 SOUND2 2 1 2 2 T2.4G BINDINGCharacteristics of system2. 2 M2. 3 Main-Menu Function2. 4 EPA2. 5 D/R2. S_TRIM. REV. . . . . . ATS. BR_MIX.....19.20 RESET.2 M_RES.2 IMER3.1 Trim ADJ.3.2 Handling Procedure For Batteries3.3 Connection between Receiver and ServosTechnology Data12345778899101213141617171819192020202122232424R/C Introduction Manual

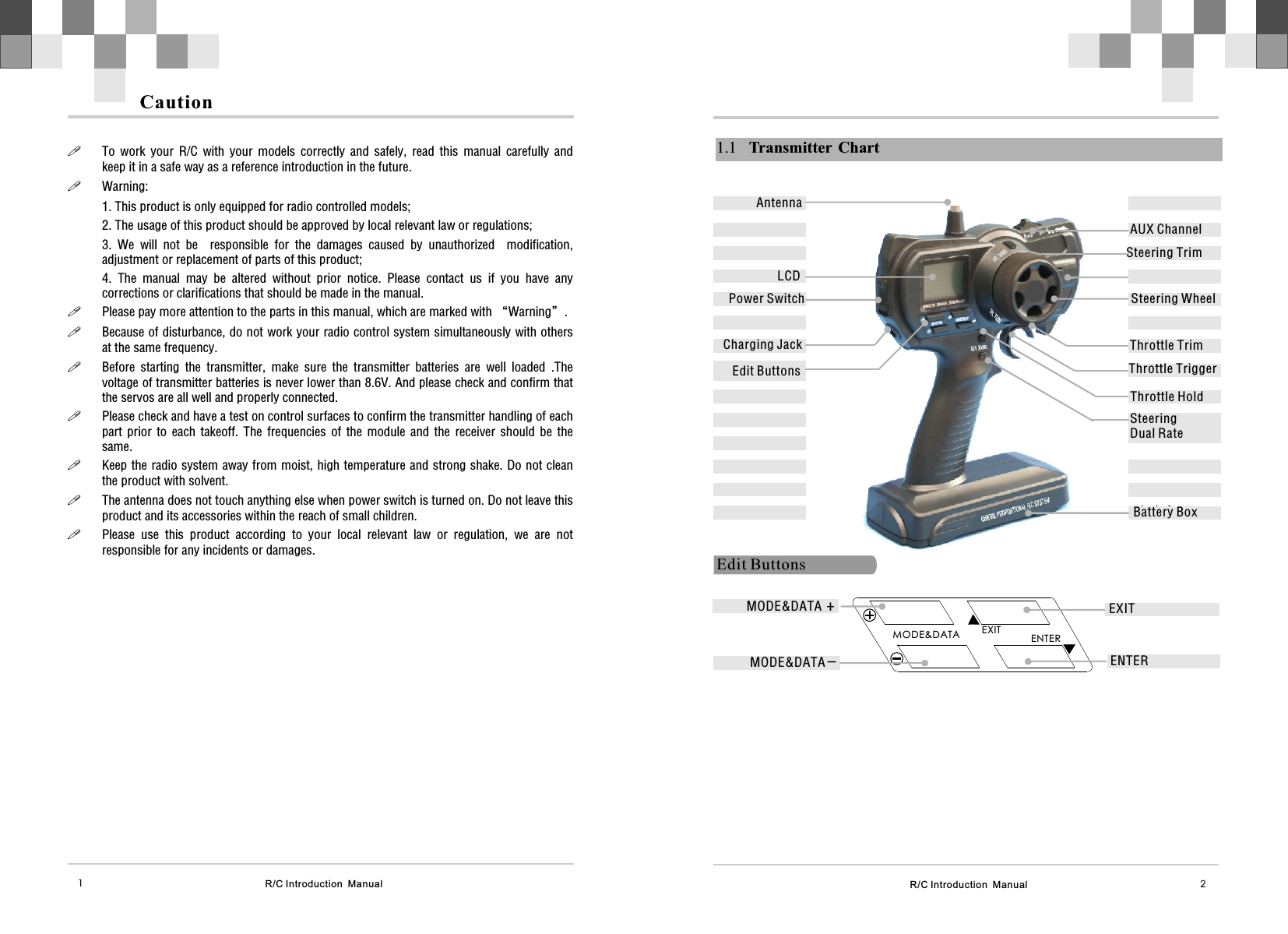

R/C Introduction Manual 21.1 Transmitter ChartSteering WheelThrottle TrimSteering TrimThrottle Trigger电池仓Edit ButtonsAUX ChannelSteering Dual RateEdit Buttons EXITENTERMODE&DATAEXITENTERBattery BoxMODE&DATA +MODE&DATA –AntennaLCDThrottle Hold Power SwitchCharging JackR/C Introduction Manual1Caution!To work your R/C with your models correctly and safely, read this manual carefully and keep it in a safe way as a reference introduction in the future. !Warning:1. This product is only equipped for radio controlled models;2. The usage of this product should be approved by local relevant law or regulations;3. We will not be responsible for the damages caused by unauthorized modification, adjustment or replacement of parts of this product;4. The manual may be altered without prior notice. Please contact us if you have any corrections or clarifications that should be made in the manual.!Please pay more attention to the parts in this manual, which are marked with “Warning”. !Because of disturbance, do not work your radio control system simultaneously with others at the same frequency. !Before starting the transmitter, make sure the transmitter batteries are well loaded .The voltage of transmitter batteries is never lower than 8.6V. And please check and confirm that the servos are all well and properly connected.!Please check and have a test on control surfaces to confirm the transmitter handling of each part prior to each takeoff. The frequencies of the module and the receiver should be the same.!Keep the radio system away from moist, high temperature and strong shake. Do not clean the product with solvent. !The antenna does not touch anything else when power switch is turned on. Do not leave this product and its accessories within the reach of small children.!Please use this product according to your local relevant law or regulation, we are not responsible for any incidents or damages.
43 1.2 2.4G BINDINGR/C Introduction ManualR/C Introduction ManualBINDBIND1. The Binding processingTurn on the transmitter, then connect the power of receiver keeping the receiver "BIND" button till the light turn on GREEN which means the binding is successful. After that, it's unnecessary to bind again. Caution: making sure that the RX and TX within one meter, and around 10 meters no similar device. If the light flashing, showing the binding failure, please do again as above indication.2.1 Characteristics of system F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 1:EPA 2:D/R3:S_TRIM4 : R E V --3 channels End Point Adjustment --Support dual rate function for the STEERING--Sub-trim for THROTTLE channel and STEERING channel--Model names can use up to 5 letters and numbers, so that easily understood names can be set. A model memory with different fine setups can be created by using the model copy function. Sixteen models can be added .--Brake mixing for large cars (BRAKE)Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently.--Anti-skid braking system (A.B.S)This function applies the brakes so that the tires of gasoline engine cars, etc. do not lose their grip on the road even when braking at corners.--SPEEDTH-SPEED：Sudden trigger operation on a slippery road surface will only cause the tires to spin and the model to not accelerate smoothly. By setting the throttle speed function, operation can be performed smoothly and easily. It also suppresses battery consumption. ST-SPEED：When you sense that the steering servo is too fast, etc., the servo operating speed (direction that suppresses the maximum speed) can be adjusted. --Auto-Start function (ATS)：A pre-set throttle position, less than full throttle, to be used for the initial acceleration off the line without having wheel spin. When the trigger is released, auto-start is turned off and throttle operates normally again. --Racing timer (TIMER)The N-4Q has two timers:Down_Timer and UP_Timer. --Digital trim functionThe current trim position is displayed on the LCD screen. F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 5 : S T C U R V 6 : T H C U R V7:ABS8 : M O D E L F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 1 3 : M I X 1 4 : T H H O L D1 5 : F / S16:NEUTRAL F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 17:SOUND 18:RESET19:M_RES2 0 : T I M E R F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 9 : S P E E D 1 0 : A T S1 1 : M O D U L A T E1 2 : B R _ M I X

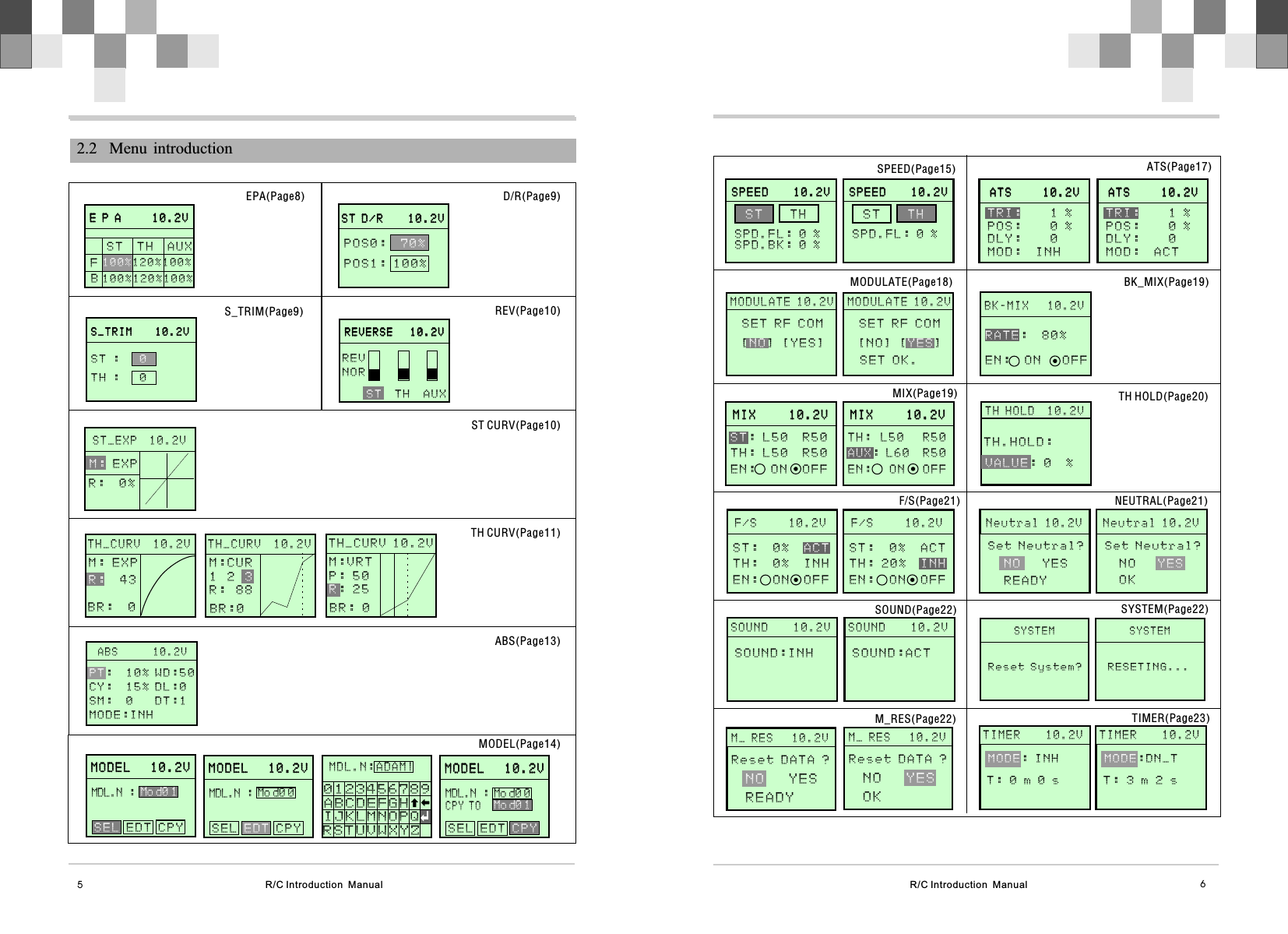

R/C Introduction Manual 6 R/C Introduction Manual5 2.2 Menu introduction E P A 1 0 . 2 V E P A 1 0 . 2 V S T T H A U X 1 20%100 %1 0 0 %FB 100%120%100% S T D / R 1 0 . 2 V S T D / R 1 0 . 2 V POS0: POS1: 100%70% S _TRIM 10 . 2 V S _TRIM 10 . 2 V S T : T H : 0 0 R EVERSE 1 0 . 2 V R EVERSE 1 0 . 2 V TH AUX S TREVNOR S T _ E X P 1 0 . 2 V M : E X P R : 0 % STEERIN G STEERIN G M:0 %H:100%T H _ C U R V 1 0 . 2 VM : E X P 4 3 R :B R : 0 STEERIN G STEERIN G M:0 %H:100%T H _ C U R V 1 0 . 2 VM : C U R1 2 R : 8 8 3B R : 0 STEERIN G STEERIN G M:0 %H:100%TH_CURV 10.2VM : V R TP : 5 0: 2 5RB R : 0 A BS 10.2V W D : 5 0D L : 0D T : 1P T : 1 0 % C Y : 15% S M : 0 M O D E : I N HM O D E L 1 0 . 2 VM O D E L 1 0 . 2 V E D T C P Y SELMDL.N :Mo d0 1M O D E L 1 0 . 2 VM O D E L 1 0 . 2 V E D T C P Y SELMDL.N :Mo d0 1MOL.N: AS T UVWXYZ J K LMNOP Q R 0 1 2 3 4 5 6 7 8 9AB C DE F GH I M D L . N :A D A M |R S T U V W X Y Z I J K L M N O P Q0 1 2 3 4 5 6 7 8 9A B C D E F G H M O D E L 1 0 . 2 VM O D E L 1 0 . 2 VMDL.N :Mo d0 0 S E L C P Y E D TM O D E L 1 0 . 2 VM O D E L 1 0 . 2 VMDL.N :Mo d0 0 S E L E D T C P YC P Y T OMo d0 1EPA(Page8) D/R(Page9)S_TRIM(Page9) REV(Page10)ST CURV(Page10)TH CURV(Page11)ABS(Page13)MODEL(Page14)M I X 1 0 . 2 V M I X 1 0 . 2 V : L 5 0 R 5 0T H : L 5 0 R 5 0E N : O N O F FS T S P E E D 1 0 . 2 V S P E E D 1 0 . 2 V S T T H S P D . F L : 0 %S P D . B K : 0 % S P E E D 1 0 . 2 V S P E E D 1 0 . 2 V S T T H S P D . F L : 0 %A T S 1 0 . 2 V A T S 1 0 . 2 V T R I : 1 %P O S : 0 %D L Y : 0M O D : I N HA T S 1 0 . 2 V A T S 1 0 . 2 V TRI: 1 %P O S : 0 %D L Y : 0M O D : A C T MOD RST M O D U L A T E 1 0 . 2 V S E T R F C O M [ ] [ Y E S ]N O MOD RST M O D U L A T E 1 0 . 2 V S E T R F C O M [ N O ] [ ]Y E SS E T O K .B K - M I X 1 0 . 2 V : 8 0 %E N : O N O F FR A T EM I X 1 0 . 2 V M I X 1 0 . 2 V T H : L 5 0 R 5 0: L 6 0 R 5 0E N : O N O F FAUX F / S 1 0 . 2 VS T : 0 % T H : 0 % I N H E N : O N O F FA C T F / S 1 0 . 2 VS T : 0 % A C T T H : 2 0 % E N : O N O F FINH T H H O L D 1 0 . 2 V VALUE: 0 % T H . H O L D : N e u t r a l 1 0 . 2 VN O Y E SR E A D YSet Neutral? N e u t r a l 1 0 . 2 VN O O KYESSet Neutral? S O U N D 1 0 . 2 V S O U N D : I N H S O U N D 1 0 . 2 V S O U N D : A C T S YSTEM R ESE T ING . . . S YSTEM R ese t S yst e m ? M _ R E S 1 0 . 2 V R e s e t D A T A ? N O Y E SR E A D Y M _ R E S 1 0 . 2 V R e s e t D A T A ? N O O KY E S T I M E R 1 0 . 2 V T : 0 m 0 s MODE: I N H T I M E R 1 0 . 2 V T : 3 m 2 s MODE:DN_T ATS(Page17)BK_MIX(Page19)TH HOLD(Page20)NEUTRAL(Page21)SYSTEM(Page22)TIMER(Page23)SPEED(Page15)MODULATE(Page18)MIX(Page19)F/S(Page21)SOUND(Page22)M_RES(Page22)

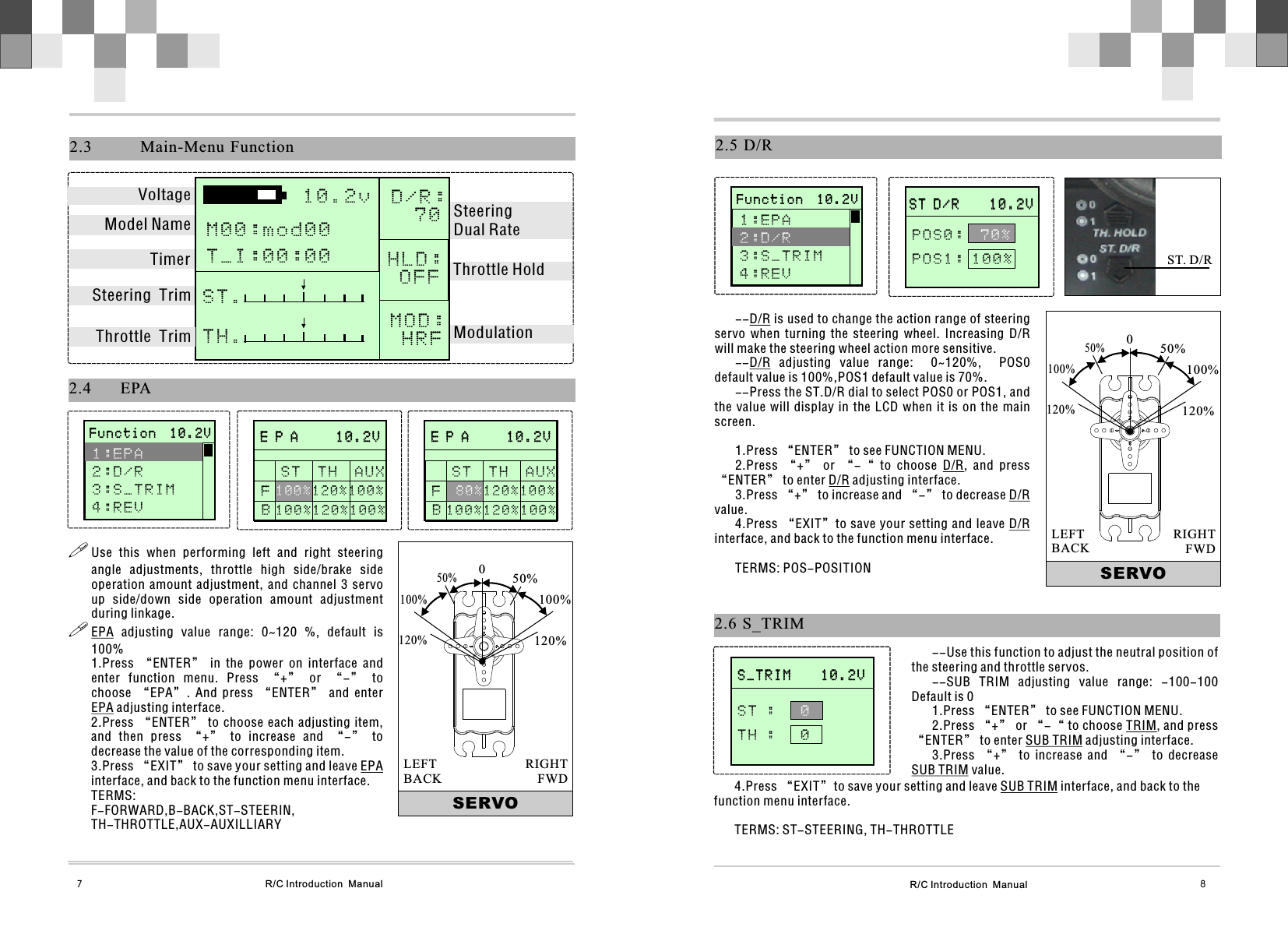

R/C Introduction Manual 8R/C Introduction Manual7 E P A 1 0 . 2 V E P A 1 0 . 2 V S T T H A U X 120%100%1 0 0 %2.4 EPAFB!Use this when performing left and right steering angle adjustments, throttle high side/brake side operation amount adjustment, and channel 3 servo up side/down side operation amount adjustment during linkage.!EPA adjusting value range: 0~120 %, default is 100%1.Press “ENTER” in the power on interface and enter function menu. Press “+” or “-” to choose “EPA”. And press “ENTER” and enter EPA adjusting interface.2.Press “ENTER” to choose each adjusting item, and then press “+” to increase and “-” to decrease the value of the corresponding item.3.Press “EXIT” to save your setting and leave EPA interface, and back to the function menu interface.TERMS: F-FORWARD,B-BACK,ST-STEERIN,TH-THROTTLE,AUX-AUXILLIARYSERVO050%100%120%50%100%120%RIGHTFWDLEFTBACK2.3 Main-Menu Function10.2v D/R: 7 0HLD: O F F MOD: H R FS T . T H . VoltageModel NameTimerSteering TrimThrottle Trim ModulationThrottle HoldSteering Dual RateM00:mod00T_I:00:00 F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 1:EPA 2:D/R3 : S _ T R I M4 : R E V 100%120%100% E P A 1 0 . 2 V E P A 1 0 . 2 V S T T H A U X 120%100%80%FB 1 0 0 % 1 2 0 % 1 0 0 %2.6 S_TRIM S _ T R I M 1 0 . 2 V S _ T R I M 1 0 . 2 V S T : T H : 0 0--Use this function to adjust the neutral position of the steering and throttle servos.--SUB TRIM adjusting value range: -100-100 Default is 01.Press “ENTER” to see FUNCTION MENU.2.Press “+” or “-“ to choose TRIM, and press “ENTER” to enter SUB TRIM adjusting interface.3.Press “+” to increase and “-” to decrease SUB TRIM value.4.Press “EXIT”to save your setting and leave SUB TRIM interface, and back to the function menu interface.TERMS: ST-STEERING, TH-THROTTLE2.5 D/R--D/R is used to change the action range of steering servo when turning the steering wheel. Increasing D/R will make the steering wheel action more sensitive. --D/R adjusting value range: 0~120%, POS0 default value is 100%,POS1 default value is 70%. --Press the ST.D/R dial to select POS0 or POS1, and the value will display in the LCD when it is on the main screen.1.Press “ENTER” to see FUNCTION MENU.2.Press “+” or “-“ to choose D/R, and press “ENTER” to enter D/R adjusting interface.3.Press “+” to increase and “-” to decrease D/R value.4.Press “EXIT”to save your setting and leave D/R interface, and back to the function menu interface.TERMS: POS-POSITION S T D / R 1 0 . 2 V S T D / R 1 0 . 2 V POS0: POS1: 100%70%SERVO050%100%120%50%100%120%RIGHTFWDLEFTBACKST. D/R F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 1 : E P A 3 : S _ T R I M4 : R E V 2:D/R

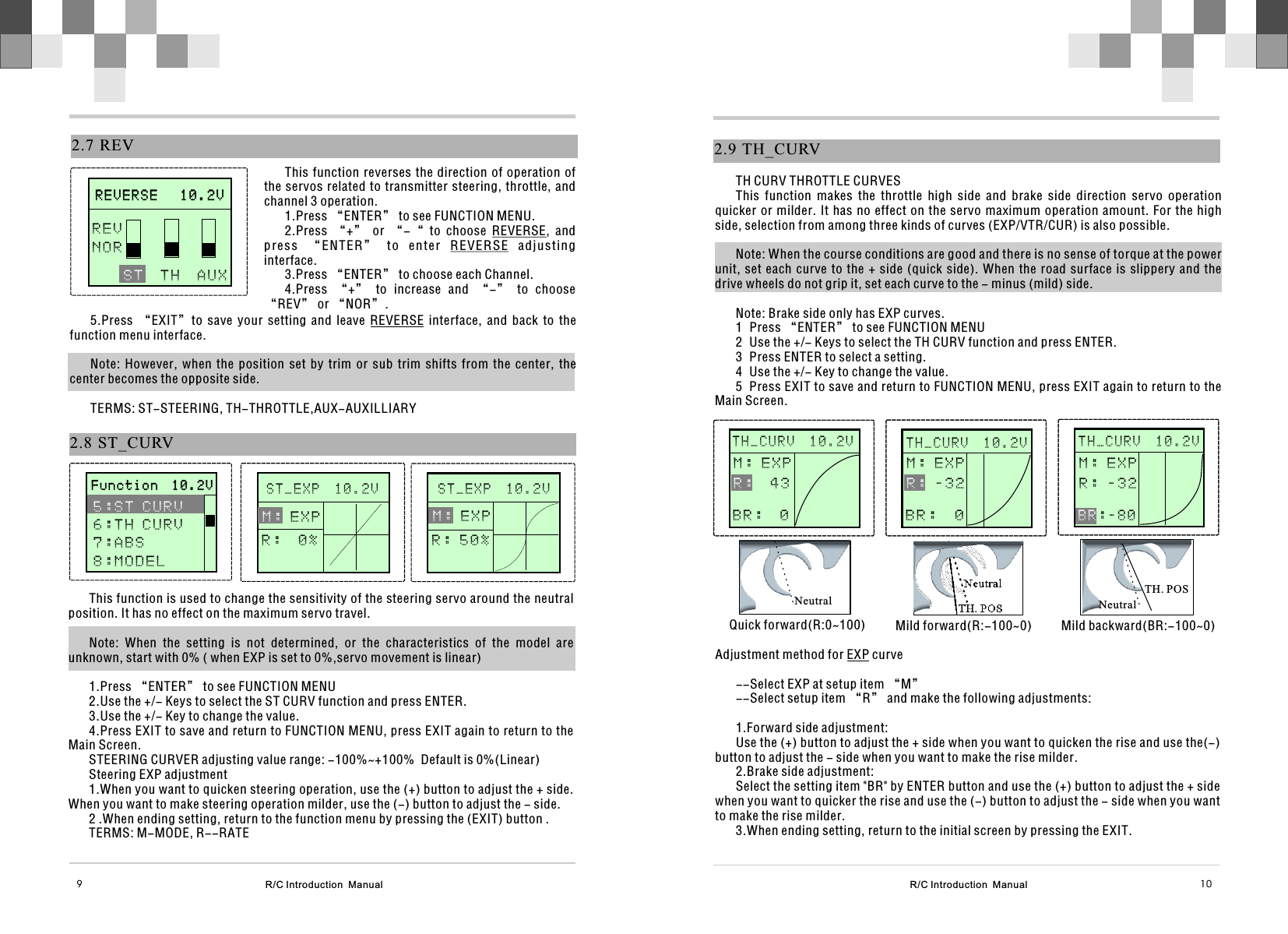

2.9 TH_CURVTH CURV THROTTLE CURVESThis function makes the throttle high side and brake side direction servo operation quicker or milder. It has no effect on the servo maximum operation amount. For the high side, selection from among three kinds of curves (EXP/VTR/CUR) is also possible. Note: When the course conditions are good and there is no sense of torque at the power unit, set each curve to the + side (quick side). When the road surface is slippery and the drive wheels do not grip it, set each curve to the - minus (mild) side.Note: Brake side only has EXP curves.1 Press “ENTER” to see FUNCTION MENU2 Use the +/- Keys to select the TH CURV function and press ENTER.3 Press ENTER to select a setting.4 Use the +/- Key to change the value.5 Press EXIT to save and return to FUNCTION MENU, press EXIT again to return to the Main Screen. STEERIN G STEERIN G M:0 %H:100%T H _ C U R V 1 0 . 2 VM : E X P 4 3 R :B R : 0 STEERIN G STEERIN G M:0 %H:100%T H _ C U R V 1 0 . 2 VNeutralNeutralQuick forward(R:0~100) Mild forward(R:-100~0) STEERIN G STEERIN G M:0 %H:100%T H _ C U R V 1 0 . 2 VNeutralMild backward(BR:-100~0)TH. POSTH. POSAdjustment method for EXP curve--Select EXP at setup item “M”--Select setup item “R” and make the following adjustments:1.Forward side adjustment:Use the (+) button to adjust the + side when you want to quicken the rise and use the(-) button to adjust the - side when you want to make the rise milder.2.Brake side adjustment:Select the setting item "BR" by ENTER button and use the (+) button to adjust the + side when you want to quicker the rise and use the (-) button to adjust the - side when you want to make the rise milder.3.When ending setting, return to the initial screen by pressing the EXIT.M : E X P - 3 2 R :B R : 0M : E X PR : - 3 2 : - 8 0B RR/C Introduction Manual 10R/C Introduction Manual 9This function is used to change the sensitivity of the steering servo around the neutral position. It has no effect on the maximum servo travel.Note: When the setting is not determined, or the characteristics of the model are unknown, start with 0% ( when EXP is set to 0%,servo movement is linear)1.Press “ENTER” to see FUNCTION MENU2.Use the +/- Keys to select the ST CURV function and press ENTER.3.Use the +/- Key to change the value.4.Press EXIT to save and return to FUNCTION MENU, press EXIT again to return to the Main Screen.STEERING CURVER adjusting value range: -100%~+100% Default is 0%(Linear)Steering EXP adjustment1.When you want to quicken steering operation, use the (+) button to adjust the + side. When you want to make steering operation milder, use the (-) button to adjust the - side.2 .When ending setting, return to the function menu by pressing the (EXIT) button .TERMS: M-MODE, R--RATE2.7 REVThis function reverses the direction of operation of the servos related to transmitter steering, throttle, and channel 3 operation.1.Press “ENTER” to see FUNCTION MENU.2.Press “+” or “-“ to choose REVERSE, and press “E NTER” to enter REVERSE adjusti ng interface.3.Press “ENTER” to choose each Channel.4.Press “+” to increase and “-” to choose “REV” or “NOR”. R E V E R S E 1 0 . 2 V R E V E R S E 1 0 . 2 V T H A U X S TREVNOR5.Press “EXIT”to save your setting and leave REVERSE interface, and back to the function menu interface.Note: However, when the position set by trim or sub trim shifts from the center, the center becomes the opposite side.TERMS: ST-STEERING, TH-THROTTLE,AUX-AUXILLIARY2.8 ST_CURV S T _ E X P 1 0 . 2 V M : E X P R : 0 % S T _ E X P 1 0 . 2 V F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 5 : S T C U R V 6 : T H C U R V7:ABS8 : M O D E L M : E X P R : 5 0 %

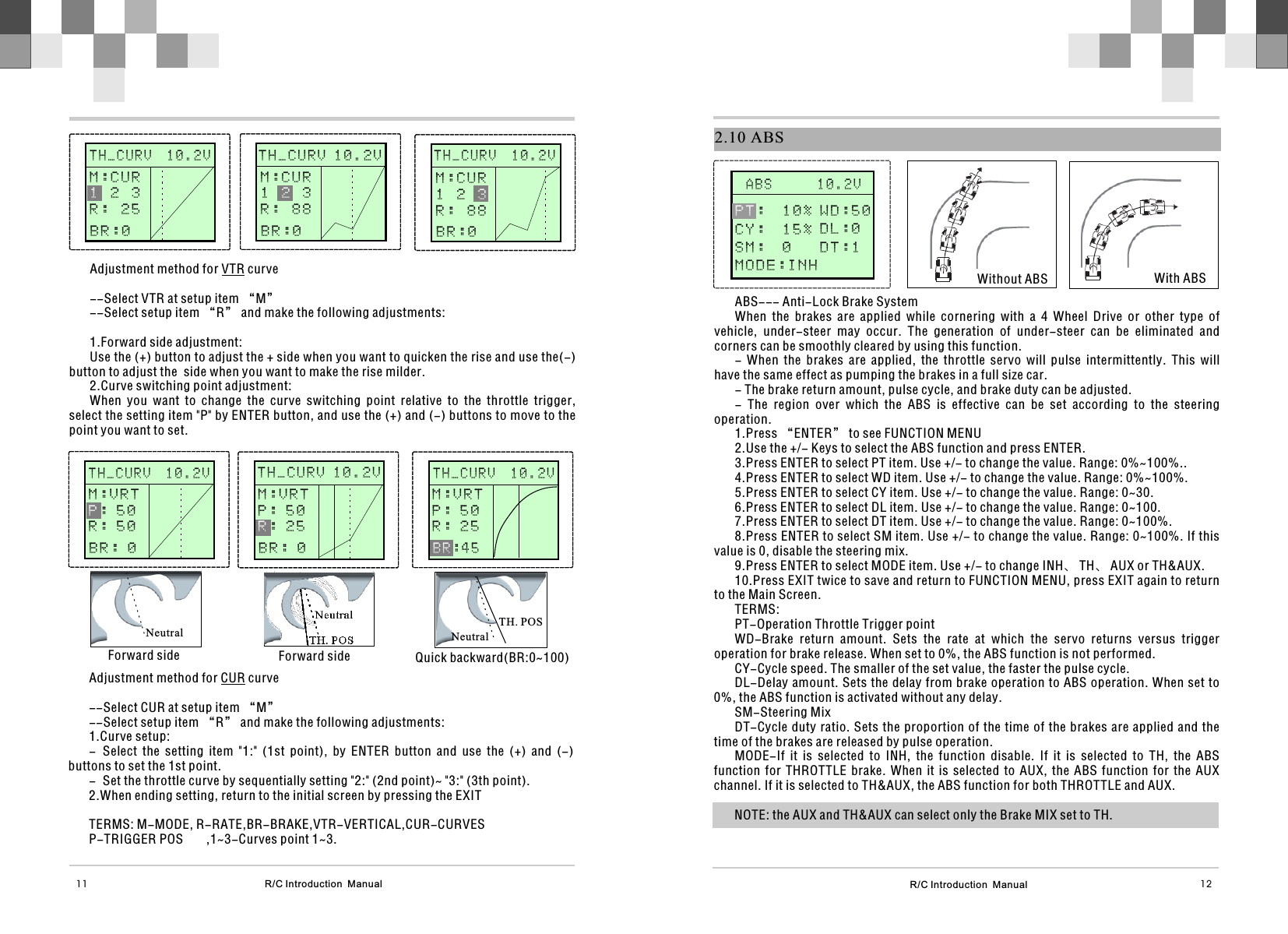

R/C Introduction Manual 12R/C Introduction Manual11Adjustment method for VTR curve--Select VTR at setup item “M”--Select setup item “R” and make the following adjustments:1.Forward side adjustment:Use the (+) button to adjust the + side when you want to quicken the rise and use the(-) button to adjust the side when you want to make the rise milder.2.Curve switching point adjustment:When you want to change the curve switching point relative to the throttle trigger, select the setting item "P" by ENTER button, and use the (+) and (-) buttons to move to the point you want to set.Adjustment method for CUR curve--Select CUR at setup item “M”--Select setup item “R” and make the following adjustments:1.Curve setup:- Select the setting item "1:" (1st point), by ENTER button and use the (+) and (-) buttons to set the 1st point. - Set the throttle curve by sequentially setting "2:" (2nd point)~ "3:" (3th point).2.When ending setting, return to the initial screen by pressing the EXITTERMS: M-MODE, R-RATE,BR-BRAKE,VTR-VERTICAL,CUR-CURVES P-TRIGGER POS ,1~3-Curves point 1~3. STEERIN G STEERIN G M:0 %H:100% T H _ C U R V 1 0 . 2 V M:CUR 2 3R : 25 1BR:0 STEERIN G STEERIN G STEERIN G STEERIN G M:0 %H:100% STEERIN G STEERIN G M:0 %H:100%M:VRT: 5 0R : 5 0PB R : 0 STEERIN G STEERIN G M:0 %H:100%NeutralNeutralForward side Forward sideTH. POS STEERIN G STEERIN G NeutralQuick backward(BR:0~100)TH. POSTH_CURV 10.2VT H _ C U R V 1 0 . 2 VM:CUR1 3R : 88 2BR:0M:CUR1 2 R : 88 3BR:0 T H _ C U R V 1 0 . 2 V TH_CURV 10.2VT H _ C U R V 1 0 . 2 VM:VRTP : 5 0: 2 5RB R : 0M:VRTP : 5 0R : 2 5: 4 5B R 2.10 ABS A B S 1 0 . 2 V Without ABS With ABSABS--- Anti-Lock Brake SystemWhen the brakes are applied while cornering with a 4 Wheel Drive or other type of vehicle, under-steer may occur. The generation of under-steer can be eliminated and corners can be smoothly cleared by using this function.- When the brakes are applied, the throttle servo will pulse intermittently. This will have the same effect as pumping the brakes in a full size car.- The brake return amount, pulse cycle, and brake duty can be adjusted.- The region over which the ABS is effective can be set according to the steering operation.1.Press “ENTER” to see FUNCTION MENU2.Use the +/- Keys to select the ABS function and press ENTER.3.Press ENTER to select PT item. Use +/- to change the value. Range: 0%~100%..4.Press ENTER to select WD item. Use +/- to change the value. Range: 0%~100%.5.Press ENTER to select CY item. Use +/- to change the value. Range: 0~30.6.Press ENTER to select DL item. Use +/- to change the value. Range: 0~100.7.Press ENTER to select DT item. Use +/- to change the value. Range: 0~100%.8.Press ENTER to select SM item. Use +/- to change the value. Range: 0~100%. If this value is 0, disable the steering mix.9.Press ENTER to select MODE item. Use +/- to change INH、 TH、 AUX or TH&AUX.10.Press EXIT twice to save and return to FUNCTION MENU, press EXIT again to return to the Main Screen.TERMS:PT-Operation Throttle Trigger pointWD-Brake return amount. Sets the rate at which the servo returns versus trigger operation for brake release. When set to 0%, the ABS function is not performed.CY-Cycle speed. The smaller of the set value, the faster the pulse cycle.DL-Delay amount. Sets the delay from brake operation to ABS operation. When set to 0%, the ABS function is activated without any delay.SM-Steering MixDT-Cycle duty ratio. Sets the proportion of the time of the brakes are applied and the time of the brakes are released by pulse operation.MODE-If it is selected to INH, the function disable. If it is selected to TH, the ABS function for THROTTLE brake. When it is selected to AUX, the ABS function for the AUX channel. If it is selected to TH&AUX, the ABS function for both THROTTLE and AUX.NOTE: the AUX and TH&AUX can select only the Brake MIX set to TH.WD:50DL:0DT:1PT: 1 0 % C Y : 1 5 % S M : 0 MODE:INH

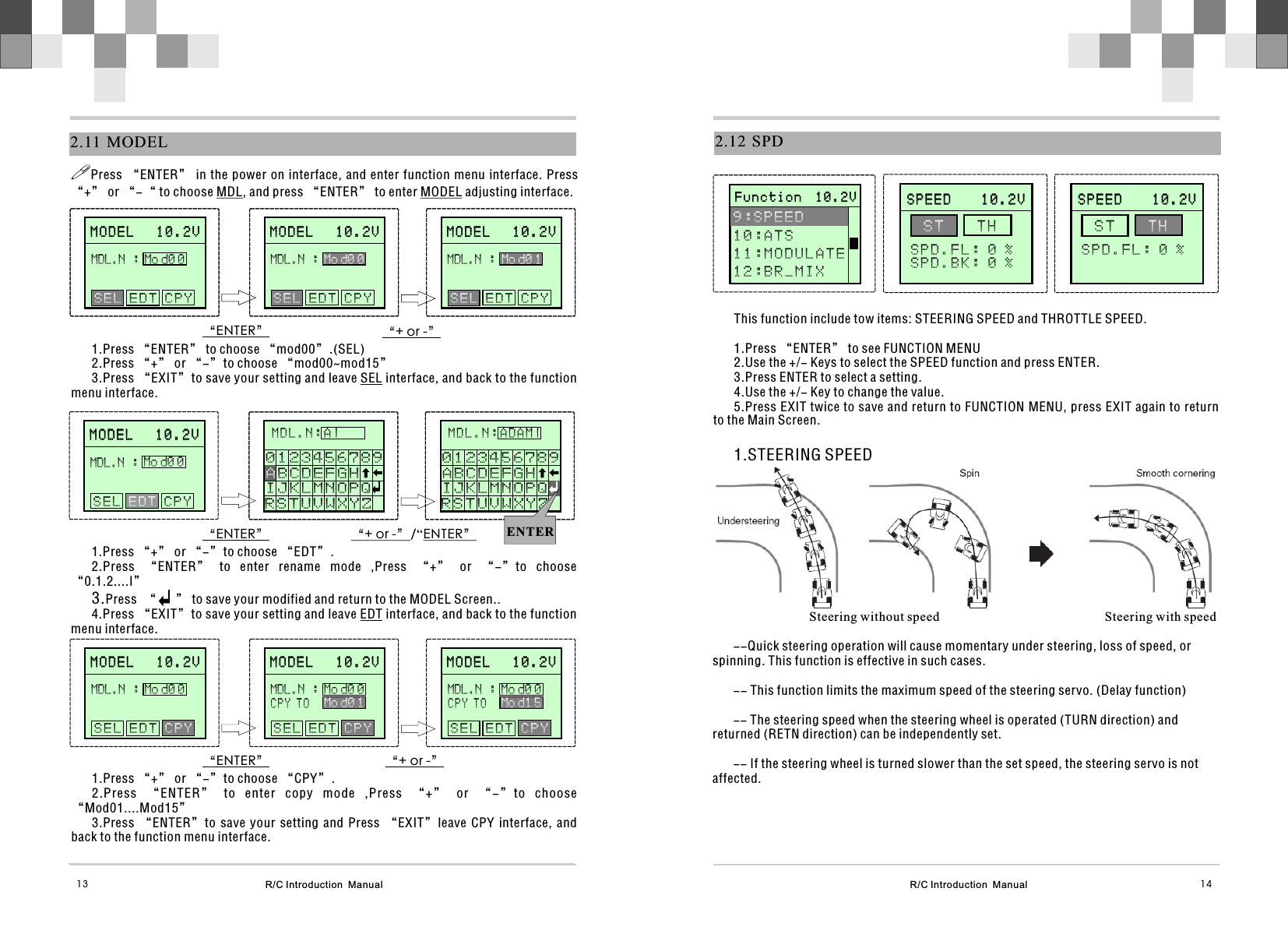

R/C Introduction Manual 14R/C Introduction Manual132.11 MODELM O D E L 1 0 . 2 VM O D E L 1 0 . 2 V E D T C P Y SELMDL.N :Mo d0 0“ENTER” “+ or -”!Press “ENTER” in the power on interface, and enter function menu interface. Press “+” or “-“ to choose MDL, and press “ENTER” to enter MODEL adjusting interface.1.Press “ENTER” to choose “mod00”.(SEL)2.Press “+” or “-”to choose “mod00~mod15”3.Press “EXIT”to save your setting and leave SEL interface, and back to the function menu interface.MOL.N: A“ENTER” “+ or -”/“ENTER”1.Press “+” or “-”to choose “EDT”.2.Press “ENTER” to enter rename mode ,Press “+” or “-”to choose “0.1.2....I”3.Press “ ” to save your modified and return to the MODEL Screen..4.Press “EXIT”to save your setting and leave EDT interface, and back to the function menu interface.S T UVWXYZ J K LMNOP Q R 0 1 2 3 4 5 6 7 8 9AB C DE F GH I M D L . N :A |R S T U V W X Y Z IJKLMNOPQ0 1 2 3 4 5 6 7 8 9AB C D E F G H “ENTER” “+ or -”1.Press “+” or “-”to choose “CPY”.2.Press “ENTER” to enter copy mode ,Press “+” or “-”to choose “Mod01....Mod15”3.Press “ENTER”to save your setting and Press “EXIT”leave CPY interface, and back to the function menu interface.MODEL 10.2VMODEL 10.2V E D T C P Y SELMDL.N :Mo d0 0M O D E L 1 0 . 2 VM O D E L 1 0 . 2 V E D T C P Y SELMDL.N :Mo d0 1MODEL 10.2VMODEL 10.2VMDL.N :Mo d0 0 S E L C P Y E D TMOL.N: AS T UVWXYZ J K LMNOP Q R 0 1 2 3 4 5 6 7 8 9AB C DE F GH I M D L . N :ADAM|R S T U V W X Y Z IJKLMNOPQ0 1 2 3 4 5 6 7 8 9A B C D E F G H ENTERM O D E L 1 0 . 2 VM O D E L 1 0 . 2 V E D T C P Y SELMDL.N :Mo d0 0MODEL 10.2VMODEL 10.2V E D T C P Y SELMDL.N :Mo d0 0M O D E L 1 0 . 2 VM O D E L 1 0 . 2 V E D T C P Y SELMDL.N :Mo d0 1M O D E L 1 0 . 2 VM O D E L 1 0 . 2 VMDL.N :Mo d0 0MODEL 10.2VMODEL 10.2VMDL.N :Mo d0 0M O D E L 1 0 . 2 VM O D E L 1 0 . 2 V S E L E D T CPY S E L E D T C P Y S E L E D T CPYC P Y T OMo d0 1MDL.N :Mo d0 0C P Y T OMo d1 52.12 SPDThis function include tow items: STEERING SPEED and THROTTLE SPEED.1.Press “ENTER” to see FUNCTION MENU2.Use the +/- Keys to select the SPEED function and press ENTER.3.Press ENTER to select a setting.4.Use the +/- Key to change the value.5.Press EXIT twice to save and return to FUNCTION MENU, press EXIT again to return to the Main Screen.1.STEERING SPEED S P E E D 1 0 . 2 V S P E E D 1 0 . 2 V S T T H SPD.FL: 0 %SPD.BK: 0 % Steering without speed Steering with speed--Quick steering operation will cause momentary under steering, loss of speed, or spinning. This function is effective in such cases.-- This function limits the maximum speed of the steering servo. (Delay function) -- The steering speed when the steering wheel is operated (TURN direction) and returned (RETN direction) can be independently set.-- If the steering wheel is turned slower than the set speed, the steering servo is not affected. F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 9 : S P E E D 1 0 : A T S11:MODULATE1 2 : B R _ M I X S P E E D 1 0 . 2 V S P E E D 1 0 . 2 V S T T H S P D . F L : 0 %

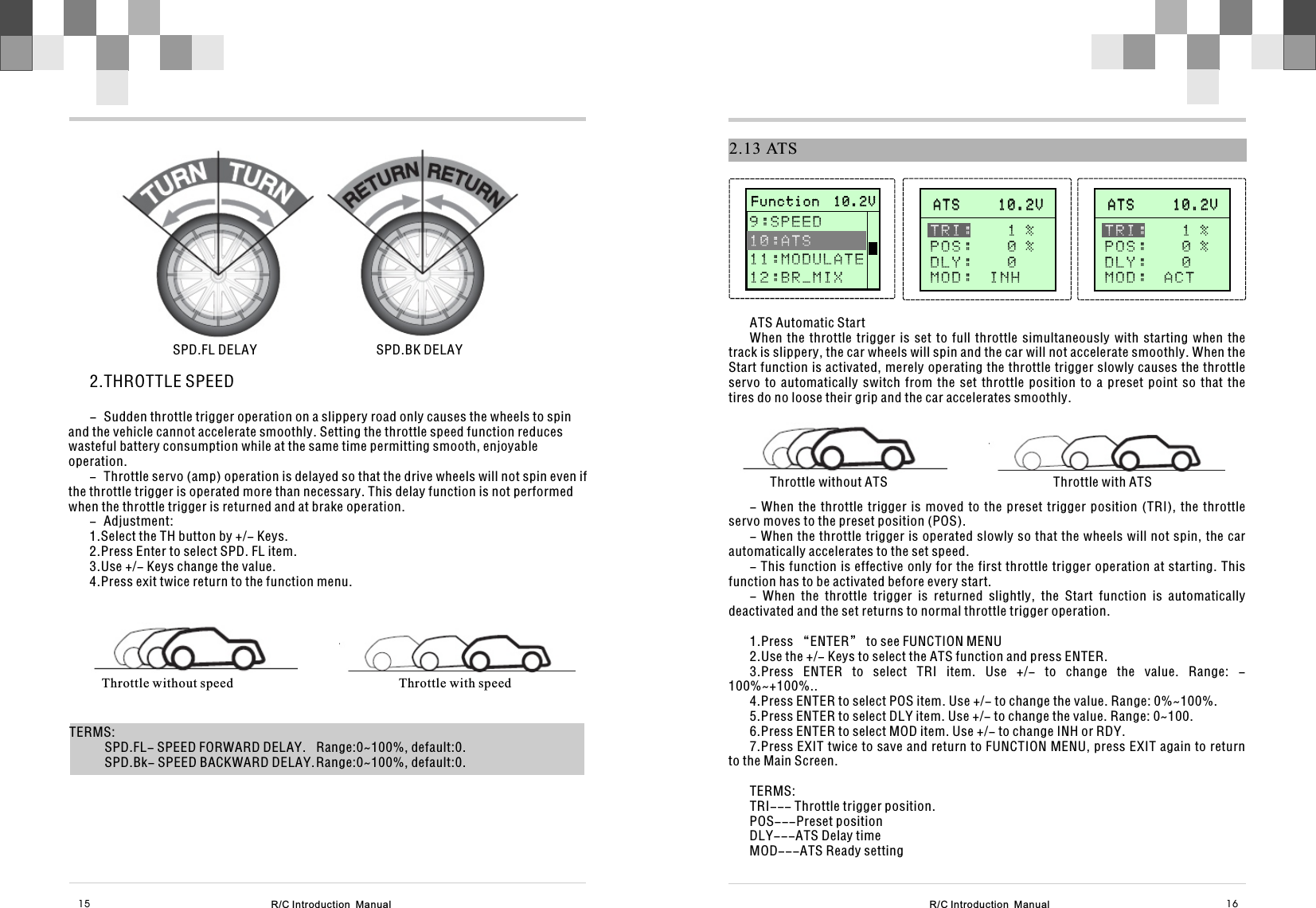

2.13 ATSATS Automatic StartWhen the throttle trigger is set to full throttle simultaneously with starting when the track is slippery, the car wheels will spin and the car will not accelerate smoothly. When the Start function is activated, merely operating the throttle trigger slowly causes the throttle servo to automatically switch from the set throttle position to a preset point so that the tires do no loose their grip and the car accelerates smoothly.Throttle without ATS Throttle with ATS- When the throttle trigger is moved to the preset trigger position (TRI), the throttle servo moves to the preset position (POS).- When the throttle trigger is operated slowly so that the wheels will not spin, the car automatically accelerates to the set speed.- This function is effective only for the first throttle trigger operation at starting. This function has to be activated before every start.- When the throttle trigger is returned slightly, the Start function is automatically deactivated and the set returns to normal throttle trigger operation.1.Press “ENTER” to see FUNCTION MENU2.Use the +/- Keys to select the ATS function and press ENTER.3.Press ENTER to select TRI item. Use +/- to change the value. Range: -100%~+100%..4.Press ENTER to select POS item. Use +/- to change the value. Range: 0%~100%.5.Press ENTER to select DLY item. Use +/- to change the value. Range: 0~100.6.Press ENTER to select MOD item. Use +/- to change INH or RDY.7.Press EXIT twice to save and return to FUNCTION MENU, press EXIT again to return to the Main Screen.TERMS:TRI--- Throttle trigger position.POS---Preset positionDLY---ATS Delay timeMOD---ATS Ready settingA T S 1 0 . 2 V A T S 1 0 . 2 V TRI: 1 %P O S : 0 %D L Y : 0MOD: INH F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 9 : S P E E D 1 1 : M O D U L A T E1 2 : B R _ M I X 1 0 : A T SA T S 1 0 . 2 V A T S 1 0 . 2 V TRI: 1 %P O S : 0 %D L Y : 0MOD: ACT R/C Introduction Manual R/C Introduction Manual 16152.THROTTLE SPEED- Sudden throttle trigger operation on a slippery road only causes the wheels to spin and the vehicle cannot accelerate smoothly. Setting the throttle speed function reduces wasteful battery consumption while at the same time permitting smooth, enjoyable operation.- Throttle servo (amp) operation is delayed so that the drive wheels will not spin even if the throttle trigger is operated more than necessary. This delay function is not performed when the throttle trigger is returned and at brake operation.- Adjustment:1.Select the TH button by +/- Keys.2.Press Enter to select SPD. FL item.3.Use +/- Keys change the value.4.Press exit twice return to the function menu.SPD.FL DELAY SPD.BK DELAYThrottle without speed Throttle with speedTERMS:SPD.FL- SPEED FORWARD DELAY. Range:0~100%, default:0.SPD.Bk- SPEED BACKWARD DELAY.Range:0~100%, default:0.

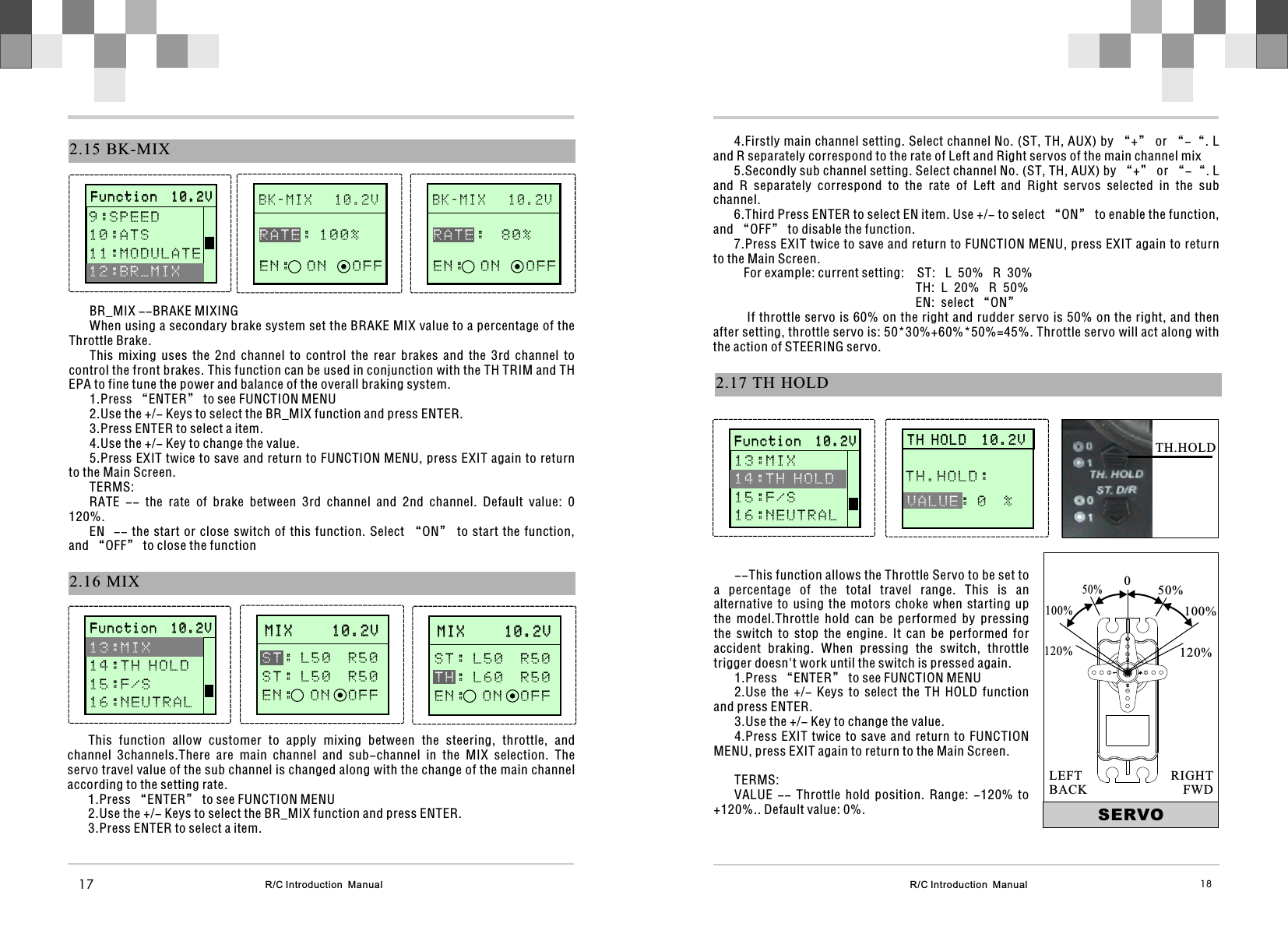

R/C Introduction Manual 182.17 TH HOLD4.Firstly main channel setting. Select channel No. (ST, TH, AUX) by “+” or “-“. L and R separately correspond to the rate of Left and Right servos of the main channel mix5.Secondly sub channel setting. Select channel No. (ST, TH, AUX) by “+” or “-“. L and R separately correspond to the rate of Left and Right servos selected in the sub channel.6.Third Press ENTER to select EN item. Use +/- to select “ON” to enable the function, and “OFF” to disable the function.7.Press EXIT twice to save and return to FUNCTION MENU, press EXIT again to return to the Main Screen. For example: current setting: ST: L 50% R 30% TH: L 20% R 50% EN: select “ON” If throttle servo is 60% on the right and rudder servo is 50% on the right, and then after setting, throttle servo is: 50*30%+60%*50%=45%. Throttle servo will act along with the action of STEERING servo. T H H O L D 1 0 . 2 V T H H O L D 1 0 . 2 V VALUE: 0 % TH.HOLD: --This function allows the Throttle Servo to be set to a percentage of the total travel range. This is an alternative to using the motors choke when starting up the model.Throttle hold can be performed by pressing the switch to stop the engine. It can be performed for accident braking. When pressing the switch, throttle trigger doesn't work until the switch is pressed again.1.Press “ENTER” to see FUNCTION MENU2.Use the +/- Keys to select the TH HOLD function and press ENTER.3.Use the +/- Key to change the value.4.Press EXIT twice to save and return to FUNCTION MENU, press EXIT again to return to the Main Screen.TERMS:VALUE -- Throttle hold position. Range: -120% to +120%.. Default value: 0%. SERVO050%100%120%50%100%120%RIGHTFWDLEFTBACKTH.HOLD2.16 MIXM I X 1 0 . 2 V M I X 1 0 . 2 V : L 5 0 R 5 0S T : L 5 0 R 5 0E N : ON OF FS TR/C Introduction Manual17B K - M I X 1 0 . 2 V 2.15 BK-MIX : 1 0 0 %E N : O N O F FRATEBR_MIX --BRAKE MIXINGWhen using a secondary brake system set the BRAKE MIX value to a percentage of the Throttle Brake.This mixing uses the 2nd channel to control the rear brakes and the 3rd channel to control the front brakes. This function can be used in conjunction with the TH TRIM and TH EPA to fine tune the power and balance of the overall braking system.1.Press “ENTER” to see FUNCTION MENU2.Use the +/- Keys to select the BR_MIX function and press ENTER.3.Press ENTER to select a item.4.Use the +/- Key to change the value.5.Press EXIT twice to save and return to FUNCTION MENU, press EXIT again to return to the Main Screen.TERMS:RATE -- the rate of brake between 3rd channel and 2nd channel. Default value: 0 120%.EN -- the start or close switch of this function. Select “ON” to start the function, and “OFF” to close the functionThis function allow customer to apply mixing between the steering, throttle, and channel 3channels.There are main channel and sub-channel in the MIX selection. The servo travel value of the sub channel is changed along with the change of the main channel according to the setting rate.1.Press “ENTER” to see FUNCTION MENU2.Use the +/- Keys to select the BR_MIX function and press ENTER.3.Press ENTER to select a item. F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 9 : S P E E D 1 0 : A T S1 1 : M O D U L A T E 12:BR_MIXB K - M I X 1 0 . 2 V : 8 0 %E N : O N O F FRATE F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 1 3 : M I X 1 4 : T H H O L D1 5 : F / S1 6 : N E U T R A L M I X 1 0 . 2 V M I X 1 0 . 2 V S T : L 5 0 R 5 0: L 6 0 R 5 0E N : ON OF FT H F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 13:MIX 15:F/S1 6 : N E U T R A L 1 4 : T H H O L D
R/C Introduction Manual 202.20 SOUNDThis function can open or close the buzzer sounding.1.Press “ENTER” to see FUNCTION MENU2.Use the +/- Keys to select the SOUND function and press ENTER.3.Use the +/- Keys to select INH or ACT.4.Press EXIT twice to save and return to FUNCTION MENU, press EXIT again to return to the Main Screen S O U N D 1 0 . 2 V S O U N D 1 0 . 2 V SOUND:INH SOUND:INH S Y S T E M Reset System?2.21 RESET--All the setting in the system will be reset to the default values by this reset function. It takes about 30 seconds.1.Press “ENTER” to see FUNCTION MENU.2.Use the +/- Keys to select the RESET function and press ENTER.3.Press ENTER to reset the N-4Q memory.4.Press“ EXIT”twic e to save and retur n to FUNCTION MENU, press EXIT again to return to the Main Screen.2.22 MODEL RESET M _ R E S 1 0 . 2 V Reset DATA ? N O Y E SR E A D YThis function will reset the data of the current model memory to default values. 1.Press “ENTER” to see FUNCTION MENU2.Use the +/- Keys to select the M_RES function and press ENTER.3.Use the +/- Keys to select YES4.Press ENTER to reset the data5.Press EXIT twice to save and return to FUNCTION MENU, press EXIT again to return to the Main Screen R/C Introduction Manual2.18 F/S19This function does not work in PPM mode. If the RF signal loss ,it should occur the receiver adjust the Steering or Throttle or both to a preset value. The servo value of Steering channel and Throttle channel in the fail status can be set through fail safe function.1.Press “ENTER” to see FUNCTION MENU2.Use the +/- Keys to select the F/S function and press ENTER.3.Press ENTER to select a item.4.Use the +/- Key to change the value.5.Press EXIT twice to save and return to FUNCTION MENU, press EXIT again to return to the Main Screen.TERMS:ST -- To set the servo value of Steering channel. Range -120% to +120%. Default: 0%. INH disable this channel Fail Save function. ACT---enable. F / S 1 0 . 2 VS T : 0 % T H : 0 % I N H E N : O N O F FA C T2.19 NEUTRALThis function can calibrate the neutral of the STEERING wheel or THROTTLE trigger.1.Press “ENTER” to see FUNCTION MENU2.Use the +/- Keys to select the NEUTRAL function and press ENTER.3.Use the +/- Keys to select YES.4.Press ENTER to calibrate the neutral.5.Press EXIT twice to save and return to FUNCTION MENU, press EXIT again to return to the Main ScreenNote: Don't movement the STEERING wheel or THROTTLE trigger in the calibrate procedure. N e u t r a l 1 0 . 2 VN O Y E SREADYSet Neutral? F u n c t i o n 1 0 . 2 V 13:MIX 1 4 : T H H O L D16:NEUTRAL 15:F/S F / S 1 0 . 2 VS T : 0% A C T T H : 2 0 % E N : ON O F FINH F u n c t i o n 1 0 . 2 V 1 3 : M I X 1 4 : T H H O L D1 5 : F / S 16:NEUTRAL N e u t r a l 1 0 . 2 VN O O KYESSet Neutral? F u n c t i o n 1 0 . 2 V F u n c t i o n 1 0 . 2 V 1 7 : S O U N D 1 8 : R E S E T1 9 : M _ R E S2 0 : T I M E R S O U N D 1 0 . 2 V S O U N D 1 0 . 2 V SOUND:ACT SOUND:ACT F u n c t i o n 1 0 . 2 V 1 7 : S O U N D 1 8 : R E S E T2 0 : T I M E R 1 9 : M _ R E S M _ R E S 1 0 . 2 V Reset DATA ? N O O KY E S

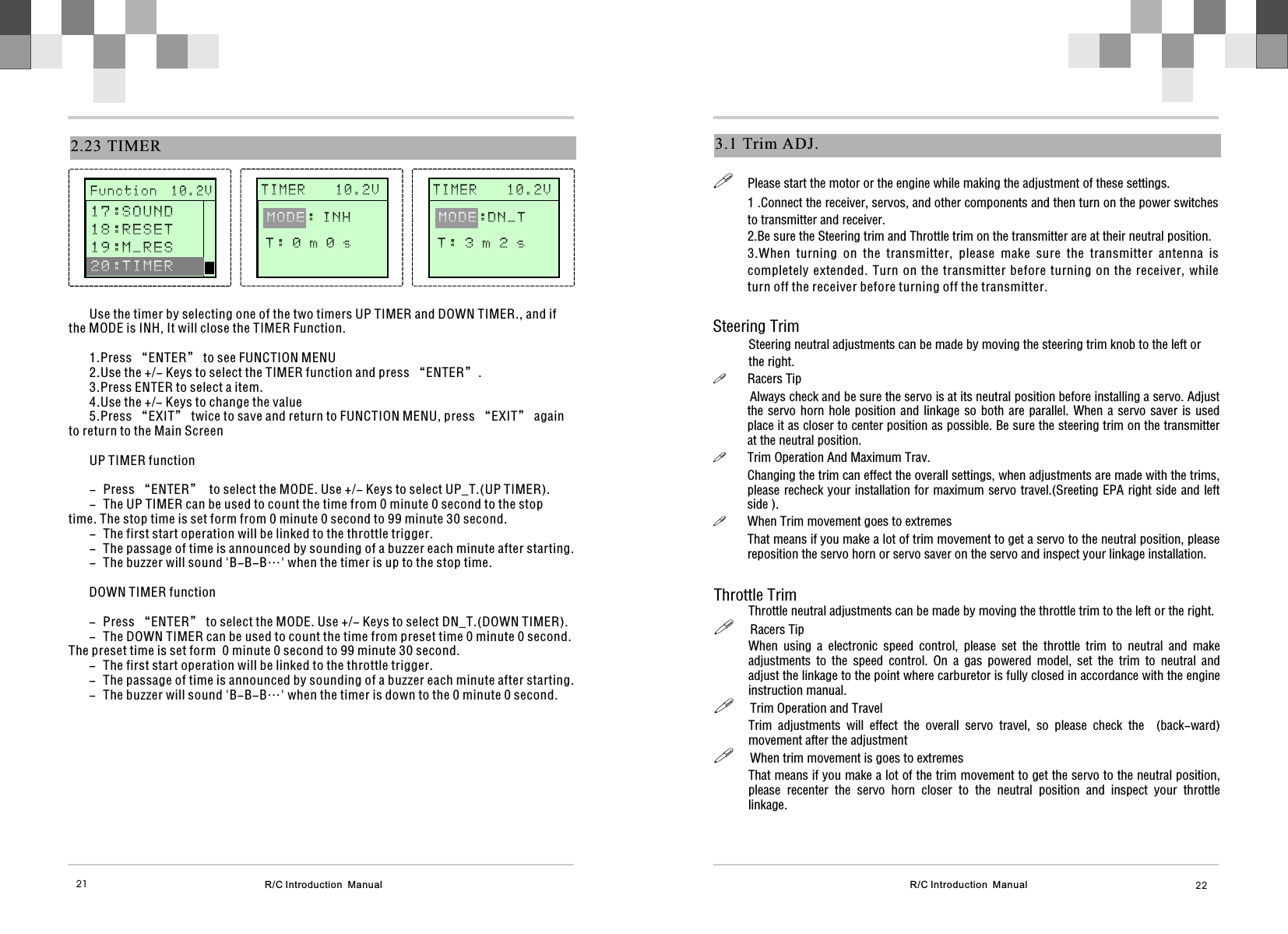

R/C Introduction Manual 223.1 Trim ADJ.!Please start the motor or the engine while making the adjustment of these settings.1 .Connect the receiver, servos, and other components and then turn on the power switches to transmitter and receiver.2.Be sure the Steering trim and Throttle trim on the transmitter are at their neutral position.3.When turning on the transmitter, please make sure the transmitter antenna is completely extended. Turn on the transmitter before turning on the receiver, while turn off the receiver before turning off the transmitter. Steering Trim Steering neutral adjustments can be made by moving the steering trim knob to the left or the right.!Racers Tip Always check and be sure the servo is at its neutral position before installing a servo. Adjust the servo horn hole position and linkage so both are parallel. When a servo saver is used place it as closer to center position as possible. Be sure the steering trim on the transmitter at the neutral position.!Trim Operation And Maximum Trav.Changing the trim can effect the overall settings, when adjustments are made with the trims, please recheck your installation for maximum servo travel.(Sreeting EPA right side and left side ).!When Trim movement goes to extremesThat means if you make a lot of trim movement to get a servo to the neutral position, please reposition the servo horn or servo saver on the servo and inspect your linkage installation.Throttle TrimThrottle neutral adjustments can be made by moving the throttle trim to the left or the right.! Racers Tip When using a electronic speed control, please set the throttle trim to neutral and make adjustments to the speed control. On a gas powered model, set the trim to neutral and adjust the linkage to the point where carburetor is fully closed in accordance with the engine instruction manual.! Trim Operation and Travel Trim adjustments will effect the overall servo travel, so please check the (back-ward) movement after the adjustment! When trim movement is goes to extremesThat means if you make a lot of the trim movement to get the servo to the neutral position, please recenter the servo horn closer to the neutral position and inspect your throttle linkage. R/C Introduction Manual212.23 TIMER T I M E R 1 0 . 2 V T : 0 m 0 s MODE: I N H Use the timer by selecting one of the two timers UP TIMER and DOWN TIMER., and if the MODE is INH, It will close the TIMER Function. 1.Press “ENTER” to see FUNCTION MENU2.Use the +/- Keys to select the TIMER function and press “ENTER”.3.Press ENTER to select a item.4.Use the +/- Keys to change the value5.Press “EXIT” twice to save and return to FUNCTION MENU, press “EXIT” again to return to the Main ScreenUP TIMER function- Press “ENTER” to select the MODE. Use +/- Keys to select UP_T.(UP TIMER).- The UP TIMER can be used to count the time from 0 minute 0 second to the stop time. The stop time is set form from 0 minute 0 second to 99 minute 30 second.- The first start operation will be linked to the throttle trigger.- The passage of time is announced by sounding of a buzzer each minute after starting.- The buzzer will sound 'B-B-B…' when the timer is up to the stop time.DOWN TIMER function- Press “ENTER” to select the MODE. Use +/- Keys to select DN_T.(DOWN TIMER).- The DOWN TIMER can be used to count the time from preset time 0 minute 0 second. The preset time is set form 0 minute 0 second to 99 minute 30 second.- The first start operation will be linked to the throttle trigger.- The passage of time is announced by sounding of a buzzer each minute after starting.- The buzzer will sound 'B-B-B…' when the timer is down to the 0 minute 0 second. F u n c t i o n 1 0 . 2 V 1 7 : S O U N D 1 8 : R E S E T1 9 : M _ R E S 2 0 : T I M E R T I M E R 1 0 . 2 V T : 3 m 2 s MODE:DN_T

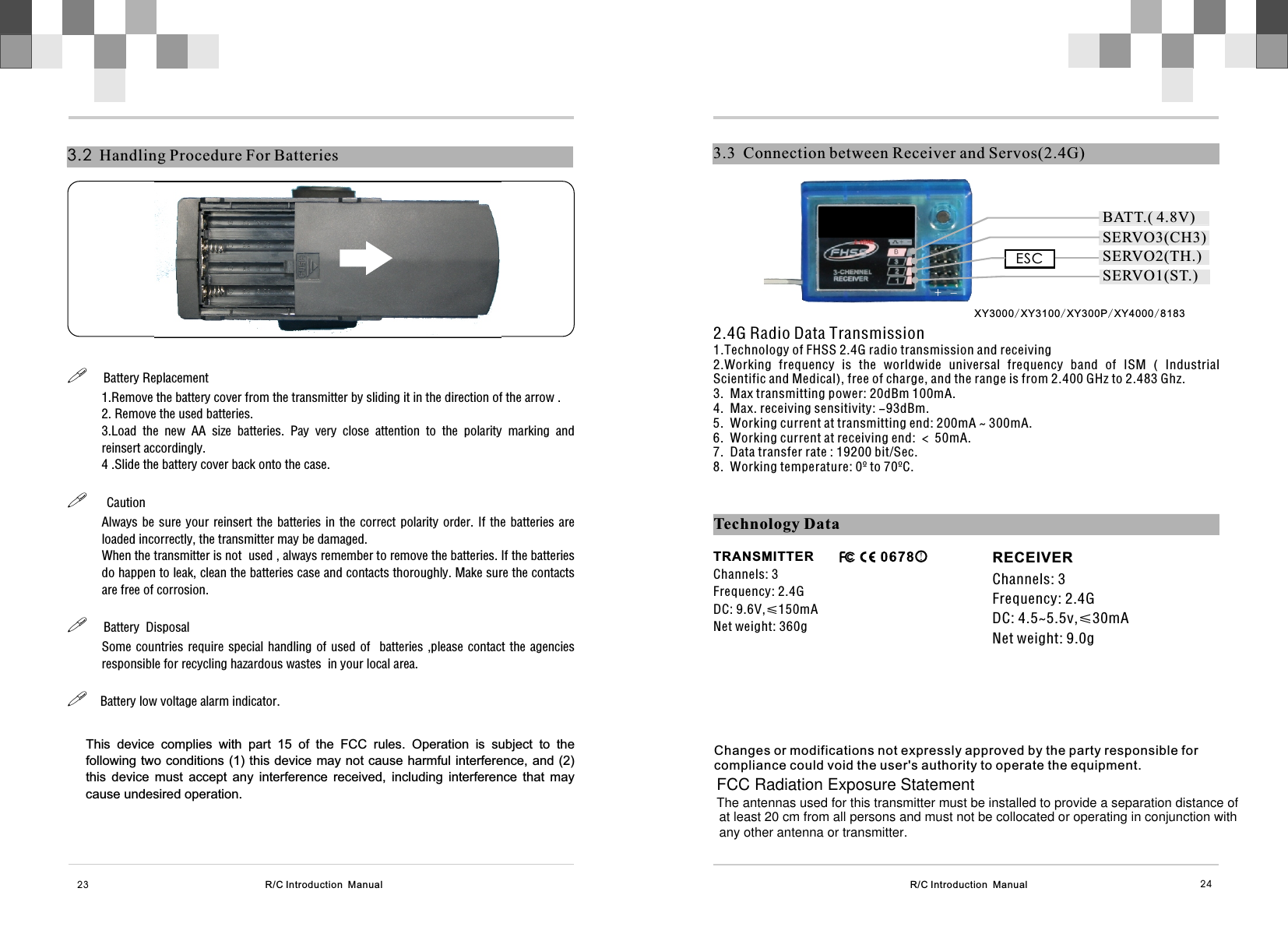

R/C Introduction Manual 243.3 Connection between Receiver and Servos(2.4G)2.4G Radio Data Transmission1.Technology of FHSS 2.4G radio transmission and receiving2.Working frequency is the worldwide universal frequency band of ISM ( Industrial Scientific and Medical), free of charge, and the range is from 2.400 GHz to 2.483 Ghz.3. Max transmitting power: 20dBm 100mA.4. Max. receiving sensitivity: -93dBm.5. Working current at transmitting end: 200mA ~ 300mA.6. Working current at receiving end: ＜ 50mA.7. Data transfer rate : 19200 bit/Sec.8. Working temperature: 0º to 70ºC. R/C Introduction Manual3.2 Handling Procedure For Batteries23! Battery Replacement 1.Remove the battery cover from the transmitter by sliding it in the direction of the arrow .2. Remove the used batteries.3.Load the new AA size batteries. Pay very close attention to the polarity marking and reinsert accordingly.4 .Slide the battery cover back onto the case.! CautionAlways be sure your reinsert the batteries in the correct polarity order. If the batteries are loaded incorrectly, the transmitter may be damaged.When the transmitter is not used , always remember to remove the batteries. If the batteries do happen to leak, clean the batteries case and contacts thoroughly. Make sure the contacts are free of corrosion.! Battery DisposalSome countries require special handling of used of batteries ,please contact the agencies responsible for recycling hazardous wastes in your local area.! Battery low voltage alarm indicator.Technology DataTRANSMITTERChannels: 3Frequency: 2.4GDC: 9.6V,≤150mANet weight: 360g RECEIVERChannels: 3Frequency: 2.4GDC: 4.5~5.5v,≤30mANet weight: 9.0gESC+-SERVO3(CH3)SERVO1(ST.)SERVO2(TH.)BATT.( 4.8V)This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.XY3000/XY3100/XY300P/XY4000/8183FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance ofat least 20 cm from all persons and must not be collocated or operating in conjunction withany other antenna or transmitter.
