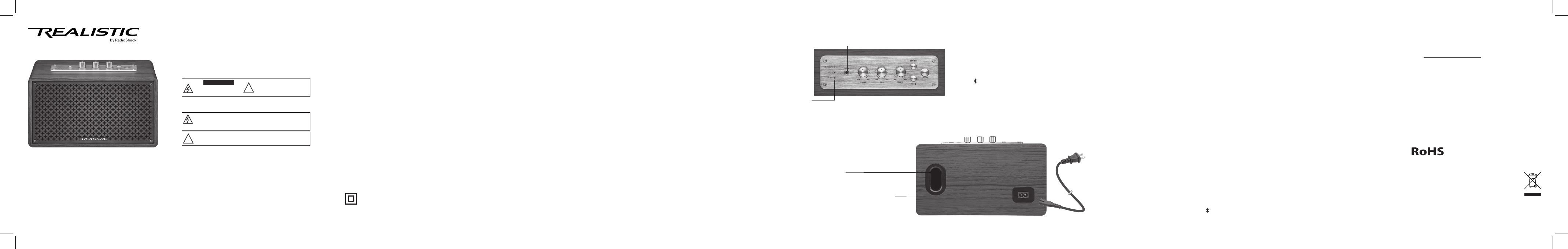

Guangzhou Panyu Juda Car Audio Equipment 4000774 Bluetooth Speaker User Manual
Guangzhou Panyu Juda Car Audio Equipment Co.,Ltd. Bluetooth Speaker
User Manual
2345678910
retro bluetooth
®
speaker
We hope you enjoy your REALISTIC Retro Bluetooth
Speaker with elegant cherry wood nishing to provide
stunning sound. Please read this user's guide before using
your new speaker.
Package Contents
• Speaker • AC Power cable
• 3.5mm audio cable • User’s Guide
WARNING: To reduce the
risk of re or shock hazard,
do not expose this product
to rain or moisture.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE THE COVER OR BACK. NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
The lightning symbol is intended to alert you to the presence of
uninsulated, dangerous voltage within this product’s enclosure
that might be of sucient magnitude to constitute a risk of
electric shock. Do not open the product’s case.
The exclamation symbol is intended to inform you that
important operating and maintenance instructions are
included in the literature accompanying this product.
CAUTION
!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
IMPORTANT SAFETy INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all Instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
10. Only use attachment/accessories specied by the
manufacturer.
11. Unplug this apparatus during lightning storms or
when unused for long periods of time.
12. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
13. Water and Moisture: This product should be kept
away from direct contact with liquids. The apparatus
shall not be exposed to dripping or splashing and
that no objects lled with liquids, such as vases, shall
be placed on the apparatus. WARNING: To reduce
the risk of re or electric shock, do not expose this
apparatus to rain or moisture.
14. Caution: This product uses a built-in battery. Batteries
shall not be exposed to excessive heat such as
sunshine, re, etc.
15. Where the mains plug or an appliance coupler is used
as the disconnect device, the disconnect device shall
remain readily operable.
16. This equipment is a Class II or double-
insulated electrical appliance. It has been
designed in such a way that it does not require
a safety connection to electrical earth.
4000774
User’s Guide
3. Use the controls on your device, or the playback
buttons on the speaker to play music.
Notes:
• The speaker will disconnect and power down from your
device if they are too far apart, or left idle. To reconnect,
move the speaker/ device within Bluetooth connection
range, within 15 minutes.
• Function of speaker playback buttons may vary
depending on compatibility with your actual Blueooth
device.
Reset Bluetooth Pairing
Normally, your speaker automatically reconnects to the
most recently paired device when switched on.
If you want to change to other Bluetooth devices, or have
diculty pairing to a new device, or experience problems
reconnecting your current device, do the following:
• In Bluetooth pairing mode, press and hold F/J for
3 seconds. You will hear an audio double tone (a low
and a high note). This indicates the speaker is now
successfully reset. Any previously paired devices are
now cleared from the speaker's Bluetooth memory.
Connecting with AUX IN
For device players without Bluetooth functionality, use
the included ⅛" (3.5mm) audio cable to connect to the
speaker’s AUX IN jack. The speaker's AUX IN LED lights up
green during connection.
Note:
• Bluetooth functionality is automatically deactivated
when AUX IN is connected.
• The speaker playback control buttons ; / and F/J
are only valid in Bluetooth mode.
ON/OFF
Turn on/ o speaker
F/J (Bluetooth mode and devices only)
• Press once or more to skip to the next track(s)
• Press and hold 3 seconds to skip to previous track
; / (Bluetooth mode and devices only)
• Play/ pause tracks
• Activate Bluetooth mode to start searching pairing
a Bluetooth device
• Press and hold 3 seconds to disconnect Bluetooth
connection
LEDs
BLUETOOTH
• ashes quickly − pairing
• ashes slowly − out of range
• lights steadily − connected
AUX IN lights green when line-in cable connected
BATTERY
• Lights red during charging
• Flashes slowly when battery low
VOLUME, BASS, TREBLE
Volume and sound controls
Top Panel Controls Troubleshooting
No sound/power
• Make sure the built-in battery is fully charged using the
supplied AC power cable. Alternatively, use the cable to
power and operate the speaker directly.
• Check and turn up the volume on the speaker and your
audio source.
• If using AC power, check your cable is properly connected.
Sound distorted
• Adjust the bass and treble controls.
FCC Information
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for
help.
Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
AUX IN For line-in listening option
BACK VIEW
Subwoofer air port
AC IN
Connect the included AC power cable here
and to an AC mains outlet to charge the
speaker's built-in battery, or to power the
speaker directly.
To AC outlet
TM
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Limited Warranty
Go to www.radioshack.com/help for details.
RadioShack Customer Relations
300 RadioShack Circle, Fort Worth, TX 76102
17. No naked ame sources, such as lighted candles,
should be placed on the apparatus.
18. Batteries should be recycled or disposed as per state
and local guidelines.
19. The ventilation should not be impeded by covering
the ventilation openings with items, such as
newspapers, table-cloths, curtains, etc.
20. Allow at least 10cm distances around the apparatus
for sucient ventilation.
21. Use of the apparatus in moderate climates only.
Specifications
Power supply .......................................AC ~100-240V, 50/60Hz
Power consumption ............................................................... 25W
Battery ...................14.8V, 2000mAh, 29.6W lithium polymer
Battery Charging Time ......................................approx. 4 hours
Playtime ..............................up to 16 hours at medium volume
Frequency Response .......................................... 45 Hz – 20KHz
2.1 Output (max.) ............ 5 W x 2 tweeters, 15W subwoofer
S/N ratio .................................................................................... 70dB
Impedance ...........................................................................4 Ohms
Drivers ....0.75" neodymium tweeters, 4" ferrite subwoofer
Bluetooth Protocol ................................................V2.1 with EDR
Dimensions (H x W x L) .........................................5.5 x 9.5 x 5.5"
Speaker weight ................................................................... 5.51 lbs
Operation Range......................................................................33 ft
Specications are subject to change and improvement without
notice. Actual product may vary from the images found in this
document.
Power / Charge your Speaker
1. Connect the supplied power cable to the AC IN jack
and a standard mains wall outlet.
•The BATTERY LED lights red during charging and
turns o when fully charged.
2. Unplug the cable after charging.
Notes:
• For best sound performance, fully charge the speaker before
use, or when you hear the "Battery low" voice prompt, or the
BATTERY LED ashes slowly.
• The supplied power cable can also be used to directly power
the speaker.
Lithium Battery Notes:
• Charge batteries on a reproof surface away from ammable
items or liquids. Follow the instructions for charging the
speaker and do not charge longer than recommended.
• Recycle lithium batteries. Do not dispose of them in the
trash. Do not burn or bury batteries. Do not puncture or
crush. Do not disassemble.
• If the electrolyte in the cells should get on your skin,
thoroughly wash with soap and water. If in the eyes, rinse
thoroughly with cool water. Immediately seek medical
attention.
Connecting to a Bluetooth Device
1. Press the ON/OFF button to turn on the speaker.
• The LED ashes blue quickly as your speaker searches
for Bluetooth devices.
2. Activate your device’s Bluetooth function (refer to
your device’s user’s guide). When your device locates
Realistic Retro, select this from the device list. If your
smartphone requires a password, enter 0000. When
paired, the indicator lights blue steadily.
Complies with the European Union’s “Restriction
of Hazardous Substances Directive,” which
protects the environment by restricting specic
hazardous materials and products.
© 2016 General Wireless Operations Inc.
All rights reserved. REALISTIC is a
registered trademark used by General
Wireless Operations Inc. dba RadioShack.
radioshack.com
The Bluetooth® word mark and logos are owned by
Bluetooth SIG, Inc. and any use of such marks by
General Wireless Operations Inc. is under license.
09A16
4000774
Printed in China
4000774_UG_Eng.indd 1-10 9/9/2016 4:09:52 PM
