Features
Thank you for your purchase of our product. Please read through this
manual before operating this product. Retain this manual for future
reference.
●Compatible with CD,MP3,CD-R,CD-RW,etc.
●With USB Slot .
●Full function remote control.
●FM stereo radio tuner.
Note: The player is not compatible with all discs;
Some discs may not be read if the disc is dirty, or of poor quality, etc.
The player may not play with all USB devices because of an uncertified
USB drive or a bad USB drive.

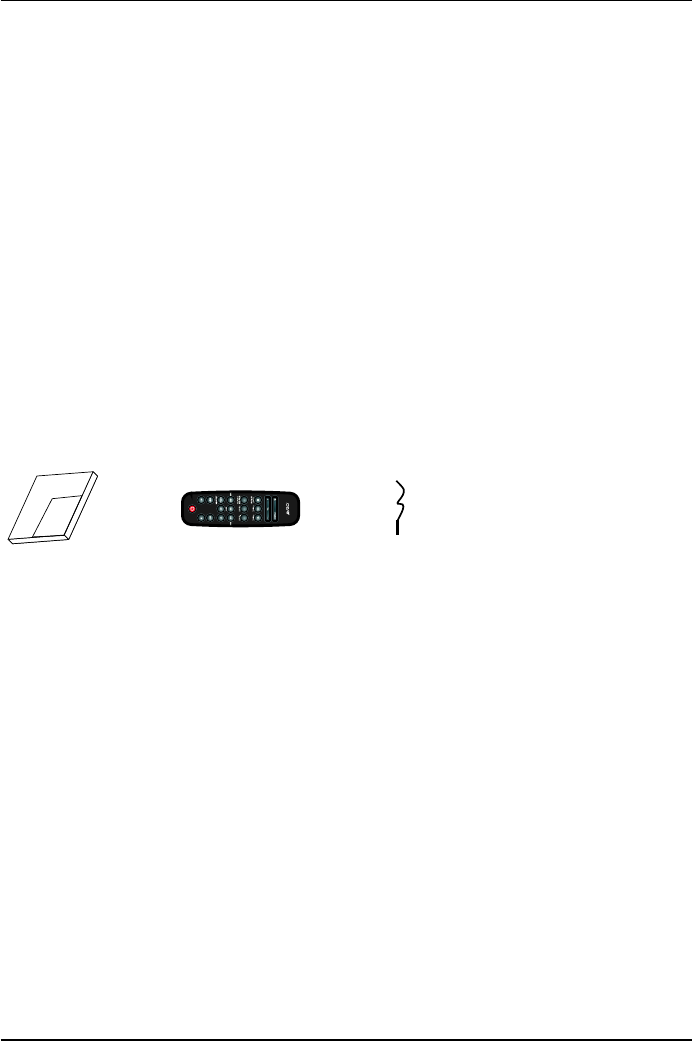

Package Contents:
Us er manual
User manual
Remote control
FM antenna
-2-
For Your Attention
-3-
Safety precautions
The information you need to prevent danger to the user and other people as well as
property damage is described below. “Descriptionof signs” shows different
levels of danger or damage that may occur due to wrong handling.
Important notes
This book is only a guide for user's operation, not a criterion for configuration.
Only use attachments/accessories specified by the manufacturer.
The lightning flash is intended to alert the user to the presence of
dangerous voltage within the product'senclosure, and touching the
internal components may result in a risk of electric shock to
persons.
The exclamatory mark is intended to alert the user to the presence of
important operating instructions.
To reduce the risk of electric shock or fire, do not open the cover. Refer
servicing to qualified service personnel.
This mark indicates this unit belongs to class 1 laser product. The laser
beam may produce radiation harm to the directly touching human body.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produceheat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider thanthe other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong are provided foryour
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where theyexit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
For Your Attention
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in anyway, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatushas been
exposed to rain or moisture, does not operate normally, or has been dropped.
15. This equipment is a Class II or double insulated electrical appliance. It has been
designed in such a way that it does not requirea safety connection to electrical earth.
16. No naked flame sources, such as lighted candles, should be placed on the apparatus.
17. Attention should be drawn to environmental aspects of battery disposal.
18. The product is designed to use in moderate climates.
-4-
REAR PANEL:
FRONT PANEL:
Panel
WARNING:
Excessive sound
pressure from
earphones or
headphones can
cause hearing loss.
1 DISPLAY SCREEN
2 STANDBY
3 PREVIOUS/FAST REWIND
4 SOURCE
5 PLAY/PAUSE
6 MASTER VOLUME
ADJUSTER
7 LINE IN
8 USB SLOT
9 HEADPHONE
10 DISC TRAY
11 EQ
12 STOP/UNPAIR
13 OPEN/CLOSE
14 NEXT/FAST FORWARD
15 16
15 FM ANTENNA JACK
16 SPEAKER OUTPUT
9
78
10
12
11
13
14
3
5
2
1
4
6
-5-
Connections

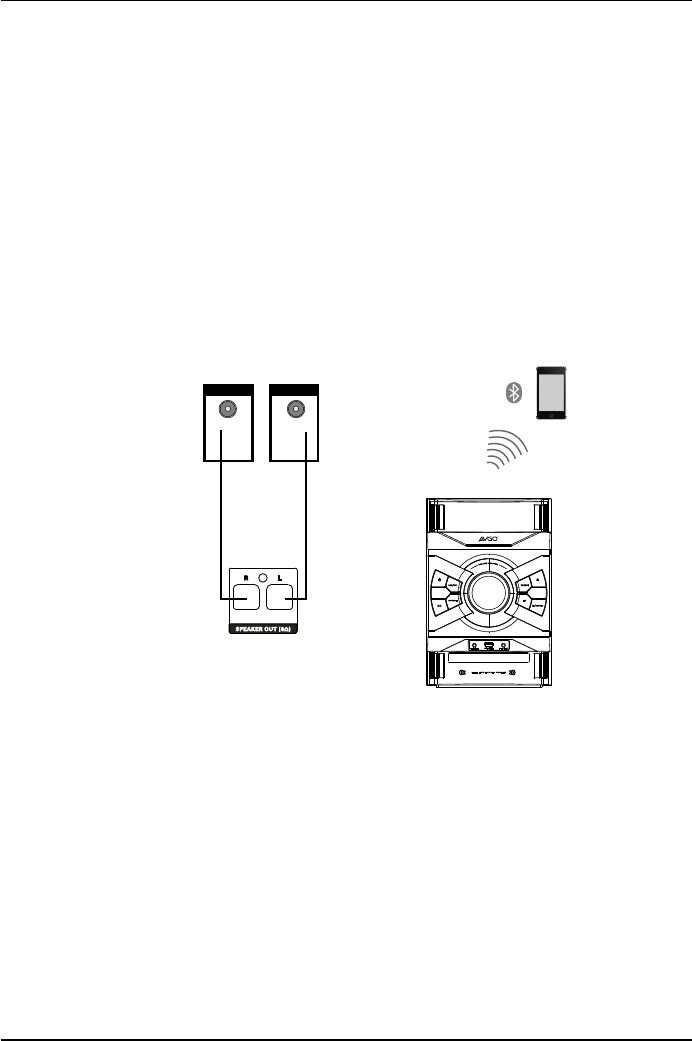

Connect the speakers to speaker output terminals with their attached speaker
cables .
LINE IN
This unit has an extra group of audio input terminals. You can input the analogue
stereo audio signals from extra devices such as VCD, CD, VCR,MP3 player,
etc.
Use the audio cable to connect the stereo audio output terminals of a VCD, CD,
VCR player to the input terminal (LINE IN) of this unit. Its corresponding signal
source is LINE IN which can be available by pressing [LINE] on the remote
control.
Speaker Output
AUDIO SYSTEM CONNECTION
The model of the player is NOXPS, press [BT] button to switch to the
corresponding signal source, use your smart phone to search the bluetooth
signal of the player, then input the password 0000, at this time, " BT " will
display on the display screen and the player will synchronize to play songs on
your smart phone while they are connected successfully. Disconnect the
bluetooth on the smart phone to switch off the bluetooth connect.
Once the bluetooth is connected to your smart phone successfully for the first
time, disconnect the bluetooth on your smart phone then reconnected it, the
player will memorise your smart phone and re-pair automatically.Press
[PLAY/PAUSE] to resume the playback.
NOTE: In bluetooth mode, [PLAY/PAUSE], [MUTE],[NEXT] and [PREVIOUS]
buttons are also active.
BLUETOOTH CONNECTION
Amplifier Audio Input
CD Audio Output
Speaker
Speaker output
R L
Bluetooth
Model: NOXPS
-6--
Remote control
Insert the batteries into the remote control. Point the remote control at
the remote sensor on the front panel. The remote control works within a
distance of about 8 metres from the sensor and within an angle of about
30 degrees from the left and right side.
Note:
●Remove the batteries when you do not intend to use the remote
control for a long time.
●Do not mix new and used batteries, or different types of batteries.
●Weak batteries can leak and severely damage the remote control.
●The batteries must not be exposed to excessive heat sources, such
as sunshine or fire or any other heat sources.
●Be environmentally friendly and dispose of batteries according to
your government regulations.
Remote Control Operation
Battery Installation

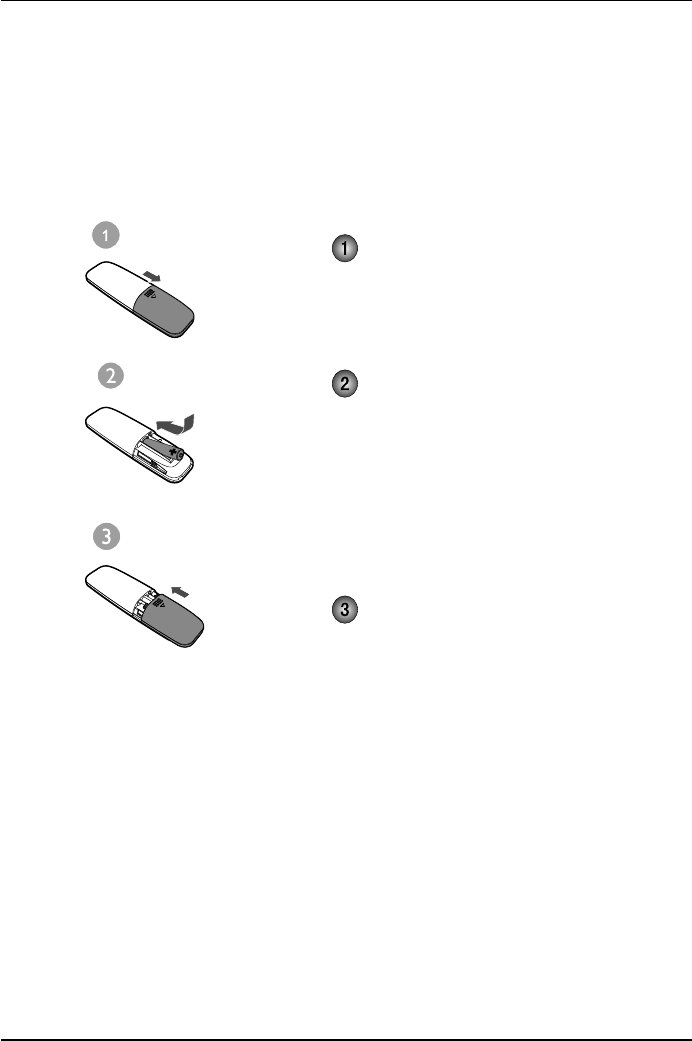

Remove the battery
compartment cover on the
back of the remote control.
Load one AAA/1.5V battery
into the battery compartment
m a k i n g s u r e t h a t t h e
batteries have been inserted
with the correct polarities
matching the symbols +, - as
indicated inside the battery
compartment.
Replace the cover.
-7-

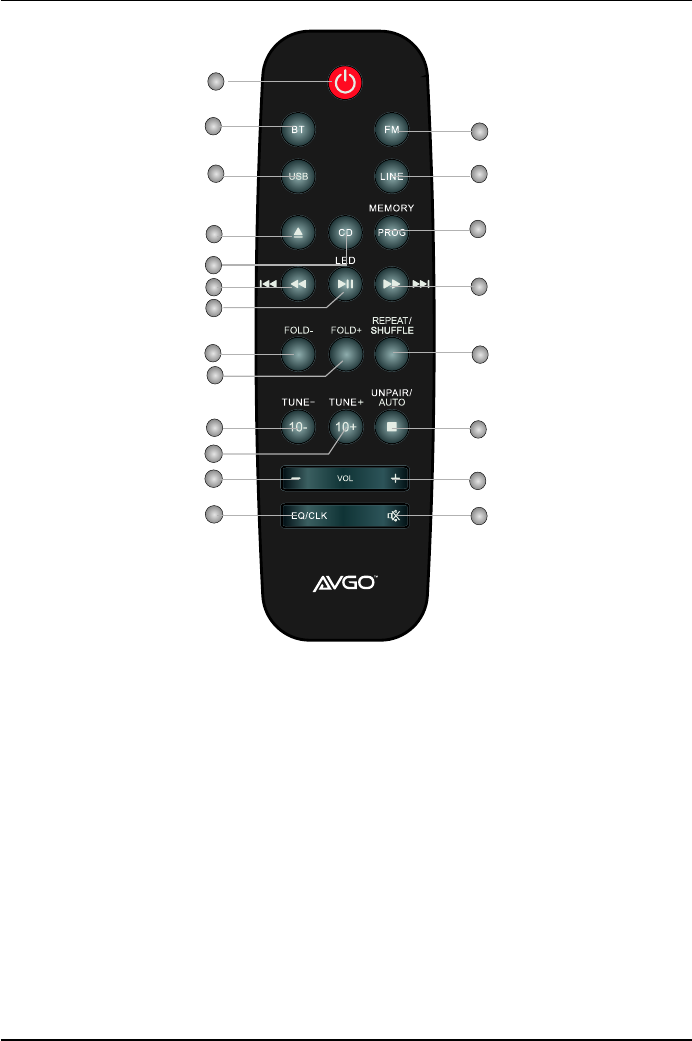

Remote Control
1 STANDBY
2 BT
3 USB
4 OPEN/CLOSE
5 CD
6 FAST REWIND/
PREVIOUS
7 PLAY/PAUSE/LED
8 FOLD-
9 FOLD+
10 10-/TUN-
11 10+/TUN+
12 VOLUME-
13 EQ/CLOCK
14 FM
15 LINE
16 PROG/MEMORY
17 FAST FORWARD/NEXT
18 REPEAT/SHUFFLE
19 STOP/AUTO/UNPAIR
20 VOLUME+
21 MUTE
2
20
7
6
12
1
3
4
17
5
818
19
9
15
14
13
11
10
16
21
-8-
●Press to switch on the unit. Press it again to put the unit in
standby mode.
●Press to temporarily pause a playback. Press it again to
resume the playback.
●Hold down repeatedly to switch the different color of LED
indicator light display mode.
●Press to stop a playback .
●Hold down to disconnect bluetooth connection in bluetooth
connection mode .
Basic Playback
CD Operation
●Press to enter to CD mode.
●Press to skip to the next chapter/track.
●Press to return to the previous chapter/track.
●Press to enter to USB mode.
●Hold down for fast forward playback .
●Hold down for fast rewind playback .
●Press to enter to LINE IN mode.
●Press to open or close the disc tray.
●Press [VOLUME+] to turn up the volume.
●Press [VOLUME-] to turn down the volume.
●Press to enter to BLUETOOTH mode.
●Press to enter to FM mode.
LINE
BT
LED
●In stop mode, place a CD and press [PROGRAM] to access
to the program mode. Press the arrows [ ]/ [ ] button to
select the desired track and press once again [PROGRAM] to
confirm your selection. Press [ ] to start program playback.
-9-
●Press to temporarily switch off the sound . Press it again to
switch it on.
Basic Playback
●Press repeatedly to switch the repeat and shuffle modes.
●Press to skip the next folder .
●Press this button for each time to increase ten tracks.
●Press this button for each time to decrease ten tracks.
● folder .Press to return to the previous
●Press to switch to the equalizer mode.
●In standby mode, hold down this button and enter into clock
set mode, press[ ]/[ ] button to select 12H or 24H clock
display ,press clock button to confirm, then use [ ]/[ ]
button to set the clock time, press it again to confirm it.
Note: it is only available in standby mode.
SHUFFLE
-10-
NOTE: In Tuner mode, [VOLUME+/-], [MUTE] buttons are also active.
For details, please refer to the introduction of the CD operation in this
chapter.
The following buttons are used in tuner mode. Press [FM] button
repeatedly to select tuner mode.
●Press to skip to the next preset station.
Tuner Operation
Basic Playback
●Press to skip to the previous preset station.
●TUN+: press to fine tune (increase) the frequency;
●TUN-: press to fine tune (decrease) the frequency.
●Hold down [TUN+/-] to increase/decrease the frequency
continuously.
●Hold down to do auto scanning for the broadcasting radio
channels, press it again to stop auto scanning.
Insert a USB drive in the USB slot, then press [USB] button on the
remote control enter the connected USB drive and you can playback
the readable files in it.
,
USB Drive Playback
●After tuning in a new frequency, press [MEMORY] then
select a preferred station by pressing arrows [ ]/[ ], press
[MEMORY] again to confirm and save it as a preset station.
-11-
Troubleshooting
Before resorting to maintenance service, please kindly check by
yourself with the following chart.
The player stops
when a USB
drive is inserted
into the player.
Sound
There is no sound
or the sound is
distorted.
●The audio cables aren't connected
securely.
●The volume is set to the minimum
level.
●The sound is switched off.
●Connect the audio cables
securely.
●Turn up the volume.
●Press [MUTE] on the remote
control to switch on the sound.
●Press [PLAY/PAUSE].
The remote
control does not
function.
●There is no battery in the remote
control.
●The batteries are out of charge.
●The remote control isn't pointed
to the remote sensor.
●The remote control is out of its
operating area.
●The unit is shut down.
Unable to play a
disc
●The disc is placed in the disc tray
in a wrong way.
●The unit isn't compatible with the
disc.
●The disc is dirty.
●Check that the disc is placed
in the disc tray with its label side
upwards.
●Clean the disc.
Symptom Cause(s) Remedy
●Switch off and unplug the unit.
Then connect the plug to the
power supply and switch it on
again.
●The unit is being interfered with
static electricity etc.
●The AC power cord is not
connected to the power supply or is
not connected to a power supply
securely.
●Please check that the AC
power cord is connected
securely.
No Power
●The connected USB drive is
probably not a certified one.
●The player cannot play any
uncertified USB drive.
In case the player breaks down,
turn it off, disconnect the power
cord from the AC outlet and
unplug the USB drive from the
player. Then, power on the player
again. The player will resume the
normal functions.
The buttons on the
unit do not work
●Install one AAA/1.5V battery
in the remote.
●Replace the batteries with new
ones.
●Make sure that the remote
control is pointed to the remote
control sensor.
●Make sure the remote control
is within the operating area.
●Switch off the unit and
disconnect it from the AC outlet.
Then power on the unit again.
-12-
Specifications
Power supply
AC ~100-240V,50/60Hz
Working
environment
Temperature -10~+35℃
Relative humidity
5%~90%
Power consumption 120W
Disc output
THD+NOISE ≤ -60dB(1kHz)
WOW FLUTTER
Below the limit of apparatus measure
S/N(A weight)
≥70dB( )1kHz
Dynamic Range
＞80dB( )1kHz
200WX2
FM band Range
87.5MHz~108MHz
Power output (Max)
Tuner
Frequency response
±3dB(20Hz~20kHz)
-13-
