USER MANUAL
WC 603
Classroom Bluetooth Speaker
Features .....................................................................................................................2
For your Attention.....................................................................................................3-4
Panel.......................................................................................................................5-6
Connections...............................................................................................................7
Trouble shooting.........................................................................................................8
Specifications.............................................................................................................9
Contents
Contents
-1-
Features
-2-
Thanks for your purchase of our product. Please read through this manual before making
connections and operating this product. Retain this manual for future reference.
Bluetooth playback
AUX input
Package Contents:
User manual
User manual
DC adaptor

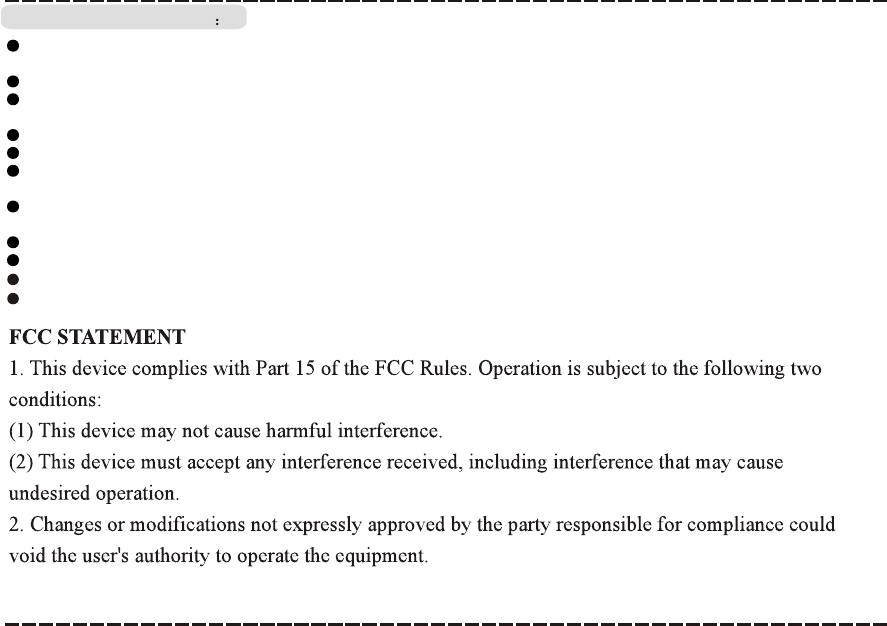

IMPORTANT NOTES
For Your Attention
Please read through this manual before making connections and operating this product. Retain this manual for
future reference.
Don't open the cabinet of this unit. No user-serviceable parts inside. Refer servicing to qualified personnel only.
Switch off the unit when you don't use it. Switch off the unit and disconnect it from the AC power supply when it is
not being used for a long time.
Don't install the unit in a place exposed to heating sources or direct sunshine.
Don't install the unit in a place exposed to moisture or rain.
The apparatus shall not be exposed to dripping or splashing and any object filled with liquids, such as vases shall
not be placed on it.
Install the unit on a horizontal, flat and firm surface with good ventilation. Never block the vents which will cause
malfunction resulted from overheating.
Use a soft and clean rag to clean the outside of the unit . Never clean it with chemicals or detergent.
This book is only a guide for user's operation, not a criterion for configuration.
Only use attachments/accessories specified by the manufacturer.
Where the mains plug is used as the detachable device, the detachable device shall remain readily operable.
-3-

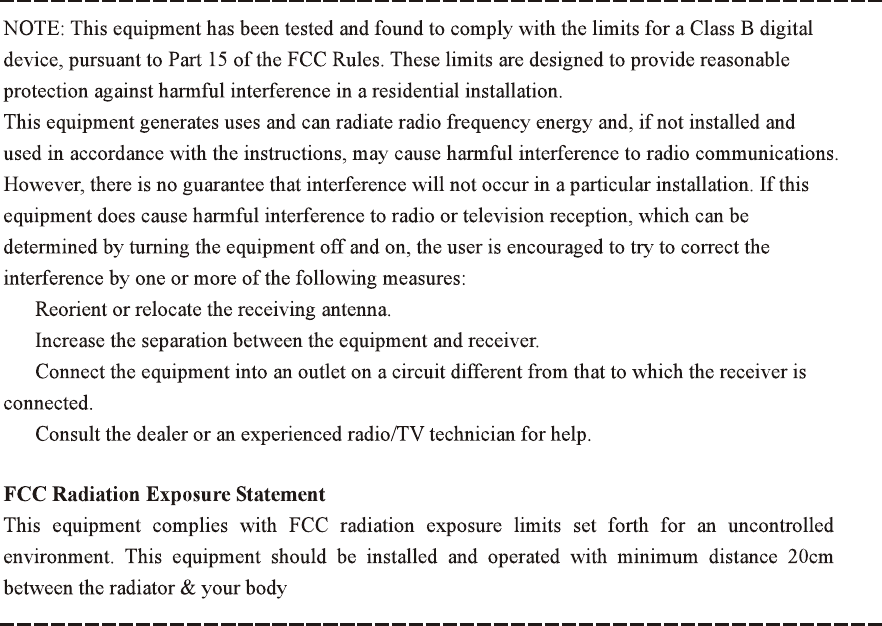

For Your Attention
-4-
Panel
-5-
1. VOLUME+/-
2. STANDBY/SOURCE SELECT
3. PLAY/PAUSE
4. PREVIOUS/NEXT
(Note: All the button on the front panel are touch keys)
5. STANDBY (red indicator)
6. BLUETOOTH (blinking blue indicates pairing,solid blue indicates connected)
7. AUX IN (yellow indicator)
Press to turn up/down the volume;
Press to
Press to temporarily pause a playback; press it again to resume the playback;
Press to return to the previous track or skip to the next track;
switch on the unit;
Press repeatedly to select a signal source between Bluetooth or AUX input mode;

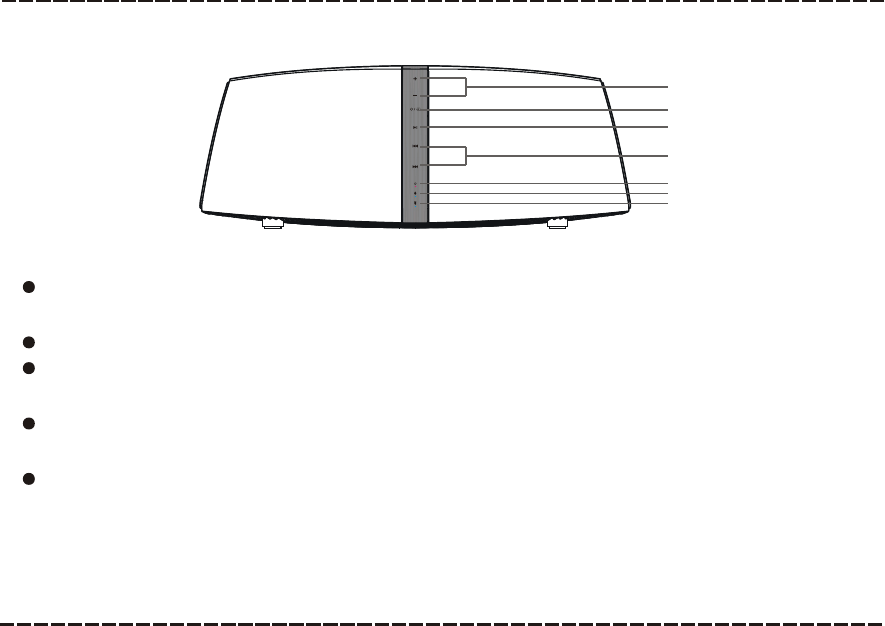

FRONT PANEL:
1
2
3
4
5
6
7
Panel
-6-
1. USB CHARGE PORT (5V)
(Note: Use the USB cable (not included)to connect the USB and charge device.The charge port cannot charge battery in standby mode.
There is no connection with the speaker after 10~15 minutes (no AUX input, USB charge or bluetooth connection),
the speaker will turn to standby mode automatically and the red indicator light will illuminate. Press [PLAY/PAUSE]
to wake up the speaker.
The speaker will turn to auto standby mode after about 10~15 minutes.
The unit cannot play music via USB charging port .
2. AUX INPUT
3. DC IN (10V)
4. POWER ON/OFF
123

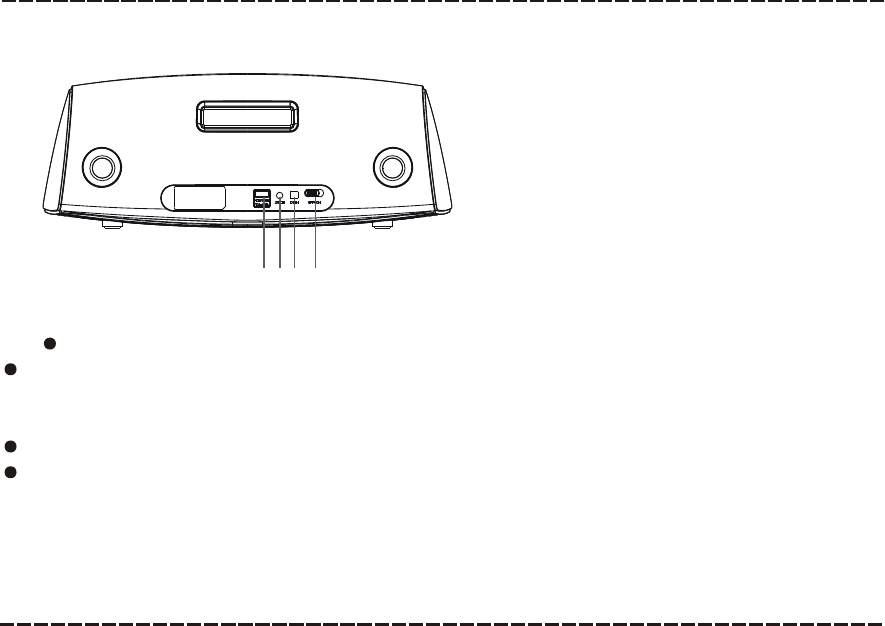

REAR PANEL:
4
Connections
-7-
AUX IN
This unit has an audio input terminal.
Use the audio cable(not included) to connect the input terminal AUX IN
on the rear panel of this player, press [SOURCE ] button on the
front panel to switch to the AUX IN mode, the indicator on the front panel
indicates in yellow that the player has been switched to AUX IN mode.
SELECT

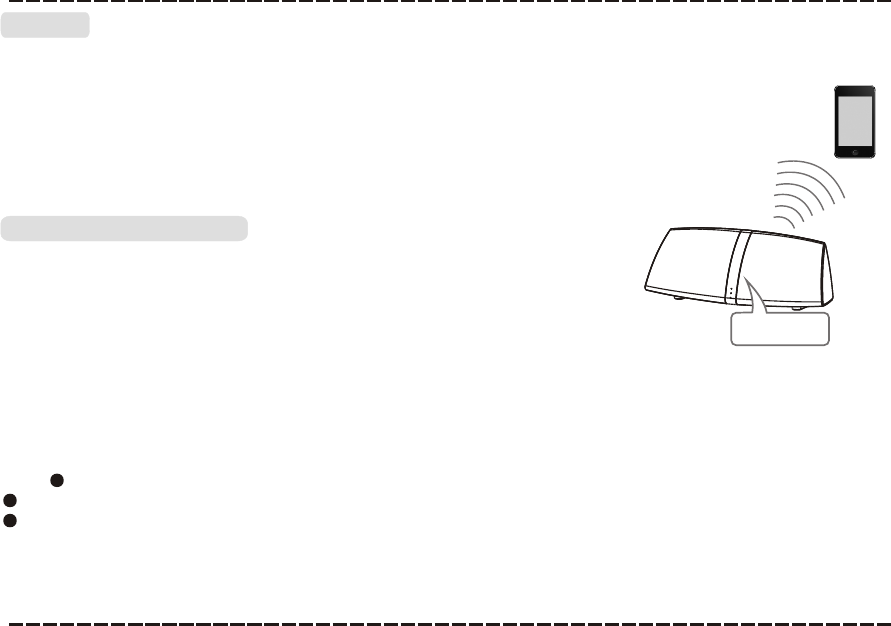

Bluetooth Connection
The model of the unit is WC 603,press [SOURCE SELECT] button on
the front panel to switch to the corresponding signal source, use your
mobile phone to search the bluetooth signal of the unit, then input the
password 0000, the unit will synchronize to play songs on your mobile
phone while they connected successfully.
Disconnect the bluetooth on the mobile phone to switch off the bluetooth
connect.
In bluetooth mode,[PLAY/PAUSE],[NEXT], [PREVIOUS],
[VOLUME+/-] etc. are also active.
Once the bluetooth is connected to your audio device successfully for
the first time, you can power off the player then power on. The speaker
will reconnect automatically.Press [PLAY/PAUSE] to resume the
playback.
Note: Bluetooth connection range is 30 feet.
The model WC 603 in your device was not deleted.
Bluetooth
Model:WC 603
-8-
Troubleshooting
Before resorting to maintenance service, please kindly check by yourself with the following chart.
Sound
There is no sound or
the sound is
distorted.
The volume is set to the minimum level. Turn up the volume.
Symptom Cause(s) Remedy
The buttons on the
unit do not work.
Switch off and unplug the unit.
Then connect the plug to the power supply
and switch it on again.
The unit is being interfered with static electricity
etc.
The DC power cord is not connected to the power
supply or is not connected to a power supply
securely.
Please check that the DC power cord
is connected securely.
No Power
Audio device is not connected to the unit. Connect audio device via Bluetooth
or Aux in.
5WX2
-9-
Specifications
Power supply
DC 10V 1.5A
Working
environment
Temperature -10~+35
Relative humidity
5%~90%
Speaker output (Max)
Power consumption 15W
