 Draft     MALA EasyLocator WideRange      Operating manual  Version 1.0
 Draft www.malags.com 2

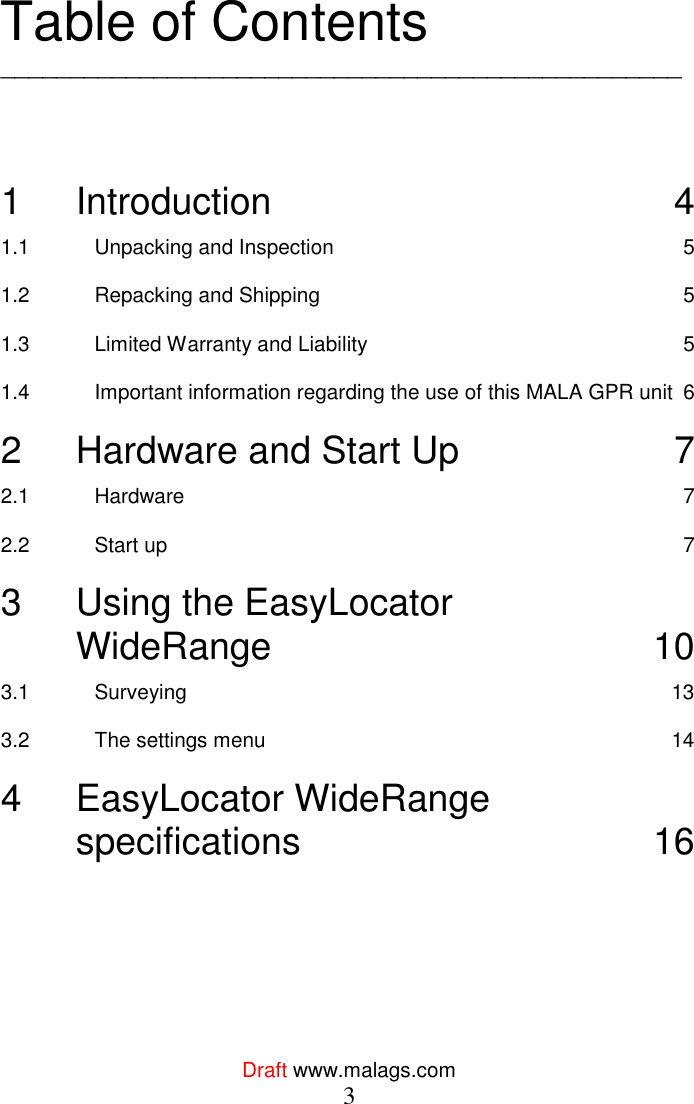

 Draft www.malags.com 3  Table of Contents _________________________________________________    1 Introduction  4 1.1 Unpacking and Inspection  5 1.2 Repacking and Shipping  5 1.3 Limited Warranty and Liability  5 1.4 Important information regarding the use of this MALA GPR unit  6 2 Hardware and Start Up  7 2.1 Hardware  7 2.2 Start up  7 3 Using the EasyLocator        WideRange  10 3.1 Surveying  13 3.2 The settings menu  14 4 EasyLocator WideRange  specifications  16
 Draft www.malags.com 4 1  Introduction   __________________________________________________   Thank you for purchasing the EasyLocator WideRange.  The  EasyLocator  series  of products  is  the  most  widely  used GPR-system for utility detection, world-wide. The WideRange is  the  latest  in  a  line  of  easy-to-use  tools  for  the  locating industry. It builds on its predecessors in terms of handling and user  interface  while  incorporating  the  latest  and  most  potent technology currently available.    We  at  Malå  GeoScience  welcome  comments  from  you concerning the use and experience of this equipment, as well as the contents and usefulness of this manual. Please take the time to read through the assembling instructions carefully and address any questions or suggestions to the following:   Main Office:  Subsidiary: Malå GeoScience  Malå GeoScience USA, Inc. Skolgatan 11  465 Deanna Lane      S-930 70 Malå  Charleston, SC 29492                   Sweden  USA   Phone: +46 953 345 50  Phone:   +1-843 852 5021                 Fax: +46 953 345 67  Fax:  +1-843 769 7397     E-mail: sales@malags.se  E-mail: sales.usa@malags.se  Technical support issues can be sent to: support@malags.se  Information  about  MALÅ  GeoSciences  products  is  also available on Internet: http://www.malags.com     Copyright© 2012 Malå Geoscience AB

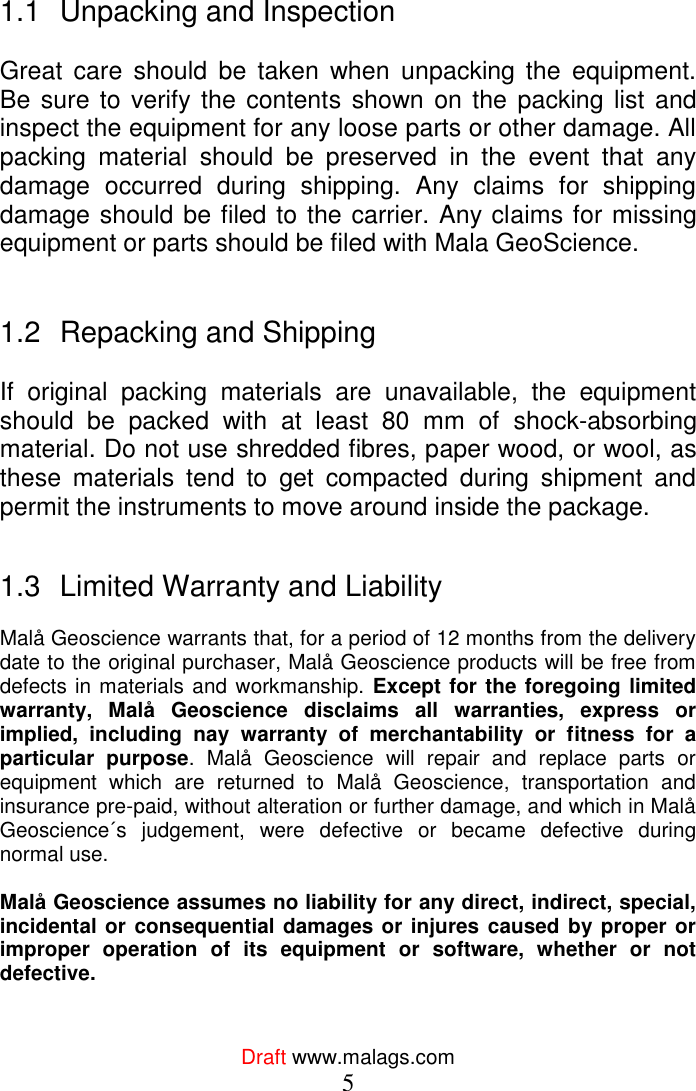

 Draft www.malags.com 5   1.1  Unpacking and Inspection  Great  care  should  be  taken  when  unpacking  the  equipment. Be sure to  verify the contents shown on the  packing list and inspect the equipment for any loose parts or other damage. All packing  material  should  be  preserved  in  the  event  that  any damage  occurred  during  shipping.  Any  claims  for  shipping damage should be filed to the carrier. Any claims for missing equipment or parts should be filed with Mala GeoScience.   1.2  Repacking and Shipping  If  original  packing  materials  are  unavailable,  the  equipment should  be  packed  with  at  least  80  mm  of  shock-absorbing material. Do not use shredded fibres, paper wood, or wool, as these  materials  tend  to  get  compacted  during  shipment  and permit the instruments to move around inside the package.   1.3  Limited Warranty and Liability  Malå Geoscience warrants that, for a period of 12 months from the delivery date to the original purchaser, Malå Geoscience products will be free from defects in materials and workmanship. Except for the foregoing limited warranty,  Malå  Geoscience  disclaims  all  warranties,  express  or implied,  including  nay  warranty  of  merchantability  or  fitness  for  a particular  purpose.  Malå  Geoscience  will  repair  and  replace  parts  or equipment  which  are  returned  to  Malå  Geoscience,  transportation  and insurance pre-paid, without alteration or further damage, and which in Malå Geoscience´s  judgement,  were  defective  or  became  defective  during normal use.   Malå Geoscience assumes no liability for any direct, indirect, special, incidental or consequential damages or injures caused by proper or improper  operation  of  its  equipment  or  software,  whether  or  not defective.

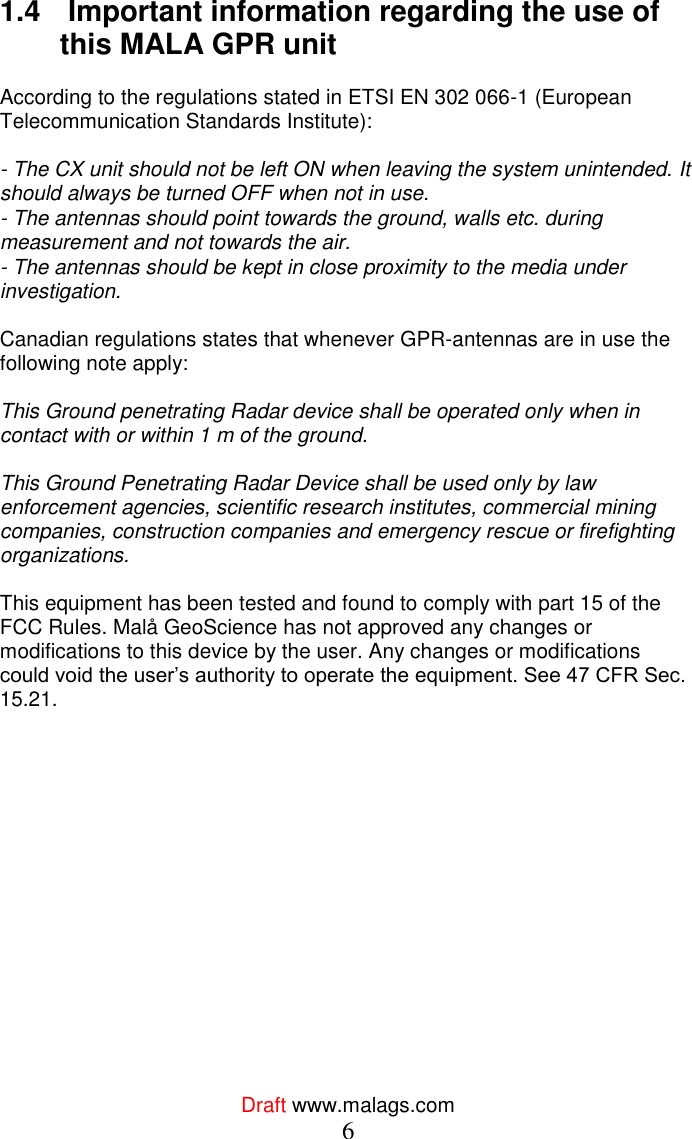

 Draft www.malags.com 6 1.4   Important information regarding the use of this MALA GPR unit   According to the regulations stated in ETSI EN 302 066-1 (European Telecommunication Standards Institute):   - The CX unit should not be left ON when leaving the system unintended. It should always be turned OFF when not in use.  - The antennas should point towards the ground, walls etc. during measurement and not towards the air.  - The antennas should be kept in close proximity to the media under investigation.   Canadian regulations states that whenever GPR-antennas are in use the following note apply:   This Ground penetrating Radar device shall be operated only when in contact with or within 1 m of the ground.   This Ground Penetrating Radar Device shall be used only by law enforcement agencies, scientific research institutes, commercial mining companies, construction companies and emergency rescue or firefighting organizations.   This equipment has been tested and found to comply with part 15 of the FCC Rules. Malå GeoScience has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21.

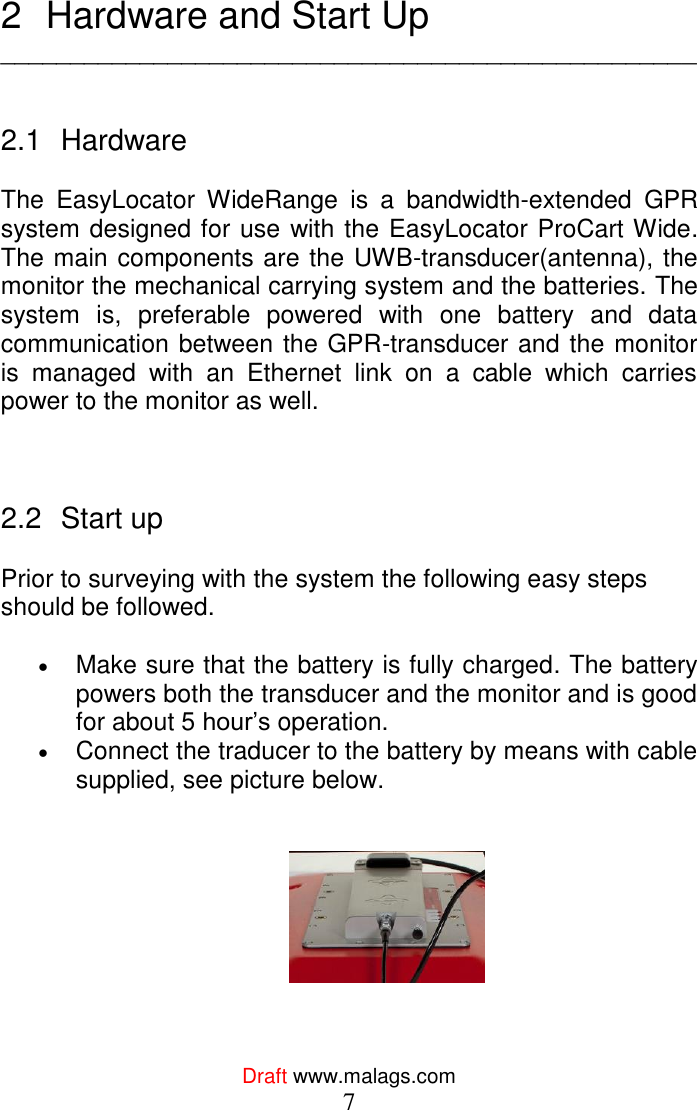

 Draft www.malags.com 7  2  Hardware and Start Up __________________________________________________   2.1  Hardware  The  EasyLocator  WideRange  is  a  bandwidth-extended  GPR system designed for use with the EasyLocator ProCart Wide. The main components are the UWB-transducer(antenna), the monitor the mechanical carrying system and the batteries. The system  is,  preferable  powered  with  one  battery  and  data communication between the GPR-transducer and the monitor is  managed  with  an  Ethernet  link  on  a  cable  which  carries power to the monitor as well.      2.2  Start up   Prior to surveying with the system the following easy steps should be followed.   Make sure that the battery is fully charged. The battery powers both the transducer and the monitor and is good for about 5 hour’s operation.  Connect the traducer to the battery by means with cable supplied, see picture below.

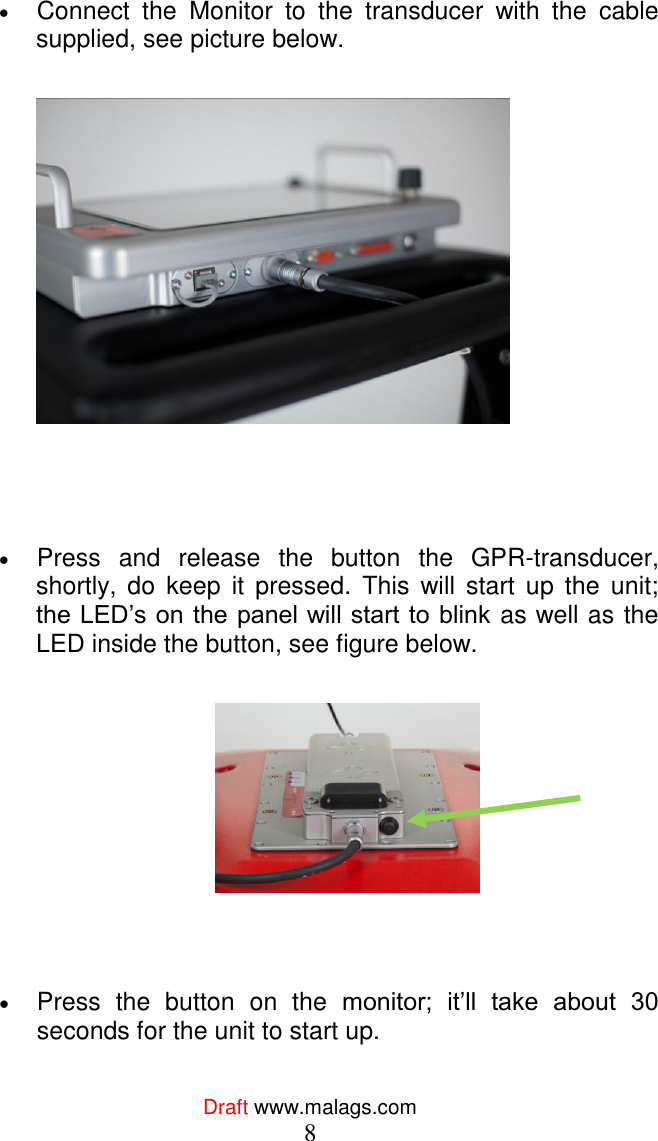

 Draft www.malags.com 8  Connect  the  Monitor  to  the  transducer  with  the  cable supplied, see picture below.       Press  and  release  the  button  the  GPR-transducer, shortly,  do  keep  it  pressed.  This  will  start  up the  unit; the LED’s on the panel will start to blink as well as the LED inside the button, see figure below.       Press  the  button  on  the  monitor;  it’ll  take  about  30 seconds for the unit to start up.

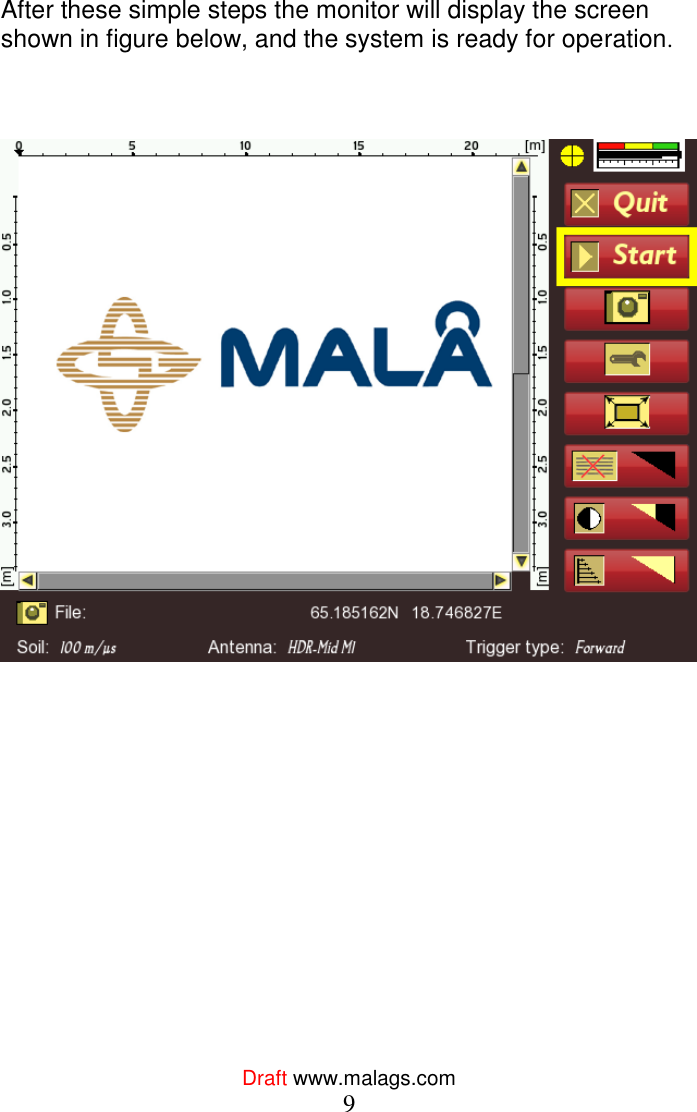

 Draft www.malags.com 9  After these simple steps the monitor will display the screen shown in figure below, and the system is ready for operation.

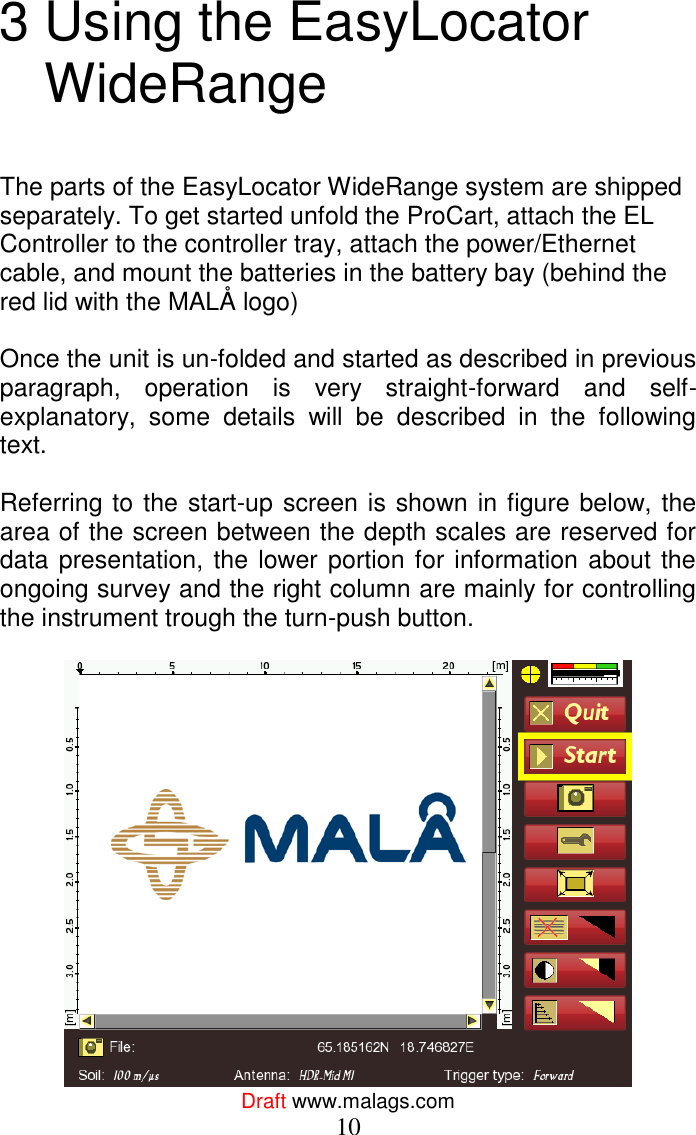

 Draft www.malags.com 10 3 Using the EasyLocator WideRange   The parts of the EasyLocator WideRange system are shipped separately. To get started unfold the ProCart, attach the EL Controller to the controller tray, attach the power/Ethernet cable, and mount the batteries in the battery bay (behind the red lid with the MALÅ logo)   Once the unit is un-folded and started as described in previous paragraph,  operation  is  very  straight-forward  and  self-explanatory,  some  details  will  be  described  in  the  following text.  Referring to the start-up screen is shown in figure below, the area of the screen between the depth scales are reserved for data presentation, the lower portion for information about the ongoing survey and the right column are mainly for controlling the instrument trough the turn-push button.

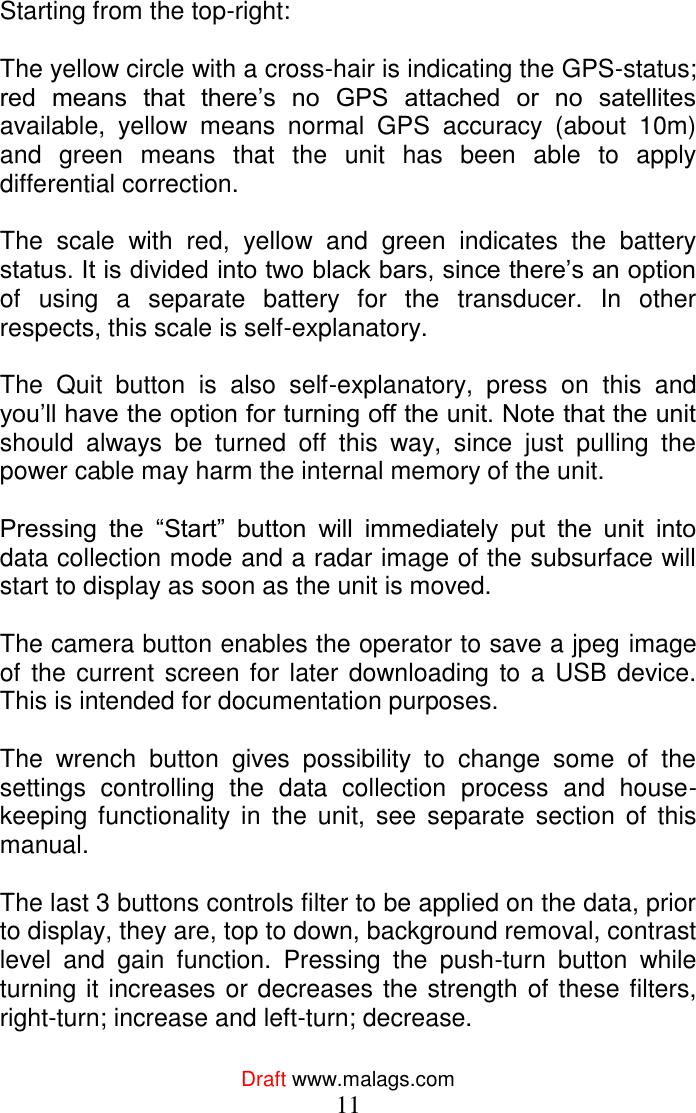

 Draft www.malags.com 11  Starting from the top-right:  The yellow circle with a cross-hair is indicating the GPS-status; red  means  that  there’s  no  GPS  attached  or  no  satellites available,  yellow  means  normal  GPS  accuracy  (about  10m) and  green  means  that  the  unit  has  been  able  to  apply differential correction.   The  scale  with  red,  yellow  and  green  indicates  the  battery status. It is divided into two black bars, since there’s an option of  using  a  separate  battery  for  the  transducer.  In  other respects, this scale is self-explanatory.  The  Quit  button  is  also  self-explanatory,  press  on  this  and you’ll have the option for turning off the unit. Note that the unit should  always  be  turned  off  this  way,  since  just  pulling  the power cable may harm the internal memory of the unit.  Pressing  the  “Start”  button  will  immediately  put  the  unit  into data collection mode and a radar image of the subsurface will start to display as soon as the unit is moved.    The camera button enables the operator to save a jpeg image of the current screen for  later downloading to a  USB device. This is intended for documentation purposes.   The  wrench  button  gives  possibility  to  change  some  of  the settings  controlling  the  data  collection  process  and  house-keeping  functionality in  the  unit,  see  separate  section  of  this manual.  The last 3 buttons controls filter to be applied on the data, prior to display, they are, top to down, background removal, contrast level  and  gain  function.  Pressing  the  push-turn  button  while turning it increases or decreases the strength of these filters, right-turn; increase and left-turn; decrease.

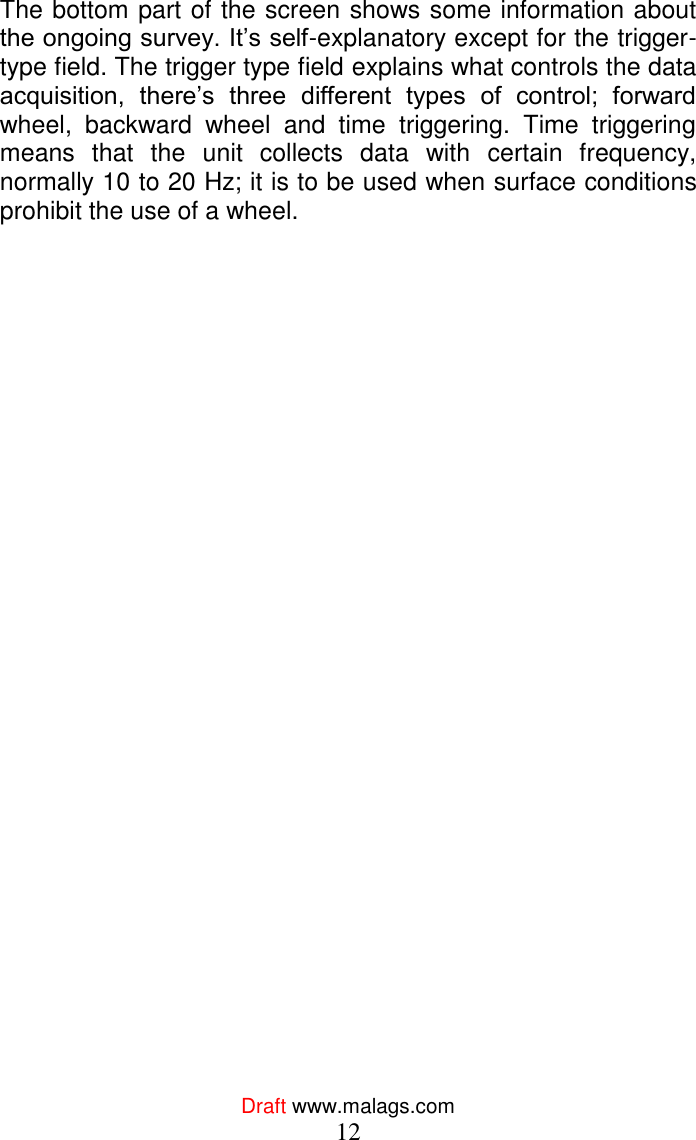

 Draft www.malags.com 12 The bottom part of the screen shows some information about the ongoing survey. It’s self-explanatory except for the trigger-type field. The trigger type field explains what controls the data acquisition,  there’s  three  different  types  of  control;  forward wheel,  backward  wheel  and  time  triggering.  Time  triggering means  that  the  unit  collects  data  with  certain  frequency, normally 10 to 20 Hz; it is to be used when surface conditions prohibit the use of a wheel.

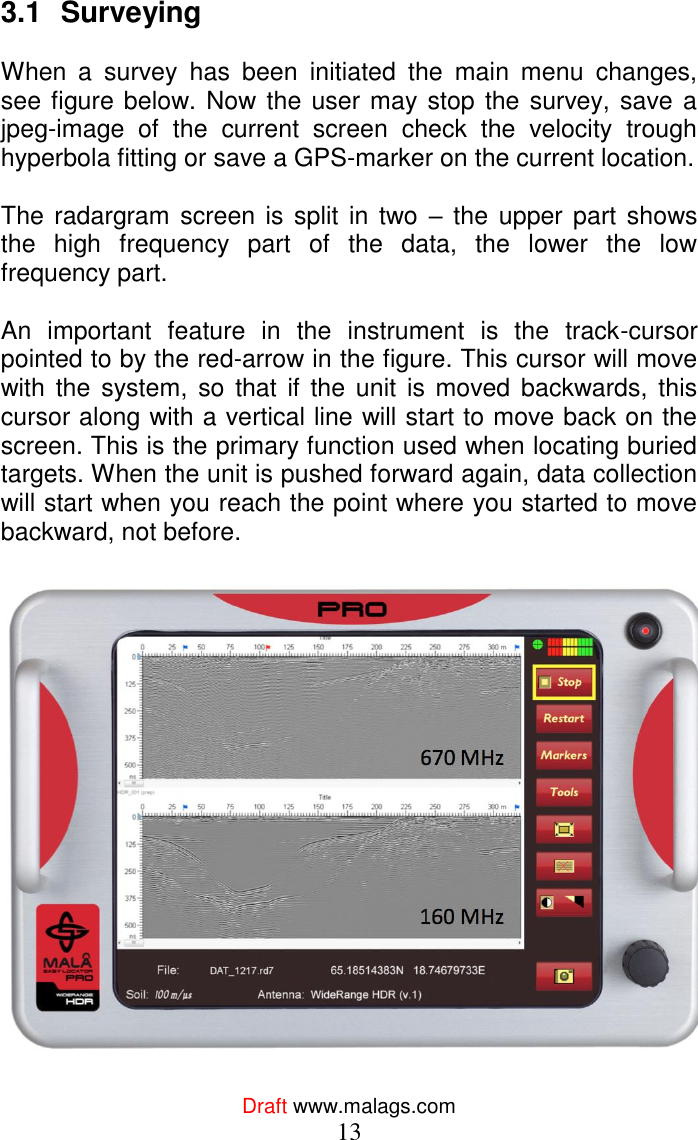

 Draft www.malags.com 13 3.1  Surveying   When  a  survey  has  been  initiated  the  main  menu  changes, see figure below. Now the user may stop the survey, save a jpeg-image  of  the  current  screen  check  the  velocity  trough hyperbola fitting or save a GPS-marker on the current location.  The radargram screen is  split in  two  – the  upper part shows the  high  frequency  part  of  the  data,  the  lower  the  low frequency part.  An  important  feature  in  the  instrument  is  the  track-cursor pointed to by the red-arrow in the figure. This cursor will move with the system,  so that if  the unit  is moved  backwards, this cursor along with a vertical line will start to move back on the screen. This is the primary function used when locating buried targets. When the unit is pushed forward again, data collection will start when you reach the point where you started to move backward, not before.

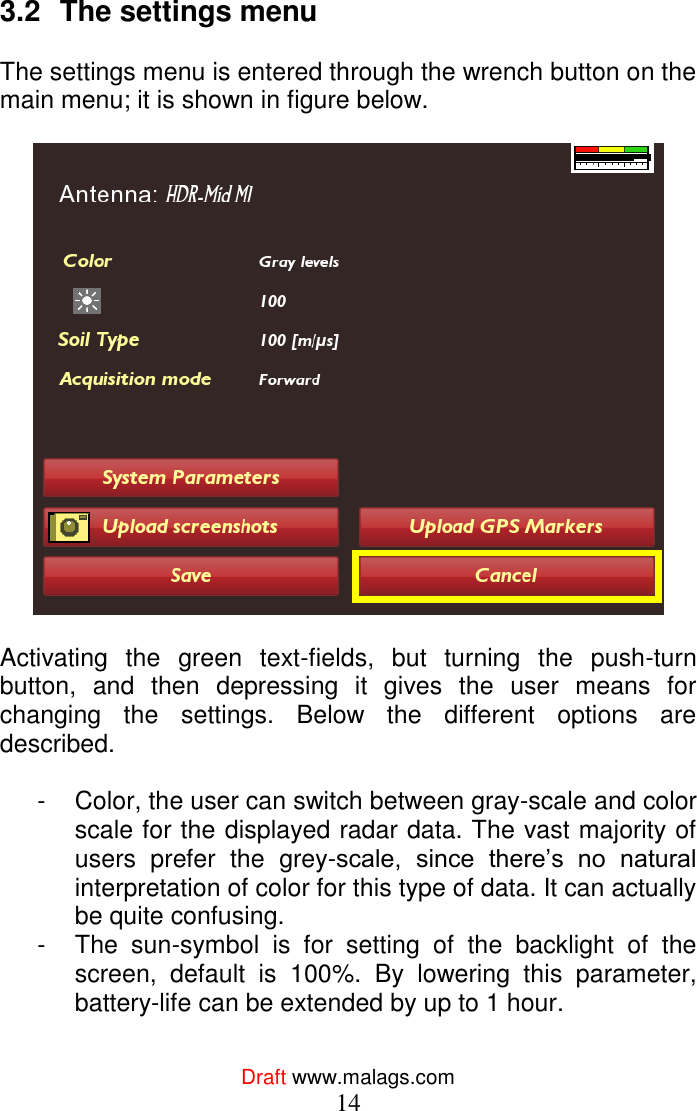

 Draft www.malags.com 14  3.2  The settings menu  The settings menu is entered through the wrench button on the main menu; it is shown in figure below.     Activating  the  green  text-fields,  but  turning  the  push-turn button,  and  then  depressing  it  gives  the  user  means  for changing  the  settings.  Below  the  different  options  are described.  -  Color, the user can switch between gray-scale and color scale for the displayed radar data. The vast majority of users  prefer  the  grey-scale,  since  there’s  no  natural interpretation of color for this type of data. It can actually be quite confusing. -  The  sun-symbol  is  for  setting  of  the  backlight  of  the screen,  default  is  100%.  By  lowering  this  parameter, battery-life can be extended by up to 1 hour.

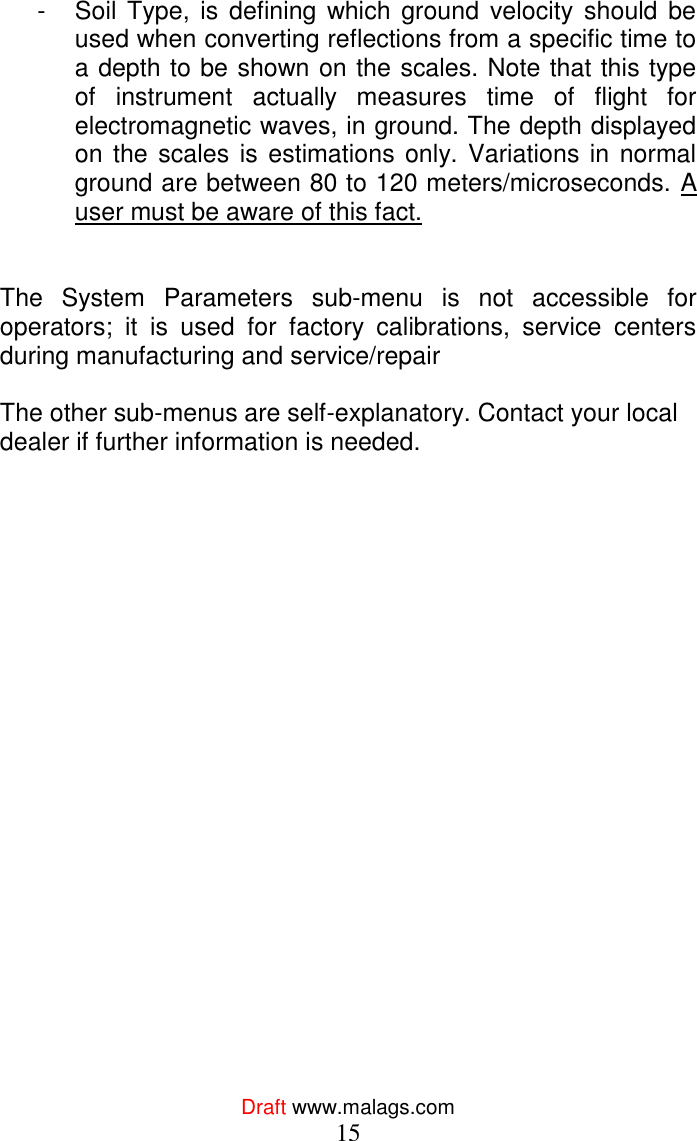

 Draft www.malags.com 15 -  Soil Type, is  defining which  ground velocity should  be used when converting reflections from a specific time to a depth to be shown on the scales. Note that this type of  instrument  actually  measures  time  of  flight  for electromagnetic waves, in ground. The depth displayed on the scales is estimations only. Variations in normal ground are between 80 to 120 meters/microseconds. A user must be aware of this fact.   The  System  Parameters  sub-menu  is  not  accessible  for operators;  it  is  used  for  factory  calibrations,  service  centers during manufacturing and service/repair  The other sub-menus are self-explanatory. Contact your local dealer if further information is needed.

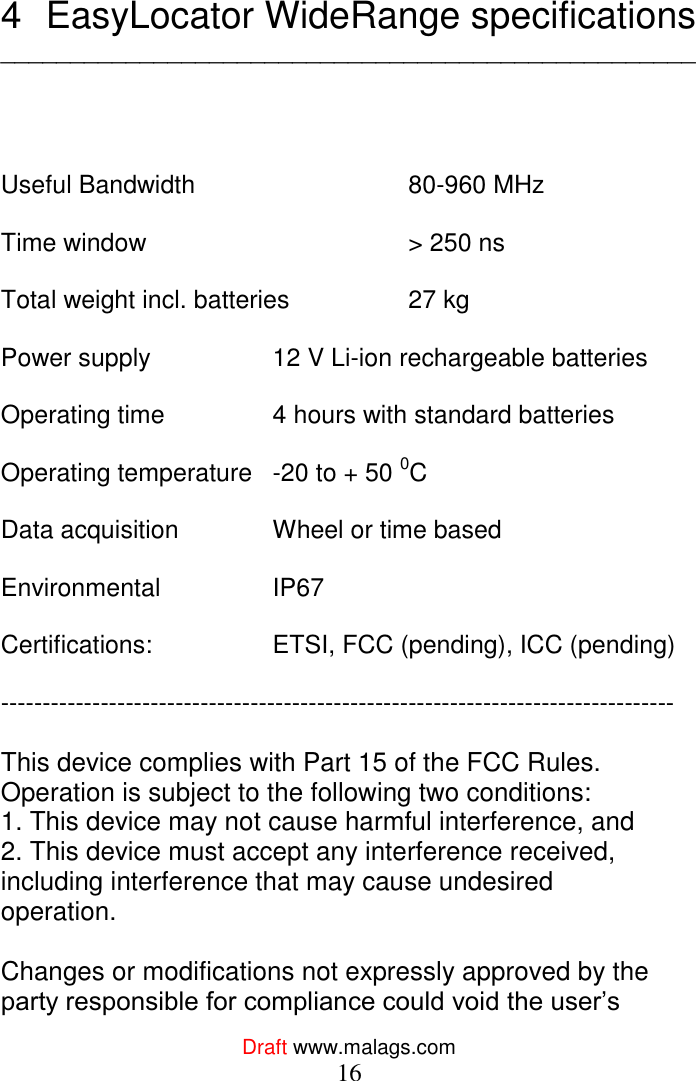

 Draft www.malags.com 16   4  EasyLocator WideRange specifications __________________________________________________     Useful Bandwidth    80-960 MHz  Time window    > 250 ns  Total weight incl. batteries  27 kg   Power supply  12 V Li-ion rechargeable batteries  Operating time  4 hours with standard batteries  Operating temperature  -20 to + 50 0C    Data acquisition  Wheel or time based  Environmental   IP67  Certifications:   ETSI, FCC (pending), ICC (pending)  ---------------------------------------------------------------------------------  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and  2. This device must accept any interference received, including interference that may cause undesired  operation.  Changes or modifications not expressly approved by the party responsible for compliance could void the user’s

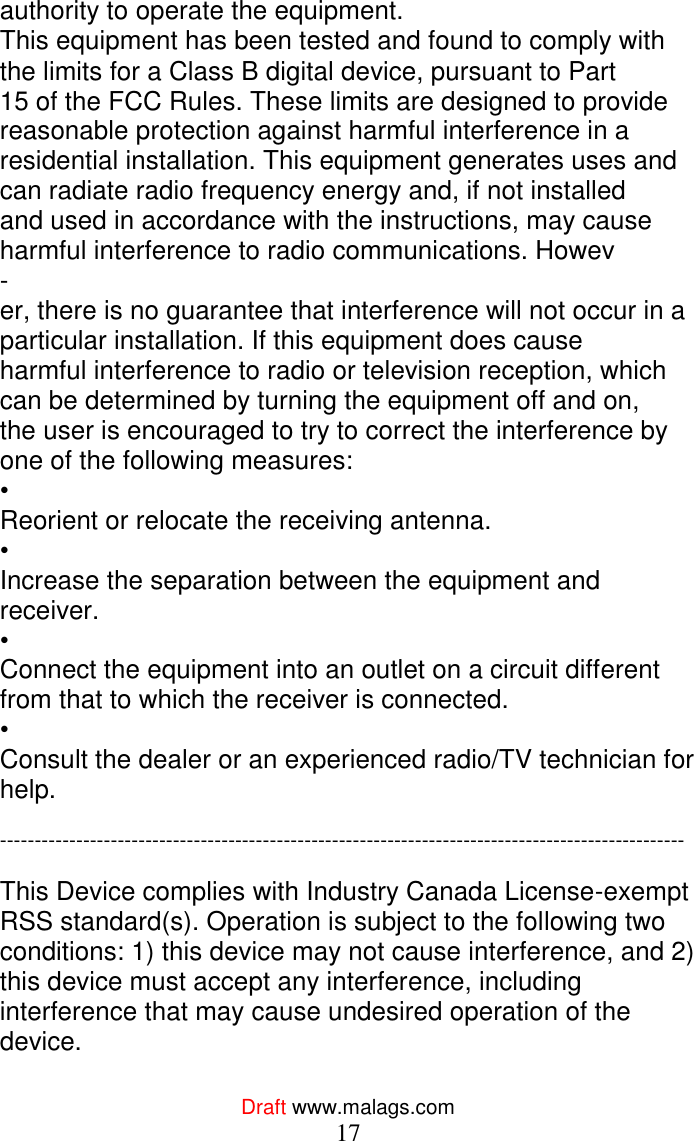

 Draft www.malags.com 17 authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part  15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a  residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed  and used in accordance with the instructions, may cause harmful interference to radio communications. Howev - er, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause  harmful interference to radio or television reception, which can be determined by turning the equipment off and on,  the user is encouraged to try to correct the interference by one of the following measures: •  Reorient or relocate the receiving antenna. •  Increase the separation between the equipment and receiver. •  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •  Consult the dealer or an experienced radio/TV technician for help.  ---------------------------------------------------------------------------------------------------  This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device.

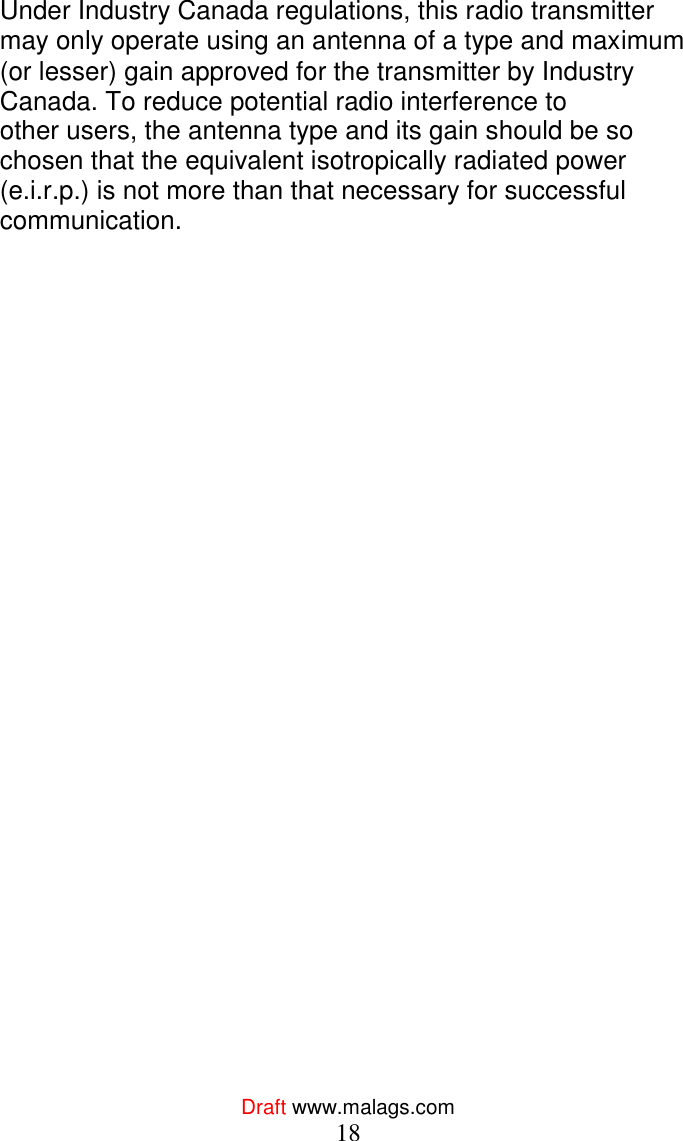

 Draft www.malags.com 18 Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to  other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power  (e.i.r.p.) is not more than that necessary for successful communication.
