Guoguang Electric 00005 BLUETOOTH SPEAKER 2.1 User Manual

Guoguang Electric Co.,Ltd BLUETOOTH SPEAKER 2.1

User Manual

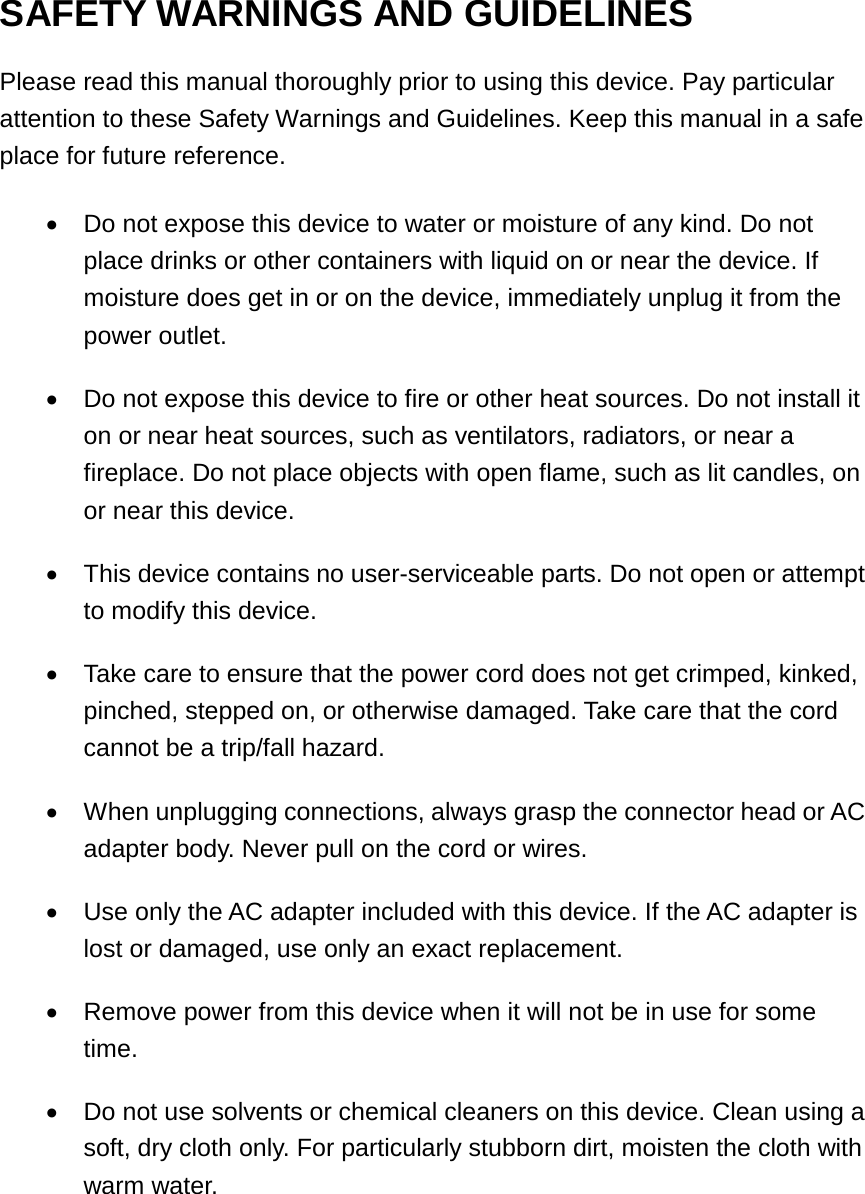

SAFETY WARNINGS AND GUIDELINES Please read this manual thoroughly prior to using this device. Pay particular attention to these Safety Warnings and Guidelines. Keep this manual in a safe place for future reference. •Do not expose this device to water or moisture of any kind. Do notplace drinks or other containers with liquid on or near the device. Ifmoisture does get in or on the device, immediately unplug it from thepower outlet.•Do not expose this device to fire or other heat sources. Do not install iton or near heat sources, such as ventilators, radiators, or near afireplace. Do not place objects with open flame, such as lit candles, onor near this device.•This device contains no user-serviceable parts. Do not open or attemptto modify this device.•Take care to ensure that the power cord does not get crimped, kinked,pinched, stepped on, or otherwise damaged. Take care that the cordcannot be a trip/fall hazard.•When unplugging connections, always grasp the connector head or ACadapter body. Never pull on the cord or wires.•Use only the AC adapter included with this device. If the AC adapter islost or damaged, use only an exact replacement.•Remove power from this device when it will not be in use for sometime.•Do not use solvents or chemical cleaners on this device. Clean using asoft, dry cloth only. For particularly stubborn dirt, moisten the cloth withwarm water.

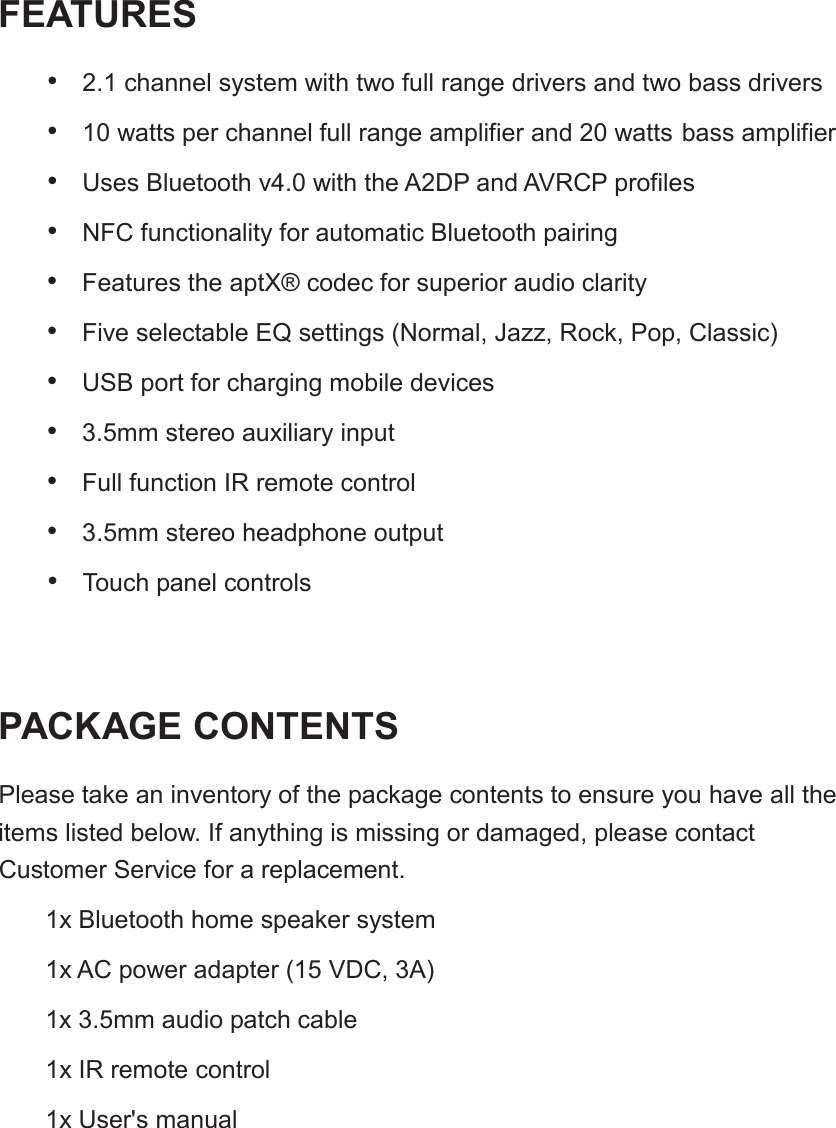

FEATURES•2.1 channel system with two full range drivers and two bass drivers•10 watts per channel full range amplifier and 20 watts bass amplifier•Uses Bluetooth v4.0 with the A2DP and AVRCP profiles•NFC functionality for automatic Bluetooth pairing•Features the aptX® codec for superior audio clarity•Five selectable EQ settings (Normal, Jazz, Rock, Pop, Classic)•USB port for charging mobile devices•3.5mm stereo auxiliary input•Full function IR remote control•3.5mm stereo headphone output•Touch panel controlsPACKAGE CONTENTSPlease take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact 1x Bluetooth home speaker system1x AC power adapter (15 VDC, 3A)1x 3.5mm audio patch cable1x IR remote control1x User's manual Customer Service for a replacement.

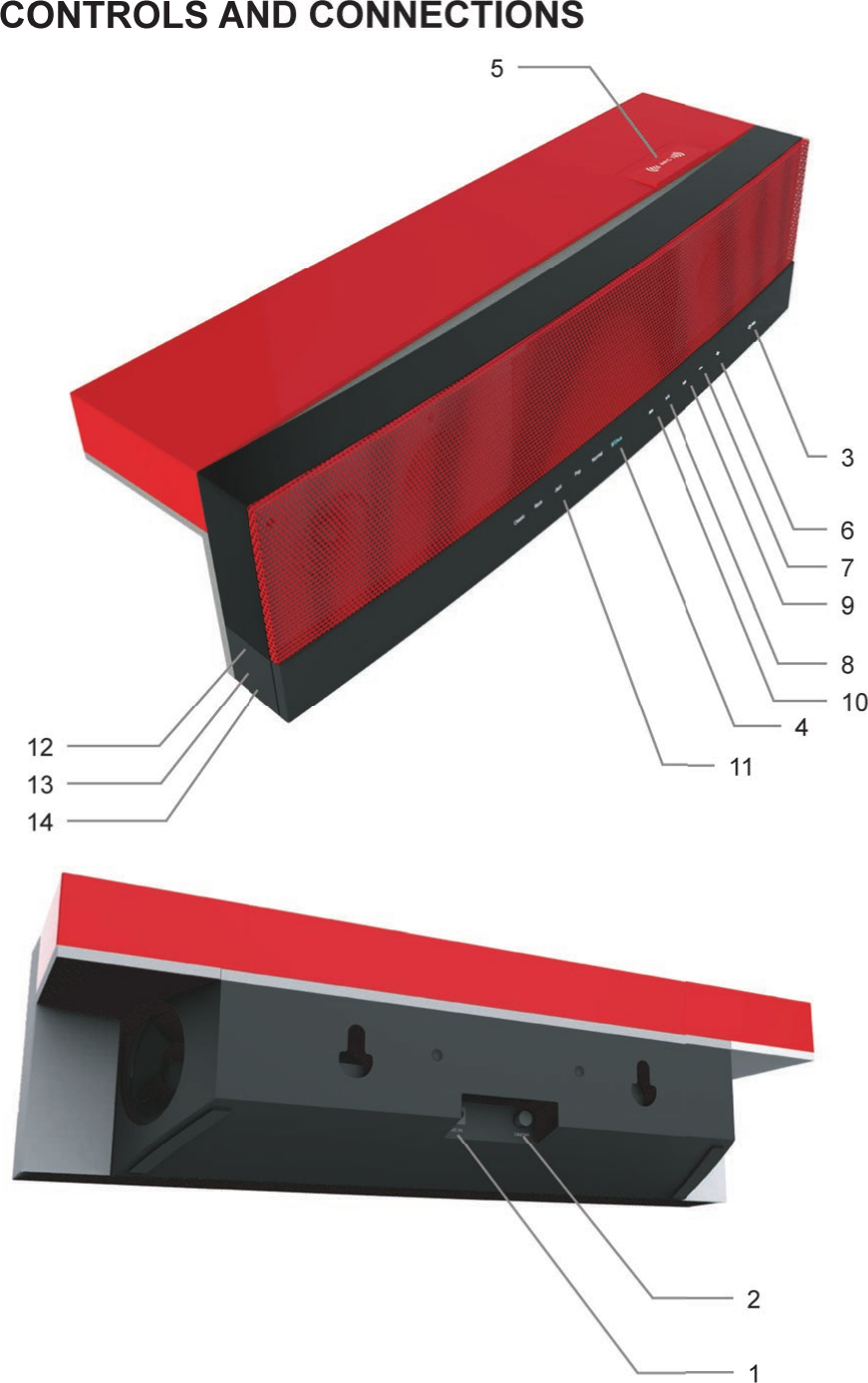

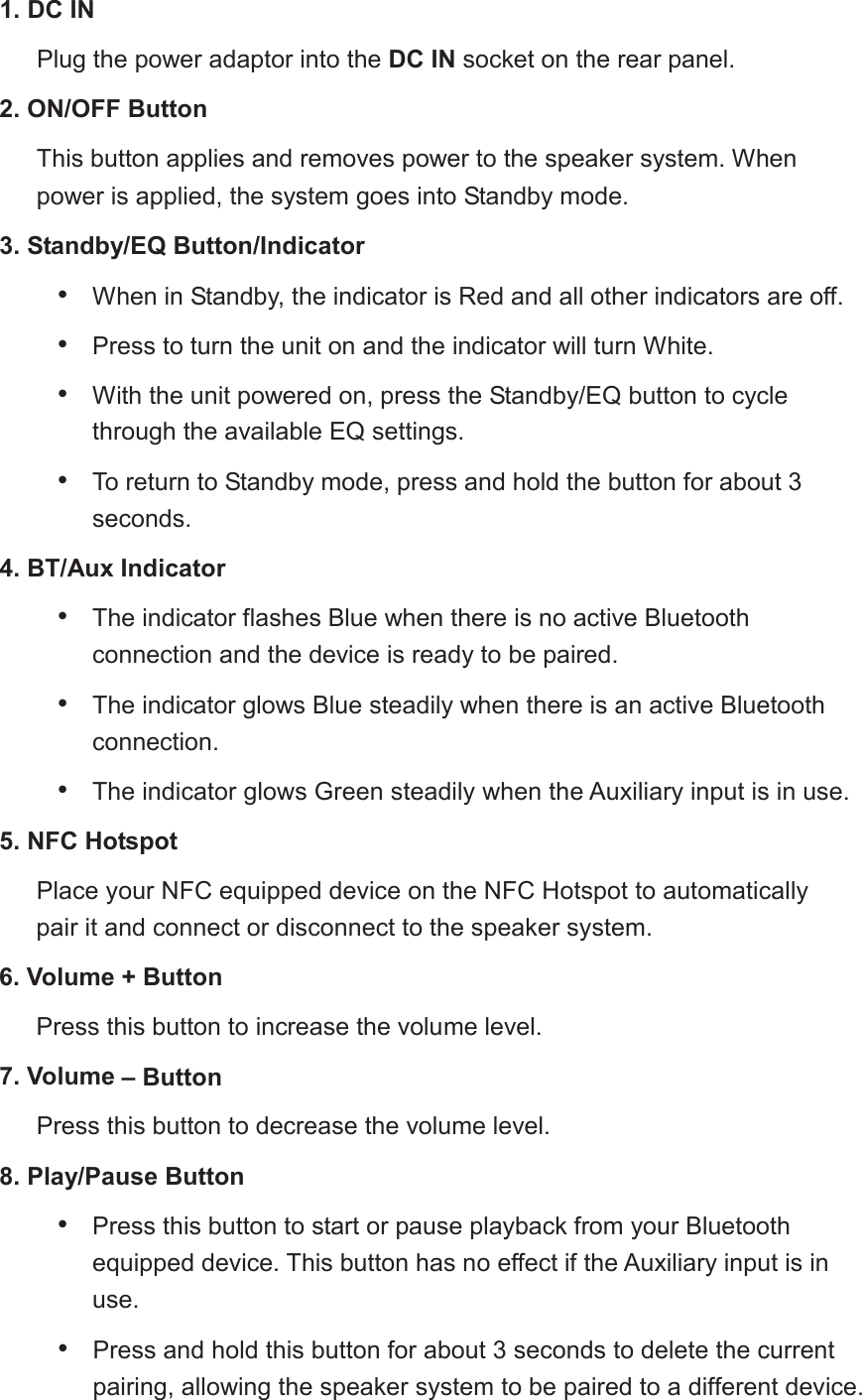

1. DC INPlug the power adaptor into the DC INsocket on the rear panel. 2. ON/OFF ButtonThis button applies and removes power to the speaker system. When power is applied, the system goes into Standby mode.3. Standby/EQ Button/Indicator•When in Standby, the indicator is Red and all other indicators are off.•Press to turn the unit on and the indicator will turn White.•With the unit powered on, press the Standby/EQ button to cyclethrough the available EQ settings.•To return to Standby mode, press and hold the button for about 3seconds.4. BT/Aux Indicator•The indicator flashes Blue when there is no active Bluetoothconnection and the device is ready to be paired.•The indicator glows Blue steadily when there is an active Bluetoothconnection.•The indicator glows Green steadilywhen the Auxiliary input is in use.5. NFC HotspotPlace your NFC equippeddevice on the NFC Hotspot to automatically pair it and connect or disconnect to the speaker system.6. Volume + ButtonPress this button to increase the volume level.7. Volume – ButtonPress this button to decrease the volume level.8. Play/Pause Button•Press this button to start or pause playback from your Bluetoothequipped device. This button has no effect if the Auxiliary input is inuse.• Press and hold this button for about 3 seconds to delete the current pairing, allowing the speaker system to be paired to a different device.

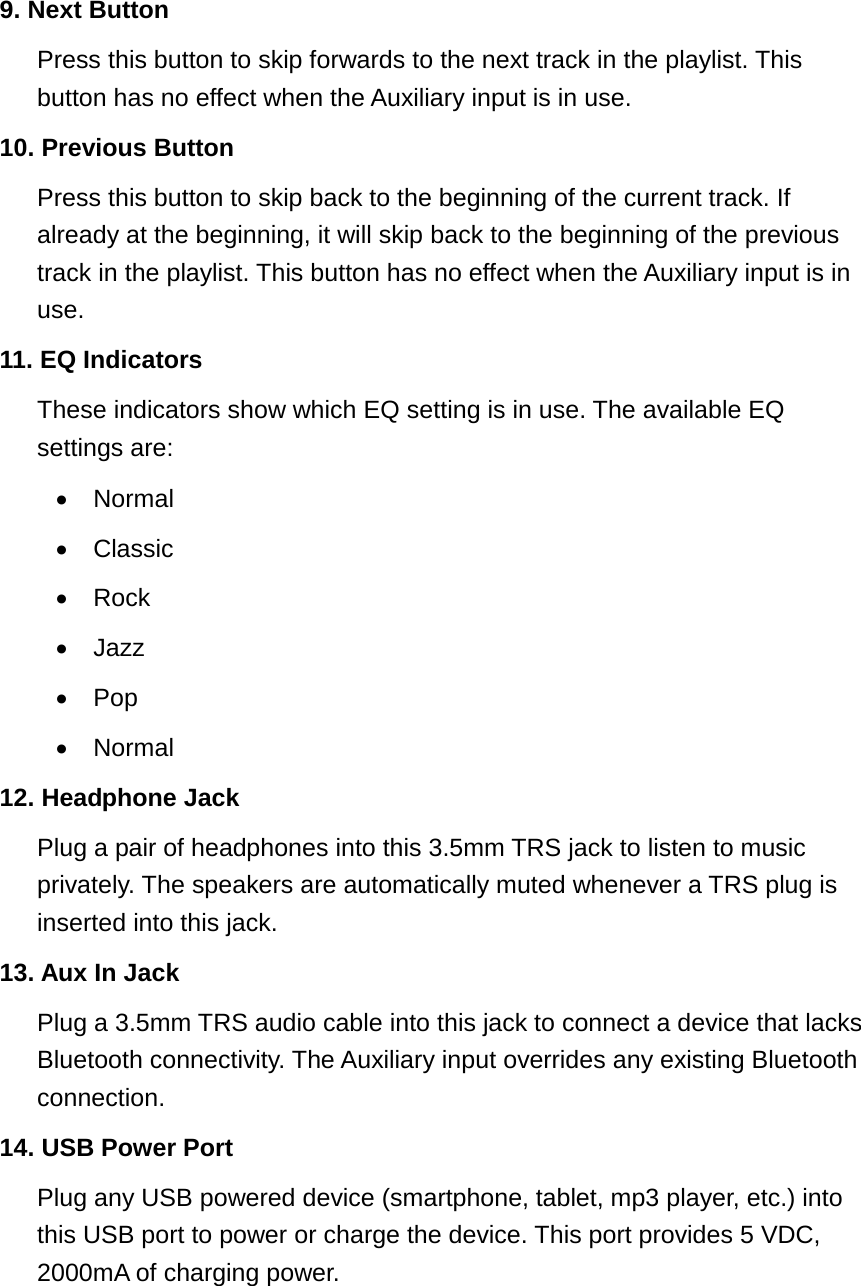

9. Next ButtonPress this button to skip forwards to the next track in the playlist. This button has no effect when the Auxiliary input is in use. 10. Previous ButtonPress this button to skip back to the beginning of the current track. Ifalready at the beginning, it will skip back to the beginning of the previoustrack in the playlist. This button has no effect when the Auxiliary input is inuse.11. EQ IndicatorsThese indicators show which EQ setting is in use. The available EQsettings are:•Normal•Classic•Rock•Jazz•Pop•Normal12. Headphone JackPlug a pair of headphones into this 3.5mm TRS jack to listen to musicprivately. The speakers are automatically muted whenever a TRS plug isinserted into this jack.13. Aux In JackPlug a 3.5mm TRS audio cable into this jack to connect a device that lacksBluetooth connectivity. The Auxiliary input overrides any existing Bluetoothconnection.14. USB Power PortPlug any USB powered device (smartphone, tablet, mp3 player, etc.) intothis USB port to power or charge the device. This port provides 5 VDC,2000mA of charging power.

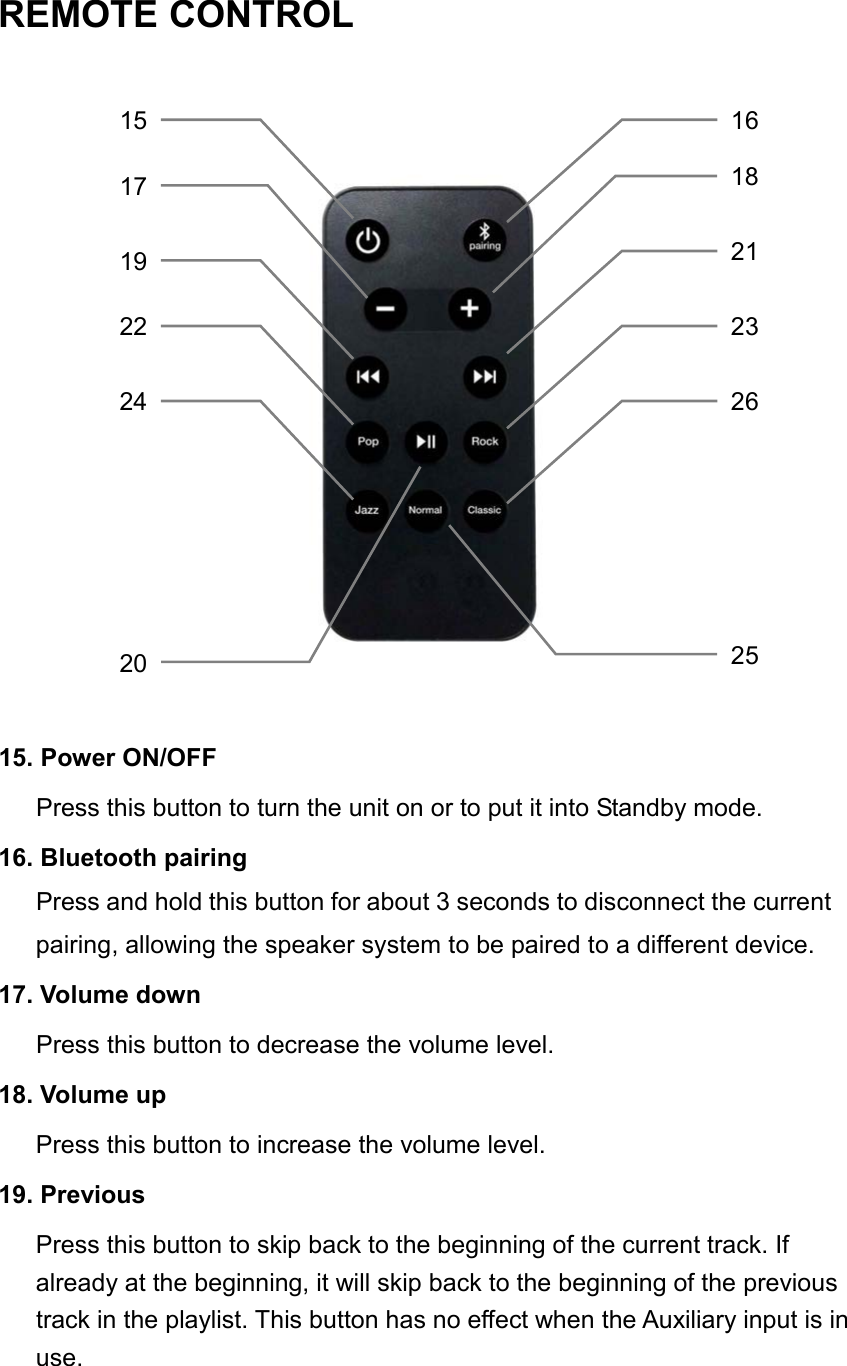

REMOTE CONTROL15. Power ON/OFFPress this button to turn the unit on or to put it into Standby mode.16. Bluetooth pairingPress and hold this button for about 3 seconds to disconnect the current pairing, allowing the speaker system to be paired to a different device.17. Volume downPress this button to decrease the volume level.18. Volume upPress this button to increase the volume level.19. PreviousPress this button to skip back to the beginning of the current track. Ifalready at the beginning, it will skip back to the beginning of the previoustrack in the playlist. This button has no effect when the Auxiliary input is inuse.151617192224261821232025
20. Play/Pause•Press this button to start or pause playback from your Bluetoothequipped device. This button has no effect if the Auxiliary input is inuse.21. NextPress this button to skip forwards to the next track in the playlist. Thisbutton has no effect when the Auxiliary input is in use.22. EQ PopPress this button to select the Pop EQ setting.23. EQ RockPress this button to select the Rock EQ setting.24. EQ JazzPress this button to select the Jazz EQ setting.25. EQ NormalPress this button to select the Normal EQ setting.26. EQ ClassicPress this button to select the Classic EQ setting.INITIAL SETUP1. Plug one end of the AC adapter into the DC IN jack on the rear panel.Plug the other end into a nearby AC power outlet.2. Depress the ON/OFF button on the rear panel. The Standby/EQbutton/indicator on the front panel will glow Red in response.3. Press the Standby/EQ button/indicator on the front panel. The indicatorwill change to White and the other buttons and indicators will illuminatein response.4. Pair the system with your Bluetooth equipped audio device or physicallyconnect it to the AUX IN jack on the left side panel.

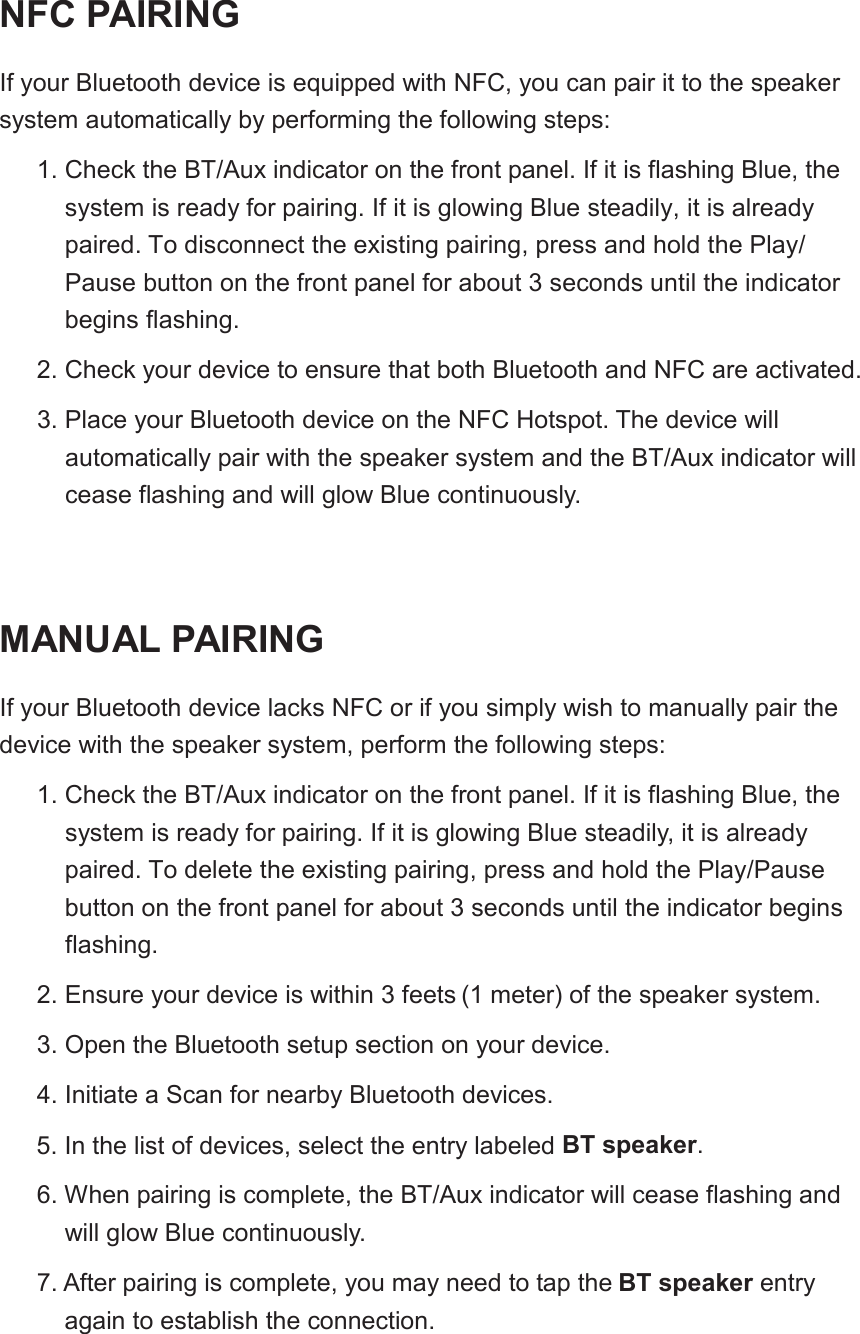

NFC PAIRINGIf your Bluetooth device is equipped with NFC, you can pair it to the speakersystem automatically by performing the following steps:1. Check the BT/Aux indicator on the front panel. If it is flashing Blue, the system is ready for pairing. If it is glowing Blue steadily, it is already paired. To disconnect the existing pairing, press and hold the Play/Pause button on the front panel for about 3 seconds until the indicatorbegins flashing.2. Check your device to ensure that both Bluetooth and NFC are activated.3. Place your Bluetooth device on the NFC Hotspot. The device willautomatically pair with the speaker system and the BT/Aux indicator willcease flashing and will glow Blue continuously.MANUAL PAIRINGIf your Bluetooth device lacks NFC or if you simply wish to manually pair the device with the speaker system, perform the following steps:1. Check the BT/Aux indicator on the front panel. If it is flashing Blue, the system is ready for pairing. If it is glowing Blue steadily, it is already paired. To delete the existing pairing, press and hold the Play/Pause button on the front panel for about 3 seconds until the indicator begins flashing.2. Ensure your device is within 3 feets (1 meter) of the speaker system.3. Open the Bluetooth setup section on your device.4. Initiate a Scan for nearby Bluetooth devices.5. In the list of devices, select the entry labeled 6. When pairing is complete, the BT/Aux indicator will cease flashing andwill glow Blue continuously.7.BT speaker.After pairing is complete, you may need to tap the BT speaker entryagain to establish the connection.

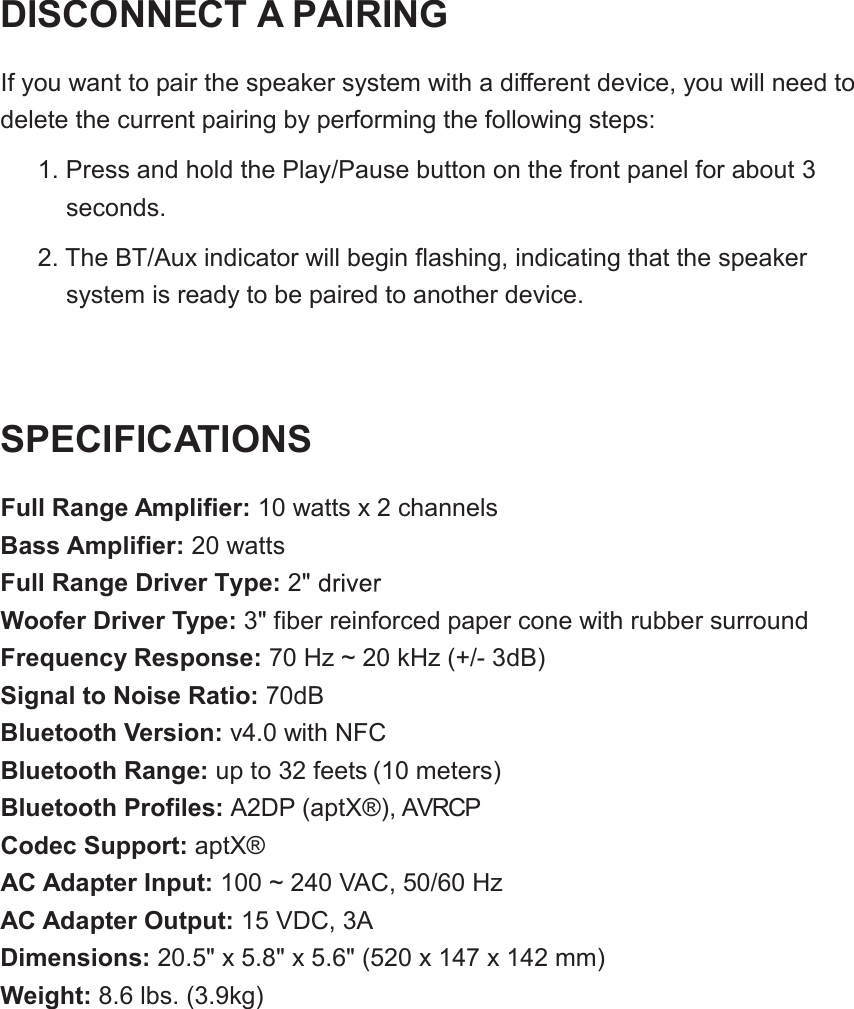

DISCONNECT A PAIRINGIf you want to pair the speaker system with a different device, you will need to delete the current pairing by performing the following steps:1. Press and hold the Play/Pause button on the front panel for aboutseconds.2. The BT/Aux indicator will begin flashing, indicating that the speakersystem is ready to be paired to another device.SPECIFICATIONSFull Range Amplifier: 10 watts x 2 channelsBass Amplifier: 20 wattsFull Range Driver Type: 2"Woofer Driver Type: 3" fiber reinforced paper cone with rubber surroundFrequency Response: 70 Hz ~ 20 kHz (+/- 3dB)Signal to Noise Ratio: 70dBBluetooth Version: v4.0 with NFCBluetooth Range: up to 32 feets (10 meters)Bluetooth Profiles: A2DP (aptX®), AVRCPCodec Support: aptX®AC Adapter Input: 100 ~ 240 VAC, 50/60 HzAC Adapter Output: 15 VDC, 3ADimensions: 20.5" x 5.8" x 5.6" (520 x 147 x 142 mm)Weight: 8.6 lbs. (3.9kg)3

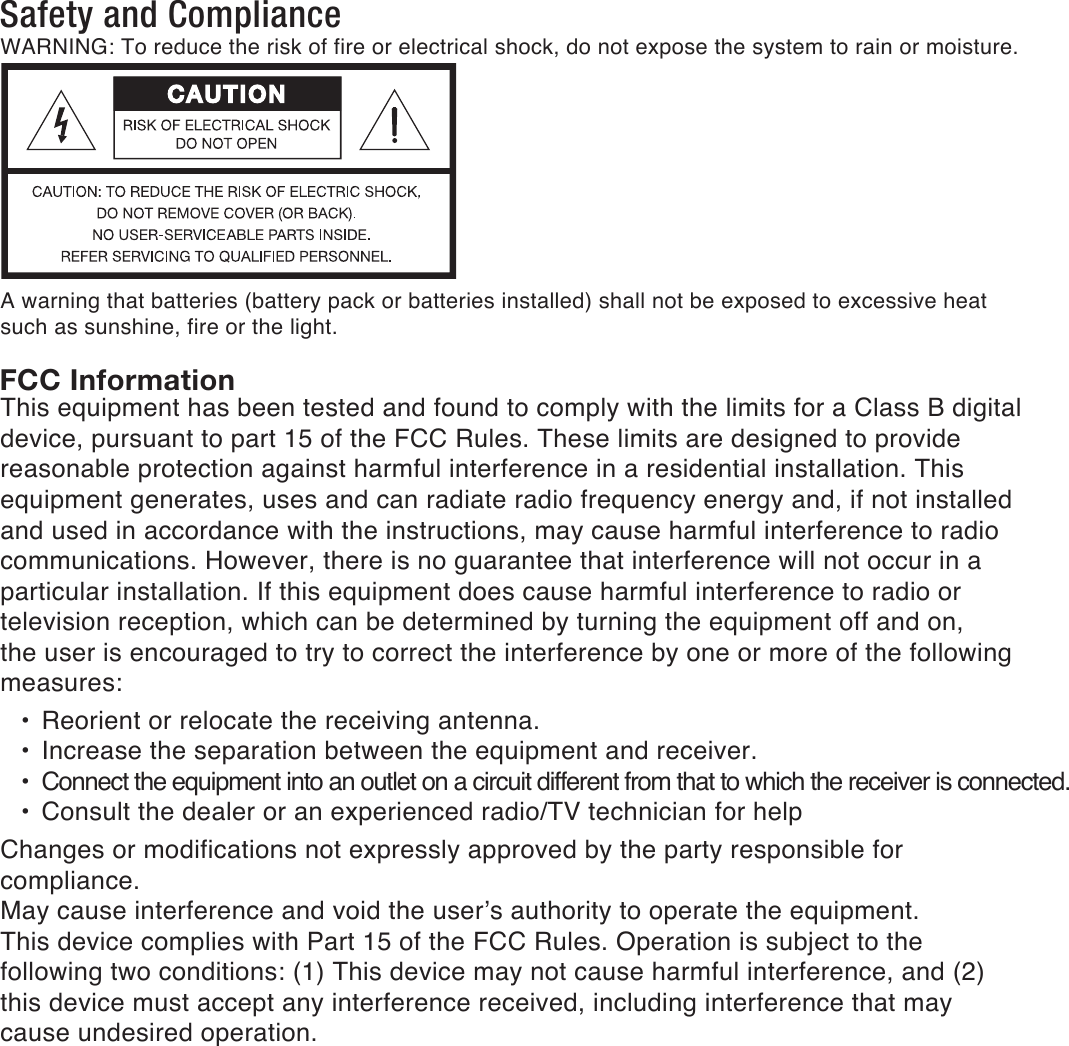

Safety and ComplianceFCC InformationWARNING: To reduce the risk of fire or electrical shock, do not expose the system to rain or moisture. A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the light.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for helpChanges or modifications not expressly approved by the party responsible for compliance.May cause interference and void the user’s authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
