Guoguang Electric ESB206 2.1 Sound Bar System(wireless) User Manual

Guoguang Electric Co.,Ltd 2.1 Sound Bar System(wireless)

User Manual

ESB206 2.1 Sound Bar System（wireless）

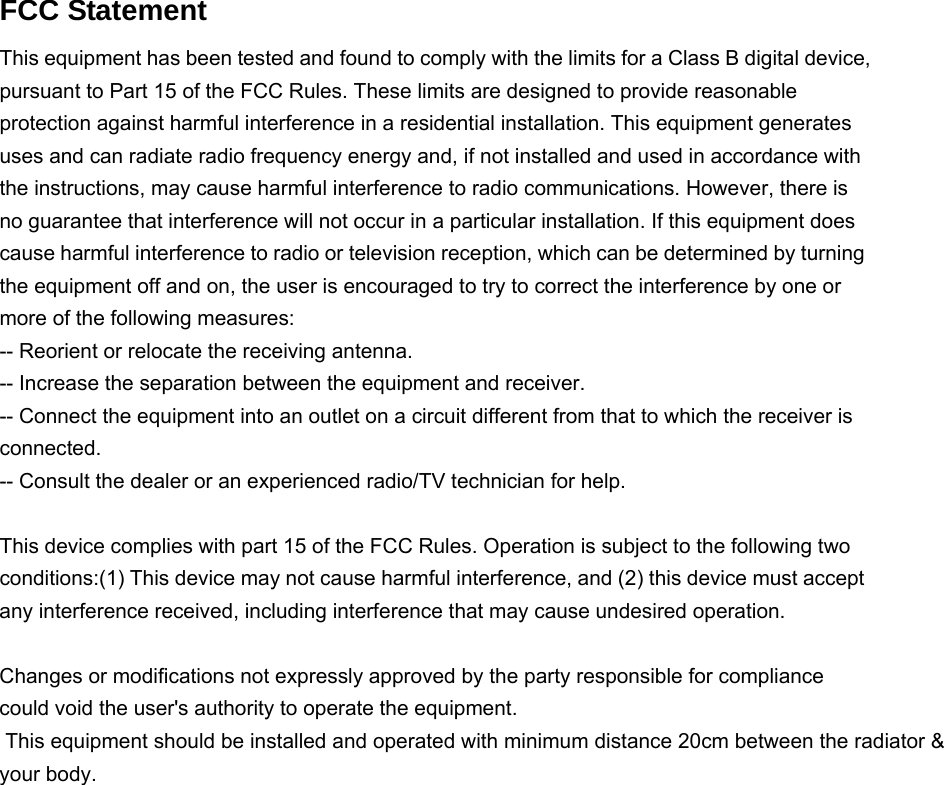

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

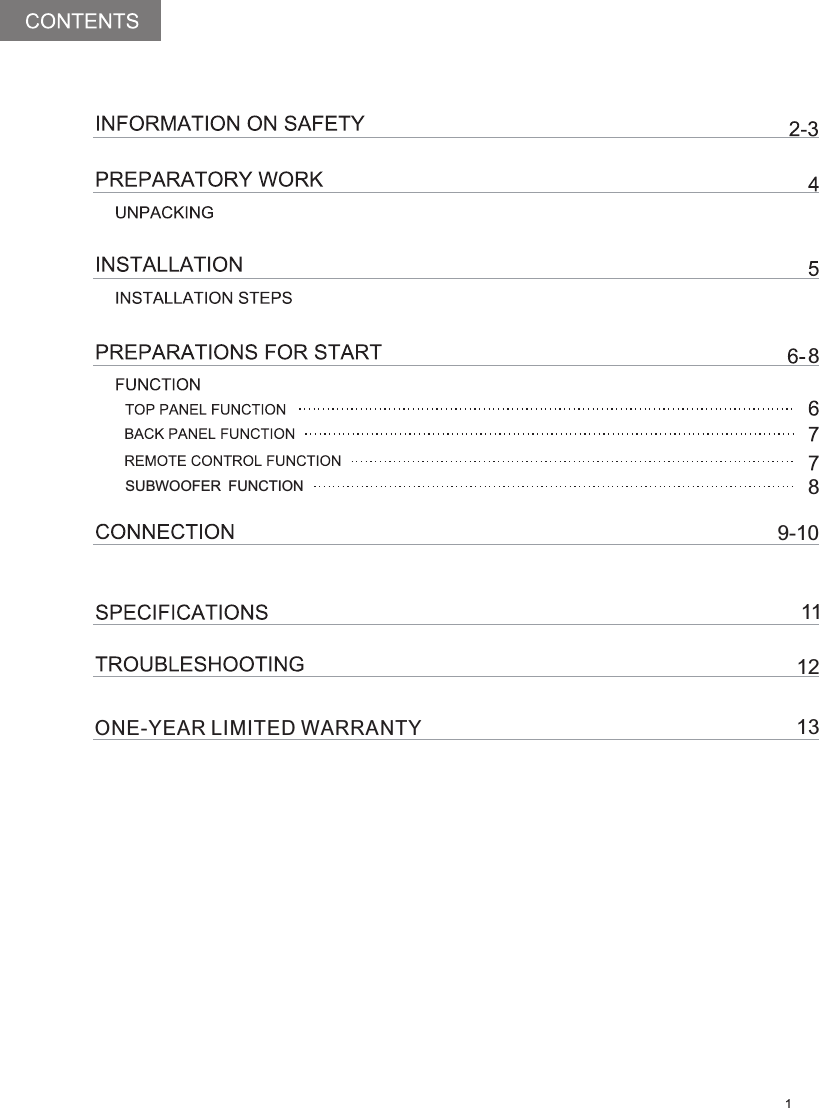

SUBWOOFER FUNCTION 89-101112138ONE-YEAR LIMITED WARRANTY

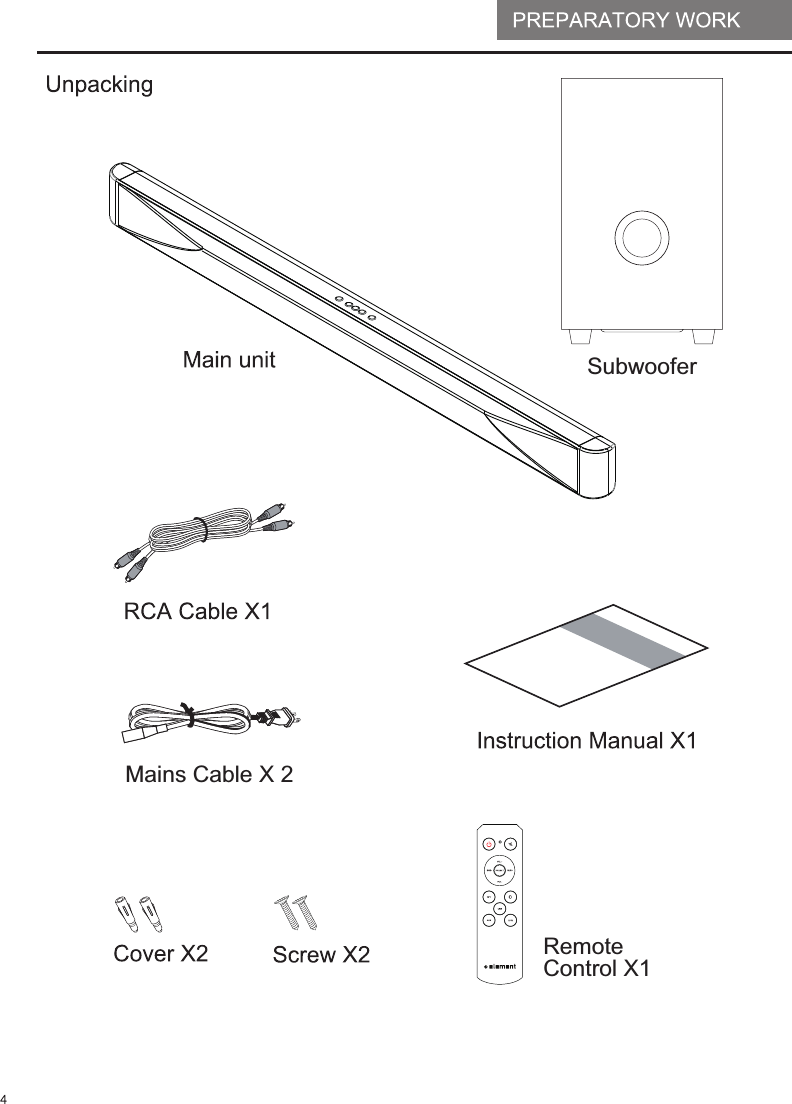

Remote Control X1SubwooferMains Cable X 2

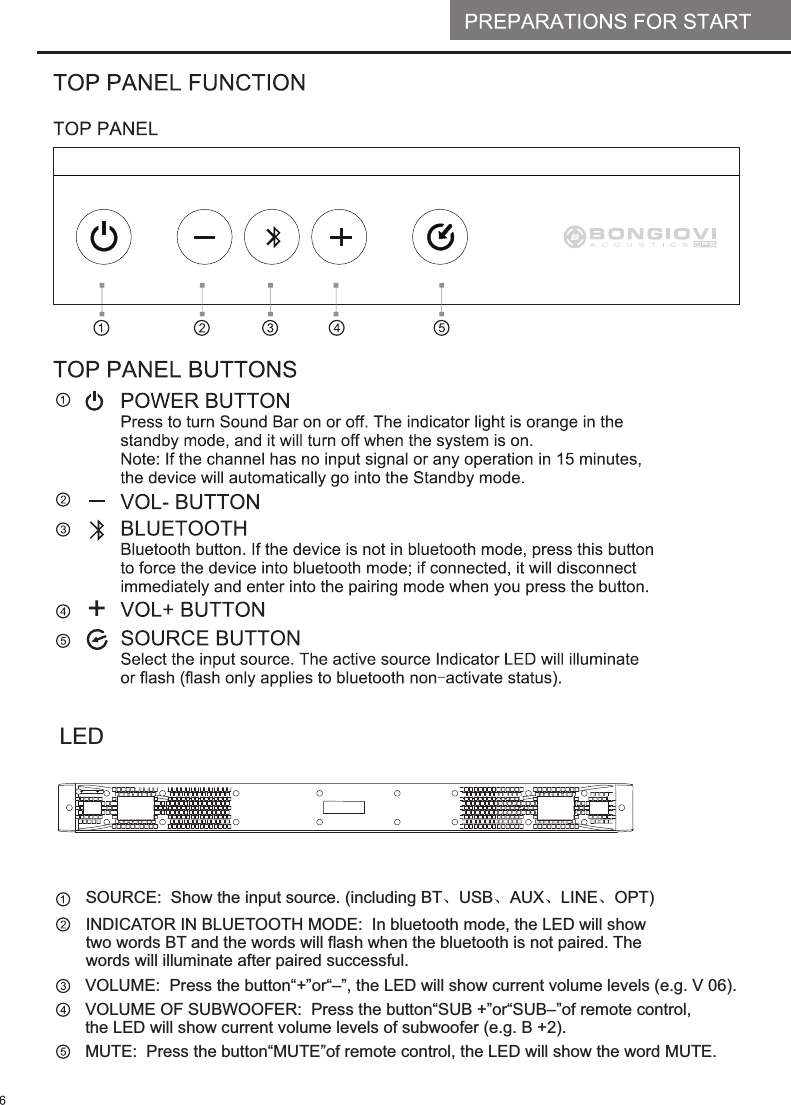

SOURCE Show the input source. (including BT、USB、AUX、LINE、OPT): INDICATOR IN BLUETOOTH MODE In bluetooth mode, the LED will show two words BT and the words will flash when the bluetooth is not paired. The words will illuminate after paired successful.: VOLUME Press the button“+”or“–”, the LED will show current volume levels (e.g. V 06).: VOLUME OF SUBWOOFER Press the button“SUB +”or“SUB–”of remote control, the LED will show current volume levels of subwoofer (e.g. B +2).: MUTE Press the button“MUTE”of remote control, the LED will show the word MUTE.: LED

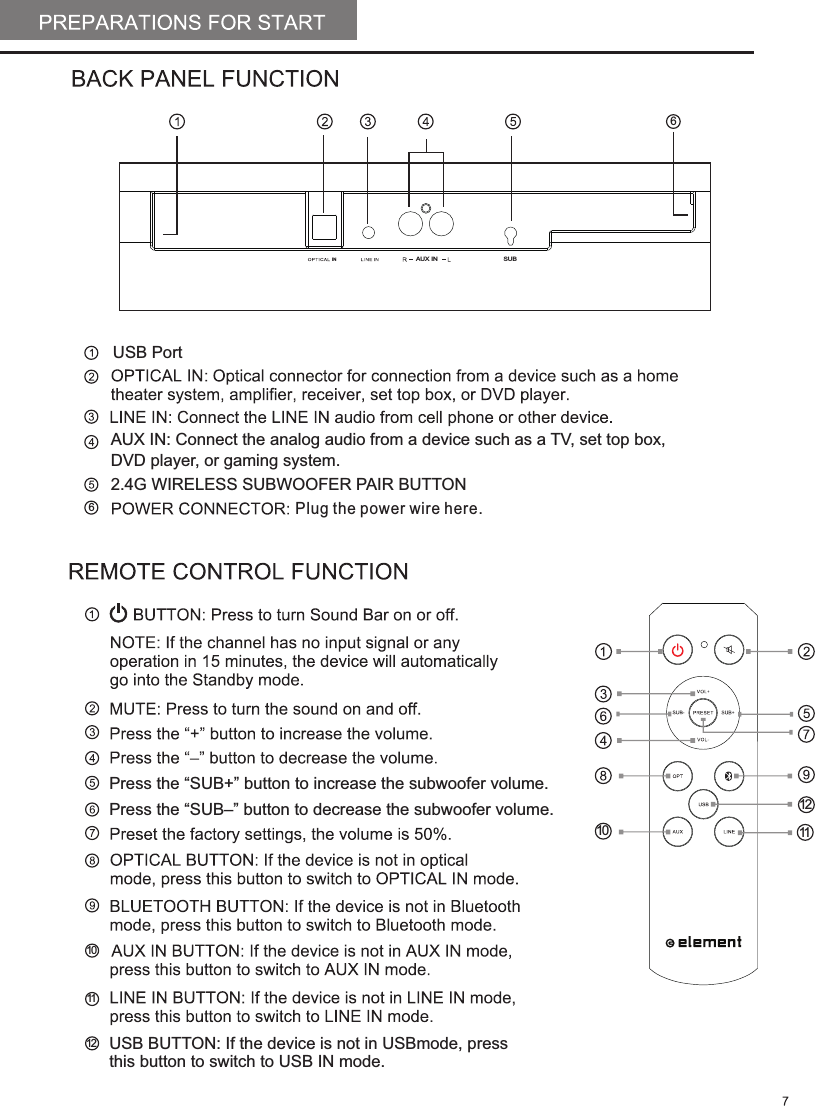

AUX IN: Connect the analog audio from a device such as a TV, set top box, DVD player, or gaming system.2 .4G WIRELESS SUBWOOFER PAIR BUTTON11Press the “SUB+” button to increase the subwoofer volume. Press the “SUB–” button to decrease the subwoofer volume.101011AUX ININSUB12 USB BUTTON: If the device is not in USBmode, press this button to switch to USB IN mode.126USB Port6Plug the power wire here.

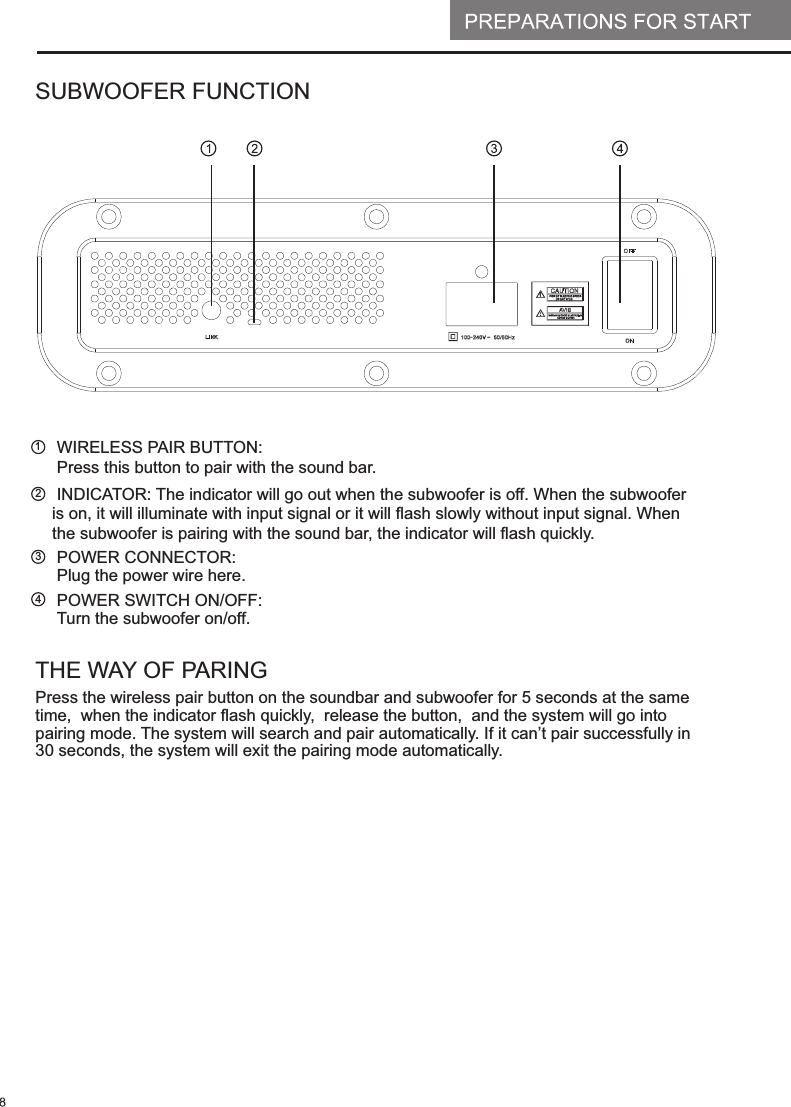

SUBWOOFER FUNCTION1234WIRELESS PAIR BUTTON: Press this button to pair with the sound bar. INDICATOR The indicator will go out when the subwoofer is off. When the subwoofer is on, it will illuminate with input signal or it will flash slowly without input signal. When the subwoofer is pairing with the sound bar, the indicator will flash quickly. : POWER CONNECTOR:Plug the power wire here. POWER SWITCH ON/OFF Turn the subwoofer on/off.: THE WAY OF PARINGPress the wireless pair button on the soundbar and subwoofer for 5 seconds at the same time, when the indicator flash quickly, release the button, and the system will go into pairing mode. The system will search and pair automatically. If it can’t pair successfully in 30 seconds, the system will exit the pairing mode automatically.

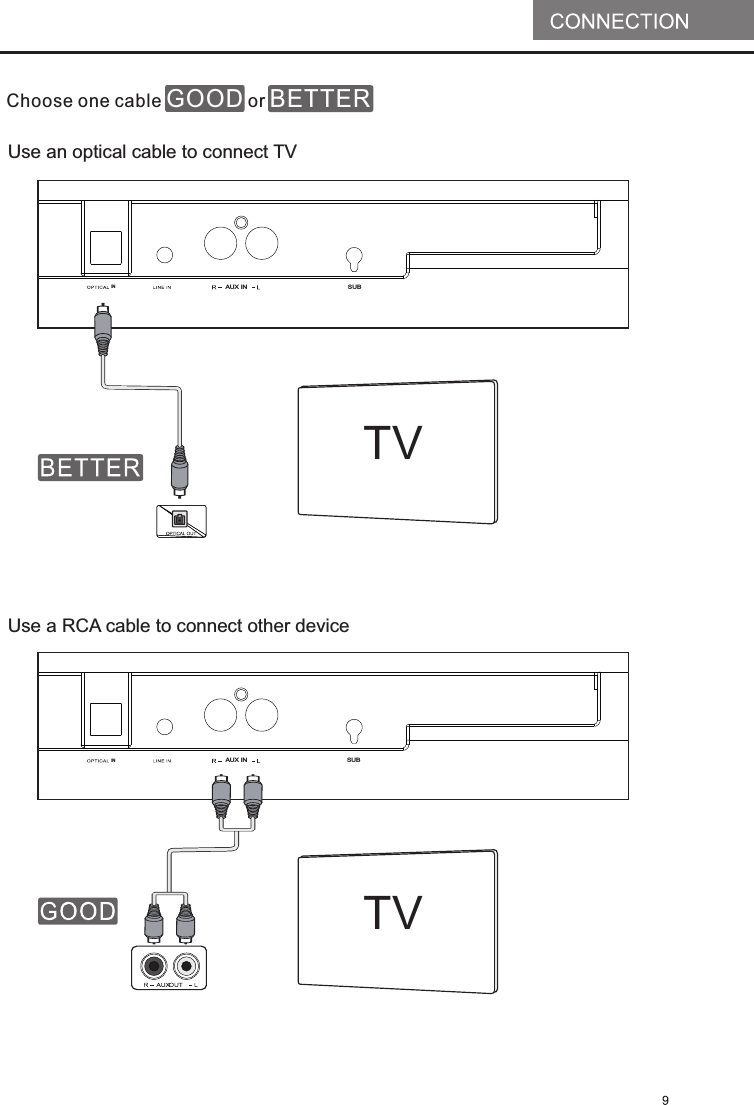

TVTVUse an optical cable to connect TVUse a RCA cable to connect other deviceAUX ININAUX ININSUBSUBChoose one cable or GOOD BETTER

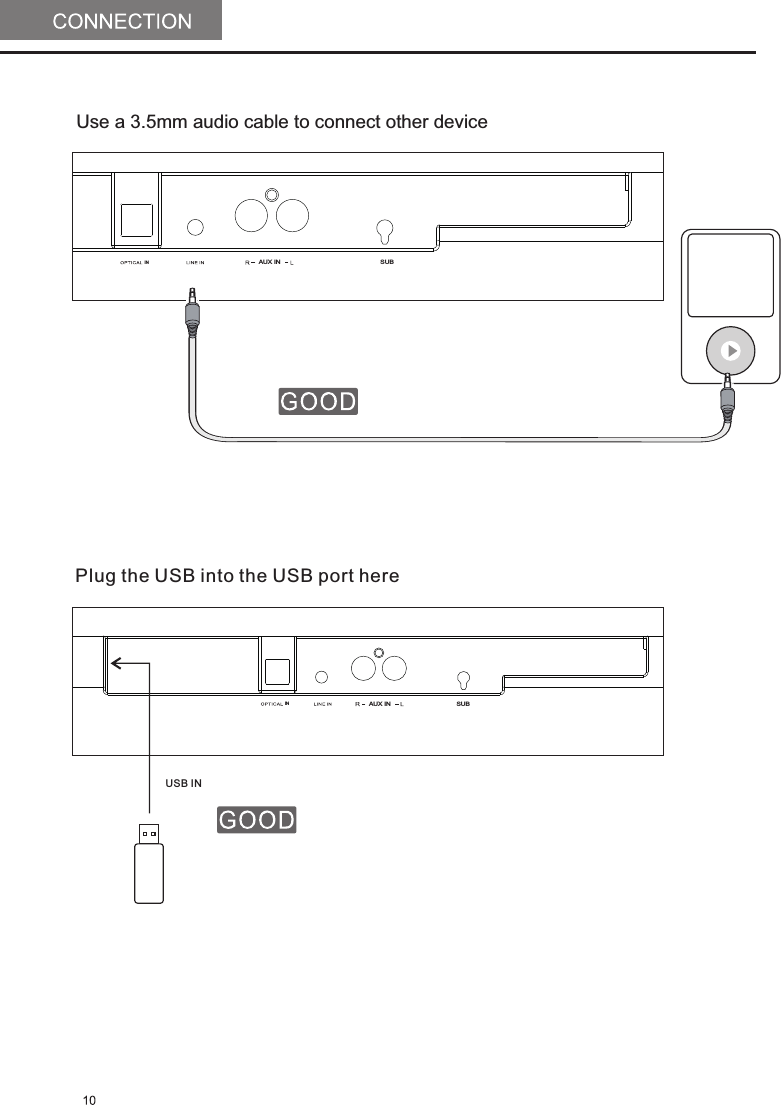

AUX ININUse a 3.5mm audio cable to connect other deviceSUBAUX ININSUBUSB INPlug the USB into the USB port here
ESB206
