Guoguang Electric ESB206 2.1 Sound Bar System(wireless) User Manual
Guoguang Electric Co.,Ltd 2.1 Sound Bar System(wireless)
User Manual
ESB206
2.1 Sound Bar System（wireless）

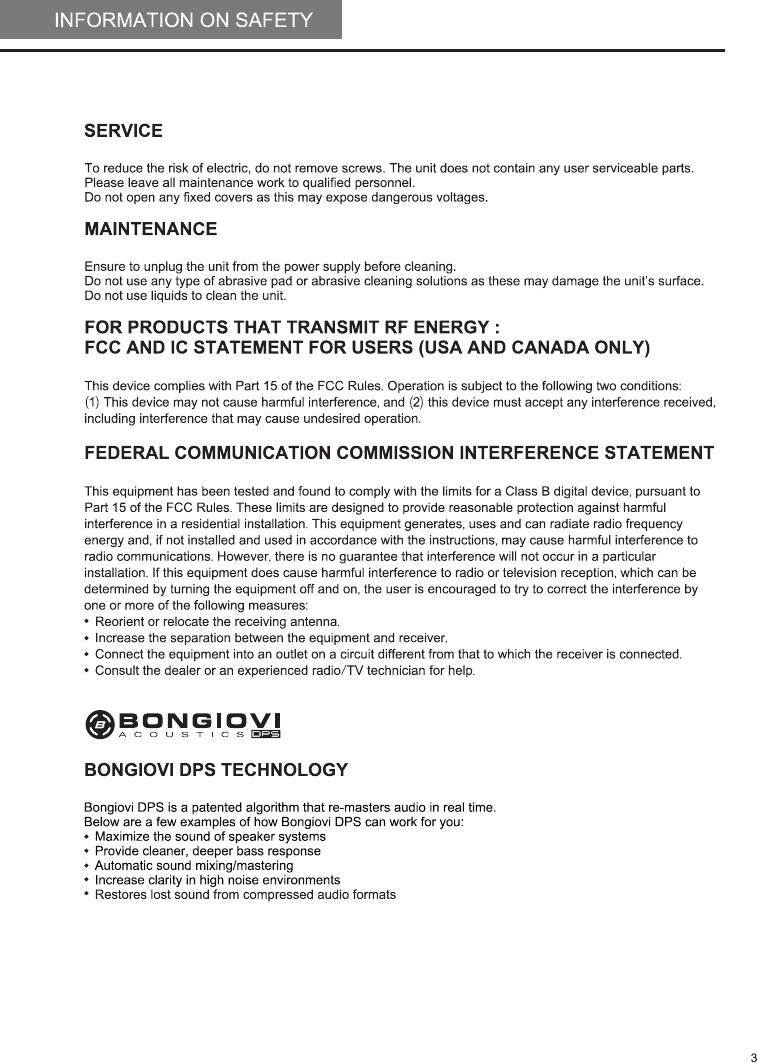

FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
SUBWOOFER FUNCTION 8
9-10
11
12
13
8

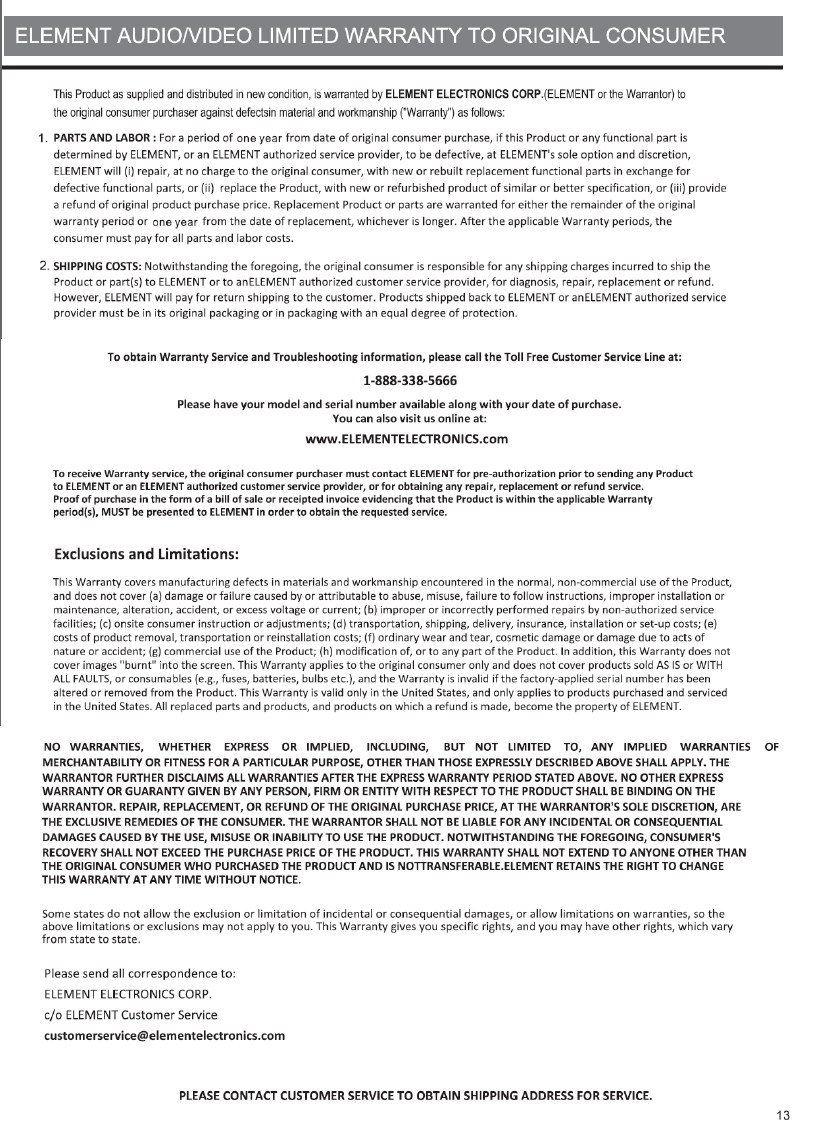

ONE-YEAR LIMITED WARRANTY

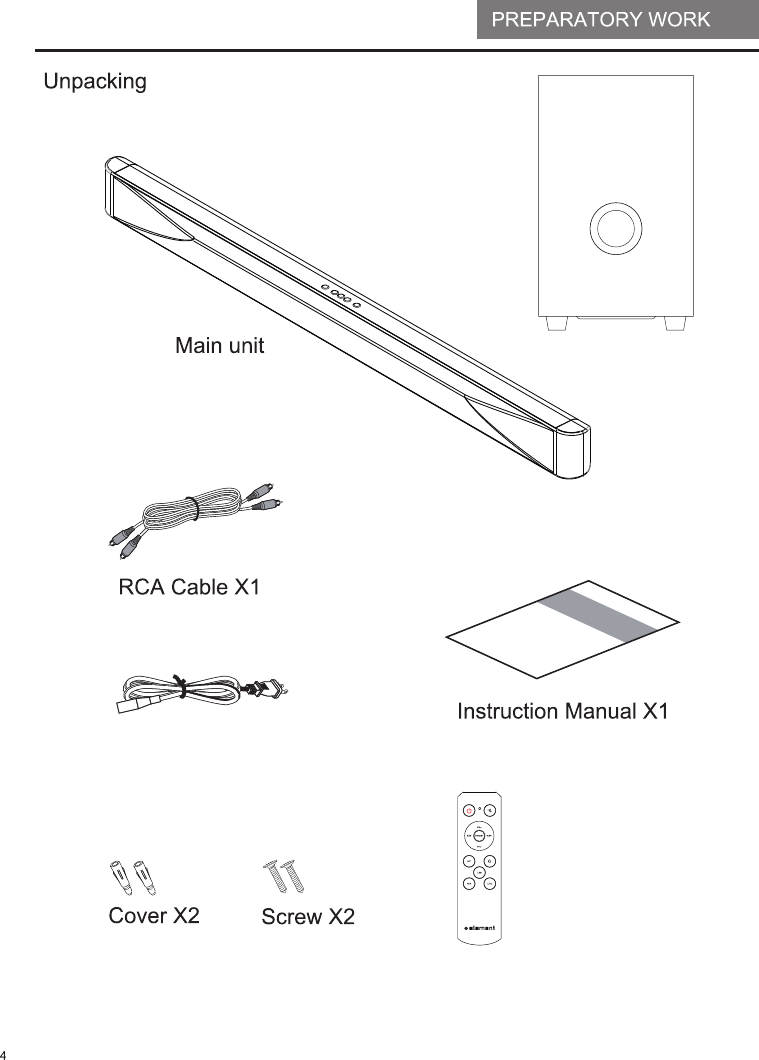

Remote
Control X1
Subwoofer
Mains Cable X 2
SOURCE Show the input source. (including BT、USB、AUX、LINE、OPT):
INDICATOR IN BLUETOOTH MODE In bluetooth mode, the LED will show
two words BT and the words will flash when the bluetooth is not paired. The
words will illuminate after paired successful.
:
VOLUME Press the button“+”or“–”, the LED will show current volume levels (e.g. V 06).:
VOLUME OF SUBWOOFER Press the button“SUB +”or“SUB–”of remote control,
the LED will show current volume levels of subwoofer (e.g. B +2).
:
MUTE Press the button“MUTE”of remote control, the LED will show the word MUTE.:
LED
AUX IN: Connect the analog audio from a device such as a TV, set top box,
DVD player, or gaming system.
2 .4G WIRELESS SUBWOOFER PAIR BUTTON
11
Press the “SUB+” button to increase the subwoofer volume.
Press the “SUB–” button to decrease the subwoofer volume.
10
10
11
AUX IN
IN
SUB
12
USB BUTTON: If the device is not in USBmode, press
this button to switch to USB IN mode.
12
6
USB Port
6
Plug the power wire here.
SUBWOOFER FUNCTION
1
2
3
4
WIRELESS PAIR BUTTON:
Press this button to pair with the sound bar.
INDICATOR The indicator will go out when the subwoofer is off. When the subwoofer
is on, it will illuminate with input signal or it will flash slowly without input signal. When
the subwoofer is pairing with the sound bar, the indicator will flash quickly.
:
POWER CONNECTOR:
Plug the power wire here.
POWER SWITCH ON/OFF
Turn the subwoofer on/off.
:
THE WAY OF PARING
Press the wireless pair button on the soundbar and subwoofer for 5 seconds at the same
time, when the indicator flash quickly, release the button, and the system will go into
pairing mode. The system will search and pair automatically. If it can’t pair successfully in
30 seconds, the system will exit the pairing mode automatically.
TV
TV
Use an optical cable to connect TV
Use a RCA cable to connect other device
AUX IN
IN
AUX IN
IN
SUB
SUB
Choose one cable or GOOD BETTER
AUX IN
IN

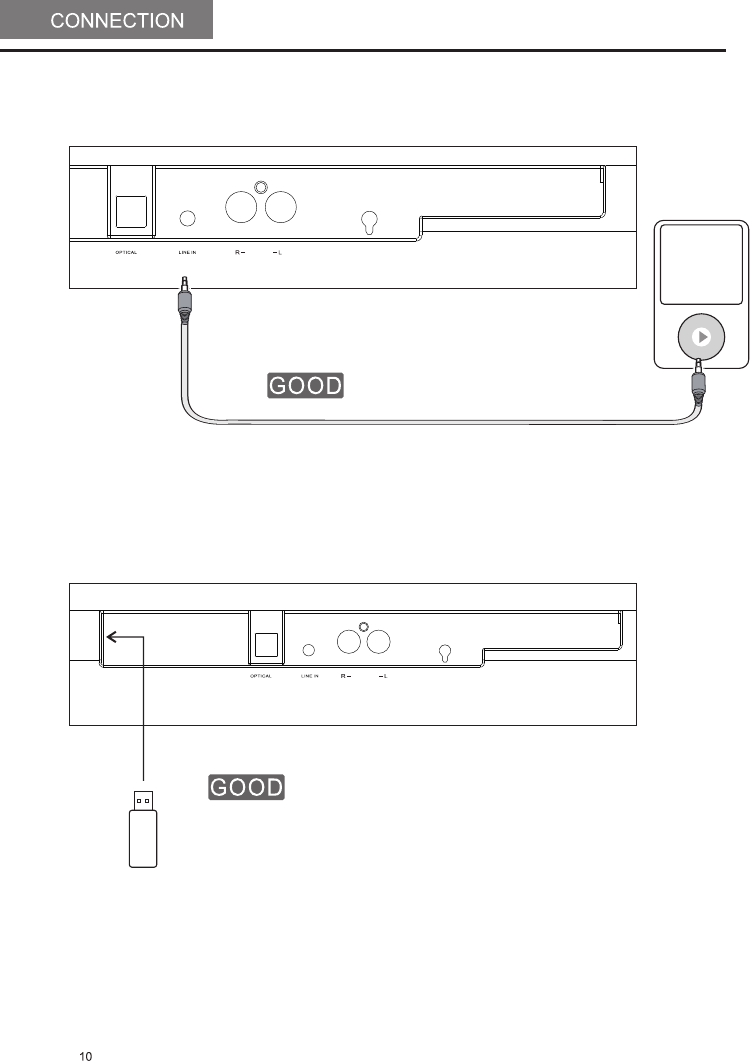

Use a 3.5mm audio cable to connect other device
SUB
AUX IN
IN
SUB
USB IN
Plug the USB into the USB port here
ESB206
