Guoguang Electric VIFANORDIC1 Bluetooth Speaker User Manual

Guoguang Electric Co.,Ltd Bluetooth Speaker Users Manual

Users Manual

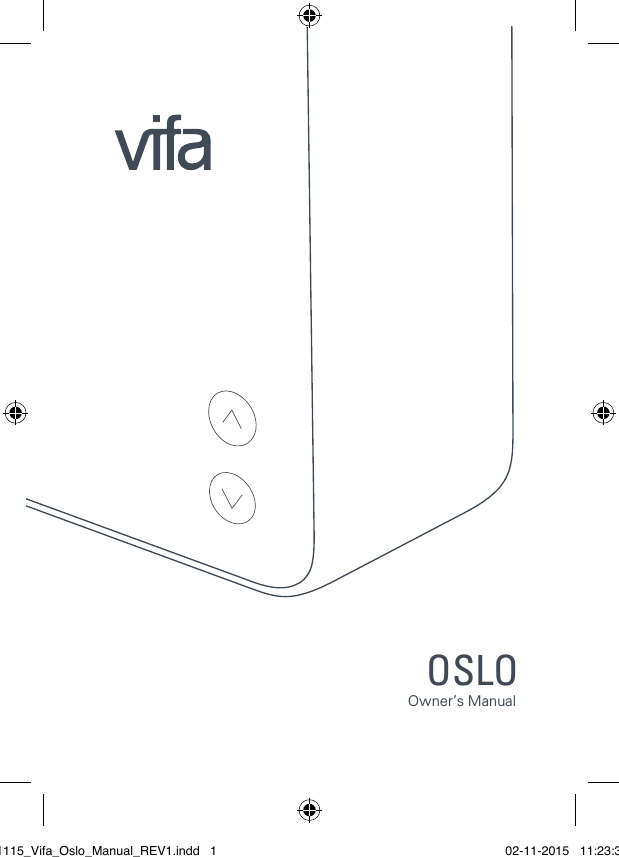

OSLOOwner ’s Manual 021115_Vifa_Oslo_Manual_REV1.indd 1 02-11-2015 11:23:38

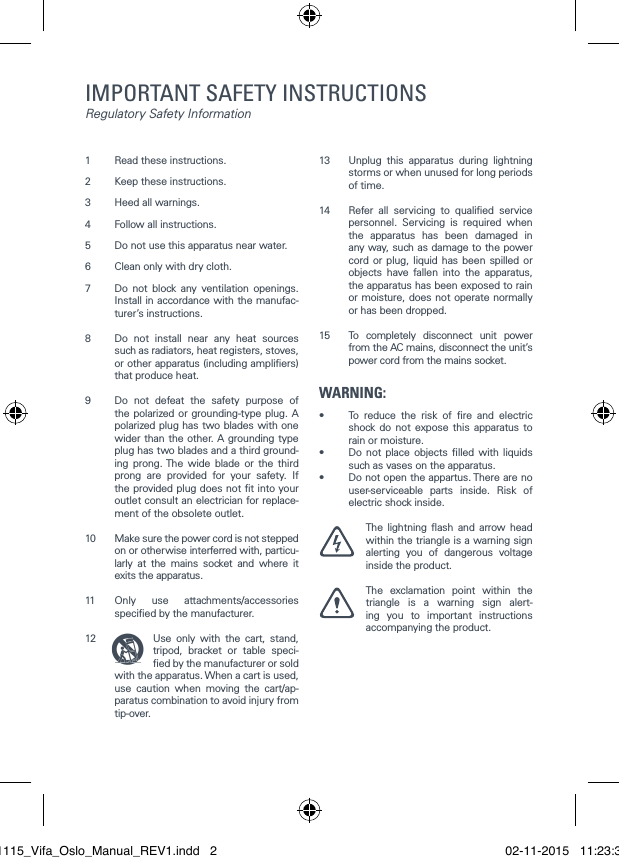

1 Read these instructions.2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufac-turer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third ground-ing prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet consult an electrician for replace-ment of the obsolete outlet. 10 Make sure the power cord is not stepped on or otherwise interferred with, particu-larly at the mains socket and where it exits the apparatus. 11 Only use attachments/accessories specied by the manufacturer. 12 Use only with the cart, stand, tripod, bracket or table speci-ed by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ap-paratus combination to avoid injury from tip-over. 13 Unplug this apparatus during lightning storms or when unused for long periods of time.14 Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as damage to the power cord or plug, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped. 15 To completely disconnect unit power from the AC mains, disconnect the unit’s power cord from the mains socket.WARNING:• To reduce the risk of re and electric shock do not expose this apparatus to rain or moisture.• Do not place objects lled with liquids such as vases on the apparatus.• Do not open the appartus. There are no user-serviceable parts inside. Risk of electric shock inside. The lightning ash and arrow head within the triangle is a warning sign alerting you of dangerous voltage inside the product. The exclamation point within the triangle is a warning sign alert-ing you to important instructions accompanying the product. IMPORTANT SAFETY INSTRUCTIONS Regulatory Safety Information021115_Vifa_Oslo_Manual_REV1.indd 2 02-11-2015 11:23:38

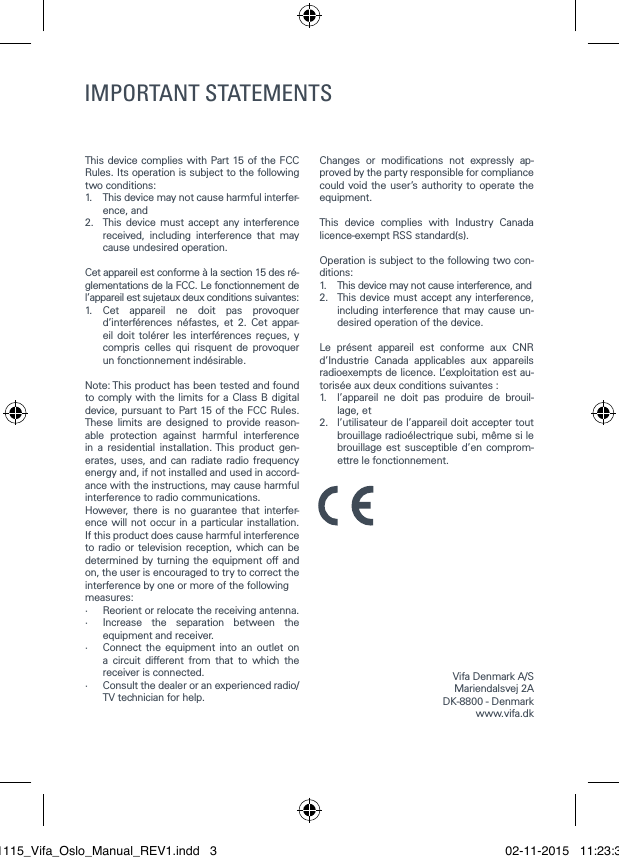

This device complies with Part 15 of the FCC Rules. Its operation is subject to the following two conditions:1. This device may not cause harmful interfer-ence, and2. This device must accept any interference received, including interference that may cause undesired operation.Cet appareil est conforme à la section 15 des ré-glementations de la FCC. Le fonctionnement de l’appareil est sujetaux deux conditions suivantes:1. Cet appareil ne doit pas provoquer d’interférences néfastes, et 2. Cet appar-eil doit tolérer les interférences reçues, y compris celles qui risquent de provoquer un fonctionnement indésirable.Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-able protection against harmful interference in a residential installation. This product gen-erates, uses, and can radiate radio frequency energy and, if not installed and used in accord-ance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interfer-ence will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures:· Reorient or relocate the receiving antenna.· Increase the separation between the equipment and receiver.· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.· Consult the dealer or an experienced radio/TV technician for help.Changes or modications not expressly ap-proved by the party responsible for compliance could void the user’s authority to operate the equipment.This device complies with Industry Canada licence-exempt RSS standard(s).Operation is subject to the following two con-ditions:1. This device may not cause interference, and2. This device must accept any interference, including interference that may cause un-desired operation of the device.Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radioexempts de licence. L’exploitation est au-torisée aux deux conditions suivantes :1. l’appareil ne doit pas produire de brouil-lage, et2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en comprom-ettre le fonctionnement.IMPORTANT SAFETY INSTRUCTIONS Regulatory Safety InformationVifa Denmark A/SMariendalsvej 2ADK-8800 - Denmark www.vifa.dkIMPORTANT STATEMENTS021115_Vifa_Oslo_Manual_REV1.indd 3 02-11-2015 11:23:38

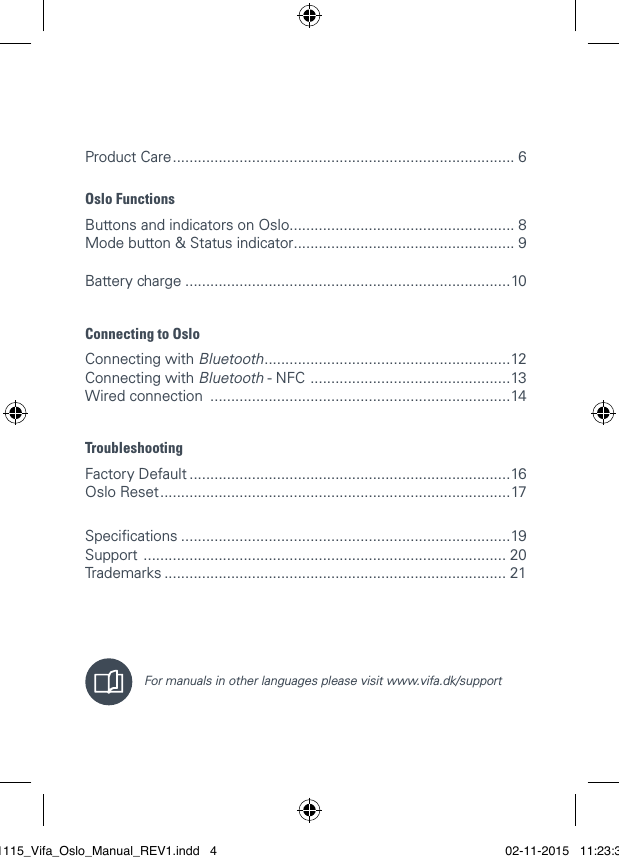

Product Care .................................................................................. 6Oslo FunctionsButtons and indicators on Oslo ...................................................... 8 Mode button & Status indicator ..................................................... 9 Battery charge ..............................................................................10Connecting to OsloConnecting with Bluetooth ...........................................................12 Connecting with Bluetooth - NFC ................................................13 Wired connection ........................................................................14 TroubleshootingFactory Default .............................................................................16 Oslo Reset ....................................................................................17 Specications ...............................................................................19 Support ....................................................................................... 20 Trademarks .................................................................................. 21 For manuals in other languages please visit www.vifa.dk/support021115_Vifa_Oslo_Manual_REV1.indd 4 02-11-2015 11:23:38

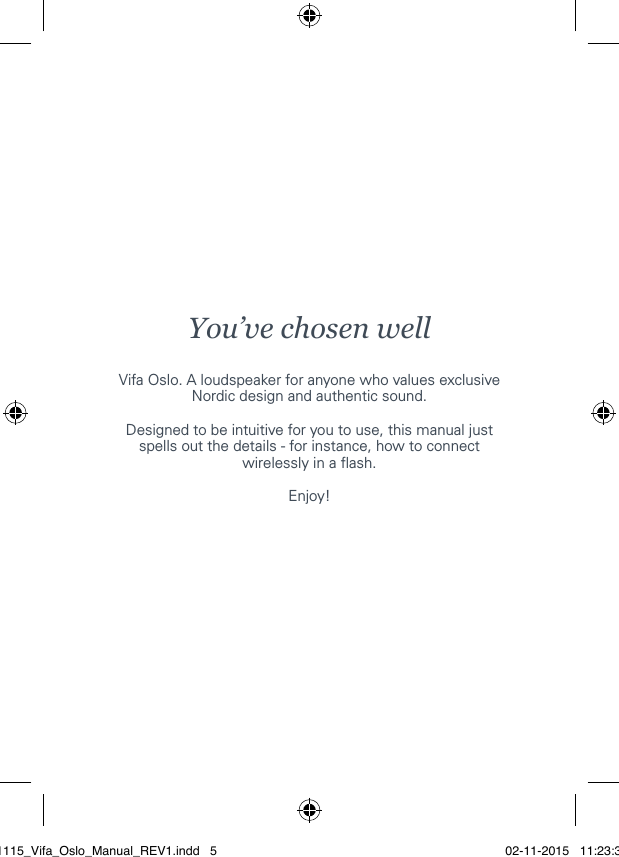

You’ve chosen wellVifa Oslo. A loudspeaker for anyone who values exclusive Nordic design and authentic sound.Designed to be intuitive for you to use, this manual just spells out the details - for instance, how to connect wirelessly in a ash.Enjoy!021115_Vifa_Oslo_Manual_REV1.indd 5 02-11-2015 11:23:38

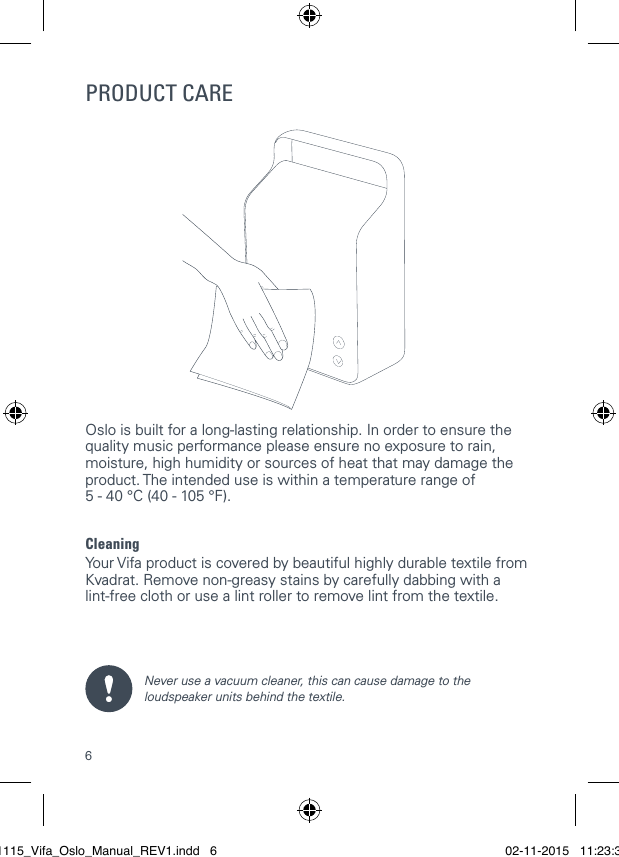

6Oslo is built for a long-lasting relationship. In order to ensure the quality music performance please ensure no exposure to rain, moisture, high humidity or sources of heat that may damage the product. The intended use is within a temperature range of 5 - 40 °C (40 - 105 °F).CleaningYour Vifa product is covered by beautiful highly durable textile from Kvadrat. Remove non-greasy stains by carefully dabbing with a lint-free cloth or use a lint roller to remove lint from the textile.Never use a vacuum cleaner, this can cause damage to the loudspeaker units behind the textile. PRODUCT CARE021115_Vifa_Oslo_Manual_REV1.indd 6 02-11-2015 11:23:38

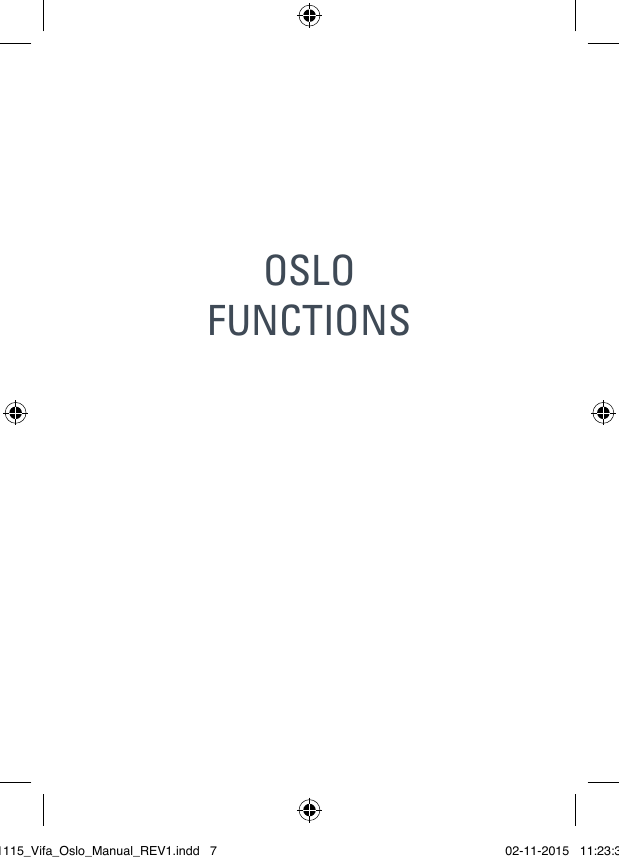

OSLO FUNCTIONS021115_Vifa_Oslo_Manual_REV1.indd 7 02-11-2015 11:23:39

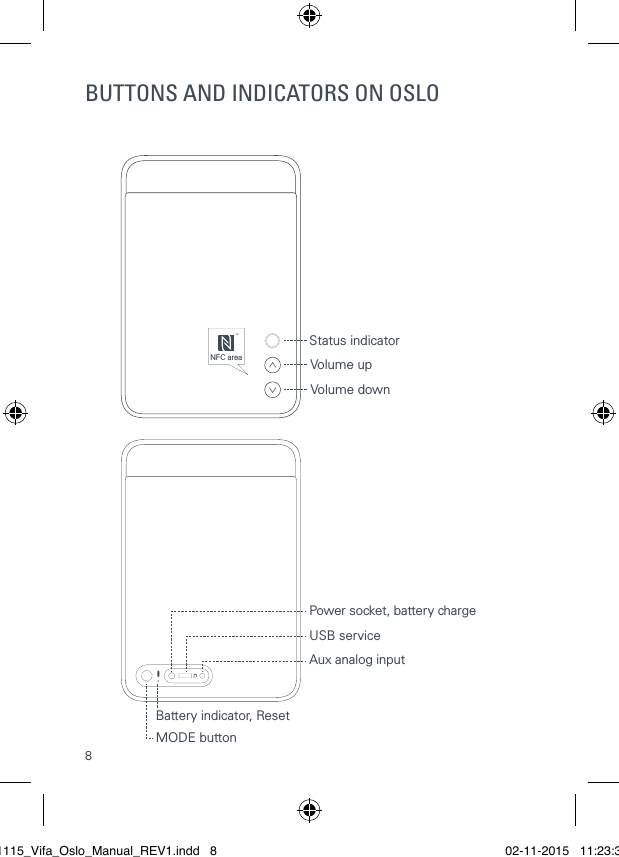

8BUTTONS AND INDICATORS ON OSLOVolume downVolume upMODE buttonUSB serviceStatus indicatorPower socket, battery chargeAux analog input Battery indicator, ResetTMNFC area021115_Vifa_Oslo_Manual_REV1.indd 8 02-11-2015 11:23:39

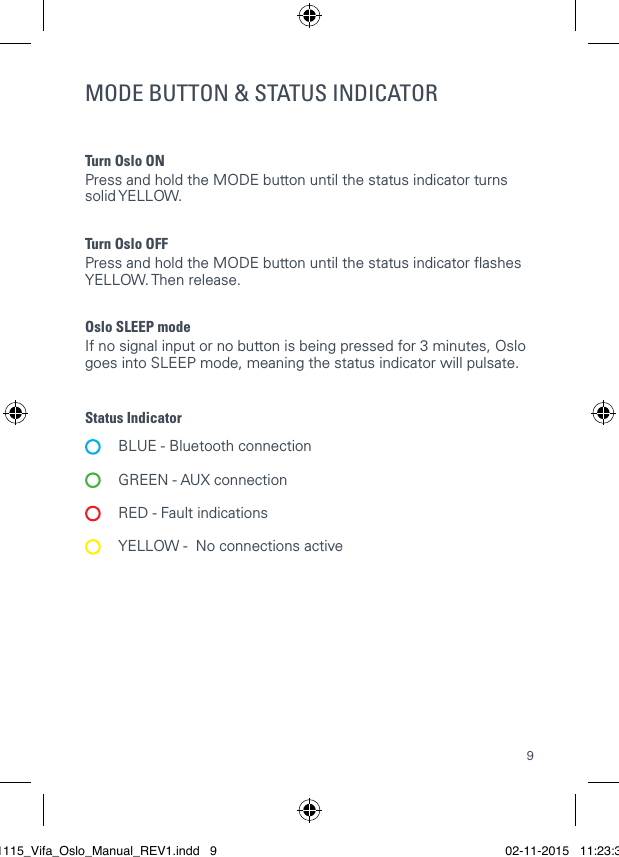

9Turn Oslo ON Press and hold the MODE button until the status indicator turns solid YELLOW.Turn Oslo OFFPress and hold the MODE button until the status indicator ashes YELLOW. Then release. Oslo SLEEP mode If no signal input or no button is being pressed for 3 minutes, Oslo goes into SLEEP mode, meaning the status indicator will pulsate.Status Indicator BLUE - Bluetooth connection GREEN - AUX connection RED - Fault indications YELLOW - No connections activeMODE BUTTON & STATUS INDICATOR 021115_Vifa_Oslo_Manual_REV1.indd 9 02-11-2015 11:23:39

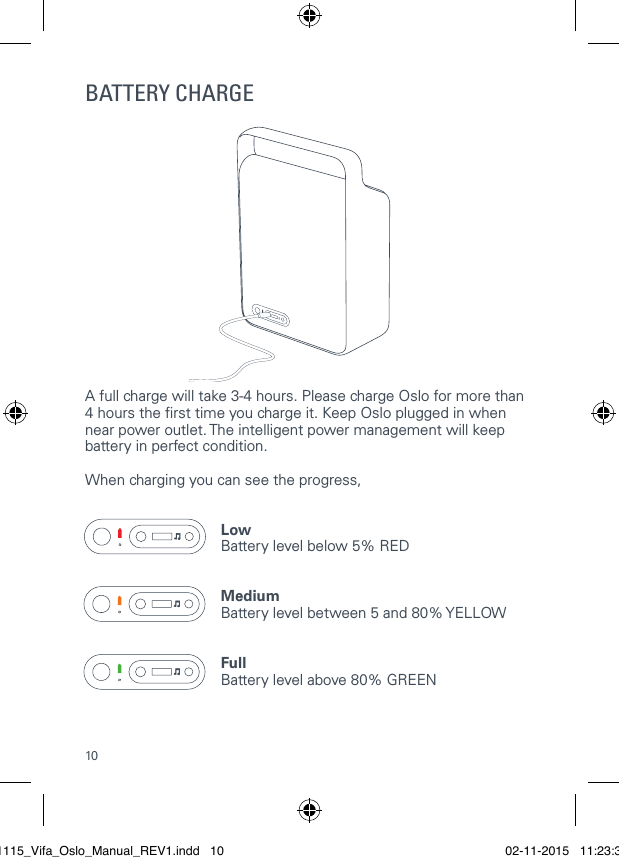

10BATTERY CHARGEA full charge will take 3-4 hours. Please charge Oslo for more than 4 hours the rst time you charge it. Keep Oslo plugged in when near power outlet. The intelligent power management will keep battery in perfect condition. When charging you can see the progress,Low Battery level below 5% REDMedium Battery level between 5 and 80% YELLOWFull Battery level above 80% GREEN 021115_Vifa_Oslo_Manual_REV1.indd 10 02-11-2015 11:23:39

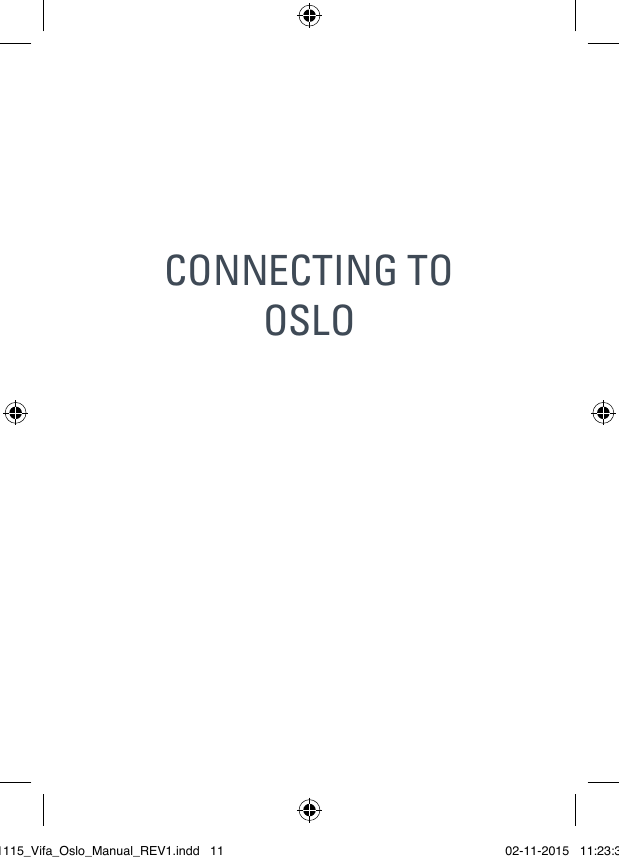

CONNECTING TO OSLO021115_Vifa_Oslo_Manual_REV1.indd 11 02-11-2015 11:23:39
12CONNECTING WITH BLUETOOTH1. To turn Oslo on, press and hold the MODE button until status indicator turns on.2. Press and hold the MODE button until status indicator ashes BLUE.3. Enable Bluetooth pairing on your device and select Vifa BTxxxxxx as your Bluetooth device.4. The status indicator turns solid BLUE when a connection is established. Let the music play.24Bluetooth14:52BluetoothVIFA_BTxxxx Paired31021115_Vifa_Oslo_Manual_REV1.indd 12 02-11-2015 11:23:40
131. To turn Oslo on, press and hold the MODE button until status indicator turns on.2. The NFC area of Oslo is placed by the volume buttons. 3. Activate NFC function on your device. Place NFC enabled device on NFC area and accept pairing on your device. 4. The status indicator turns solid BLUE when a connection is established. Let the music play.CONNECTING WITH BLUETOOTH - NFCOnly for NFC enabled devices1NFC 3 4TMNFC NFC AREA2021115_Vifa_Oslo_Manual_REV1.indd 13 02-11-2015 11:23:40

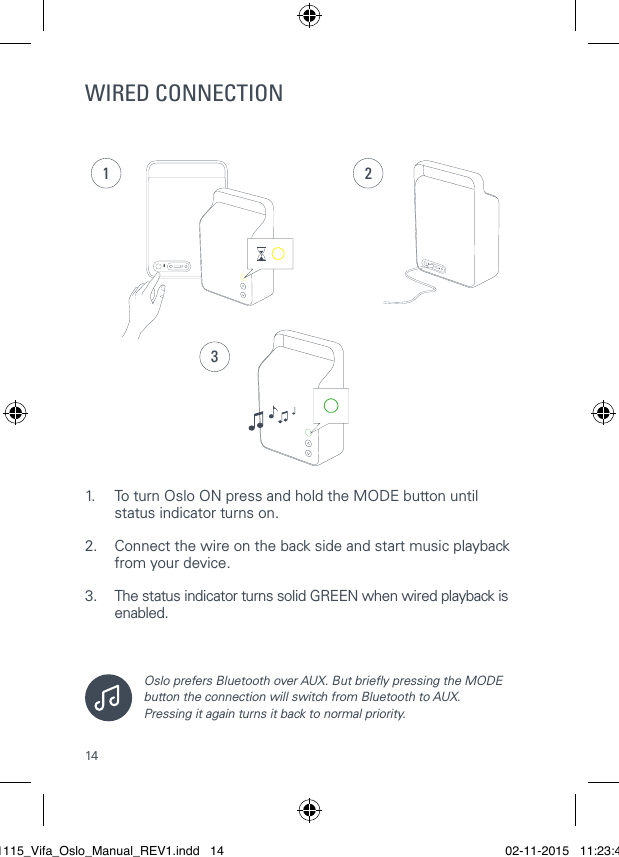

14WIRED CONNECTION1. To turn Oslo ON press and hold the MODE button until status indicator turns on.2. Connect the wire on the back side and start music playback from your device. 3. The status indicator turns solid GREEN when wired playback is enabled.Oslo prefers Bluetooth over AUX. But briey pressing the MODE button the connection will switch from Bluetooth to AUX. Pressing it again turns it back to normal priority.231021115_Vifa_Oslo_Manual_REV1.indd 14 02-11-2015 11:23:41

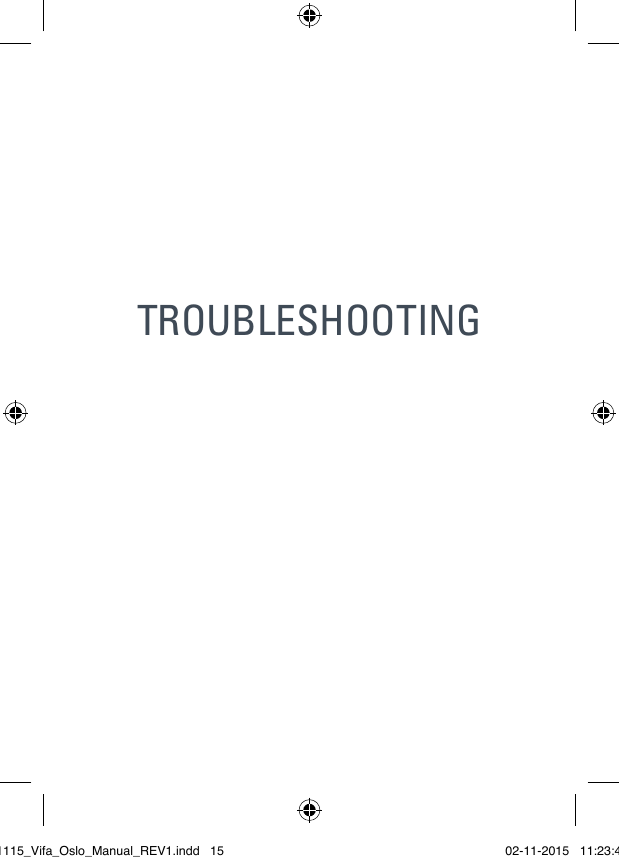

TROUBLESHOOTING021115_Vifa_Oslo_Manual_REV1.indd 15 02-11-2015 11:23:41

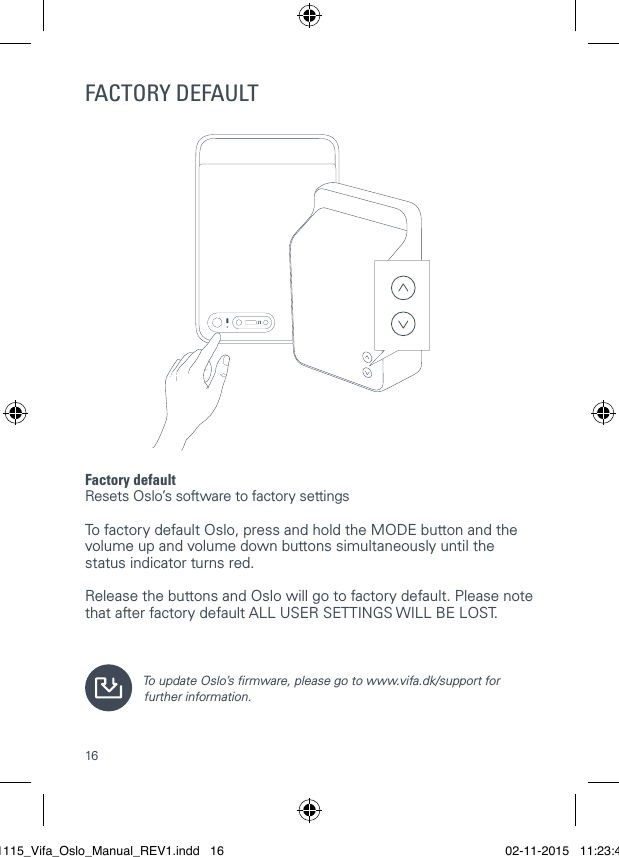

16FACTORY DEFAULTFactory defaultResets Oslo’s software to factory settings To factory default Oslo, press and hold the MODE button and the volume up and volume down buttons simultaneously until the status indicator turns red. Release the buttons and Oslo will go to factory default. Please note that after factory default ALL USER SETTINGS WILL BE LOST.To update Oslo’s rmware, please go to www.vifa.dk/support for further information.021115_Vifa_Oslo_Manual_REV1.indd 16 02-11-2015 11:23:41

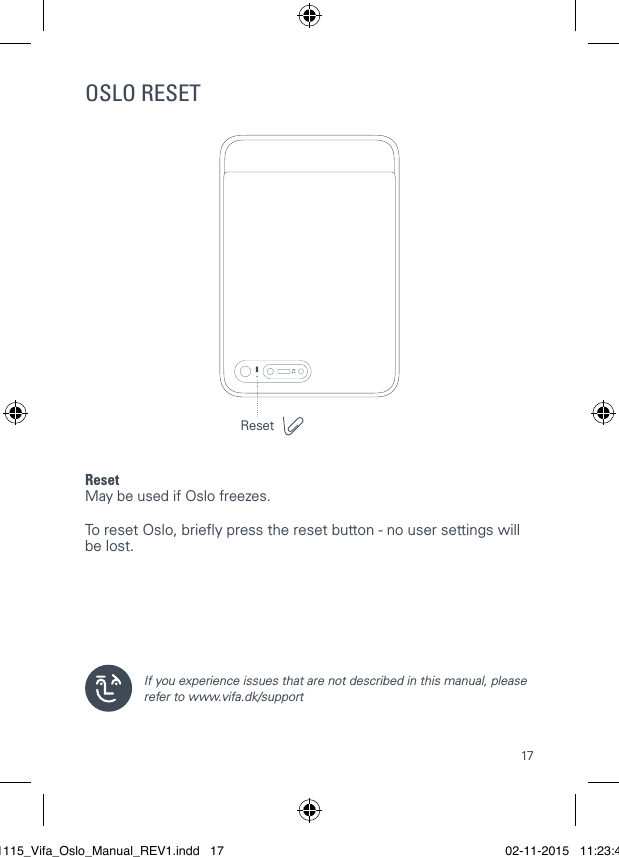

17OSLO RESETReset May be used if Oslo freezes. To reset Oslo, briey press the reset button - no user settings will be lost. If you experience issues that are not described in this manual, please refer to www.vifa.dk/support Reset021115_Vifa_Oslo_Manual_REV1.indd 17 02-11-2015 11:23:41

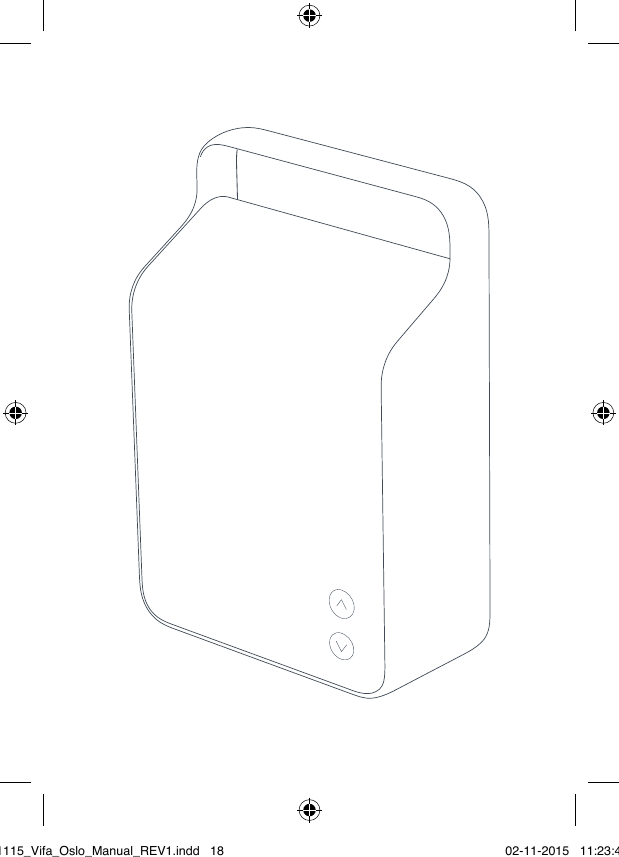

021115_Vifa_Oslo_Manual_REV1.indd 18 02-11-2015 11:23:41

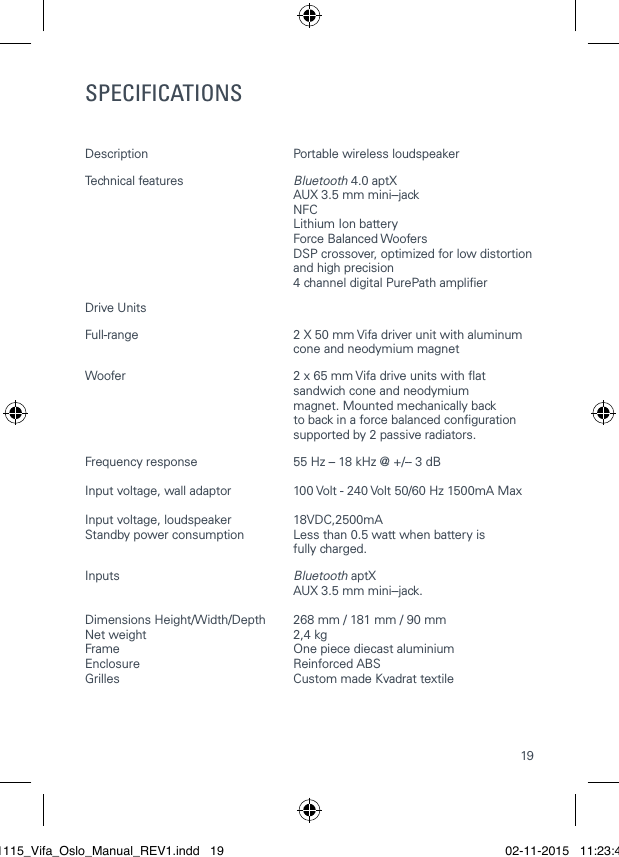

19SPECIFICATIONSDescription Portable wireless loudspeaker Technical features Bluetooth 4.0 aptX AUX 3.5 mm mini- ‐jack NFC Lithium Ion battery Force Balanced Woofers DSP crossover, optimized for low distortion and high precision 4 channel digital PurePath amplierDrive Units Full-range 2 X 50 mm Vifa driver unit with aluminum cone and neodymium magnetWoofer 2 x 65 mm Vifa drive units with at sandwich cone and neodymium magnet. Mounted mechanically back to back in a force balanced conguration supported by 2 passive radiators.Frequency response 55 Hz – 18 kHz @ +/- ‐ 3 dB Input voltage, wall adaptor 100 Volt - 240 Volt 50/60 Hz 1500mA MaxInput voltage, loudspeaker 18VDC,2500mAStandby power consumption Less than 0.5 watt when battery is fully charged. Inputs Bluetooth aptX AUX 3.5 mm mini- ‐jack. Dimensions Height/Width/Depth 268 mm / 181 mm / 90 mmNet weight 2,4 kgFrame One piece diecast aluminiumEnclosure Reinforced ABSGrilles Custom made Kvadrat textile021115_Vifa_Oslo_Manual_REV1.indd 19 02-11-2015 11:23:41

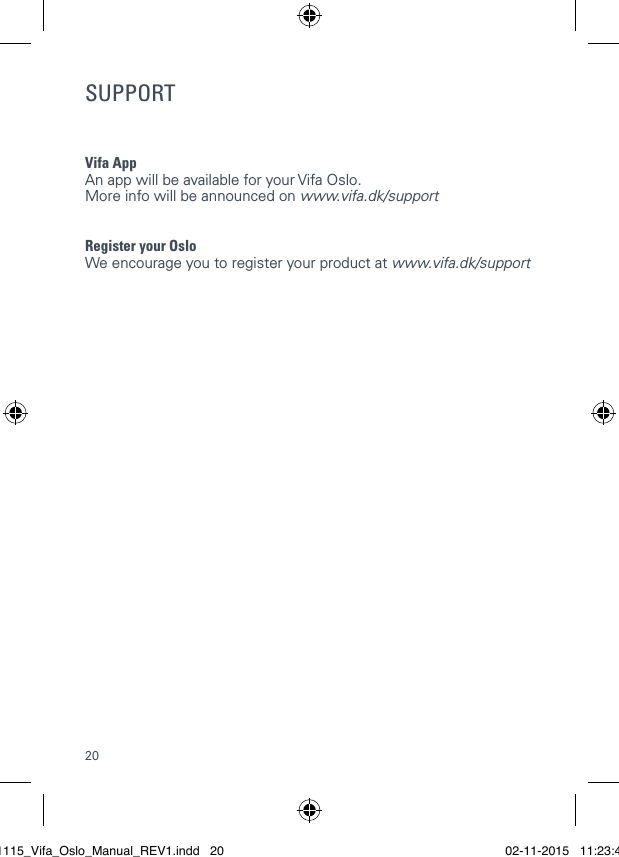

20SUPPORTVifa AppAn app will be available for your Vifa Oslo. More info will be announced on www.vifa.dk/supportRegister your OsloWe encourage you to register your product at www.vifa.dk/support021115_Vifa_Oslo_Manual_REV1.indd 20 02-11-2015 11:23:41

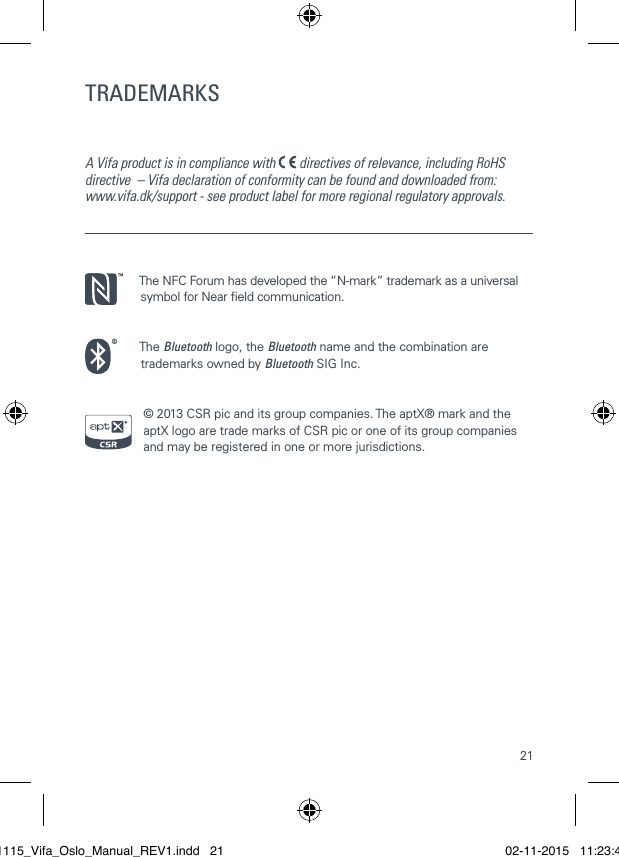

21The NFC Forum has developed the “N-mark” trademark as a universal symbol for Near eld communication.The Bluetooth logo, the Bluetooth name and the combination are trademarks owned by Bluetooth SIG Inc.© 2013 CSR pic and its group companies. The aptX® mark and the aptX logo are trade marks of CSR pic or one of its group companies and may be registered in one or more jurisdictions.TRADEMARKSA Vifa product is in compliance with directives of relevance, including RoHS directive – Vifa declaration of conformity can be found and downloaded from: www.vifa.dk/support - see product label for more regional regulatory approvals.021115_Vifa_Oslo_Manual_REV1.indd 21 02-11-2015 11:23:41

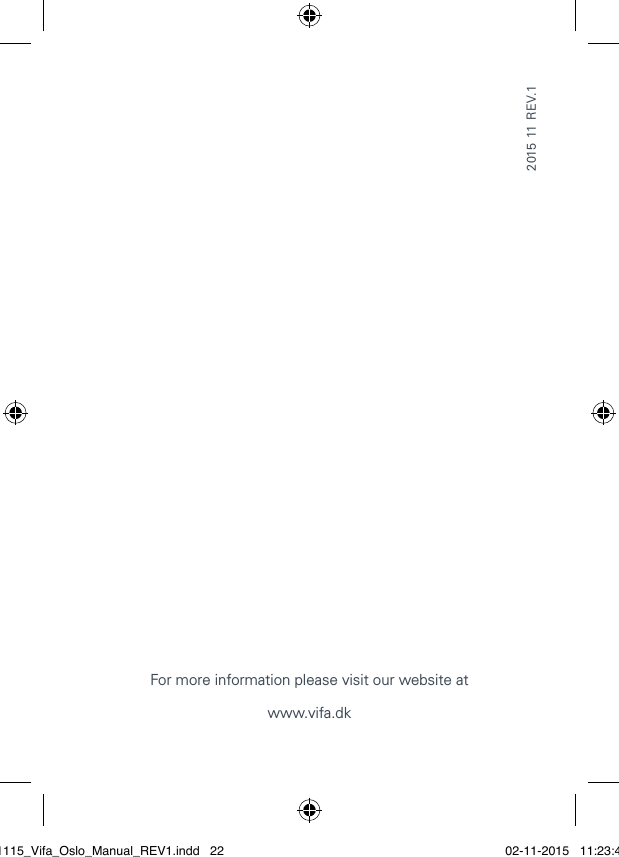

For more information please visit our website at www.vifa.dk2015 11 REV.1021115_Vifa_Oslo_Manual_REV1.indd 22 02-11-2015 11:23:41
