HAHNTECH REH-1501 Two Way Personal Communicator User Manual REH 1501

HAHNTECH Co., Ltd. Two Way Personal Communicator REH 1501

Users Manual

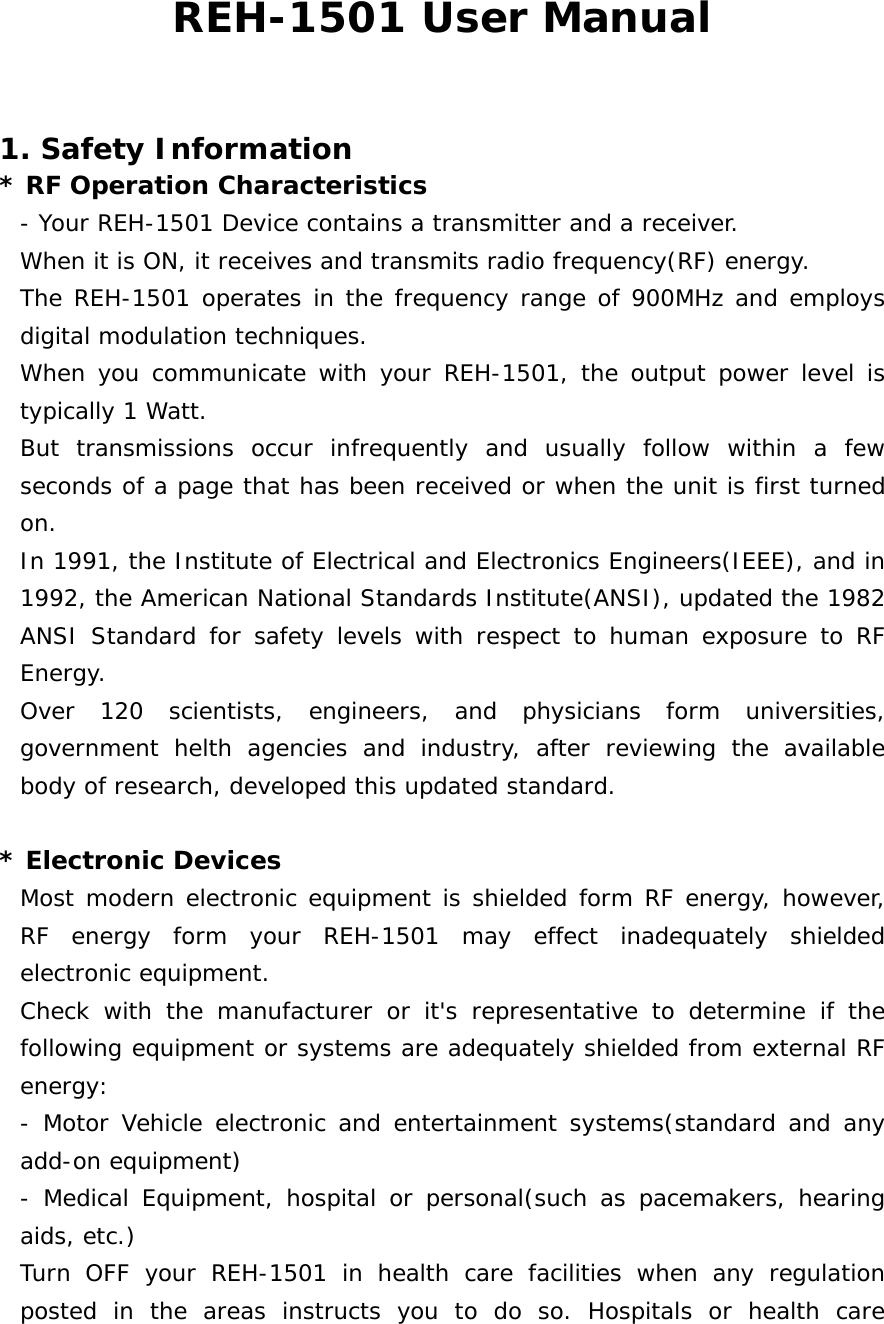

REH-1501 User Manual  1. Safety Information * RF Operation Characteristics - Your REH-1501 Device contains a transmitter and a receiver. When it is ON, it receives and transmits radio frequency(RF) energy. The REH-1501 operates in the frequency range of 900MHz and employs digital modulation techniques. When you communicate with your REH-1501, the output power level is typically 1 Watt. But transmissions occur infrequently and usually follow within a few seconds of a page that has been received or when the unit is first turned on. In 1991, the Institute of Electrical and Electronics Engineers(IEEE), and in 1992, the American National Standards Institute(ANSI), updated the 1982 ANSI Standard for safety levels with respect to human exposure to RF Energy. Over 120 scientists, engineers, and physicians form universities, government helth agencies and industry, after reviewing the available body of research, developed this updated standard.   * Electronic Devices Most modern electronic equipment is shielded form RF energy, however, RF energy form your REH-1501 may effect inadequately shielded electronic equipment. Check with the manufacturer or it's representative to determine if the following equipment or systems are adequately shielded from external RF energy: - Motor Vehicle electronic and entertainment systems(standard and any add-on equipment) - Medical Equipment, hospital or personal(such as pacemakers, hearing aids, etc.) Turn OFF your REH-1501 in health care facilities when any regulation posted in the areas instructs you to do so. Hospitals or health care

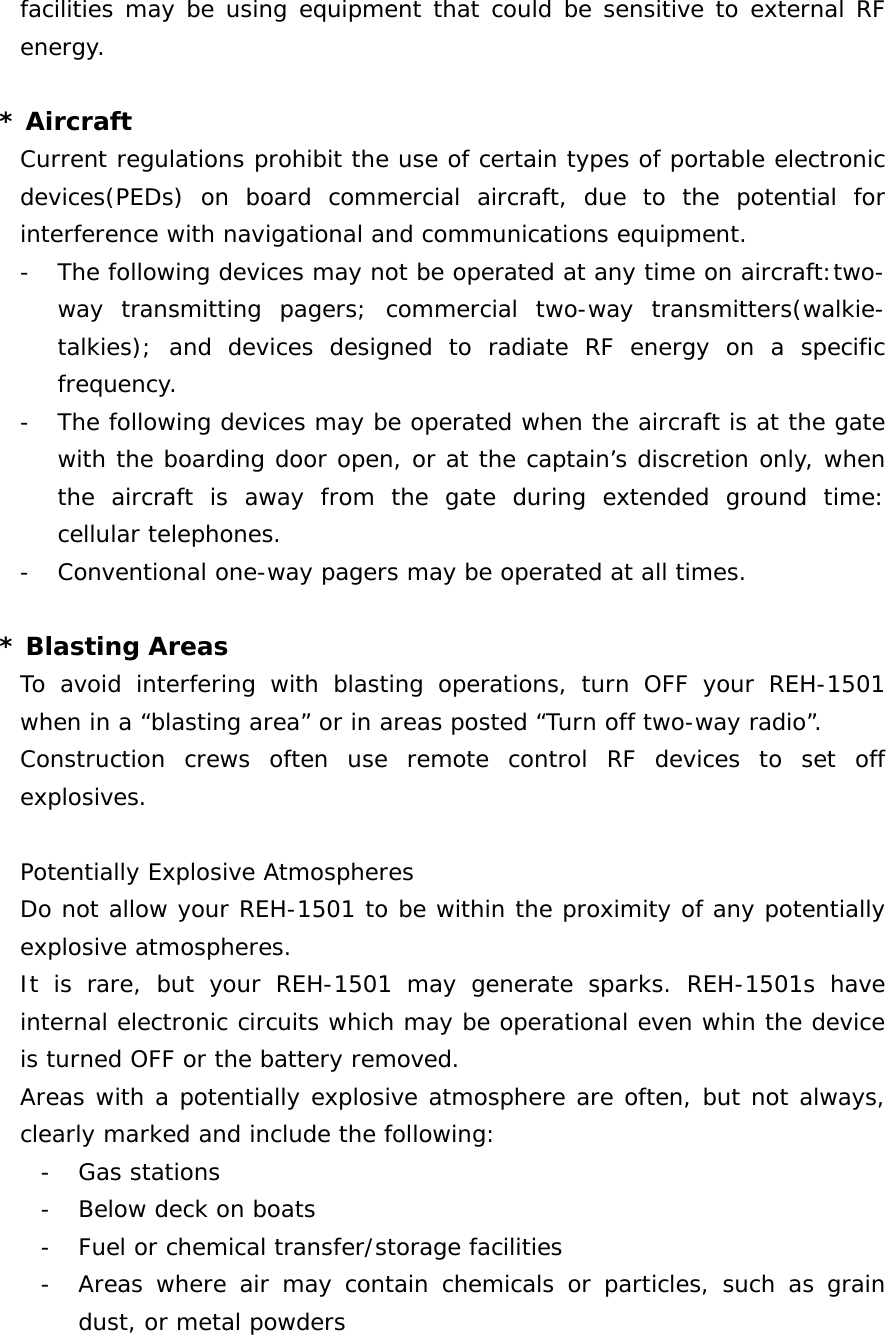

facilities may be using equipment that could be sensitive to external RF energy.  * Aircraft Current regulations prohibit the use of certain types of portable electronic devices(PEDs) on board commercial aircraft, due to the potential for interference with navigational and communications equipment. - The following devices may not be operated at any time on aircraft:two-way transmitting pagers; commercial two-way transmitters(walkie-talkies); and devices designed to radiate RF energy on a specific frequency. - The following devices may be operated when the aircraft is at the gate with the boarding door open, or at the captain’s discretion only, when the aircraft is away from the gate during extended ground time: cellular telephones. - Conventional one-way pagers may be operated at all times.  * Blasting Areas To avoid interfering with blasting operations, turn OFF your REH-1501 when in a “blasting area” or in areas posted “Turn off two-way radio”. Construction crews often use remote control RF devices to set off explosives.  Potentially Explosive Atmospheres Do not allow your REH-1501 to be within the proximity of any potentially explosive atmospheres. It is rare, but your REH-1501 may generate sparks. REH-1501s have internal electronic circuits which may be operational even whin the device is turned OFF or the battery removed. Areas with a potentially explosive atmosphere are often, but not always, clearly marked and include the following: - Gas stations - Below deck on boats - Fuel or chemical transfer/storage facilities - Areas where air may contain chemicals or particles, such as grain dust, or metal powders

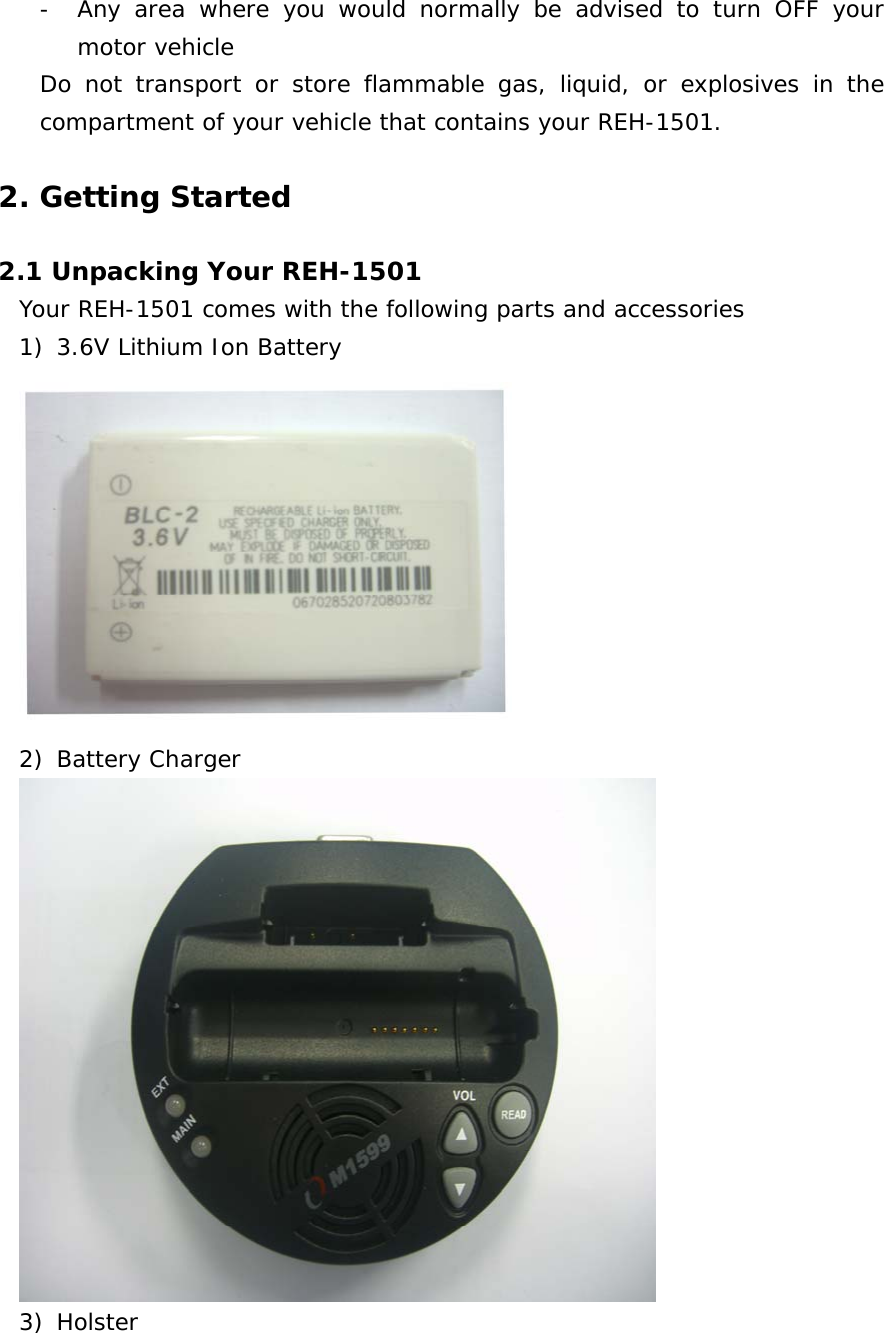

- Any area where you would normally be advised to turn OFF your motor vehicle Do not transport or store flammable gas, liquid, or explosives in the compartment of your vehicle that contains your REH-1501.   2. Getting Started  2.1 Unpacking Your REH-1501 Your REH-1501 comes with the following parts and accessories 1) 3.6V Lithium Ion Battery  2) Battery Charger  3) Holster

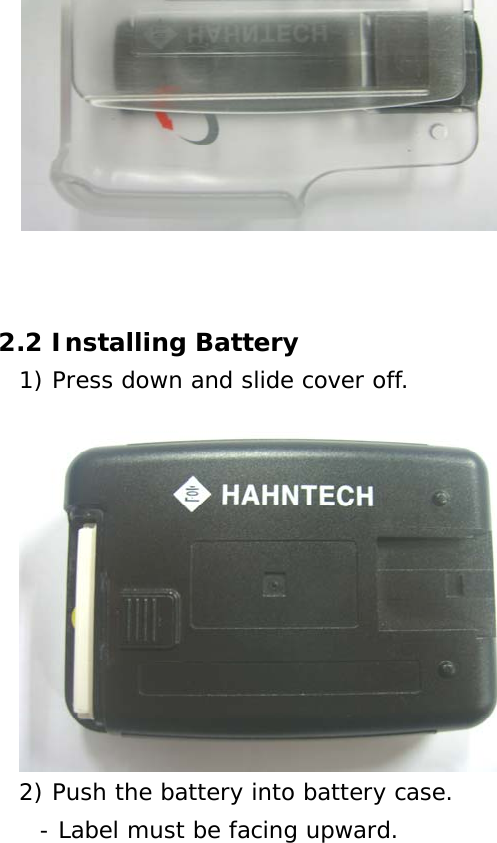

      2.2 Installing Battery 1) Press down and slide cover off.  2) Push the battery into battery case. - Label must be facing upward.
 3) Press cover into place and slide fully closed   2.3 Charging the Battery 1) Connect Battery Charger - Plug transformer into 115VAC power source.

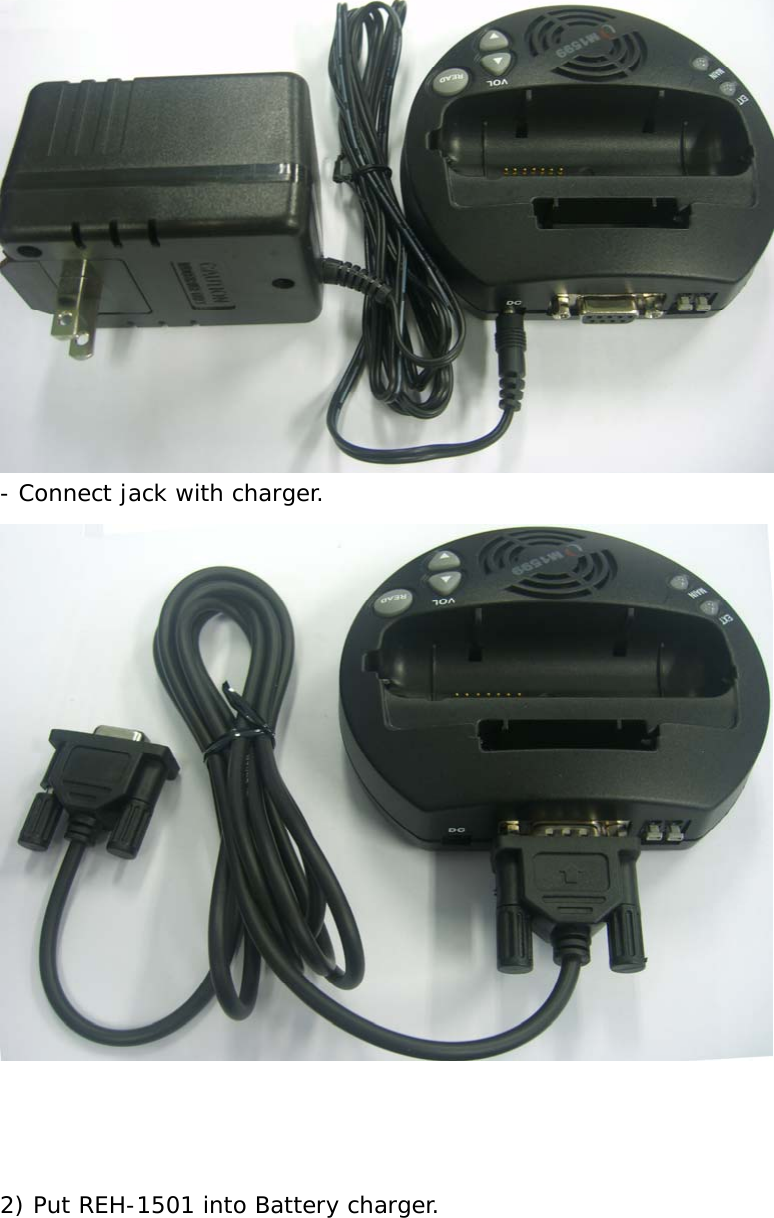

 - Connect jack with charger.     2) Put REH-1501 into Battery charger.

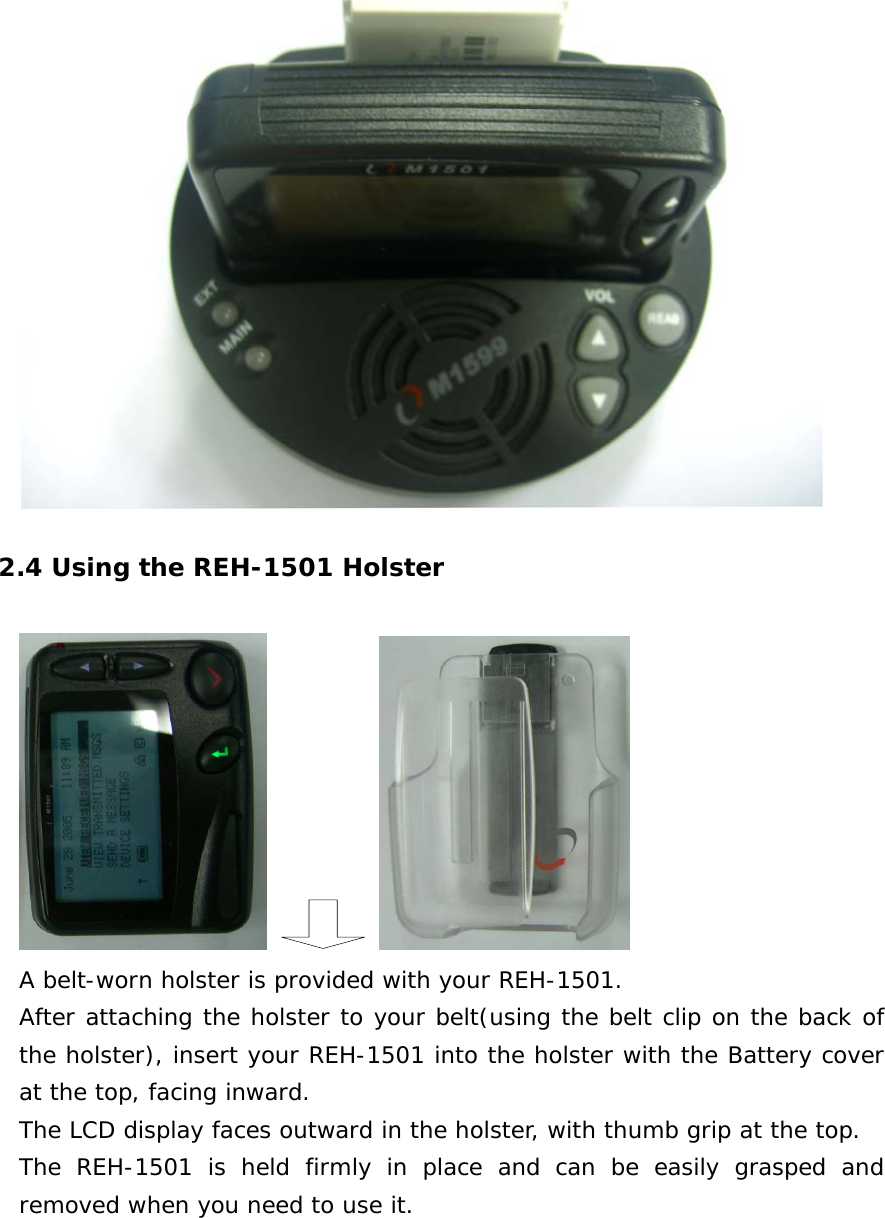

  2.4 Using the REH-1501 Holster       A belt-worn holster is provided with your REH-1501. After attaching the holster to your belt(using the belt clip on the back of the holster), insert your REH-1501 into the holster with the Battery cover at the top, facing inward. The LCD display faces outward in the holster, with thumb grip at the top. The REH-1501 is held firmly in place and can be easily grasped and removed when you need to use it.

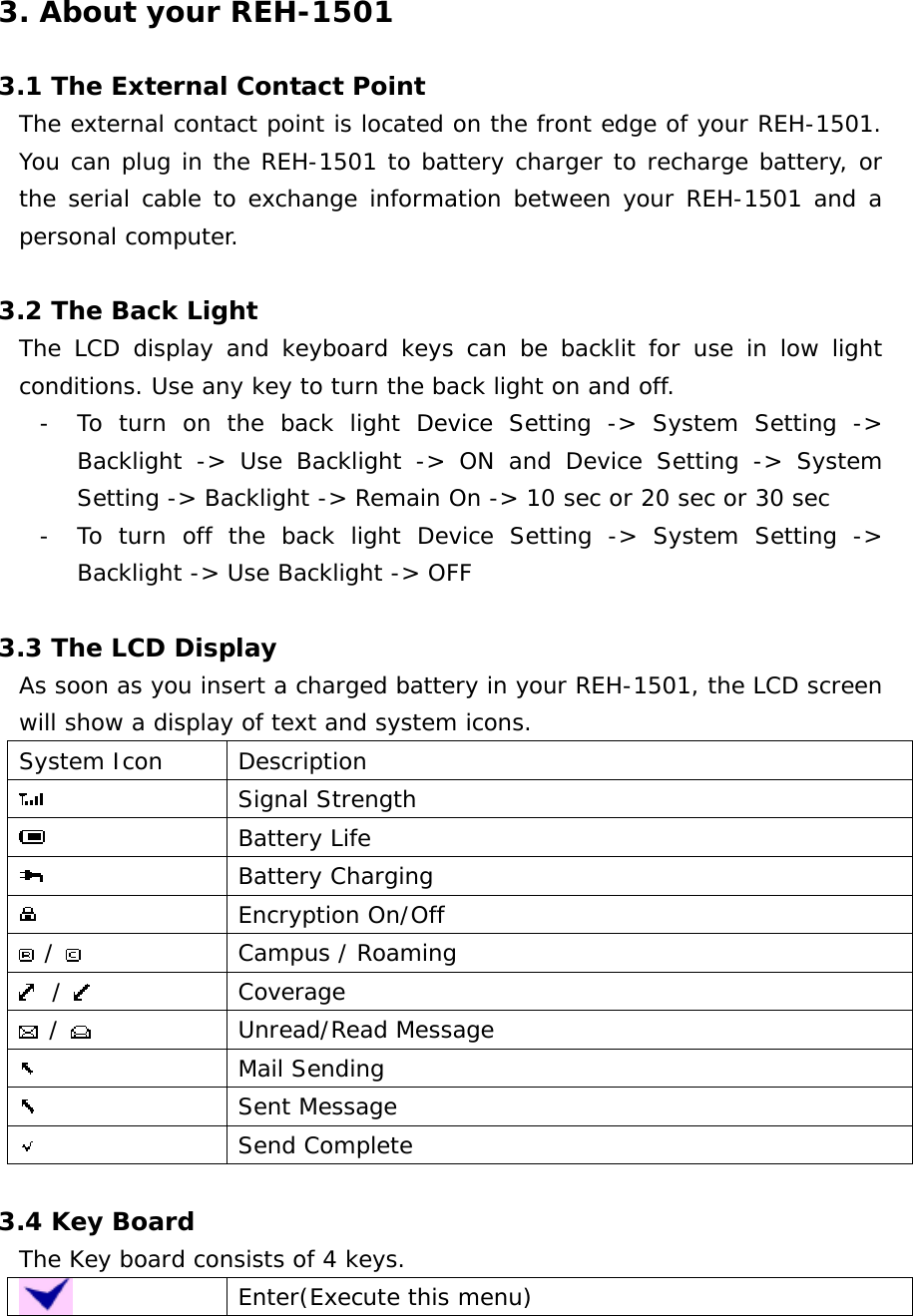

 3. About your REH-1501  3.1 The External Contact Point The external contact point is located on the front edge of your REH-1501. You can plug in the REH-1501 to battery charger to recharge battery, or the serial cable to exchange information between your REH-1501 and a personal computer.  3.2 The Back Light The LCD display and keyboard keys can be backlit for use in low light conditions. Use any key to turn the back light on and off. - To turn on the back light Device Setting -> System Setting -> Backlight -> Use Backlight -> ON and Device Setting -> System Setting -> Backlight -> Remain On -> 10 sec or 20 sec or 30 sec - To turn off the back light Device Setting -> System Setting -> Backlight -> Use Backlight -> OFF  3.3 The LCD Display As soon as you insert a charged battery in your REH-1501, the LCD screen will show a display of text and system icons. System Icon  Description  Signal Strength  Battery Life  Battery Charging  Encryption On/Off  /   Campus / Roaming  /   Coverage  /   Unread/Read Message  Mail Sending  Sent Message  Send Complete  3.4 Key Board The Key board consists of 4 keys.  Enter(Execute this menu)
 Escape(Go to previous menu)  Up  Down  4. Setting Up Your REH-1501  4.1 Viewing System Information To view system information about your REH-1501: 1) Select DEVICE SETTINGS from main menu.  2) Select System Information from DEVICE SETTINGS menu.  3) Press Enter button.  4) When Finished, push ESC button to exit from the System Information display and return to the Main menu.  4.2 Customizing the New Message Alert  You can change your inbox alert settings or turn the alert on or off. Alert Setting is divided two region. First Global Setup and second Folder Setup. The Global Setup is setup of all personal folder and Folder Setup is setup of each personal folder. 4.2.1 Global Setup 1) Select DEVICE SETTINGS from main menu.

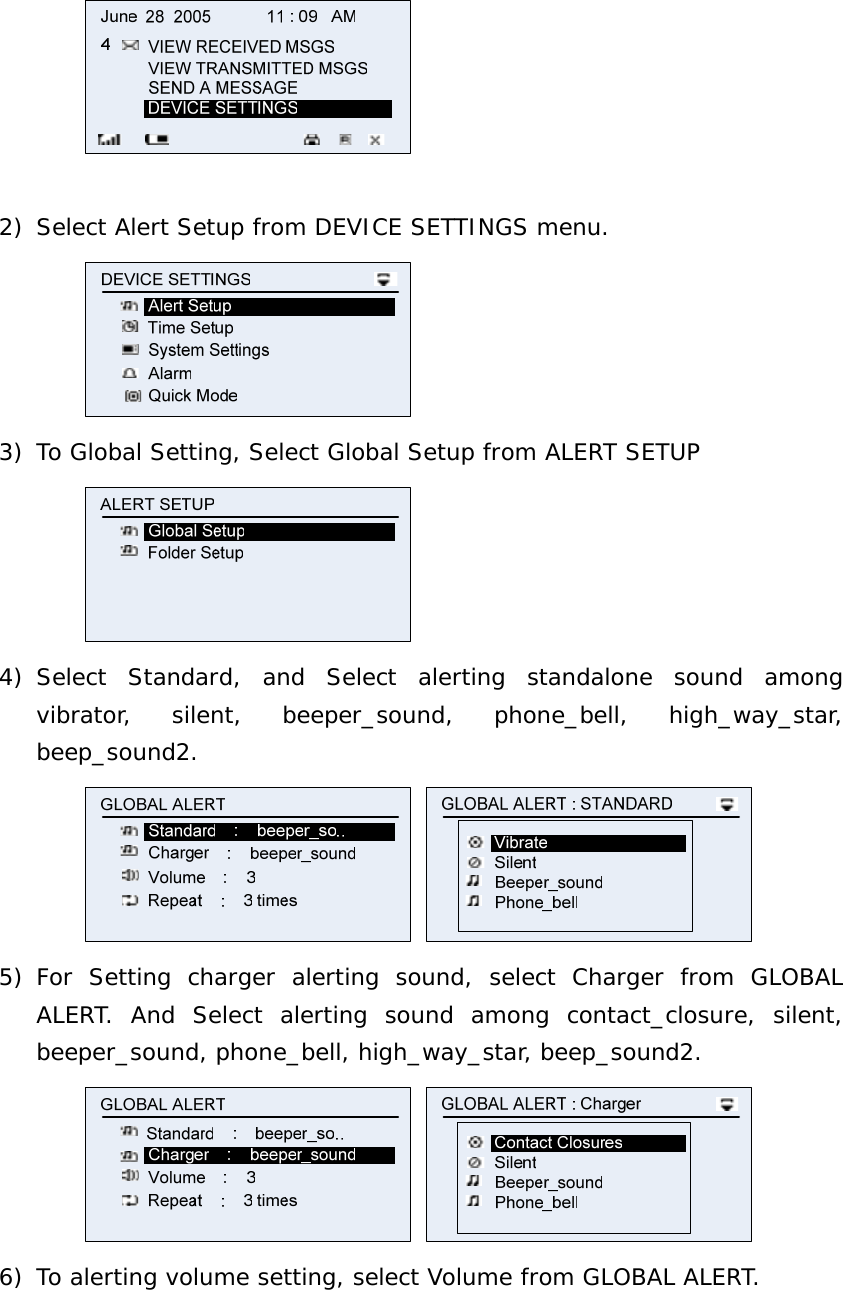

  2) Select Alert Setup from DEVICE SETTINGS menu.  3) To Global Setting, Select Global Setup from ALERT SETUP  4) Select Standard, and Select alerting standalone sound among vibrator, silent, beeper_sound, phone_bell, high_way_star, beep_sound2.   5) For Setting charger alerting sound, select Charger from GLOBAL ALERT. And Select alerting sound among contact_closure, silent, beeper_sound, phone_bell, high_way_star, beep_sound2.   6) To alerting volume setting, select Volume from GLOBAL ALERT.

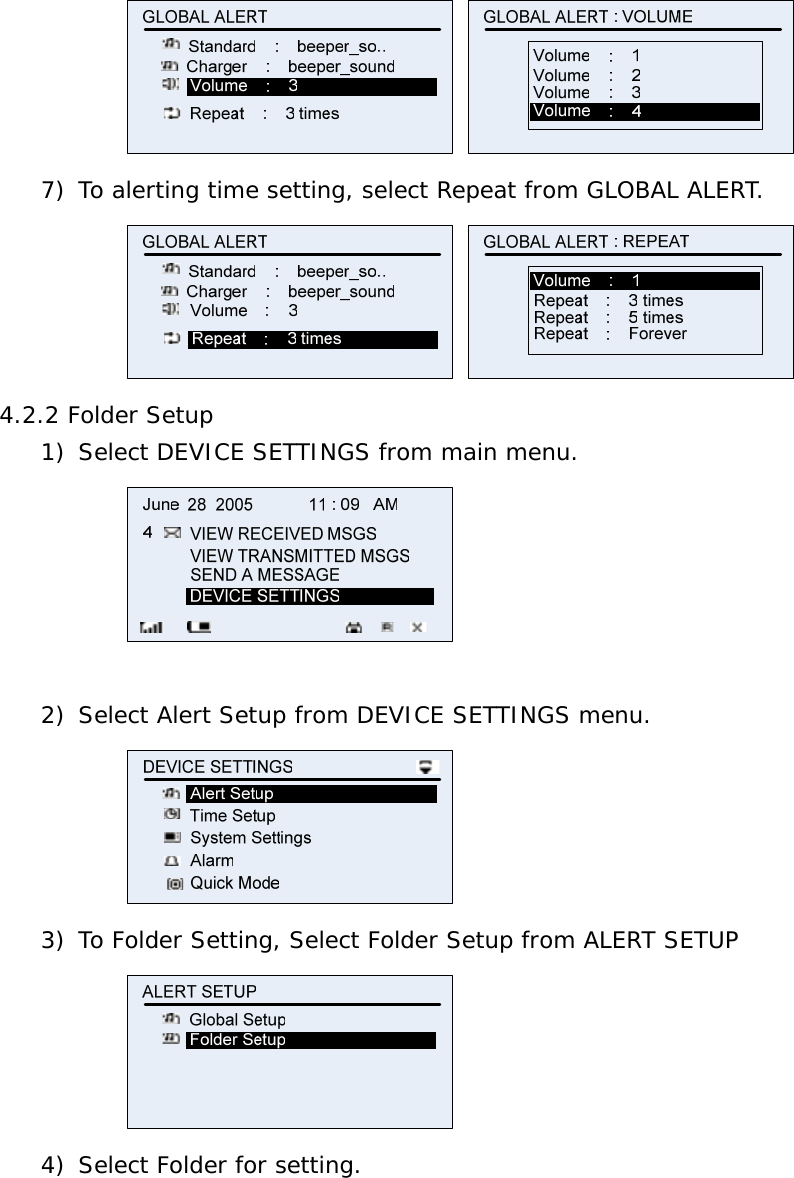

  7) To alerting time setting, select Repeat from GLOBAL ALERT.   4.2.2 Folder Setup 1) Select DEVICE SETTINGS from main menu.   2) Select Alert Setup from DEVICE SETTINGS menu.  3) To Folder Setting, Select Folder Setup from ALERT SETUP  4) Select Folder for setting.

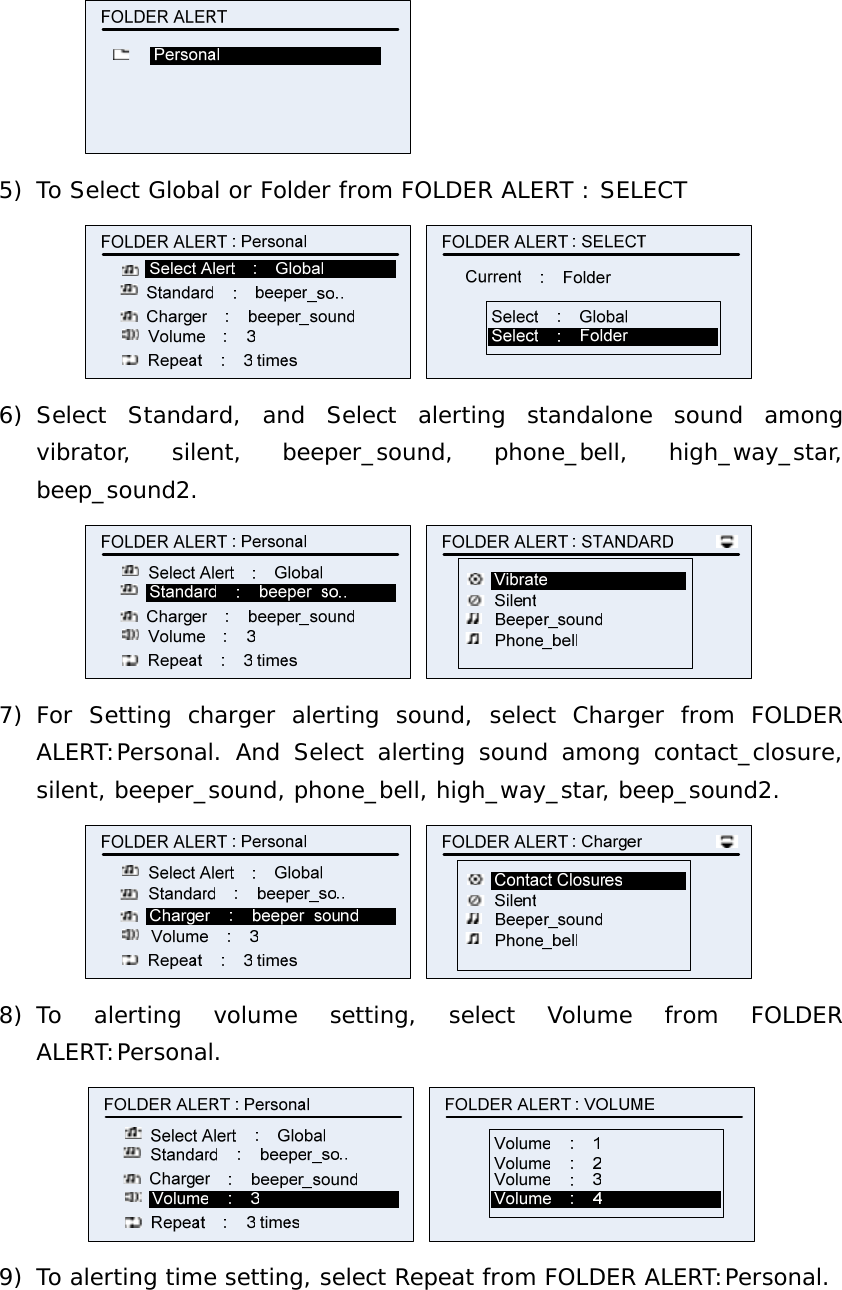

 5) To Select Global or Folder from FOLDER ALERT : SELECT   6) Select Standard, and Select alerting standalone sound among vibrator, silent, beeper_sound, phone_bell, high_way_star, beep_sound2.   7) For Setting charger alerting sound, select Charger from FOLDER ALERT:Personal. And Select alerting sound among contact_closure, silent, beeper_sound, phone_bell, high_way_star, beep_sound2.   8) To alerting volume setting, select Volume from FOLDER ALERT:Personal.   9) To alerting time setting, select Repeat from FOLDER ALERT:Personal.

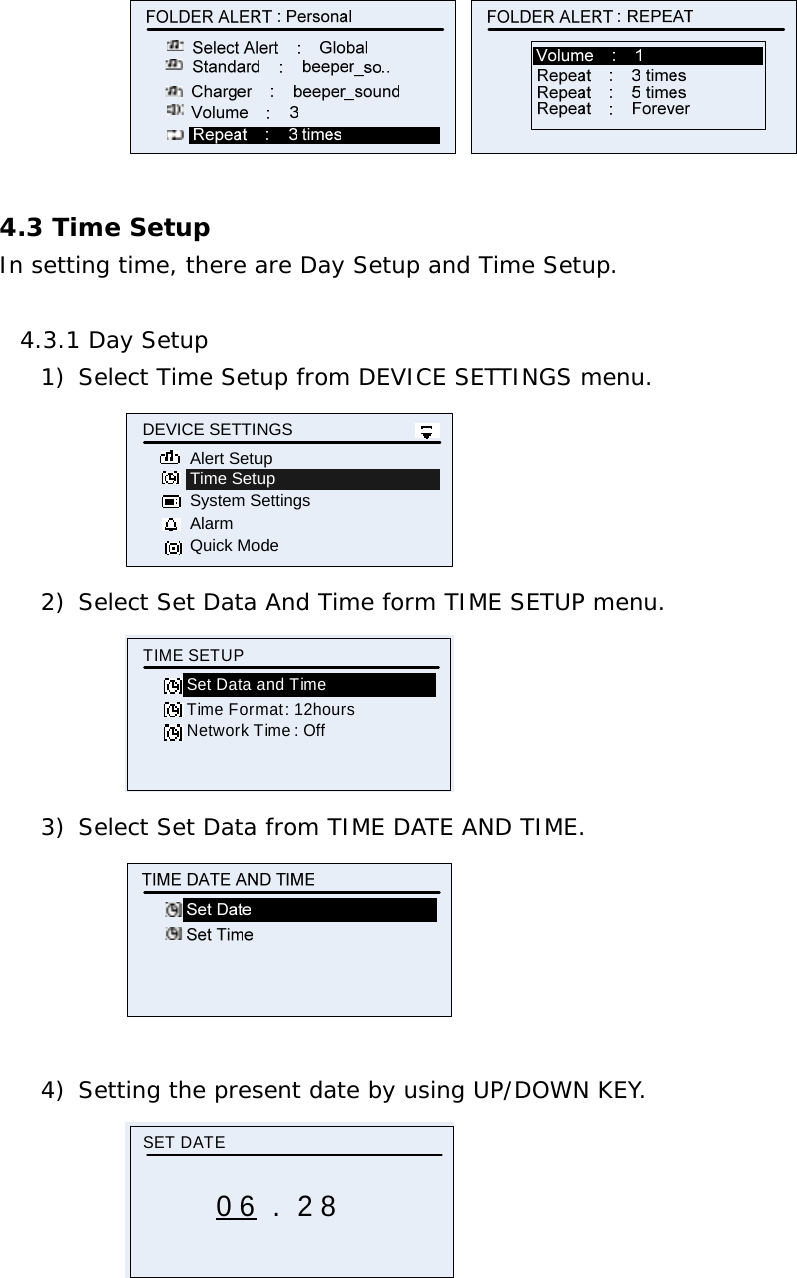

   4.3 Time Setup In setting time, there are Day Setup and Time Setup.  4.3.1 Day Setup 1) Select Time Setup from DEVICE SETTINGS menu. Time SetupSystem SettingsAlarmDEVICE SETTINGSQuick ModeAlert Setup 2) Select Set Data And Time form TIME SETUP menu. Time Format : 12hoursTIME SETUPSet Data and TimeNetwork Time : Off 3) Select Set Data from TIME DATE AND TIME.   4) Setting the present date by using UP/DOWN KEY. SET DATE0 6 .  2 8

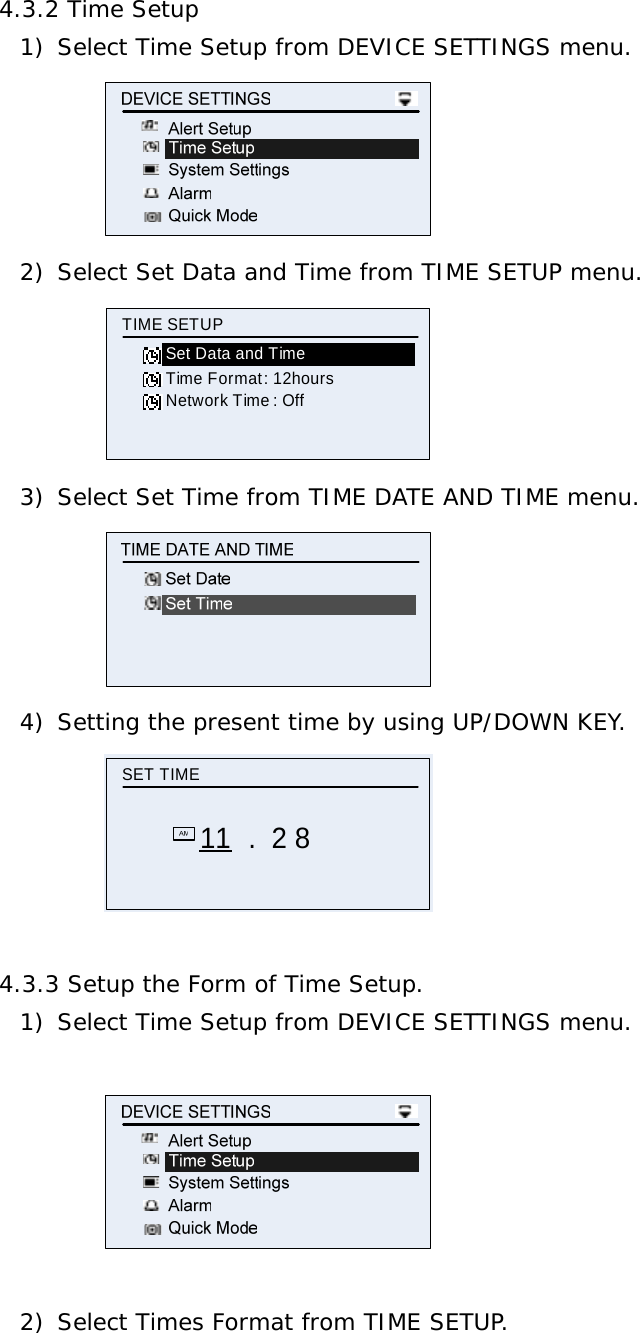

4.3.2 Time Setup 1) Select Time Setup from DEVICE SETTINGS menu.  2) Select Set Data and Time from TIME SETUP menu. Time Format : 12hoursTIME SETUPSet Data and TimeNetwork Time : Off 3) Select Set Time from TIME DATE AND TIME menu.  4) Setting the present time by using UP/DOWN KEY. SET TIME11 .  2 8  4.3.3 Setup the Form of Time Setup. 1) Select Time Setup from DEVICE SETTINGS menu.    2) Select Times Format from TIME SETUP.

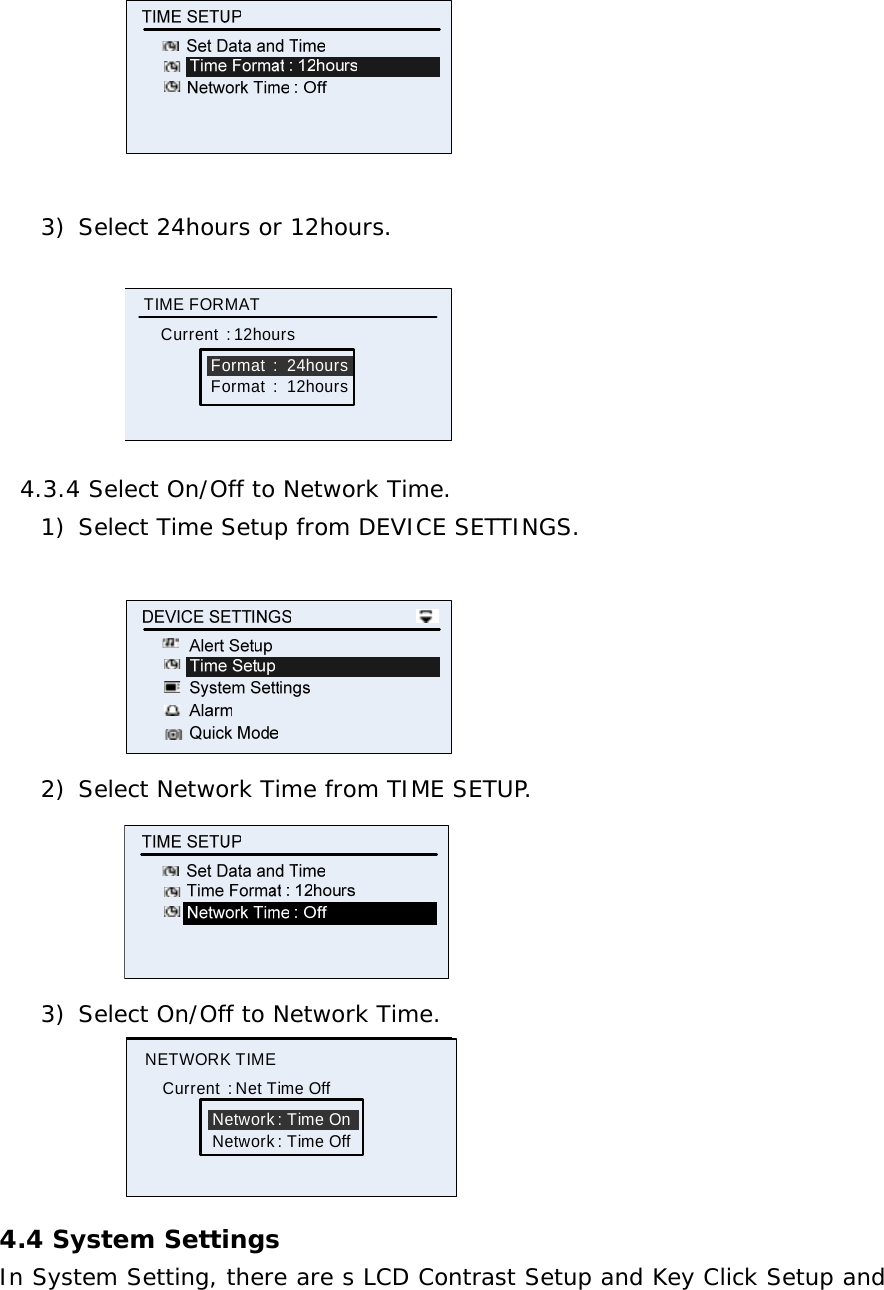

    3) Select 24hours or 12hours.  Format  :  24hoursTIME FORMATCurrent  : 12hoursFormat  :  12hours 4.3.4 Select On/Off to Network Time.  1) Select Time Setup from DEVICE SETTINGS.   2) Select Network Time from TIME SETUP.  3) Select On/Off to Network Time. Network : Time OnNETWORK TIMECurrent  : Net Time OffNetwork : Time Off 4.4 System Settings In System Setting, there are s LCD Contrast Setup and Key Click Setup and

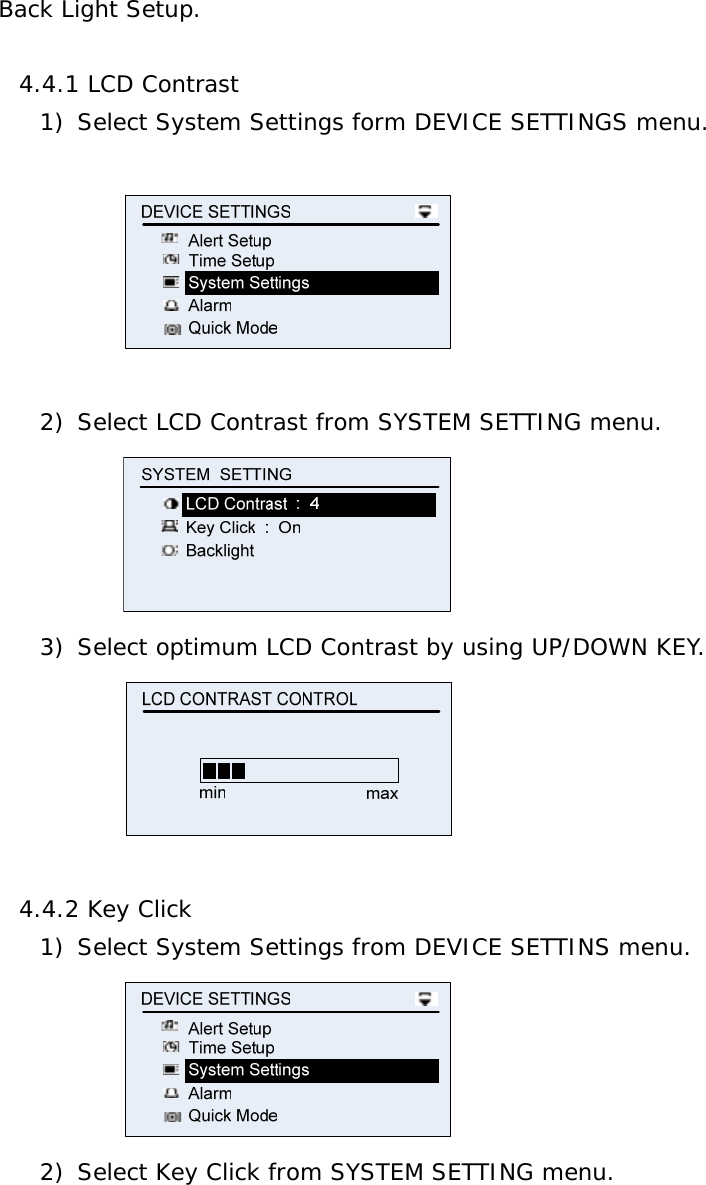

Back Light Setup.  4.4.1 LCD Contrast 1) Select System Settings form DEVICE SETTINGS menu.    2) Select LCD Contrast from SYSTEM SETTING menu.  3) Select optimum LCD Contrast by using UP/DOWN KEY.   4.4.2 Key Click 1) Select System Settings from DEVICE SETTINS menu.  2) Select Key Click from SYSTEM SETTING menu.
 3)  Select On or Off) Key Click   OnKEY CLICKCurrent  : Click OnKey Click   Off  4.4.3 Back Light 1) Select System Settings from DEVICE SETTINGS menu.  2) Select BACKLIGHT from SYSTEM SETTING menu.  3) Select Use Back Light from BACKLIGHT menu.  4) Select On or Only at Night or Off.
OnUSE BACKLIGHTUse  :  OffOnly at NightOff 5) To Select Remain time, select Remain on from Back Light   6) Select 10sec / 20sec o/ 30sec. Remain On  :  10 secREAMIN ONRemin On  : 30  secRemain On  :  20 secRemain On  :  30 sec  4.4 Alarm 1) Select Alarm from DEVICE SETTINGS menu.  2) Select Alarm1,2 from ALARM SELECT menu.    4.4.1 Set Alarm  1) Select Set Alarm from ALARM SETUP menu.

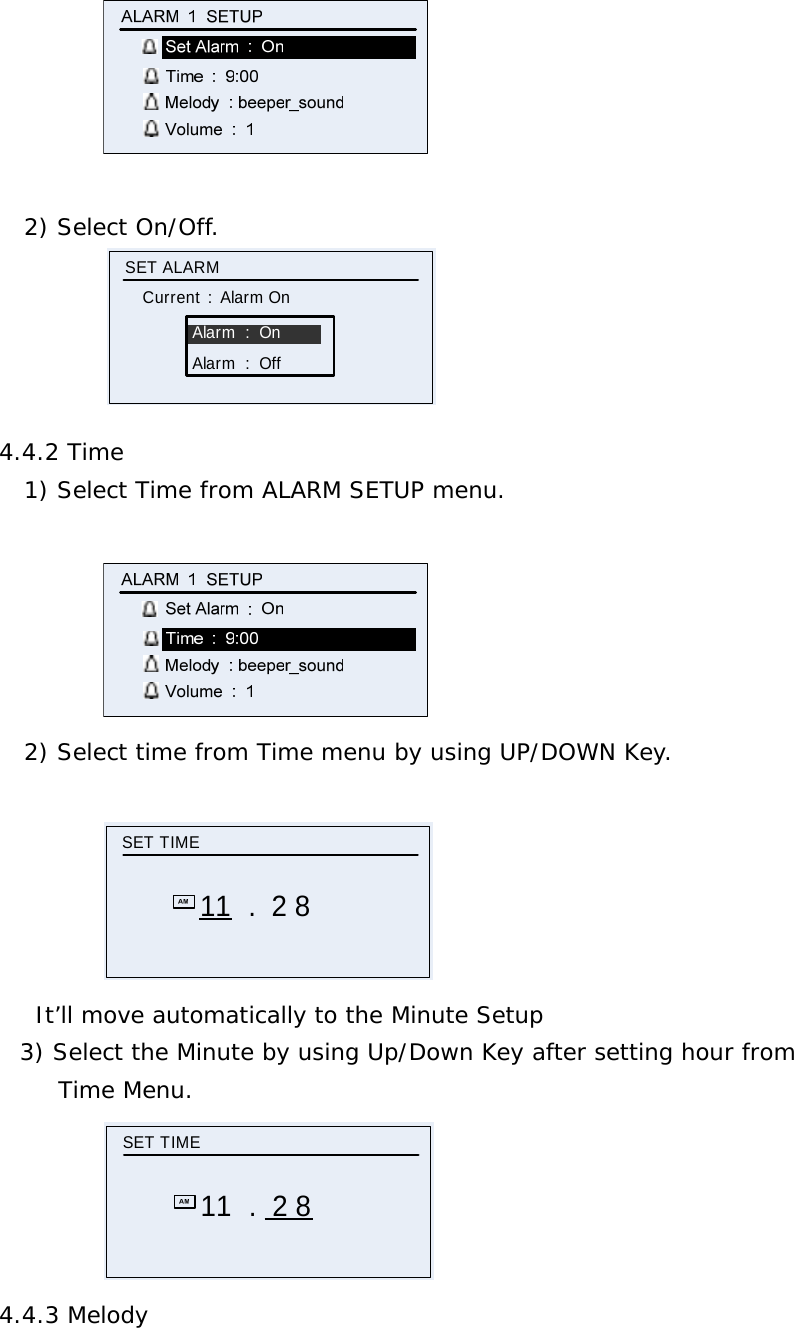

   2) Select On/Off.            Alarm  :  OnSET ALARMCurrent  :  Alarm OnAlarm  :  Off 4.4.2 Time 1) Select Time from ALARM SETUP menu.   2) Select time from Time menu by using UP/DOWN Key.  SET TIME11 .  2 8 It’ll move automatically to the Minute Setup 3) Select the Minute by using Up/Down Key after setting hour from  Time Menu.            SET TIME11  .  2 8 4.4.3 Melody

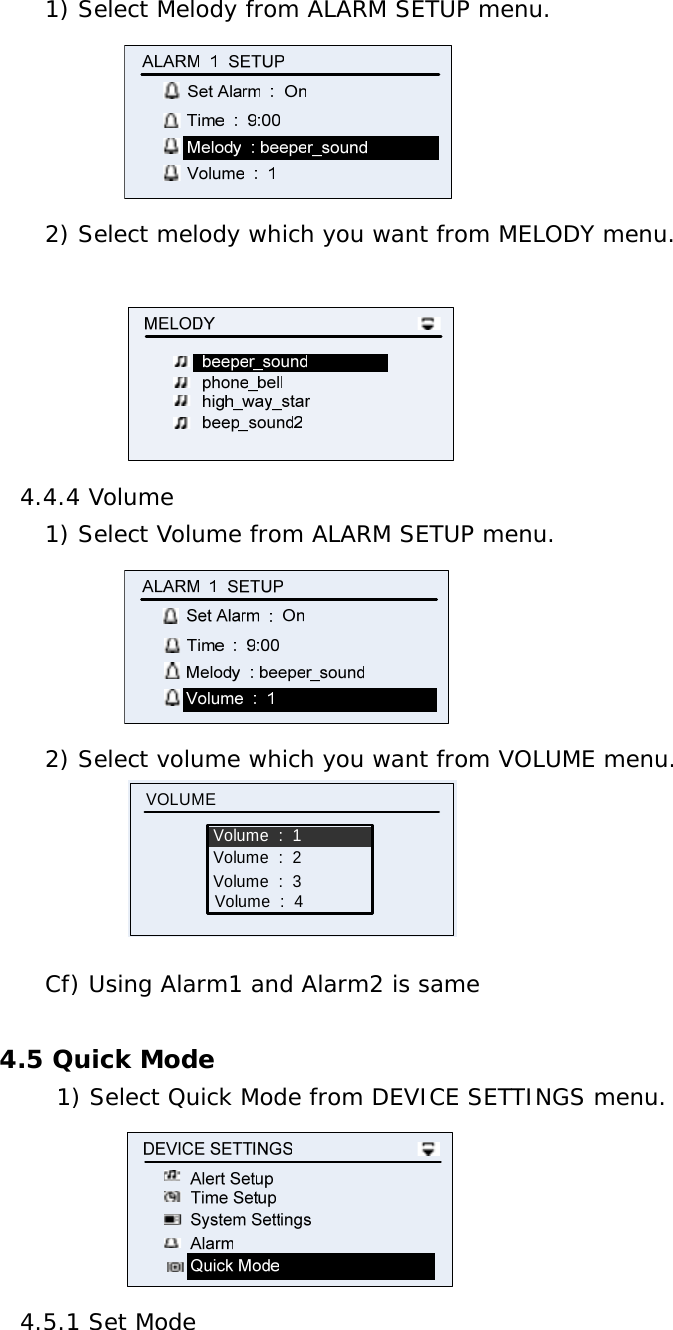

1) Select Melody from ALARM SETUP menu.  2) Select melody which you want from MELODY menu.    4.4.4 Volume 1) Select Volume from ALARM SETUP menu.  2) Select volume which you want from VOLUME menu.            Volume  :  1VOLUMEVolume  :  2Volume  :  3Volume  :  4 Cf) Using Alarm1 and Alarm2 is same  4.5 Quick Mode 1) Select Quick Mode from DEVICE SETTINGS menu.               4.5.1 Set Mode

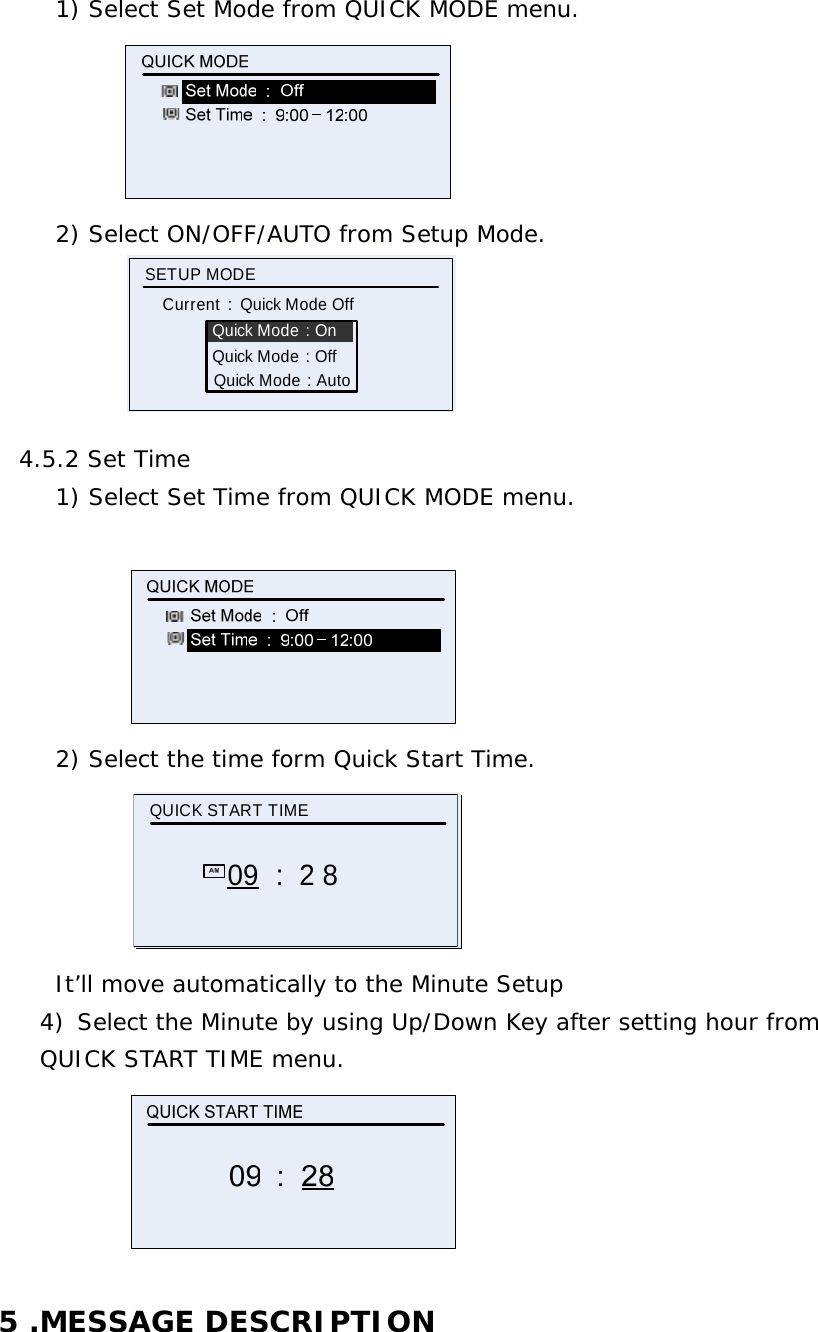

1) Select Set Mode from QUICK MODE menu.  2) Select ON/OFF/AUTO from Setup Mode.            Quick Mode : OnSETUP MODE Current  :  Quick Mode OffQuick Mode : OffQuick Mode : Auto  4.5.2 Set Time 1) Select Set Time from QUICK MODE menu.   2) Select the time form Quick Start Time. QUICK START TIME09 :  2 8 It’ll move automatically to the Minute Setup 4) Select the Minute by using Up/Down Key after setting hour from  QUICK START TIME menu.   5 .MESSAGE DESCRIPTION

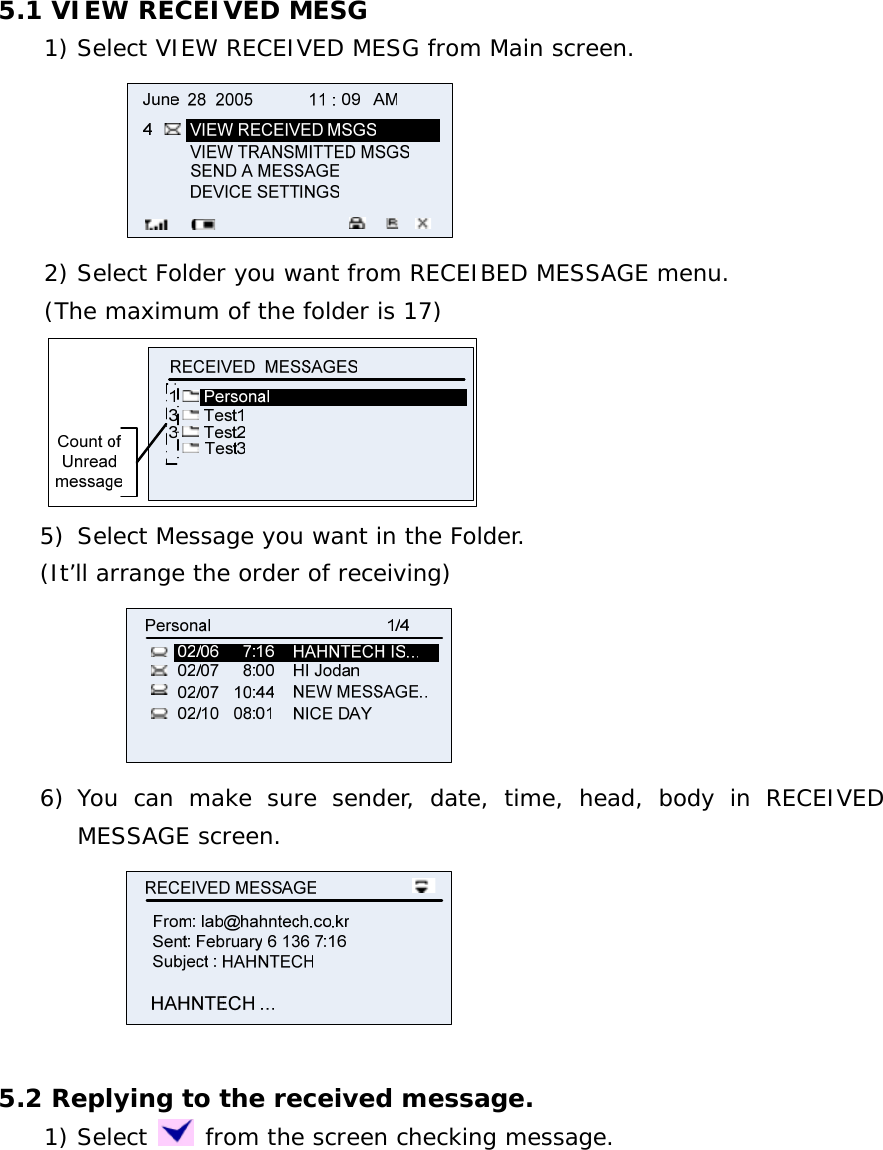

 5.1 VIEW RECEIVED MESG     1) Select VIEW RECEIVED MESG from Main screen.                      2) Select Folder you want from RECEIBED MESSAGE menu. (The maximum of the folder is 17)        5) Select Message you want in the Folder. (It’ll arrange the order of receiving)  6) You can make sure sender, date, time, head, body in RECEIVED MESSAGE screen.   5.2 Replying to the received message.     1) Select   from the screen checking message.
                 2) Reply seeing the selecting screen.              3) Select massage you want from SELECT MESSAGE menu.  7) Check the body of the sending massage.  8)  Select SEND/QUIT in the TRANSMIT MESSAGE when put the  .  Cf) There are some messages which you can’t reply.  5.3 Deleting the received message     1) Put the   in the main screen checking message.
                  2) Select to delete the all or the present message. ① You can see below screen checking deleted message if you select DELETE MESSAGE.     ② You can see the screen checking deleted all messages in Folder if you select DELETE ALL.    3) Select DELETE/CANCLE.   5.4 Checking the transmitted message 1) Select VIEW TRANSMITTED MSGE from Main screen.

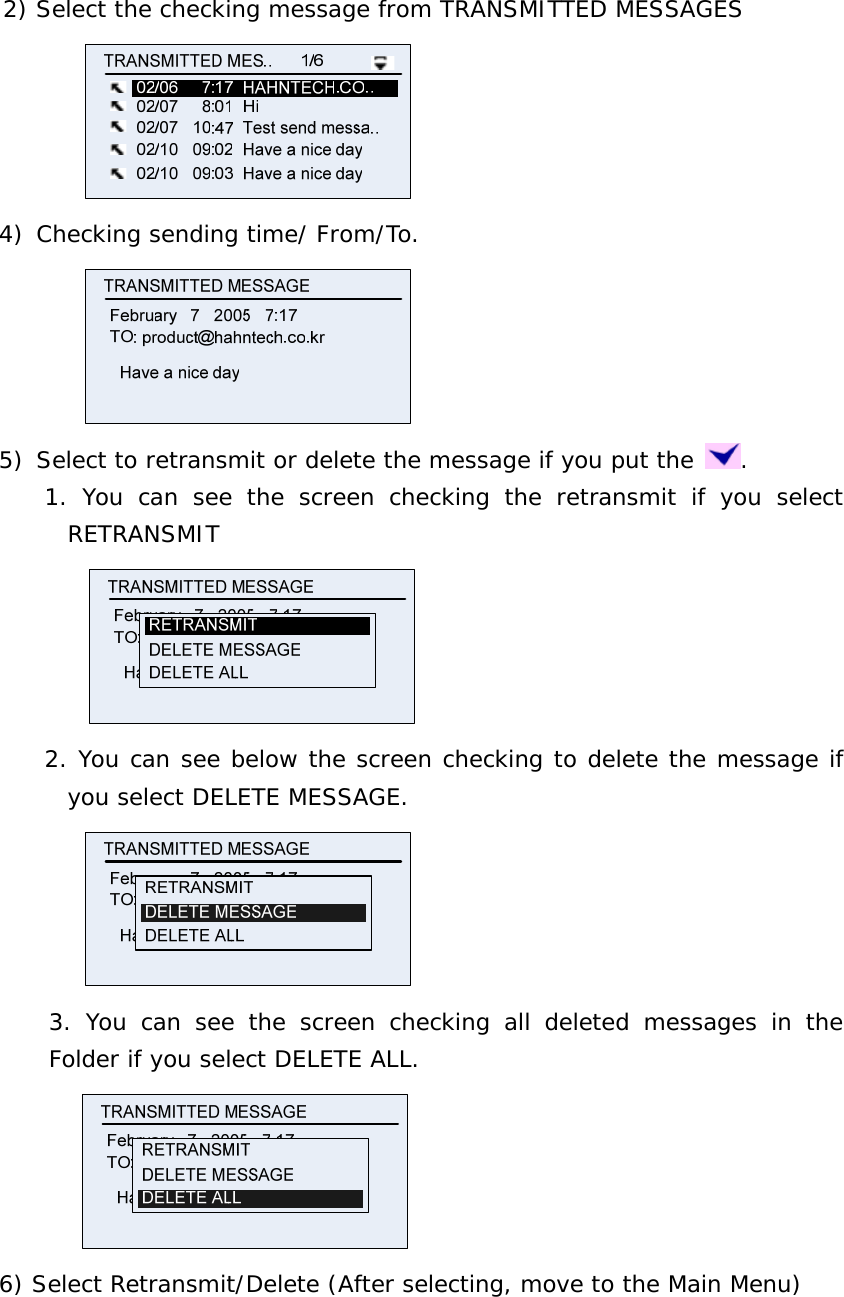

2) Select the checking message from TRANSMITTED MESSAGES  4) Checking sending time/ From/To.   5) Select to retransmit or delete the message if you put the  . 1. You can see the screen checking the retransmit if you select RETRANSMIT  2. You can see below the screen checking to delete the message if you select DELETE MESSAGE.   3. You can see the screen checking all deleted messages in the Folder if you select DELETE ALL.          6) Select Retransmit/Delete (After selecting, move to the Main Menu)

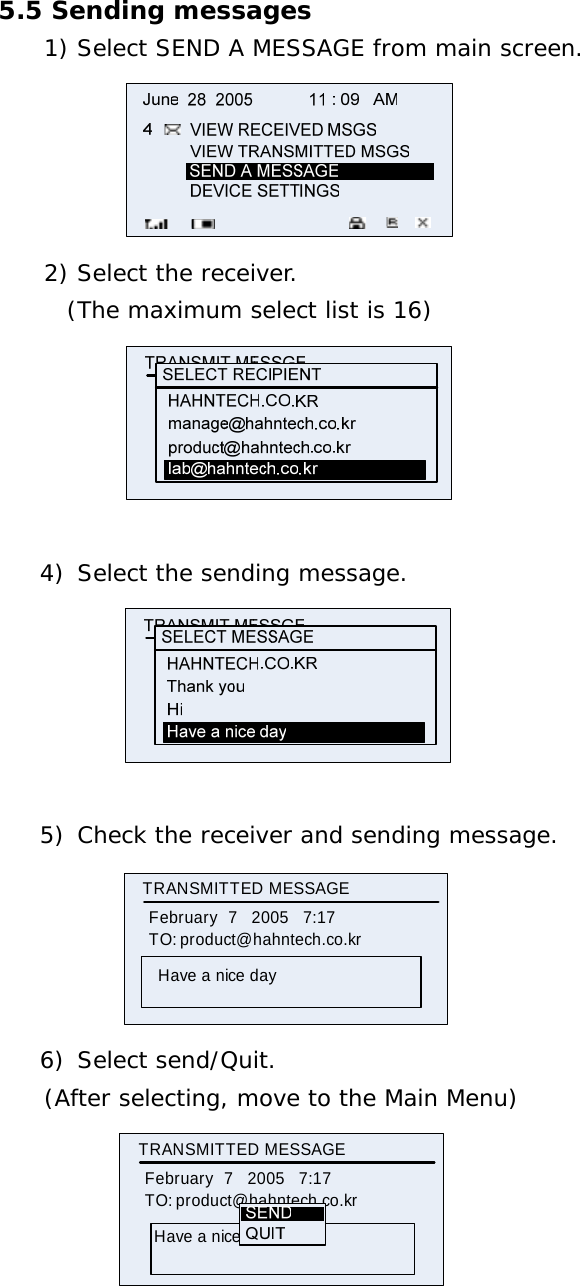

5.5 Sending messages 1) Select SEND A MESSAGE from main screen.                   2) Select the receiver.        (The maximum select list is 16)               4) Select the sending message.   5) Check the receiver and sending message. TRANSMITTED MESSAGE     February   7   2005   7:17TO: product@hahntech.co.krHave a nice day 6) Select send/Quit. (After selecting, move to the Main Menu)           TRANSMITTED MESSAGE     February   7   2005   7:17TO: product@hahntech.co.krHave a nice day

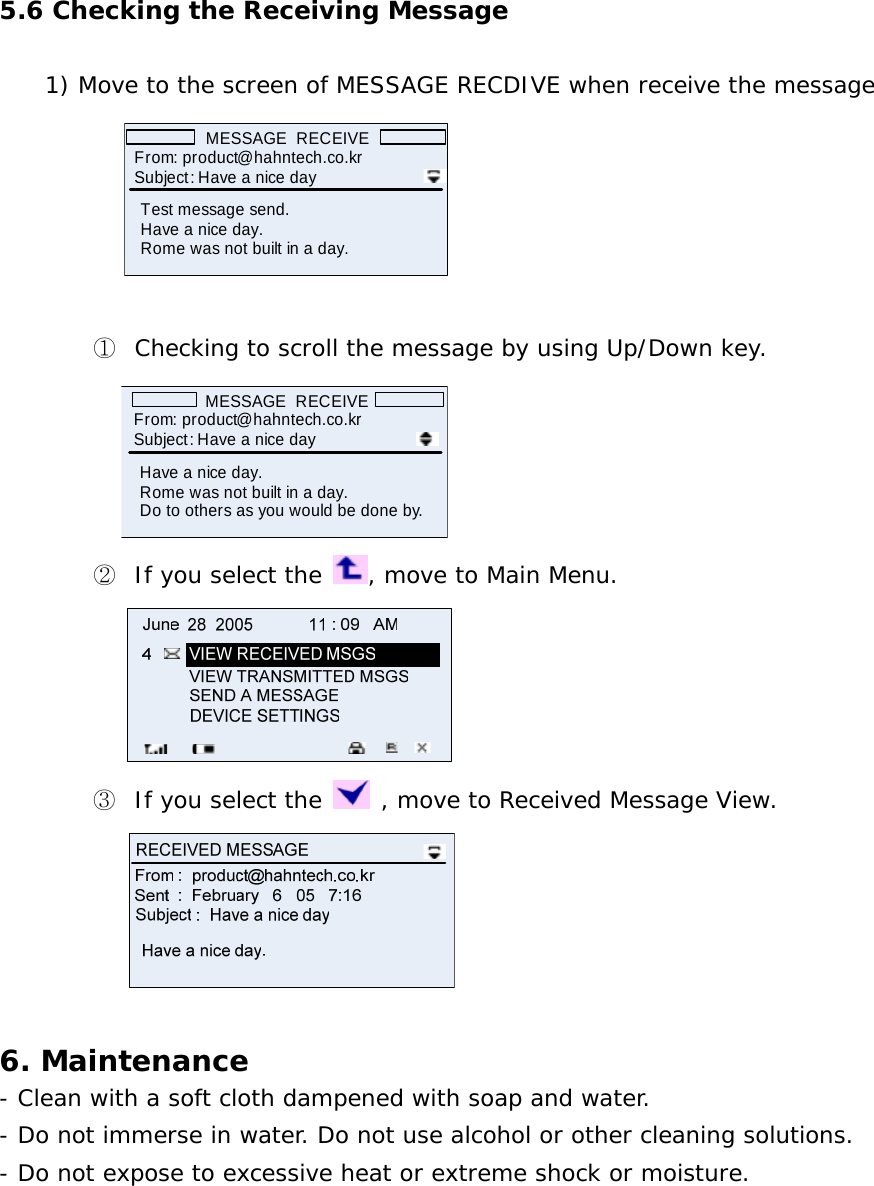

5.6 Checking the Receiving Message  1) Move to the screen of MESSAGE RECDIVE when receive the message  MESSAGE  RECEIVEFrom: product@hahntech.co.krTest message send. Have a nice day.Rome was not built in a day.Subject: Have a nice day   ① Checking to scroll the message by using Up/Down key.             MESSAGE  RECEIVEFrom: product@hahntech.co.krHave a nice day.Rome was not built in a day.Do to others as you would be done by.Subject: Have a nice day ② If you select the  , move to Main Menu.  ③ If you select the   , move to Received Message View.   6. Maintenance - Clean with a soft cloth dampened with soap and water. - Do not immerse in water. Do not use alcohol or other cleaning solutions. - Do not expose to excessive heat or extreme shock or moisture.

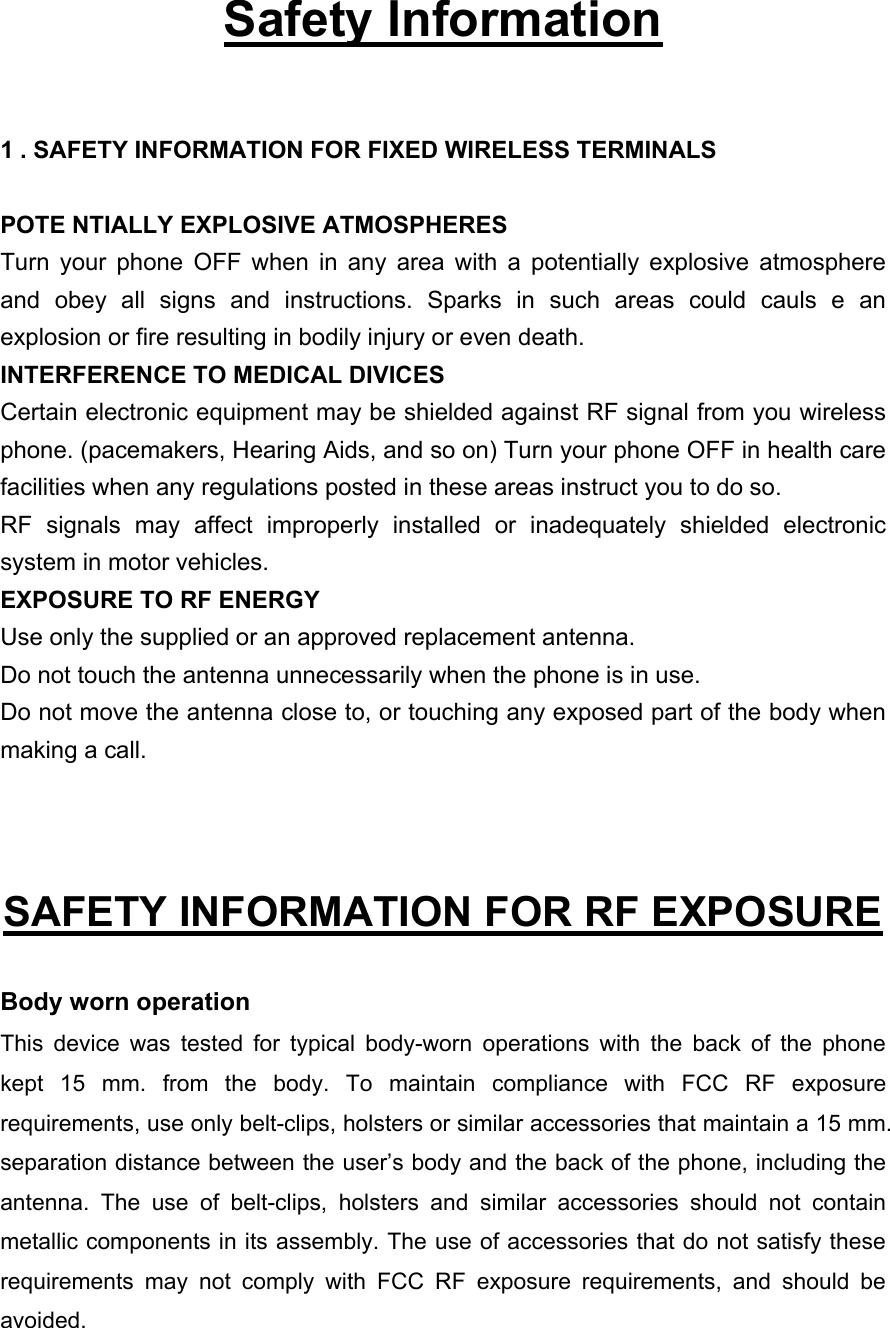

  Safety Information  1 . SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS  POTE NTIALLY EXPLOSIVE ATMOSPHERES Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cauls e an explosion or fire resulting in bodily injury or even death. INTERFERENCE TO MEDICAL DIVICES Certain electronic equipment may be shielded against RF signal from you wireless phone. (pacemakers, Hearing Aids, and so on) Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. RF signals may affect improperly installed or inadequately shielded electronic system in motor vehicles. EXPOSURE TO RF ENERGY Use only the supplied or an approved replacement antenna. Do not touch the antenna unnecessarily when the phone is in use. Do not move the antenna close to, or touching any exposed part of the body when making a call.   SAFETY INFORMATION FOR RF EXPOSURE  Body worn operation This device was tested for typical body-worn operations with the back of the phone kept 15 mm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 15 mm. separation distance between the user’s body and the back of the phone, including the antenna. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

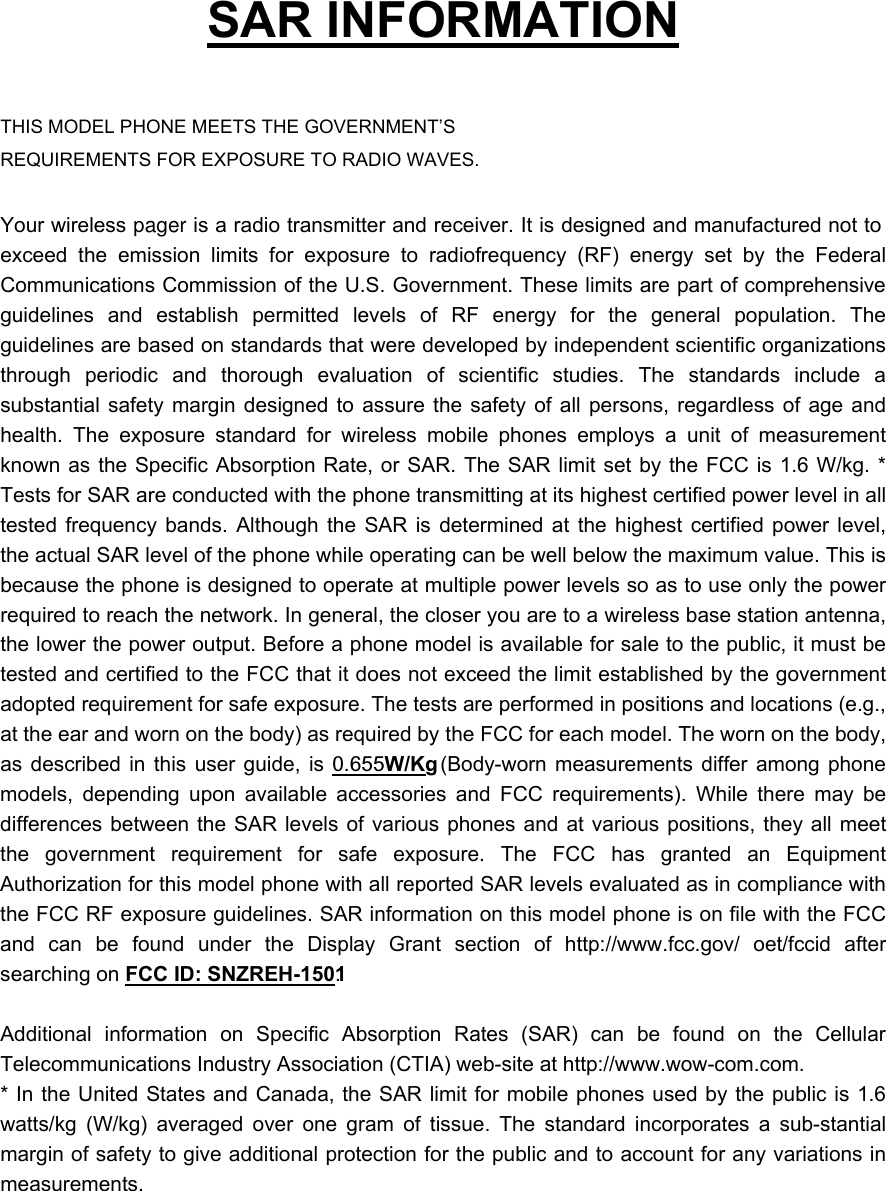

  SAR INFORMATION  THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.  Your wireless pager is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The worn on the body, as described in this user guide, is 0.655W/Kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID: SNZREH-1501.   Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) web-site at http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub-stantial margin of safety to give additional protection for the public and to account for any variations in measurements.

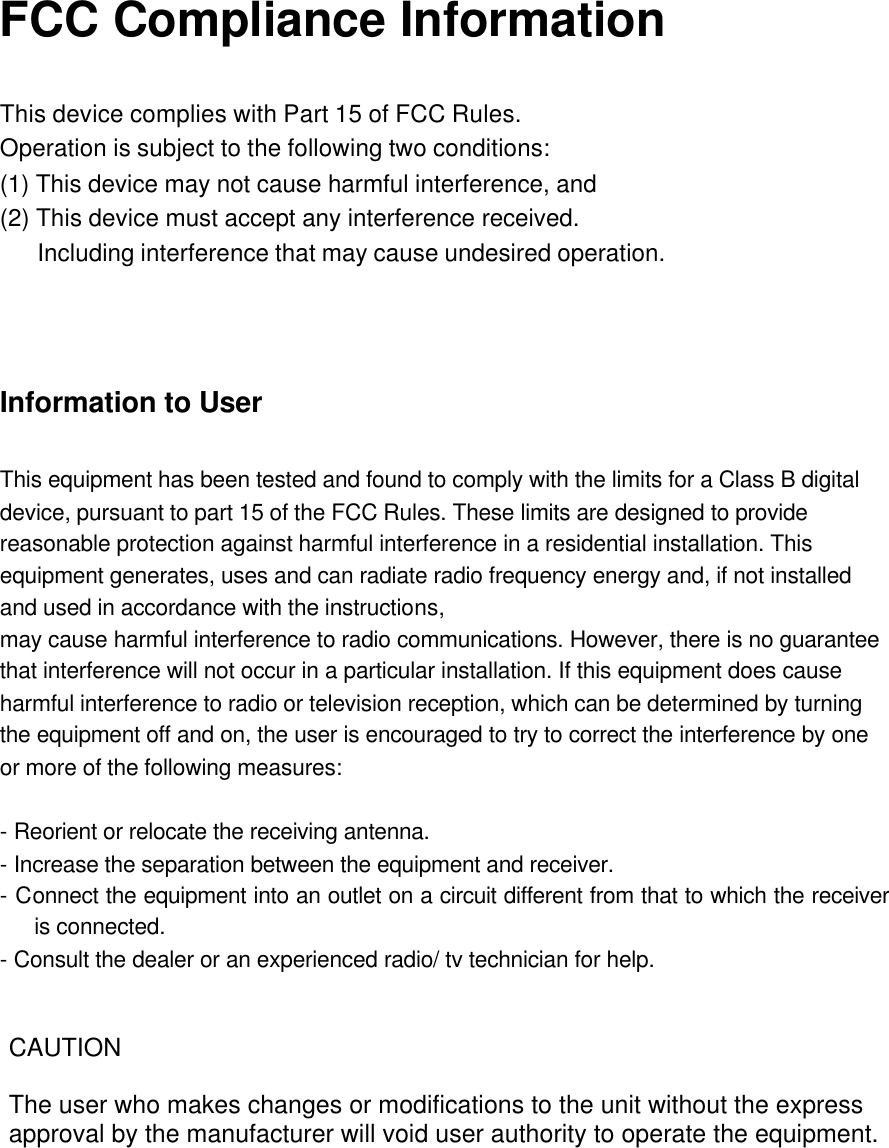

FCC Compliance Information  This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received.    Including interference that may cause undesired operation.     Information to User  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ tv technician for help. CAUTIONThe user who makes changes or modifications to the unit without the express approval by the manufacturer will void user authority to operate the equipment.
