HANGZHOU CENTURY DB202 Dual Channel Deactivator User Manual

HANGZHOU CENTURY CO., LTD Dual Channel Deactivator Users Manual

User Manual

DUAL CHANNEL DEACTIVATOR  DB202

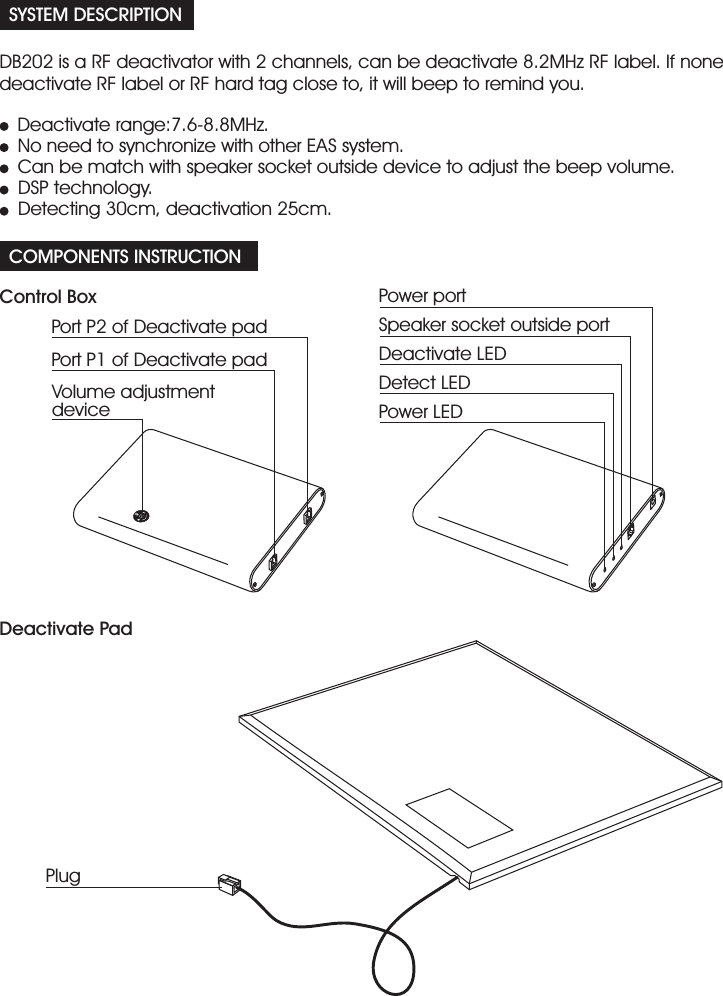

SYSTEM DESCRIPTIONCOMPONENTS INSTRUCTIONDB202 is a RF deactivator with 2 channels, can be deactivate 8.2MHz RF label. If nonedeactivate RF label or RF hard tag close to, it will beep to remind you.Deactivate range:7.6-8.8MHz.No need to synchronize with other EAS system.Can be match with speaker socket outside device to adjust the beep volume.Detecting 30cm, deactivation 25cm.DSP technology.Control BoxDeactivate PadPort P2 of Deactivate padPort P1 of Deactivate padPower portSpeaker socket outside portDeactivate LEDDetect LEDPower LEDVolume adjustmentdevicePlug

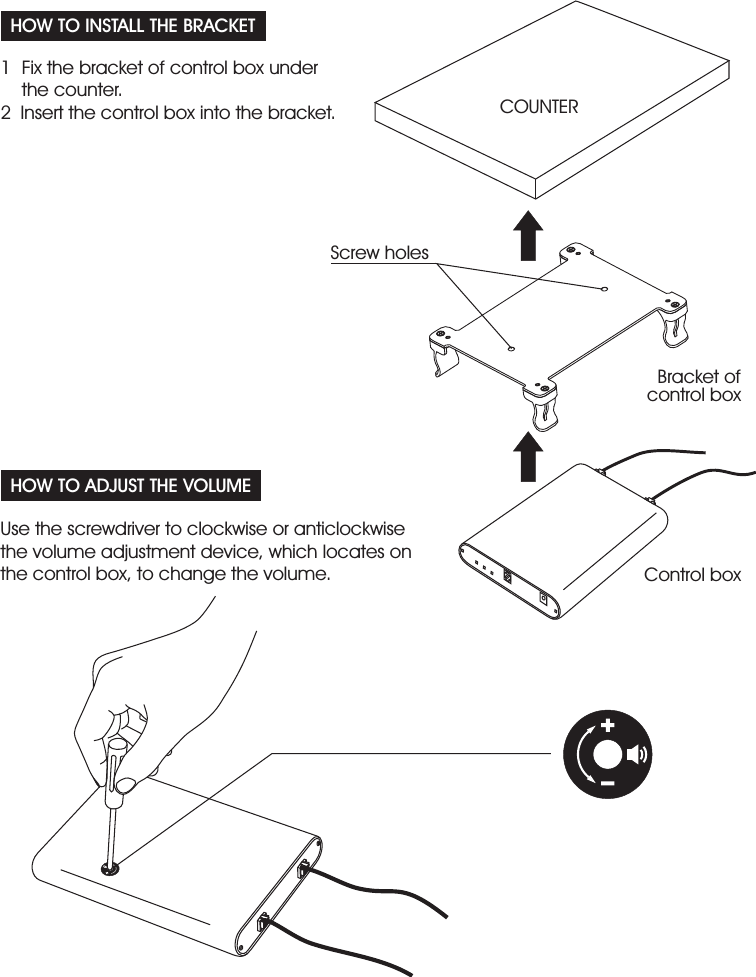

12 Insert the control box into the bracket.Fix the bracket of control box underthe counter. COUNTERControl boxHOW TO INSTALL THE BRACKETScrew holesHOW TO ADJUST THE VOLUMEUse the screwdriver to clockwise or anticlockwisethe volume adjustment device, which locates onthe control box, to change the volume.Bracket ofcontrol box

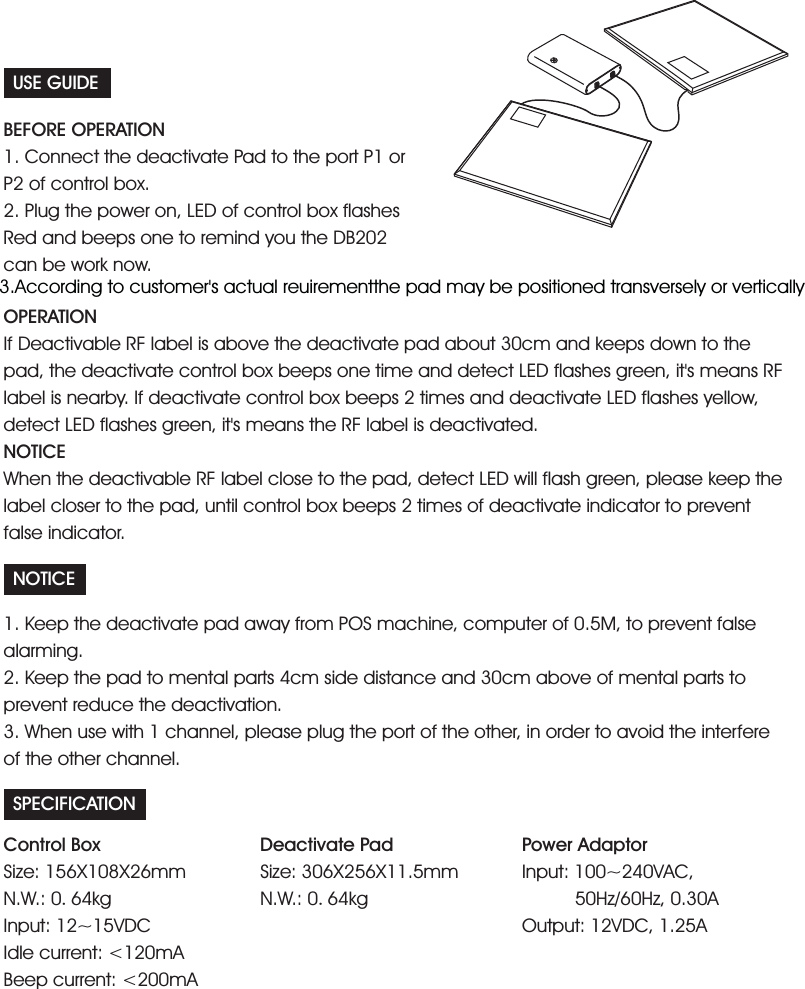

USE GUIDEBEFORE OPERATION1. Connect the deactivate Pad to the port P1 orP2 of control box.2. Plug the power on, LED of control box flashesRed and beeps one to remind you the DB202can be work now.OPERATIONNOTICEIf Deactivable RF label is above the deactivate pad about 30cm and keeps down to thepad, the deactivate control box beeps one time and detect LED flashes green, it's means RFlabel is nearby. If deactivate control box beeps 2 times and deactivate LED flashes yellow,detect LED flashes green, it's means the RF label is deactivated.When the deactivable RF label close to the pad, detect LED will flash green, please keep thelabel closer to the pad, until control box beeps 2 times of deactivate indicator to preventfalse indicator.NOTICE1. Keep the deactivate pad away from POS machine, computer of 0.5M, to prevent falsealarming.3. When use with 1 channel, please plug the port of the other, in order to avoid the interfereof the other channel.2. Keep the pad to mental parts 4cm side distance and 30cm above of mental parts toprevent reduce the deactivation.SPECIFICATIONDeactivate PadSize: 306X256X11.5mmN.W.: 0 64kg.Control BoxSize:N.W.:<200mA156X108X26mm0 64kgInput: 12~15VDCIdle current: <120mABeep current:.Power AdaptorInput: 100~240VAC,50Hz/60Hz, 0.30AOut 12VDC, 1.25Aput:3.According to customer's actual reuirementthe pad may be positioned transversely or vertically

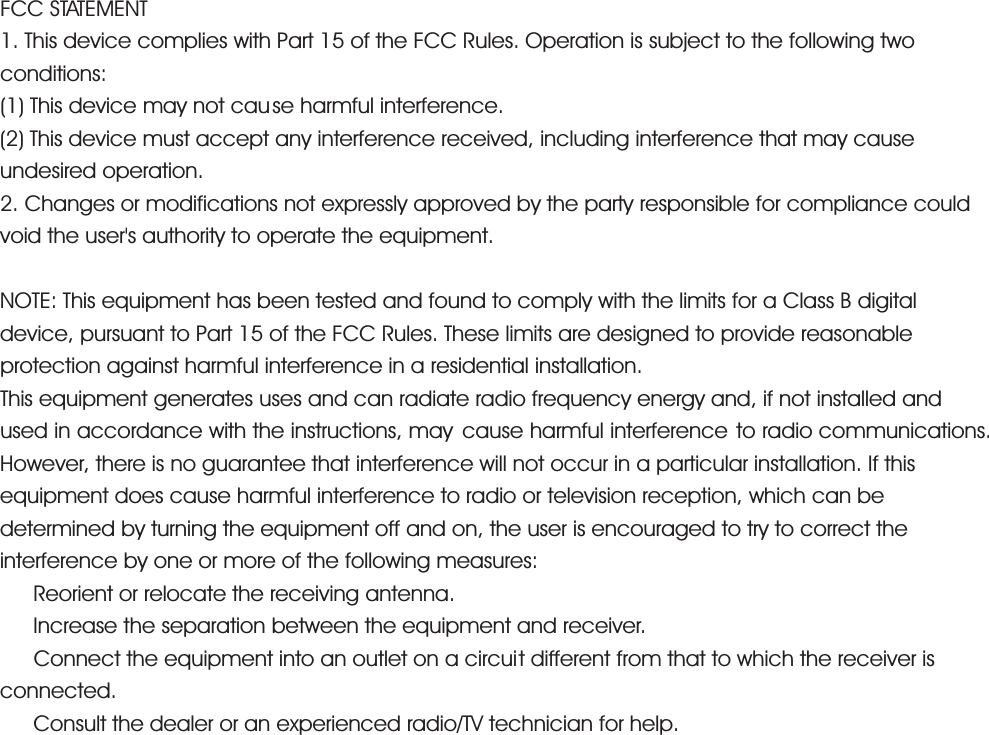

FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may  cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ǂ Reorient or relocate the receiving antenna. ǂ  Increase the separation between the equipment and receiver. ǂ  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ǂ  Consult the dealer or an experienced radio/TV technician for help.
