HARRIS CORPORATION Land Mobile Base Station RF Package Manual
HARRIS >
Contents
RF Package Manual
Maintenance Manual
LBI-38675H
MASTR® III
RF Package, UHF
380-512 MHz
TABLE OF CONTENTS
TRANSMIT SYNTHESIZER . . . . . . . . . . . . LBI-38671
RECEIVE SYNTHESIZER . . . . . . . . . . . . . LBI-38672
RECEIVE RF MODULE . . . . . . . . . . . . . . LBI-38673
LBI-39129
IF MODULE . . . . . . . . . . . . . . . . . . . . . LBI-38643
LBI-39123
POWER AMPLIFIER . . . . . . . . . . . . . . . . LBI-38674
Copyright© 1992 - 2003 M/A-COM, Inc. All rights reserved.
SAFETY NOTES
•The means of disconnecting power from a station cabinet is the cabinet power supply plug.
•When conducting repair/maintenance, disconnect the cabinet power supply plug from the AC source.
•In European applications, equipment must be installed in a closed cabinet.
•Only replace components with components specified by M/A-COM, Inc.
TABLE OF CONTENTS
Page
CONVENTIONAL
OPTIONS AND ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ADDITIONAL OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
TONE & DC REMOTE CONTROLLED STATIONS . . . . . . . . . . . . . . . . . . . . . . 3
REGULATORY DATA
EDACS AND CONVENTIONAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
TRANSMITTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
RECEIVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
MODULE NUMBERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ANTENNA SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
ILLUSTRATIONS

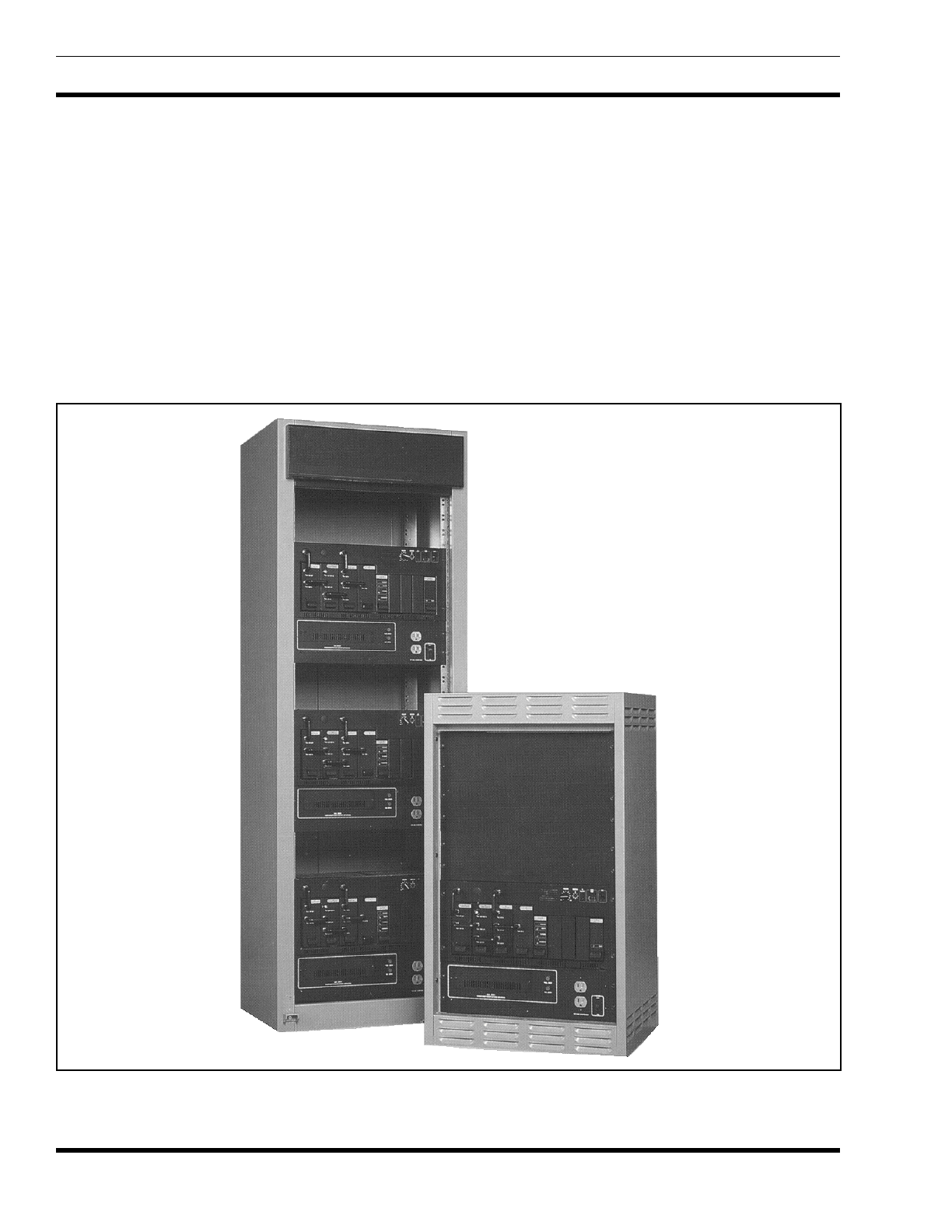

FIGURE 1 - 69" & 37" CABINET MOUNT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
This manual is published by M/A-COM, Inc., without any warranty. Improvements and changes to this manual necessitated by
typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A-COM,
Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be
reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose,
without the express written permission of M/A-COM, Inc.
The software contained in this device is copyrighted by the M/A-COM, Inc. Unpublished rights are reserved under the
copyright laws of the United States.
NOTICE!
Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs,
alterations or substitution of recommended parts made by the user to this equipment not approved by the manufacturer could void the
user’s authority to operate the equipment in addition to the manufacturer’s warranty.
NOTICE!
LBI-38675H
2
CONVENTIONAL OPTIONS and ACCESSORIES
Programmable Options
• Transmit Frequencies
• Receive Frequencies
• Channel Spacing
• Channel Guard Digital and Tone
• Channel Guard Disable
• Repeater Disable
• Intercom Function
• Type 90
• DTMF Decode
• Morse Code ID
• Squelch Tail Elimination (STE)
• Carrier Control Timer
• Station Control
• DC Control
• Tone Control
• Repeater
• DC/Repeat
•Tone/Repeat
• 2 or 4 Wire Audio
• Scan
Additional Options
• Service Microphone
• Antenna Multicoupler
• 50 Hz Power Supply
• Duplexer
• Antenna Relay (VHF/UHF)
• Combiner
• Isolator
• Squelch Operated Relay
• Remote Controllers
• Battery Standby (VHF/UHF)
• Battery Charger (VHF/UHF)
• Gel Cell Battery (VHF/UHF)
• Voice Guard® Encryption
• Aegis Digital
CONVENTIONAL TONE & DC REMOTE CONTROLLED STATIONS
AUDIO (Line to Transmitter)
Line Terminating Impedance: 600 W
Line Level (Adjustble): -20 dBm to +7 dBm
Frequency Response: ± 3 dB @ 300-3000 Hz
TONE CONTROL
Function Tones: 1050,1150,1250,1350,1450,
1550,1650, 1750,1850,1950 & 2050 Hz
Secur-it Tone & Transmit Tone: 2175 Hz
Transmitted 2175 Hz Tone Level: 20 dB Below Voice
Permissible Control Line Loss
@2175 Hz: 30 dB
Continued
LBI-38675H
3
CONVENTIONAL TONE & DC REMOTE CONTROLLED STATIONS - Cont.
AUDIO (Receiver-to-Line)
Audio Amplifier Input Impedance: 10 KΩ
Input Level: 1 V RMS (For 5 kHz Deviation)
Output Impedance to Line: 600 Ω
Output Level to Line Voice (1 kHz ref): +7 dBm (Adjustable)
Tone (1 kHz ref): +7 dBm (Ref. 7 dBm)
Freqency Response: +1 dB and -3dB @ 300-3000 Hz
Hum and Noise, Noise Squelch: -55 dB (Ref. 7 dBm)
Tone Squelch: -30 dB (Ref. 7 dBm)
DC CONTROL Control Control Currents: -2.5, ± 6 & ± 11 mA
Line Loop Resistance (maximum): 11 KΩ (Includes 3K Termination)
REGULATORY DATA EDACS® and CONVENTIONAL
FCC FILING DATA (for cabinet or open rack mounting)
FREQUENCY
BAND POWER OUTPUT
(Internally Adjustable)
FREQ. STABILITY
AND MODULATION
TYPE
APPLICABLE
TO FCC RULES PART
NUMBERS
FCC
FILLING
NUMBER
403-430 45 to 90 W (Freq. Mod. PLL Exc.)
1.0 PPM 22,90,80,74 OWDTR-307-A
425-450 45 to 90 W (Freq. Mod. PLL Exc.)
1.0 PPM 22,90,80,74 OWDTR-307-A2
450-470 50 to 100W (Freq. Mod. PLL Exc.)
1.0 PPM 22,90,80,74 OWDTR-307-B2
470-494
492-512 45 to 90 W (Freq. Mod. PLL Exc.)
1.0 PPM 22,90,80,74 OWDTR-307-C2
OWDTR-307-D2
470-512 90 W (Freq. Mod. PLL Exc.)
1.0 PPM 22,90,80,74 OWDTR-307-X2
DOC FILING DATA
FREQUENCY
BAND TYPE NUMBER APPLICABLE SPEC
403-430 TR-307 RSS-119
425-450 TR-307 RSS-119
450-470 TR-307 RSS-119
470-494, 492-512 NA NA
LBI-38675H
4
GENERAL
CABINET INDOOR CABINET (Floor Mount)
37" (CNV) 69"
SIZE [in. (mm)]
Height:
Width:
Depth:
Weight (min) [(lb. (Kg)]
Continuous Duty
Packed , Domestic Shipping
Number of Rack Units
Maximum Units w/Power Supply
Maximum Units w/o Power Supply
37.0 (940)
21.5 (550)
18.25 (460)
150 (68)
165 (75)
17
2
2
69.1 (1750)
23.1 (590)
21 .0 (533)
300 (136)
317 (147)
33
3
4
SERVICE SPEAKER: 1 Watt @ 8Ω
SERVICE MICROPHONE: Transistorized Dynamic
DC 5A @ 120 VAC or 3A @ 230 VAC
DUTY CYCLE (EIA) Continuous: Transmit/Receive - 100%
AMBIENT TEMPERATURE: -30oC to +60oC
(or full spec performance per EIA) (-22oF to +140oF)
HUMIDITY (EIA): 90% @ 50oC (122oF)
INPUT POWER SOURCE: 120 VAC (± 20%) or
Optional: 230 VAC (± 15%), 50 Hz
Standby Battery Source: 13.8 VDC, 100 AH (min.)
ANTENNA CONNECTIONS: Type N
LENGTH OF AC POWER CABLE: 10 ft (3048mm)
METERING: Provided through Handset or
TQ0619 Utility Software.
ALTITUDE
Operable: Up to 15,000 ft (4,570 m)
Shippable: Up to 50,000 ft (15,250 m)
SOURCE POWER DRAIN UHF
Frequency Range(MHz) 380-400 403-430 425-450 450-470 470-494 492-512
AC Input Power: 5A @ 120 VAC or 3A @ 230 VAC
DC Input Power: VDC
Tx (full / half power): 13.8
Rx only: 13.8
Tx (full / half power): 26.4
EDACS Applications: 13.8
33/25A
2 A
2 A
33/25A
2 A
2 A
33/25A
2 A
2 A
33/25A
2 A
2 A
33/25A
2 A
2 A
33/25A
2 A
2 A
NOTE: One Rack Unit equals 1.75 inches. Stations occupy 8 rack units of cabinet space.
LBI-38675H
5
TRANSMITTER
UHF
FREQUENCY RANGE
(MHz)
RATED POWER
OUTPUT (Watts):
RF OUTPUT
IMPEDANCE (W):
CONDUCTED SPURIOUS
& HARMONIC
EMISSION (dBm):
FREQUENCY STABILITY
(%):
MODULATION
DEVIATION (kHz):
16F3 & 16F9
20F5Y & 20F9Y
(VHF & UHF)
FM NOISE (dB):
CHANNEL STEPS (kHz)
FREQUENCY SPREAD
Full Spec (MHz)
380-400 403-430 425-450 450-470 470-494 492-512
75
50
-36
±0.0001
0 to ± 5
-55
6.25
20
90
50
-36
±0.0001
0 to ± 5
-55
6.25
22
90
50
-36
±0.0001
0 to ± 5
-55
6.25
25
100
50
-36
±0.0001
0 to ± 5
-55
6.25
20
90
50
-36
±0.0001
0 to ± 5
-55
6.25
24
90
50
-36
±0.0001
0 to ± 5
-55
6.25
20
RECEIVER
UHF
FREQUENCY RANGE
(MHz)
RF INPUT
IMPEDANCE (W):
CHANNEL SPACING
(kHz):
SENSITIVITY (dBm)
EIA 12 dB SINAD:
Threshold Squelch (dBm):
SELECTIVITY EIA 2-Signal (dB)
12.5 kHz:
25 kHz:
380-400 403-430 425-450 450-470 470-494 492-512
50
12.5/25
-115
(0.40 µV)
-118
(0.28 µV)
-80
-90
50
12.5/25
-116
(0.35 µV)
-119
(0.25 µV)
-80
-90
50
12.5/25
-116
(0.35 µV)
-119
(0.25 µV)
-80
-90
50
12.5/25
-116
(0.35 µV)
-119
(0.25 µV)
-80
-90
50
12.5/25
-116
(0.35 µV)
-119
(0.25 µV)
-80
-90
50
12.5/25
-116
(0.35 µV)
-119
(0.25 µV)
-80
-90
Continued
AUDIO DISTORTION (@ 1 kHz): Less than 3%
NUMBER OF CHANNELS (Conventional): up to 16
AUDIO RESPONSE (pre-emphasis): Within +1 and -3 dB of 6dB/octave,
300 to 3000 Hz per EIA.
NOTE: Rated power output is measured at the transmitter power amplifier output connector per FCC Type Acceptance filling
information. Any customer- required optional items such as power measuring devices and/or duplexers will introduce loss
between the transmitter output connector and the station cabinet output connector. This loss will reduce the available power
at the station connector.
LBI-38675H
6
RECEIVER - Cont.
UHF
FREQUENCY RANGE
(MHz)
FREQUENCY STABILITY
(%):
SIGNAL DISPLACEMENT
BANDWIDTH (kHz):
INTERMODULATION (dB)
12.5 kHz:
25 kHz:
30 kHz:
ETSI
SPURIOUS & IMAGE
REJECTION (dB):
FREQUENCY SPREAD
Full Specs. (MHz):
3 dB Degradation in
Sensitivity (MHz):
380-400 403-430 425-450 450-470 470-494 492-512
±0.0001
±2
-80
-85
-100
2.0
3.0
±0.0001
±2
-80
-85
-100
2.0
3.0
±0.0001
±2
-80
-85
-100
2.0
3.0
±0.0001
±2
-80
-90
-85
-100
2.0
3.0
±0.0001
±2
-80
-90
-100
2.0
3.0
±0.0001
±2
-80
-90
-100
2.0
3.0
AUDIO RESPONSE (de-emphasis): Within +2 and -8 dB of 6 dB/octave
(@ Local Speaker), 300 to 3000 Hz per EIA.
Within +1 and -3 dB of 6 dB/octave
(@ Line Output), 300 to 3000 Hz per EIA.
AUDIO OUTPUT: 1 Watt at less than 3% distortion @ 1000 Hz,
25 kHz Channel
MODULE NUMBERS
TRANSMIT SYNTHESIZER (450-470 MHz) .............................................19D902780G3
(425-450 MHz) ............................................. 19D902780G7
(403-425 MHz, 410-430MHz).....................19D902780G6
(380-400 MHz) ............................................. 19D902780G8
(470-494 MHz) ............................................. 19D902780G9
(492-512 MHz) ............................................. 19D902780G10
RECEIVE SYNTHESIZER (450-470 MHz, 403-425 MHz,
410-430 MHz)...............................................19D902781G3
(425-450 MHz, 470-494 MHz)....................19D902781G7
(380-400 MHz) ............................................. 19D902781G8
(492-512 MHz) ............................................. 19D902781G10
RX FRONT END MODULE (450-470 MHz) .............................................19D902782G3
(425-450 MHz) ............................................. 19D902782G7
(403-425 MHz) ............................................. 19D902782G6
(410-430 MHz) ............................................. 19D902782G11
(380-400 MHz) ............................................. 19D902782G8
(470-494 MHz) ............................................. 19D902782G9
(492-512 MHz) ............................................. 19D902782G10
IF MODULE ........................................................................19D902783G1
........................................................................ 19D902783G7
Continued
LBI-38675H
7
MODULE NUMBERS - Cont.
POWER AMPLIFIER (450-470 MHz)..............................................19D902797G3
(425-450 MHz)..............................................19D902797G7
(403-425 MHz)..............................................19D902797G6
(410-430 MHz...............................................19D902797G11
(380-400 MHz)..............................................19D902797G8
(470-494 MHz)..............................................19D902780G9
(492-512 MHz)..............................................19D902780G10
LOW PASS FILTER ........................................................................19D902856G1
(470-512 MHz)..............................................19D902780G9
ANTENNA SWITCH ........................................................................19B235897P2
DUPLEXER (440-470 MHz)..............................................344A4047P1
Figure 1 - 69" & 37" Cabinet Mount
LBI-38675H
8

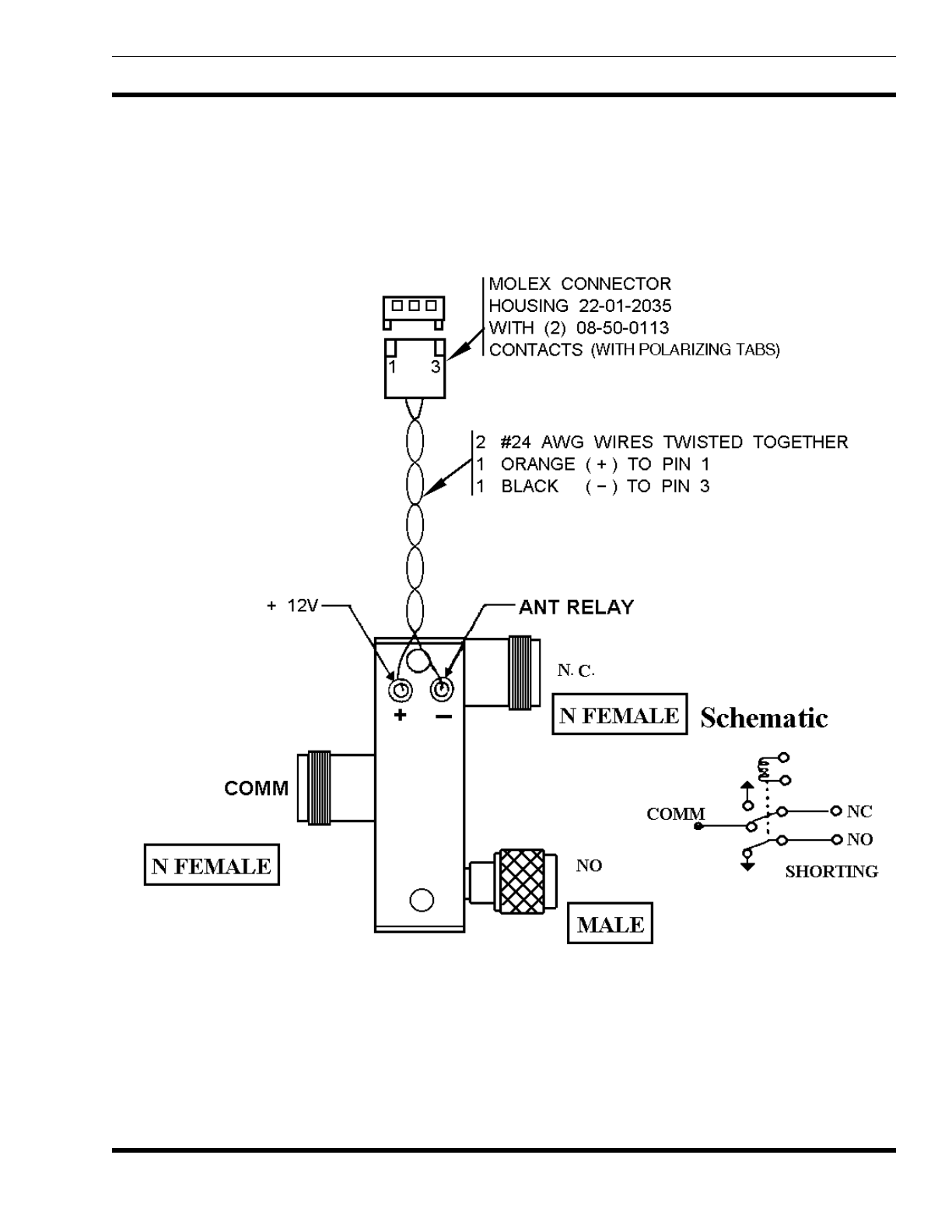

ANTENNA SWITCH
19B235897P2
LBI-38675H
9
M/A-COM Wireless Systems
221 Jefferson Ridge Parkway
Lynchburg, Virginia 24501
(Outside USA, 434-385-2400) Toll Free 800-528-7711
www.macom-wireless.com Printed in U.S.A.
