Mobile Phone CF888

User’s Guide

Visit us on the web at: http://mobile.ericsson.com

ERICSSON Z

First edition (August 1998)

This manual is published by Ericsson Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of cur-

rent information, or improvements to programs and/or equipment, may be made by Ericsson Inc. At any time and without notice. Such changes will, however, be in-

corporated into new editions of this manual.

©Ericsson Inc., 1998

Publication Number: LZT 123 4459 R1

Printed in the USA.

The Menu Sys tem Some menus/features are operator dependent. The Menu Sys tem Some menus/features are operator dependent.

Start here

ERICSSON

12:35

Ring level

( )

Change to

LINE 2?

Forward

Mail

Keylock

On?

Clock

Settings

Calculator

Phone book

call type

Networks

Access

Info

Name Recall

Position Recall

Store

Edit

Erase

Erase All from

Phone

Copy All

Copy

Call Card Numbers

Fixed Numbers

Answered calls

Dialed Numbers

Info Recall

Service Recall

Voice Mail

Read Messages

Send Messages

Area Info

Area Messages

Set Voice Mail

Missed Calls

Set Alarm

Set Clock

Set Date

Clock Mode

Date Mode

Ear Volume

Ring Type

Edit Melody

Mail Alert

Keylock

Key Sound

Light

Min Minder

Call Info

Answering Mode

Analog Vox

Greeting

Phone No

Language

Data Menus

Line 1 Tag

Master Reset

Restrict Calls

Fixed Dial

Call Waiting

Lock to this Line

Unlock Card

Change PIN

Code

Change PIN2

Code

Phone Lock

Change Code

Call Cards

Security Select Net

Searchmode

Edit List

System

Analog Opt

New Search

Phone Number*

Fax Number*

Data Number*

All Numbers

Speech

Fax

Data

Last Call

Tot Calls

Press .... To...

Move clockwise or counterclockwise

Back up one level in the menus

Select a menu or function

Return to the standby mode

Activate

IR Port

*These menus only appear if you

have turned on the data menus.

Contents

Congratulations... 1

Valuable Information 2

Operators & Subscription, Dual Band/Dual Mode – GSM 1900 & Analog

800, SIM & PIN

The Phone, Keypad, and Display

Preparing Your Phone for Use 4

The SIM Card, The Battery

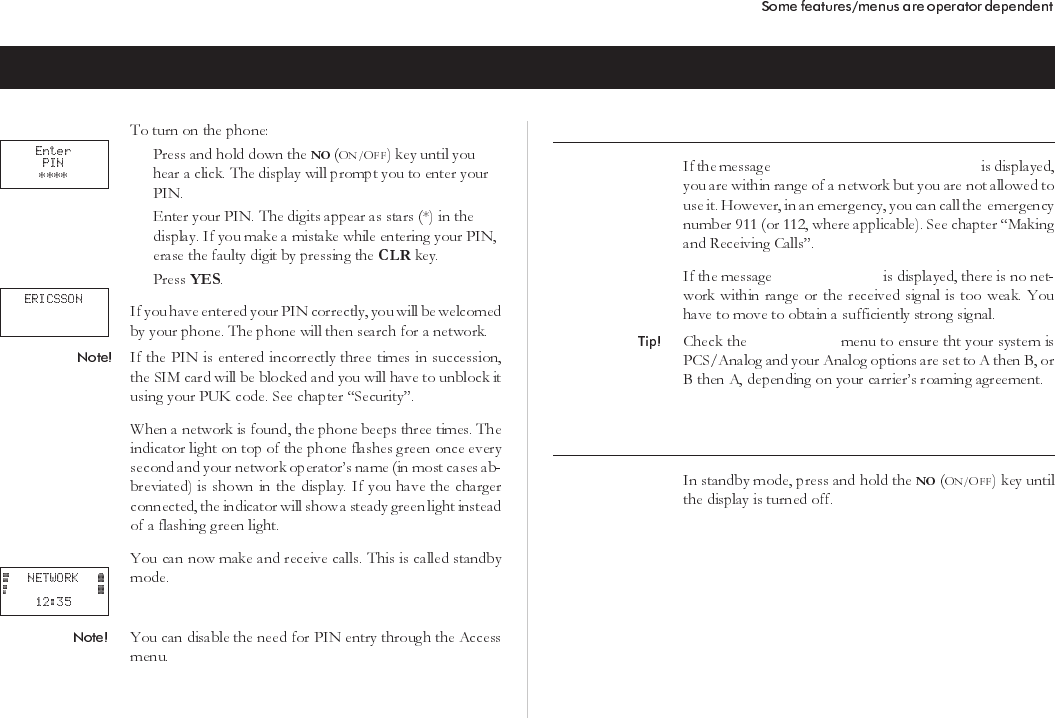

Turning On the Phone 7

The Antenna, When No Network Name Is Displayed, Turning Off the

Phone, Initial Settings

Making and Receiving Calls 9

Emergency Calls, Making Domestic Calls, Making International Calls, Re-

ceiving a Call, Redialing a Number, Calling Someone Who Has Called You,

Unanswered Calls, Hiding or Showing Your Number

During a Call 13

Changing the Earpiece Volume, Muting the Microphone, Using the Display

as a Scratch Pad, Sending Tone Signals

The Menu System 15

Navigating the Menu System, Display Text and Symbols

The Phone Book 16

Before You Start, Entering Characters, Creating Your Personal Phone Book,

Recalling a Phone Number, Keeping Your Phone Book Up to Date, Copying

Phone Numbers between Positions and Memories

Sending and Receiving Text Messages 22

Two Memories, Setting the Phone for Text Messaging, Composing and

Sending Messages, Reading a Message, Replying to a Message, Embedded

Numbers in SMS, Erasing a Message, Storing a Received Message,

Reading Stored Messages, Calling a Phone Number in a Message, Frequently

Used Messages

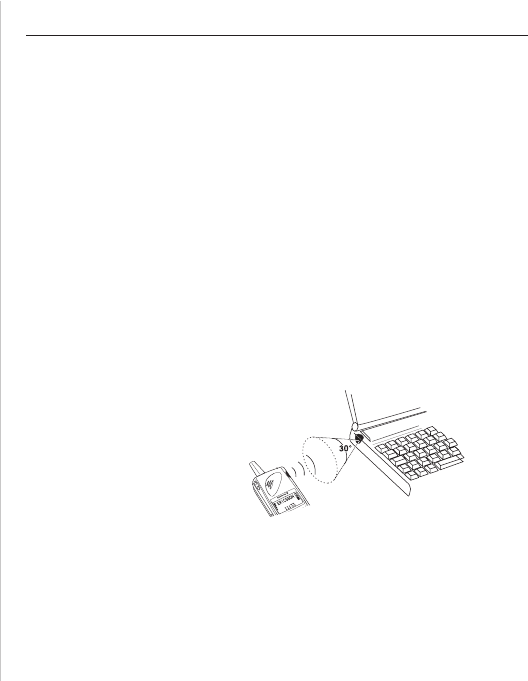

Communicating via the Modem 28

Before you Start, The Data Menus, Installing the Infrared Modem , Connect-

ing Using the IR Link, Connecting Using the RS232 Cable, Making Fax and

Data Calls, Receiving Fax and Data Calls

The Mobile Office Suite 34

Installing the Mobile Office Suite, Uninstalling the Mobile Office Suite

Networks 36

Search Mode, Selecting a Network, Selecting a System, National Roaming,

List of Preferred Networks

Security 40

The Card Lock, The Phone Lock, Call Restrict, The Keypad Lock, Fixed

Dialing

Forwarding Incoming Calls 45

Activating a Call Forward, Checking the Forward Status, Cancelling Certain

Call Forwards

Handling More than One Call 47

The Call Waiting Service, Receiving a Second Call, Receiving a Third Call,

Making a Second Call, Connecting Two Calls

Some features/menus are operator dependent

Conference Calls 50

Initiating a Conference Call, Having a Private Conversation, Releasing One

of the Members, Making a Call while a Conference Call is in Progress,

Ending a Conference Call

Handsfree Calling 52

Selecting Answering Mode, Other Handsfree Related Settings

Area Information 53

Turning On the Area Information, Turning the Area Information Off, Area

Information Message Types, The Area Information Message List, Receiving

Area Information

The Two Line Service 55

Selecting a Line, Receiving a Call on Line 1 or Line 2, Different Settings for

Each Line, Changing the Name of the Two Lines

Other Useful Features 56

Personalizing Your Phone, The Ring Signal Level, The Answering Service,

Time, Date and Alarm, The Call Time/Call Cost, Calling or Credit Card Calls,

The Calculator

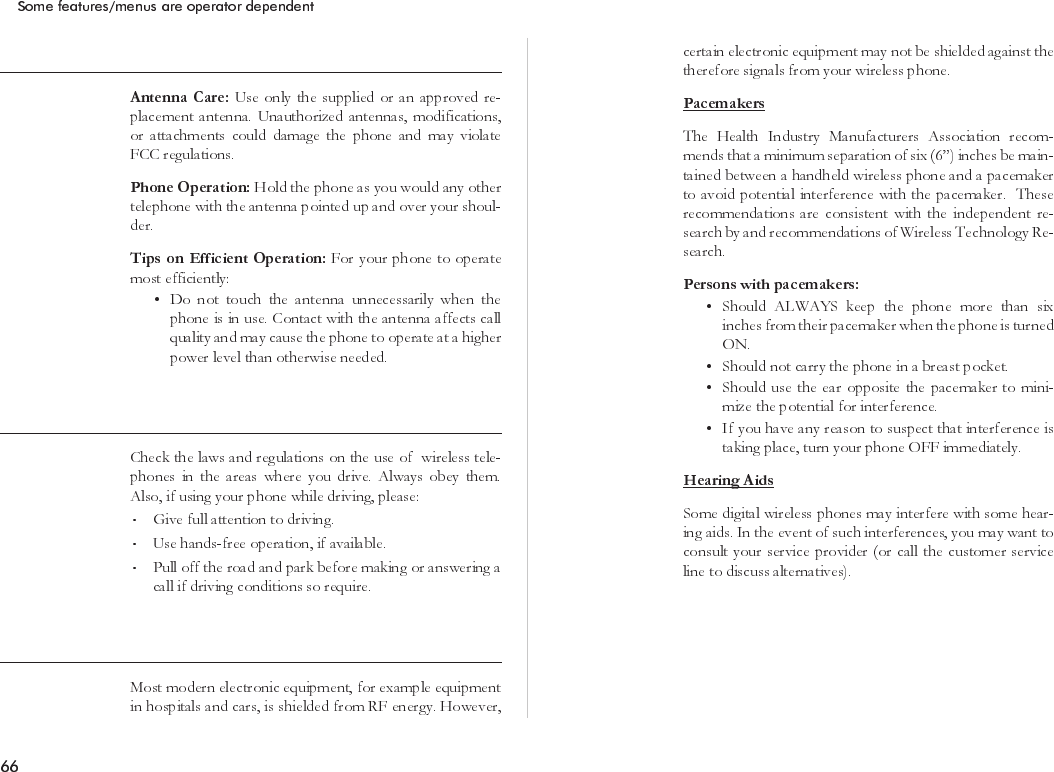

Guidelines for Safe and Efficient Use 65

General, Exposure to Radio Frequency Energy, Efficient Phone Operation,

Tips for Efficient Operation, Driving, Electronic Devices, Aircraft, Children,

Blasting Areas, Potentially explosive atmospheres, Product Care

Index 69

Some features/menus are operator dependent

Congratulations...

…and thank you for choosing the CF888, a mobile phone

specially suited for the demanding user of communication

tools. Retaining the slim, streamlined size that has become

associated with the Ericsson family of phones, the CF888

sets a new standard for others to follow.

Apart from its unique toughness and extraordinary sound

quality, the CF888 comes packed with features that will help

you stay ahead. Some highlights include:

•With the built-in GSM modem, you can forget all about

PC Cards. It’s already inside your phone, guaranteeing

you instant access to your PC, laptop or handheld com-

municator -- wireless if you prefer that, thanks to the in-

frared capabilities.

•Dual band, dual-mode operation extends the potential

for efficient network usage, especially so if you frequently

use your phone in urban areas. The dual-band antenna

ensures optimal reception in both frequency bands.

Like the other phones from Ericsson, the CF888 is produced

to meet the highest quality standards.

This guide introduces you to your CF888 and shows you how

to get the most out of it. Before you start, please read the

“Guidelines for Safe and Efficient Use” in the back of the

manual.

Some features/menus are operator dependent

Valuable Information

Operators & Subscription

To be able to use your phone, you need to have a subscrip-

tion to a network. This is obtained from the network opera-

tor. The services included in your subscription depend on

your choice of operator and/or subscription. Therefore,

some of the services and functions described in this manual

may not be accessible to you. If you want a complete list of

the services included in your subscription, please contact

your network operator.

Dual Band/Dual Mode –

GSM 1900 & Analog 800

The Ericsson CF888 is a dual band/dual mode phone, so

you can operate your phone in two different kinds of net-

works – the GSM 1900 (PCS) and the AMPS 800 systems.

The digital GSM system operates at 1900 MHz, while the

analog system, AMPS, operates at 800 MHz.

A dual band/dual mode phone, such as your CF888, com-

bines the two standards and can use both frequencies. You

have the power of the GSM 1900 in your home network

while being able to roam in the widespread analog coverage.

GSM 1900 is sometimes called GSM or PCS.

Analog information/instructions will appear in blue.

SIM & PIN

Together with your subscription you will obtain a 3-volt SIM

(Subscriber Identity Module) card. TheSIMmustbeadual

mode SIM card to operate as a dual mode phone. A sin-

gle mode SIM will only access GSM 1900 networks.

The SIM card contains a computer chip that keeps track of

your phone number, the services you have ordered from your

network operator and your Phone Book information, among

others.

Your SIM card is supplied with a security code or Personal

Identity Number (PIN), which you need in order to gain ac-

cess to the network. Your PIN may also be required when

you want to change settings in your phone. Furthermore,

some operators may have services that require a second PIN,

the PIN2. You will find your PIN (and PIN2) in the informa-

tion from your operator.

When you turn on your phone you may be prompted to enter

your PIN if the PIN is activated. If the PIN is entered incor-

rectly three times in succession, the SIM card will be blocked.

If this happens you can unlock it by using your Personal Un-

blocking Key (PUK) code, which is also obtained from your

operator. See chapter “Security”.

You should be careful with your PIN, since it is your protec-

tion against unauthorized use of your phone and subscrip-

tion.

Some features/menus are operator dependent

The Phone, Keypad, and Display

Some features/menus are operator dependent

Antenna

Indicator Light

InfraRed (IR) Port

Navigation Key

Keypad

Volume Keys

Earpiece

Display

Microphone Active Flip

Key Functions

•, used to:

make calls, answer incoming

calls, put calls on hold and

switch between calls.

confirm selections and inputs.

•and , used to:

turn the phone on or off.

end calls, reject incoming calls

and cancel selections.

•, press or

(or press and hold) to ac-

cess and navigate the menu

system.

•(Clear), used to

erase digits from the display.

mute the telephone.

•S, used to enter

the digits 0–9 and to enter text.

The 0 key also enters the inter-

national prefix (+) if held

down.

•, used to:

enter the *character.

enter a pause character (’p’) if held down.

•, used to:

enter the characters # or ¤.

recall a phone number from the Phone Book.

•on the side of the phone, used

to:

change the earpiece volume during a call.

reject an incoming call.

silently adjust ring type and ring level (must

select from menus).

check date when roaming.

temporarily disables the active flip.

•answers and ends call when activated.

Indicators in the Display

•Signal strength.

The more bars that are shown,

the higher the signal strength.

•Battery meter.

The fuller the icon, the better

the battery charge.

•The keypad is locked.

•All incoming calls are for-

warded to another number.

•The ring signal is turned off.

•You have received a text message.

•You have received a voice mail.

•The alarm is set.

•The line currently selected. (Requires that

you have the Two Line Service.)

•The phone is locked to a network other

than your home network. Analog only.

Preparing Your Phone for Use

The SIM Card

When you register as a subscriber with a network operator,

you obtain a SIM card.

SIM cards come in two sizes. One is the size of a credit card,

and the other is considerably smaller (about the size of a regu-

lar stamp). The CF888 uses the smaller card. Many operators

deliver credit card size SIM cards where the small size card is

punched out to be easily removed.

Before you can use your phone, you must insert the SIM card into

the phone.

To Insert the SIM Card

To insert the SIM card, remove the battery (if attached) and follow

these steps:

Release the SIM card holder by sliding it toward the antenna.

Fold out the holder.

Slide the SIM card into the holder. Make

certain that the angled corner is top right

Fold down the holder.

Lock the holder by pressing it down

and sliding it toward the bottom of the

phone.

Some features/menus are operator dependent

Preparing Your Phone for Use

The SIM Card

When you register as a subscriber with a network operator,

you obtain a SIM card.

SIM cards come in two sizes. One is the size of a credit card,

and the other is considerably smaller (about the size of a regu-

lar stamp). The CF888 uses the smaller card. Many operators

deliver credit card size SIM cards where the small size card is

punched out to be easily removed.

Before you can use your phone, you must insert the SIM card into

the phone.

To Insert the SIM Card

To insert the SIM card, remove the battery (if attached) and follow

these steps:

Release the SIM card holder by sliding it toward the antenna.

Fold out the holder.

Slide the SIM card into the holder. Make

certain that the angled corner is top right

Fold down the holder.

Lock the holder by pressing it down

and sliding it toward the bottom of the

phone.

The Battery

Your mobile phone comes with a nickel metal hydride

(NiMH) battery. The battery is not charged when purchased,

but there may be enough power to turn on the phone.

Attaching the Battery to the Phone:

Place the battery on the back of the phone.

Press the battery upwards and

against the phone until you hear

a click.

Removing the Battery

Make sure that the phone is turned off before removing the

battery. Then:

Press the locking catch on

the bottom of the battery.

Lift the battery up and away from the phone.

Charging the Battery

Make sure that the battery is attached to the phone. Then:

Connect the charger to the outlets. You will receive one

of the chargers pictured below.

A green indicator on the charger lights up. If not, make

sure you have inserted the plug to the charger correctly

(you may have to press hard).

If applicable, connect the clear plastic plug on the

charger cable to the charger. It is correctly inserted

when you hear a click.

Some features/menus are operator dependent

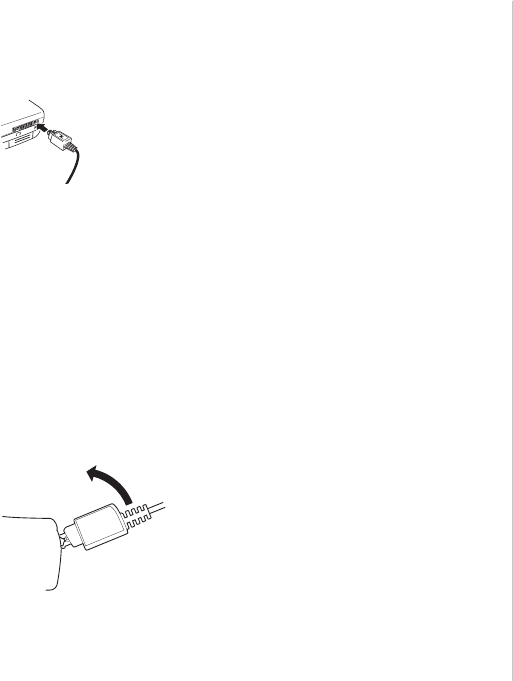

Connect the other end of the cable to the phone ac-

cording to the picture. The flash symbol on the plug

must face upwards. Note that you may have to press

hard.

The phone will automatically start charging the battery as you

attach the charger. To indicate the charging:

•the battery meter in the display is continuously filled and

emptied.

•the indicator on top of the phone shows a steady red light

(green if the phone is turned on).

When the battery is fully charged, the battery meter in the dis-

play will show full and the indicator on top of the phone will

show a steady green light.

Note! It is possible to use the phone while the battery is being

charged. This will, however, increase the charging time.

Disconnecting the Charger

lLift the plug connected to

the phone upwards and

pull it out.

When to Charge the Battery

The nickel metal hydride (NiMH) battery that comes with

your phone can be charged whenever you wish without los-

ing performance. This is not the case with the nickel cadmium

type batteries, often sold as accessories from other suppliers.

For optimal talk and standby time in the long run, we recom-

mend that you only use Ericsson original batteries with your

CF888.

As a reminder that the battery needs to be charged or re-

placed with a charged one...

•an alarm signal (a long beep) sounds and the message

Battery low appears for ten seconds in the display.

•the indicator light on top of the phone starts blinking red.

Note! If the phone is left turned on, the low battery alarm will be re-

peated several times and, finally, the phone will turn itself off

when the battery is no longer able to power it satisfactorily. It

might be possible to turn the phone on again, but you will not

be able to make or receive any calls. Instead the battery must

be charged or replaced with a charged one.

Some features/menus are operator dependent

Turning On the Phone







When No Network Name Is Displayed

Emergency Calls Only

No network

Networks

Turning Off the Phone

Initial Settings

The first time you turn on your CF888, you may want to

change the default language setting, and set the clock.

Display Language

Most SIM cards automatically set the display language to the

language of the country where you purchased your SIM card.

If this is not the case, the default language is English.

To change the display language:

Press the navigation key to the LEFT or to the RIGHT re-

peatedly until the Settings menu appears.

Press YES to enter the Settings menu.

Press the navigation key to the LEFT repeatedly until the

Language menu appears.

Press YES to enter the Language menu.

Press the navigation key repeatedly until you find the

desired language. Your CF888 offers English, French,

Spanish, Portuguese, and Auto Alternative (the SIM

preferred language).

Press YES to select the language.

Press CLR to return to the standby mode.

Note! If by accident your phone displays a language you do not un-

derstand, you can return to English by entering the sequence

L0000Rat any time.

Setting the Time

The time is shown at the bottom of the display. When you

buy the phone, the time is normally not set.

If you want to set the time:

Press the navigation key to the LEFT repeatedly until

the Clock menu appears.

Press YES to enter the Clock menu.

Press the navigation key to the RIGHT repeatedly until

the Set clock menu appears.

Press YES to enter the Set clock function.

Enter the correct time in hours, minutes and press YES.

Press CLR to return to standby mode.

Note! The time is by default presented in the 12-hour format. If you

prefer the 24-hour format, you can change the default setting.

For more information, see chapter “Other Useful Features”.

Setting the Ring Signal Level

Press the navigation key to the RIGHT.

The text Ring level and a bar representing the

ring signal level appears in the display.

Press YES to enter the Ring level menu.

Use the navigation key to set the ring signal level.

•Pressing RIGHT increases the volume.

•Pressing LEFT decreases the volume.

The phone will ring once with the actual setting as you

press the navigation key, except for the Silent and

Step settings.

Press YES to save the setting.

Press CLR to return to standby mode.

Tip! Use the side keys to change the ring level silently.

Note! If you have your CF888 connected to external equipment

(e.g. handsfree equipment or a vibrating accessory) the ring

signal level will be set for this situation separately. See chapter

“Other Useful Features” for more information.

Some features/menus are operator dependent

Making and Receiving Calls

The instructions in this chapter assume that you have turned

on your phone and that you are within range of a network.

Emergency Calls

To make an emergency call:

If the phone is not on, turn it on by pressing the NO key

until you hear a click.

Enter 911 (or 112, where applicable).

Press YES. The display shows Attempting

Emergency.

Note! Some operators may require that a SIM card has been in-

serted into the phone and that you have a valid subscription.

Making Domestic Calls

To make a domestic call:

Enter the area code and phone number. The digits are

shown in the display.

•If you need to erase a digit, press CLR.

•To erase all digits, press and hold the CLR key until all

digits have been erased or press NO.

Press YES to make the call. The display shows Call-

ing, followed by Connecting.

•When the call is answered, a call time meter in the dis-

play shows the elapsed time in minutes and seconds.

•If nobody answers your call or you cannot get through,

press NO. The number is stored in a memory which

makes it easy to repeat the call (see “Redialing the Last

Number” below).

•If the number is busy, it can be redialed automatically

(see “Redialing a Number” below).

When you want to end the call, press NO. The Call

Time meter shows the duration of the call for three sec-

onds.

Tip! It is possible to check the duration of the call later. See chap-

ter “Other Useful Features”.

Making International Calls

To make an international call:

Press and hold the 0 key until the international charac-

ter + is displayed.

The + will automatically be replaced by the interna-

tional dialing prefix for the country from which you are

calling.

Enter the country code, the area code (without the lead-

ing zero) and the phone number.

Press YES to make the call.

Note! When you are roaming, your phone will automatically search

for a network. Which networks you can use depends on the

agreements your operator has signed with the operators in

the area you are visiting. See chapter “Networks”.

Some features/menus are operator dependent

Note! Some operators may not support international dialing prefix

(+). You may be required to enter a specific code (ex: 011 for

USA).

Receiving a Call

When you receive a call, the phone rings and the indicator

light on top of the phone rapidly blinks green. The display

shows Answer?.

If your subscription includes the service Calling Line Identifi-

cation and the caller’s network sends the number, you will see

the caller’s number on the bottom row of the display. If the

number is stored together with a name in the phone book,

the name will be shown in the display.

Note! The phone must be turned on and within coverage of a net-

work before a call can be received.

The active flip can be temporarily disabled by pressing and

holding the side volume key while opening/closing the flip.

To Answer the Call

Open flip. If already open, press YES.

When the call is finished, press NO, or close flip.

To Reject the Call

There are two ways of rejecting the call:

•Press the NO key.

•Press the volume key on the side of the phone twice.

The caller will hear a busy tone if the caller’s network sup-

ports this function.

If you press NO in Analog mode, the ringer will be muted,

and the phone will return to standby.

Redialing a Number

Your CF888 has a function that conveniently lets you redial

the last 15 phone numbers you have called. It can also redial a

number automatically if the connection failed when you first

called. This may vary depending on your SIM.

To Redial Previously Called Numbers

Press YES. The display now shows Call? together

with the last dialed number.

Press the navigation key to the RIGHT or LEFT until the

number you want to call is shown on the bottom row of

the display.

Press YES to make the call.

Note! Should you want to clear the last dialed numbers memory, do

the following:

Press the navigation key to the LEFT. The Phone

book menu appears.

Press YES to enter the Phone book menu.

Press the navigation key to the LEFT. The Dialed

numbers function appears.

Press YES to select the Dialed numbers func-

tion.

Press and hold the CLR key. The question Erase

all? appears.

Press YES to erase the last dialed numbers from the

memory.

Press CLR to return to standby mode.

Some features/menus are operator dependent

The Automatic Redialing Function

If the connection fails, the display shows Retry? on the

top row and the reason for the failure on the second row.

To automatically redial the number:

lPress YES.

•The number will automatically be redialed until the call

is answered, or 10 times at the most.

•If you press any key or you receive a call, the redialing

is interrupted.

•If the redialing is successful, the phone beeps and then

you hear a ring signal.

lPress NO if you do not want to retry.

Calling Someone Who Has Called You

If you subscribe to the service Calling Line Identification,

and the caller’s network sends the number, the numbers of

the last ten answered calls are stored in the phone.

To recall one of the last answered numbers:

Press the navigation key to the LEFT. The Phone

book menu appears.

Press YES to enter the Phone book menu.

Press the navigation key LEFT repeatedly until the An-

swered calls function appears.

Press YES to select the Answered calls func-

tion.

Press the navigation key repeatedly until the required

number is displayed.

Press YES to make the call.

Unanswered Calls

If you have received calls but have been unable to answer, the

number of unanswered calls will be shown in the display until

you press the CLR key.

Information about the ten last missed calls will be saved in

your phone’s memory, which makes it possible for you to

check when the calls were received. If your subscription in-

cludes the service Calling Line Identification and the caller’s

network sends the number, you can also find out who called.

Finding Out Who Called and When

Press the navigation key to the LEFT repeatedly until the

Mail menu appears.

Press YES to enter the Mail menu.

Press the navigation key repeatedly until the Missed

calls function appears.

Press YES to enter the Missed calls function.

The last caller’s number (if your subscription includes

the Calling Line Identification service) is now shown in

the display together with the time (or date) when the

call was received. If no information about the caller’s

number was received, the display will show one of the

following:

•Unidentified, which means that no informa-

tion was available.

•Restricted, which means that the caller wanted

to withhold the number.

Some features/menus are operator dependent

To see the other unanswered calls, press the navigation

key repeatedly.

Press CLR to return to standby mode.

Note! If you check a missed call within 24 hours, the time of the call

will be displayed. Otherwise, the time is replaced by the date.

You can toggle between date and time by pressing *.

To Erase a Number from the Missed Calls

Memory

When the information about the call is shown, press

CLR.

Press YES.

Hiding or Showing Your Number

For most common subscriptions, the caller’s number will be

sent when a call is made. This means that the receiver can see

your phone number when you make a call. However, some

operators offer subscriptions where your phone number is

normally hidden.

You can alter the normal setting (according to your subscrip-

tion) for a particular call.

Hiding Your Phone Number for a Particular

Call:

Enter the phone number you wish to call.

Press the navigation key to the RIGHT.

The Special functions menu now appears.

Press YES to enter the Special functions

menu.

Press the navigation key repeatedly until Hide Id

appears.

Press YES to make the call.

Showing Your Number for a Particular Call

Enter the phone number you wish to call.

Press the navigation key to the RIGHT.

The Special functions menu now appears.

Press YES to enter the Special functions

menu.

Press the navigation key repeatedly until Send Id

appears.

Press YES to make the call.

Some features are not available in your Analog subscription.

Some features/menus are operator dependent

During a Call

When you are engaged in a call, there are several functions in

your CF888 to help you perform actions you might need dur-

ing the conversation.

Changing the Earpiece Volume

If you want to change the earpiece volume during a call:

lPress the volume key on the side of the phone up or

down.

•Pressing UP increases the volume.

•Pressing DOWN decreases the volume.

Muting the Microphone

To temporarily mute the microphone during a call:

Press and hold the CLR key. Mute is shown in the dis-

play.

To resume conversation, release the CLR key.

Using the Display as a Scratch Pad

If you, during a call, need to write down a phone number, you

can use the Scratch Pad function in the CF888. To do this:

lEnter the number using the numeric keys.

When you end the call, the number remains in the display.

You can now call the number by pressing YES or save it in the

Phone Book (see chapter “The Phone Book”).

Sending Tone Signals

In order to, for example, perform banking by phone or con-

trol a phone answering machine, you need to use codes.

These codes are sent as tone signals (also called DTMF

tones).

To send tone signals/codes during a call:

lPress the appropriate keys (1-9, *and #).

Sending DTMF tones in standby mode:

When dialing a number with pause(s) in standby mode, the

first part of the number is sent as a telephone number. Any

numbers after the pare sent as DTMF. A 3-second pause is

generated for each psign, but the 3-second timer can be

forced by pressing SEND.

In Analog mode, the digits between pauses are sent as DTMF

when YES is pressed. If LONG YES is pressed, the digits

between pauses are hookflashed.

Note! Ap(pause) is sent by holding down a * key.

Some features/menus are operator dependent

Sending DTMF Tones While on a Call:

Digits entered during an active call are automatically sent as

DTMF. If YES is pressed, the call will be set-up to the

number entered.

This applies to both AMPS and GSM modes.

Sending Digits from Your Phone Book While

on a Call

While on a call, you can recall a phone book entry. A second

call can be placed by pressing and holding the YES key.

In analog mode, press YES to send digits (before pauses) as

DTMF.

Tip! You can also enter the code before you make the call or store

it in the Phone Book. See Creating Your Personal Phone Book in

the “Phone Book” chapter on how to do this.

Some features/menus are operator dependent

The Menu System

The menu sys tem of your CF888 al lows you to con trol the

phone’s func tions and to cus tom ize it to suit your per sonal

pref er ences.

Each menu is a list of op tions you can choose from. Some of

the op tions con tain sub menus with ad di tional op tions. As a

help for find ing your way among the menus, we rec om mend

that you use the fold- out on the in side of the cover.

Navigating the Menu System

The menus are ar ranged in a con tinu ous loop (see the fold-

out), which you move through with the YES, NO,

NAVIGATION and CLR keys.

Press…..to…

Move clock wise or coun ter clock wise.

Se lect a menu or func tion.

Back up one level and/or leave a set ting un changed.

Go back to the standby menu.

To se lect a menu or make a set ting:

ŒPress the navi ga tion key to the LEFT or RIGHT un til you

reach the de sired menu or func tion.

•Press YES to en ter the menu or to se lect the func tion.

ŽPress the navi ga tion key to find the de sired sub menu or

to se lect a set ting al ter na tive.

•Press YES to en ter the sub menu or to con firm the set -

ting.

Note! If you have en tered the menu sys tem, but have not pressed

any key for 60 sec onds, the phone will re turn to the standby

dis play.

Tip! In stead of press ing the navi ga tion key re peat edly you can

press and hold it down un til you reach the de sired menu or

sub menu.

Display Text and Symbols

When you navi gate the menu sys tem, there are some in di ca -

tions in the dis play:

•Up percase let ters are used to in di cate the menu or func -

tion se lected.

•When ~ and • are dis played, there are more op tions you

can scroll through with the navi ga tion key.

•Text within brack ets in di cates the cur rent set ting for the

dis played func tion.

Some fea tures/menus are op era tor dependent

SETTINGS

Ear volume

( )

The Phone Book

The Phone Book is a function in your CF888 that conven-

iently lets you store and recall phone numbers. This means

that you can let the phone remember your important num-

bers, instead of you keeping everything in your head or

carrying your address book with you.

The Phone Book also keeps track of your last dialed numbers

and, if you subscribe to the Calling Line Identification serv-

ice, the last answered numbers. This feature is convenient if

you have to redial someone.

When you receive a call and the caller’s number is in the

Phone Book, you will see the name in the display.

Tip Together with your CF888 you received the Ericsson Mobile

Office Suite software. When installed on your computer, the

Mobile Office Suite lets you manage your Phone Book from

your computer in a simple and straightforward way.

You will find more information about the Mobile Office

Suite in the chapter “Communicating via the Modem”.

Before You Start

Before you start creating your personal Phone Book, there

are a few things you need to know. In this section, you will

learn about the two different storages and how to store the

numbers with the international prefix.

We also recommend that you read the section about entering

characters at this stage, even though you might need to go

back to the section when you follow the instructions later on.

Phone Book Memories

There are two different memories where you can store the

phone numbers:

•The memory on the SIM card.

•The phone memory.

Storing your numbers in the card memory allows you to recall

the numbers stored on the SIM card even when you change

phones, i.e. when you insert your SIM card into another

phone.

On the other hand, by storing your numbers in the phone mem-

ory, your numbers will always be available to you on your

phone, even if you change SIM cards.

The memory positions in the card memory are numbered

from 1 onwards. The actual number of memory positions

available depends on your SIM card.

The phone memory can hold up to 99 phone numbers. The

memory positions are designated ¤1–¤99.

Note! In the Phone book menu, press #to enter the ¤charac-

ter. Outside the Phone book menu, you must press and

hold down #to enter the ¤character.

Some features/menus are operator dependent

Entering Characters

In the phone book you can accompany any number you store

with a name. To enter the characters in the name, follow the

instructions below.

lPress the appropriate key, 1–9, 0 or #, repeatedly until

the desired character appears in the display.

Press… to get…

1 Space -?!,.:;“'<=>()_1

2 ABCÅÄÆàÇ2Γ

3 DEFèÉ3ΛΦ

4 GHIì4

5 JKL5Λ

6 MNOÑÖØò6

7 PQRSß7?Σ

8 TUVÜù8

9 WXYZ9

0 +&@/¤%$£¥§¿¡0T ΞΨΩ

*p, Upper/Lower Case

##*

For example:

•To enter an A, press the numeric key 2 once.

•To enter a B, press the numeric key 2 twice.

Tip! To enter a digit, you can press and hold down the numeric

key.

Note! If there is a pause of more than 60 seconds between entering

characters, the phone will return to the standby menu.

To Enter Lowercase Letters

Enter the letter, for example an ‘A’, and then press *.An

‘a’ appears.

Lowercase letters will now appear until you press *again.

To Check the First Characters

If you enter more characters than can be seen in the display,

the first characters will be replaced by the lsymbol. To

check the first characters you have entered:

lPress the navigation key LEFT.

Creating Your Personal Phone Book

To Store a Phone Number

From the Phone book menu, select Store.

Enter a name to accompany the phone number.

Use the numeric keys as described in the previous sec-

tion.

Press the navigation key RIGHT.

Enter the phone number.

You now have four options:

To save the number in the card memory, in the first

empty position (displayed in the top right corner):

•Press YES.

To save the number in the card memory, in a position

you decide:

•Press the navigation key RIGHT, enter the position and

then press YES.

To save the number in the phone memory, in the first

empty position:

•Press the navigation key RIGHT, press the # key twice

and then press YES.

Some features/menus are operator dependent

To save the number in the phone memory, in a position

you decide:

•Press the navigation key RIGHT, press the # key once,

enter the position and then press YES.

Tip! If you have entered a number in the scratch pad during a call,

you can store it in the Phone Book by selecting Store from

the Phone book menu while you have the number in the

display.

Overwrite Protection

If you try to store a phone number in a position which already

contains a phone number, the message Used Over-

write? appears in the display. You then have the two

following options.

To store the number in a different position:

Press NO.

Enter the new position number.

Press YES

To store the number in the selected position, thus erasing the

old number:

lPress YES.

When the Memories are Full

•If you try to store a phone number when all the positions

in the card memory are occupied, a position number in the

phone memory will be suggested in the top line of the dis-

play.

•If both memories are full, no position number will be

suggested. If you still wish to store the phone number,

you have to enter the number of an already occupied po-

sition, thus erasing the old number.

Storing a Number With a Tone Signal Code

In order to, for example, perform banking by phone or con-

trol a phone answering machine, you will need to use codes.

These codes are sent as tone signals (also called DTMF

tones).

Note! Anything entered after a pause is sent as DTMF tones from

the Phone Book.

If you want to save the phone number in the Phone Book to-

gether with the codes:

Follow the instructions on how to store a phone

number until entering the number.

After you enter the phone number, press and hold the

*key until the pause character ‘p’ appears.

Enter the code.

If needed, insert another pause, another code and so on.

Continue following the instructions on how to store a

phone number.

When you make the call, the phone will dial the number, wait

until the call is answered and send the code. If you inserted

another pause and another code, it will pause again, send the

next code and so on.

Recalling a Phone Number

The Speed Dialing Facility

You can call the phone numbers that you store in the posi-

tions1–9 inthecard memory by entering the position number

and then pressing YES. Therefore, you should save positions

1 – 9 for important numbers.

Some features/menus are operator dependent

An example:

If you want to call John, whose number is stored in position 3

in the card memory:

Enter the digit 3.

Press YES.

Recalling a Phone Number Using the Name

From the Phone book menu, select Name re-

call.

Enter the name you want to recall (or the first letters of

it) using the numeric keys as described above.

You do not have to enter the entire name; a few initial

letters will do. The phone will match the letters with ex-

isting names in the memory.

Press YES.

The best match between the letters you entered and the

names in the Phone Book will be displayed. You can

also see the storage position within brackets.

If the displayed name is not the required one, press the

navigation key repeatedly until you find the correct

name and number.

Press YES to make the call.

Tip! You can also enter the name directly after pressing LEFT

from the empty standby display.

Tip! When recalling by name, both SIM memory and phone book

storage will be listed alphabetically.

Recalling a Phone Number Using the Position

If you know the memory position where you have stored a

certain phone number, you can recall the number using the

position.

From the Phone book menu, select Position

recall.

Enter the position where the number is stored.

•For a position in the card memory, simply enter the

number.

•For a position in the phone memory, press and hold

down the # key until the ‘¤’ character appears and

then enter the number.

Press YES.

The name and phone number is now displayed.

If you entered the wrong position number, press the

navigation key repeatedly until you find the phone

number.

To call the number, press YES.

Tip! You can also enter the position directly in the standby display

and then press the # key to recall the phone number. Do not

forget the ‘¤’ before the position if the number is stored in

the phone memory.

Keeping Your Phone Book Up to Date

As the people you know change jobs, move, marry etc., you

might want to change the names and numbers in your Phone

Book, or perhaps delete some of the entries.

Some features/menus are operator dependent

To Edit an Entry in the Phone Book

There are two ways of bringing up the Phone Book entry you

wish to edit. You can use either the storage position or the

name.

To edit the entry using the position:

From the Phone book menu, select Edit.

Enter the position number for the entry you wish to

edit.

•For a position in the card memory, simply enter the

number.

•For a position in the phone memory, press and hold

down the # key until the ‘¤’ character appears and

then enter the number.

Press YES to select the entry.

You will now see…

•the name (displayed on the middle row).

•the phone number (displayed on the bottom row).

•the storage position (displayed on the top row).

Press the navigation key RIGHT to select the row you

wish to edit.

The cursor is positioned to the right on the selected

row.

Edit the row by using…

•the CLR key to erase.

•the numeric keys to enter letters or digits.

•the navigation key to move the cursor left (or right

when it is positioned in a row).

If needed, press the navigation key RIGHT to select an-

other row and continue editing.

Press YES to save the changes.

To edit the entry using the name:

From the Phone book menu, select Edit.

Press the navigation key LEFT.

The display now shows Find name in the middle

row.

Enter the name for the entry you wish to edit, using the

numeric keys. The more letters you enter, the better the

match.

Press YES to select the entry.

You can now continue from point 4 above.

Tip! When you edit using the name, you cannot scroll between the

different entries that match the characters you entered. Only

the first match is displayed. In some cases therefore, it might

be easier to recall the number using the name to check the

storage position, and then use this to edit using the position.

Erasing a Phone Number

To erase a phone number from the Phone Book:

Recall the number using Name recall or

Position recall.

Press and hold CLR. The question Erase? appears.

Press YES to erase the number.

Note! You can also select Erase from the Phone book menu

and then enter the storage position.

Should you want to erase all numbers from the phone mem-

ory (not possible for the card memory), you can do this as fol-

lows:

From the Phone book menu, select Erase all

from Phone.

Some features/menus are operator dependent

Press YES to erase all phone numbers from the phone

memory.

Copying Phone Numbers between Positions

and Memories

As you fill up the Phone Book memories, you might want to

move entries from one memory to another or between posi-

tions in the memories.

Copying All Numbers from Card Memory to

Phone Memory

From the Phone book menu, select Copy all.

Scroll to Card->Phone and press YES.

Enter the number of the first position in the card memory

you wish to copy and press YES.

Enter the number of the first position in the phone mem-

ory you wish to copy to and press YES.

Press YES to start the copying.

Copying All Numbers from Phone Memory to

Card Memory

From the Phone book menu, select Copy all.

Scroll to Phone->Card and press YES.

Enter the number of the first position in the phone mem-

ory you wish to copy and press YES.

Enter the number of the first position in the card memory

you wish to copy to and press YES.

Press YES to start the copying.

Copying Numbers from Card Memory to

Phone Memory One by One

From the Phone book menu, select Copy.

Scroll to Card->Phone and press YES.

Enter the number of the first position in the card memory

you wish to copy and press YES.

Enter the number of the first position in the phone mem-

ory you wish to copy to and press YES.

Press YES to start copying.

The starting position in the card memory is displayed and

the next empty position in the phone memory is suggested.

For every entry on the card, from the start position on-

wards, press:

•YES to copy.

•NO to go on to the next position in the card memory.

•CLR to copy to another position in either the card or

phone memory. Enter the number of the position and

press YES. To enter a number from the phone memory,

for example ¤1, press #to enter the ¤character.

•CLR twice to interrupt copying.

Copying Numbers from Phone Memory to

Card Memory One by One

From the Phone book menu, select Copy.

Scroll to Phone->Card and press YES.

To copy from the phone memory to the card memory use the

YES,NO and CLR keys in the same way as described in the pre-

vious paragraph.

Some features/menus are operator dependent

Sending and Receiving Text Messages

A very convenient feature of your Ericsson CF888 is the

Short Message Service (SMS). This allows you to send and re-

ceive text messages consisting of up to 160 characters.

Using the SMS, you do not have to worry about whether the

person you want to reach checks their answering machines.

The message will be delivered to their phone.

Text messages can be received when the phone is in standby

mode, when the recipient is engaged in a call or when incom-

ing calls are forwarded to another phone number. If the re-

cipient’s phone is turned off when a message is sent, a notify-

ing message will be displayed shortly after the phone is

turned on.

Apart from sending standard messages to phones, your Er-

icsson CF888 is also prepared for sending fax messages

(group 3 and 4), e-mails and telexes, via SMS. This service is

operator dependent.

Tip! Together with your CF888 you received the Mobile Office

Suite software. The Mobile Office Suite makes it possible for

you to write and read SMS messages on your computer. For

more information on how this is done, please see the chapter

“Communicating via the Modem”.

Note! The SMS Mobile Originate may need to be activated.

You cannot send SMS while in Analog mode.

Two Memories

The Messages Memory

If you do not want to read an incoming message at once, it is

automatically stored in the Messages memory in the phone,

which allows you to read it later on.

If there are any unread incoming messages in the messages

memory, a letter icon (Mm) is shown to the left at the bottom

of the display.

The Messages memory can hold up to 10 messages. When all

memory positions are occupied, the oldest read message will

be overwritten when a new message is received.

If the Messages memory becomes full with unread messages,

new messages will automatically be stored in the SIM card

memory. If the SIM card memory becomes full, the letter

icon (Mm) starts blinking.

Messages will remain in the Messages memory until you erase

them (see “How to Erase a Message”), until you insert a dif-

ferent SIM card, or until the telephone needs the memory

space for storing new messages

The SIM Card Memory

If you receive an important message and want to make sure it

is not erased from the messages memory, you can store it in

memory on your SIM card. This means that you can retrieve

the message regardless of which phone you use. Messages

Some features/menus are operator dependent

that are saved in the SIM card memory will remain there until

you erase them.

Setting the Phone for Text Messaging

If the phone number to your network service center cannot

be retrieved from your SIM card, you must specify the

number yourself. Otherwise you cannot reply to received

messages or send your own messages.

From the Mail menu, select Send messages.

Scroll to Options and press

YES.

Scroll toServ cent and press

YES.

If there is no number in the display, enter the number

of the service center, including the international prefix,

and press YES.

Press CLR to return to standby mode.

Your phone is now ready to send and receive messages.

Note! Some network operators may only allow SMS to be sent

within their own network.

Setting Duration of Message

If your message cannot be delivered due to the recipient not

being within reach of a network, you can instruct your Serv-

ice Center to repeat the message for one hour, 12 hours, one

day, one week or the maximum period (determined by your

service provider).



From the Mail menu, select Send messages .

New appears.

Scroll to Options,using the navigation key and

press YES.

To select the Valid per option, press YES .

Scroll to the desired duration and press YES.

Changing Message Types

The phone is prepared for sending other types of messages.

Your network operator’s Service Center may offer the facility

to convert a text message into a format (fax, telex, voice, etc.)

that suits the equipment that is going to receive the message.

Consult your operator for further information about the for-

mats you can use.

From the Mail menu, select Send messages .

Scroll to Options, using the navigation key, and

press YES.

Scroll to the Msg type option and press YES.

Select the required format, using the navigation key, and

press YES.

Note! Standard means an ordinary text message (SMS) to other

phones. Standard is the default message type.

Composing and Sending Messages

To Enter Letters

In order to compose your message, you will have to know

how to enter characters using the numeric keys.

Some features/menus are operator dependent

lPress the appropriate key, 1–9, 0 or #, repeatedly until

the desired character appears in the display.

Press… to get…

1 Space -?!,.:;“'<=>()_1

2 ABCÅÄÆàÇ2Γ

3 DEFèÉ3ΛF

4 GHIì4

5 JKL5Λ

6 MNOÑÖØò6

7 PQRSß7?Σ

8 TUVÜù8

9 WXYZ9

0 +&@/¤%$£¥§¿¡0T ΞΨΩ

*p, Upper/Lower Case

##*

For example:

•To enter an A, press the numeric key 2 once.

•To enter a B, press the numeric key 2 twice.

Tip! To enter a digit, you can press and hold down the numeric

key.

To enter lowercase letters:

lEnter the letter, for example an ‘A’, and then press *.

An ‘a’ appears.

Lowercase letters will now appear until you press *

again.

If you enter more characters than can be seen in the display,

the first characters will be replaced by the lsymbol. To

check the first characters you have entered…

lpress the navigation key LEFT.

Note! If there is a pause of more than 60 seconds between entering

characters, the phone will return to the standby menu.

Sending Messages

Sending SMS is not available in Analog mode.

From the Mail menu, select Send messages.

New appears.

Press YES. An empty display appears.

Enter your message (see above “How to Enter Let-

ters”).

You can scroll through the message text with the navi-

gation key and erase characters to the left of the cursor

or insert characters in the cursor’s position.

When you have completed your message, press YES.

Request reply? appears.

Reply and Send are not available in Analog mode.

If you want the receiver to reply to the message, press

YES . If not, press NO .

Enter the receiver’s phone number or recall it from the

phone book. To access the Phone book menu

press LEFT.

You now have two options:

•To send the message now, press YES.

•To store the message for later use, press NO . The mes-

sage is now stored in the messages memory

If you decide to send the message later, the message is labeled

Written instead of Sent when you access the message

in the Read messages menu.

Note! The same procedure is used regardless of what type of mes-

sage (e-mail, fax, etc.) you are sending.

Some features/menus are operator dependent

Reading a Message

When you receive a message, a signal sounds and the display

informs you of it. The indicator light on the top of the phone

blinks rapidly green.

You now have two options:

•If you want to read the message at once, press YES .

•If you want to read the message later on, press NO. The

message will be stored in the Messages memory and a let-

ter icon (Mm) is shown to the left at the bottom of the

standby display. Press any key (0-9, *, #) to clear the New

Message message.

If you pressed YES you will see the first three lines of the mes-

sage, showing you who the message is from and when it was

received. If the number of the incoming call matches one of

your phone book entries, the name will be presented (6 let-

ters or less). If no name is associated, the number will be pre-

sented. New stands for a new unread message.

If the message is older than 24 hours, the time will be re-

placed with the date the message arrived. However, you can

toggle between the date and time by pressing the *key.

•Press YES to read the first line of the message.

•Scroll through the message using the navigation key.

RIGHT takes you forward and LEFT takes you backward

through the message.

•To move three lines forward, press 3. To move three lines

backward, press 1.

•Press and hold LEFT to return to the beginning of the

message.

The message Reply? appears after the last line of the mes-

sage. If the caller wants you to reply, the displayed message

will say Reply Requested, Reply?, provided

your network supports this.

In Analog mode, the “From ....” message will not appear with

an SMS.

Replying to a Message

lIf you want to reply to a message, press YES.

Your display now looks like this.

•To enter your message, press YES and proceed as de-

scribed in Composing and Sending Messages.

lIf you do not want to reply, press NO .

Tip! If there is a phone number in the received message, you can

call it by simply pressing YES. After the number has been

called, the message is considered read and it remains in the

Messages memory.

Embedded Numbers in SMS

Sending an Embedded Number in a

Message

When sending a message to another wireless phone, or when

asking someone to send a message to your Ericsson phone,

you should follow the guidelines listed below to ensure that

the phone retrieves the entire number from the message, dis-

plays it, and allows the phone user to dial the number by

pressing YES. This information does not in any way imply

that the Ericsson phone is capable of receiving them, it is

Some features/menus are operator dependent

only capable of receiving them if the network operator has

activated the service.

Tip! A phone number enclosed within double quotation marks

has the highest probability of being recognized (e.g.

“919-555-1212”).

Other ways to write the phone number within messages are:

•(919) 555-1212

•919-555-1212

•012-123 45 67

•12 34 56

•(02) 11 22 33

•It is best to include the international dialing code, area

code, and area prefix as part of the number to help in

the call back process. The receiver of the message has

the option of editing a number before attempting to

call back.

Note! If the number embedded in the SMS matches a phone book

entry, a name will be associated.

lPress YES to call the embedded name/number. If there

are multiple numbers in the display, the first number

will be dialed.

Erasing a Message

If you do not want to reply to a message:

Press NO.

The message Erase? appears.

To erase the message from the Messages memory, press

YES .

You will now automatically come to the next message in

the message list.

Note! You can press CLR anywhere within the menu that handles

your message to erase it. When the message Erase? ap-

pears, press YES.

Storing a Received Message

All incoming messages are stored temporarily in the mes-

sages memory until the memory space is needed for other

purposes, such as new messages. Even so, sometimes you

may receive an important message that you need to store

more safely. This is preferably done in the SIM card memory.

When you reach the end of the message Erase? appears.

Press NO.

The message Store? appears.

To store the message in the SIM card memory, press

YES. The message is automatically erased from the Mes-

sages memory.

The display now shows the position of the message. For ex-

ample, if it is the third of five that is possible to store.

If you do not want to store the message in the SIM card

memory, press NO. The message will remain in the phone’s

Messages memory.

Tip! You can also store messages you have composed yourself on

the SIM card. See the section Sending Messages.

Some features/menus are operator dependent

Reading Stored Messages

From the Mail menu, select Read messages

and press YES.

Scroll with the navigation key until you find the mes-

sage you are looking for.

•New stands for a new unread message.

•Old stands for a read message.

•Sent stands for a sent message.

Press YES.

Read the message as described in Reading a Message.

Note! If there is a *in front of the message, this indicates that the

message resides on the SIM card.

Calling a Phone Number in a Message

If there is a phone number in the received message, you can

call it by simply pressing YES.

lPress YES to call a phone number found in the display

to call the number directly.

After the number has been called, the message is considered

read and it remains in the Messages memory.

Frequently Used Messages

If you have one or more standard messages you use often,

you can store them on the SIM card, to be reused whenever

you want.

Storing Frequently Used Messages

To make sure your standard messages are not erased when

the messages memory becomes full, you should store them in

the SIM card memory. After saving the message in the mes-

sages memory proceed as follows:

From the Mail menu, select Read messages.

The messages saved in your Messages memory appear.

Scroll to the message you wish to store in the SIM card

memory, using the navigation key, and press YES.

Press YES again. Erase? appears.

Press NO,Store? appears.

Press YES. The message is now stored in the SIM card

memory.

Sending Stored Messages

From the Mail menu, select Send messages.

New appears.

Scroll to the message you wish to send, using the navi-

gation key, and press YES. Now you can edit your mes-

sage, if you wish to do so.

When the message is ready to be sent, press YES.

Request reply? Appears.

Reply is not available in Analog mode.

If you want the receiver to reply to the message, press

YES . If not, press NO .

Enter the receiver’s phone number or recall it from the

phone book. To access the Phone book menu

press LEFT.

To send the message now, press YES.

Some features/menus are operator dependent

Communicating via the Modem

A very convenient feature of the CF888 is the built-in mo-

dem ( a PC card modem). With this, you can connect a com-

puter to your phone in order to send and receive fax and e-

mail messages, browse the Internet and much more.

With the CF888 you can choose if you want to connect to

your computer via infrared link (IR) or via cable.

To be able to use various communication services you also

need appropriate software, for example a fax application, an

e-mail application or an Internet browser.

Your CF888 comes with either a CD or a set of diskettes (or

both, depending on what country you bought your phone in),

containing a modem script and the Ericsson Mobile Office Suite

software, among other things.

The Mobile Office Suite is a phone book manager and a mes-

sage manager. See chapter “The Mobile Office Suite” for

more information.

You will also find the Microsoft IrDA driver, the Microsoft

Windows CE driver and modem script.

Before you Start

Before you can start using communication applications there

are a few things that need to be taken care of:

•First, you need to make sure your computer is configured

for infrared communication. Most computers are already

configured, but if this is not the case, please see your

computer’s user manual for more detailed information.

•Secondly, you need to install the Microsoft IrDA driver

and the Ericsson CF888 modem script on your com-

puter. These are found on the CD and/or the diskettes

that came with your phone. Detailed instructions are

found in the section ‘Installing the Infrared Modem’ be-

low.

•For you to be able to use the above mentioned services

most phone network operators require that you have

separate fax and data subscriptions. This way you never

need to worry about whether an incoming call is a fax,

data or normal speech call. If you do not already have

separate fax and data subscriptions, please contact your

operator.

Note! Do not expose your built-in modem to electrostatic dis-

charge (ESD). The communication link may be lost and

could lead to unintentional loss of data. Should you lose con-

nection, you may need to restart your computer and/or your

mobile phone.

The Data Menus

Analog mode does not support the data menus.

Some of the communication features described in this

chapter require that you have the Data menus in your phone

turned on. To turn them on:

Some features/menus are operator dependent

In the Settings menu, scroll to Data menus.

The current status (on or off) is now shown on the bot-

tom row of the display.

Press YES to change the status if needed (that is from

off to on or vice versa). Then press YES again to con-

firm the setting.

Installing the Infrared Modem

Before you start

Make sure that the phone’s IR port is activated.

To activate the IR port:

In the menu system, scroll to Activate IR port

and press YES. (If the IR port is already activated, the

display will read Deactivate IR port instead.

In this case, just press CLR to return to the standby

menu.)

For a few seconds the text IR port activated

appears in the display. The phone then returns to

standby mode.

Place your phone less than one foot from your com-

puter (or your H/PC) and make sure that the infrared

ports are aligned (within 30°).

The examples in this manual may differ from your PC. If you

require more information during the installation process than

provided by this User’s Guide, we suggest that you consult

your PC supplier or your computer’s manuals.

Step1–Check Infrared Support

Before installing the infrared modem you also need to check

if the Microsoft Infrared support for Windows version 2.0

has been installed.

Note! It is recommended that you use Windows version 2.0 for op-

timal performance.

To do this, and also to check the version of the existing infra-

red support on your computer, do the following:

Under Settings in the Start menu, select

Control Panel.

Select Add/Remove Programs.

Check the version of the Infrared Support for Windows

95 in the list under the Install/Uninstall tab.

•Version 2.0

If you have version 2.0 installed you do not need to in-

stall the infrared support. Go to section ‘Step 4 – Install

Infrared Modem’ to continue the installation of the in-

frared modem.

•Version 1.0

If you have version 1.0, you need to uninstall this ver-

sion before installing infrared support version 2.0. Go

to ‘Uninstall Infrared Support’ to continue the installa-

tion of the infrared modem.

•No Infrared Support Installed

Go to ‘Step 3 – Install Infrared Support’ to continue the

installation of the infrared modem.

Step 2 – Uninstall Infrared Support

Under Settings in the Start menu, select

Control Panel.

Select Add/Remove Programs.

Some features/menus are operator dependent

Select the Microsoft Infrared Support for Windows ver-

sion 1.0.

Press Add/Remove.

Press OK.

Go to ‘Step 3 – Install Infrared Support’ to continue the in-

stallation of the infrared modem.

Step 3 – Install Infrared Support

Insert the CD into your computer’s CD drive or the

diskette containing the Infrared support into the disk-

ette drive.

If you are using a diskette or if your CD does not start

automatically, select ‘Run’ in the ‘Start’ menu. Type

A:\setup if you are using diskettes or D:\setup if you

are using a CD (could be another drive). Press OK.

When the Setup dialogue appears on the screen, press

the Install Infrared Support for Windows 95 version 2.0

button.

Follow the instructions given on the screen

When the Add Infrared Device Wizard appears, select

the Built-in infrared port on laptop or desktop and

press Next.

When the next page of the Wizard appears on the

screen, select the COM port enabled for infrared com-

munication and press Next.

When the third and last page appears on the screen, ac-

cept the default settings by pressing OK.

After the installation you will return to the Setup dialogue

where you can continue the installations with Step 4 – Install

Infrared Modem:

Step 4 - Install Infrared Modem

Insert the CD into your computer’s CD drive or insert

the diskette into the diskette drive.

Place the phone with the infrared modem next to your

PC as in the illustration below. (The infrared port may

be positioned differently on your computer.)

Close the Control Panel if it is open.

Open the Control Panel.

Double press the Infrared Monitor icon.

Select the Options tab and make sure that the check

box ‘Enable infrared communication on:’ is checked. In

most cases the infrared communication is enabled on

COM2 or COM3.

Tip! To check that the infrared communication is enabled, press

the Status tab. The message One infrared device

is in range should be displayed. Your computer will

now discover the new hardware and a dialogue box will ap-

pear.

Press Next.

When the next dialogue box appears select the drive

and folder containing the modem script. Select A: if you

Some features/menus are operator dependent

are using diskettes or D: (could be another drive) if you

are using the CD. Press OK.

Tip! To check that the infrared modem has been installed success-

fully, go to Control Panel and select Modems. Ericsson

CF888 should appear in the list under the General tab.

Installation – Windows CE

Make sure that you have Microsoft H/PC Explorer or

Windows CE Services installed on your laptop. Also

make sure that communication between your H/PC

and your PC is established.

Insert the CD into your PC’s CD drive or insert the

diskette containing the Infrared support into the disk-

ette drive.

Installing from CD:

When the setup dialogue box appears on the screen,

press the ‘Install Infrared Modem for Windows CE’

button.

Installing from diskette:

Select Run in the Start menu. Press ‘Browse’ and

locate the Windows CE folder on your diskette drive. In

the Windows CE folder, double-click ‘Install’.

The infrared modem will be installed automatically on

your H/PC.

Reset your H/PC. (Usually this is done by pressing a re-

set button placed in the backup battery compartment.)

If you installed from the CD, you will return to the set-up

dialogue after the installation, where you can continue by in-

stalling the Mobile Office Suite application, for example.

Connecting Using the IR Link

The IR feature of the CF888 allows you to connect to a com-

puter without using a cable. This option requires that your

computer has an IR port, and that the operating system sup-

ports the IrDA standard for infrared communication (see

above). To enable IR communication:

On your computer, start the infrared application by

double-clicking the icon in the ‘Control Panel’.

Place the phone less than one foot from the computer

and make sure the IR ports are aligned (within 30°).

Your PC will now establish contact with your phone.

This is indicated by the infrared icon in the status bar.

Now you are ready to start infrared communication be-

tween your computer and your phone.

Note! Before disestablishing contact between your PC and your

CF888, make sure that you close any communication applica-

tion on your PC.

Some features/menus are operator dependent

Connecting Using the RS232 Cable

Using the RS232 cable provided is the most power efficient

way to use your CF888 together with a computer. To enable

use of the IrDA protocol, using the RS232 cable:

Connect the cable according to the picture below.

Under the tab ‘Options’ in the Infrared Monitor found

in the Control Panel folder, select the COM port that

you will use with the serial cable.

Making Fax and Data Calls

Fax and Data calling is not available in Analog mode.

Software-Initiated Fax and Data Calls

Fax and data calls are normally initiated from within the com-

puter software. Do the following:

Connect your computer to the phone, using the IR port

or the RS232 cable.

Start the appropriate software application on your com-

puter and follow the procedure that is appropriate for

the software.

Note! Make sure that you have selected the CF888 modem.

When a fax or data call is in progress, the phone display

shows the call type, Fax or Data.

Receiving Fax and Data Calls

The procedure for receiving fax and data calls depends on

your network and subscription. If you have different num-

bers for speech, fax and data calls, this is referred to as multi

numbering. This means that you can have up to three numbers

in your subscription. If you only have one number for all call

types, this is referred to as single numbering.

Receiving Fax and Data Calls –

Multi Numbering

You cannot receive fax or data calls in Analog mode.

If your network and subscription support multi numbering,

the CF888 will display the type of incoming call. There are

four possible types apart from speech calls:

•Fax calls

•Data calls

•Speech then fax calls

•Fax then speech calls

The display shows the type of call on the middle row.

To receive a fax or data call:

Connect your computer to the phone.

Answer the call from within the software application (if

it does not answer automatically).

Some features/menus are operator dependent

Receiving Fax and Data Calls –

Single Numbering

If your network and subscription only support single num-

bering, the phone does not recognize the type of incoming

call. This means that the calling party has to tell you if you are

going to receive a fax or data call.

Do the following to prepare your phone for a certain type of

call:

In the menu system, scroll to Next call type

(the Data menus must be turned on) and press

YES.

Select the type of call you are going to receive.

•If you select Speech, the next call will be handled as

a speech call.

•If you select FAX, the next call will be handled as a fax

call.

•If you select Data, the next call will be handled as a

data call.

Receive the call according to the instructions above.

Note! The next call setting remains until you change it. The current

setting, if not a speech call, is shown on the middle row of the

standby display (see picture).

Some features/menus are operator dependent

The Mobile Office Suite

The Mobile Office Suite is a Phone Book Manager and a Mes-

sage Manager. Once installed on your computer, the application

allows you to organize the names and telephone numbers that

you store in your phone book. It also allows you to write and

read SMS messages on your computer.

The Phone Book Manager

The Phone Book Manager allows you to dial other parties, man-

age telephone numbers, and names as well as check the status of

the phone. It consists of an Address Book, a Dialer, and a

Phone Status Display.

For instructions on how to use the Phone Book Manager, please

consult the on-line help texts associated with the application.

The Message Manager

The Message Manager makes it possible to create, send, receive

and organize SMS messages.

For instructions on how to use the Message Manager, please

consult the on-line help texts associated with the application.

Installing the Mobile Office Suite

Before you start the installation, make sure you have installed

the modem script according to the instructions given the chap-

ter “Communicating Via the Modem”.

Close all applications on your computer.

Connect your mobile phone to the computer using the IR

port or the RS232 cable (do not forget to start the ‘Infr-

ared monitor’ in the ‘Control Panel).

Installation from a Diskette

Under Setting in the Start menu, select Con-

trol Panel.

Select Add/Remove programs, and press the In-

stall button.

Insert the first installation disk.

Follow the instructions given on the screen.

If a modem other than the CF888 modem has been selected, the

Mobile Office Suite may be unable to detect your phone. If this

is the case, you will need to change to the CF888 modem.

To do this:

Press Cancel.

Select the CF888 modem from the drop-down list.

You will need to restart your computer before you can start us-

ing the Mobile Office Suite. To access the Mobile Office Suite,

double-click its icon on the desktop.

Installation from a CD

An installation program will start automatically when you insert

the CD into your drive.

Press Install Mobile Office Suite.

Follow the instructions given on the screen.

Some features/menus are operator dependent

Select the Ericsson CF888 modem from the modem

drop-down list if it is not already selected.

You will need to restart your computer before you can start

using the Mobile Office Suite. To access the Mobile Office

Suite, double-click its icon on the desktop.

Uninstalling the Mobile Office Suite

Under Settings in the Start menu, select

Control Panel.

Press Add/Remove Programs.

Select Ericsson Mobile Office Suite from the list of ap-

plications.

Press Add/Remove.

Follow the instructions given on the screen.

Some features/menus are operator dependent

Networks

When you turn on the phone, it normally selects its home

network. If this is not within range, for example when you are

traveling, you may use another network, provided your home

network has an agreement that allows you to use the network.

This is called roaming.

If you are using your Home network in Analog mode, Ana-

log Home will be displayed. If you are roaming in Analog

mode, the display will show Analog A (or B)

Roaming.

The Networks menu includes a number of functions

which you can use to determine how the phone searches for a

network. You may also select a network yourself from those

within range.

Search Mode

Automatic Search Mode

The automatic search mode means that when you turn on

your phone, it will first search for its home network; if this is

not available the phone will automatically search for another

available network within range.

The automatic search mode is normally the default setting

when you buy your phone. However, should you need to ac-

tivate the automatic search mode proceed as follows:

Scroll to the Networks menu, using the navigation

key and press YES.

Scroll to Searchmode .

•If (Auto) is visible in the bottom line of the display,

your phone is already set to automatic search mode.

•If not, press YES.

Scroll to Auto (automatic search mode) and press YES.

The phone is now set to automatic search mode.

To return to standby mode, press CLR.

Note! The order of preference in which the phone will select a net-

work is determined by a list of preferred networks on your

SIM card, which may be edited by you at any time.

Manual Search Mode

The manual search mode means that when you turn on your

phone, it will first search for the last network used and then

for the home network. If none of these networks are within

range, the question Select network? appears.

To activate the manual search mode, proceed as follows:

From the Networks menu, select Searchmode

and press YES .

Scroll to Manual and press YES.

To return to standby mode, press CLR.

Note! Your SIM may prohibit use of the manual mode. If prohib-

ited, Not Available will be displayed when trying to

activate the Manual mode.

To select a network proceed as described below.

Some features/menus are operator dependent

Selecting a Network

From the Networks menu, choose Select

net. The message Please wait is displayed

briefly.

If there is more than one network within range, you can

use the navigation key to scroll to the other network(s).

When the network you wish to use is displayed, press

YES to select it.

Note! If the home network is within range and you are using it when

you initiate your network selection, the name of the network

is displayed with the message Current.

If you are using another network and your home net-

work is available, the name of the home network is dis-

played with the message Home.

If the home network is not within range, the name of

another network is displayed with the message Cur-

rent,Preferred,Available or Forbid-

den.

•Current means that the network is currently used.

•Preferred means that the name of the network is

included in a list of preferred networks on your SIM

card.

•Forbidden means that the name of the network is

included in a list of forbidden networks on your SIM

card and that you are not allowed to use it. You can,

however, make emergency calls.

•Available means that there is a network within

range, which is not on either the forbidden or pre-

ferred list on your SIM card. You can make emergency

calls.

If you are in Analog mode, Analog + the network

number (up to 5 digits), and the side of the network (A or

B) will be displayed on the middle line, and one of the fol-

lowing will be displayed on the bottom line: Home,

Current, Preferred, or Available.

Note! An analog network is only available when a dual-mode SIM is

used.

If there is no network within range, the message No net-

work is displayed.

Starting an Automatic Network Search

An automatic network search can be started at any time.

lFrom the Networks menu, select New search .

The phone automatically starts searching for a network ac-

cording to your choices under your networks menu and your

subscription.

Forbidden Networks

The names of the forbidden networks are stored on your

SIM card. If such a forbidden network is within range, it will

be omitted when the phone searches for a network (automat-

ic search mode).

If your home network and a forbidden network come to an

agreement that allows you to use the forbidden network, you

can select this network even though the message Forbid-

den is displayed.

Some features/menus are operator dependent

Selecting a System

This menu allows you to select your system preference:

•PCS/Analog *

•PCS only

•Analog only

* PCS/Analog is the recommended setting.

If you select PCS only, the phone will not work in Analog

networks. If you select Analog only, the phone will not work

in PCS networks.

Note! PCS is also called GSM 1900.

From the Networks menu, scroll left and select

System.

Scroll through the list of preferences and press YES to

select.

This feature is SIM dependent.

If you are using Analog mode, you have the following op-

tions:

•AthenB*

•BthenA*

•A only

•B only

•Home Only

* Using A then B, or B then A, increases your roaming op-

tions.

Note! If this feature is not available on your SIM, the system will

default to A then B, or B then A, depending on your home

system side.

National Roaming

In Analog mode, when roaming on a non-home system, the

national roaming indicator will be displayed. The roaming in-

dicator will overwrite your date. To view the date, when in

standby, press any of the volume keys.

List of Preferred Networks

This feature is not available in Analog mode.

You can create a list that defines in which order your phone

will select a network during automatic network selection,

when your home network is not within range.

The number of networks that can be stored in the list de-

pends on your SIM card.

The Edit list function lets you review the networks in

the list. Apart from rearranging the order of the networks,

you can add new networks to the list as well as delete net-

works from it.

Reviewing the List of Networks

From the Networks menu, select Edit list .

•The message Please wait is displayed briefly.

•The name of the first network is displayed.

You can scroll through the other networks in the list by

using the navigation key.

Note! To see a network’s full name, press *.

Adding a Network to the List

From the Networks menu, select Edit list .

Some features/menus are operator dependent

Scroll to the first free position in the list and press YES.

The question Add net?? appears.

If you scroll to a position that is already occupied, you

must press YES and then scroll with the navigation key

until Add net?? appears.

Press YES and scroll with the navigation key until you

find the desired network.

If the desired network does not appear, press YES when the

question Other? appears. Then enter the 3-digit country

number and the 2-digit network number.

Finally, press YES to add the network to the list.

Erasing a Network from the List

From the Networks menu, select Edit list .

Scroll to the network you wish to erase and press YES.

Scroll until Erase appears.

Press YES to delete the network from the list.

Rearranging the List

From the Networks menu, select Edit list .

Scroll to the network you wish to move and press YES.

Move is displayed. Press YES and enter the new posi-

tion within the list.

Some features/menus are operator dependent

Security

The Card Lock

Your SIM card is protected by a card lock. When you pur-

chase your SIM card, you obtain a PIN code (Personal Iden-

tity Number).

Every time you turn the phone on, you have to enter the PIN

and then press YES.

If the PIN is entered incorrectly three times in succession,

the SIM card will be blocked. This is indicated by the message

Card blocked Unblock? Should this happen, see

If Your SIM Card Is Blocked below.

To Change the PIN Code

From the Access menu, select Change PIN

code.

Enter the old (current) PIN code and press YES.

Enter the new PIN code and press YES.

At the prompt Repeat new PIN enter the new

PIN a second time.

The message New PIN confirms that the PIN code has

been changed.

Note! If the message Matching error appears, the new PIN

was entered incorrectly.

If the message Wrong PIN appears, followed by Enter

Old PIN the old PIN was entered incorrectly.

Changing the PIN2 Code

Depending on the network you use, some services require

that you enter a second PIN code, the PIN2 code.

lSelect Change PIN2 code from the Access

menu.

Follow the same procedure as described in “To Change the

PIN code”.

Locking the SIM Card

Select Lock card from the Access menu.

Press YES.

Enter your PIN code and press YES.

The message Locked confirms that the card lock is now

activated.

Note! This function only applies if your SIM card allows you to de-

activate the card lock.

Unlocking the SIM Card

Select Unlock card from the Access menu.

Press YES.

Enter your PIN code and press YES.

The message Unlocked confirms that the card lock is

now deactivated.

Some features/menus are operator dependent

If Your SIM Card is Blocked

To unblock the SIM card if you have entered the wrong PIN

(or PIN2) code three times in succession:

Press YES.

Enter your PUK (or PUK2) code (which you will find

in the information from your network operator).

Enter a new 4-to-8 digit PIN (or PIN2) code.

Press YES.

Reenter the new PIN (or PIN2) code to confirm it.

Press YES.

Warning! If you enter the wrong PUK code ten times in succession,

your card will be permanently blocked. If this happens, you

will have to contact your network operator.

The Phone Lock

The phone lock protects the phone against unauthorized use

in the event of theft. It is not activated when you purchase

the phone. You should, however, activate it as soon as possi-

ble and also change the factory-programmed security code of

0000 to any 3-to-8 digit personalized code.

There are two levels of locking the phone:

•Full Lock

•Autolock

If the Full Lock is activated, the message Phone

locked is displayed briefly, each time the phone is turned

on. The message is followed by the prompt Enter lock

code. The user then has to enter a security code and press

YES to be able to use the phone.

If the Autolock is activated, the message Phone

locked and the prompt Enter lock code will not

appear until a different SIM card is inserted in the phone. Af-

ter the security code has been entered correctly, the phone

can be used with a new SIM card. The user will not be asked

to enter the security code until the original SIM card or a dif-

ferent SIM card is inserted.

Changing the Security Code

lFrom the Access menu, select Phone lock

Change code and follow the same procedure as

when changing the PIN code.

Locking/Unlocking the Phone

From the Access menu, select Phone lock.

The current setting Full lock,Autolock or

Unlocked is shown in brackets.

Select the required setting.

Enter the security code and press YES.Phone Lock

is displayed together with the new setting.

Call Restrict

Note! This feature is supported by your phone, but it is dependent

on your network and/or the network you are roaming in.

The Call Restrict service of the cellular network al-

lows you to bar different types of outgoing and incoming

calls to restrict the use of your phone.

Note! This service may not be available on all networks or may re-

quire a separate subscription.

The following calls can be restricted:

Some features/menus are operator dependent

•All outgoing calls

•All outgoing international calls

•All outgoing international calls except to your home

country

•All incoming calls

•All incoming calls when you are abroad (when roaming)

To ensure that a call bar is not changed by someone else, a

password, which comes with your subscription, is necessary

in order to activate or cancel a call bar.

Restricting Calls

Select Restrict calls from the Access

menu.

The first restricting option is All outgoing

calls. To choose another restricting option use the

navigation key.

Select the required option and press YES.

Select Activate,Get status or Cancel.

Press YES.

Get status is not available in Analog mode.

Enter your password and press YES.

There may be a short delay before the network responds. In

the meantime the message Please wait is displayed.

This is followed by a message which informs you whether the

call bar is activated or not.

Note! If you forward incoming calls (see “How to Forward Incom-

ing Calls”) you cannot activate some restricting options.

Likewise, if you bar calls, you cannot activate some call for-

ward options.

Canceling Call Restriction

Select Restrict calls from the Access

menu.

Select Cancel all and press YES.

The message Please wait appears followed by a mes-

sage that confirms that all call bars are cancelled.

You can not cancel “Restrictions of All Outgoing Calls”

while in Analog mode.

Changing the Restrict Password

The password for the Restrict service comes with your sub-

scription. You can easily change the password as often as you

like.

Select Restrict from the Access menu.

Select the Change password option.

Enter the old (current) password and press YES.

Enter the new password and press YES.

Enter the new password a second time and press YES.

The message Please wait appears followed by a mes-

sage that confirms that the password has been changed.

The Keypad Lock

The Keypad Lock feature helps you to avoid accidental dial-

ing, that can happen if you keep your phone in a pocket. You

can choose between manual and automatic key lock.

An icon in the shape of a key in the display informs you that

the keypad is locked.

Some features/menus are operator dependent

Note! Calls to the emergency number 911(or 112 where applicable)

can be made when the keypad is locked. If the phone’s alarm

sounds, you can turn it off by pressing any key.

The keypad will remain locked until you:

•Answer an incoming call.

•Replace the battery.

•Unlock the keypad.

Locking the Keypad Manually

Scroll to the Keylock menu, using the navigation

key.

Press YES.

Unlocking the Keypad

lPress LEFT followed by YES.

The Automatic Key Lock

Automatic key lock means that if no keys are pressed in 25

seconds, the keypad will be locked.

To set the automatic key lock:

Select Keylock from the Settings menu.

Choose Auto.

Press YES to confirm your selection.

Note! You can have independent settings when you use the phone

as a handheld unit and when you use it with various hands-

free equipment.

Fixed Dialing

Fixed dialing is a method of restricting outgoing calls. It re-

quires a SIM card that allows fixed numbers to be stored. The

fixed numbers are protected by the PIN2 code.

The Fixed Dialing function allows calls to be made only to

fixed numbers stored on the SIM card. If an attempt is made

to call other numbers, the message Number not per-

mitted appears in the display.

•It is possible to store partial numbers, for example an area

code, or an area code followed by the first digits common

to several numbers. Storing 919 472 allows calls to be

made to any numbers in the 919 area code with a 472 pre-

fix. Here you would have to enter 919 472 xxxx.

•It is also possible to store a number with a wildcard “?”.

To enter a wildcard, press and hold down the # key. Any

digit is allowed in the wildcard position (the wildcard can

be substituted with 0-9, *, or #).

•The Fixed Dialing function does not prohibit calls to the

emergency number 911(or 112 where applicable) and the

Service Center of the cellular network. Network services

such as Call Forward and Call Restrict cannot be used.

•The maximum fixed numbers that can be stored depends

on your SIM card.

•Network services such as Call Forward and Restrict Calls

cannot be used. The maximum fixed numbers that can

be stored depends on your SIM card. This feature may

not be available on all networks.

Activating Fixed Dialing

From the Access menu, select Fixed dial.

Enter the PIN2 code and press YES.

Some features/menus are operator dependent

Scroll to On with the navigation key and press YES.

Canceling Fixed Dialing

From the Access menu, select Fixed dial.

Enter the PIN2 code and press YES.

Scroll to Off with the navigation key and press YES.

Storing Fixed Numbers

From the Phone book menu, select Fixed num-

bers.

Scroll to Store with the navigation key and press

YES.

Enter the PIN2 code and press YES.

Enter the name (optional) and the fixed number in the

same way as when storing an ordinary phone number.

Editing a Stored Fixed Number

From the Phone book menu, select Fixed num-

bers.

Scroll to Edit with the navigation key and press YES.

After you have entered the PIN2 code you can change the

position number, the name or the fixed number in the same

way as with an ordinary phone number.

Some features/menus are operator dependent

Forwarding Incoming Calls

Note! This feature is supported by your phone, but it is dependent

on your network and/or the network you are roaming in.

If you want to make certain that your incoming calls are taken

care of when you are unable to answer them, you can use the

Call Forward service to forward them to another phone

number.

The Call Forward service lets you:

•Forward calls if you already are engaged in a call.

•Forward calls that you do not answer in 30 seconds.

•Forward calls if your phone is turned off or if you are un-

reachable.

•Forward all calls

You may want to use all three call forwards and you may for-

ward calls to different phone numbers, depending on the

situation.

You may also forward all calls regardless of whether your

phone is turned on or off, or you are unreachable. If this

function is activated the phone will not ring if a call is re-

ceived.

If you have chosen to forward all calls, an arrow (l) is shown

in the display.

Note! If you activate the All calls forward, all other forwards

will automatically be cancelled. They will, however, be acti-

vated again when you cancel the All calls forward.

Activating a Call Forward

From the Forward menu, scroll to the required for-

ward option with the navigation key. The options are

All calls,On busy,No reply and Un-

reachable, depending on your operator.

Note! Fax and Data support Forward All Calls and Forward Unan-

swered Calls.

Select the required forward option and press YES.

Press YES to select Activate.

Enter the phone number to which you want your calls

to be forwarded, including the area code and then press

YES.

Note! If you have used the forward option on an earlier occasion

and then cancelled it, the phone number to which the calls

were forwarded will be suggested. Press CLR if you want to

erase this number and enter a new number.

There may be a short delay before the network corresponds.

In the meantime, the message Please wait is displayed.

This is followed by the message On busy/All

calls/No reply -Forward ON, depending on

which forward option you have chosen. The selected phone

number is also displayed.

When in Analog mode, you must listen for a tone to confirm

your setting. There will not be a written confirmation as in

GSM mode.

Some features/menus are operator dependent

Checking the Forward Status

To Check the Status of a Certain Call Forward

Select the required Call Forward from the Forward

menu.

Press YES and scroll to the Get status option.

Get status is not available in Analog mode.

Press YES and check the status.

The message Please wait appears followed by either

the phone number and Active on if the call forward is

activated, or Active Off if it is not activated.

To Check the Status of All Call Forwards

lFrom the Forward menu, select Check all.

Check all is not available in Analog mode.

The message Please wait appears followed by infor-

mation about all call forwards, i.e. whether they are activated

or not.

Cancelling Certain Call Forwards

To Cancel a Certain Call Forward

From the Forward menu, select the required call for-

ward .

Press YES and scroll to Cancel.

Press YES to cancel the forward.

The message Please wait appears followed by a mes-

sage which informs you that the call forward has been can-

celled.

Some features/menus are operator dependent

Handling More than One Call

Your Ericsson CF888 allows you to handle more than one

call simultaneously. This means that you may hold a call that

is in progress and make or answer a second call, and then

switch between the two calls.

This feature is not available in Analog mode.

The Call Waiting Service

Note! This feature is supported by your phone, but it is dependent

on your network and/or the network you are roaming in.

When in Analog mode, you may need to listen for tones to

confirm your settings.

To Activate the Call Waiting Service

To be able to receive a second call, you must activate the

Call Waiting service.

From the Access menu, select Call Waiting .

Scroll to Activate, using the navigation key.

Press YES to activate the call waiting service.

There may be a short delay before the network responds. In

the meantime, the message Please wait is displayed.

This is followed by the message Call waiting ON.

To Cancel the Call Waiting Service

From the Access menu, select Call Waiting .

Scroll to Cancel, using the navigation key.

Press YES to cancel Call Waiting.

With the Get status option, you can check whether the

call waiting service is activated or not.

Get status is not available in Analog mode.

Receiving a Second Call

If the Call Waiting function is activated, you will hear

a tone in the ear piece when a second call is received and the

message Call wait will appear in the display.

To End Current Call and Accept Waiting Call

Press NO to end the current call. The question An-

swer? appears.

Press YES to answer the waiting call.

To Put Current Call on Hold and Accept Wait-

ing Call

lPress YES to put the current call on hold and to answer

the waiting call. The message 1 on hold appears.

To Reject Waiting Call

lPress ‘0’ followed by YES to reject the waiting call and

continue the current call.

The waiting call is cleared. If the caller’s network supports it,

the caller will hear a busy tone.

Some features/menus are operator dependent

Note! If Forward On busy is activated, the waiting call is for-

warded to the number you have specified.

Switching Between Two Calls

lPress YES to switch between the active call and the call

on hold.

Ending the Current Call

Press NO to end the current call. The message Re-

trieve held call? appears and a beep sounds.

Press NO to end the held call, or press YES to return to

the held call.

Note! If you do not press YES or NO within three seconds, the mes-

sage Retrieve held call? disappears from the dis-

play. The held call is ended automatically.

Receiving a Third Call

Provided your Call Waiting function is activated, you

may receive a third call when you are engaged in one call and

have a second call on hold. You will hear a tone in the ear

piece and the message Call Wait appears in the display.

Accepting the Call

Only one call can be on hold at a time. If you wish to accept

the third call you must end one of the existing calls or both.

If you end one of the existing calls:

lPress YES to accept the waiting call.

If you end both calls:

lThe phone rings and Answer? is displayed. Press YES

to answer the waiting call.

Rejecting the Call

lPress ‘0’ followed by YES.

The third call is cleared. Provided the caller’s network sup-

ports this function, the caller will hear a busy tone.

Note! If Forward On busy is activated, the waiting call is for-

warded to the number you have specified.

Making a Second Call

Clear the display by pressing CLR while the first call is in

progress.

Press YES to put the current call on hold. The message

1 on hold is displayed.

Enter the number you wish to call, or recall it from the

phone book, and press YES.

Another way of making a second call while one call is in prog-

ress is:

Enter the number you wish to call while the first call is

in progress.

Press YES to make the call. The message 1 on hold

is displayed.

Connecting Two Calls

If you have one active call and one on hold, it is possible to

connect the two calls.

Some features/menus are operator dependent

lPress 4 followed by YES.

The two calls are now connected to each other, and you are

disconnected from both calls.

This service may not be available in all networks. Contact

your operator to find out whether your networks supports it.

Some features/menus are operator dependent

Conference Calls

This feature is not available in Analog mode.

This feature is supported by your phone, but it is dependent on

your network and/or the network you are roaming in.

The Conference Call service allows you to have a joint conversa-

tion with up to five other people. You may put an individual or a

group of conference members on hold while you add other peo-

ple to the conference call. You may also put conference members

on hold while you talk to someone privately.

The Conference Call service may not be available in all networks.

Contact your operator to find out whether your network supports

it.

Initiating a Conference Call

To initiate a conference call:

Call the first person you wish to include in the conference

call.

Put this person on hold by pressing YES.

Call the second person you wish to include in the conference

call.

Press 3, followed by YES to include the two persons in the

conference.

You can put the conference group on hold and then add a third

member by repeating steps 2 to 4. It is possible to add up to five

members using the same method.

In Analog mode, you can only conference a maximum two addi-

tional people.

Having a Private Conversation

If you wish to have a private conversation with one of the mem-

bers, you can put the other members on hold. To do this:

Press 2.

Press the number of the member you want to have a private

conversation with. If you for example wish to talk to mem-

ber number three, press 3.

Press YES.

To join the member to the conference call again:

lPress the number of the member and then YES.

Releasing One of the Members

To release one of the members in a conference call:

Press 1.

Press the number of the member you want to release. If you

for example wish to release member number three, press 3.

Press YES to release the member.

Some features/menus are operator dependent

Conference Calls

This feature is not available in Analog mode.

This feature is supported by your phone, but it is dependent on

your network and/or the network you are roaming in.

The Conference Call service allows you to have a joint conversa-

tion with up to five other people. You may put an individual or a

group of conference members on hold while you add other peo-

ple to the conference call. You may also put conference members

on hold while you talk to someone privately.

The Conference Call service may not be available in all networks.

Contact your operator to find out whether your network supports

it.

Initiating a Conference Call

To initiate a conference call:

Call the first person you wish to include in the conference

call.

Put this person on hold by pressing YES.

Call the second person you wish to include in the conference

call.

Press 3, followed by YES to include the two persons in the

conference.

You can put the conference group on hold and then add a third

member by repeating steps 2 to 4. It is possible to add up to five

members using the same method.

In Analog mode, you can only conference a maximum two addi-

tional people.

Having a Private Conversation

If you wish to have a private conversation with one of the mem-

bers, you can put the other members on hold. To do this:

Press 2.

Press the number of the member you want to have a private

conversation with. If you for example wish to talk to mem-

ber number three, press 3.

Press YES.

To join the member to the conference call again:

lPress the number of the member and then YES.

Releasing One of the Members

To release one of the members in a conference call:

Press 1.

Press the number of the member you want to release. If you

for example wish to release member number three, press 3.

Press YES to release the member.

Making a Call while a Conference Call is in

Progress

It is possible to make a call while you are participating in a

conference call. To do this:

Enter the number you wish to dial and press YES.

The conference call is put on hold.

To switch between the new call and the conference call,

press YES.

To end the new call and return to the conference call,

press 1 and YES.

See chapter “Handling More Than One Call” for more de-

tails.

Ending a Conference Call

•Press NO to end the conference call.

Some features/menus are operator dependent

Handsfree Calling

Using the Ericsson portable or vehicle handsfree solutions,

you can be engaged in a call without having to use your hands

to hold your phone.

Selecting Answering Mode

The submenu Answering mode includes two func-

tions: Any key and Auto, which are useful when the

phone is used with handsfree equipment.

•The Any key function:

If the phone is used with handsfree equipment and this

function is turned on, you can answer an incoming call by

pressing any key except the NO key.

•The Auto function:

If you choose automatic answering mode, an incoming

call will be answered automatically after one ring signal if

the phone is used with handsfree equipment.

To select Answering Mode:

Select Answering mode from the Settings

menu.

Choose Any key or Auto using the navigation key.

Press YES to change the setting of the function you have

chosen.

Press YES again to confirm your setting.

Other Handsfree Related Settings

Apart from the above mentioned settings, you can change

the following settings related to handsfree calling:

•Ring level

•Ear volume

•Ring type

•Key lock

•Light

Each of these settings can be specified separately for the

situations when you have your CF888 connected to hands-

free equipment and when you use the phone as a handheld

unit. This means that if you make one of these settings when

the phone is connected to handsfree equipment, the settings

when it is handheld will not be affected.

To change a setting:

Connect the phone to the handsfree equipment.

Change the setting according to the instructions in the

chapters “Other Useful Features” or “Security” (the

Keylock setting).

Note! The active flip can be temporarily disabled by pressing and

holding the side volume key while opening/closing the flip.

Some features/menus are operator dependent

Area Information

The ordinary Short Message Service (SMS) can be defined as

a personal service with messages specifically and exclusively

directed to you. The Area Information is another type of text

message which is sent to all subscribers in a certain cell of a

network at the same time.

For example, the information may be a local road report or a

local taxi phone number.

Note! This feature may not be available in all networks.

Turning On the Area Information

From the Mail menu, select Area info.

Press YES.

Scroll to On and press YES.

Area information messages will now be presented in your

display.

Turning the Area Information Off

From the Mail menu, select Area info.

Press YES.

Scroll to Off and press YES.

Area Information Message Types

Each type of Area Information message is identified by a

three digit code. At present the following message types exist:

Code AI Message Type

000 Index

010 Flashes

020 Hospitals

022 Doctors

024 Pharmacy

030 Long-distance road reports

032 Local road reports

034 Taxis

040 Weather

050 District (base station identity)

052 Network information

054 Operator services

056 Directory enquiries (national)

057 Directory enquiries (international)

058 Customer care (national)

059 Customer care (international)

Refer to the information supplied by your network operator,

for information about the Area Information services you can

use.

Some features/menus are operator dependent

The Area Information Message List

You can decide which types of area information messages

you wish to receive. The phone’s Area Info list can hold

up to 20 codes.

Inserting an Area Information Code

You can access the Area Info list from the Mail menu.

From the Mail menu, select Area info.

Press YES.

Scroll to Edit list and press YES.

The digits to the left indicate the position in the list.

You can scroll forward and backward through the list

with the navigation key.

To insert a code, scroll to the first empty location by us-

ing the navigation key. Press YES.

Enter the new code. (You only need to enter 40 for

040, since the phone will add the leading zero automati-

cally.)

Erasing or Replacing a Code

From the Mail menu, select Area info.

Press YES.

Scroll to Edit list and press YES.

Scroll to the code you wish to erase and press YES.

The message Erase? appears. Press YES.

To replace the code press the navigation key RIGHT

once, followed by YES.

Enter the new code and press YES.

Receiving Area Information

When you receive Area information, the message will be

stored in the phone memory. Please note that the phone will

only store one message per code. This means that the previ-

ously stored message in a specific code will be erased.

Provided Area info is turned on, you can read the mes-

sages with the Area messages function in the mail

menu.

From the Mail menu, select Area messages.

Scroll from one message to another by using the naviga-

tion key.

Press YES to select a message.

Some features/menus are operator dependent

The Two Line Service

Two voice lines with different phone numbers, Line 1 and

Line 2, may be assigned to your phone. The ability to receive

and send text messages (SMS), is only available on Line 1.

The Two Line service (also called Alternate Line Service,

ALS) may not be available on all networks and may require a

separate subscription.

L1/L2 indicator is not available in Analog mode, but uncon-

ditional forwards on respective lines are still indicated.

Selecting a Line

The line currently selected is indicated in the display with the

letter ‘L’ and a digit. If, for example, you have line two se-

lected, you will see ‘L2’ in the display.

To change to the line that is not currently selected:

Scroll to the Change to menu.

To change to the line displayed on the bottom row,

press YES.

From now on, all outgoing calls are made on the selected line.

You can however, be called on both lines.

Note! Instead of accessing the menu system, you can press and hold

down the 2 key to change line, provided the phone is in

standby mode. Clear the display first, using the CLR key.

Receiving a Call on Line 1 or Line 2

When you are called, the question Answer? Is replaced by

Line1? or Line2? depending on what line you have se-

lected.

Note! If you are engaged in a call on one line, you must end that call

first before answering the call on the other line.

Different Settings for Each Line

You can have different settings for each line, for example the

tone of the ring signal, call forwards, call bars and waiting

function. The call meters in the Info menu show the call

times (call costs) for the line currently selected.

Changing the Name of the Two Lines

Your CF888 gives you the ability to personalize the names of

the two lines. You might, for example, want to call Line 1 ‘Pr-

ivate’ and Line 2 ‘Work’. To change the name of Line1:

From the Settings menu, select Line 1 Tag and

press YES.

Enter the name (maximum 12 characters), using the nu-

meric keys and press YES.

To change the name of Line 2, select Line 2 Tag in-

stead.

Some features/menus are operator dependent

Other Useful Features

The Ericsson CF888 is much more than just another mobile

phone. It contains quite a few features that can be helpful to

you in your everyday life.

You can, for example, personalize your phone by composing

your own ring signal, changing the key sound or changing the

message signal.

Furthermore you can use your phone as an alarm clock or as a

calculator.

This chapter contains all the information you need to get that

little extra out of your phone.

Personalizing Your Phone

The Settings menu includes a number of functions

which let you adapt your phone to your own personal needs

in different situations. Note that some of the settings depend

on if you have external equipment (e.g. handsfree equipment)

connected to your phone or not.

Changing the Ear Piece Volume

Select Ear volume from the Settings menu.

Use the navigation key or the volume keys at the side of

the phone to adjust the volume.

Press YES when you have reached the desired volume.

Tip! During a call you can use the volume keys at the side of the

phone to adjust the volume.

Note! You can have independent volume settings when you use the

phone as a handheld unit and when you use it with various

handsfree equipment. This means that if you set the ear piece

volume when the phone is connected to the handsfree equip-

ment, the volume setting when the phone is handheld will

not be affected and vice versa.

Resetting the Phone

It is possible to reset all menu settings to their default values.

To do this:

Select Master reset from the Settings

menu or enter L73738R.

Enter the phone lock code (the factory programmed

code is 0000).

Press YES.

Displaying Your Phone Number

If your phone number cannot be retrieved from your SIM

card, you can enter it yourself.

Select Phone no from the Settings menu.

Enter the number. Your SIM may restrict you from

changing/accessing this number. If so, contact your op-

erator.

Press YES.

Note! If your SIM card allows it, you can also enter your fax and/or

data number.

Some features/menus are operator dependent

Changing the Greeting Text

When you turn on your phone, a greeting text appears in the

display. Instead of the default greeting, you can have your

phone display a welcome greeting that you have written your-

self. However, some operators may not allow the greeting

text to be changed.

To enter your own greeting:

Select Greeting from the Settings menu.

Scroll to New text using the navigation key.

Press YES.

Write your new greeting using the numeric keys.

Press YES to confirm your new greeting.

Note! The greeting function also lets you turn the greeting text off.

Call Information

With the Call info function in the Settings menu

you can choose to have the call time in the Info menu dis-

played for all calls, both incoming and outgoing, or for out-

going calls only.

You can also have the call cost displayed, provided you sub-

scribe to this feature.

To select what call information you want to be displayed in

the Info menu:

Select Call info from the Settings menu.

Choose between Outgoing,All and Cost.

Confirm your selection by pressing YES.

If you have selected the Cost option, follow the instruc-

tions in the “Call Time/Call Cost” section in this chap-

ter.

Setting the Minute Minder

This function gives an indication of the time spent during

conversation by entering a short beep every minute.

To set the Minute Minder:

Select Min minder from the Settings menu.

Choose between On and Off using the navigation key.

Press YES to confirm your selection.

Changing the Display Light

The display light can be set to automatic, turned off or turned

on.

In automatic mode, the display light is turned off

automatically 20 seconds after the last key has been pressed.

It will be turned on again when a key is pressed or when a call

or message is received.

To set the display light:

Select Light from the Settings menu.

Choose the desired display light setting using the navi-

gation key.

Confirm your selection by pressing YES.

Note! You can have one setting when the phone is used as a hand-

held unit and another setting when the phone is used with a

handsfree kit, powered from an external source. If you, for

example, place the phone in a vehicle handsfree cradle, you

can set the display light to be turned on always and still have it

in automatic mode otherwise.

To Select Key Sound

You can choose whether clicks, tones or nothing (silent) will

be heard when you press the keys.

Some features/menus are operator dependent

Select Key sound from the Settings menu.

Choose key sound using the navigation key.

Confirm your selection by pressing YES.

Note! The only sound available for the side keys is the click sound.

Changing the Message Signal

You can choose whether clicks, tones or nothing (silent) will

be heard when you receive a text message (SMS).

Select Mail alert from the Settings menu.

Choose the sound you want to hear when you receive a

message, using the navigation key.

Press YES to confirm your selection.

Activating Analog VOX

You have the option, in Analog mode, to turn on your voice

operated transmission (VOX). Using VOX causes your

phone to use less battery power during a call. If VOX is ON,

your phone’s transmitter operates only when you are speak-

ing. If VOX is OFF, the transmitter operates continuously

during a call. VOX should only be turned ON if your net-

work operator supports it.

Changing the Ring Type

You can choose ring type from a list of different sounds and

melodies. You can also compose your own melody by enter-

ing tones with the keypad.

To choose one of the pre-programmed ring types:

Select Ring type from the Settings menu.

Scroll with the navigation key until you find the ring sig-

nal that you want. If you do not wish to disturb other

people, use the volume keys on the side of the phone to

scroll silently.

Press YES when you have reached the desired ring type.

Note! If the Data menus are turned on (see chapter “Communicat-

ing via the Modem”) you can set the ring signal type for

speech (the display shows Phone on the middle row), fax

and data calls respectively. If you have the Two Line service,

you can also set different ring types for the two lines.

To compose your own ring signal:

From the Settings menu, select Edit Mel

ody.

Clear the display by pressing CLR.

Use the keypad to enter

notes. The keypad now

works as a keyboard (see

picture). Press and hold a

key to enter a long note.



Press YES to confirm the melody you have entered.

The Ring Signal Level

The Ring level setting allows you to specify the level for the

following situations:

•When the phone is handheld.

Some features/menus are operator dependent

•When the phone is connected to handsfree equipment.

•When the phone is connected to a vibrator.

To set the ring signal level:

If required, connect the phone to the external equip-

ment.

Scroll to the Ring level menu and press YES.

Use the navigation key to set the ring signal level.

•Pressing RIGHT increases the volume.

•Pressing LEFT decreases the volume.

The phone will ring once with the actual setting as you

press the navigation key, except for the Silent and

Step settings.

Press YES to save the setting.

Press CLR to return to standby mode.

Tip! Use the side keys to change the ring level silently.

The Answering Service

The Answering service of your network allows callers to

leave a voice message when you cannot or do not wish to an-

swer your calls.

Note! This service may not be available in all networks and may re-

quire a separate subscription.

The Voice mail function makes it easy to call your an-

swering service to listen to recorded voice messages. You

must activate the Voice mail function before using it.

This number may need to be programmed onto your SIM by

your operator.

Some networks will deliver a voice mail indicator (T) noti-

fying that you have a voice mail. In most cases, the icon will

not appear when you are roaming.

Activating the Voice Mail

Note! You can press and hold down 1 to quickly activate voice mail.

To activate the Voice Mail function:

From the Mail menu, select Set VoiceM .

If the number to your answering service can be retrieved

from your SIM card, the number is displayed in brackets.

(This also applies if you have entered the number yourself at

an earlier occasion and then turned the Voice mail func-

tion off.)

To activate the Voice mail function, press YES .

If no number is displayed, press YES.

Enter the number to your answering service.

Press YES to activate the function.

Calling the Answering Service

You can call the answering service at any time to listen to

your recorded messages. To do this:

lFrom the Mail menu, select Voice mail and press

YES.

The phone will automatically call your voice mail. Follow the

instructions given to you by your operator’s answering serv-

ice.

Further information about the use of the answering service is

found in the operating instructions supplied by your network

operator.

Some features/menus are operator dependent

Changing the Number to the Answering Serv-

ice

To change the number to the answering service:

From the Mail menu, select Set VoiceM.

Scroll to New number and press YES.

Enter the new number and press YES.

Turning Off the Voice Mail

From the Mail menu, select Set VoiceM .

Select Off and press YES.

Time, Date and Alarm

The Clock menu lets you set the time and date. It also lets

you activate the alarm function.

The time is shown continuously at the bottom of the display

when the phone is in standby mode.

The Clock

To Change the Time Format:

Select Clock mode from the Clock menu.

Select the required clock mode.

Press YES.

To Set the Clock:

Select Set clock from the Clock menu.

Enter the time in hours and minutes.

Press YES.

If you have selected the 12-hour format in the Clock

mode function you can alternate between a.m. and p.m. by

pressing #.

The Date

It is possible to have the current date displayed in the middle

of the display when the phone is in standby mode.

To Set the Date Format:

Select Date mode from the Clock menu.

Scroll to the required date format by using the naviga-

tion key.

Press YES to select a date format.

To Set the Date:

Select Set date from the Clock menu.

Enter the year (two digits).

Press YES.

Enter the month and day in the same way.

Press YES to confirm your setting.

The Alarm

The phone has an alarm function.When it is activated, an

icon in the shape of a bell (B) is shown in front of the current

time in the display.

The alarm will sound at the set time even if the phone is

turned off. The illumination of the keys and the display will

flash. The volume of the alarm signal depends on the setting

of the ring signal.

The alarm will sound for 60 seconds and will be repeated

every nine minutes if you do not turn it off.

Some features/menus are operator dependent

To Set the Alarm:

Select Set alarm from the Clock menu.

Scroll to the New time option by using the naviga-

tion key.

Press YES.

Enter the time in hours and minutes.

Press YES.

Note! If you have chosen the 12-hour format in the Clock

mode function you can alternate between a.m. and p.m. by

pressing * and #.

To Turn the Alarm Off:

Press any key to turn the alarm off when it sounds.

Press YES if you do not want the alarm to be repeated.

To Turn the Alarm Function Off:

Select Set alarm from the Clock menu.

Scroll to the Off option using the navigation key.

Press YES.

The Call Time/Call Cost

During an outgoing call, the call time is shown in the display.

With the Call info function in the Settings menu

you can have the time displayed for all calls, both incoming

and outgoing, provided you have chosen the Time:All

option.

You can also have the call cost or the number of call units dis-

played if you select the Cost option, provided your net-

work and your SIM card support this feature.

Checking Time or Cost of the Last Call

You can check the time/cost of the last incoming (or outgo-

ing) call with the Last call option in the Info menu.

Select the Info menu.

Press YES.

Depending on the setting in the Call info function in

the Settings menu, you can check:

•The elapsed time of the last outgoing call.

•The elapsed time of the last incoming call provided you

have chosen the Time:All option in the Call

info function in the Settings menu.

Checking Total Call Time or Call Cost

Select Tot calls from the Info menu.

Press YES.

Depending on the settings in the Call info function in

the Settings menu, you can check:

•The elapsed time of all outgoing calls.

•The elapsed time of all incoming and outgoing calls.

•The cost (or the number of call units) of all incoming and

outgoing calls.

Call Cost information is not available in Analog mode.

Resetting the Total Call Time/Cost Meter

From the Info menu, select Tot calls.

Press YES. The message Reset? appears.

Press YES to reset the meter.

Note! If you have chosen the call cost option you must enter the

PIN2 code to reset the meter.

Some features/menus are operator dependent

Determining the Call Cost

This function only appears if you have selected the Cost

option in the Call info function in the Settings

menu.

Call Cost information is not available in Analog mode.

Note! This function may not be available on all SIM cards.

lFrom the Info menu, select Price .

The Home option means that the number of call units will be

displayed during a call, and in the Last call and Tot

calls functions.

The Price function lets you enter and vary the price per

call unit. The price entered will be stored on your SIM card.

Entering the Price per Call Unit

From the Settings menu, select Call info.

Scroll to Cost and press YES.

Press CLR to exit to standby mode.

From the Info menu, select Price Units and

press YES.New Price appears.

Press YES.

Enter the code for the desired currency, for example

USD for US Dollar, and press YES.

Enter the price per call unit, for example 0,5, and press

YES.

Enter your PIN 2 code. (The PIN 2 code prompt may

not appear in some networks.)

Reverting to Displaying Call Units

From the Info menu, select Price .

Press YES to select the Home option.

Press YES to revert to displaying call units.

Calling or Credit Card Calls

When making international or long distance calls, you may

not want your operator to charge you for these calls on your

normal account. If you have a credit card or a calling card,

you may want to redirect the charges to one of those ac-

counts instead. Your CF888 is all set for making this proce-

dure as easy as possible for you.

You can store two separate card numbers in your phone.

These numbers are protected by a 4- to 8-digit security code

that you choose yourself. The default code is 0000.

In order to be able to make Calling card calls, you have to ac-

tivate this function.

Activating the Calling Card Feature

From the Access menu, select Call cards security

and press YES.

Enter your security code and press YES.The default

code is 0000.

Scroll to Call cards, using the navigation key, and

press YES.

Scroll to ON, using the navigation key, and press YES.

The Call card function is now activated and the submenu Call

card numbers will be visible in the Phone Book menu.

Some features/menus are operator dependent

To Change Security Codes

From the ACCESS menu, select Call cards

security and press YES.

Enter your security code and press YES.The default

code is 0000.

Scroll to Change code and press YES.

Enter your new code and press YES. The code can con-

sist of four to eight digits.

Confirm your new code, when Repeat new

code appears in the display, and press YES.

Your security code is now changed.

Storing Credit or Calling Card Numbers

Your Ericsson CF888 allows you to store two calling card

numbers in the phone book menu.

This submenu is only visible if the Call card function is acti-

vated in the ACCESS menu.

To store a calling card number:

From the PHONE BOOK menu, select Call

card numbers and press YES.

Enter your security code and press YES.The default

code is 0000. To change security codes, see above.

Select card position (Card 1 or Card 2), using the navi-

gation key, and press YES.

Enter the Access number to the calling card server. The

numbers are entered in the same way as in the ordinary

Phone book.

Press the navigation key.

Enter the Verification code to your calling card server.

To store the calling card number, press YES.

To change the dialing order, press the navigation key.

Called no will flash in the display. Use the * or #

key to change the order.

Note! Since the dialing order may vary between calling card servers,

that is if you have to dial your verification code before or af-

ter the number you wish to dial, you can switch the order be-

tween them. This is performed with the * or # key, when the

Called no. row flashes.

Selecting the Card You Want To Use

If you have stored two card numbers, you must select which

card you wish to use before making a Calling/Credit card call.

From the PHONE BOOK menu, select Call

card numbers.

Enter your security code and press yes. The default

code is 0000.

Scroll to the card you wish to use, using the navigation

key and press YES.

Your settings for the card appear.

To select the card, press YES.

Note! If you only use one card number, this selection will not have

to be repeated every time you wish to make a Calling/Credit

card call.

Making a Credit or Calling Card Call

Enter the number you wish to dial, or retrieve it from

the Phone book.

To set up the call as a Credit/Calling Card Call, press

and hold YES.

Some features/menus are operator dependent

The access number to the calling card server is called and dur-

ing the connecting phase, you are prompted to send the

called number and the verification code, in the order chosen

by you (see above).

To send the called number and the verification code during

the connecting phase, press YES at the Send prompts or wait

a few seconds and your Ericsson CF888 will send them auto-

matically for your convenience.

The Calculator

The phone’s built-in calculator supports the four rules of

arithmetic as well as percentages.

An example of how to use the calculator:

In this example we are going to divide 134 by 32.

Scroll to the Calculator menu and press YES.

Enter 134.

Scroll with the navigation key to the division sign (/),

and press YES.

Enter 32.

Scroll with the navigation key to the equal sign (=) and

press YES to get the result.

You can also simply press # to get the result.

To clear the display, press CLR.

To Enter a Decimal Point

lPress *.

To multiply

lPress *twice.

Some features/menus are operator dependent

Guidelines for Safe and Efficient Use

General

Since its introduction in the mid 1980s the mobile phone is

one of the most exciting and innovative products ever devel-

oped. Your phone can help you to stay in touch with your of-

fice, your home, emergency services and others.

Your mobile phone is a radio transmitter and receiver. When

the phone is turned on it receives and transmits radio fre-

quency (RF) energy. Depending on the type of mobile phone

you have purchased, it operates in different frequency ranges

and employs commonly used modulation techniques. The

system that handles your call when you are using your phone,

controls the power level at which your phone transmits.

Exposure to Radio Frequency Energy

Your wireless handheld portable telephone is a low power ra-

dio transmitter and receiver. When it is ON, it receives and

also sends our radio frequency (RF) signals.

In August, 1996, the Federal Communications Commissions

(FCC) adopted RF exposure guidelines with safety levels for

handheld wireless phones. Those guidelines are consistent

with the safety standards previously set by both US and inter-

national standards bodies:

•ANSI C95.1 (1992)*

•NCRP Report 86 (1986)*

•ICNIRP (1996)*

Those standards were based on comprehensive and periodic

evaluations of the relevant scientific literature. For example,

over 120 scientists, engineers, and physicians from universi-

ties, government health agencies, and industry reviewed the

available body of research to develop the ANSI Standards

(C95.1).

The design of your phone complies with the FCC guidelines

(and those standards).

* American National Standards Institute: National Council on Ra-

diation Protection and Measurements; International Commission on

Non-Ionizing Radiation Protection.

Efficient Phone Operation

How to use your phone for optimum performance with

minimum power consumption:

•Hold the phone as you would any other telephone. While

speaking directly into the mouthpiece, angle the antenna

in a direction up and over your shoulder.

•Donot hold the antenna when the phone is in use. Hold-

ing the antenna affects call quality, may cause the phone

to operate at a higher power level than needed and

shorten talk and standby times.

Some features/menus are operator dependent

Tips for Efficient Operation

Driving

Electronic Devices

Other Medical Devices

If you use any other personal medical device, consult the

manufacturer of your device to determine if they are ade-

quately shielded from external RF energy. Your physician

may be able to assist you in obtaining this information.

Turn your phone OFF in health care facilities when any regu-

lations posted in these areas instruct you to do so. Hospitals

or health care facilities may be using equipment that could be

sensitive to external therefore energy.

Vehicles

RF signals may affect improperly installed or inadequately

shielded electronic systems in motor vehicles. Check with the

manufacturer or its representative regarding your vehicle.

You should also consult the manufacturer of any equipment

that has been added to your vehicle.

Posted Facilities

Turn your phone OFF in any facility where posted notices so

require.

Aircraft

FCC regulations prohibit using your phone while in the air.

Switch OFF your phone before boarding an aircraft.

Children

Do not allow children to play with your phone since they

could hurt themselves or others or accidentally damage the

phone.

Blasting Areas

To avoid interfering with blasting operation, turn your phone

OFF when in a “blasting area” or in areas posted: “Turn off

two-way radio.” Obey all signs and instructions.

Potentially explosive atmospheres

Turn your phone OFF when in any area with a potentially ex-

plosive atmosphere and obey all signs and instructions.

Sparks in such areas could cause an explosion or fire resulting

in bodily injury or even death.

Areas with a potentially explosive atmospheres are often, but

not always, clearly marked. They include fueling areas such

as gasoline stations; below deck on boats; fuel or chemical

transfer or storage facilities; vehicles using liquefied petro-

leum gas (such as propane or butane); areas where the air

contains chemicals or particles, such as grain, dust, or metal

powders; and any other area where you would normally be

advised to turn off your vehicle engine.

For Vehicles Equipped with an Air Bag

An air bag inflates with great force. DO NOT place objects,

including both installed or portable wireless equipment, in

the area over the airbag or in the air bag deployment area. If

Some features/menus are operator dependent

in-vehicle wireless equipment is improperly installed and the

air bag inflates, serious injury could result.

Product Care

•Do not expose your mobile phone to moisture or ex-

treme temperatures.

•Do not use any other accessories but Ericsson originals.

Failure to do so may result in loss of performance, fire,

electric shock or injury, and will void the warranty.

•Do not attempt to disassemble the product. Doing so

will void warranty. This product does not contain con-

sumer serviceable components. Service should only be

performed by Authorized Service Centers.

Some features/menus are operator dependent

Index

Alarm.....60

Answering Service.....59

Area Information.....53

Battery

charging.....5

inserting/removing.....5

Calculator.....64

Call Cost/Call Time.....61

Call Time/Call Cost.....61

Call Waiting.....47

Calling Card Calls.....62

Calls

making.....9

making second.....48

receiving.....10

receiving second or third.....47

Charger

connecting/disconnecting.....6

Clock

setting.....8

Credit Card Calls.....62

Data calls.....32

Data Menus.....28

Date.....60

Display Indicators.....

Display Light.....57

Domestic Calls.....9

Ear Piece Volume.....56

Earpiece Volume.....13

Embedded Numbers.....25

Emergency Calls.....9

Fax calls.....32

Fixed Dialing.....43

Forwarding Calls.....45

cancelling forwards.....46

Greeting Text.....57

Guidelines.....65

Handsfree Calling.....52

Hiding Your Number.....12

Icons.....

International Calls.....9

Key Sound.....57

Language

display.....8

Some features/menus are operator dependent

Menu System.....15

Message Signal.....58

Muting.....13

Network

automatic search.....37

forbidden.....37

searchmode.....37

Networks.....36

Numbers

embedded in SMS.....25

Phone

keys.....

preparing for use.....4

Phone Book.....16

creating.....17

editing.....20

rearranging numbers.....21

recalling entries.....18

Receiving Fax and Data Calls

Multi Numbering.....32

Single Numbering.....33

Redialing.....10

Ring Signal Level.....58

setting.....8

Ring Type.....58

Security

call restrict.....41

cardlock.....40

keypad lock.....42

phone lock.....41

Showing Your Number.....12

SIM Card

inserting.....4

SMS

erasing.....26

reading messages.....25

replying to.....25

sending/receiving.....22

storing messages.....26

System

selecting.....38

Text Message

erasing.....26

replying to.....25

Text messages

storing.....26

Text Messages

composing.....23

embedded numbers.....25

reading.....25

sending/receiving.....22

Time.....60

Tone Signals.....13

Two Line Service.....55

selecting a line.....55

Unanswered Calls.....11

Useful Features.....56

Some features/menus are operator dependent

HARRIS TR-377-A2 User Manual 888MAS 1 vp CorelVentura 7 0

HARRIS CORPORATION 888MAS 1 vp CorelVentura 7 0

Contents

Exhibit 8 User Guide

Navigation menu

Namespaces

Views

Navigation
