Correspondence 9846

Exhibit 8: OEM Interface Manual

DM-10

OEM INTERFACE MANUAL

Exhibit 8: OEM Interface Manual

CONTENTS – OEM INTERFACE MANUAL

1. DM10 TRANSCEIVER MODULE OUTLINE DRAWING.......................................................... 5

1.1. MECHANICAL.............................................................................................................................8

1.2. ELECTRICAL ............................................................................................................................11

1.2.1. ELECTRICAL PERFORMANCE .............................................................................................13

1.2.2. MOBILE STATION POWER CLASS.......................................................................................13

1.3. POWER CONSUMPTION............................................................................................................15

1.3.1. TRANSMIT/TALK MODE ....................................................................................................15

1.3.2. STANDBY MODE ...............................................................................................................16

1.3.3. SLEEP MODE (MINIMUM DC POWER CONSUMPTION)........................................................16

2. ABSOLUTE MAXIMUM RATINGS ........................................................................................... 17

3. SAFETY ........................................................................................................................................ 18

3.1. EXPOSURE TO RADIO FREQUENCY ENERGY ...........................................................................18

3.2. MODULE OPERATION ..............................................................................................................19

3.3. POSTED FACILITIES.................................................................................................................19

3.4. ELECTRONIC DEVICES.............................................................................................................19

3.5. BLASTING AREAS.....................................................................................................................20

3.6. POTENTIALLY EXPLOSIVE ATMOSPHERES .............................................................................20

3.7. VEHICLES.................................................................................................................................21

3.8. FOR VEHICLES EQUIPPED WITH AN AIRBAG............................................................................21

3.9. RESPONSIBLE USE ...................................................................................................................21

4. TECHNICAL SPECIFICATIONS ............................................................................................... 27

4.1. GENERAL .................................................................................................................................27

4.2. RECEIVER SECTION.................................................................................................................28

4.3. TRANSMITTER SECTION ..........................................................................................................29

4.4. CONNECTORS...........................................................................................................................30

4.4.1. 30-PIN INTERFACE CONNECTIONS .....................................................................................30

4.4.2. RF INTERFACE CONNECTOR..............................................................................................32

4.4.3. DETAILED SIGNAL DESCRIPTIONS .....................................................................................33

4.4.4. SYSTEM CONNECTOR CMOS INTERFACE LEVELS .............................................................40

4.4.5. ACCESSORY CONNECTOR..................................................................................................41

4.4.6. SYSTEM CONNECTOR .......................................................................................................42

Exhibit 8: OEM Interface Manual

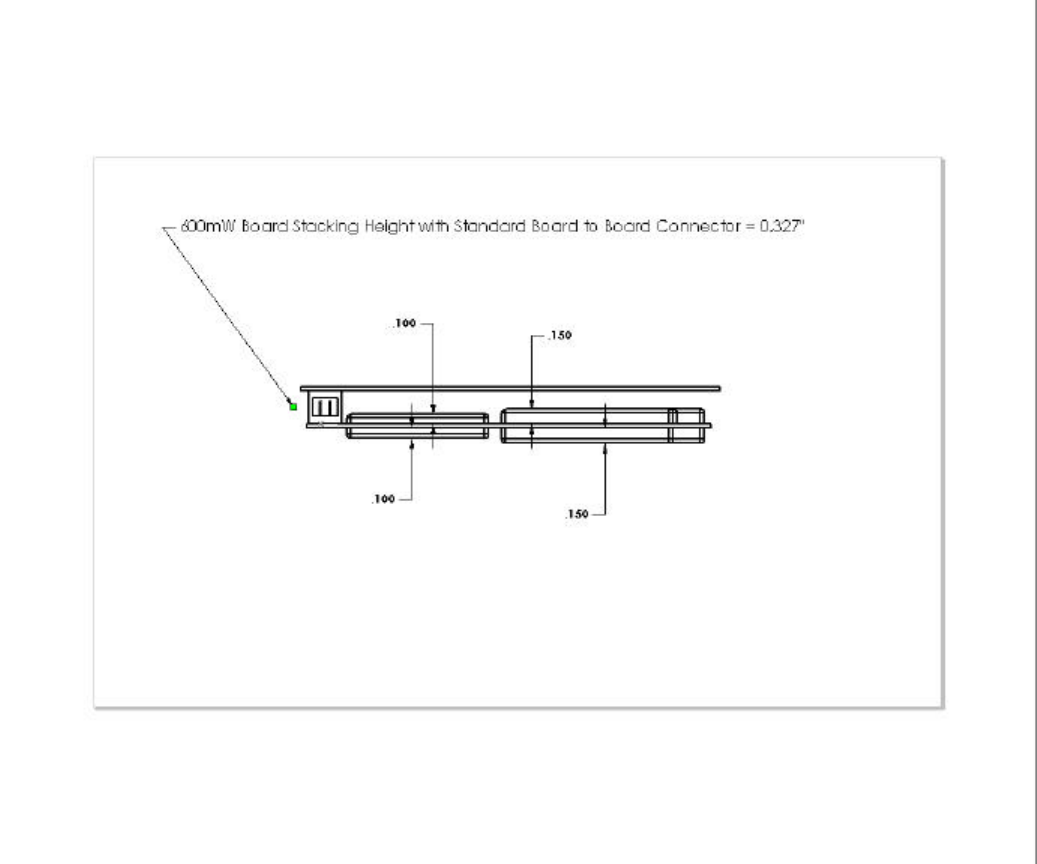

1. DM10 Transceiver Module Outline Drawing

Exhibit 8: OEM Interface Manual

1.1. Mechanical

The DM-10 module has no mechanical elements other that the main PCB assembly. All critical

electronic components are shielded using sheet metal cans to prevent internal/external

electromagnetic interference from degrading the module’s performance and to prevent the

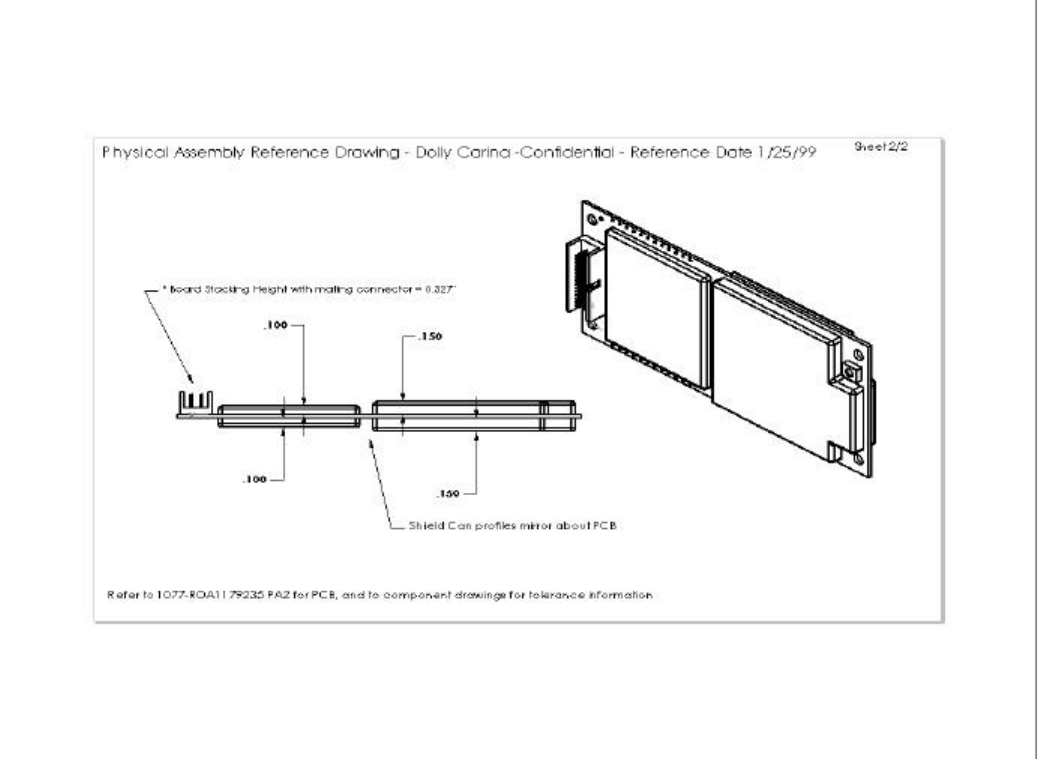

module from interfering with other nearby devices. The following figure shows a typical

mounting configuration of the module with the main motherboard assembly. The module is

plugged into the fixed mating connector and secured with four screws to the standoff

components.

Exhibit 8: OEM Interface Manual

1.2. Electrical

The diagram below shows an overview of the electrical interface between the DM-10 module

and a typical application.

DM-10 Electrical Interface

Customer Application

Voltage Regulator

Control Processor

Voice & Data Processing

ŸEcho Cancelling

ŸNoise Cancelling

ŸAudio Power AMP

ŸData Conversion

DTE

Power

External Audio

Interface

Antenna

User Interface

Power & GND

Serial Interface

Wake

Analog Audio Interface

Clock REF

Option

SIM Device

DM-10

Module

PCM Audio Interface

1.2.1. Electrical Performance

Electrical performance parameters are valid only when the terminating impedance at the

output of the antenna connector exhibits a VSWR of less than 2:1 for all phase angles in

the frequency band of operation. High VSWR loads at the antenna connector adversely

affect current consumption, linearity, and power efficiency of the module and may

prevent operation or cause internal damage.

The RF performance of the DM-10 fully meets the following specifications:

• IS-136 TDMA Cellular mode – Per IS-137 specification

• 553 AMPS Cellular mode – Per IS-19 specification

Exhibit 8: OEM Interface Manual

• CDPD Mode – Per Cellular Digital Packet Data (CDPD) System Specification, Release

1.1, 19 January 1995 (CDPD will be supported in a future release of the DM10).

1.2.2. Mobile Station Power Class

The module is able to operate in several modes and different output power levels.

Typical applications require output power levels similar to those in a handheld cellular

phone (600-mW nominal) which is considered a power class IV unit for dual mode

operation. It is possible to increase the output power level to that of a class I unit (4 W

nominal) during the 5 second analog burst data mode. The table below shows the

nominal output power levels (Effective Radiated Power, assuming an antenna system

gain of 1 dBd (3.15 dBi) [2.5 dBd (4.65 dBi) antenna gain with 1.5 dB cable loss)).

Mobile Station Nominal Power Levels

Mobile Station Power Level (dBW)

0 1 2 3 4 5 6 7 8 9 10

Class I 6 2 -2 -6 -10 -14 -18 -22 -22 -22 -22

Class IV -2 -2 -2 -6 -10 -14 -18 -22 -27±3-32±4-37±5

*Note: Output power levels maintained within range of +2 / -4 dB unless otherwise

noted

Power levels 8-10 valid for digital mode only

1.3. Power Consumption

1.3.1. Transmit/Talk Mode

DC current in mA AMPS Mode IS-136 Mode CDPD Mode

Peak 617 590 590600 mWatt RMS 617 355 355

3 W Burst Peak 1810 - -

1.3.2. Standby Mode

DC current in mA AMPS Mode IS-136 Mode CDPD Mode

RMS 36 15 15

1.3.3. Sleep Mode (Minimum DC Power consumption)

A power down or "sleep mode" is available in which the module is placed in a low power

consumption state under control of the host application. In this mode, the unit consumes

approximately TBD uA of current as measured from the VCC_6V supply input on pin 1

of the system connector. A logic level "0" on pin 19 of the system connector returns the

unit to full operation although there may be a significant delay while the module

reestablishes registration with the cellular network

Exhibit 8: OEM Interface Manual

2. Absolute Maximum Ratings

Parameter Rating Units

Supply voltage

6.0 volts 5.2-6.8 Volts

13.6 volts 10.88-16.32 Volts

Operating temperature -40 to +70 °C

Storage temperature -40 to +85 °C

Exhibit 8: OEM Interface Manual

3. Safety

3.1. Exposure to Radio Frequency Signals

This OEM module is a low power radio transmitter and receiver. The module is not

designed as or to be configured as a hand held device. Use as a portable transmitter will

require separate FCC approval for SAR compliance. Typical usage of this OEM

module includes:

• remote electrical meter reading

• telematic communication for vehicles

• fixed wireless terminals

Warning:

1. At no time is the antenna to be located closer than 20 centimeters to a normally

occupied location.

2. At no time should an antenna system with greater than 1.0 dBd (3.15 dBi) gain be

used with this module in any normally occupied area. The recommended antenna

system configuration is a standard automotive antenna with 2.5 dBd (4.65 dBi)

antenna gain and 1.5 dB cable loss.

3.2. Module Operation

Safe and efficient use of this module requires a properly terminated antenna. DO NOT

operate the module with a damaged or missing antenna, replace a damaged or missing

antenna immediately otherwise damage to the module may result and could violate

FCC regulations. DO NOT operate this device within 8 inches (20 cm) of a person

unless proper shielding from the antenna is installed.

3.3. Posted Facilities

Do not operate this device where posted notices require wireless devices to be turned

off.

3.4. Electronic Devices

Most electronic equipment is shielded from RF signals. However, certain electronic

equipment may not be shielded properly against RF signals.

Pacemakers

The Health Industries Manufacturers Association recommends that a minimum

separation of six (6) inches be maintained between a wireless transmitter and a

pacemaker to avoid potential interference with the pacemaker. These recommendations

are consistent with the independent research and recommendations of Wireless

Technology Research. Persons with Pacemakers should always keep the

antenna/module more than 6 inches from their pacemaker when the module is on; if

you have a reason to suspect that interference is taking place, turn off the module

immediately.

Exhibit 8: OEM Interface Manual

Hearing Aids

Some digital wireless devices may interfere with some hearing aids.

Other Medical Devices

If you use any other type of personal medical device in the presence of this transceiver,

consult the manufacturer of your device to determine if it is adequately shielded from

external RF energy. Your physician may be able to assist you in obtaining this

information.

3.5. Blasting Areas

To avoid interfering with blasting operations, turn your module off when in a “blasting

area” or in areas posted: “Turn off two-way radio”. Obey all signs and instructions.

3.6. Potentially Explosive Atmospheres

Turn your module off when in any area with a potentially explosive atmosphere and

obey all signs and instructions. Sparks in such areas could cause an explosion or fire

resulting in bodily injury or even death.

Areas with a potentially explosive atmosphere are often, but not always, clearly

marked. They include such areas as gasoline stations; below deck on boats; fuel or

chemical storage or transfer facilities; vehicles using liquefied petroleum gas (such as

propane or butane); areas where the air contains chemicals or particles, such as grain

dust or metal powders; and any other area where you would normally be advised to turn

off your vehicle engine.

3.7. Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems

in motor vehicles. Check with the manufacturer or its representative regarding your

vehicle. You should also consult the manufacturer of any equipment that has been

added to your vehicle.

3.8. For Vehicles Equipped with an Airbag

An airbag inflates with a great force. Do not place objects including both installed or

portable wireless equipment in the area over the airbag or in the airbag deployment

area. If in-vehicle wireless equipment is improperly installed and the airbag inflates,

serious injury could result.

3.9. Responsible Use

OEM Manufacturers providing telematic devices for vehicular use are encouraged to

incorporate the following CTIA guidance for safe and responsible wireless phone use

into their user’s manuals:

A Guide to Safe and Responsible Wireless Phone Use

TENS OF MILLIONS OF PEOPLE IN THE U.S. TODAY TAKE ADVANTAGE OF

THE UNIQUE COMBINATION OF CONVENIENCE, SAFETY AND VALUE

Exhibit 8: OEM Interface Manual

DELIVERED BY THE WIRELESS TELEPHONE. QUITE SIMPLY, THE

WIRELESS PHONE GIVES PEOPLE THE POWERFUL ABILITY TO

COMMUNICATE BY VOICE--ALMOST ANYWHERE, ANYTIME--WITH THE

BOSS, WITH A CLIENT, WITH THE KIDS, WITH EMERGENCY PERSONNEL

OR EVEN WITH THE POLICE. EACH YEAR, AMERICANS MAKE BILLIONS OF

CALLS FROM THEIR WIRELESS PHONES, AND THE NUMBERS ARE

RAPIDLY GROWING.

But an important responsibility accompanies those benefits, one that every wireless

phone user must uphold. When driving a car, driving is your first responsibility. A

wireless phone can be an invaluable tool, but good judgment must be exercised at all

times while driving a motor vehicle--whether on the phone or not.

The basic lessons are ones we all learned as teenagers. Driving requires alertness,

caution and courtesy. It requires a heavy dose of basic common sense---keep your head

up, keep your eyes on the road, check your mirrors frequently and watch out for other

drivers. It requires obeying all traffic signs and signals and staying within the speed

limit. It means using seatbelts and requiring other passengers to do the same.

But with wireless phone use, driving safely means a little more. This brochure is a call

to wireless phone users everywhere to make safety their first priority when behind the

wheel of a car. Wireless telecommunications is keeping us in touch, simplifying our

lives, protecting us in emergencies and providing opportunities to help others in need.

When it comes to the use of wireless phones, safety is your most important call.

Wireless Phone "Safety Tips"

Below are safety tips to follow while driving and using a wireless phone, which should

be easy to remember.

1. Get to know your wireless phone and its features such as speed dial and redial.

Carefully read your instruction manual and learn to take advantage of valuable

features most phones offer, including automatic redial and memory. Also, work to

memorize the phone keypad so you can use the speed dial function without taking

your attention off the road.

2. When available, use a hands free device. A number of hands free wireless phone

accessories are readily available today. Whether you choose an installed mounted

device for your wireless phone or a speaker phone accessory, take advantage of

these devices if available to you.

3. Position your wireless phone within easy reach. Make sure you place your

wireless phone within easy reach and where you can grab it without removing your

eyes from the road. If you get an incoming call at an inconvenient time, if possible,

let your voice mail answer it for you.

4. Suspend conversations during hazardous driving conditions or situations. Let

the person you are speaking with know you are driving; if necessary, suspend the

call in heavy traffic or hazardous weather conditions. Rain, sleet, snow and ice can

Exhibit 8: OEM Interface Manual

be hazardous, but so is heavy traffic. As a driver, your first responsibility is to pay

attention to the road.

5. Do not take notes or look up phone numbers while driving. If you are reading an

address book or business card, or writing a "to do" list while driving a car, you are

not watching where you are going. It's common sense. Don't get caught in a

dangerous situation because you are reading or writing and not paying attention to

the road or nearby vehicles.

6. Dial sensibly and assess the traffic; if possible, place calls when you are not

moving or before pulling into traffic. Try to plan your calls before you begin your

trip or attempt to coincide your calls with times you may be stopped at a stop sign,

red light or otherwise stationary. But if you need to dial while driving, follow this

simple tip--dial only a few numbers, check the road and your mirrors, then

continue.

7. Do not engage in stressful or emotional conversations that may be distracting.

Stressful or emotional conversations and driving do not mix--they are distracting

and even dangerous when you are behind the wheel of a car. Make people you are

talking with aware you are driving and if necessary, suspend conversations, which

have the potential to divert your attention from the road.

8. Use your wireless phone to call for help. Your wireless phone is one of the greatest

tools you can own to protect yourself and your family in dangerous situations--with

your phone at your side, help is only three numbers away. Dial 9-1-1 or other local

emergency number in the case of fire, traffic accident, road hazard or medical

emergency. Remember that it is a free call on your wireless phone!

9. Use your wireless phone to help others in emergencies. Your wireless phone

provides you a perfect opportunity to be a "Good Samaritan" in your community. If

you see an auto accident, crime in progress or other serious emergency where lives

are in danger, call 9-1-1 or other local emergency number, as you would want

others to do for you.

10. Call roadside assistance or a special wireless non-emergency assistance

number when necessary. Certain situations you encounter while driving may

require attention but are not urgent enough to merit a call for emergency services.

But you still can use your wireless phone to lend a hand. If you see a broken-down

vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident

where no one appears injured or a vehicle you know to be stolen, call roadside

assistance or other special non-emergency wireless number.

Careless, distracted individuals and people driving irresponsibly represent a hazard to

everyone on the road. Since 1984, the Cellular Telecommunications Industry

Association and the wireless industry have conducted educational outreach to inform

wireless phone users of their responsibilities as safe drivers and good citizens. As we

approach a new century, more and more of us will take advantage of the benefits of

wireless telephones. And, as we take to the roads, we all have a responsibility to drive

safely.

Exhibit 8: OEM Interface Manual

4. Technical Specifications

4.1. General

All ratings @12V supply unless otherwise specified

Parameter Conditions Min Typ Max Unit

Frequency range Transmit 834.390 835.620 MHz

Receive 879.390 880.620 MHz

Channel spacing 30 kHz

Number of channels 42

Supply voltage +8.5 +18 Volts

Supply voltage ripple 10 Hz to 200 kHz 200 mV

Supply current Sleep 1 12 15 mAmps

Standby 225 50 mAmps

Transmit 31300 1800 mAmps

Operating Temperature -40 +60 °C

Antenna port impedance 50 Ohms

ÜÜ Notes

1. In sleep mode neither the receiver nor the transmitter is operating. The communications

interface is completely operational.

2. When receiving a relatively strong signal (>-100 dBm), the typical current is approximately 25

mA. When the signal strength is less than -100 dBm, the operating current is approximately 45

mA.

3. Typical operating current during transmit mode is approximately 1300 mA. The current

required in this mode is sensitive to the quality of the antenna termination impedance. With a

poorly matched antenna, the operating current can approach 2 Amps. Note that a transmission

lasts approximately 118 milliseconds.

4.2. Receiver Section

Parameter Conditions Min Typ Max Units

Sensitivity1-116 dBm

Adjacent channel rejection 16 dB

Alternate channel rejection 60 dB

Intermod rejection 65 dB

RSSI range (digital) -116 -60 dBm

RSSI accuracy (digital) +/- 3 dB

RSSI range (analog) 0.75 1.75 volts

ÜÜ Notes

1 Sensitivity is measured with respect to an analog test point after demodulation of the received

signal. External filtering is applied to make the test consistent with sensitivity tests typically

Exhibit 8: OEM Interface Manual

performed on cellular telephones (as per IS-19B). The criteria for this test is > 12 dB SINAD for

a 1 kHz audio tone modulating the carrier to 8 kHz peak deviation.

4.3. Transmitter Section

Parameter Min Typ Max Units

Power output1 0.0063 3 Watts (nom)

Transmission duty cycle 2.5 %

Peak Deviation +/- 8 kHz

Frequency Stability - 2.5 + 2.5 ppm

Carrier switching time 2 msec

Channel switching time 40 msec

Power levels (per CMAC) 8 (pwr levels 0-7)

ÜÜ Notes

1 The actual power output is controlled by the AMPS system via the CMAC register in the

overhead control message. Per EIA/TIA-553, the output power varies from +8 dBm to +36

dBm, in 4 dB steps.

4.4. Connectors

4.4.1. 30-pin Interface Connections

Pin Signal Name Description TYPE

1GND Chassis Ground -

2GND/AD_in Chassis Ground (optionally A/D input) -/I

3AFMS Audio from module O

4GND Chassis Ground -

5AGND Analog ground -

6ATMS Audio to module I

7OUT2 * Reserved O

8WAKE Switches the main voltage regulator on/off I

9IN2 * Reserved I

10 OUT1 * Reserved O/I

11 VDD * Logic reference O

12 IN1 * Reserved I

13 PCMCLK PCM Clock output O

14 PCMSYNC PCM Frame sync O

15 PCMULD PCM Voice input I

16 PCMDLD PCM Voice output O

17 GND Chassis Ground -

18 GND Chassis Ground -

19 DCD/VppFlash Data Carrier Detect and Flash Programming Voltage Input O/I

20 REF_CLK 19.44 MHz reference clock output O

Exhibit 8: OEM Interface Manual

Pin Signal Name Description TYPE

21 CTS Clear to send O

22 DTR Data Terminal Ready I

23 TD Serial data to module I

24 RTS Request to Send I

25 VCC_12V 12 vdc supply (needed only for 3 Watt burst applications) I

26 RD Serial data from module O

27 VCC_12V 12 vdc supply (needed only for 3 Watt burst applications) I

28 VCC_12V 12 vdc supply (needed only for 3 Watt burst applications) I

29 VCC_6V 6 vdc regulated supply voltage I

30 VCC_6V 6 vdc regulated supply voltage I

* Pin used for SIM Interface in GSM based products. Pin function reserved for future use by

U.S. products.

ÜÜ Notes

In modem mode, pin 8 is configured as an output and indicates whether a message is stored in

the output buffer. In standalone mode, pin 8 is configured as an input and is used to warn the

transceiver of an impending power failure.

4.4.2. RF Interface Connector

Radio frequency (RF) signals from the module to the external, customer-supplied antenna are

made through a surface mount, microminiature snap-on M/A-COM connector. A wide variety of

compatible mating connectors is available. A Pigtail assembly and the inter-series cable

assembly from M/A-COM are two options. Since the mating connector can rotate through 360o,

the application developer has maximum flexibility for routing the RF coax assembly. The total

height of the mated M/A-COM RF connectors is 0.12 inches.

4.4.3. Detailed Signal Descriptions

DGND This is the supply voltage return (VCC_6V and VCC_12V)

Minimum Maximum

Input voltage for 0000 0000 word 0.05V

Input voltage for 1111 1111 word 3.25V

Linearity ± 0.5 LSB

Absolute accuracy -10mV +10mV

Conversion time to within 0.5 bit 5µ sec

Input impedance 1MΩ

A/D_in

External source impedance

Exhibit 8: OEM Interface Manual

Module audio output

Output Impedance (active state)

Output Impedance (inactive state)

Output Impedance (pwr down state)

Drive capacity into 50 Ω

Drive capacity into 5 kΩ

(0.3 – 3.5 kHz)

Zout < 10 Ω in series with ≥3.3

uF (-20%)

Zout < 10 Ω to VDD/2

Zout > 30 kΩ

1.1 VP-P min.

2.0 VP-P min./ 4.0 VP-P max.

External Device audio input Input

Impedance Zin > 50 Ω

Volume control ± 12 dB from nominal > - 40

dB (mute)

AFMS

Levels to external audio input 28 mVrms nominal 450

mVrms max.

All sources must be AC coupled except for a microphone device. External

audio source should be DC coupled in order for module to supply DC power

to microphone.

External audio source

Output impedance (active state)

Output impedance (inactive state) Zout ≤ 100 Ω

Zout > 10 k

Module audio input

Input impedance

Output DC level unloaded for external

audio source power

Zin > 2 kΩ

2.0 V min.

Levels from external audio source HGA

= 0 45 mVrms nominal 340 mVrms

max.

ATMS

Audio input signal is amplified an

additional 32 db and a DC bias is

provided to the microphone when HGA

= 1

1.5 mVrms nominal

OUT1, OUT2 CMOS open drain output with 1 mA drive (See Section 4.3.4)

WAKE TTL compatible active low input (WAKE pin is tied to VDD through 51kΩ

resistor, recommend open collector/drain transistor)

I_01, I_03 CMOS bi-directional, tri-state output with 2mA drive (See Section 4.3.4)

VDD 2.7 Vdc min 3.4 Vdc nominal 5.5 Vdc max

PCMCLK (See Section 4.3.4)

PCMSYNC (See Section 4.3.4)

PCMULD (See Section 4.3.4)

PCMDLD (See Section 4.3.4)

(See Section 4.3.4)DCD/VppFlash VppFlash programming voltage. Capability =

60 ma min 11.8 – 12.2 Vdc

Frequency 19.44 MHz this output is switchable

Output Level 0.7 min 1.0 typ 1.4 max volts-P2P

REF_CLK

Harmonic Content -10dBc max

RTS, CTS, DTR (See Section 4.3.4)

Exhibit 8: OEM Interface Manual

RD,TD (See Section 4.3.4)

VCC_12V 13.6 volt ± 20%, 1.5 A max

VCC_6V 6 volt ± 13.3% regulated, 1A max

4.4.4. System Connector CMOS Interface Levels

LimitsQuantity Symbol Min Typ Max Units

High level output voltage (IOH= rated) VOH 0.9 *VDD VDD Volts

Low level output voltage (IOL= rated) VOL 00.1.*VDD Volts

High level input voltage VIH 0.8 *VDD VDD Volts

Low level input voltage VIL 00.2 *VDD Volts

4.4.5. Accessory Connector

Connections to an optional accessory board are made through a 14-pin accessory connector. Add-on

accessories under consideration include a GPS receiver, a Bluetooth transceiver, and a CeBus transceiver

16-Pin Accessory Connector Functions

Connector / Pin Signal Name Description

X353 / 1 VCC_6V 6 VDC supply input

X353 / 2 GND Digital ground

X353 / 3 CLKREQ Request from accessory to keep providing reference clock

X353 / 4 ARESET Reset signal to accessory

X351 / 1 ASYNC Request from accessory for frame sync

X351 / 2 TBD SPARE

X351 / 3 IU3T DTMS

X351 / 4 IU3R DFMS

X351 / 5 ADATAUP Data to accessory (PCM link)

X351 / 6 APCMSYNC Sync line (PCM link)

X351 / 7 APCMCLK Clock line (PCM link)

X351 / 8 ADATDOWN Data from accessory board (PCM link)

X351 / 9 ASYSCLK 19.44 MHz reference clock to accessory

X351 / 10 AWAKE Wake-up signal to accessory

X351 / 11 IU2T IU2T

X351 / 12 IU2R IU2R

4.4.6. System Connector

External interfaces to the module are made primarily through a 30-pin, standard 0.050 inch pitch,

ODU header shown.

HARRIS TR-400-A2 OEM Module User Manual B

HARRIS CORPORATION OEM Module B

Contents

Correspondence 9846

Navigation menu

Namespaces

Views

Navigation
