User Manual

micron 7

AOM70U00

Operating Instructions

Original Operating Instructions

Table of Contents

Safety Instructions

Intended Use

Safety Instructions for Installation and Operation

FCC notes

IC notes

Operation

Activating the Transmitter

Deactivating the Transmitter

Automatic Switch-OFF (APO Function)

Display

Status Display

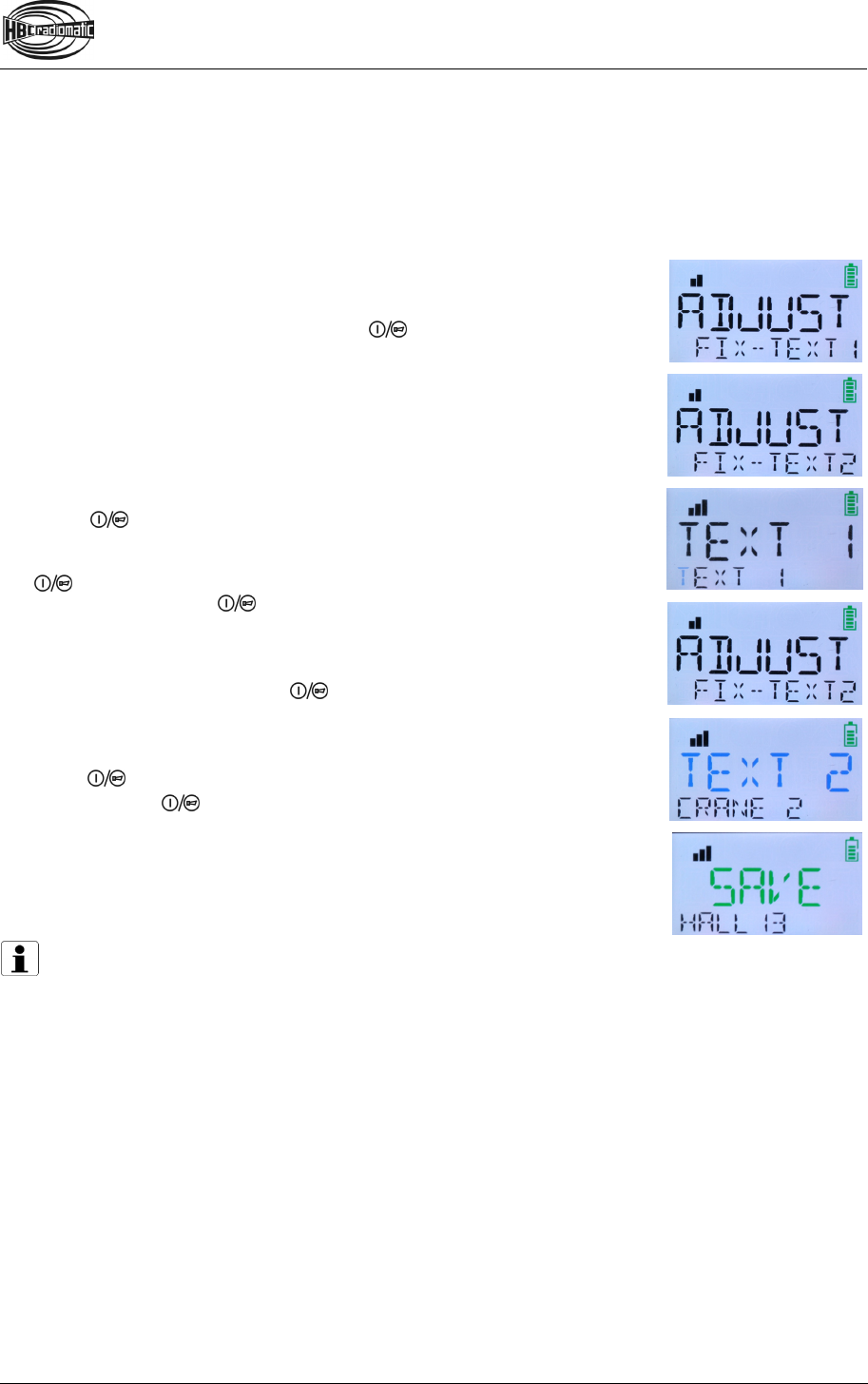

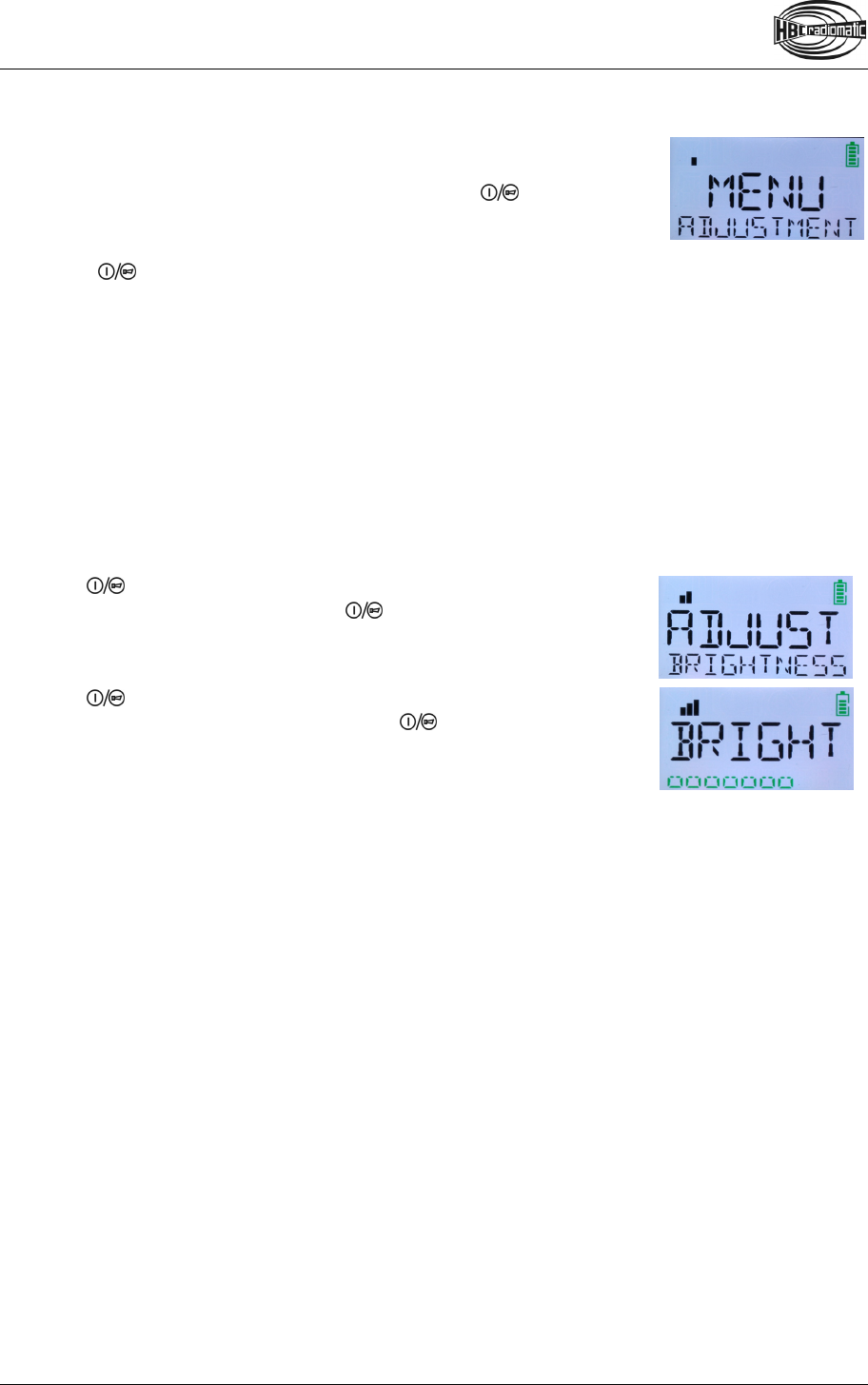

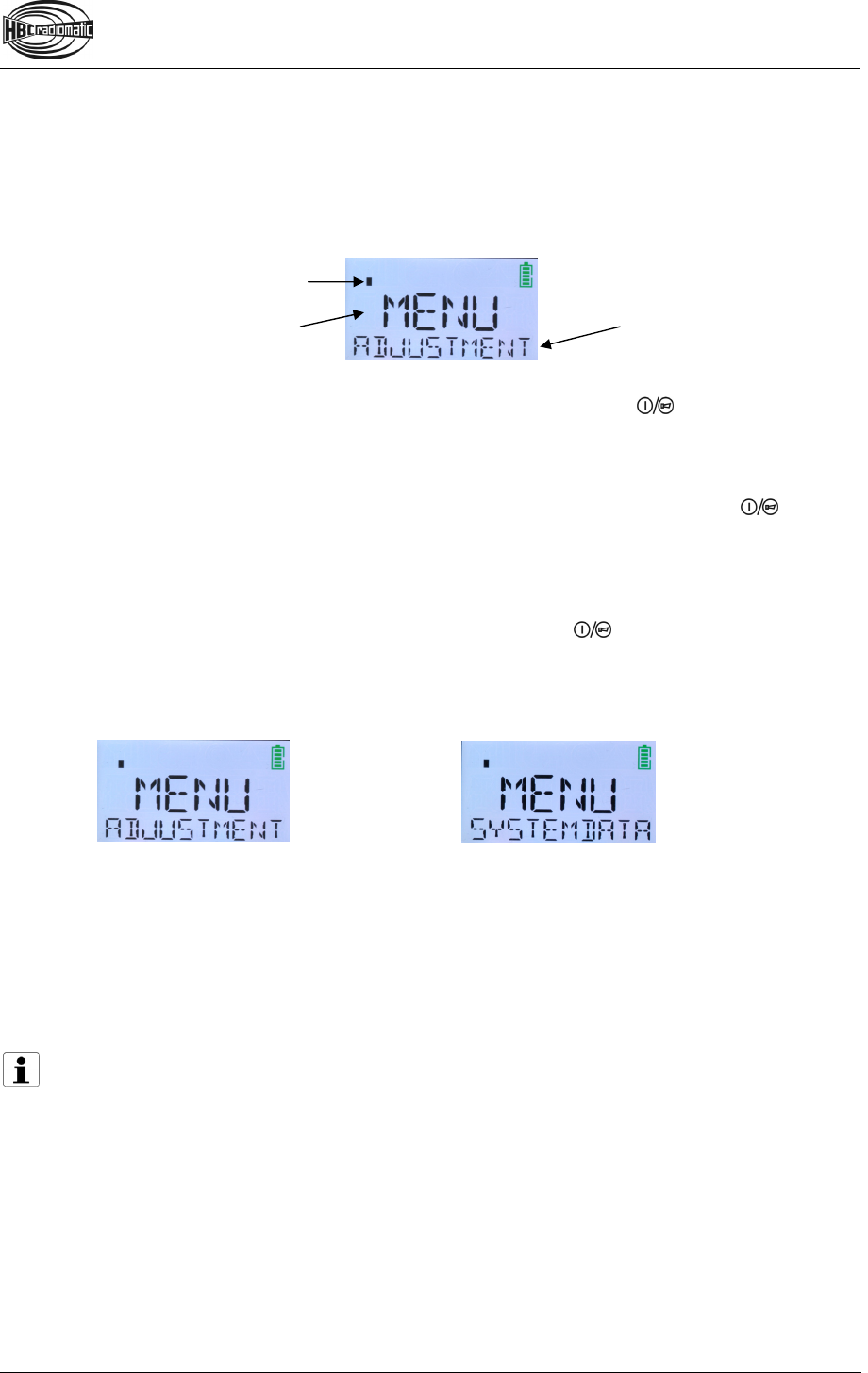

Individual display settings

Battery and Battery Charger

Charging the battery

Options

Safety Features

Frequency Management

Catch-Release

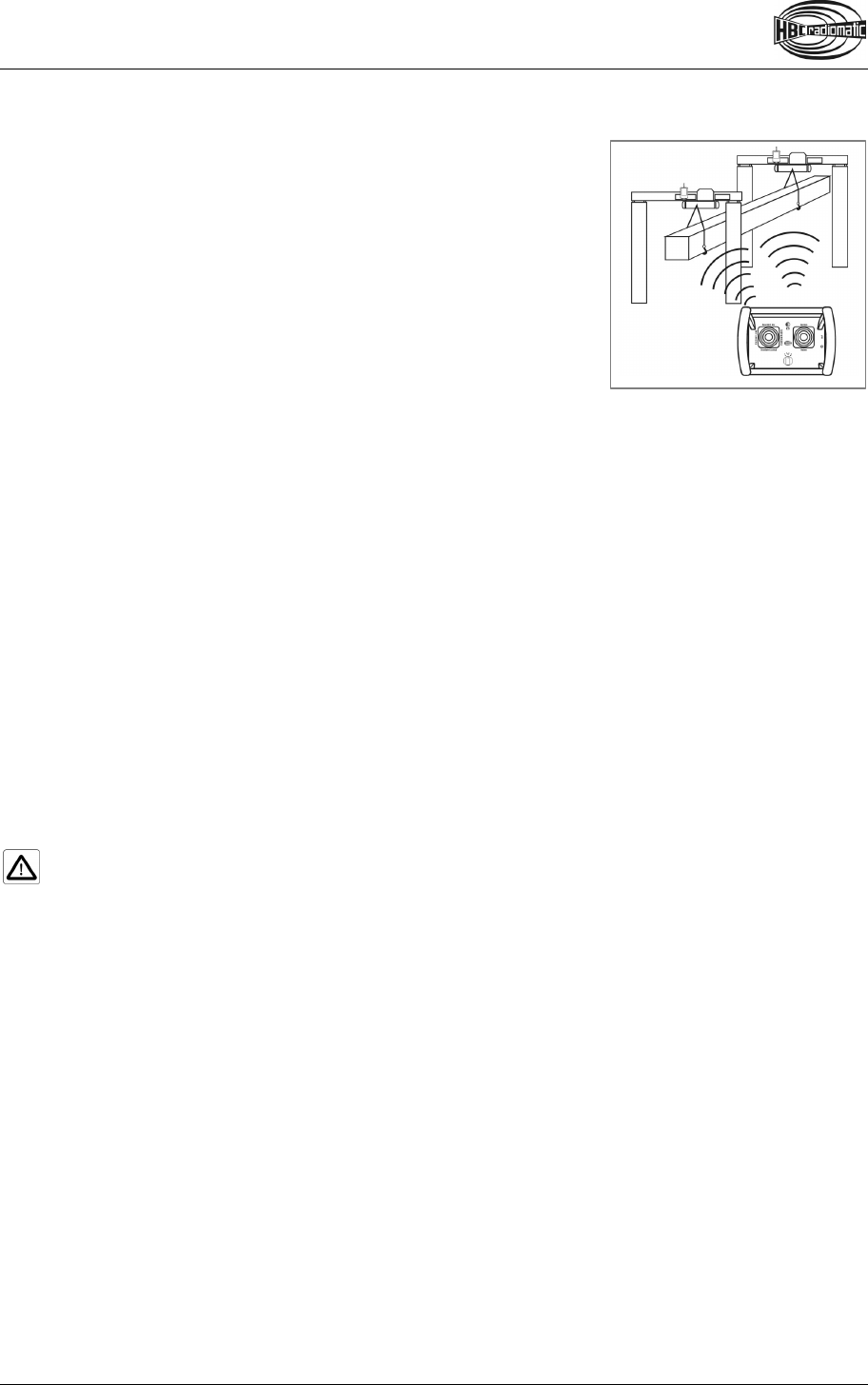

Tandem Operation

Catch-Release-Tandem Operation

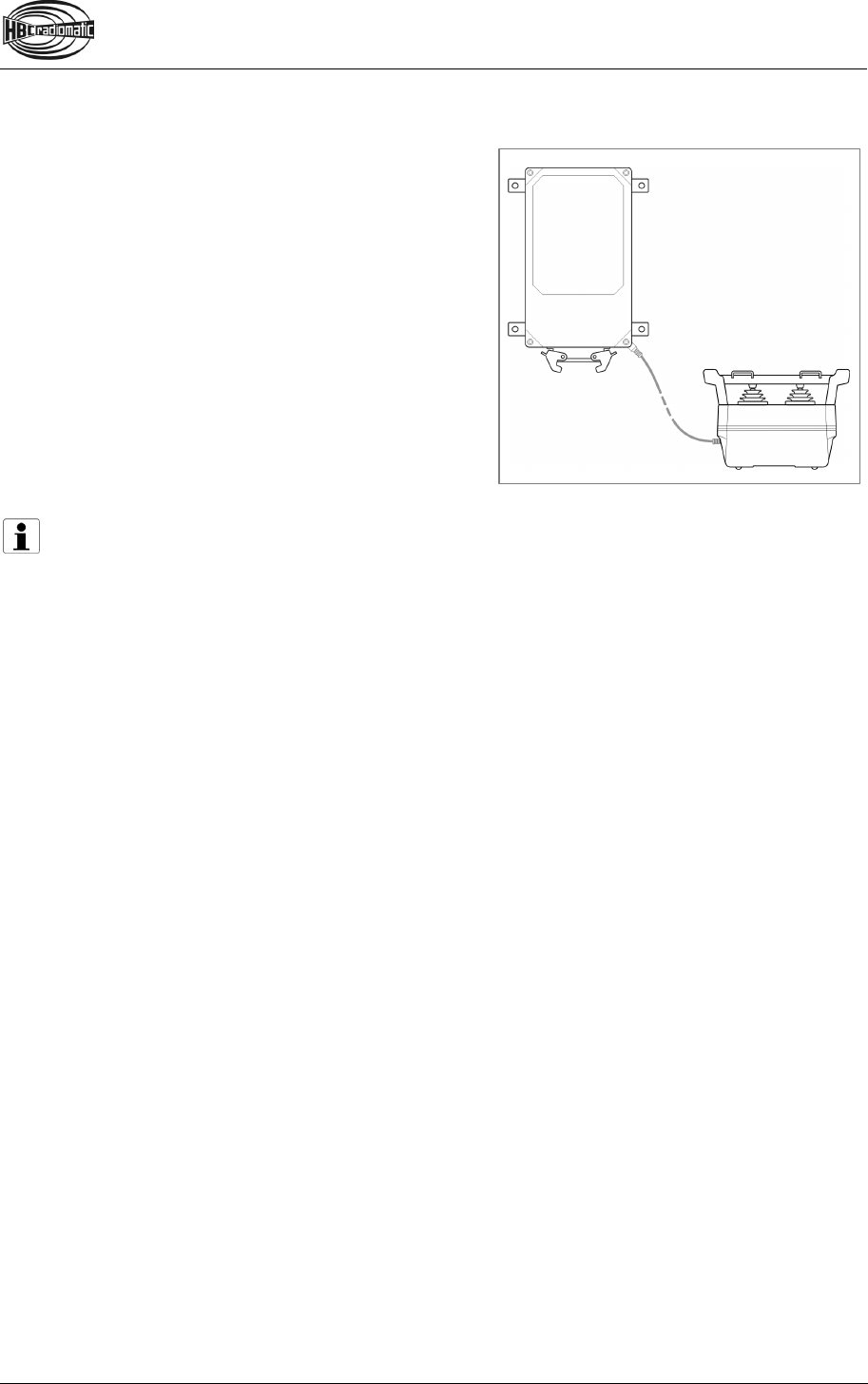

Cable Control

radiomatic® masterkey

Address Changeover via Coding Plug

Utilization of Button as Shift Key

Enabling of the Proportional Outputs

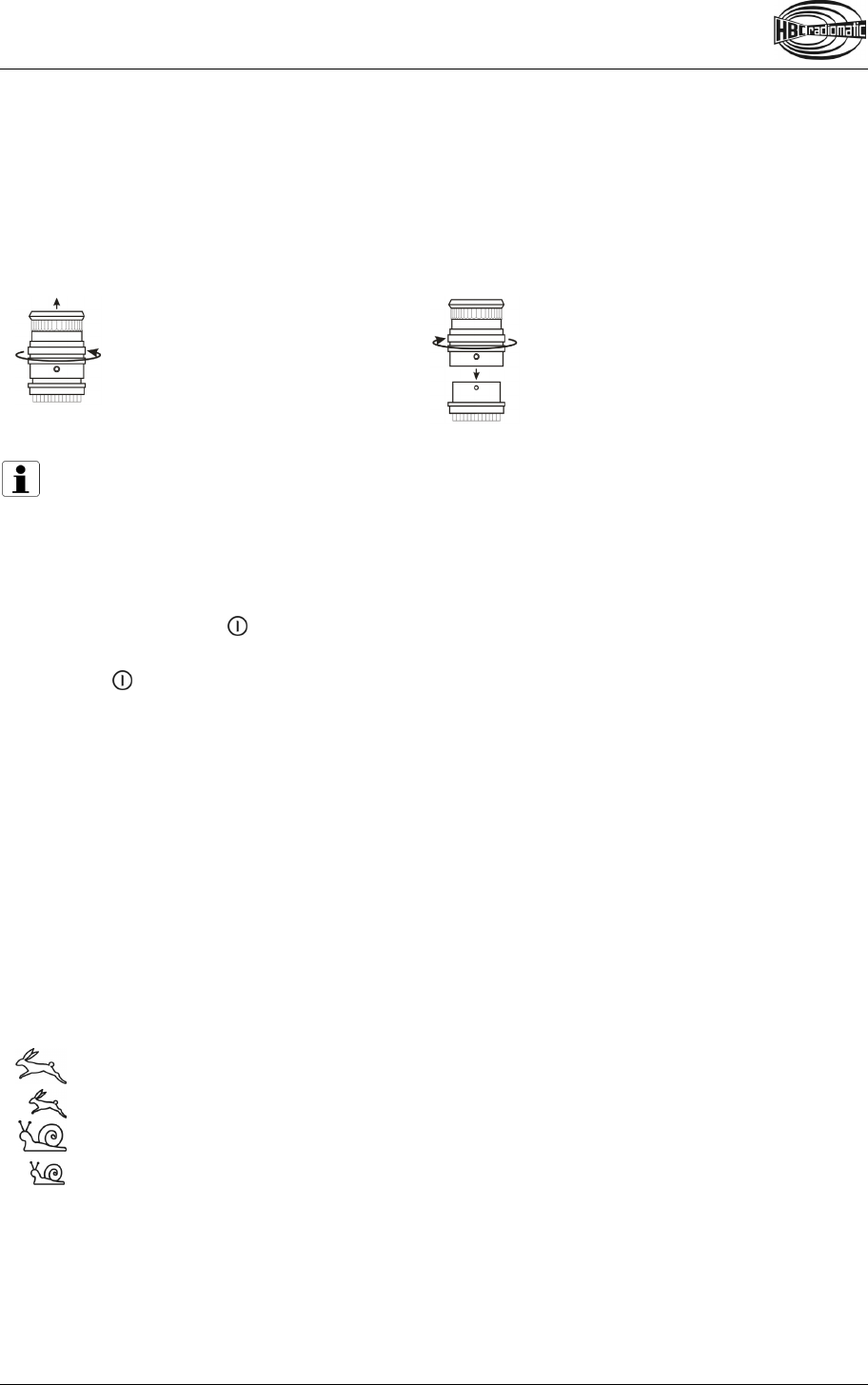

Rotary Switch for Preselected Speed

Slewing Gear Release

Feedback by LED

RF-amplifier

Pre-selection of Trolley or Hoist

Transmitter Key up

Technical Data

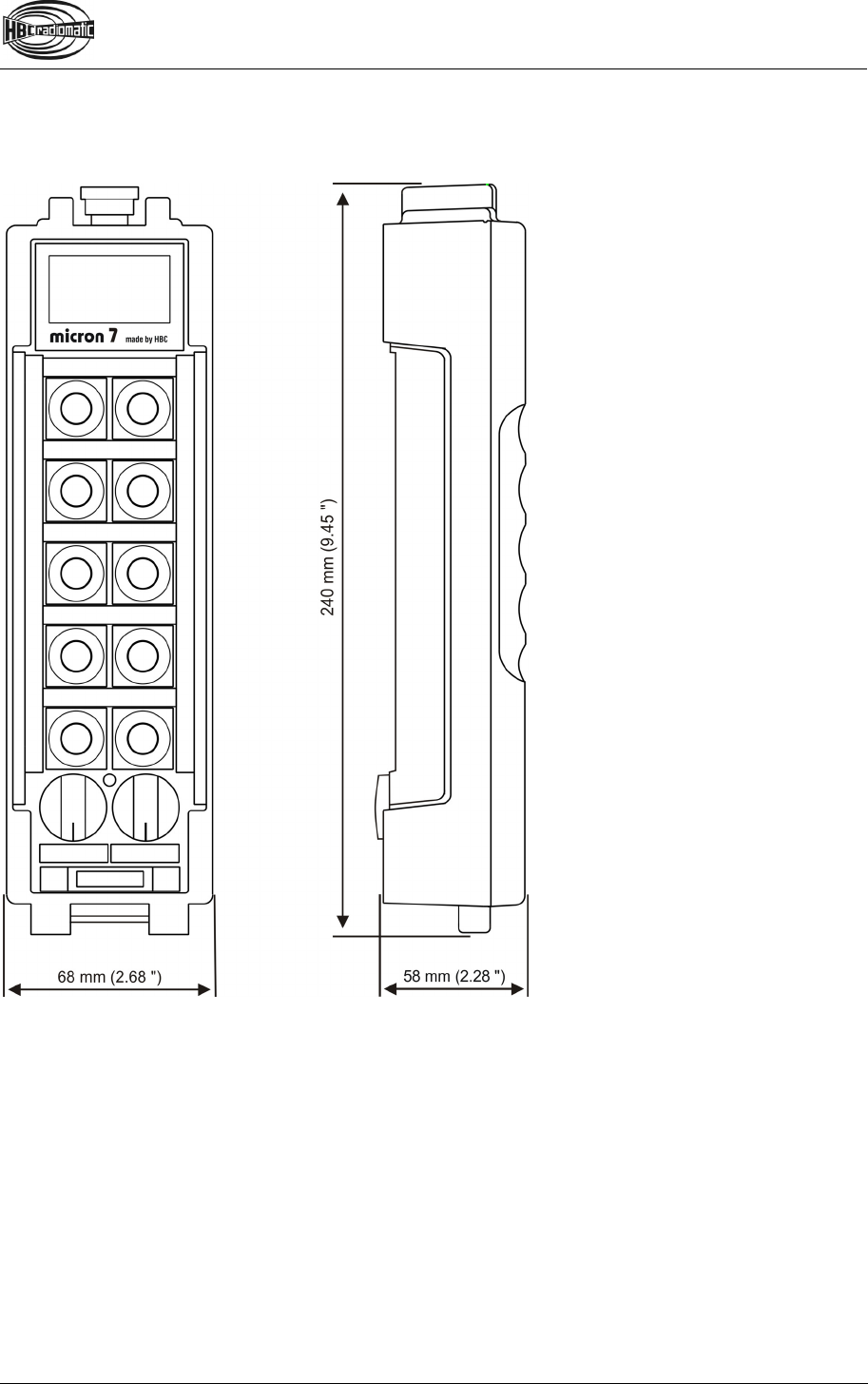

Dimensions

Troubleshooting

Maintenance

Attachments: Return delivery note, system specific views, circuit diagrams and /or output wiring

Pictographs

Danger due to electrical voltage. Touching live parts inside the unit can be fatal or cause

serious injuries.

Instructions for occupational health and safety. Not following these instructions can cause

accidents, which can cause damage, serious injuries or even death.

Important information about the operation of the radio system

Manufacturer:

HBC-radiomatic GmbH • Haller Straße 45 – 53 • 74564 Crailsheim • Germany • Tel. +49 7951 393-0 • info@radiomatic.com.

HBC.radiomatic GmbH is not liable for any misprints or errors! – Specifications and design subject to change without notice.

® radiomatic and radiobus are registered German trademarks.

No part of this document may be reproduced in any manner whatsoever without the expressed written permission of

HBC-radiomatic GmbH.

Safety Instructions

Read through these operating instructions carefully before working with the radio system. This applies in

particular to the installation, commissioning and maintenance of the radio system.

The operating instructions are a constituent part of the radio control system and must always be kept

close at hand for the responsible personnel.

The term ‘machine’ is used in the operating instructions for the different possible uses of the radio

system.

Intended Use

 The radio system serves to control machines and for data transfer. Observe the job safety and

accident prevention regulations applicable to each application.

 The intended use also includes reading the operating instructions and adhering to all safety

information contained therein.

 The radio system must not be used in areas where there is a risk of explosion, nor for the control of

machines used to convey persons, unless it is explicitly approved by the manufacturer for these uses.

 Modifications to the radio system may only be carried out by specialist personnel who have been

trained and authorized by HBC-radiomatic. All modifications must be documented at the factory in

the radio control master file.

 The radio control system safety devices must not be modified, removed or bypassed. In particular,

modifications to any part of the radio system's complete emergency-stop system are impermissible.

Safety Instructions for Installation and Operation

 The electrical connection per the accompanying output wiring diagram must be established by a

qualified electrician exclusively.

 The receiver may only be opened by trained personnel. Components inside the receiver can be

energized at life-threatening voltages. The supply voltage for the machine must be deactivated

before the receiver is opened.

 Please also note with radio systems, that the presence of persons in the danger zone - in particular

beneath the load (cranes!) - is prohibited in every instance.

 Select a safe location for radio control, from which you have a good and complete view of the

working movements of the machine, the load movements and the surrounding working conditions.

 It is not permissible to put a radio transmitter unattended to one side whilst activated. Always switch

the radio transmitter off when it is not required. This applies in particular if you change location,

when working without radio control, during breaks and at the end of work. Always safeguard the

radio transmitter against use by unauthorized persons, for example by locking it away.

 In the event of an emergency and with all faults, switch the radio transmitter off immediately by

pressing the STOP switch.

 Only operate the radio system when it is in perfect working order. Faults and defects that could

influence safety must be rectified before the system is put back into operation, by specialists who

have been trained and authorized by HBC-radiomatic.

 Note that the operational directions of the operating elements may appear inverted depending on

location and viewing angle to the machine. This applies in particular to rotary cranes, if your location

changes from inside to outside the radius of the crane. The operator must make himself familiar with

the directional markings on the machine before the start of work.

 Repairs may only be carried out by specialist personnel who have been trained and authorized by

HBC-radiomatic. Use original replacement parts and accessories (e.g. rechargeable batteries)

exclusively; otherwise it is possible that the equipment safety can no longer be guaranteed and our

extended warranty will be voided.

 Remain vigilant when working with the radio system and familiarize yourself with its functions. This

applies in particular if you are working with it for the first time or if you work with it only occasionally.

 Check each time before starting work the function of the STOP switch.

When you press the STOP switch with the transmitter on, the status LED and the display of the

transmitter have to go out. If the status LED and the display don’t go out then you have to disable

the radio control system immediately.

Remove the battery and the radiomatic® iLOG from the transmitter and inform a service technician.

FCC notes

Part 15.21 Statement

Changes or modifications made to this equipment not expressly approved by HBC-radiomatic GmbH may

void the FCC authorization to operate this equipment.

Part 15.105 Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

RF Exposure Statement

Radiofrequency radiation exposure information

The radiated output power of the device is far below the FCC radio frequency exposure limits.

Nevertheless, the device shall be used in such a manner that the potential for human contact during

normal operation is minimized.

IC notes

RSS-GEN – User Manual Statements (English/French)

Licence exempt

This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS

standard(s). Operation is subject to the following two conditions:

1. this device may not cause interference, and

2. this device must accept any interference received, including interference that may cause

undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:

1. l'appareil ne doit pas produire de brouillage, et

2. l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage

est susceptible d'en compromettre le fonctionnement.

Operation

The transmitter is equipped with an electronic radiomatic® iLOG key.

radiomatic® iLOG contains all the data required for operating the transmitter.

Operation is not possible without radiomatic® iLOG!

Depending on the version the radiomatic® iLOG can also be used for

operation of replacement transmitters of identical construction.

When activating the transmitter and if the radio connection is interrupted (e. g.

if the connection is lost or the transmission range is exceeded), the

transmitter reacts with the so-called enforced zero-position.

Release all operating elements so they can return to the zero-position and

actuate the Start-button. The machine will not react if the operating elements

are not in zero-position. This prevents uncontrolled machine movements after

the radio connection has been interrupted.

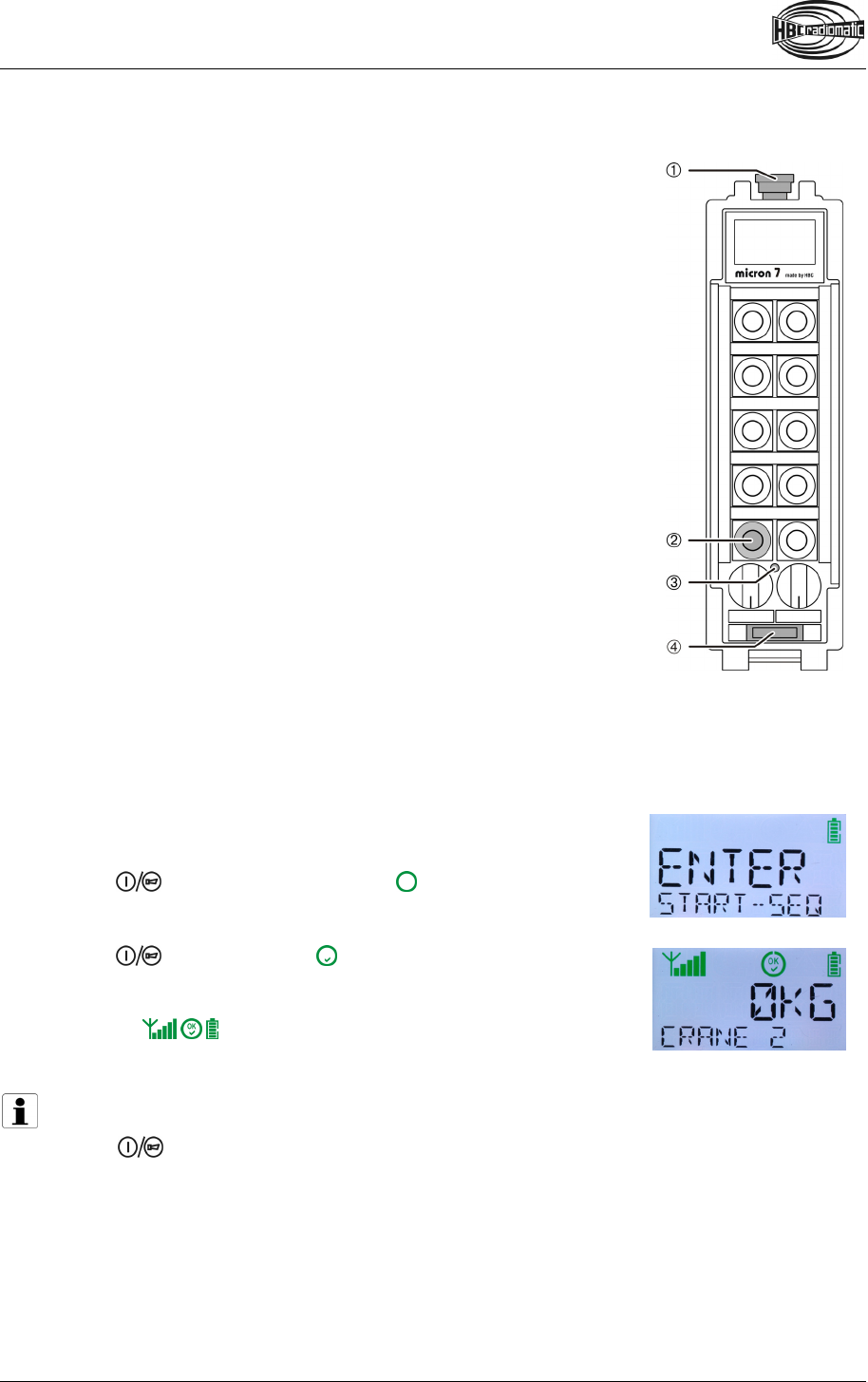

Activating the Transmitter

With standard start sequence

Insert a charged battery into the battery compartment.

The following steps need to be carried out within 4 seconds:

1. Pull the STOP switch. ENTER START-SEQ is now shown in the display.

2. Press the button for a short time. The symbol appears in the

display. Release the button. The transmitter will switch off if the button is

pressed for longer than half a second!

3. Press the button again. The symbol appears in the display.

Keep the button pressed until the status LED flashes green. Then release

the button.

4. The symbols and two text lines appear in the display.

The transmitter is now ready for operation.

Note:

The transmitter switches off when

 the button is pressed for longer than half a second in step 2 of the start sequence.

 the start sequence is not completed within 4 seconds.

 another button is pressed during the start sequence.

In such cases, press the STOP switch and repeat the entire start sequence!

Example

 STOP switch

 Start button

 Status LED

 radiomatic® iLOG

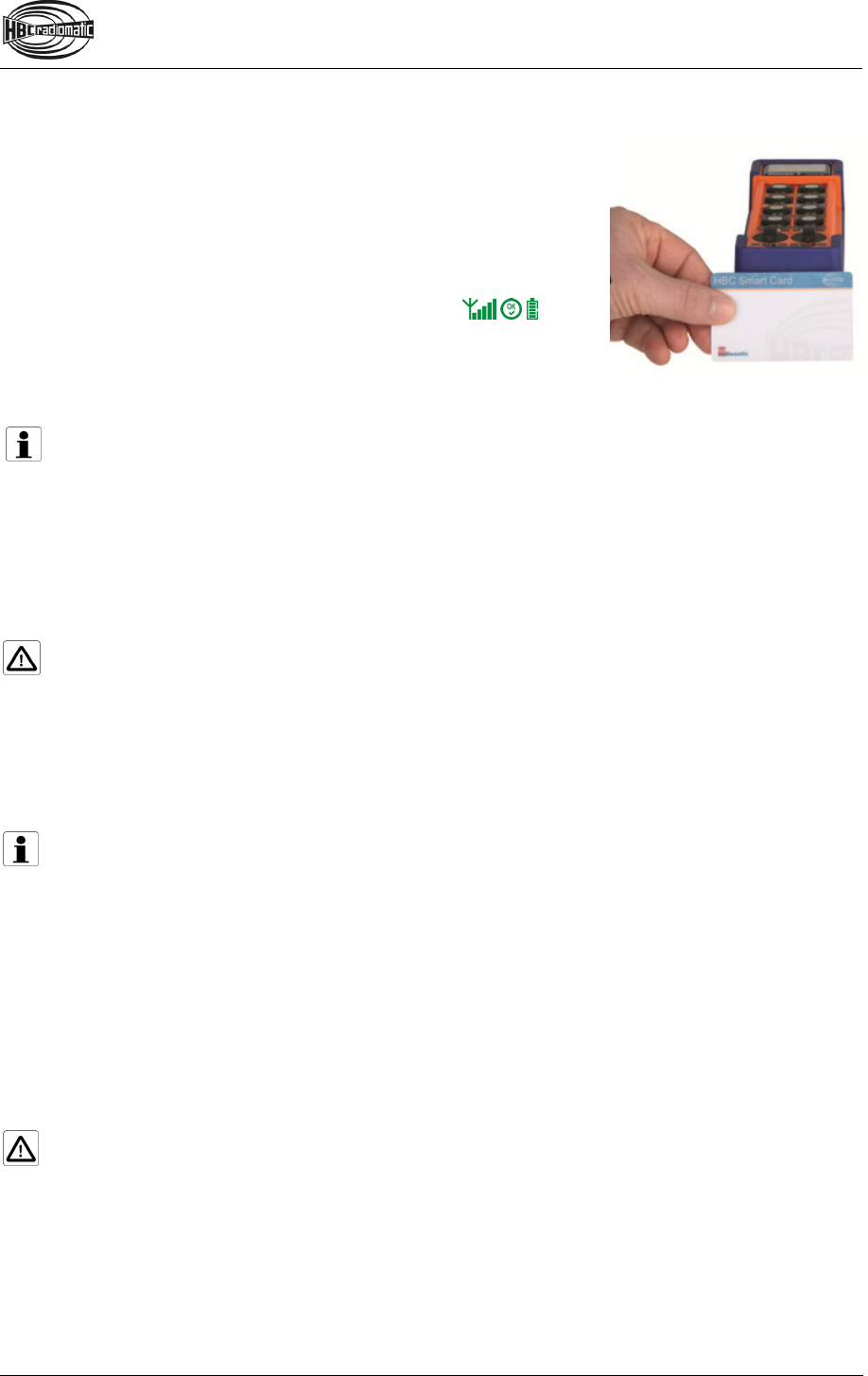

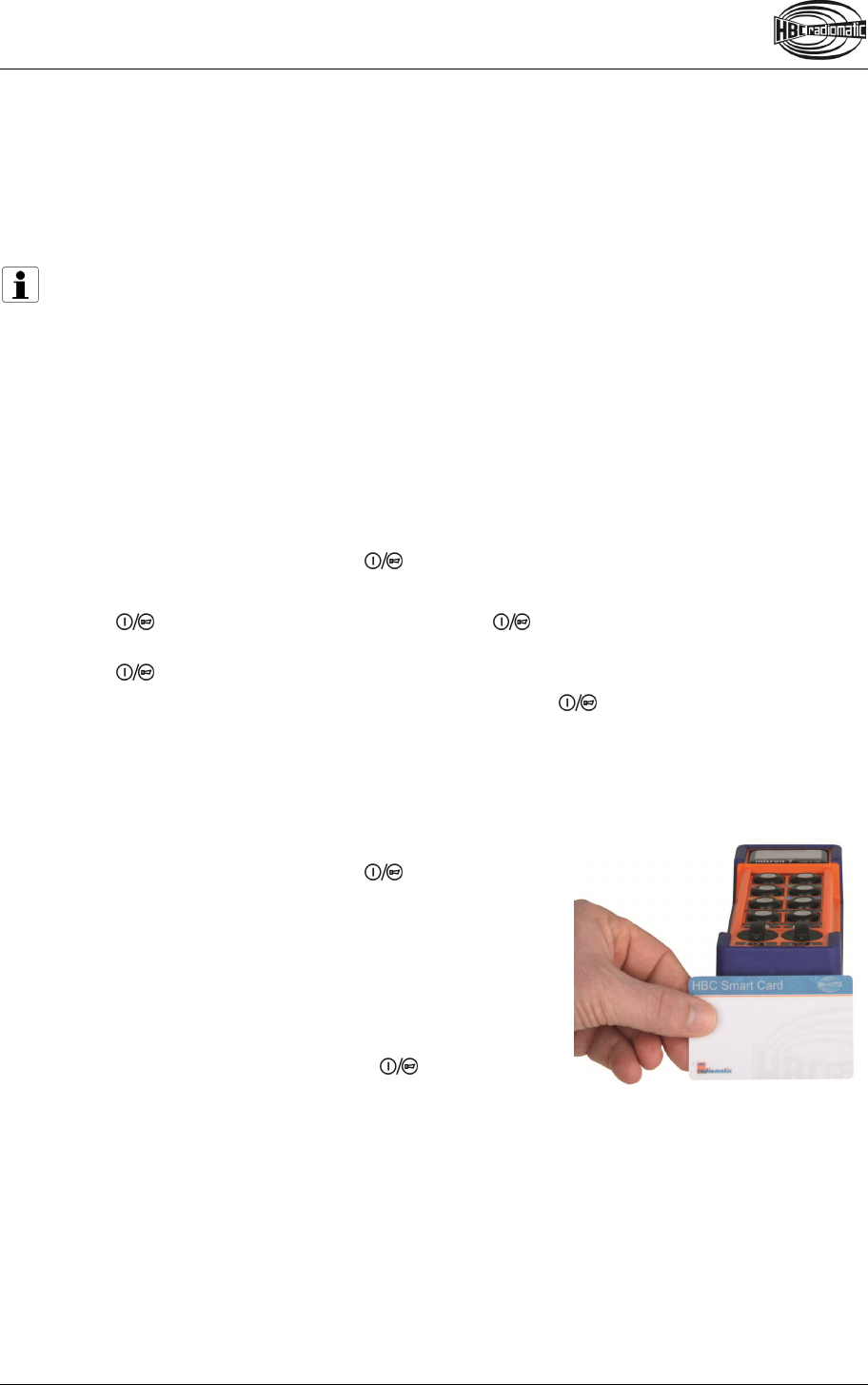

With HBC Smart Card

1. Insert a charged battery into the battery compartment.

2. Pull the STOP switch. APPLY SMART CARD is now shown in the

display.

3. Hold your HBC Smart Card to the lower end of the transmitter

(cf. illustration).

4. The status LED flashes green.

The following symbols are now shown in the display:

5. The transmitter is now ready for operation.

6. HELLO USER _ is shown in the display for 2 seconds.

Note:

The transmitter can only be activated with a valid Smart Card. If you use a card that does not

match the respective transmitter or is not approved for this transmitter, CARD INVALID appears in

the display. The transmitter is automatically shut down after 2 seconds. Please contact your

superior in such cases.

The transmitter also shuts down if the start sequence is not completed within 10 seconds. In this

case press the STOP switch and repeat the entire start sequence!

Caution:

Before starting work always trigger the acoustic signal. This warns all colleagues that the machine

is about to move.

Deactivating the Transmitter

Press the STOP switch.

Note:

Replace the battery when the battery display flashes red, an acoustic signal sounds, the status

LED flashes red and the transmitter vibrates (option). Otherwise, the transmitter will switch off in a

few minutes.

Recharge the empty battery in the respective charger.

Automatic Switch-OFF (APO Function)

For safety reasons we have equipped the transmitter with an automatic switch-OFF (APO function).

The transmitter is automatically put out of circuit after approx. 15 minutes of non-use.

The automatic switch-OFF also saves battery power.

After an automatic switch-OFF you must reactivate the transmitter as described in chapter “Operation”.

Caution:

The automatic switch-OFF does not relieve the operator of his responsibility to turn off the

transmitter with the STOP switch when not in use.

Display

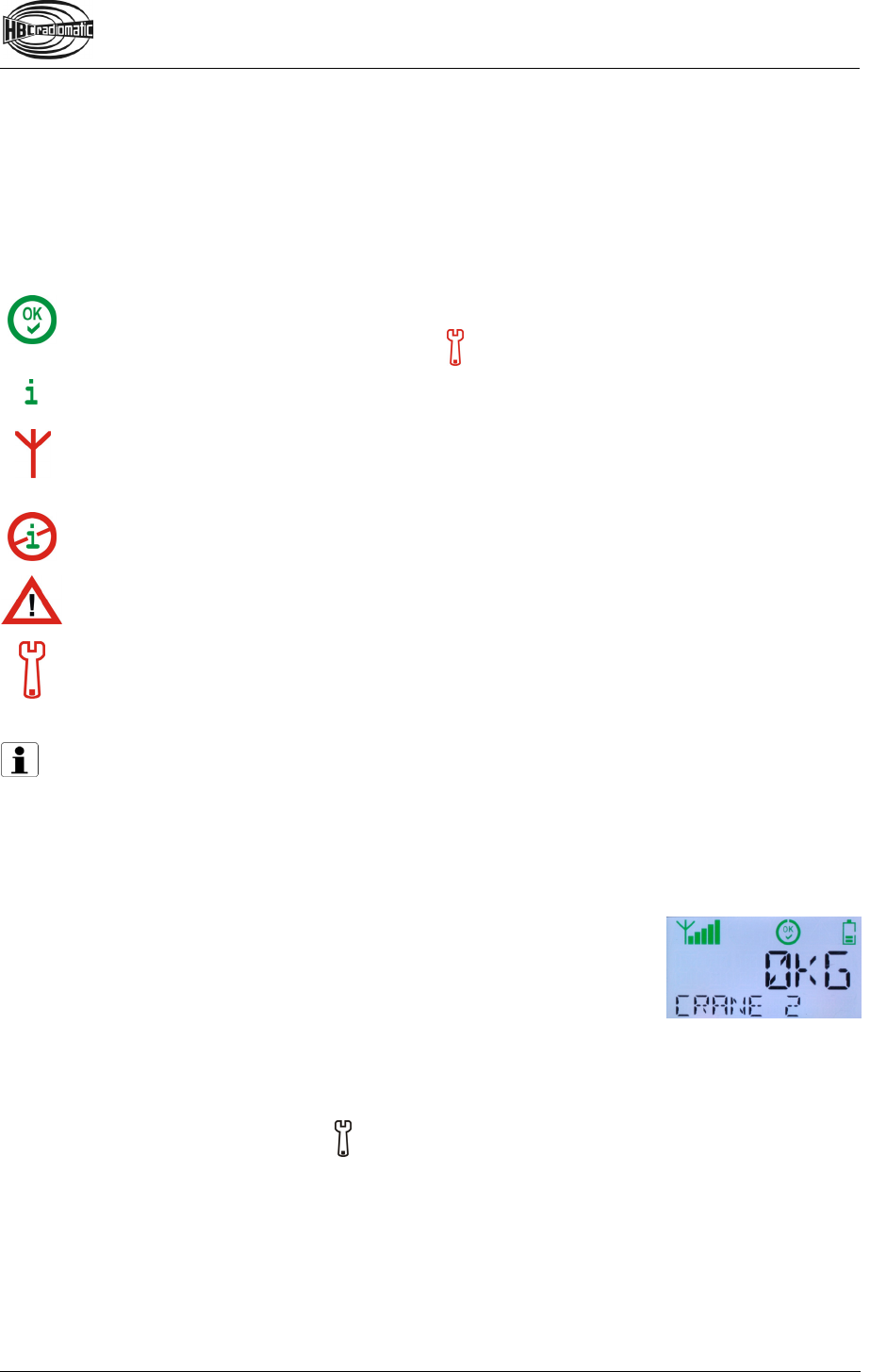

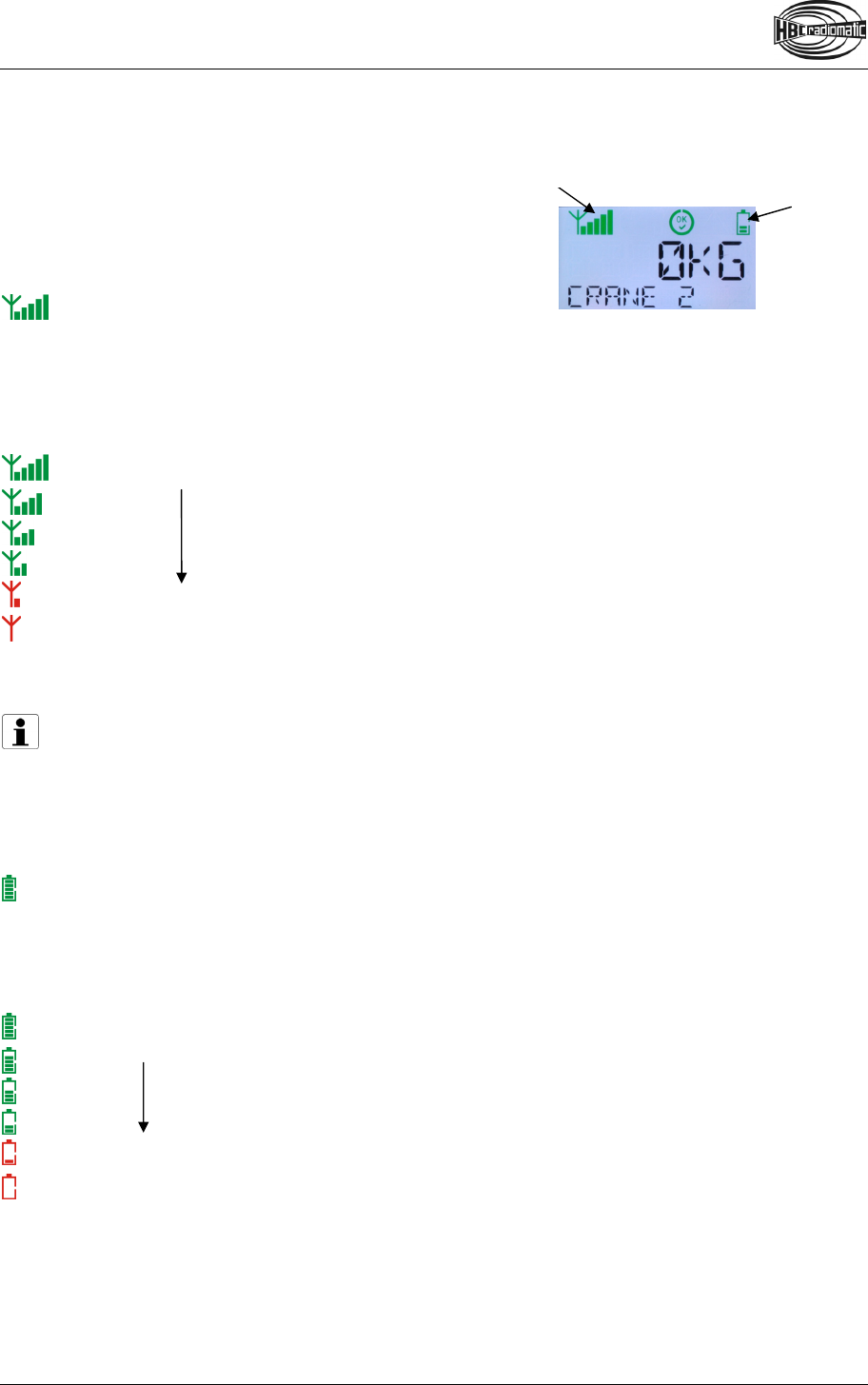

Status Display

Field strength (only for systems with feedback)

The field strength indication provides information about the quality of the radio connection. With a

perfect connection quality, all 5 bars of the indication are displayed green. The field strength indication

is always visible when the transmitter is turned on.

Field strength is indicated in the following degrees:

Perfect reception signal

Weak reception signal

Symbol flashes: Feedback failure. The transmitter is not receiving signals from the

receiver.

Note:

If the field strength is displayed in red or a feedback failure is displayed, the risk of losing

radio connection is imminent. In this case, ensure that the radio connection is not impaired

by an obstacle (e.g. a building). Also take care that you are within the range of the radio

system. It may be necessary to change the working position.

Battery

The battery indication provides information about the current condition of the battery. It is always visible

when the transmitter is turned on.

The battery status is displayed in the following degrees:

Battery charged.

Forewarning: The battery needs to be charged soon.

Warning: The battery has to be charged. About 30 minutes remain until the automated shut-

down.

Field strength

Battery

Feedback

The feedback function is used to transmit various information and data from the machine or the radio

receiver to the radio transmitter. A number of symbols as well as two lines of text with 6 and 10 digits

respectively are available for displaying feedback information.

Feedback via symbols

Symbol shines after the transmitter has been activated.

The symbol disappears if there is a feedback or interface failure, an error notification or

customer-specific warning message, or if the symbol is displayed.

Symbol shines constantly or flashes. This symbol is defined by the customer.

Symbol flashes: Feedback failure. The transmitter is not receiving signals from the

receiver.

Symbol flashes: There is an interface failure.

Symbol shines constantly or flashes: Warning!

This symbol is defined by the customer.

Symbol shines constantly or flashes. This symbol is defined by the customer.

Note:

A detailed description of the displayed customer-specific feedback information has to be part

of the operating manual of the specific machine in use. All instructions the operator has to

follow in connection with the feedback information have to be written there as well.

Feedback via text lines

The customer’s demand determines which feedback information is to be

displayed. For example, line 1 can display the payload and line 2

simultaneously the crane capacity.

If only one line is needed for feedback information, the other line can be used

for status information, for example the crane number.

Error notifications

The display enables the indication of diverse error notifications that are directly connected to the radio

system. If such an error occurs, the symbol is displayed.

Simultaneously one of the following texts is displayed:

ERROR ERROR ERROR ERROR

ADCON iLOG KEYBOARD SI2COMMAND

In case of such an error notification immediately contact the responsible service technician!

Beispiel

Individual display settings

The transmitter display enables the individual adjustment of the following basic settings:

 Display brightness

 Fixed text in line 1

 Fixed text in line 2

Note:

Always perform individual settings while the battery is charged. An empty battery can lead to an

automated shut-down during the setting process and to the loss of all entries up to this point.

Access

The mentioned settings are only accessible in a special settings mode. To access this mode, the

transmitter first has to be deactivated via the STOP switch. Afterwards there are 2 possible procedures,

according to the transmitter version.

Standard version (= without HBC Smart Card)

Perform the following steps in max. 4 seconds:

1. Press the button on the right side of the button in the second step and keep it actuated.

2. Pull the STOP switch.

3. Press the button momentarily and release it. If the button is actuated for longer than half a

second, the transmitter turns off!

4. Press the button again until the status LED flashes green.

5. MENU ADJUSTMENT is now shown in the display. Release the button and the button on the

right side. You are now in the first menu level.

Version with HBC Smart Card

Perform the following steps in max. 4 seconds:

1. Press the button on the right side of the button in the

second step and keep it actuated.

2. Pull the STOP switch. APPLY SMART CARD is now shown in

the display.

3. Hold your HBC Smart Card to the lower end of the transmitter

(cf. illustration).

4. The status LED flashes green. MENU is shown in the first text

line, ADJUSTMENT in the second text line.

Release the button on the right side of the button. You are

now in the selection menu.

Basic functions

There are various menu levels available for entering individual settings. The level you are currently in is

displayed in the first text line (= the upper line). In addition, bars appear in the left corner over the text

line. The number of bars indicates the current menu level. By browsing with the navigation button, the

second text line can display the respective available sub-menus or the configurable fields.

The display navigation and the input of your settings are made via the 2-step button. This operating

element has two basic functions:

 The first step enables browsing between sub-menus or (in the last level of the menu structure)

moving the cursor between the editable values and selecting the requested character. If the first

step is pressed continuously, the display browses through the sub-menus until the button is

released or pressed into the second step. If you momentarily press the button once in step 1, the

next sub-menu is selected.

 The second step is used for menu selection and saving your settings.

All individual settings begin in the selection menu (the first text line here displays MENU). You can

return to the selection menu from all levels easily. Simply press the button in the second step for

longer than 2 seconds.

In the selection menu there are 2 sub-menus, which are shown in the second text line:

Sub-menu ADJUSTMENT

Here you can adjust the display brightness and change the fixed texts in lines 1 and 2 of the display.

Sub-menu SYSTEMDATA

Here you will find information about the radio system that can be useful in a service case (e.g.

fabrication number, service phone number, frequencies etc.). Individual settings are not possible!

Note:

If you want to work with the transmitter after finishing your settings, you need to deactivate the

transmitter via the STOP switch and reactivate it by the standard start-up sequence or your

HBC Smart Card. For safety reasons, changing directly from the settings mode to working mode is

not possible.

Current menu

Current menu level.

Here: Level 1. Selected sub-menu (further

sub-menus or configurable

fields can be displayed by

browsing).

Perform settings

After successfully turning on the transmitter, MENU is shown in the upper line

of the display. The sub-menu ADJUSTMENT is already selected in the lower

text line. If the sub-menu SYSTEMDATA is shown, press once in the first

step until the requested sub-menu ADJUSTMENT is displayed.

Now press in the second step. The sub-menu ADJUSTMENT is opened. ADJUST is displayed in

the upper text line.

Here you can choose between 3 sub-menus, which are displayed in the lower text line:

BRIGHTNESS Adjust display brightness

FIX-TEXT 1 Change text line 1

FIX-TEXT 2 Change text line 2

In case the sub-menus FIX-TEXT 1 and FIX-TEST 2 are not displayed, these setting possibilities have

not been ordered in your product version.

Set display brightness

 Press in the first step until the sub-menu BRIGHTNESS is displayed.

 In order to open the sub-menu, press in the second step.

 BRIGHT is now displayed in text line 1. In line 2, an indication with some

squares  flashes. The amount of squares indicates the

display brightness (more squares mean a brighter display).

 Press in the first step until the desired brightness is set.

 To save the desired brightness value, press in the second step.

 The brightness is saved and the display returns to the menu ADJUST

BRIGHTNESS.

 If you set an undesired brightness value by error, you can repeat this

procedure at any time.

Editing fixed text lines

In the settings mode you can edit the 2 text lines of the display. Text changes have to be performed

separately for each line respectively. Text line 1 contains 6 digits, line 2 contains 10. Each digit can

display both letters and numbers.

How to change texts:

 From the selection menu, change to the ADJUSTMENT menu (cf. chapter “Perform settings”).

 Browse through the sub-menus BRIGHTNESS, FIX-TEXT 1 and FIX-TEXT

2. In case you wish to edit text line 1 in the display, select the sub-menu

FIX-TEXT 1. If you wish to edit text line 2, select FIX-TEXT 2.

 Open the desired sub-menu by pressing in the second step.

 The display now shows the selected text line TEXT 1 or TEXT 2,

depending on which was selected. In the lower line you can see fields with

text, numbers or placeholders . This is the content that

has been displayed in the respective text line until now.

 You can now edit each field individually (also fields with spaces) or enter

text or numbers in each empty field. To achieve this, navigate the cursor

with the first button step to the field you wish to change. The cursor’s

position is indicated by a blue flash of the respective field.

 Press in the second step. The selected field flashes green and is

ready for editing.

 The selection of the desired letter / number is done by the first step of the

button. Press the first button step until the desired digit appears. To

enter the digit, press in the second step. The digit selection for this

field is now completed. The next field flashes blue and again indicates the

cursor’s position.

 Repeat these steps with all fields you wish to edit.

 If you wish to abort, press in the second step for longer than

2 seconds. The display returns to the selection menu.

 When you wish to save your entries, navigate the cursor with the first

button step to the TEXT 1 (or TEXT 2) indication.

 Press in the second step. SAVE is now shown in the display.

 To save, press again in the second step. Your settings are now stored

in the radio system. The display returns to the menu ADJUST

BRIGHTNESS.

 If you wish to work with the radio control after successfully saving,

deactivate the transmitter via the STOP switch and reactivate the radio

system with the respective start-up procedure.

Note:

When saving, a bar graph indicates the advance of the saving process. Do not turn off the

transmitter if the saving process is not completed.

Retrieve system information

Here you can retrieve diverse pieces of information about the radio system that can be of high value in a

service case. The menu contains the following sub-menus:

 Indication of the transmitter’s fabrication number (FSS)

 Indication of the receiver’s fabrication number (FSE)

 Indication of operating hours (HOURS)

 Indication of the service phone number (CALL)

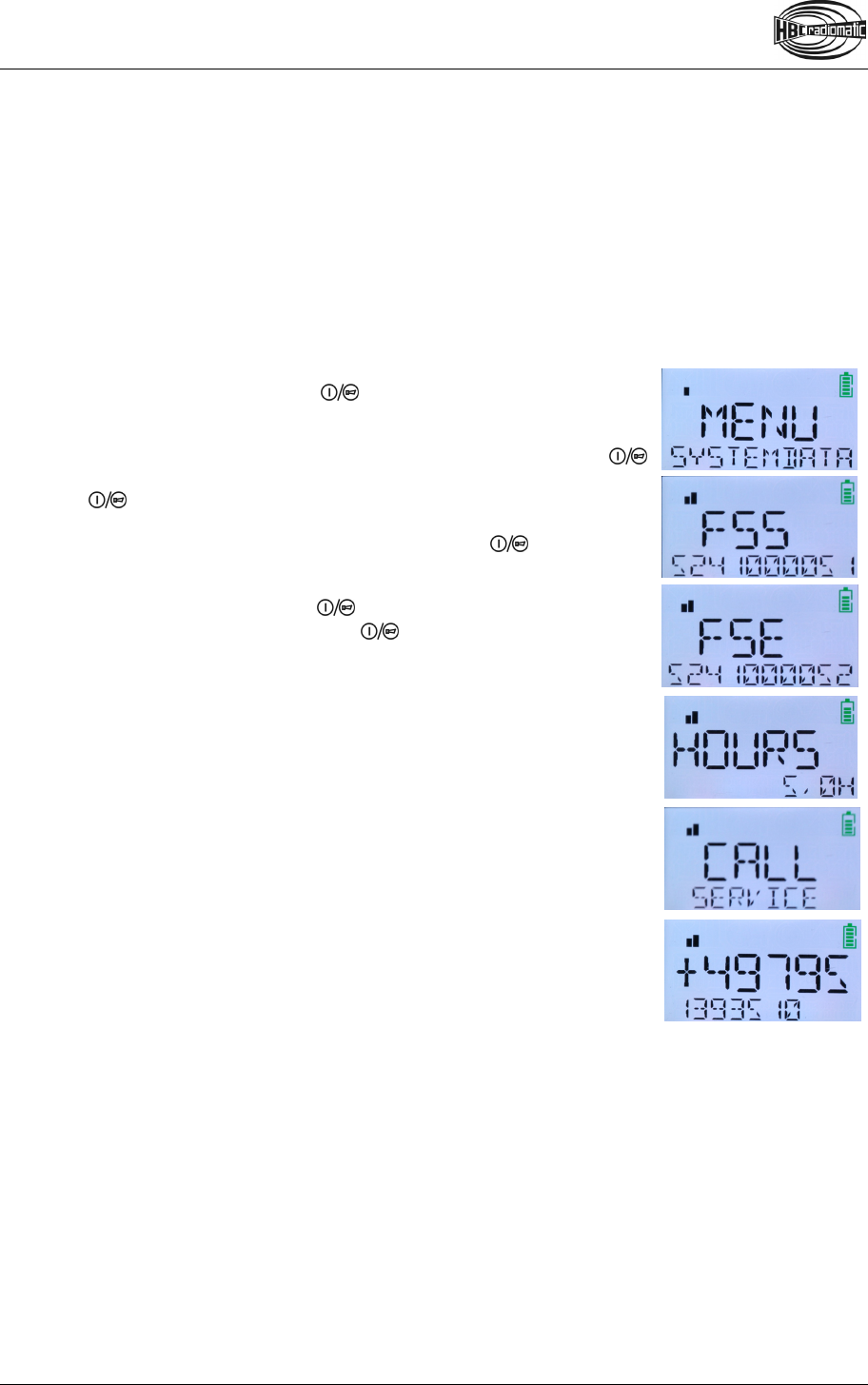

Show data

 If you are not in the selection menu (= first menu level), change to this

menu now. To achieve this, press in the second step for longer than

2 seconds. MENU is now displayed. The lower text line automatically

displays the sub-menu ADJUSTMENT.

 Change to the sub-menu SYSTEMDATA via the first step of the

button.

 Press in the second step. The upper text line now shows FSS, the

lower line shows the transmitter’s fabrication number.

 All further data can be retrieved via the first step of the button.

 Please be aware that the service phone number is shown on two display

pages. The first page shows the text CALL SERVICE. You can see the

service number by again pressing .

 To return to the selection menu, press in the second step for longer

than 2 seconds.

Battery and Battery Charger

NiMH Battery

The battery capacity (= the ability to store electric current) and the battery charge (= the actual amount

of stored current) depend on the age of the battery and the environment temperature. Older batteries

begin to lose capacity over time. If the temperatures are below 0 °C or above 40 °C, the charge

decreases faster.

Note:

 In all cases, charge the batteries completely before initial use and at intervals not exceeding

6 months if they are stored. This ensures that the batteries have their full capacity in use,

even after long storage. Please refer to the date on the battery’s packaging.

 Charge the battery fully before storing it for a prolonged period. Otherwise total discharge may

occur.

 Use only the associated HBC charger to charge the battery

 Charge the battery at an ambient temperature of 0 – 40 °C (32 – 104 °F).

 Charge the battery only when the battery display flashes red, an acoustic signal sounds, the

status LED flashes red and the transmitter vibrates (option).

 Always store rechargeable batteries at room temperature.

 Protect the battery from short circuits and always store it in the protective cover provided.

When handled properly the battery can exceed 500 charging cycles

Battery Charger

Depending on customer selection, an AC or DC charger is available.

Ensure that you observe the following instructions:

 Use this charger only to charge the batteries specified on the type plate.

 The charger may not be used in hazardous areas.

 The charger has to be operated with the voltage indicated on the back.

 The charger has to be used in vehicles or indoors only.

 Use the charger only within the specified temperature range.

 Protect the charger against heat, dust and humidity.

 Do not cover the charger while it is in use.

 Disconnect the charger from the power supply when it is not in use.

 In case of any fault of the charger or the connecting cable disconnect it immediately and put it

out of operation.

 Do not make technical changes to the charger or the connecting cable.

 Defects must be repaired by qualified personnel only.

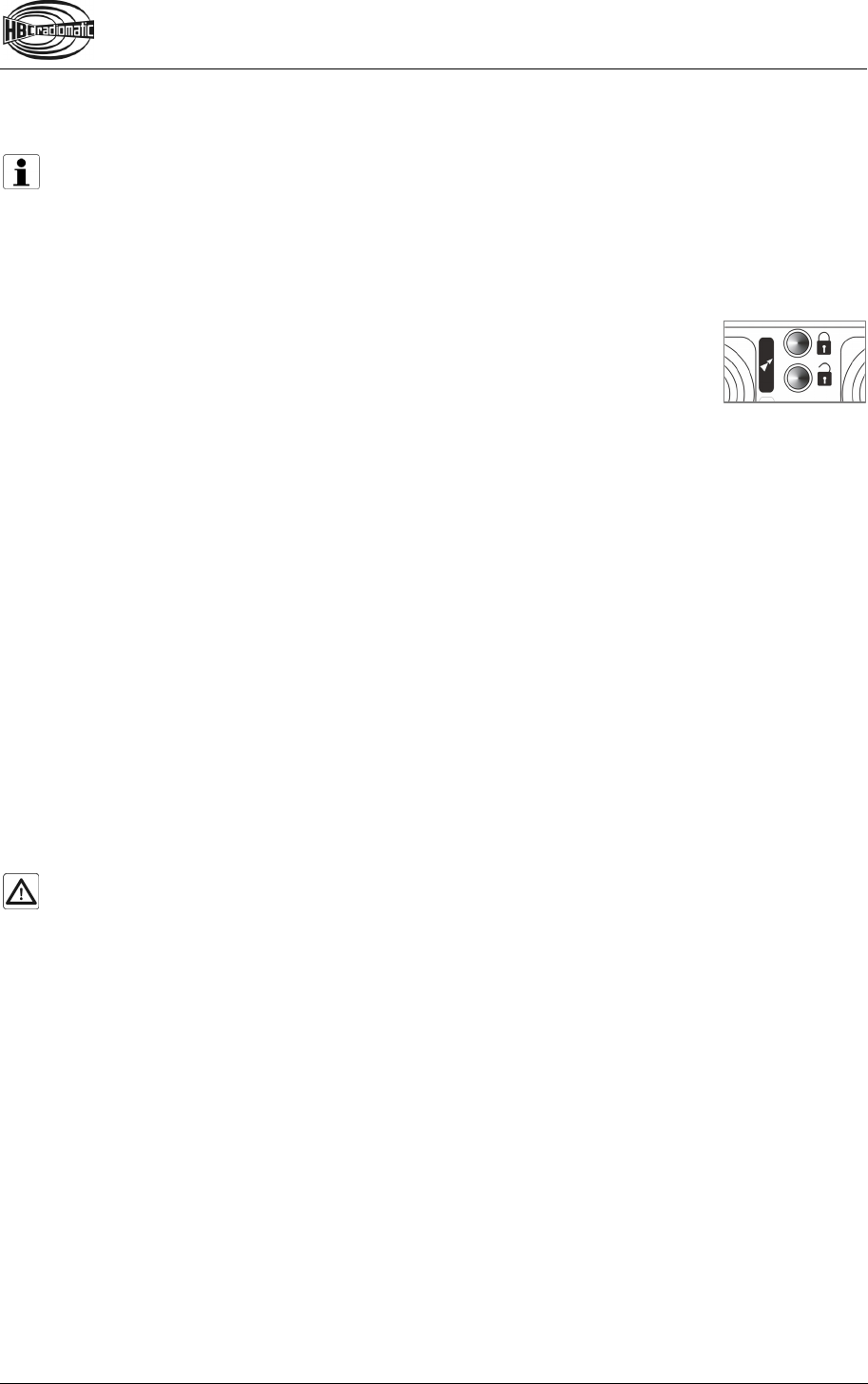

Three LEDs indicate the actual operating state of the battery.

LED green: Illuminates when battery is charged.

LED orange: Illuminates when battery is charging.

LED red: Illuminates when battery is deep discharged or defective.

Note:

If a deep discharged battery is inserted into the charger, the red LED will illuminate for a few

seconds before charging is started (LED orange illuminates).

QA108600 / QD108300 / QD308300 with EC type-approval

The charger is supplied with a connecting cable with a matching power plug.

Charging the battery

1.Connect the charger via the connecting cable to the power supply.

2.Insert the battery into the compartment.

Charging will start automatically.

Technical Data

Operating voltage

100 – 240 V AC (QA108600)

10 – 30 V DC (QD108300 / QD308300)

Charging time ca. 3 h

Operating temperature 10 – 40 °C (50 – 104 °F)

Housing material Plastic

Protection class II

Options

The availability of the following functions depends on the design and configuration of your radio control

system.

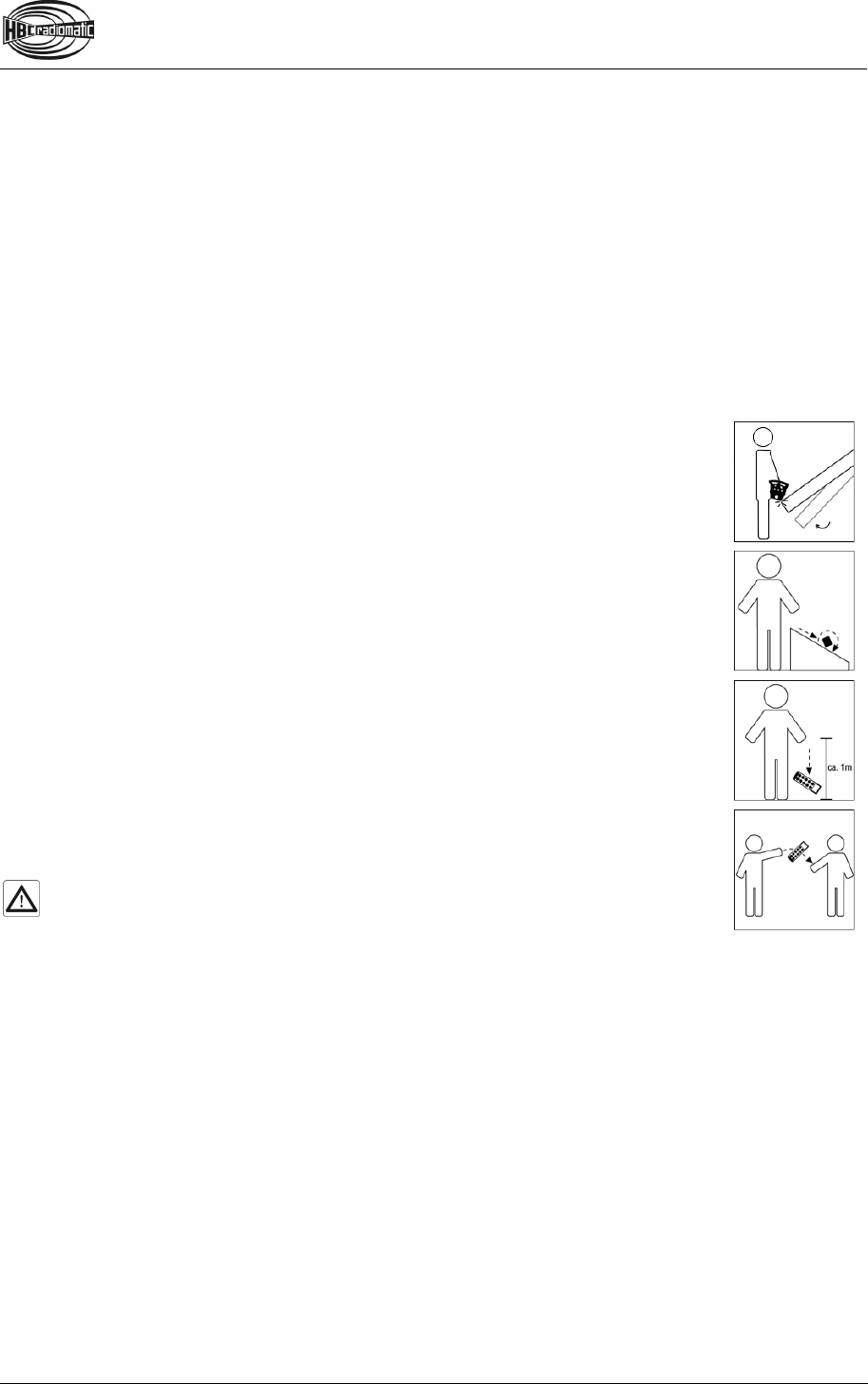

Safety Features

radiomatic® shock-off / roll-detect / zero-g / inclination switch

The safety features enable a quick shut-down of the radio control in specific emergency situations.

Therefore, these intelligent functions prevent a dangerous unintended command from being given to the

crane or machine.

radiomatic® shock-off can trigger a quick automatic shut-down of the radio control in

case of an impact to the transmitter – e. g. if the transmitter is being hit by a massive

object thereby getting out of control.

radiomatic® roll-detect can automatically detect rolling of the transmitter and, in this

case, initiate a quick shut-down of the radio control.

radiomatic® zero-g can automatically detect if the transmitter is dropped or being

thrown to another user. In such cases, zero-g can trigger a quick automatic shut-down

of the transmitter.

inclination switch can deactivate the transmitter, if it exceeds an inclination angle of

approx. 130° – 170° for a certain time and/or if it is placed front side down.

When the transmitter was shut down with radiomatic® shock-off/roll-detect/zero-g or

inclination switch, the start button has to be activated until the status LED flashes

green. Then the transmitter is ready to operate again.

The safety features do not relieve the operator of his responsibility to turn off

the transmitter with the STOP switch when not in use.

radiomatic® infrakey

The radio system can only be activated via an infrared

link between the transmitter and the receiver. This

increases the safety of operation, i.e. the machine can

not become inadvertently enabled.

radiomatic® infrakey operates either with an infrared

module in the receiver housing (radiomatic® infrakey

internal) or with the offset infrared antenna focus I

(radiomatic® infrakey external).

To activate radiomatic® infrakey, actuate the start button

on the transmitter.

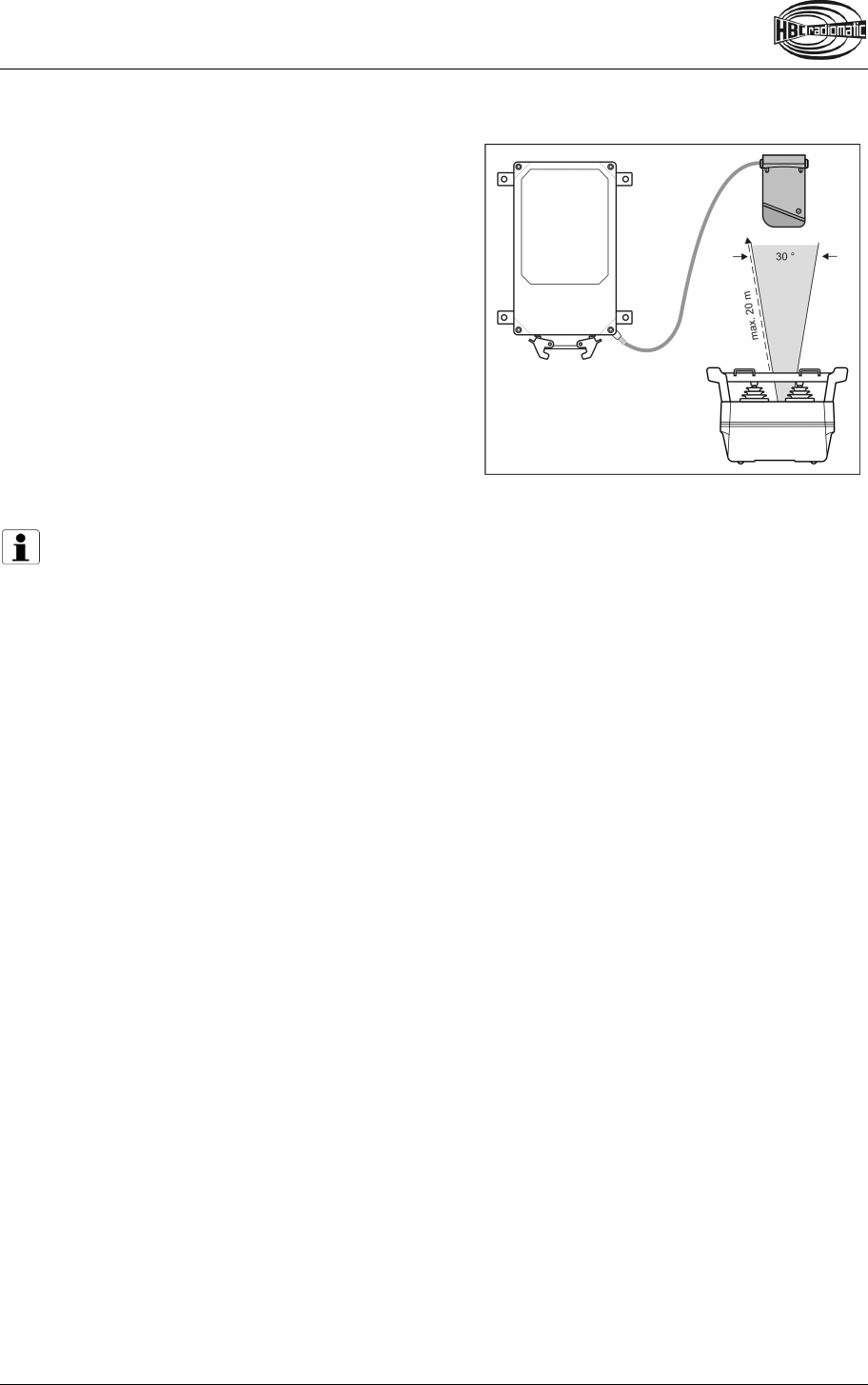

Function of radiomatic® infrakey with focus I

Notes:

 The range of the infrared beam is max. 20 m (66 ft).

 The angle of radiation is 30°.

 The front panel of the receiver must be visible (only radiomatic® infrakey internal).

Joystick with Deadman Function

In order that it is possible to issue control commands the button integrated into the joystick must be

pressed before the joystick is moved. The function then reverts to self-locking and remains effective until

the joystick is back in the zero position. This enables the avoidance of potential risks through the

unintentional actuation of the joystick.

Vibration Alarm

With the vibration alarm, the operator can be informed of an impending need to change the battery

and/or potential dangers on the machine through the vibration of the transmitter. This information can be

for example pre-warnings for high wind speeds or threatening excess crane loads.

Front Panel Lighting

With the front panel lighting potential dangers resulting from incorrect operation, based on poor visibility,

can be prevented. The operator simply switches on multiple LEDs, which are integrated into the rollover

bar, with a switch or button on the transmitter.

Shut-off on Implausible Control Commands

The automatic shut-off will activate after a sequence of multiple questionable movement commands. If,

for example, one or more joysticks on the transmitter are actuated successively in different directions in

an irregular manner, the system switches off automatically.

This function protects the operator and the whole work environment from potential dangers as well as

the machine from wear resulting from rapid and erratic movements.

After an automatic switch-off you must reactivate the transmitter as described in chapter Operation.

Micro Drive

With the micro drive function the speed of the machine is limited to a preselected level. Even at full

movement of the joystick/linear lever, the operator can not exceed this speed limit. In this manner

demanding drive maneuvers can be managed and inexperienced users can be protected from potential

dangers that can result from “speeding”.

Orthogonal Drive (Electronic Cross Gate)

With the orthogonal drive function dangerous situations, caused by unintentional diagonal movements

are being prevented. The operator will have to return the joystick back to zero position before another

directional command can be activated. This function is suitable for example for situations where the

operator has to make precision commands in confined areas. Diagonal movements are not possible.

User identification

The "user identification" function with the HBC Smart Card enables a simple personalization of the radio

system as well as the storage of all user profiles in the radio system. Safety relevant functions can be

released to authorized personnel only and unauthorized users can be protected of potentially dangerous

situations. In addition the radio system can store user-related all operating processes as well as the

respective on time of the radio system. This data can be read from the radio system and shows how long

the radio system was in use and how the individual operators used the various functions of the radio

system.

Frequency Management

Fixed Frequency

If the identification plate in the battery compartment of the transmitter shows a frequency value (e.g.

433,500 MHz), the transmitter operates with a fixed frequency.

Please contact you service department if the frequency has to be changed because the radio channel is

already assigned to another user.

Frequency Selection via Scanner

Transmitter and receiver are equipped with four frequencies (refer to wiring diagrams).

If the radio channel is occupied, you can switch to another radio channel by using the rotary switch on

the transmitter. The scanner in the receiver automatically resets the transmitter to the new frequency

selected within one second.

Manual Frequency Switching

If the identification plate in the battery compartment of the transmitter shows the label man, the

transmitter features manual frequency switching.

This function can be used to change the radio channel during radio operation.

Actuate the start button into the first step until an acoustic signal sounds. Then release the button.

Please contact your service department if all available frequencies are occupied.

radiomatic® AFS

If the identification plate in the battery compartment of the transmitter shows the label AFS, the

transmitter is equipped with radiomatic® AFS (Automatic Frequency Selection).

When activating the transmitter radiomatic® AFS will check if the present radio channel is free. If the

radio channel is occupied, the system automatically finds and saves a free radio channel.

If the radio channel currently in use is occupied by another radio control system, you must switch the

transmitter off and on again in order to allow radiomatic® AFS to switch to a free radio channel.

The radiomatic® AFS option also includes the manual frequency switching function.

Note:

If radiomatic® AFS is to perform optimally, all the other radio systems in the immediate working

environment (e.g. the factory hall or building site) should be switched on before starting to use the

radio system for the first time. This allows radiomatic® AFS to detect automatically which radio

channels are already being used in the working area, and thereby to choose a suitable free

channel for its own use.

In addition, when switching the radio system on for the first time, the user should make sure that

his distance from the radio receiver and from the machine is a realistic reflection of the working

situation.

radiomatic® AFM

If the identification plate in the battery compartment of the transmitter shows the label AFM the

transmitter is equipped with radiomatic® AFM (Automatic Frequency Management).

radiomatic® AFM detects available radio channels constantly. If the radio channel currently in use is

occupied by another radio control system, radiomatic® AFM switches automatically to a free radio

channel.

Catch-Release

Via the Catch-Release option two or more transmitters can control a

machine alternately.

When the receiver is switched on, the machine can initially be

controlled via any associated transmitter. Once the receiver was taken

over by one transmitter, the other transmitters no longer have access.

Take over machine

1.Switch the transmitter on.

2.Enter the "Catch" command on the transmitter and actuate the

start button.

The access rights for the machine remain with that transmitter until the

"Release" command is issued by that transmitter.

Release machine

1.Enter the "Release" command on the transmitter.

2.Switch the transmitter off.

The access rights for the machine are cancelled. Machine control can be taken over by another

transmitter.

Operating Example:

Transmitter 1 has taken over the machine. Transmitter 2 is to be given control.

1.Enter the "Release" command on transmitter 1.

2.Switch transmitter 1 off.

3.Switch transmitter 2 on.

4.Enter the "Catch" command on transmitter 2 and actuate the start button.

Transmitter 2 now has sole access to all machine functions.

Notes:

 If a receiver has already been adopted by a transmitter can be displayed via a lamp on the

machine.

 If the operating voltage of the receiver fails, the receiver returns to the starting condition in

which it can be adopted by any transmitter. If necessary, the receiver must be adopted anew.

 If the transmitter is deactivated without the command "Release" having been issued, the other

transmitters have no access to the receiver. The starting condition described above can only

be resumed by deactivating the operating voltage at the receiver.

Tandem Operation

Tandem Operation T1

The radio system consists of 1 transmitter and 2 receivers for 2

machines. The transmitter can control the machines individually or in

parallel

The machines are selected at the transmitter via a rotary switch:

A only machine A

A+B machine A + machine B

B only machine B

Tandem Operation T2

The radio system consists of 2 transmitters and 2 receivers for 2 machines. Both transmitters are master

transmitters and can control the machines individually or in parallel.

During normal operation transmitter 1 controls machine A and transmitter 2 controls machine B. In order

to be able to switch to machine B or A+B at transmitter 1, for example, the key must be removed from

transmitter 2 and inserted in transmitter 1.

The machines are selected at the transmitter via a rotary switch:

A only machine A

A+B machine A + machine B

B only machine B

Operating Example: Control of machine A + B via transmitter 1.

1.Switch transmitter 1 and 2 off and remove the key from transmitter 2.

2.Insert the key from transmitter 2 in transmitter 1.

Machine selection via transmitter 1 is activated.

3.Turn the rotary switch of transmitter 1 to A+B.

4.Switch transmitter 1 on and actuate the start button.

The radio system now operates in tandem mode.

Warning:

For safety reasons, it is imperatively required that only one key is available for each transmitter.

The spare key must be stored at a superior, authoritative position and only be handed out in

clarified cases.

Tandem Operation TM/TS

The radio system consists of 2 transmitters and 2 receivers for 2 machines. One transmitter is a master

transmitter and can control the machines individually or in parallel. The other transmitter is a slave

transmitter and can only control machine B.

In order to be able to switch to machine B or A+B at the master transmitter, the key must be removed

from the slave transmitter and inserted in the master transmitter.

The machines are selected at the transmitter via a rotary switch:

A only machine A

A+B machine A + machine B

B only machine B

Operating Example: Control of machine A + B via master transmitter.

1.Switch master and slave transmitter off and remove the key from slave transmitter.

2.Insert the key from slave transmitter in master transmitter.

Machine selection via master transmitter is activated.

3.Turn the rotary switch of master transmitter to A+B.

4.Switch master transmitter on and actuate the start button.

The radio system now operates in tandem mode.

Warning:

For safety reasons, it is imperatively required that only one key is available for each transmitter.

The spare key must be stored at a superior, authoritative position and only be handed out in

clarified cases.

Catch-Release-Tandem Operation

With the Catch-Release-Tandem Operation two or more transmitters can control several machines

alternately.

Each machine is equipped with a receiver that can receiver and monitor all transmitter frequencies.

After activating the receivers all transmitters have equal access to the radio control system.

Take over machine

1.Switch the transmitter on.

2.Turn rotary switch on the transmitter to the respective position.

3.Enter the "Catch" command on the transmitter and actuate the start button.

The transmitter with control over the machine(s) retains the access to the receiver until the operator has

issued the "Release" command.

Release machine

1.Enter the "Release" command on the transmitter.

2.Switch the transmitter off.

The access rights for the machine(s) are cancelled. Machine control can be taken over by another

transmitter.

Operating Example:

Transmitter 1 has taken over machine A. Transmitter 2 is to be given control over machine A+B.

1.Enter the "Release" command on transmitter 1.

2.Switch transmitter 1 off.

3.Switch transmitter 2 on.

4.Turn rotary switch on transmitter 2 to A+B.

5.Enter the "Catch" command on transmitter 2 and actuate the start button.

Transmitter 2 now has sole access to all machine functions.

Notes:

 If a receiver has already been adopted by a transmitter can be displayed via a lamp on the

machine.

 If the operating voltage of the receiver fails, the receiver returns to the starting condition in

which it can be adopted by any transmitter. If necessary, the receiver must be adopted anew.

 If the transmitter is deactivated without the command "Release" having been issued, the other

transmitters have no access to the receiver. The starting condition described above can only

be resumed by deactivating the operating voltage at the receiver.

Cable Control

With a cable you can generate a direct data connection

between the transmitter and receiver. The radio

transmission is disabled. At the same time, the power

supply of the transmitter is provided through the cable, as

well.

Connecting the cable

1.Switch the transmitter off.

2.Remove the screw lock on the transmitter and

receiver.

3.Connect the transmitter and the receiver with the

cable. Ensure that the connector is locked.

4.Switch the transmitter on.

Notes:

 If you connect the cable while working with the system, the transmitter will switch off

automatically. Actuate the start button to switch to cable operation.

 When the system is in cable mode the transmitter will receive the supply voltage from the

receiver, i.e. the transmitter can be used without the battery.

 If you disconnect the cable from the transmitter and receiver, the system will switch off

automatically. Actuate the start button to switch back to radio operation.

radiomatic® masterkey

This option offers the possibility for the operator to easily exchange a defective transmitter for a spare

transmitter. radiomatic® masterkey (key) holds all the pertaining system information such as frequency

and address code. When the radiomatic® masterkey is inserted into the spare transmitter all necessary

information is transmitted.

Data transfer only works with transmitters that are equipped with this option. Otherwise the radiomatic®

masterkey is only used for switching the transmitter on or off.

If a transmitter without radiomatic® masterkey preparation is operated with a radiomatic® masterkey

(mechanically the key has the same function), it will therefore continue to function with "its" internally

programmed receiver (see type plate).

Address Changeover via Coding Plug

The coding plug activates a preselected frequency and address coding in the transmitter which

corresponds with the data of the respective receiver.

If the coding plug is inserted in a spare transmitter, it will receive the same data as the original

transmitter. The spare transmitter can therefore now access the receiver

Changing the coding plug:

Turn the union nut to the left

and pull out the coding plug.

Put the coding plug into the socket of

the spare transmitter and lock it by

turning the union nut to the right.

Notes:

 Operation is not possible without coding plug.

 If the coding plug is removed during operation the transmitter switches off immediately.

 The coding plug is labeled with the fabrication number of the respective receiver.

Utilization of Button as Shift Key

The RPM+ and RPM– buttons have a dual function.

If the button is kept depressed and the RPM+ resp. RPM– button is also activated, the Motor Start

resp. Motor Stop command will be output.

Enabling of the Proportional Outputs

The start button must be depressed after the system has been activated and enabled via Si1 (at the

receiver). It is not until this has been done that the function of the compact linear levers at the receiver

will be enabled.

Rotary Switch for Preselected Speed

Using the rotary switch it is possible to choose between four maximum machine speeds, which are set in

accordance with the customer’s requirements.

The symbols for the speed adaptation have the following meanings:

= maximum speed 100 %

= maximum speed, limited to 75 %

= maximum speed, limited to 50 %

= maximum speed, limited to 25 %

Slewing Gear Release

Note:

Whenever the command "slewing gear release" is actuated by means of the radio control, it is

important that the respective check be made.

Due to the above, a clearly visible indicator lamp should be installed on the machine.

Feedback by LED

Using this function, system or machine data can be displayed on the transmitter by

LEDs.

RF-amplifier

If the transmitter is equipped with an RF-amplifier, please refer to the transmitter wiring diagram. There

you can also find the directions on how to activate the RF-amplifier.

Pre-selection of Trolley or Hoist

The operator is able to select the trolley or hoist that he wishes to control. It is also possible to

simultaneously control both trolleys/hoists, for example in order to transport particularly long or wide

loads.

Transmitter Key up

With the transmitter key up function, radio commands are only transmitted at the touch of a key and the

transmitter will automatically be switched off after 7 seconds of non-use. For example, self-monitoring

gates can thus be opened or closed by several operators.

During longer breaks the transmitter must be switched off by pressing the STOP switch.

The "transmitter key up" function also saves battery power.

Caution:

The transmitter key up function does not relieve the operator of his responsibility to turn off the

transmitter with the STOP switch when not in use.

Technical Data

Unique system addresses over 1.000.000 combinations

Supply voltage 3,6 V

EMS category The mains supply is cut off by a STOP switch. Therefore,

the criteria for an elimination of errors according to EN ISO

13849-2 chapter D.5.3., table D.8 (non-opening of

contacts) are met. The performance level of the respective

receiver applies.

Frequency ranges 308 – 338 MHz, 405 – 475 MHz1, 865 – 870 MHz,

902 – 928 MHz; 1210 – 1258 MHz1

DECT: 1880 – 1900 MHz

1 Not all frequency ranges available.

Channel spacing 12,5 / 20 / 25 / 50 / 250 kHz

DECT: 1,728 MHz

Transmitter antenna internal

Battery type BA223030 (NiMH)

Battery capacity 2100 mAh

Continuous operating time ca. 17 h (standard version without feedback)

Operating temperature range −20 °C – 70 °C

hazardous areas zone 2: −20 °C – 60 °C (−4 °F – 140°F)

Housing material impact-resistant plastic

Dimensions 240 x 68 x 58 mm (9.5 x 2.7 x 2.3 ")

Weight (incl. battery) ca. 550 g (1.2 lb.)

Protection class IP 65

Dimensions

Troubleshooting

Note:

Please check the functions using the cabin or cable controls first!

Problem Possible Cause Remedy

Transmitter does not react

when switched on.

 No power.  Check battery contacts for

damage or contamination.

 Insert a fully charged battery

into the battery

compartment.

 Recharge battery.

Low-power indication after

minimal operating time.

 Battery contacts are

contaminated or damaged.

 Battery not charged.

 Battery defective.

 Check battery contacts for

damage or contamination.

 Recharge battery.

 Ensure that recharging

process runs correctly.

 Check transmitter functions

using a fully charged or

replacement battery.

The display in the transmitter

flashes green but it is not

possible to effect control

commands.

 Receiver has no voltage.

 No radio communication.

 "Crane On" command has

not been given.

 Check the connecting cable

to the receiver.

 Check the functions via the

LEDs in the radio status

panel of the receiver.

Some commands are not

carried out.

 Receiver defective.

 Interruption in the

connecting cable to the

machine.

 Check if all connecting

cables and cable junctions

are tight.

If none of the measures mentioned resolve the problem, then please contact your service technician,

dealer or HBC-radiomatic, Inc.

Maintenance

The radio control system is virtually maintenance-free. Please observe the following points:

 Check the STOP switch functionality at regular intervals. Dirt deposits on the switch can hinder the

mechanism and impair the function.

 Check the rubber bellows or rubber seals of the operating elements at regular intervals for leak-

tightness. Replace immediately if cracks appear since the penetration of dirt and humidity may

damage the function of the operating elements.

 Never use a high-pressure cleaner or sharp or pointed objects to clean the transmitter.

 Charge and discharge transmitter batteries regularly.

In the Event of a Fault

Warning:

Never operate a machine with a faulty or defective radio control system!

 Never try to repair the electronics of the radio control system! Opening the transmitter or receiver

housing terminates the manufacturer guarantee.

 Send any defective or faulty equipment to your local distributor or to HBC-radiomatic, Inc. They

are experts and have the necessary know-how and OEM spare parts.

 Always send both transmitter and receiver and enclose a detailed description of the problem.

 Do not forget to enclose your address and telephone number so that we can get in touch with

you quickly if necessary.

 To avoid damage during transport, use the original packing supplied with the transmitter and

receiver, otherwise pack securely. Send the consignment to your distributor or to the following

address:

HBC-radiomatic, Inc.

1017 Petersburg Road

Hebron, KY 41048, USA

Telephone: +1 800 410-4562

Fax: +1 866 266-7227

 Should you decide to personally return a defective radio system to your distributor or

HBC-radiomatic, Inc., then please make an appointment first.

Form

Return Delivery Note

Date: 27.07.2004

U. Weissmann / G. Brose / A. Hemming

Revision: 10

Page: 1 of 1

HBC

HBC-radiomatic GmbH Phone: + 49 (0)7951 393 800

Haller Str. 45 – 53 Transaction No. (provided by HBC): Fax: + 49 (0)7951 393 802

Email: service@radiomatic.com

74564 Crailsheim, Germany ...................................................................... Internet: www.hbc-radiomatic.com

Contact for further information:

Contact person: ..........................................…….. Phone: ........................................ Fax: ……………………………….

.............................................................................. Email: ………………………………

Reason for goods return *):

Repair Estimate required? yes no

Modification

Wrong order customer’s order no.: ..…………………………………………………….

Wrong delivery

For credit corresponding invoice no.: ……............................................... ….….

*) in order to work on your return rapidly, please state precisely the fault report and invoice no.

HBC Fabr. No.: ................................. Description of problem:

Transmitter: ...................................... ...................................................................................................................

Receiver: .......................................... ...................................................................................................................

Charger: ........................................... ...................................................................................................................

Batteries: .......................................... ...................................................................................................................

Cable: ............................................... ...................................................................................................................

Other accessories: ........................... ...................................................................................................................

Absolutely necessary information

PCB............................... from system Problem appears: due to vibration / shock

if warm or hot

Fabr. No.: ......................................... if cold

...................................... sometimes

commonness: ………………..

...................................... always

...................................... never

(in good order, not needed pcb)

Note:

For system repairs, please send (if possible) the complete system including transmitter, receiver, batteries, charger and cable

with detailed description of the problem.

The return is subject to the conditions described in paragraph 8 (Guarantee) in our standard terms & conditions.

Returns will only be accepted CIF Crailsheim, Germany. Preferred shipping via DPD and UPS Standard.

Please use the original HBC packaging if possible. Please use proper packaging to avoid electrostatic discharge hazards with

pcbs and/or modules. Warranty claims may not be accepted in case of improper packaging.

Returns shipped ex works or unpaid will not be accepted without express written consent by HBC.

Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und Mitteilung ihres In-

halts sind nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen

verpflichten zu Schadensersatz. Alle Rechte für den Fall der Patentierung oder GM-Ein-

tragung vorbehalten.

Copying of this document, and giving it to others and the use or communication of the

contents thereof, are forbidden without express authority. Offenders are liable to the

payment of damages. All rights are reserved in the event of the grant of patent or the

registration of a utility model or design.

HBC-radiomatic

GMBH

Formblatt Rücklieferschein

Erstellt am: 27.07.2004

Von: U. Weissmann / G. Brose / A. Hemming

Revision: 9

Seite: 1 von 1

HBC

HBC-radiomatic GmbH Tel.: + 49 (0)7951 393 800

Haller Str. 45 – 53 Vorgangs-Nr. (von HBC vergeben) Fax: + 49 (0)7951 393 802

E-Mail: service@radiomatic.com

74564 Crailsheim …………………………………………………. Internet: www.hbc-radiomatic.com

Kontakt bei Rückfragen

Ansprechpartner: ..................................... …….. Telefon: .................................... Fax: ……………………………….

.......................................................................... Email: ………………………………

Grund der Rücklieferung *):

Reparatur Kostenvoranschlag gewünscht? ja nein

Umbau

Falschbestellung zu Bestell-Nr.: …………………………………………………………….

Falschlieferung

zur Gutschrift zu Rechnungs-Nr.: .......................................................................

*) Um Ihre Rücklieferung rasch bearbeiten zu können, geben Sie bitte die Fehlerbeschreibung sowie die Rechnungs-Nr. der Ware an.

HBC Fabr. Nr.: ............................... Fehlerbeschreibung:

Sender: .......................................... .............................................................................................................

Empfänger: .................................... .............................................................................................................

Ladegerät: ...................................... .............................................................................................................

Akkus: ............................................ .............................................................................................................

Anschlusskabel: ............................. .............................................................................................................

Sonstiges Zubehör: ........................ .............................................................................................................

unbedingt auszufüllen

Platine........................... aus System Mangel tritt auf: bei Erschütterung

bei Wärme

mit Fabr. Nr.: .................................. bei Kälte

manchmal Häufigkeit: ..............................

immer

nie (intakte, nicht benötigte Platine)

Hinweis:

Bitte senden Sie bei System-Reparaturen möglichst das komplette System zurück - inkl. Sender, Empfänger, Akkus, Ladege-

rät und eventuell Anschlusskabel mit einer detaillierten Fehlerbeschreibung.

Die Rücksendung erfolgt unter Beachtung der in Ziffer 8 (Gewährleistung) unserer Allgemeinen Geschäftsbedingungen enthal-

tenen Bestimmungen.

Bitte liefern Sie die Ware frei Haus an uns zurück! Bevorzugte Speditionen: DPD und UPS Standard. Verwenden Sie mög-

lichst die original HBC Umverpackung für die Rücklieferung. Für elektronische Bauteile und/oder Platinen ist eine ESD-Schutz-

Verpackung zu verwenden. Garantieansprüche können bei Fehlen der ESD-Schutz-Verpackung erlöschen.

Anlieferungen „unfrei“ ohne vorherige schriftliche Freigabe durch HBC werden nicht akzeptiert.

HBC radiomatic MICRON7 Remote control with RFID User Manual AOM70U00

HBC-radiomatic GmbH Remote control with RFID AOM70U00

User Manual

Navigation menu

Namespaces

Views

Navigation
