Remote Control user manual

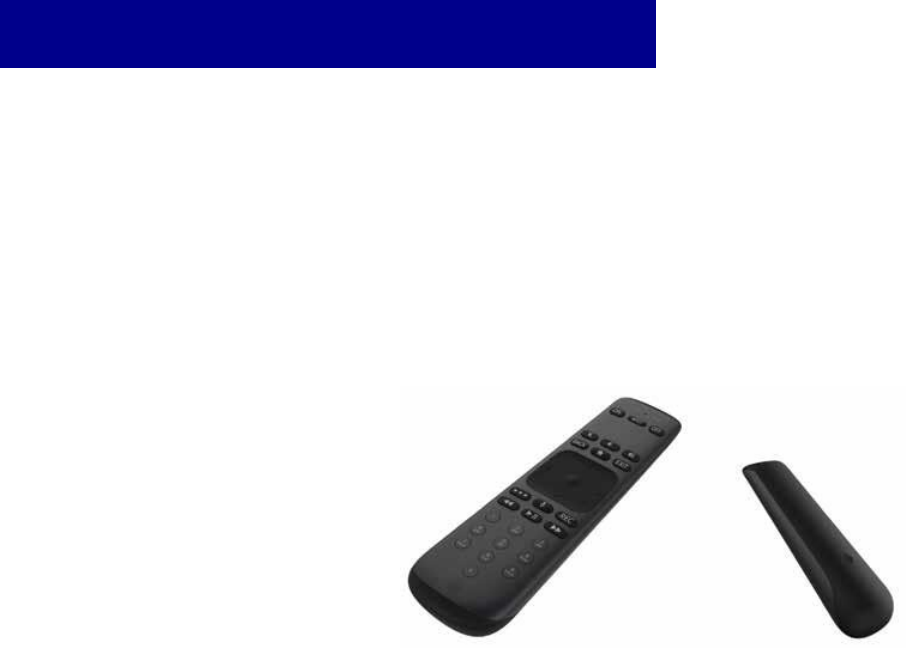

Remote Control
Remote control can be programmed to operate some features on TVs or
audio/video equipment. The key features of the remote are:
• The Remote works in IR, RF and Bluetooth interface.
• The remote uses Bluetooth for two-way communication to the STB
• Like RF mode, Bluetooth eliminates the need for the remote and the
paired devices to be in line of sight to each other.
• The Remote has a touchpad. Basic operations and functions can be made by
sliding and pressing the touchpad.
• If the remote is not paired to
a STB, the touchpad can
be used for functions like Up,
Down, Left, Right and Select.
• Once the remote is paired to
a STB, it can send absolute
touch data to the STB
Voice recognition is available with
the VRC81 Remote. Voice search
will only work when the remote is
paired to the STB.
Activating RF
To pair the remote control to the STB, perform the following steps:
1. Press and HOLD MUTE and VOL+ at the same time until the blue light blinks after this.
2. STB enters searching mode and choose the remote control.
3. Pair with STB.
Deactivating RF
To deactivate the RF Transmitter on the remote control, perform the following steps:
The RCU pairing can be cleared pressing and holding <<FFWD+REW>> keys simultaneously
for 3 seconds. The RCU should also send the un-pairing message to STB so that the STB can
remove the pairing entry
RESTORING FACTORY DEFAULT SETTINGS
To reset all the functions of the remote control to the factory default settings following these
steps:
1. Press and hold MUTE and SELECT at the same time until the green light flashes twice.
2. Using the number keys enter 981
Federal Communications Commission Interference Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Attention that changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note: This product has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This product generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
product does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Responsible Party:
ATT/DIRECTV
2230 E. Imperial Hwy
El Segundo, CA 90245
1-800-DIRECTV
