HCY Electrics and Technology HCY-57B Air Mouse User Manual 15 HCY 57B UserMan

Shenzhen HCY Electrics and Technology Co., Ltd Air Mouse 15 HCY 57B UserMan

15_HCY-57B UserMan

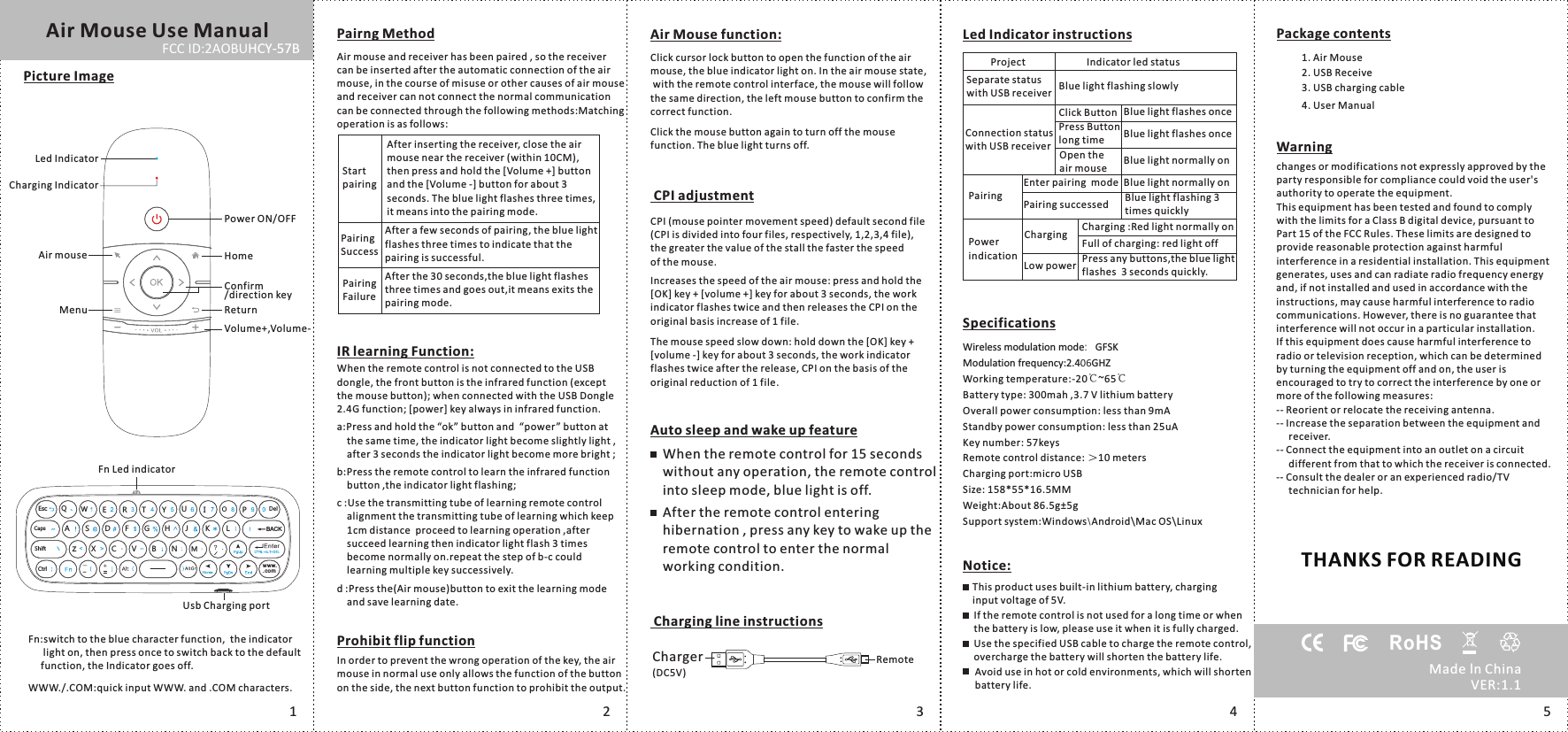

Project Indicator led statusSeparate status with USB receiver Blue light flashing slowlyConnection status with USB receiverClick ButtonPress Button long timeOpen the air mousePairingPower indication Low powerChargingAir Mouse function: Click cursor lock button to open the function of the air mouse, the blue indicator light on. In the air mouse state, with the remote control interface, the mouse will follow the same direction, the left mouse button to confirm the correct function. CPI adjustmentCPI (mouse pointer movement speed) default second file (CPI is divided into four files, respectively, 1,2,3,4 file), the greater the value of the stall the faster the speed of the mouse.Increases the speed of the air mouse: press and hold the [OK] key + [volume +] key for about 3 seconds, the work indicator flashes twice and then releases the CPI on the original basis increase of 1 file.The mouse speed slow down: hold down the [OK] key + [volume -] key for about 3 seconds, the work indicator flashes twice after the release, CPI on the basis of the original reduction of 1 file.Auto sleep and wake up featureWhen the remote control for 15 seconds without any operation, the remote control into sleep mode, blue light is off.After the remote control entering hibernation , press any key to wake up the remote control to enter the normal working condition. RemoteCharger(DC5V) Charging line instructionsAir Mouse Use ManualPicture ImageLed IndicatorCharging IndicatorPower ON/OFFAir mouse HomeConfirm/direction keyMenu ReturnVolume+,Volume-Fn Led indicatorUsb Charging portFn:switch to the blue character function, the indicator light on, then press once to switch back to the default function, the Indicator goes off.WWW./.COM:quick input WWW. and .COM characters..c omww w.Esc QWE R T Y IUOPDelJCaps A S D F G H K L BACKShift zX C V NB MCtrlPairng MethodAir mouse and receiver has been paired , so the receiver can be inserted after the automatic connection of the air mouse, in the course of misuse or other causes of air mouse and receiver can not connect the normal communication can be connected through the following methods:Matching operation is as follows:When the remote control is not connected to the USB dongle, the front button is the infrared function (except the mouse button); when connected with the USB Dongle 2.4G function; [power] key always in infrared function.a:Press and hold the “ok” button and “power” button at the same time, the indicator light become slightly light , after 3 seconds the indicator light become more bright ;b:Press the remote control to learn the infrared function button ,the indicator light flashing;c :Use the transmitting tube of learning remote control alignment the transmitting tube of learning which keep 1cm distance proceed to learning operation ,after succeed learning then indicator light flash 3 times become normally on.repeat the step of b-c could learning multiple key successively.d :Press the( )button to exit the learning mode and save learning date.Air mouseProhibit flip functionIn order to prevent the wrong operation of the key, the air mouse in normal use only allows the function of the button on the side, the next button function to prohibit the output.After inserting the receiver, close the air mouse near the receiver (within 10CM), then press and hold the [Volume +] button and the [Volume -] button for about 3 seconds. The blue light flashes three times,it means into the pairing mode.Start pairingAfter a few seconds of pairing, the blue light flashes three times to indicate that the pairing is successful.Pairing SuccessAfter the 30 seconds,the blue light flashes three times and goes out,it means exits the pairing mode.Pairing FailureIR learning Function:Click the mouse button again to turn off the mouse function. The blue light turns off.Led Indicator instructionsBlue light flashes onceBlue light flashes onceBlue light normally onEnter pairing mode Blue light normally onPairing successed Blue light flashing 3 times quicklyCharging :Red light normally onFull of charging: red light offPress any buttons,the blue light flashes 3 seconds quickly. SpecificationsPackage contents1. Air Mouse2. USB Receive3. USB charging cable4. User ManualWireless modulation mode：GFSKModulation frequency:2.406GHZWorking temperature:-20℃~65℃Battery type: 300mah ,3.7 V lithium battery Overall power consumption: less than 9mA Standby power consumption: less than 25uA Key number: 57keysRemote control distance: ＞10 metersCharging port:micro USBSize: 158*55*16.5MMWeight:About 86.5g±5gSupport system:Windows\Android\Mac OS\LinuxNotice:This product uses built-in lithium battery, charging input voltage of 5V.If the remote control is not used for a long time or when the battery is low, please use it when it is fully charged.Use the specified USB cable to charge the remote control, overcharge the battery will shorten the battery life.Avoid use in hot or cold environments, which will shorten battery life.123 4changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.WarningFCC ID:2AOBUHCY-57BTHANKS FOR READING5Made ln ChinaRoHSVER:1.1
