HELLA and KGaA 934692A Field Disturbance Sensor User Manual Testreport ETS 300 335

Hella KGaA Hueck & Co. Field Disturbance Sensor Testreport ETS 300 335

Contents

Users Manual-2

Reference Test report no. 15009836
EUT: LCA 3.5 - GM
FCC ID: NBG934692A
FCC Title 47 CFR Part 15 C
Date of issue: 2015-03-31
Date: 2015-03-13
Vers. no. 1.15
m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920
Annex acc. to FCC Title 47 CFR Part 15
relating to
Hella KGaA Hueck & Co.
LCA 3.5 - GM
Annex no. 5
Functional Description
Title 47 - Telecommunication
Part 15 - Radio Frequency Devices
Subpart C – Intentional Radiators
Measurement Procedure: ANSI C63.4-2009
Reference Test report no. 15009836
EUT: LCA 3.5 - GM
FCC ID: NBG934692A
FCC Title 47 CFR Part 15 C
Date of issue: 2015-03-31
Date: 2015-03-13
Vers. no. 1.15
m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920
Functional Description of the test equipment (EUT)
LCA 3.5 - GM – Lane Change Assistant
System Function and Purpose:
The LCA is an advanced driver assistant system, to warn the driver of the subject vehicle against potential
collisions with vehicles to the side and/or to the rear of the subject vehicle, and moving in the same direction as the
subject vehicle during lane change manoeuvres. The system therefore detects vehicles to the rear and sides of the
subject vehicle.
When the subject vehicle driver indicates the desire to make a lane change, the system will evaluate the situation
and warn the driver if a lane change is not recommended. LCA is not meant to encourage aggressive driving. The
absence of a warning will not guarantee that the driver can safely make a lane change manoeuvre. The system will
not take any automatic action to prevent possible collisions. Responsibility for the safe operation of the vehicle
remains with the driver.
LCA System Architecture:
The LCA consists of two radar sensor units which are mounted behind the rear bumper in the left and right rear
corners of a car so that the rear and the sides of the car can be observed. One of the units is the main control unit
"master" and the other is the "slave". The two units interchange data between each other via the sensor CAN-bus.
The master interchanges data with other electronic control units of the vehicle via the vehicle CAN-bus. Both units
incorporate an RF part and a DSP to preform the radar signal processing. Only the master incorporates a
microprocessor which handles the communication to the vehicle CAN bus.
The warning lamps for the left and the right side are connected to the slave.
Reference Test report no. 15009836
EUT: LCA 3.5 - GM
FCC ID: NBG934692A
FCC Title 47 CFR Part 15 C
Date of issue: 2015-03-31
Date: 2015-03-13
Vers. no. 1.15
m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920

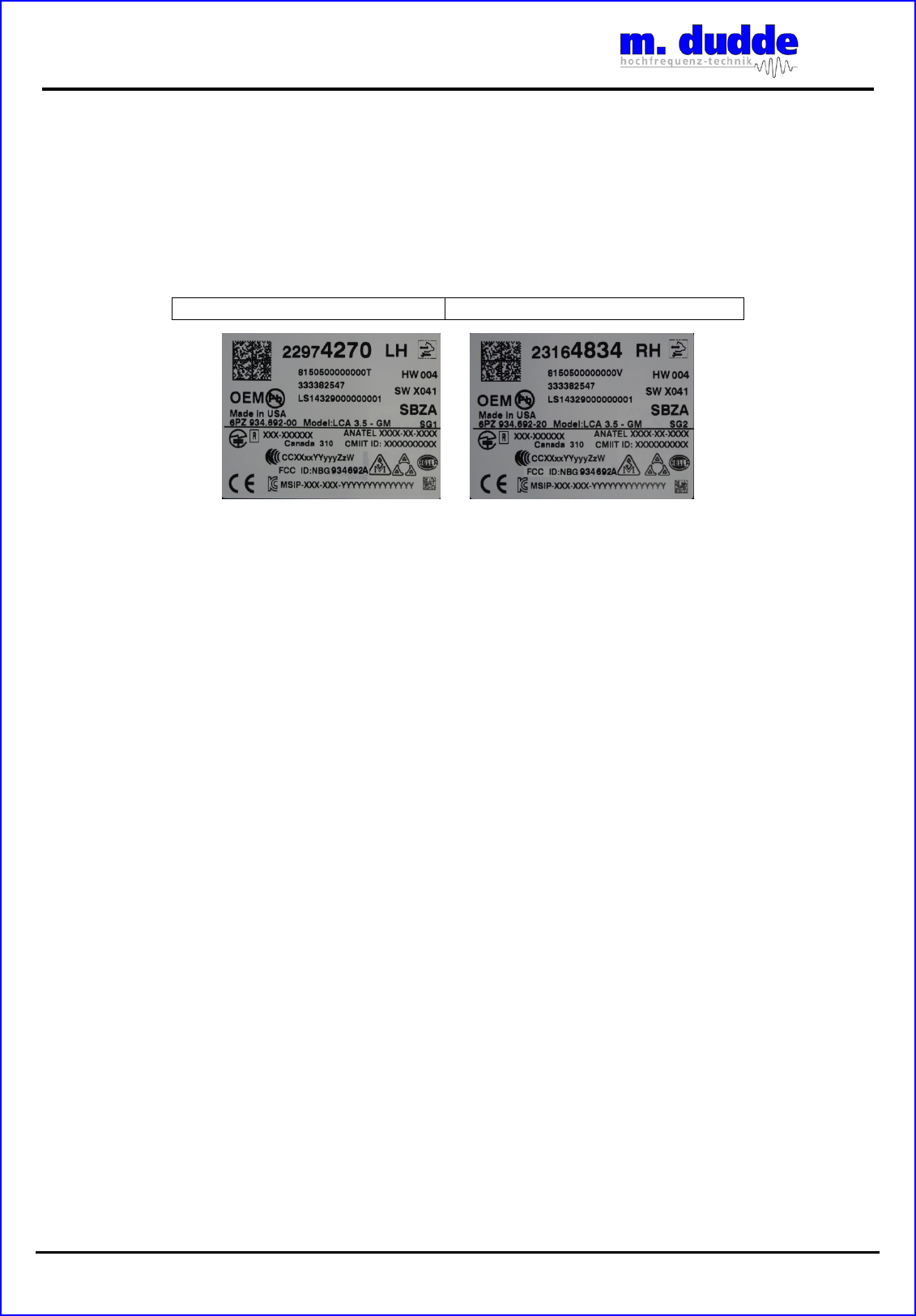

FCC / IC / Japan Label:
Declaration of Conformity for USA
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Usually this is followed by the following FCC caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment
Note: This equipment has been tested and found to comply with the limits digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may case harmful interferences
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
Declaration of Conformity for CANADA
Declaration of Conformity in English:
This device complies with RSS-310 of Industry Canada. Operation is subject to the condition that this
device does not cause harmful interference.
Déclaration de conformité en francais:
Cet appareil est conforme au CNR-310 d'Industrie Canada. Son exploitation est autorisée sous réserve
que l'appareil ne cause pas de brouillage préjudiciable.
LCA 3.5 - GM (SLAVE)
