The HES 1600 Series Electric Strike is the most advanced electric strike available on the
market for cylindrical latchbold and deadbolt locks.
Environmental Product Declaration
HES 1600 Series
Electric Strike
ASSA ABLOY is committed to
providing products and services
that are environmentally sound
throughout the entire production
process and the product lifecycle.
Our unconditional aim is to make
sustainability a central part of our
business philosophy and culture,
but even more important is the job
of integrating sustainability into our
business strategy. The
employment of EPDs will help
architects, designers and LEED-
APs select environmentally
preferable door openings.
ASSA ABLOY will continue our
efforts to protect the environment
and health of our customers/end
users and will utilize the EPD as
one means to document those
efforts.
Environment
2 of 11
Product definition and information about building physics
Information about basic material and the material's origin
Description of the product's manufacturing
Indication of product processing
Information about the in-use conditions
Life cycle assessment results
Testing results and verifications
The PCR review was conducted by
INTERNAL EXTERNAL
1 Exclusions: EPDs do not indicate that any environmental or social performance benchmarks are met, and there may be impacts that they do not encompass. LCAs do not typically address the site-specific
environmental impacts of raw material extraction, nor are they meant to assess human health toxicity. EPDs can complement but cannot replace tools and certifications that are designed to address these
impacts and/or set performance thresholds , e.g., Type 1 certifications, health assessments and declarations, environmental impact assessments, etc. Accuracy of Results
: EPDs regularly rely on estimations of
impacts, and the level of accuracy in estimation of effect differs for any particular product line and reported impact. Comparability: EPDs are not comparative assertions and are either not comparable or have
limited comparability when they cover different life cycle stages, are based on different product category rules or are missing relevant environmental impacts. EPDs from different programs may not be
comparable.
CONTENTS OF THE DECLARATION
This declaration was independently verified in accordance with ISO 14025 by
Underwriters Laboratories
Wade Stout, UL Environment
This life cycle assessment was independently verified in accordance with ISO
14044 and the reference PCR by
PROGRAM OPERATOR
UL Environment
Environmental Product Declaration
According
to
This declaration is an environmental product declaration (EPD) in accordance with ISO 14025. EPDs rely on Life
Cycle Assessment (LCA) to provide information on a number of environmental impacts of products over their life
cycle. Exclusions: EPDs do not indicate that any environmental or social performance benchmarks are met, and
there may be impacts that they do not encompass. LCAs do not typically address the site-specific environmental
impacts of raw material extraction, nor are they meant to assess human health toxicity. EPDs can complement but
cannot replace tools and certifications that are designed to address these impacts and/or set performance
thresholds – e.g. Type 1 certifications, health assessments and declarations, environmental impact assessments,
etc. Accuracy of Results: EPDs regularly rely on estimations of impacts, and the level of accuracy in estimation of
effect differs for any particular product line and reported impact. Comparability: EPDs are not comparative
assertions and are either not comparable or have limited comparability when they cover different life cycle stages,
are based on different product category rules or are missing relevant environmental impacts. EPDs from different
programs may not be comparable.
Door Hardware
ISO 14025
REFERENCE PCR
DATE OF ISSUE
September 6, 2017
PERIOD OF VALIDITY
5 Years
DECLARATION HOLDER
ASSA ABLOY Electromechanical Specialties & OEM Group
DECLARATION NUMBER
DECLARED PRODUCT
HES 1600 Series
Builders Hardware PCR UL 9004
478714321.143.1
3HHU5HYLHZ3DQHOHSG#XOFRP
Thomas P. Gloria, Industrial Ecology Consultants
Environment
3 of 11
Environmental Product Declaration
According
to
Door Hardware
ISO 14025
Technical Data
Lock Compatibility
Construction
Static Strength
Stainless Steel
1,500 lbs
Product Definition and Information
Product Description
Mortise or Cylinrical with or without Deadbolt
Dynamic Strength
Endurance
70 ft-lbs
1,000,000 cycles
Application
For the declared product, the following technical data in the delivery status must be provided with reference to the test
standard:
Technical Data
Product name: HES 1600 Series Electric Strike
Product characteristic: Electric Strike
The HES 1600 Series Electric Strike is a heavy duty, low profile solution for all brands of cylindrical or mortise locks with or
without a deadbolt. Addtional features include:
- Tamper resistant design
- Field selectable fail safe / fail secure configuration
- Dual voltage 12 / 24 VDC / VAC
- Non-handed design
- Interchangeable faceplates and accessories
- Field replaceable components
- Fully finished faceplate, keeper, case and trim
- Field adjustable integrated shim
The HES 1600 Series heavy duty electric strike is the most advanced electric strike available on the market for cylindrical
latchbolt and deadbolt locks. It accommodates up to a 1” deadbolt with enhanced vertical cavity spacing and will
accommodate every brand of cylindrical or mortise lock designed to work with a 4-7/8” strike plate.
Environment
4 of 11
Environmental Product Declaration
According
to
Door Hardware
ISO 14025
The primary manufacturing processes are made by Tier 1 suppliers and the final manufacturing processes occur in
Phoenix, AZ. The components come from processes like steel stamping, turning, and extrusion.
0.00%
43.17%
0.65%
50.72%
0.85%
3.61%
1.01%
The standards and specifications that can be applied for HES 1600 Series Electric Strike are:
- UL 10C fire-rated, 3 hour single door (fail secure only)
- UL 10C fire-rated, 1.5 hour double door
- CAN/ULC-S104 fire door conformant
- ANSI/SDI A250.13 windstorm resistant
- ANSI-ASTM E330
- Florida Building Code approved TAS 201, 202, 203
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 (6th Edition) listed
- ANSI/BHMA A156.31, Grade 1
- California Fire Marshal listed
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- RoHS compliant
- Patent pending
- PoE friendly
Brass
Stainless Steel
Electronics/Mechanics
Percentage in mass (%)
Manufacture
Plastics
Other
Total
Steel
Aluminum
100.00%
Base Materials / Ancilary Materials
Material
Delivery Status
Shipments of HES Electric Stikes are delivered in a cardboard box with installation instructions.
Placing on the Market / Application Rules
Environment
5 of 11
Environmental Product Declaration
According
to
Door Hardware
ISO 14025
ASSA ABLOY is committed to producing and distributing door opening solutions with minimal environmental impact, where
health & safety is the primary focus for all employees and associates.
• Environmental operations, GHG, energy, water, waste, VOC, surface treatment and H&S are being routinely monitored.
Inspections, audits, and reviews are conducted periodically to ensure that applicable standards are met and environment
management program effectiveness is evaluated.
• Code of Conduct covers human rights, labor practices and decent work. Management of ASSA ABLOY is aware of their
environmental roles and responsibilities, providing appropriate training, supporting accountability and recognizing
outstanding performance.
• Any waste metals during machining are separated and recycled. The waste from the water-based painting process is
delivered to waste treatment plant.
• The factory in Phoenix, AZ has certification of Environmental Management to ISO 14001:2004 and Occupational Health
and Safety to OHSAS 18001:2007.
Conditions of Use
Environmental and Health During Use
There is no harmful emissive potential. No damage to health or impairment is expected under normal use corresponding to
the intended use of the product.
No cleaning or annual maintenance is required.
100%
Environmental and Health During Manufacturing
Packaging
Product Processing / Installation
HES 1600 Series Electric Strikes are distributed through and installed by trained installation technicians, such as locksmiths,
carpenters etc. adhering to local/national standards and requirements.
Shipments of HES Electric Stikes are delivered in a cardboard box with installation instructions.
Other 8%
Material
Quantity (% By Weight)
Cardboard
Total
92%
Environment
6 of 11
Environmental Product Declaration
According
to
Door Hardware
ISO 14025
Extraordinary Effects
Water
Contains no substances that have any impact on water in case of flood.
Mechanical Destruction
No danger to the environment can be anticipated during mechanical destruction.
Re-use Phase
The product can be moved from one door to another during the reference service life, thus enabling re-use.
The product can be mechanically dissembled to separate the different materials. 95% of the materials used are recyclable.
The remainder of components are disposed of according to standard municipal solid waste deposition.
Disposal
Reference Service Life
The reference service life is 10 years
Fire
No negative environmental impact will result from exposure to fire.
Further Information
ASSA ABLOY Electromechanical Specialties & OEM Group
10027 S. 51st Street, Ste. 102
Phoenix, AZ 85044
Environment
7 of 11
Environmental Product Declaration
According
to
Door Hardware
ISO 14025
End of Life
Description of the System Boundary Stages Corresponding to the PCR
(X = Included; MND = Module Not Declared)
The declaration refers to the functional unit of 1 unit (or piece) of HES 1600 Series, as specified in the Builders Hardware
PCR
D
X
X
X
X
Waste
processing
B6
Name
Unit
Electric Strike
-
0.53
Declared unit
Mass
Conversion factor to 1 kg
B7
C1
C2
A5
B1
B2
B3
B4
B5
*This includes provision of all materials, products and energy, packaging processing and its transport, as well as waste
processing up to the end-of waste state or disposal of final residues.
Estimates and Assumptions
X
C4
C3
In the End of Life phase, for all the materials which can be recycled, a recycling scenario with 100% collection rate was
assumed.
Cut-off Criteria
A1
Background data
For life cycle modeling of the considered products, the GaBi 8 Software System for Life Cycle Engineering, developed by
thinkstep, is used GaBi 8. The GaBi-database contains consistent and documented datasets which are documented in the
online GaBi-documentation. To ensure comparability of results in the LCA, the basic data of GaBi database were used for
energy, transportation and auxiliary materials.
A2
A3
A4
MND
In the assessment, all available data from the production process are considered, i.e. all raw materials used, auxiliary
materials (e.g. lubricants), thermal energy consumption and electric power consumption - including material and energy flows
contributing less than 1% of mass or energy (if available). In case a specific flow contributing less than 1% in mass or energy
is not available, worst case assumption proxies are selected to represent the respective environmental impacts. Impacts
relating to the production of machines and facilities required during production are out of the scope of this assessment.
Reuse-
Recovery-
Recycling
potential
Use
Maintenance
Repair
Replacement
Refurbishment
Operational
energy use
Transport
MND
MND
MND
X
MND
MND
MND
X
System Boundary
MND
Product Stage Construction
Process Stage Use Stage End of Life Stage*
Benefits and
Loads
Beyond the
System
Boundaries
Raw material
supply
Transport
Manufacturing
Transport from
gate to the site
Construction/
installation
process
Operational
water use
Deconstruction
/demolition
Disposal
X
X
This is a cradle to gate with options Environmental Product Declaration. The following life cycle phases were considered:
kg
1
Value
1.89
Declared Unit
Life Cycle Assessment
Environment
8 of 11
Environmental Product Declaration
According
to
Door Hardware
ISO 14025
Unit
Name
LCA: Modeling Scenarios and Additional Technical Information
Installation into the building (A5)
Name
Value
1.43
Output substance following waste treatment on-site
-kg
Other energy carriers
-MJ
Electricity consumption
-
kWh
Material loss
kg
Value
1.89
kgCollected as mixed construction waste
Collected separately
Name
Recycling
Reuse
kg
kg
0.00
kg
Unit
0.11 kg
0.00
0.09 kgDust in the air -kg
VOC in the air -kg Landfilling
Energy recovery
0.37
Water consumption
-m
3
Auxiliary
-kg
End of life (C1-C4)
5years
Reference Service Life
Other resources
-
kg
Unit
Value
Reference Service Life
Allocation was determined on a per unit basis.
A comparison or an evaluation of EPD data is only possible if all data sets to be compared were created according to EN
15804 and the building context, respectively the product-specific characteristics of performance, are taken into account.
Environmental delarations from different programs may not be comparable. Full conformance with the PCR for North
American Builders Hardware products allows EPD comparability only when all stages of a Builders Hardware product's life
cycle have been considered. However, variations and deviations are possible.
Comparability
The following technical information is a basis for the declared modules or can be used for developing specific scenarios in the
context of a building assessment if modules are not declared.
Data Quality
The data sources used are complete and representative of North America in terms of the geographic and technological
coverage and are a recent vintage (i.e. less than ten years old). The data used for primary data are based on direct
information sources of the manufacturer. Secondary data sets were used for raw materials extraction and processing, end of
life, transportation, and energy production flows. Wherever secondary data is used, the study adopts critically reviewed data
for consistency, precision, and reproducibility to limit uncertainty.
Period Under Review
The period under review is the full calendar year of 2016.
Allocation
Environment
9 of 11
Environmental Product Declaration
According
to
Door Hardware
ISO 14025
Parameter Parameter
TRACI 2.1 Impact Assessment
CML 4.1 Impact Assessment
Resource Use
kg CO2-Eq.
6.7E-03 -2.1E+01
0.0E+00 0.0E+00
6.7E-03 -2.1E+01
0.0E+00
0.0E+00
0.0E+00 0.0E+00
-4.7E-03
1.0E-05 -1.5E-04
2.5E-06 -1.1E-03
2.6E-10
Global warming potential
6.8E-03 1.6E-02
Eutrophication potential kg N-Eq.
Smog formation potential kg O3-Eq.
Fossil Fuel Depletion MJ-surplus
Results shown below were calculated using CML 2001 - April 2013 Methodology.
Parameter D
GWP
ODP Depletion potential of the stratospheric
ozone layer kg CFC-11 Eq. 2.7E-07 1.1E-13
EP
SP
FFD
AP Air
Acidification potential for air emissions kg SO2-Eq. 1.1E-01 6.9E-04 7.4E-05 4.3E-05 1.7E-05
1.1E-01 4.0E-02
Eutrophication potential kg(PO4)
3
-Eq. 5.2E-03 1.2E-04 2.7E-05 7.7E-06 2.4E-06
1.0E-01
8.7E-03
7.8E-01
Results shown below were calculated using TRACI 2.1 Methodology.
GWP
ODP
LCA Results
A1-A3
1.3E+01
2.9E-07
C2
8.8E-03
5.5E-04 1.2E+00
1.3E+01
5.1E-03 8.1E-04 2.8E-01
-2.2E-05
6.4E-03 -2.3E+01
Results below contain the resource use throughout the life cycle of the product.
1.4E-01 1.2E-01 8.8E-03 3.1E-03
5.3E-12 4.8E-14 3.3E-13
9.4E-06 -5.2E-03AP Air
2.3E-02 1.0E-03 1.5E-03 4.6E-04 9.6E-05 -5.2E-02
-5.3E-031.9E-05
C3
3.1E-03
C4
5.3E-03
D
2.4E-05
A4
1.4E-01
5.3E-12
A5
2.3E-02 -2.2E+00
5.0E-14 3.3E-13 1.1E-13 6.2E-15 7.5E-08
4.7E-05 2.0E-05 2.9E-06 9.2E-07 9.1E-06 -4.1E-05
8.4E-04 1.1E-04 5.3E-05
Unit
Global warming potential kg CO2-Eq.
Depletion potential of the stratospheric
ozone layer
kg CFC-11
Eq.
Acidification potential for air emissions kg SO2-Eq.
1.2E+01 2.5E-01
5.9E-15 6.9E-08
Parameter Unit A1-A3 A4 A5 C2 C3 C4
6.1E-03 -2.2E+00
POCP Formation potential of tropospheric ozone
photochemical oxidants kg ethane-Eq. 6.2E-03 8.1E-05 1.7E-05 5.1E-06 1.9E-06
EP
A1-A3 A4 A5 C2 C3 C4
ADPE Abiotic depletion potential for non-fossil
resources kg Sb-Eq. 2.5E-04 5.8E-11 3.9E-09 3.7E-12 5.4E-12
ADPF Abiotic depletion potential for fossil
resources MJ 1.5E+02 1.8E+00 5.9E-02
D
5.5E-04 1.2E+00
PERM Renewable primary energy resources
as material utilization MJ 1.9E+00 0.0E+00 0.0E+00 0.0E+00 0.0E+00 0.0E+00 0.0E+00
PERE Renewable primary energy as energy
carrier MJ 4.4E+01 0.0E+00 7.4E-03 0.0E+00 0.0E+00
ParameterParameter Unit
PERT Total use of renewable primary energy
resources MJ 4.6E+01 0.0E+00 7.4E-03 0.0E+00 0.0E+00
0.0E+00
PENRE Nonrenewable primary energy as
energy carrier MJ 1.6E+02 1.8E+00 6.2E-02 1.1E-01 4.2E-02
PENRM Nonrenewable primary energy as
material utilization MJ 1.9E+00 0.0E+00 0.0E+00 0.0E+00
PENRT Total use of nonrenewable primary
energy resources MJ 1.6E+02 1.8E+00 6.2E-02 1.1E-01 4.2E-02
0.0E+00SM Use of secondary material MJ 0.0E+00 0.0E+00 0.0E+00 0.0E+00 0.0E+00
3.4E+01 0.0E+00 3.9E-03 0.0E+00 0.0E+00 2.9E-04
RSF Use of renewable secondary fuels MJ 0.0E+00 0.0E+00 0.0E+00 0.0E+00 0.0E+00 0.0E+00
0.0E+00 0.0E+00 0.0E+00 0.0E+00 0.0E+00
FW Use of net fresh water m3
NRSF Use of nonrenewable secondary fuels MJ
Environment
10 of 11
Environmental Product Declaration
According
to
Door Hardware
ISO 14025
Output Flows and Waste Categories
The production life cycle stage (A1-A3) dominates the impacts across all impact categories, with the exception of ozone
depletion. This is due to the upstream production of metals used in the product, along with electricity use in the
manufacturing of the product. Potential benefits are due to the potential avoided burden of recycled materials after disposal.
0.0E+00
0.0E+00
3.1E-02
1.1E-07
0.0E+00
0.0E+00
1.5E-06
0.0E+00
MER Materials for energy recovery kg
4.8E-03
0.0E+00
5.4E-01
0.0E+00
0.0E+00
0.0E+00
1.7E-02 0.0E+00 0.0E+00 0.0E+00 0.0E+00 0.0E+00 -1.1E-03
0.0E+00 0.0E+00
0.0E+00
5.4E-02
7.2E-04
0.0E+00
1.1E-02
RWD
CRU
1.0E-02 0.0E+00 0.0E+00 0.0E+00 0.0E+00NHWD Non-hazardous waste disposed kg
Exported electrical energy MJ 0.0E+00
Unit A1-A3 A4 A5 C2 C3 C4 D
MFR
HWD Hazardous waste disposed kg
1.9E-03 0.0E+00
0.0E+00 0.0E+00 0.0E+00 0.0E+00EEE 0.0E+00
4.4E-05 0.0E+00 1.0E-01 0.0E+00 0.0E+00EEE Exported thermal energy MJ
0.0E+00
0.0E+00
0.0E+001.0E-01
0.0E+00Radioactive waste disposed kg
Components for re-use kg
Materials for recycling kg
0.0E+00 0.0E+00 0.0E+00 0.0E+00 0.0E+00

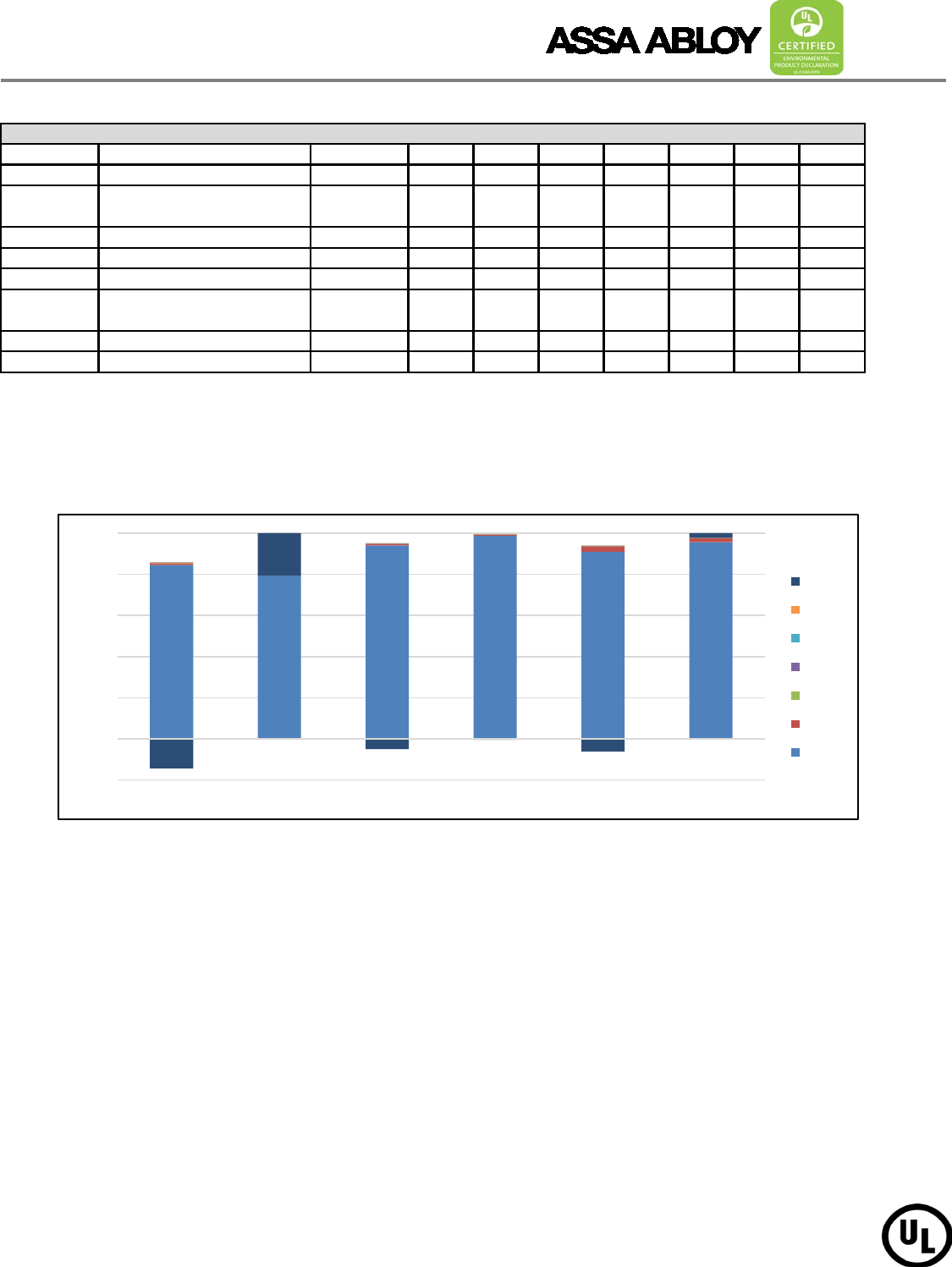

Results below contain the output flows and wastes throughout the life cycle of the product.
Parameter Parameter
-20%
0%
20%
40%
60%
80%
100%
GWP ODP AP Air EP SP FFD
D
C4
C3
C2
A5
A4
A1-A3
Environment
11 of 11
Environmental Product Declaration
According
to
Door Hardware
ISO 14025
-
NFPA 252
Standard Method of Fire Tests of Door Assemblies
-
RoHS
Directive on the restriction of the use of certain hazardous substances in electrical and electronic
equipment
-
UL 1034
Standard for Safety for Burglary-Resistant Electric Locking Mechanisms
-
UL 294 (6th Edition)
Standard for Access Control Systems
-
ANSI/BHMA A156.31
Standard for Electric Strikes and Frame Mounted Actuators
-
CAN/ULC-S104
Standard Method for Fire Tests of Door Assemblies
-
ANSI/SDI A250.13
Test and Rating of Severe Windstorm Resistant Components for Swinging Door Assemblies for
-
ANSI/ASTM E330
Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and
Curtain Walls by Uniform Static Air Pressure Difference
References
-
PCR Part A
UL Environment and Institut Bauen und Umwelt e.V., Königswinter (pub.): Product Category
Rules for Construction Products from the range of Environmental Product Declarations of Institut
Bauen und Umwelt (IBU), Part A: Calculation Rules for the Life Cycle Assessment and
Requirements on the Background Report. July 2014, version 1.3
-
ISO 14025
ISO 14025:2011-10, Environmental labels and declarations — Type III environmental
declarations — Principles and procedures.
EN 15804:2012-04: Sustainability of construction works — Environmental Product Declarations
— Core rules for the product category of construction product
-
ISO 14040
ISO 14040:2009-11, Environmental management — Life cycle assessment — Principles and
framework.
-
PCR Part B
UL Environment and Institut Bauen und Umwelt e.V. (IBU). Product Category Rules Part B:
Requirements on the Environmental Product Declaration for Builders Hardware
-
GaBi 6
thinkstep.one: GaBi Software-System and Databases for Life Cycle Engineering. version 6.110.
Copyright, TM. Stuttgart, Echterdingen. 1992-2015
-
TRACI 2.1
US EPA, Tool for the Reduction and Assessment of Chemical and Other Environmental Impacts
(TRACI)
-
CML 2001
Center of Environmental Science of Leiden University impact categories and characterisation
methods for impact assessment (CML)
-
UL 10C
Standard for Positive Pressure Fire Tests of Door Assemblies
-
ULE 2013
UL Environment, General Program Instructions, 2013.
-
ISO 14044
ISO 14044:2006-10, Environmental management — Life cycle assessment — Requirements and
guidelines.
-
EN 15804

Navigation menu
