HES® 9800 | Adams Rite® 7800
Electric Strike
Installation Instructions and Frame Preparation
Product Components
A HES 9800 | Adams Rite 7800 Strike Body
B HES 9800 | Adams Rite 7800 Cover
C 1/4"-20 x 1" Mounting Screws
D #10-32 & 10-24 Lockdown Screws (optional)
E #6-32 x 1/4" Cover Screws
F 5/64" Hex Key
G 12-Volt and 24-Volt Pigtails
H 1/8" and 1/16" Spacers
Electrical Specifications
Electrical Ratings for Solenoid
Voltage 12 VDC 24 VDC
Resistance in Ohms 24 96
mA Continuous Duty 450 250
Solenoids are rated at +/- 10% indicated value.
Minimum Wire Gauge
Requirements
(Based on Round Trip)
Solenoid Voltage
12 VDC 24 VDC
200 feet or less 18 gauge 22 gauge
200 – 300 feet 16 gauge 22 gauge
300 – 400 feet 16 gauge 20 gauge
UL1034
• Static Strength: 1500 lbs
• Dynamic Strength: 70 ft – lbs
• Endurance: 250,000 cycles
UL294 Performance Levels
• Destructive Attack: Level I
• Line Security: Level I
• Endurance: Level IV
• Standby Power: Level I
NOTE: Installation wiring for the product and
wiring methods shall be in accordance with the
National Electrical Code, ANSI/NFPA70
A
B
C
D
E
F
G
H

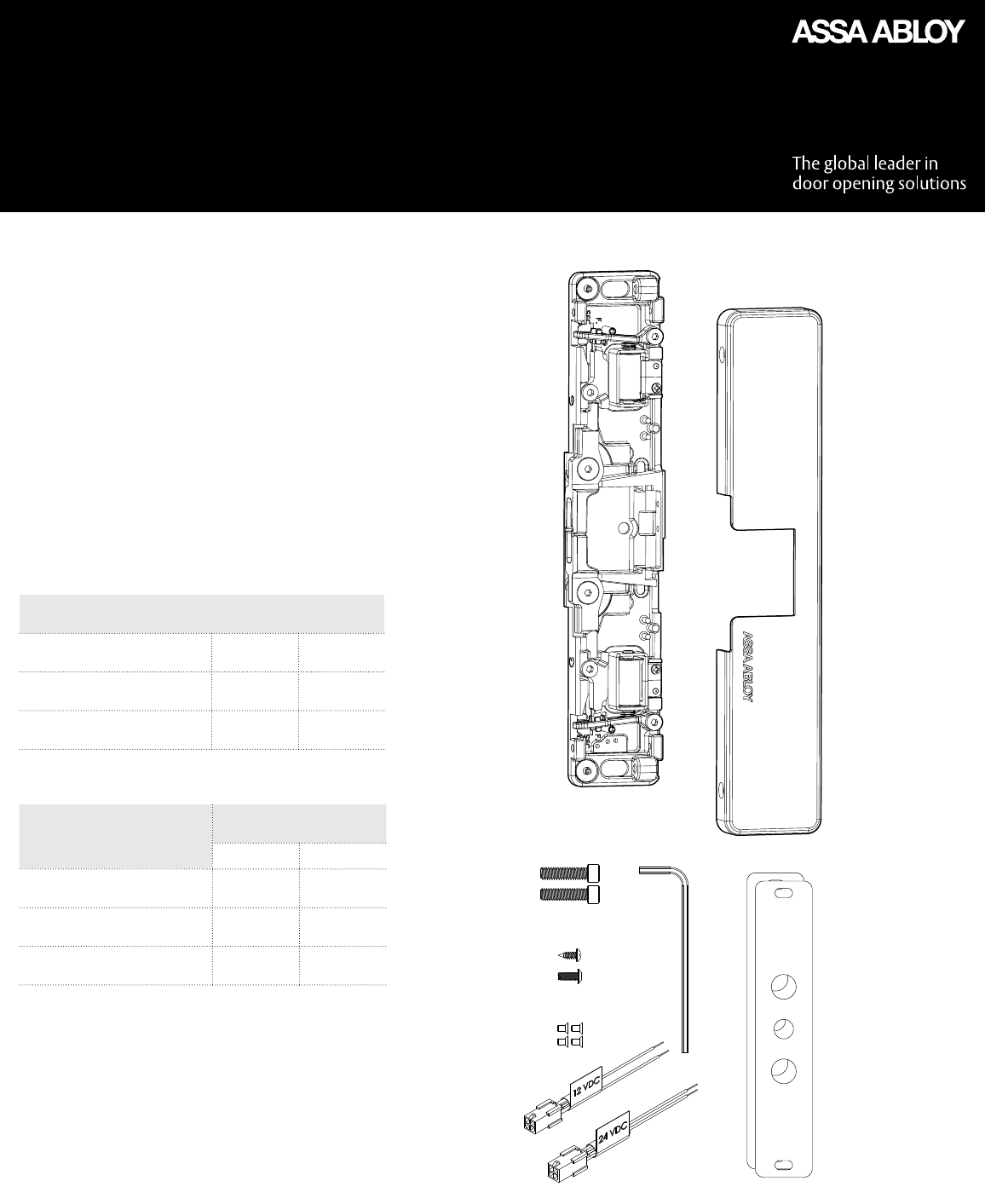

Diagram 1: Product Components
Dimensions
NOTE: May not be to scale. For easy installation,
the HES 9000-MTK should be ordered.
2
CAUTION Before connecting any device at the installation site, verify input voltage using a multimeter.
Many power supplies and low voltage transformers operate at higher levels than listed. Any input voltage
exceeding 10% of the solenoid rating may cause severe damage to the unit and will void the warranty.
Preparing the Strike
For 12 VDC, the Plug In Connector (pigtail)
marked “12 VDC” should be used; for 24 VDC,
the pigtail marked “24 VDC” should be used.
• SELECT the appropriate pigtail that
matches system power and electrically
CONNECT as illustrated in Diagram 1.
• IF no connector is present,
THEN CONFIGURE the wires
as shown in Diagram 2.
• IF using the Latchbolt Monitor (LBM)
or Latchbolt Strike Monitor (LBSM),
THEN REFER to Diagrams 5 and 6 to
complete wiring (see page 3).
Verifying the Operation Mode
The HES 9800 | Adams Rite 7800
Electric Strike is pre-set for FAIL SECURE
OPERATION as shown in Diagram 3.
• VERIFY that both keepers are in
FAIL SECURE OPERATION.
Converting the Operation Mode
There are two Selector Stop Pins, one on the left
side and one on the right side. Both Selector Stop
Pins must be repositioned (as shown in Diagram
4) to convert the strike to FAIL SAFE OPERATION.
IN FAIL SAFE OPERATION: Both keepers
should be unlocked without power but
locked when power is applied.
• To convert to FAIL SAFE OPERATION,
REMOVE the Selector Stop Pins on
each side of the strike body using
the provided 5/64" hex key.
• MOVE the Selector Stop Pins to the FAIL
SAFE OPERATION position (towards the
center of the strike) as shown in Diagram 4.
• TIGHTEN both Selector Stop Pins after
they have been moved to the FAIL SAFE
OPERATION position using the 5/64” hex key.
FAIL SAFE OPERATION mode should not be used
in fire rated or windstorm-resistant applications.
Red
Red/green
Black
Violet
Red
Black
Violet
Red/green
(+ 12 VDC)
(- NEG)
(+ 24 VDC)
(- NEG)
or
Electric
Strike
Electric
Strike
Connect
Together
Connect
Together
Connect
Together

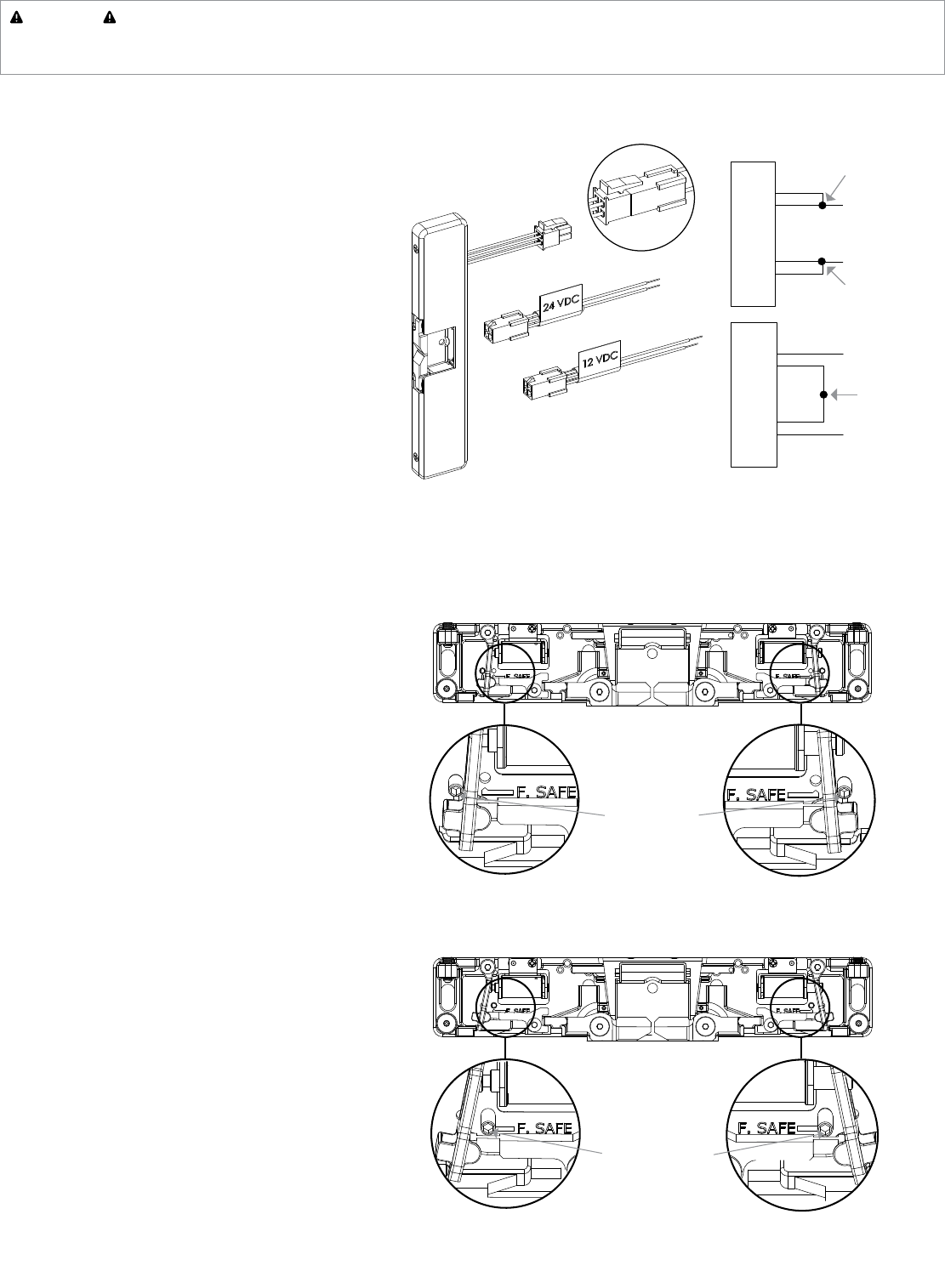

Diagram 1: 12V to 24V Conversion Diagram 2: If Connector Is Missing
Selector Stop
Pin Location
Selector Stop
Pin Location
Diagram 3: Fail Secure Operation
Diagram 4: Fail Safe Operation
3
Preparing the Frame
When mounting on an aluminum frame, with a
blade stop, an HES 9000-ASB (sold separately) is
necessary to provide a secure installation. The HES
9000-ASB is shown installed in Diagrams 8 and 9.
• IDENTIFY and MARK the latchbolt
centerline on the frame.
• Using the dimensions provided on page
4, MARK all appropriate holes. If using a
HES 9000-ASB, reference the installation
instructions provided with that product.
NOTE: This may require the exit device to shift
horizontally towards the hinge side of the
door to compensate for the HES 9000-ASB.
• PUNCH, DRILL and TAP the
marked holes as required.
Finishing the Installation
• ELECTRICALLY CONNECT the HES 9800 |
Adams Rite 7800 to the Plug In Connector, and
ATTACH the electric strike to the jamb using
the 1/4"-20 x 1" mounting screws provided.
• CHECK the starwheel interaction with the
keepers to ensure proper engagement
and clearance. The starwheel’s latchguard
needs to be centered within the keepers as
seen in Diagram 7. If horizontal adjustment
is needed, use one or both of the spacers
to provide latch guard/keeper clearance.
Additional spacers can be ordered separately.
Adjusting Horizontal and Lockdown
• TIGHTEN the two 1/4"-20 x 1" mounting screws.
• SECURE the adjustment by tightening the
set screws. Shown in Diagram 8 on page 4.
• OPTIONAL LOCKDOWN FEATURE: INSTALL
the #10-24 UNC or 10-32 UNF lockdown
screw if additional security is required;
however, REMOVE the strike before drilling
hole. If using a HES 9000-ASB it will require
drilling and tapping of the lockdown hole.
• INSTALL the cover plate, and SECURE in
place using the #6-32 x 1/4" Cover Screws
as illustrated in Diagram 9 on page 4.
Diagram 2: If Connector Is Missing
Diagram 5
Latchbolt Monitor
White Common
Orange Normally Open
Green Normally Closed
Diagram 6
Latchbolt Strike Monitor
Brown Common
Blue Normally Open
Yellow Normally Closed
White
Brown
Orange
Blue
Green
Yellow

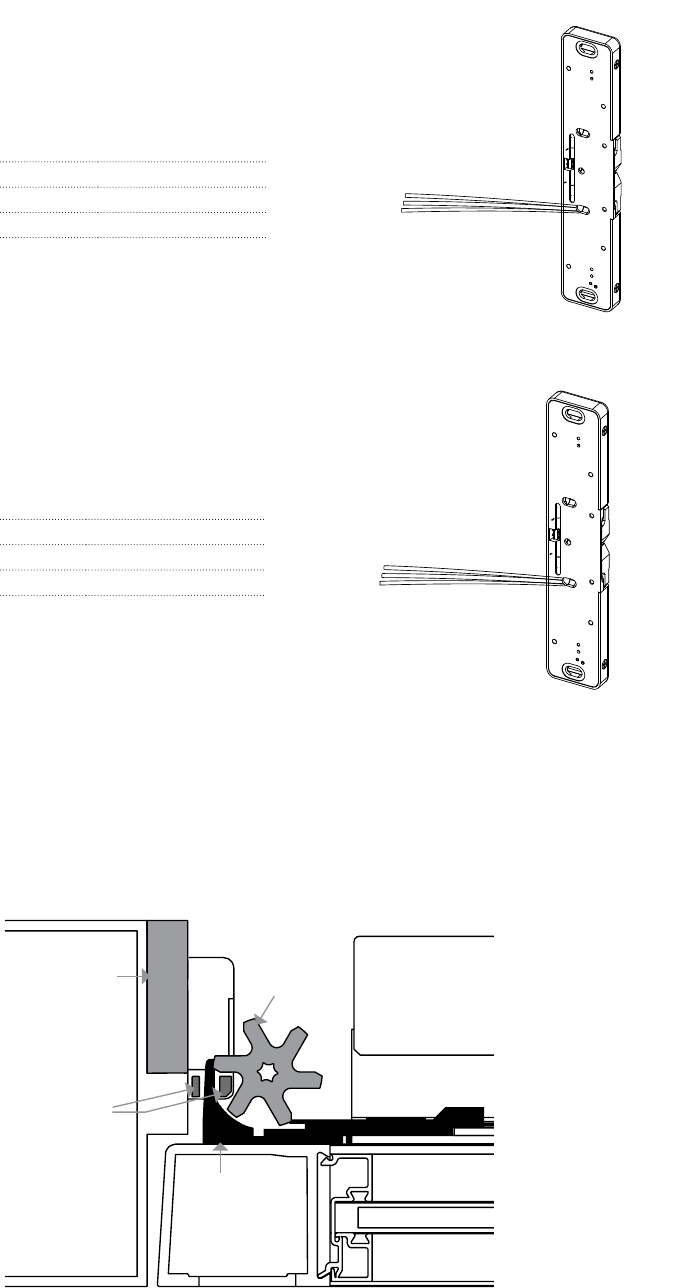

Diagram 7: Starwheel & Keeper Cross-section
Latchguard should be centered between the keepers.
HES
9000-ASB
(optional)
Starwheel
Keepers
Latchuard
4
HES
9000-ASB
Lockdown
Screw
(optional)
Set Screw
Location
Set Screw
Location
Mounting
Screw
Mounting
Screw
(optional)
HES
9000-ASB
Mounted on Aluminum Frame
with HES 9000-ASB
Mounted on
Hollow Metal Frame
(optional)
9"
[228.6mm]
7/8"
[22.5mm]
1-3/4"
[44.5mm]
1-1/16"
[27mm]
4X
1-5/16"
[33.3mm]
1-5/16"
[33.3mm]
4-1/8"
[104.8mm]
4-1/8"
[104.8mm]
1/2"
[12.7mm]
Clearance
for
LBM/LBSM
Wiring
Centerline
of Latchbolt
This edge
toward
door
2X
Mounting
Hole
Locations
for
1/4-20 UNC
Mounting
Screws
Final Lockdown Feature 10-32 UNF or
10-24 UNC Screw (optional)
3/4"
[19mm]
Clearance
for Power
Wiring
3026006.005_1
Copyright © 2018, Hanchett Entry Systems, Inc., an ASSA ABLOY Group
company. All rights reserved. Reproduction in whole or in part without the
express written permission of Hanchett Entry Systems, Inc. is prohibited.
techsupport.esh@assaabloy.com | assaabloyesh.com
800.626.7590 | 10027 S. 51st Street Phoenix, AZ 85044 USA
Dimensions
NOTE: May not be to scale. For easy installation,
the HES 9000-MTK should be ordered.

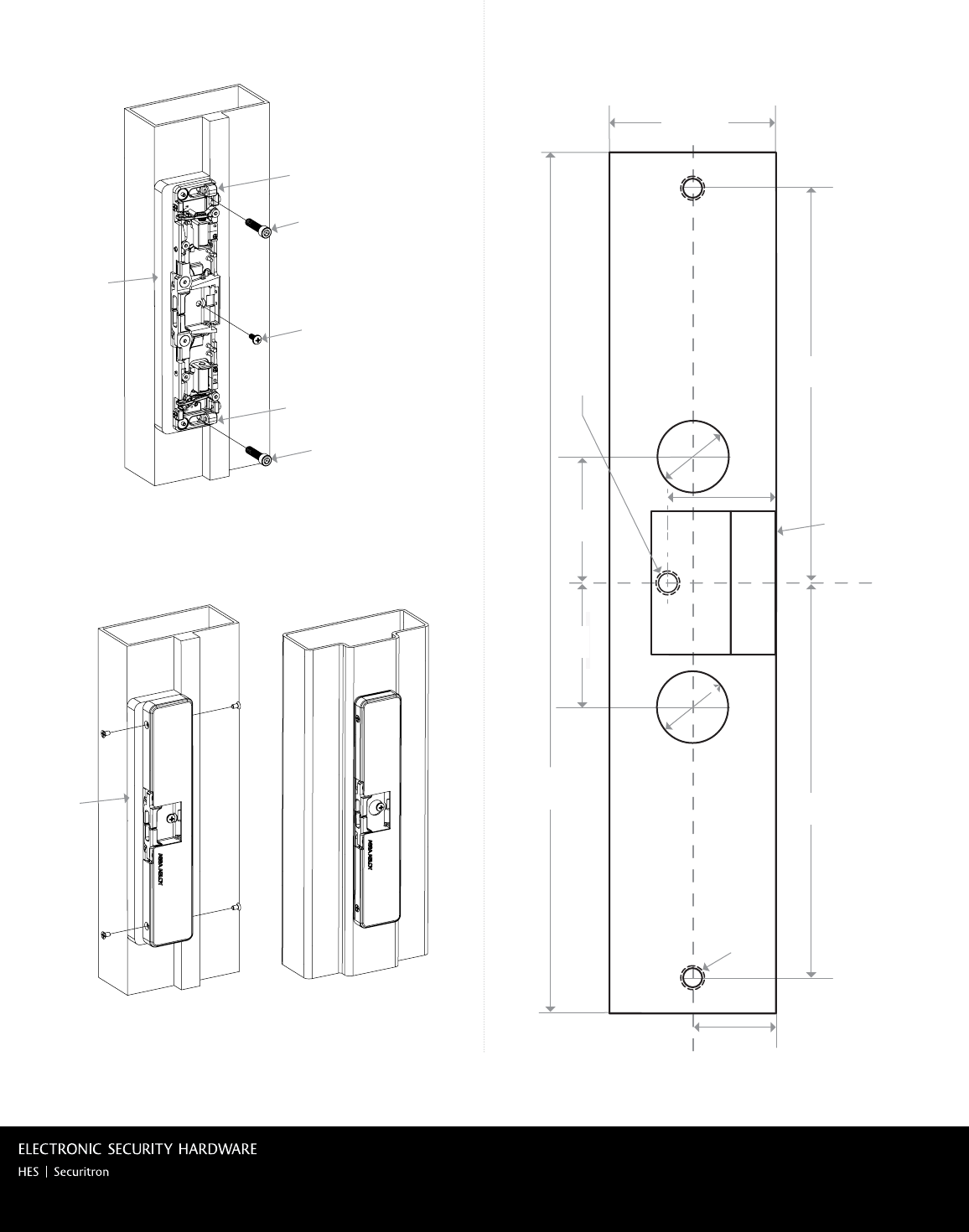

Diagram 8
