CB20BControlBoxInstructions

1. ProductOverview

ProductName： ControlBox

ProductModelNo.：CB20B

2. Environmentrequirement

Operationtemperature:+10℃~+40℃.

Storagetemperature:－10℃~65℃.

OperatingHumidity：10%~80%RH，non‐condensing.

StorageHumidity：10%~85%RH，non‐condensing.

3. DirectionsforOperation

Tousethecontrolbox,theswitchpowersupplymustbeconnectedasthecontrolboxpower

supply(input:DC29V4A).TheCH06remotecontrolmustalsobepairedtobeused.Detailed

usageforeachportisasfollows:

3.1Beforeuse,theremotecontrolCH06andCB20Bcontrolboxmustbepaired:

CH06

3.2Then,turnonthecontrolbox'sPower,andafterthebeepsoundthesystemwillwork.Follow

theexamplebelowtoproperplugpartsin.

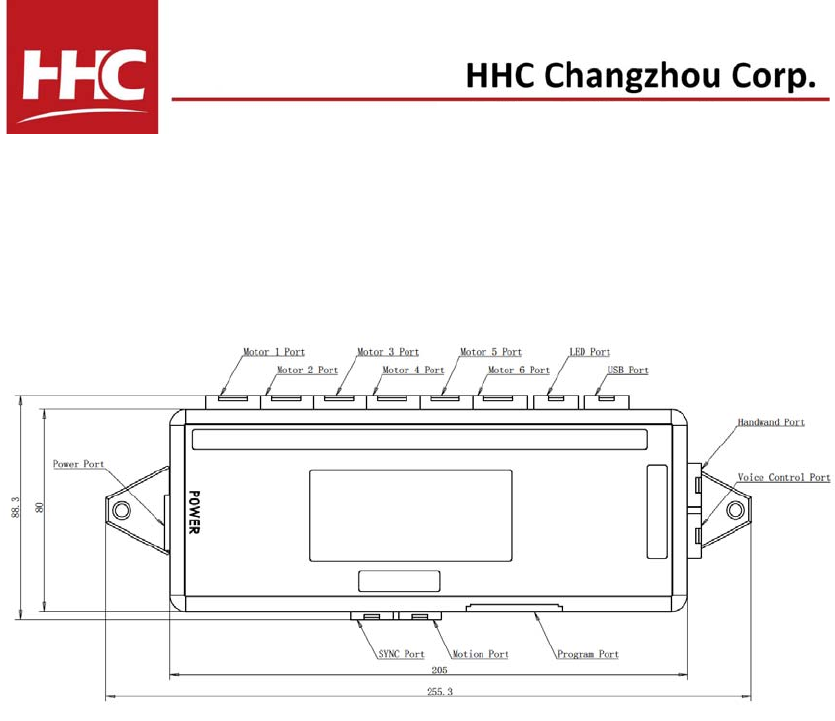

4. Theportisintroduced

4.1“Motor1Port”：Connectstothefirstmotor,andlifts/lowersthesection.

4.2“Motor2Port”：Connectstothesecondmotor,andlifts/lowersthesection.

4.3“Motor3Port”：Connectstothethirdmotor,andlifts/lowersthesection.

4.4“Motor4Port”

：ConnectstothefourthTiltmotor,andlifts/lowersthesection.

4.5“Motor5Port”：ConnectstoHeadmassagemotor,controlsstrengthofheadmassageand

on/off.

4.6“Motor6Port”：ConnectstoFootmassagemotor,controlsstrengthoffootmassageand

on/off.

4.7“PowerPort”：Connectstothepowersupplybox,controlspowersupply.

4.8“USBPort”：ConnectstotheUSBadapterboxandUSBsocketconnection.

4.9“LEDPort”：Connectswithlights.。

4.10“SYNPort”:Connectanothercontrolbox,andtwocontrolboxeswillsynchronize.

4.11“MotionPort”:Connecttothemotionsensor.

4.12“ProgramPort”:Usedforprogramming.

4.13“HandwandPort”:ConnecttotheHandwand.

4.14“VoiceControlPort”:ConnecttotheVoiceContorlmodule.

5. Mattersneedingattention：

5.1Thefunctionwillonlyworknormallyinproperworkingpowerconditions.

5.2Controlboxinputvoltagemustbelessthan29.2VDC.

5.3TheCH06remotecontrolisneededforpropercontrol.

5.4Ifproblemsareidentified,theymustbetreatedbyprofessionalpersonnel.

6. Additionalattentionforuser：

6.1 This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturning

the equipment off and on, the user is encouraged to try to correctthe interference by one or

moreofthefollowingmeasures:

—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

6.2Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept

anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.

6.3

6.4 For Intentional and unintentional radiators the manual shall caution the user that changes or

modifications not expressly approved by the party responsible for compliance could void the users

authority to operate the equipment.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment .This equipment should be installed and operated with minimum distance

20cm between the radiator& your body.
