User Manual

1/4



CH18HandControlInstructions

1.ProductOverview

ProductName：HandControl

ProductModelNo.：CH18

FCCID:2AEQWCH18HHC003



2.Environmentrequirement

Operationtemperature:+10℃~+40℃.

Storagetemperature:－10℃~65℃.

OperatingHumidity：10%~80%RH，non‐condensing.

StorageHumidity：10%~85%RH，non‐condensing.



3.DirectionsforOperation

Inordertooperate,placethree1.5VAAAbatteriesintheremotecontrolanduseinconjunction

withtheCB18controlbox.Inaddition,thePSK2920Apowersupplyswitchmustbeconnectedas

thepowersupplyforthecontrolbox.Detailedoperationdirectionsbelow:

MatchCode：

Pressandholdthebutton,approx.15seconds,untiltheremote’sfrontindicatorlights

up.Then,connectittothecontrolboxPowerplug.Afterthebeepsound,thepairingiscomplete

andremotecanoperate.



Indicator

light

2/4



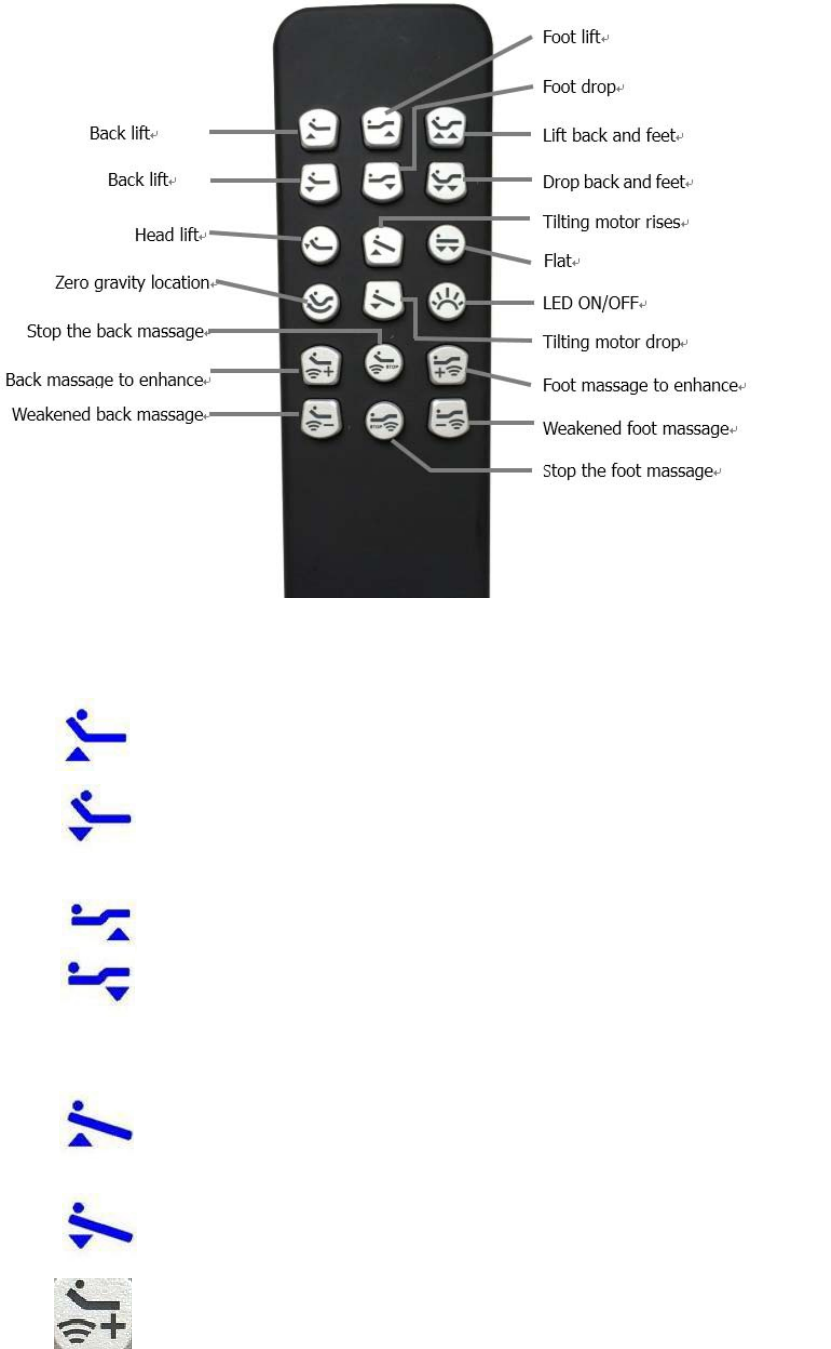

4.Theportisintroduced

Allmotorizedfunctionsofthebedarecontrolledbytheremotecontrol.

4.1.BackrestLift.

Pressthisbuttontoliftupthebackrest.Keepthebuttonpressedandrelease

whenthedesiredtiltisachieved.



Pressthisbuttontolowerthebackrest.Keepthebuttonpressedandrelease

whenthedesiredtiltisachieved.

4.2.FootrestLift.

Pressthisbuttontoliftupthefootrest.Keepthebuttonpressedandrelease

whenthedesiredtiltisachieved.

Pressthisbuttontolowerthefootrest.Keepthebuttonpressedandrelease

whenthedesiredtiltisachieved.

4.3.BedTilt.

IftheoptionalbedTiltisNOTinstalledonyourbed,thesebuttonsarewithout

operation.

Pressthisbuttontoliftuptheheadendofthebed.Keepthebuttonpressed

andreleasewhenthedesiredtiltisachieved.



Pressthisbuttontolowertheheadendofthebed.Keepthebuttonpressed

andreleasewhenthedesiredtiltisachieved.

4.4.MassageFunction

Pressthisbuttontoincreasetheintensityofthebackmassage.



3/4



Pressthisbuttontoreducetheintensityoftheback

massage.



Pressthisbuttontostopthebackmassage.



Pressthisbuttontoincreasetheintensityofthefootmassage.



Pressthisbuttontoreducetheintensityofthefoot

massage.



Pressthisbuttontostopthefootmassage.



4.5.Backlitilluminationofremotecontrol

Toilluminatethebuttonsforbetternightviewwhenpressthisbutton.Thelight

willturnoffautomaticallyafterapproximately10seconds.

Note:Thelightalsoturnsonwhenpressinganyoftheotherbuttons.



5.Mattersneedingattention：

5.1Donotmixoldandnewbatteriesordifferenttypesofbatteriesinremote.

5.2Whenthebatterypowerisweak,electrolyteleakagemayoccur,andwilldamagethe

remote.Oncethepowerislow,replacethebatteryassoonaspossible.

5.3Iftheremotewillnotbeusedforalongperiodoftime,removethebatteriestoavoid

electrolyteleakage.

5.4Thebatteryshouldnotbeexposedtodirectsunlight,fire,orotherexcessiveheat.To

protecttheenvironment,usedbatteriesshouldberecycledinapropermanner.



6.Additionalattentionforuser：

6.1ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable

protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,

usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe

instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno

guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturning

theequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneor

moreofthefollowingmeasures:

—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

6.2Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

4/4



conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept

anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.

6.3ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled

environment.EndusersmustfollowthespecificoperatinginstructionsforsatisfyingRFexposure

compliance.TomaintaincompliancewithFCCRFexposurecompliancerequirements,please

usingaminimumseparationdistanceof5mmfromthedevice.

Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantenna

ortransmitter.

6.4For Intentional and unintentional radiators the manual shall caution the user that changes

or modifications not expressly approved by the party responsible for compliance could void the

users authority to operate the equipment
