PowerProx VEHICLE TRANSPONDER ID TAG Installation Manual
Overview
The Vehicle Transponder ID tag, a 3.7 x 2.7-inch rectangular tag is mounted to the inside of your vehicle’s
windshield. This tag has an adhesive backing with a release liner to provide protection until installation can
be obtained. For best results mount tag to lower left (driver’s) side of windshield. If this can not be
obtained locate tag anywhere in the far left (driver’s) side. See Figure 2 below for the desired location.
Installation Procedure:
1. The tag may be in a transport (lock mode), in which case it does not transmit data to the reader. If
so, it may be taken out of lock mode by bringing it into read range of a HID MaxiProx reader for
approximately 12 seconds. This may be done either before or after installation into the vehicle. Once
this is done, the tag will operate normally.
2. Determine the appropriate mounting position of the tag. Clean area completely free from grease, oil or
any other debris, using rubbing alcohol or glass cleaner.
3. Remove the release liner from Velcro strips. Position and place strips firmly against back of tag.

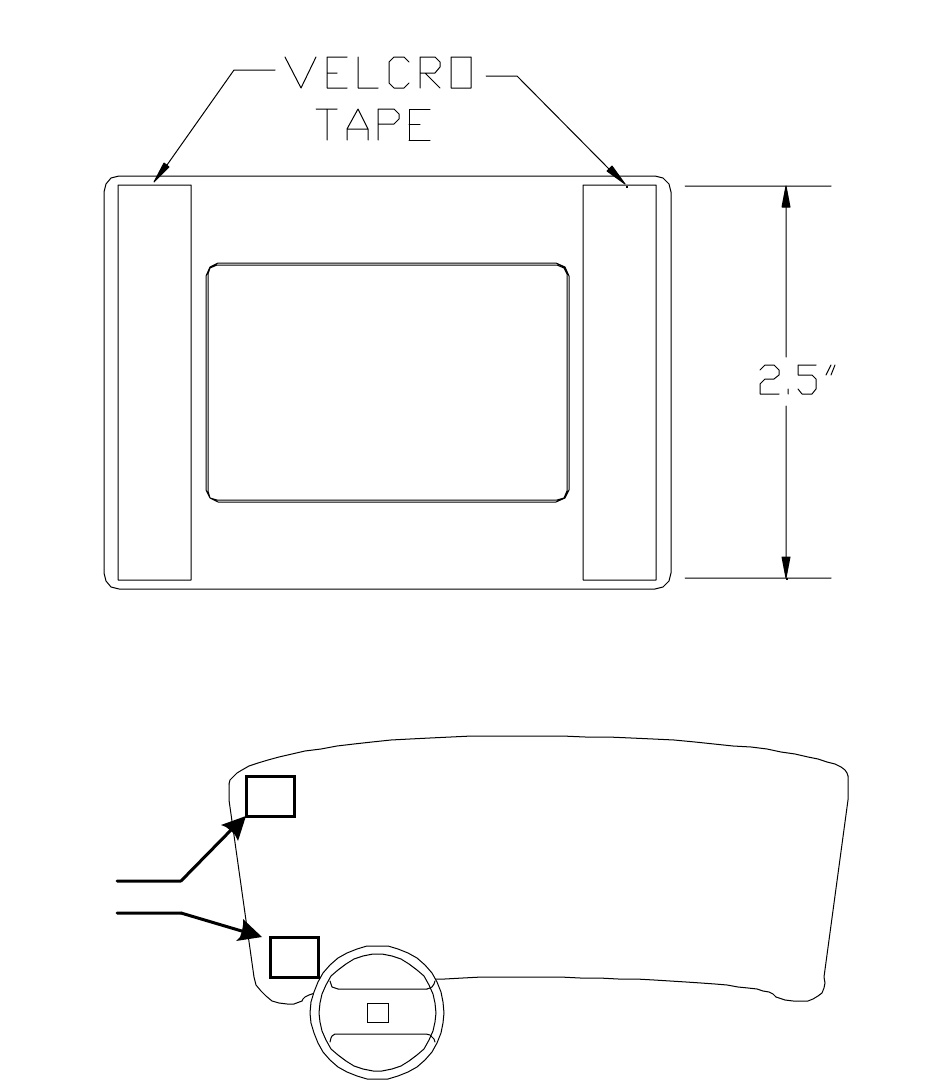

Figure 1. Place mating strips on inside of windshield. Put even pressure on entire surface of strips to
ensure adhesion.
Figure 1.
____________________________________________________________________________________________
HID Corporation 9292 Jeronimo Road Irvine, CA 92618-1905 USA TEL (714) 598-1600 (800) 237-PROX (7769)
FAX (714) 669-5623 Web page, E-mail - www.prox.com PowerProx Active Transponder, Vehicle Identification Tag
Installation Manual 1351-901 REV 1
3 of 3
Figure 2
Windshield
Dashboard
Driver's Side
Preferred ID
Tag locations
____________________________________________________________________________________________
HID Corporation 9292 Jeronimo Road Irvine, CA 92618-1905 USA TEL (714) 598-1600 (800) 237-PROX (7769)
FAX (714) 669-5623 Web page, E-mail - www.prox.com PowerProx Active Transponder, Vehicle Identification Tag
Installation Manual 1351-901 REV 1
4 of 3
Regulatory Approvals
FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation. FCC ID
Number: JQ61351
