Contents

Users Manual 1

installation
®
iCLASS® by
2assembly and disassembly
1preparing
3testing
Open Collector
Hold
Beeper
Red LED
Green LED
Ground Shield
+DC (12 – 24 VDC)
Data 1
Data 0
Ground
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Wiring diagram
Mounting Holes
R90 Install Manual.indd 1 9/19/05 2:31:48 PM
parts
• 1 - reader
• 1 - Installation Manual
• 4 - #8 Philips self taping screws
• 4 - #8 Spanner security screws
OPTIONAL FEATURES
5
• Open Collector Output - controls an external device operating in
Host Mode only. See iCLASS Application Note for details.
• Configuration Options - Configure LED, Speaker, and other
features. See How To Order Guide or iCLASS Application Note
for details.
• Hold Input - when asserted, this line either buffers a card or disables
a card read until released, as configured.
PARTS
6
installation
HID Corporation
9292 Jeronimo Road
Irvine, California
92618-1905 USA
tel:
+1 (949) 598-1600
U.S. (800) 237-7769
fax:
+1 (949) 598-1690
email:
tech@hidcorp.com
www.hidcorp.com
6090-900 Rev. A.3
R90 • Long Range Reader
4

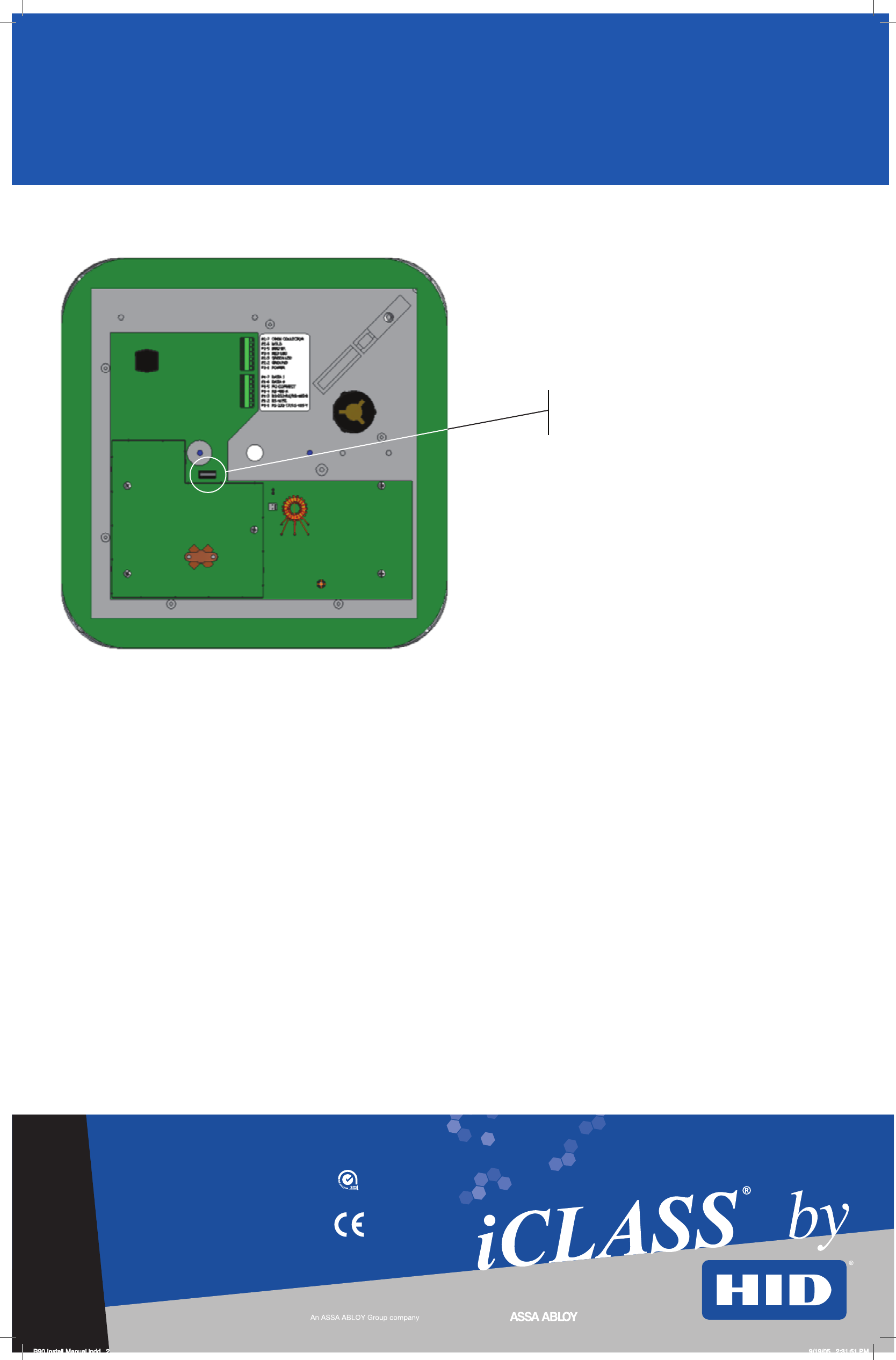

An on board tamper switch is wired
through the “I’m Alive” feature and if
active, the standard supervisory signal
will stop if the cover is removed.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This Proximity Reader is intended to be powered from a limited power source output of a previously certied power supply.
For regulatory compliance, the drain wire is to be disconnected at the power supply end of the I/O cable.
TAMPER SWITCH
