HID Global RMPK40C RFID Reader/Keypad with Magstripe User Manual Edge Relay Module Installation Guide
HID Global Corporation RFID Reader/Keypad with Magstripe Edge Relay Module Installation Guide
User Manual
Overview
This multiCLASS reader is a combination iCLASS Keypad, HID Prox and Magstripe reader which provides secure PIV compatibility.
Flexibility is at your ngertips, use this reader simultaneously for magnetic stripe, HID Prox and high frequency smart cards.
For Wiring instructions and Specications, see the iCLASS Keypad Installation Guide (P/N 6404-901).
Specications
PRODUCT
PRODUCTO
PRODUIT
PRODUTO
PRODUKT
PRODOTTO
製品
产品
제품
ИЗДЕЛИЕ
BASE PART NUMBER
NÚMERO DE COMPONENTE BASE
RÉFÉRENCE DE BASE
NÚMERO DAS PEÇAS BÁSICAS
HAUPTTEILENUMMER
NUMERO PARTE DI BASE
基本部品番号
基本部件编号
기본부품 번호
БАЗОВЫЙ НОМЕР ИЗДЕЛИЯ
INPUT VOLTAGE (VDC)
TENSIÓN DE ENTRADA (VCC)
TENSION D’ALIMENTATION (Vcc)
VOLTAGEM DE ENTRADA (VCC)
EINGANGSSPANNUNG (VDC)
TENSIONE IN INGRESSO (V c.c.)
入力電圧(VDC)
输入电压 (VDC)
입력 전압(VDC)
НАПРЯЖЕНИЕ ПИТАНИЯ
(В постоянного тока)
CURRENT
CORRIENTE
COURANT
CORRENTE
STROMSTÄRKE
CORRENTE
電流
电流
전류
ТОК
OPERATING TEMPERATURE
TEMPERATURA DE FUNCIONAMIENTO
TEMPÉRATURE DE FONCTIONNEMENT
TEMPERATURA OPERACIONAL
BETRIEBSTEMPERATUR
TEMPERATURA D’ESERCIZIO
稼動温度
操作温度
작동 온도
РАБОЧАЯ ТЕМПЕРАТУРА
CABLE LENGTH
LONG. DE CABLE
LONGUEUR DE CÂBLE
COMPRIMENTO DO CABO
COMPRIMENTO DO CABO
LUNGHEZZA CAVO
ケーブル長
电缆长度
케이블 길이
ДЛИНА КАБЕЛЯ
UL REF NUMBER
NÚMERO DE REFERENCIA UL
RÉF. UL
NÚMERO DE REFERÊNCIA UL
UL-REFERENZNUMMER
NUMERO DI RIFERIMENTO UL
UL参照番号
UL 参考编号
UL 참조 번호
Справочный номер в UL
AVG PEAK
RMK40 6230
5-16 VDC
85 mA 120 mA
-30° - 150°F
(-35° - 65° C)
Wiegand = 500 ft - 22 AWG
(152.4 m)
300 ft - 24 AWG
(91.44 m)
RMPK40Cx1x2N
RMPK40 6236 ** 85 mA 169 mA
UL Reference Number Deciphering
x1 Reader Colors: K = Black, G = Gray
x2 multiCLASS Proximity: N = HID/AWID Prox
multiCLASS
M: RMK40 / RMPK40
INSTALLATION GUIDE
6410-901, R A.1
A 18, 2009
© 2009 HID Global Corporation. All rights reserved.
15370 Barranca Parkway
Irvine, CA 92618-2215
USA
multiCLASS
RMK40 / RMPK40
6410-901 A.1
INSTALLATION GUIDE
2©2009 HID Global Corporation. All rights reserved.
1 Head Track Adjustments
For a credential with a different track position, change the
head track position on the Magnetic Stripe reader.
Snap out the head/gimbal assembly.1.
Rotate the assembly 180 degrees.2.
Re-install the assembly into the reader case.3.

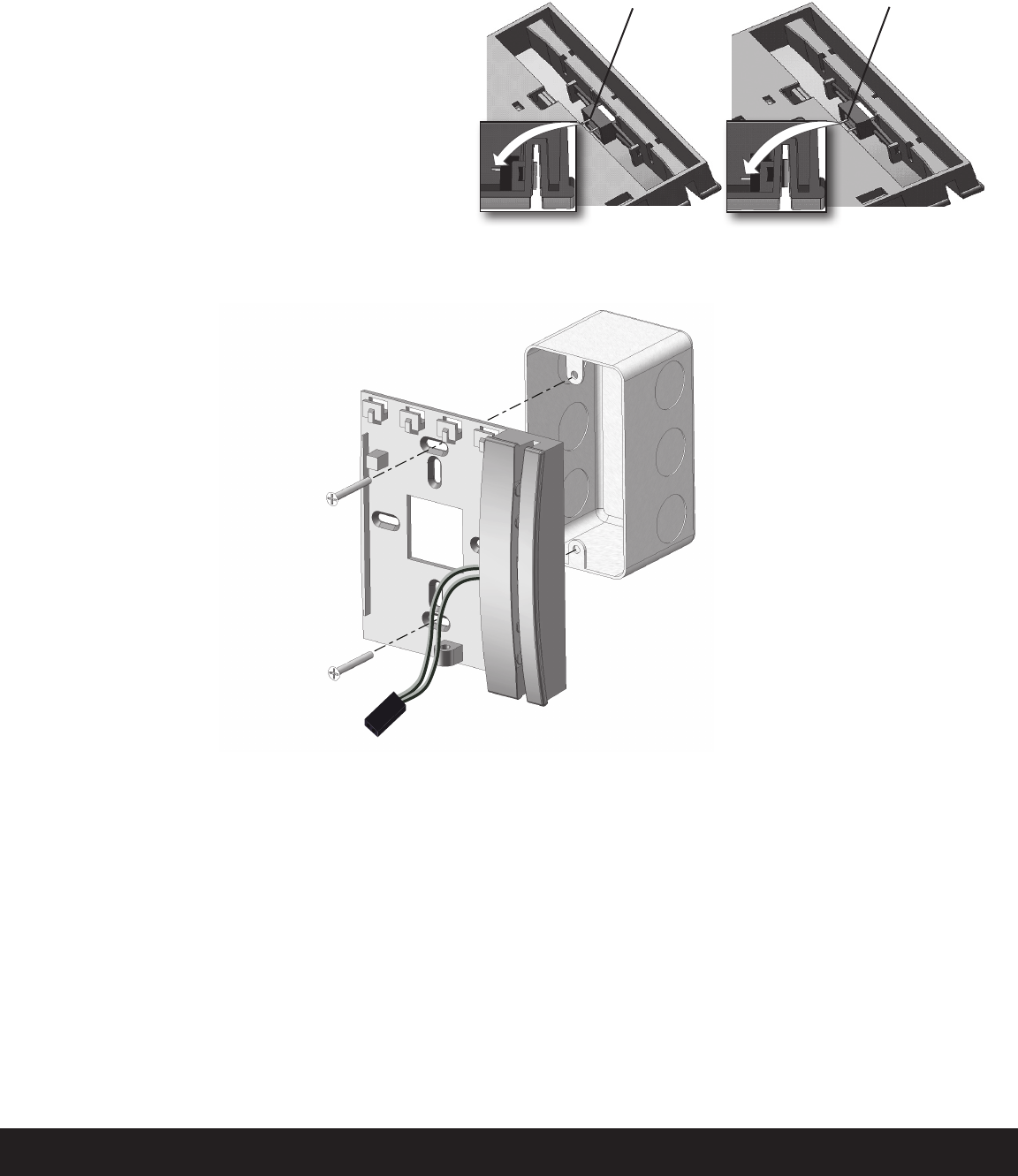

2 Mounting
Junction box not included.
Caja para conexiones no incluida.
Boîtier de jonction non inclus.
Caixa de junção não incluída.
Anschlusskasten nicht mit inbegriffen.
Scatola di raccordo non inclusa.
不包括接线盒。
接続ボックスは含まれていません。
연결 박스는 제품에 포함되지 않습니다.
Соединительная коробка не прилагается
Wires away
from reader
face
Wires toward
reader face
(default)
6410-901 A.1
INSTALLATION GUIDE 3
©2009 HID Global Corporation. All rights reserved.
multiCLASS
RMK40 / RMPK40

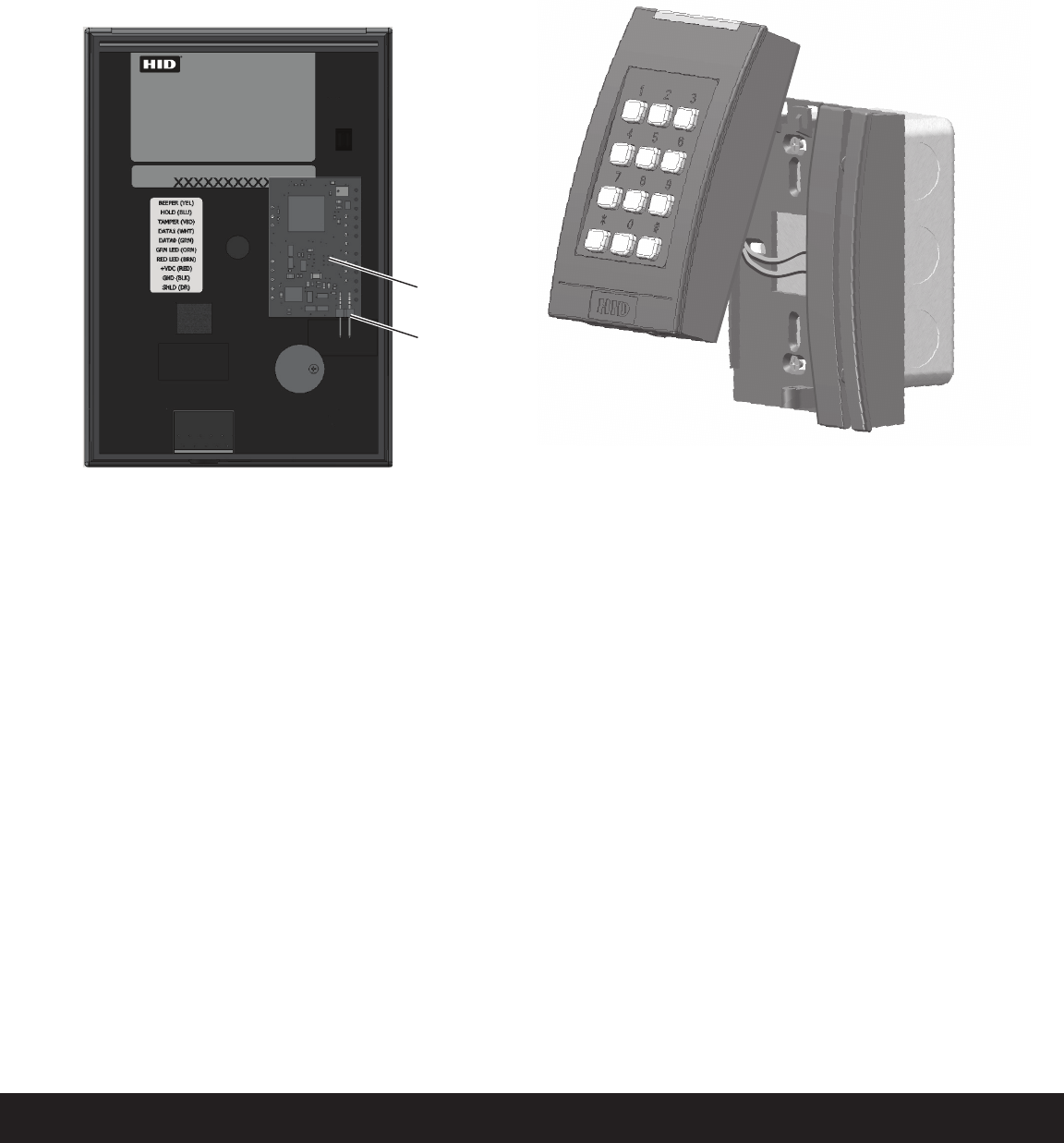

4 Install Reader to Backplate3 Wiring
Attach wire (see step 2) from the magnetic stripe
reader to the iCLASS Keypad reader connector.
Connecto
r
Module
hidglobal.com
ACCESS experience.
North America
15370 Barranca Parkway
Irvine, CA 92618
USA
Phone: 800 237 7769
Support: 866 607 7339
Fax: 949 732 2120
Email: tech@hidglobal.com
Asia Pacific
19/F 625 King’s Road
NorthPoint, Island East
Hong Kong
Phone: 852 3160 9800
Support: 852 3160 9833
Fax: 852 3160 4809
Email: asiasupport@hidglobal.com
Europe, Middle East & Africa
Phoenix Road
Haverhill, Suolk CB9 7AE
England
Phone: +44 1440 714 850
Support: +44 1440 711 822
Fax: +44 1440 714 840
Email: eusupport@hidglobal.com
HID Global
6410-901 Rev A.1
Patent Pending
© 2009 HID Global Corporation. All rights reserved.
Check reader label for current regulatory approvals.
HID, HID Global, and iCLASS are the trademarks or registered trademarks of HID Global
Corporation in the U.S. and other countries.
UL
Connect only to a Listed Access Control / Burglary power-limited power supply. These readers are intended to be used with listed (UL294) control equipment.
Only the Wiegand communication protocol has been investigated by UL.
FCC / Canada Radio Certification
These devices comply with part 15 of the FCC rules.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause
undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Le fonctionnement est soumis aux deux conditions suivantes : (1) Ce dispositif ne peut pas causer de perturbations nuisibles et (2) ce dispositif doit accepter toute perturbation quelconque qu’il reçoit,
y compris des perturbations susceptibles de provoquer un fonctionnement indésirable. Les changements ou modifications n’ayant pas été expressément approuvés par la partie responsable de la
conformité peuvent faire perdre à l’utilisateur l’autorisation de faire fonctionner le matériel.
CE Marking
HID Global hereby declares that these proximity readers are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Por el presente, HID Global declara que estos lectores de proximidad cumplen con los requisitos esenciales y otras disposiciones relevantes de la Directiva 1999/5/EC.
HID Global déclare par la présente que ces lecteurs à proximité sont conformes aux exigences essentielles et aux autres stipulations pertinentes de la Directive 1999/5/CE.
A HID Global, por meio deste, declara que estes leitores de proximidade estão em conformidade com as exigências essenciais e outras condições da diretiva 1999/5/EC.
HID Global bestätigt hiermit, dass die Leser die wesentlichen Anforderungen und anderen relevanten Bestimmungen der Richtlinie 1999/5/EG erfüllen.
HID Global dichiara che i lettori di prossimità sono conformi ai requisiti essenziali e ad altre misure rilevanti come previsto dalla Direttiva europea 1999/5/EC.
Download copies of the R&TTE Declaration of Conformity (DoC) at http://certications.hidglobal.com.
