DTC4500 User Guide

P/N: L001444

rights reserved.

Exclusive permission is granted to authorized resellers of HID Global products to reproduce and

distribute this copyrighted document to authorized HID Global customers, who have signed a no

disclosure agreement regarding the restricted, proprietary use of said document.

The revision number for this document will be updated to reflect changes, corrections, updates and

enhancements to this document.

Revision Control

Number Date Document Title

Revision 1.0 March 2010 DTC4500

Card Printer/Encoder User Guide

Trademarks and Disclaimers

HID, HID Global, and Fargo are the trademarks or registered trademarks of HID Global Corporation in

the U.S. and other countries.

The information contained in this document is provided AS IS without any warranty.

HID Global hereby disclaims all warranties and conditions with regard to the information contained

herein, including all implied warranties of merchantability, fitness for a particular purpose, title and non-

infringement.

In no event shall HID Global be liable, whether in contract, tort or otherwise for any indirect, special or

consequential damages arising from the use of the information contained in this document.

Any questions regarding changes, corrections, updates or enhancements to this document should be

forwarded to:

Hid Global

Support Services

6533 Flying Cloud Drive

Eden Prairie, MN 55344 (USA)

(866)607-7339 Ext #6

FAX: (952) 946-8492

www.hidglobal.com

DTC4500 Card Printer/Encoder User Guide 2

Table of Contents

DTC4500 User Guide ______________________________________________________________________ 1

Section 1: Specifications ___________________________________________________________________ 5

Regulatory Compliances ___________________________________________________________________________ 5

Agency Listings__________________________________________________________________________________ 6

United States__________________________________________________________________________________ 6

Canada ______________________________________________________________________________________ 6

Safety Messages (review carefully)___________________________________________________________________ 7

Environmental Protection (China-RoHS) ______________________________________________________________ 8

Traditional Chinese RF Emissions and Safety Statements _______________________________________________ 8

Simplified Chinese _____________________________________________________________________________ 9

Technical Specifications __________________________________________________________________________ 10

Functional Specifications__________________________________________________________________________ 13

Printer Components: Print Ribbons _______________________________________________________________ 13

Ribbon Types/Count Table______________________________________________________________________ 14

Printer Components: Blank Cards ________________________________________________________________ 15

Section 2: Setup and Installation Procedures _________________________________________________ 16

Choosing a Good Location ________________________________________________________________________ 16

About Moisture Condensation ___________________________________________________________________ 16

Unpacking and Inspection_______________________________________________________________________ 16

Installing the Print Ribbon Cartridge (DTC4500) _______________________________________________________ 17

Installing the Ribbon___________________________________________________________________________ 17

Installing Blank Cards into the Card Hopper (DTC4500)_________________________________________________ 19

Using the Single and Dual Hopper ________________________________________________________________ 19

Setting the Card Size for CR79 and CR80_____________________________________________________________ 23

Connecting the Printer power ______________________________________________________________________ 27

Section 3: Print Driver Installation_________________________________________________________ 28

Driver Installation Instructions _____________________________________________________________________ 28

Section 4: Printer Preferences Tab Functions ________________________________________________ 29

|contextid=30 Using the Card tab __________________________________________________________________ 29

Using the Toolbox Options ________________________________________________________________________ 30

|contextid=150 Using the Configuration Tab __________________________________________________________ 31

|contextid=151 Selecting the Calibrate Laminator tab____________________________________________________ 32

Using the Event Monitoring Group Box ______________________________________________________________ 34

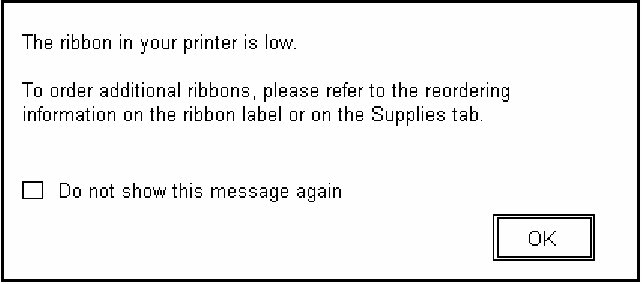

Reviewing the Ribbon Low message ______________________________________________________________ 34

|contextid=152 Selecting the Calibrate Ribbon tab ______________________________________________________ 35

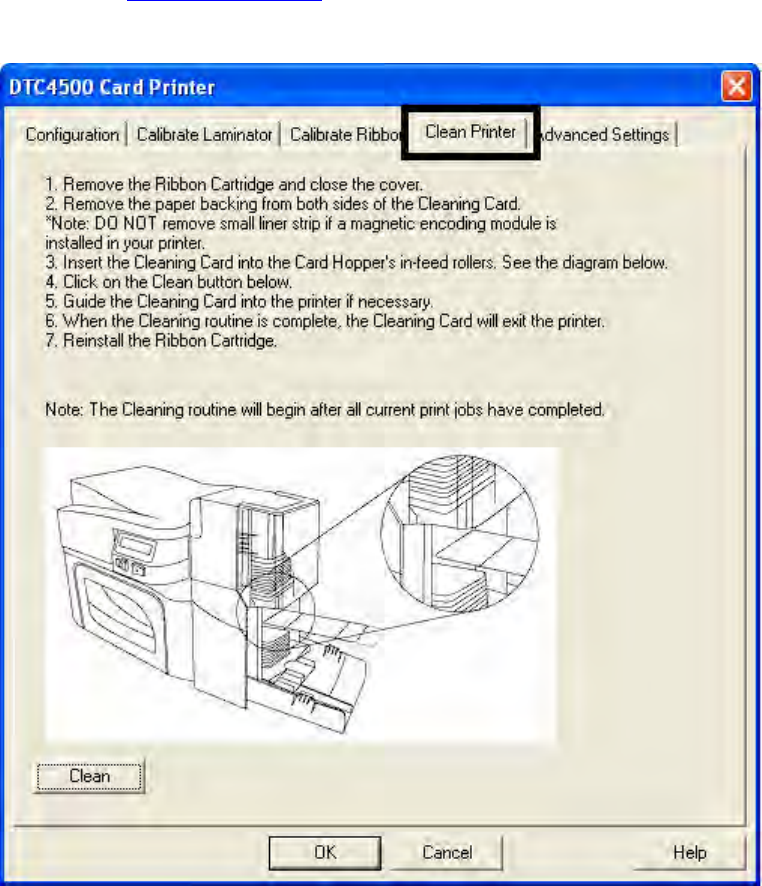

|contextid=154 Selecting the Clean Printer tab _________________________________________________________ 37

|contextid=155 Selecting the Advanced Settings tab_____________________________________________________ 38

|contextid=40Using the Device Options tab ___________________________________________________________ 46

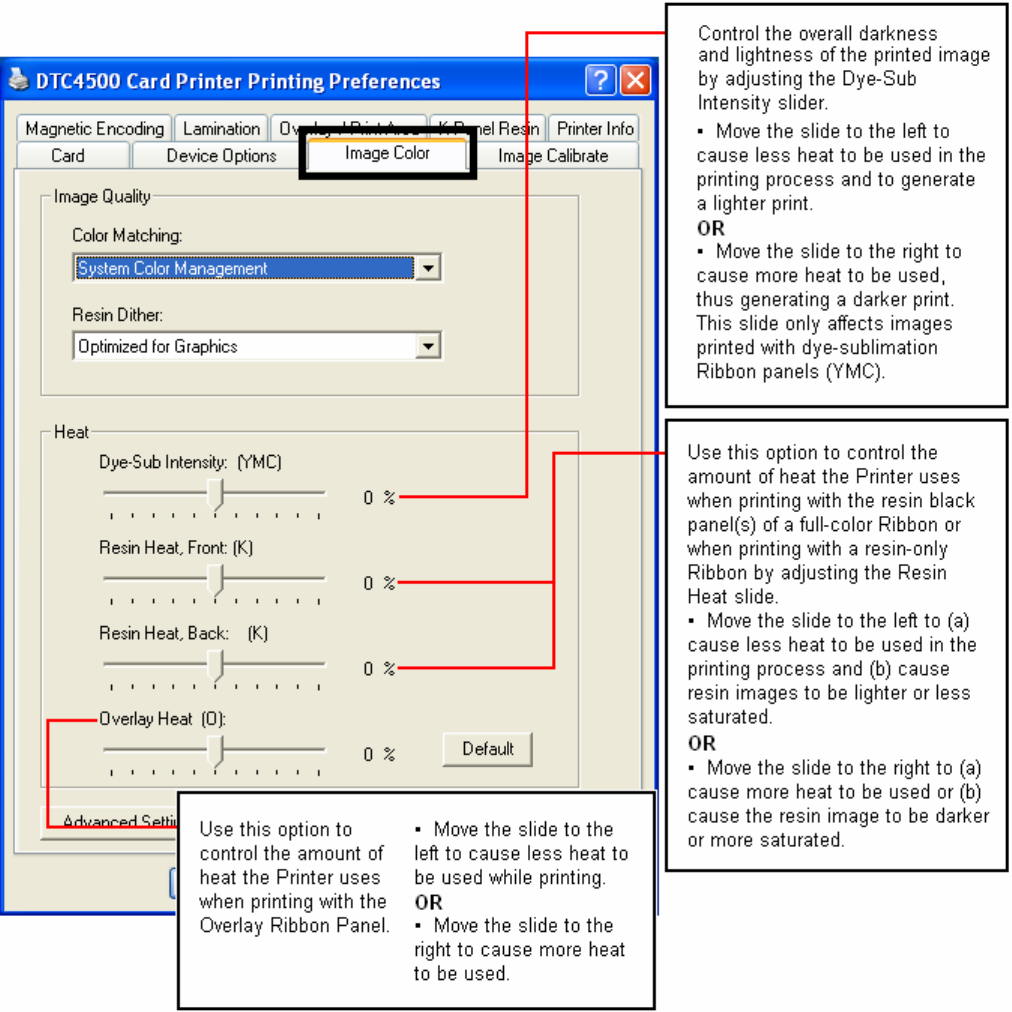

|contextid=50Using the Image Color tab ______________________________________________________________ 49

|contextid=51Using the Image Calibrate tab ___________________________________________________________ 52

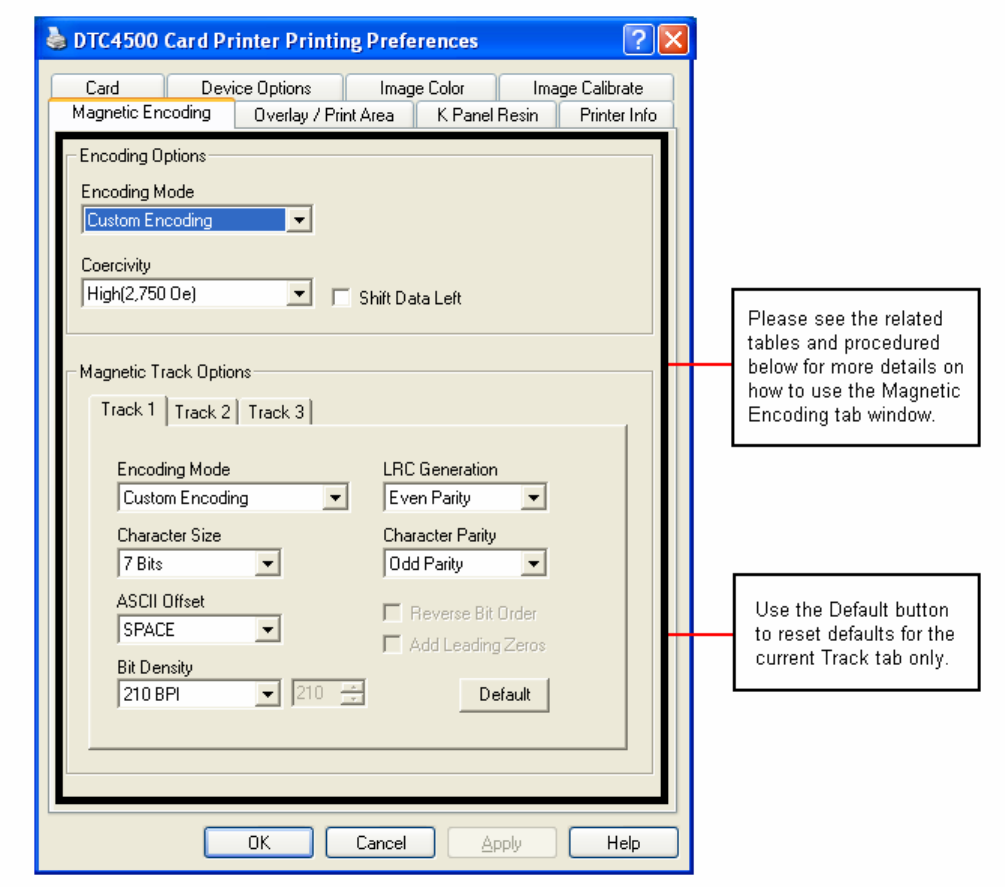

|contextid=70Using the Magnetic Encoding Tab________________________________________________________ 53

Using the Magnetic Encoding Tab – ISO Standards___________________________________________________ 54

Using the Magnetic Encoding Tab – Custom Encoding or Raw Binary Encoding Mode ______________________ 56

Reviewing the ISO Track Locations_______________________________________________________________ 57

Reviewing the Sample String ____________________________________________________________________ 58

Sending the Track Information ___________________________________________________________________ 59

Reviewing the ASCII Code and Character Table _____________________________________________________ 60

|contextid=80Using the Lamination tab ______________________________________________________________ 62

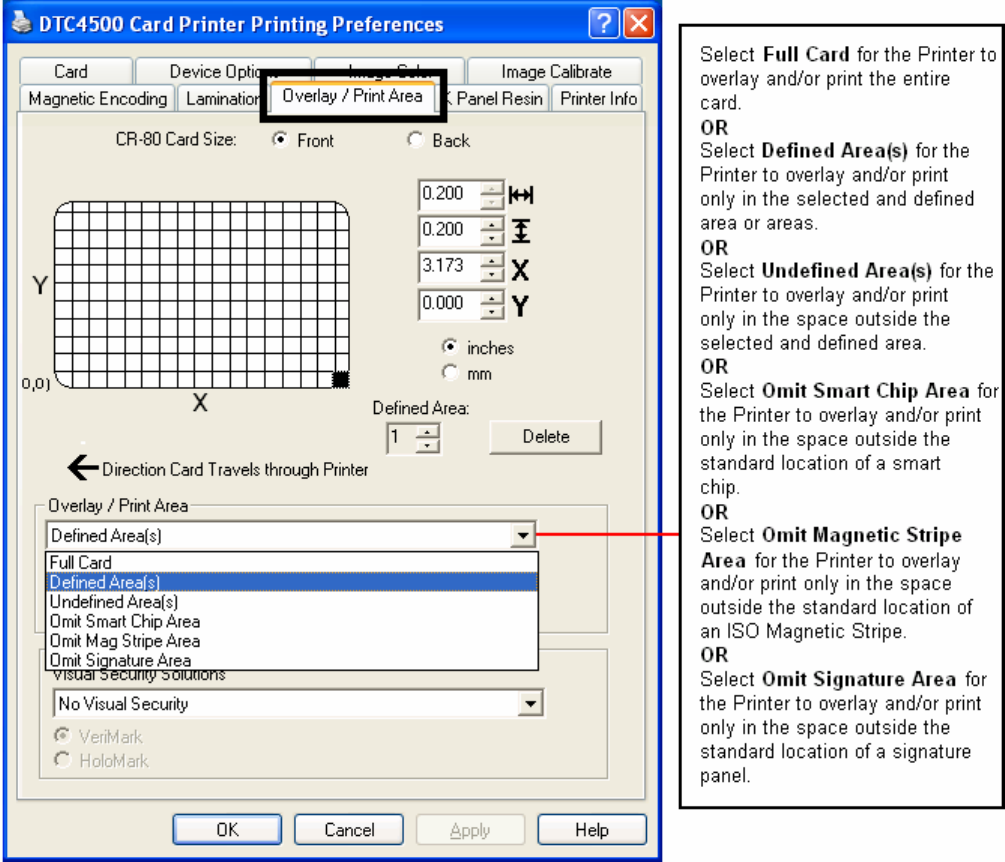

|contextid=90 Using the Overlay / Print Area tab _______________________________________________________ 62

DTC4500 Card Printer/Encoder User Guide 3

|contextid=100Using the K Panel Resin tab ___________________________________________________________ 66

|contextid=120Using the Printer Info tab______________________________________________________________ 69

Section 5: Selecting the Fluorescent Panel Ribbon Type________________________________________ 70

Creating a Custom Fluorescent Image (using the YMCFKO Ribbon) _____________________________________ 70

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the Application ________________________ 72

Section 6: System Overview- Troubleshooting ________________________________________________ 76

Reviewing the DTC4500 Sequence of Operations ______________________________________________________ 76

Reviewing the DTC4500 Sequence of Operations ____________________________________________________ 77

Section 7: Troubleshooting________________________________________________________________ 78

Printer Error Button and Display Message Table _______________________________________________________ 78

Using the Error Message Table _____________________________________________________________________ 80

Troubleshooting with the Error Message Table_________________________________________________________ 82

Printer Specific Tools (DTC4500)___________________________________________________________________ 92

Additional Printer Specific Tools (DTC4500) _______________________________________________________ 93

Section 8: Cleaning ______________________________________________________________________ 94

Safety Messages (review carefully) _______________________________________________________________ 94

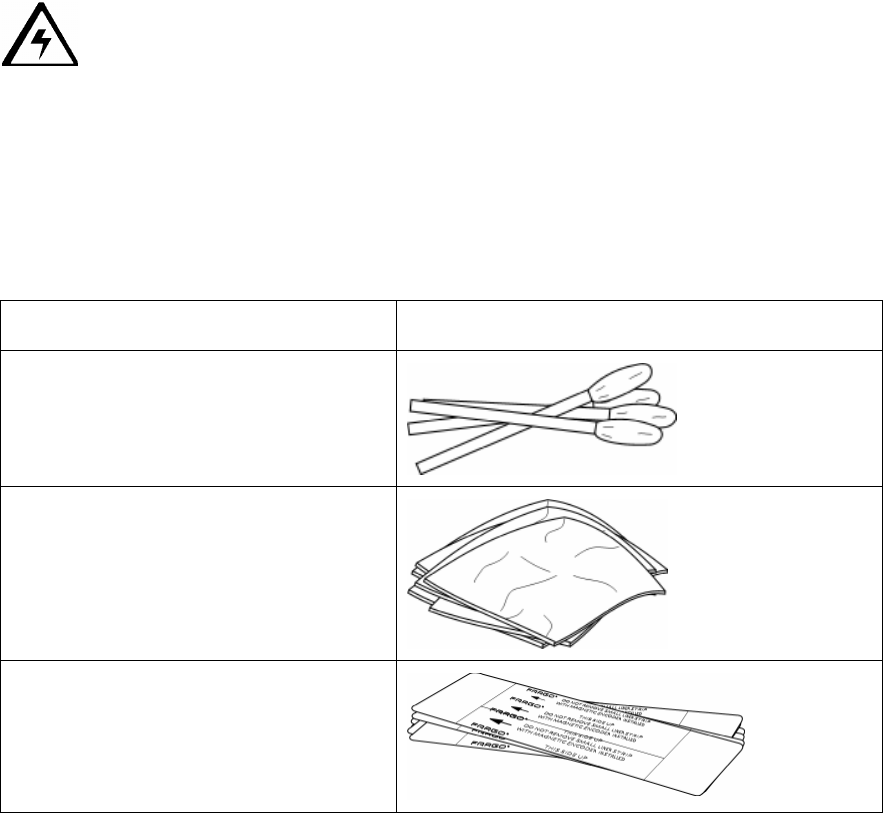

DTC4500 Card Printer/Encoder Cleaning Kit _______________________________________________________ 95

Printhead Cleaning ____________________________________________________________________________ 96

Cleaning the Platen and the Card Feed Rollers_______________________________________________________ 97

Cleaning the Printer’s Interior____________________________________________________________________ 99

Cleaning the Printer’s Exterior ___________________________________________________________________ 99

Section 9: Firmware Upgrades____________________________________________________________ 100

Upgrade the Printer Firmware _____________________________________________________________________ 100

Section 10: HID Global Technical Support__________________________________________________ 103

Reading the Serial Numbers on a Fargo Printer _______________________________________________________ 104

Appendix A ____________________________________________________________________________ 105

Using the Defined Area Option ____________________________________________________________________ 105

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the Workbench _________________________ 106

DTC4500 Card Printer/Encoder User Guide 4

Section 1: Specifications

The purpose of this section is to provide you with specific information on the Regulatory Compliances,

Agency Listings, Technical Specifications and Functional Specifications for the DTC4500 Card Printer

User Guide.

Regulatory Compliances

Term Description

CSA

(cUL)

The Printer manufacturer has been authorized by UL to

represent the Card Printer as CSA Certified under CSA

Standard C22.2 No. 60950-1-03.

File Number: E145118

FCC The Card Printer complies with the requirements in Part 15 of

the FCC rules for a Class A digital device.

EMC The Card Printer has been tested and complies with EN55022 /

CISPR 22 Class A: and EN55024 standards.

(Note: Based on the above testing, the Printer manufacturer

certifies that the Card Printer complies with current EMC

directive 2004/108/EC of the European Community and has

placed the CE mark on the Card Printer.)

License Number: J99032510

UL The Card Printer is listed under UL IEC 60950-1 (2001)

INFORMATION TECHNOLOGY EQUIPMENT

(Note: This product is intended to be supplied by a Listed

Power Unit marked Class 2 and rated for 24 V dc, 3.7 to 5A.)

File Number: E145118

Environmental Power supply Efficiency level IV, RoHS, China RoHS

DTC4500 Card Printer/Encoder User Guide 5

Agency Listings

Term Description

Emissions

Standards CE, FCCPart 15 Class A, CRC c1374, CISPR22 Class A,

EN55022, EN55024,

EN61000-3-2, EN61000-3-3,

Safety Standards UL IEC 60950-1 (2001), CSA C22.2 No. 60950-1-03.

United States

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause undesired

operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference; in which case, you will be required

to correct the interference at his own expense.

Reference the Safety Messages in this document.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

C’et appareil numerique de la classe A est comforme a la norme NMB-003 du Canada.

Caution: Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

DTC4500 Card Printer/Encoder User Guide 6

Safety Messages (review carefully)

Symbol Critical Instructions for Safety purposes

Danger:

Failure to follow these installation guidelines can result in death

or serious injury.

Information that raises potential safety issues is indicated by a

warning symbol (as shown to the left).

• To prevent personal injury, refer to the following safety

messages before performing an operation preceded by this

symbol.

• To prevent personal injury, always remove the power cord prior

to performing repair procedures, unless otherwise specified.

• To prevent personal injury, make sure only qualified personnel

perform these procedures.

Caution:

This device is electrostatically sensitive. It may be damaged if

exposed to static electricity discharges.

Information that raises potential electrostatic safety issues is indicated

by a warning symbol (as shown to the left).

• To prevent equipment or media damage, refer to the following

safety messages before performing an operation preceded by this

symbol.

• To prevent equipment or media damage, observe all

established Electrostatic Discharge (ESD) procedures while

handling cables in or near the Circuit Board and Printhead

Assemblies.

• To prevent equipment or media damage, always wear an

appropriate personal grounding device (e.g., a high quality wrist

strap grounded to avoid potential damage).

• To prevent equipment or media damage, always remove the

Ribbon and Cards from the Printer before making any repairs,

unless otherwise specified.

• To prevent equipment or media damage, take jewelry off of

fingers and hands, as well as thoroughly clean hands to remove

oil and debris before working on the Printer.

DTC4500 Card Printer/Encoder User Guide 7

Environmental Protection (China-RoHS)

Environmental Protection Use Period is based on the product being used in an office environment.

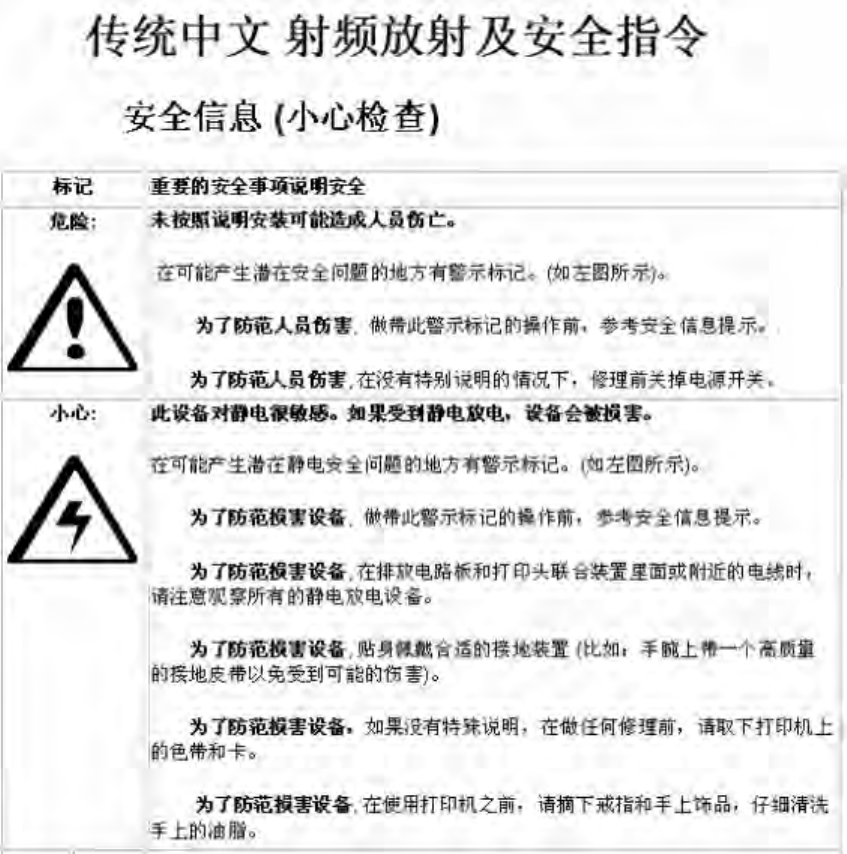

Traditional Chinese RF Emissions and Safety Statements

經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特

性及功能。低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,並改善至無

干擾時方得繼續使用。前項合法通信,指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、

科學及醫療用電波輻射性電機設備之干擾。

DTC4500 Card Printer/Encoder User Guide 8

Simplified Chinese

如何使用本手册

实际上,DTC4500 证卡打印机用户指南

是一本整个证卡打印机的故障排除和服务手册。本手册旨在帮助安装人员和技术人员快速有效地查找相关

过程、组件和术语。安装人员或技术人员可根据自己的喜好,高效地使用本手册的电子文档或纸面文档。

安全消息(请仔细阅读)

符号安全事项的重要说明

危险:

如果不遵循这些安装指南进行操作,可能会导致重伤,甚至死亡。

可能引发安全问题的信息由警告符号(如左图所示)来表示。

为了确保人身安全,在执行前面带有此符号的操作之前,请先阅读下面

的安全消息。

为了确保人身安全,除非另有规定,否则在执行维修过程前,始终应断

开电源。

为了确保人身安全,只能由有资格的人员执行这些过程。

安全消息(请仔细阅读)

符号安全事项的重要说明

小心:

此设备为静电敏感设备。如果暴露在静电电流下,可能会损坏设备。

可能引发静电安全问题的信息由警告符号(如左图所示)来表示。

为了防止设备或介质受损,在执行前面带有此符号的操作之前,请先阅

读下面的安全消息。

为了防止设备或介质受损,请在处理电路板和打印头部件中或附近的

电缆时,遵守所有规定的静电放电 (ESD) 过程。

为了防止设备或介质受损,请始终佩带适当的个人接地设备(例如,已

接地避免出现潜在损坏的高质量腕带)。

为了防止设备或介质受损,除非另有规定,否则在执行任何维修过程前

,始终应将色带和证卡与打印机分离。

为了防止设备或介质受损,在操作打印机前,请取下手指和手上的珠宝

饰物,并将手上的油渍和污渍彻底清洗干净。

DTC4500 Card Printer/Encoder User Guide 9

Technical Specifications

Term Function

Print resolution • 300 x 300 dpi(11.8 dots/mm)

• Up to 16.7 million colors, Monochrome

Printer Memory 16MB RAM

Print Area CR-80 (3.375"L x 2.125"W / 85.6mmL x 54mmW)

Print Method Dye Sublimation/Resin Thermal Transfer

Printer Driver &

System

Requirements

• Windows XP, Server 2003 and 2008, Vista 32-bit and 64-bit

compliance, Linux distributions-Red Hat, open

• SUSE, SUSE Enterprise, Ubuntu, Fedora Core

• Mac OS X version 10.0 to 10.5

• x86 based PC or compatible, Windows 2000, Windows XP,

Windows 2003, 500MHz computer with 256MB of RAM or

higher, 500MB free hard disk space or higher

Fargo E-card

Software

Development Kit

Support with developed Fargo E-card Software Development Kit

(SDK).

DTC4500 Card Printer/Encoder User Guide 10

Technical Specifications

Term Function

Connectivity • Standard USB 2.0 (USB Standard with this option), including

single USB cable support for Omnikey 5121 and 5125

encoders

• Ethernet 10/100 option, including single Ethernet cable

support for Omnikey 5121 encoder (separate USB cable

required for encoding with the Omnikey 5125 encoder)

• Full bi-directional status messaging to the PC during the

encoding process

Print Speed Indicates the Ribbon type and the number of Ribbon panels

printed where Y=Yellow, M=Magenta, C=Cyan, K=Resin Black,

O=Overlay, F=Fluorescing Resin

• YMCKO= 24 seconds per card

• YMCKOK= 30 seconds per card

• Resin= 6 seconds per card

• Print speed indicates an approximate batch print speed and

is measured from the time a card feeds into the Printer to the

time it ejects from the Printer.

• Print speeds do not include encoding time or the time

needed for the PC to process the image.

• Process time is dependent on the size of the file, the CPU,

amount of RAM and the amount of available resources at the

time of the print.

DTC4500 Card Printer/Encoder User Guide 11

Technical Specifications

Term Function

Card Size and

Types Supported

• CR-80 (3.362"L x 2.114"W / 85.4mmL x 53.7mmW)

• CR-79 (3.303”L x 2.051”W / 83.7mmL x 51.9mmW

• 10 mil to 40 mil card thickness

• Re-writable card technologies (requires special rewritable

cards)

• PVC, Polyester cards with a polished PVC finish

Printer Dimensions

DTC4500 :

• 14.4"(366 mm)L x 9.2"(234 mm)W x 9.8"(249 mm)H w/o

output bin

• 18.1"(460 mm)L x 9.2"(234 mm)W x 9.8"(249 mm)H w/

output bin

DTC4500 with Flipper (includes input Hopper):

• 18.7"(475 mm)L x 9.2"(234 mm)W x 9.8"(249 mm)H

DTC4500 without Flipper (includes input and output

Hoppers):

• 18.7"(475 mm)L x 9.2"(234 mm)W x 18.9"(480 mm)H

Environmental

Operation

• 20-80% Humidity

• 65° to 80° F / 18° to 27° C Temperature

Electrical • External power adapter: 100-240 VAC, 1.5 A max, output

24Vdc 3.75A

• 50 Hz/60 Hz Supply Frequency

• Efficiency level IV

Encoding Options

Supported

• Omnikey 5121 (iClass, Mifare, Desfire)

• Omnikey 5125 (HID Prox,Indala)

• Contact Smart Card (requires Omnikey 5121 or 5125 )

• ISO Mag Encoding standard 7811, Parts 1-7. High or Low

Coercivity. (Raw Magnetic Encoding option)

• JIS II Mag Encoding

DTC4500 Card Printer/Encoder User Guide 12

Functional Specifications

This Card Printer utilizes two different, yet closely related printing technologies to achieve its remarkable

direct-to-card print quality for dye-sublimation and resin thermal transfer.

Printer Components: Print Ribbons

The Card Printer utilizes both dye-sublimation and/or resin thermal transfer methods to print images

directly onto blank cards. Since the dye-sublimation and the resin thermal transfer print methods each

provide their own unique benefits, Print Ribbons are available in resin-only, dye-sublimation-only and

combination dye-sublimation/resin versions.

To make it easier to remember which Print Ribbons are which, a letter code has been developed to

indicate the type of Ribbon panels found on each Ribbon. This letter code is as follows:

= Dye-Sublimation Yellow Panel

= Dye-Sublimation Magenta Panel

= Dye-Sublimation Cyan Panel

= Resin Black Panel (Premium unless otherwise stated )

= Clear Protective Overlay Panel

= Ultra Violet Fluorescing Panel

DTC4500 Card Printer/Encoder User Guide 13

Ribbon Types/Count Table

Ribbon type and count used in each Printer.

Ribbon DTC4500

YMCKO – Full Color/Resin Black/Overlay 500

YMCKO Half Panel – Full Color (1/2)/Resin

Black/Overlay 850

YMCFKO - Full Color/UV Fluorescing/Resin

Black/Overlay 500

YMCKK - Full Color/2 Resin Black 500

YMCKOK - Full Color/2 Resin Black/Overlay 500

YMCFKOK - Full Color/UV Fluorescing/2 Resin

Black/Overlay 400

K – Standard Resin 3000

K – Premium Resin 3000

Colored Resin 2000

Metallic Resin 2000

KO - Premium Black Resin/Overlay 1250

BO - Dye-Sub Black/Overlay 1250

None – Rewritable Supported

DTC4500 Card Printer/Encoder User Guide 14

Printer Components: Blank Cards

Type Description

Card Size The Card Printer accepts standard CR-80 and CR-79 sized cards.

Card

Surface Suitable cards must have a polished PVC surface free of fingerprints, dust

or any other types of embedded contaminants. In addition, cards must

have a completely smooth, level surface in order for the Printer to achieve

consistent color coverage.

• Certain types of Proximity cards have an uneven surface that will

inhibit consistent color transfer.

• Certain types of smart card chips are raised slightly above the cards

surface which also results in poor color transfer.

UltraCard™

Brand

Cards

The UltraCard product line, available exclusively as part of HID's Global's

Fargo brand secure card issuance solutions, has a long standing

reputation among dealers and end-Users for consistent quality in

construction.

• In addition to blank stock, the UltraCard line is available in a variety of

configurations for magnetic stripe, custom holograms and other

additional anti-counterfeiting feature

• UltraCard™ Premium is the preferred card for Direct-to-Card (DTC®)

applications that require a higher quality card. The UltraCard

Premium’s composite material construction provides for maximum

durability, flexibility and card life, with optimal resolution print quality

for lamination and fluorescent panel Ribbon printing applications.

• UltraCard™ PVC cards are medium-durability cards for a glossy,

photo quality finish. These cards are manufactured to ensure clean,

scratch-free cards for high-quality prints and extended Printhead life.

DTC4500 Card Printer/Encoder User Guide 15

Section 2: Setup and Installation Procedures

This section describes the setup and installation for the DTC4500 Card Printer.

Choosing a Good Location

Follow these guidelines:

• Place the unit in a location with adequate air circulation to prevent internal heat build up.

• Use the Printer's dimensions as a guideline for the minimum clearances to the unit. (Note: Allow for

adequate clearance in front of the unit to accommodate the unit with its Covers open.)

• Do not install unit near heat sources such as radiators or air ducts or in a place subject to direct

sunlight, excessive dust, mechanical vibration or shock.

About Moisture Condensation

If the unit is brought directly from a cold to a warm location or is placed in a very damp room, moisture

may condense inside the unit. Should this occur, print quality may not be optimum.

Leave the unit turned Off in a warm, dry room for several hours before using. This will allow the moisture

to evaporate.

Caution: For safety purposes, Ethernet is not intended for a direct connection outside of the

building.

Unpacking and Inspection

While unpacking your Printer, inspect the carton to ensure that no damage has occurred during shipping.

Make sure that all supplied accessories are included with your unit.

Check that the following items are included:

• Power Supply

• US / EU Power Cable

• USB cable (2.0)

• Software Installation CD/User Guide

• User Guide

• Warranty Statement, Registration Card and Compliancy Document

DTC4500 Card Printer/Encoder User Guide 16

Installing the Print Ribbon Cartridge (DTC4500)

Fargo Card Printers require highly specialized supplies to function properly.

• The Fargo DTC4500 Card Printer uses a one-piece, refill system.

• To maximize Printer life, reliability, printed card quality and durability, you must use only Fargo-

certified supplies.

• For this reason, your Fargo warranty is void, where not prohibited by law, if you use non-Fargo-

certified supplies.

• Printer cleaning is recommended with each Ribbon change to ensure quality printed cards.

• Resin-only Print Ribbons consist of a continuous roll of a single resin color. No protective overlay

panel (O) is provided since resin images do not require the protection of such an overlay.

Installing the Ribbon

Step Procedure

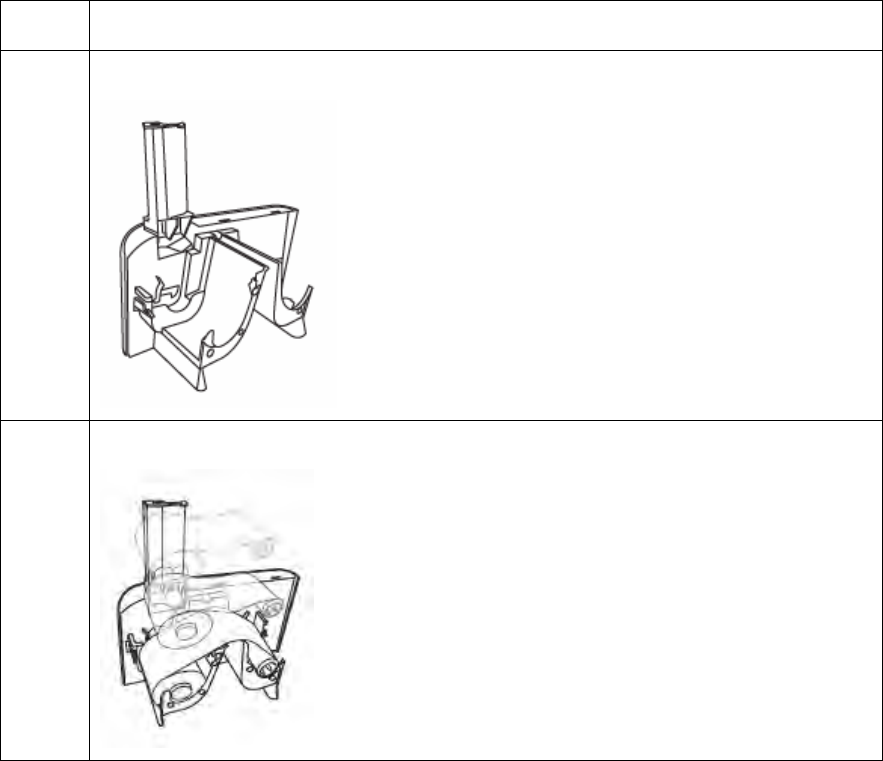

1 Lift up the Cleaning Roller Cover.

2 Load the Print Ribbon into the Print Ribbon Cartridge.

DTC4500 Card Printer/Encoder User Guide 17

Installing the Ribbon

Step Procedure

3 a. Close the Cleaning Roller Cover.

b. Insert the new Cleaning roller.

4 Load the Ribbon Cartridge into the Printer.

5 Close the Front Cover.

DTC4500 Card Printer/Encoder User Guide 18

Installing Blank Cards into the Card Hopper (DTC4500)

Using the Single and Dual Hopper

Caution: Do not run the cards with a contaminated, dull or uneven surface through the

Printer.

Step Procedure

1 Pre-instruction.

• Printing onto such cards will ultimately lead to poor print quality and will

greatly reduce the life of the Printhead. Card Types include PVC or PVC

finish.

• Cards eject into the Output Hopper or Reject Hopper.

• Each Hopper holds 100 cards.

• The DTC4500 is available with two (2) Hopper configurations: Single and

Dual Hopper

• Certain types of smart card chips are raised slightly above the cards

surface which may result in poor color transfer. Design the card with white

space surrounding the chip. (Note: The Fargo DTC4500 Printer is capable

of printing single load cards and multiple feed cards (batch mode).)

• To print using single feed, simply remove all cards from the Card Hopper,

leave the Card Hopper door closed and place a card in the single Feed

Card Slot (which can be used repeatedly).

• Again, the cards should be loaded with the print side down and (if

applicable) the magnetic strip up and towards the front of the Printer.

DTC4500 Card Printer/Encoder User Guide 19

Using the Single and Dual Hopper

Step Procedure

2 Open the Card Hopper Cover.

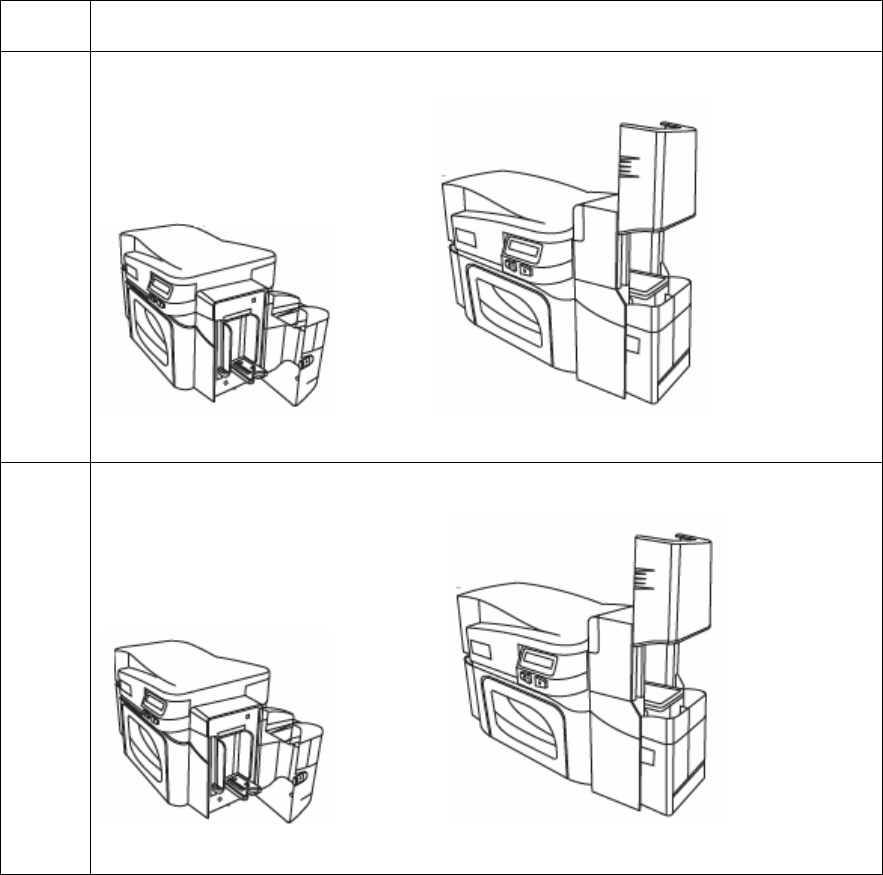

Single Hopper Dual Hopper

3 Press the Card Hopper Load Lever down until the Card Tray locks into place.

DTC4500 Card Printer/Encoder User Guide 20

Using the Single and Dual Hopper

Step Procedure

4 Load up to 100 cards into the Hopper with the print side down. (Note: If using

cards with a magnetic stripe, the magnetic stripe should be loaded with the

stripe up and to the front of the Printer.)

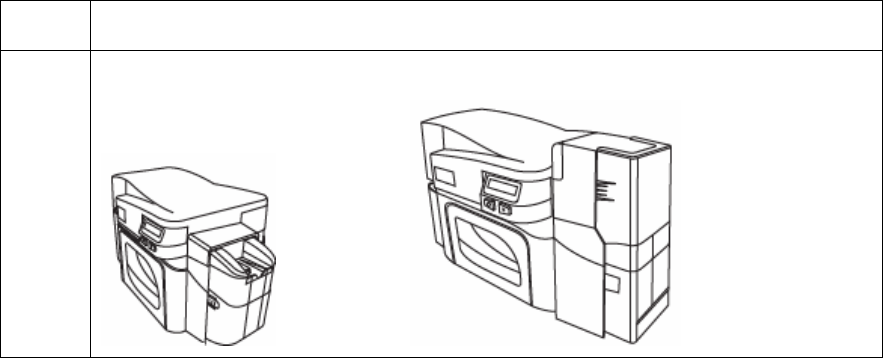

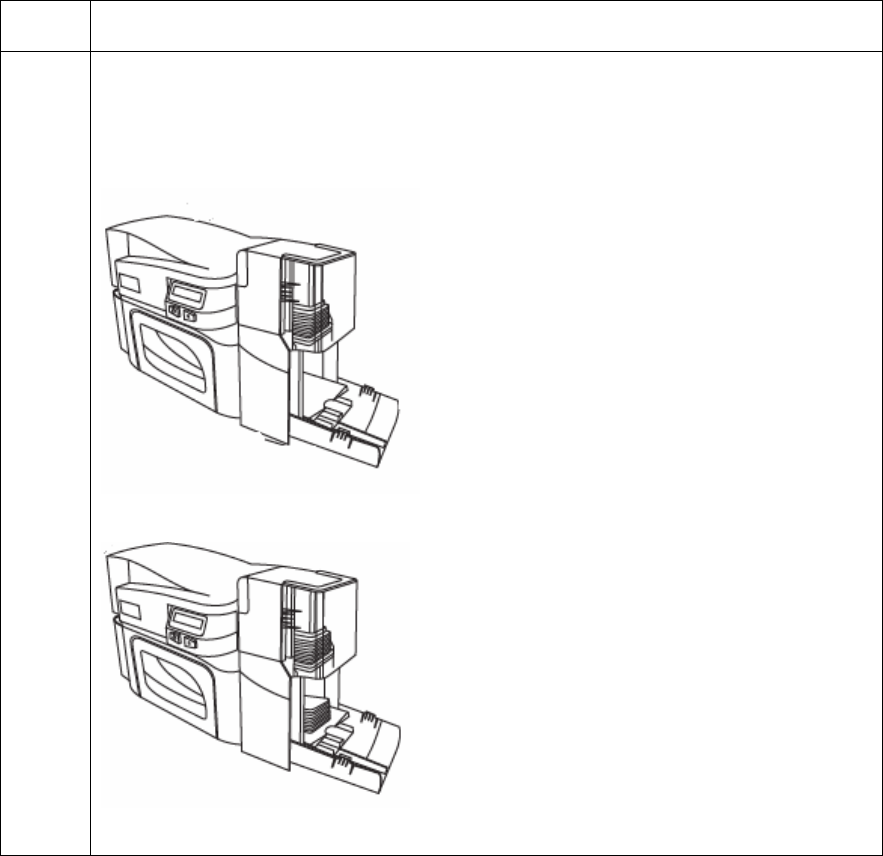

Display: Card loaded into the upper Hopper of DTC4500 Single Hopper

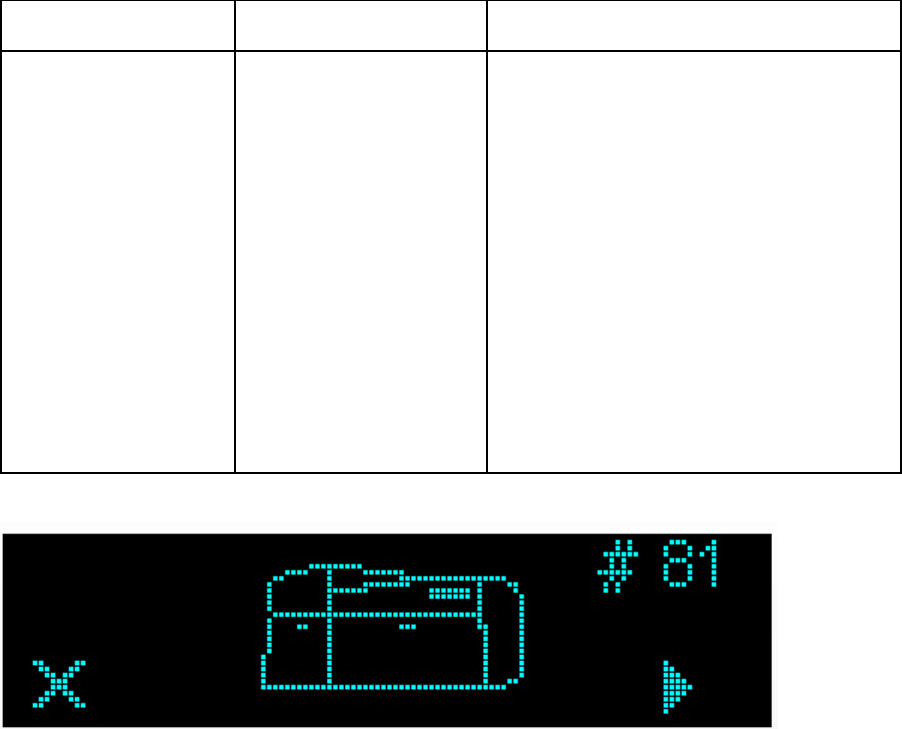

Display: Cards loaded into lower Hopper of DTC4500 Dual Hopper

DTC4500 Card Printer/Encoder User Guide 21

Using the Single and Dual Hopper

Step Procedure

5 Close the Card Hopper Cover to release the lever to the printing position.

DTC4500 Card Printer/Encoder User Guide 22

Setting the Card Size for CR79 and CR80

Follow this procedure in the Printer and in the Printer Driver to setup the card size.

Step Procedure

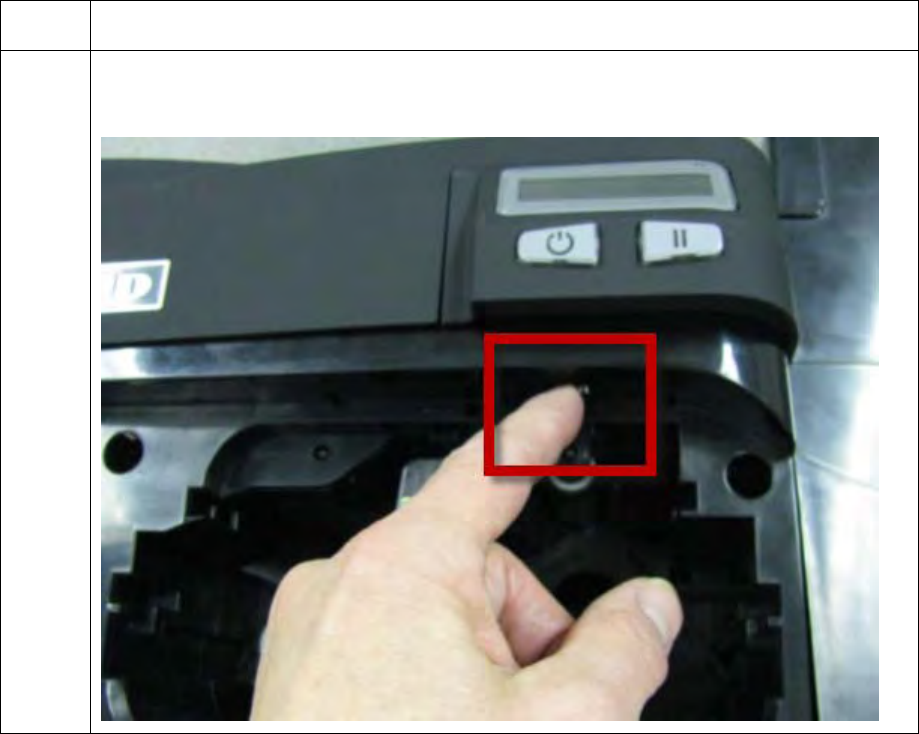

1 Open the front door and locate the slide bar.

DTC4500 Card Printer/Encoder User Guide 23

Setting the Card Size for CR79 and CR80

Step Procedure

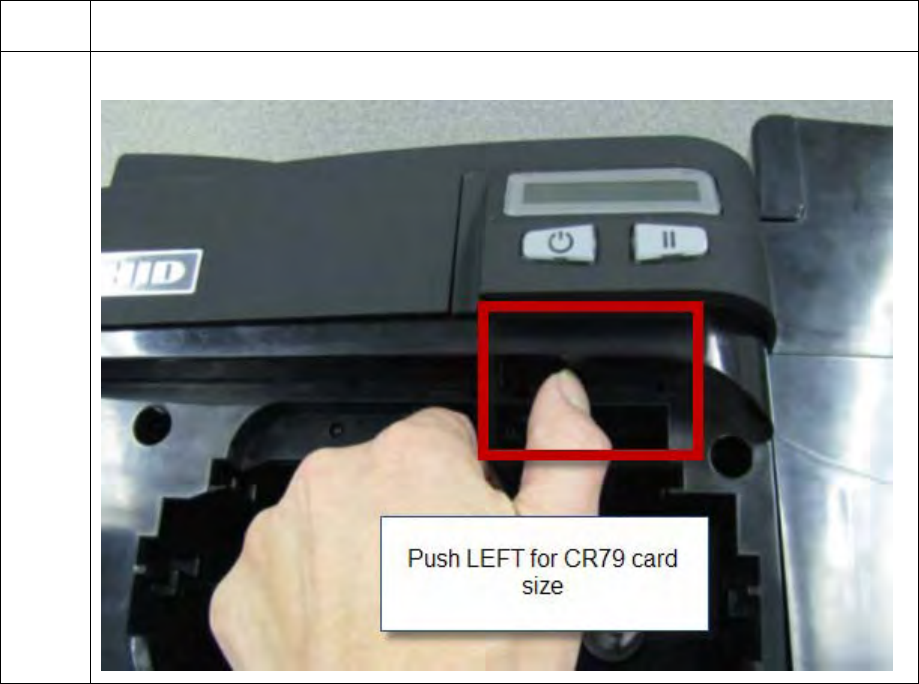

2 If using the CR79 card, push the slide bar to the LEFT.

DTC4500 Card Printer/Encoder User Guide 24

Setting the Card Size for CR79 and CR80

Step Procedure

3 If using the CR80 card, push the slide bar to the RIGHT.

DTC4500 Card Printer/Encoder User Guide 25

Setting the Card Size for CR79 and CR80

Step Procedure

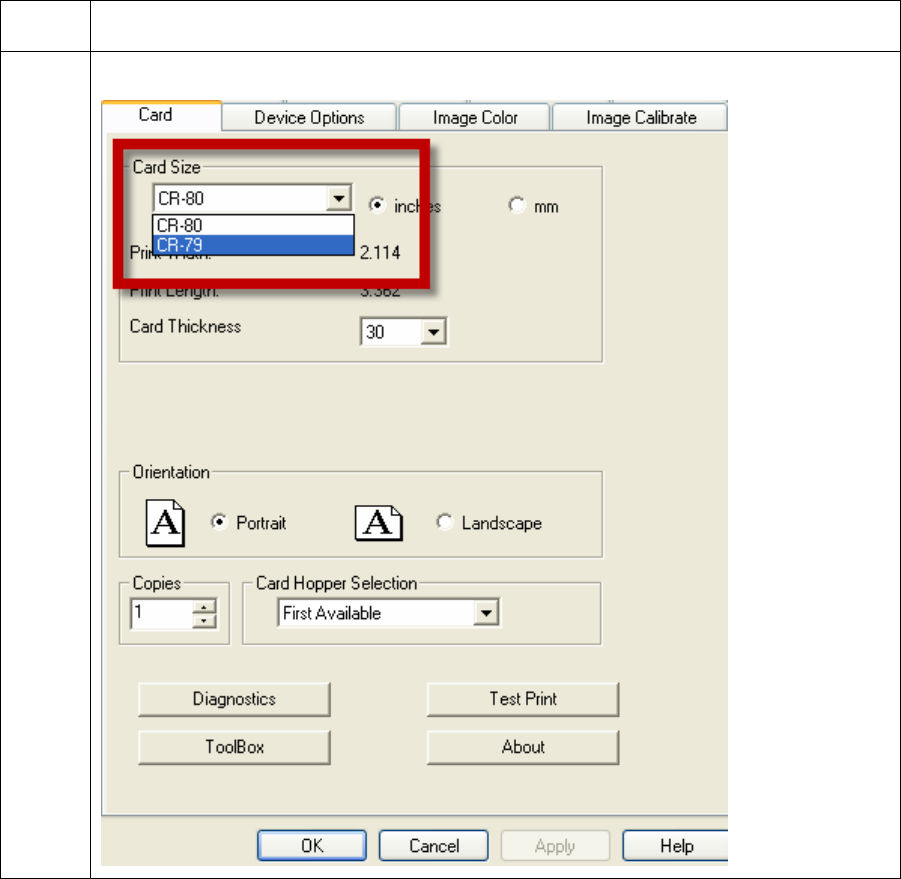

4 From the Driver Printing Preferences, select the correct card size.

DTC4500 Card Printer/Encoder User Guide 26

Connecting the Printer power

Follow this procedure. (Note: Do not connect the Printer’s USB cable until prompted during the Printer

Driver installation.)

Step Procedure

1 Plug the AC adapter power cable into the back of the Printer.

2 Plug the wall power cable into the AC power adapter. This display shows

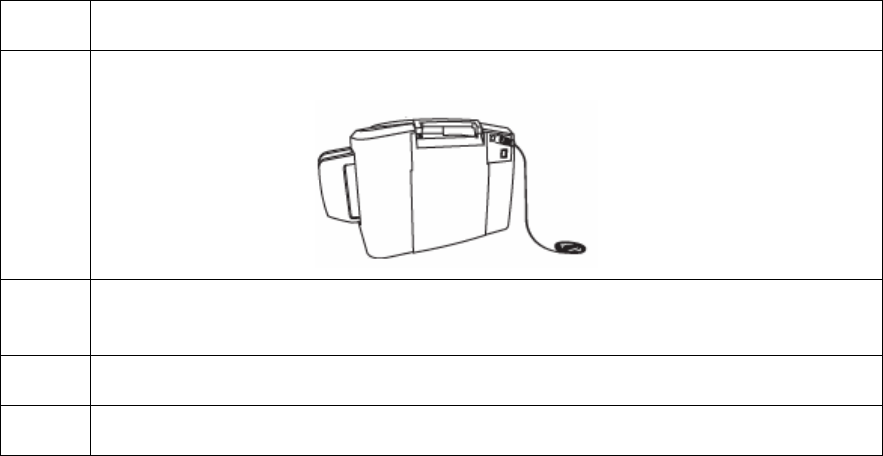

Printer from behind with AC power cable.

3 Plug the wall power cable into a standard 110VAC power outlet.

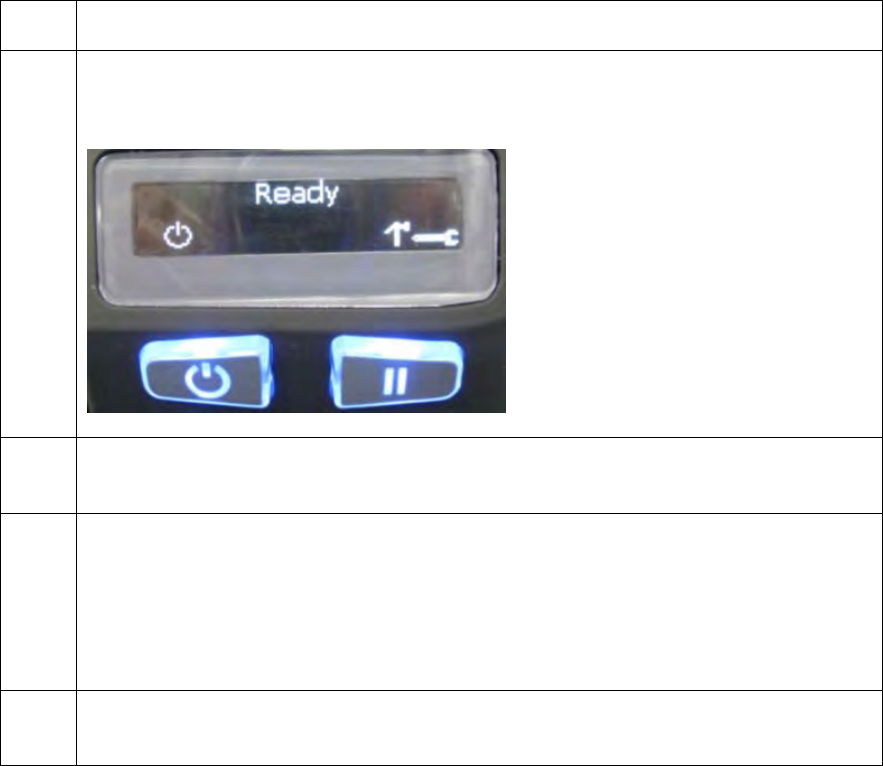

4 Press the left ON/Off Button to power up the printer.

DTC4500 Card Printer/Encoder User Guide 27

Section 3: Print Driver Installation

This section describes the Printer Driver installation requirements and standard procedures.

Requirements are listed below. The DTC4500 Print Driver supports the following:

• Vista, 32 bit Windows OS,

• Windows XP

• Server 2003

• Vista, 64 bit Windows OS

• Linux OS (Ubuntu7.10, Red Hat Enterprise Desktop 5, Fecora Core 7 & 8, openSUSE 10.3 , open

NOVELL SUSE 10.). Contact HID/Fargo Technical Support for the driver.

Driver Installation Instructions

Start the installation process by inserting the Driver CD into the computer. Then, follow the Installaware

Wizard screen prompts.

• Select 32 bit Windows or 64 bit Windows to start the installation.

• Select the Fargo Workbench Utility Program to install this program.

• Specific versions of Windows require Administrator rights.

• From the Printer & Faxes folder, open the Printing Preferences to setup the Driver after it has been

installed.

• Printing Preferences need to be setup after the Driver has been installed. Each TAB is shown in the

next section.

• Use the drop down arrows to select the correct options for each printing preference.

DTC4500 Card Printer/Encoder User Guide 28

Section 4: Printer Preferences Tab Functions

This section provides an overview of the Printer Driver preferences tab.

|contextid=30 Using the Card tab

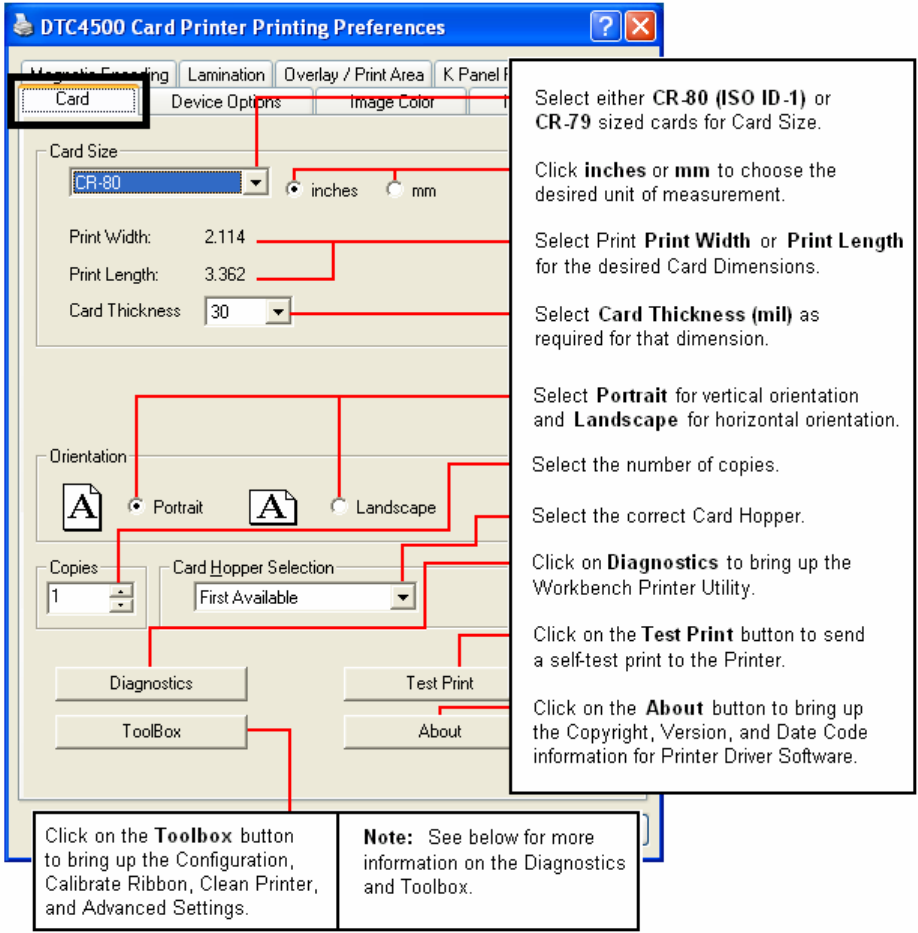

Click on the Card tab to bring up the window (shown below). Refer to the Help file for the Fargo

Workbench Utility Program and User Guide.

DTC4500 Card Printer/Encoder User Guide 29

Using the Toolbox Options

DTC4500 Card Printer/Encoder User Guide 30

|contextid=150 Using the Configuration Tab

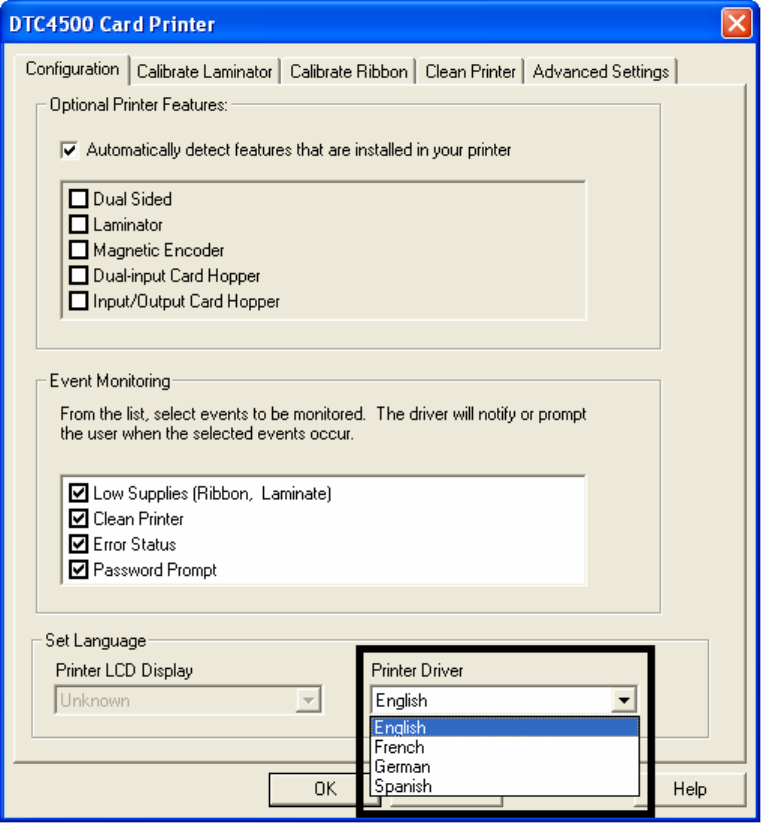

This option is used to show the currently installed Optional Printer features, Event Monitoring, to set the

Printer Driver language and Printer LCD Display language.

• To switch between languages, select the desired language and reboot the driver.

DTC4500 Card Printer/Encoder User Guide 31

|contextid=151 Selecting the Calibrate Laminator tab

The Calibrate Laminator tab is active when the Laminator is automatically detected or when the

Laminator is manually checked (as a Printer Feature on the Configuration tab). If the Laminator is not

detected and not manually checked, the tab is active; however, all functions are grayed out.

• Calibrate button: Sends calibrate Laminator command to Printer. Follow the instruction on the page

for setting up the Printer.

• Help button: Launches help specific to this tab.

Step Procedure

1 Select the Calibrate Laminator tab.

a. Ensure that the Cartridges are out of the Laminator.

b. Ensure the Laminator Cover is closed.

c. Click on the Calibrate button. (Note: The Printer’s LCD will display

CALIBRATE PASSED. Error Message Calibration Failed may be

solved by manually increasing the sensor calibration number to 13 of

higher under the Advanced Settings tab. Do not use the AUTO calibrate

function.)

d. Click on the OK button on the LCD display to complete the procedure.

DTC4500 Card Printer/Encoder User Guide 32

Selecting the Calibrate Laminator tab

DTC4500 Card Printer/Encoder User Guide 33

Using the Event Monitoring Group Box

This Event Monitoring group box displays the Low Supplies (Ribbon, Laminate and Film).

• The default setting is checked. If checked, the Ribbon Low message box is displayed with every

print job when Printer reports low Ribbon to the Driver.

• Do not show this message again: The check box allows the User to suppress message per Driver

instance. Default = unchecked.

Reviewing the Ribbon Low message

Display – Ribbon Low dialog

DTC4500 Card Printer/Encoder User Guide 34

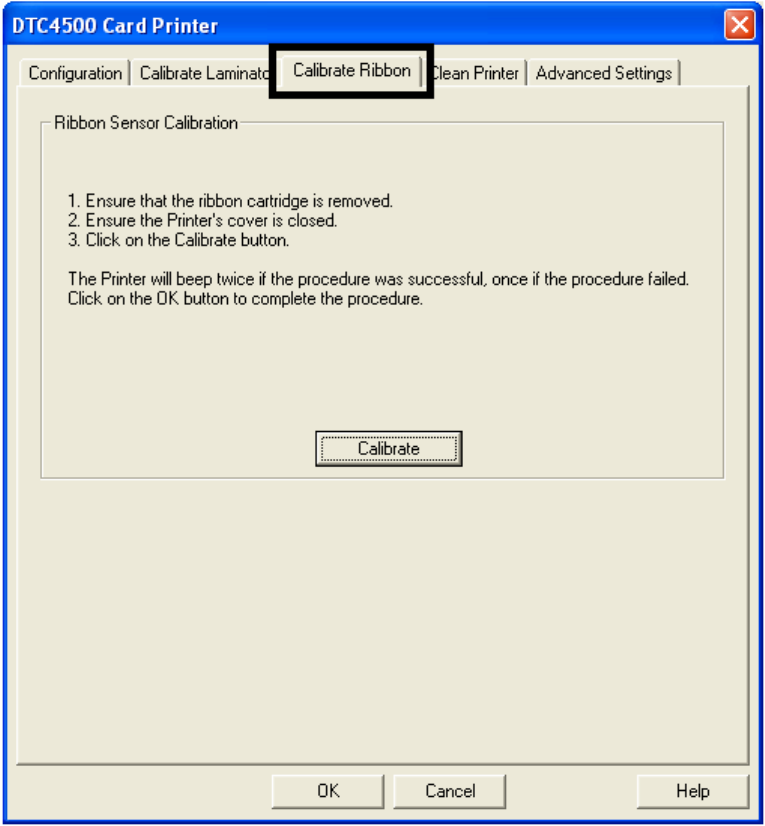

|contextid=152 Selecting the Calibrate Ribbon tab

The two buttons for the Calibrate Ribbon tab are described below.

• Calibrate button: Sends the Calibrate Ribbon Command to Printer. Follow the instructions below to

set up the Printer.

• Help button: Launches help specific to this tab.

Step Procedure

1 Select the Calibrate Ribbon tab.

a. Ensure that the Ribbon Cartridge is removed.

b. Ensure the Printer’s Cover is closed.

c. Click on the Calibrate button. (Note: The Printer’s LCD will display

CALIBRATE PASSED.)

d. Click on the OK button on the LCD display to complete the procedure.

DTC4500 Card Printer/Encoder User Guide 35

Selecting the Calibrate Ribbon tab

DTC4500 Card Printer/Encoder User Guide 36

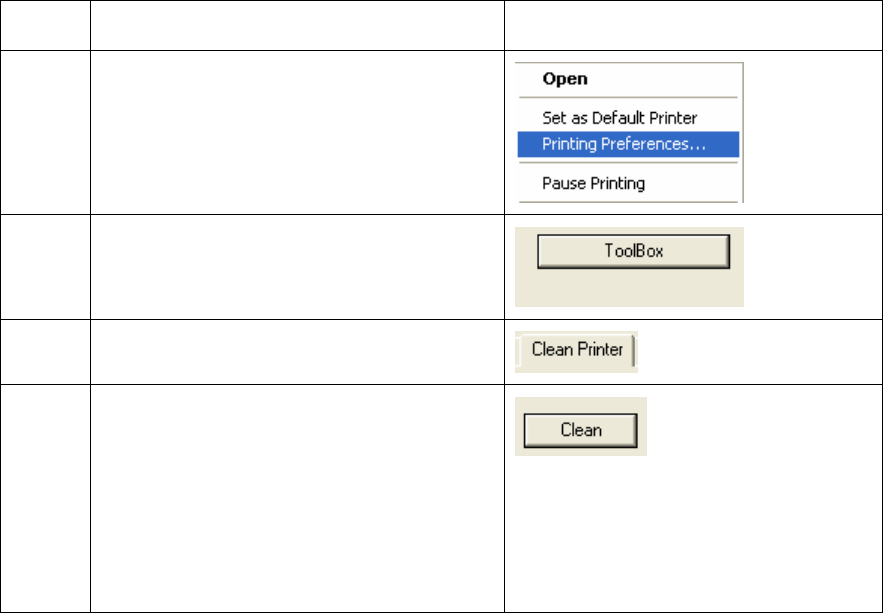

|contextid=154 Selecting the Clean Printer tab

The button for the Clean Printer tab is described below.

• Clean Button: Launches cleaning routine. Follow the instruction on the page for setting up the

Printer.

• Help button: Launches help that is specific to this tab.

• Also see Cleaning the Printer for full instructions.

DTC4500 Card Printer/Encoder User Guide 37

|contextid=155 Selecting the Advanced Settings tab

Use the Advanced Settings tab for adjusting the internal Printer settings, which are customized for

every Printer at the factory and saved directly within the Printer's memory. (Note: You can select the

Restore Defaults to restore the internal default settings.)

Selecting the Advanced Settings tab

These change values for Firmware settings. See below.

• Setting Column: Displays label for setting

• Default Column: Displays default value for setting

• Current Column: Displays current value for setting

• Change the value by clicking on the value to activate spin control or type.

• Apply Button: Applies changed values.

• Restore Defaults Button: Restores default values.

DTC4500 Card Printer/Encoder User Guide 38

Selecting the Advanced Settings tab

Example:

DTC4500 Card Printer/Encoder User Guide 39

Selecting the Advanced Settings tab

Setting Option

Image Darkness Use this option to set the overall darkness of the printed

image by increasing or decreasing the amount of heat

(used by the Printhead when printing).

Caution: If the value is set too high, the

Ribbon may jam or even break.

Mag Top of Form Use this option to shift the starting point where the Printer

begins to encode the magnetic track data on the card’s

Magnetic Stripe.

Caution: If the negative value is set too

high, the Printer may start encoding before the Magnetic

Stripe reaches the encoding head.

• Maximum adjustment range is +/- 80.

• Each increment equals .01”.

Sleep Delay The Sleep Time setting adjusts the number of minutes of

inactivity before the Printer enters a low power sleep

state.

DTC4500 Card Printer/Encoder User Guide 40

Selecting the Advanced Settings tab

Setting Option

Print Top of Form Use this option to adjust the length-wise or horizontal

position of the printed image on the card (so it appears to

be centered).

Caution: If the negative value is set too

high, the Print Ribbon may break.

Print End of Form Use this option to reduce or increase the overall printable

area; this is done in order to optimize edge to edge

printing toward the trailing edge of the card.

• Maximum adjustment range is +/- 200.

• Each increment equals .01”.

Print Left of Form Use this option to adjust the vertical position of the printed

image on the card; so it appears centered.

• Maximum Adjustment Range is +/- 127.

• Each increment equals .01”.

Cleaning Rate Use this option to adjust the number of cards printed

before the Printer displays a message indicating cleaning

is needed.

• The default value is 3000 cards.

DTC4500 Card Printer/Encoder User Guide 41

Selecting the Advanced Settings tab

Setting Option

Ribbon Calibrate Green This is a calibration driven value and should not be

adjusted.

(Note: This is factory set and should not be changed

unless directed by a technician.)

Ribbon Green LED Level This is a calibration driven value and should not be

adjusted.

(Note: This is factory set and should not be changed

unless directed by a technician.)

Ribbon Calibrate Green This is a calibration driven value and should not be

adjusted.

(Note: This is factory set and should not be changed

unless directed by a technician.)

Ribbon Blue LED Level This is a calibration driven value and should not be

adjusted.

(Note: This is factory set and should not be changed

unless directed by a technician.)

Ribbon Print Tension Use the Ribbon Tension option to increase or

decreases the amount of tension (drag) on the Ribbon

during printing.

Flipper Home Offset This is a calibration driven value and should not be

adjusted. If the Flipper unit is replaced and has not been

calibrated this value may need to be adjusted.

(Note: This is factory set and should not be changed

unless directed by a technician.)

DTC4500 Card Printer/Encoder User Guide 42

Selecting the Advanced Settings tab

Setting Option

Flipper Lam Height

Offset This is a calibration driven value and should not be

adjusted. If the Flipper unit is replaced and has not been

calibrated this value may need to be adjusted.

(Note: This is factory set and should not be changed

unless directed by a technician.)

Mag HI-Co Voltage Offset This option changes the voltage going the magnetic head.

(Note: This is factory set and should not be changed

unless directed by a technician.)

Mag Lo-Co Voltage

Offset This option changes the voltage going the magnetic head.

(Note: This is factory set and should not be changed

unless directed by a technician.)

OLED Contrast

(display contrast)

Use this option to increase or decrease the contrast of the

printer OLED (if applicable).

Resin Heat Adjust Use this adjustment for Black resin text and barcodes

appear faded or too light/dark.

Adjust the Resin Heat, Front (K) or the Resin Head, Back

(K) as needed.

• Move the slider to the left to cause less heat to be

used in the printing process, causing resin images to

be lighter or less saturated.

OR

• Move the slider to the right to (a) cause more heat to

be used or (b) cause the resin image to be darker or

more saturated.

(Note: This control can be helpful for fine-tuning the

transfer of resin text and bar codes.)

DTC4500 Card Printer/Encoder User Guide 43

Selecting the Advanced Settings tab

Setting Option

Head Resistance This is factory set. If the main board or the Printhead is

replaced then adjust this number.

Locate the Printhead Setting Number on the bottom of the

Printhead.

The number reads R=XXXX.

Head Home Offset This is a calibration driven value and should not be

adjusted. If the Printhead assembly is replaced then this

value may need to be adjusted.

(Note: This is factory set and should not be changed

unless directed by a technician.)

Head Contact Offset This is a calibration driven value and should not be

adjusted. If the Printhead assembly is replaced then this

value may need to be adjusted.

(Note: This is factory set and should not be changed

unless directed by a technician.)

Erase Heat Offset Adjust the Erase temperature for the rewriteable cards as

needed.

• Increase the Current Setting to cause more heat to

be used in the erasing process.

OR

• Decrease the Current Setting to cause less heat to be

used in the erasing process.

(Note: Erase Temp Offset provides user ability to control

the Printhead heat level when the Erase Operation is

performed. Appropriate heat levels should be applied for

the proper erase process. This setting should be adjusted

for proper erasure.)

DTC4500 Card Printer/Encoder User Guide 44

Selecting the Advanced Settings tab

Setting Option

Write Heat Offset Adjust the Write temperature for the rewriteable cards as

needed.

• Increase the Current Setting to cause more heat to

be used in the printing process of a rewritable card.

OR

• Decrease the Current Setting to cause less heat to be

used in the printing process of a rewritable card.

(Note: Write Heat Offset provides user ability to control

the Printhead heat level when the Write Operation is

performed. Appropriate heat levels should be applied for

the proper writing process.)

DTC4500 Card Printer/Encoder User Guide 45

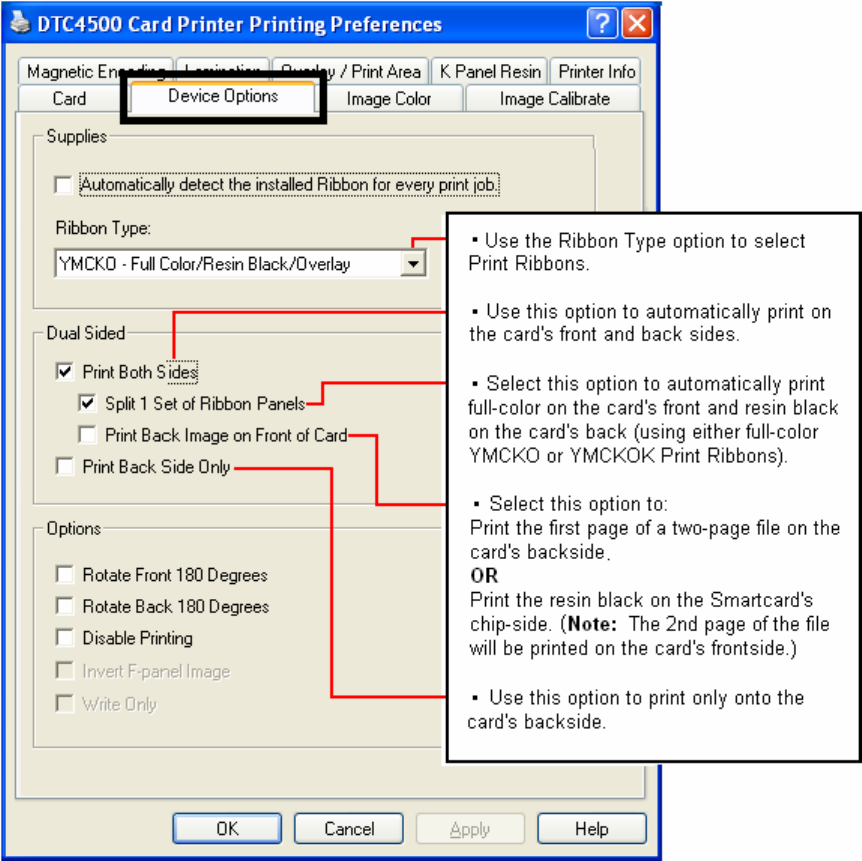

|contextid=40Using the Device Options tab

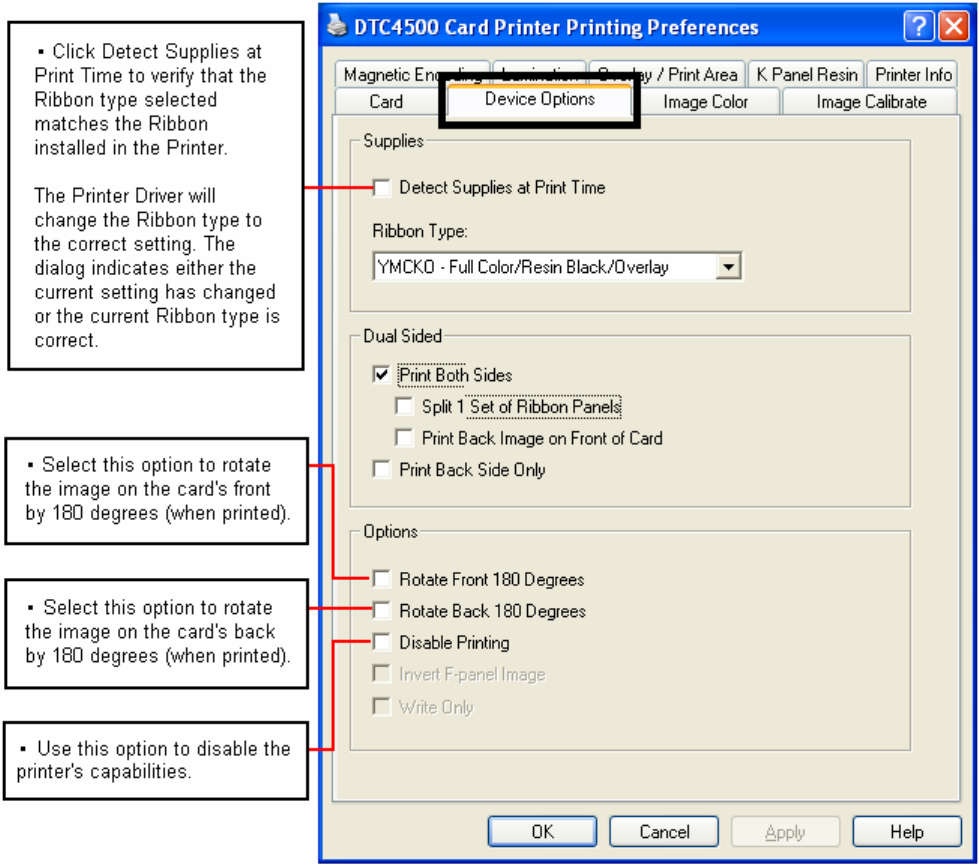

Click on the Device Option tab to bring up the window (shown below).

DTC4500 Card Printer/Encoder User Guide 46

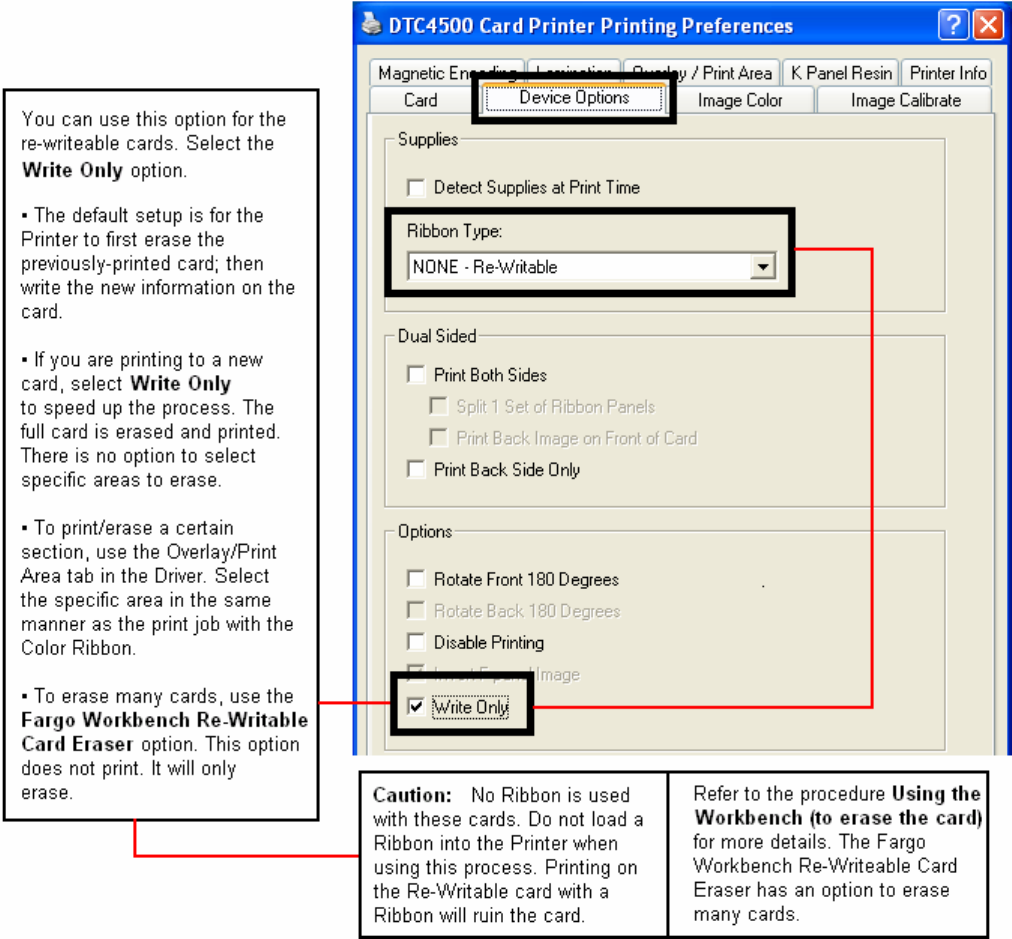

Using the Device Options tab

DTC4500 Card Printer/Encoder User Guide 47

Using the Device Options tab

DTC4500 Card Printer/Encoder User Guide 48

|contextid=50Using the Image Color tab

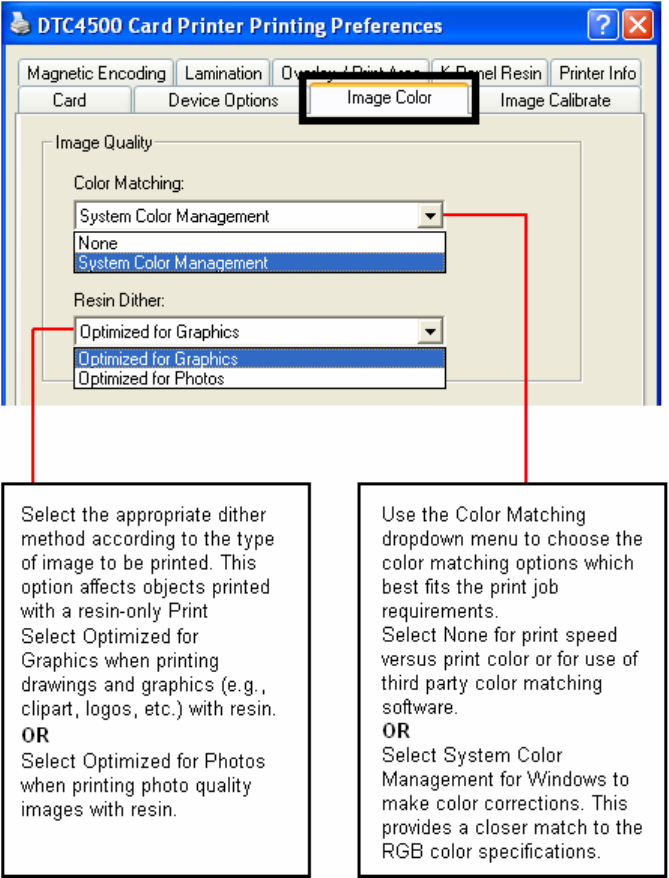

Click on the Image Color option tab to bring up the window (shown below).

DTC4500 Card Printer/Encoder User Guide 49

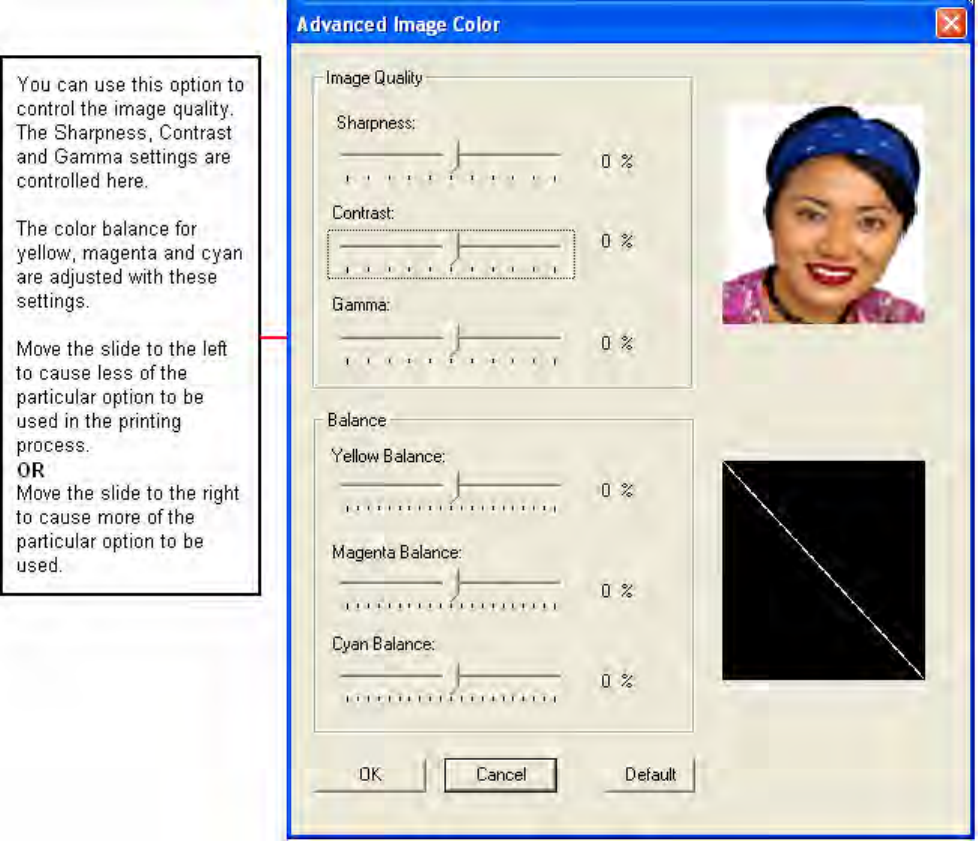

Using the Image Color tab

DTC4500 Card Printer/Encoder User Guide 50

Using the Image Color tab

DTC4500 Card Printer/Encoder User Guide 51

|contextid=51Using the Image Calibrate tab

Use the Image Calibrate tab to control the position of the printable area in relation to the card.

DTC4500 Card Printer/Encoder User Guide 52

|contextid=70Using the Magnetic Encoding Tab

Select the Magnetic Encoding tab to display options for controlling the Magnetic Stripe encoding

process.You should use these options only if the Printer has an optional Magnetic Stripe Encoding

Module installed.

DTC4500 Card Printer/Encoder User Guide 53

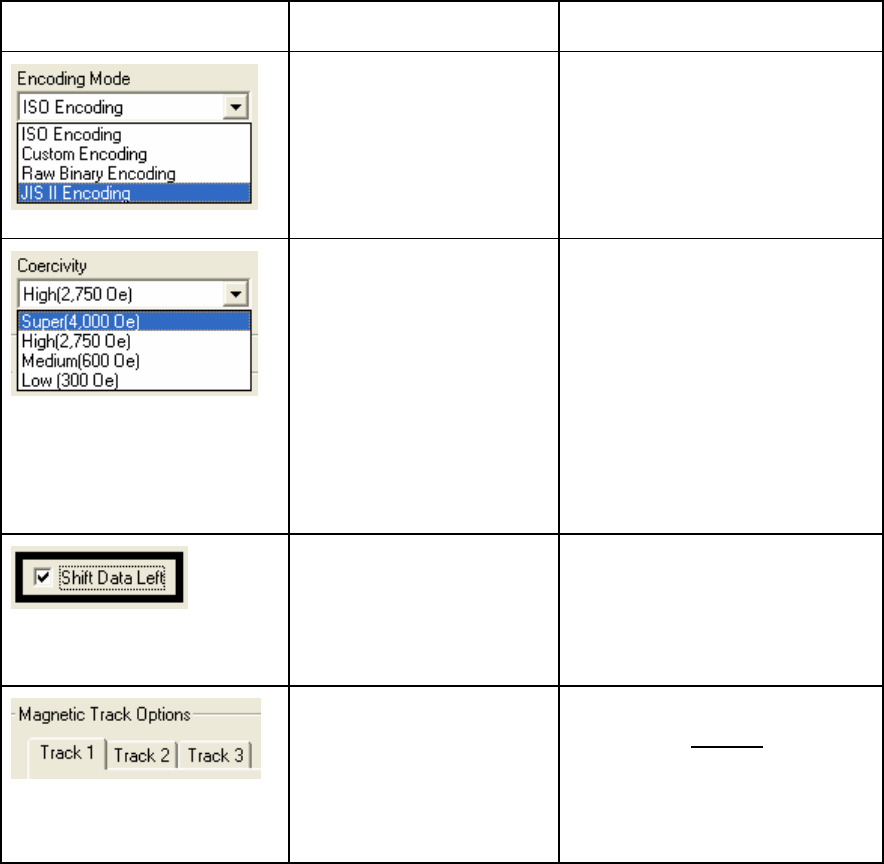

Using the Magnetic Encoding Tab – ISO Standards

You can change the encoding mode and coercivity setting or modify the ISO standards for Tracks 1, 2

and 3. This can be done by correctly modifying these Magnetic Encoding options.

Window TAB Procedure Procedure (continued)

If you select ISO

Encoding, you send

down a formatted set of

characters.

This selection activates the

track tabs. However, all

functions on the Track tabs

are inactive or gray and

display ISO defaults, which

are the defaults listed for each

track below. The Shift Data

Left check box remains

unchecked and inactive.

If you select Custom

Encoding, all options

are active.

The Default is ISO Encoding.

(Note: The defaults are the

same as the ISO Encoding

defaults.)

All functions on the Magnetic

Track Options tabs are active.

If you select Raw

Binary Encoding, you

send down a raw binary

string rather than a

formatted set of

characters.

The Coercivity dropdown

function is active and the

Shift Data Left checkbox is

not active.

All functions on the Magnetic

Track Options tabs are

inactive except for Bit

Density.

DTC4500 Card Printer/Encoder User Guide 54

Using the Magnetic Encoding Tab – ISO Standards

Window TAB Procedure Procedure (continued)

If you select JIS II

Encoding, specific

standards are used.

This selection disables all the

Magnetic Track Options tabs.

It also disables the Coercivity

dropdown function and Shift

Data Left checkbox option.

The default Coercivity is 600 Oe.

Select the Coercivity

option (Oersted) to use

the Magnetic Stripe type

that matches the card

type.

• High Coercivity to Super

Coercivity = 2750-4000

Oersted

• Fargo’s High Coercivity

UltraCard IIIs are 2750 Oe

• Medium Coercivity=600

Oersted

• Low Coercivity = 300

Oersted

Select this option to shift

the recorded magnetic

data to the left-hand

side of the card's

Magnetic Stripe.

This is useful in situations that

require cards to be readable

with insert type readers.

Select the Magnetic

Track Selection option

to specify which track is

to be configured through

the Magnetic Track

Options.

This applies if the application

being used requires

customization of the standard

ISO encoding process.

DTC4500 Card Printer/Encoder User Guide 55

Using the Magnetic Encoding Tab – Custom Encoding or Raw Binary

Encoding Mode

You can change the Magnetic Track options for Tracks 1, 2 and 3 when using the Custom Encoding or

Raw Binary Encoding Mode. These options are not availabe for ISO or JIS II encoding.

Window TAB Procedure Procedure (continued)

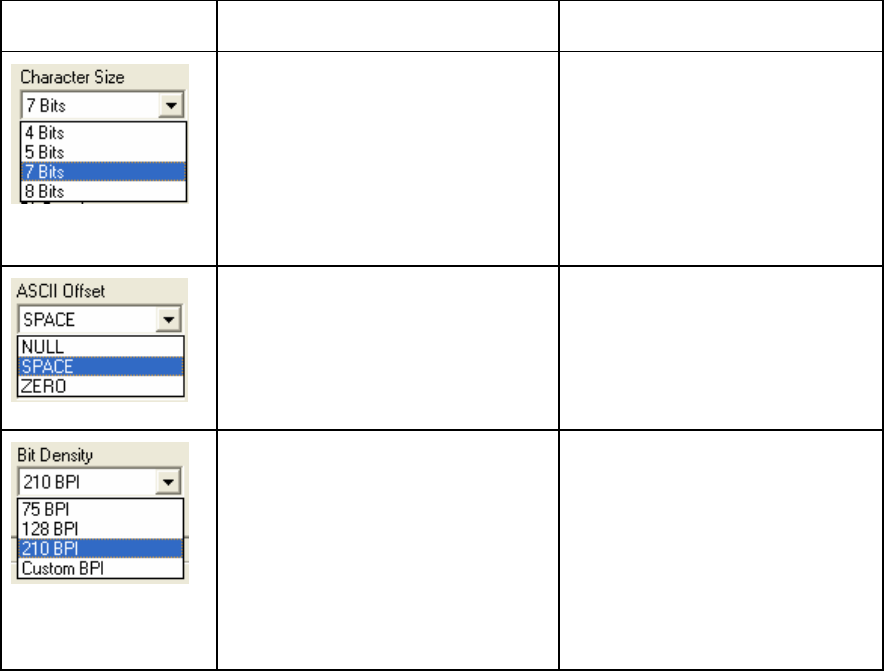

Select 4 Bits to change the bits

per character to 4 BPC. (Note:

This is the default for Track 3).

Select 5 Bits to change the bits

per character to 5 BPC. (Note:

This is the default for Tracks 2

and 3).

Select 7 Bits to change the

bits per character to 7 BPC.

(Note: This is the default for

Track 1).

Select 8 Bits to change the

bits per character to 8 BPC.

Select NULL to change the

ASCII Offset to NULL.

Select SPACE to change the

ASCII Offset to SPACE. (Note:

This is the default for Track 1.)

Select ZERO to change the

ASCII Offset to ZERO. (Note:

This is the default for Tracks 2

and 3.)

Select 75 BPI to change the bits

per inch to 75 BPI. (Note: This

is the default for Track 2.)

Select 128 BPI to change the

bits per inch to 128 BPI.

Select 210 BPI to change the

bits per inch to 210 BPI.

(Note: This is the default for

Tracks 1 and 3.)

Select Custom BPI, which

enables the custom BPI text

box. (Note: The lower limit is

75 and upper limit is 210.)

DTC4500 Card Printer/Encoder User Guide 56

Using the Magnetic Encoding Tab – Custom Encoding or Raw Binary

Encoding Mode

Window TAB Procedure Procedure (continued)

Select No LRC to change the

LRC Generation to none.

Select Even Parity to change

the LRC Generation to Even

Parity. (Note: This is the default

for all tracks.)

Select Odd Parity to change

the LRC Generation to Odd

Parity.

Select No Parity to change the

Character Parity to none.

Select Even Parity to change

the Character Parity to Even

Parity.

Select Odd Parity to change

the Character Parity to Odd

Parity. (Note: This is the

default for all tracks.)

Reverse Bit Order is used to

reverse the character bits and is

used for the encryption of data

in specific programs

Add Leading Zeros is used to

add a set number of leading

zeros to the magnetic string in

order to move the starting

point of the encoded data in

specific programs for

encryption of data.

Reviewing the ISO Track Locations

The magnetic Encoding Module encodes onto tracks in accordance with an ISO 7811-2 Magnetic Stripe.

For track locations, review the display below.

TRACK1 0.110"

TRACK2 0.110"

TRACK3 0.110"

0.130"

0.140"

0.223" 0.353" 0.493"

DTC4500 Card Printer/Encoder User Guide 57

Reviewing the Sample String

• Track 1: ~1%JULIEANDERSON^1234567890?

• Track 2: ~2;1234567890987654321?

• Track 3: ~3;1234567890987654321?

Track Start

Sentinel End

Sentinel Field

Separator Valid Characters Maximum

Number of

Characters

Track 1 % ? ^ ASCII 32-95

(See the table below.) 78

Track 2 ; ? = ASCII 48-63

(See the table below.) 39

Track 3 ; ? = ASCII 48-63

(See the table below.) 106

DTC4500 Card Printer/Encoder User Guide 58

Sending the Track Information

Magnetic track data is sent in the form of text strings from the application software to the Printer Driver.

• In order for the Printer Driver to differentiate between Magnetic Track data and the rest of the

printable objects, specific characters must be added to the magnetic data to be encoded.

• These specify the data that is to be encoded, the tracks to encode and mark the start and stop of the

data string. In some cases, these specific characters are automatically added to the string of track

data by ID software applications.

• In most cases, the user must carefully add these characters to the string of Magnetic Track data. If

these characters are not added to the track data, the text intended for the Magnetic Track will appear

as printed text on the card. To avoid this, track information must be entered as described below.

Step Procedure

1 When entering track data, the ~ (tilde) character is entered first, followed by the

track number (1, 2 or 3) on which the data should encode. This is followed by

the data to be encoded.

• The first character of this data string must be the track's specific Start

Sentinel (SS) and the last character must be the specific End Sentinel

(ES).

• The characters or data in between the SS and ES can include all of the

valid characters specific to each track.

• The number of these characters, however, is limited by each track's

maximum character capacity.

• When segmenting track data, the appropriate Field Separator (FS) must be

used. The table below shows the SS, ES, FS and the valid characters

defined for each track.

DTC4500 Card Printer/Encoder User Guide 59

Reviewing the ASCII Code and Character Table

ASCII Code Character ASCII Code Character ASCII

Code Character

32 space 56 8 80 P

33 ! 57 9 81 Q

34 58 : 82 R

35 # 59 ; 83 S

36 $ 60 < 84 T

37 % 61 = 85 U

38 and 62 > 86 V

39 ' 63 ? 87 W

40 ( 64 @ 88 X

41 ) 65 A 89 Y

42 * 66 B 90 Z

43 + 67 C 91 [

44 ' 68 D 92 \

45 - 69 E 93 ]

DTC4500 Card Printer/Encoder User Guide 60

Reviewing the ASCII Code and Character Table

ASCII Code Character ASCII Code Character ASCII

Code Character

46 . 70 F 94 ^

47 / 71 G 95 _

48 0 72 H

49 1 73 I

50 2 74 J

51 3 75 K

52 4 76 L

53 5 77 M

54 6 78 N

55 7 79 O

DTC4500 Card Printer/Encoder User Guide 61

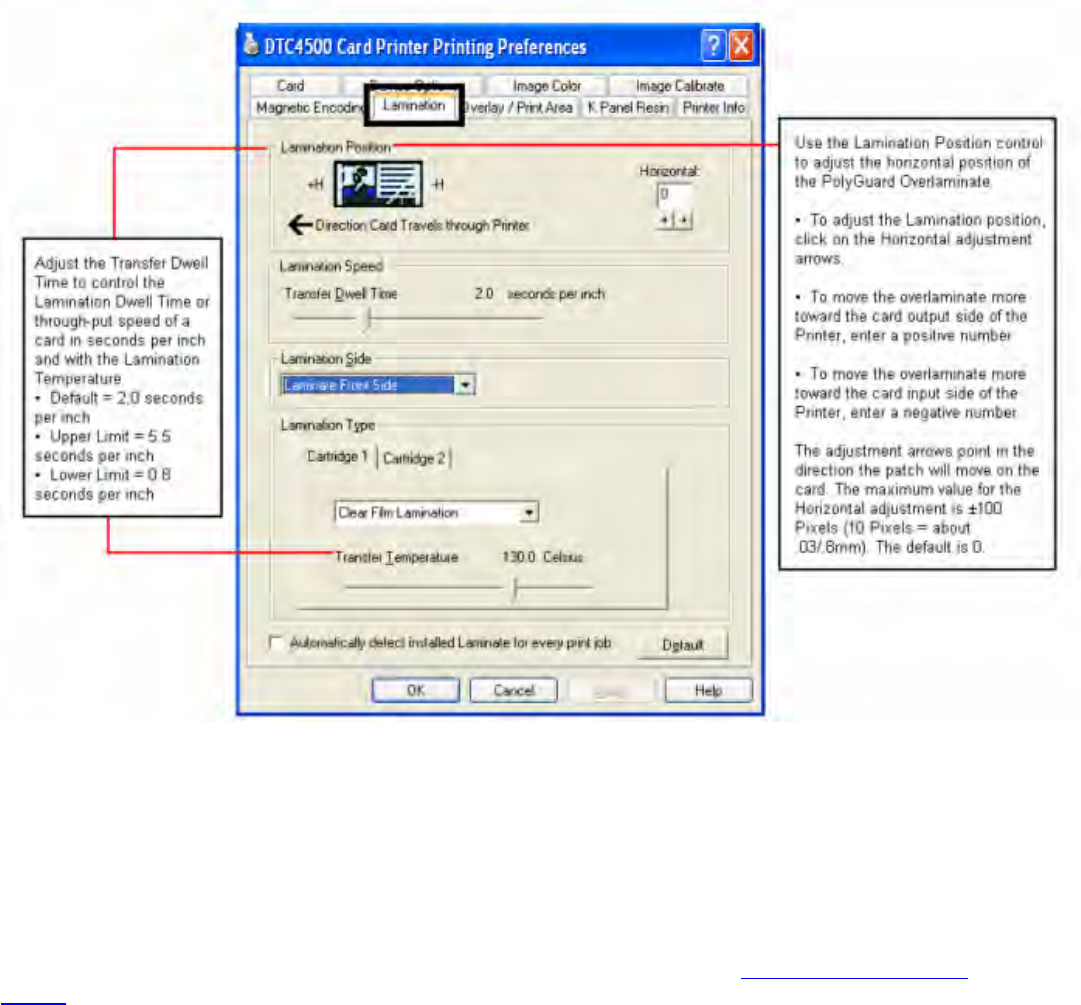

|contextid=80Using the Lamination tab

Use the Image Calibrate tab to control the position of the printable area in relation to the card.

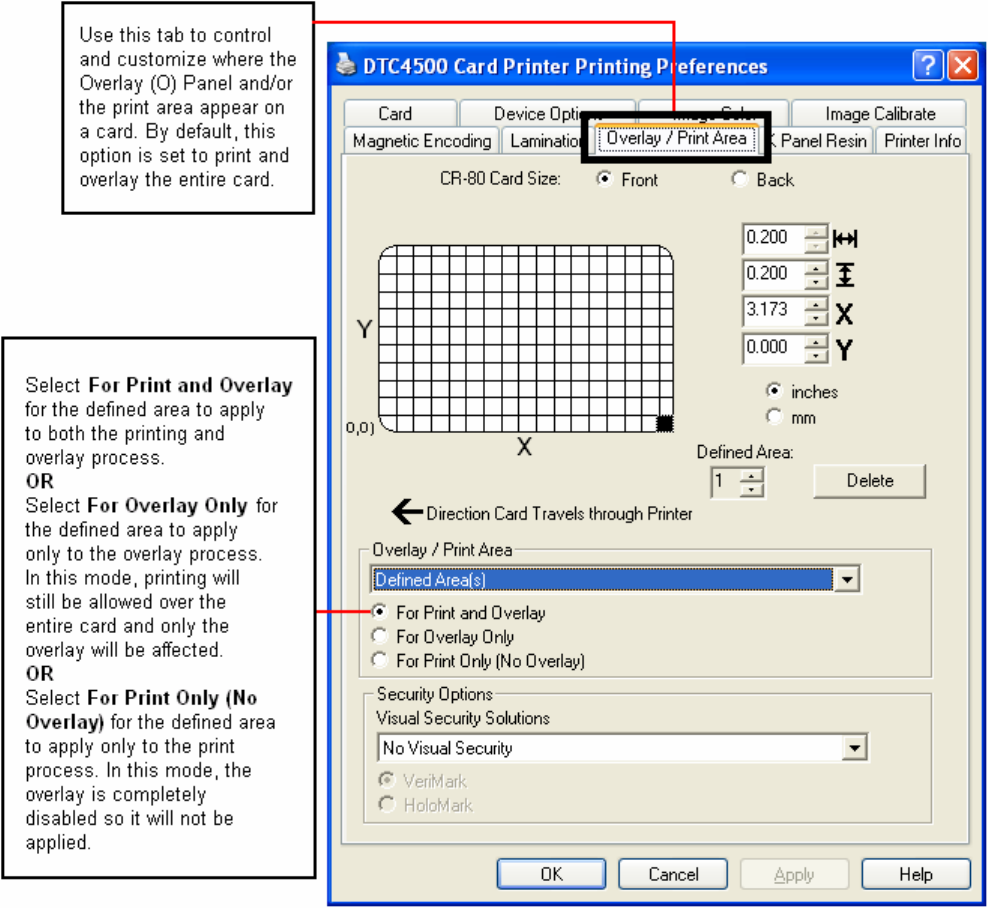

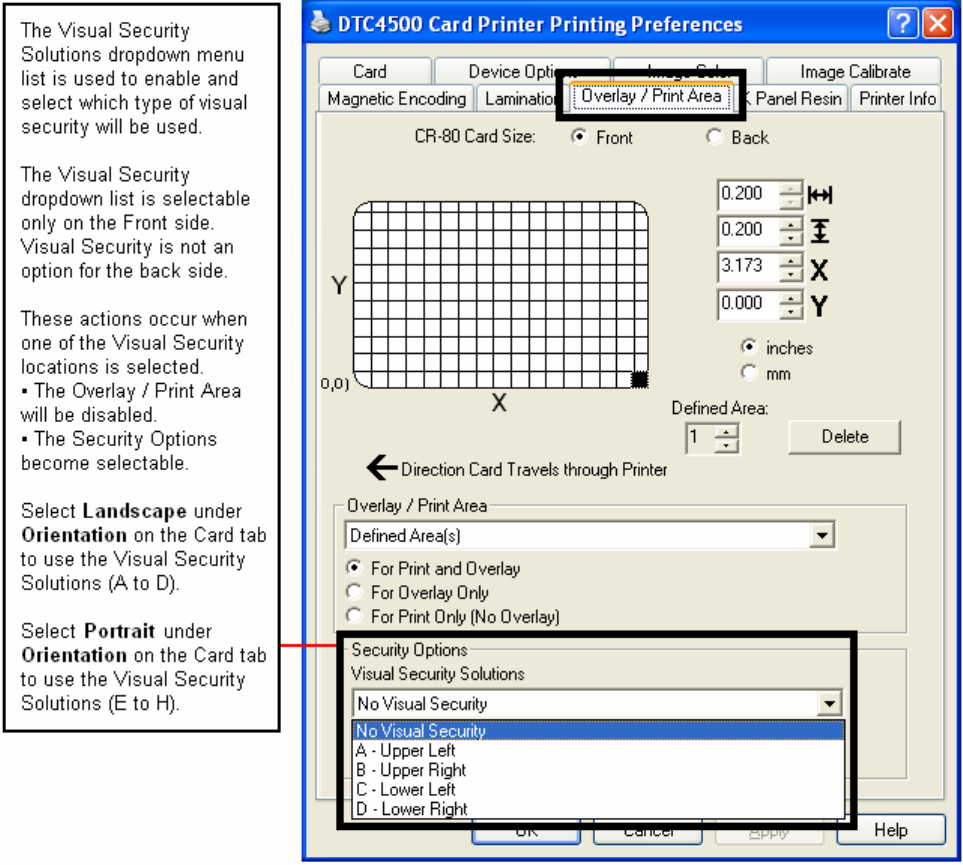

|contextid=90 Using the Overlay / Print Area tab

This option is helpful if, for example, you would like to omit the printing or block out the overlay for a

signature or printing around a card's smart chip or Magnetic Stripe. Refer to Using the Defined Area

Option for a specific procedure that relates to this tab.

DTC4500 Card Printer/Encoder User Guide 62

DTC4500 Card Printer/Encoder User Guide 63

Using the Overlay / Print Area tab

DTC4500 Card Printer/Encoder User Guide 64

Using the Overlay / Print Area tab

DTC4500 Card Printer/Encoder User Guide 65

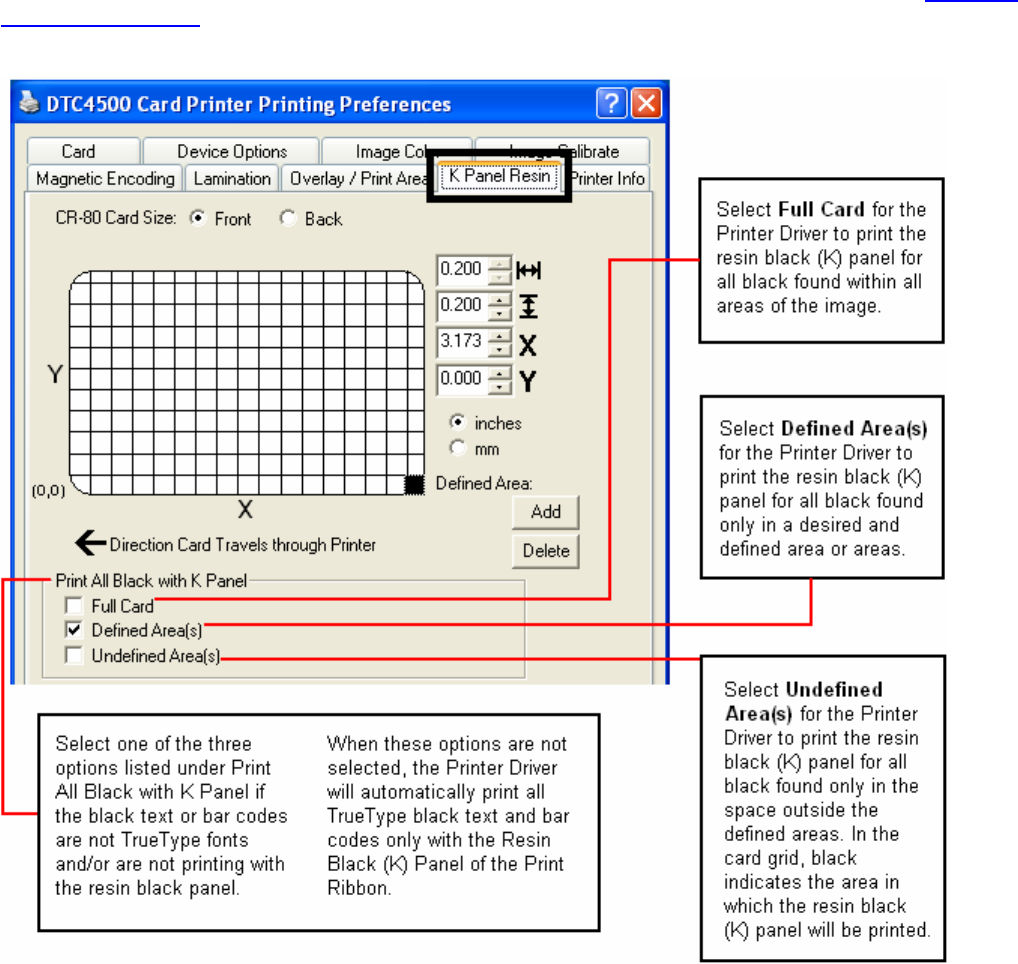

|contextid=100Using the K Panel Resin tab

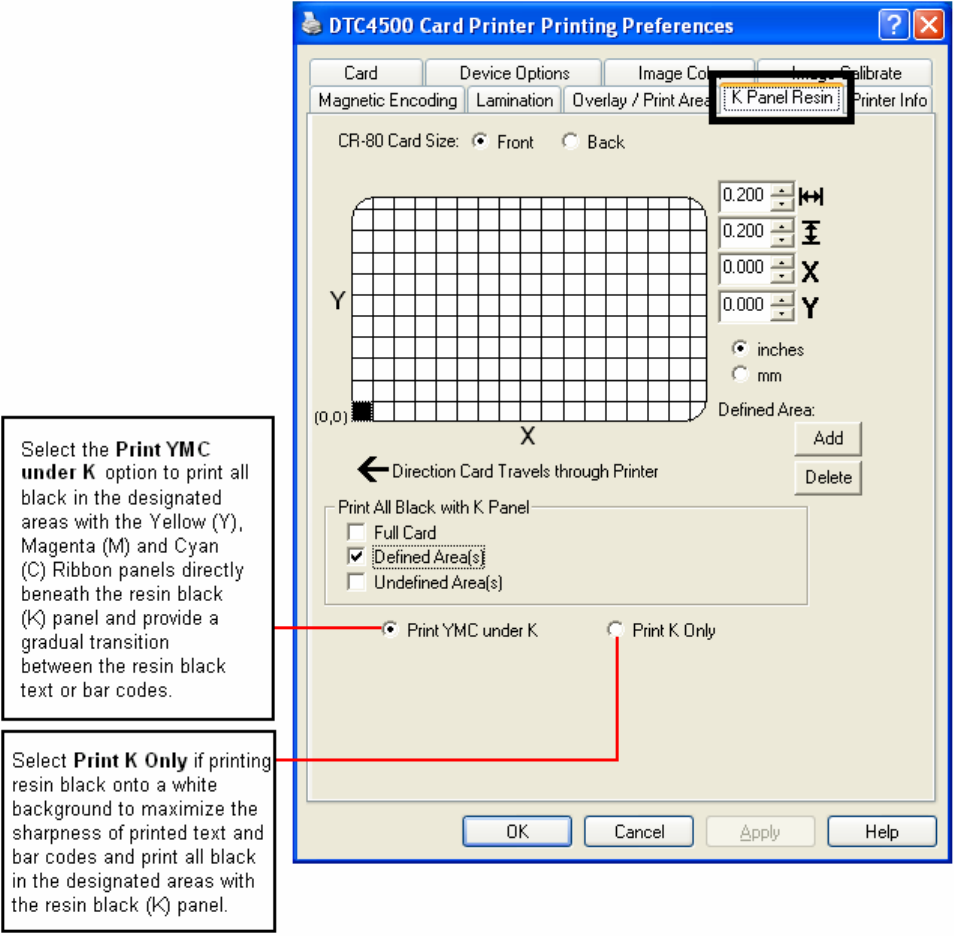

Use this tab to control where the resin black (K) Panel of a full-color Ribbon is printed. Refer to Using the

Defined Area Option for a specific procedure that relates to this tab.

DTC4500 Card Printer/Encoder User Guide 66

Using the K Panel Resin tab

DTC4500 Card Printer/Encoder User Guide 67

Using the K Panel Resin tab

DTC4500 Card Printer/Encoder User Guide 68

|contextid=120Using the Printer Info tab

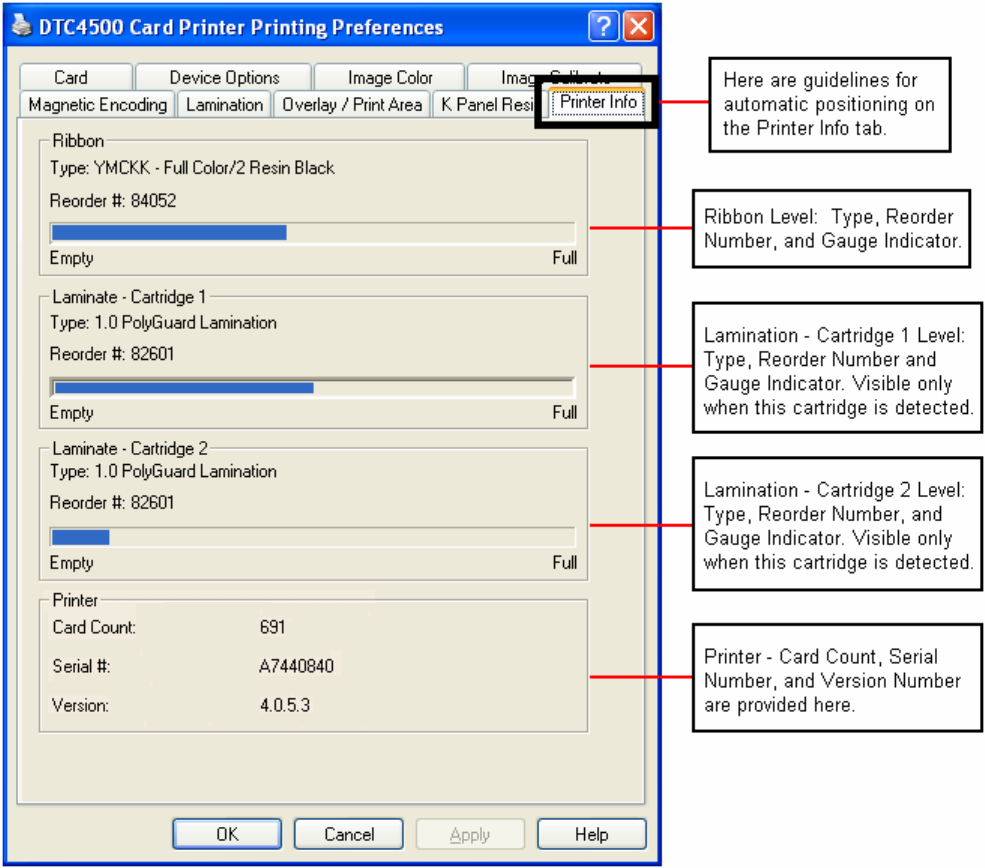

Use the options on this tab to view information about the Ribbon, Laminate, Card Count, Printer Serial #,

Firmware version, and Reorder Media #’s installed in the Printer.

DTC4500 Card Printer/Encoder User Guide 69

Section 5: Selecting the Fluorescent Panel Ribbon

Type

The YMCFKO/YMCFKOK Ribbon is an economical way to add a fully customizable, incremental level of

security to your photo identification cards.

• Process: This process allows you to configure the data that is printed with the fluorescent panel of

an YMCFKO/YMCFKOK Ribbon. (Note: Any software program may be used to print the special

florescent panel of the Ribbon to a card once the Driver and Workbench are set up correctly.)

• Ribbons: These Ribbons contain a yellow (Y), magenta (M), cyan (C), and resin black (K) panels to

create a full color over-the-edge printing identification card. In addition, the Ribbon contains a dye-

based fluorescing panel (F) which will allow you to print a standard or one-to-one personalized

grayscale fluorescing image that is completely invisible until exposed to ultraviolet light.

Creating a Custom Fluorescent Image (using the YMCFKO Ribbon)

There are three (3) methods used to accomplish the creation of a custom fluorescent image when using

the YMCFKO Ribbon.

• First Method: The first method uses the Fargo Workbench Printer Utility to create a static image that

will be applied automatically to each card sent to the Printer. Refer to the Help file for the Fargo

Workbench Utility Program and User Guide or to Appendix A for Configuring Fluorescent Data

(F-Panel for YMCFKO Ribbon) using the Workbench.

• Second Method: The second method (described below) allows the creation of the fluorescent panel

image directly from the badge application software. (Note: You can now print a unique fluorescent

image, such as the card holder’s picture on each card.)

• Third Method: The third method is described in the Asure ID 2009 Software User Guide. See the

procedure relating to the Fluorescent Panel Ribbon. For more information about Asure ID 2009,

please visit our website at http://www.hidglobal.com/cardIssuance/idSoftware.php

DTC4500 Card Printer/Encoder User Guide 70

Creating a Custom Fluorescent Image (using the YMCFKO Ribbon)

DTC4500 Card Printer/Encoder User Guide 71

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the

Application

This process creates a fluorescent image on your card using a simple text string command in your badge

application.

Step Procedure

1 Creating Fluorescent Text: Create a new text box in your badge application.

2 Type the TEXT that you want to appear as fluorescent and put a ~T before

the start of the text with no space after the ~T. The text will start on the card

where the ~T begins. (see Display A below)

DTC4500 Card Printer/Encoder User Guide 72

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the Application

Step Procedure

3 Creating a Fluorescent Image: In a separate drawing program, create the

image that you wish to fluoresce. (See Display C below.)

4 Create the IMAGE in the actual size that you want it to appear on the card,

and save it as a Grayscale or 1 - bit bmp file on the root c:\ directory.

• Do not put spaces in the file name.

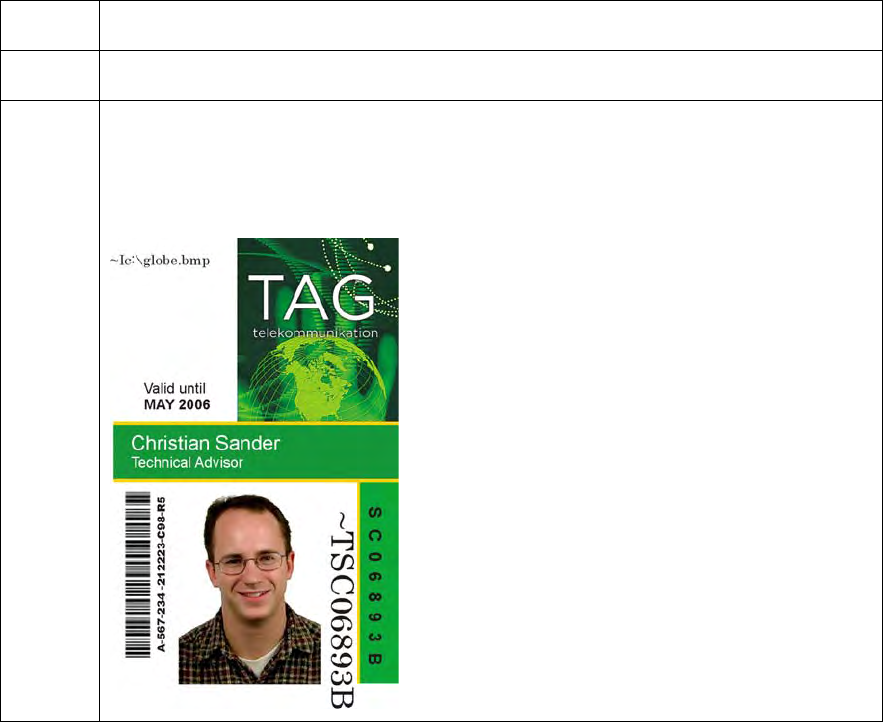

5 Create a new text box in your badge application, and type ~I followed by the

address of your image (see Display A below). The top left of your image will

start at the top left of your text box.

DTC4500 Card Printer/Encoder User Guide 73

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the Application

Step Procedure

6 Set up the Printer Driver preferences. Refer to Step 8-10 below.

7 Printer will print the fluorescent BMP IMAGE at the ~I position on the card.

Printer will print the fluorescent TEXT at the ~T position on the card. (See

Display B below)

BMP Image located at c:\globe.bmp

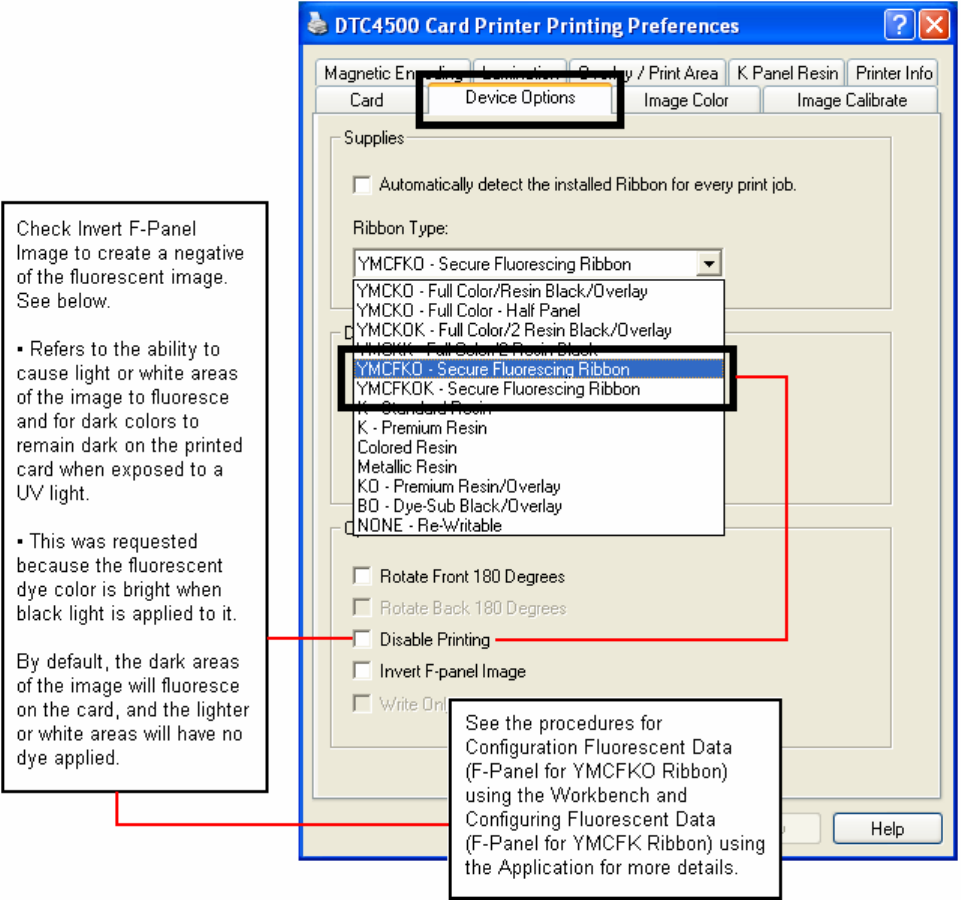

8 Set the Ribbon for YMCFKO in the Printing Preferences. (Note: The Detect

Supplies at Print Time button may also be used.)

9 Check Dual Pass if you would like to print the F-Panel on a separate panel of

HDP film from the YMC image.

You should use:

The default Dual Pass option if the fluorescent image is used in places where

other dye is used.

OR

Any time the Invert F-Panel Image option is selected.

DTC4500 Card Printer/Encoder User Guide 74

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the Application

Step Procedure

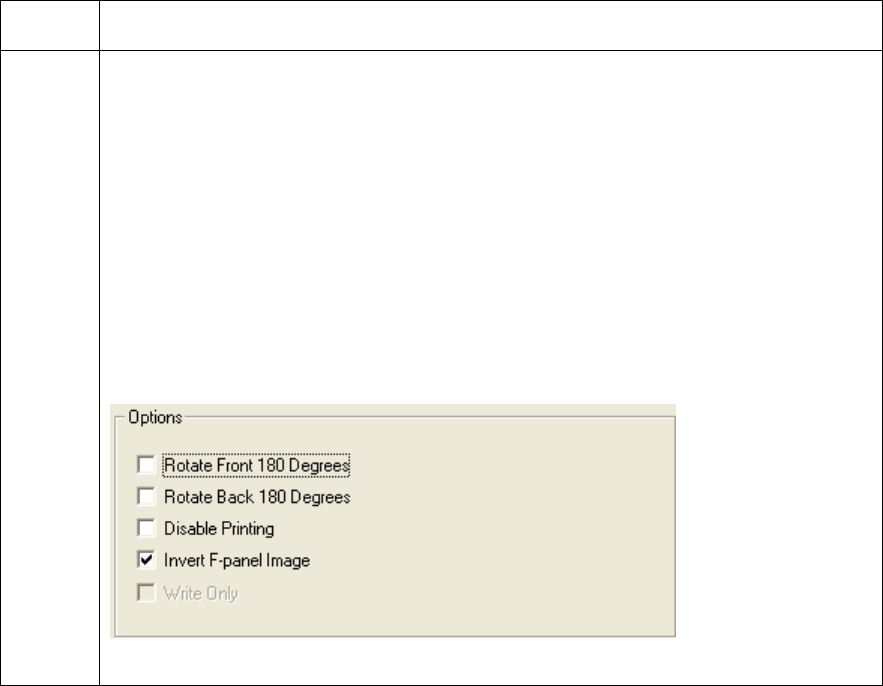

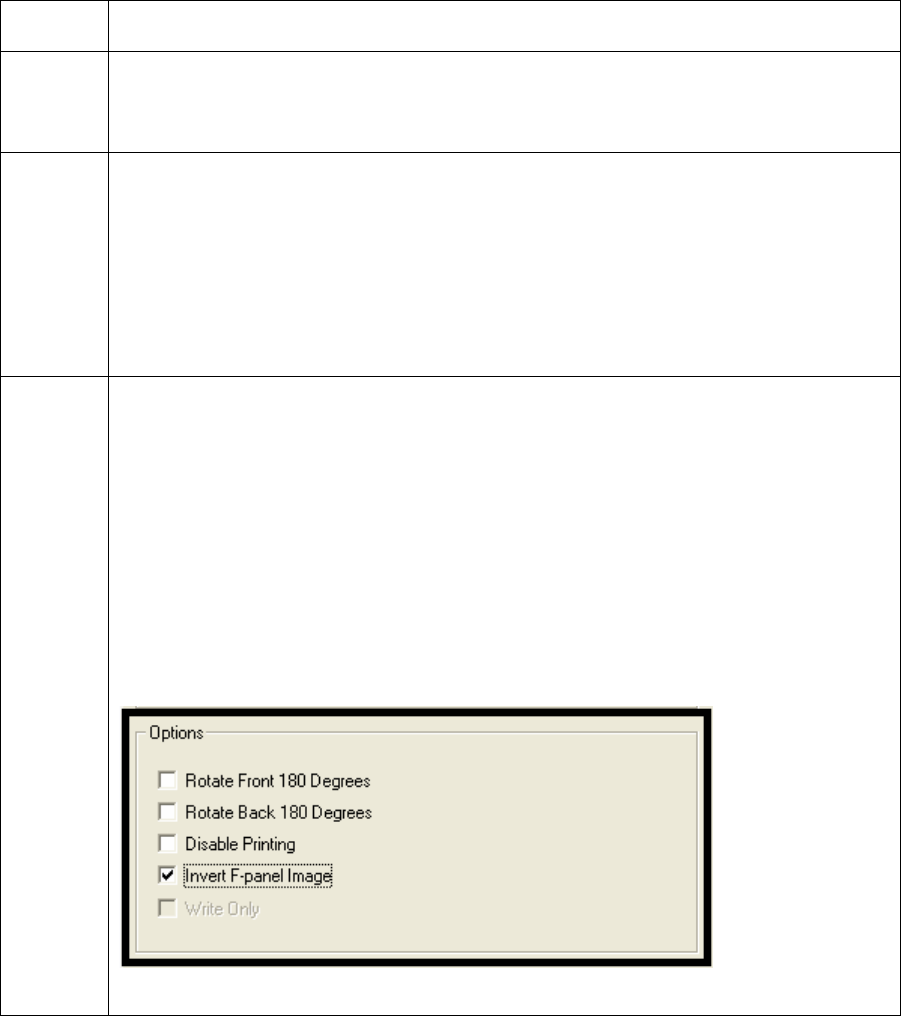

10 Check Invert F-Panel Image to create a negative of the fluorescent image.

See below.

• This refers to the ability to cause light or white areas of the image to

fluoresce and dark colors to remain dark on the printed card when exposed

to a UV light.

• This was requested because the fluorescent dye color is bright when black

light is applied to it.

By default, the dark areas of the image will fluoresce on the card and the

lighter or white areas will have no dye applied. (Note: This may improve the

look of the person’s image if used for the Logo.)

DTC4500 Card Printer/Encoder User Guide 75

Section 6: System Overview- Troubleshooting

Reviewing the DTC4500 Sequence of Operations

Knowing the sequence of the Printer operation will help troubleshoot the printer.

Step Process

1 The File information is received from PC.

2 Printer checks the installed Ribbon type stored in memory against the Ribbon

type command that was sent from the Printer. If Ribbon type does not match,

the Pause button on the right will begin flashing.

3 The Print Stepper Motor engage.

4 The Card Feed Sensor detects leading edge of card, the Headlift Stepper then

engages to disengage the input lever.

5 The card feeds through for the alignment pass.

6 The Card Feed Stepper Motor engages to queue card for magnetic encoding

(if applicable).

7 The Encoding data is written to the card (if applicable).

8 The Magnetic Encoder verifies while the Stepper reverses the card (if

applicable).

9 The Print Ribbon Drive engages (if not already at the yellow Panel).

10 The Print Ribbon Sensor looks for the Yellow Panel. (Note: The Print Ribbon

Encoder detects number of revolutions, required to use an entire color Panel.)

11 The Print Stepper Motor engages.

12 The Card Feed Sensor detects the leading edge of card.

DTC4500 Card Printer/Encoder User Guide 76

Reviewing the DTC4500 Sequence of Operations

Step Process

13 The Print Stepper Motor queues card to the middle of the platen Roller. All

Stop.

14 The Print Headlift Motor engages to the print position.

15 The Print Cover Sensor checks for closed state.

16 The Print Stepper Motor engages.

17 The Ribbon Drive Motor engages.

18 The Image data is burned by the Printhead until the image data is depleted. All

Stop.

19 The Thermistor engages the Printhead Cooling Fan to maintain proper

operating temperature.

20 The Headlift Motor engages to the queue position.

21 The Print Stepper Motor engages.

22 The Print Ribbon Drive engages.

23 After Ribbon advances a few Encoder clicks, assume the Ribbon is free of

card. All stop.

24 Repeat Steps 9 through 22 for the appropriate number of color/overlay Panels.

25 Either the Card is ejected from the singled-sided Printer or the Card Feed

Stepper engages to queue the card for the Flipper Table for the dual-sided

Printer.

26 All Stop.

DTC4500 Card Printer/Encoder User Guide 77

Section 7: Troubleshooting

Printer Error Button and Display Message Table

Both the DTC4500 use the Button messages rather than the Display Message system.

Step Procedure

1 All Printers have two (2) buttons, one for ON/Off (LEFT) and one for Pause (II)

(RIGHT).

2 The ON/Off button is blue when the Printer is ON. When the Printer enters the

Sleep Mode, the LED is dimmed but still ON.

3 The Pause (II) button will be illuminated blue when the Printer is capable of

accepting a printjob and does not have an error.

• This LED will continue to stay on while the Printer prints as long as there is

no error.

• This LED will also be dimmed when the Printer goes into sleep mode.

4 When an error occurs, the Pause button will no longer be illuminated blue, but

will blink red.

DTC4500 Card Printer/Encoder User Guide 78

Printer Error Button and Display Message Table

Both the DTC4500 use the Button messages rather than the Display Message system.

Step Procedure

5 Press the ON/Off button when Printer is in an error state to cause the action to

be cancelled. (Note: If no other error occurs, then the Pause button will

illuminate its blue LED.)

6 Press the Pause button when Printer is in an error state to cause the Printer to

retry. (Note: It will illuminate its blue LED and retry the failed action.)

7 When downloading an upgrade file, both blue LED’s will blink. If the unit is a

DTC1000:

• You have been advised that the upgrade is in process.

8 If a language (other then English) is currently selected:

• You can press and hold the Pause button during the power-up sequence to

change the language back to English.

9 When no LCD Display is available, press or hold the buttons to access certain

Internal Test jobs. See below.

• To print a card with the Printer Settings, press the Pause button and hold for

4+ seconds when the Printer is ready and idle.

• To print the alignment or the Self Test, press the ON/OFF button then

immediately press the Pause button.

DTC4500 Card Printer/Encoder User Guide 79

Using the Error Message Table

This section provides the troubleshooting table for the error message. The DTC4500 has a display that

will show the Printer error messages.

• When an error occurs in the Printer, the PC will show the error message on screen with solutions.

• The display will blink in the location needing attention. Those locations include the Printer, Input

Hopper, Magnetic Encoder, Flipper, Card Path, Ribbon, and Data/Communication error device.

Each table uses a 3- column presentation to present a specific or Printer error message, its cause and its

solution.

• This allows the troubleshooter to identify the error and its cause, and then perform the procedure

(provided in the solution column).

• This standard mode of identifying the problem and its solution should provide an efficient method of

troubleshooting this Printer.

• If you encounter problems beyond the capabilities of these the error message table, you should

contact Technical Support. Refer to: Section 10: HID Global Technical Support

DTC4500 Card Printer/Encoder User Guide 80

Using the Error Message Table

Error Message Cause Solution

# 81

Unable to Feed

The Printer is unable to

feed a card from the

Card Hopper.

Check the following, then press the

Pause button to continue.

• Verify the card thickness setting is

set to the thickness of your cards.

• Verify the Cleaning roller is properly

installed on the Ribbon Cartridge.

• Check for card slippage. If

necessary, run the Printer cleaning

routine.

• Verify that your cards are within the

perimeters accepted card size range.

• Verify the cards are not sticking

together.

DTC4500 Card Printer/Encoder User Guide 81

Troubleshooting with the Error Message Table

Error Message Cause Solution

# 2

Head Move Error

# 3

Headlift Error

|contextid=201

This is a problem with the

Printhead Lift. Reset the Printer and try again.

• If this problem persists, call for

technical assistance.

# 8

Head Sensor Error

|contextid=200

The Printhead

Temperature Sensor is not

functioning or is not

connected properly.

OR

The Printhead is not

cooling properly.

Reset the Printer and try again.

• If the problem persists, call for

technical assistance.

# 9

Reboot Required

Unspecified system error

detected by the Printer

Firmware.

Reset the Printer and try again.

• If this problem persists, call for

technical assistance.

# 25

Ribbon not Installed

|contextid=232

A Ribbon is not installed in

the Printer.

Install a Ribbon and retry.

DTC4500 Card Printer/Encoder User Guide 82

Troubleshooting with the Error Message Table

Error Message Cause Solution

# 30

Mag Verify Error

|contextid=251

|contextid=252

Magnetic encoding

verification failure.

• Try encoding with a different

card.

• Verify cards have the Magnetic

Stripe.

• Replace the Magnetic Encoding

Module.

# 31

No Mag Module

|contextid=250

You are trying to send

encoding data, but the

Printer is not configured

with this Encoder type.

• Ensure that no encoding data is

being sent with the print job and

reprint the card.

• Install a Magnetic Encoding

Module.

# 38

# 39

# 40

EEPROM Corrupt

EEPROM Read

Error

EEPROM restored with

factory default values. If changes were made in the

Advanced Setting Tab in the Printer

Driver, click the Default button to

reset these numbers.

• Reset the Printer and try again. If

this problem persists, call for

technical assistance.

DTC4500 Card Printer/Encoder User Guide 83

Troubleshooting with the Error Message Table

Error Message Cause Solution

# 44

Flipper Jam/ Home

Error

|contextid=220

A card has become

jammed in the Printer’s

Flipper Table.

The Flipper failed to

position properly while

aligning a card or flipping a

card.

Clear any cards in the Flipper Table

using the buttons to move the card

out. Resume printing.

• Reset the Printer and retry. If

problem persists call for technical

assistance.

# 45

No Flip Module

|contextid=221

Request to print on 2nd side

of card, but no Flipper is

installed.

If a Flipper Module is present,

ensure that the Print Both Sides

option in the Printer Driver is set

correctly.

• Install a Flipper module.

# 48

Check Lam Power

|contextid=281

Lam is connected but not

powered.

Power off the Printer, power the

Laminator, and then power on the

Printer. A damaged Flipper board,

E-Card board, or EEPROM could

potentially result in this same error.

# 52

Lam Generic Error

|contextid=280

Laminator firmware error

Cycle power and try again.

• If this problem persists call for

technical assistance.

DTC4500 Card Printer/Encoder User Guide 84

Troubleshooting with the Error Message Table

Error Message Cause Solution

# 53

Lam Card Jam

A jam occurred

somewhere between the

Printer and the laminator

Open covers and clear the

obstruction/jam

# 63

Lam Tag Error

|contextid=286

There is no material

loaded in the laminator Load material into the Laminator

# 64

# 65

# 66

Reboot Required

Unspecified system error

detected by the Printer

Firmware.

Reset the Printer and try again.

• If this problem persists, call for

technical assistance.

# 68

Card in Printer

A card is jammed in the

Print Station or card

flipping area of the Printer.

Clear the jam and press the the

Pause button.

# 70

Multiple Feed

|contextid=211

Multiple cards were fed

into the Printer. Verify the card thickness is set to

the thickness of your cards, then

press the Pause button.

• Check for card slippage. If

necessary, run the Printer

cleaning routine

• Verify the Cleaning roller is

properly installed on the Ribbon

Cartridge.

• Verify the cards are not sticking

together.

DTC4500 Card Printer/Encoder User Guide 85

Troubleshooting with the Error Message Table

Error Message Cause Solution

# 81

Unable to Feed

|contextid=214

|contextid=210

The Printer is unable to

feed a card from the Card

Hopper.

Check the following, then press the

Pause button to continue.

• Verify the card thickness setting

is set to the thickness of your

cards.

• Verify the Cleaning roller is

properly installed on the Ribbon

Cartridge.

• Check for card slippage. If

necessary, run the Printer

cleaning routine.

• Verify that your cards are within

the perimeters accepted card

size range.

Verify the cards are not sticking

together.

# 82

Mag Jam

|contextid=216

A card is jammed Magnetic

station

• Clear any cards in the Magnetic

station using the buttons to move

the card out.

• Press the Pause button to

continue.

DTC4500 Card Printer/Encoder User Guide 86

Troubleshooting with the Error Message Table

Error Message Cause Solution

# 91

Ribbon Out

|contextid=233

The Print Ribbon has run

out.

• Install a new Ribbon.

• Press the Pause button to

continue or the ON/OFF button to

cancel.

# 93

Wrong Ribbon

|contextid=231

The Print Ribbon installed

in the Printer does not

match the Ribbon type

selected in the Printer

Driver.

• Change either the installed Print

Ribbon or the Ribbon type

selected in the Printer Driver.

• Press the Pause button to

continue or the ON/OFF button to

cancel .

# 97

Ribbon Search

Error

|contextid=239

The Ribbon is not able to

find the next panel

correctly.

Check for jams/breaks.

Recalibrate the Ribbon Sensor.

• If broken, repair by taping the

Ribbon back on to the take- up

core.

• Replace the Ribbon.

• Press the Pause button to

continue or the ON/OFF button to

cancel.

DTC4500 Card Printer/Encoder User Guide 87

Troubleshooting with the Error Message Table

Error Message Cause Solution

# 99

Ribbon Error

|contextid=234

The Print Ribbon has

either broken or jammed.

• If jammed, clear the jam.

• If broken, repair by taping the

Ribbon back on to the take- up

core.

• Press the Pause button to

continue or the ON/OFF button to

cancel.

# 100

Ribbon RFID Error

|contextid=230

There is no Ribbon or the

Ribbon tag information is

corrupted or incorrect.

Verify the Printer Driver settings for

correct Ribbon.

• Try a new Ribbon and continue.

• Press the ON/OFF button to

cancel.

# 102

# 103

# 104

Headlift Error

This is a problem with the

Printhead Lift. Reset the Printer and try again.

• If this problem persists, call for

technical assistance.

# 106

Job Data Error

The print data sent to the

Printer is corrupt or has

been interrupted.

Check the interface cable.

Select the ON/OFF button to cancel

this print job and then resend the

job.

DTC4500 Card Printer/Encoder User Guide 88

Troubleshooting with the Error Message Table

Error Message Cause Solution

# 107

Printing Error

An error was detected

during printing. Reset the Printer and try again.

• If this problem persists, call for

technical assistance.

# 109

Ribbon Release

Error

The Printer cannot locate

the next Ribbon panel in

order to release the

Ribbon from the card.

Ensure that the Ribbon is not stuck

to the card.

• Replace the Ribbon.

• Recalibrate the Ribbon sensor.

• If the Ribbon is broken, repair by

taping the Ribbon back onto the

take- up core and manually

advance to the next panel.

# 110

Card Jam/Align

error

A card is jammed in the

Print Station or card

flipping area of the Printer.

Clear the jam. Press the Pause

button to continue.

# 111

Head Loading

An unrecoverable error

has occurred during

printing.

Reset the Printer and try again. If

this problem persists, call for

technical assistance.

# 112

Card Jam/Align

error

A card is jammed in the

Print Station or card

flipping area of the Printer.

Clear the jam. Press the Pause

button to continue.

DTC4500 Card Printer/Encoder User Guide 89

Troubleshooting with the Error Message Table

Error Message Cause Solution

# 113

Ribbon Release

Error

|contextid=300

The Printer cannot locate

the next Ribbon panel in

order to release the

Ribbon from the card.

Ensure that the Ribbon is not stuck

to the card.

• Replace the Ribbon.

• Recalibrate the Ribbon sensor.

• If the Ribbon is broken, repair by

taping the Ribbon back onto the

take- up core and manually

advance to the next panel.

• Press the Pause button to

continue.

# 128

Calibrate Ribbon

|contextid=235

The Print Ribbon Sensor is

out of calibration. Calibrate the Ribbon Sensor.

# 131

Flipper Jam/ Home

Error

A card has become

jammed in the Printer’s

Flipper Table.

The Flipper failed to

position properly while

aligning a card or flipping a

card.

Clear any cards in the Flipper Table,

using the buttons to move the card

out.

• Resume printing.

• Reset the Printer and retry. If

problem persists call for technical

assistance.

DTC4500 Card Printer/Encoder User Guide 90

Troubleshooting with the Error Message Table

Error Message Cause Solution

# 136

Secure Guard Print

Disabled

|contextid=203

Printing is disabled by

SecureGuard until a

password is received.

Reset the Printer and retry.

• If the problem persists, call for

technical assistance.

# 139

Please Remove

Ribbon

Ribbon needs to be

removed. Reset the Printer and retry.

• If problem persists, call for

technical assistance.

# 144

EEPROM Corrupt

EEPROM Read

Error

EEPROM restored with

factory default values.

• If changes were made in the

Advanced Setting Tab in the

Printer Driver, click the Default

button to reset these numbers.

• Reset the Printer and try again. If

this problem persists, call for

technical assistance.

# 170

Ribbon Calibration

failed

Ribbon calibration failed.

Check for material blocking sensor

and try again.

DTC4500 Card Printer/Encoder User Guide 91

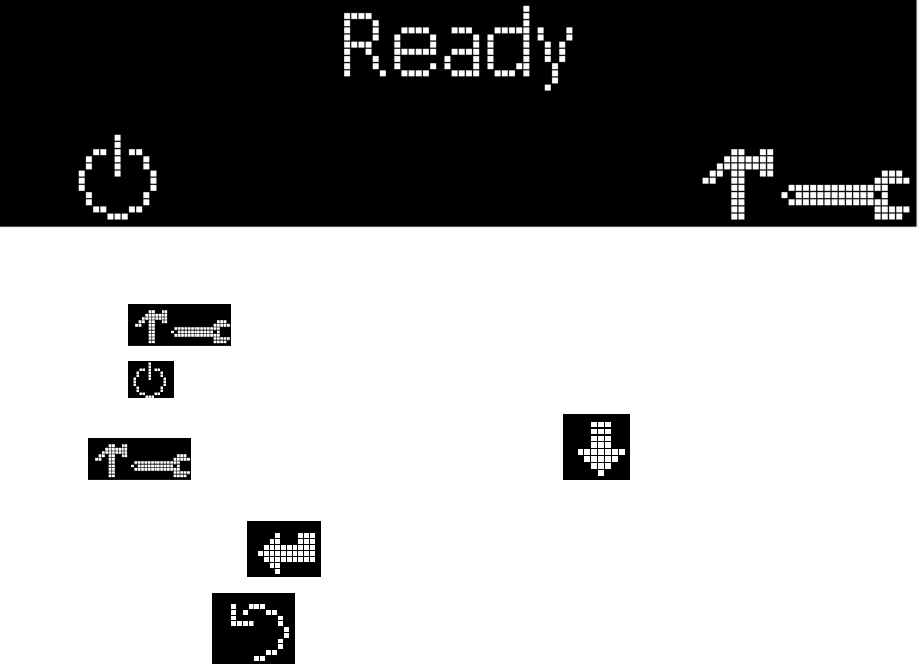

Printer Specific Tools (DTC4500)

Here is a description of these tools.

• Press the button to scroll through the details of the Printer and perform the action.

• Press the button to select the option.

• Once is selected, use the left down arrow to scroll through the Info, Test Prints,

and Languages and Exit.

• Use the corner arrow to run that option.

• The curved arrow will return to the first screen.

DTC4500 Card Printer/Encoder User Guide 92

Additional Printer Specific Tools (DTC4500)

Label Description

INFO • Printer Type

• Firmware Version

• I.P Address

• Flipper

• Lamination

• Magnetics

• E-Card

• Password

• Card count

TEST

PRINTS Color Photo:

Select this to print a color card to test communication and integrity.

Alignment:

Select this to print a card used to align the print image on the card.

Settings:

Select this to print a card with the Advanced settings.

Resin:

Select this to print a RESIN test card.

Rewritable:

Select this to ERASE the Rewritable card.

Language Language:

Select this choice to change the Printer Displayed Language.

Exit Exit:

Select this choice to exit the Printer Tool options.

DTC4500 Card Printer/Encoder User Guide 93

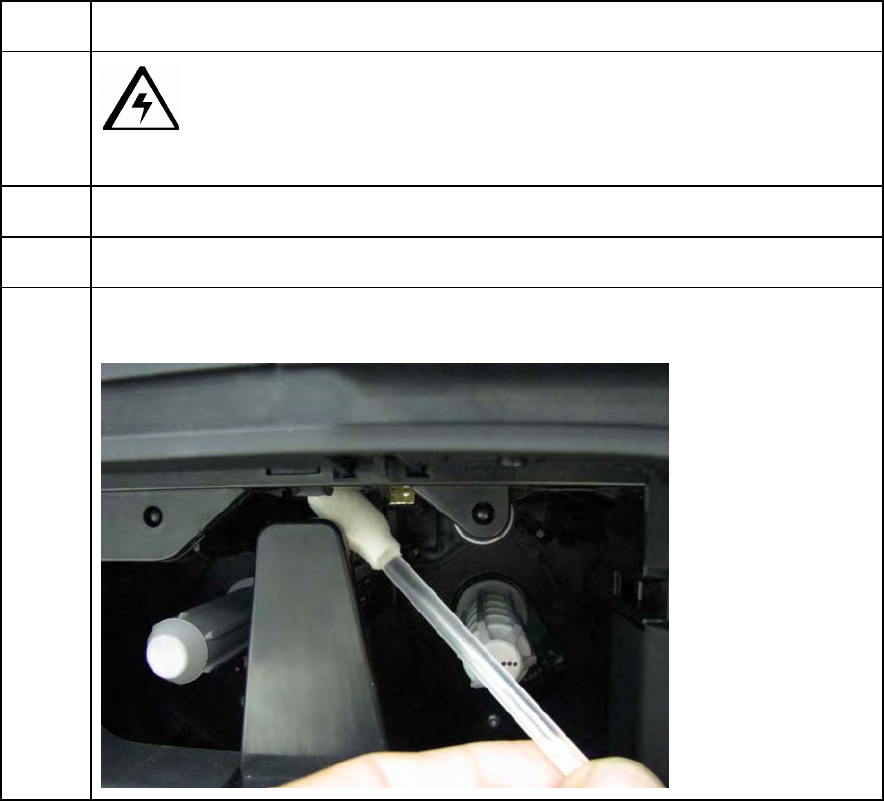

Section 8: Cleaning

The Card Printer is built to require a minimum amount of maintenance. Nevertheless, there are a few

procedures you can perform on a regular basis or as needed to ensure the best possible performance

Safety Messages (review carefully)

Symbol Critical Instructions for Safety purposes

Danger:

Failure to follow these installation guidelines can result in

death or serious injury.

Information that raises potential safety issues is indicated by a

warning symbol (as shown to the left).

• To prevent personal injury, refer to the following safety

messages before performing an operation preceded by this

symbol.

• To prevent personal injury, always remove the power

cord prior to performing repair procedures, unless otherwise

specified.

• To prevent personal injury, make sure only qualified

personnel perform these procedures.

Caution:

This device is electrostatically sensitive. It may be

damaged if exposed to static electricity discharges.

Information that raises potential electrostatic safety issues is

indicated by a warning symbol (as shown to the left).

• To prevent equipment or media damage, refer to the

following safety messages before performing an operation

preceded by this symbol.

• To prevent equipment or media damage, observe all

established Electrostatic Discharge (ESD) procedures while

handling cables in or near the Circuit Board and Printhead

Assemblies.

• To prevent equipment or media damage, always wear an

appropriate personal grounding device (e.g., a high quality

wrist strap grounded to avoid potential damage).

• To prevent equipment or media damage, always remove

the Ribbon and Cards from the Printer before making any

repairs, unless otherwise specified.

• To prevent equipment or media damage, take jewelry off

of fingers and hands, as well as thoroughly clean hands to

remove oil and debris before working on the Printer.

DTC4500 Card Printer/Encoder User Guide 94

DTC4500 Card Printer/Encoder Cleaning Kit

Caution: As with any electronic device, internal components of the Printer, such as the

Printhead, may be damaged if exposed to static electrical discharges. To avoid potential damage, always

wear an appropriate personal grounding device, such as a wrist strap (with integral resistor) connected to

an ESD ground.

Supplies (included with the Cleaning Kit)

This Cleaning Kit provides you with the specialized cleaning supplies and the required cleaning

procedures for you to maintain your Fargo DTC4500 Card Printer/Encoder. The following cleaning

procedures will require less than ten minutes.

Description Supplies (pictured)

Four (4) Printhead Cleaning Swabs

are pre-moistened with 99.99%

isopropyl alcohol for cleaning your

Printer’s Printhead.

Ten (10) Gauze Pads are pre-

moistened with 99.99% isopropyl

alcohol for cleaning your Printer’s

interior and exterior.

Ten (10) Cleaning Cards are

provided with adhesive backing for

cleaning your Printer’s Platen and

Card Feed Rollers.

DTC4500 Card Printer/Encoder User Guide 95

Printhead Cleaning

Step Procedure

1

Caution:

Turn Off the Printer and unplug the power cord from the Printer.

2 Remove the Ribbon Cartridge.

3 Open the Printhead Cleaning Swabs. Break it to moisten the tip.

4 Swab the tip back and forth across the top of the Printhead. Allow to dry

thoroughly before sending a print job.

DTC4500 Card Printer/Encoder User Guide 96

Cleaning the Platen and the Card Feed Rollers

Perform this procedure approximately every 1000 prints to maintain a consistent print quality. (Note:

The Card Feed Rollers move the card throughout the print process. Rollers should be kept clean to

prevent card jams and card contamination. This cleaning process will ultimately lead to better print

quality and extended Printhead life.)

Step Procedure Picture

1 a. Open the Printer’s Front Cover and

remove the Print Ribbon.

b. Remove all the cards from the

Printer’s Input Hopper.

2 Use the Cleaning Card from the

Printer’s and remove the adhesive

backing from both sides of the card.

If your Printer has a Magnetic Encoder

installed, be sure to leave the small

Liner Strip on top of the Cleaning Card

in place.

This small strip is needed to protect the

Magnetic Head from the adhesives on

the Cleaning Card.

3 Insert the Cleaning Card into the

Single Feed Card Slot until the card

stops.

If your Printer is equipped with a

Magnetic Encoder, you must insert the

Cleaning Card with the printed side up

and with the small Liner Strip towards

the front of the Printer.

DTC4500 Card Printer/Encoder User Guide 97

Cleaning the Platen and the Card Feed Rollers

Step Procedure Picture

4 From your computer, open the Printer

Driver and select Printing Preferences.

5 Open the Toolbox button.

6 Click on the Clean Printer button.

7 Click on the Clean button.

• The Printer will pull in the Cleaning

Card. The Printer will then perform

an automated cleaning procedure.

• This procedure is designed to

thoroughly clean the Platen and the

Card Feed Rollers inside the Printer.

DTC4500 Card Printer/Encoder User Guide 98

Cleaning the Printer’s Interior

Periodically, use a Cleaning Pad from the Printer’s Cleaning Kit to remove dust and other contaminants

from inside the Printer. (Note: Dust and other particles may accumulate inside the Printer with continued

usage. This can cause spots or specks to appear on the printed cards.)

Cleaning the Printer’s Exterior

Clean it only with a Cleaning Pad from the Printer’s Cleaning Kit. (Note: The Printer has a durable

casing that should retain its luster and appearance for many years.

DTC4500 Card Printer/Encoder User Guide 99

Section 9: Firmware Upgrades

Upgrade the Printer Firmware

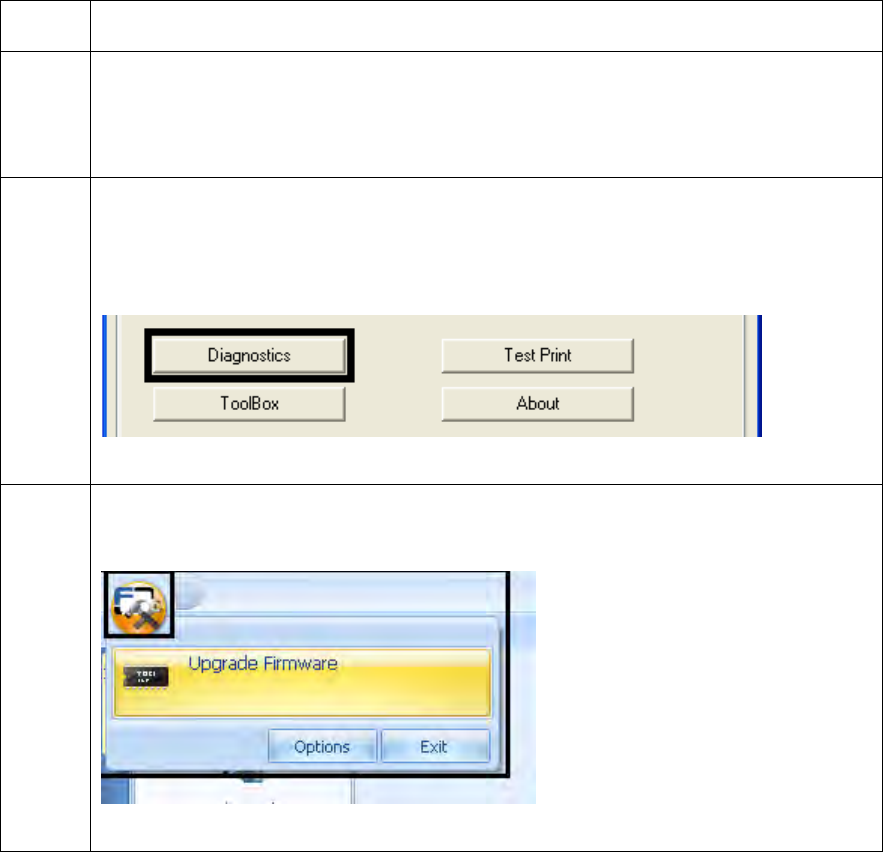

Step Procedure

1 Requirements

• Internet Access

• Printer is powered up and connected to PC

2 Open the Fargo Workbench Printer Utility and use the Diagnostics button

from the Card Option Printing Preference page. (Note: The Workbench is also

available from the Fargo Folder in the Windows Program folder.)

3 From the Application Icon, select Upgrade Firmware.

DTC4500 Card Printer/Encoder User Guide 100

Upgrade the Printer Firmware

Step Procedure

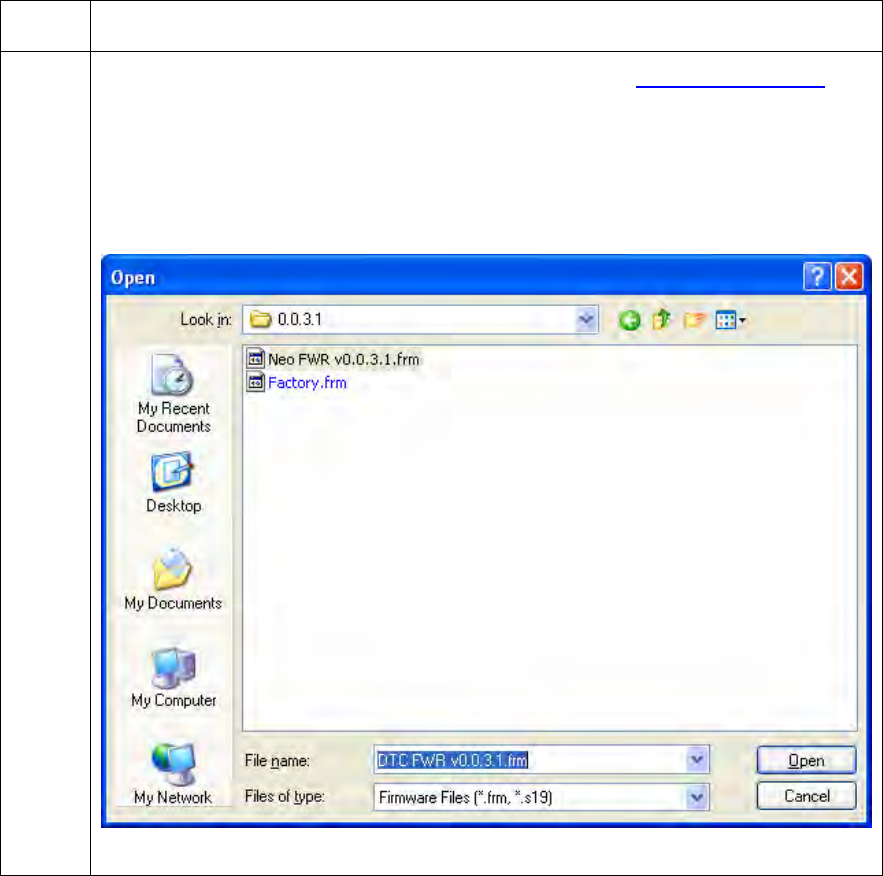

4 Find the Firmware via Check for Firmware Updates at www.hidglobal.com

• Save the file to a folder.

• Use the Browse button to find the .frm file.

• Select the file. Click Open.

DTC4500 Card Printer/Encoder User Guide 101

Upgrade the Printer Firmware

Step Procedure

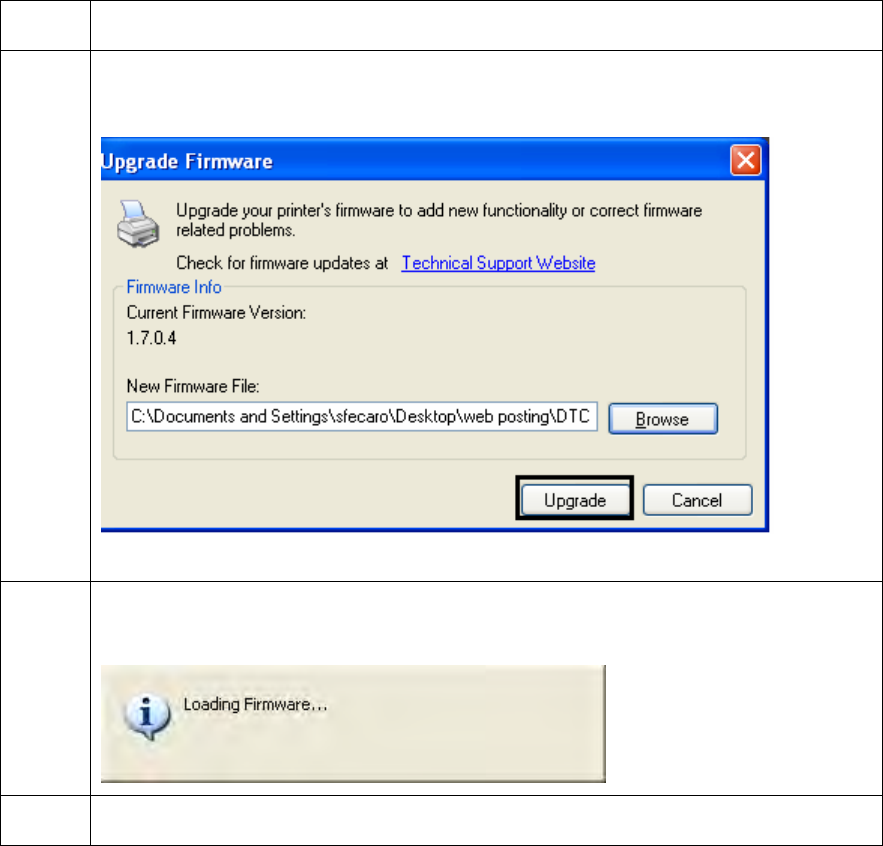

5 Click on Upgrade to start the upgrade process.

6 This message will appear while Firmware is updating.

7 The Printer will reboot after this process is completed.

DTC4500 Card Printer/Encoder User Guide 102

Section 10: HID Global Technical Support

The purpose of this section to provide you with an efficient, step-by-step procedure to be used when

contacting HID GLOBAL Technical Support as needed for this Card Printer.

Step Procedure

1 Contact the HIDGlobal Technical Support Group by phone at (866)607-7339

Ext #6 or by fax at (952) 946-8492 for additional technical assistance.

OR

Contact HID Technical Support via the Web: www.hidglobal.com

2 Position a phone near the Printer and Computer so the technician can help to

troubleshoot the Printer(s).

3 Please have a self-test and a sample card ready when calling HID Technical

Support.

DTC4500 Card Printer/Encoder User Guide 103

Reading the Serial Numbers on a Fargo Printer

You can determine when your card Printer was manufactured by reading directly from the serial number

(affixed to your card Printer).

Example Explanation

Reviewing Example

No. 1: Serial Number

A9050028 ( 2009)

• A9050028: The first two digits in the serial number indicate

the year the Printer was built (e.g., the digits A9 indicate the

year 2009).

• A9050028: The third and fourth digits in the serial number

indicate the week the Printer was built (e.g., the digits 05

indicate week 5th of that year).

• A9050028: The last four digits indicate the sequence

number for the numeric order in which the Printers were

built.

Reviewing Example

No. 2: Serial Number

B0050028 (2010)

• B0050028: The first two digits in the serial number indicate

the year the Printer was built (e.g., the digits B0 indicate the

year 2010).

• B0050028: The third and fourth digits in the serial number

indicate the week the Printer was built (e.g., the digits 05

indicate week 5th of that year).

• B0050028: The last four digits indicate the sequence

number for the numeric order in which the Printers were

built.

DTC4500 Card Printer/Encoder User Guide 104

Appendix A

Using the Defined Area Option

This procedure can be used with the K Panel or the Overlay /Print Area procedure to define specific

areas. The K-Panel procedure is described below: The same process is used for the Overlay/Print Area

option.

DTC4500 Card Printer/Encoder User Guide 105

Configuring Fluorescent Data (F-Panel for YMCFKO

Ribbon) using the Workbench

Step Procedure

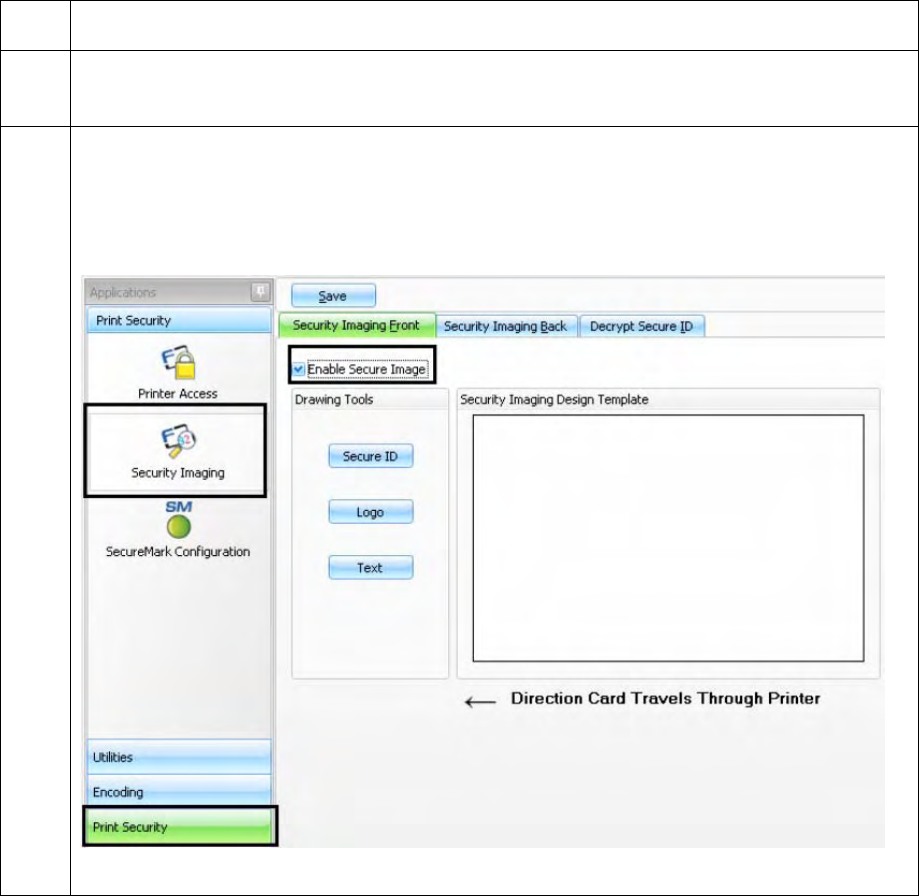

1 From the Driver Printing Preferences, click on Diagnostics to bring up the Fargo

Workbench Printer Utility.

2 a. Click the Print Security applet group and select the Security Imaging applet.

b. Check the Enable Secure Imaging checkbox. (Note: The option for both front

and back are set up the same way.)

DTC4500 Card Printer/Encoder User Guide 106

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the Workbench

Step Procedure

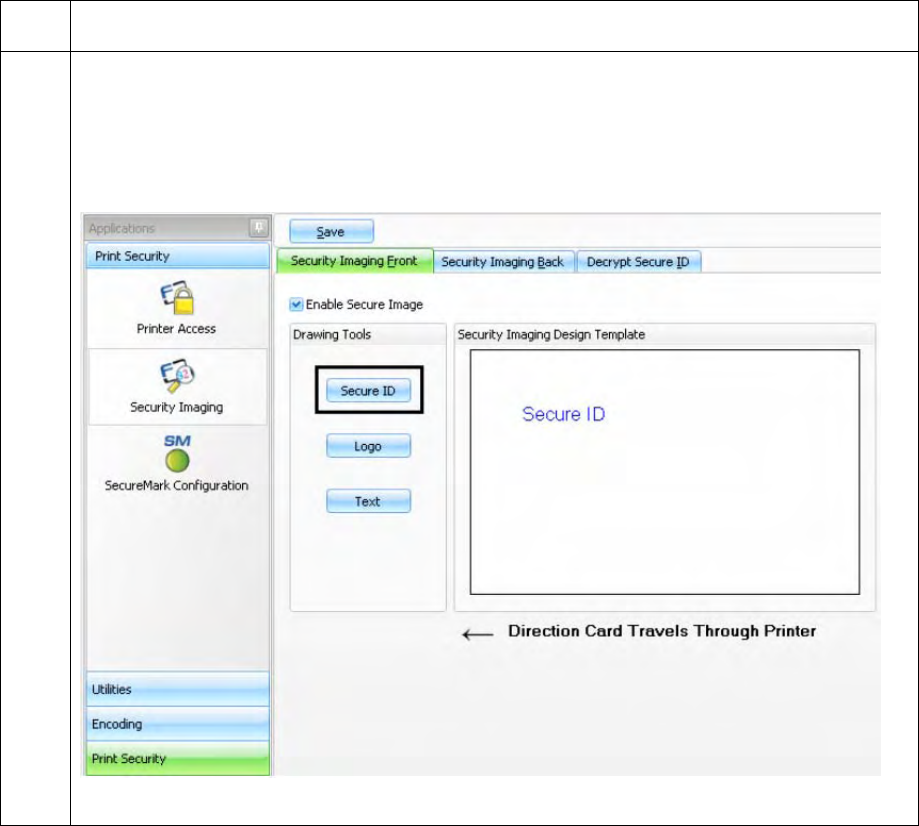

3 a. Click on the Secure ID box on the left.

b. Click and drag a box onto the Template.

c. Move and size as needed.

DTC4500 Card Printer/Encoder User Guide 107

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the Workbench

Step Procedure

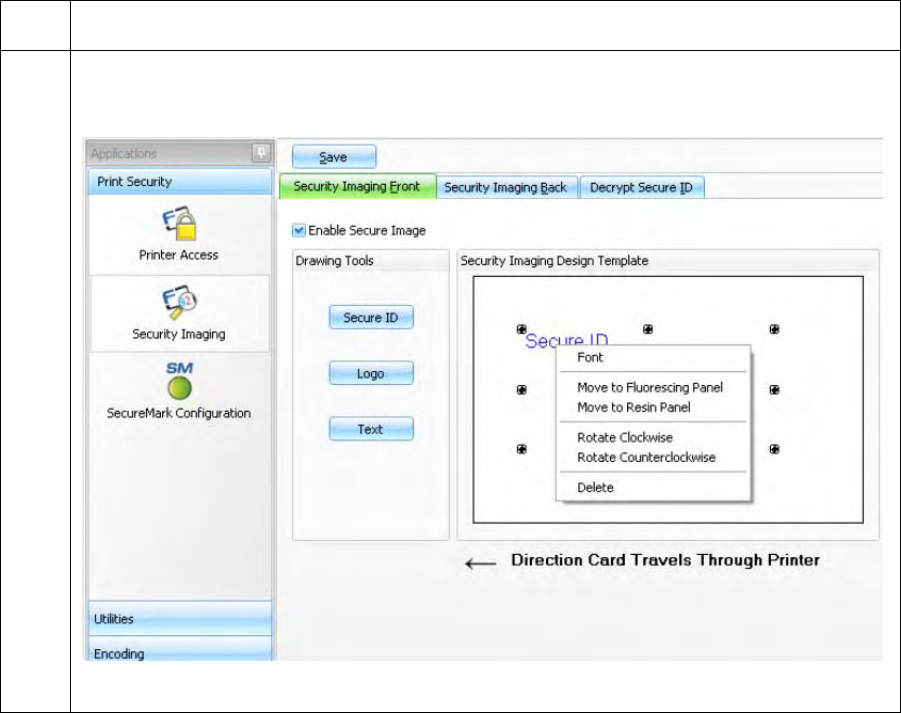

4 On the Template, right click on the Secure ID box for the options.

DTC4500 Card Printer/Encoder User Guide 108

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the Workbench

Step Procedure

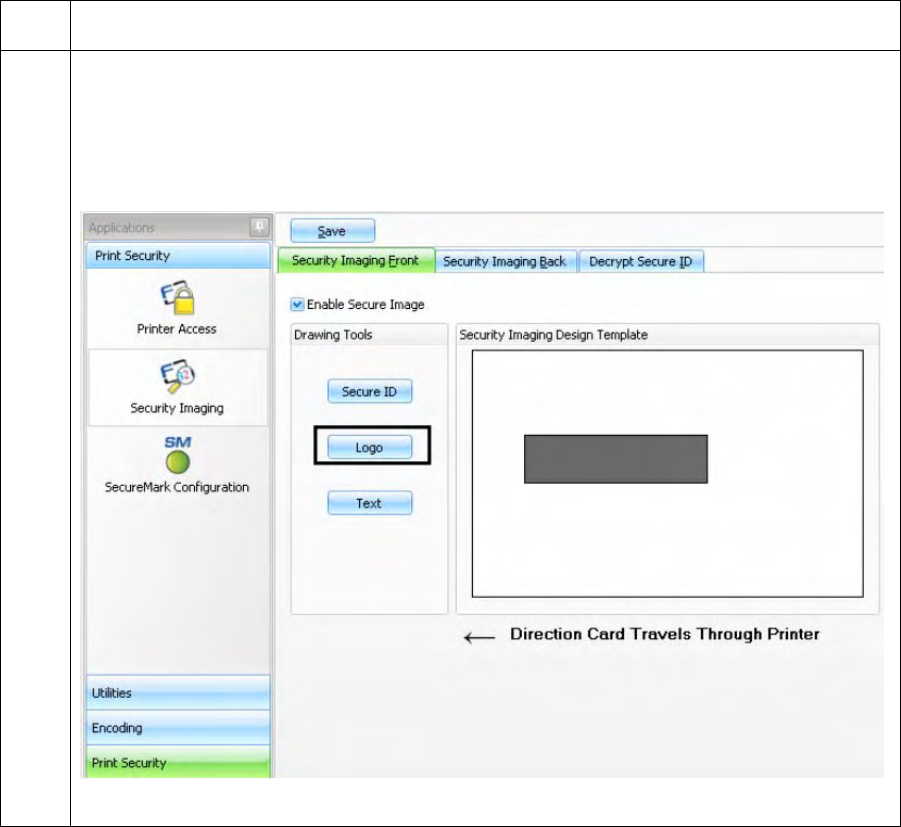

5 a. Click on the Logo box on the left.

b. Click and drag a box onto the Template.

c. Move and size (as needed) by grabbing the corner of the box.

DTC4500 Card Printer/Encoder User Guide 109

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the Workbench

Step Procedure

6 On the Template right click on the Logo box for the options shown below.

7 Select the Logo File.

Find the source of the Logo to place on the card. (Note: Fit to Frame will size

the image to fit the box. Once this is set up, this logo will print from the

software program. This is set up in the background.)

DTC4500 Card Printer/Encoder User Guide 110

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the Workbench

Step Procedure

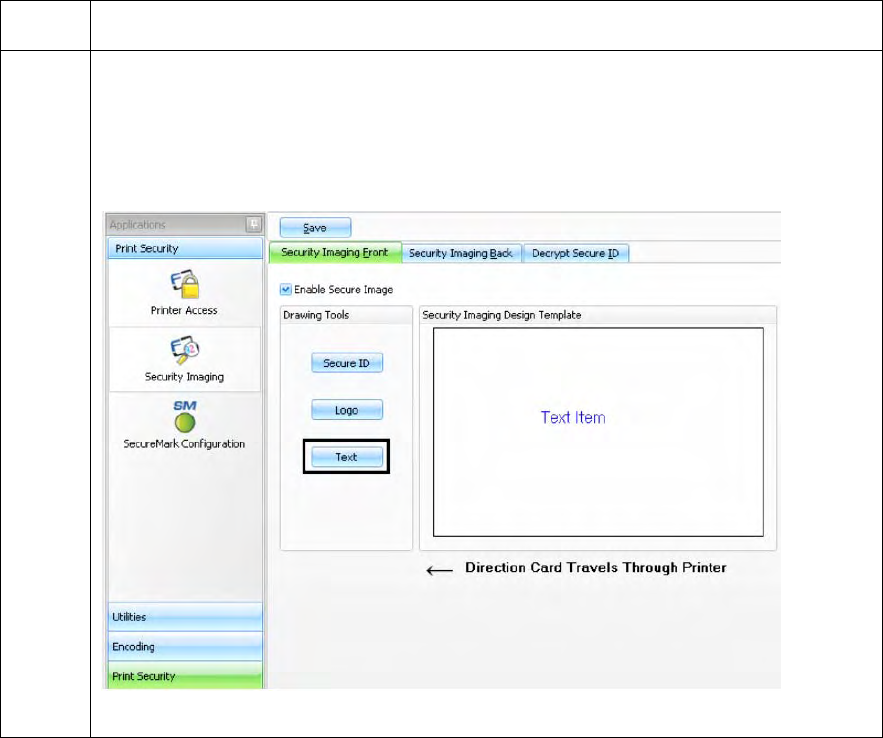

8 a. Click on the Text box on the left.

b. Click and drag a box onto the Template.

c. Move and size as needed.

DTC4500 Card Printer/Encoder User Guide 111

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the Workbench

Step Procedure

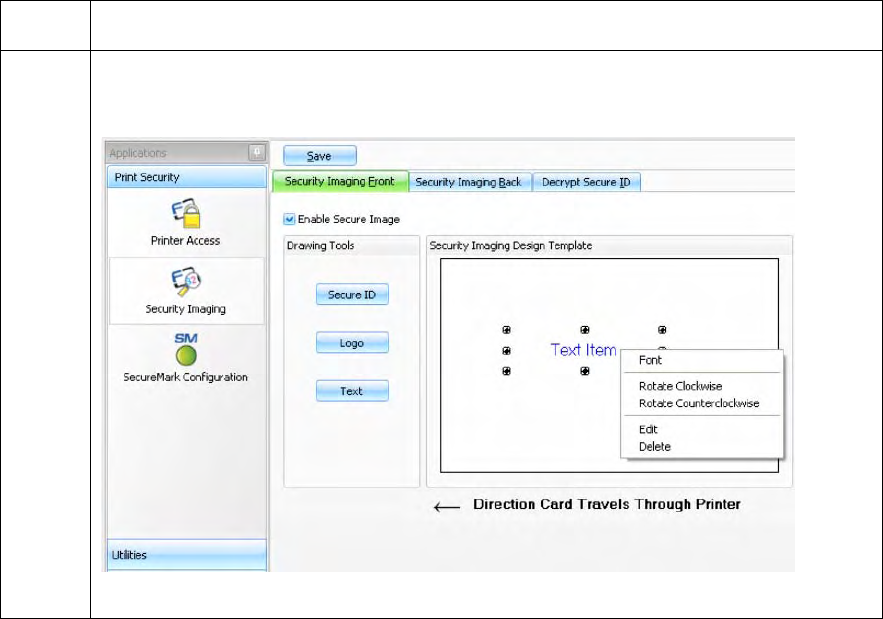

9 On the Template, right click on the Text box for the options.

DTC4500 Card Printer/Encoder User Guide 112

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the Workbench

Step Procedure

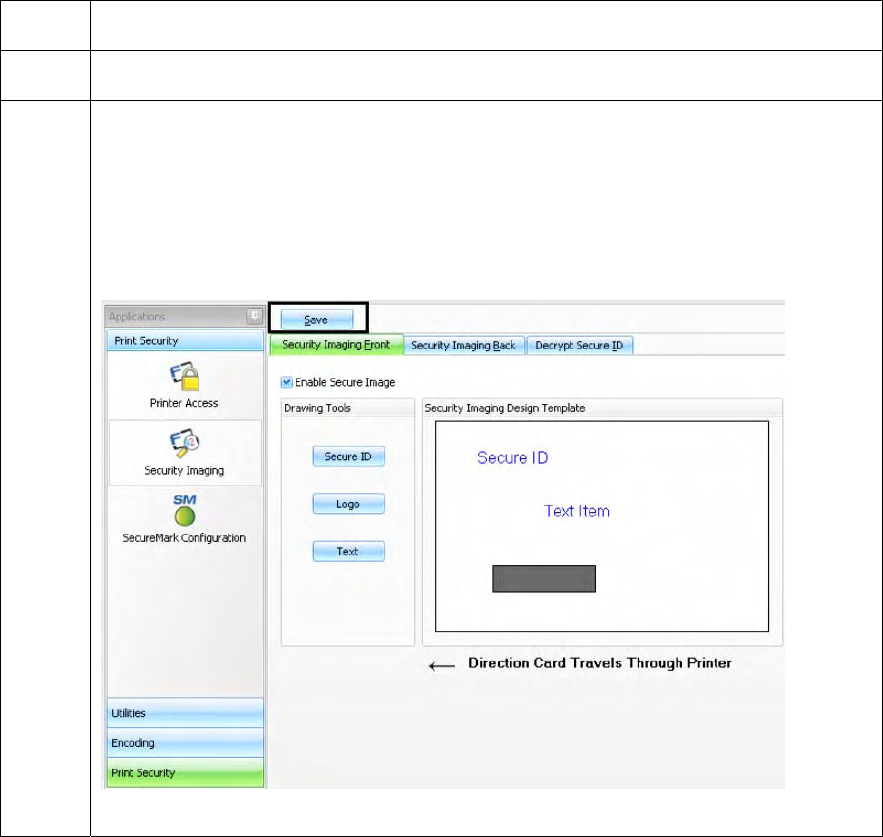

10 Follow the same instruction as above for the back side of the card.

11 a. Save this template using the Save button

b. Close the Workbench. (Note: Any Software program file printed with the

YMCFKO Ribbon installed into the Printer will print this design with the F-

Panel of the Ribbon. It will print the same file each time unless you recreate

a new template.)

DTC4500 Card Printer/Encoder User Guide 113

DTC4500 Card Printer/Encoder User Guide 114

Configuring Fluorescent Data (F-Panel for YMCFKO Ribbon) using the Workbench

Step Procedure

12 Set the Ribbon for YMCFKO in the Printing Preferences. (Note: The Detect

Supplies at Print Time button may also be used. The F-Panel Ribbon must be

installed for this process to work.)

13 Check Dual Pass if you would like to print the F-Panel on a separate panel of

HDP film from the YMC image.

You should use the default Dual Pass option:

If the fluorescent image is used in places where other dye is used.

OR

Any time the Invert F-Panel Image option is selected.

14 Check Invert F-Panel Image to create a negative of the fluorescent image.

• This refers to the ability to cause light or white areas of the image to

fluoresce and dark colors to remain dark on the printed card when exposed

to a UV light.

• This was requested because the fluorescent dye color is bright when black

light is applied to it.

• By default, the dark areas of the image will fluoresce on the card and the

lighter or white areas will have no dye applied. (Note: This may improve

the look of the person’s image if used for the Logo.)

HID Global X001800C Card encoder RFID 13.56MHz Radio Module User Manual Using the Photo option

HID Global Corporation Card encoder RFID 13.56MHz Radio Module Using the Photo option

user manual

Navigation menu

Namespaces

Views

Navigation
