FARGO®

DTC5500LMX CARD PRINTER

USER GUIDE

PLT-02496

Version: 1.0

November 2015

Model X002100

Page ii

PLT-02496, Version: 1.0 November 2015

This document may not be reproduced, disseminated or republished in any form without the prior

written permission of HID Global Corporation.

Trademarks

HID GLOBAL, HID, the HID logo, FARGO, iCLASS, iCLASS SE, OMNIKEY, and Seos are trademarks or

registered trademarks of HID Global Corporation, or its licensors, in the U.S. and other countries.

Contacts

For additional offices around the world, see www.hidglobal.com corporate offices.

Americas and Corporate Europe, Middle East and Africa (EMEA)

611 Center Ridge Drive

Austin, TX 78753

USA

Phone: 866 607 7339

Fax: 949 732 2120

Haverhill Business Park Phoenix Road

Haverhill, Suffolk CB9 7AE

England

Phone: 44 (0) 1440 711 822

Fax: 44 (0) 1440 714 840

Asia Pacific Brazil

19/F 625 King’s Road

North Point, Island East

Hong Kong

Phone: 852 3160 9833

Fax: 852 3160 4809

Condomínio Business Center

Av. Ermano Marchetti, 1435

Galpão A2 - CEP 05038-001

Lapa - São Paulo / SP

Brazil

Phone: +55 11 5514-7100

HID Global Customer Support: support.hidglobal.com

Contents

November 2015 PLT-02496, Version: 1.0

Chapter 1: Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.1 Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.1.1 Agency Listings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.1.2 United States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

1.1.3 Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

1.1.4 Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

1.1.5 Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

1.1.6 Korea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

1.2 Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1.2.1 Safety Messages - United States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3

1.2.2 Safety Messages - French Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4

1.2.3 Safety Messages - Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

1.2.4 Safety Messages - China . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

1.3 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

1.4 Functional Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

1.5 Printer Components: Print Ribbons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

1.5.1 Ribbon Types and Print Counts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

1.6 Printer Components: Blank Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Chapter 2: Setup and Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.1 Selecting a Good Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.1.1 About Moisture Condensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

2.2 Unpacking and Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2.3 Print Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2.3.1 Driver Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2.4 Installing the Print Ribbon Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

2.5 Installing Blank Cards into the Input Card Hopper. . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2.6 Card Size Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.7 Printer Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Chapter 3: Printing Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.1 Card Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.2 Device Options Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

3.3 Image Color Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

3.3.1 Advanced Image Color Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

3.4 Image Calibrate Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

3.5 Magnetic Encoding Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Page iv

PLT-02496, Version: 1.0 November 2015

3.5.1 ISO Encoding Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

3.5.2 Custom Encoding Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

3.5.3 Raw Binary Encoding Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-12

3.5.4 JIS II Encoding Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-12

3.5.5 ISO Track Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

3.5.5.1 Sending the Track Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

3.6 Lamination Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

3.7 Overlay/Print Area Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

3.7.1 Define a Print Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

3.8 K-Panel Resin Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

3.9 Printer Info Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20

Chapter 4: ToolBox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.1 Configuration Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4.2 Calibrate Laminator Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

4.3 Calibrate Ribbon Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

4.4 Clean Printer Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

4.5 Advanced Settings Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

4.5.1 Settings Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Chapter 5: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1

5.1 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5.1.1 Sequence of Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1

5.2 Printer Error Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

5.2.1 Printer Error Button and On-screen Messages . . . . . . . . . . . . . . . . . . . . . . 5-2

5.2.2 Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

5.2.3 Troubleshooting with the Error Message Table . . . . . . . . . . . . . . . . . . . . . 5-4

5.2.4 Printer-Specific Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

5.2.4.1 Additional Printer Specific Tools . . . . . . . . . . . . . . . . . . . . . . . . . .5-12

Chapter 6: Firmware Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

6.1 Upgrade Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Chapter 7: Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.1 Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.1.1 Reading the Serial Numbers on a FARGO Printer . . . . . . . . . . . . . . . . . . . .7-1

Chapter 1

November 2015 PLT-02496, Version: 1.0

Specifications

The purpose of this section is to provide specific information on the Regulatory Compliances, Agency

Listings, Technical Specifications and Functional Specifications for the HDP8500 Card

Printer/Encoder.

1.1 Regulatory Compliance

1.1.1 Agency Listings

Agency Regulatory Compliance

UL The Card Printer is listed under UL 60950-1 (2nd edition) Information Technology Equipment.

File Number: E145118

CSA

The printer manufacturer has been authorized by UL to represent the Card Printer as CSA

Certified under CSA Standard C22.2 No. 60950-1-07 2nd edition

File Number: E145118

FCC The Card Printer complies with the requirements in Part 15 of the FCC rules for a Class A digital

device.

The Card Printer has been tested and complies with EN300-330-1, EN300-330-2, EN301-489-

1, EN60950-1:2006 + A11:2009

Note: Based on the above testing, the printer manufacturer certifies that the card printer

complies with the following of the European Community and has placed the CE mark on the

Card Printer.

LVD 2006/95/EC, EMC 2004/108/EC, R&TTE 1999/5/EC, ROHS 2011/65/EU

Agency Listing

Emissions and

Immunity Standards

FCC Part 15 Class A, RSS-GEN, RSS 210, CNS 13438, EN55022 Class A, EN55024,

EN6100-3-2, EN6100-3-3, EN300-330-1, EN300-330-2, EN301-489-1, EN301-489-3,

GB9254, GB17625

Safety Standards UL IEC 60950-1 (2nd edition), CSA C22.2 No. 60950-1-07( 2nd edition), EN60950-1,

GB4943, CNS14336

Additional Agency

Listings

CCC, BSMI, KC

Page 1-2 Specifications

PLT-02496, Version: 1.0 November 2015

1.1.2 United States

This device complies with Part 15 of the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference; in which case, correction of the interference is at the users expense.

IMPORTANT: Changes or modifications to an intentional or unintentional radiator not expressly

approved by the party responsible for compliance could void the user’s authority to operate the

equipment.

1.1.3 Canada

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to

the following two conditions: (1) this device may not cause interference, and (2) this device must

accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit

pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

1.1.4 Taiwan

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變

更頻率、加大功率或變更原設計之特性及功能。低功率射頻電機之使用不得影響飛

航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方

得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機

須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

1.1.5 Japan

この装置は総務省の型式指定を受けています。"

( 総務省指定番号は第 AC-12056 号です )

本製品は電波を使用した RFID 機器の読み取り?書き込み装置です。

そのため使用する用途?場所によっては、医療機器に影響を与える恐れがあります

1.1.6 Korea

이 기기는 업무용 (A 급 ) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하시길 바라며 , 가정 외의 지

역에서 사용하는 것을 목적으로 .

November 2015 PLT-02496, Version: 1.0

Specifications Page 1-3

1.2 Safety Messages

1.2.1 Safety Messages - United States

Symbol Critical Instructions for Safety Purposes

Danger: Failure to follow these guidelines results in personal injury or death.

To prevent personal injury or death:

Reference the following safety messages before performing an operation.

Always remove the power cord prior to performing repair procedures, unless otherwise

specified.

Ensure only qualified personnel perform these procedures.

ESD:

This device is electro statically sensitive. Damage to the device may occur if exposing it to

static electricity discharges.

To prevent damage:

Reference the following safety messages before performing an operation.

Observe all established Electrostatic Discharge (ESD) procedures while handling cables in or

near the circuit board and printhead assemblies.

Always wear an appropriate personal grounding device.

Always remove the ribbon and cards from the printer before making any repairs, unless

otherwise specified.

Remove jewelry and thoroughly clean hands before working on the printer.

Caution:

This symbol warns of an electrical hazard that could result in personal injury or death.

Caution:

For safety purposes, do not use Ethernet for a direct connection outside of the building.

Page 1-4 Specifications

PLT-02496, Version: 1.0 November 2015

1.2.2 Safety Messages - French Canada

Symbole Instructions critiques visant la Sécurité

Danger:

Si ces directives ne sont pas suivies les résultats peuvent être des lésions corporelles ou la

mort.

Pour éviter des lésions corporelles ou la mort:

Rapportez-vous aux avis suivants de sécurité avant de procéder à une opération.

Retirez toujours le câble d’alimentation avant d’effectuer des procédures de réparation, sauf

spécification contraire.

Assurez-vous qu’uniquement des personnes qualifiées réalisent des procédures.

ESD:

Ce dispositif est sensible à l’électricité statique. Il peut souffrir des dommages s’il est exposé à

des décharges électrostatiques.

Pour éviter des dommages:

Rapportez-vous aux messages suivants avant de procéder à une opération.

Suivez toutes les procédures de Décharges Electrostatiques (ESD) en vigueur durant le

maniement des câbles dans ou à proximité des Ensembles de Cartes de Circuit Imprimé et

Tête d’Impression.

Portez toujours un dispositif de mise à la terre personnelle appropriée.

Retirez toujours le ruban et les Cartes de l’Imprimante avant d’effectuer toute réparation, sauf

spécification contraire.

Retirez tous bijoux et lavez soigneusement vos mains avant de travailler à l’Imprimante.

Attention:

Ce symbole est un avis de péril électrique passible de résulter en lésion corporelle ou mort.

Attention:

Pour des motifs de sécurité, n’utilisez pas Ethernet pour une connexion directe hors du

bâtiment.

November 2015 PLT-02496, Version: 1.0

Specifications Page 1-5

1.2.3 Safety Messages - Taiwan

繁體中文射頻發射及安全指令安全訊息（小心檢查）

標記重要的安全事項說明

危險 :未按照說明安裝可能造成人員傷亡。

在可能產生潛在安全問題的地方有警示標記。

（如左圖所示）。

為了避免人員傷害，在進行有此警示標記的操作前，請先參考安全資訊提示。

為了避免人員傷害，在沒有特別說明的情況下，修理前請關掉電源開關。

小心 :

此設備對靜電很敏感。如果受到靜電放電，設備會損壞。

在可能產生潛在靜電安全問題的地方有警示標記。

（如左圖所示）。

為了避免損壞設備，在進行有此警示標記的操作前，請先參考安全資訊提示。

為了避免損壞設備，在排放電路板和印刷頭聯合裝置裡面或附近的電線時，請注意觀察所有的靜

電放電設備。

為了避免損壞設備，請隨時佩戴合適的接地裝置（比如：手腕上戴一個高品質的接地手腕帶以

免受到可能的傷害）。

為了避免損壞設備，如果沒有特殊說明，在做任何修理前，請取下印表機上的色帶和卡。

為了避免損壞設備，在使用印表機之前，請摘下戒指和手上飾品，並仔細清洗手上的油脂。

Page 1-6 Specifications

PLT-02496, Version: 1.0 November 2015

1.2.4 Safety Messages - China

安全消息（请仔细阅读）

1.3 Technical Specifications

符号涉及安全的重要过程

危险 : 如果不遵循这些安装指南进行操作，可能会导致重伤，甚至死亡。

可能引发安全问题的信息由警告符号（如左图所示）来表示。

为了确保人身安全，在执行前面带有此符号的操作之前，请先阅读下面的安全消息。

为了确保人身安全，除非另有规定，否则在执行维修过程前，始终应断开电源。

小心 :

此设备为静电敏感设备。如果暴露在静电电流下，可能会损坏设备。

可能引发静电安全问题的信息由警告符号（如左图所示）来表示。

为了防止设备或介质受损，在执行前面带有此符号的操作之前，请先阅读下面的安全消息。

为了防止设备或介质受损，请在处理电路板和打印头部件中或附近的电缆时，遵守所有规定的静

电放电 (ESD) 过程。

为了防止设备或介质受损，请始终佩带适当的个人接地设备（例如，已接地避免出现潜在损坏

的高质量腕带）。

为了防止设备或介质受损，除非另有规定，否则在执行任何维修过程前，始终应将色带和证卡与

打印机分离。

为了防止设备或介质受损，在操作打印机前，请取下手指和手上的珠宝饰物，并将手上的油渍和

污渍彻底清洗干净。

仅适用于海拔 2000m 以下地区安全使用

仅适用于非热带气候条件下安全使用

环境保护 ( 中国 -RoHS)

环保使用期是基于本产品用于办公环境。

Component Description

Card Cleaning Card cleaning roller integrated into the ribbon cartridge.

A new cleaning roller is included with each ribbon cartridge.

Card Size and Type

Supported

CR-80 (3.375"L x 2.125"W / 85.6mmL x 54mmW)

CR-79 (3.313”L x 2.063”W / 84.1mmL x 52.4mmW

Card (Standard) Sizes CR-80 edge-to-edge (3.36"L x 2.11"W / 85.3mmL x 53.7mmW)

CR-79 (3.3”L x 2.04”W / 83.8mmL x 51.8mmW)

Card Thickness .009” - .040” / 9 mil – 40 mil / .229mm – 1.016mm

Display Graphical Display

November 2015 PLT-02496, Version: 1.0

Specifications Page 1-7

Encoding Options

Supported

• 125kHz (HID Prox) reader

• 13.56 MHz (iCLASS, MIFARE, ISO 14443 A/B, ISO 15693) read/write

encoder

• Contact Smart Card Encoder reads from and writes to all ISO7816 1/2/3/4

memory and microprocessor smart cards (T=0, T=1) as well as

synchronous cards.

• ISO Magnetic Stripe Encoding, dual high- and low-coercivity, Tracks 1,2

and 3

Hopper (input) Card

Capacity

Single hopper: 100 cards (.030” / .762.mm)

Dual hopper: 200 cards (.030” / .762 mm)

Hopper (output) Card

Capacity

100 cards (.030” / .762.mm)

Hopper (Reject) Card

Capacity

100 cards (.030” / .762.mm)

Interface USB 2.0 and Ethernet with internal print server

Operating Conditions Operating Temperature: 65° to 80° F (18° to 27° C)

Humidity: 20 - 80% non-condensing

Operating Systems Windows® XP / Vista™ (32 bit & 64 bit) / Server 2003 & 2008 / Windows® 7 (32

& 64 bit) / Windows® 8 (32 & 64 bit) / Linux®

Options

• Single Wire Ethernet and USB 2.0 Interface for inline printing and

encoding

• Single wire Ethernet encoding is only available for iCLASS and Contact

Smart Card encoding)

• Dual-Sided Printing Module – Upgradable

• Dual Input Card Hopper

• Same-Side Input / Output Card Hopper – Upgradable

• Smart Card Encoding (contact / contactless) – Upgradable

• Magnetic Stripe Encoding – Upgradable

• Printer Cleaning Kit

Print Colors Up to 16.7 million colors / 256 shades per pixel

Print Method Dye-Sublimation/ Resin Thermal Transfer

Print Resolution 300 DPI (11.8 dots per mm); continuous tone

Component Description

Page 1-8 Specifications

PLT-02496, Version: 1.0 November 2015

Print Ribbon Options

• Full-color with resin black and overlay panel, YMCKO* (500 prints)

• Full-color half-panel with resin black and overlay panel, YMCKO*

(850 prints)

• Full-color with two resin black panels and overlay panel, YMCKOK* (500

prints)

• Full-color with fluorescing, two resin black panels and overlay panel,

YMCFKO* (500 prints)

• Full-color with fluorescing, two resin black panels and overlay panel,

YMCFKOK* (400 prints)

• Resin black and overlay panel, KO* (1250 prints)

• Dye-sublimation black and overlay print, BO* (1250 prints)

• Resin black (standard and premium) (3000 prints)

• Resin green, blue, red, white (1000 prints)

• Resin silver (2000 prints)

• Resin gold (1000 prints)

• Rewrite technology – No ribbon is required

* Indicates the ribbon type and the number of ribbon panels printed where

Y=Yellow, M=Magenta, C=Cyan, K=Resin Black, O=Overlay

F=Fluorescing Resin

Print Speed

• 6 seconds per card (K*)

• 8 seconds per card (KO*)

• 16 seconds per card (YMCKO*)

• 24 seconds per card (YMCKOK*)

• Print speed indicates an approximate batch print speed and is measured

from the time a card feeds into the printer to the time it ejects from the

printer.

• Print speeds do not include encoding time or the time needed for the PC

to process the image.

• Process time is dependent on the size of the file, the CPU, amount of RAM

and the amount of available resources at the time of the print.

* Indicates the ribbon type and the number of ribbon panels printed where

Y=Yellow, M=Magenta, C=Cyan, K=Resin Black, O=Overlay, F=Fluorescing Resin

Printer Memory 128 MB RAM

Power Source Voltage,

Amp & Frequency

Supply Voltage/Amp: 100-240 VAC, 1.6A Max

Supply Frequency: 50 Hz and 60 Hz

Ship Weight Single-Sided: 8 lbs. / 3.63 Kg; Dual-Sided: 10 lbs. / 4.54 Kg

Software FARGO Workbench Diagnosis Utility

Warranty • Printer- 2 years

• Printhead: 2 years unlimited pass with UltraCard™

Component Description

November 2015 PLT-02496, Version: 1.0

Specifications Page 1-9

1.4 Functional Specifications

This card printer utilizes two different, yet closely related printing technologies to achieve its

remarkable direct-to-card print quality for dye-sublimation and resin thermal transfer.

1.5 Printer Components: Print Ribbons

The card printer utilizes both dye-sublimation and/or resin thermal transfer methods to print images

directly onto blank cards. Because the dye-sublimation and the resin thermal transfer print methods

each provide their own unique benefits, Print Ribbons are available in resin-only, dye-sublimation-only

and combination dye-sublimation/resin versions.

To make it easier to remember which print ribbons are which, a letter code has been developed to

indicate the type of ribbon panels found on each ribbon. This letter code is as follows:

= Dye-Sublimation Yellow Panel

= Dye-Sublimation Magenta Panel

= Dye-Sublimation Cyan Panel

= Resin Black Panel (Premium unless otherwise stated)

= Clear Protective Overlay Panel

= Fluorescing Panel

Page 1-10 Specifications

PLT-02496, Version: 1.0 November 2015

1.5.1 Ribbon Types and Print Counts

The following table lists print capability of each ribbon type.

1.6 Printer Components: Blank Cards

Ribbon Count

YMCKO – Full Color/Resin Black / Overlay 500

YMCKO Half Panel – Full Color (1/2)/Resin Black/Overlay 850

YMCFKO - Full Color/UV Fluorescing/Resin Black/Overlay 500

YMCKK - Full Color/2 Resin Black 500

YMCKOK - Full Color/2 Resin Black/Overlay 500

YMCFKOK - Full Color/UV Fluorescing/2 Resin Black/Overlay 400

K – Standard Resin 3000

K – Premium Resin 3000

Colored Resin 2000

KO - Premium Black Resin/Overlay 1250

BO - Dye-Sub Black/Overlay 1250

None – Rewritable Supported

Type Description

Card Size The Card Printer accepts standard CR-79 and CR-80 sized cards.

Card Surface

Suitable cards must have a polished PVC surface free of fingerprints, dust or any

other types of embedded contaminants. In addition, cards must have a

completely smooth, level surface in order for the printer to achieve consistent

color coverage.

Certain types of proximity cards have an uneven surface that inhibits consistent

color transfer.

Certain types of smart card chips are raised slightly above the card’s surface,

which also results in poor color transfer.

UltraCard Brand Cards

The UltraCard™ product line, available exclusively as part of HID Global FARGO

brand secure card issuance solutions, has a long standing reputation among

dealers and end-Users for consistent quality in construction.

• In addition to blank stock, the UltraCard line is available in a variety of

configurations for magnetic stripe, custom holograms and other additional

anti-counterfeiting feature.

• UltraCard Premium is the preferred card for Direct-to-Card (DTC®)

applications that require a higher quality card. The UltraCard Premium’s

composite material construction provides for maximum durability, flexibility

and card life, with optimal resolution print quality for lamination and

fluorescent panel Ribbon printing applications.

UltraCard PVC cards are medium-durability cards for a glossy, photo quality

finish. These cards are manufactured to ensure clean, scratch-free cards for high-

quality prints and extended printhead life.

Chapter 2

November 2015 PLT-02496, Version: 1.0

Setup and Installation Procedures

This section describes the setup and installation for the DTC5500LMX Card Printer.

2.1 Selecting a Good Location

The following guidelines help to ensure optimal printing performance:

Place the unit in a location with adequate air circulation to prevent internal heat buildup.

Use the printer's dimensions as a guideline for the minimum clearances to the unit.

Note: Allow for adequate clearance in front of the unit to accommodate the unit with its covers

open.

Do not install unit near heat sources such as radiators or air ducts or in a place subject to direct

sunlight, excessive dust, mechanical vibration or shock.

2.1.1 About Moisture Condensation

If the unit is brought directly from a cold to a warm location or is placed in a very damp room,

moisture may condense inside the unit. Should this occur, print quality may not be optimal.

Leave the unit unplugged in a warm, dry room for several hours before using to evaporate any

moisture.

Caution: For safety purposes, Ethernet is not intended for a direct connection outside of

the building.

Attention: Pour des raisons de sécurité, Ethernet n'est pas conçu pour une connexion

directe à l'extérieur du bâtiment.

Setup and Installation Procedures Page 2-2

PLT-02496, Version: 1.0 November 2015

2.2 Unpacking and Inspection

While unpacking the printer, inspect the carton to ensure that no damage has occurred during

shipping.

Make sure that all supplied accessories are included with the unit:

Software Installation CD (includes Printer Driver, Online User Guide and Printer Diagnostic Tool)

US/EU Power Cable

USB Cable (2.0)

Warranty Statement

2.3 Print Driver Installation

This section describes the printer driver installation requirements and standard procedures.

Requirements are listed below. The DTC5500LMX Print Driver supports the following:

Windows Vista 32 bit with SP2

Windows Vista 64 bit with SP2

Windows XP 32 bit with SP3

Windows Server 2003 (R1) 32 bit

Windows Server 2008 (R1) 32 bit with SP2

Windows Server 2008 (R1) 64 bit with SP2

Windows Server 2008 R2

Windows 7 32 bit and 64 bit

Windows 8 32 bit and 64 bit

For more information on supported Operating Systems, please visit the HID Global support page.

November 2015 PLT-02496, Version: 1.0

Page 2-3 Setup and Installation Procedures

2.3.1 Driver Installation Instructions

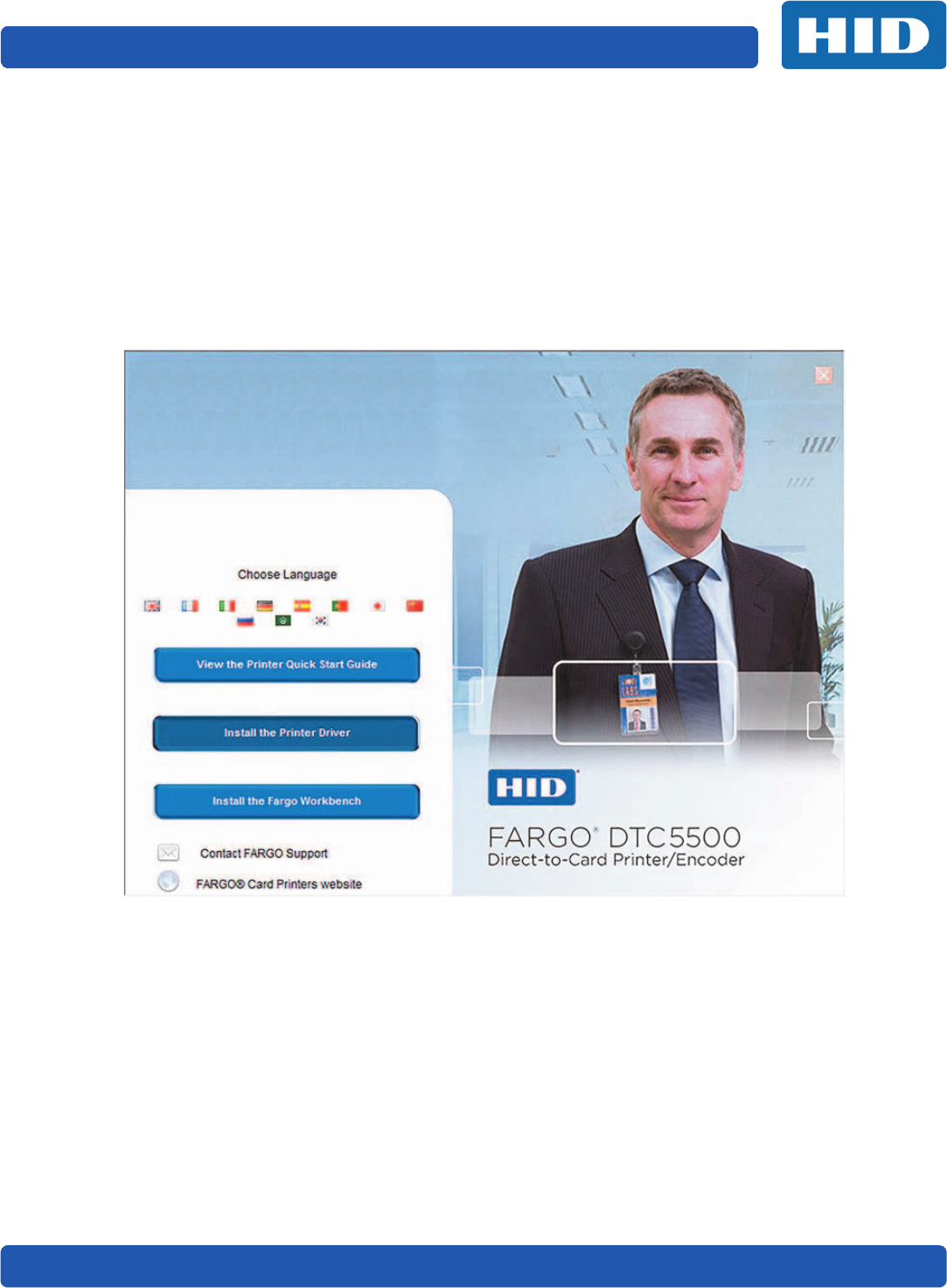

Start the installation process by inserting the Driver CD into the computer; then, follow the

Installation Wizard screen prompts.

1. Select Install the Printer Driver to go through the driver installation wizard.

2. Select the Install the FARGO Workbench to install the Diagnostic program.

3. All versions of Windows require Administrator rights.

4. Go to Start > Devices & Printers, right-click the DTC5500LMX printer icon and select Printing

preferences to setup the printer driver after it has been installed.

Setup and Installation Procedures Page 2-4

PLT-02496, Version: 1.0 November 2015

2.4 Installing the Print Ribbon Cartridge

FARGO Direct-to-Card Printers require highly specialized supplies to function properly.

The FARGO DTC5500LMX Card Printer uses a one piece, disposable ribbon cartridge system.

To maximize printer durability, reliability and printed card quality, you must use only FARGO-certified

supplies.

Your FARGO warranty is void, where not prohibited by law, if you use supplies other than FARGO-

certified supplies.

Printer cleaning is recommended with each ribbon change to ensure quality printed cards.

Resin-only print ribbons consist of a continuous roll of a single resin color. No protective overlay panel

(O) is provided because resin images do not require the protection of an overlay.

To Install the Print Ribbon Cartridge:

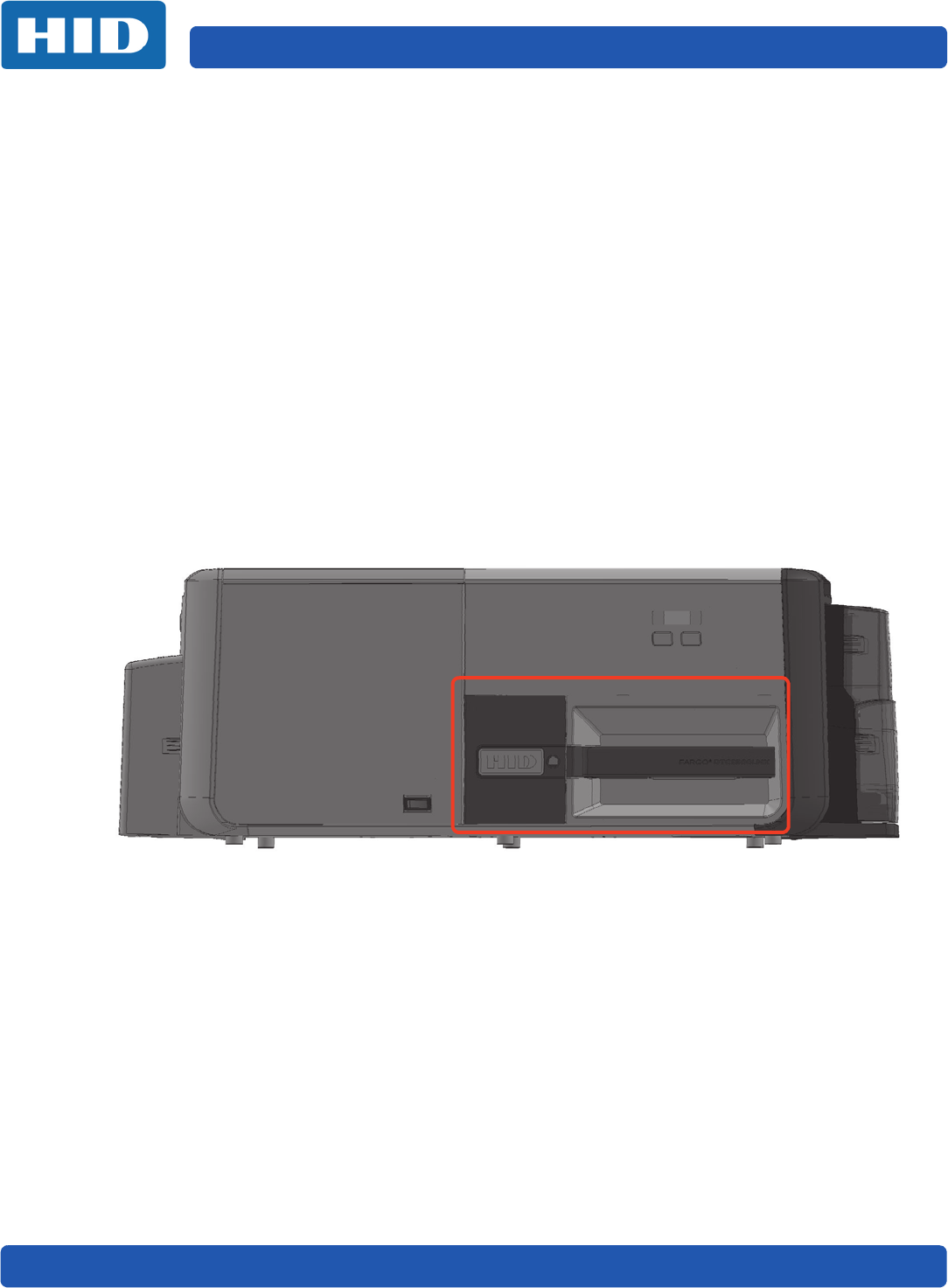

1. Pull open the front assembly.

2. Insert the print ribbon cartridge into the printer.

3. Close the front cover.

November 2015 PLT-02496, Version: 1.0

Page 2-5 Setup and Installation Procedures

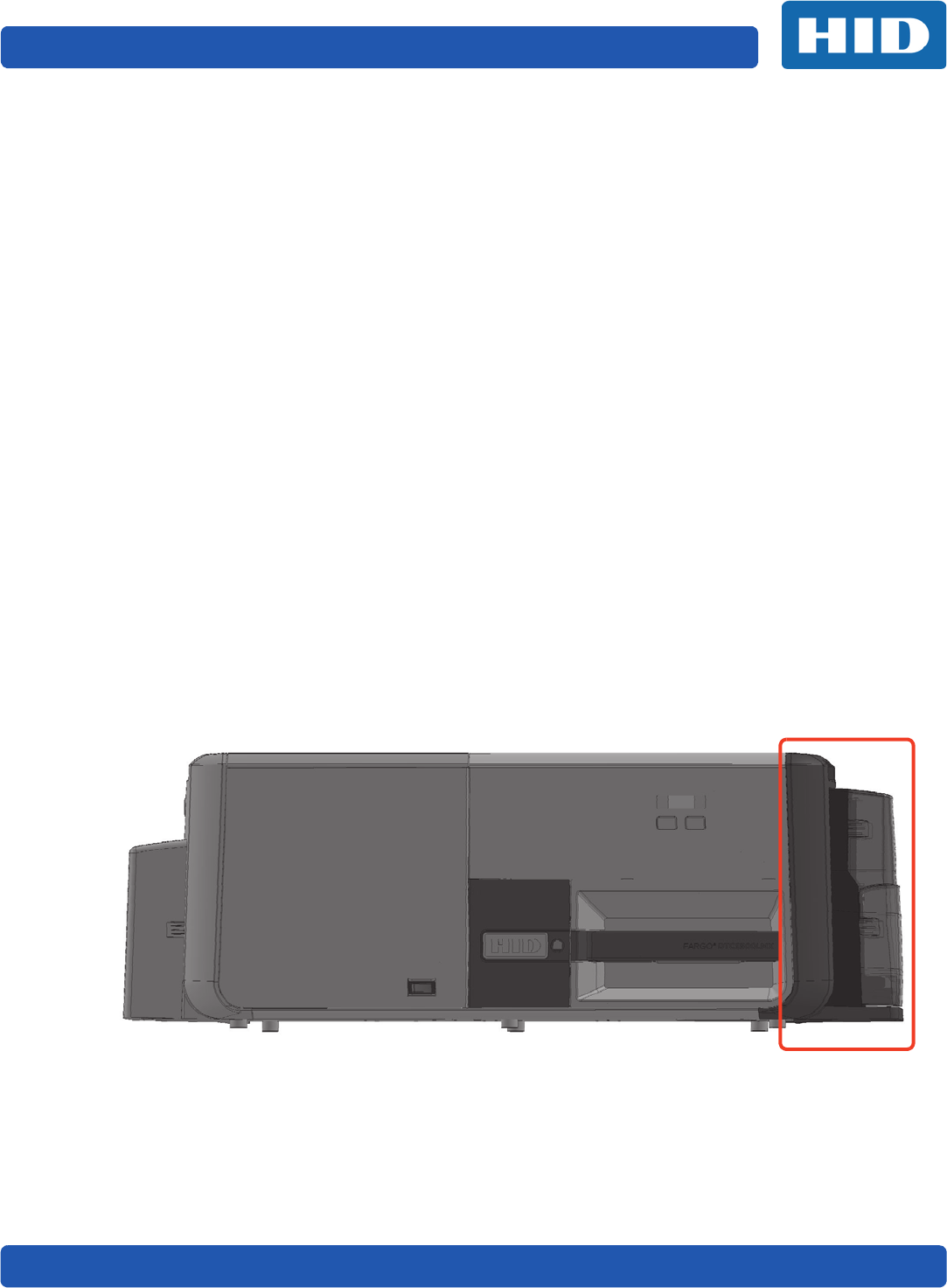

2.5 Installing Blank Cards into the Input Card Hopper

The FARGO DTC5500LMX Card Printer is capable of printing single feed cards and multiple feed

cards (batch mode). To print a single feed card, remove all cards from the input card hopper, leave its

door closed and place a card in the single feed card slot (which can be used repeatedly).

1. Load the cards with the print side down and (if applicable) the magnetic strip up and towards

the front of the printer.

Information: Do not run the cards with a contaminated, dull or uneven surface through the

Printer.

Printing onto such cards may lead to poor print quality and can greatly reduce the life of

the printhead.

Card types include PVC or PVC finish.

Cards eject into the output hopper or reject hopper.

Each input hopper holds 100 cards.

Certain types of smart card chips are raised slightly above the cards surface, which may

result in poor color transfer. Design the card with white space surrounding the chip.

To print using single feed, remove all cards from the input card hopper, leave its door

closed. Place a card in the single feed card slot (which can be used repeatedly).

2. Open the input card hopper door.

3. Press the card hopper load lever down until the card tray locks into place.

4. Load up to 100 cards into the hopper with the print side down.

Note: If using cards with a magnetic stripe, the magnetic stripe should be loaded with the

stripe up and to the front of the Printer.

5. Close the input card hopper door to release the lever to the printing position.

Setup and Installation Procedures Page 2-6

PLT-02496, Version: 1.0 November 2015

2.6 Card Size Selection

The Card Size (standard CR-70 and CR-80) must be set in the printer and in the Printer Driver

Preferences.

1. Slide out the front assembly, which exposes the card switch.

2. The card switch is clearly marked with the 2 card options. Slide the switch to the card size

needed.

LEFT for the CR-79 card.

RIGHT for the CR-80 card.

November 2015 PLT-02496, Version: 1.0

Page 2-7 Setup and Installation Procedures

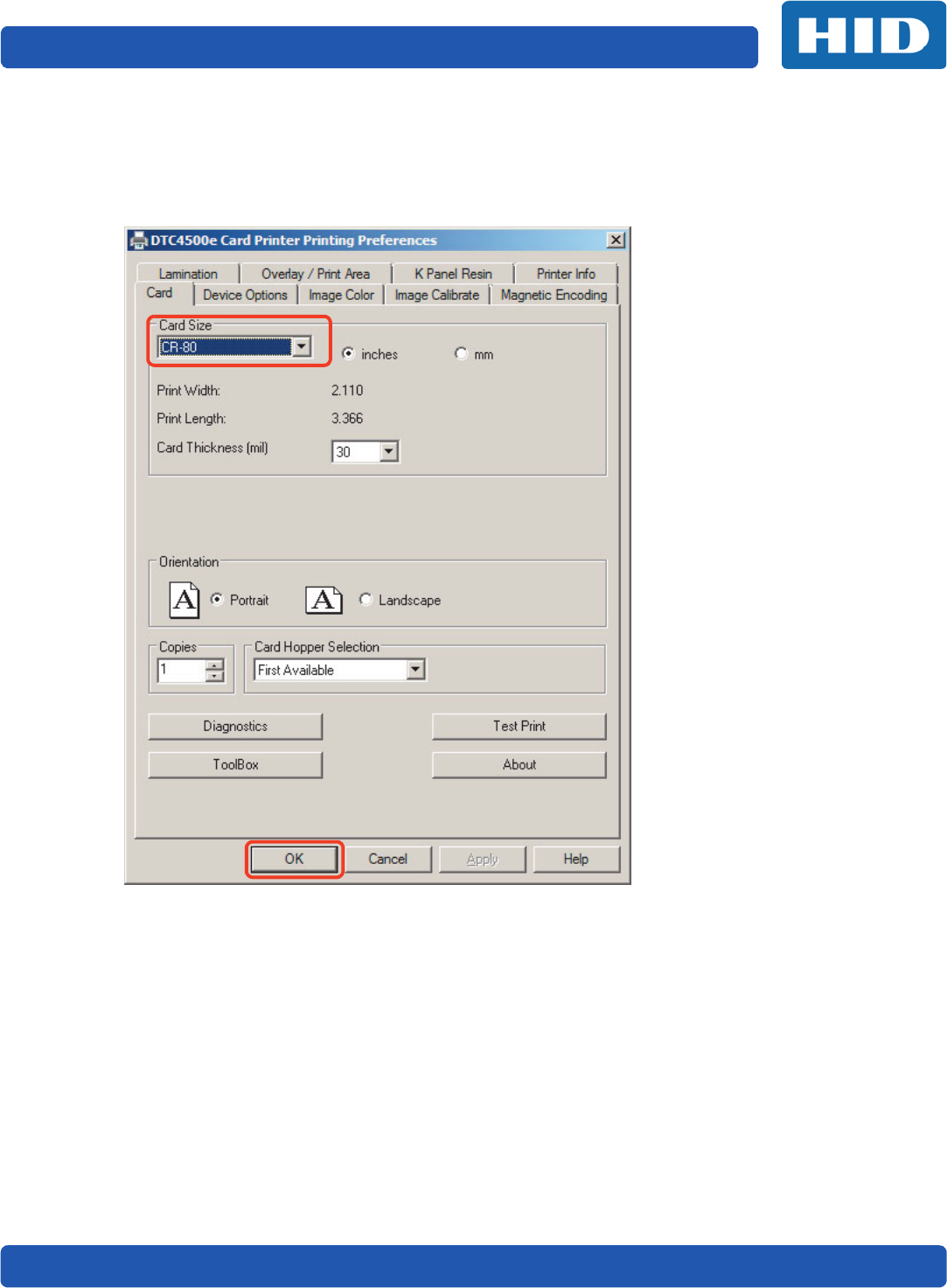

3. From the Driver Printing Preferences (right-click the printer icon and select Printing

preferences), Select the Card tab.

4. Select the correct card size from the Card Size pull-down list.

5. Click OK.

Setup and Installation Procedures Page 2-8

PLT-02496, Version: 1.0 November 2015

2.7 Printer Power

To connect power to the printer, follow this procedure.

Note: Do not connect the printer’s USB cable until prompted during the printer driver installation.

1. Plug the power cable into the back of the printer.

2. Plug the wall power cable into a standard 100-240VAC power outlet.

3. Press the printer’s ON/OFF button to power on the printer.

Note: The printer powers down during the “sleep time” but automatically powers up when a

print job is sent.

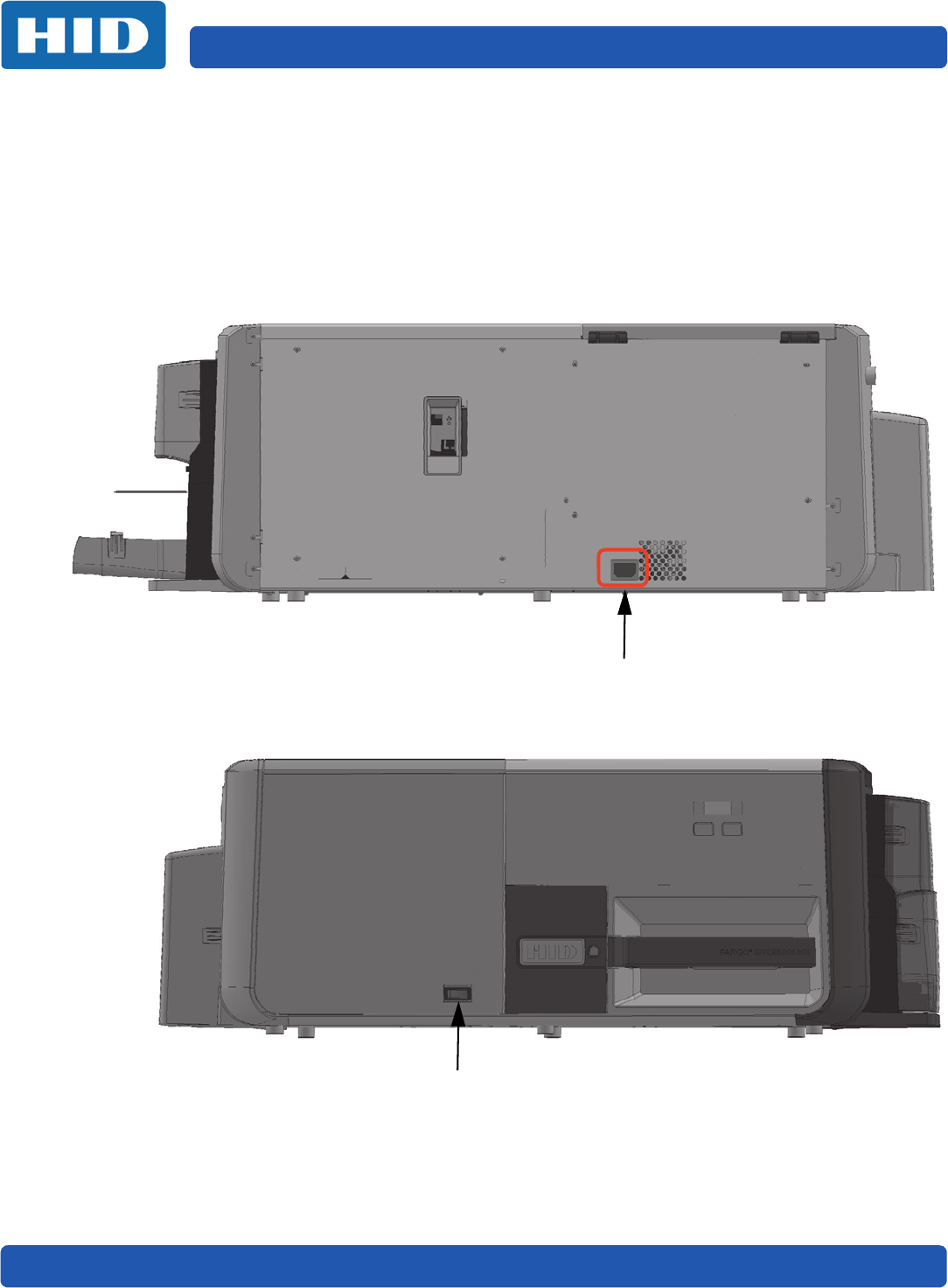

Receptor for power cable

Printer ON/Off Button

Printer Back

Printer Front

Chapter

November 2015 PLT-02496, Version: 1.0

Printing Preferences

This chapter provide an overview of the Printing Preferences of the DTC5500LMX.

To l o c a te t h e Printing Preferences menu select Start > Devices and Printers. Right-click the printer

icon and select Printing preferences.

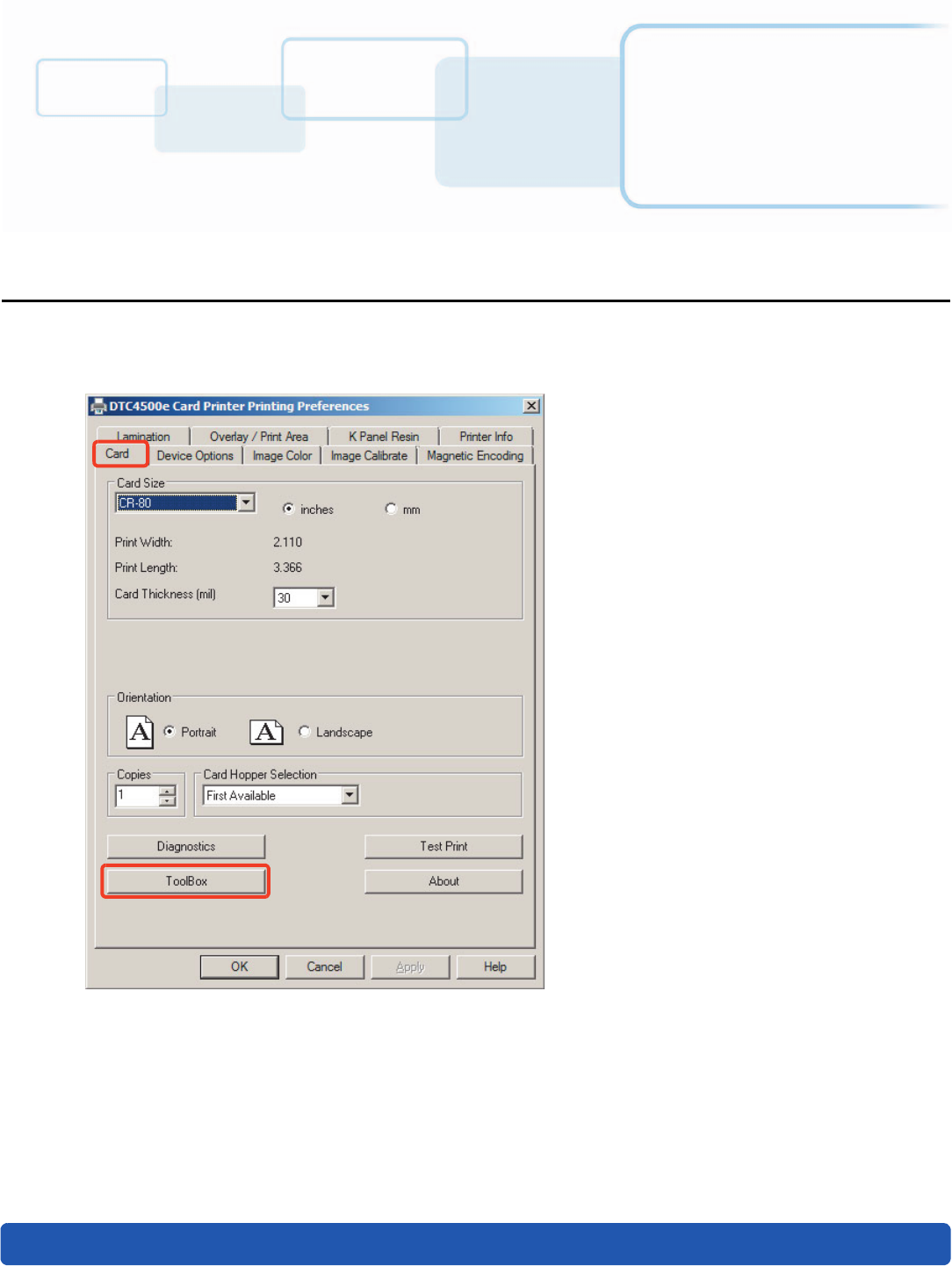

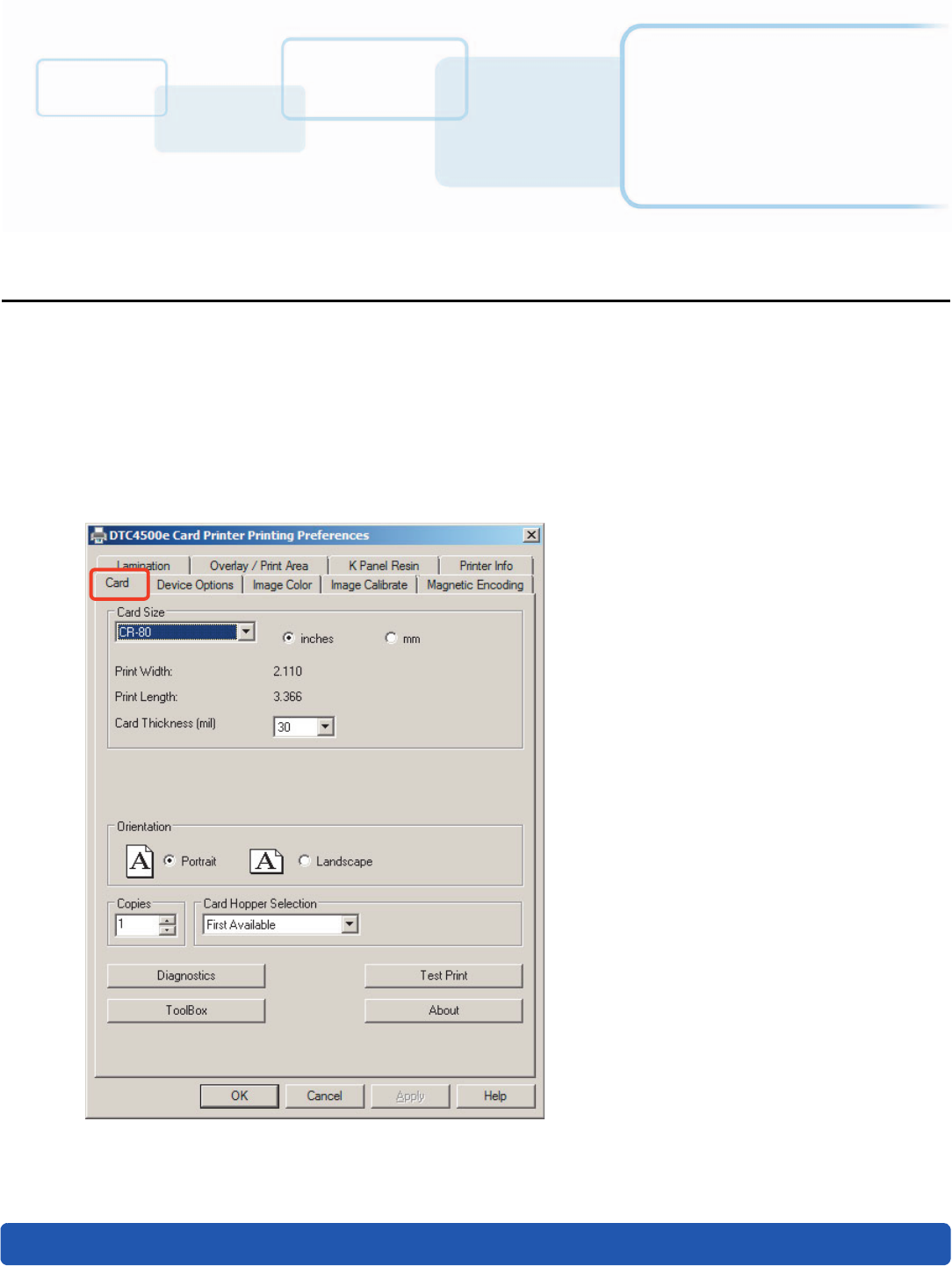

3.1 Card Tab

Use the Card tab to select options for the card as well as diagnostics and calibration.

Page 3-2 Printing Preferences

PLT-02496, Version: 1.0 November 2015

Field Definition

Card Size

Select the appropriate card option:

•CR-79: 3.313 x 2.063 inch (84.14 x 52.39 mm).

•CR-80: 3.452 x 2.204 inch (87.7 x 56 mm).

Inches/mm: Card sizes will display in inches or mm, depending on the option

selected.

Print Width & Print Length: The dimensions of the total print area for each card size.

Note: These print area dimensions are .04 in (1 mm) larger than the actual card size.

This allows the printer to overprint images to ensure they will appear edge-to-edge

when transferred to the card.

When designing a card format, always set the card size within the card design

program to the exact print length and width dimensions of the card.

Card Thickness (mil): Select the card thickness from the pull-down list.

Options are 10, 20, 30 (default), and 40 mil.

Orientation

There are two selections for card printing orientation.

•Portrait prints card vertically.

•Landscape prints card horizontally.

Copies Select the number of copies to print using Test Print.

Card Hopper

Selection

First Available: Selects the first available hopper (default).

Top: Selects the top hopper.

Bottom: Selects the bottom hopper.

Diagnostics This will launch the Workbench program, which is included on the driver CD.

Also see the Workbench user guide located on the driver CD.

ToolBox See Chapter 4: ToolBox.

Test Print Sends one or more self-test prints to the printer.

About This opens a dialog box containing the copyright information, the driver’s version

number and date code.

November 2015 PLT-02496, Version: 1.0

Printing Preferences Page 3-3

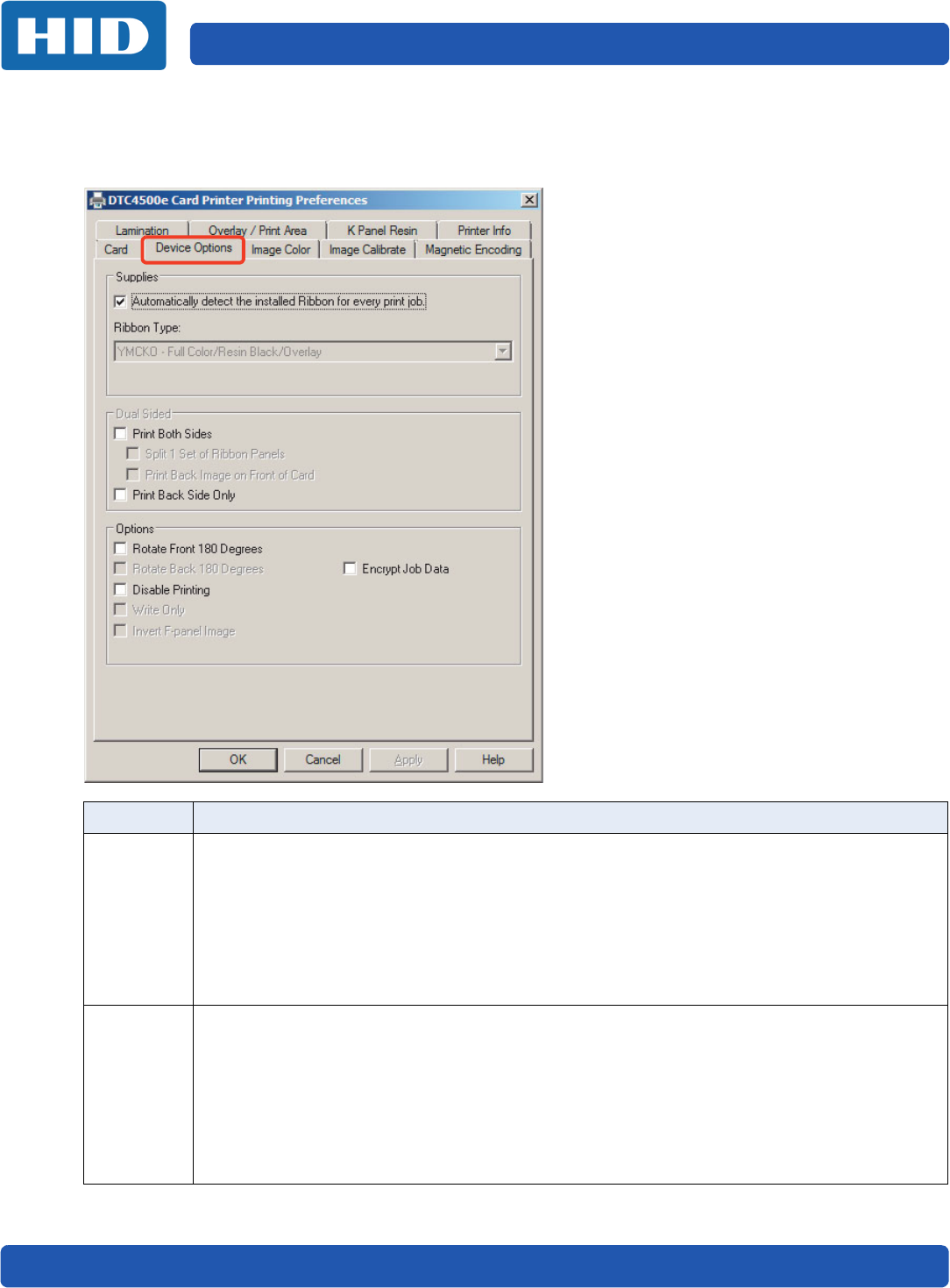

3.2 Device Options Tab

Use the Device Options tab to set print options.

Field Definition

Supplies

Automatically detect the installed Ribbon and Film for every print job: Use this option to

verify that the ribbon type selected matches the installed ribbon. The printer changes the

Ribbon Type to the correct setting.

Ribbon Type: Use this option to manually select the ribbon type.

Note: the Automatically detect the installed Ribbon and Film for every print job option must

be unselected for this option to be active.

Select from the available ribbon types on the drop-down list.

For rewritable cards, select NONE – Re-Writable.

Dual Sided

Note: The Dual Sided area is grayed out when the printer is single-sided only.

Print Both Sides: Prints on the front and back sides of the card.

•Split 1 Set of Ribbon Panels: Prints on the front and back sides of the card using one

ribbon panel.

•Print Back Image on Front of Card: Prints the first page of a two-page print file on the

card’s backside. This option can also be used to print black resin on a smart card’s chip

side. Note: The second page of the file is printed on the card’s front side.

Print Back Side Only: Prints only on the card back side.

Page 3-4 Printing Preferences

PLT-02496, Version: 1.0 November 2015

Options

Note: The availability of options below is based on the Ribbon Type selected.

Rotate Front 180 Degrees: Adjusts the orientation of the first page of the card design to

accommodate the location of a chip or RFID sensor.

Rotate Back 180 Degrees: Adjusts the orientation of the second page of the card design to

accommodate the location of a chip or RFID sensor.

Disable Printing: Disables printing.

Write Only: For rewritable cards. The default setup is for the printer to first erase the entire

card and then write new information on the card. There is no option to select specific areas to

erase. However, to print or erase a section, use the Overlay/Print Area tab. Select the specific

area in the same manner as a print job with a color ribbon.

To erase many cards, use the FARGO Workbench Re-Writable Card Eraser option. It does not

print. It only erases.

Note: No ribbon is used with rewritable cards. Do not load a ribbon into the printer when using

this process. Printing on a rewritable card with a ribbon will damage the card.

Invert F-panel Image: Creates a negative of the fluorescent image. Used with Fluorescent

Panel Ribbon Type.

Encrypt Job Data: Encrypts information about the print job for enhanced security.

Field Definition

November 2015 PLT-02496, Version: 1.0

Printing Preferences Page 3-5

3.3 Image Color Tab

Use the Image Color tab to control the sharpness, contrast, and gamma of the printed image, as well

as the individual color balance of yellow, magenta and cyan.

Field Description

Image Quality

Color Matching: There are two selections for color matching in the drop-down list.

•None: Select this option if:

- interested in print speed rather than print color

- color correcting an image that has been previously printed, or

- using third-party color matching software

•System Color Management: To perform color corrections through a complex color

matching algorithm. Note: This option shifts colors so they more closely match

how they appear on screen.

•Algebraic: Use the Algebraic color-matching algorithm.

Resin Dither: Select the appropriate dither method according to the type of image to

be printed.

•Optimized for Graphics: Select this option when printing lower quality images

(e.g., clip-art, logos, etc.) with resin.

•Optimized for Photo: Select this option when printing photo quality images with

resin.

Page 3-6 Printing Preferences

PLT-02496, Version: 1.0 November 2015

Heat

The Heat area includes sliders for adjusting the temperature when printing with various

types of ribbons.

Dye-Sub Intensity (YMC): Move the slider to the left to use less heat in the printing

process, resulting in a lighter print. Move the slider to the right to use more heat,

resulting in a darker print. Note: This slide only affects those images printed with dye-

sublimation ribbon panels.

Resin Heat, Front: (K): Move the slider to the left to use less heat in the printing

process, resulting in a lighter or less saturated print. Move the slider to the right to use

more heat, resulting in a darker or more saturated print. Note: This control can be

helpful for fine-tuning the sharpness of resin text and bar codes.

Resin Heat, Back: (K): Move the slider to the left to use less heat in the printing process,

resulting in a lighter or less saturated print. Move the slider to the right to use more

heat, resulting in a darker or more saturated print.

Overlay Heat: (O): Move the slider to the left to use less heat in the printing process,

resulting in a lighter or less saturated print. Move the slider to the right to use more

heat, resulting in a darker or more saturated print.

Default: Clicking the will return all options to factory settings.

Advanced

Settings

See Section 3.3.1: Advanced Image Color Tab.

Field Description

November 2015 PLT-02496, Version: 1.0

Printing Preferences Page 3-7

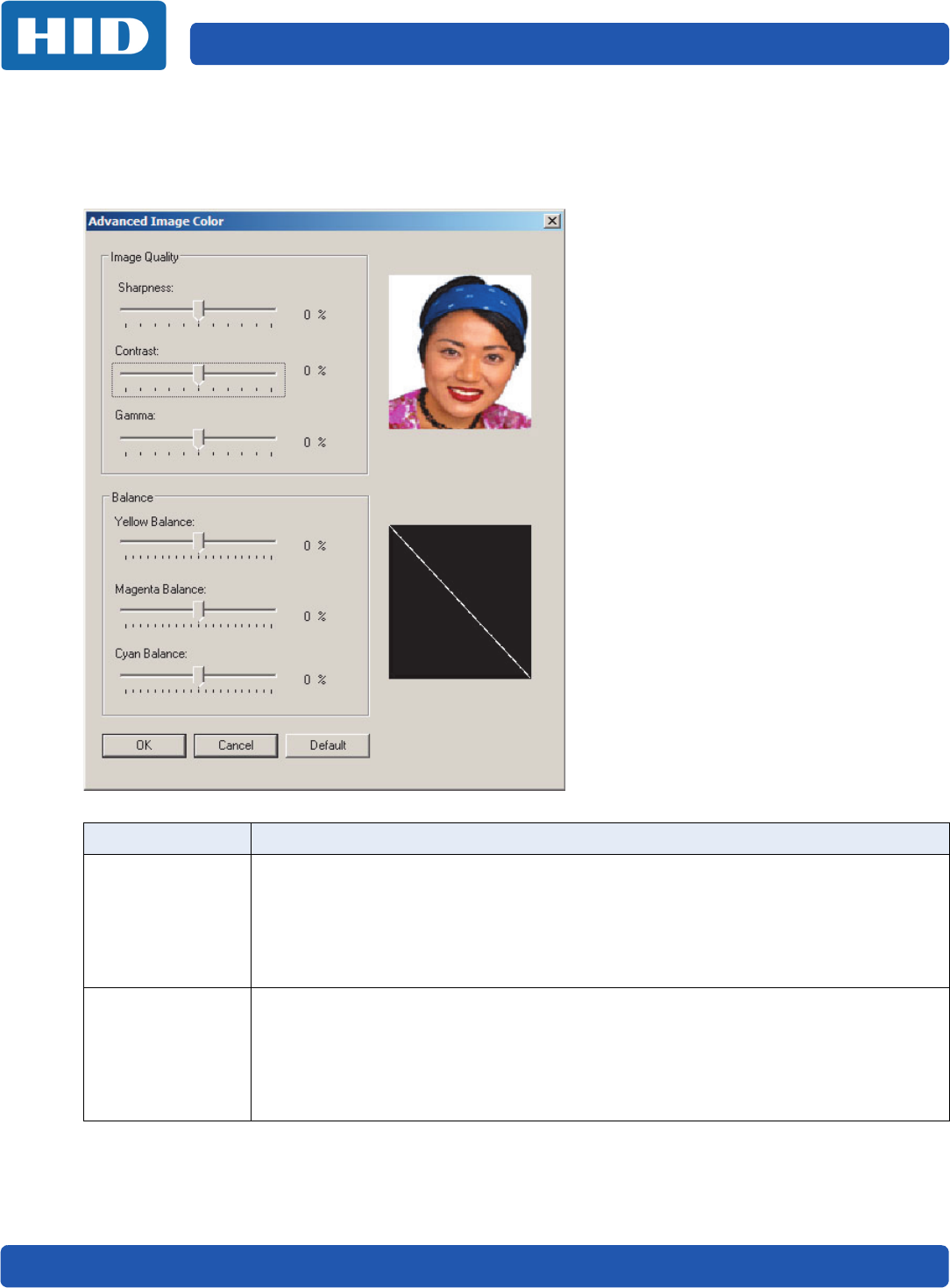

3.3.1 Advanced Image Color Tab

Select Advanced Settings on the Image Color tab. The graphic on the right will display the current

settings.

Group or Field Description

Image Quality

Sharpness: Move the slider to the right to sharpen the image. Move the slider to the left

to decrease sharpness.

Contrast: Move the slider to the right to increase contrast in the image. Move the slider

to the left to decrease contrast.

Gamma: Move the slider to the right to increase gamma in the image. Move the slider to

the left to decrease gamma.

Balance

Yellow Balance: Move the slider to the right to increase the amount of yellow in the

image. Move the slider to the left to decrease the amount of yellow.

Magenta Balance: Move the slider to the right to increase the amount of magenta in the

image. Move the slider to the left to decrease the amount of magenta.

Cyan Balance: Move the slider to the right to increase the amount of yellow in the cyan.

Move the slider to the left to decrease the amount of cyan.

Page 3-8 Printing Preferences

PLT-02496, Version: 1.0 November 2015

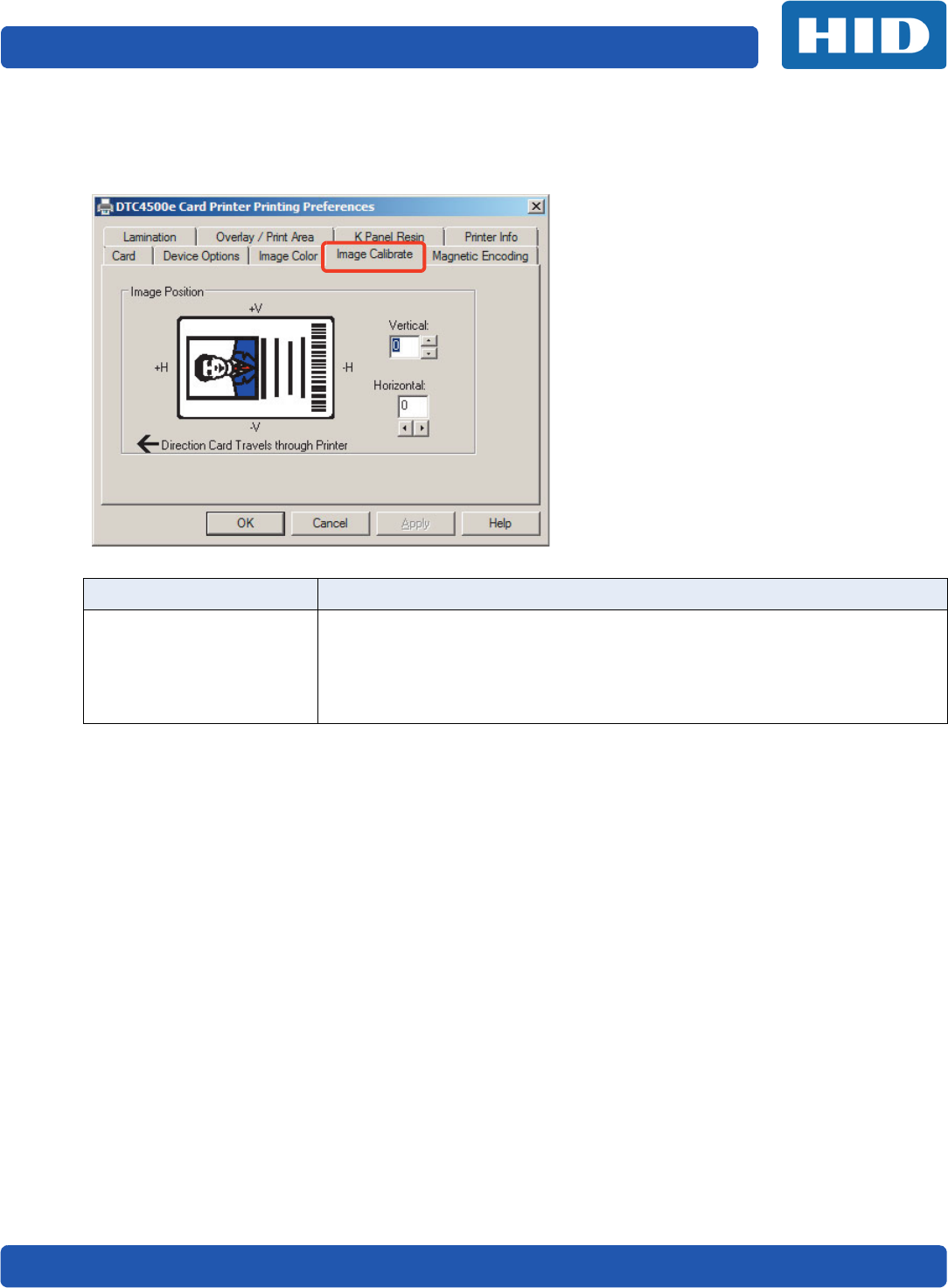

3.4 Image Calibrate Tab

Use the Image Calibrate tab to control the position of the printable area in relation to the card.

Group or Field Description

Image Position

Use the Image Position controls to position the image on a card.

Adjust the image position values by clicking on the Vertical and Horizontal

adjustment arrows.

The image position will flip and rotate according to the selection of portrait,

landscape, or rotate 180 degrees on previous screens

November 2015 PLT-02496, Version: 1.0

Printing Preferences Page 3-9

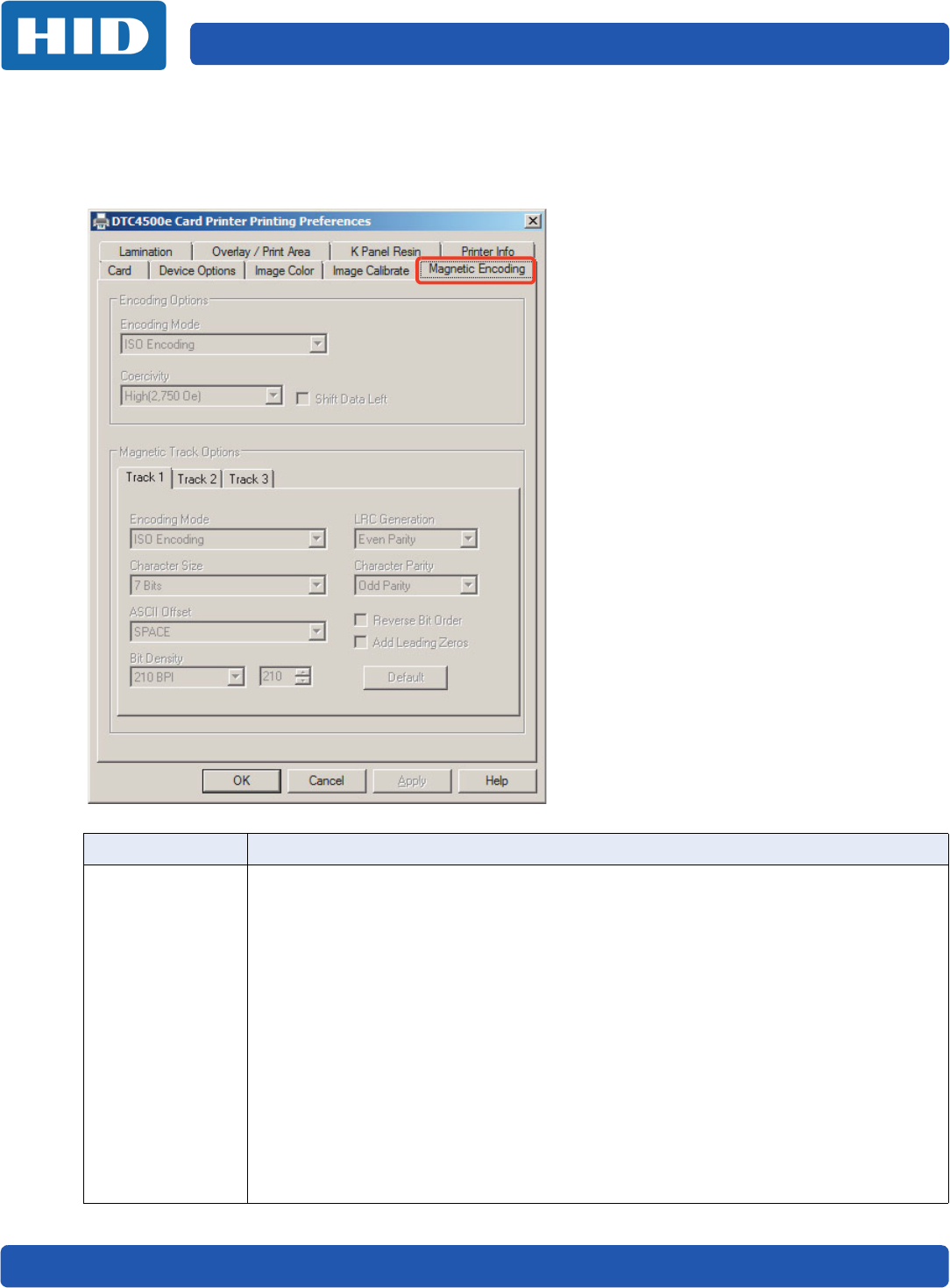

3.5 Magnetic Encoding Tab

Select the Magnetic Encoding tab to configure the Magnetic Stripe encoding process. These options

are only available if the printer has an optional Magnetic Stripe Encoding Module installed.

Field Description

Encoding Options

Encoding Mode: Change the encoding mode and coercivity setting or modify the ISO

standards for tracks 1, 2 and 3. Options are:

• ISO Encoding (see Section 3.5.1: ISO Encoding Option)

•Custom Encoding (see Section 3.5.2: Custom Encoding Option)

• Raw Binary Encoding (see Section 3.5.3: Raw Binary Encoding Option)

• JIS II Encoding (see Section 3.5.4: JIS II Encoding Option)

Coercivity: Select the coercivity option (Oersted [Oe]) for the magnetic stripe type that

matches the card type.

• High Coercivity = 4000 Oersted

• FARGO’s High Coercivity UltraCard IIIs are 2750 Oersted

• Medium Coercivity = 600 Oersted

• Low Coercivity = 300 Oersted

Shift Data Left: Select this option to shift the recorded magnetic data to the left-hand

side of the card's magnetic stripe.

This is useful in situations that require cards to be readable with insert type readers

Page 3-10 Printing Preferences

PLT-02496, Version: 1.0 November 2015

Magnetic Track

Options

Encoding Mode: Displays the Encoding Mode selected above.

Character Size: Customize the character data size used to encode the magnetic data on

the currently selected track. Note: Character size includes the parity bit (if enabled).

Selections vary for the selected encoding mode. Options are 4, 5, 7, or 8 Bits

• Custom Encoding: 5, or 7 Bits

• Raw Binary Encoding: 4 or 8 Bits

ASCII Offset: Customize the character ASCII offset used to encode the magnetic data

on the currently selected track. Note: This character-offset value is subtracted from the

ASCII value of each magnetic stripe data character prior to encoding on the track.

Options are: NULL, SPACE, ZERO

Bit Density: Customize the bit recording density (Bits Per Inch) used to encode the

magnetic data on the currently selected track.

Options are: 75, 128, 210, or Custom BPI.

LRC Generation: Customize the LRC generation mode used to encode the magnetic

data on the currently selected track.

Options are: No LRC, Even Parity, or Odd Parity

Character Parity: Customize the encoding mode used to encode the magnetic data on

the currently selected track.

Options are: No Parity, Even Parity, Odd Parity

Reverse Bit Order: This option is used to reverse the character bits for the encryption of

data in specific programs.

Add Leading Zeros: This option is used to add a set number of leading zeros to the

magnetic string in order to move the starting point of the encoded data in specific

programs for encryption of data.

Default: Clicking this resets defaults for only the current track.

Field Description

November 2015 PLT-02496, Version: 1.0

Printing Preferences Page 3-11

3.5.1 ISO Encoding Option

With ISO Encoding, a formatted set of characters are

sent down.

This selection activates the Track tabs. However, all

functions on the Track tabs are inactive or gray and

display ISO defaults, which are the defaults listed for

each track below. The Shift Data Left option remains

inactive.

3.5.2 Custom Encoding Option

With Custom Encoding, all options are active.

The default is ISO Encoding. Note: The defaults are

the same as the ISO Encoding defaults.

All functions on the Magnetic Track Options tabs are

active.

Page 3-12 Printing Preferences

PLT-02496, Version: 1.0 November 2015

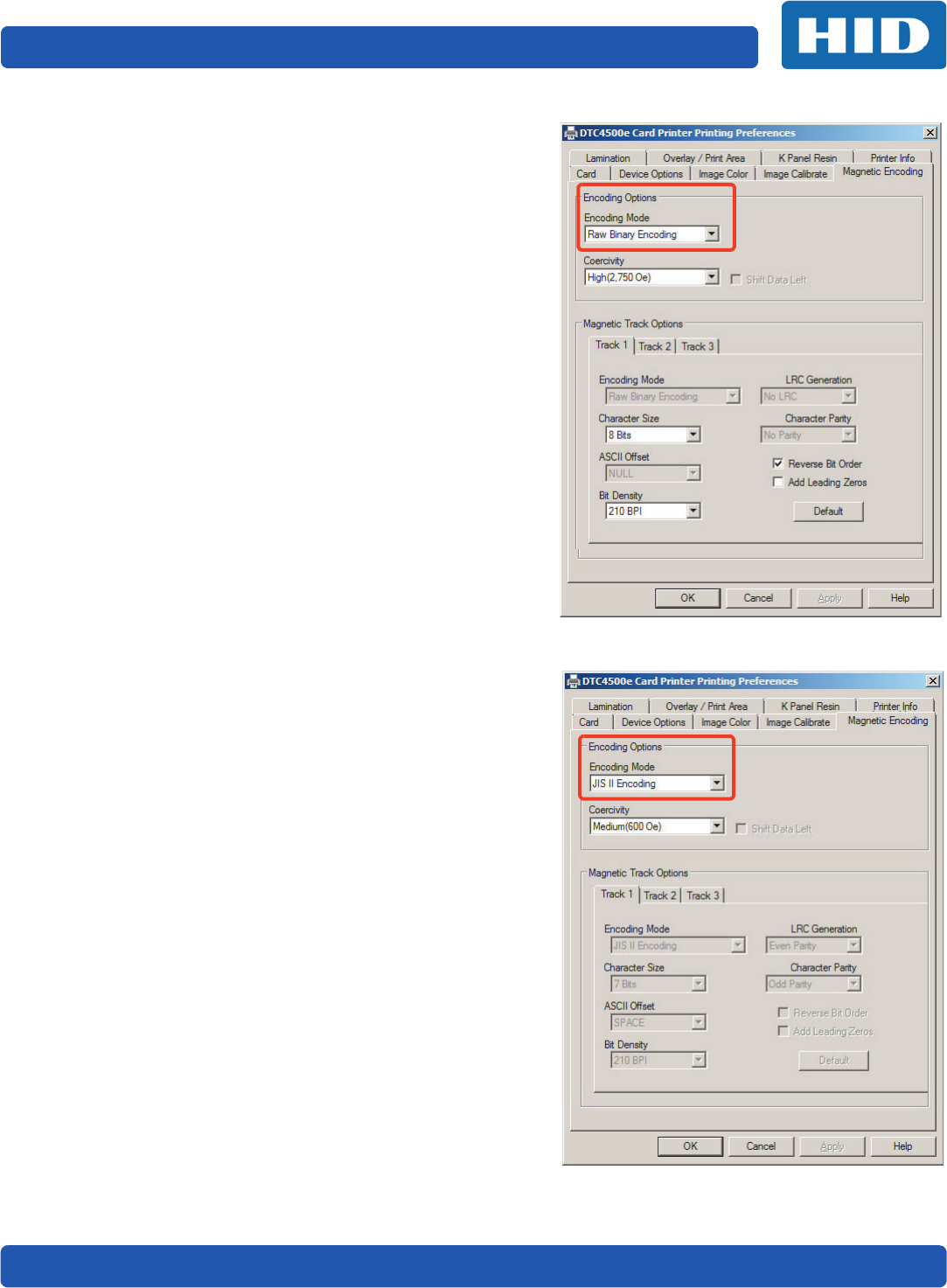

3.5.3 Raw Binary Encoding Option

With Raw Binary Encoding, a raw binary string rather

than a formatted set of characters is sent down.

The Coercivity drop-down function is active and the

Shift Data Left option is not active.

All functions on the Magnetic Track Options tabs are

inactive except for Bit Density.

3.5.4 JIS II Encoding Option

With JIS II Encoding, specific standards are used.

This selection disables all the Magnetic Track Options

tabs, the Coercivity and Shift Data Left options.

The default Coercivity is 600 Oe.

November 2015 PLT-02496, Version: 1.0

Printing Preferences Page 3-13

3.5.5 ISO Track Locations

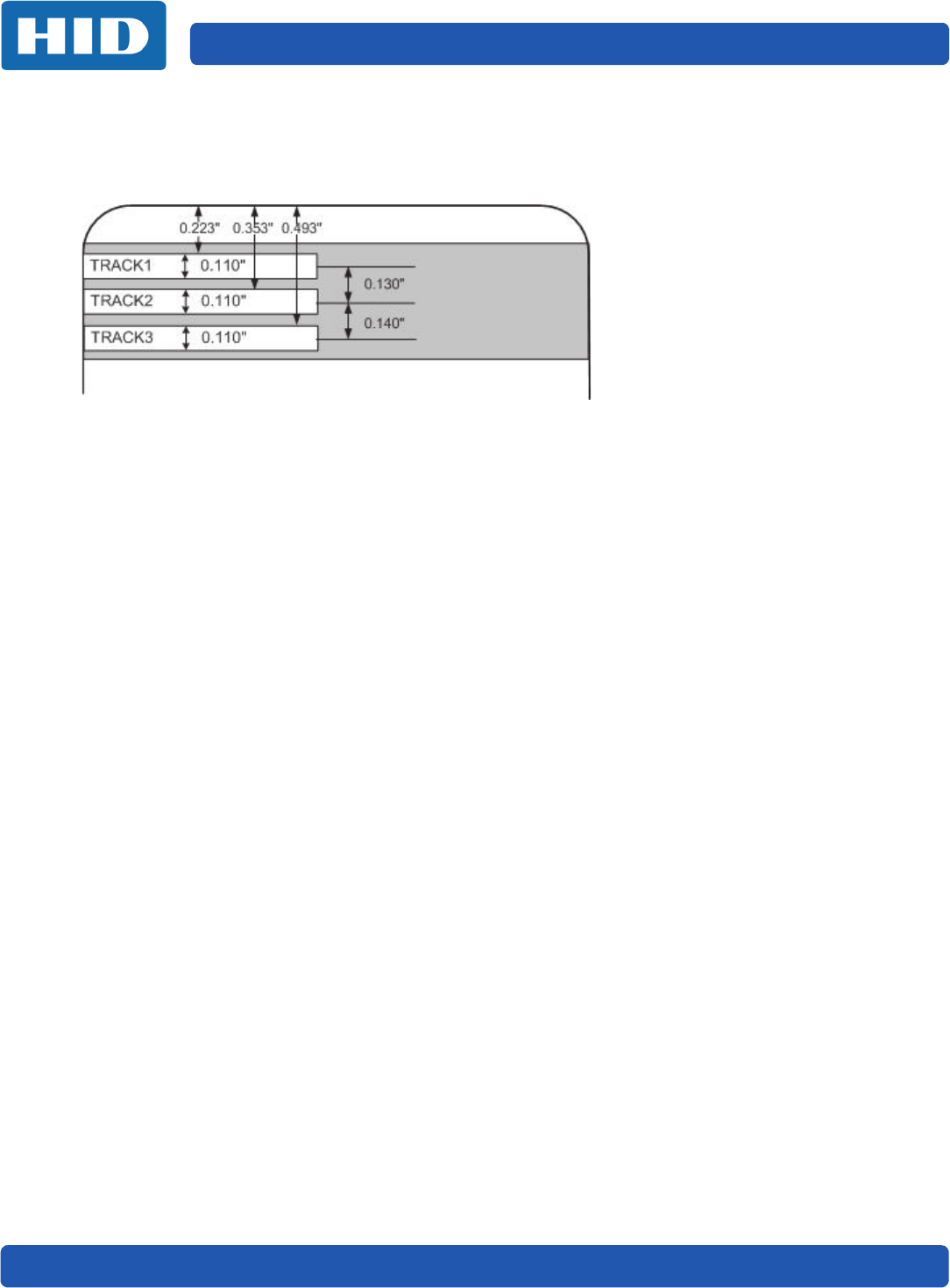

The magnetic Encoding Module encodes onto tracks in accordance with an ISO 7811-2 Magnetic

Stripe.

3.5.5.1 Sending the Track Information

Magnetic track data is sent in the form of text strings from the application software to the printer

driver.

In order for the printer driver to differentiate between magnetic track data and the rest of the

printable objects, specific characters must be added to encode the magnetic data. These specify

the data that is to be encoded, the tracks to encode, and mark the start and stop of the data string.

In some cases, these specific characters are automatically added to the string of track data by ID

software applications.

In most cases, the user must carefully add these characters to the string of data. If these characters

are not added to the track data, the text intended for the magnetic track will appear as printed text

on the card.

To avoid this, track information must be entered as described below.

When entering track data, the ~ (tilde) character is entered first, followed by the track number (1, 2

or 3) on which the data should encode. This is followed by the data to be encoded

The first character of this data string must be the track's specific Start Sentinel (SS) and the last

character must be the specific End Sentinel (ES).

The characters or data in between the SS and ES can include all of the valid characters specific to

each track.

The number of these characters, however, is limited by each track's maximum character capacity.

When segmenting track data, the appropriate Field Separator (FS) must be used.

The ASCII Code and Character Table shows the SS, ES, FS and the valid characters defined for

each track

Page 3-14 Printing Preferences

PLT-02496, Version: 1.0 November 2015

Reviewing the Sample String

Track 1: ~1%JULIEANDERSON^1234567890?

Track 2: ~2;1234567890987654321?

Track 3: ~3;1234567890987654321?

ASCII Code and Character Table

Track Start

Sentinel

End

Sentinel

Field

Separator Valid Characters Maximum Number

of Characters

Track 1 % ? ^ ASCII 32-95 (See the table) 78

Track 2 ; ? = ASCII 48-63 (See the table) 39

Track 3 ; ? = ASCII 48-63 (See the table) 106

ASCII Code Character ASCII Code Character ASCII Code Character

32 space 54 6 76 L

33 ! 55 7 77 M

34 56 8 78 N

35 # 57 9 79 O

36 $ 58 : 80 P

37 % 59 ; 81 Q

38 and 60 < 82 R

39 ' 61 = 83 S

40 ( 62 > 84 T

41 ) 63 ? 85 U

42 * 64 @ 86 V

43 + 65 A 87 W

44 ' 66 B 88 X

45 - 67 C 89 Y

46 . 68 D 90 Z

47 / 69 E 91 [

48 0 70 F 92 \

49 1 71 G 93 ]

50 2 72 H 94 ^

51 3 73 I 95 _

52 4 74 J

53 5 75 K

November 2015 PLT-02496, Version: 1.0

Printing Preferences Page 3-15

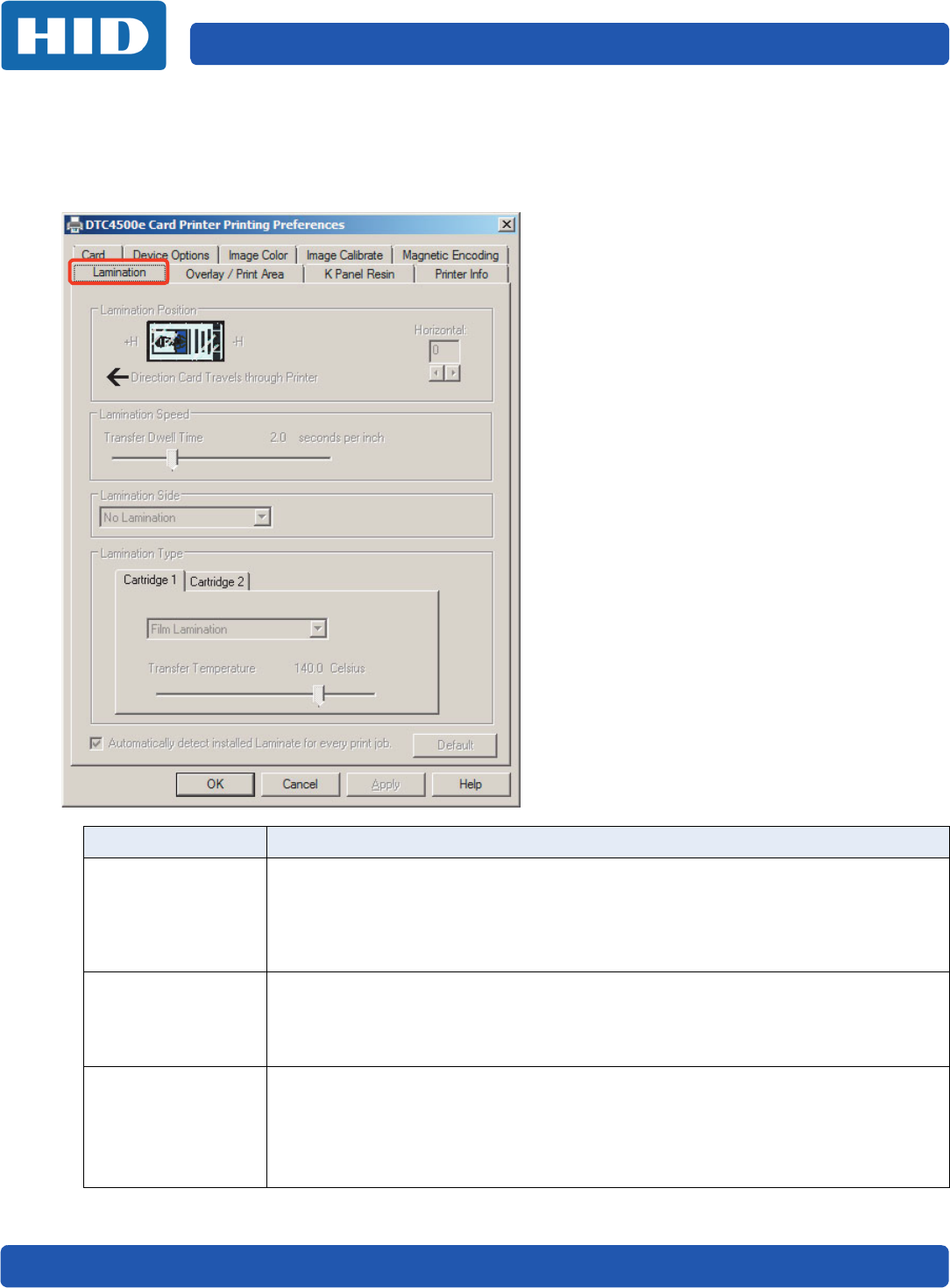

3.6 Lamination Tab

These options allow control of the printer's lamination process. When no laminator is detected, the

lamination tab is active but all functions are disabled.

Field Description

Lamination Position

Use this control to adjust the horizontal position of the laminate. Only the horizontal

position needs adjustment. Default is 0.

To adjust the position, click on the horizontal adjustment arrows. The adjustment

arrows point in the direction the patch will move on the card.

The maximum horizontal value is 100 Pixels (10 Pixels = 0.03 [0.8mm]).

Lamination Speed

Transfer Dwell Time: Adjust this control for the throughput speed of a card in

seconds per inch, default is 2.0 seconds per inch.

• Maximum Limit - 4.9 seconds per inch

• Minimum Limit - 0.8 seconds per inch

Lamination Side

Specify the side(s) of the card to laminate:

• No Lamination

•Front

•Back

•Both

Page 3-16 Printing Preferences

PLT-02496, Version: 1.0 November 2015

Lamination Type

Laminate type can be specified for one or two cartridges, depending on cartridge

availability. The type of laminate affects the temperature required for lamination.

Transfer Temperature: Adjust the temperature by moving the slider.

Automatically

Detect Installed

Laminate for Every

Print Job

Use the option to auto-detect the installed lamination.

Default: To automatically set the lamination dwell time and transfer temperature.

Field Description

November 2015 PLT-02496, Version: 1.0

Printing Preferences Page 3-17

3.7 Overlay/Print Area Tab

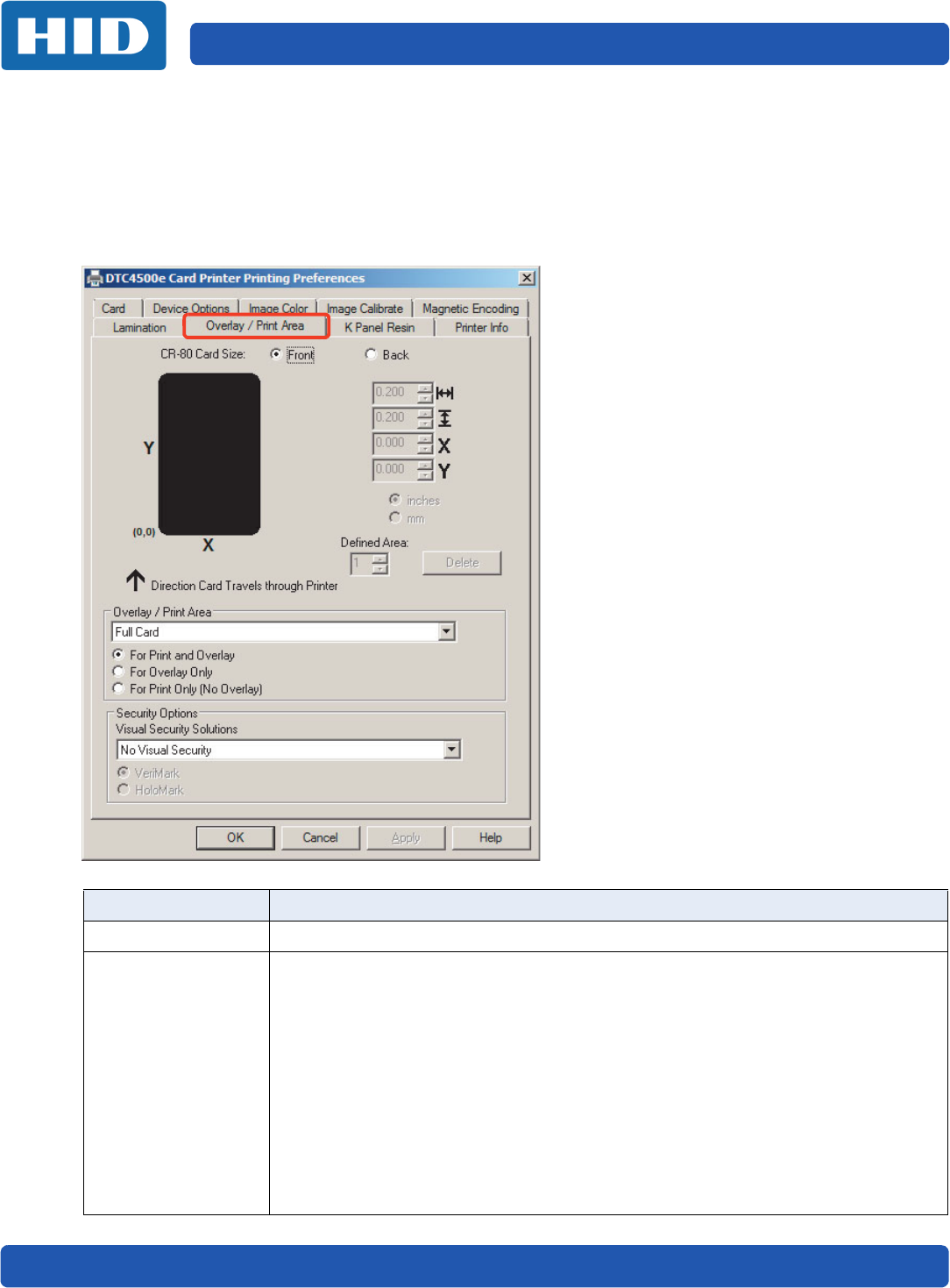

Use the Overlay / Print Area tab to control and customize where the Overlay (O) panel and/or the

print area appear on the card. By default, this option is set to print and overlay the entire card.

The orientation of the card display area is determined by the orientation specified in your template.

For additional information, see Appendix A.

Field Description

Front/Back Specify the side of the card to apply the area definition.

Overlay/Print Area

Define the Overlay or Print Area.

Full Card: Select this option to overlay and/or print the entire card.

Defined Area(s): Select this option to overlay and/or print only in the selected and

defined area(s).

Undefined Area(s): Select this option to overlay and/or print in the space outside the

selected and defined area.

Omit Smart Chip Area: Select this option to overlay and/or print only in the space

outside the standard location of a smart chip.

Omit Mag Strip Area: Select this option to overlay and/or print only in the space

outside the standard location of an ISO-standard magnetic stripe.

Omit Signature Area: Select this option to overlay and/or print only in the space

outside the standard location of a signature panel.

Page 3-18 Printing Preferences

PLT-02496, Version: 1.0 November 2015

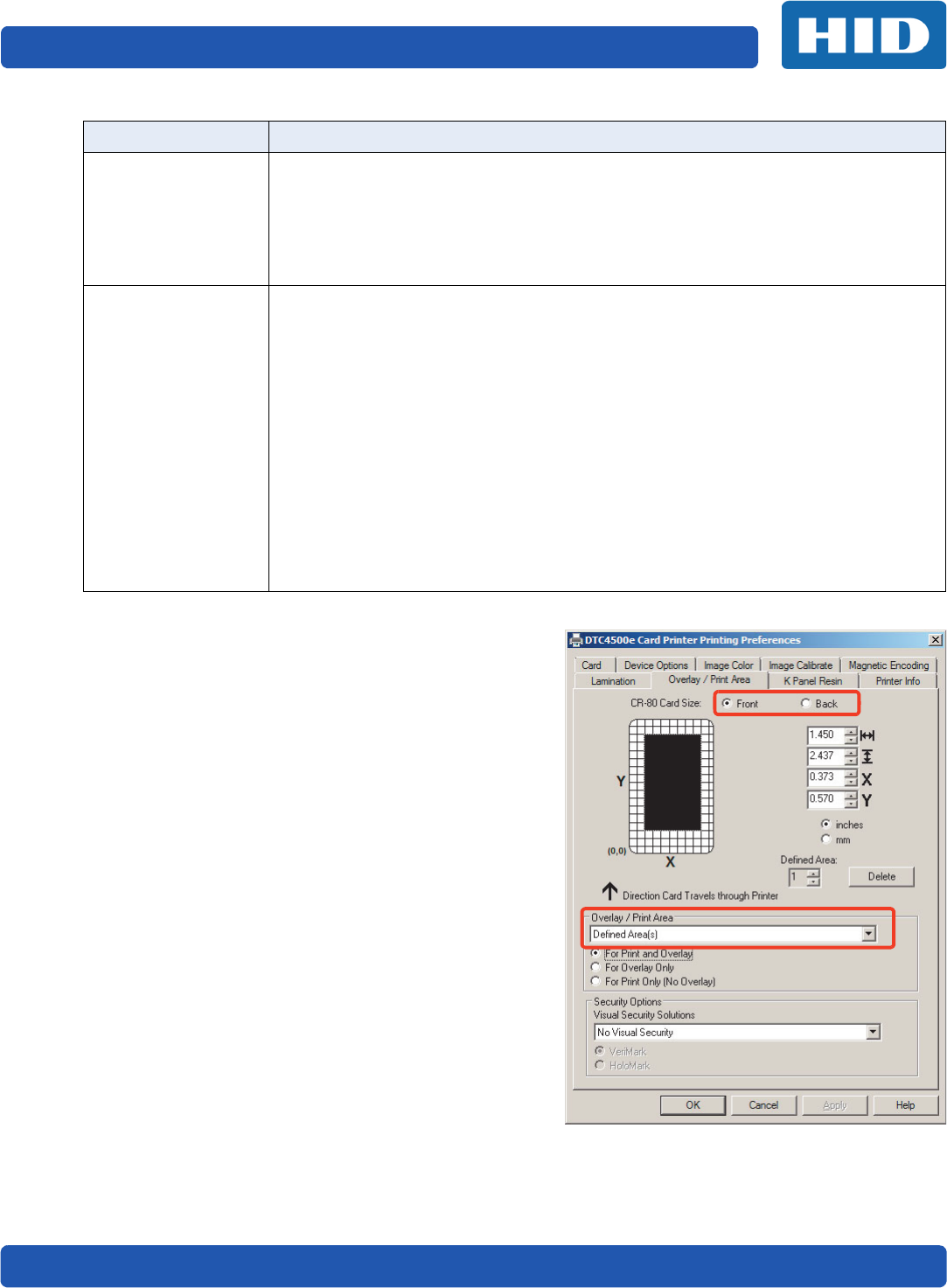

3.7.1 Define a Print Area

1. Select Front or Back.

2. Select an Overlay/Print Area from the drop-

down list.

When an option is selected, a default blacked

area appears on the card design area grid.

3. Click and drag to enlarge or move the area to the

preferred location on the card. The size and

coordinates of the area update with the changes.

Note: To delete the area, click Delete.

4. When complete, click OK.

Overlay/Print Area

(continued)

For Print and Overlay: This option applies the defined area to both the print and

overlay processes.

For Overlay Only: The defined are applies only to the overlay process. The entire

card prints and only the overlay is affected.

For Print Only (No Overlay): The defined are applies only to the print process.

Overlay is disabled.

Security Options

Visual Security Solutions: Enables a visual security option. The options are only

available for the Front side of a card. The default value for all cards is No Visual

Security.

This field presents options based on the orientation of the card in the template.

Landscape designs offer:

A – Upper Left

B – Upper Right

C – Lower Left

D – Lower Right

Portrait designs offer:

E – Upper Left

F – Upper Right

G – Lower Left

H – Lower Right

Verimark: This option is reserved for future use.

HoloMark: Use this option for hologram security.

Note: When an option is selected, the Overlay/Print Area is disabled and the

Security Options become selectable.

Field Description

November 2015 PLT-02496, Version: 1.0

Printing Preferences Page 3-19

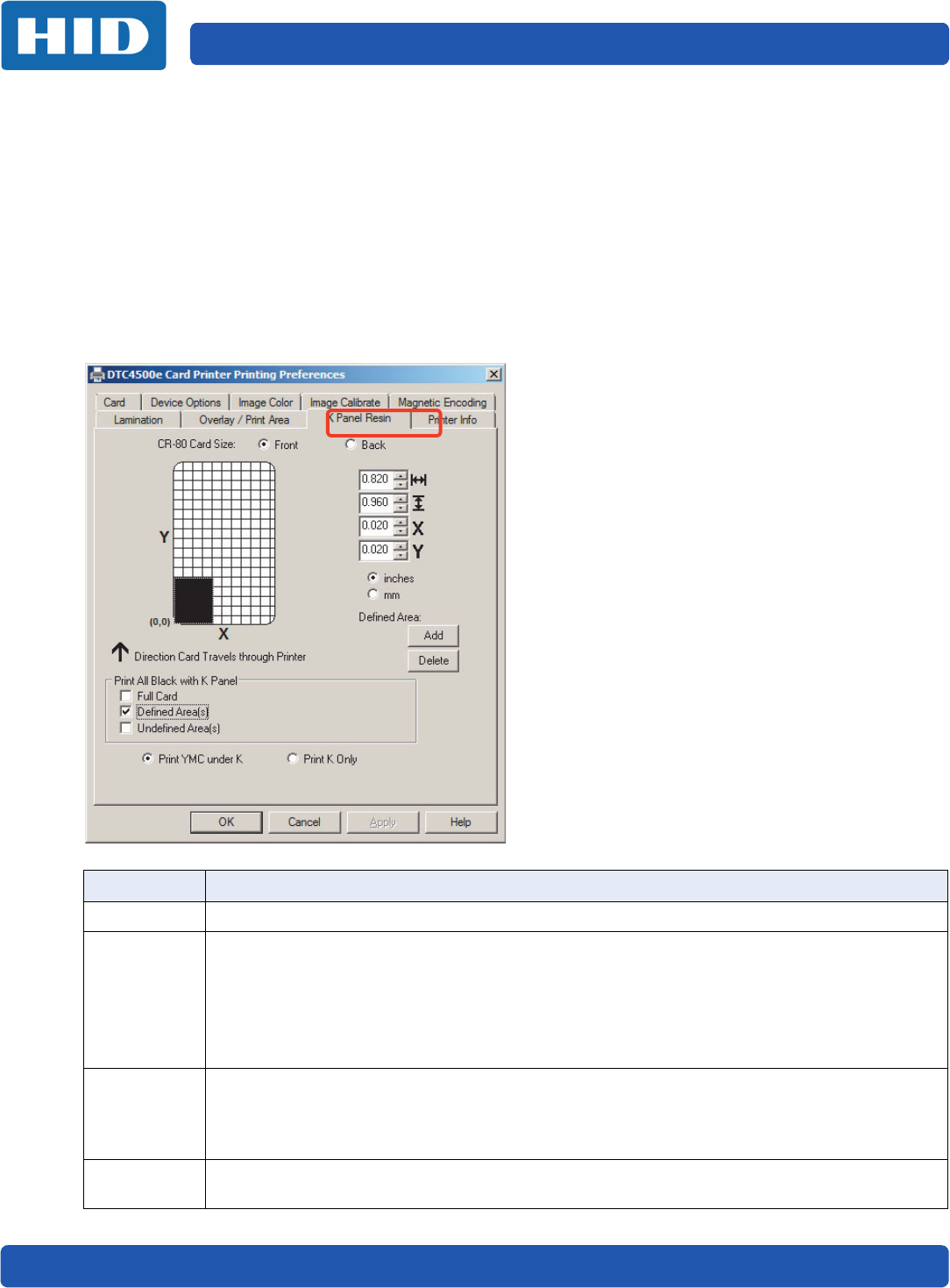

3.8 K-Panel Resin Tab

Use the K-Panel Resin tab to control where the resin black (K) panel of a full-color ribbon is printed. If

printing with a ribbon type that does not have a K-Panel, all K-Panel Resin options will be disabled.

Resin black text is desirable due to its sharp, saturated color (good for barcodes). By default, the

printer driver will print all True-type black text and True-type barcodes with the resin black (K) panel

of the print ribbon.

If printing black text or barcodes that are not True-type, select a Print All Black with K Panel option.

The printer driver will print areas of the image where it finds black coloring with the print ribbon resin

black (k) panel as specified by selected options.

Field Description

Front/Back Specify the side of the card to apply the area definition.

Print All

Black with K

Panel

Define the Overlay or Print Area.

Full Card: Select this option to print the resin black (K) panel for all black found within all

areas of the image.

Defined Area(s): To print the resin black (K) panel in the selected and defined area(s).

Undefined Area(s): To print the resin black (K) panel in the space outside the selected and

defined area.

Print YMC

under K

Print all black in the designated defined/undefined areas, with the Yellow (Y), Magenta (M)

and Cyan (C) ribbon panels directly beneath the resin black (K) Panel.

Select this option if printing resin black text or barcodes onto a colored background to

provide a more gradual transition between the two.

Print K Only Print all black in the designated defined/undefined areas only with resin black, or to print

resin black onto a white background to maximize the sharpness of printed text and barcodes.

Click and drag the corners and the sides of an

area to change size and location of area. The

horizontal, vertical, and X, Y coordinates

update accordingly.

Up to five areas can be added for the K-Panel.

Page 3-20 Printing Preferences

PLT-02496, Version: 1.0 November 2015

3.9 Printer Info Tab

The Printer Info tab displays information about the printer Ribbon, Film, Laminate (Cartridge 1), and

Laminate (Cartridge 2).

Group or Field Description

Ribbon Indicates Ribbon Type, Reorder Number and remaining level.

Printer

Indicates the Printer

•Card Count

• Serial Number

•Version Number

Chapter 4

November 2015 PLT-02496, Version: 1.0

ToolBox

The ToolBox is located on the DTC5500LMX Card Printer Printing Preferences, Card tab. See Section

3.1: Card Tab for more information.

To o l B o x Page 4-2

PLT-02496, Version: 1.0 November 2015

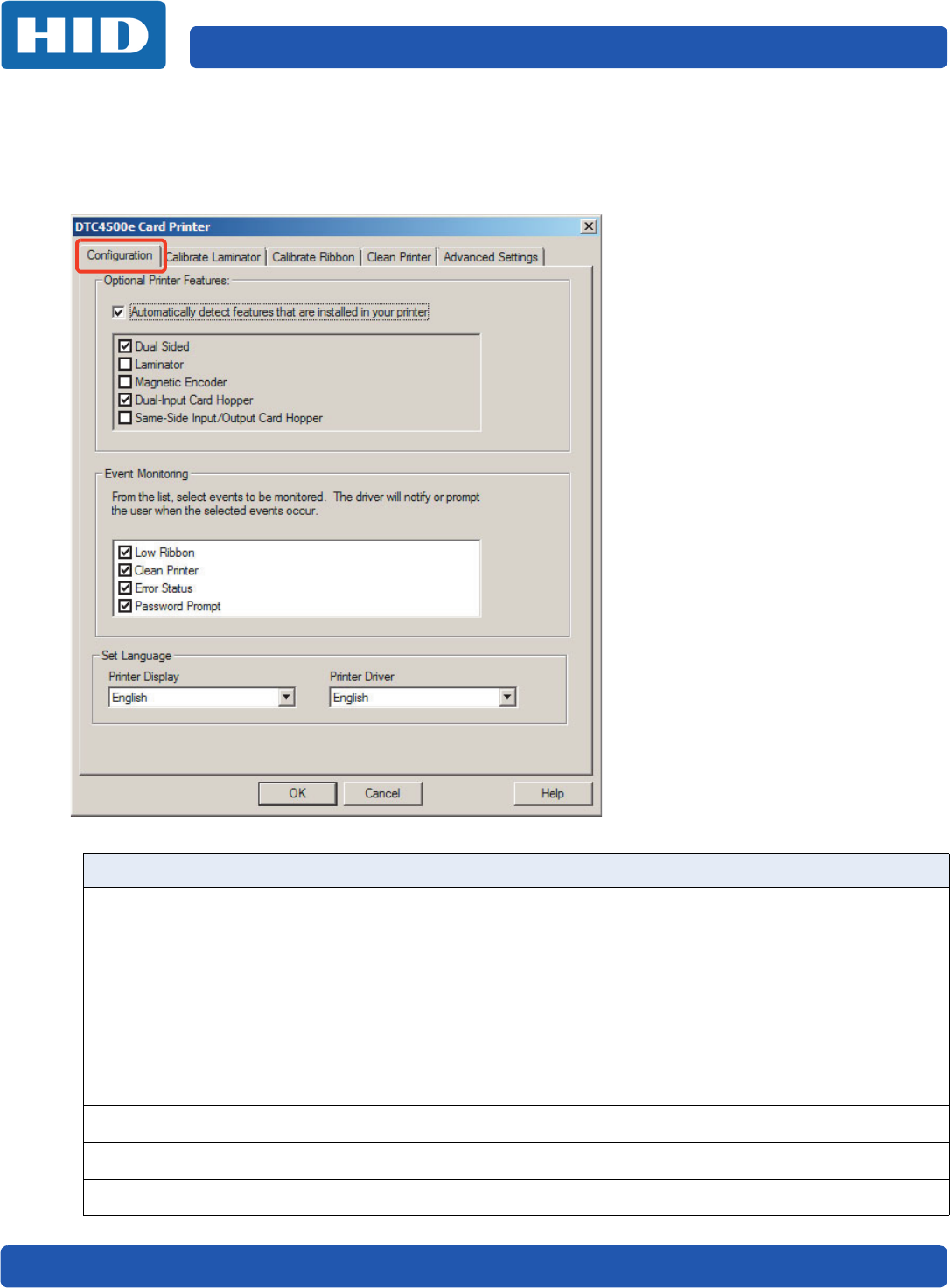

4.1 Configuration Tab

When ToolBox is selected on the Card tab this is the default screen that opens. See Section 3.1: Card

Tab for more information.

Field Description

Optional Printer

Features

Automatically Detect Features that are Installed in your Printer:

If selected the driver retrieves the installed printer features information from the

firmware and automatically checks the appropriate options. The features are read-only

and cannot be updated.

If selected and no printer or modules are found, an error message is displayed.

If this option is not selection, the user will select the options included in the printer.

Event Monitoring This option enables the monitoring of events, and will notify the user when attention is

required.

Set Language Allows the user to set the printer display language from the pull-down list.

OK Closes the window and saves the configuration changes made.

Cancel Closes the window and cancels any configuration changes made.

Help Opens the Help for this window.

November 2015 PLT-02496, Version: 1.0

Page 4-3 To o l B o x

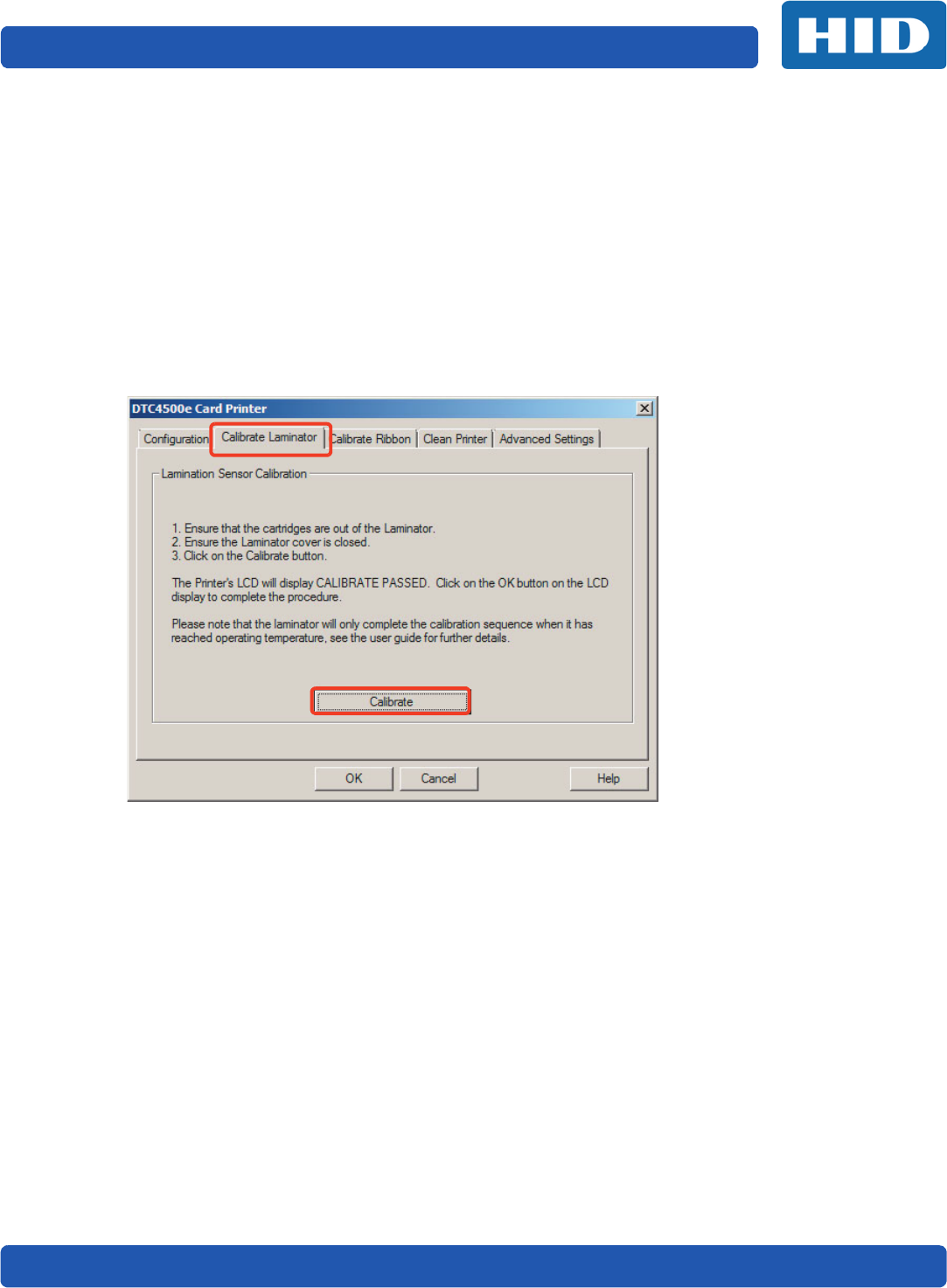

4.2 Calibrate Laminator Tab

The Calibrate Laminator tab is active when the laminator is automatically detected or when

the laminator is manually checked as a feature on the Configuration tab.

Note: The lamination module must be warm before calibrating. Calibration may also be performed

from the printer LCD. See Section 3.10.2: Sensor Calibration Options.

To Calibrate the Laminator:

1. Ensure that the cartridges are out of the Laminator.

2. Ensure the Laminator cover is closed.

3. Click Calibrate.

To o l B o x Page 4-4

PLT-02496, Version: 1.0 November 2015

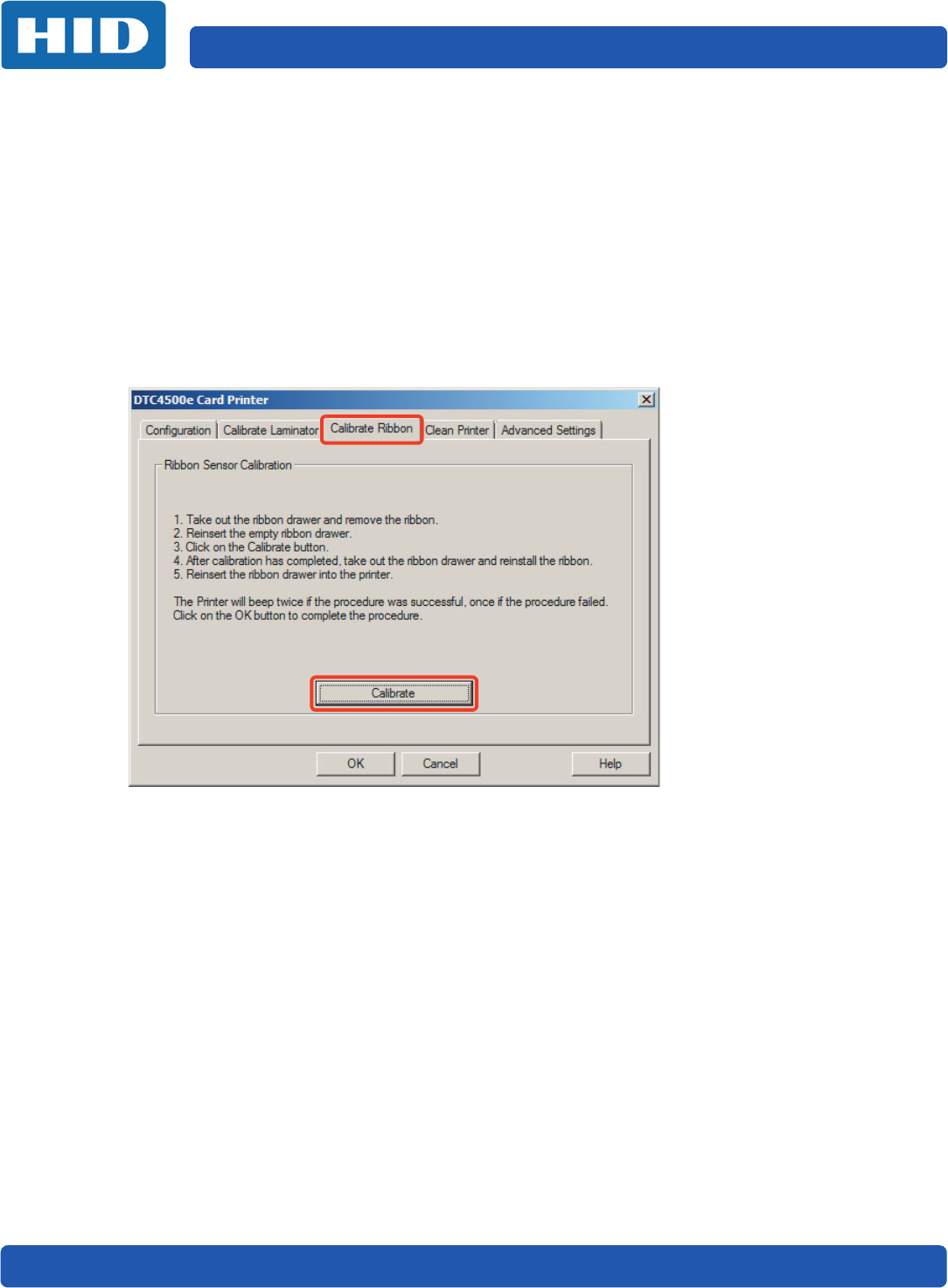

4.3 Calibrate Ribbon Tab

To Calibrate the Ribbon:

1. Take out the ribbon drawer and remove the ribbon.

2. Reinsert the empty ribbon drawer.

3. Click Calibrate.

4. After calibration has completed, take out the ribbon drawer and reinstall the ribbon. Reinsert

the ribbon drawer into the printer.

5. The printer will beep twice if the procedure was successful, once if the procedure failed.

6. Click the OK button to complete the procedure.

Note: Calibration may also be performed from the printer LCD. See Section 3.10.2: Sensor

Calibration Options.

November 2015 PLT-02496, Version: 1.0

Page 4-5 To o l B ox

4.4 Clean Printer Tab

To C l e a n t h e P r i n t e r :

1. Remove all cards from the Card Hopper.

2. Take out the ribbon drawer and remove the ribbon.

3. Reinsert the empty ribbon drawer.

4. Remove the paper backing from both sides of the Cleaning Card. Note: DO NOT remove small

liner strip if a magnetic encoding module is installed in your printer.

5. Insert the Cleaning Card into the Card Hopper’s in-feed rollers. See the diagram below.

6. Click the Clean button.

7. Guide the Cleaning Card into the printer if necessary.

8. When the Cleaning routine is complete, the Cleaning Card will exit the printer.

9. Take out the ribbon drawer and reinstall the ribbon.

10. Reinsert the ribbon drawer into the printer.

Note: The cleaning routine will begin after all current print jobs have completed.

Cleaning can also be completed through the printer LCD screen. See Section 3.10: Tools Menu.

To o l B o x Page 4-6

PLT-02496, Version: 1.0 November 2015

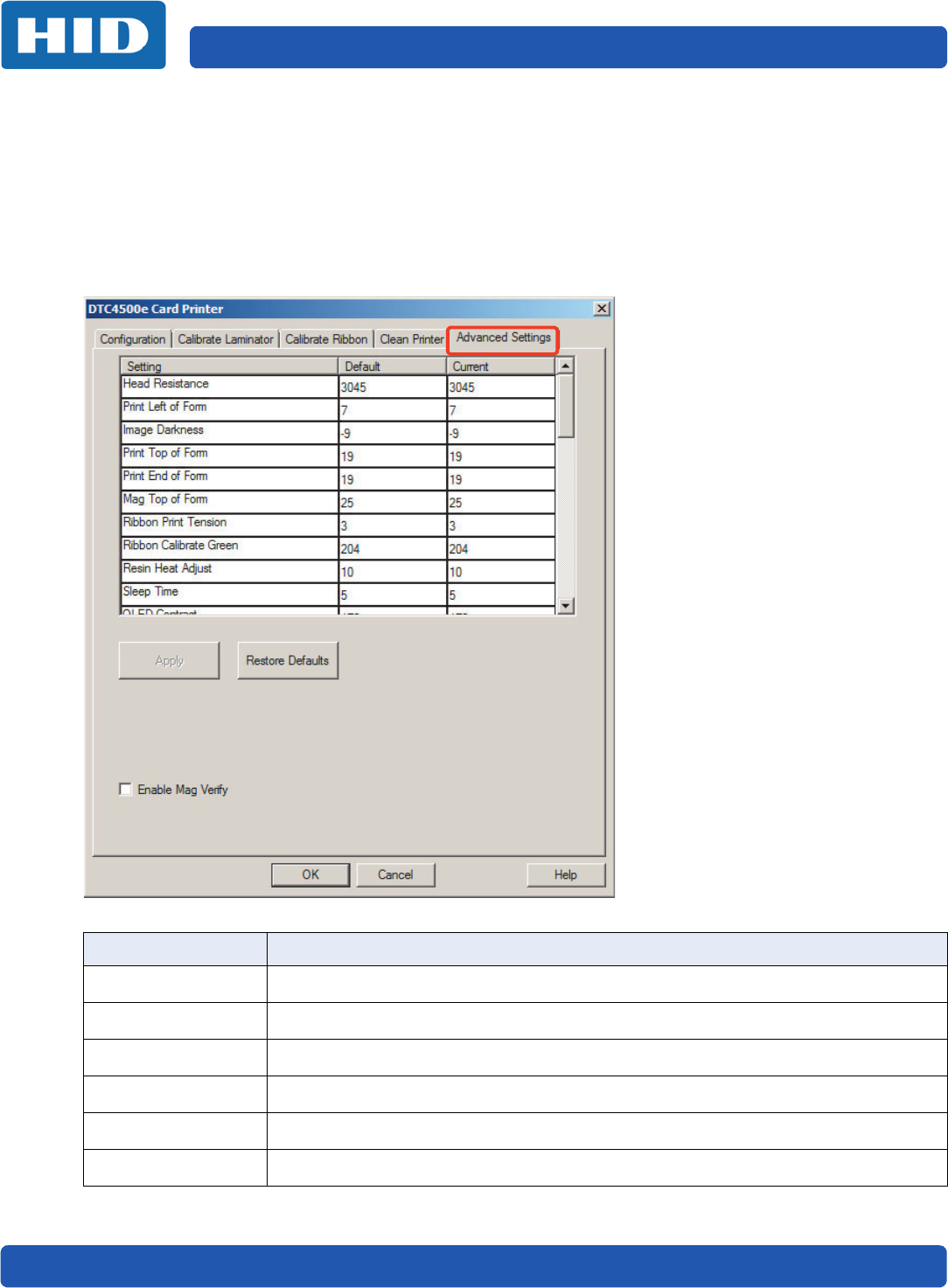

4.5 Advanced Settings Tab

Use the Advanced Settings tab for adjusting the internal printer settings. These settings have been

customized for every printer at the factory.

Note: Any changes affect settings for the firmware.

To modify a Setting, click on the numeric value in the cell, click the up/down arrow to modify the

value, or select the value and type a new value.

Field Description

Setting This column displays the name of the Setting.

Default This column displays default value for the Setting.

Current This column displays current value for the Setting.

Apply Applies the changed values.

Restore Defaults Restores the default values.

Enable Mag Verify Select this option to verify that the data is written to the tracks correctly.

November 2015 PLT-02496, Version: 1.0

Page 4-7 To o l B o x

4.5.1 Settings Information

Setting Description

Head Resistance

This is factory set. If the main board or the printhead is replaced then adjust this

number.

Locate the printhead setting number on the bottom of the printhead.

The number reads R=XXXX.

Print Left of Form

Use this option to adjust the vertical position of the printed image on the card; so

it appears centered.

Maximum Adjustment Range is +/- 127.

Each increment equals .01”.

Image Darkness

Use this option to set the overall darkness of the printed image by increasing or

decreasing the amount of heat (used by the Printhead when printing).

Note: If the value is set too high, the Ribbon may jam or even break.

Print Top of Form Use this option to adjust the length-wise or horizontal position of the printed

image on the card (so it appears to be centered).

Note: If the negative value is set too high, the Print Ribbon may break.

Mag Top of Form

Use this option to shift the starting point where the Printer begins to encode the

magnetic track data on the card’s Magnetic Stripe.

Note: If the negative value is set too high, the Printer may start encoding before

the Magnetic Stripe reaches the encoding head.

Maximum adjustment range is +/- 80.

Each increment equals .01”.

Ribbon Print Tension Use the Ribbon Tension option to increase or decreases the amount of tension

(drag) on the Ribbon during printing.

Ribbon Calibrate Green

This is a calibration driven value and should not be adjusted.

Note: This is factory set and should not be changed unless directed by a

technician.

Resin Heat Adjust

Use this adjustment for Black premium resin text and barcodes if they appear

faded, too light or too dark.

Maximum Adjustment Range is +/- 100.

Note: This control can be helpful for fine-tuning the transfer of resin text and bar

codes.

Sleep Time The Sleep Time setting adjusts the number of minutes of inactivity before the

Printer enters a low power sleep state.

OLED Contrast

(Display Contrast)

Use this option to increase or decrease the contrast of the printer OLED (if

applicable).

Ribbon Calibrate Blue

This setting is a calibration driven value and should not be adjusted.

Note: This is factory set and should not be changed unless directed by a

technician.

Cleaning Rate

Use this option to adjust the number of cards printed before the Printer displays a

message indicating cleaning is needed.

The default value is 3000 cards.

Mag HI-Co Voltage

Offset

This setting is a calibration driven value and should not be adjusted.

Note: This is factory set and should not be changed unless directed by a

technician.

To o l B o x Page 4-8

PLT-02496, Version: 1.0 November 2015

Mag Lo-Co Voltage

Offset

This setting is a calibration driven value and should not be adjusted.

Note: This is factory set and should not be changed unless directed by a

technician.

Ribbon Green LED Level

This setting is a calibration driven value and should not be adjusted.

Note: This is factory set and should not be changed unless directed by a

technician.

Ribbon Blue LED Level

This setting is a calibration driven value and should not be adjusted.

Note: This is factory set and should not be changed unless directed by a

technician.

Setting Description

Chapter 5

November 2015 PLT-02496, Version: 1.0

Troubleshooting

5.1 System Overview

Knowing the sequence of the printer operation helps when troubleshooting the printer.

Troubleshooting utilizes the printer error buttons, error messages and printer-specific tools.

5.1.1 Sequence of Operations

1. File information is received from the PC.

2. Printer compares the installed ribbon type stored in memory with the ribbon type command

that was sent from the printer. If the ribbon type does not match, the Pause button (on the

right) flashes.

3. The print stepper motor engages.

4. The card feed sensor detects the leading edge of the card and the headlift stepper engages to

disengage the input lever.

5. The card feeds through for the alignment pass.

6. The card feed stepper motor engages to queue card for magnetic encoding (if applicable).

7. The encoded data is written to the card (if applicable).

8. The magnetic encoder verifies while the stepper reverses the card (if applicable).The print

ribbon drive engages (if not already at the yellow panel).

9. The print ribbon sensor looks for the yellow panel.

Note: The print ribbon encoder detects the number of revolutions required to use an entire

color panel.

10. The print stepper motor engages.

11. The card feed sensor detects the leading edge of card.

12. The print stepper motor queues card to the middle of the platen roller. All stop.

13. The print headlift motor engages to the print position.

14. The print cover sensor checks for closed state.

15. The print stepper motor engages.

16. The ribbon drive motor engages.

17. The image data is burned by the printhead until the image data is depleted. All Stop.

18. The thermistor engages the printhead cooling fan to maintain proper operating temperature.

19. The headlift motor engages to the queue position.

20. The print stepper motor engages.

21. The print ribbon drive engages.

Troubleshooting Page 5-2

PLT-02496, Version: 1.0 November 2015

22. After ribbon advances a few encoder clicks, assume the ribbon is free of card. All stop.

23. Repeat Steps 9 through 22 for the appropriate number of color/overlay Panels.

24. Either the card is ejected from the singled-sided printer or the card feed stepper engages to

queue the card for the flipper table for the dual-sided printer.

25. All stop.

5.2 Printer Error Buttons

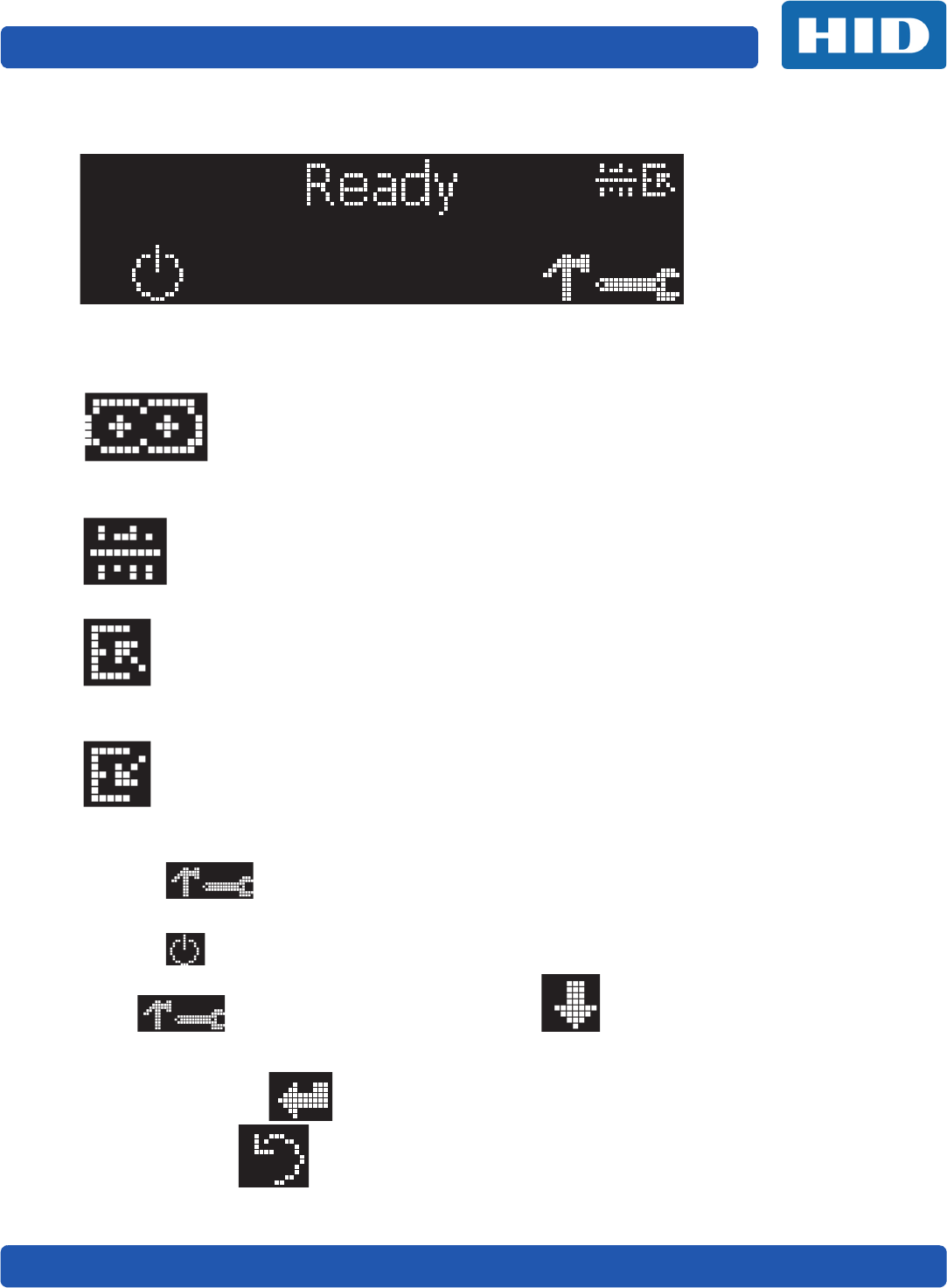

The DTC5500LMX uses both button messages and message display.

The display message system appears as a graphical message, for example:

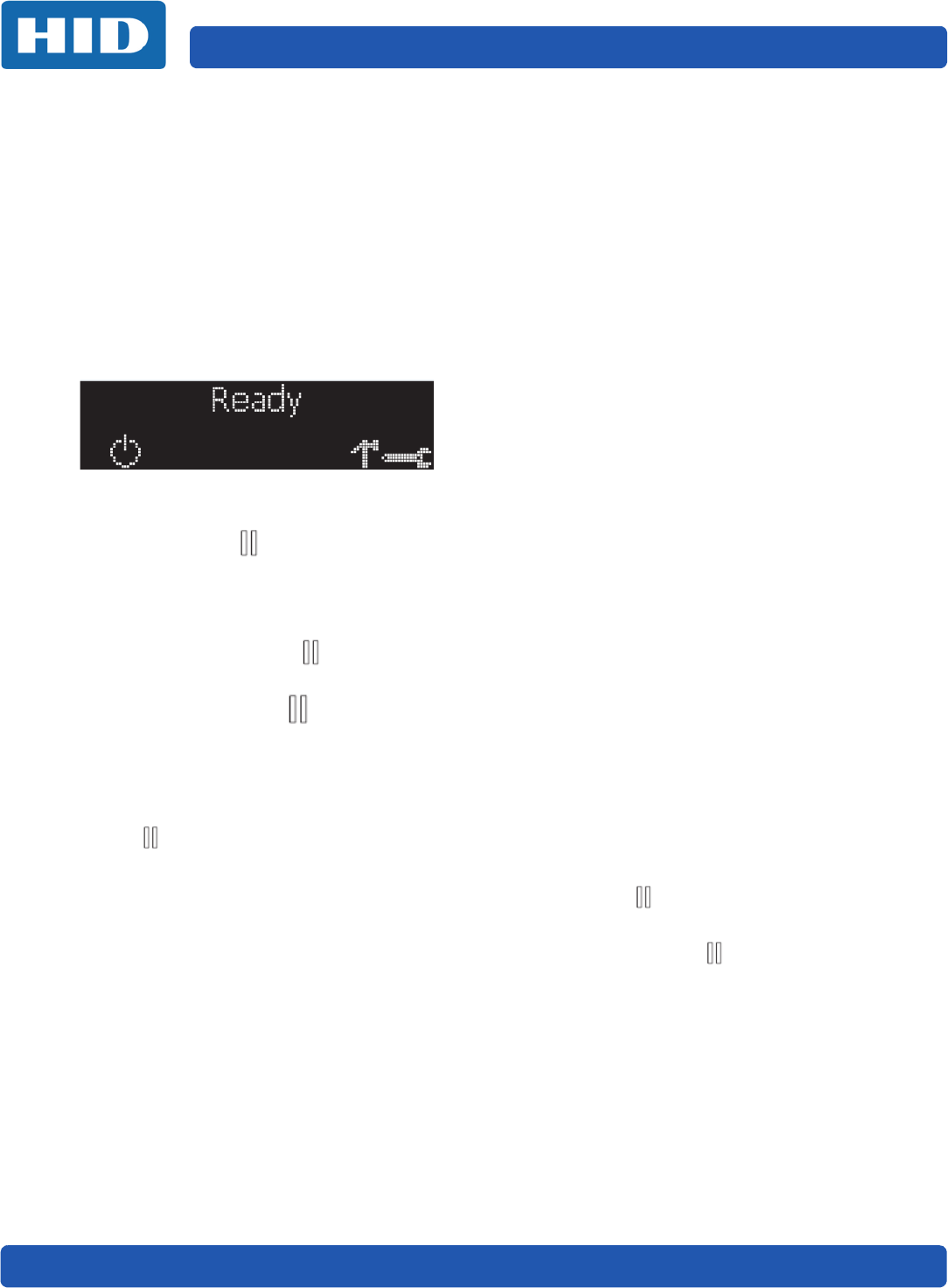

5.2.1 Printer Error Button and On-screen Messages

26. The Pause ( ) button illuminates blue when the printer is capable of accepting a print job

and is not in an error state.

This button LED will continue to stay on while the printer prints as long as there is no error.

This button LED will also be dimmed when the printer goes into Sleep mode.When an error

occurs, the Pause ( ) button no longer illuminates blue but blinks red.

27. Press the Pause ( ) button when printer is in an error state to cause the printer to retry.

Note: The button illuminates as blue and retries the failed action.

When downloading an upgrade file, both buttons are blue and blink.

28. If a language (other than English) is currently selected, you can press and hold the Pause

( ) button during the power-up sequence to change the language back to English.

29. If no printer display is available, press or hold the buttons to access some internal tests.

To print a card with the Printer Settings, press the Pause ( ) button and hold for 4+ seconds

when the printer is ready and idle.

To print the Alignment or the Self Test, press and hold the Pause ( ) button during the

power-up sequence.

5.2.2 Error Messages

When an error occurs in the printer, the PC shows the error message on screen with solutions.

The display blinks in the location requiring attention. Locations can include the printer, input hopper,

magnetic encoder, flipper, card path, ribbon, and data/communication device error.

Each table uses a 3-column presentation to display a specific or printer error message, its cause and

its solution.

November 2015 PLT-02496, Version: 1.0

Page 5-3 Troubleshooting

This format allows the troubleshooter to identify the error and its cause, and then perform the

procedure provided in the solution column.

This standard mode of identifying the problem and its solution should provide an efficient method

of troubleshooting this printer

If you encounter problems beyond the capabilities of this error message table, you should contact

Technical Support.

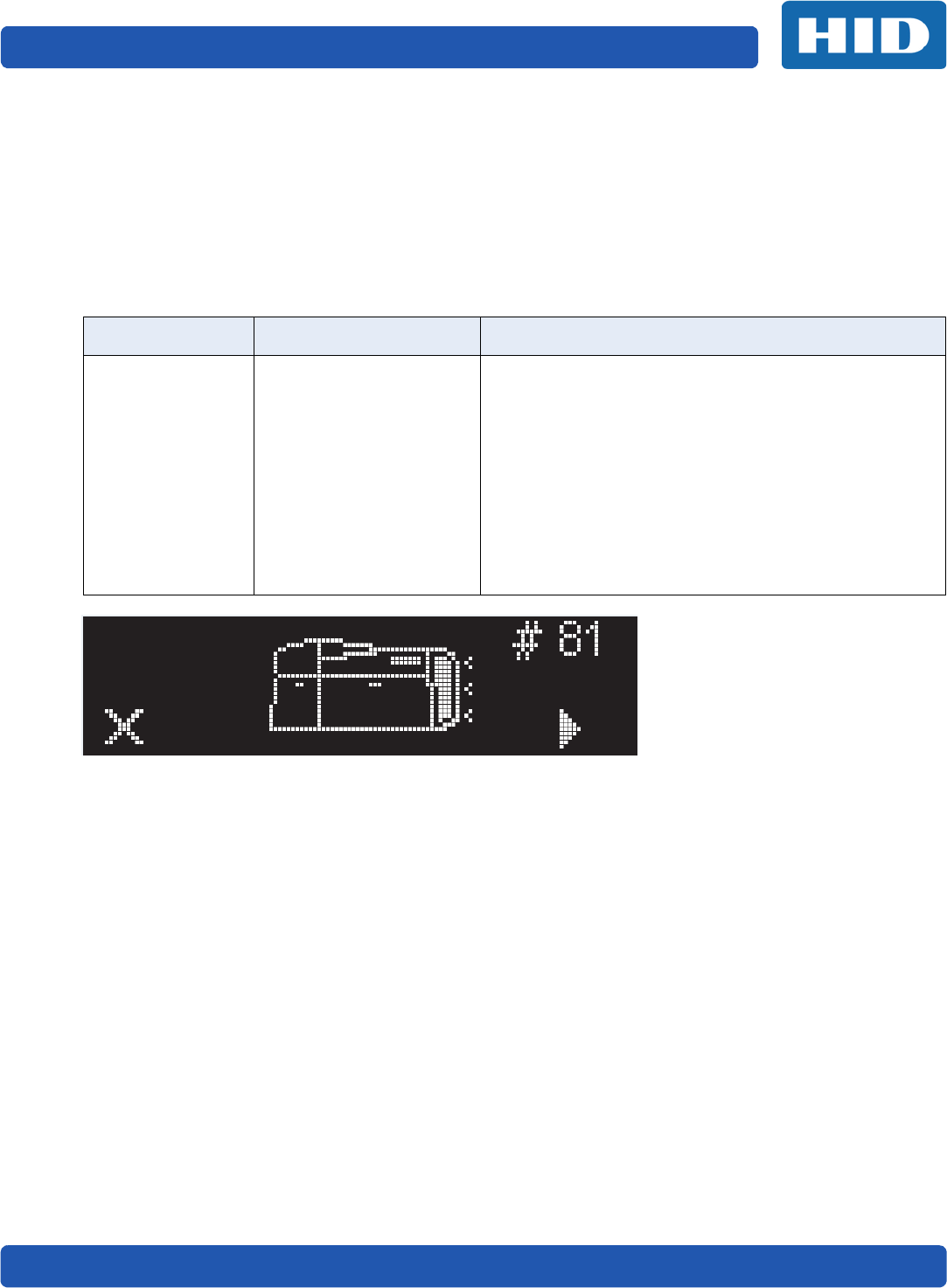

Example of an Error Message:

Error Message Cause Solution

# 81

Unable to Feed

The printer is unable to

feed a card from the input

card hopper.

Check the following, then press the Pause button to

continue.

Verify the card thickness setting is set to the thickness of

your cards.

Verify the Cleaning roller is properly installed on the

Ribbon Cartridge.

Check for card slippage. If necessary, run the Printer

cleaning routine.

Verify that your cards are within the accepted card size

range.

Verify the cards are not sticking together.

Troubleshooting Page 5-4

PLT-02496, Version: 1.0 November 2015

5.2.3 Troubleshooting with the Error Message Table

Error Message Cause Solution

# 2

Head Move Error

The printhead lift has

malfunctioned.

Reset the printer and try again.

If this problem persists, call for technical

assistance.

# 8

Head Sensor Error

The printhead temperature sensor

is not functioning or is not

connected properly.

Or, the printhead is not cooling

properly.

Reset the printer and try again.

If the problem persists, call for technical

assistance.

# 9

Reboot Required

An unspecified system error has

been detected by the printer

firmware.

Reset the printer and try again.

If this problem persists, call for technical

assistance.

# 25

Ribbon not

Installed

No ribbon is installed in the

printer. Install a ribbon and retry.

# 30

Mag Verify Error

Magnetic encoding verification

has failed.

Try encoding with a different card.

Verify cards have the magnetic stripe.

Replace the magnetic encoding module.

# 31

No Mag Module

The printer is not configured with

the encoder data type that you

are trying to send.

Ensure that no encoding data is being sent with

the print job and reprint the card.

Install a magnetic encoding module.

# 38

# 39

# 40

EEPROM Corrupt

EEPROM Read

Error

EEPROM is restored with factory

default values.

If changes were made in the Advanced Settings

tab in the printer driver, click the Default button to

reset these numbers.

Reset the printer and try again. If this problem

persists, call for technical assistance.

# 44

Flipper Jam/

Home Error

A card has become jammed in the

printer’s flipper table.

The flipper failed to position

properly while aligning a card or

flipping a card.

Clear any cards in the flipper table using the

buttons to move the card out. Resume printing.

The flipper table should be level when the printer

is powered up. If the flipper Table is at an angle,

open the card output door and manually level it.

Then cycle the printer power to reset.

Reset the printer and retry. If problem persists call

for technical assistance.

# 45

No Flip Module

installed

Request to print on 2nd side of

card, but no flipper is installed.

If a Flipper Module is present, ensure that the Print

Both Sides option in the printer driver is set

correctly.

Install a flipper module.

# 60

Laminator

Calibration Fail

LED calibration error occurred. Try again.

November 2015 PLT-02496, Version: 1.0

Page 5-5 Troubleshooting

# 64

# 65

# 66

Reboot Required

Unspecified system error

detected by the printer firmware.

Reset the printer and try again.

If this problem persists, call for technical

assistance.

# 67

General Utility command does not exist. Verify the command and reenter.

# 68

Card in Printer

A card is jammed in the print

station or card flipping area of the

Printer.

Clear the jam and press the Pause button.

# 70

Multiple Feed

Multiple cards were fed into the

printer.

Verify the card thickness is set to the thickness of

your cards, then press the Pause button.

Check for card slippage. If necessary, run the

printer cleaning routine

Verify the cleaning roller is properly installed on

the ribbon cartridge.

Verify the cards are not sticking together.

# 81

Unable to Feed

The printer is unable to feed a

card from the input card hopper.

Check the following, then press the Pause button

to continue.

Verify the card thickness setting is set to the

thickness of your cards.

Verify the Cleaning roller is properly installed on

the Ribbon Cartridge.

Check for card slippage. If necessary, run the

Printer cleaning routine.

Verify that your cards are within the perimeters

accepted card size range.

Verify the cards are not sticking together.

# 82 Mag Jam A card is jammed magnetic

station

Clear any cards in the magnetic station using the

buttons to move the card out.

Press the Pause button to continue.

# 91

Ribbon Out The print ribbon has run out.

Install a new ribbon.

Press the Pause button to continue or the

ON/OFF button to cancel.

# 93

Wrong Ribbon

The print ribbon installed in the

printer does not match the ribbon

type selected in the printer driver.

Change either the installed print ribbon or the

ribbon type selected in the printer driver.

Press the Pause button to continue or the

ON/OFF button to cancel.

# 97

Ribbon Search

Error

The ribbon is not able to find the

next panel correctly.

Check for jams/breaks.

Recalibrate the ribbon sensor.

If broken, repair by taping the ribbon back on to

the take- up core.

Replace the ribbon.

Press the Pause button to continue or the

ON/OFF button to cancel.

Error Message Cause Solution

Troubleshooting Page 5-6

PLT-02496, Version: 1.0 November 2015

# 99

Ribbon Error

The print ribbon has either broken

or jammed.

If jammed, clear the jam.

If broken, repair by taping the ribbon back on to

the take- up core.

Press the Pause button to continue or the

ON/OFF button to cancel.

# 100

Ribbon RFID Error

There is no ribbon or the ribbon

tag information is corrupted or

incorrect.

Verify the printer driver settings for correct

Ribbon.

Try a new ribbon and continue.

Press the ON/OFF button to cancel.

# 102

# 103

# 104

Headlift Error

This is a problem with the

printhead Lift.

Reset the printer and try again.

If this problem persists, call for technical

assistance.

# 106

Job Data Error

The print data sent to the printer

is corrupt or has been interrupted.

Check the interface cable.

Select the ON/OFF button to cancel this print job

and then resend the job.

# 107

Printing Error

An error was detected during

printing.

Reset the printer and try again.

If this problem persists, call for technical

assistance.

# 109

# 113

Ribbon Release

Error

The printer cannot locate the next

ribbon panel in order to release

the ribbon from the card.

Ensure that the ribbon is not stuck to the card.

Replace the ribbon.

Recalibrate the ribbon sensor.

If the ribbon is broken, repair by taping the ribbon

back onto the take- up core and manually advance

to the next panel.

Press the Pause button to continue.

# 110

Card Jam/Align

error

A card is jammed in the print

station or card flipping area of the

printer.

Clear the jam. Press the Pause button to continue.

# 111

Head Loading

An unrecoverable error has

occurred during printing.

Reset the printer and try again. If this problem

persists, call for technical assistance.

# 112

Card Jam/Align

error

A card is jammed in the print

station or card flipping area of the

Printer.

Clear the jam. Press the Pause button to continue.

# 128

# 170

Calibrate Ribbon

The print ribbon sensor is out of

calibration or has failed.

Calibrate the ribbon sensor.

Check for material blocking sensor and try again.

# 129

General

Utility command input error has

occurred. Verify the command and reenter.

Error Message Cause Solution

November 2015 PLT-02496, Version: 1.0

Page 5-7 Troubleshooting

# 131

Flipper Jam/Home

Error

A card has become jammed in the

printer’s flipper table.

The flipper failed to position

properly while aligning a card or

flipping a card.

Clear any cards in the flipper table, using the

buttons to move the card out.

Resume printing.

Reset the printer and retry. If problem persists call

for technical assistance.

# 136

Secure Guard Print

Disabled

Printing is disabled by

SecureGuard until a password is

received.

Reset the printer and retry.

If the problem persists, call for technical

assistance.

# 139

Please Remove

Ribbon

Ribbon needs to be removed. Reset the printer and retry.

If problem persists, call for technical assistance.

# 144

EEPROM Corrupt

EEPROM Read

Error

EEPROM restored with factory

default values.

If changes were made in the Advanced Setting tab

in the printer driver, click the Default button to

reset these numbers.

Reset the printer and try again. If this problem

persists, call for technical assistance.

# 202

Encoder Not

Installed

You are trying to send encoding

data, but the Printer is not

configured with this Encoder

type.

iCLASS, Prox, MIFARE, SmartCard

Ensure that no encoding data is being sent with

the print job and reprint the card.

Install an encoding module.

# 266

Calibration Failed Laminator is too cold to calibrate. Reboot the printer or perform a lamination

sample.

# 286

General Not used.

# 303

Job Too Large for

Multiple Copies

Job is too big. Send a smaller job.

# 306

Laminator Clean

Fail

Laminator clean cycle failed. Try again.

Error Message Cause Solution

# 2

Head Move Error

The printhead lift has

malfunctioned.

Reset the printer and try again.

If this problem persists, call for technical

assistance.

# 8

Head Sensor Error

The printhead temperature sensor

is not functioning or is not

connected properly.

Or, the printhead is not cooling

properly.

Reset the printer and try again.

If the problem persists, call for technical

assistance.

# 9

Reboot Required

An unspecified system error has

been detected by the printer

firmware.

Reset the printer and try again.

If this problem persists, call for technical

assistance.

Error Message Cause Solution

Troubleshooting Page 5-8

PLT-02496, Version: 1.0 November 2015

# 25

Ribbon not

Installed

No ribbon is installed in the

printer. Install a ribbon and retry.

# 30

Mag Verify Error

Magnetic encoding verification

has failed.

Try encoding with a different card.

Verify cards have the magnetic stripe.

Replace the magnetic encoding module.

# 31

No Mag Module

The printer is not configured with

the encoder data type that you

are trying to send.

Ensure that no encoding data is being sent with

the print job and reprint the card.

Install a magnetic encoding module.

# 38

# 39

# 40

EEPROM Corrupt

EEPROM Read

Error

EEPROM is restored with factory

default values.

If changes were made in the Advanced Settings

tab in the printer driver, click the Default button to

reset these numbers.

Reset the printer and try again. If this problem

persists, call for technical assistance.

# 44

Flipper Jam/

Home Error

A card has become jammed in the

printer’s flipper table.

The flipper failed to position

properly while aligning a card or

flipping a card.

Clear any cards in the flipper table using the

buttons to move the card out. Resume printing.

The flipper table should be level when the printer

is powered up. If the flipper Table is at an angle,

open the card output door and manually level it.

Then cycle the printer power to reset.

Reset the printer and retry. If problem persists call

for technical assistance.

# 45

No Flip Module

installed

Request to print on 2nd side of

card, but no flipper is installed.

If a Flipper Module is present, ensure that the Print

Both Sides option in the printer driver is set

correctly.

Install a flipper module.

# 64

# 65

# 66

Reboot Required

Unspecified system error

detected by the printer firmware.

Reset the printer and try again.

If this problem persists, call for technical

assistance.

# 68

Card in Printer

A card is jammed in the print

station or card flipping area of the

Printer.

Clear the jam and press the Pause button.

# 70

Multiple Feed

Multiple cards were fed into the

printer.

Verify the card thickness is set to the thickness of

your cards, then press the Pause button.

Check for card slippage. If necessary, run the

printer cleaning routine

Verify the cleaning roller is properly installed on

the ribbon cartridge.

Verify the cards are not sticking together.

Error Message Cause Solution

November 2015 PLT-02496, Version: 1.0

Page 5-9 Troubleshooting

# 81

Unable to Feed

The printer is unable to feed a

card from the input card hopper.

Check the following, then press the Pause button

to continue.

Verify the card thickness setting is set to the

thickness of your cards.

Verify the Cleaning roller is properly installed on

the Ribbon Cartridge.

Check for card slippage. If necessary, run the

Printer cleaning routine.

Verify that your cards are within the perimeters

accepted card size range.

Verify the cards are not sticking together.

# 82 Mag Jam A card is jammed magnetic

station

Clear any cards in the magnetic station using the

buttons to move the card out.

Press the Pause button to continue.

# 91

Ribbon Out The print ribbon has run out.

Install a new ribbon.

Press the Pause button to continue or the

ON/OFF button to cancel.

# 93

Wrong Ribbon

The print ribbon installed in the

printer does not match the ribbon

type selected in the printer driver.

Change either the installed print ribbon or the

ribbon type selected in the printer driver.

Press the Pause button to continue or the

ON/OFF button to cancel.

# 97

Ribbon Search

Error

The ribbon is not able to find the

next panel correctly.

Check for jams/breaks.

Recalibrate the ribbon sensor.

If broken, repair by taping the ribbon back on to

the take- up core.

Replace the ribbon.

Press the Pause button to continue or the

ON/OFF button to cancel.

# 99

Ribbon Error

The print ribbon has either broken

or jammed.

If jammed, clear the jam.

If broken, repair by taping the ribbon back on to

the take- up core.

Press the Pause button to continue or the

ON/OFF button to cancel.

# 100

Ribbon RFID Error

There is no ribbon or the ribbon

tag information is corrupted or

incorrect.

Verify the printer driver settings for correct

Ribbon.

Try a new ribbon and continue.

Press the ON/OFF button to cancel.

# 102

# 103

# 104

Headlift Error

This is a problem with the

printhead Lift.

Reset the printer and try again.

If this problem persists, call for technical

assistance.

# 106

Job Data Error

The print data sent to the printer

is corrupt or has been interrupted.

Check the interface cable.

Select the ON/OFF button to cancel this print job

and then resend the job.

Error Message Cause Solution

Troubleshooting Page 5-10

PLT-02496, Version: 1.0 November 2015

# 107

Printing Error

An error was detected during

printing.

Reset the printer and try again.

If this problem persists, call for technical

assistance.

# 109

# 113

Ribbon Release

Error

The printer cannot locate the next

ribbon panel in order to release

the ribbon from the card.

Ensure that the ribbon is not stuck to the card.

Replace the ribbon.

Recalibrate the ribbon sensor.

If the ribbon is broken, repair by taping the ribbon

back onto the take- up core and manually advance

to the next panel.

Press the Pause button to continue.

# 110

Card Jam/Align

error

A card is jammed in the print

station or card flipping area of the

printer.

Clear the jam. Press the Pause button to continue.

# 111

Head Loading

An unrecoverable error has

occurred during printing.

Reset the printer and try again. If this problem

persists, call for technical assistance.

# 112

Card Jam/Align

error

A card is jammed in the print

station or card flipping area of the

Printer.

Clear the jam. Press the Pause button to continue.

# 128

# 170

Calibrate Ribbon

The print ribbon sensor is out of

calibration or has failed.

Calibrate the ribbon sensor.

Check for material blocking sensor and try again.

# 131

Flipper Jam/Home

Error

A card has become jammed in the

printer’s flipper table.

The flipper failed to position

properly while aligning a card or

flipping a card.

Clear any cards in the flipper table, using the

buttons to move the card out.

Resume printing.

Reset the printer and retry. If problem persists call

for technical assistance.

# 136

Secure Guard Print

Disabled

Printing is disabled by

SecureGuard until a password is

received.

Reset the printer and retry.

If the problem persists, call for technical

assistance.

# 139

Please Remove

Ribbon

Ribbon needs to be removed. Reset the printer and retry.

If problem persists, call for technical assistance.

# 144

EEPROM Corrupt

EEPROM Read

Error

EEPROM restored with factory

default values.

If changes were made in the Advanced Setting tab

in the printer driver, click the Default button to

reset these numbers.

Reset the printer and try again. If this problem

persists, call for technical assistance.

#202

Encoder not

installed

You are trying to send encoding

data, but the Printer is not

configured with this Encoder

type.

iCLASS, Prox, MIFARE, SmartCard

Ensure that no encoding data is being sent with

the print job and reprint the card.

Install an encoding module.

Error Message Cause Solution

November 2015 PLT-02496, Version: 1.0

Page 5-11 Troubleshooting

5.2.4 Printer-Specific Tools

The status icons are as follows:

This icon indicates that the print ribbon supply is low and will require replacement

soon. The entire ribbon cartridge must be replaced.

This icon indicates that the printer needs to be cleaned.

This icon is only displayed for printers with an attached dual-input card hopper and

indicates that the top input hopper is currently selected.

This icon is only displayed for printers with an attached dual-input card hopper and

indicates that the bottom input hopper is currently selected.

Press the button to scroll through the details of the printer and perform the action.

Press the button to select the option.

When is selected, use the left down arrow to scroll through the Info, Test Prints,

and Languages and Exit.

Use the corner arrow to run that option.

The curved arrow will return to the first screen.

Troubleshooting Page 5-12

PLT-02496, Version: 1.0 November 2015

5.2.4.1 Additional Printer Specific Tools

Label Description

INFO

Printer Type

Firmware Version

IP Address

Flipper

Lamination

Magnetics

E-Card

Password

Card count

TEST PRINTS

Color Photo: Select this choice to print a color card to test communication and integrity.

Alignment: Select this choice to print a card used to align the print image on the card.

Settings: Select this choice to print a card with the Advanced settings.

Resin: Select this choice to print a RESIN test card.

Rewritable: Select this choice to ERASE the Rewritable card.

Magnetic: Select this choice to test Magnetic encoding (Hi-Co only)

Lamination: Select this choice to laminate a test card.

Hopper Select Select the hopper to input cards. Applies to dual-hopper printers.

ToolBox

Clean Printer: Select this choice to run the clean printer routine.

Clean Laminator: Select this choice to run the clean laminator routine.

Calibrate Mag: Select this choice to calibrate the Magnetic Sensor.

Calibrate Rib Sensor: Select this choice to calibrate the ribbon sensor.

Network: Select this to choice configure network options

Language Select this choice to change the Printer Displayed Language.

Exit Select this choice to exit the Printer Tool options.

Chapter 6

November 2015 PLT-02496, Version: 1.0

Firmware Upgrades

6.1 Upgrade Information

To upgrade the printer’s firmware, perform the following steps:

1. Run the FARGO Workbench Card Printer Utility.

2. If running FARGO Workbench Version 3 or greater:

a. Select the Update Manager utility.

b. Select the printer(s) to update.

c. Select the Select Firmware file option to locate or enter the latest firmware file

(i.e. FRW-00373_DTC100_v2.3.3.20.frm).

d. Locate the firmware file and click Open.

e. Click Begin Updating Firmware to send the file to the printer(s).

3. If running a FARGO Workbench release prior to Version 3:

a. Select the Application Menu at the upper left and select Upgrade Firmware.

b. Enter the firmware file name or click Browse to find and select the latest

firmware file (i.e. FRW-00373_DTC100_v2.3.3.20.frm).

c. Click OK to send the file to the printer(s).

4. Restart the printer if it does not restart automatically.

Firmware Upgrades Page 6-2

PLT-02496, Version: 1.0 November 2015

This page intentionally left blank.

Chapter 7

November 2015 PLT-02496, Version: 1.0

Technical Support

7.1 Technical Support

This section provides you with an efficient, step-by-step procedure to be used when contacting HID

Global Technical Support, as needed, for this card printer.

Contact the HID Global Technical Support Group by phone at (866)607-7339 Ext #6 or by fax at

(952) 946-8492 for additional technical assistance.

Contact HID Technical Support.

Position a phone near the printer and computer so the Technician can help to troubleshoot the printer.

Please have a self-test and a sample card ready when calling HID Technical Support.

7.1.1 Reading the Serial Numbers on a FARGO Printer

You can determine when your card printer was manufactured by reading directly from the serial

number (affixed to your card printer).

Example: Serial Number B2050028 (2012)

B2050028: The first two digits in the serial number indicate the year the printer was built (e.g., the

digits B2 indicate the year 2012).

B2050028: The third and fourth digits in the serial number indicate the week the printer was built

(e.g., the digits 05 indicate week 5 of that year).

B2050028: The last four digits indicate the sequence number for the numeric order in which the

printers were built.

Technical Support Page 7-2

PLT-02496, Version: 1.0 November 2015

This page intentionally left blank.

June 2015 PLT-01485, Version: 2.2

Page 12-i

Revision History

Date Description Document

Version

November 2015 Initial release. 1.0

hidglobal.com

HID Global X002100 Color Card Printer User Manual PLT 02496 DTC5500LMX User Guide

HID Global Corporation Color Card Printer PLT 02496 DTC5500LMX User Guide

User Manual

Navigation menu

Namespaces

Views

Navigation
