antenna data II
e-mail: sales@hyperlinktech.com • tel: 561-995-2256 • fax: 561-995-2432
web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487
HyperGain® 2.4 GHz 8 dBi Wireless LAN Flat
Patch Range Extender Antenna
Applications and Features
Applications: • 2.4 GHz ISM Band
• IEEE 802.11b and 802.11g Wireless LAN
• Bluetooth®
• Public Wireless Hotspot
• WiFi
Features: • Superior performance
• Compact size, 4.5" Square
• Durable UV-stable, UL flame rated radome
• Low loss solid brass element
• DC Short lightning protection
• 4 foot coax lead
• Can be installed for either vertical or horizontal polarization
• Optional mounting brackets available
Model: RE09P
Description
Directional Range-Extender Antenna
This flat patch range extender WiFi antenna provides 8 dBi gain with very broad coverage. It is suitable for both indoor and outdoor
use in the 2.4GHz ISM band including IEEE 802.11b, 802.11g and Bluetooth® applications. This antenna’s construction is very
lightweight and features an aesthetic UV-stable white plastic radome which can also be painted to match the room or building
structure. The RE09P can be wall or ceiling mounted, as well as mast-mounted using U-bolts.
e-mail: sales@hyperlinktech.com • tel: 561-995-2256 • fax: 561-995-2432
web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487

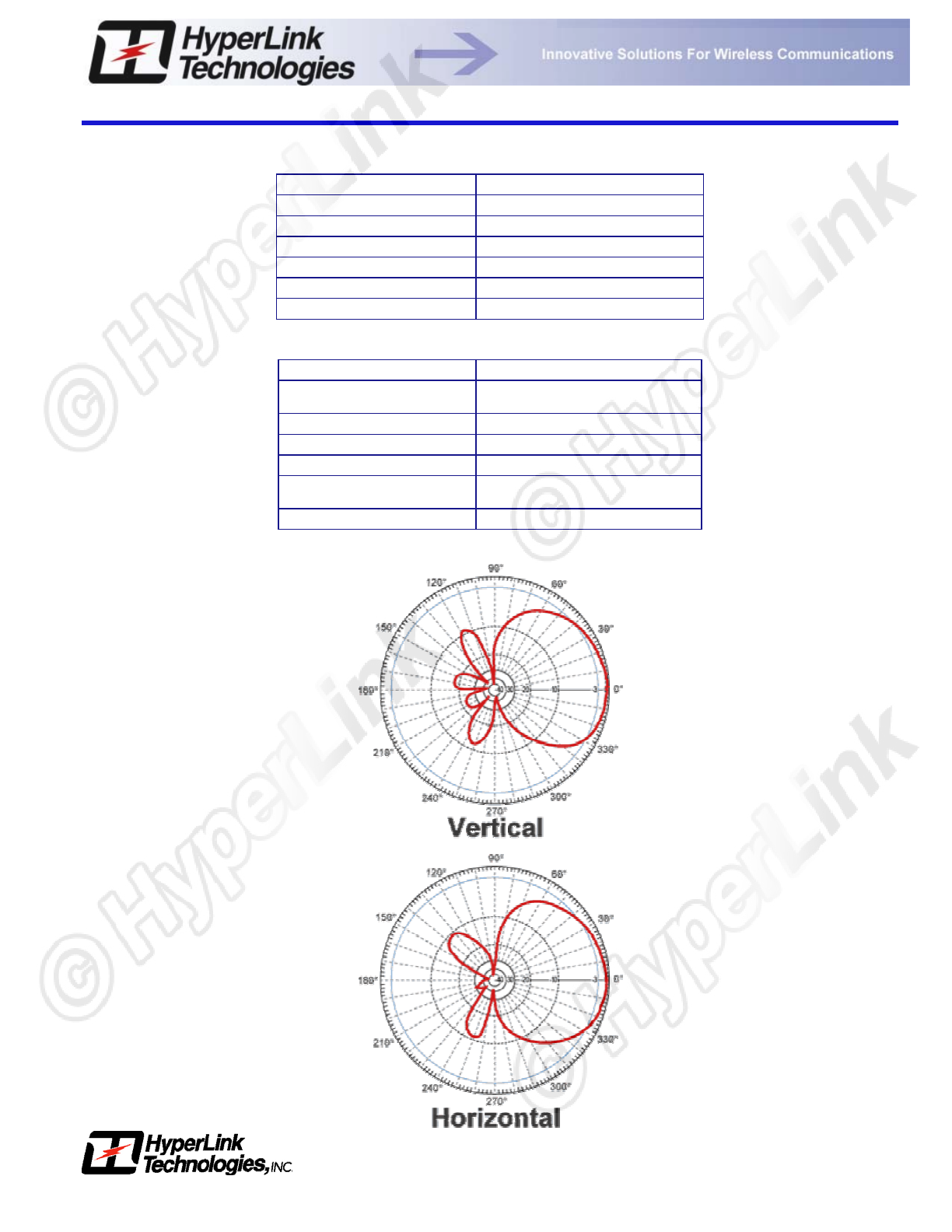

Antenna Specifications
Electrical Specifications
Frequency 2400-2500 MHz
Gain 8 dBi
Horizontal Beam Width 75 degrees
Vertical Beam Width 65 degrees
Impedance 50 Ohm
VSWR < 1.5:1 avg.
Lightning Protection DC Short
Mechanical Specifications
Weight 0.4 lbs. (.18 Kg)
Dimensions 4.5 x 4.5 x .9 inches
114 x 114 x 23 mm
Radome Material UV-inhibited Polymer
Mounting Four ¼ in. (6.3 mm) Holes
Polarization Horizontal or Vertical
Operating Temperature -40° C to to 85° C
(-40° F to 185° F)
Wind Survival >150 MPH (241 KPH)
RF Antenna Patterns
e-mail: sales@hyperlinktech.com • tel: 561-995-2256 • fax: 561-995-2432
web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487

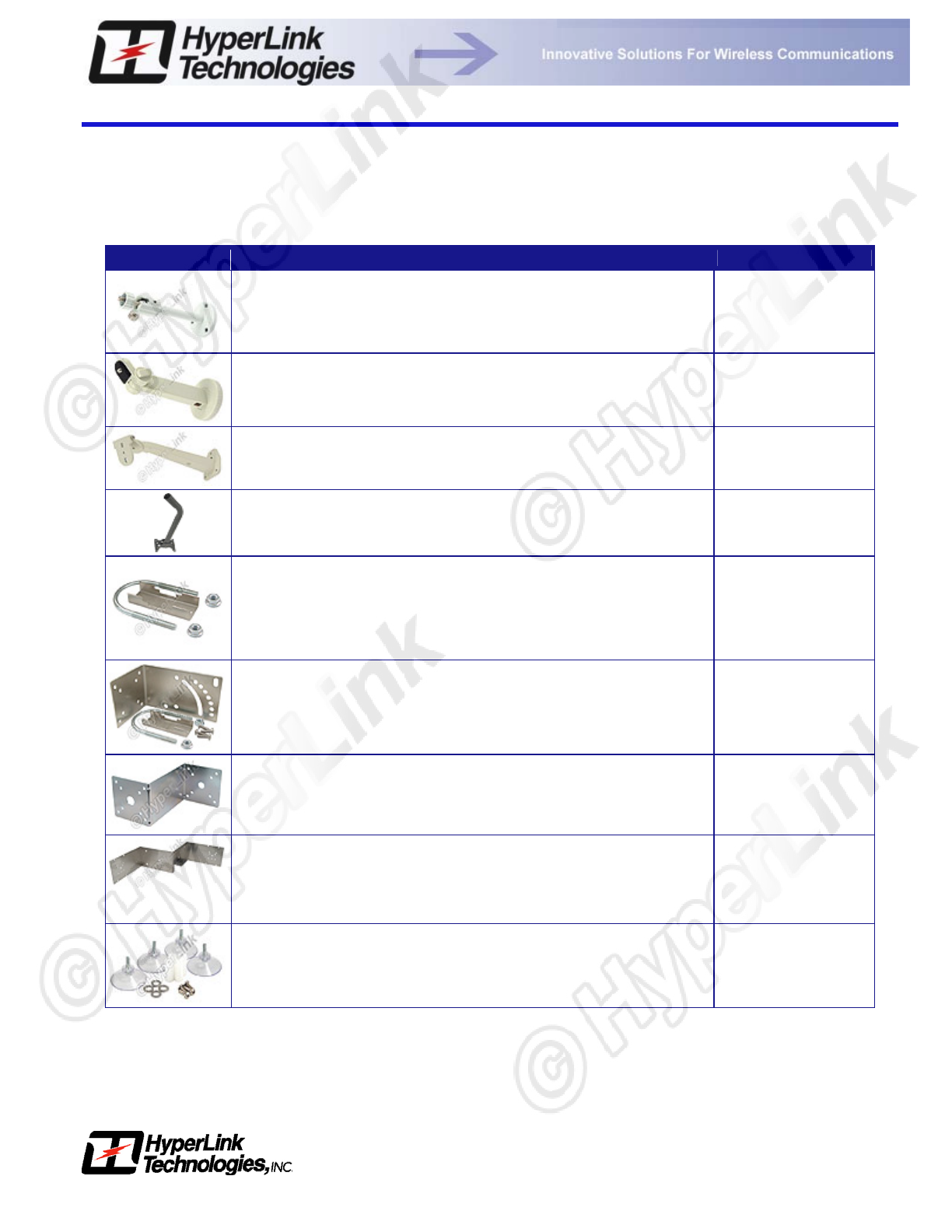

Mounting Options
Hyperlink's patch antennas offer several unique mounting options. They can be mounted flat against a wall, or to a mast using a
pair of 2 inch U-bolts. The antennas also accept most tilt-and-swivel security camera brackets equipped with standard 1/4-20
threads.
Description Part Number
Small Metal Tilt-and-Swivel Mounting Bracket for indoor wall mounting.
Includes wall-mounting hardware. HGX-PMT02
Medium Plastic Tilt-and-Swivel Mounting Bracket for indoor wall mounting.
Includes wall-mounting hardware. HGX-PMT03
Large Metal Tilt-and-Swivel Mounting Bracket for indoor and outdoor wall or
mast mounting. Includes wall-mounting hardware. Can be mast-mounted
using U-Bolt Kit (sold separately).
HGX-PMT04
Universal Antenna Mount powder coated galvanized steel “DSS-style” arm
for outdoor wall mounting. Requires a pair of 2 inch U-bolts (sold
separately).
HGX-UMOUNT
Stationary Mounting Kit for mounting to 1-1/4" to 2" dia. masts. Includes U-
Bolts, nuts and mast clamp. HGX-PMT07
60 Degree Tilt-and-Swivel Mounting Kit for mounting to 1-1/4" to 2" dia.
masts. Mounting hardware included. HGX-PMT06
Ceiling/Wall Universal Antenna Mount can be used with HyperLink's 4.5" sq
and 8.5" sq. patch antennas as well as N-Type bulkhead and TNC/BNC
bulkhead omni directional antennas. Includes ceiling/wall mounting
hardware.
HGX-UMOUNT02
Universal Corner Mounting Bracket: This bracket is designed to mount to an
outside corner of a structure. It can be used with HyperLink's 4.5" and 8.5"
sq. patch antennas, radome enclosed Yagi antennas, the HGX-PMT02 tilt &
swivel bracket and can also accommodate the SC2402N and SC5802N 2-
Way signal splitters as well as HyperAmp outdoor amplifiers.
HGX-UMOUNT03
Window Mounting Kit Includes suction cups and mounting hardware. HGX-PMT08
