antenna data
Base
Station

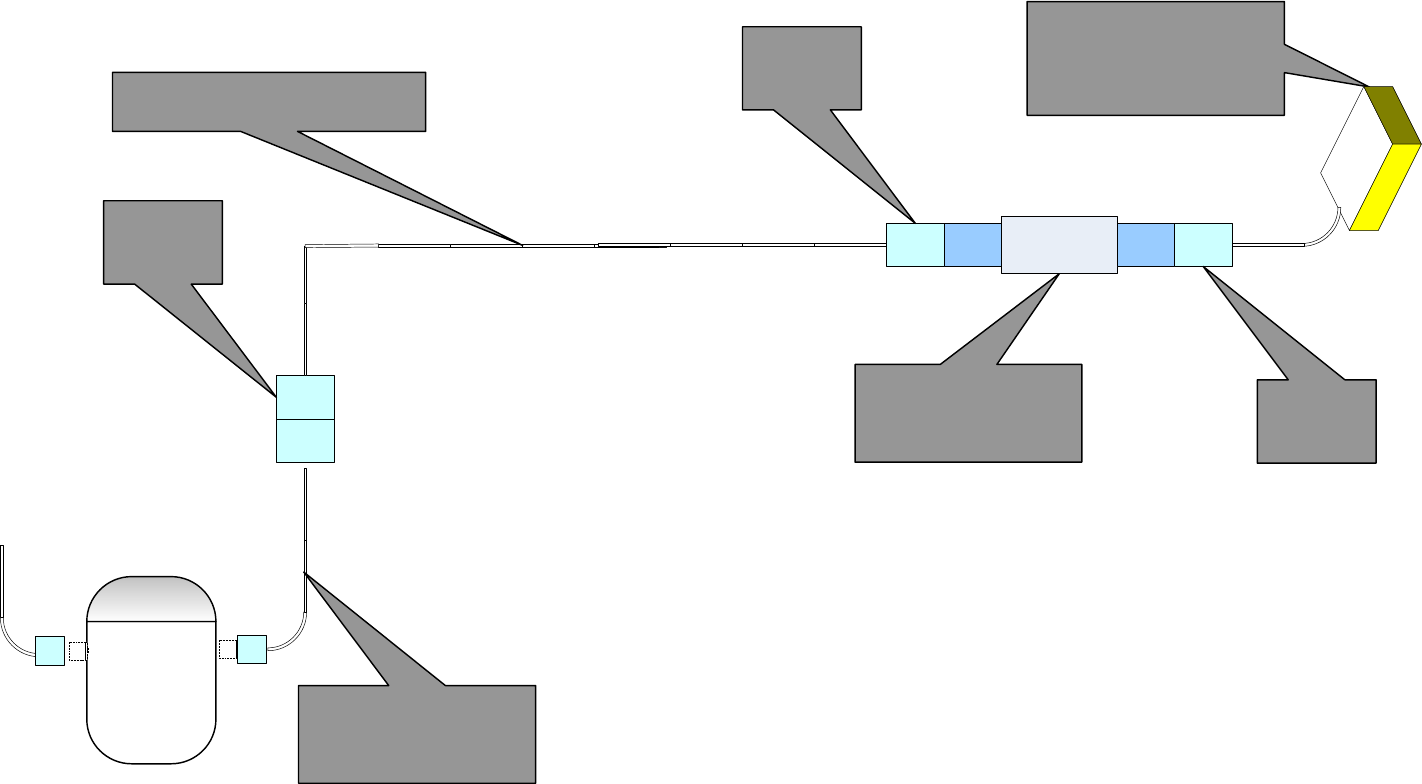

2.4GHz, 8dBi Flat Patch
Antenna
Right Circular Polarization
(Hyperlink p/n HG2409PCR-NF)
Antenna Adaptor Cable
3 feet, LMR195(CFD195)
RP TNC Plug – N Female
Attn: ~ 0.8dB
N Male
Connector
Attn: ~ 0.2dB
N Male
Connector
Attn: ~ 0.2dB
LMR400(CFD400) Coax Cable
100 feet, Attn: ~ 6.8dB
Lightning Arrestor
N Male to N Female
(Hyperlink p/n AL-NMNFB-9)
Attn: 0.4db max
N Female
Connector
Attn: ~ 0.2dB
EC20 Directional Extended Coverage Antenna Kit
Net Gain = - 0.6dB (8.0 - 0.2 - 0.4 – 0.2 - 6.8 - 0.2 - 0.8)db

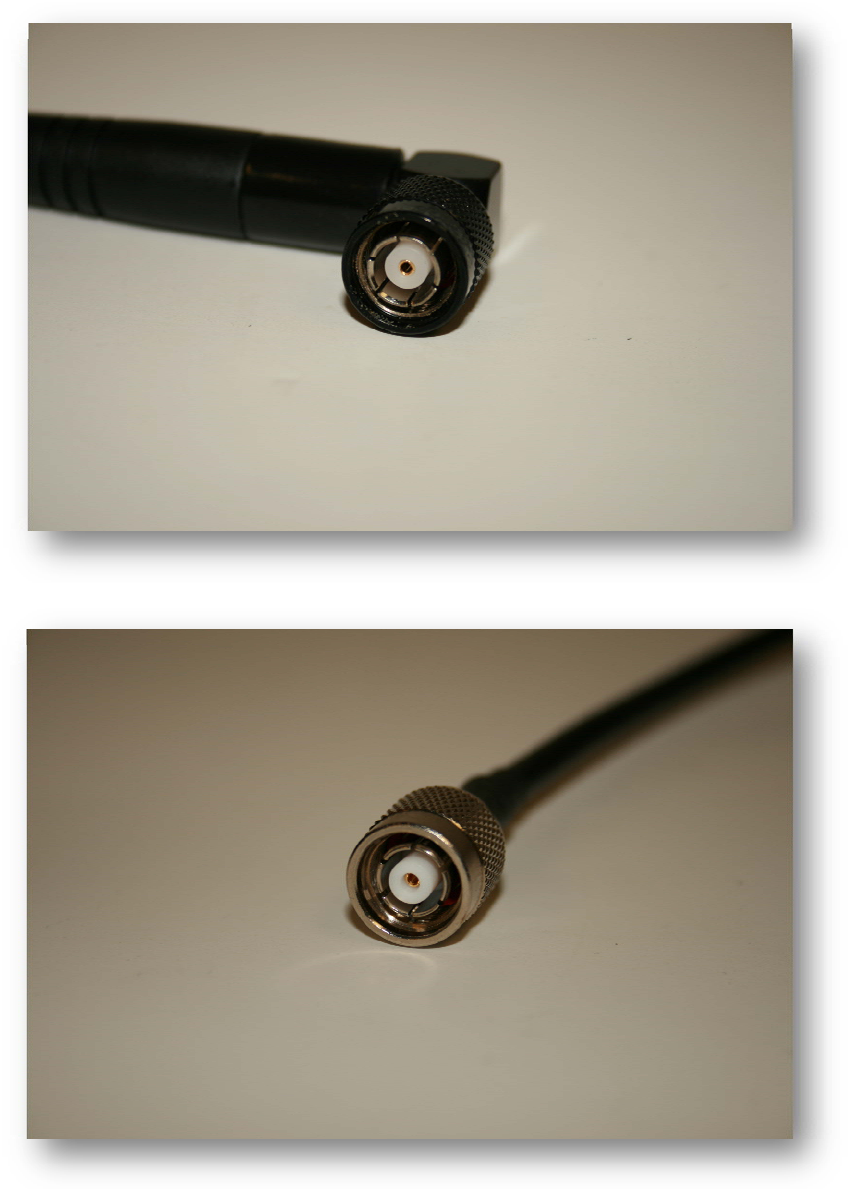

Antenna Connectors

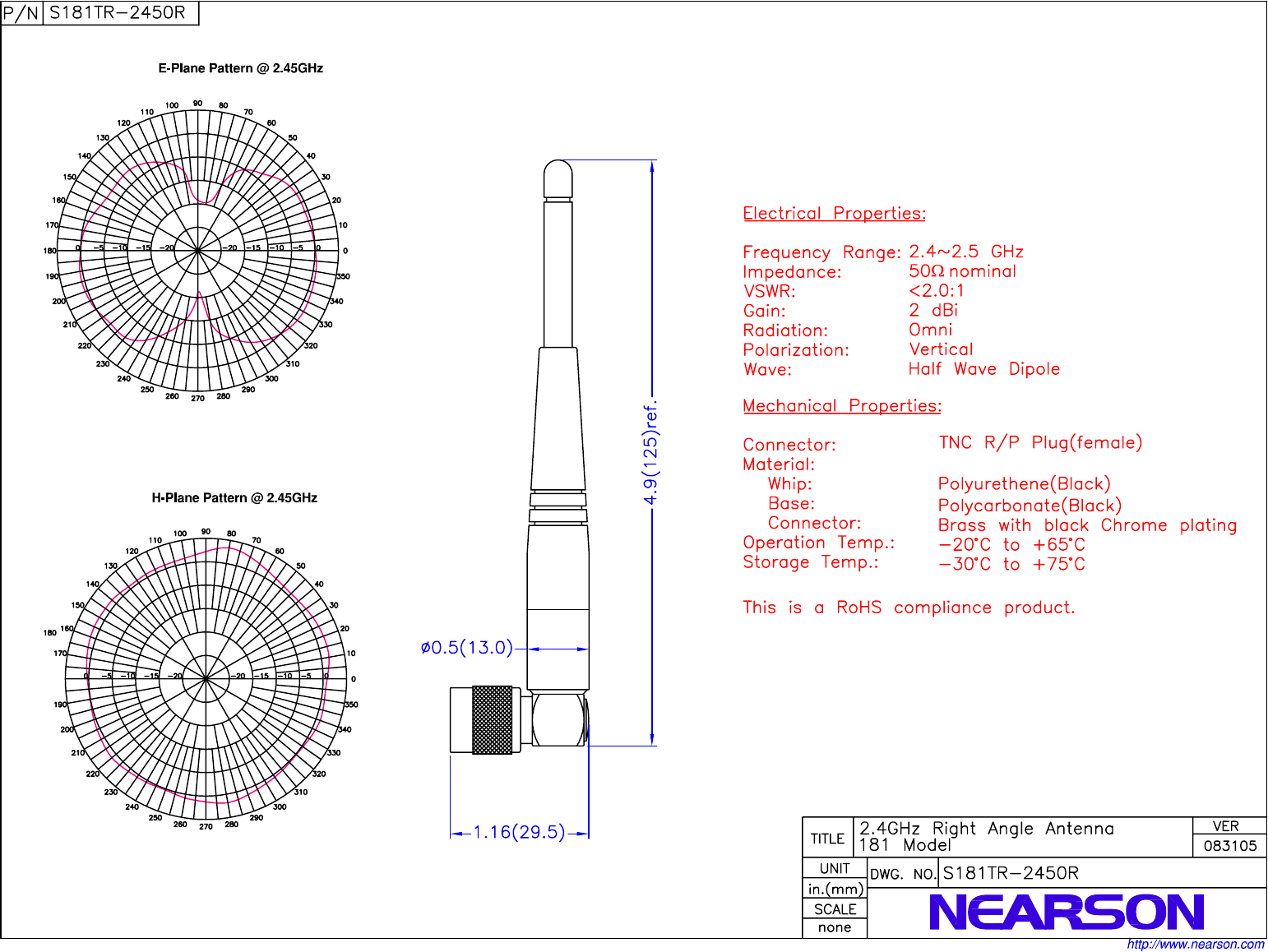

Antenna “A” (Nearson Model 181)
Antenna “B” (HME EC20)
