HM Funktechnik 70RX-S1 UHF Receiver Module User Manual 70RX S1

HM-Funktechnik GmbH UHF Receiver Module 70RX S1

User Manual

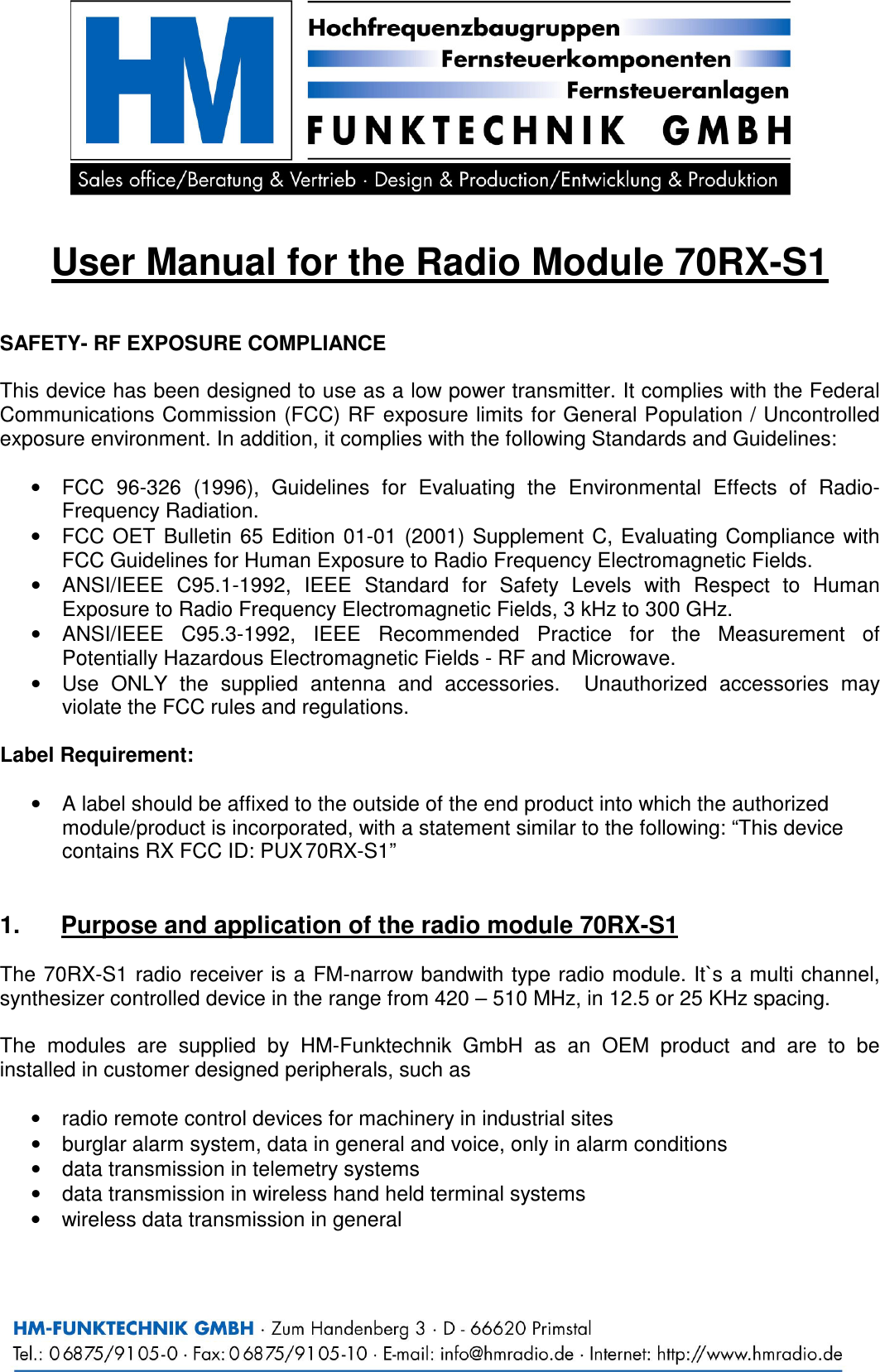

   User Manual for the Radio Module 70RX-S1   SAFETY- RF EXPOSURE COMPLIANCE   This device has been designed to use as a low power transmitter. It complies with the Federal Communications Commission (FCC) RF exposure limits for General Population / Uncontrolled exposure environment. In addition, it complies with the following Standards and Guidelines:  •  FCC  96-326  (1996),  Guidelines  for  Evaluating  the  Environmental  Effects  of  Radio-Frequency Radiation. •  FCC OET  Bulletin  65  Edition  01-01  (2001)  Supplement C,  Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. •  ANSI/IEEE  C95.1-1992,  IEEE  Standard  for  Safety  Levels  with  Respect  to  Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. •  ANSI/IEEE  C95.3-1992,  IEEE  Recommended  Practice  for  the  Measurement  of Potentially Hazardous Electromagnetic Fields - RF and Microwave. •  Use  ONLY  the  supplied  antenna  and  accessories.    Unauthorized  accessories  may violate the FCC rules and regulations.  Label Requirement:  •  A label should be affixed to the outside of the end product into which the authorized module/product is incorporated, with a statement similar to the following: “This device contains RX FCC ID: PUX 70RX-S1”   1.  Purpose and application of the radio module 70RX-S1  The  70RX-S1 radio receiver is a FM-narrow bandwith type radio module. It`s a multi channel, synthesizer controlled device in the range from 420 – 510 MHz, in 12.5 or 25 KHz spacing.  The  modules  are  supplied  by  HM-Funktechnik  GmbH  as  an  OEM  product  and  are  to  be installed in customer designed peripherals, such as  •  radio remote control devices for machinery in industrial sites •  burglar alarm system, data in general and voice, only in alarm conditions •  data transmission in telemetry systems •  data transmission in wireless hand held terminal systems •  wireless data transmission in general
   2.  Dimensions and connections to peripheral devices     Module height:  12.5mm  Tolerance:         +/- 0.2 mm  The header strip is symmetrical to the modul! Dimensions in mm +/- 0.2 Sight from above (through the modul!!!) Pins with 50mil grid (1.27mm)
       3.  Port description and technical data  Mute  Mute output of the modul   Open collector output to recognize a radio carrier, mute threshold at about –116dBm for 20dB SINAD CCITT (if the signal is less than -116dBm 0.0 V, else 4.6 V), the hysteresis is 1-2dB  RSSI  Field strength indicator of the received carrier   the released DC voltage is proportional to the field strength (typ. 0.8 V DC at -120 dBm and 2.7 V DC at - 65 dBm input level)  Audio  NF output of the modul, 1 Vss (at a nominell frequency deviation of 2,5 KHz) with a DC offset of about 2 V, frequency range 0 Hz - 5 KHz (DC capable), inverted  TX/RX  not connected at this modul  Vdd  Power supply of the modul  5 – 11 V DC stabilized, minimum voltage 4.6 V (f.e. 4x 1.2 V NiCd or NiMH), absolut maximum voltage 12 V, 78x12 not recommended because of voltage variation, internal low drop voltage stabilization to 4.6V, no reverse voltage protection  MOD not connected at this modul  LD  Lock detect output of the modul   Open Collector output shows if the internal synthesizer is locked or not (3.3 V if locked, else 0.0 V)  GRD  Ground of the modul (also connected to the complete case)  D0 – D7  Frequency  setting of the modul  Output of the lowest possible frequency, if not connected. Grounding of the pins D0 - D7 will higher the frequency stepwise (D0 12.5 KHz, D1 25 KHz, D2 50 KHz,..., D7 1.6 MHz). The easiest way of an implementation is the use of a DIP-switch, which is connected with  one side to ground and the other side to DO – D7. A frequency list to find your desired frequency is available at our homepage.  Supply current  25 mA (+ / - 2mA)  Sensitivity  at least –121dBm (for 12dB SINAD measured with CCITT filter)  Data rate  max. 9600Bd  Antenna λ/4 – whip antenna (teflon), optional SMA, SMB or MCX  Frequency accuracy  + / - 1.5 KHz    Temperature stability  + / - 2.5 KHz  (- 20°C .. + 55°C)

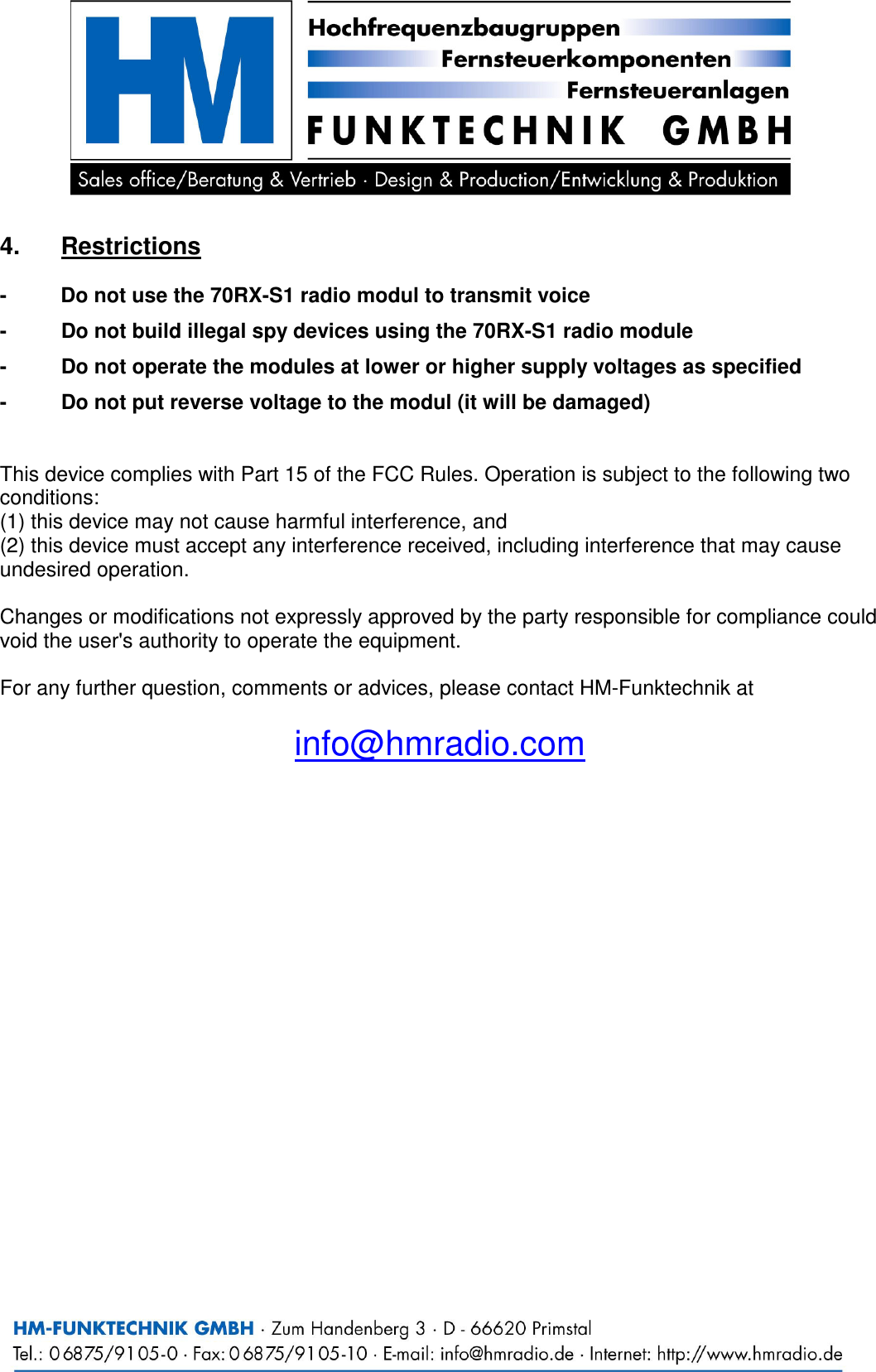

   4.  Restrictions  -  Do not use the 70RX-S1 radio modul to transmit voice  -  Do not build illegal spy devices using the 70RX-S1 radio module  -  Do not operate the modules at lower or higher supply voltages as specified  -  Do not put reverse voltage to the modul (it will be damaged)   This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  For any further question, comments or advices, please contact HM-Funktechnik at  info@hmradio.com
