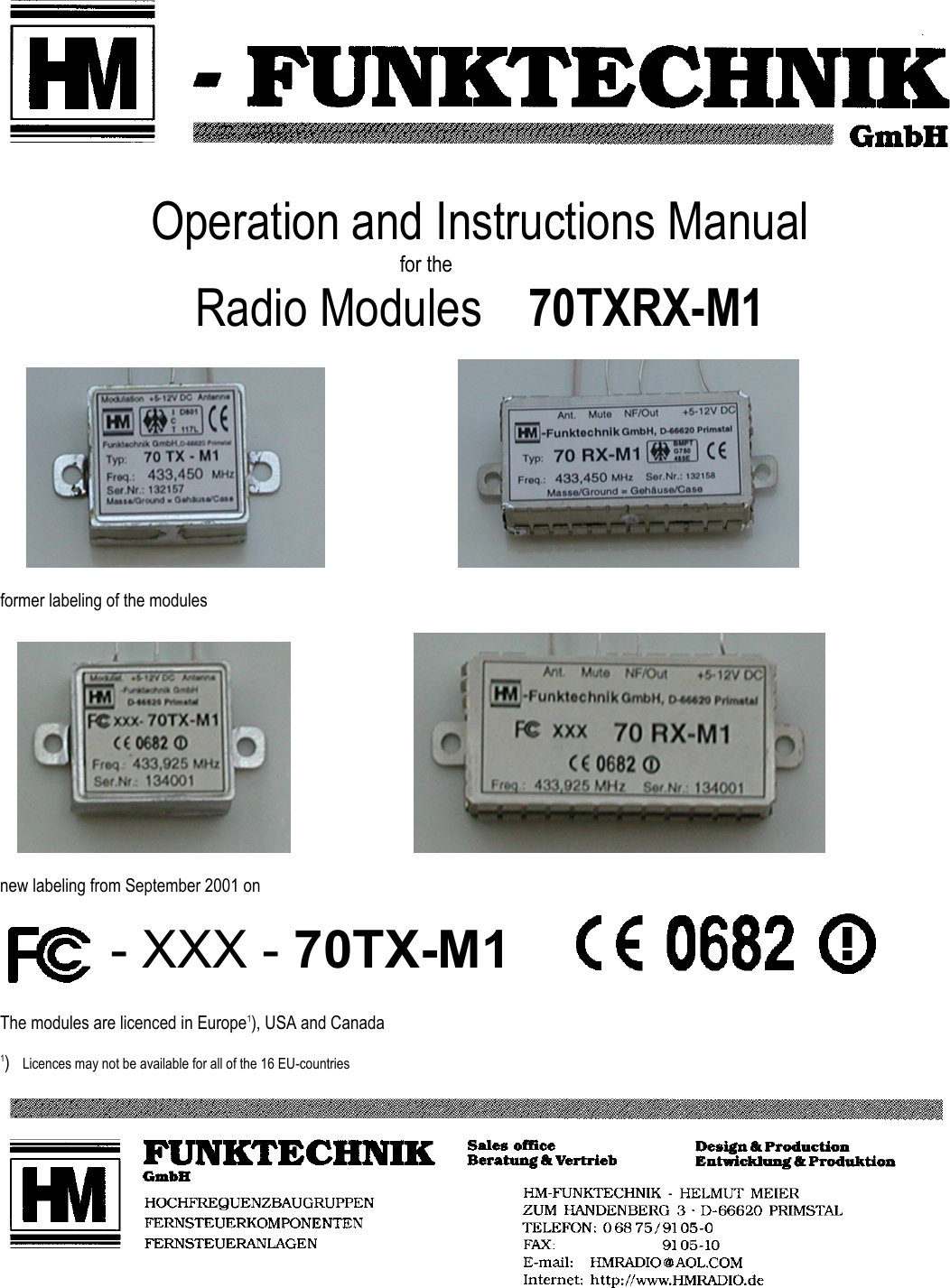

Operation and Instructions Manual for the Radio Modules 70TXRX-M1 former labeling of the modules new labeling from September 2001 on The modules are licenced in Europe1), USA and Canada 1) Licences may not be available for all of the 16 EU-countries - XXX - 70TX-M1

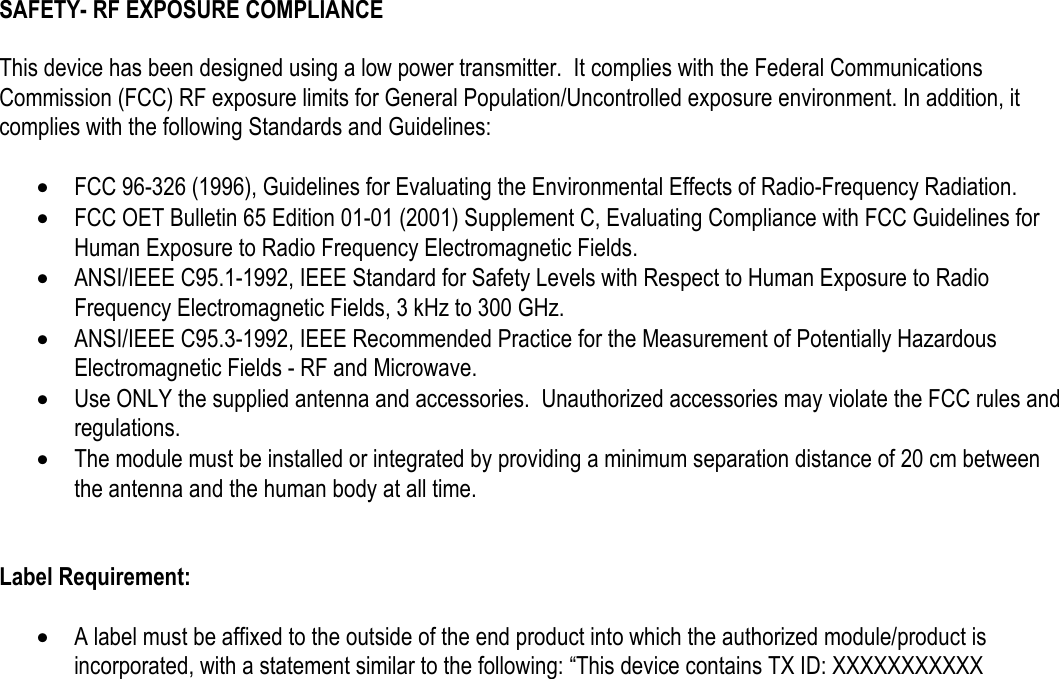

SAFETY- RF EXPOSURE COMPLIANCE This device has been designed using a low power transmitter. It complies with the Federal Communications Commission (FCC) RF exposure limits for General Population/Uncontrolled exposure environment. In addition, it complies with the following Standards and Guidelines: • FCC 96-326 (1996), Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation. • FCC OET Bulletin 65 Edition 01-01 (2001) Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave. • Use ONLY the supplied antenna and accessories. Unauthorized accessories may violate the FCC rules and regulations. • The module must be installed or integrated by providing a minimum separation distance of 20 cm between the antenna and the human body at all time. Label Requirement: • A label must be affixed to the outside of the end product into which the authorized module/product is incorporated, with a statement similar to the following: “This device contains TX ID: XXXXXXXXXXX

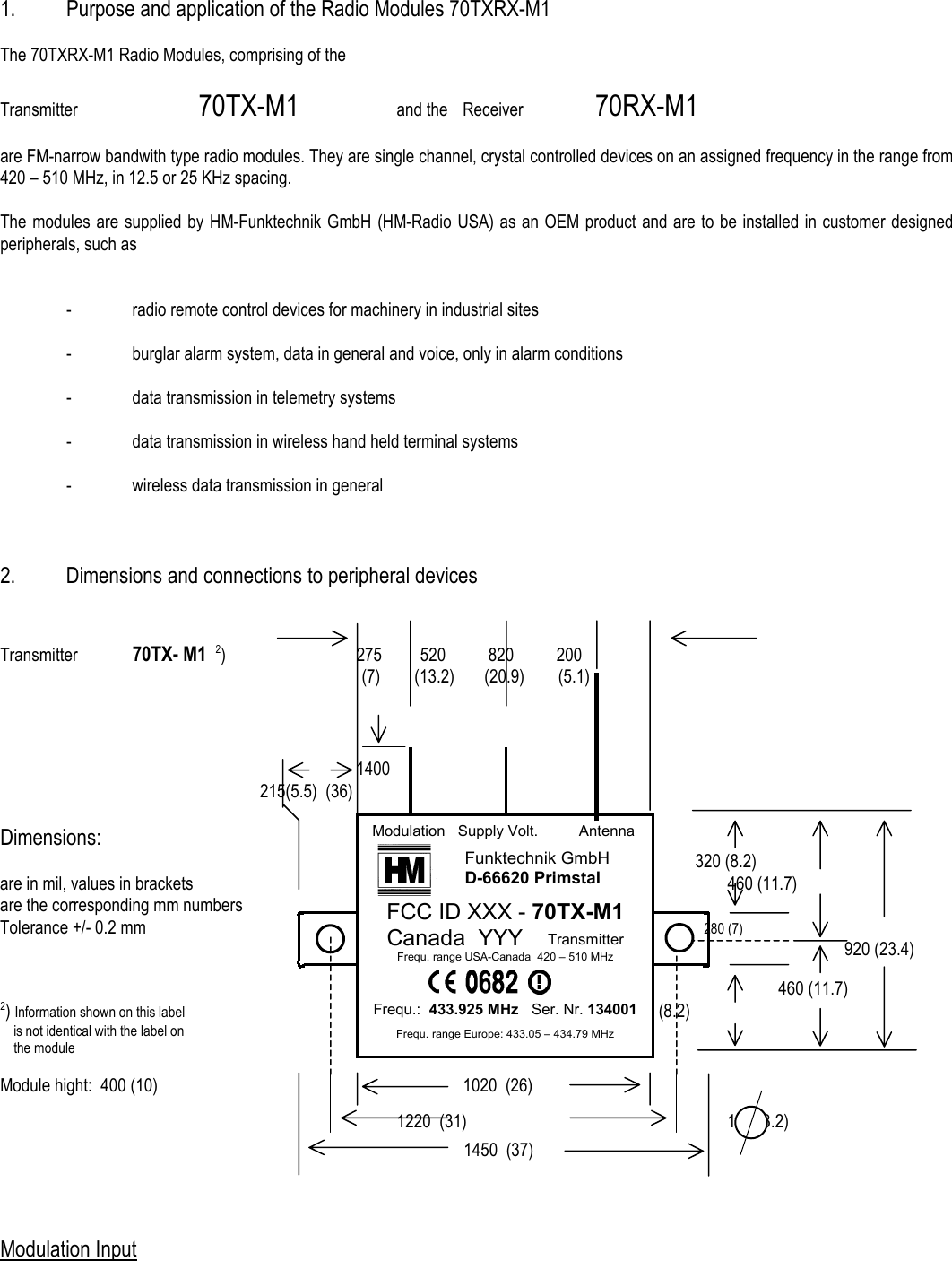

1. Purpose and application of the Radio Modules 70TXRX-M1 The 70TXRX-M1 Radio Modules, comprising of the Transmitter 70TX-M1 and the Receiver 70RX-M1 are FM-narrow bandwith type radio modules. They are single channel, crystal controlled devices on an assigned frequency in the range from 420 – 510 MHz, in 12.5 or 25 KHz spacing. The modules are supplied by HM-Funktechnik GmbH (HM-Radio USA) as an OEM product and are to be installed in customer designed peripherals, such as - radio remote control devices for machinery in industrial sites - burglar alarm system, data in general and voice, only in alarm conditions - data transmission in telemetry systems - data transmission in wireless hand held terminal systems - wireless data transmission in general 2. Dimensions and connections to peripheral devices Transmitter 70TX- M1 2) 275 520 820 200 (7) (13.2) (20.9) (5.1) 1400 215(5.5) (36) Dimensions: 320 (8.2) are in mil, values in brackets 460 (11.7) are the corresponding mm numbers Tolerance +/- 0.2 mm 280 (7) 920 (23.4) 460 (11.7) 2) Information shown on this label 320 (8.2) is not identical with the label on the module Module hight: 400 (10) 1020 (26) 1220 (31) 125 (3.2) 1450 (37) Modulation Input Modulation Supply Volt. Antenna FCC ID XXX - 70TX-M1 Canada YYY Transmitter Frequ. range USA-Canada 420 – 510 MHz Frequ.: 433.925 MHz Ser. Nr. 134001 Frequ. range Europe: 433.05 – 434.79 MHz Funktechnik GmbH D-66620 Primstal

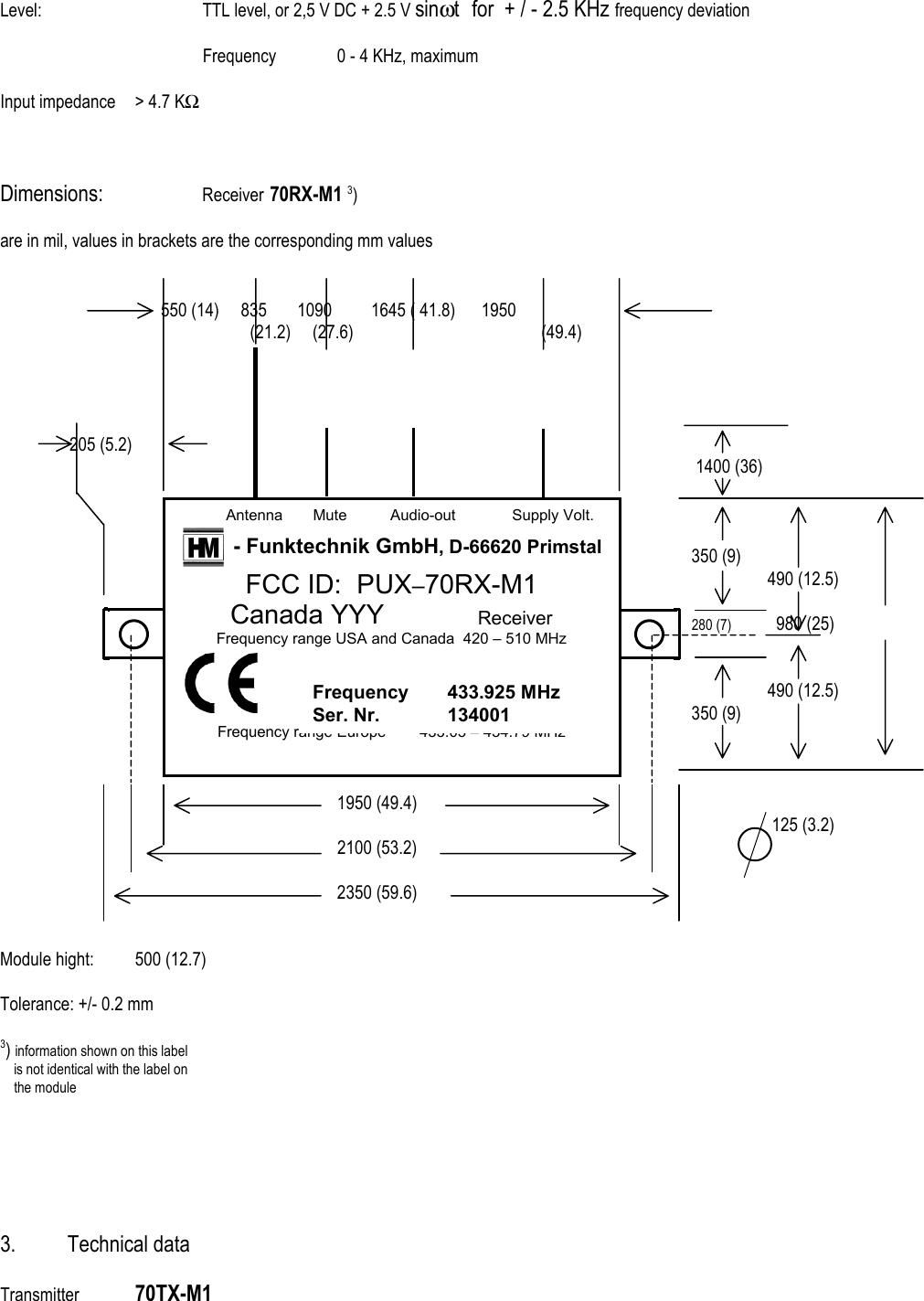

Level: TTL level, or 2,5 V DC + 2.5 V sinωt for + / - 2.5 KHz frequency deviation Frequency 0 - 4 KHz, maximum Input impedance > 4.7 KΩ Dimensions: Receiver 70RX-M1 3) are in mil, values in brackets are the corresponding mm values 550 (14) 835 1090 1645 ( 41.8) 1950 (21.2) (27.6) (49.4) 205 (5.2) 1400 (36) 350 (9) 490 (12.5) 280 (7) 980 (25) 490 (12.5) 350 (9) 1950 (49.4) 125 (3.2) 2100 (53.2) 2350 (59.6) Module hight: 500 (12.7) Tolerance: +/- 0.2 mm 3) information shown on this label is not identical with the label on the module 3. Technical data Transmitter 70TX-M1 Antenna Mute Audio-out Supply Volt. - Funktechnik GmbH, D-66620 Primstal FCC ID: PUX–70RX-M1 Canada YYY Receiver Frequency range USA and Canada 420 – 510 MHz Frequency range Europe 433.05 – 434.79 MHz Frequency 433.925 MHz Ser. Nr. 134001

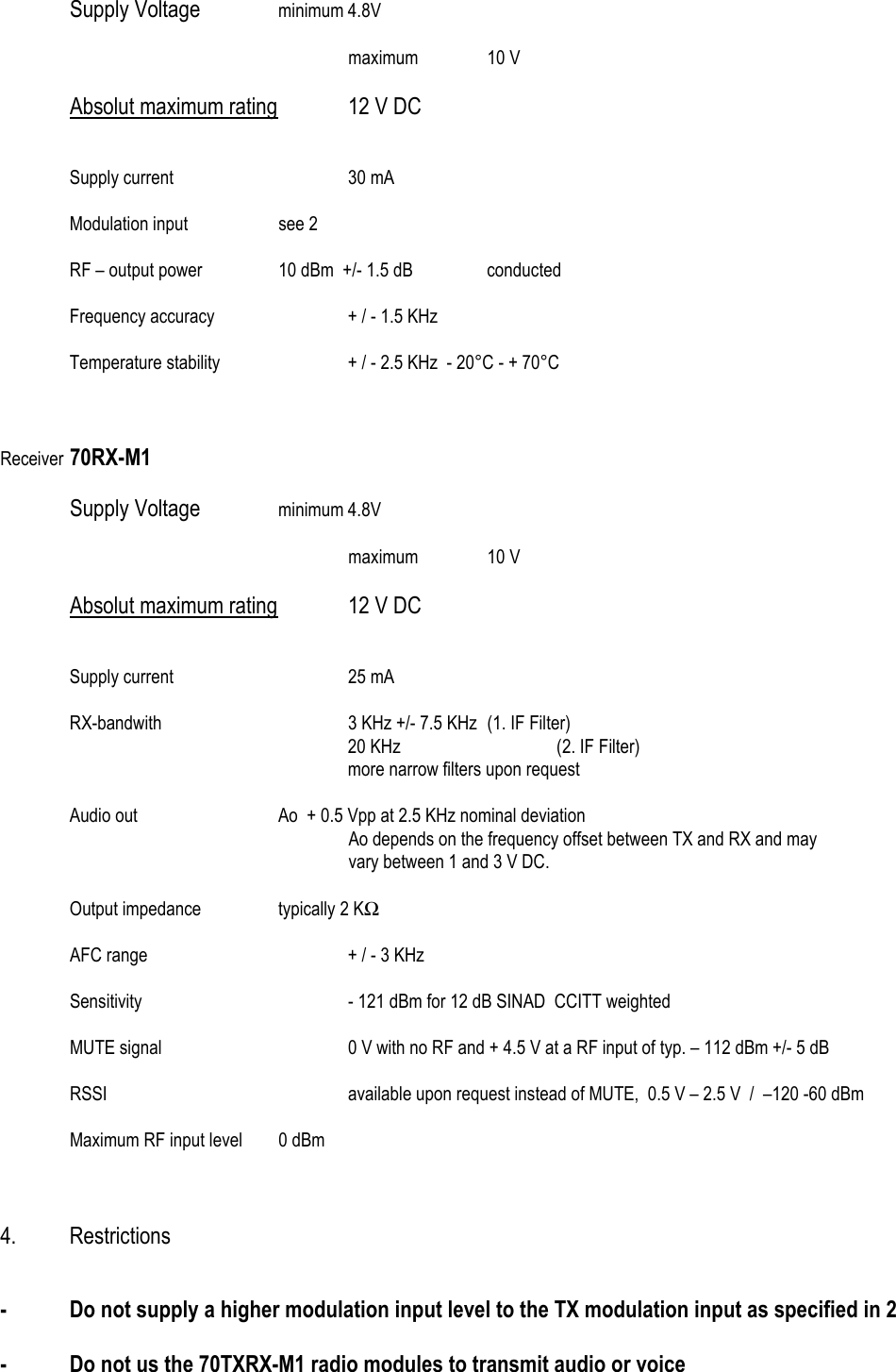

Supply Voltage minimum 4.8V maximum 10 V Absolut maximum rating 12 V DC Supply current 30 mA Modulation input see 2 RF – output power 10 dBm +/- 1.5 dB conducted Frequency accuracy + / - 1.5 KHz Temperature stability + / - 2.5 KHz - 20°C - + 70°C Receiver 70RX-M1 Supply Voltage minimum 4.8V maximum 10 V Absolut maximum rating 12 V DC Supply current 25 mA RX-bandwith 3 KHz +/- 7.5 KHz (1. IF Filter) 20 KHz (2. IF Filter) more narrow filters upon request Audio out Ao + 0.5 Vpp at 2.5 KHz nominal deviation Ao depends on the frequency offset between TX and RX and may vary between 1 and 3 V DC. Output impedance typically 2 KΩ AFC range + / - 3 KHz Sensitivity - 121 dBm for 12 dB SINAD CCITT weighted MUTE signal 0 V with no RF and + 4.5 V at a RF input of typ. – 112 dBm +/- 5 dB RSSI available upon request instead of MUTE, 0.5 V – 2.5 V / –120 -60 dBm Maximum RF input level 0 dBm 4. Restrictions - Do not supply a higher modulation input level to the TX modulation input as specified in 2 - Do not us the 70TXRX-M1 radio modules to transmit audio or voice

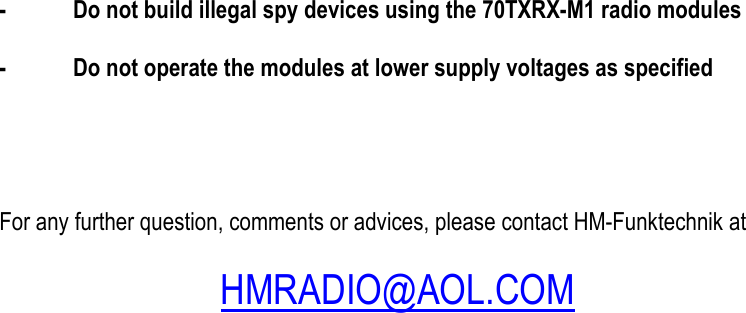

- Do not build illegal spy devices using the 70TXRX-M1 radio modules - Do not operate the modules at lower supply voltages as specified For any further question, comments or advices, please contact HM-Funktechnik at HMRADIO@AOL.COM
