HOLYBRO HG-C05 Pixhawk 4 GPS module User Manual

HOLYBRO(H.K.) LIMITED Pixhawk 4 GPS module User Manual

User_Manual

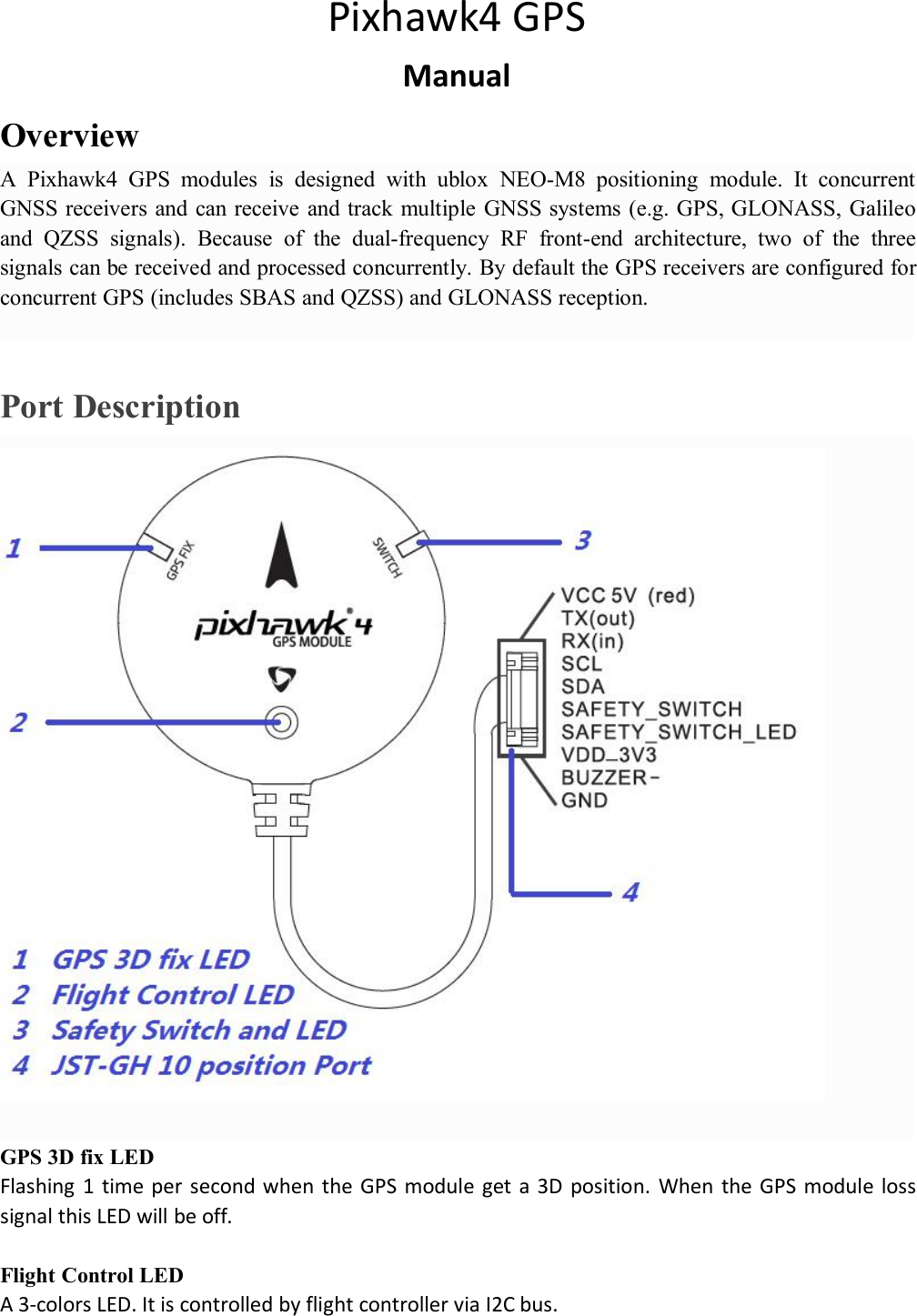

Pixhawk4 GPSManualOverviewA Pixhawk4 GPS modules is designed with ublox NEO-M8 positioning module. It concurrentGNSS receivers and can receive and track multiple GNSS systems (e.g. GPS, GLONASS, Galileoand QZSS signals). Because of the dual-frequency RF front-end architecture, two of the threesignals can be received and processed concurrently. By default the GPS receivers are configured forconcurrent GPS (includes SBAS and QZSS) and GLONASS reception.Port DescriptionGPS 3D fix LEDFlashing 1 time per second when the GPS module get a 3D position. When the GPS module losssignal this LED will be off.Flight Control LEDA 3-colors LED. It is controlled by flight controller via I2C bus.
Safety Switch and LEDDirectly connect to flight controller. Push down the safety switch until the LED on before flying.JST-GH 10 position portConnect to GPS module port of flight controller.GPS + Compass + Buzzer + Safety Switch + LEDAttach the provided GPS with integrated compass, safety switch, buzzer and LED to the GPSMODULEport.The GPS/Compass should be mounted on the frame as far away from other electronics as possible,with the direction marker towards the front of the vehicle (separating the compass from otherelectronics will reduce interference).Note:The GPS module's integrated safety switch is enabled by default (when enabled, PX4 will not letyou arm the vehicle). To disable the safety press and hold the safety switch for 1 second. You canpress the safety switch again to enable safety and disarm the vehicle (this can be useful if, forwhatever reason, you are unable to disarm the vehicle from your remote control or groundstation).

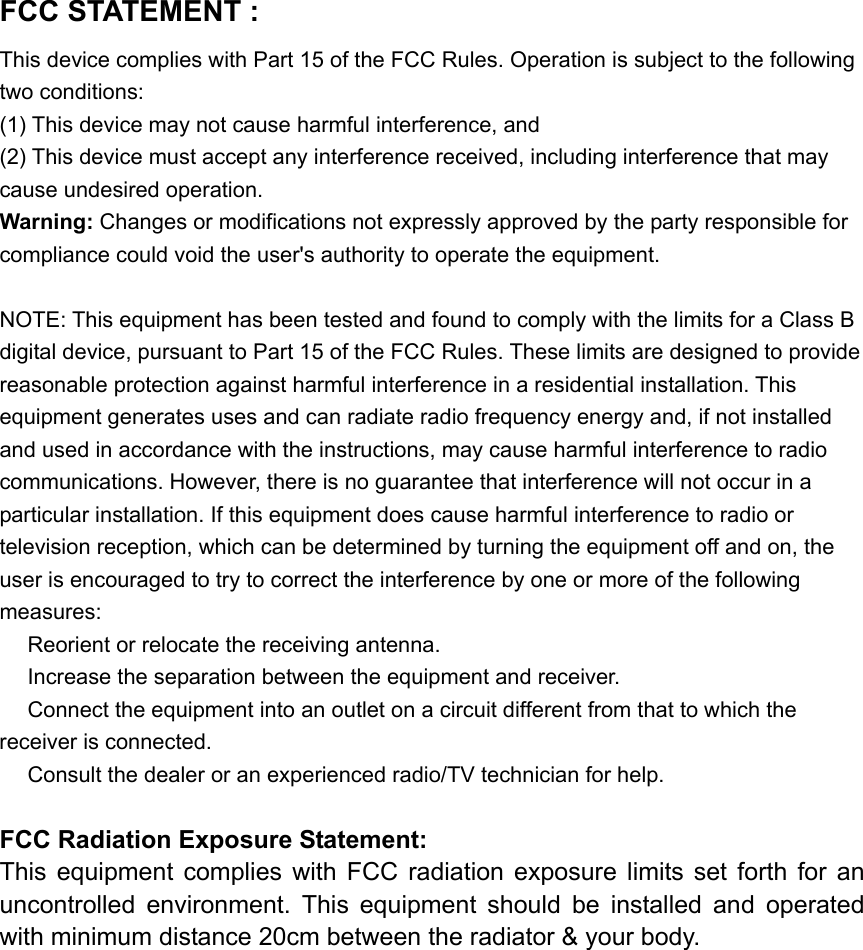

FCC STATEMENT :   This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving an tenna.  Increase the separation between the equipment and receiver.   Connect the equipment into an outlet on a circuit different from that to which the  receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.   FCC Radiation Exposure Statement: This  equipment  complies  with  FCC  radiation  exposure  limits  set  forth  for  an uncontrolled  environment.  This  equipment  should  be  installed  and  operated with minimum distance 20cm between the radiator & your body.
