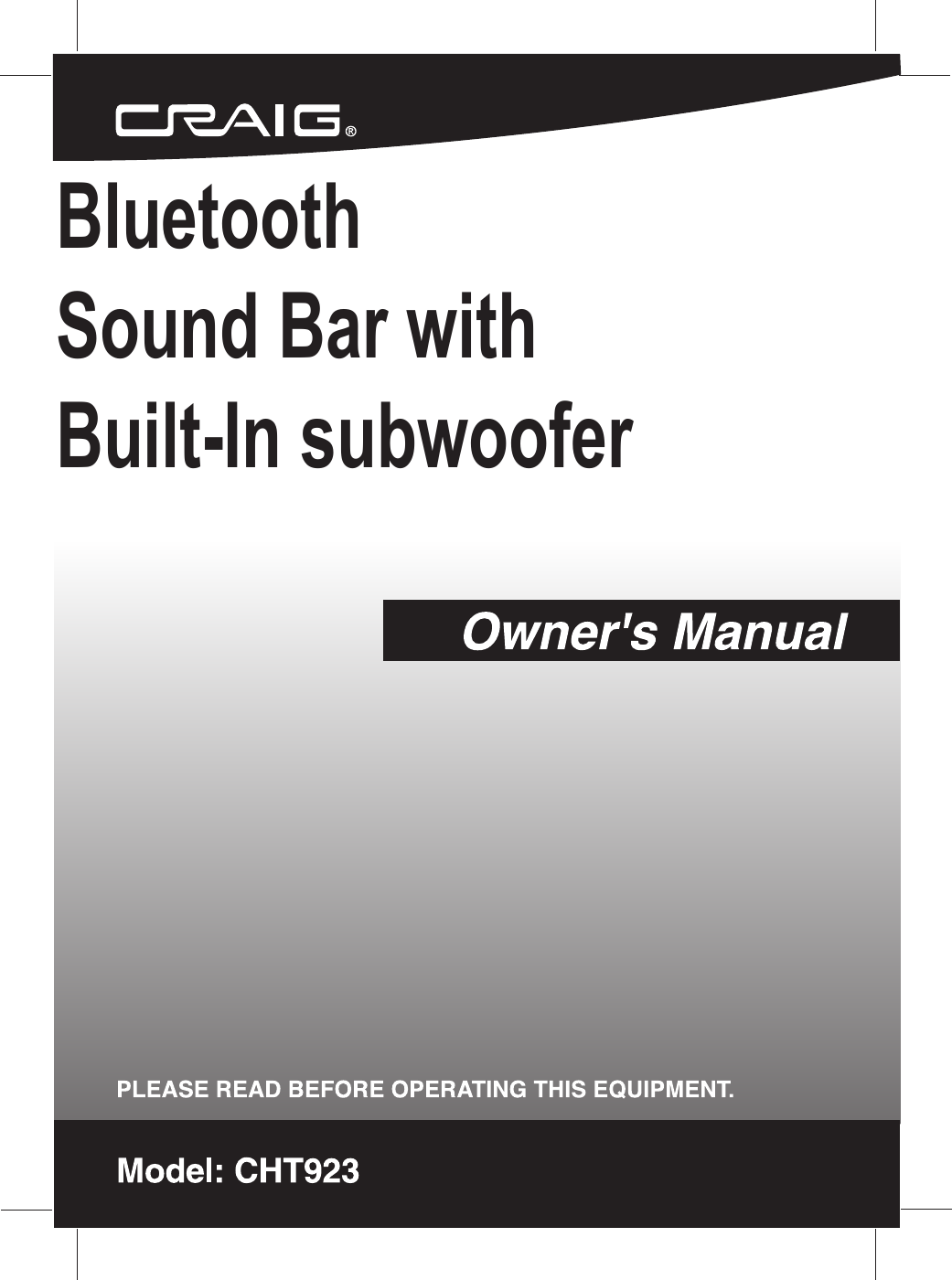

HOMECARE TECHNOLOGY HOMECARE Bluetooth Sound Bar with Built-In subwoofer User Manual manual

SHENZHEN HOMECARE TECHNOLOGY CO.,LTD Bluetooth Sound Bar with Built-In subwoofer manual

User Manual

Bluetooth Sound Bar with Built-In subwoofer

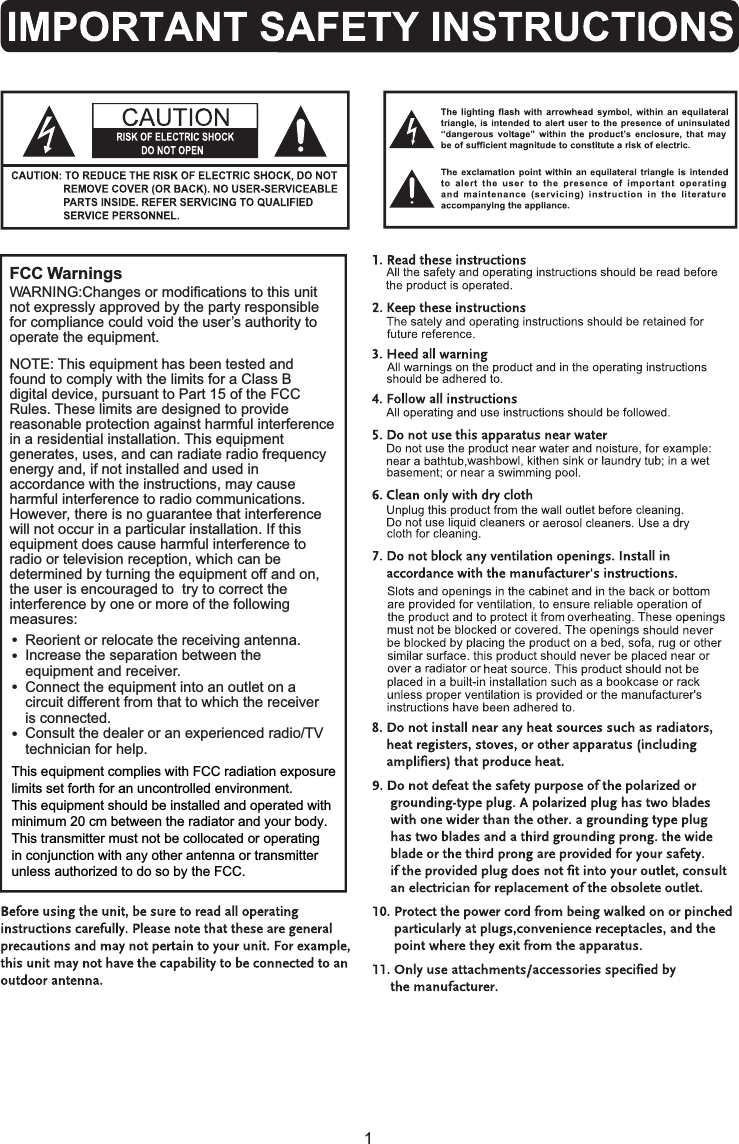

WARNING:Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCCRules. These limits are designed to provide reasonable protection against harmful interferencein a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures: •Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help. •••FCC WarningsThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.

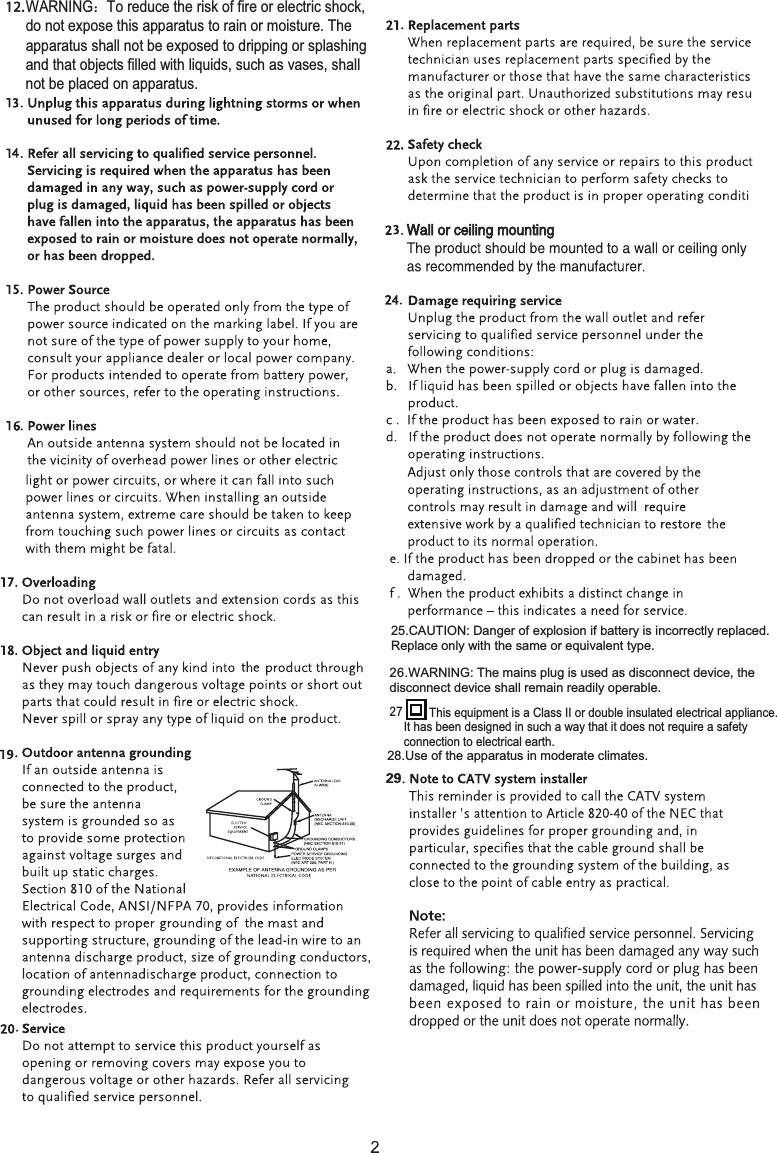

WARNING˖To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus. 25.CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. 26.WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable. 27 This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.28.Use of the apparatus in moderate climates.

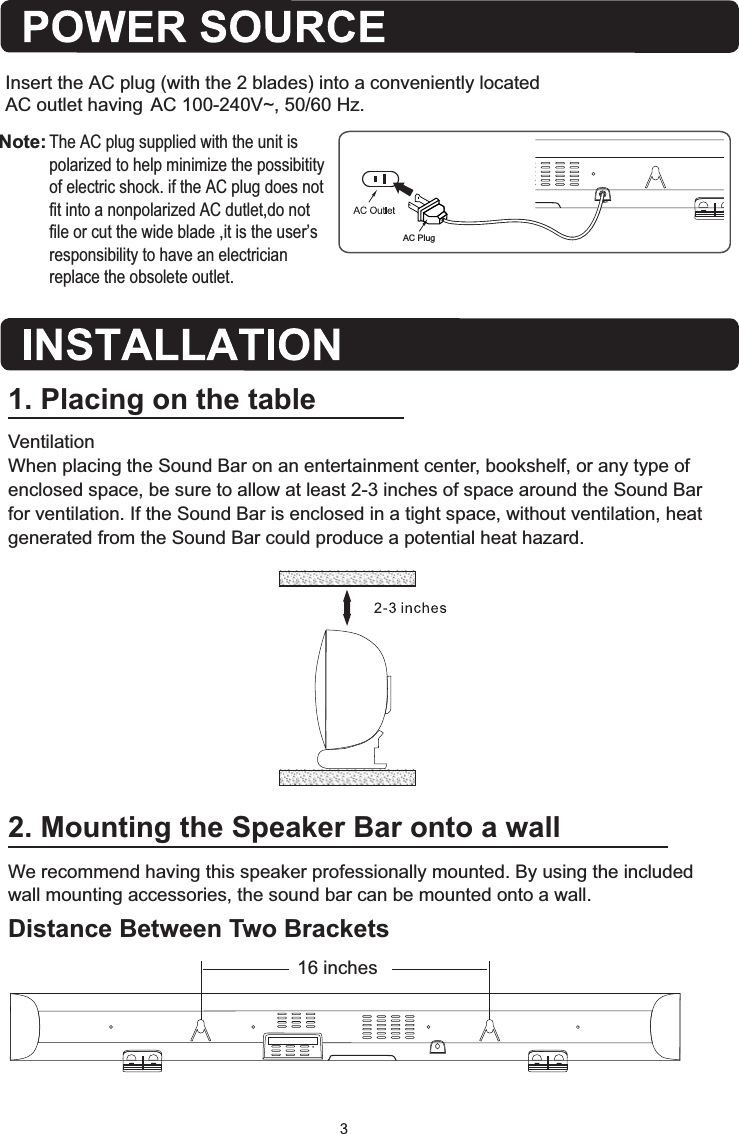

Insert the AC plug (with the 2 blades) into a conveniently located AC outlet having AC 100-240V~, 50/60 Hz. 2. Mounting the Speaker Bar onto a wallWe recommend having this speaker professionally mounted. By using the included wall mounting accessories, the sound bar can be mounted onto a wall.Distance Between Two Brackets1. Placing on the tableVentilationWhen placing the Sound Bar on an entertainment center, bookshelf, or any type of enclosed space, be sure to allow at least 2-3 inches of space around the Sound Bar for ventilation. If the Sound Bar is enclosed in a tight space, without ventilation, heat generated from the Sound Bar could produce a potential heat hazard. 16 inchesAC PlugAC~Note: The AC plug supplied with the unit is polarized to help minimize the possibitity of electric shock. if the AC plug does not fit into a nonpolarized AC dutlet,do not file or cut the wide blade ,it is the user’s responsibility to have an electrician replace the obsolete outlet.

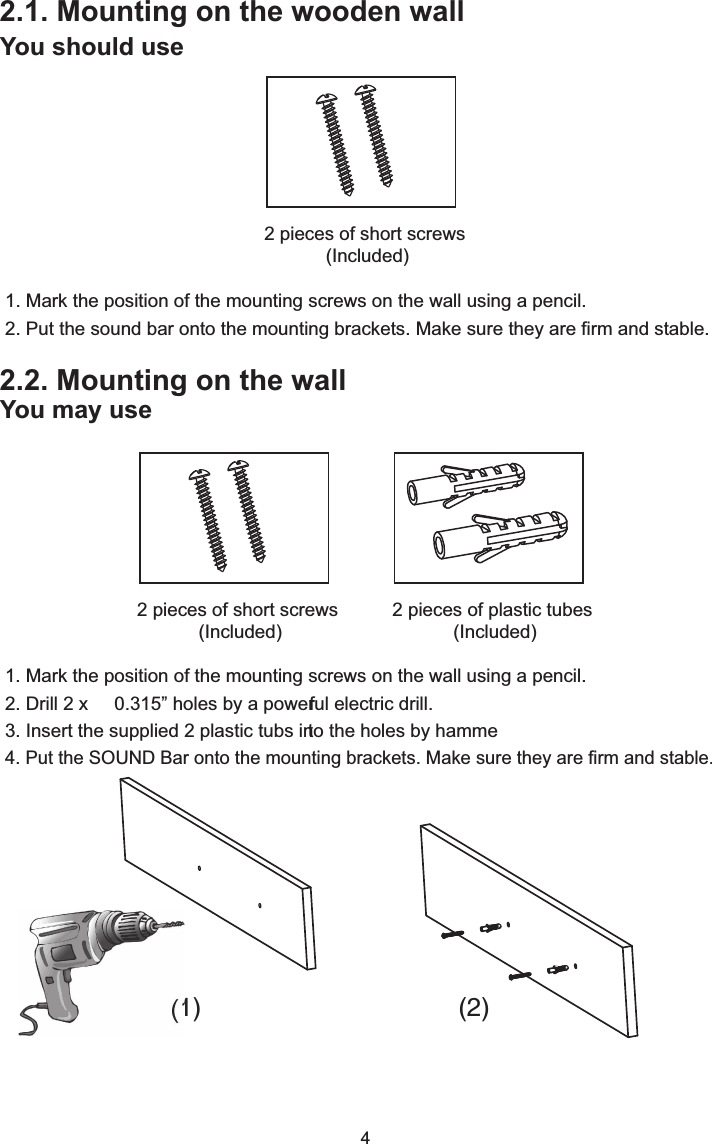

2.1. Mounting on the wooden wallYou should use1. Mark the position of the mounting screws on the wall using a pencil.2. Put the sound bar onto the mounting brackets. Make sure they are firm and stable.4You may use2.2. Mounting on the wall2 pieces of plastic tubes (Included)2 pieces of short screws (Included)2 pieces of short screws (Included)1. Mark the position of the mounting screws on the wall using a pencil.2. Drill 2 x 0.315” holes by a powerful electric drill. 3. Insert the supplied 2 plastic tubs into the holes by hamme4. Put the SOUND Bar onto the mounting brackets. Make sure they are firm and stable.(1) (2)

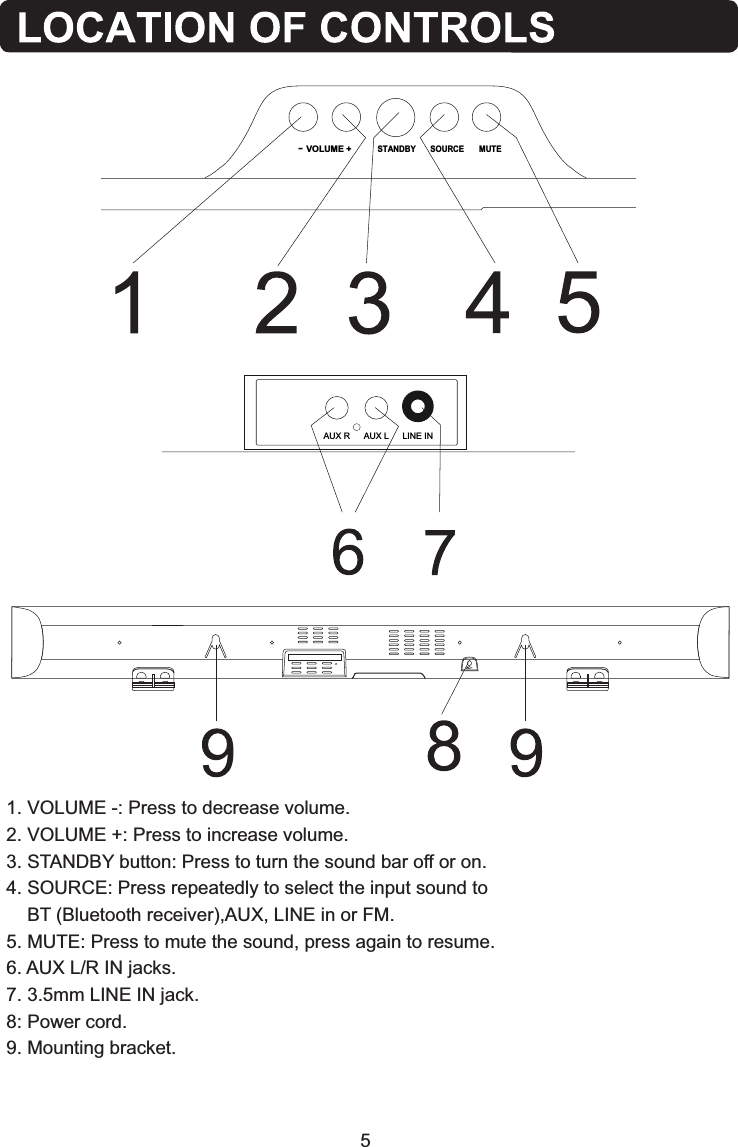

5- VOLUME +STANDBY SOURCE MUTEAC~AUX R AUX L LINE IN1. VOLUME -: Press to decrease volume.2. VOLUME +: Press to increase volume.3. STANDBY button: Press to turn the sound bar off or on.4. SOURCE: Press repeatedly to select the input sound to BT (Bluetooth receiver),AUX, LINE in or FM. 5. MUTE: Press to mute the sound, press again to resume.6. AUX L/R IN jacks.7. 3.5mm LINE IN jack.8: Power cord. 9. Mounting bracket.

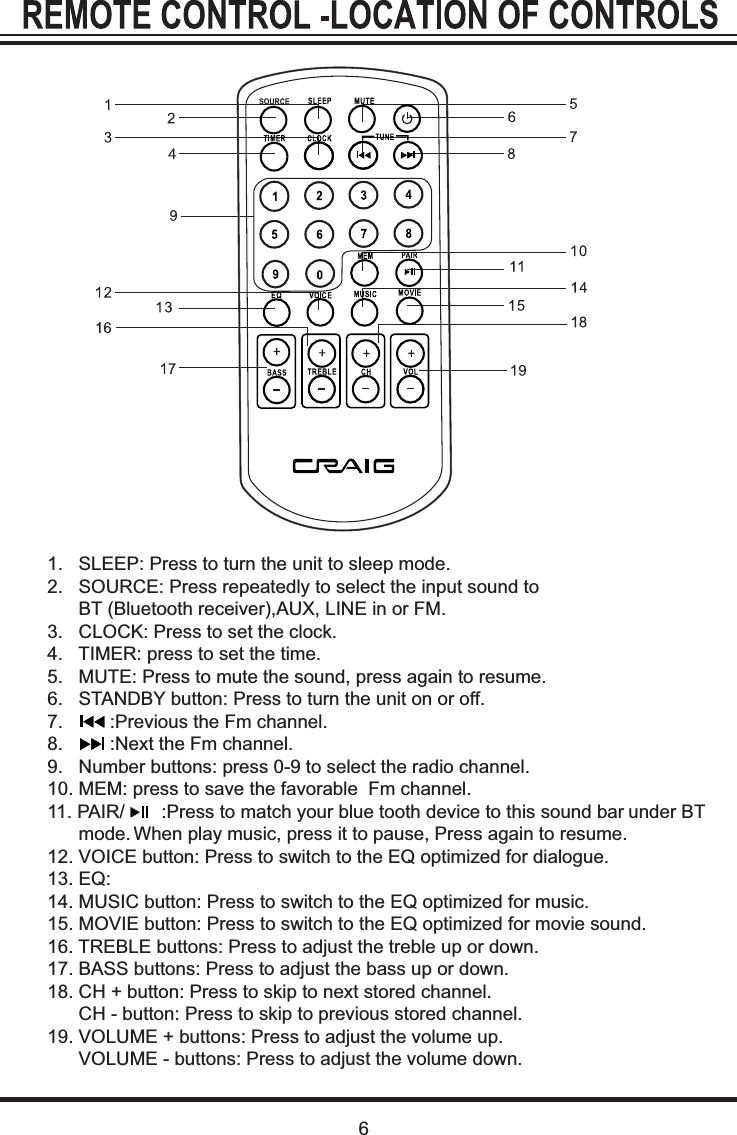

61. SLEEP: Press to turn the unit to sleep mode.2. SOURCE: Press repeatedly to select the input sound to BT (Bluetooth receiver),AUX, LINE in or FM.3. CLOCK: Press to set the clock.4. TIMER: press to set the time. 5. MUTE: Press to mute the sound, press again to resume.6. STANDBY button: Press to turn the unit on or off.7. :Previous the Fm channel.8. :Next the Fm channel.9. Number buttons: press 0-9 to select the radio channel.10. MEM: press to save the favorable Fm channel.11. PAIR/ :Press to match your blue tooth device to this sound bar under BT mode. When play music, press it to pause, Press again to resume.12. VOICE button: Press to switch to the EQ optimized for dialogue.13. EQ:14. MUSIC button: Press to switch to the EQ optimized for music.15. MOVIE button: Press to switch to the EQ optimized for movie sound.16. TREBLE buttons: Press to adjust the treble up or down.17. BASS buttons: Press to adjust the bass up or down.18. CH + button: Press to skip to next stored channel. CH - button: Press to skip to previous stored channel.19. VOLUME + buttons: Press to adjust the volume up. VOLUME - buttons: Press to adjust the volume down.

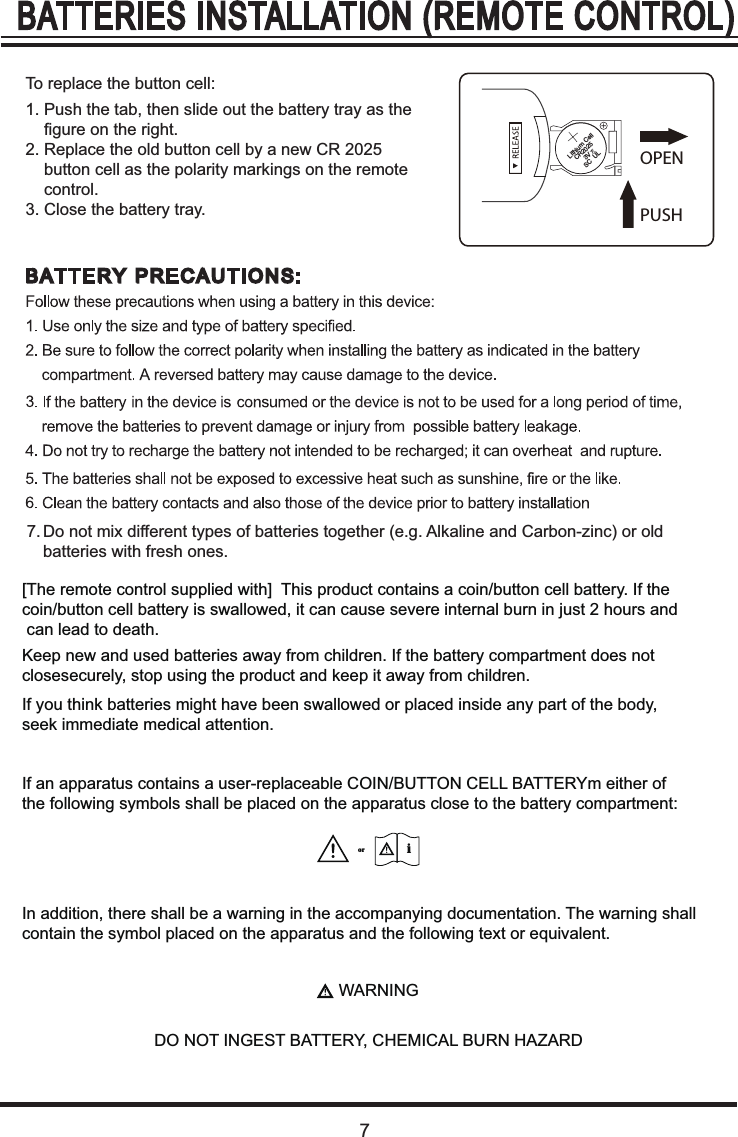

71. Push the tab, then slide out the battery tray as the figure on the right.2. Replace the old button cell by a new CR 2025 button cell as the polarity markings on the remote control.3. Close the battery tray.To replace the button cell:7. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.PUSHOPEN[The remote control supplied with] This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burn in just 2 hours and can lead to death.Keep new and used batteries away from children. If the battery compartment does not closesecurely, stop using the product and keep it away from children.If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.If an apparatus contains a user-replaceable COIN/BUTTON CELL BATTERYm either of the following symbols shall be placed on the apparatus close to the battery compartment:In addition, there shall be a warning in the accompanying documentation. The warning shallcontain the symbol placed on the apparatus and the following text or equivalent.WARNINGDO NOT INGEST BATTERY, CHEMICAL BURN HAZARDiorLithium Cell CR2025 3V SC UL

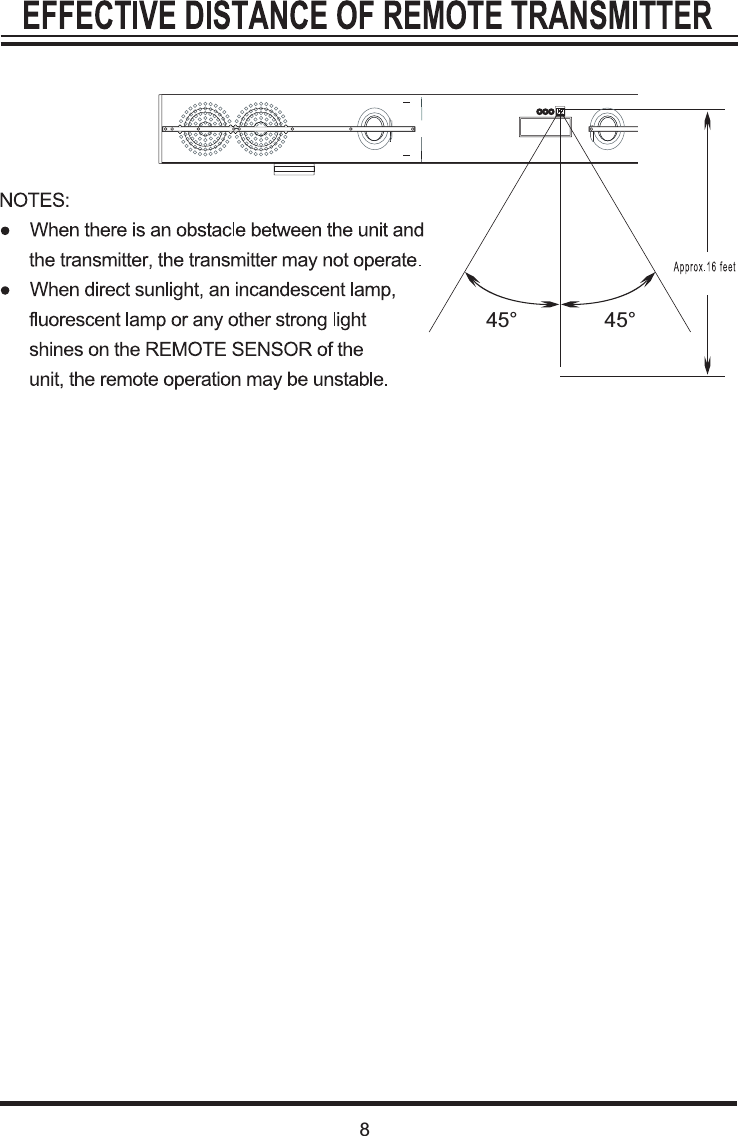

845° 45°

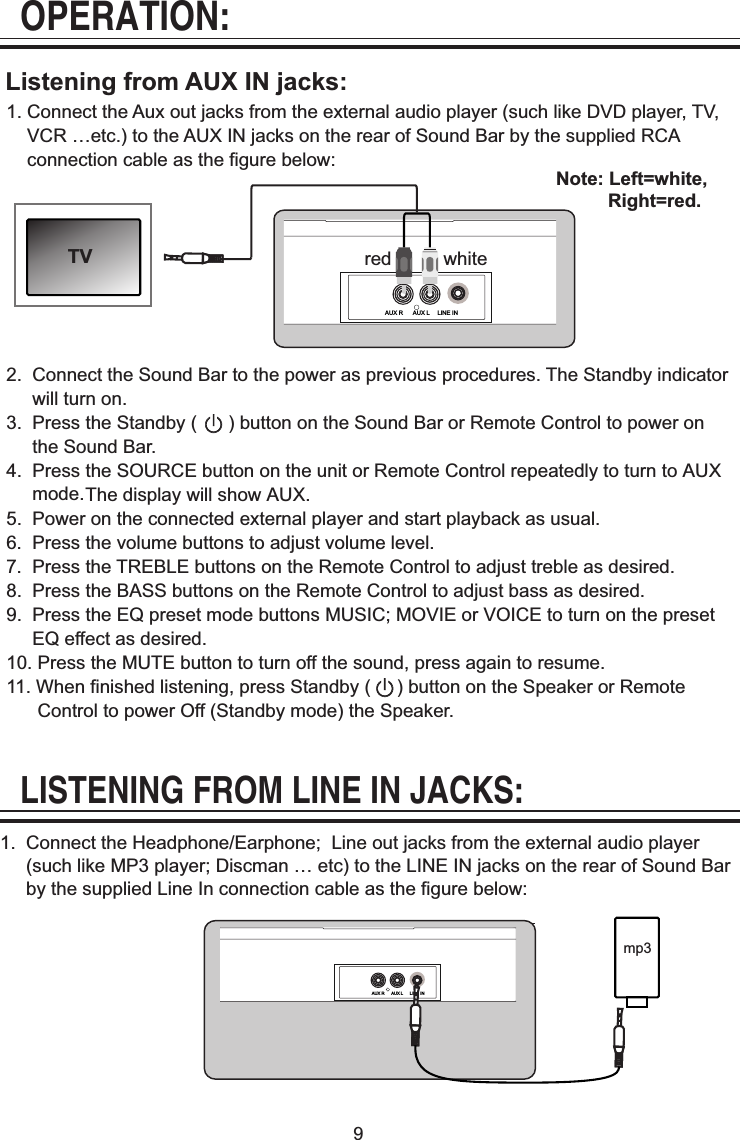

9Listening from AUX IN jacks:1. Connect the Aux out jacks from the external audio player (such like DVD player, TV, VCR …etc.) to the AUX IN jacks on the rear of Sound Bar by the supplied RCA connection cable as the figure below:2. Connect the Sound Bar to the power as previous procedures. The Standby indicator will turn on.Note: Left=white, Right=red.3. Press the Standby ( ) button on the Sound Bar or Remote Control to power on the Sound Bar.4. Press the SOURCE button on the unit or Remote Control repeatedly to turn to AUX mode. The display will show AUX.5. Power on the connected external player and start playback as usual.6. Press the volume buttons to adjust volume level.7. Press the TREBLE buttons on the Remote Control to adjust treble as desired.8. Press the BASS buttons on the Remote Control to adjust bass as desired.9. Press the EQ preset mode buttons MUSIC; MOVIE or VOICE to turn on the preset EQ effect as desired. 10. Press the MUTE button to turn off the sound, press again to resume.11. When finished listening, press Standby ( ) button on the Speaker or Remote Control to power Off (Standby mode) the Speaker.1. Connect the Headphone/Earphone; Line out jacks from the external audio player (such like MP3 player; Discman … etc) to the LINE IN jacks on the rear of Sound Bar by the supplied Line In connection cable as the figure below:LISTENING FROM LINE IN JACKS:OPERATION:AUX R AUX L LINE INAUX R AUX L LINE IN TVmp3red white

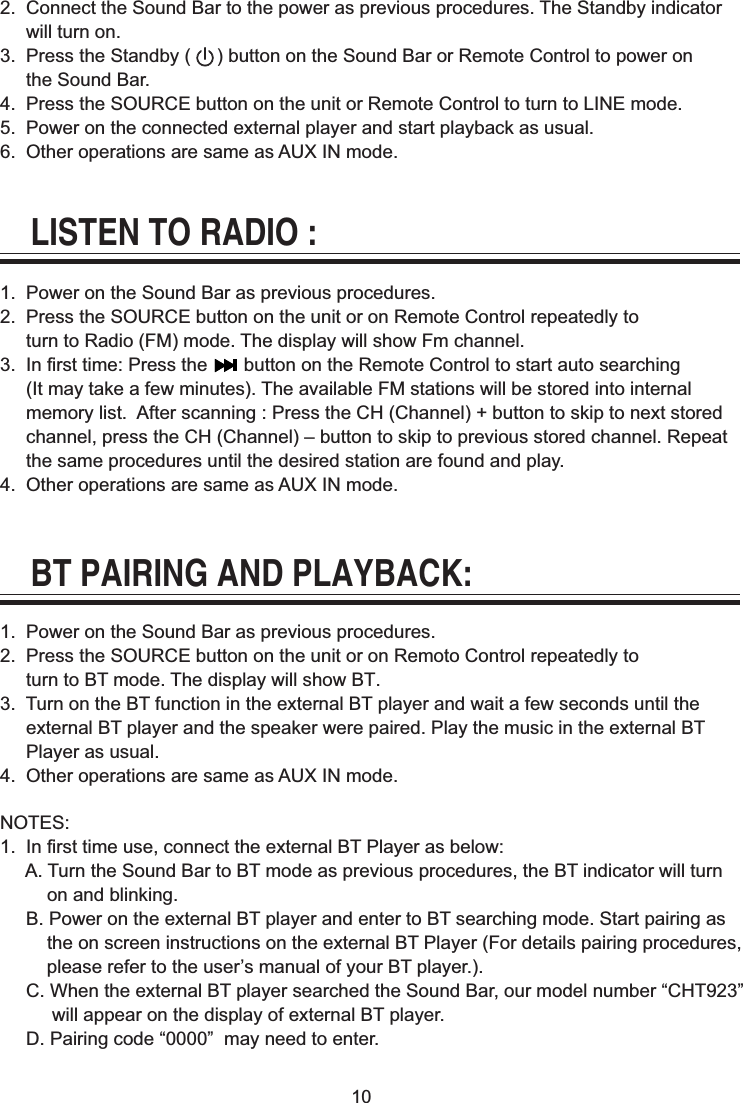

102. Connect the Sound Bar to the power as previous procedures. The Standby indicator will turn on.3. Press the Standby ( ) button on the Sound Bar or Remote Control to power on the Sound Bar.4. Press the SOURCE button on the unit or Remote Control to turn to LINE mode.5. Power on the connected external player and start playback as usual.6. Other operations are same as AUX IN mode.LISTEN TO RADIO :1. Power on the Sound Bar as previous procedures.2. Press the SOURCE button on the unit or on Remote Control repeatedly to turn to Radio (FM) mode. The display will show Fm channel.3. In first time: Press the button on the Remote Control to start auto searching (It may take a few minutes). The available FM stations will be stored into internal memory list. After scanning : Press the CH (Channel) + button to skip to next stored channel, press the CH (Channel) – button to skip to previous stored channel. Repeat the same procedures until the desired station are found and play. 4. Other operations are same as AUX IN mode.BT PAIRING AND PLAYBACK:1. Power on the Sound Bar as previous procedures.2. Press the SOURCE button on the unit or on Remoto Control repeatedly to turn to BT mode. The display will show BT.3. Turn on the BT function in the external BT player and wait a few seconds until the external BT player and the speaker were paired. Play the music in the external BT Player as usual.4. Other operations are same as AUX IN mode.NOTES:1. In first time use, connect the external BT Player as below: A. Turn the Sound Bar to BT mode as previous procedures, the BT indicator will turn on and blinking. B. Power on the external BT player and enter to BT searching mode. Start pairing as the on screen instructions on the external BT Player (For details pairing procedures, please refer to the user’s manual of your BT player.). C. When the external BT player searched the Sound Bar, our model number “CHT923” will appear on the display of external BT player. D. Pairing code “0000” may need to enter.

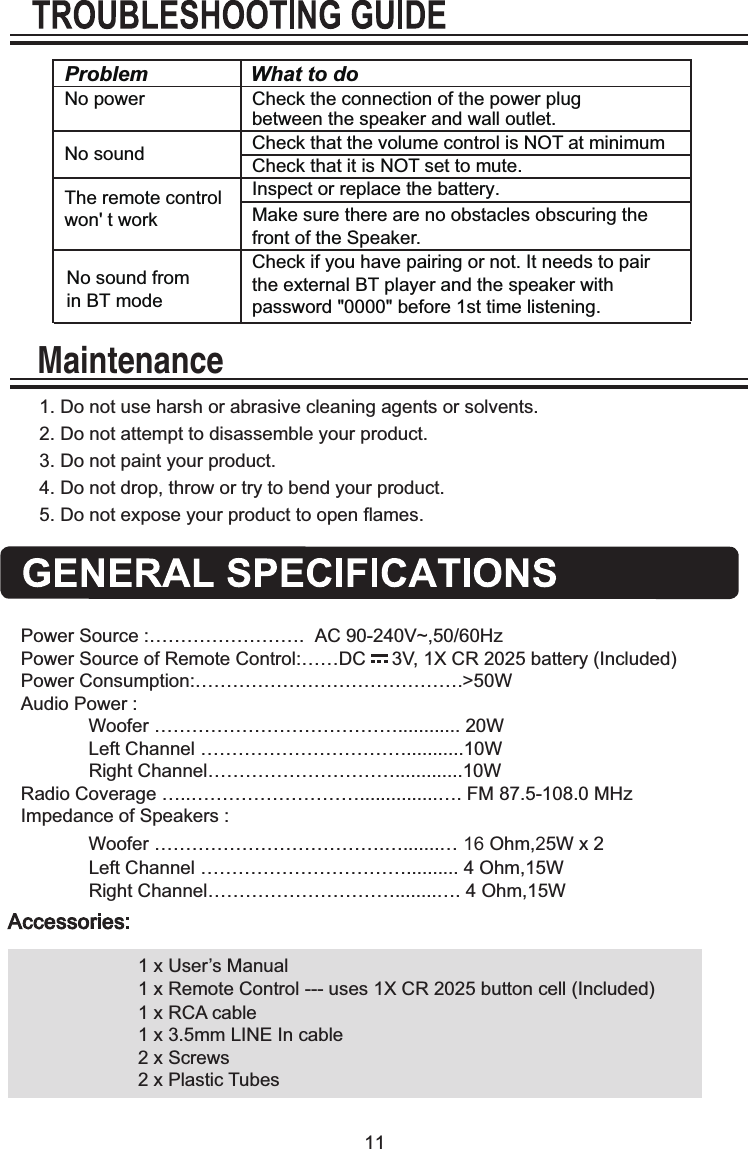

11Problem What to do No power Check the connection of the power plug between the speaker and wall outlet.Check that the volume control is NOT at minimumNo sound The remote control won' t work No sound fromin BT mode Check that it is NOT set to mute. Inspect or replace the battery.Make sure there are no obstacles obscuring the front of the Speaker. Check if you have pairing or not. It needs to pair the external BT player and the speaker with password "0000" before 1st time listening. 1. Do not use harsh or abrasive cleaning agents or solvents.2. Do not attempt to disassemble your product.3. Do not paint your product.4. Do not drop, throw or try to bend your product.5. Do not expose your product to open flames.MaintenancePower Source :……………………. AC 90-240V~,50/60HzPower Source of Remote Control:……DC 3V, 1X CR 2025 battery (Included)Power Consumption:…………………………………….>50WAudio Power : Woofer …………………………………............ 20W Left Channel ……………………………...........10W Right Channel………………………….............10WRadio Coverage …..………………………...............…. FM 87.5-108.0 MHzImpedance of Speakers : Woofer ……………………………….….......… 16 Ohm,25W x 2 Left Channel …………………………….......... 4 Ohm,15W Right Channel…………………………........…. 4 Ohm,15W 1 x User’s Manual1 x Remote Control --- uses 1X CR 2025 button cell (Included)1 x RCA cable1 x 3.5mm LINE In cable2 x Screws2 x Plastic Tubes

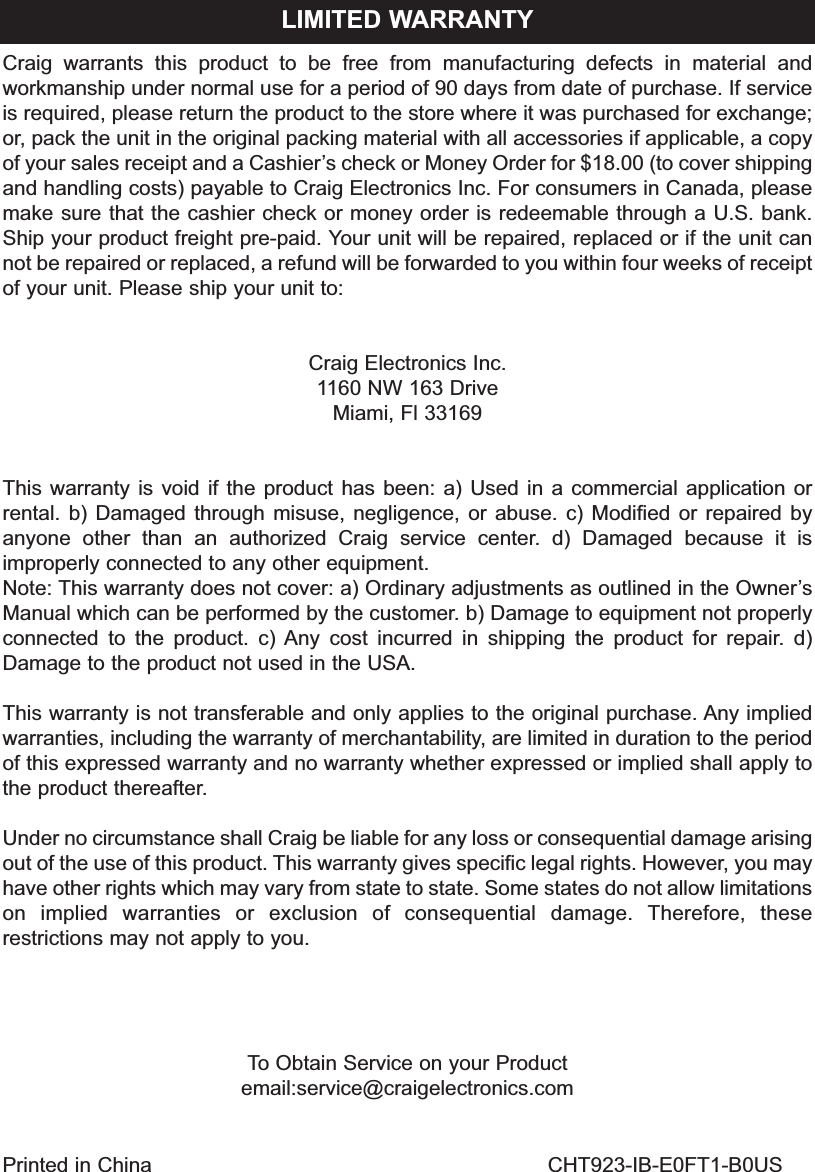

Craig warrants this product to be free from manufacturing defects in material andworkmanship under normal use for a period of 90 days from date of purchase. If serviceis required, please return the product to the store where it was purchased for exchange;or, pack the unit in the original packing material with all accessories if applicable, a copyof your sales receipt and a Cashier’s check or Money Order for $18.00 (to cover shippingand handling costs) payable to Craig Electronics Inc. For consumers in Canada, pleasemake sure that the cashier check or money order is redeemable through a U.S. bank.Ship your product freight pre-paid. Your unit will be repaired, replaced or if the unit cannot be repaired or replaced, a refund will be forwarded to you within four weeks of receiptof your unit. Please ship your unit to:Craig Electronics Inc.1160 NW 163 DriveMiami, Fl 33169This warranty is void if the product has been: a) Used in a commercial application orrental. b) Damaged through misuse, negligence, or abuse. c) Modified or repaired byanyone other than an authorized Craig service center. d) Damaged because it isimproperly connected to any other equipment.Note: This warranty does not cover: a) Ordinary adjustments as outlined in the Owner’sManual which can be performed by the customer. b) Damage to equipment not properlyconnected to the product. c) Any cost incurred in shipping the product for repair. d)Damage to the product not used in the USA.This warranty is not transferable and only applies to the original purchase. Any impliedwarranties, including the warranty of merchantability, are limited in duration to the periodof this expressed warranty and no warranty whether expressed or implied shall apply tothe product thereafter.Under no circumstance shall Craig be liable for any loss or consequential damage arisingout of the use of this product. This warranty gives specific legal rights. However, you mayhave other rights which may vary from state to state. Some states do not allow limitationson implied warranties or exclusion of consequential damage. Therefore, theserestrictions may not apply to you.To Obtain Service on your Productemail:service@craigelectronics.comLIMITED WARRANTYPrinted in China CHT923-IB-E0FT1-B0US
