Technology WLAN Module

Approval Sheet Rev. 1.0

Foxconn Part No. J20H086

Sony Part No.

Prepared by Reviewed by Approved by

J20H086

User Manual

CONTENTS

1REVISION HISTORY ........................................................................ 3

2PRODUCT OVERVIEW ........................................................................ 4

2.1APPLICATION SCOPE ........................................................................ 4

3MODULE HARDWARE OVERVIEW ................................................................ 5

3.1FEATURES ............................................................................... 5

3.2INTERFACE AND CONNECTOR ................................................................... 5

3.3PCB ASSEMBLY DIMENSION ................................................................... 7

4REGULATORY .............................................................................. 8

1 Revision History

Date Document revision Change Description

2014/05/27 1.0

Initial release

2 Product Overview

The J20H086 802.11a/b/g/n 2X2 and BT4.0+LE module provides wireless modem

functionality utilizing direct sequence spread spectrum and OFDM/CCK technology. This

module is based on MTK MT7662U solution .It fully complies with IEEE 802.11n,IEEE

802.11 a/b/g, Bluetooth v2.1+EDR,

V4.0 standard, offering feature-rich wireless connectivity at high standards, and delivering

reliable, cost-effective throughput from an extended distance. Optimized RF architecture

and baseband algorithms provide superb performance and low power consumption.

Intelligent MAC design deploys a high efficient DMA engine and hardware data processing

accelerators which offloads the host processor.

2.1 Application scope

The wireless LAN is compliant to IEEE 802.11n,IEEE 802.11 a/b/g standards.

Channel Spacing

2.4GHz -> 5MHz, 5GHz-> 20MHz (BW on 20MHz),40MHz (BW on 40MHz)

Data rate:

1, 2, 5.5, 11Mbps for 802.11b;

6, 9, 12, 18, 24, 36, 48 and 54Mbps for 802.11a/g;

MCS0(6.5Mbps)~MCS7(72.2Mbps) for 802.11n HT20 mode (single chain);

MCS0(13Mbps)~MCS15(144.4Mbps) for 802.11n HT20 mode (dual chains);

MCS0(13Mbps)~MCS7(150Mbps) for 802.11n HT40 (5G only) mode (single chain);

MCS0(26Mbps)~MCS15(300Mbps) for 802.11n HT40 (5G only) mode (dual chains);

BT:

The BT Module is compliant to Bluetooth 4.0 and EDR standard:

Carrier Frequency: 2402MHz ~ 2480 MHz

Carrier Spacing: 1.0MHz (classic), 2MHz (LE)

Duplexing: TDD

Modulation: FHSS

1Mbps (GFSK), 2Mbps (π/4-DQPSK), 3Mbps (8DPSK),LE (GFSK)

3 Module Hardware Overview

3.1 Features

♦ IEEE802.11a/b/g/n/ac (2X2) based on MTK MT7662U solution.

♦ Support BT4.0+LE

♦ USB 2.0 Interface, High and Full Speeds supported.

♦ Module is powered by the host with a 3.3V +/- 5% supply.

♦ External PCB printed antennas.

♦ 4 layers through hole PCB design with FR4 material

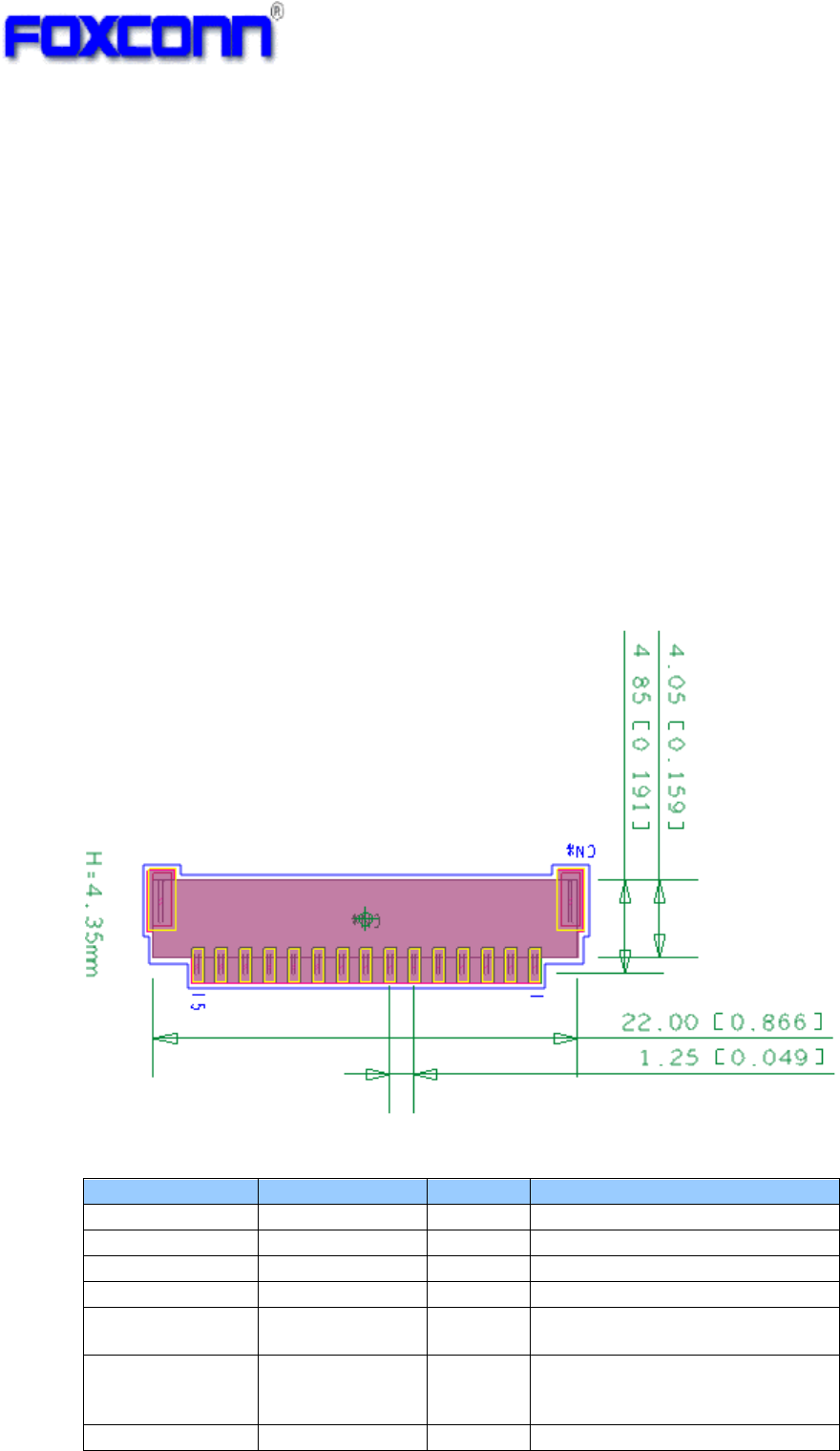

3.2 Interface and Connector

♦ Pin definition:

♦ Vendor: JST

♦ Vendor P/N: SM15B-GHS-TB

Pin Number Symbol Name Status Pin definition

1 UART_RX Input UART_RX for BT

2 UART_TX Output UART_TX for BT

3 GND - Ground

4 RST_L Input “L”-drive reset signal input from Host.

5 WOW_H Output Wake on WLAN signal output.

“H”-drive is hoped when awake Host.

WOBT_H Output Wake on Bluetooth signal output.

“H”-drive is hoped when awake Host.

(old: Host_wake)

7 GND - Ground

8 DM I/O USB_DATA-

9 DP I/O USB_DATA+

10 GND - Shield Ground

11 VSYNC Input 3D Video sync Signal

12 GND - Ground

13 GND - Ground

14 VCC PWR DC 3.3V

15 VCC PWR DC 3.3V

S1 Ground

S2 Ground

3.3 PCB Assembly Dimension

Dimension (W x Lx H ): 80mmx25mmx1.0mm

PCB: 4 layer FR4 design

4 Regulatory

Industry Canada statement:

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause

undesired operation.

Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux

appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions

suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce

dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de

provoquer un fonctionnement indésirable.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance

20cm between the radiator & your body.

Déclaration d'exposition aux radiations:

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour

un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un

minimum de 20 cm de distance entre la source de rayonnement et votre corps.

This device is intended only for OEM integrators under the following conditions:

(For module device use)

1) The antenna must be installed such that 20 cm is maintained between the antenna and

users, and

2) The transmitter module may not be co-located with any other transmitter or antenna.

As long as 2 conditions above are met, further transmitter test will not be required.

However, the OEM integrator is still responsible for testing their end-product for any

additional compliance requirements required with this module installed.

Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions

suivantes: (Pour utilisation de dispositif module)

1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre

l'antenne et les utilisateurs, et

2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.

Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur

l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours

responsable des essais sur son produit final pour toutes exigences de conformité

supplémentaires requis pour ce module installé.

IMPORTANT NOTE:

In the event that these conditions can not be met (for example certain laptop configurations

or co-location with another transmitter), then the Canada authorization is no longer

considered valid and the IC ID can not be used on the final product. In these

circumstances, the OEM integrator will be responsible for re-evaluating the end product

(including the transmitter) and obtaining a separate Canada authorization.

NOTE IMPORTANTE:

Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines

configurations d'ordinateur portable ou de certaines co-localisation avec un autre

émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut

pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé

de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation distincte

au Canada.

End Product Labeling

This transmitter module is authorized only for use in device where the antenna may be

installed such that 20 cm may be maintained between the antenna and users. The final

end product must be labeled in a visible area with the following: “Contains IC:

2878D-J20H086”.

Plaque signalétique du produit final

Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où

l'antenne peut être installée de telle sorte qu'une distance de 20cm peut être maintenue

entre l'antenne et les utilisateurs. Le produit final doit être étiqueté dans un endroit visible

avec l'inscription suivante: "Contient des IC: 2878D- J20H086".

Manual Information To the End User

The OEM integrator has to be aware not to provide information to the end user regarding

how to install or remove this RF module in the user’s manual of the end product which

integrates this module.

The end user manual shall include all required regulatory information/warning as show in

this manual.

Manuel d'information à l'utilisateur final

L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final

quant à la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur

du produit final qui intègre ce module.

Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises

et avertissements comme indiqué dans ce manuel.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

This device is intended only for OEM integrators under the following conditions:

1) The antenna must be installed such that 20 cm is maintained between the antenna

and users, and 2) The transmitter module may not be co-located with any other transmitter

or antenna.

As long as 2 conditions above are met, further transmitter test will not be required.

However, the OEM integrator is still responsible for testing their end-product for any

additional compliance requirements required with this module installed

IMPORTANT NOTE: In the event that these conditions can not be met (for example

certain laptop configurations or co-location with another transmitter), then the FCC

authorization is no longer considered valid and the FCC ID can not be used on the

final product. In these circumstances, the OEM integrator will be responsible for

reevaluating

the end product (including the transmitter) and obtaining a separate FCC

authorization. End Product Labeling

This transmitter module is authorized only for use in device where the antenna may be

installed such that 20 cm may be maintained between the antenna and users. The

final end product must be labeled in a visible area with the following: “Contains FCC

ID: MCLJ20H086”. The grantee's FCC ID can be used only when all FCC compliance

requirements are met.

Manual Information To the End User

The OEM integrator has to be aware not to provide information to the end user

regarding how to install or remove this RF module in the user’s manual of the end

product which integrates this module.

The end user manual shall include all required regulatory information/warning as show

in this manual.

For Taiwan 警語： (電信管制射頻器材使用)

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻

率、加大功率或變更原設計之特性及功能。

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立

即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線

電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之

干擾。

Note: 1. 本模組於取得認證後將依規定於模組本體標示審驗合格標籤 2. 系統廠商應於平

台上標示「本產品內含射頻模組: XXXyyyLPDzzzz-x (NCC ID) 」字樣

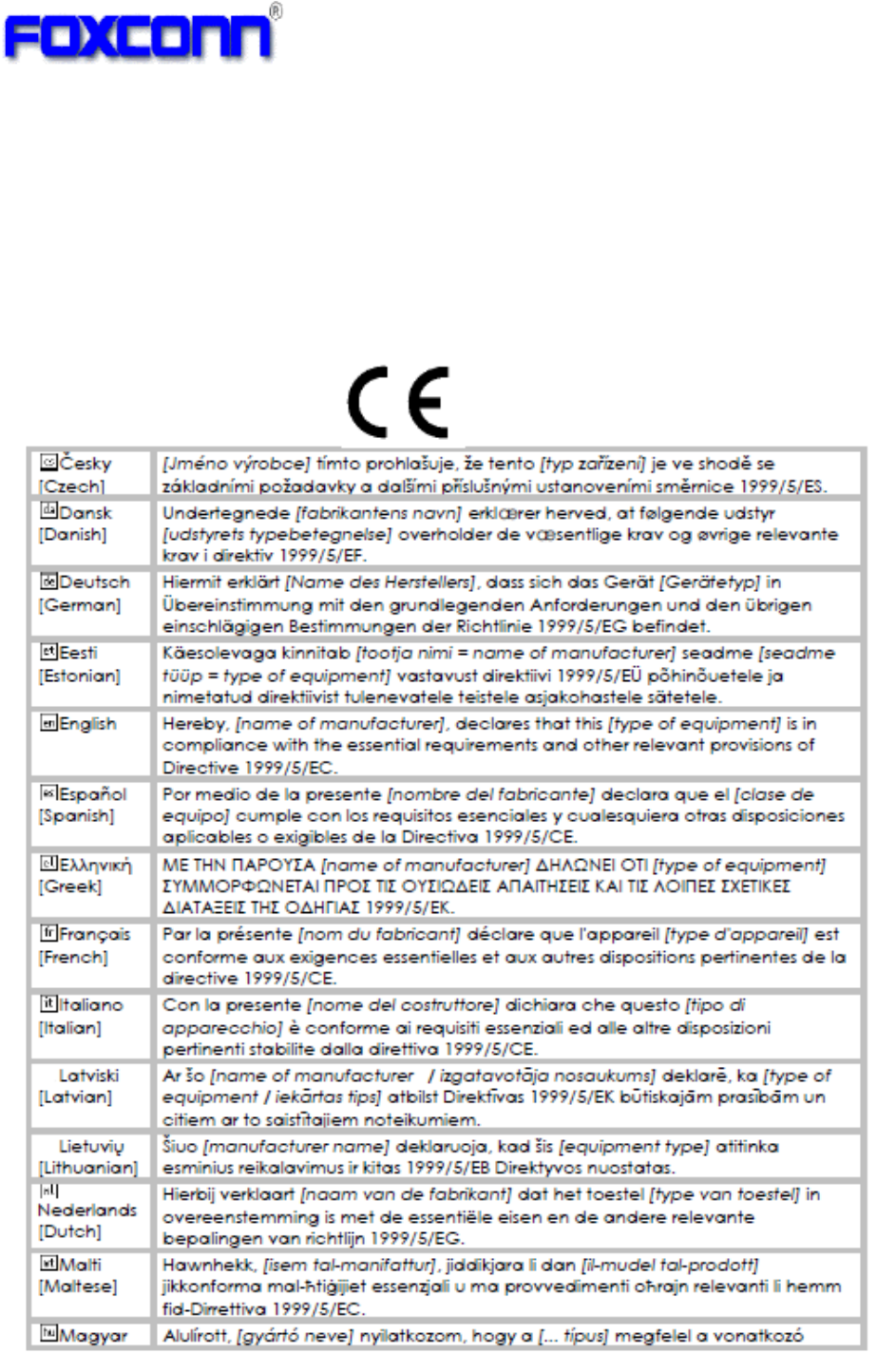

Europe – EU Declaration of Conformity

ThisdevicecomplieswiththeessentialrequirementsoftheR&TTEDirective1999/5/EC.Thefollowingtestmethodshavebeen

appliedinordertoprovepresumptionofconformitywiththeessentialrequirementsoftheR&TTEDirective1999/5/EC:

‐EN60950‐1:2006+A11:2009+A1:2010+A12:2011

SafetyofInformationTechnologyEquipment

‐EN62311:2008

Assessmentofelectronicandelectricalequipmentrelatedtohumanexposurerestrictionsforelectromagneticfields(0

Hz‐300GHz)

(IEC62311:2007(Modified))

EN300328V1.9.1

‐ElectromagneticcompatibilityandRadiospectrumMatters(ERM);WidebandTransmissionsystems;Datatransmission

equipmentoperatinginthe2,4GHzISMbandandusingspreadspectrummodulationtechniques;HarmonizedENcovering

essentialrequirementsunderarticle3.2oftheR&TTEDirective

EN301489‐1V1.8.1:2008

ElectromagneticcompatibilityandRadioSpectrumMatters(ERM);ElectroMagneticCompatibility(EMC)standardforradio

equipmentandservices;Part1:Commontechnicalrequirements

EN301489‐17V2.1.12009

ElectromagneticcompatibilityandRadiospectrumMatters(ERM);ElectroMagneticCompatibility(EMC)standardforradio

equipmentandservices;Part17:Specificconditionsfor2,4GHzwidebandtransmissionsystemsand5GHzhighperformance

RLANequipment

NationalAuthoritieswereinformedaccordingtoArticle6.4ofFrequencyNotification.

SpecialRequirementsareconsidered.TheproductislabeledwithCEMarking.

HON HAI PRECISION IND J20H086 WiFi/BT Module User Manual J20H086 01 User Manual

HON HAI Precision Ind. Co., Ltd. WiFi/BT Module J20H086 01 User Manual

User Manual.pdf

Navigation menu

Namespaces

Views

Navigation
