Project Name WLAN module

Approval Sheet Rev. 1.0

Foxconn Part No. J20H090

Prepared by Reviewed by Approved by

Clon Liu Eddie Huang Choro Chuang

Ambit Microsystems (Shanghai) LTD.

No 1925, Nanle Road Songjiang Export

Processing Zone Shanghai, China

Tel :86-21-61206688 Ext:22165

FAX:86-21-57749230

User Manual of J20H090

CONTENTS

1 REVISION HISTORY ..................................................................... 3

2 MANUFACTURING INFORMATION ........................................................ 4

3 PRODUCT OVERVIEW ................................................................... 5

3.1 APPLICATION SCOPE .................................................................... 5

4 MODULE HARDWARE OVERVIEW ........................................................ 6

4.1 BLOCK DIAGRAM ....................................................................... 6

4.2 FEATURES ............................................................................ 6

4.3 INTERFACE AND CONNECTOR ............................................................. 6

5 ELECTRICAL SPECIFICATION ............................................................ 8

5.1 ABSOLUTE MAXIMUM RATING ............................................................. 8

5.2 RECOMMENDED OPERATING RATING ....................................................... 8

5.3 DC CHARACTERISTICS .................................................................. 8

5.4 ESD INFORMATION ..................................................................... 8

5.5 ENVIRONMENT STORAGE CONDITION ....................................................... 8

6 RF SPECIFICATION ..................................................................... 9

6.1 IEEE802.11B ......................................................................... 9

6.2 IEEE802.11G ........................................................................ 10

6.3 802.11N HT20 ....................................................................... 11

6.4 ANTENNA ELECTRICAL SPECIFICATION..................................................... 11

7 MECHANICAL SPECIFICATIONS......................................................... 12

7.1 SHIELDING COVER DIMENSION ........................................................... 12

7.2 PCB ASSEMBLY DIMENSION ............................................................. 13

7.3 MOUNT POSITION OF MATERIALS ......................................................... 13

1 Revision History

Date Document revision Change Description

2015/06/30 1.0

Initial release

2 Manufacturing Information

Manufacture Country:

Made in China

Manufacturer:

Ambit Microsystems (Shanghai) LTD.

Manufacture Address:

No 1925, Nanle Road Songjiang Export Processing Zone Shanghai, China

3 Product Overview

The J20H090 802.11 b/g/n module provides wireless modem functionality utilizing direct

sequence spread spectrum and OFDM/CCK technology. This module is based on MTK

MT7601U solution .It fully complies with IEEE 802.11n and IEEE 802.11 b/g standards,

offering feature-rich wireless connectivity at high standards, and delivering reliable,

cost-effective throughput from an extended distance. Optimized RF architecture and

baseband algorithms provide superb performance and low power consumption. Intelligent

MAC design deploys a high efficient DMA engine and hardware data processing

accelerators which offloads the host processor.

3.1 Application scope

The wireless LAN is compliant to IEEE 802.11b and IEEE 802.11g and IEEE 802.11n

standard. The data rate of 802.11b is up to 11Mbps and fallback rates of 5.5, 2, 1Mbps.

The data rate of 802.11g is up to 54Mbps and fallback rates of 48,36,24,18,12,9, 6Mbps.

The data rate of 802.11n HT20 is up to 65Mbps and fallback rates of 58.5, 52, 39, 26, 19.5,

13, 6.5Mbps;

4 Module Hardware Overview

4.1 Block Diagram

The general HW architecture is shown below Figure:

Module Block Diagram

4.2 Features

♦ IEEE802.11b/g/n (1X1) based on MTK MT7601U solution.

♦ USB 2.0 Interface, High and Full Speeds supported.

♦ Module is powered by the host with a 5.0V +/- 5% supply.

♦ External PCB printed antennas.

♦ 2 layers through hole PCB design with halogen free FR4 material

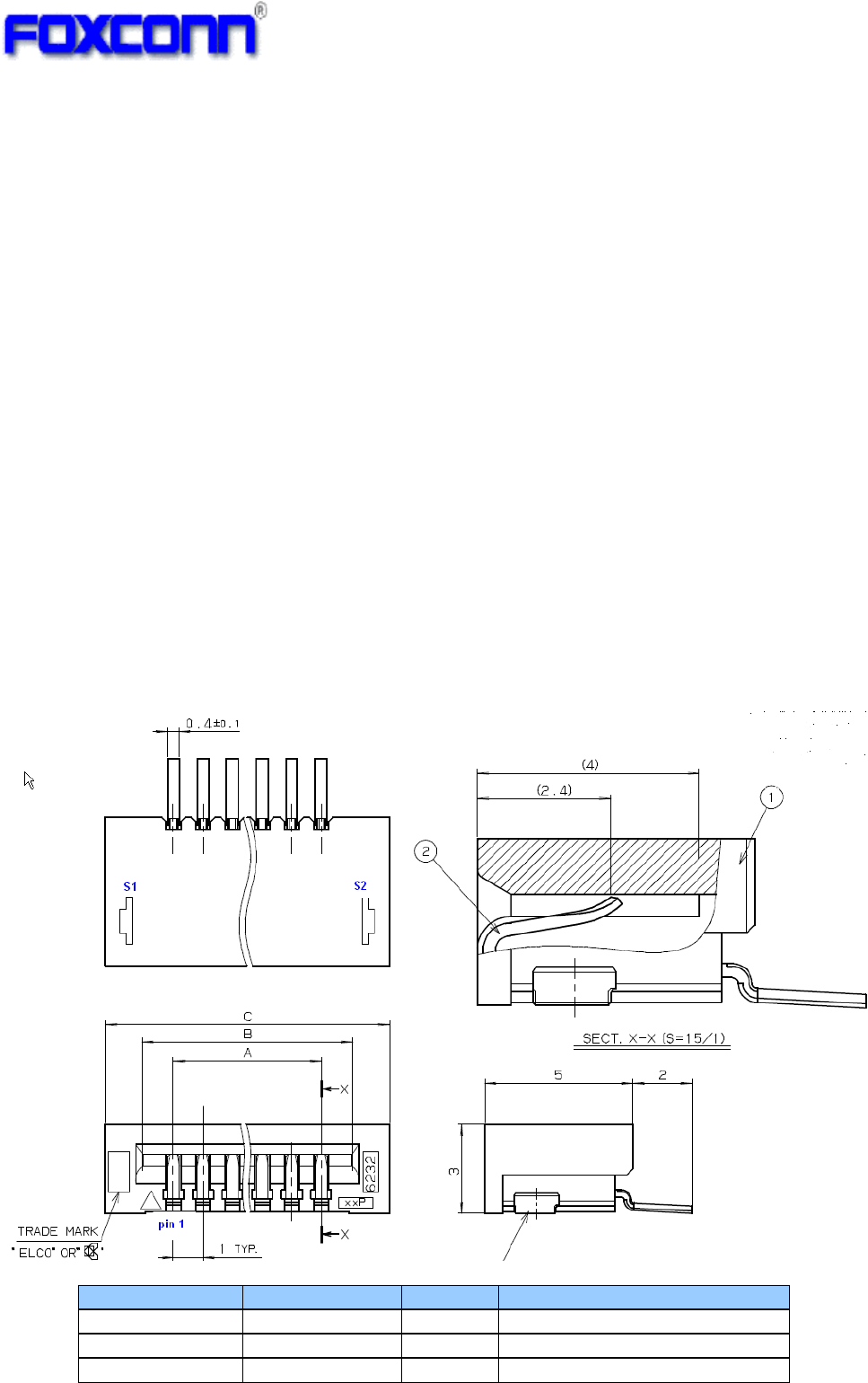

4.3 Interface and Connector

♦ Pin definition:

♦ Vendor: Kyocera Elco

♦ Vendor P/N: 046232105102800+

Pin Number Symbol Name Status Pin definition

1 GND Ground

2 DP I/O USB positive data

3 DM I/O USB negative data

4 WoW O Wake on WLAN

5 UV+ P USB +5V power input

5 Electrical Specification

5.1 Absolute maximum rating

Element Symbol Min Typ Max Unit

DC supply voltage UV+ 5.0

6.5 (V)

5.2 Recommended operating rating

Element Symbol Min Typ Max Unit

DC supply voltage UV+ 4.5 5.0

5.5 (V)

5.3 DC Characteristics

Symbol Parameter Min Typ. Max Unit

UV+

Supply voltage 4.5 5.0 5.5 (V)

Tx Current(1M/15dBm) (mA)

Tx Current(11M/15dBm) 110 140 170 (mA)

Tx Current(6M/15dBm) (mA)

Tx Current(54M/15dBm) (mA)

Tx Current(MCS0/15Bm/HT20) 120 150 180 (mA)

Tx Current(MCS7/15dBm/HT20) 60 90 120 (mA)

Rx Current 10 30 50 (mA)

5.4 ESD Information

Mode Level Unit

HBM +/-1000 V

5.5 Environment Storage Condition

Environment condition

Temperature Operating Temperature: -10 deg.C ~70 deg.C

Storage Temperature: -40 deg.C ~85 deg.C

Humidity Operating Humidity: 20% ~90%

Storage Humidity: 20% ~90%

6 RF Specification

6.1 IEEE802.11b

Items Contents

Specification IEEE802.11b

Mode DSSS / CCK

Channel CH1 to CH13

Data rate 1, 2, 5.5, 11Mbps

TX Characteristics Min. Typ. Max. Unit

1. Power Levels (Calibrated)

1) Target Power@1Mbps 26 26 26 dBm

2) Target Power@2Mbps

26 26 26 dBm

3) Target Power@5.5Mbps

26 26 26 dBm

4) Target Power@11Mbps

26 26 26 dBm

2. Spectrum Mask @15dBm

1) fc-33MHz ＜ f ＜ fc-22MHz - - -50 dBr

2) fc-22MHz ＜ f ＜ fc-11MHz - - -30 dBr

3) fc+11MHz ＜ f ＜ fc+22MHz - - -30 dBr

4) fc+22MHz ＜ f ＜ fc+33MHz - - -50 dBr

3. Frequency Error -10 - +10 ppm

4 Modulation Accuracy(EVM)@15dBm

1) 1Mbps - -10 dB

2) 2Mbps - -10 dB

3) 5.5Mbps - -10 dB

4) 11Mbps - -10 dB

RX Characteristics Min. Typ. Max. Unit

5 Minimum Input Level Sensitivity

1) 1Mbps (FER≦8%) - -91 - dBm

2) 2Mbps (FER≦8%) - -89 - dBm

3) 5.5Mbps (FER≦8%) - -87 - dBm

4) 11Mbps (FER≦8%) - -85 - dBm

6 Maximum Input Level (FER≦8%) -10 -5 - dBm

6.2 IEEE802.11g

Items Contents

Specification IEEE802.11g

Mode OFDM

Channel CH1 to CH13

Data rate 6, 9, 12, 18, 24, 36, 48, 54Mbps

TX Characteristics Min. Typ. Max. Unit

1. Power Levels (Calibrated)

1) Target Power@6Mbps

26 26 26 dBm

2) Target Power@9Mbps

26 26 26 dBm

3) Target Power@12Mbps

26 26 26 dBm

4) Target Power@18Mbps

26 26 26 dBm

5) Target Power@24Mbps

26 26 26 dBm

6) Target Power@36Mbps

26 26 26 dBm

7) Target Power@48Mbps

26 26 26 dBm

8) Target Power@54Mbps

26 26 26 dBm

2. Spectrum Mask @15dBm

1) at fc +/- 11MHz - - -20 dBr

2) at fc +/- 20MHz - - -28 dBr

3) at fc > +/-30MHz - - -40 dBr

3 Modulation Accuracy(EVM)@15dBm

1) 6Mbps - - -5 dB

2) 9Mbps - - -8 dB

3) 12Mbps - - -10 dB

4) 18Mbps - - -13 dB

5) 24Mbps - - -16 dB

6) 36Mbps - - -19 dB

7) 48Mbps - - -22 dB

8) 54Mbps - -28 -25 dB

4 Frequency Error -10 - +10 ppm

RX Characteristics Min. Typ. Max. Unit

5 Minimum Input Level Sensitivity

1) 6Mbps (PER <10%) - -83 - dBm

2) 9Mbps (PER < 10%) - -81 - dBm

3) 12Mbps (PER < 10%) - -79 - dBm

4) 18Mbps (PER < 10%) - -77 - dBm

5) 24Mbps (PER < 10%) - -75 - dBm

6) 36Mbps (PER < 10%) - -73 - dBm

7) 48Mbps (PER < 10%) - -71 - dBm

8) 54Mbps (PER < 10%) - -69 - dBm

6 Maximum Input Level (PER < 10%) -20 -11 - dBm

6.3 802.11n HT20

6.4 Antenna Electrical Specification

Parameter Value Units

Operating frequency range 2.4 ~ 2.4835 GHz

Antenna gain (max) 2.98 dBi (Main)

3.15 dBi (Aux)

Items Contents

Specification IEEE802.11n HT20

Mode OFDM

Channel CH1 to CH10

Data rate (MCS index) MCS0/1/2/3/4/5/6/7

TX Characteristics Min. Typ. Max. Unit

1. Power Levels (Calibrated)

1) Target Power@MCS0

26 26 26 dBm

2) Target Power@ MCS1

26 26 26 dBm

3) Target Power@ MCS2

26 26 26 dBm

4) Target Power@ MCS3

26 26 26 dBm

5) Target Power@ MCS4

26 26 26 dBm

6) Target Power@ MCS5

26 26 26 dBm

7) Target Power@ MCS6

26 26 26 dBm

8) Target Power@ MCS7

26 26 26 dBm

2. Spectrum Mask @15dBm

1) at fc +/- 11MHz - - -20 dBr

2) at fc +/- 20MHz - - -28 dBr

3) at fc > +/-30MHz - - -45 dBr

3. Modulation Accuracy(EVM)@15dBm

1) MCS0 - - -5 dB

2) MCS1 - - -10 dB

3) MCS2 - - -13 dB

4) MCS3 - - -16 dB

5) MCS4 - - -19 dB

6) MCS5 - - -22 dB

7) MCS6 - - -25 dB

8) MCS7 - - -28 dB

4. Frequency Error -10 - +10 ppm

RX Characteristics Min. Typ. Max. Unit

5. Minimum Input Level Sensitivity

1) MCS0 (PER < 10%) - -81 - dBm

2) MCS1 (PER < 10%) - -79 - dBm

3) MCS2 (PER < 10%) - -77 - dBm

4) MCS3 (PER < 10%) - -75 - dBm

5) MCS4 (PER < 10%) - -73 - dBm

6) MCS5 (PER < 10%) - -71 - dBm

7) MCS6 (PER < 10%) - -69 - dBm

8) MCS7 (PER < 10%) - -67 - dBm

6. Maximum Input Level (PER < 10%) -20 -10 - dBm

7 Mechanical Specifications

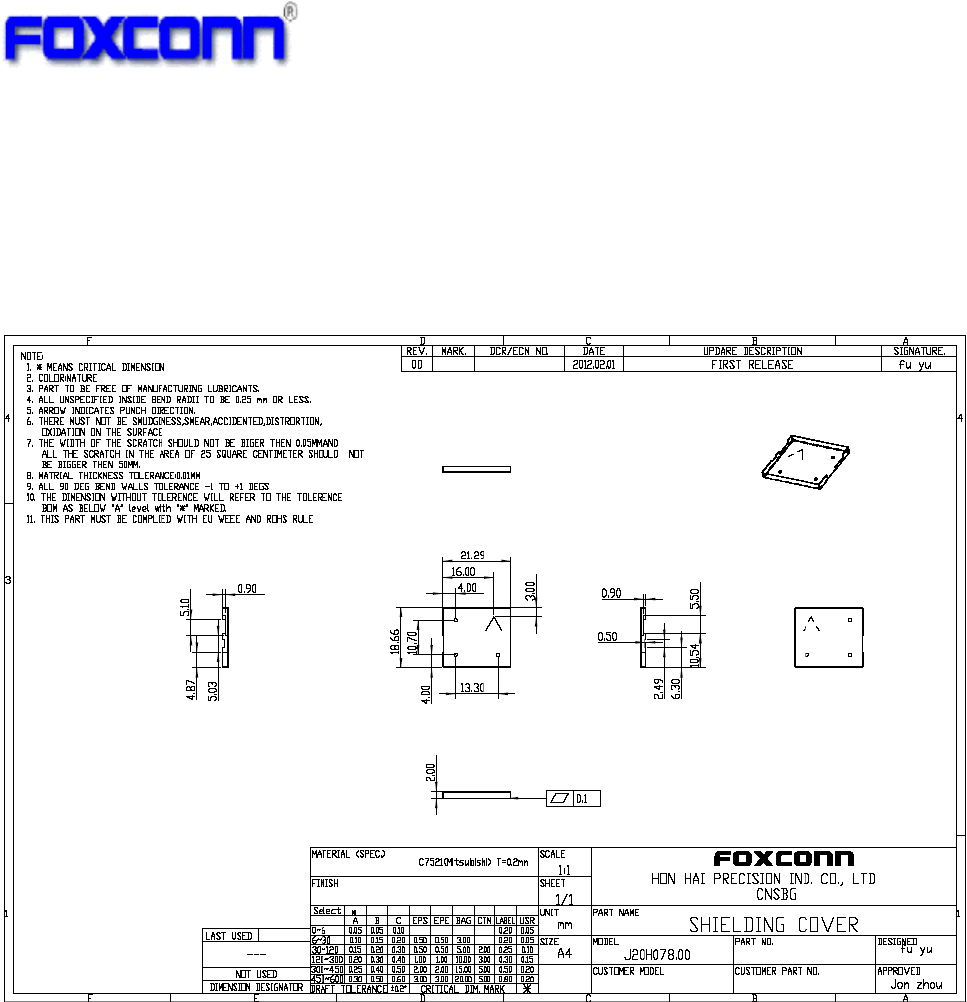

7.1 Shielding Cover Dimension

Dimension (LxWxH): 21.29mm x 18.66mm x 2.0mm

Thickness: 0.2mm

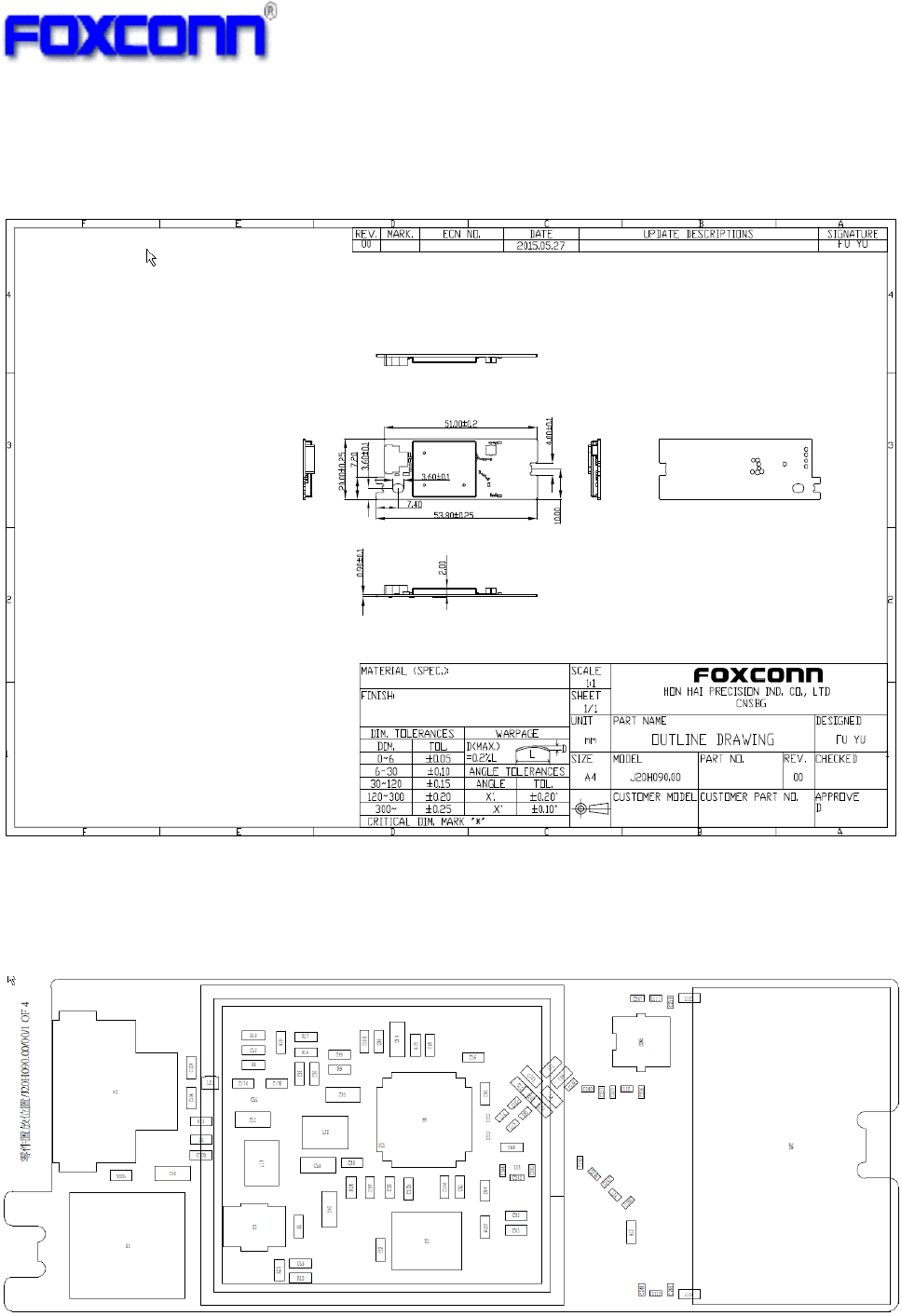

7.2 PCB Assembly Dimension

Dimension (W x Lx H ): 51.8mmx20mmx0.9mm

PCB: 2 layer HF-FR4 design

7.3 Mount Position of Materials

All materials should be populated on a side.

Component Placement On Top Layer

Industry Canada statement:

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause

undesired operation.

Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux

appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions

suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce

dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de

provoquer un fonctionnement indésirable.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance

20cm between the radiator & your body.

Déclaration d'exposition aux radiations:

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour

un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un

minimum de 20 cm de distance entre la source de rayonnement et votre corps.

This device is intended only for OEM integrators under the following conditions:

(For module device use)

1) The antenna must be installed such that 20 cm is maintained between the antenna and

users, and

2) The transmitter module may not be co-located with any other transmitter or antenna.

As long as 2 conditions above are met, further transmitter test will not be required.

However, the OEM integrator is still responsible for testing their end-product for any

additional compliance requirements required with this module installed.

Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions

suivantes: (Pour utilisation de dispositif module)

1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre

l'antenne et les utilisateurs, et

2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.

Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur

l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours

responsable des essais sur son produit final pour toutes exigences de conformité

supplémentaires requis pour ce module installé.

IMPORTANT NOTE:

In the event that these conditions can not be met (for example certain laptop configurations

or co-location with another transmitter), then the Canada authorization is no longer

considered valid and the IC ID can not be used on the final product. In these

circumstances, the OEM integrator will be responsible for re-evaluating the end product

(including the transmitter) and obtaining a separate Canada authorization.

NOTE IMPORTANTE:

Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines

configurations d'ordinateur portable ou de certaines co-localisation avec un autre

émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut

pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé

de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation distincte

au Canada.

End Product Labeling

This transmitter module is authorized only for use in device where the antenna may be

installed such that 20 cm may be maintained between the antenna and users. The final

end product must be labeled in a visible area with the following: “Contains IC:

2878DJ20H064”.

Plaque signalétique du produit final

Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où

l'antenne peut être installée de telle sorte qu'une distance de 20cm peut être maintenue

entre l'antenne et les utilisateurs. Le produit final doit être étiqueté dans un endroit visible

avec l'inscription suivante: "Contient des IC: 2878D- J20H090".

Manual Information To the End User

The OEM integrator has to be aware not to provide information to the end user regarding

how to install or remove this RF module in the user’s manual of the end product which

integrates this module.

The end user manual shall include all required regulatory information/warning as show in

this manual.

Manuel d'information à l'utilisateur final

L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final

quant à la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur

du produit final qui intègre ce module.

Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises

et avertissements comme indiqué dans ce manuel.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

This device is intended only for OEM integrators under the following conditions:

1) The antenna must be installed such that 20 cm is maintained between the antenna

and users, and 2) The transmitter module may not be co-located with any other transmitter

or antenna.

As long as 2 conditions above are met, further transmitter test will not be required.

However, the OEM integrator is still responsible for testing their end-product for any

additional compliance requirements required with this module installed

IMPORTANT NOTE: In the event that these conditions can not be met (for example

certain laptop configurations or co-location with another transmitter), then the FCC

authorization is no longer considered valid and the FCC ID can not be used on the

final product. In these circumstances, the OEM integrator will be responsible for

reevaluating

the end product (including the transmitter) and obtaining a separate FCC

authorization. End Product Labeling

This transmitter module is authorized only for use in device where the antenna may be

installed such that 20 cm may be maintained between the antenna and users. The

final end product must be labeled in a visible area with the following: “Contains FCC

ID: MCLJ20H090”. The grantee's FCC ID can be used only when all FCC compliance

requirements are met.

Manual Information To the End User

The OEM integrator has to be aware not to provide information to the end user

regarding how to install or remove this RF module in the user’s manual of the end

product which integrates this module.

The end user manual shall include all required regulatory information/warning as show

in this manual.

For Taiwan 警語： (電信管制射頻器材使用)

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻

率、加大功率或變更原設計之特性及功能。

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立

即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線

電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之

干擾。

Note: 1. 本模組於取得認證後將依規定於模組本體標示審驗合格標籤 2. 系統廠商應於平

台上標示「本產品內含射頻模組: XXXyyyLPDzzzz-x (NCC ID) 」字樣

Europe – EU Declaration of Conformity

ThisdevicecomplieswiththeessentialrequirementsoftheR&TTEDirective1999/5/EC.Thefollowingtestmethodshavebeen

appliedinordertoprovepresumptionofconformitywiththeessentialrequirementsoftheR&TTEDirective1999/5/EC:

‐EN60950‐1:2006+A11:2009+A1:2010+A12:2011

SafetyofInformationTechnologyEquipment

‐EN62311:2008

Assessmentofelectronicandelectricalequipmentrelatedtohumanexposurerestrictionsforelectromagneticfields(0

Hz‐300GHz)

(IEC62311:2007(Modified))

EN300328V1.7.1:2006

‐ElectromagneticcompatibilityandRadiospectrumMatters(ERM);WidebandTransmissionsystems;Datatransmission

equipmentoperatinginthe2,4GHzISMbandandusingspreadspectrummodulationtechniques;HarmonizedENcovering

essentialrequirementsunderarticle3.2oftheR&TTEDirective

EN301489‐1V1.8.1:2008

ElectromagneticcompatibilityandRadioSpectrumMatters(ERM);ElectroMagneticCompatibility(EMC)standardforradio

equipmentandservices;Part1:Commontechnicalrequirements

EN301489‐17V2.1.12009

ElectromagneticcompatibilityandRadiospectrumMatters(ERM);ElectroMagneticCompatibility(EMC)standardforradio

equipmentandservices;Part17:Specificconditionsfor2,4GHzwidebandtransmissionsystemsand5GHzhighperformance

RLANequipment

NationalAuthoritieswereinformedaccordingtoArticle6.4ofFrequencyNotification.

SpecialRequirementsareconsidered.TheproductislabeledwithCEMarking.

HON HAI PRECISION IND J20H090 WLAN module User Manual J20H090

HON HAI Precision Ind. Co., Ltd. WLAN module J20H090

User Manual.pdf

Navigation menu

Namespaces

Views

Navigation
